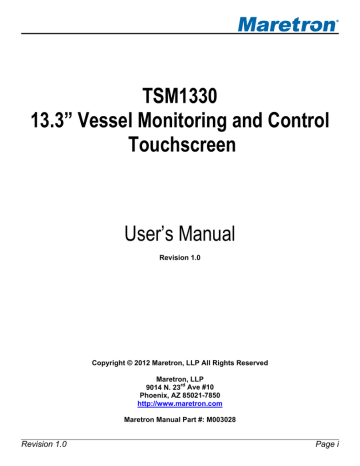

TSM1330
13.3” Vessel Monitoring and Control
Touchscreen
User’s Manual
Revision 1.0
Copyright © 2012 Maretron, LLP All Rights Reserved
Maretron, LLP
9014 N. 23 rd
Ave #10
Phoenix, AZ 85021-7850 http://www.maretron.com
Maretron Manual Part #: M003028
Revision 1.0 Page i
TSM1330 User’s Manual
Revision History
Rev. Description
Page ii Revision 1.0
Table of Contents
or IPG100 Connection Information ........................................... 14
Revision 1.0 Page iii
TSM1330 User’s Manual
Table of Figures
Figure 1 – TSM1330 Network Diagram ................................................................................................. 1
Figure 8 – Attaching Power Cables to Connector ............................................................................... 10
Page iv Revision 1.0
1 General
1.1 Introduction
Congratulations on your purchase of the Maretron TSM1330 Vessel Monitoring and Control
Touchscreen. Maretron has designed and built your display to the highest standards for years of dependable and accurate service.
The TSM1330 is an 13.3” dedicated touchscreen that comes preloaded with Maretron’s N2KView
® vessel monitoring and control software. The N2KView
®
software allows you to configure as many favorite screens as you want with exactly the information you want to see. The TSM1330 provides an extremely simple touch interface for monitoring and controlling critical systems from anywhere on the vessel.
The TSM1330 is ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the TSM1330 only dissipates 20 watts, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail. The
TSM1330 can be mounted outside given the high bright screen and waterproof front.
As an alternative to controlling the TSM1330 through the touch screen, the TSM1330 includes two
USB ports for connecting keyboards, mice, or trackballs. The TSM1330 also has an Ethernet port for communicating with an NMEA 2000
®
network through Maretron’s Internet Protocol Gateway
(IPG100). Although the TSM1330 comes pre-installed with the N2KView
®
software, a separately purchased license plugged into the IPG100 is required (see IPG100 page for more details). The
Ethernet port is also used for connecting Internet Protocol (IP) cameras for viewing within the
N2KView
®
software.
Revision 1.0
TSM1330
Optional
USB Keyboard
Or Mouse
Ethernet
Maretron
IPG100
NMEA 2000
Network
Engine
Monitor
Battery
Monitor
Electrical
Panel
Tank
Monitor
Figure 1 – TSM1330 Network Diagram
Page 1
TSM1330 User’s Manual
The Maretron TSM1330 is designed to operate within the harsh demands of the marine environment.
However, no piece of marine electronic equipment can function properly unless installed, configured, and maintained in the correct manner. Please read carefully and follow these instructions for installation, configuration, and usage of the Maretron TSM1330 in order to ensure optimal performance.
1.2 Firmware Revision
This manual corresponds to the TSM133 0 running N2KView
®
Version 3.5.0.
1.3 TSM1330 Features
The Maretron TSM1330 has the followin g features:
• 13.3” TFT LCD Panel, LED Backlit
• Widescreen Aspect Ratio 16:9
• 1280 x 800 Pixels
• 400 nits Brightness
(Optically Bonded)
• Solid State Disk Drive
• Fanless Cooling System
• Flush or VESA Mounting
1.4 Quick Install
Installing the Maretron TSM133 0 display involves the following five steps. Please refer to the individual sections for additional details.
• Unpacking the Box (Section 2.1)
• Choosing a Mounting Location (S ection 2.2)
• Mounting the TSM1330 (Section 2.3)
• Connecting the TSM1330 (Section 2.4
)
• Configuring the TSM1330 (Section 2.5)
Page 2 Revision 1.0
2 Installation
2.1 Unpacking the Box
When unpacking the box containing the Maretron TSM1330, you should find the following items:
• 1 – TSM1330 13.3” Vessel Monitoring and Control Touchscreen
• 1 – TSM1330 User’s Manual
• 1 – N2KView
®
Documentation CD-ROM
• 1 – Warranty Registration Card
If any of these items are missing or damaged, please contact Maretron.
NOTE
To prevent damage to chassis corners and/or breaking front glass, please review the illustrations below before handling the TSM1330.
2.2 Choosing a Mounting Location
The TSM1330 front panel is splash proof (IEC IP66 rating – protected against the effects of powerful water jets), while the rear of the TSM1330 is drip proof (IEC IP22 rating – protected against the effects of dripping water when tilted up to 15°). The TSM1330 may be mounted either in an indoor or outdoor location.
Revision 1.0 Page 3
TSM1330 User’s Manual
Adequate ventilation is a necessary prerequisite for the life of the product. The air inlet and outlet openings must definitely be kept clear; coverings which restrict ventilation are not permissible.
Generally, do not install the unit in a horizontal position (laying down), as this will cause heat to build up inside the unit which will damage the LCD Panel. To prevent this problem, we recommend installing the unit in a vertical position (±30 degrees) to improve the airflow through the unit.
To further improve the cooling of the unit, we recommend installing Cooling Fans underneath blowing upwards into the unit air inlet. This may be required in high temperature applications and also when there is reason to expect temperature problems due to non-optimal way of mounting.
Exposure to extreme direct sunlight can cause a considerable increase in the temperature of the unit, and might under certain circumstances lead to overtemperature. This point should already be taken into consideration when the bridge equipment is being planned (sun shades, distance from the windows, ventilation, etc.).
Space necessary for ventilation, for cable inlets, for the operating procedures and for maintenance, must be provided.
Proper strain relieve should be installed on cables attached to the TSM1330 so that cable breaks will not occur, e.g. during service work.
Do not paint the product. The surface treatment influences on the excess heat transfer. Painting, labels or other surface treatments that differ from the factory default, might cause overheating.
Expose to heavy vibration and acoustic noise might under certain circumstances affect functionality and expected lifetime. This must be considered during system assembly and installation. Mounting position must carefully be selected to avoid any exposure of amplified vibration.
2.3 Mounting the TSM1330
The TSM1330 has two mounting options, which include: mounting
• Arm mounting (requires purchase of a VESA 75mm mounting arm)
2.3.1 Mounting Considerations
The useful life of the components of all Electronics Units generally decreases with increasing ambient temperature; it is therefore advisable to install such units in air-conditioned rooms. If there are no such facilities, these rooms must at least be dry, adequately ventilated and kept at a suitable temperature in order to prevent the formation of condensation inside the display unit.
Since the TSM1330 is fanless, cooling takes place via the surface of the casing. The cooling must not be impaired by partial covering of the unit or by installation of the unit in a confined cabinet.
In the area of the wheel house, the distance of each electronics unit from the magnetic standard compass or the magnetic steering compass must not be less than the permitted magnetic protection
Page 4 Revision 1.0
distance. This distance is measured from the centre of the magnetic system of the compass to the nearest point on the corresponding unit concerned.
Units which are to be used on the bridge wing must be installed inside the “wing control console” protected against the weather. In order to avoid misting of the viewing screen, a 25 ... 50 W consoleheating (power depending on the volume) is recommended.
When selecting the site of a display unit, the maximum cable lengths have to be considered.
When a product is being installed, the surface base or bulkhead must be checked to ensure that it is flat in order to avoid twisting of the unit when the fixing screws are tightened, because such twisting would impair mechanical functions. Any unevenness should be compensated for by means of spacing-washers.
The grounding screws of the units must be connected to the body of the ship (ground); the wire used should have a cross sectional area of at least 6 mm2.
Transportation damage, even if apparently insignificant at first glance, must immediately be examined and be reported to the freight carrier. The moment of setting-to-work of the equipment is too late, not only for reporting the damage but also for the supply of replacements.
The classification is only valid for approved mounting brackets provided by Maretron. The unit shall be mounted stand-alone without any devices or loose parts placed at or nearby the unit. Any other type of mounting might require test and re-classification.
2.3.2 Ergonomics
Adjust the unit height so that the top of the screen is at or below eye level. Your eyes should look slightly downwards when viewing the middle of the screen.
Adjust screen inclination to remain gaze angle to the centre of the screen approximately perpendicular to the line of gaze.
When products are to be operated both from a sitting position and from a standing position, a screen inclination of about 30° to 40° (from a vertical plane) has turned out to be favorable.
The brightness of displays is limited. Sunlight passing directly through the bridge windows - or its reflection – which falls upon the screen workplaces must be reduced by suitable means (negatively inclined window surfaces, venetian blinds, distance from the windows, dark coloring of the deckhead).
These units are equipped with optical enhanced technology to reduce reflections and are viewable in direct sun light, but as a general rule the units at the bridge wing area is recommended to be installed or mounted by suitable alignment or bulkhead /deckhead mounting in such a way that reflections of light from the front pane of the display are not directed into the observer’s viewing direction.
The use of ordinary commercial filter plates or filter films is not permitted for items of equipment that require approval (by optical effects, “aids” of that kind can suppress small radar targets, for example).
Revision 1.0 Page 5
TSM1330 User’s Manual
Figure 2 – TSM1330 Cutout Dimensions (units in mm [inches])
Step 1: Select the position on the panel or wall to mount the TSM1330.
Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions of the
TSM1330. Take care that the panel section that is cut out is smaller than the overall size of the front panel of the TSM1330 but just large enough for the rear panel of the TSM1330 to fit
through, according to the dimensions in Figure 2 above.
Step 3: Drill four 6mm holes for the M5 studs protruding from the four corners of the front panel
according to the dimensions in Figure 2 above.
Step 4: Slide the TSM1330 through the hole until the frame is flush against the panel.
Step 5: From behind the panel, screw the four supplied mounting nuts onto the M5 studs protruding from the rear of the frame, and tighten until the display is firmly secured to the panel.
2.3.3 Arm Mounting
The TSM1330 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75mm interface pad. To mount the TSM1330 on an arm, please follow the steps below.
Page 6 Revision 1.0
NOTE
When purchasing a mounting arm please ensure that it is VESA compliant and that the arm has a 75 mm interface pad. If it is not VESA compliant, it cannot be used to support the TSM1330.
Step 1: Please correctly mount the arm onto the base surface. To do this, refer to the installation documentation that came with the mounting arm.
Step 2: Once the mounting arm has been firmly attached to the base surface, lift the TSM1330 onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the TSM1330.
The arm mount retention screw holes are shown in Figure 3.
Step 4: Secure the TSM1330 to the interface pad by inserting the retention screws through the bottom of the mounting arm interface pad and into the TSM1330.
Revision 1.0
Figure 3 – TSM1330 VESA Arm Mounting Retention Screw Holes
Page 7
TSM1330 User’s Manual
2.4 Connecting the TSM1330
All I/O interface connections of the TSM1330 are found on the bottom panel. The I/O interface panel located on the bottom of the TSM1330 has the following I/O interface connectors:
• 2 x 24V DC Power input connector
• 1 x RJ-45 Gigabit Ethernet LAN port
• 2 x USB 2.0 connectors
• 1 x Grounding Screw
The external I/O interface connector panel is shown in Figure 4.
Figure 4 – TSM1330 Interface Connector Panel
2.4.1 LAN Connection
There is one external RJ-45 LAN connector (a second RJ-45 connector is plugged at the factory and should not be used). The RJ-45 connector enables connection to an external network. To connect a
LAN cable with an RJ-45 connector, please follow the instructions below.
Step 1: Locate an RJ-45 connector on the bottom panel of the TSM1330.
Step 2: Align the connector. Align the RJ-45 connector on the LAN cable with the RJ-45 connector on
the bottom panel of the TSM1330. See Figure 5.
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the onboard RJ-45 connector.
Page 8 Revision 1.0
Figure 5 – LAN Connection
2.4.2 USB Device Connection
There are two external USB 2.0 connectors. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below.
Step 1:
Locate the USB connectors. The locations of the USB connectors are shown in Figure 4.
Step 2: Align the connectors. Align the USB device connector with one of the connectors on the
Step 3: Insert the device connector. Once aligned, gently insert the USB device connector into the onboard connector.
Revision 1.0
Figure 6 – USB Device Connection
Page 9
TSM1330 User’s Manual
2.4.3 Power Connection
The TSM1330 must be connected to a power source (over current protection should be provided and should be sized in accordance with ABYC E-11, AC and DC ELECTRICAL SYSTEMS ON BOATS).
The TSM1330 provides two sets of independent, galvanically isolated power connections and can run off the power supplied by either connection, allowing for redundant power connection.
Figure 7 – Power Connections
Connect your DC power cables to the SL-SMT 09F connector block as follows:
Step 1: Unscrew (from top) or make sure that the screw terminals (square area) are fully open, so you can secure the inserted cables correctly to the loose housing connector (it may already be plugged into the unit as per factory installation).
Step 2: Insert cables (from front) and screw / secure the cables by turning the screw on top of the housing to secure the cables properly. Check that the cables are firmly in place and do not appear loose or fall out when pulling gently.
NOTE
Required polarization verification (for instance -/+ for DC power input) should conform to the markings on the connector area of the unit. Ignoring the markings on the unit or its add-on modules might damage the unit and/or external equipment in which end, warranty will be void.
Step 3: Plug the housing into the appropriate connector area of the unit and check again that the cables secured conforms to the markings on the connector area of the unit.
Step 4: Finalize the installation by fasten the screws located in front on each side of the housing connector.
Step 1 Step 2 Step 3 Step 4
Page 10
Figure 8 – Attaching Power Cables to Connector
Revision 1.0
2.4.4 Grounding Screw
The TSM1330 is required to be properly grounded via the grounding screw located on the bottom of the unit.
2.4.5 Power Sequencing
When the TSM1330 is connected to an appropriate power source, you can use the power switch located on the front panel to turn the TSM1330 on or off. If the TSM1330 is turned on, then the switches found on the front panel will be illuminated. If the power switch is pushed to power down the
TSM1330, the front panel switches will be dark.
The TSM1330 can also be switched on and off by applying or removing power through an external switch or breaker. Anytime the power is reapplied to the TSM1330, it will turn on.
The red LED on the front panel will illuminate anytime power is supplied to the TSM1330.
2.5 Configuring the TSM1330
In order to use the TSM1330, you must already have N2KServer
®
installed and running on either a
Windows PC or on a Maretron IPG100 Internet Protocol Gateway.
You must also have some information as to the configuration of your local area network.
The TSM1330 will start up with the following warning screen:
Revision 1.0
Figure 9 – TSM1330 Startup Screen
Page 11
TSM1330 User’s Manual
You are required to press Accept and thereby acknowledge this warning message before N2KView
® will run in Live Mode.
Alternatively, you may Enter Demo Mode. In Demo Mode, you will not be able to connect to a Server and view live data; instead simulated data will be provided to stimulate the controls.
The first time you start the TSM1330, you must ensure that the device can connect to your LAN (local area network). The TSM1330 comes from the factory preconfigured to obtain its LAN connection information from a DHCP (Dynamic Host Control Protocol) server. If your local area network uses a
DHCP server, no configuration is necessary, and the TSM1330 should be able to successfully connect to the local area network.
2.5.1 Manually Entering LAN Connection Information
If your local area network does not use DHCP, you must manually enter the LAN connection information into the TSM1330. This is done through the following steps:
Figure 10 – N2KView
®
Window with Tabs Displayed
a. Click anywhere inside the N2KView
®
screen to display the screen tabs as shown in Figure 10
above. b. Click on the “Configuration” tab on the right side of the N2KView
®
screen to display the
Configuration dialog.
Page 12 Revision 1.0
Figure 11 – Configuration Dialog
c. Uncheck the “Use DHCP” box to indicate that your LAN does not use DHCP. d. In the “IP Address” field, enter the IP address you wish to assign to the TSM1330. e. In the “Netmask” field, enter the netmask value used on your LAN (in most cases, this value will be “255.255.255.0”). f. In the “Gateway” field, enter the IP address of the default gateway of your LAN. g. In the “Name Server” field, enter the IP address of a DNS (Dynamic Name Service) Server used on your LAN. h. Click the “Update” button to make these changes permanent. The screen will go blank for a few seconds while this is being done.
Revision 1.0 Page 13
TSM1330 User’s Manual
2.5.2 Entering N2KServer
®
or IPG100 Connection Information
Once the TSM1330 has been properly configured to connect to your LAN, you must configure the connection to enable the TSM1330 to receive information from an instance of N2KServer
®
or an
IPG100 Server. This is done through the following steps: a. b. c.
Figure 12 – N2KView
®
Window with Tabs Displayed
Click anywhere inside the N2KView
®
screen to display the screen tabs as shown in Figure 12
above.
Click on the “Commands & Settings” tab on the right side of the N2KView
®
screen to display the Commands & Settings dialog.
Click on the “Connections” button in the Commands & Settings dialog on the right side of the
N2KView
®
screen to display the Connections Settings dialog.
Page 14 Revision 1.0
f. g. d. e. h.
Figure 13 – Connections Settings Dialog
Ensure that N2KView
®
is not connected to an N2KServer
®
by pressing the “Disconnect” button. While N2KView
®
is connected you are not able to edit fields.
In the “Hostname / IP Address:” text box, enter the IP address of the computer or IPG100 running N2KServer
®
. If your TSM1330 configuration has been programmed to match your
LAN, the left side of the N2KServer
®
Connection window will display the address of any
N2KServer
®
running on a PC or IPG100’s found on the LAN.
Leave the “Port:” setting at the initial value of “6544” unless the router between N2KView
®
and
N2KServer
®
has been set up to do port translation.
In the “Password:” text box, enter the same server password that you entered into the
N2KServer
®
Service Manager (for N2KServer
®
running on a PC)¸ or programmed into the
IPG100.
If you have purchased the Platinum Edition of N2KView
®
and wish to use all of the Platinum
Edition features, select “Platinum” from “Features Requested:”. If you have purchased the
Basic Edition of N2KView
N2KView
®
®
or you wish to use only the Basic Edition subset of features of
(leaving the Platinum Edition features available for another copy of N2KView
®
), select “Basic” from “Features Requested:”. few seconds. It will then either display “Connected” if the connection was successfully made,
Revision 1.0 Page 15
TSM1330 User’s Manual
or display a message indicating that the connection was not made and suggesting further action to take.
If no data is displayed, please check the following:
1. Make sure the “Server Password” entered in N2KView
® entered into the N2KServer
®
matches the “Server Password”
Service Manager on the computer running N2KServer
®
, or the
IPG100, as appropriate. If the server is running on an IPG100, the password in the IPG100 is set from a DSM250 or N2KAnalyzer
®
.
2. Make sure the “Server Address” matches the IP address of the computer or IPG100 running
N2KServer
®
.
3. Make sure you have appropriate instruments on the NMEA 2000
®
network to provide the data you are trying to view on the N2KView
®
N2KView
®
and the N2KServer
®
screen. (To test the network connection between
, you may wish to run N2KServer
®
in “Simulated Data” mode).
4. Make sure that the instances that are being monitored correspond to the instances being transmitted. You can set the instance number of the component to “Any” to make sure that there is any data of that type on the bus.
Page 16 Revision 1.0
3 Operating the TSM1330
3.1 Turning the TSM1330 On
To turn on the TSM1330, press the power button, located underneath the screen on the front of the
TSM1330.
3.2 Turning the TSM1330 Off
To turn the TSM1330 off, use the “Shutdown” administrative tab of the N2KView
®
software.
Alternatively, you can power down the unit by pressing the power button, located underneath the screen on the front of the TSM1330.
3.3 Adjusting the Screen Brightness on the TSM1330
Touch the illuminated (-) or (+) symbols underneath the screen to adjust the brilliance/brightness of the displayed image.
3.4 Using the TSM1330
The TSM1330 runs a fully functional version of the Maretron N2KView
®
software. Please refer to the
N2KView
®
User’s Manual, included with the TSM1330, for detailed operating instructions.
Revision 1.0 Page 17
TSM1330 User’s Manual
4 Maintenance
Regular maintenance is important to ensure continued proper operation of the Maretron
TSM1330. Perform the following tasks periodically:
• Clean the unit with a soft cloth. Do not use chemical cleaners as they may remove paint or markings or may corrode the TSM1330 enclosure or seals. Do not use any cleaners containing acetone, as they will deteriorate the plastic enclosure. Do not spray cleaning liquids directly onto the TSM1330.
• Ensure that the unit is mounted securely and cannot be moved relative to the mounting surface. If the unit is loose, tighten the mounting screws.
• Check the security of the power and network cables connected to the TSM1330 and tighten if necessary.
Page 18 Revision 1.0
5 Troubleshooting
If you notice unexpected operation of the Maretron TSM1330, follow the troubleshooting procedures in this section to remedy simple problems.
Symptom
No activity on the display
Troubleshooting Procedure
Check the connection to the power and network connectors and tighten if necessary
Ensure that power is supplied to the connected power cable.
Press the power switch located on the underside of the device on the right-hand side of the unit behind the LCD screen.
Other Issues Please refer to the Troubleshooting section of the
N2KView
®
User’s Manual.
If these steps do not solve your problem, please contact Maretron Technical Support (refer to Section
Warning: There are no user-serviceable components inside the Maretron TSM1330. Opening the
TSM1330 will expose the sensitive electronic components to adverse environmental conditions that may render the unit inoperative. Please do not open the TSM1330, as this will automatically void the warranty. If service is required, please return the unit to an authorized Maretron service location.
Revision 1.0 Page 19
TSM1330 User’s Manual
6 Mechanical Drawings
TSM1330
248.5mm
9.78”
355mm
13.98”
52mm
2.05”
58mm
2.28”
Page 20 Revision 1.0
7 Technical Specifications
Specifications
Parameter
Display Size
Display Resolution
Display Brightness
Contrast Ratio
LCD Color
Value
13.3”
1280x800
400cd/m
2
800:1
262K
WXGA
Comment
CCFL Backlit LCD with Projected
Capacitive Touch Screen
Optically
Viewing Angle 70° H, 60° V
Buzzer 85dB
USB Ports
Ethernet Ports
Compass Safe Distance
Two USB 2.0
One RJ-45 GbE For connection to Maretron IPG100 or router
45cm Standard
25cm Steering
Approvals
Parameter
IEC 60945
GL – Germanischer Lloyd
BV –Bureau Veritas
IACS E10
DNV - Det Norske Veritas
LRS – Lloyd’s Register of Shipping
ClassNK – Nippon Kaiji Kyoaki
ABS – American Bureau of Shipping
Comment
Electrical
Parameter
Operating Voltage
Value
18-32 Volts
Comment
Power Consumption 20 Watts
30 Watts
DC Voltage
Dual Inputs
Typical
Maximum
Mechanical
Parameter
Overall Dimensions (DxWxH)
Weight
Front Panel Material
Front Panel Controls
Mounting
Value
2.28” x 13.98” x 9.78”
(58mm x 355mm x
248.5mm)
Comment
9.7 lbs (4.4kg)
Glass
Built-in Console
Mounting
Power, Brightness +/-
4 x M4 VESA Mounting
75mm x 75mm
Max 8mm deep
4 x M5 x 15mm screws
Revision 1.0 Page 21
TSM1330 User’s Manual
Environmental
Parameter
Operating Temperature
Storage Temperature
IP Rating
Value
-15°C to 55°C (Humidity up to 95%)
-20°C to 60°C (Humidity up to 95%)
IP66 Front, IP22 Rear (EN60529)
Page 22 Revision 1.0
8 Technical Support
If you require technical support for Maretron products, you can reach us in any of the following ways:
World Wide Web: http://www.maretron.com
Attn: Technical Support
9014 N. 23 rd
Ave Suite 10
Phoenix, AZ 85021 USA
Revision 1.0 Page 23
TSM1330 User’s Manual
9 Maretron (1 Year) Limited Warranty
Maretron warrants the TSM1330 to be free from defects in materials and workmanship for one (1) year from the date of original purchase. If within the applicable period any such products shall be proved to Maretron’s satisfaction to fail to meet the above limited warranty, such products shall be repaired or replaced at Maretron’s option. Purchaser's exclusive remedy and Maretron’s sole obligation hereunder, provided product is returned pursuant to the return requirements below, shall be limited to the repair or replacement, at Maretron’s option, of any product not meeting the above limited warranty and which is returned to Maretron; or if Maretron is unable to deliver a replacement that is free from defects in materials or workmanship, Purchaser’s payment for such product will be refunded. Maretron assumes no liability whatsoever for expenses of removing any defective product or part or for installing the repaired product or part or a replacement therefore or for any loss or damage to equipment in connection with which Maretron’s products or parts shall be used. With respect to products not manufactured by Maretron, Maretron’s warranty obligation shall in all respects conform to and be limited to the warranty actually extended to Maretron by its supplier. The foregoing warranties shall not apply with respect to products subjected to negligence, misuse, misapplication, accident, damages by circumstances beyond Maretron’s control, to improper installation, operation, maintenance, or storage, or to other than normal use or service.
THE FOREGOING WARRANTIES ARE EXPRESSLY IN LIEU OF AND EXCLUDES ALL OTHER
EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE.
Statements made by any person, including representatives of Maretron, which are inconsistent or in conflict with the terms of this Limited Warranty, shall not be binding upon Maretron unless reduced to writing and approved by an officer of Maretron.
IN NO CASE WILL MARETRON BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
DAMAGES FOR LOSS OF USE, LOSS OF ANTICIPATED PROFITS OR SAVINGS, OR ANY
OTHER LOSS INCURRED BECAUSE OF INTERRUPTION OF SERVICE. IN NO EVENT SHALL
MARETRON’S AGGREGATE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT(S)
INVOLVED. MARETRON SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR
LIABILITIES, WHETHER ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, TORT
(INCLUDING NEGLIGENCE), OR OTHER THEORIES OF LAW WITH RESPECT TO PRODUCTS
SOLD OR SERVICES RENDERED BY MARETRON, OR ANY UNDERTAKINGS, ACTS OR
OMISSIONS RELATING THERETO.
Maretron does not warrant that the functions contained in any software programs or products will meet purchaser’s requirements or that the operation of the software programs or products will be uninterrupted or error free. Purchaser assumes responsibility for the selection of the software programs or products to achieve the intended results, and for the installation, use and results obtained from said programs or products. No specifications, samples, descriptions, or illustrations provided Maretron to Purchaser, whether directly, in trade literature, brochures or other documentation shall be construed as warranties of any kind, and any failure to conform with such specifications, samples, descriptions, or illustrations shall not constitute any breach of Maretron’s limited warranty.
Page 24 Revision 1.0
Warranty Return Procedure:
To apply for warranty claims, contact Maretron or one of its dealers to describe the problem and determine the appropriate course of action. If a return is necessary, place the product in its original packaging together with proof of purchase and send to an Authorized Maretron Service Location. You are responsible for all shipping and insurance charges. Maretron will return the replaced or repaired product with all shipping and handling prepaid except for requests requiring expedited shipping (i.e. overnight shipments). Failure to follow this warranty return procedure could result in the product’s warranty becoming null and void.
Maretron reserves the right to modify or replace, at its sole discretion, without prior notification, the warranty listed above. To obtain a copy of the then current warranty policy, please go to the following web page: http://www.maretron.com/company/warranty.php
Revision 1.0 Page 25
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 5 General
- 5 Introduction
- 6 Firmware Revision
- 6 TSM1330 Features
- 6 Quick Install
- 7 Installation
- 7 Unpacking the Box
- 7 Choosing a Mounting Location
- 8 Mounting the TSM
- 8 Mounting Considerations
- 9 Ergonomics
- 10 Arm Mounting
- 12 Connecting the TSM
- 12 LAN Connection
- 13 USB Device Connection
- 14 Power Connection
- 15 Grounding Screw
- 15 Power Sequencing
- 15 Configuring the TSM
- 16 Manually Entering LAN Connection Information
- 18 or IPG100 Connection Information
- 21 Operating the TSM
- 21 Turning the TSM1330 On
- 21 Turning the TSM1330 Off
- 21 Adjusting the Screen Brightness on the TSM
- 21 Using the TSM
- 22 Maintenance
- 23 Troubleshooting
- 24 Mechanical Drawings
- 25 Technical Specifications
- 27 Technical Support
- 28 Maretron (1 Year) Limited Warranty
