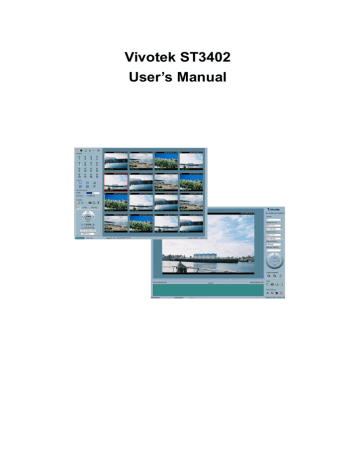

Vivotek ST3402
User’s Manual
Contents
1.1 System Hardware Requirements.............................................................. 1-3
1.1.1 Recommended minimum system hardware requirements .............. 1-3
3.1.1 Traditional Surveillance Features ................................................. 3-13
3.2 Application Layout and Functionalities............................................ 3-14
3.3.2 The General User Privilege........................................................... 3-16
3.4.1 The Layout of the Configuration .................................................. 3-17
3.4.3 Alert Settings and Recording Settings .......................................... 3-20
3.4.4 Changing the Camera Order in the List ........................................ 3-22
3.4.5 Saving the Changes....................................................................... 3-22
3.6.1 Connection of the Video Server / Network Camera Series........... 3-29
3.6.3 Input/Output Control Tools........................................................... 3-38
3.6.6 Miscellaneous Functions............................................................... 3-42
3.6.7 Common Control Functions.......................................................... 3-44
4.1.1 Starting the Scheduling tool.......................................................... 4-48
4.2.2 The Functionalities of Configuration Components....................... 4-50
4.2.3 The Schedule Scheme operations ................................................. 4-51
4.3.1 Schedule with Time Lines............................................................. 4-52
4.3.2 Schedule with Time Picker ........................................................... 4-53
4.3.3 Schedule in event mode ................................................................ 4-54
4.3.4 Schedule in Continuous mode ...................................................... 4-55
5.5 Normal (Single Frame) Mode................................................................ 5-64
5.6 Preview (Multiple Frame) Mode ........................................................... 5-66
5.6.2 Histogram Legend......................................................................... 5-68
5.7.6 System Control Toolbox ............................................................... 5-76
Chapter 1 Installation
1.1 System Hardware Requirements
Before installing the application software, make sure your system has the following recommended minimum hardware requirements.
1.1.1 Recommended minimum system hardware requirements
The system requirement recommended for this application is as follows.
CPU:
SDRAM:
Hard disk:
Intel 2.0 GHz Pentium IV or above and AMD Athlon or above
256 MB SDRAM
40 GB
Display Chip: nVidia, GeForce series with 32 MB Display memory
ATI Radeon series with 32 MB Display memory
Table 1-1 Recommended System Hardware Requirements
The following notes should help you with the proper installation of the software on to the recommended hardware system.
This application software only supports Intel Pentium IV series or above and AMD Athlon or above CPUs.
It is also recommended to run this application software on Win2000 OS to avoid any functional limitation.
Make sure all Power Management and Screen Saver functions are turned off to avoid system hang-ups.
1.2 Software Installation
The following are steps for the software installation.
STEP 1: Put the Installation disk into the CD-ROM drive, and installation should start automatically. If installation does not start, click on “Start” on the lower left corner of your screen and open “My Computer” and double click on the CD-ROM icon. The IP surveillance
Recorder Installation Window will appear as Figure 1-1 in below.
Figure 1-1 ST3402 Smart VS-IP Recorder Installation Window
STEP 2: There are links on this page, including Quick Guide, User’s Manual, Release Note, and
Install Software DVR. Click on “Install Software DVR” to launch the intallation shield. The
InstallShield Wizard will come on and Figure 1-2 will appear.
Figure 1-2 Welcome page for the Vivotek ST3402
STEP 3: If you click on “Next” and Figure 1-3 appears, it means you have installed a previous
version of the recording software (the previous version is the video-only version, which means it would not get the audio stream from servers). If you want to keep the previous version, choose the second option. If you are new to the Smart VS-IP recorder software, this window will not appear; skip on over to Step 4.
Figure 1-3 Video only version detected
- – 1-5
STEP 4: Click on “Next”and the “User information” window will appear as in Figure 1-4. This
window prompts you to enter a username, company name. Click on “Next” to continue.
Figure 1-4 User information for Smart VS-IP Recorder
STEP 5: Set up the administrator’s password by entering a password and confirm the password
as shown in Figure 1-5. Click on “Next” to continue.
Figure 1-5 Confirm Password
- – 1-6
STEP 6: Select the installation directory for this application software and click on “Next”, as
shown in Figure 1-6. You can also change the installation directory from the Default directory by
clicking on “Browse…”
Figure 1-6 Destination Location for Installation
STEP 7: Select a program folder to install the application software into and then click on “Next”,
Figure 1-7 Select Program Folder
- – 1-7
STEP 8: After checking all the set up information shown in Figure 1-8, click on “Next” to start
file movement and registries update.
Figure 1-8 Check Setup Information
STEP 9: Click on “Finish”, as shown in Figure 1-9, to finish installation. This completes the
program installation.
Figure 1-9 Finish the Installation
- – 1-8
1.3 First Start up
After installation, one of the IE settings needs to be changed before you can start running the
Monitor program. Enable the mechanism for submitting non-encrypted data in the path
“Start->Settings->control Panel->Internet Options->Security->Custom Level…\Setting:”. You can also find the path from the IE browser, as it is depicted in the following. You can follow the
instructions to complete this setting, as shown in Figure 1-10.
2
1
3
5
6
4
Figure 1-10 Enable Submitting Non-encrypted Form Data
Upon completion of the settings, you can start to invoke the Monitor program.
- – 1-9
Chapter 2 Launcher
Launcher is a controller program that allows the user to invoke Monitor or Playback quickly. It also allows starting the recording before the user logs in.
2.1 Security for Launcher
Starting Launcher does not require passing the username/password check. Once invoked, Launcher can run automatically. However, if the user clicks on the
Launcher icon in the system tray, the program will pop up a username/password dialog. This happens if this is a first time menu pop up, or when Launcher was locked. If the user fails to pass the authentication check, no menu will appear.
After passing identification and authentication, the user is free to use all functions.
The user can lock the Launcher as a security measure. When the Launcher is locked, it reverts back to the Start-up state. The user needs to pass identification and authentication again to get to the popup menu.
Below is the login window:
Figure 2-1 Login Dialog
When the Launcher is locked, the unlock window is as follows:
Figure 2-2 Unlock Dialog
The input area of the dialog will be grayed (disabled) for 60 seconds after three failure attempts.
2.2 User Interface
This is the user interface for Launcher:
Figure 2-3 Popup Menu
The main user interface for Launcher is an icon on the system tray. The popup menu is displayed by clicking on the right or left buttons on the mouse. The menu items are listed below:
1. Lock Launcher – When this item is selected, Launcher will enter Lock mode. In
Lock mode, whenever the user wants to invoke the menu, a dialog asking for username and password appears. The interface for this dialog is covered in the previous section.
2. Tools – This contains many utilities; currently only change password is implemented. Below is the change password screen:
Figure 2-4 Change Password Dialog
3. Autorun at Startup – This turns on or turns off Launcher’s auto start up state.
Auto start up is to run Launcher right after Windows boot up. The state could be either on or off.
4. Monitor – This starts up the Monitor. If the Monitor is already running, move the focus to it.
5. Playback – This starts up Playback. If Playback is already running, move the focus to it.
6. Exit – This ends Launcher. If the user chooses this option, a message box will pop up to confirm whether the user really wants to exit. It warns the user that exiting Launcher will also close Monitor and Playback.
Chapter 3 Monitor
3.1 Features of Monitor Tool
In this section, we will depict all features of the Monitor tool in this software.
3.1.1 Traditional Surveillance Features
The traditional surveillance features include the following
Real-time monitor
PTZ control
Recording
3.1.2 Special Features
In our digital surveillance system, we support not only the features listed above but also the following features, making the system more powerful and convenient to use.
Simultaneous real-time monitoring and audio and video recording
High quality video, up to full-screen display
High compression ratio
Maximum support of 16 cameras with different monitor layouts
Smart playback
Triggered event browsing with 9 preview video windows
Fast database searching
Auto alarm in different ways
Account-password protection
Different recording modes: Event-driven, Scheduled and Manual recording for each camera
Intelligent database index modes: indexing by sharp time tag, time interval, motion-detected events and digital-input events.
Just-in-time snapshot
AVI export
Motion detection with 3 alert windows for each camera
3.2 Application Layout and
Functionalities
This section demonstrates a global view of the Monitor tool, as shown in Figure 3-1.
Components of the Monitor tool in details are shown in the following sections.
Video area
Misc. functions
Channel area
Layout area
Display frame
Hard disk status
Common controls
PTZ, DI/DO and Alert message
Figure 3-2 Overview of the Monitor Tool
There are several parts in the monitor tool:
Miscellaneous functions:
These include application exit, minimization, full-screen display, lock, stop alert, and configuration menu for camera configurations, global settings, scheduler settings, video/audio database backup, and the user information of this application software. The operation tips are provided on-line when you move the mouse cursor over each item.
Channel area
This area displays the status of each channel. The information indicates the status
of connection, recording, selection, and alert-event triggered.
Video area
In this area, you can see the video of the selected channel in the display frame.
The number of display frames in the video area depends on the layout chosen by the user. You can also do some convenient controls for the video display in it.
Layout area
You can change different monitoring layouts in this area. There are six kinds of layouts the user can choose from: 1, 4, 6, 9, 13, or 16 video display frames in the video area.
Hard disk status
In this area, you can get the status of the hard disk that the video database resides in. This reminds you to arrange for available storage size of the recorded video database.
Common control area
This area includes volume controller, manual recording, video printing, and snapshot, as well as a trash can to remove any video from display frames.
PTZ control
In this area you can do PTZ control, auto pan, auto patrol, and preset location control of the selected channel. The camera must be a remote Visual Server /
Network Camera series product that supports PTZ functions.
DI/DO control
This tool receives digital input signal and sends digital output signal to the remote Video Server/ Network Camera series product associated with the dedicated channel.
Alert Message
This tool allows the display of the latest alert messages received from the remote
Video Server / Network Camera series product associated with the selected channel.
3.3 Logging In
The authentication mechanism is implemented in Launcher. If user has already passed the authentication in Launcher, Monitor can be invoked without further authentication. If not, the Authentication of Launcher will be popped up and user must pass it to get Monitor shows up. There are two privileges in the user-protection system: the root (administrator) and the general user.
3.3.1 The Root Privilege
In the Monitor tool system, root privilege includes the right to access Video Server /
Network Camera series products as well as changing local settings. However, this root privilege is not the same as that of the root privilege of the Video Server /
Network Camera series product. You can change the settings of each selected Video
Server / Network Camera in the remote site only if you have the root privilege of the remote Video Server / Network Camera series product.
If you have the root privilege, you can do the following:
Running the configuration tool
Changing the recording schedule
Change the local settings
Again, if you need to change the settings of remote Video Server / Network Camera series products, you must have the root user password for each of the products.
3.3.2 The General User Privilege
This is not implemented in the current version. Only the root user can log in to this application software.
3.4 Camera Configurations
When you log in for the first time, you need to configure this application software to connect to the remote Video Server / Network Camera series products in
“Configuration Menu \ Camera Configuration”, as shown in Figure 3-3. You must
have the root (administrator) privilege in order to run the configuration.
Figure 3-3 Camera Configuration
ATTENTION: Once you click on “Configuration Menu\Camera Configuration” for setting each camera, a warning window will pop up to warn you that all recording processes will be stopped.
3.4.1 The Layout of the Configuration
In this section, we discuss the local settings of the connection and the functional configurations of each camera. If you are interested in the remote settings for each camera, you can refer to each Video Server / Network Camera series product’s user’s manual that was shipped with the hardware.
NOTE: As for the location of the selected camera, you need to make sure the location string does not include prohibited characters such as “"\ / : * ? " < > |”. Otherwise, the
“wrong” location string will cause the application program to malfunction. You can change the location string in “Video->Text on Video” of the remote setting webpage.
Local settings
Setup page
Camera selections
Remote setting webpage
Figure 3-4 Layouts of Camera Configurations
3.4.2 Local Settings
In the local settings, as shown in Figure 3-5, there are three main functionalities:
Insert camera
History
Delete camera
Figure 3-5 Local Settings
Insert – This allows the user to insert a remote Video Server / Network Camera series product to the camera list. Click on the “Insert” button, an “Insert New
Channel” dialog will pop up, as shown in Figure 3-7. Specify the IP address, port
and root password of the remote Video Server / Network Camera series product, and click on the “Ok” button to close the dialog. The system will try to connect to the selected camera. If the connection is successful, the camera will be inserted to the list, as shown in. Figure 3-6.
IP address and port
Figure 3-7 Insert New Channel Dialog
Delete – This removes the selected Video Server / Network Camera series product from the camera list.
The selected camera will be deleted.
Figure 3-8 Adding a camera to the list
History – Clicking on the “History” button pops up a camera history list that shows the latest cameras that has been inserted into the camera list. The list could contain up to 16 entries. When you click on one of the cameras in the history list, the camera
will be inserted into the camera list. The history list is shown in Figure 3-9.
Historical camera list
Figure 3-9 Popup historical camera list
.
3.4.3 Alert Settings and Recording Settings
Figure 3-10 Alert Settings and Recording Settings
Alert Settings:
These settings guide this program how to handle motion detection and digital input alerts.
Enable motion detect －
With this checkbox checked, the program will trigger the alert sound (specified
in “3.5 Global Settings \ Alert Sound”) if motion is detected for the specified
channel.
Enable digital input －
This function is similar with that of “Enable Motion Detect”. Selecting this option will activate the alert sound when the digital input of the remote Video
Server / Network Camera series product is triggered.
Digital input alert －
This option allows for defining the triggering criterion of the digital input of the remote Video Server / Network Camera series product. It can either be high-level triggered or low-level triggered.
Recording Settings:
Name －
If you want to specify your own location name, specify it in this field.
Otherwise, leave this field with the default value “<Default>”. You will get a default location name which concatenates the string in the server’s “Text on video” field, an underline and the channel index.
Record # secs. before event －
Once the event recording is activated (using Scheduling) for channels
, you can use this setting to regulate the time for the recording of the triggered event. The recording will start at the set time before the alert event starts.
Record # secs. after event －
This set how long the recording will last after the alert event has started.
Media Type －
You can use this to specify which media type you want to record, Video, Audio, or both.
3.4.4 Changing the Camera Order in the List
You can use “drag and drop” in the grid area of the camera list to change the sequence of the connected Video Server / Network Camera series products, as
shown in Figure 3-11. This is helpful when you want to rearrange the cameras’
order.
Press left mouse button at the gray index field.
Move mouse to where you want to move and then release the mouse button. Then Video 1 will be moved to the 12th row.
Figure 3-11 Change the Sequence of the Connected Camera
3.4.5 Saving the Changes
Once you have clicked on the “Save” button in the bottom left corner of this window, the changes for all camera configurations will be saved and validated immediately in this IP surveillance system.
NOTE: If you try to change the remote settings of any Video Server / Network
Camera series product in the right web page of this window, you will need to apply the
“SAVE” button in each corresponding page in order to save the settings to the remote servers. There are different “SAVE” buttons for changing the settings of the local IP surveillance system and that of the remote Video Server / Network Camera series product.
3.5 Global Settings
After completing the connection for each remote Video Server / Network Camera series product, you will need to configure the global settings for all the connected servers. These include the video database directory, the usage of the hard disk, and options for video display.
Figure 3-12 Global Settings
You can activate the global setting window from “Configuration Menu \ Global
Settings...” as shown in Figure 3-12.
ATTENTION: A warning window will pop up to alert you that all recording processes will be stopped when activating the global setting window.
Backup status information
Figure 3-13 Global Settings Window
Directory Settings:
Snapshot directory －
This is the directory for storing the snapshots in *.bmp format from channels as
Recording directory －
This is the directory for storing the recorded video data from remote channels
Scheduler directory －
This is the directory for storing the default and user-customized plots for the recording schedule of each channel.
Record Diskspace Usage Settings:
Cycle Recording －
When this setting is turned on, the video database system will overwrite the oldest data if the usage of the current database has reached its storage limitation.
In other words, it will record video data circularly. If this setting is not selected, i.e. unchecked, a warning message will pop up when it is approaching the limitation. After that, it stops recording when the limitation of the hard disk usage is reached.
Reserved space －
This indicates the size of the hard disk to be reserved on the recording disk. If the recording data exceeds this limitation, the new in-coming video data will replace the oldest data if “Cycle Recording” was selected.
Alert Sound:
You can load custom *.wav file for the sound of alert triggering. You can also hear the sample of the chosen sound file by clicking on the “Play” button (the button with black right arrow).
Modulation Mode:
You must select the input signal format (NTSC or PAL) to display the original resolution of video stream from the remote Video Server / Network Camera series product.
NOTE: You must select the input signal format according to the camera type or CCD module type that is connected to the remote Video Server / Network Camera series product. For remote Video Server / Network Camera series product with CMOS sensor, the input signal format needs to be set as PAL, regardless of the power line connected is 50 or 60 Hz.
Internet Settings:
You can set the proxy server and the IP filter by clicking on the “Internet Settings” button. This setting is helpful for connecting Visual Server / Network Camera series product in the Intranet while the proxy server is in use at the same time.
You can enable or disable the usage of the proxy server by the check box shown in
Figure 3-14. If you enable both the proxy server and IP restriction, the listed IP
addresses will not be applied to the proxy server. Often, the listed IP address will be
the one assigned to the Visual Server / Network Camera series product in the
Intranet.
Check here to enable IP filter
Check here to enable proxy server
Set the port
Add an IP address to list
Enter IP address here to add
IP address list
Delete an IP Address from list
Figure 3-14 Internet Proxy Settings
Display Options:
In the video displaying frame of each channel, there are two status bars associated with it. On the upper side, the status contains “Camera location” and “the time of the remote site”. On the lower side, the status includes “Connection time” and
“Recording time”. As shown in Figure 3-15, all can be enabled or disabled
individually. The “Apply to full screen mode” can also be turned on. Once it has been selected, the status bar in each channel will show the date, location, connection and recording time in both displaying frame mode and full screen mode.
Location (channel number + Text on Video) Remote Time
Connection Time (Day:Hour:Min) Recording Time (Day:Hour:Min)
Figure 3-15 Status on the Displaying Frame
Backup Settings:
In this setting, you can select the directory, maybe a remote hard disk, for the video database backup; as well as the backup size of your backup media.
Backup Location Select:
This window provides the settings for backup and the deletion of video database.
You can select the check box to direct which channels need to be backed up. You can also click the “Delete” button on the right to delete the video database corresponding to the selected channel. Several kinds of backup status information will be shown for each channel. Normally the status shows the time of the last backup, which indicates the time you last backed up to the dedicated media. “No Data” means that there is no video data recorded for this channel. “All Backup” means all the data in this location have been backed up. “First Backup” means there are video data recorded for this location and there has not been any backup operation prior. Please refer to Section
3.6.4 for the activation of backup operations.
Account to Access Network Drive:
This button will pop up a dialog shown in Figure 3-16. If you want to set the record
path to the network drives, you should enable the option “Account to Access
Network Drive”, and give the local user’s name, password and network domain. To backup data to network driver, you also need to setup the account.
Figure 3-16 Account to Access Network Drive settings
3.6 Using Monitor Tool
This section depicts methods of manipulating the Monitor tool.
3.6.1 Connection of the Video Server / Network
Camera Series
Channel:
Once you have connected a Video Server / Network Camera series product, you can
drag and drop the camera to the video area. As for the channel area shown in Figure
3-17, if you have not set up the camera for the channel, the color of the channel
number will be gray. Once you have set up the camera in the channel, the color of the channel number will be blue. This also means that this channel is associated with the remote Video Server / Network Camera series product. You can then click, drag, and drop the camera to the video area to monitor the remote video, and apply other features, if your privileges allow.
There is a unique light signal associated with each channel number. It indicates the status of the dedicated channel, as listed below.
Off (Black)
The channel is not connected with any remote Video Server / Network Camera series product.
Green
The green light means the Video Server / Network Camera series product associated with this channel number is connected, and the video is being monitored in the video area.
Orange
The orange light indicates the video from this channel is recording into the media database. In this mode, you do not need to click, drag, and drop the channel to the video area. This means the application software supports real-time recording with and without real-time monitoring for the dedicated channel.
Red
The red light indicates the connection to server has been unexpectedly disconnected, such as power outage, and Monitor is trying to reconnect to the server.
Blink
If the motion detection mechanism is set in the remote Video Server / Network
Camera series product, the light corresponding to the channel will blink if a motion event is detected.
Recording
Not connected (no video)
Connected and monitoring
Reconnecting
Configured channel
Selected channel
Not configured channel
Trashcan
Figure 3-17 Channel Area
If you do not want to monitor one video, you can click, drag, and drop the video (in the video area) to the trashcan in the common control area of the Monitor tool. The following shows the step-by-step procedure of “drag and drop”.
3.6.1.1 Show the video of the specific channel
This section depicts the method of showing the video of a specific channel in the dedicated displaying frame in the video area.
Step 1: Move the mouse cursor to the channel number, as shown in Figure 3-18.
Channel number
Mouse cursor
Displaying frame
Location hint
Figure 3-18 Mouse Cursor on the Channel Number
Step 2: Press and hold down the left mouse button and drag the mouse cursor to the
displaying frame in the video area, as shown in Figure 3-19. Note that the cursor
will be changed according to the area indicating whether the selection can be dropped there.
Droppable area
Not droppable area
Figure 3-19 Drag the Channel to the Displaying Frame
Step 3: Move the mouse cursor to the area in which the selection can be dropped (in this case, it should be the video area), and then release the mouse button. In each layout, each channel is corresponding to one and only one displaying frame in the
video area, as shown in Figure 3-20. Therefore, the drag and drop from the channel
number to the displaying frame can be treated as “exchange of channels in the displaying frames”. That means whatever video is on the newly selected channel will replace the one on the current display frame. You can apply this criterion to exchange the channels in different displaying frames. Let us assume the video of
Channel 1 is shown at display Frame X and the video of Channel 2 is shown at display Frame Y. The channels associated with the dedicated display frames will be switched when you drag and drop the video from display Frame X to display Frame
Y and vice versa. Also, you can move the channel from its original display frame to a vacant display frame. All these functions can be performed by a single mouse operation “drag and drop”. This makes it very convenient to customize the video display layout for monitoring.
Note: Monitor will automatically associate newly added channel to empty frame of each layout. So you will find that the channel is automaticaly shown in layout after closing Camera Configuration dialog. But if you have manually changed the association in one layout, the automation for that layout would be disabled. There is
no way to re-enable the automation.
Figure 3-20 Showing Video on the Displaying Frame
3.6.1.2 Close the channel in displaying frame
This section discusses how to close the video change in the display frame.
Step 1: Move the mouse cursor to the display frame associated with the channel you want to close.
Step 2: The cursor will turn into a hand-shaped icon when it is moved to the display frame. Press and hold with the left mouse button.
Step 3: Move the cursor and drag it to the trashcan in the common control panel of the Monitor tool.
Step 4: The cursor shape will change to an arrow-shape icon over the trashcan.
Release the left mouse button. The video in the corresponding display frame will disappear. These operations are shown in Figure 3-21.
Figure 3-22 Close the Channel
Note: Even the channel is closed for current layout. The network connection is still connected. The reason to keep the connection is that if the connection is closed, it is not possible for Monitor to judge if any event is triggered.
3.6.2 The Layout
There are six kinds of layouts shown in Figure 3-23 for displaying frames in the
Monitor tool. You can select one of them by clicking on the left mouse button over the layout icon you want. In each layout, you can select, drag, and drop the “channel number” to any display frame in the video area. The video from the remote site will
be shown. Following the procedures described in Section 3.6.1.1, you can add the
video of the channel to the display frame of the selected layout in the video area one by one. After that, you can also exchange video between different display frames by the same select, drag, and drop method.
1 camera layout
4 cameras layout
6 cameras layout
9 cameras layout
13 cameras layout
Figure 3-23 Layout of the Monitor tool
16 cameras layout
Figure 3-24 Double-clicking on the Displaying frame
Whether you choose the one-camera layout or the four-camera layout, the “Page up” and “Page down” buttons will be shown in the bottom-left corner of the video area.
You can use these two buttons to switch the pages, as shown in Figure 3-25.
Use the
“Page Up” and “Page Down” key in keyboard could also swith the page.
Switch between cameras
Figure 3-25 One-camera Layout
When you want to view one individual camera from the multi-camera layout shown
in Figure 3-26, double-click on the display frame associated with the dedicated
channel in the video area. You will see the size of the display frame is the same as the one-camera layout. Clicking on the “Back” button in the upper-left corner of the video area will switch to the previous selected multi-camera layout.
The position for each channel in any layout will be kept for the next time when the layout is selected again for monitoring.
Back to previous layout
Figure 3-26 Single View Mode When in Multi-camera Layout
3.6.3 Input/Output Control Tools
PTZ Control
Digital Input /
Digital Output
Alert Message
Figure 3-27 Input/Output Control Tool
This application software provides another three tools, shown in Figure 3-27 in the
bottom-left corner, for controlling the remote Video Server / Network Camera series product of the associated channel. You can click on the dedicated buttons to switch to different control tools that include PTZ (Pan/Tilt/Zoom) control, DI/DO (Digital
Input / Digital Output) control and Alert Message receiver.
3.6.3.1 PTZ Control
The PTZ (Pan / Tilt / Zoom) tool is shown in Figure 3-28 in the bottom-left corner.
If the remote Visual Server/ Network Camera series product associated with the selected channel is connected with a PTZ enabled camera, this PTZ control tool will be activated. You can do PTZ operations, as well as going to the preset location set by the previously user-defined position. You can also apply PTZ control to several
cameras simultaneously. See Section 3.6.8.
Tilt up
Return to Home
Pan left
Zoom out
Auto focus
Focus near
Auto pan
Go to the preset location
Figure 3-28 PTZ Control
Pan right
Tilt down
Zoom in
Focus far
Auto patrol
Stop Auto pan or
Auto patrol
3.6.3.2 DI/DO Control
After clicking on the “DI/DO” button, shown in Figure 3-29, the control page will
be switched to the DI/DO control tool. Only user with root privilege can access the
DI/DO control of the remote Video Server / Network Camera series product. In this application software, the color of the channel number indicates the status of the DI
(Digital Input) of the channel. You can click on the “Switch button” to change the
HI/LOW state of the DO (Digital Output). These features allow you to monitor the remote sensor input from DI and also trigger the remote by the DO switch.
Digital input is high Digital input is low
Set digital output to HIGH
Set digital output to LOW
No Connection
Figure 3-29 DI/DO Control
The color of the DI status is depicted as follows.
OFF
When the color of the channel number is gray, that means this channel is not connected to any remote Video Server / Network Camera series product.
Red
The channel number turns red indicating the DI of the remote Video Server /
Network Camera series product associated with the selected channel is in high level.
Blue
The channel number turns blue if the DI of the remote Video Server / Network
Camera series product associated with the selected channel is in low level.
3.6.3.3 Alert Message
Figure 3-30 Alert Message
If you select the check box for “Enable Motion Detect” or “Enable Digital Input” in the path “Configuration Menu \ Camera Configurations \ Alert Settings”, the alert
message will show in the window as shown in Figure 3-30; refer to “Alert Settings”
in Section 3.4.3. An alert message appears in this window when an alert is triggered
by user defined motion detection or a digital input level change. You can also use the scroll bar of this box to check on the alert event’s history.
The message format is described as follows:
“time”=>”alert type” #”channel number”(“win1”,”win2”,”win3”)
The message “02:41:00=>MO #1(0,1,1)” means that this was a motion detection alert occurred at 02:41:00 AM in Motion Window 2 and Motion Window 3.
The message “14:41:56=>DI #1” means there was an alert triggered by the first DI at 02:41:56 PM.
3.6.4 Backup
Figure 3-31 the Process of Backup Operation
“Backup” allow you to copy the recorded video data to another media according to
the location and the size you have selected. You can refer to Section 3.5
“Configuration Menu \ Global Settings \ Backup Settings” for more details on backup settings. From the backed up video data in the media, you can duplicate the backup-data to any removable device, such as CD-ROM, ZIP disk, DVD-RAM, or tape, manually.
After backup settings have been configured, you can activate the backup operation
by clicking on “Configuration Menu \ Backup”, as shown in Figure 3-31. Once the
backup process is started, and, while in progress, you are prohibited to configure the remote Visual Server / Network Camera series product, or change any local settings.
You can cancel the backup process by simply clicking on the “Configuration Menu \
Cancel Backup” option and choose the status of the progress. A message box pops up to indicate backup is complete.
3.6.5 About
Clicking on the menu “Configuration Menu \ About…” as shown in Figure 3-32,
pops up a dialog box with information including product name, version, user information and serial number.
Figure 3-32 About
3.6.6 Miscellaneous Functions
Quit
Minimize
Configuration Menu
Full Screen
Lock
Stop Alert Sound
Figure 3-33 Miscellaneous functions
This section describes other miscellaneous functions represented by small icons in
this application software, as shown in Figure 3-33. These functions can be applied
regardless of which is the currently focused channel. These functions are each described below.
Quit
Clicking on this button closes this application software with the latest saved settings.
Minimization
Clicking on this button minimizes the Monitor application.
Full Screen
Clicking on this button enlarges the selected channel to a full-screen display. To switch back to the original layout, press on the “ESC” key at the top-left corner of the keyboard, or double click on the mouse cursor on screen.
Lock
Clicking on this button to lock this program. When in lock mode, the main window will be hidden and the lock dialog will appear. To return to the main window, you need to re-enter the root’s password.
Stop Alert Sound
Whenever an alert is triggered, an alarm will sound if it was set up. You can click this button to stop the alarm. It will also switch the I/O Control Tool to the Alert
Message Tool, as depicted in Section 3.6.3.3, and automatically shows the alert
messages.
Configuration Menu
This menu includes Camera Configuration, Global Settings, Scheduler, Backup, and
About options.
3.6.7 Common Control Functions
Volume
Stop Record
Trashcan
Record
Printer
Snapshot
Figure 3-34 Common Control Functions
This section describes other Common control functions, respresented by small icons,
as shown in Figure 3-34. These functions can only be applied to the focused
channels. These functions are each described below.
Volume
Clicking on this button to adjust the audio volume when monitoring provided the camera supports audio.
Record
By clicking on this button, you can manually activate video recording on the selected channel.
Stop record
This allows you to manually stop the video recording on the selected channel; whether the recording was event-driven or by scheduled triggering, or manually activated.
Printer
You can print all views currently shown in the view window.
Snapshot
This function is to take a snapshot of the selected channels in the current layout, and save the pictures as bitmap files to the hard disk. You can pre-set the directory in which these bitmap files are stored in “Configuration menu \ Global Settings”.
Please refer to Section 3.5 for details.
Trashcan
You can drap and drop the channel to the Trashcan. This does not close the video connection with the remote Video Server / Network Camera series product. But the display for the channel in current layout will be removed.
You can apply Volume, Record, Stop record, Printer, and Snapshot to several
cameras simultaneously. See Section 3.6.8.
3.6.8 Multiple Focus
Some functions can be applied to more than one camera simultaneously. These functions include PTZ controls, Volume control, Record, Stop Record, Printer, and
Snapshot. First, set multiple focuses to the cameras you want to control, and then do operations such as PTZ controls, Record, etc. The way to focus more than one camera at a time is to press CTRL and click on display frames in the view window.
You can only set multiple focuses to the cameras on the same layout page, and only select them from the view window, not from the channel panel.
3.6.9 Status Bar
Local time
Status message bar Software name
Current login user
Login time
Software version
Figure 3-35 Status Bar
Local time －shows the current time of the local site.
Current login user － shows the current login user’s name.
Login time － shows the time when user logged in.
Status message bar － shows messages on some background operations, such as repairing database or locations.
Software name － shows the software name of this application.
Software version － shows the software version of this application.
Chapter 4 Scheduling
The Scheduling tool helps the user to schedule the time to record the media stream of the selected channels from the remote Video Server / Network Camera series product. With both the graphic user interface and time period selection options, you can easily schedule each channel.
The main features of the Scheduling tool are depicted as follows:
User-friendly graphic interface for schedule editing
Flexible schedule scheme suitable for most applications need
Individual schedule for each channel
Automatic period recording
4.1 Invoke Scheduling Tool
This section describes how to invoke the Scheduling tool.
4.1.1 Starting the Scheduling tool
Schedule Tool
Figure 4-1 Open Scheduler Tool
Before starting the Scheduling tool, click on the “Configuration Menu \
Scheduler…” as shown in Figure 4-1, there must be at least one camera on the
camera list. Otherwise, the Scheduling tool cannot be invoked. You will need to specify the database directory of the schedule schemes and the video stream in the path “Configuration Menu \ Global Settings \ Directory Settings”. Refer to Section
3.5 for more detailed information. After all of the above are set, you can click on
“Configuration Menu \ Scheduler…” to invoke the Scheduling tool.
4.2 The Layout and Functionalities
In this section, the layout and the functionalities of the Scheduling tool are depicted in detail.
4.2.1 Introduction
Figure 4-2 shows the layout of the Scheduling tool’s components.
1
2
3
4
Figure 4-2 Overview of the Scheduling Tool
The layout is roughly divided into 4 parts:
The first part of the Scheduling tool is the channel selection area. It provides the IP addresses and location information of the connected channel. You can select one channel in this area and start to edit a dedicated schedule scheme for it.
The second part is the Primary schedule settings. It consists of day time-line, week time-line, begin time selector, end time selector, and event mode settings.
The third part is the Secondary schedule, which consists of event mode settings.
The fourth part contains operation buttons for the user to fine tune the edited schedule-scheme of the selected channel, and close the Scheduling tool window.
These four parts will later be described in detail.
4.2.2 The Functionalities of Configuration
Components
IP address
Location
Channel
Figure 4-3 Channel Selector
The channel selector shown in Figure 4-3 is typical for a dedicated channel. When
you click on the row to select the channel, the scheduling tool will load the dedicated schedule scheme associated with the selected channel automatically. If the remote Video Server / Network Camera series product has been properly configured, the IP address and location of the selected channel will be shown. Please note that when you switch between channels in this selector, any editing and changes in the schedule scheme will be saved temporarily in system memory. To save the settings permanently, please click on the “Save” button.
4.2.3 The Schedule Scheme operations
There are six related buttons, “Load…”, “Undo”, “Clear”, “Save”, “Save as…” and
“Close” for handling the scheduling schemes. These are shown in Figure 4-4.
Figure 4-4 Operations for the Schedule Scheme Manipulation
Load…
This button is used for loading other pre-edited schedule schemes from the specified directory. Note that you will need to save the current-edited settings before applying this function. Otherwise, any editing changes will be lost.
Undo
This button is used for undoing all plotting markers for this schedule scheme from the last save.
Clear
This button is used for clearing all plotting markers in the current-editing schedule scheme of the selected channel.
Save
This button is used for saving the editing changes for the current schedule scheme.
Save as…
This button is used for saving the current-edited schedule scheme to another file name instead of the default name.
Close
This button is used for closing the scheduling. Any unsaved setting will be lost.
4.3 Primary Schedule
4.3.1 Schedule with Time Lines
There are two time-lines of different scales: hour unit time-line and week unit
time-line. You can make your own schedule scheme by plotting markers in all time-lines. These two time lines are associated with each other. That is, if you make changes in one time-line, the corresponding changes will be applied, in scale, to the other time-lines in the same schedule scheme.
4.3.1.1 Week Time-Line
Figure 4-5 shows the Week time-line. It includes the time-line, scheduling
information, and the selected day of the week.
Click
Selected day
Figure 4-5 Week Time-line
4.3.1.2 Marking/Unmarking the Recoding Time
Result in hour time-line
Figure 4-6 One-click on Week Time-line
The corresponding changes for the markers on the week time-line will be
automatically added to the hour time-line, as shown in Figure 4-6. You can also
mark and unmark the plotted bar by using the left and right mouse buttons.
4.3.1.3 Hour Time-Line
Figure 4-7 shows Hour time-line. It includes the time-line, scheduling information.
Figure 4-7 Hour time-line
4.3.1.4 Marking/Unmarking the Recording Time
You only need one click on the left mouse button to mark the time on this time-line.
The operating method for the hour time-line is the same as that of the week
time-lines. Please refer to Section 4.3.1.1 for details.
4.3.2 Schedule with Time Picker
4.3.2.1 Begin and End Time
Hour picker
Minute picker
Day picker
Figure 4-8 Begin Time and End Time Selectors
There are three controlling units in both “Begin Time” and “End Time” selectors, as
shown in Figure 4-8. The first part of each of these two selectors is the Day Picker.
You can select the day of the week with it and set the beginning time and the ending time for the recording interval.
The second and third units are the Hour Picker and the Minute Picker. You can change the hour and minute settings for the beginning and ending time with them.
NOTE: Normally, the time set in “Begin time” must be earlier than that in “End time”. But if this is not the case, it means the time is over two days.
4.3.2.2 Add and Erase Buttons
After you have selected the time period with the “Begin time” and “End time”
pickers, you can apply the period picker, shown in Figure 4-9 and set the type of
time interval that associates with the beginning and end time. After having the settings in “Begin Time”, “End Time” and “Period Picker” done, click on the
“Apply” button to confirm the settings. Click on the “Erase” button to clear all scheduling information just entered. All newly entered scheduling time interval information will take effect only after the “Apply” button has been clicked.
Period picker
Apply
Erase
Figure 4-9 Period Picker, Apply button and Erase button
4.3.3 Schedule in event mode
You can select to record in Event mode or Continuous mode by the Schedule mode
Figure 4-10 Schedule Mode Selector
4.3.3.1 Motion detection
Figure 4-11 Motion Detection Selector
Figure 4-11 shows the window selection you want to record when motion detection
is triggered.
4.3.3.2 Digital input
Figure 4-12 Digital Input Selector
Figure 4-12 shows the four digital input conditions. Select the triggering condition
that you would like to start recording.
high : Event will be triggered when the digital input is high. low : Event will be triggered when the digital input is low. rising : Event will be triggered if the digital input changes from low to high. falling : Event will be triggered if the digital input changes from high to low.
4.3.4 Schedule in Continuous mode
Figure 4-10 shows that if you have selected the Continuous mode then it will record
continuously according to the schedule set up by the user.
4.4 Secondary Schedule
Secondary schedule is the time that is outside the Primary schedule.
4.4.1 Schedule modes
Figure 4-13 Secondary Schedule Mode Selector
There are three selections in the Secondary schedule mode selector: Disable, Event mode, and Continuous mode. You can disable the Secondary schedule, choose the
Event mode or choose the Continuous mode. The two modes are the same as those
in the Primary schedule. Please refer to Section 4.3.3 and Section 4.3.4.
Chapter 5 Playback
5.1 Features of Playback
The Playback program of this application software is a very powerful yet convenient and user-friendly tool the user can use in browsing the recorded video database. It has two display modes (normal display mode and event preview mode) and three playback methods (full range, time period, and events preview). There are several main tools consisting of special features in this Playback tool. These tools are depicted as follow.
Powerful play control tools:
Play
Stop
Pause
Fast play (from x1 to x16)
Slow play (from /1 to /16)
Convenient display adjustment tools:
Zoom in (from 1:1 to 2.25:1)
Zoom out (from 1:1 to 1:2)
Flexible searching range adjustment tools:
User input (from full range to 1 second)
Zoom in (from full range to 10 seconds)
Zoom out (up to full range)
Various tools:
AVI file transducer
BMP file snapshot
Output to printer directly
System control tools:
Minimize
Miscellaneous tools:
Alert window selector
5.2 Logging In
The authentication mechanism is implemented in Launcher. If the user has passed authentication in Launcher, Playback can be invoked without further authentication.
Otherwise, Authentication diglog of Launcher will pop up and the user must pass authentication in order to use Playback.
5.3 Layout
Area Selection Indicator
Display Area
Control Area
Pull Bar
Histogram Area
Status Area
Figure 5-1 Playback Main Window
Once you have successfully logged in to the Playback system, the main window appears at the top of the screen and the display resolution will be changed to
1024x768 automatically, if the current resolution is less (Figure 5-1). There are four
main areas in this window: Display area, Histogram area, Control area, and Status area. There are also three visual indicators of the controls: Area Selection Indictor,
Frame Selection Indictor, and Pull Bar. These features provide for powerful search for specific video recorded in the surveillance database.
5.3.1 Main Areas
5.3.1.1 Display Area
This Display Area can show the surveillance database of each camera in three ways: by events triggered, by alert, or by time. You can change video size by using the
Display Adjustment Tool and choose playback method by using the Play Control
Tool.
Playback method
Display adjustment
Figure 5-2 Display By Time (Normal Display Mode)
Frame Selection Indicator
Page Control
Figure 5-3 Display By Events (Event Display Mode)
5.3.1.2 Histogram Area
The Histogram is an interactive control. In the control, you can display events’ time domain location and the percentage of motion. You can also select a group of events or a specific period, from the Histogram Area.
5.3.1.3 Control Area
The Control Area contains most of the control selections and toolboxes you need to browse the database, except Page Control. The Page Control Tool is located on the bottom-right corner of the Display Area when the program is operating in the event
preview mode (as shown in Figure 5-3). The control tools include: Location Selector,
Period Selector, Playback Method Selector, Jog Dial, Display adjustment, Searching
Range Adjustment, Exporting, and System Control. Details are discussed in Section
5.3.1.4 Status Area
The Status Area is located at the bottom of the main window. It shows all program status information, including display mode, display size, display speed, exporting file format, and exporting file name.
5.3.2 Indicators
5.3.2.1 Area Selection Indicator
As shown in Figure 5-1, the Display Area is surrounded by a blue rectangle. This is
the Area Selection Indicator. This can be set to indicate either the Display Area or the Histogram Area. Move your mouse cursor to the area you want to select. When you have selected the Display Area, the Display Adjustment Tool will appear in the control area. If you have selected the Histogram Area, the Display Adjustment Tool will disappear and the Searching Range Adjustment Tool will be shown in the same place of the control area.
5.3.2.2 Frame Selection Indicator
The Frame Selection Indicator only appears when you change the display mode to
event preview mode (as shown inFigure 5-3). It is a red rectangle surrounding to one
of the nine event preview frames. Once a frame has been selected, you can control the playing status using the jog dial in the control area.
5.3.3 Pull Bar
The Pull Bar is a fast, flexible control for seeking specific data in the selected time period. In the total length of time in that period, you can click, or pull on the indicator on the Pull Bar to pin point a start time you wish to see. The video display will start playing the video sequence from that point on. If the replay is paused, the display area will show the point you have selected. Note that Pull Bar will only function under normal display mode.
5.4 Settings
Click on the “Settings” button shown in Figure 5-4 in the system control tool, and
the setting dialog will appear on the screen as shown in
Lock Windows
Settings
Minimize
Exit
Figure 5-4 System Control Tool
Database location
The most important item in the settings dialog is the database path setting. You must set it to the directory that contains the surveillance database to make the program to work properly.
AVI files location
This sets the storing directory when you export AVI files. The exported AVI files will be stored in a sub-directory under the directory you have chosen here.
Snapshot files location
It sets the directory when you use the snapshot to export bitmap files. These exported bitmap files will be stored in a sub-directory under the directory you have chosen here.
Figure 5-5 Settings Dialog
AVI Compression Mode
We use only 24 bits color depth to export the AVI file in this mode. In the AVI compression mode selection, you can select one of the compression methods (both video and audio) that your computer supports to export the AVI file. The compression methods may be different from computer to computer due to different compression methods in different computer installations.
Modulation Mode:
The modulation mode decides the on-screen video size. It depends on how the video sequence was recorded in the monitor program. If you have selected the wrong modulation mode, the displayed video will be distorted. To correct this, open the
Settings dialog and change into the correct mode.
Control Panel Position:
This provides a convenient way to change the position of the control area, either to to the left or right side of the main window, according to your preference.
5.5 Normal (Single Frame) Mode
There are several methods you can enter into the normal display mode with only one displaying frame:
(1) Change the database path from one to another in the settings dialog of “System
Control” tool
(2) Change the location from one to another by using the selector location in the control area.
(3) Change the playback method selector to “Full Range”.
(4) Change the playback method selector to “Time Period”.
Period Start Time Label
Period End Time Label
Histogram Area
Figure 5-6 Normal Display Mode
Under the Normal display (single frame) mode, you can use all the tools the
Playback program provides except the Page control. In this mode, the two labels under the Pull Bar show the individual starting and ending time of the interval (as
5.5.1 Histogram Area
Dark Region
Inverted Region
Figure 5-7 Histogram Area in Normal Display Mode
The Histogram Area in the Normal display (single frame) mode only indicates the events’ occurred time and the percentage of motion detection as red bars. If you want to access the histogram area, you must change the Area Selection Indicator to the Histogram Area. You can mark one time interval you want to see with a
color-inverted region by dragging your mouse cursor as you hold down the left
mouse button (as shown in Figure 5-7). As you release the left button, the
color-inverted region will replace the original time range as the new period the program displays. If you click on the left button without holding down and dragging it, the command will be the same as clicking on the Pull Bar in the same x-axis position. That means the Playback system will be shifted to the appointed time and shows the video in the displaying frame. The dark regions in the histogram area means there is no video data existed in these intervals. If you click on these regions, a warning message will pop up.
5.6 Preview (Multiple Frame) Mode
You can enter the event Preview mode only if you have changed the playback method selector to “Events Preview”. This can help you to identify the objects that triggered the events, not only by the time information and the alert percentage in the histogram area but also by playing the real video preview. This allows you to easily distinguish between different alert situations. Under the Event Preview mode, the
Pull Bar, “Transducer” button in the exporting toolbox, and the Display Adjustment
Toolbox are disabled. The two labels under the Pull Bar show both the number of displayed events and the total event count. There are nine frames in the display area that we call one “page”. Each of the nine frames on each page displays a different video sequence event. Each event displayed will be of at least 10 seconds in length.
You can use the “Page Up” and “Page Down” button in Page Control to browse the events in the selected period, up to nine events per page. There is also page status informing you the current page number and the total page count (as shown in
Page Status
Page Up
Displayed Event Number
Histogram Area
Page Down
Total Event Count
Figure 5-8 Preview Mode
5.6.1 Histogram Area
The Histogram Area in the event Preview mode shows the event occuring time and the percentage of the detected motion with red bars. It also indicates the current displayed events with green bars and the selected event with blue bars. If you want to access the Histogram Area, you must change the area selection indicator to the
Histogram Area. You can then mark a color-inverted region over it by holding down
the left mouse button and drag the cursor to the desired area (as shown in Figure
Inverted Region
Selected event
Dark Region
Figure 5-9 Histogram Area in Preview Mode
Displaying events
As you release the left mouse button, the color-inverted region will be enlarged to fill the entire histogram area. This color-inverted region will become the new period the program is going to display. If you click on the left mouse button without holding down and dragging it, the display area will show the event page closest to the point you have selected. The dark regions means there is no video sequence existed in these intervals. If you click on these regions, a warning dialog will pop up.
5.6.2 Histogram Legend
Figure 5-10 Legend of the Histogram
Figure 5-10 shows the legends corresponding to the colors represented in the
histogram. You can call up this diagram by clicking on the Legend button.
5.7 Using Tools
This section discusses the method of how to use the tools in the control area, as
5.7.1 Selector Tools
Figure 5-11 shows the Selector tools. These are: Location Selector, Period Start
Time Selector for the selection of the beginning time, Period End Time Selector for the selection of the ending time, Playback Method Selector, and Alert Area Selector.
Figure 5-11 Selector Tools
5.7.1.1 Location Selector
The Location Selector lets you select the camera you want to view from (refer to
Figure 5-11). The location information is the same as the location name associated
with the dedicated channel in the Monitor program. If there are more than one time
segments in the same location, another dialog will appear (as shown in Figure 5-12).
You must select an interval in that dialog. If your selection is correct, the Playback program will automatically switch to that location and start to display.
Figure 5-12 Time Interval Selection Dialog
5.7.1.2 Period Selector
Period Selector provides you a precise way to choose the start time and the end time of a new period. The end time should be larger than the start time. After you have given the correct start and end times, clicking on the “Play” button in the Jog Dial.
The system will display the new period in the display area and change the period start and the end time labels. The Pull Bar and Histogram Area will be changed, too.
If the selected period is not present in the database, the data in the period selector will be changed back to the previously correct start and end times and a warning message will be shown.
5.7.1.3 Playback Method Selector
Full Range
If you select this method, the database will be displayed from the beginning to the end of this location. Any change in the period selector will have no effect unless you change this selector to “Time Period”.
Time Period
If you change the playback method to “Time Period”, you can modify the start and end times in the period selector. When you click on the “Play” button in the Jog Dial, the period you have selected will be displayed.
Events Preview
This method changes the display mode from the Normal display mode to the Event
Preview mode or vice versa.
The program will save the previous start and end time settings in “Time Period” mode. Therefore, if you want to change the Period Selector to see in another period,
you must first use the Playback Method Selector to change to the mode you want to use. Otherwise, the Period Selector will revert back to the previous period when you last changed the playback method.
5.7.1.4 Alert Area Selector
In the Preview mode, the Playback program only shows one type of the alert events each time. If you want to see the other type of events, you must use the Alert Area
Selector to change to other event type. In the Normal display mode, the alert type that the Alert Area Selector indicates will be highlighted with a red rectangle. The
Alert Area Selector will be changed to alert window 0 by default settings when you change the location selector.
5.7.2 Play Control
For Play Control, we used a jog dial, as shown in Figure 5-13, to make it easier to
control video sequence display. Except for the “Play” button, all other buttons can control the displaying frame in the Normal display mode and the selected displaying frame in the event Preview mode.
Speed Indicator Pause/Resume
Play from beginning
Step Forward
Stop
Figure 5-13 Jog Dial
Play from Beginning
The “Play” button we support here is an intelligent user-interface. The functionality of this button can vary to fit different circumstances. In the Normal display mode, click on the “Play” button restarts the displaying video sequence. In the Preview mode, if you do not change the data of the period selector, clicking on this button restarts the selected displaying frame. If the data of the period selector has been changed, clicking on the “Play” button restarts all frames to display the first nine events in the new period.
Stop
When you want to stop displaying the video sequence, you can click on the “Stop” button. Note that once you had pressed the “Stop” button, the start point will be reset to the beginning of the present period.
Pause/Resume
The “Pause” button provides you a way to pause video sequence display. When the displaying video is paused, clicking on the “Pause” button again will resume video display.
Step Forward
This button is valid only when the displaying video sequence is paused. Each time the “Step Forward” button is clicked, it will display the next frame in that period
Fast Play and Slow Play
We support up to a maximum of x16 fast forward play and a minimum of 1/16 slow forward play. This function provides you with more flexibility in browsing through the surveillance database. If you want to change the playing speed, you only need to move the speed indicator. To increase playing speed, move the indicator in the clockwise direction. To decrease playing speed, move it in the counterclockwise direction. Current speed you are set at will be shown in the second column of the status area.
5.7.3 Display Adjustment Toolbox
When you move the mouse cursor over to the displaying area, the display adjustment toolbox will appear. Using the display adjustment toolbox, you can change the displaying video sequence to the size you want to see in the Normal
display mode. Move the area selection indicator to the display area. Figure 5-14
shows the display adjustment toolbox and its own three elements, i.e. “Zoom In”,
“Zoom Out”, and “Full Screen”.
Figure 5-14 Display Adjustment Toolbox
5.7.3.1 Zoom In
Each time you click on the “Zoom In” button the image size in the display area will be magnified 12.5 percent of the original size. Due to the limitation of the display area size, the maximum zoom in ratio we support here is only 2.25:1 for NTSC modulation mode and 1.875:1 for PAL modulation mode. If you want to see the image in more details, you can use the Full Screen function we support in the same toolbox.
5.7.3.2 Zoom Out
Each time you click on the “Zoom Out” button, the image size in the display area will be minified 12.5 percent to the original size. In order to completely show the location and time, the minimum zoom out ratio is limited to 0.5:1.
5.7.3.3 Full Screen
When you click on the “Full Screen” button, the video sequence will be enlarged to fill up the entire screen instantly. You can double-click on the mouse button in any area on the screen, or press the “ESC” key to return to the original state.
5.7.4 Searching Range Adjustment Toolbox
When you move the mouse cursor over to the Histogram Area, the Searching Range
Adjustment Toolbox will appear in the same position as that of the Display
Adjustment Toolbox. The Searching Range Adjustment Toolbox provides you a faster way to change the range of the displayed time period. By using this toolbox, you can browse the database of one location from any 10-second interval of the
entire range. Figure 5-15 shows the searching range adjustment toolbox composed
of its own three elements, i.e. “Zoom In”, “Zoom Out”, and “Full Range”.
Figure 5-15 Searching Range Adjustment Toolbox
5.7.4.1 Zoom In
Each time you click on the “Zoom In” button in the Searching Range
Adjustment Toolbox, the displayed time period will be half of the original time period until the period is equal to 10 seconds, the minimum. You can see the new interval in more details. The scale of Pull Bar and Histogram Area will change, as well as that of the period start and end time. The Period Selector will show the new start and end time. The Display Area will restart to display the new period from the newly defined start time.
5.7.4.2 Zoom Out
Each time you click on the “Zoom Out” button in the Searching Range
Adjustment Toolbox, the displayed time period will be doubled, unless the start time or end time exceeds the location time-boundary. The scale of the Pull Bars and Histogram Area will also be changed. The Period Selector will show the new start and end time. And the Display Area will restart to display the new period from the newly defined start time.
5.7.4.3 Full Range
Clicking on the “Full Range” button would yield the same effect as you would in the Playback Method.
5.7.5 Toolbox
In our playback program, you can check the database and you can export the database to other media. Using the toolbox, you can export the database into other more portable formats, such as AVI file, bitmap file, or paper (hard-copy). You can also use Windows media player or other programs to browse the exporting data.
Under Normal display mode, you can use all the exporting tools. Under Preview
mode, only snapshot and print can be used. Figure 5-16 shows the elements of the
toolbox.
Figure 5-16 Toolbox
5.7.5.1 Transducer
Using the Transducer tool, you can transpose the displaying video sequence to AVI file. Click on the “Transducer” button and the conversion procedure will start. The speed of exporting data depends on the speed of the computer’s processor. During any time of the exporting interval, you can click on the
“Transducer” button again to stop the procedure in process. You will get an AVI file from the start time to the time you click on the “Transducer” button. The exported
AVI filename will be generated automatically and listed in the fourth column of the status area. If you want to change the AVI file output directory, you can go to the
Settings window as we have described in Section 5.4. To get a better quality of
exporting AVI file, it is suggested to set the video format to normal size (please refer
to Section 3.4 “Camera Configurations”).
5.7.5.2 Snapshot
Each time you click on the “Snapshot” button you can make the program export a bitmap file. In the Normal display mode, the exporting bitmap is the image shown in the display area. In the Preview mode, it is the image that you selected through the frame selection indicator. The size of the bitmap will be the same as the source image you have selected. The exported bitmap filename will be generated automatically and be listed in the fourth column of the status area. If you want to change the bitmap file output directory, you can go to the Settings window
as we have described in Section 5.4 under “Settings”.
5.7.5.3 Print
When you click on the “Print” button, a printing dialog will appear. After you have made your selection and send it to the printer, the images in the display area will be printed out. The printing functionality is designed based on the idea, “what you see is what you get”. Therefore, the output data will be the same as whatever you see in the display area.
5.7.5.4 Volume
When you click on the “Volume” button, a volume control dialog (Figure
5-17) will appear. After you have made your selection, it will change the
volume to the value you have selected. You can also check the mute checkbox to
silent the system.
Figure 5-17 Volume Control Dialog
5.7.6 System Control Toolbox
The System Control Toolbox provides you some basic operations for the Playback
program. Figure 5-18 shows the elements of the System Control Toolbox, i.e. “Lock
Program”, “Settings”, “Minimize”, and “Exit”.
Figure 5-18 System Control Toolbox
5.7.6.1 Lock Program
If you are to be away from your computer, for security concerns, we suggest you lock the Playback program. You can simply click on the “Lock Window” button to lock the main window. Once this is invoked, the main window will be
hidden and the login dialog will appear (as shown in Figure 2-2). To return to the
main window, you need to re-enter the root’s password.
5.7.6.2 Settings
The Settings dialog pops up when you click on the “Settings” button. For
more information about setting this program, please refer to Section 5.4
5.7.6.3 Minimize
The Playback program will be minimized as you click on the “Minimize” button. You can invoke Playback again by clicking on the playback window
on the task bar or choose Playback from the Launcher.
5.7.6.4 Exit
The Playback program will close as you click on the “Exit” button. If the
AVI exporting procedure is running, this procedure will be stopped first.
advertisement
Related manuals
advertisement
