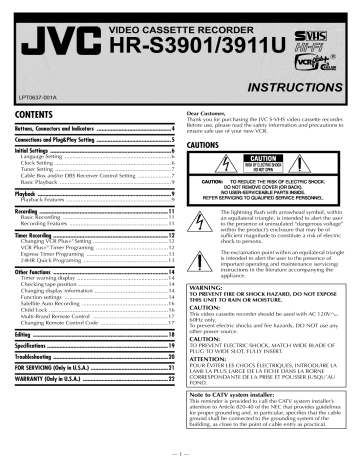

JVC HR-S3911U Videocassette Recorder Owner's Manual

CONTENTS

Initial Settings ..............................................................................

Language Setting ....................................................................

Clock Setting ..........................................................................

Tuner Setting ..........................................................................

Cable Box and/or DBS Receiver Control Setting .....................

7

Basic Playback .......................................................................

9

6

6

6

7

Playback......................................................................................9

PlaybackFeatures...................................................................9

Recording...................................................................................

Basic Recording ...................................................................

Recording Features ...............................................................

11

11

11

Timer Recording..........................................................................

Changing VCR Plus+(_Setting ................................................

VCR Plus+_ Timer Programing ..............................................

Express Timer Programing ....................................................

24HR Quick Programing ........................................................

Other Functions..........................................................................

Timer warning display ..........................................................

Checking tape position .........................................................

Changing display information ...............................................

Function settings ..................................................................

Satellite Auto Recording .......................................................

Child Lock ............................................................................

Multi-Brand Remote Control ................................................

Changing Remote Control Code ...........................................

14

14

14

14

14

16

16

17

17

12

12

12

13

Editing.......................................................................................18

Dear Customer,

Thank you for purchasing the JVC S-VHS video cassette recorder.

Before use, please read the safety information and precautions to ensure safe use of your new VCR.

CAUTIONS

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE

THIS UNIT TO RAIN OR MOISTURE.

CAUTION:

This video cassette recorder should be used with AC 120VQ,,

60Hz only.

To prevent electric shocks and fire hazards, DO NOT use any other power source.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF

PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR I_VlTER LESCHOCS I_LECTRIQUES, INTRODUIRE LA

LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU

FOND.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the N EC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

CAUTION:

Changes user's ormodifications tooperate

Declaration

of Conformity

Model Number: HR-$3901/3911U

Trade Name: JVC

Responsible Party: JVC Americas Corp.

Address: 1700 Valley Road Wayne, N.J. 07470

Telephone Number: 973-317-5000

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Failure to heed the following precautions may result in damage to

the VCR, Remote or video cassette.

1. DONOT place the VCR...

...in an environment prone to extreme temperatures or humidity.

...in direct sunlight.

...in a dusty environment.

...in an environment where strong magnetic fields are generated.

...on a surface that is unstable or subject to vibration.

2. DONOT block the VCR's ventilation openings.

3. DONOT place heavy objects on the VCR or on the Remote.

4. DONOT place anything which might spill on the top of the

VCR or on the Remote.

5. AVOID violent shocks to the VCR during transport.

VCR Plus+, C _and PlusCode are registered trademarks of Gemstar

Development Corporation.

The VCR Plus+ system is manufactured under license from

Gemstar Development Corporation.

For Customer Use:

Enter below the Model No. and Serial No. which are located on the rear of cabinet. Retain this information for future reference.

Model No.

Serial No.

• Cassettes marked "S-VHS" and "VHS" can be used with this video cassette recorder. However, S-VHS recordings are possible only with cassettes marked "S-VHS".

By using S-VHS ET it is possible to record and play back with

S-VHS picture quality on VHS cassettes with this VCR.

efficiency.

INSTRUCTIONS

Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing.

ATTENTION:

Follow and obey all warnings and instructions marked on your product and its operating instructions.

For your safety, please read all the safety and operating instructions before you operate this product and keep this booklet for future reference.

INSTALLATION

1. Grounding or Polarization

(A) Your product may be equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way.

This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

(B) Your product may be equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.

If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

2. Power Sources

Operate your product only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. If your product is intended to operate from battery power, or other sources, refer to the operating instructions.

3. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

4. Power Cord Protection

Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

5. Ventilation

Slots and openings in the cabinet are provided for ventilation.

To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

• Do not block the openings by placing the product on a bed, sofa, rug or other similar surface.

• Do not place the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

6. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

ANTENNA INSTALLATION INSTRUCTIONS

1. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

3.

Power Lines

An outside antenna

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

system should not be overhead power lines or power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

USE

1. Accessories

/

_

_

_ removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged.

_

I / [r

ANI_NNA

UN,T

(NECSEOTION

_

GBOUNDCLAMPS

POWERSERVICE GROUNDING ELECTRODESYSTEM

(NECART 250. PARTIt) b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

_/--_GROUNDING

_

_----,,'-,,_

CONDUCTORS

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are

CNECSECTICNmO-29 covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f.

When the product exhibits a distinct change in performance-this indicates a need for service.

To avoid personal injury:

• Do not place this product on an unstable cart, stand, tripod, bracket, or table. It may fall, causing serious injury to a child or adult, and serious damage to the product.

• Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

• Use a mounting accessory recommended by the manufacturer and follow the manufacturer's instructions for any mounting of

SERVICING

1. Servicing

If your product is not operating correctly or exhibits a marked change in performance and you are unable to restore normal operation by following the detailed procedure in its operating instructions, do not attempt to service it yourself as opening or

3. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or which have the same characteristics as the original part. Unauthorized shock or other hazards.

4. Safety Check

Upon completion service technician substitutions may result in fire, electric of any service or repairs to this product, ask the to perform safety checks to determine that the product is in safe operating condition.

the product.

• Do not try to roll a cart with small casters across thresholds or deep-pile carpets.

2. Product and Cart Combination

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Water and Moisture

(D

Do not use this product near water--for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool and the like.

Howto usethe Remote

Before use, insert two AA size batteries into the Remote with the polarity (@ and Q) matched correctly as indicated on the battery compartment or on the lid.

The Remote can operate most of your VCR's functions, as well as basic functions of TV sets, cable boxes and DBS receivers.

• Point the Remote toward the remote sensor on the target component.

• The maximum operating distance of the Remote is about 8 m.

NOTE:

tf the Remote does not work properly, remove its batteries, wait for a few seconds, replace the batteries and then try again.

4. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

5. Attachments

Do not use attachments not recommended by the manufacturer of this product as they may cause hazards.

6. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

7. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Videoheadscleaning

The heads get dirty in the following cases:

• in an environment prone to extreme temperature or humidity.

• in a dusty environment

• flaw, dirt or mold on video tapes

• continuous usage for a long time

Use a dry cleaning cassette -- TCL-2 -- when:

• Rough, poor picture appears while a tape is played back.

• The picture is unclear or no picture appears.

• "USE CLEANING CASSETTE" appears on the screen (only with

"SUPERIMPOSE" set to "ON" (___pg. 15)).

ATTENTION:

To mobile phone users:

Using a mobile phone in the vicinity of the VCR may cause picture vibration on the TV screen or change the screen to a blue back display.

On placing the recorder:

Some TVs or other appliances generates strong magnetic fields.

Do not place such appliance on top of the VCR as it may cause picture disturbance.

--3--

I

FrontPanel

POWER,_/I

Cassette loading slot

24HR QUICK

PROGRAM

DISPLAY

REC LINK

Advanced

JOG dial

Remote

Number keys

CANCEL

MBR SET

[A/B]

POWER

DISPLAY

DAILY(M-F)

. AUX

•TIMER

DATE+/-

VIDEO/AUDIO input con hectors

STOP/EJECT

Displaypanel

Timer mode indicator

VCRmode

Play indicator \

Record indicator

I

Channel and auxiliary input/Clock time

RearPanel

AC power cord

CABLE BOX

S-VIDEO IN

PAUSE/ ANT. IN

AV COMPULINK

AUDIO/VIDEO

IN

AUDIO/VIDEO OUT

TV OUT

S-VIDEO OUT

SHUTTLE

AV

[13/CH+/-]

PLAY

FF

PAUSE

[ENTER/OSD]

PLUS

_ I_1<]

[TV VOL+/-]

If you press OSD (OK) on the Remote when "SUPERIMPOSE" is set to "ON" (_ pg. 15), you can see the current VCR status on the

TV screen.

The indications are not recorded even if the VCR is in the recording mode.

Channel and auxiliary input Timerwarning display

VCR operation mode

,Day and L_CH125

RECORDq_.-[I

clock Ume "_-THU

12:00 AM

PAUSEJI

.......

. JL-STEREO -WARNING- 1_7 SP,'--- Tapespeed

,_..... u i

I,SAP TIMERRECORDINGI

• p,rogram

y

inolcatlon

/I

Tn _TAPT'_nn_I - _Cassette

.u

u_nH/

uuun

I

/I

_ (CANCEL)_1

""

mark

SAP I B......

+ .....

+ .....

+-|--E[.I_ Tapeposition indication

A "i

I

IrNORM

REMAIN

INDEX 1

/

1.00_

TM

In de x n m r monUi(_o°r

indications

--1.[ HI-FI

, COUNT 1:23;45:J_ Tape

I

Timecounter remainingtime

Torecallan indication

Press OSD (OK).

• All indications corresponding to the current status are displayed for 5 seconds. After that, the counter information and RECORD/PAUSE if in the Record Pause mode, are left displayed on the screen.

[_ Press OSD (OK) again to clear the display.

• The RECORD/PAUSE indication is left displayed on the screen.

--4--

Checkcontents

Make sure the package contains all of the accessories listed in

"Specifications"

(___pg. 19).

[]

SituateVCR

Place the VCR on a stable, horizontal surface.

[]

Connect

Antenna or cable

Coaxial cable

L_ _ --

Flatfeeder _ "_.

Matching transformer

(not supplied)

I.

AC power cord

Backof VCR

AC outlet

TV

To audio/video input connectors j_

Audio/video cable

(not supplied)

To 75 [-_terminal

L

To S-video input connector

RF cable

(supplied)

S-video cable

(supplied)

RFConnection

Disconnect the TV antenna from the TV.

Connect the TV antenna cable to the ANT. IN terminal on the rear of the VCR.

Connect the supplied RF cable between the TV OUT terminal on the rear of the VCR and the TV's antenna input terminal.

AVConnection

(improves picture quality during tape playback.)

your TV is equipped with audio/video input connectors

Connect the antenna, VCR and TV as shown in the illustration.

Connect an audio/video cable between the AUDIO/VIDEO

OUT connectors on the rear of the VCR and the audio/video input connectors on the TV.

S-videoConnection

(allows you to make the most of the S-VHS picture performance.) our TV is equipped with a S-video input connector

Perform "RF Connection" above.

Connect a S-video cable between the S VIDEO OUT connector on the rear of the VCR and the S-video input connector on the TV.

Connect an audio cable between the AUDIO OUT connectors on the rear of the VCR and the audio input connectors on the

TV.

• Even if you are using audio/video cables to connect your VCR to your TV, you must also connect it using the RF cable. This will ensure that you can record one show while watching another.

[]

PerformPlug&Play

Plug the AC power cord into an AC outlet. Do not turn on the

VCR. The clock and tuner channels will be set automatically.

The time and date can be set automatically by the clock setting data transmitted from one of the regular TV broadcast channels. We call this TV channel the "host channel" and it is a PBS channel in your area.

AI"rENTION:

If you use a cable box, Plug&Play will not function; set the dock and tuner channels separately (_ pg. 6 - 7).

• Depending on areas or reception conditions, the VCR may not receive the Auto clock setting data from PBS channel. If this function is taking a considerable amount of time it may be necessary to perform the semiauto or manual clock set procedure.

During Initial Auto Clock Set

"Aut" blinks.

During Auto Channel Set

The channel numbers are displayed as they are scanned and set.

Plug&Play Completed

The current time is displayed.

What to do if Plug&Play setting failed

• If an incorrect time is displayed on the display panel, perform the procedure in "Semiauto Clock Set" (_-_ pg. 6) or "Manual

Clock Set" (_ pg. 6).

• If "-:- -" appears on the display panel, ensure that the antenna cable is connected correctly. Then turn on and off the VCR; the

Plug&Play setting will be automatically reactivated. If Plug&Play setting is not performed though the antenna cable is connected correctly, perform the procedure in "Manual Clock Set"

(_-_ pg. 6) and "Auto Channel Set" (_-_ pg. 7) or "Manual

Channel Set" (_-_ pg. 7).

[]

SetVCRchannel

The VCR channel is the channel on which you can watch the picture from the VCR on the TV when only using the RF connection.

Press POWER to turn off the VCR, then press STOP/

EJECT(11/!) on the VCR for more than 5 seconds. "CH3" appears on the display panel. Press CH+/- on the Remote to select

"CH3", "CH4"

or "CH-"(OFF), then press OK.

• The VCR channel is preset to "CH3".

Set to "CH4" if CH3 is used for broadcasting in your area.

[]

Finalpreparation

Turn on the VCR and the TV, and select the VCR channel .3 or 4 (or

AV mode) on the TV. You can now perform basic playback or basic recording.

• If you connect the TV and the VCR only using the RF connection, press TV/VCR on the Remote so that the VCR mode indicator lights on the display panel.

--5--

The default setting is "ENGLISH".

[]

Access

thenInitial

Setscreen

Press MENU on the Remote. Press AV to move the highlight bar (arrow) to "INITIAL

SET", then press OK or [_.

MAID MENU

FUDCTIOD BET

TUDER BET

Illlllllhlll_Ni

[]

Selectlanguage

This VCR offers you the language choice to view menus and some messages -- in

English, Spanish or French. Press AV to move the highlight bar (arrow) to

"LANGUAGE",

then press OK or _> repeatedly until the desired language is selected.

Press MENU to return to normal screen.

IDITIAL SET

CLOCK SET

GUIDE CHANNEL SET

CABLE BOX SET

DDS RECEIVER SET

Language selection will be reset to "ENGLISH" after a power failure occurs.

Perform clock setting only if the clock has not been set correctly by the Plug&Play setting or if you use a cable box.

Preparations

[]

Access thenInitial

Setscreen

Press MENU on the Remote. Press AV to move the highlight bar (arrow) to "INITIAL

SET", then press OK or [_.

MAIN MENU

Illllll

FUDCTIOD BET

TUDER BET

ihl II+] Ni

[]

Access

Press AV to move the highlight bar

(arrow) to "CLOCK SET", then press OK or

[>.

INITIAL BET

=l[ltllITB(t:] Ni

LANGUAGE EDGLISH

GUIDE CHANNEL SET

CABLEBOX SET

DDS RECEIVER SET

Settingclocksemiautomatically

You can change the host channel/D.S.T. (Daylight Saving Time)/ time zone setting manually. First follow steps illto [] in

"Preparations"

above, then go to the following steps.

NOTE:

The time set previously

will be erased when "AUTO CLOCK"

"HOST CH" "D.S. T." or "TIME ZONE" setting is changed.

[]

SetAutoClockto ON

Press OK or _> on the Remote repeatedly to move the highlight bar to "AUTO CLOCK", then press AV so that "ON" is selected.

TIME

DATE

CLOCK SET

/

HOST CH

D.S,T,

_AUT'18

: AUTO

TIME ZONE : AUTO

YEAR

]

B2

(CATV) /

|

i

[]

Selecthostchannel

You can either select "AUTO" or enter a PBS channel number.

Press OK or _>to move the highlight bar to "HOST CH", then press AV repeatedly until "AUTO" or the desired PBS channel number is selected.

• Some PBS channels do not transmit clock setting data.

[]

SelectD.S.T.mode

Press OK or _> to move the highlight bar to "D.S.T.", then press

AV repeatedly until the desired setting is selected.

AUTO: Select if you want to adjust your VCR's clock automatically by the incoming signal from the host channel. (Auto Daylight Saving Time enables automatic adjustment of the VCR's clock at the start and end of

ON:

OFF:

Daylight Saving Time.) Be sure to select the correct time zone manually in step I!

Adjustment will be made by the built-in clock itself.

Select when Daylight Saving Time does not apply to you.

[]

Selecttimezone

Press OK or _> to move the highlight bar to "TIME ZONE", then press AV repeatedly until "AUTO" or the desired time zone is selected. Each time you press the button, the time zone changes as follows:

AUTO _ ATLANTIC _ EASTERN_ CENTRAL

MOUNTAIN _ PACIFIC"*-*ALASKA _ HAWAII

_-_ (back to the beginning)

[]

Complete ClockSet

Press MENU to return to normal screen. Turn off the VCR. "Aut" will appear on the display panel while the clock is being set. The current clock time will appear automatically when the clock setting is complete.

Selections of host channel and D.S.T. mode will be reset to

"AUTO" after a power failure occurs.

Settingclockmanually

-- ManualClockSet

First follow steps []to [] in "Preparations" above, then go to the following steps.

[]

Settime,dateandyear

Press AV until the desired time appears, then press OK or _. Set the date and year in the same way.

• Holding AV changes the time in 30minute intervals, or changes the date in

15-day intervals.

[]

SelectD.S.T.mode

Press OK or _>to move the highlight bar to

"D.S.T.", then press AV to select the desi red setting.

0N: Adjustment will be made by the built-in clock itself.

OFF: Select when Daylight Saving Time does not apply to you.

[]

Startclock

Press MENU and normal screen appears.

T_:t'IoE 1D2/ATE

OK

o, u,I

i

I

To make corrections any time during the process

Press OK or _> repeatedly until the item you want to change blinks, then press AV.

Manual setting of the clock will be lost after a power failure

OCCURS.

--6--

AutoChannel

Perform Auto Channel Set only if channels have not been set correctly by the Plug&Play setting.

MNMENU

Setscreen

Press MENU on the Remote. Press AV to move the highlight bar (arrow) to "TUNER

SET", then press OK or [_.

mmALSET

[]

PerformAutoChannel

Press AV to move the highlight bar

(arrow) to "AUTO CHANNEL SET", then press OK or _>.The VCR selects the correct band (TV or CATV) automatically during

Auto Channel Set.

• When Auto Channel Set is complete,

"SCAN COMPLETED" appears on screen.

• If the scan was unsuccessful, "SCAN

COMPLETED-NO SIGNAL-" appears on screen. Check the connections and start again.

Press MENU to return to normal screen.

BAND

_ET

TUNER SET

"W"

AUTOCHMNELSET

SCANNING...

CAW

Settingchannelsmanually

Setting

The following procedure is required if you receive your TV channels through a cable box (descrambler) and/or if you receive satellite channels through DBS (Direct Broadcast Satellite) receiver. The Controller allows the VCR to automatically switch the cable box or DBS receiver's channel during timer recording.

NOTES:

• The Controller

is not supplied with this unit. tt can be requested by mailing in the completed JVC Cable Mouse Certificate that is included with the accessory package.

• For the cable box, the Controller

is effective for VCR Plus+ or

Express timer programing.

• For the DBS receiver, the Controller is effective only for Express

timer programing.

• When connecting

your cable box or DBS receiver, refer to its instruction manual.

[]

SituateController

If both a cable box and a DBS receiver are used, position the

Controller so its signal reaches the remote sensors on both the cable box and DBS receiver.

[]

AttachController

Fix securely using the adhesive strip attached on the back of the

Controller.

Cable box or DBS receiver

You can add the channels you want or delete the channels you do not want manually.

[]

Access

Setscreen

MNMENU

Press MENU on the Remote. Press AV to move the highlight bar (arrow) to "TUNER

SET", then press OK or [_.

[]

Access Setscreen

Press AV to move the highlight bar

(arrow) to "MANUAL CHANNEL SET", then press OK or [_.

11JNERSET

BAND

SET

CATV

Your VCR

Controller

(suggested locations)

[]

Connect

Transmitter RF out I

!

C°ntr°llerTo ANT. INI

l

Audio/video output

To AUDIO/VIDEO IN

[]

Addor skipdesiredchannels

MANUAL CHANNEL SET

To add channels

Pressthe Number keys on the Remote to input a channel number you want to add.

[_ Press OK or _> to set to "ADD".

Repeat _ to _ to add other channels.

Press MENU to return to normal screen.

IHEN

To skip channels

Press AV or the

Number keys

to select a channel number you want to skip.

[_ Press OK or _> to set to "SKIP".

Repeat _ and _ to skip other channels. Press MENU to return to normal screen.

After a power failure occurs...

• Band selection will be reset to "CATV".

• If your cable box or DBS receiver does not have audio/video output connectors, connect the RF output terminal on the unit to the ANT. IN terminal on the rear of your VCR.

• If your cable box or DBS receiver has audio/video output connectors, connect an audio/video cable between the AUDIO/

VIDEO IN connectors on the rear of the VCR and the audio/ video output connectors on the unit.

• If both a cable box and a DBS receiver are used, it is recommended that you connect the DBS receiver to your VCR's

AUDIO/VIDEO IN connectors and the cable box to your VCR's

ANT. IN connector.

CONTINUED

ON

NEXT PAGE

[] ConnectControllertoVCR

Connect the Controller to the CABLE BOX Controller connector on the rear panel.

[]

Turnoncableboxor DBSreceiver

Select a channel other than channel 9 on your cable box, or channels 100, 205 on your DBS receiver.

[]

Access

Press MENU on the Remote. Press AV to move the highlight bar

(arrow) to "INITIAL SET", then press OK or _.

[]

Access

CLOCNGET

LANGUAGE ENGLISH

GUIDECHANNELGET

Press AV to move the highlight bar

(arrow) to "CABLE BOX SET" or "DBS

RECEIVER SET", then press OK or [_.

[]

Selectoutputchannel

Your selection depends on how the unit is connected to your VCR.

• If the unit is connected to your VCR's

ANT. IN terminal on the rear panel,

Press AV until the channel number

"1_]"

,,

,, representing the cable box's output (CH2

- CH9) or DBS receiver's output (CH3 or CH4) appears on the screen.

• If the unit is connected to your VCR's AUDIO/VIDEO

IN

connectors on the front panel, press AV until "ON F-1

(FRONT)" appears on the screen.

• If the unit is connected to your VCR's AUDIO/VIDEO IN

connectors on the rear panel, press AV until "ON L-1 (REAR)" appears on the screen.

• If you do not use any unit, press AV until "OFF" appears on the screen.

[]

Access

Press OK or _.

• If the Clock Set screen appears, perform "Manual Clock Set". If

you press MENU after the clock has been set, the Brand Set screen appears.

[]

Enterbrandcodeandperformtest

Press the appropriate Number keys on the

Remote to enter the brand code from the following list, then press OK or _.

CABLE BOXBRAND SET

CABLE BOX BRAND

ARCHER

CABLETENNA

CABLFVIEW

CITIZEN

CURTIS

DIAMOND

GC BRAND

GEMINI

GENERAL INSTRUMENTS

HAMLIN

IASCO

IERROLD

NOVAVISION

OAK

PANASONIC

PULSER

R(_

REGAL

REMBRANDT

SAMSUNG

SCIENTIFIC ATLANTA

SIGMA

SL MARX

SPRUCER

STARGATE

TELFVIFW

T()C()M

UNIKA

UNIVERSAL

VIDEOWAY

ZENITH

DBS RECEIVER BRAND

JVC (DISH Neiiwork)

ECHOSTAR (DISH

Nei[work)

CODE

51

51

CODE

1,5,17

1, 17

15, 16, 17, 21, 25

15, 16, 17, 21, 25

2,8

1, 17

15, 16, 17, 21, 25

15

1,4,6,11,12,15,28

10, 18, 23

15

1,4,6,11,12,15,28

2,8

7, 20

13, 14

15, 16, 17, 21, 25

13, 14

10, 18, 23

1,16,17

5,16,24

2,8

7, 20

5,16,17,24,25

13, 14

5, 15, 16, 17,21,24,25

5,16,24

1,4,16

1, 17

16,17,25

3,9,22

3,9,22

DBS RECEIVER BRAND

SONY (DSS)

RCA (DSS)

CODE

41

40

For cable box

• If the cable box's channel changes to 9, setting is complete.

Press OK.

• If the cable box's channel does not

change to 9;

Press AV to move the highlight bar

1

DID YOUR CABLE BOX

CHANGE

k"_' i :_:]

NO

(arrow) to "NO", then press OK or _.

[_ Repeat step I!_1until the cable box's channel changes to 9 by entering another code.

If the channel does not change after going through all the code numbers listed for your model of cable box, then try all the other numbers.

For DBS receiver

DBSRECEIVERDRANDSET

• If the DBS receiver's channel changes to

51 the channel listed below for your brand,

HmY0URDSSHEmVER setting is complete.

Press OK or _>.

JVC "-_ 100

ECHOSTAR "-" 100

SONY "-_205

RCA "-"205

CHANNELIOO?

k"_' i :_:]

NO

• If the DBS receiver's channel does not

change as shown above;

Press AV to move the highlight bar (arrow) to "NO", then press OK or _.

[_ Repeat step Ira.

--8--

•"TV CH

+

BasicPlayback

[]

Loada cassette

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointing towards the VCR.

• Do not apply too much pressure when inserting.

• The VCR turns on, and the counter on the on-screen display is reset, automatical ly.

• If the cassette's record safety tab has been removed, playback begins automatically.

[]

Startplayback

Press PLAY (11_).

• The S-VHS indicator lights up when you play back a tape recorded in S-VHS mode or in S-VHS ET mode (___ pg. 11).

"ql

Reverse

Reverse search

2 steps

Reverse play

" OH-

Reverse slow motion

2 steps

Slow motion

2 steps

Normal play

Forward ll,-

Forward search

3 steps

Press REW (_)

(11_1_).

or

FF

OR Turn the JOG dia I to the !eft

or right.

Press STOP!EJECT (II I_).

• You can also eject the cassette when the VCR is turned off.

Press POWER _IL

Press STOP (II)on the

Remote.

OR PressSTOP!EJECT(II/--)on the VCR.

Press PAUSE (11).

• Press PLAY (1_) to resume normal playback,

NOTE:

OR

Push the JOG dial.

Push the JOG dial again to resume norma! playback.

During stil! picture, vertica! vibration may appear on the

screen. Press CH+/- on the remote to get a clearer picture.

PressPAUSE (11)tO pause, then press I_1_1or I_1_! (or

PAUSE (11)) repeatedly,

• press PLAY (1_) to resume normal playback, left

OR

Push the JOG dial _o pause, then turn the JOG dial to the or right.

opush the JOG dial again tO resume normal playback.

Press REW (_t_1) or FF

(_)

OR

Turn the JOG dial quickly to the !eft or right.

• Press PLAY (1_) to resume normal playback.

• If you press and hold REW (_) or FF(11_1_)for more than

2 seconds, simply releasing it cancels the picture search, and normal playback resumes.

Press I_1_1or I_1_1 OR Turn the JOG dia I to the !eft

repeatedly.

Or right,

• Press PLAY (1_) to resume normal playback.

• Each time you press I_ll_lor I_l_lor each time JOG dial passes a click position, the playback speed changes. To decrease the speed during picture search, press the opposite direction button repeatedly or turn the dial in the opposite direction.

• During still picture, press and hold I_l_lto start forward (or

I_ll_lto start reverse) slow motion playback. When you release the button, sti![ picture resumes:During still pictu[e, ho!ding

PAUSE(11) for more than 2 seconds also starts forward slow motion playback. If you press PAUSE (11) again, still picture resumes.

NOTE:

During slow motion, some noise may appear on the TV screen,

Press CH+/-

on the remote to eliminate

the noise.

Adjustingtrackingcondition

-

Tracking

Automatic tracking adjustment

Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, follow the procedures below.

On the Remote

[] Press SP/EP during playback to activate manual tracking.

[] Press CH +/-to eliminate the noises. Press it briefly for a fine adjustment, or press and hold for a coarse adjustment.

• Press SP/EP again to reactivate automatic tracking.

Selectingmonitorsound

-- AudioMonitor

While playing back a tape on which stereo sound or SAP sound is recorded, press A.MONITOR on the Remote. Each time you press the button, sound changes.

HI-FI: Normally select this. Hi-Fi sound is played back.

HI-FI L: Sound on the left Hi-Fi channel is played back.

HI-FI R: Sound on the right Hi-Fi channel is played back.

NORM: Sound on the normal track is played back.

NORM HI-FI: Both sounds on the Hi-Fi track and normal track are mixed and played back.

NOTE:

The above indication appears when "SUPERIMPOSE" is set to

"ON" though the monitor sound changes in sequence.

--9--

Automaticoperationsafter rewinding

Next FunctionMemory

The Next Function Memory "tells" the VCR what to do after rewinding is complete.

Ensure that the VCR is in stop mode.

• For Automatic Playback Start

Press REW (_1_1), then press PLAY (1_) within 2 seconds.

• For Automatic Power Off

Press REW (_1_1), then press POWER _b/I within 2 seconds.

• For Automatic Timer Standby

Press REW (_1_1), then press TIMER within 2 seconds.

NOTE:

tt is not possible to select the Automatic Timer Standby function if the cassette's record safety tab is removed.

Playingbacktape repeatedly(100 times)

RepeatPlay

During playback, press and hold PLAY (1_) for more than

5 seconds. The play indicator (D>) on the display panel starts blinking slowly. To stop playback, press STOP (m) on the Remote

-- InstantReview

After ensuring that the VCR is turned off and that the timer mode is disengaged, press REVIEW.

• The VCR turns on, and rewinds to the index code indicating the beginning of the last timer-recorded program, then begins playback automatically.

• You can access a program of 2 to 9 index codes away from the current position on the tape. If, for example, you have

5 programs recorded and you want to watch the third one, press

REVIEW three times.

• The Instant Review function will also operate if the VCR is turned on.

SkipSearch

Press SKIP SEARCH on the Remote once to 4 times during playback. Each press initiates a 30-second period of high speed playback (up to 2 minutes). When the specified portion of the tape is skipped, normal playback resumes automatically.

To return to normal playback during Skip Search, press PLAY (1_).

Locatingbeginningof recordings

-- IndexSearch

Index codes are placed on the tape at the beginning of each recording when recording on this VCR.

[] Whilethetape is not running, press SHUTTLE PLUS _ on the Remote to start search.

[] To access a recording of 2 to 9 index codes away, press I_1_1or repeatedly until the correct number is displayed on the screen (only if

"SUPERIMPOSE" is set to "ON"

(_ pg. 15)). Playback begins automatically when the desired recording is located.

Beginning of the Current or

INDEX 1 i

Beginning of the

2nd next program recorded

-2

-1 _1

1

2_

2nd next

_

3

--10--

beunlawful theconsent

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its record safety tab. To record on it later, cover the hole with adhesive tape.

_ • fety tab

BasicRecording

[]

Loada cassette

Make sure the record safety tab is intact. If not, cover the hole with adhesive tape before inserting the cassette.

• The VCR turns on, and the counter on the on-screen display is reset, automatical ly.

[]

Selectrecording

Press CH+/- or the Number keyson the Remote. Or push the JOG dial, then turn it to the left or right.

• If you connect the TV and the VCR only using the RF connection, press TV/VCR on the Remote so that the VCR mode indicator lights on the display panel, to view the program to be recorded.

[]

Settapespeed

Press SP/EP. The selected tape speed will appear on the TV screen.

NOTE:

You can select tape speed in the stop mode or during recording pause mode.

[]

Startrecording

On the VCR, press REC (O). Or on the Remote, while holding REC

(0), press PLAY (1_).

NOTE:

tf "VIDEO CALIBRATION"

is set to "ON"

(_2 pg. 15) (default

setting), the VCR takes about 7 seconds to assessthe quality of the tape in use, then recording begins with the picture level optimized.

Press PAUSE (11).

• Press PLAY (11_)to resume recording.

• You can select Channel in the recording pause mode.

Press STOP (m) on the

Remote.

OR PressSTOP/EJECT (i/!) the VCR.

on

NOTE:

tf the tape reaches its end during recording, the recording stops and "(_)" and "_" on the display panel blink. Press STOP/EJECT

(i lain) on the VCR to eject the cassette or press REW (_1_1) on the

Remote to rewind the tape.

Specifyingrecordinglength

InstantTimerRecording(ITR)

During recording, press REC (O) on the VCR repeatedly until the recording length you want appears on the display panel. The record indicator (O) on the display panel starts blinking.

• Each time you press the button, recording length increases in

30-minute intervals (up to 6 hours).

• The VCR shuts off after recording is finished.

• To cancel an ITR, press STOP (m) on the Remote or STOP/EJECT

(m/!) on the VCR.

During recording...

• If you connect the TV and the VCR only using the RF connection (___pg. 5) to view pictures from the VCR, press TV/

VCR on the Remote so that VCR mode indicator goes off from the display panel. (The TV broadcast being recorded disappears.)

• If you are using the AV connection (_ pg. 5) to view pictures from the VCR, change the TV's input mode from AV to TV.

Then, select the channel you want to watch, on the TV.

SecondAudioRecording

This VCR's built-in MTS decoder enables reception of

Multichannel TV Sound broadcast. To record a SAP program received, set "2ND AUDIO RECORD" to "ON" (__Trpg. 15).

S-VHS(SuperVHS),S-VHSETorVHSRecording

Mode

This VCR can record in S-VHS (Super VHS), S-VHS ET or VHS.

• To record in S-VHS:

Set "S-VHS MODE" to "ON" (__Trpg. 16). Then, insert a cassette marked "S-VHS". The S-VHS indicator lights up on the display panel.

The S-VHS recording mode is selected.

• To record in S-VHS ET on a VHS cassette:

Set "S-VHS ET" to "ON" (___pg. 1.5). Then, insert a cassette marked "VHS". The S-VHS indicator lights up on the front display panel.

• To record in VHS:

Insert a cassette marked "VHS".

Set "S-VHS ET" to "OFF" (__Trpg. 15).

• To record in VHS on an S-VHS cassette:

Insert a cassette marked "S-VHS". The S-VHS indicator lights up on the display panel. Then, set "S-VHS MODE" to "OFF"

(___pg. 16). The S-VHS indicator goes off.

The VHS recording mode is selected.

NOTE:

When playing back a tape that has been recorded in S-VHS or

S-VHS ET, the S-VHS indicator lights up on the display panel regardless of the "S-VHS ET" or "S-VHS MODE" setting.

--11 --

I

Up to 8 timer recording programs can be made using VCR Plus+ timer programing,

Programing method

Express timer programing or 24HR as far as a year in advance.

Quick

Remember, the clock must be set before you can program the timer.

NOTES:

• tfall the 8 programs

have already been

set, "PROGRAM

or "Full" appears on the TV screen or the display panel.

• After timer automatically.

recording is completed, the VCR turns off

FULL"

• You can program the timer recording while a regular recording is in progress; the menu screens will not be recorded.

• To timer-record cable or satellite channels, perform "Cable Box and/or DBS Receiver Control Setting" and be sure to keep the cable box or DBS receiver turned on.

• Even ifa power failure occurs, the VCR keeps your timer programs.

However, the clock time, channel settings, and other menu settings are lost.

As a result, when the power is supplied again to this VCR after the power failure, this VCR starts the

Plug&Play setting automatically to restore the clock time and channel setting, tf the clock time and channel setting are restored correctly, each timer program

you have

made will start at its start time unless its end time has elapsed.

NOTE:

tf the tape reaches its end during timer recording, stops and "Q" "(_)" and "_" on the display the recording panel blink.

Press

TIMER to disengage timer,

then press STOP/EJECT

(i/_-_) on the

VCR to eject the cassette or press POWER

@/I then press REW

(_1_1) on the Remote to rewind the tape.

ChangingVCRPlus+®Setting

The VCR Plus+ programing system assigns a VCR Plus+ guide channel to the TV channels and the cable channels. These guide channel numbers are also called the VCR Plus+ channel codes.

Most TV listings have a section, usually a chart, indicating the guide channel numbers assigned to each station.

To ensure that VCR Plus+ timer recording operates correctly, it is necessary to set the VCR Plus+ "Guide Channel Set" for each station.

If you have moved to a different area or if a broadcasting station's channel number has been changed, perform the following steps to set the correct guide channel number.

[]

Access

Press MENU on the Remote. Press AV to move the highlight bar

(arrow) to "INITIAL SET", then press OK or _>.

[]

Access Setscreen

The PlusCode programing numbers are the numbers next to the program in most TV listing.

Load a cassette with the record safety tab intact. The VCR turns on, and the counter is reset, automatically.

[] Press PROG. on the Remoteto access the PlusCode No. screen.

PLUSCODE NO.

n_

[] Press the appropriate Number keys to input the PlusCode number, then press OK or _>. Check to make sure the setting is accurate on the Program screen.

PLUSCODE NO.

PROGRAM 1

START

8:00PM

_

STOP

10:00PM

_

CH

SP

TUE

Press AV to move the highlight bar (arrow) to "GUIDE

CHANNEL SET", then press OK or [_.

GO,DEO.A.NELSET

[]

Inputguidechannel

Press AV or the Number keys to select the

VCR Plus+ guide channel number as shown in the TV listing, then press OK or

[>.

[]

[]

• If the Guide Channel Set screen appears after pressing OK, press the

Number keys, CH+/-or AVto input the number of the channel on which the broadcast for the PlusCode number is received on the VCR or

G.IDE CH: _12,, cable box, then press OK.

• To set the tape speed, press SP/EP.

• To change the stop time, press gTOP+/-.

• To timer-record daily (Monday-Friday) or weekly serials, press DALLY (M-E) (Number key "8") or WEEKLY (Number key "9").

Pressing the button again makes the "DAILY" or

"WEEKLY" display disappear.

• If you made a mistake, press CANCEL to access the PlusCode

No. screen again.

• If an incorrect PlusCode number or the one for a broadcast already finished has been inputted, "ERROR" is displayed for about 5 seconds, then the PlusCode No. screen reappears.

Press OK or PROG..

• If "PROGRAM NOT COMPLETED PROGRAM OVERLAP" appears, see "Program overlap warning display" (_ pg. 14).

Press TIMER. The VCR turns off automatically and "(Z)" is displayed on the display panel.

[] Input receiving

number

Press AV or the Number keys to select the number of the channel on which the guide channel's broadcasts are received, then press OK or _>.

• Repeat steps [] and [] for each instance.

[]

Returnto normalscreen

Press MENU on the Remote.

GUIDE CHANNEL SET

--12--

Load a cassette with the record safety tab intact. The VCR turns on, and the counter is reset, automatically.

[] Press PROG. on the Remote to access the PlusCode No. screen.

[] Press START+/- once to access

Program screen.

PROGRAM1

START STOP

Press START+/-, STOP+/-, DATE+/- or _]OATE

[]

CH+/repeatedly to enter the start time, stop time, date or channel.

• Pressand hold START+/- or STOP+l- to increase the time in 30-minute intervals.

ml_

• To set the tape speed, press SP/EP.

• To timer-record daily (Monday-Friday) or weekly serials, press DAILY (M-F) (Number key "8") or WEEKLY (Number key "9").

Pressing the button again makes the "DAILY" or

"WEEKLY" display disappear.

• If you are using a DBS receiver and

"DBS RECEIVER SET" is set to "ON", the band indication appears under the channel number indication.

(Refer to "Cable Box and/or DBS

_

I_

PROGRAM1

START

DATE

TUE

[]

STOP

CH

I1@11_

DBS

Receiver Control Setting" (___ pg. 7).)

TV: To timer-record a regular TV broadcast received on the VCR.

CATV: To timer-record a cable TV broadcast received on the

VCR, or through a cable box (unless "CABLE BOX

SET" is set to "OFF").

DBS: To timer-record a satellite broadcast received through a DBS receiver.

If the channel number entered requires that the band be set and "7=DBS" is displayed on the screen, press Number key

"7" to select "DBS".

[] Press OK or PROG..

• If "PROGRAM NOT COMPLETED PROGRAM OVERLAP" appears, see "Program overlap warning display" (___ pg. 14).

[] Press TIMER. The VCR turns off automatically and "Q" is displayed on the display panel.

24HRQuickPrograming

You can program a timer recording that starts within 24 hours using the JOG dial on the VCR.

Load a cassette with the record safety tab intact. The VCR turns on, and the counter is reset, automatically.

[] Press24H R QUICK PROGRAM on the VCR.

"[>" starts blinking on the display panel.

[] Turn the JOG dial to the left or right to set the start time.

• One click stop of the JOG dial changes the time in 5-minute intervals.

Starttime

[] Push the JOG dial. "O" starts blinking on Stoptime"_ the display panel. Turn the JOG dial to the left or right to set the stop time.

• To set the tape speed, press

SP/EP.

The

-w-

current setting for the tape speed appears Channel number on the display panel for about 5 seconds.

Press SP/EPagain to change the setting while tape speed is displayed.

[] Push the JOG dial. Turn the JOG dial to the left or right to select the channel, then press 24HR QUICK

PROGRAM. The VCR turns off automatically and "Q" is displayed on the display panel.

NOTES:

• tf "Err" appears on the display panel, repeat the above steps

again.

• When a menu screen is shown, you cannot use 24HR Quick

Programing function.

Press MENU to return to normal screen,

and try again.

• You can use 24HR Quick Programing function also when the

VCR is turned off.

• For 24HR Quick Programing function,

the program overlap warning display does not appear even if some programs overlap

each other.

Tousethe VCRwhile it isin timerrecordingstandby mode

Press TIMER, then press POWER _b/[. After you use the VCR, press

TIMER again to put the VCR into timer recording standby mode.

[]

Disengage

Press TIMER, then press POWER _b/I.

• When "AUTO TIMER" is set to "ON" (___ pg. 15), you do not have to press TIMER.

[]

Access Checkscreen

Press PROG. CHECK.

PR START

1 8:00P

|2

STOP

10:00

IO:OOA 10:45

CH

12

40

DATE

12/24

12/25

[]

Access

Press PROG. CHECK again. Each time you press PROG. CHECK, the next program's

Program screen appears.

[]

Cancel

To

cancel a program,

press CANCEL when the Program screen you do not want is shown.

To change a program, press the appropriate button: START+/-,

STOP+/-, DATE+/-, CH+/-, DAILY (M-F) (Number key "8"),

WEEKLY (Number key "9") and/or SP/EP when the Program screen on which you want to make changes is shown.

[]

Returnto normalscreen

Press PROG. CHECK repeatedly until no Program screen is shown.

[]

Reengage standbymode

Press TIMER. The VCR turns off automatically and "(Z)" is displayed on the display panel.

• When "AUTO TIMER" is set to "ON" (___ pg. 15), the timer recording standby mode automatically resumes when you turn off the VCR.

--13--

Programoverlapwarningdisplay

If "PROGRAM NOT COMPLETED PROGRAM OVERLAP" appears, you have another program overlapping the program you have just made. The Program Check screen appears and conflicting programs will start blinking.

PROGRAM NOT COMPLETED

PROGRAM OVERLAP

Timerwarningdisplay

A warning appears on the TV screen to tell you that the timer-recording is to start in

5 minutes if you are not in the timer

-WARNING-

TIMER RECORDING

TOSTARTSOON

(CANCEL)

recording standby mode at that time. Press

TIMER to put the VCR into timer recording standby mode. To clear the display, press CANCEL on the Remote.

Example:

Program 1 (you have just made) and Program 4 overlap each other

[]

Selectprogram

Press AV, then press OK or _.

•

overlapping programs.

• If you do not mind this overlap, press

PROG. to finish the timer program setting. The program starting earlier or program with the lower program number will be recorded.

[]

Cancel programsetting

PROGRAM4

To cancel a program, press CANCEL when the Program screen you do not want is shown.

To change a program, press the

START

9:00PM

DATE

12/24/02

TUE

_

STOP

IO:OOPM

CH

10 SP

appropriate button: START+/-, STOP+/-,

DATE+/-, CH+/-, DAILY (M-F) (Number key "8"), WEEKLY (Number key "9") and!or SP/EP when the

Program screen on which you want to make changes is shown, then press OK or _.

• If the overlap is not yet solved, the conflicting programs will be shown on the Program check screen. Repeat the above steps again.

"

When you change the VCR operation mode from the stop mode to fast forward

tapeposition

Index Search or Instant Review, the tape position indicator appears.

[

_.

0..............

l--E

REMAIN 1:00

[

COUNT 1:23:45

The position of ,n,, in relation to "B" (Beginning) or "E" (End) shows you where you are on the tape.

• Set "SUPERIMPOSE" to "ON" (___pg. 15).

Each time you press DISPLAY, the display pane[ shows the channel number and the clock time alternatively.

• You can change display in the stop or recording mode, or during rewind/fast-forward.

• When "SUPERIMPOSE" is set to "ON"

_:

(___pg. 15) and DISPLAY on the Remote is pressed, time counter and tape remaining time will appear on the TV screen.

To reset the time counter, press C.RESET on the Remote.

You can use the other useful function settings on the Function Set screen.

[]

Access

MAIN MENU

Press MENU on the Remote. Press AV to move the highlight bar (arrow) to

"FUNCTION

SET", then press OK or D.

[]

SelectFunction

TUNER SET

INITIAL SET

Press AV to move the highlight bar (arrow) to the function you want to set.

FUNCTION

VIDEO CALISRATION

PICTURE CONTROL

AUTO SP-EP TIMER

NEXT PAGE

ON

AUTO

OFF

PREVIOUS PAGE

BLUE BACK

2ND AUDIO RECORD

AUDIO MONITOR

_ S-VNS MODE

AV COMPU-LINK

NEXT PAGE

ON

OFF

HI-FI

ON

ON

L

r

IV

[]

Change

Press OK or _. The default setting is bold in the table below. Press

MENU to return to normal screen.

After a power failure occurs, Function Settings will be reset to its default setting.

--14--

•

S-VHS ET -ON/OFF

When this function is set to "ON", you can record on VHS cassettes with S-VHS picture quality. Tapes recorded using this function can be played back on a S-VHS VCR equipped with the

S-VHS ET function or VHS VCR equipped with the SQPB (S-VHS

QUASI PLAYBACK) function.

When this function is set to "ON", the S-VHS indicator lights up on the display panel.

NOTES:

• Before recording, set "VIDEO CALIBRATION" to "ON".

(_2 See below)

• You cannot activate the S-VHS ET function while recording, timer-recording or Instant Timer Recording (_3 pg. 11) or the

"VIDEO CALIBRATION" function (_2 See below) is in progress.

• The S-VHS ET function does not work with S-VHS cassettes.

• To keep the highest quality recording and playback pictures over a long period of time, S-VHS recording on S-VHS cassettes is recommended.

• Use of high grade tapes is recommended for S-VHS ET recordings. On some tapes, picture quality will not improve even if the S-VHS ET function is used. Check the recording

quality before you start important

recordings.

•

VIDEO CALIBRATION -ON/OFF

When this function is set to "ON", this VCR checks the condition of the tape in use during playback and recording, and compensates to provide the highest-possible pictures. This takes place whenever you play back a tape or start recording after inserting a tape.

NOTE:

The VCR checks the tape condition for about 7 seconds, then starts recording.

To make sure you record the desired scene or

program completely, perform the following steps:

Press and hold PAUSE (11), and press REC (O). After about

7 seconds, the VCR re-enters Record Pause mode.

[_ Press PLAY (1_) to start recording.

•

PICTURE CONTROL -- AUTO(NORM)/EDIT/SO_/SHARP

This function helps you to adjust the playback picture quality according to your preference.

AUTO (NORM): Normally select this. Picture quality is adjusted automatically.

When "VIDEO CALIBRATION" is "OFF", "NORM" will appear instead of "AUTO".

EDIT: Minimizes picture degradation during editing (recording and playback).

SOFT:Reduces image coarseness when viewing overplayed tapes containing much noise.

SHARP: Clearer, sharper-edged picture when viewing images with much flat, same-colored surfaces such as cartoons.

NOTE:

Select "EDIT" when you are editing tapes. After you finish editing

the tapes, select "AUTO".

• AUTO TIMER -- ON/OFF

• When this function

is set to "ON":

The timer recording standby mode is automatically engaged when the VCR is turned off. It is temporarily canceled when the VCR is turned on. You do not have to press TIMER to engage or disengage the timer recording standby mode.

• When this function

is set to "OFF":

You have to press TIMER to engage or disengage the timer recording standby mode.

•

When this function is set to "ON", various VCR status information

(on-screen display) appears on the screen.

NOTE:

sure to set this function to "OFF" otherwise, the VCR status information

(on-screen display) will be recorded on the edited

tape.

• AUTO SP-..*EP TIMER -- ON/OFF

When this function is set to "ON", the VCR automatically switches to EP mode to allow complete recording if there is not enough tape to record the entire program while timer-recording in

SP mode.

For Example, Recording a program of 140 minutes in length onto a 120-minute tape

L

NOTES:

• tfyou

have programed

the VCR to timer-record 2 or more programs, do not use this function, but change the tape speed

manually during timer programing.

• There may be some noise and sound disturbance where the tape speed switches from SP to EP mode on the tape.

• This function is not available during tTR (Instant Timer

Recording), and will not work properly on the following tapes:

T(ST)-30, T(ST)-60, T(ST)-90, and T(ST)-120.

• VIDEO STABILIZER i ON/OFF

When this function is set to "ON", you can automatically correct vertical vibrations in the picture when playing back unstable recordings made on another VCR.

NOTE:

To watch recordings with close-caption

or when you finish

viewing a tape, set this function to "OFF".

• BLUE BACK i

ON/OFF

When this function is set to "ON", the TV screen becomes all blue when receiving a channel not in use.

NOTE:

When you want to receive an unstable channel with poor signals,

set this function to "OFF".

•

SUPERIMPOSE --

SP mode

ON/OFF

When you use this VCR as the playback VCR for editing a tape, be

Approximately 110 minutes

2ND AUDIO RECORD i

]

Approximately 30 minutes

ON/OFF

EP mode

• When this function

is set to "ON";

If a SAP program is received, the SAP audio is recorded on both the normal and Hi-Fi tracks. The main audio is not recorded.

If a non-SAP program is received, the main audio is recorded on both the Hi-Fi and normal tracks.

• When this function is set to "OFF", the SAP audio cannot be recorded.

NOTES:

When the channel is changed on the VCR;

• The "STEREO" indication

appears on the screen for about

5 seconds if the program is a stereo broadcast.

• The "SAP" indication appears on the screen for about 5 seconds

if the program is a SAP broadcast.

• Both indications appear when a stereo program is accompanied by SAP sound.

]

--15--

•

AUDIO MONITOR -HI-FI/HI-FI

L/HI-FI R/NORM/MIX

This VCR can record two sound tracks simultaneously (normal and

Hi-Fi) on a Hi-Fi stereo tape. You can select the sound track(s) to listen to while playing back a Hi-Fi stereo tape. In addition, when playing back a prerecorded tape containing two separate audio programs on the Hi-Fi tracks, you can choose either one by selecting either "HI-FI L" or "HI-FI R".

HI-FI: Normally select this. Hi-Fi sound is played back.

HI-FI L: Sound on the left Hi-Fi channel is played back.

HI-FI R: Sound on the right Hi-Fi channel is played back.

NORM: Sound on the normal track is played back.

MIX: Both sounds on the Hi-Fi track and normal track are mixed and played back.

NOTES:

• Whileplaying back a monaural tape, sounds on the normal

track will be heard regardless of this setting.

• tfRF connection (_2 pg. 5) is used for viewing pictures on the

TV, sound will be monaural even though you select "HI-FI".

• You can also use the A.MONITOR

button on the Remote to select the desired monitor sound. (_2 pg. 9)

•

S-VHS MODE -ON/OFF

You can determine which recording mode -- either S-VHS mode or VHS mode -- is used for recording on S-VHS tapes.

• When this function is set to "ON", you can record on S-VHS tapes with S-VHS picture quality.

• When this function is set to "OFF", you can record on S-VHS tapes with VHS picture quality.

NOTES:

• S-VHS mode allows you to make high quality video recordings

with horizontal resolution of 400 lines, comparing with the 230 lines of resolution of conventional VHS recordings. To achieve the highest quality picture we recommended to record in S-VHS mode. (But remember that a conventional VHS VCR without

SQPB cannot play back S-VHS tapes recorded in S-VHS mode.)

• S-VHS MODE setting does not affect recording on VHS tapes.

Recording on VHS tapes is always performed in VHS mode except when using S-VHS ET mode (_2 pg. 15).

•

AV COMPU-LINK -- ON/OFF

The remote PAUSE/AV COMPULINK terminal on the rear panel can be used as either the remote PAUSE terminal or the AV

COMPULINK terminal.

• When this function is set to "ON", you can use this terminal as the AV COMPULINK terminal.

By connecting other JVC's AV

COMPULINK components, including amplifiers (or receivers) and televisions, one touch control of the audio and video components linked via their AV COMPULINK connectors becomes possible.

• When this function is set to "OFF", you can use this terminal as the remote PAUSE terminal.

If your JVC camcorder is equipped with the Master Edit Control, you can control the VCR from the camcorder. Connect the mini-plug cable (not supplied with this

VCR) between the remote PAUSE terminal and the EDIT connector on the camcorder.

NOTE:

Refer to the other components' instruction manuals for connection and its operations.

• REAR AUX INPUT --

VIDEO/S-VIDEO

You have to select which terminal -- either VIDEO (composite) or

S VIDEO (Y/C separate signals) to use as the video input terminal on the rear panel.

Make sure you select the correct terminal; otherwise, you may fail in recording (editing) on this VCR.

SatelliteAutoRecording

You can automatically record a satellite program which is timerprogramed on your DBS receiver.

[] Connect a DBS receiver to the AUDIO/VIDEO IN connectors on the rear panel. You can also connect the cable box if it has a timer.

[] Set timer program on DBS receiver referring to its instruction manual.

[] Load a cassette with the record safety tab intact.

[] Press SP/EP to set the tape speed. The selected tape speed will appear on the TV screen.

[] Press REC LINK for more than 2 seconds. The VCR turns off automatically and enter the Satellite Auto Recording standby mode ("L-1" and "(_" light up). When signals come into the

VCR from the DBS receiver, the VCR starts recording ("(_" and

"_')" light up and "L-1" blinks). When no signals coming in, recording stops. "©" indicator goes off.

NOTES:

• Be sure not to turn on the DBS receiver before the program starts

broadcasting; otherwise, the VCR will start recording when the

DBS receiver is turned on.

• To disengage the Satellite Auto Recording standby mode, press

REC LINK (" 0"

lights off).

• Depending on the type of satellite receiver, Satellite Auto

Recording may not be compatible.

ChildLock

You can disable the VCR operations. While the VCR is turned on, press and hold POWER d)/[ on the Remote for more than

10 seconds. The VCR turns off, "CL" appears for about 5 seconds on the display panel.

To release the child lock, press and hold POWER d)/[ on the

Remote until the VCR turns on.

NOTES:

• Pressing TIMER during timer recording, unplugging the AC power cord or a power outage also releases the child lock.

• When the child lock function is in use, keep the Remote out of the children's reach.

• Timer recording programs will be performed even if the child lock function activated.

--16--

This Remote can control some functions of remote controllable

TVs, cable boxes or DBS (Direct Broadcast Satellite) receivers listed below. Without setting, you can control a JVC TV.

NOTES:

• Some unit's brands have more than one code. tfthe unit does

not function with a specified code, try other codes.

• Depending on the type of unit, some or all functions cannot be operated using this Remote.

• tt is notpossible to operate a unit not equipped with a remote sensor.

• tt is not possible to set the Remote for both your cable box and a

DBS receiver at the same time.

• Once you have set the Remote to operate the unit, you do not have to set it until you replace the batteries from the Remote.

• tfthe batteries of the Remote are discharged, the Remote may not be able to control the TV, cable box or DBS receiver.

Replace the batteries.

TV BrandSetting

[] TurnonTV

Turn on the TV using the Power button on the TV or its Remote.

[]

SetTVbrandcode

Press and hold TV.

[_ Press MBR SET.

Pressthe Number keys to enter your TV's brand code.

[_ Press OK, and release TV. The TV should turn off.

[]

OperateTV

While holding down TV, press one of the following buttons:

POWER _b/[, TV/VCR, TV CH+/-, _/_( (TV Muting), TV VOL+/-, and the Number keys.

• For some brands, you must press ENTER after having pressed the

Number keys to enter a channel number.

TV BRAND

CODE

TV BRAND

IVC

HITACHI

MAGNAVOX

MITSUBISHI

PANASONIC

RCA

SHARP

01, 03

10

02

03

04, 11

05

06

SONY

SAMSUNG

SANYO

SEARS

TOSHIBA

ZENITH

CODE

07

12

13

13

08

09

CableBox or DBSReceiverBrandSetting

[] Turnoncableboxor DBSreceiver

Turn on the cable box or DBS receiver using the Power button on the unit or its Remote.

[]

Enterbrandcode

Press and hold CABLE/DBS.

[_ Press MBR SET.

Pressthe Number keys to enter your cable box's (or DBS receiver's) brand code.

[_ Press OK, and release CABLE/DBS.

[]

Operatecableboxor DBSreceiver

While holding down CABLE/DBS, press one of the following buttons: POWER _b/I, TV CH+/-, and the Number keys.

• For some brands, you must press ENTER after having pressed the

Number keys to enter a channel number.

• To change the cable box's (or DBS receiver's) channels, press TV

CH+/-

or the Number keys. (The CH+/- button can be used to change the VCR's channels only.)

CABLE BOX BRAND

ARCHER

CABLETENNA

CAB L EVl EW

CITIZEN

CURTIS

DIAMOND

GC BRAND

GEMINI

GENERAL INSTRUMENTS

HAMLIN

JASCO

JERROLD

NOVAVlSION

OAK

PANASONIC

PULSER

RCA

REGAL

REMBRANDT

SAMSUNG

SCIENTIFIC ATLANTA

SIGMA

SL MARX

SPRUCER

STARGATE

TELEVlEW

TOCOM

UNIKA

UNIVERSAL

Vl DEOWAY

ZENITH

DBS RECEIVER BRAND

JVC (DISH Network)

ECHOSTAR (DISH Network)

SONY (DSS)

RCA (DSS)

CODE

01, 0.5, 1 7

01, 17

15, 16, 17, 21, 25

15, 16, 17, 21, 25

02

01, 17

15, 16, 17, 21, 25

15

01, 04, 06, 11, 12, 15, 28

10, 18, 23

15

01, 04, 06, 11, 12, 15, 28

02

07

13, 14

15, 16, 17, 21, 25

13, 14

10, 18, 23

01, 16, 17

05, 16, 24

02

07

05, 16, 17, 24, 25

13, 14

05, 15, 16, 17, 21, 24, 25

05, 16, 24

01, 04, 16

01, 17

16, 1 7, 25

03, 09, 22

03, 09, 22

CODE

.51

51

41

40

This Remote is capable of transmitting two control codes; one set to respond to A code control signals and another set to respond to

B code control signals. This Remote control is preset to send A code signals because your VCR is initially set to respond to A code signals. You can easily modify your VCR and the Remote to respond to B code signals. When using two JVC VCRs, set two

VCRs and their Remotes to different codes, so that you can operate these VCRs separately.

[]

Setremotecontrolcodefor Remote

Press and hold A/B.

[_ Press the Number key "2".

Press OK, and release A/B.

• The Remote now can transmit B code control signals.

[]

CheckremotecontrolcodeforVCR

Press and hold I_ on the VCR for more than 5 seconds while the

VCR is turned off. The code currently set appears on the display panel.

[]

Change

Press any key on the Remote. The VCR now responds to B code control signals.

• To set the Remote and the VCR back to A code control signals, repeat the same procedure as shown above except pressing the

Number key "1" in step _ of i11.

Tocontroltwo VCRswith the sameRemote

You can control two JVC VCRs by switching the remote control code for the Remote between A and B (_7_ step n), keeping two

VCRs to different control codes.

• To change only the remote control code for the Remote, DO

NOT perform steps [] and I_11.

--17--

I

You can use your VCR as the playback or recording VCR. You can use a camcorder as the playback VCR and your VCR as the recording VCR. Refer also to the other components' instruction manuals for connection and its operations.

[]

Makeconnections

Example 1: When another VCR is VHS VCR

Example

3: When

another

VCR is S-VHS

VCR and when using

this VCR as the recording

VCR

To AUDIO input t t To S-VIDEO input

S-video cable

(supplied)

To AUDIO/VIDEO IN t t t To AUDIO/VIDEO OUT

When using this VCR as the recording VCR, connect this VCR's

AUDIO/VIDEO IN connectors to the audio/video output connectors on another

VCR.

To audio/videooutput _lr _lr _lr

When using this VCR as the playback VCR, connect this VCR's

AUDIO/VIDEO OUT connectors to the audio/video input connectors on another

VCR.

To audio/video input

• If another VCR is monaural, connect this VCR's AUDIO L IN (or

OUT) connector to the audio output (or input) connector on another VCR.

Example

2: When

another

VCR is S-VHS

VCR equipped with S-

VIDEO input connector and when using this VCR as the playback

VCR

ToAUDIOOUT _ t To S-VIDEO OUT

Toaud o nput

S-video cable

(supplied)

S-video input

_l To S-video output

[]

Loadcassettes

Insert the playback cassette into the playback VCR and the cassette to be recorded on into the recording VCR.

[]

Selectinputmodeonrecording

Select the correct external input on the recording VCR.

On this VCR (when using this VCR as the recording VCR);

Select "L-1 "-when connecting the other VCR to the audio/video input connectors on the rear panel.

Select "F-1 "-when connecting the other VCR to the audio/video input connectors on the front panel.

Press AUX or CH+/on the Remote. Or push the JOG dial, then turn it to the left or right.

[]

Selectvideoinputconnector VCR

When using this VCR as the recording VCR, select the appropriate mode depending on the connector being used (_ pg. 16).

When using S-VIDEO IN connector on the rear panel, set "REAR

AUX INPUT" to "S-VIDEO".

When using VIDEO IN connector on the rear panel, set "REAR

AUX INPUT" to "VIDEO".

[]

Selecteditmode

Set the edit mode to "ON" for the VCRs if such a mode is equipped.

• On this VCR, set "PICTURE CONTROL" to "EDIT" (_ pg. 15).

[]

Startplayback

Press PLAY (1_) on the playback VCR.

[]

Startrecording

Press REC (0) on the recording VCR.

Various connection for editing tapes

The following three methods can be used for editing tapes.

• VHS to S-VHS editing (VIDEO-VIDEO

connection):

Although the picture quality is inherently limited by the original

VHS quality, the edited tape has better picture quality than those made by VHS-to-VHS editing.

• S-VHS to VHS editing (VIDEO-VIDEO

connection):

Since the original source is recorded in S-VHS mode, the edited tape has better picture quality than those made by VHS-to-VHS editing.

• S-VHS to S-VHS (S-VIDEO connection):

Original picture quality of S-VHS made can be duplicated with minimal picture degradation.

This is the best editing method you can use on S-VHS VCRs.

--18--

I

GENERAL

Power requirement

Power consumption

Power on

Power off

Temperature

Operating

Storage

Operating position

Dimensions (W x H x D)

Weight

Format

Maximum

SP

EP recording time

AC 120 V"v, 60 Hz

17W

1.5 W

5°C to 40°C (41°F to 104°F)

-20°C to 60°C (-4°F to140°F)

Horizontal only

435 mm x 94 mm x 247 mm

(17-3/16" x 3-3/4" x 9-3/4")

2.8 kg (6.2 Ibs)

S-VHS/VHS NTSC standard

210 min.

with ST-210 video cassette

630 min.

with ST-210 video cassette

VIDEO/AUDIO

Signal system NTSC-type color signal and EIA monochrome signal, 525 lines/

60 fields

DA-4 (Double Azimuth) head helical scan system

45 dB

Recording/Playback system

Signal-to-noise ratio

Horizontal resolution

VHS

S-VHS

Frequency range

Normal audio

Hi-Fi audio

Input/Output

230 lines

400 lines

70 Hz to 10,000 Hz

20 Hz to 20,000 Hz

RCA connectors (IN x 2, OUT x 1)

S-video connectors (IN x 1, OUTx 1)

TUNER

Tuning system

Channel coverage

VHF

UHF

CATV

RF output

Frequency-synthesized tuner

Channels 2-13

Channels 14-69

113 Channels

Channel 3 or 4 (switchable; preset to

Channel 3 when shipped) 75 ohms, unbalanced

TIMER

Clock reference Quartz

Program capacity 1-year programable timer/8 programs

Memory backup for timer is not supported.

ACCESSORI ES

Provided accessories : Infrared remote control unit,

"AA" battery x 2,

S-video cable (4-pin),

RF cable (F-type)

Specifications shown are for SP mode unless specified otherwise.

E. & O.E. Design and specifications subject to change without notice.

--19--

I

Before requesting service, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you from the trouble of sending your VCR off for repair.

Power

The power will not come on.

The clock works, but the

VCR's power will not come on.

The Remote will not function.

• The AC power cord is disconnected.

• The Child Lock function is activated.

• Connect the AC power cord.

• Pressand hold POWER (b/I for more than 10 seconds to release the Child Lock function (___pg. 16).

• Press TIMER to disengage the timer.

• The VCR is in the timer recording standby mode with "AUTO TIMER" set to "OFF" (_ pg. 15).

• The Child Lock function is activated.

• Press and hold POWER d)/I for more than

10 seconds to release the Child Lock function.

(___pg. 16)

• The batteries are discharged.

• Replace batteries.

• The VCR is in the timer recording standby mode.

• Press TIMER to disengage the timer.

• Remote control A/B code is wrong.

• Reset A/B code. (_-_ pg. 17)

Playback

The tape is running but the picture will not appear.

• If the RF connection (___pg. 5) is used to view the picture, the channel on the TV is set incorrectly.

• If the AV or S-video connection (___pg. 5) is used to view the picture, the TV receiver is set to the wrong mode.

• Select channel 3 or 4 on the TV.

• Select the AV mode on the TV.

Recording

Recording will not start.

• There is no cassette loaded.

• The loaded cassette has had its record safety tab removed.

• Insert a cassette on which the record safety tab is intact.

• Remove the cassette and cover the hole with adhesive tape, or load a cassette on which the record safety tab is intact.

Timer Recording

Timer recording will not work.

• The clock and!or the timer program have been set incorrectly.

• The timer is not engaged.

• Set the clock and/or timer program correctly.

• The VCR has not been set up properly.

Press TIMER to engage the timer and make sure that ® appears on the display panel.

Re-perform the set-up procedures. Make sure you have compensated for guide channel and VCR or cable box channel number mismatches.

(___pg. 12)

Timer programing will not • Timer recording is in progress.

work.

• Timer programing cannot be performed when timer recording is in progress. Wait until it finishes.

Timer recording begins as • Even though you do not use an external cable box • Set "CABLE BOX SET" to "OFF" or "DBS RECEIVER scheduled, but the channel is always incorrect, or DBS receiver, "CABLE BOX SET" is set to "ON" or "DBS RECEIVERSET" is set to "ON".

SET" is set to "OFF". (___pg. 7)

You moved, and now VCR • The receivable stations in the new area are

Plus+ system does not work properly received on different channels than those in the previous area.

• Re-perform the procedure in "Changing VCR

Plus+_ Setting" (___ pg. 12).

Other Problems

The channel cannot be changed.

• Recording is in progress.

Even though Auto or

Semiauto Clock Set has been performed, the clock is incorrect.

• The clock setting data received from the host channel is incorrect.

-20 --

• Press PAUSE (11)to pause the recording, change channels, then press PLAY (1_) to resume recording.

• Select a different host channel during Semiauto

Clock Set (_-_ pg. 6), or perform Manual Clock Set

(_-_ pg. 6).

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE: 1-800-537-5722 http://www.jvc.com

Dear Customer,

In order to receive the most satisfaction from your purchase, please read the instruction booklet before operating the

un#. In the event that repair is necessarJ4 or for the address nearest your location within the Continental

United

States, please call 1-800-537-5722 for your nearest authorized servicer or vis# our websfe at www.JVC.com.

Remember to retain your Bill of Sale for Warranty Service.

-- JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

Sophisticated

electronic products may require occasional service. Just as quality is a keyword in the engineering and

production

of the wide array of JVC products, service is the key to maintaining

the high level performance for which

JVC is world famous. The JVC service and engineering organization stands behind our products.

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORE

10 New Maple Avenue

Pine Brook, NJ 07058-9641

A CCES S ORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer.

From the 48 Continental

United States call toll free:

1-800-882-2345 or on the web at www.JVC.com

Don't service the product yourself.

CAUTION

To prevent electrical shock, do not open the cabinet.

There are no user serviceable parts inside.

Please refer to qualified service personnel for repairs.

--21 --

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL

PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original retail purchase for the period as shown below. ("The Warranty Period")

PARTS

1

Ya

LABOR

90DAYS

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN

COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT

YOU MUST

DO FOR WARRANTY

SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800) 537-5722.

If service is net available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus a letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number.

If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:
