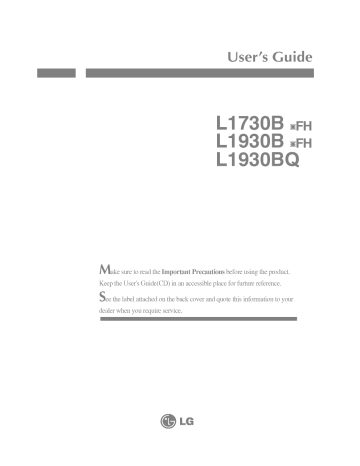

User's Guide L1730B L1930B FH FH L1930BQ Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. See the label attached dealer when you on the back cover and quote this information to your require service. Precautions Important This unit has been engineered and manufactured to ensure your personal safety, improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. however On Use Safety power cord supplied with the unit. In case you use another power that it is certified by the applicable national standards if not being only the cord, make sure provided by the supplier. If the manufacturer or power cable is faulty in any way, please contact the the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the this manual display only from a power source indicated in the specifications of listed on the display. If you are not sure what type of power supply or you have in your home, consult with your dealer. Overloaded AC outlets and extension cords cords and broken plugs. They technician for replacement. Do not Open the may result in are a dangerous. So are frayed shock or power fire hazard. Call your service Display. There are no user There are serviceable components inside. Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. Do not To Prevent Fire or Hazards: display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Always turn the A1 On Installation Do not allow anything to rest upon or roll over the power cord, and do not the display where the power cord is subject to damage. Do not use this display sink, laundry tub, in near water such basement, as near a place bathtub, washbowl, kitchen swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat a wet or near a failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. can cause or strike the Active Matrix LCD with anything hard damage the Active Matrix LCD permanently. Do not rub mar, or Do not press the LCD some screen with your finger for a long time as as this may scratch, this may cause afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly screen because over-spraying may cause electrical shock. On on the display Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. On Disposal The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. the Connecting Before Display setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand base 1. Place the monitor with its front facing downward on a cushion or soft cloth. 2. Align the hooks on the stand base with the matching slots in the base of the monitor. 3. Hook Insert the hooks into slots. Removing the stand 1. 2. base Place the monitor with its front facing downward on a cushion or soft cloth. Hold the monitor while pressing the bottom latch downwards and the stand base, as shown in the figure. pulling back Bottom Latch Important This illustration depicts the general picture. model of connection. Your monitor may differ from the items shown in the Once you connect the stand base, try not to disconnect it. Do not carry the product upside down holding only the stand base. The fall and get damaged or injure your foot. A3 product may Connecting the Display Positioning your display Adjust the position of the panel Tilt in various ways for maximum comfort. Range : -5˚~20˚ Height Range : maximun 2.76 inch (70.0mm) 70.0mm PUSH PUSH To adjust height of monitor Push down the top of monitor While pressing the PUSH button. Adjust the height. P PUSH PUSH PUSH Button Ergonomic It is recommended that in order to maintain position, an ergonomic and comfortable viewing degrees. the forward tilt angle of the monitor should not exceed 5 A4 Connecting the Display Using the Computer 1. Slide up the Sliding Door and tilt the monitor backward for easily connecting the cables. Sliding Door PUSH 2. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. 3. Connect the power cord into a proper power outlet that is easily accessible and close to the display. Analog signal * Digital signal Varies according to model. PUSH Wall-outlet type* 2 PC-outlet type* 1 DVI-D cable (not PC included) D-SUB cable MAC Mac adapter For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector. A5 Connecting the Display 4. Slide down the Sliding Door. Sliding Door PU 5. Press button on PUS the front switch monitor power is turned on, the 'Self executed automatically. PROCESSING IMAGE panel to turn the power on. When Image Setting Function' is SELF SETTING NOTE ' Self Image Setting Function'? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. If you want to adjust the monitor while in use, or wish to manually run this function once again, push the 'AUTO' button on the front panel of the monitor. Otherwise, you may execute the 'FACTORY RESET' option on the OSD adjustment menu. However, be aware that this option initializes all the menu items except 'LANGUAGE'. A6 Control Panel Functions Front Panel Controls + - Bottom + - Control Function MENU Button Use this button to enter or exit the On Screen Display. OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. OSD LOCKED Press and hold the MENU button for 5 seconds. The message "OSD LOCKED" should appear. OSD UNLOCKED You can unlock the OSD controls at any time by pushing the MENU button for 5 seconds. The message "OSD UNLOCKED" should appear. Buttons Use these buttons to select Screen Button For or adjust functions in the On Display. more hot key information, refer to page FLATRON A14 F-ENGINE USER NORMAL MENU Button + - SOURCE hot SET key Use this button to make Dsub or DVI connector active. This feature is used when two computers are connected to the display. The default setting is Dsub. A7 Control Panel Functions Control Function SET/AUTO Use this button to enter a selection in the On Screen Display. Button AUTO IMAGE ADJUSTMENT When adjusting your display settings, always press the SET/AUTO button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 17 inch monitor : 1280x1024 19 inch monitor : 1280x1024 PROCESSING IMAGE AUTO ADJUSTMENT Power Button Use this button to turn the Power This Indicator (DPMS) Indicator display on or off. lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. A8 On Screen Screen Display (OSD) Control Adjustment Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD. NOTE Allow the To make display to stabilize for at least 30 minutes before adjustments in the On Screen -+ MENU Display, follow these steps: SET/AUTO Press the MENU Button, then the main To access a becomes control, use highlighted, the making image adjustments. menu -+ MENU of the OSD appears. Buttons. When the icon you want or press the SET/AUTO Button. Use the Buttons to adjust the image to the desired level. Use the / SET/AUTO Button to select other sub-menu items. Push the MENU Button once to return to the main menu to select another function. Push the MENU Button twice to exit from the OSD. Automatic save With the OSD open, you have made an adjustment the monitor automatically any adjustments you have made, even if you exit the menu or open another menu. If you make an adjustment and then wait for the OSD to disappear, the adjustment will also been saved. once save A9 On Screen The and Display(OSD) Selection and Adjustment following table indicates all the On Screen Display control, adjustment, setting menus. Main menu PICTURE Sub A menu D Reference BRIGHTNESS To CONTRAST and gamma of the adjust the brightness, contrast screen GAMMA PRESET COLOR To customize the color of the screen RED GREEN BLUE POSITION H POSITION To V POSITION screen CLOCK adjust the position of the To improve the clarity stability of the screen and PHASE FACTORY FACTORY RESET To restore the default settings RESET WHITE BALANCE TRACKING SETUP LANGUAGE To customize the OSD H POSITION for a user's screen operating status environment OSD V POSITION FLATRON F-ENGINE( - ) TEXT/ MOVIE To select USER image settings or customize desired NORMAL : A : D : Adjustable Analog Input Digital Input NOTE The order of icons may differ depending A10 on the model (A10~A14). On Screen You Selection and Display(OSD) were introduced to the Adjustment procedure of selecting and adjusting an item the OSD using descriptions system. Listed below are the icons, icon names, and icon of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears. Menu Name PICTURE Icons 50 Sub-menus 50 0 MENU Button + - SET Tip MENU : : Exit Adjust (Decrease/Increase) SET : Enter : Select another sub-menu NOTE OSD (On Screen Display) menu languages on A11 the monitor may differ from the manual. On Screen Main Display(OSD) Selection and Sub menu Adjustment Description menu PICTURE BRIGHTNESS of the BRIGHTNESS To adjust the CONTRAST To adjust the contrast of the GAMMA Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma brightness screen. screen. 50 50 0 MENU + - values SET display high contrast images. MENU : Exit : Decrease : Increase SET : Select another sub-menu COLOR Select the screen color. 9300K: Slightly bluish white. PRESET PRESET ? ? 6500K 6500K: Slightly reddish white. 9300K 50 RED Set your own red color levels. GREEN Set your own green color levels. Set your own blue color levels. 50 50 MENU - + SET BLUE MENU : Exit : Decrease : Increase SET : Select another sub-menu POSITION H POSITION H POSITION To move image left V POSITION To move image 50 50 MENU - + SET MENU : Exit : Decrease : Increase SET : Select another sub-menu A12 and right. up and down. On Screen Display(OSD) Main Selection and Sub menu Adjustment Description menu TRACKING CLOCK CLOCK To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change. 50 adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters. PHASE To 50 MENU + - SET MENU : Exit : Decrease : Increase SET : Select another sub-menu FACTORY RESET FACTORY FACTORY Restore all factory default settings except "LANGUAGE." If you want to reset the monitor, select the YES and then press the or + button to execute. RESET RESET - YES NO If the output of the video card is different the the color level may deteriorate due to video signal distortion. Using this function, the signal level is adjusted to fit into the standard output level of the video card in order to provide the optimal image. Activate this function when white and black colors are present in the screen. WHITE required specifications, BALANCE PRESET MODE ANALOG 1024 MENU x 768 MENU : : SET : 60Hz + - SET Exit Adjust Adjust : For Select another sub-menu example If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal. If you want to adjust, select the YES and then press the or + button to execute. - SETUP LANGUAGE LANGUAGE To choose the control language in which displayed. the names are ENGLISH OSD To H POSITION window adjust horizontal position of the OSD the screen. on 50 50 MENU - + SET OSD To V POSITION window MENU : Exit : Decrease : Increase SET : Select another sub-menu A13 adjust vertical position of the OSD the screen. on On Screen Display(OSD) Selection and Adjustment screen will appear when you press the F-ENGINE front side of the monitor. The OSD (-) button at the Menu Name Icons Sub-menu Name FLATRON F-ENGINE Screen when Screen when not applied applied When you execute F-ENGINE, two tones will appear on the screen as shown. The applied screen will on appear the left side, whereas the non-applied on the right side.Press the will appear SETbutton to use the screen Main MOVIE adjusted screen. Sub menu MOVIE TEXT Description menu This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc). MOVIE For animation : in videos USER adjust the USER sub-menu function, User can You can save or manually adjust brightness, ACE or RCM. restore the adjusted value even a different environment setting. using (Brightness): Adjusts screen brightness. ACE(Adaptive Clarity Enhancer) Selects the clarity mode. RCM(Real Color Management) Selects the color mode. Press the SET Button BRIGHTNESS 100 ACE 1 0 Not RCM 3 1 Green enhance NO USER MENU movies images (Word processing etc.) You when MENU or Select another sub-menu TEXT For text To images + - applied 2 Flesh tone 3 Color Enhance SET Exit : Decrease : Increase SET : Select another sub-menu : Select the button and buttons. sub-menu save NORMAL This is under normal A14 using the SET using the the YES value operating conditions. - Troubleshooting Check the No following before calling for service. image appears Is the power cord of the display connected? Check and Is the power indicator light on? Press the Power button. Is the power on and the power indicator green? Adjust the brightness Is the power indicator amber? properly If the the to see if the power cord is connected to the power outlet. display and the contrast. is in power mouse or saving mode, try moving pressing any key on the keyboard bring up the screen. Make sure Try to turn if the power is the PC. on. on Do you see an "OUT OF RANGE" message on the screen? This message appears when the signal from the PC (video card) is out of horizontal or vertical Do you see a "CHECK SIGNAL CABLE This message appears when the signal cable between your PC and your display is not "message on the connected. Check the frequency range of the display. See the 'Specifications' section of this manual and configure your display again. signal cable and try again. screen? Do you see a "OSD LOCKED" message Do you see "OSD LOCKED" when you You MENU button? You push so can secure that they can on the screen? the current control cannot be settings, inadvertently changed. unlock the OSD controls at any time the MENU button for 5 seconds. by pushing The message "OSD UNLOCKED" should appear. A15 Troubleshooting Display image Display is incorrect Position is incorrect. Press the SET/AUTO button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. On the screen background, vertical bars or stripes are visible. Press the SET/AUTO button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon the on screen display. in Any horizontal noise appearing in any image or characters are not clearly portrayed. automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display. Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color). The Check if the signal cable is properly connected and use a screwdriver to fasten if necessary. screen mono or color is abnormal. Press the SET/AUTO button to Make sure the video card is properly inserted in the slot. Set the color setting color) The screen blinks. higher than 24 Settings. at Control Panel Check if the screen bits (true - is set to interlace mode and if yes, change it to the recommend resolution. Make sure the power voltage is high enough, It has to be higher than AC100-240V 50/60Hz. A16 Troubleshooting Have you installed the Have you installed the display driver? Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) display driver? Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com. Make sure to check if the video card Plug&Play function. monitor found" message? A17 supports L1730B Specifications Display 17 inches (43.2cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.26 Sync Input mm pixel pitch Horizontal Freq. Vertical Freq. Input Form 30 56 - - 83kHz (Automatic) 75Hz (Automatic) Separate TTL, Positive/Negative SOG (Sync On Green) Digital Video Input Resolution Plug&Play 15 Signal Input RGB Analog (0.7Vp-p/75ohm), Digital Max VESA 1280 x 1024@75Hz Recommend VESA 1280 x 1024@60Hz DDC 2B Power Normal : Stand-by/Suspend ≤ &Weight (with tilt stand) Input 2W DPMS Off Width 39.80 cm Height 41.84 cm / 15.67 inches / 16.47 inches (Min) 48.84 cm / 19.23 inches (Max) 21.00 cm / 8.27 inches 6.10 kg (13.45 lbs) Net Power 43W ≤2W Depth Tilt/Height Range D connector - Input Form Consumption Dimensions pin D-Sub Connector DVI -5˚~20˚ 2.76 inch (70.0mm) Tilt Height AC 100-240V~50/60Hz 1.0A Environmental Conditions Operating Conditions Temperature 10˚C to 35 ˚C 10 % to 80 % non-Condensing Humidity Storage Conditions Temperature -20˚C to 60 ˚C 5 % to 95 % non-Condensing Humidity Tilt Stand Attached( ), Detachable ( O ) Attached( ), Detachable ( O ) Signal cable Power cord Wall-outlet type or PC-outlet type NOTE Information in this document is subject to change without A18 notice. FH L1930B Specifications Display 19 inches (48.26cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294 Sync Input mm pixel pitch Horizontal Freq. Vertical Freq. Input Form 30 56 - - 83kHz (Automatic) 75Hz (Automatic) Separate TTL, Positive/Negative SOG (Sync On Green) Digital Video Input Resolution Plug&Play 15 Signal Input pin D-Sub Connector DVI - D connector Input Form RGB Analog (0.7Vp-p/75ohm), Digital Max VESA 1280 x 1024@75Hz Recommend VESA 1280 x 1024@60Hz DDC 2B 45W Power Normal : Consumption Stand-by/Suspend ≤ DPMS Off ≤2W Width 44.44 cm inches Height 43.67 cm inches (Min) Dimensions &Weight (with tilt stand) / 17.50 / 17.19 50.67 cm / 19.95 22.00 cm / 8.66 7.3 kg (16.09 lbs) Depth Net Tilt/Height Range Input Environmental Conditions Tilt Stand Signal cable Power cord inches (Max) inches -5˚~20˚ 300˚ 2.76 inch (70.0mm) Tilt Swivel Height Power 2W AC 100-240V~50/60Hz 1.0A Operating Conditions Temperature 10˚C to 35 ˚C 10 % to 80 % non-Condensing Humidity Conditions Storage Temperature -20˚C to 60 ˚C 5 % to 95 % non-Condensing Humidity Attached( ), Detachable ( O ) Attached( ), Detachable ( O ) Wall-outlet type or PC-outlet type NOTE Information in this document is subject to change without A19 notice. FH Specifications Preset Modes (Resolution) 17 inch monitor Display Modes (Resolution) 123456789 10 11 12 13 VGA VGA VGA VESA VESA VESA MAC VESA VESA MAC VESA VESA VESA Horizontal Freq. (kHz) Vertical 31.469 31.468 31.469 37.500 37.879 46.875 49.725 48.363 60.123 68.681 61.805 63.981 79.976 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1152 x 870 1152 x 900 1280 x 1024 1280 x 1024 Freq. (Hz) 70 70 60 75 60 75 75 60 75 75 65 60 75 19 inch monitor Display Modes (Resolution) 123456789 10 11 12 13 VGA VGA VGA VESA VESA VESA MAC VESA VESA MAC VESA VESA VESA Horizontal 31.469 31.468 31.469 37.500 37.879 46.875 49.725 48.363 60.123 68.681 61.805 63.981 79.976 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1152 x 870 1152 x 900 1280 x 1024 1280 x 1024 Indicator MODE LED Color Normal green Stand-by/Suspend amber DPMS Off amber Freq. (kHz) A20 Vertical Freq. (Hz) 70 70 60 75 60 75 75 60 75 75 65 60 75 How to Install the VESA Standard wall This monitor meets mounting VESA-compliant mounting interface pad specifications. 1. Remove the Sliding Door. PUSH 2. Please the monitor front side 3. Separate 4. on a piece of cloth facing downward. the stand base using Install the VESA standrad wall a or other soft surface with the screwdriver as shown in the picture. mounting. VESA wall mounting Connected to another and wall-mounted object (stand type type. This monitor VESA-compliant mounting pad.-optional) For further information, refer to the VESA Wall Mounting Instruction Guide. accepts interface Kensington Security Slot- optional a locking cable that can be purchased separately at most computer Connected to stores A21 a Making use of USB (Universal Serial Bus) Optional - (Universal Serial Bus) is an innovation in connecting your different desktop peripherals conveniently to your computer. By using the USB, you will be able to connect your mouse, keyboard, and other peripherals to your display instead of having to connect them to your computer. This will give you greater flexibility in setting up your system. USB allows you to connect a chain of up to 120 devices on a single USB port; and you can "hot" plug (attach them while the computer is running) or unplug them while maintaining the Plug and the Plug auto detection and configuration. This display has an integrated BUSpowered USB hub, allowing up to 2 other USB devices to be attached it. USB USB connection 1. Connect the USB kit, as shown in the figure. USB kit 2. 3. Connect the upstream port of the display to the downstream port of the USB compliant PC or another hub using the USB cable. (Computer must have a USB port) Connect the USB compliant peripherals to the downstream ports of the display. USB downstream Port connect the cables from USB compliant peripherals-such keyboard, mouse, etc USB This is of rear a upstream as Port simplified representation view. To USB downstream the USB compliant another hub cable A22 port of PC or Making use of USB Removing (Universal Serial Bus) Optional - the USB kit Pull up the USB kit, as shown in the figure. NOTE To activate the USB hub function, the display must be connected to or another hub with the USB cable(enclosed). When connecting the USB cable, check that the matches the shape at the connecting side. shape a USB compliant PC(OS) of the connector at the cable side Even if the display is in a power saving mode, USB compliant devices will function when connected the USB ports(both the upstream and downstream) of the display. they are USB Specifications USB standard Rev. 1.1 Downstream power supply 100mA for each (MAX) Communication 12Mbps USB port speed 1 complied BUS-powered hub Upstream port 2 Downstream ports IMPORTANT: These USB connectors such are not designed for use with video camera, scanner, etc. LGE recommends connecting to the computer as a directly A23 high-power high-power USB devices USB devices Digitally yours
