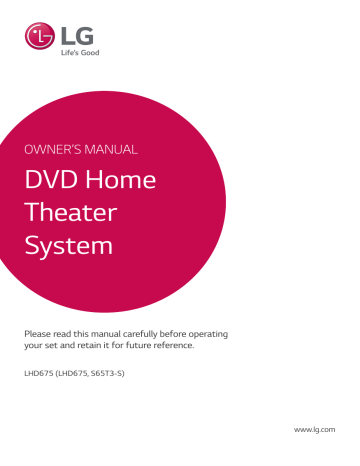

LG LHD675 Owner's manual

OWNER’S MANUAL
DVD Home
Theater
System
Please read this manual carefully before operating
your set and retain it for future reference.
LHD675 (LHD675, S65T3-S)
www.lg.com
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. The
Power Plug is the disconnecting device. In case of
an emergency, the Power Plug must remain readily
accessible.
Getting Started
This device is equipped with a portable battery or
accumulator.
Disposal of your old appliance
1.All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or
the local authorities.
2.The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.
3.For more detailed information about
disposal of your old appliance,
please contact your city office,
waste disposal service or the shop
where you purchased the product.
Disposal of waste batteries/accumulators
1. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery Contains more that 0.0005%
of mercury,0.002% of cadmium or
0.004% of lead.
2. All batteries/accumulators should
be disposed separately from
the municipal waste stream via
designated collection facilities
appointed by the government or
the local authorities.
3. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.
4. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your
city office, waste disposal service or
the shop where You purchased the
product.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
3
4
Table of Contents
Table of Contents
1
Getting Started
2
Safety Information
6
Unique Features
6
– Portable In
6
– Full HD up-scaling
6
– Home Theater Speaker ez Setup
6 – BLUETOOTH®
6
– LG Sound Sync
6Accessories
7Introduction
7
– Playable Discs
7
– About the “7” Symbol Display
7
– Symbols Used in this Manual
7
– Regional Codes
8
Playable file Requirement
9
Remote control
10 Front panel
11 Rear panel
2Connecting
12
13
14
14
15
15
16
16
16
16
17
17
17
18
18
18
Attaching the speakers to the unit
Positioning the system
Connections to Your TV
– HDMI Out Connection
– What is SIMPLINK?
– Video Connection
– Resolution Setting
Video Output Resolution
Optional Equipment Connection
– AUX (L/R) INPUT Connection
– PORT. IN (Portable Input) Connection
– Listening to music from your portable
player or external device
– USB Connection
– OPTICAL IN connection
– Home theater speaker ez setup
Antenna Connection
3 System Setting
19
19
19
20
20
21
22
Adjust the setup settings
– OSD Initial language settings Optional
– To display and exit the Setup menu
– Language
– Display
– Audio
– Lock (Parental Control)
Table of Contents
4Operating
23
23
24
24
24
24
24
24
24
24
25
25
26
27
27
27
27
27
27
27
27
27
27
28
28
28
28
28
28
29
29
29
30
31
31
32
Using the Home Menu
Basic Operations
Other Operations
– Displaying Disc Information on-screen
– To display the DVD Menu
– To display the DVD title
– 1.5 times speed playback
– Screen Saver
– Starting play from selected time
– Resume playback
– Changing subtitle code page
– Marked Playback
– Viewing a PHOTO file
– Sleep Timer Setting
– Dimmer
– Turn off the sound temporarily
– Last Scene Memory
– Power Resume - Optional
– System Select - Optional
– Adjust the speaker level settings
– VOCAL FADER
– Auto power down
– How to disconnect the wireless
network connection or the wireless
device.
Radio Operations
– Listening to the radio
– Presetting the Radio Stations
– Deleting all the saved stations
– Deleting a saved station
– Improving poor FM reception
Sound adjustment
– Setting the surround mode
– Setting the USER EQ
Advanced Operations
Using a BLUETOOTH® wireless
technology
– Listening to music of a BLUETOOTH
device
– LG Sound Sync
5
1
33 – Auto function change
34 – AUTO POWER On/Off
5Troubleshooting
2
35Troubleshooting
6Appendix
36Maintenance
36 – Handling the Unit
36 – Notes on Discs
37 Area Code List
38 Language code List
39 Trademarks and Licenses
40Specifications
3
4
5
6
6
Getting Started
Unique Features
1
Portable In
Accessories
Please check and identify the supplied accessories.
Getting Started
Listen to music from your portable device. (MP3,
Notebook, etc.)
Full HD up-scaling
Views Full HD picture quality with simple setup.
Remote control (1)
Battery (1)
FM antenna (1)
Video cable (1)
Home Theater Speaker ez
Setup
Listen to sounds from TV, DVD and Digital device
with vivid 5.1 (2.1 or 2.0) ch mode.
BLUETOOTH®
Listens to music stored on your Bluetooth device.
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Getting Started
Introduction
Playable Discs
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm/12 cm disc)
Video mode and finalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and finalized only.
DVD+R: Video mode only
Supports the double layer disc also.
Symbols Used in this Manual
r
DVD-Video, DVD±R/RW in Video
mode or VR mode and finalized
t
Audio CDs
y
Video files contained in the
USB/Disc
u
Audio files contained in the
USB/Disc
i
Photo files
,,Note
Indicates special notes and operating features.
,,Tip
Indicates tip and hints for making the task easier.
>>Caution
Indicates cautions for preventing possible damages
from abuse.
DVD+RW (8 cm/12 cm disc)
Video mode and finalized only.
Regional Codes
Audio CD: Music CDs or CD-R/CDRW in music CD format that can be
purchased.
This unit has a regional code printed on the unit.
This unit can play only DVD discs labeled same as
the unit or “ALL”.
About the “7” Symbol Display
“7” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specific media.
yy Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
yy If you try to play a DVD with a different regional
code from your unit, the message “Check
Regional Code” appears on the TV screen.
1
Getting Started
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, MP3, WMA and/or JPEG files.
Some DVD±RW/DVD±R or CD-RW/CD-R cannot be
played on this unit due to the recording quality or
physical condition of the disc, or the characteristics
of the recording device and authoring software.
7
8
Getting Started
Playable file
Requirement
1
Getting Started
Music file requirement
MP3/ WMA file compatibility with this unit is limited
as follows :
yy Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yy Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
yy Support Version : v2, v7, v8, v9
yy Maximum files : Under 999
yy File extensions : “.mp3”/ “.wma”
yy CD-ROM file format : ISO9660/ JOLIET
yy We recommend that you use Easy-CD Creator,
which creates an ISO9660 file system.
yy You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system
for Windows Vista)
The DTS is not supported. In case of DTS audio
format, audio is not output.
Photo file requirement
Photo file compatibility with this unit is limited as
follows :
yy Max pixel in width : 2760 x 2048 pixel
yy Maximum files : Under 999
yy Some discs may not operate due to a different
recording format or the condition of disc.
yy File extensions: “.jpg”
yy CD-ROM file format : ISO9660/ JOLIET
Video file requirement
Video file compatibility with this unit is limited as
follows:
yy Available resolution: within 720 x 576 (W x H)
pixels.
yy The file name of the Video subtitle should be
entered within 45 characters.
yy If there is impossible code to express in the
Video file, it may be displayed as “ _ “ mark on the
display.
yy Frame rate : less than 30 fps.
yy If the video and audio structure of recorded
files is not interleaved, either video or audio is
outputted.
yy Playable Video file : “.avi”, “.mpg”, “.mpeg”
yy Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
yy Playable Codec format :
“Xvid”, “MPEG-1”, “MPEG-2”
yy Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”,
yy Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
yy For Discs formatted in Live file system, you can
not it on this unit.
yy If the name of movie file is different from that of
the subtitle file, during playback of a Video file,
subtitle may not be display.
yy If you play a Xvid file differ from Xvid spec, it
may not operate normally.
yy If you play GMC video file which is more than
1-warp point, video playback screen will not
smooth.
Getting Started
9
Remote control
B OPEN/CLOSE : Opens and
closes the disc tray.
m INFO/DISPLAY : Accesses OnScreen Display.
n HOME : Displays the [Home
Menu].
DISC MENU : Accesses the menu
on a DVD disc.
• • • • • • b • • • • • •
W/S/A/D (up/ down/ left/
right) : Used to navigate on-screen
displays.
MUTE : Mutes the sound.
• • • • • • e • • • • • •
0-9 numerical buttons : Selects
numbered options in a menu.
h REPEAT : Selects a play
mode. (Repeat/ Random)
• • • • • • f • • • • • •
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
Z STOP : Stops playback.
d PLAY, MONO/STEREO : Starts
playback. Selects Mono/ Stereo.
M PAUSE/STEP : Pauses playback.
• • • • • • a • • • • • •
C/V SKIP : Goes to the
next or previous chapter / track /
file.
P RADIO&INPUT : Changes
input sources.
c/v SCAN : Searches
backward or forward.
1 POWER : Switches the unit ON
or OFF.
OPTICAL : Changes input source
to optical directly.
TUNING +/- : Tunes in the desired
radio station.
• • • • • • c • • • • • •
MARKER : Marks play list.
VOL -/+ (Volume) : Adjusts
speaker volume.
CLEAR : Removes a number when
setting the password.
x RETURN : Moves backwards
in the menu or exits the setup
menu.
Remove the battery cover on the
rear of the remote control, and
insert one (size AAA) battery with
4 and 5 matched correctly.
SOUND EFFECT : Selects a sound
effect mode.
PRESET +/- : Selects programme
of Radio.
b ENTER : Acknowledges menu
selection.
Presetting the radio stations.
Battery Installation
SPEAKER LEVEL : Sets the sound
level of desired speaker.
TV Control buttons : Controls the
TV. (LG TV only)
-- You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press PR/
CH (W/S) button repeatedly
until the TV turns on or off.
?: This button is not available.
MIC VOL -/+ : Adjusts microphone
volume.
ECHO VOL -/+ : Adjusts echo
volume.
VOCAL FADER: You can enjoy the
function as karaoke, by reducing
singer vocal of music in the
various source.
1
Getting Started
SLEEP : Sets the System to turn off
automatically at a specified time.
(Dimmer : The display window will
be darken by half.)
• • • • • • d • • • • • •
10
Getting Started
Front panel
1
Getting Started
a Disc Tray
b Display window
Shows the current status of the unit.
c Microphone jacks 1/2
d PORT. IN
Connects to a portable player with audio
outputs.
e USB Port
Connects a USB device.
f R (OPEN/CLOSE)
Opens or closes the disc tray.
g T (PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
h I (STOP)
Stops playback.
iF (FUNCTION)
Changes the input source or function.
j-/+(Volume)
Adjusts speaker volume.
k 1/! (POWER)
Switches the unit ON or OFF.
Getting Started
11
Rear panel
1
Getting Started
a Power cord
b Speaker connectors
Connects the speaker cables.
c HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
d AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
e VIDEO OUT
Connects to a TV with video inputs.
f ANTENNA
FM- Connects the FM wired antenna
g OPTICAL IN
Connects to optical audio equipment.
12
Connecting
Attaching the speakers
to the unit
2
Connecting
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press
each plastic finger pad to open the connection
terminal. Insert the wire and release the finger
pad.
Color
Speaker
Grey
SURR. R (Rear)
Red
FRONT R
Orange
SWF R
Orange
SWF L
White
FRONT L
Blue
SURR. L (Rear)
Position
Front right
Front left
To connect the cable to the speakers, press each
plastic finger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the finger pad.
>>Caution
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
Connect a woofer cord to the player. When
connecting a woofer cord to the player, insert
the connector until it clicks.
yy Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
yy Place the center speaker at a safe distance
from the child’s reach. Otherwise it may
result in the speaker falling down and
causing personal injury and/or property
damage.
yy The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:
yy Before using the subwoofer, remove the
protective vinyl.
Connecting
Positioning the system
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position ( ).
A
F
C
B
A
Front speaker with built in subwoofer (L)
Front speaker with built in subwoofer (R)
Place the front speakers to the sides of the monitor
or screen and as flush with the screen surface as
possible.
Unit
>>Caution
yy Do not stack the speakers
and be careful that the
speaker should not fall down.
Otherwise it may result in the
speaker malfunction and
causing personal injury and/
or property damage.
yy Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
2
Connecting
B
13
14
Connecting
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
,,Note
2
Connecting
yy Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Unit
yy Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
>>Caution
yy Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel.
TV
yy Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
,,Tip
yy You can fully enjoy digital audio and video
signals together with this HDMI connection.
yy When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 16.)
>>Caution
yy Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn off the unit and then turn it
on again.
yy When the HDMI connection with HDCP is
not verified, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
HDMI connection, or disconnect the HDMI
cable.
Connecting
,,Note
yy If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
yy When you connect a HDMI or DVI
compatible device make sure of the
following:
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
yy Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
,,Note
yy Depending on the disc type or playing
status, some SIMPLINK operation may differ
from your purpose or not work.
yy The function is automatically changed
to optical when you change the speaker
setting of simplink to external, no matter
what kind of the function you are using.
2
Video Connection
Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Unit
yy If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.
yy If you use LG TV, Bluetooth or AUX-OPT
Function of the unit, the audio is not output
to HDMI.
TV
What is SIMPLINK?
Some functions of this unit are controlled by the
TV’s remote control when this unit and LG TV’s with
SIMPLINK are connected through HDMI connection.
Controllable functions by LG TV’s remote control;
Power on/off, volume up/down, mute, etc.
Refer to the TV owner’s manual for the details of
SIMPLINK function.
LG TV’s with SIMPLINK function has the logo as
shown above.
Yellow
Connecting
- Try switching off the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
15
16
Connecting
Resolution Setting
The unit provides several output resolutions for
HDMI OUT.
You can change the resolution using [Setup] menu.
1.Press n HOME.
2.Use A/D to select the [Setup] and press b
ENTER. The [Setup] menu appears.
Optional Equipment
Connection
AUX (L/R) INPUT Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
2
Connecting
Unit
3.Use W/S to select [Display] option then press
D to move to the second level.
4.Use W/S to select the [Resolution] option
then press D to move to the third level.
5.Use W/S to select the desired resolution then
press b ENTER to confirm your selection.
,,Note
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press Z STOP for more than 5 seconds.
Video Output
Resolution
Displayed resolution in display window and
outputted resolution may different according to
connection type.
[HDMI OUT] : 1080p, 1080i, 720p and 480p (or
576p) and 480i (or 576i)
[VIDEO OUT] : 480i (or 576i)
To the audio output jacks
of your component
(TV, VCR, etc.)
,,Note
Red
White
If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.
Connecting
PORT. IN (Portable Input)
Connection
Connect an output of portable device (MP3 or PMP
etc.) to the PORT. IN connector.
17
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
2
MP3 player, etc...
Compatible USB Devices
Listening to music from your
portable player or external
device
yy MP3 Player : Flash type MP3 player.
The unit can be used to play the music from many
types of portable player or external devices.
yy The USB function of this unit does not support
some USB devices.
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX (L/R)
INPUT connector of the unit.
yy USB Flash Drive :Devices that support USB2.0 or
USB1.1.
USB device requirement
yy Devices which require additional program
installation connected to a computer, are not
supported.
2. Turn the power on by pressing 1/! (POWER).
yy Do not extract the USB device while in operation.
3. Select the PORTABLE or AUX function by
pressing P RADIO&INPUT.
yy For a large capacity USB, it may take longer than
a few minute to be searched.
4. Turn on the portable player or external device
and start it playing.
yy To prevent data loss, back up all data.
yy If you use a USB extension cable or USB hub, the
USB device is not recognized.
yy Using NTFS file system is not supported. (Only
FAT(16/32) file system is supported.)
yy This unit is not supported when the total
number of files is 1000 or more.
yy External HDD, Card readers, Locked devices, or hard type usb devices are not supported.
yy USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
yy Some USB may not work with this unit.
Connecting
,,Note
Removing the USB Device from the unit.
1. Choose a different function mode or press
Z STOP twice in a row.
2. Remove the USB device from the unit.
18
Connecting
OPTICAL IN connection
Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM Wire antenna to the FM antenna
connector.
2
Connecting
To the digital
optical output jack
of your component
Home theater speaker ez
setup
Listen to sound from TV, DVD and Digital Device
with 5.1(2.1 or 2) ch mode. Even in power off
mode, if you press OPTICAL, then power is on and
automatically changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).
2. Select the AUX OPT by using the OPTICAL
on the remote control to select the AUX OPT
directly.
Or
To select the AUX OPT function, press INPUT on
the remote control.
3. Listen sound with 4.2 ch speaker.
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
,,Note
Be sure to fully extend the FM wire antenna.
System Setting
Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
19
To display and exit the Setup
menu
1.Press n HOME.
Displays the [Home Menu].
You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 19 to 22.
OSD Initial language settings
- Optional
1.Press 1 (POWER) to turn the unit on. The
language setup menu will appear on the screen.
3.Press b ENTER.
Displays the [Setup].
4.Press n HOME or x RETURN to exit in the
[Setup] Menu.
About help menu for Setup
Menu
Buttons
Operation
WS
Moving to another
menu.
a
Move
A
Moving to previous
level.
d
Move
D
Moving to next
level or selecting
menu.
x RETURN
To exit the [Setup]
menu or
[Speaker Setup].
b ENTER
To confirm menu.
ws
Move
x
2.Use WSAD to select a language then press
b ENTER.
The confirm menu will appear.
3.Use AD to select the [Enter] then press b
ENTER to finish the language setup.
Close
b
Select
3
System Setting
During the first use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using
the unit. English will be selected as the initial
language.
2. Select an [Setup] by using AD.
20 System Setting
Language
Menu Language
Select a language for the Setup menu and on
screen display.
Disc Audio / Disc Subtitle / Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
3
Refers to the original language in which the
disc was recorded.
System Setting
[Other]
To select another language, press numeric
buttons and then b ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 38. If you
enter the wrong language code, press CLEAR.
[Off (for Disc Subtitle)]
Turns off Subtitle.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts off the portions that do
not fit. (If the disc/file is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)
Resolution
Sets the output resolution of HDMI video signal.
Refer to “Resolution Setting” for details about the
resolution (page 16).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If VIDEO OUT is only
connected, this changes the resolution to 480i
(or 576i) as default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
Display
[720p]
TV Aspect
[480p (or 576p)]
Select the screen aspect to use based on the shape
of your TV screen.
Outputs 480 (or 576) lines of progressive video.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
Outputs 720 lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
System Setting
21
Audio
DRC (Dynamic Range Control)
Speaker Setup
Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this effect.
Make the following settings for the built-in 4.2
channel surround decoder.
Vocal
1. Select [Speaker Setup] on the [Audio] menu.
Select [On] to mix karaoke channels into normal
stereo.
2.Press b ENTER.
The [SPEAKER] appears.
This function is effective for multi-channel karaoke
DVDs only.
HD AV Sync
5. Returns to the previous menu by pressing x
RETURN.
[Speaker]
Select a speaker that you want to adjust.
,,Note
Certain speaker settings are prohibited by
the Dolby Digital licensing agreement.
Semi Karaoke
When a chapter/ title/ track is fully finished, this
function shows the score in the screen with a
fanfare sound.
[On]
When you finished singing a score will appear
on the screen.
[Off]
[Size]
Since the speaker settings are fixed, you cannot
change the settings.
[Volume]
Adjust the output level of each speaker.
Fanfare and score do not appear on the screen.
,,Note
VD, DVD Karaoke discs with more than
yy D
2 tracks are available discs for the this
function.
Adjust the distance between each speaker and
the listening position.
hen you watch movies, “off ” the Semi
yy W
Karaoke at the SETUP menu or enjoy it
without connecting the MIC if the fanfare or
score appears during changing a chapter.
[Speaker Test Start]
yy This function operate on the DVD/CD mode.
Select [Speaker Test Start] by using the WS
and press b ENTER. Press b ENTER again to
stop. Adjust the volume to match the volume
of test signals memorized in the system.
yy T he Semi Karaoke function is available only
when a microphone is connected.
[Distance]
yy If you do not use the microphone, turn
down the volume and disconnect the
microphone.
3
System Setting
3.Use AD to select the desired speaker.
4. Adjust options using WSAD buttons.
Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it effectively ‘waits’ for the picture to arrive:
this is called HD AV Sync. Use WS (on the remote
control) to scroll up and down through the delay
amount, which you can set at anything between 0
and 300ms.
22 System Setting
Lock (Parental Control)
Password
You can enter or change password.
Initial Setting the Area Code:
When you use this unit for the first time, you have
to set the Area Code.
2.Press b ENTER.
1. Select the [Lock] menu and then press D.
3. Input a password and press b ENTER.
2.Press D.
To access the [Lock] options, you must input the
password you have created. Input a password
and press b ENTER. Enter it again and press b
ENTER to verify. If you make a mistake before
pressing b ENTER, press CLEAR.
3. Select the first character using WS buttons.
3
1. Select [Password] on the [Lock] menu and then
press D.
System Setting
4.Press b ENTER and select the second character
using WS buttons.
5.Press b ENTER to confirm your Area code
selection.
Rating
Blocks playback of rated DVDs based on their
contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press
D.
To change the password, press b ENTER when
the [Change] option is highlighted. Input a
password and press b ENTER. Enter it again
and press b ENTER to verify.
4.Press n HOME to exit the menu.
,,Note
If you forget your password, you can clear it
using the following steps:
1. Select the [Setup] menu on the [Home
Menu].
2. Input the 6-digit number “210499” and
press b ENTER. The password is cleared.
Area Code
2. Input a password and press b ENTER.
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 37.
3. Select a rating from 1 to 8 using the WS
buttons.
1. Select [Area Code] on the [Lock] menu then
press D.
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not
active and the disc plays in full.
4.Press b ENTER to confirm your rating selection.
2. Input a password and press b ENTER.
3. Select the first character using WS buttons.
4.Press b ENTER and select the second character
using WS buttons.
5.Press b ENTER to confirm your Area code
selection.
Operating 23
Using the Home Menu
1.Press n HOME.
Displays the [Home Menu].
2. Select an option by using AD.
3.Press b ENTER then selected option menu.
[Music] – Displays [MUSIC] menu.
[Movie] – Start video media’s playback or displays
the [MOVIE] menu.
[Photo] – Displays [PHOTO] menu.
[Setup] – Displays the [Setup] menu.
,,Note
Stop
2.Press n HOME.
Displays the [Home Menu].
Press d PLAY, MONO/
STEREO.
Pause
Press M PAUSE/STEP.
Press M PAUSE/STEP
Frame-byrepeatedly to play title FrameFrame playback
by-Frame. (DVD, Movie only)
During playback, press C/
V SKIP to go to the next
Skipping to the chapter/ track/ file or to
next/ previous return to the beginning of the
chapter/ track/ current chapter/ track/ file.
file
Press C SKIP twice briefly
to step back to the previous
chapter/ track/ file.
Locating a
point quickly by
playing a file in
fast forward or
fast reverse
Playing
repeatedly or
randomly
3. Select an option by using AD.
If you select the [Movie], [Photo] or [Music]
option when you connect up to two devices,
it appears as belows. Select a media then press
b ENTER.
4.Press b ENTER then selected option menu.
,,Note
yy For the most Audio CD and DVD-ROM discs,
playback starts automatically.
yy The unit plays only music file contained in
the USB storage device or disc automatically.
Press Z STOP.
Playback
Basic Operations
1. Insert the disc by using the B OPEN/CLOSE or
connect the USB device to the USB port.
Do this
During playback, press c/
v SCAN repeatedly to
select the required scan speed.
To return to normal speed,
press d PLAY, MONO/
STEREO.
Press h REPEAT repeatedly,
and the current title, chapter
or track will be played back
repeatedly or randomly.
- DVD : Chapter/ Title/ Off
- Video(MOVIE): : Title/ All/ Off
- Audio CD/ MP3/ WMA : Track/
All/ Random/ Off
In the pause mode, press
c/v SCAN to select the
required speed. (DVD only)
Slowing down
the playing
speed
In the pause mode, press v
SCAN to select the required
speed. (Movie only)
4
Operating
You can not select the [Music], [Movie] or
[Photo] option when the USB device is not
connected or a disc is not inserted.
To
24 Operating
Other Operations
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
r
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.
1. During playback, press d PLAY, MONO/
STEREO to play at 1.5 times speed. “dX1.5”
appears on the screen.
1.Press m INFO/DISPLAY to show various
playback information.
The displayed items differ depending on the
disc type or playing status.
Screen Saver
2. You can select an item by pressing WS and
change or select the setting by pressing AD.
The screen saver appears when you leave the unit
in Stop mode for about five minutes.
Title – C
urrent title number/ total number of titles.
Chapter – Current chapter number/ total number
of chapters.
Time – Elapsed playing time.
4
1.5 times speed playback
Audio – Selected audio language or channel.
Operating
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of angles.
,,Note
If any button is not pressed for a few seconds,
the on-screen display disappears.
2.Press d PLAY, MONO/STEREO again to exit.
Starting play from selected
time
ry
To start playing at any chosen time on the file or
title.
1.Press m INFO/DISPLAY during playback.
2.Press WS to select the time clock icon and
“--:--:--” appears.
When you play a DVD which contains several menu,
you can select the menu you want using the Menu.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
For example, to find a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.
1.Press DISC MENU.
The disc’s menu appears.
4.Press b ENTER to confirm. Playback starts from
the selected time.
To display the DVD Menu
r
2. Select the menu by using WSAD.
3.Press d PLAY, MONO/STEREO to confirm.
To display the DVD title
r
When you play a DVD which contains several title,
you can select the title you want using the Menu.
1.Press TITLE.
The disc’s title appears.
2. Select the menu by pressing WSAD.
3.Press d PLAY, MONO/STEREO to confirm.
Resume playback
ryut
The unit records the point where you pressed the
Z STOP depending on the disc.
If “MZ (Resume Stop)” appears on the screen briefly,
press d PLAY, MONO/STEREO to resume playback
(from the scene point).
If you press Z STOP twice or unload the disc,
“Z”(Complete Stop) appears on the screen. The
unit will clear the stopped point.
Operating 25
,,Note
yy The resume point may be cleared when a
button is pressed (for example; 1 (POWER),
B OPEN/CLOSE, etc).
yy This function may not work on some disc or
title/track.
Changing subtitle code page
y
If the subtitle is not displayed properly, you can
change the subtitle code page to view the subtitle
file properly.
1. During playback, press m INFO/DISPLAY to
display the On-Screen display.
2.Use WS to select the [Code Page] option.
2. Select a desired music on the [List] by using the
WS then press MARKER to appears the mark on
the list.
3.Press b ENTER or d PLAY, MONO/STEREO.
Displays the play mode.
4. Select the play mode by using the WS and press
b ENTER.
[Mark Play]
Marked playback.
[Current Play]
Normal playback.
,,Note
If you want to select all files on the list, select
[Select All] and press b ENTER.
3.Use AD to select desired code option.
4.Press x RETURN to exit the On-Screen display.
ut
The mark function enables you to store your
favourite files from any disc or USB device in the
unit memory.
1. Select [Music] on the [Home Menu].
Returning to the upper folder.
(MP3/ WMA only)
File information will be displayed
according to the ID3TAG information
on the appropriate music file. (MP3
only)
Selecting all tracks/ files.
Deselecting all tracks/files.
Moving to the previous or
next file list.
2.Press MARKER.
To delete all Markers
Use WSAD to select [Deselect All] then press b
ENTER in program edit mode.
,,Note
The markers are also cleared when the disc or
USB device is removed, the unit is switched to
power off or the function is switched to others.
4
Operating
Marked Playback
To delete a Marker
1.Use WS to select the track that you wish to erase
from the marked file.
26 Operating
Viewing a PHOTO file
About help menu in the full screen
Menu
Buttons
Operation
Menu
m
INFO/
DISPLAY
Displaying the Option
menu.
a/d
Prev./ Next
A/D
Moving to another file.
i
This unit can play discs with photo files.
1. Select [Photo] on the [Home Menu] and press
b ENTER.
Moving to the previous or
next file list.
x
List
x
RETURN
Returning to the
[Photo] menu.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
m INFO/DISPLAY to display the option menu.
4
2. Select an option using WSAD.
Returning to the upper
folder.
Operating
2.Press WS to select a folder, and then press b
ENTER.
3. If you want to view a slide show, press WS
to highlight a file and press d PLAY, MONO/
STEREO.
About help menu in the [Photo] menu
Menu
Buttons
d Slide
Show
d
PLAY, MONO/
STEREO
wsad
Move
WSAD
Moving to another
file or content.
b
Select
b ENTER
Viewing a particular
file.
x
Close
x RETURN
Operation
Viewing a slide
show.
Returning to the
[Home Menu].
a
b c
de
a Current photo/ Total number of photos –
Use AD to view previous/next photo.
b Slide Show z/M– Press  ENTER to start
or pause slide show.
c Speed x3/ x2/ x1 – Use  ENTER to select
a delaying speed between photos in a slide
show.
d Rotate – Press  ENTER to rotate the photo.
e Go to list – Press  ENTER to return [Photo]
menu.
Operating 27
Sleep Timer Setting
Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn off.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
,,Note
You can check the remaining time before the
Unit turns off.
Press SLEEP The remaining time appears in the
display window.
,,Note
If the USB device is connected or a disc is
inserted, this function is not operated.
Adjust the speaker level
settings
You can adjust the sound level of each speaker.
1.Press SPEAKER LEVEL repeatedly to select a
desired speaker to set.
2.Press VOL -/+ to adjust the sound level of the
selected speaker while the level setting memu
is displayed on the display window.
3. Repeat and adjust the sound level of the other
speakers.
Dimmer
Press SLEEP once. The display window will be
darken by half. To cancel it, press SLEEP repeatedly
until dim off.
Press
MUTE to mute your unit.
You can mute your unit in order, for example, to
answer the telephone, appears the MUTE in the
display window.
Last Scene Memory
r
This unit memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the unit or switch
off the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.
Power Resume - Optional
r
Even if the power suddenly goes out, turn on the
unit and then it plays a position where the contents
is being played. System will periodically save
current playback status.
System Select - Optional
You must select the appropriate system mode for
your TV system. Press and hold M PAUSE/STEP
for more than five seconds to be able to select a
system in the [Home Menu].
You can enjoy the function as karaoke, by reducing
singer vocal of music in the various source. (MP3/
WMA/ CD/ etc.) Press the VOCAL FADER, and
“FADE ON” will appear in display window.
To cancel it, press VOCAL FADER again.
The quality of the VOCAL FADER may be different
depending on the recording conditions of music
files.
,,Note
yy This function is available to use only when a
microphone is connected.
yy It is not available on the MONO source.
Auto power down
This unit will be off itself to save electric consumption
in the case main unit is not connected to external
device and is not used for 20 minutes. So does
this unit after six hours since Main unit has been
connected to other device using analog input.
How to disconnect the wireless
network connection or the
wireless device.
Turn off the unit by pressing the power button for
more than 5 seconds.
4
Operating
Turn off the sound temporarily
VOCAL FADER
28 Operating
Radio Operations
Be sure that FM antenna is connected.
(Refer to the page 18.)
Listening to the radio
1.Press P RADIO&INPUT until FM appears in
the display window.
The last received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
or
Press TUNING (-/+) repeatedly.
3. Adjust the volume by pressing VOL (-/+)
repeatedly.
4
Operating
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned
down the volume.
1.Press P RADIO&INPUT until FM appears in
the display window.
2. Select the desired frequency by using TUNING
(-/+).
3.Press b ENTER a preset number will flash in
the display window.
4.Press PRESET (-/+) to select the preset number
you want.
5.Press b ENTER.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold CLEAR for two seconds.
“ERASE ALL” will flash up on the unit display.
2.Press CLEAR to erase all saved of the radio
stations.
Deleting a saved station
1.Press PRESET - / + to select a preset number
you want to delete.
2.Press CLEAR, the preset number will blink in the
display window.
3.Press CLEAR again to delete the selected preset
number.
Improving poor FM reception
Press d PLAY, MONO/STEREO on the remote
control. This will change the tuner from stereo to
mono and usually improve the reception.
Operating 29
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound fields. You can select a desired sound mode
by using SOUND EFFECT.
You can change the SOUND EFFECT using AD
arrow key while the sound effect information is
displayed on.
The displayed items for the equalizer maybe
different depending on sound sources and effects.
On Display
Description
BASS
The BASS is Bass Blast. During
playback, reinforce the treble,
bass and surround sound
effect.
You can adjust the sound
effect.
STANDARD
(STD)
You can enjoy the sound
without equalizer effect.
MUSIC
You can enjoy the natural
sound effect optimized to
music source
CINEMA
You can enjoy more immersive
and cinematic surround
sound.
FLAT
BOOST
Provides the neutral sound
effect.
Boosts the mid-range for
sound reinforcement.
TREBLE/BASS
(TRE/BASS)
Improves the bass and treble
sound.
FOOTBALL
You can enjoy more dynamic
sound as watching sports
game in the stadium.
yy This function is not operated when the
microphone is connected to the unit.
Setting the USER EQ
You can adjust the sound level of Bass(BASS) and
Treble(TRE) as your preference.
1.Use SOUND EFFECT to select the USER EQ then
press b ENTER.
2.Use WS to select Bass (BASS) or Treble(TRE).
3.Use AD to select the sound level of Bass(BASS)
or Treble(TRE) then press b ENTER to save the
setting.
4
Operating
USER EQ
,,Note
yy In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
30 Operating
Using a BLUETOOTH®
wireless technology
About BLUETOOTH
Bluetooth is wireless communication technology
for short range connection.
The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the Bluetooth in the other rooms.
Connecting individual devices under
Bluetooth wireless technology does not incur any
charges. A mobile phone with Bluetooth wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth wireless
technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA (This units be supported the Stereo Headset.)
4
Operating
BLUETOOTH Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain profiles.
This unit is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
Listening to music of a
BLUETOOTH device
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure
the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select the Bluetooth function by using the P
RADIO&INPUT.
Appears “BT READY” in display window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.Your unit appears as “LG HTS(XX:XX)”.
,,Note
XX:XX means the last four digits of BT address.
For example, if your unit has a BT address
such as 9C:02:98:4A:F7:08, you will see “LG
HTS(F7:08)” on your Bluetooth device.
Operating
3. When this unit is successfully connected with
your Bluetooth device, Bluetooth LED of this
unit lights up and appears “PAIRED". And then
change to Bluetooth device name soon.
,,Note
Depending on the Bluetooth device type,
some device have a different pairing way.
4. Listening to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
,,Note
yy Depending on the Bluetooth device type,
some device have a different pairing way.
(Enter the PIN code (0000) as needed.)
,,Note
yy The sound may be interrupted when
the connection interfered by the other
electronic wave.
yy You cannot control the Bluetooth device
with this unit.
yy Pairing is limited one Bluetooth device per
one unit and multi-pairing is not supported.
yy Depending on the type of the device,
you may not be able to use the Bluetooth
function.
yy You can enjoy wireless system using phone,
MP3, Notebook, headset, etc..
yy When not connected the Bluetooth, “BT
READY” appears on the display window.
yy The Electrical malfunction due to devices
using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.
4
yy When someone stands and interrupts
communication between Bluetooth device
and the player, the connection will be
disconnected.
Operating
yy If you change the function of the unit, the
Bluetooth function is disconnected, operate
pairing again.
(Bluetooth
Function other than the
Bluetooth)
31
yy If the gotten away of the distance between
Bluetooth and the unit, the sound quality
is lower and lower the connection will
disconnect when the space between the
Bluetooth and the unit gets out of the
operating range of Bluetooth.
yy If the function is changed to Bluetooth
again from other function, Bluetooth device
is paired automatically.
32 Operating
LG Sound Sync
You can control some functions of this unit by
your TV’s remote control with LG Sound Sync. It is
compatible with the LG TV that is supported LG
Sound Sync. Make sure of the LG Sound Sync logo
on your TV.
Controllable function by LG TV’s remote control :
Volume up/down, mute
Refer to the TV’s instruction manual for the details
of LG Sound Sync.
Make one of the following connections, depending
on the capabilities of your equipment.
,,Note
yy You can also use the remote control of
this unit while using LG Sound Sync. If you
use TV's remote control again, the unit
synchronizes with the TV.
yy When the connection fails, make sure of the
condition of the TV and power.
yy Make sure of the condition of this unit and
the connection in the cases below when
using LG Sound Sync.
-- turn off the unit.
-- Changing the function to the others.
-- Disconnecting the wireless connection
caused by interference or a distance.
yy Details of TV setting menu vary depending
on the models of your TV.
yy Bluetooth connection is unavailable after
connecting LG TV.
4
Operating
Operating 33
With wireless connection
Auto function change
1. Turn on the unit by pressing 1 (Power) on the
remote control.
This unit recognizes input signals such as Bluetooth
and LG TV and then changes suitable function
automatically.
2. Select LG TV function by using the
P RADIO&INPUT on the remote control.
3. Set up the sound output of TV to listen to the
sound through this unit :
TV setting menu [ [Sound] [ [TV Sound
output] [ [LG Sound Sync (Wireless)]
"PAIRED" appears on the display window for
about 3 seconds and then you can see "LG TV"
on the display window if connecting normally
between this unit and your TV.
,,Note
yy If you turned off the unit directly by pressing
1 (Power), LG Sound Sync (Wireless) will
be disconnected. To use this function again,
you should reconnect the TV and the unit.
yy Details of TV setting menu vary depending
on the manufacturers or models of your TV.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, Bluetooth function is selected. Play your
music on the Bluetooth device.
When LG TV signal comes in
When you turn on your LG TV connected by
LG Sound Sync (Wireless connection), this unit
changes the function to LG TV. You can hear the
sound from your TV.
,,Note
yy If you using the bluetooth function, this
unit does not respond to LG TV connection
signal.
yy The bluetooth unit or the LG TV which is not
paired with this unit, cannot use the auto
function change.
yy If you change the this unit’s function to
other function, some bluetooth unit may try
to connecting in succession. Disconnect the
bluetooth connection before changing of
the this unit’s function.
4
Operating
yy This unit does not respond to the bluetooth
connection signal while using the LG TV
function.
34 Operating
AUTO POWER On/Off
This unit automatically turns on by an input source :
LG TV or Bluetooth.
This unit automatically turns off when you turn off
the LG TV after the unit is connected to LG TV by
AUTO POWER function.
When you turn on your TV or an external device
connected to this unit, this unit recognizes the
input signal and select the suitable function. You
can hear the sound from your device.
If you try to connect your Bluetooth device, this
unit turns on and is paired automatically. And then
play your music.
,,Note
4
yy After the unit is turned on by AUTO POWER
function, it will be automatically turned off if
there is no signal for a certain period of time
from the TV connected by LG Sound Sync
(Wireless).
Operating
yy After the unit is turned on by AUTO POWER
function, it will be automatically turned off if
there is no signal for a certain period of time
from the external device.
yy Depending on the connected device, this
function may not operate.
yy If you disconnect Bluetooth connection
by this unit, some Bluetooth devices try to
connect to the unit continually. Therefore
it is recommended to disconnect the
connection before turn off the unit.
yy If you want to use AUTO POWER, SIMPLINK
must be turned off. It takes for about 30
seconds to switch on or off SIMPLINK.
yy When you turn on this unit for the first time,
Auto Power function is turned on status.
Troubleshooting 35
Troubleshooting
PROBLEM
The unit does not work properly.
CORRECTION
yy Turn off the power of this unit and the connected external device
(TV, Woofer, DVD-player, Amplifier, etc.) and turn it on again.
yy Disconnect the power cord of this unit and the connected external device
(TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
No power
yy Plug the power cord into the wall outlet securely.
No picture
yy Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
yy Connect the video cables securely to both the TV and unit.
yy Select the correct input mode of the unit so you can hear the
sound from the unit.
There is little or no sound
yy Connect the audio cables into the connection terminals correctly.
yy Replace with a new audio cable.
The DVD picture quality is poor
yy Clean the disc using a soft cloth with outward strokes.
yy Insert a disc.
A DVD/CD will not play
yy Insert a playable disc (check the disc type, colour system and
regional code).
yy Place the disc with the label or printed side facing upwards.
yy Enter your password or change the rating level.
yy Clean the disc using a soft cloth with outward strokes.
yy Move unit and audio components further away from your TV.
yy Check the antenna connection and adjust its position.
Radio stations can’t be tuned in
properly
yy Attach an external antenna if necessary.
yy Tune to the station manually.
yy Preset some radio stations, see page 28 for details.
yy The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote control doesn’t work
well / at all
yy The remote is too far from the unit.
Use the remote within 23 feet (7 m) of the unit.
yy There is an obstacle in the path between the remote control and
the unit.
Remove the obstacle.
yy The battery in the remote control are flat.
Replace the battery with new ones.
yy Check connection of the external device such as TV, DVD/Blu-Ray
player or Bluetooth device.
The AUTO POWER function does not yy Check the state of SIMPLINK and turn off SIMPLINK.
work.
yy Depending on the connected device, this function may not
operate.
5
Troubleshooting
Humming noise heard while a DVD
or CD is playing
36 Appendix
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
yy Do not use volatile liquids such as insecticide
spray near the unit.
yy Wiping with strong pressure may damage the
surface.
yy Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
6
Maintaining the Unit
Appendix
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints do not
get on the surface. Never stick paper or tape on the
disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.
Appendix 37
Area Code List
Choose an area code from this list.
AreaCode AreaCode AreaCode AreaCode
Afghanistan AF Fiji FJ Monaco MC Singapore SG
Argentina AR Finland FI Mongolia MN Slovak Republic SK
Australia AU France FR Morocco MA Slovenia Austria AT Germany DE Nepal NP South Africa ZA
Belgium BE Great Britain GB Netherlands NL South Korea KR
Bhutan BT Greece GR Antilles AN Spain ES
Bolivia BO Greenland GL New Zealand NZ Sri Lanka LK
SI
Brazil BR Hong Kong HK Nigeria NG Sweden SE
Cambodia KH Hungary HU Norway NO Switzerland CH
Canada CA India IN Oman OM Taiwan TW
Chile CL Indonesia ID Pakistan PK Thailand China CN Israel IL Panama PA Turkey TR
Colombia CO Italy IT Paraguay PY Uganda UG
Congo CG Jamaica JM Philippines PH Ukraine UA
Costa Rica CR Japan JP Poland PL United States US
Croatia HR Kenya KE Portugal PT Uruguay UY
Czech Republic CZ Kuwait KW Romania RO Uzbekistan UZ
Denmark DK Libya Ecuador EC Luxembourg Egypt EG Malaysia El Salvador SV Maldives MY Saudi Arabia MV Senegal Ethiopia ET Mexico MX
LY Russian
LU Federation Vietnam RU Zimbabwe SA
SN
TH
VN
ZW
6
Appendix
38 Appendix
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
6
LanguageCode
LanguageCode
LanguageCode
LanguageCode
Afar 6565
French 7082
Lithuanian 7684
Sindhi 8368
Afrikaans 6570
Frisian 7089
Macedonian 7775
Singhalese 8373
Albanian 8381
Galician 7176
Malagasy 7771
Slovak 8375
Ameharic 6577
Georgian 7565
Malay 7783
Slovenian 8376
Arabic 6582
German 6869
Malayalam 7776
Spanish 6983
Armenian 7289
Greek 6976
Maori 7773
Sudanese 8385
Assamese 6583
Greenlandic 7576
Marathi 7782
Swahili 8387
Aymara 6588
Guarani 7178
Moldavian 7779
Swedish 8386
Azerbaijani 6590
Gujarati 7185
Mongolian 7778
Tagalog 8476
Bashkir 6665
Hausa 7265
Nauru7865
Tajik 8471
Basque 6985
Hebrew 7387
Nepali 7869
Tamil 8465
Bengali; Bangla 6678
Hindi 7273
Norwegian 7879
Telugu 8469
Bhutani 6890
Hungarian 7285
Oriya 7982
Thai 8472
Bihari 6672
Icelandic 7383
Panjabi 8065
Tonga 8479
Breton 6682
Indonesian 7378
Pashto, Pushto 8083
Turkish 8482
Bulgarian 6671
Interlingua 7365
Persian 7065
Turkmen 8475
Burmese 7789
Irish 7165
Polish 8076
Twi 8487
Byelorussian 6669
Italian 7384
Portuguese 8084
Ukrainian 8575
8185
Urdu 8582
Appendix
Chinese 9072
Japanese 7465
Quechua Croatian 7282
Kannada 7578
Rhaeto-Romance 8277
Uzbek 8590
Czech 6783
Kashmiri 7583
Rumanian 8279
Vietnamese 8673
Danish 6865
Kazakh 7575
Russian 8285
Volapük 8679
Dutch 7876
Kirghiz 7589
Samoan 8377
Welsh 6789
English 6978
Korean 7579
Sanskrit 8365
Wolof 8779
Esperanto 6979
Kurdish 7585
Scots Gaelic 7168
Xhosa 8872
Estonian 6984
Laothian 7679
Serbian 8382
Yiddish 7473
Faroese 7079
Latin 7665
Serbo-Croatian 8372
Yoruba 8979
Fiji 7074
Latvian, Lettish 7686
Shona 8378
Zulu 9085
Finnish 7073
Lingala 7678
Appendix 39
Trademarks and
Licenses
All other trademarks are trademarks of their
respective owners.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Notes on Copyrights
yy This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Rovi. Reverse engineering or
disassembly is prohibited.
yy Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
Connecting individual devices under Bluetooth
wireless technology does not incur any charges.
A mobile phone with Bluetooth wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
6
Appendix
Bluetooth wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.
40 Appendix
Specifications
General (LHD675)
Power requirements
Refer to main label.
Refer to main label.
Power consumption
Networked standby 0.4 W (If all network ports are activated.)
Dimensions (W x H x D)
(360 x 60.5 x 299) mm without foot
Net Weight (Approx.)
2.69 kg
Operating temperature
5 °C to 35 °C
Operating humidity
5 % to 90 %
Bus Power Supply
5 V 0 500 mA
Inputs/ Outputs
VIDEO OUT
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
HDMI OUT (video/audio)
19 pin (Type A, HDMI™ Connector ) x 1
ANALOG AUDIO IN
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL IN (OPTICAL)
3 V (p-p), Optical jack x 1
PORT. IN
0.5 Vrms (3.5 mm stereo jack) x 1
Amplifier
Stereo mode
Surround mode
6
167 W + 167 W (3 Ω at 1kHz)
Front
167 W + 167 W (3 Ω at 1 kHz)
Surround
167 W + 167 W (3 Ω at 1 kHz)
Subwoofer
167 W + 167 W (3 Ω at 60 Hz)
Appendix
Tuner
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Appendix
41
Front speakers / Surround (Rear) Speakers / Subwoofers (S65T3-S)
Type
Impedance
Rated Input
Power
Max. Input
Power
Front Speaker
1 Way 1 Speaker
Surround (Rear)
Speaker
1 Way 1 Speaker
Subwoofer
1 Way 1 Speaker
Front Speaker
3Ω
Surround (Rear)
Speaker
3Ω
Subwoofer
3Ω
Front Speaker
167 W
Surround (Rear)
Speaker
167 W
Subwoofer
167 W
Front Speaker
334 W
Surround (Rear)
Speaker
334 W
Subwoofer
334 W
Net Dimensions (W x H x D)
(233 X 998 X 310) mm
Net Weight(1EA)
12.5 Kg
yy Design and specifications are subject to change without notice.
