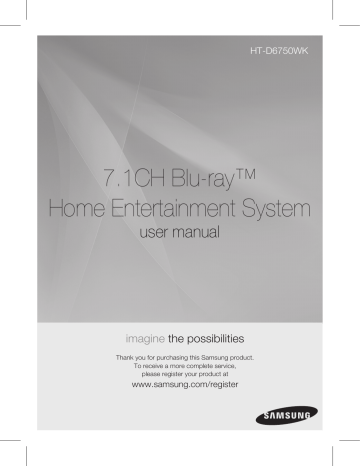

HT-D6750WK 7.1CH Blu-ray™ Home Entertainment System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register Safety Information Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous CAUTION : TO PREVENT ELECTRIC voltage” inside the product that presents SHOCK, MATCH WIDE BLADE OF PLUG a risk of electric shock or personal injury. TO WIDE SLOT, FULLY INSERT. WARNING • To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time. • This apparatus shall always be connected to a AC outlet with a protective grounding connection. • To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. English CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1 PRODUCTO This symbol indicates important instructions accompanying the product. LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT LÁSER CLASE 1 CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION • INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. Precautions • Ensure that the AC power supply in your house complies with specifications listed on the identification sticker located on the back of your product. • Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). • Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered. • Do not stack anything on top of the product. • Before moving the product, ensure the Disc Insert Hole is empty. • To disconnect the product completely from the power supply, remove its plug from the wall outlet. - If you leave the product unused for a long period of time, disconnect the plug from the wall outlet. • During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks caused by lightning could damage the product. • Do not expose the product to direct sunlight or other heat sources. This could cause the product to overheat and malfunction. • Protect the product from moisture, excess heat, and equipment creating strong magnetic or electric fields (i.e. speakers.). • Disconnect the power cable from the AC supply if the product malfunctions. • Your product is not intended for industrial use. It is for personal use only. • Condensation may occur if you store your product or a disc in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using. • The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. Viewing TV using the 3D function IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the TV’s 3D function. WARNING • Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest. • Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest. • A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. • Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) • Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injuries caused by running into objects, tripping, and/or falling. English Safety Information Cautions on Handling and Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Holding discs • Do not touch the playback side of the disc. • Hold the disc by the edges so that fingerprints will not get on the surface. • Do not stick paper or tape on the disc. Disc Storage • Do not keep in direct sunlight • Keep in a cool ventilated area • Keep in a clean protection jacket and store vertically. ✎ NOTE Do not allow the discs to become contaminated with dirt. Do not load cracked or scratched discs. Handling and Storing Discs If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. • When cleaning, wipe gently from the inside to the outside of the disc ✎ NOTE Condensation may form if warm aerial comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on. License • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. • "ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx. com for more information on how to complete your registration. DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license." • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. • Oracle and Java are registered trademarks of Oracle and/ or its affiliates. Other names may be trademarks of their respective owners. • This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. • Blu-ray Disc™, Blu-ray™, and the logos are trademarks of Blu-ray Disc Association. • iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc. • < Open Source License Notice > In the case of using open source software, Open Source Licenses are available on the product menu. Copyright © 2011 Samsung Electronics Co., Ltd. All rights reserved. English Contents Safety Information 2 3 4 4 4 Safety Warnings Precautions Cautions on Handling and Storing Discs License Copyright Getting Started 7 8 9 13 14 14 15 16 Key features of your new Blu-ray Home Theatre Icons that will be used in manual Disc Types and Characteristics Accessories Description Front Panel Rear Panel Remote Control CONNECTIONS 18 22 23 25 26 Connecting the Speakers Connecting External Devices/your TV via HDMI Connecting the FM Antenna Connecting Audio from External Components Connecting to a Network Setup 28 29 30 30 31 31 31 31 33 33 33 33 33 34 34 35 35 35 36 36 36 37 38 38 38 41 41 42 42 42 42 42 42 42 43 Initial Settings Accessing the Settings Menu Display 3D Settings TV Aspect Smart Hub Screen Size BD Wise (Samsung Products only) Resolution HDMI Color Format Movie Frame (24 Fs) HDMI Deep Color Still Mode Progressive Mode Audio Speaker Settings Musical Room Calibration Karaoke Scoring User EQ HDMI Audio Audio Return Channel Digital Output Dynamic Range Control Audio Sync Network Network Settings Network Status BD-Live Internet Connection System Initial Settings Anynet+ (HDMI-CEC) BD Data Management Time Zone DivX® Video On Demand Reset Language 2 7 18 28 English Contents Setup 43 43 43 43 43 43 43 44 44 44 46 Security BD Parental Rating DVD Parental Rating Change Password General Front Display Light Effect Network Remote Control Support Software Upgrade Contact Samsung Basic Functions 47 47 48 49 49 50 52 54 55 56 57 57 57 58 59 60 60 Playing a Disc Using the Disc menu / Title menu / Popup menu Using the Search and Skip Functions Slow Motion Play/Step Motion Play Repeat Playback Using the TOOLS button Listening to Music Sound Mode Playing back a Picture Playing back a USB Storage Device Listening to Radio Connecting an iPod/iPhone Using the USB Cable Connecting an iPod/iPhone Using the Dock Use an iPod/iPhone with a Wireless Dock Cradle (sold separately) for iPod/iPhone iPod/iPhone Models You Can Use with This Product How to Link the Wireless Transmitter with the Main Unit Connecting Microphone Network Services 61 68 70 70 Using Smart Hub Samsung Apps BD-LIVE™ Using the AllShare Function Other Information 71 74 Troubleshooting Specifications 43 47 61 71 • Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. English 01 Getting Started Getting Started Key features of your new Blu-ray Home Theatre Product Features 3D This product can play 3D contents through an HDMI cable. To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the product using an HDMI cable, and play the 3D content while wearing 3D vision glasses. Wireless receiver module Samsung ’s rear-channel wireless receiver module does away with cables running between the product and rear-channel speakers. Instead, the rear speakers connect to a compact wireless receiver module that communicates with the product. Smart Hub You can download various for pay or free-of charge applications through a network connection. These applications provide a range of Internet services and content including news, weather forecasts, stock market quotes, games, movies, and music. AllShare You can play videos, music and photos saved on your devices (such as your PC, mobile phones or NAS) through the home theatre via a network connection. Audio Sync function If you have connected the product to a digital TV, video can sometimes lag behind the audio. To compensate for this, you can adjust the audio delay time to sync up with the video. iPod Sync function If the video signal from an iPod player you attached to the product lags behind the audio signal during playback, you can set the audio delay time so that the video and audio match. iPod & iPhone support If you have connected an iPod player to the home theatre using the iPod/iPhone specific USB cable, you can play the music files in the iPod/iPhone through the connected speakers. You can also play video files using the iPod-specific dock, and enjoy iPod music using the wireless transmitter (sold separately). BD Wise BD Wise automatically adjusts BD Wise-compliant Samsung products to their optimal settings. This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable. 3D Sound You can enjoy much natural and vivid surround sound with enriched tones. ARC (Audio Return Channel) You can enjoy TV sound from the Home Theatre speakers by using just one HDMI cable. English Getting Started Icons that will be used in manual Make sure you understand the following terms before reading the rest of the user manual. Term Logo Icon h � Z BD-ROM BD-RE/-R DVD-VIDEO Definition Indicates a function available on a BD-ROM. Indicates a function available on a BD-RE/-R disc recorded in the BD-RE format. Indicates a function available on a DVD-VIDEO. DVD-RW(V) DVD-R � DVD+RW Indicates a function available on recorded DVD+RW or DVD-RW(V)/DVDR/+R discs that have been recorded and finalized. DVD+R MP3 WMA - JPEG - o � G DivX MKV MP4 DivX � Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing DivX contents. F ! ✎ Indicates a function available on a USB storage device. Audio CD USB storage device - CAUTION - NOTE - Shortcut Key - Indicates a function available on an audio CD-RW/-R (CD-DA format). Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing MP3 or WMA contents. Indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a USB storage media containing JPEG contents. Indicates a situation where a function does not operate or settings may be canceled. Indicates tips or instructions on the page that help each function operate. Indicates this function provides direct and easy access pressing the button on the remote control. • This product is compatible with the PAL color system only. • NTSC discs will not play. English 01 Logos of Discs that can be played Blu-ray Disc Compatibility Blu-ray is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Disc Types and Characteristics section of this Manual. Blu-ray Disc 3D Blu-ray Disc Dolby Digital Plus Dolby TrueHD DTS-HD High Resolution Audio Java DTS-HD Master Audio | Essential BD-LIVE ✎ NOTE Playback may not work for some types of discs or when you use specific functions such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the box. Please refer to this if necessary. Do not allow discs to become dirty or scratched. Fingerprints, dirt, dust, scratches, or deposits of cigarette smoke on the recording surface may make it impossible to playback a disc. When you play a BD-Java title, loading may take longer than a normal title, or some functions may perform slowly. Discs that cannot be played HD DVD Disc DVD-RAM 3.9 GB DVD-R Disc for Authoring. DVD-RW(VR mode) Super Audio CD(except CD layer) DVD-ROM/PD/MV-Disc, etc CVD/CD-ROM/ CDV/CD-G/CD-I/LD • CDGs play audio only, not graphics. • • • • • • ✎ NOTE Some commercial discs and DVD discs purchased outside your region may not play on this product. If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not play on this product. English Getting Started Disc Types and Characteristics Getting Started Region Code BD-RE/-R Both the product and the discs are coded by region. These regional codes must match for the product to play the disc.If the codes do not match, the disc will not play. Blu-ray RE/-R discs can be recorded and played back. This product can play back a BD-RE/-R disc recorded by other compatible Blu-ray disc recorders. Disc Type Blu-ray DVD-VIDEO Region Code DVD-VIDEO Area a North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia. b Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand. c India, China, Russia, Central and South Asia. 1 The U.S., U.S. territories and Canada • This product can play back a DVD+RW disc recorded with a DVD Video recorder. The ability to play back may depend on recording conditions. 2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland Audio CD (CD-DA) 3 Taiwan, Korea, the Philippines, Indonesia, Hong Kong 4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean 5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia 6 China BD-ROM Blu-ray discs can only be played back. This product can play back pre-recorded commercial BD-ROM discs. English DVD-RW/-R/+R This product can play back a DVD-RW/-R/+R disc recorded and finalized with a DVD video recorder. The ability to play back may depend on recording conditions. DVD+RW Disc Types 10 • This product can play back pre-recorded commercial DVD discs (DVD-VIDEO discs) with movies. • When switching from the first layer to the second layer of a dual-layered DVD-VIDEO disc, there may be momentary distortion in the image and sound. This is not a malfunction of the product. • This product can play back CD-DA format audio CD-RW/-R discs. • The product may not be able to play some CDRW/-R discs due to the condition of the recording. CD-RW/-R • Use 700MB (80 minute) CD-RW/-R discs. Do not use 800MB (90 minutes) or larger discs, as these discs may not play back. • If the CD-RW/-R disc was not recorded as a closed session, you may experience delays when playing back the beginning of the disc or all recorded files may not play. • Some CD-RW/-R discs may not play on this product, depending on the device which was used to burn them. For contents recorded on CDRW/-R media from CDs for your personal use, playability may vary depending on the contents and discs. 01 Using JPEG discs • The home theatre can play back D-R/-RW, DVD-RW/-R discs recorded in the UDF or JOLIET format. • Only JPEG files with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed. • Progressive JPEG is supported. DVD-RW/-R (V) • This format is used for recording data on DVD-RW or DVD-R discs. This product can play DVD-RW or DVD-R discs if they have been finalized. • If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been finalized, it cannot be played by this product. Supported File Formats Video File Support File Extension Container *.avi AVI Video Codec MP3 AC3 LPCM ADPCM DTS Core 1920x1080 1920x1080 Motion JPEG MP3 AC3 LPCM ADPCM WMA Window Media Video v9 WMA 1920x1080 H.264 BP/MP/HP MP3 ADPCM AAC 1920x1080 ADPCM AAC HE-AAC 1920x1080 H.264 BP/MP/HP MPEG4 SP/ASP DivX 3.11/4.x/5.1/6.0 MKV H.264 BP/MP/HP MPEG4 SP/ASP Motion JPEG DivX 3.11/4.x/5.1/6.0 *.asf ASF *.wmv ASF *.mp4 MP4 *.3gp 3GPP Resolution 1920x1080 Motion JPEG *.mkv Audio Codec MP3 AC3 LPCM ADPCM DTS Core DivX 3.11/4.x/5.1/6.0 H.264 BP/MP/HP MPEG4 SP/ASP MPEG4 SP/ASP H.264 BP/MP/HP MPEG4 SP/ASP 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 English 11 Getting Started Disc Format Getting Started File Extension Container Video Codec *.vro VRO VOB MPEG2 Audio Codec AC3 MPEG LPCM MPEG1 MPEG2 PS H.264 H.264 TS 352x288 352x288 1920x1080 1920x1080 AC3 AAC MP3 DD+ HE-AAC MPEG2 *.ts *.tp *.trp 1920x1080 AC3 MPEG LPCM AAC MPEG1 *.mpg *.mpeg Resolution VC1 1920x1080 1920x1080 1920x1080 Restrictions • • • • • Some of the Codecs listed above will not play if there is a problem with the contents. Corrupt video sources or sources with incorrect container information will play properly. AV sources that exceed the standard Bitrate or frame rate may not play properly. If the index table is corrupt, the Seek (Jump) function will not be supported. If you play a video via the network, it may not play properly depending on the network status. Video decoder • Up to H.264 Level 4.1 supported. • H.264 FMO/ASO/RS, VC1 SP/MP/AP L4, AVCHD not supported. • MPEG4 SP, ASP : - Below 1280 x 720: 60 frame max - Above 1280 x 720: 30 frame max • GMC 2 or higher not supported. Audio decoder • • • • Up to WMA 7,8,9 supported. WMA 9 PRO with more than two channels (multi-channel) not supported. WMA 9 Lossless, Voice not supported. WMA sampling rate at 22050Hz mono not supported. Music File Support File Extension *.mp3 *.wma 12 English Container MP3 WMA Audio Codec Support Range WMA Compliant with WMA version 10 * Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48 * Bitrates - All bit-rates in the range 5kbps to 384kbps MP3 - 01 6) Connect USB devices directly to the product's USB port. Connecting through a USB cable may cause compatibility problems. 7) Inserting more than one memory device to a multi-card reader may cause the reader to operate improperly. 8) The product does not support the PTP protocol for digital cameras 9) Do not disconnect a USB device during a "loading" process. 10) The bigger the image resolution, the longer the the image takes to display. 11) This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites. Supported devices: USB storage media, MP3 player, digital camera, USB card reader 1) The product does not support folder or file names longer than 125 characters. 2) A subtitle file bigger than 300 KB may not be properly displayed. 3) Some USB/digital camera devices may not be compatible with the product. 4) The product supports the FAT16 and FAT32 file systems.. 5) Photo (JPEG), music (MP3,) and video files must have Korean or English file names. Otherwise, the files will not play. Accessories Check the box for the supplied accessories listed below. HDMI Cable Video Cable FM Antenna Soft Cloth ASC Microphone iPod Dock FUNCTION TV SOURCE POWER RECEIVER SLEEP BD TV 1 2 4 3 5 7 6 8 9 FULL SCREEN REPEAT 0 MUTE VOL TUNING /CH SFE MODE DISC MENU MENU TITLE MENU POPUP TOOLS INFO RETURN EXIT iPod SYNC A NETFLIX 3D SOUND User's Manual TUNER MEMORY MO/ST B C SMART SEARCH 'ĺ' DSP VERTICAL SURROUND D HUB Remote Control / Batteries (AAA size) CH AR GE Wireless Dock Cradle for iPod/iPhone : HT-WDC10 (sold separately) CHA RGE CH ARG LIN E K STA NDB Y LI NK STAN DB Y CHARG E Wireless Transmitter Charging Cradle DC Power Cord DC Power Adapter LIN K STA LINK ND BY STANDB Y English 13 Getting Started Notes on the USB connection Getting Started Description Front Panel 1 2 3 4 5 6 7 8 9 10 11 12 13 5V 500mA MIC ASC IN 1 POWER BUTTON ( 2 FUNCTION BUTTON The mode switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM 3 4 5 6 DISPLAY Displays the playing status, time, etc. STOP BUTTON Stops disc playback. PLAY/PAUSE BUTTON Plays a disc or pauses playback. ENTER BUTTON Selects menu items or starts a Blu-ray disc. (It will not start a DVD disc.) 7 8 9 10 11 12 EJECT BUTTON Ejects a Disc. DISC SLOT Insert disc here. REMOTE CONTROL SENSOR Detects signals from the remote control. MIC JACKS Connects to the microphone. ASC IN JACK Used to connect the ASC Microphone for setting up MRC (Musical Room Calibration). VOLUME CONTROL Volume adjustment. 13 USB PORT You can connect a USB memory flash stick here and use it as storage when the product is connected to BD-LIVE. You can also use the USB Host for software upgrades and MP3/JPEG/DivX/MKV/MP4 playback. And also it is possible to use R. IPOD when iPod is connected. ) Turns the product on and off. ✎ NOTE You must use a USB memory flash stick to perform a software upgrade using the USB Host jack. When the product displays the Blu-ray disc menu, you cannot start the movie by pressing the PLAY button on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the ENTER button. 14 English 01 Getting Started Rear Panel 1 2 3 4 5 LAN iPod DIGITAL AUDIO IN HDMI OUT HDMI IN 6 7 8 9 10 COMPONENT OUT FM ANT 11 CENTER 12 SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP OPTICAL WIRELESS AUX IN VIDEO OUT SPEAKER IMPEDANCE : 3 1 LAN TERMINAL Can be used for network based services (see pages 61~68), BD-LIVE and software upgrade under the network connection. 2 iPod JACK Connect the iPod dock connector here. 3 EXTERNAL DIGITAL AUDIO IN JACK (OPTICAL) Connect to the Digital Optical out jack of an external device using a Digital Optical cable. 4 HDMI OUT JACK Use an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture. 5 HDMI IN JACKS Receives digital video and audio signals simultaneously using an HDMI cable. 6 FM ANTENNA JACK Connect the FM antenna. 7 TX CARD CONNECTION (WIRELESS) The TX card enables communication between the product and the wireless receiver module. 8 AUX IN JACKS Connect to the 2CH Analog output of an external device (such as a VCR) 9 COMPONENT VIDEO OUT JACKS Connect a TV with Component video inputs to these jacks. 10 VIDEO OUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this product. 11 SPEAKER OUTPUT CONNECTORS Connect the front, front top, Center, subwoofer speakers. 12 COOLING FAN The cooling fan supplies cool aerial to the product to prevent overheating and always revolves when the power is on. ! CAUTION Ensure a minimum of 4 inches of clear space on all sides of the home theatre to ensure adequate ventillation. Do not obstruct the cooling fan or ventilation holes. English 15 Getting Started Remote Control Tour of the Remote Control Turn the product on and off. To change to TV mode, press the TV button. To change to Home Theatre, press the BD button. Press numeric buttons to operate options. FUNCTION TV SOURCE POWER RECEIVER SLEEP BD ECHO TV To eject the disc. 1 2 3 4 5 6 4 5 6 7 8 9 7 8 REPEAT FULL SCREEN 0 Press to search backwards or forwards. Press to pause a disc. Cut off the sound temporarily. MUTE MIC VOL+ SFE MODE TUNING /CH Adjust the volume. VOL Press to move to the home menu. DISC MENU MIC VOLTITLE MENU MENU POPUP TOOLS INFO RETURN EXIT Select on-screen menu items and change menu value. Press to apply 3D Sound effect. Press to search contents. Select the desired Dolby Pro Logic II audio mode. 16 English 9 REPEAT Allows you to repeat a title, chapter, 0 track or disc. Press to stop/play a disc. Correct the audio synchronization when playing iPod video content. These buttons are used both for menus on the product and also several Blu-ray Disc functions. Press to use Smart Hub. SLEEP ECHO 3 Press to skip backwards or forwards. Return to the previous menu. SLEEP :SetRECEIVER the time to shut off the product itself. TV level of ECHO :AdjustBDthe echo the microphone. 2 Press to see the full screen on a TV. Press to use the Tools menu. FUNCTION TV SOURCE 1 FULL SCREEN Press to view the disc menu. Press to select Blu-ray's mode. POWER or Press to select TV's video mode. MUTE FMMIC VOL+ TUNING/CH:Search for active stations and change channels. MIC VOL :Adjust the MIC volume.TUNING VOL SFE MODE /CH You can set the SFE (Sound Field Effect) mode best suited for the MIC VOLtype of musicDISC you are listening to.TITLE MENU MENU MENU Use to enter the popup menu/title menu. TOOLS Use to display the playback information when playing a Blu-ray/DVD disc. POPUP INFO Press to exit the menu. iPod SYNC TUNER MEMORY MO/ST A B C D SMART SEARCH S/W LEVEL 2D→3D DSP VERTICAL SURROUND HUB 3D SOUND RETURN EXIT Used to set a presetiPod radio frequency. TUNER SYNC MO/ST MEMORY B for radio C Select MONO orASTEREO broadcasting. SMART SEARCH S/W LEVEL D 2D→3D HUB Press to enjoy an ordinary 2D video DSP in 3D mode. 3D SOUND VERTICAL SURROUND It supplies the vertical soundstaging. Used to adjust the level of the subwoofer. Regulate and stabilize the volume level. (Digital Signal Processor) 01 * Battery size: AAA ✎ NOTE Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment. Assuming typical TV usage, the batteries last for about one year. The remote control can be used up to approximately 23 feet (7 meters) in a straight line. Setting the Remote Control You can control certain functions of your TV with this remote control. When operating a TV with the remote control 1. Press the TV button to set the remote control to TV mode. 2. Turn on your TV. 3. While holding down the POWER button, enter the code corresponding to your brand of TV. • If there is more than one code listed for your TV in the table, enter one at a time to determine which code works. • Example : For a Samsung TV While holding down the POWER button, use the number buttons to enter 00. If that does not work, try 15, then 16, etc. 4. If the TV turns off, the setting is complete. • You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9). ✎ NOTE The remote control may not work on some brands of TV's. Also, some operations may not be possible, depending on your brand of TV. The remote control will work with Samsung TVs by default. TV Brand Code List Brand Code Brand Code Admiral (M.Wards) 56, 57, 58 Mitsubishi/ MGA 18, 40, 59, 60, 75 A Mark 01, 15 MTC 18 NEC 18, 19, 20, 40, 59, 60 Anam 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14 Nikei 03 Onking 03 AOC 01, 18, 40, 48 Bell & Howell (M.Wards) 57, 58, 81 Brocsonic 59, 60 Candle 18 Onwa 03 Panasonic 06, 07, 08, 09, 54, 66, 67, 73, 74 Penney 18 Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 Philips 15, 17, 18, 40, 48, 54, 62, 72 Cetronic 03 Citizen 03, 18, 25 Cinema 97 Pioneer 63, 66, 80, 91 Classic 03 Portland 15, 18, 59 Concerto 18 Proton 40 Contec 46 Quasar 06, 66, 67 Coronado 15 Craig 03, 05, 61, 82, 83, 84 Radio Shack 17, 48, 56, 60, 61, 75 Croslex 62 Crown 03 RCA/ Proscan 18, 59, 67, 76, 77, 78, 92, 93, 94 Curtis Mates Realistic 03, 19 59, 61, 63 CXC 03 Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 Daytron 40 Dynasty 03 Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 Fisher 19, 65 Funai 03 Futuretech 03 General Electric (GE) 06, 40, 56, 59, 66, 67, 68 Hall Mark 40 Hitachi 15, 18, 50, 59, 69 Inkel 45 JC Penny 56, 59, 67, 86 JVC 70 KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC 15 LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 Sampo 40 Samsung 00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 Sanyo 19, 61, 65 Scott 03, 40, 60, 61 Sears 15, 18, 19 Sharp 15, 57, 64 Signature 2000 (M.Wards) 57, 58 Sony 50, 51, 52, 53, 55 Soundesign 03, 40 Spectricon 01 SSS 18 Sylvania 18, 40, 48, 54, 59, 60, 62 Symphonic 61, 95, 96 Tatung 06 Techwood 18 Teknika 03, 15, 18, 25 TMK 18, 40 Toshiba 19, 57, 63, 71 Vidtech 18 Videch 59, 60, 69 Luxman 18 Wards LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 15, 17, 18, 40, 48, 54, 60, 64 Yamaha 18 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 York 40 Yupiteru 03 Marantz 40, 54 Zenith 58, 79 Matsui 54 Zonda 01 MGA 18, 40 Dongyang 03, 54 English 17 Getting Started Installing batteries in the Remote Control Connections This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Connecting the Speakers Position of the product Place it on a stand or cabinet shelf, or under the TV stand. Selecting the Listening Position The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TV's 6.56 ~ 7.87 feet(2~2.4m) For 55" TV's 11.5 ~ 13.1 feet(3.5~4m) Front/Front Top Speakers Center Speaker f Surround Speakershj Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the front speakers so that their tweeters will be at the same height as your ear. Align the front face of the front/front top speakers with the front face of the Center speaker or place them slightly in front of the Center speakers. It is best to install the Center Speaker at the same height as the front/front top speakers. You can also install it directly over or under the TV. Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Position them about 2 to 3 feet (60 to 90cm) above your ear, facing slightly downward. Unlike the front/front top and Center speakers, the surround speakers are * used mainly for sound effects. Sound will not come from them all the time. Subwoofer g 1 English The position of the subwoofer is not so critical. Place it anywhere you like. 02 Connections Speaker Components (L) (R) FRONT/FRONTTOP SWA-5000 STAND TX Card SUBWOOFER (L) (R) Wireless Receiver Module Speaker Cable (2EA) SCREW (4x20): 16EA SCREW : 6EA SURROUND CENTER SPEAKERCABLE STANDBASE:4EA Installing the Speakers on the Tallboy Stand 1. Turn the Stand Base upside-down and connect it to the Stand. 2. Insert small screws (4x20, For connecting Stand & Stand Base) clockwise into the four holes marked using a screwdriver as shown in the illustration. ! CAUTION When you use a torque screwdriver, be careful not 3. 4. 5. 6. to put excessive force. Otherwise, it runs idle or can be damaged. (torque screwdriver- below 15 kg.f.cm) Insert the large screw (5x15, For connecting Stand & Stand Base) clockwise into the hole on the rear of the stand using a screwdriver. Connect the upper Speaker to the assembled Stand. Insert another large screw (5x15, For connecting Speaker & Stand) clockwise into the hole on the rear of the speaker using a screwdriver. This is the appearance after the speaker is installed. Follow this steps to install other speaker. 1 2 Stand Base Stand 3 4 Speaker Stand 5 6 English 1 Connections Connecting The Speakers 1. Press down the terminal tab on the back of the speaker. 2. Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab. 3. Connect the speaker wire plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks. 4. With the product turned off, insert the TX card into the TX Card Connection (WIRELESS) on the back of the product. • Hold the TX card so that the label "WIRELESS" faces upward and insert the card into the port. • The TX card enables communication between the product and the wireless receiver module. 5. Connect the left and right surround speakers to the wireless receiver module. 6. Plug the power cord of the wireless receiver module into the wall outlet. 7. Turn on the product. The product and wireless receiver module will now communicate with each other and you will hear sound from the Surround speakers. Black Red COMPONENT OUT FM ANT SUBWOOFER WIRELESS AUX IN TX card Front/Front Top Speaker (L) Center Speaker Subwoofer CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP VIDEO OUT SPEAKER IMPEDANCE : 3 COMPONENT OUT AUX IN Surround Wireless Receiver Module Speaker (L) Surround Speaker (R) This product should be connected with the SWA-5000 only. 0 English VIDEO OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP SPEAKER IMPEDANCE : 3 CENTER Front/Front Top Speaker (R) VIDEO OUT SPEAKER IMPEDANCE : 3 02 Do not let children play with or near the speakers. They could get hurt if a speaker falls. When connecting the speaker wires to the speakers, make sure that the polarity (+/­–) is correct. Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole). Do not insert any other card except the TX card dedicated to the product. If you insert a different TX card, you can damage the product and may not be able to remove the card easily. Do not insert the TX card upside down or in the reverse direction. Insert the TX card when the product is turned off. Inserting the card when it is turned on may cause a problem. The wireless receiving antenna is built into the wireless receiver module. Keep it away from water and moisture. For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions. If no sound is heard from the wireless surround speakers, switch the mode to Dolby Pro Logic II. In 2-CH mode, you will hear no sound from the wireless surround speakers. ✎ NOTE If you place a speaker near your TV set, the screen color may be distorted because of the magnetic field. Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the product, you may hear some sound interruption due to interference. If you use a device such as a microwave oven, wireless LAN Card, or any other device that uses the 2.4/5.8GHz frequencies near the product, some sound interruption may be heard due to interference. The maximum transmission distance from the product to the wireless receiver module is about 33 feet (10m), but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the product and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal. If the product doesn't make a wireless connection, you need to run an ID Set between the product and wireless receiver module. With the product turned off, press "0""1""3""5" on the remote control. With the wireless receiver module turned on, press and then hold the "ID SET" button on the back of the wireless receiver module for 5 seconds, and then turn the product on. English 21 Connections ! CAUTION Connections Connecting external Devices/your tv via HDmI HDMI is the standard digital interface for connecting to devices such as a TV, projector, DVD player, Blu-ray player, set top box, and more. Because HDMI is all digital, you'll enjoy digital quality video and sound as it was originally created, without the distortions that can be caused when digital content is converted to Analog. DVD or Blu-ray Player SAT (Satellite/Set top box) HDMI IN COMPONENT OUT FM ANT LAN iPod DIGITAL AUDIO IN HDMI OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP HDMI IN OPTICAL WIRELESS AUX IN VIDEO OUT SPEAKER IMPEDANCE : 3 HDMI OUT HDMI OUT : Connecting to a TV with an HDMI Cable (BEST QUALITY) Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. ✎ NOTE Certain HDMI output resolutions may not work, depending on your TV. After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source. If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select HDMI as the external source of the TV. You must have an HDMI connection to enjoy videos with 3D technology. A long HDMI cable may cause screen noise. If this occurs, set Deep Color to Off in the menu. English 02 1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device. 2. Press the FUNCTION button to select H. IN1 or H. IN2 input. The mode switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM HDMI Auto Detection Function If you have connected your home theatre by HDMI cable, the home theatre's video output automatically switches to the HDMI mode when you turn it on. For available HDMI video resolutions, see page 32. • This function is not available if the HDMI cable does not support CEC. • HDMI connection description - HDMI outputs only a pure digital signal to the TV. - If your TV does not support HDCP, random noise appears on the screen. • What is the HDCP? HDCP (High-band width Digital Content Protection) is a system for preventing BD/DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made. ! CAUTION The Anynet+ function is supported only when an HDMI Cable is connected to the HDMI OUT of the product. Connecting the fm antenna FM Antenna (supplied) 1. Connect the FM antenna supplied to the FM ANTENNA Jack. 2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. FM ANT ✎ NOTE This product does not receive AM broadcasts. WIRELESS English Connections HDMI IN : Connecting to an External Component with an HDMI Cable Connections Red Blue Green METHOD 1 COMPONENT OUT CENTER SPEAKERS OUT FRONT FRONT TOP METHOD 2 Yellow SUBWOOFER FRONT AUX IN VIDEO OUT FRONT TOP SPEAKER IMPEDANCE : 3 METHOD 1 : Component Video (BETTER QUALITY) If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the product to the Component Video Input Jacks on your TV. ✎ NOTE You can select from a variety of resolution settings such as 1080i, 720p, 480p and 480i, depending on the disc type. (See page 32) The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are connected. The resolution may also be different depending on the disc. (See page 32) After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source. If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select COMPONENT as the external source of the TV. In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i, 720p or 480p mode, the Display Setup menu will show the output resolution as 1080p, 1080i, 720p or 480p in the menu. The resolution is actually 480i. METHOD 2 : Composite Video (GOOD QUALITY) Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV. ✎ NOTE The VIDEO source always outputs in 480i resolution regardless of the resolution set in the Setup menu. (See page 32) After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product. See your TV owner's manual for more information on how to select the TV's Video Input source. If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select VIDEO as the external source of the TV. ! CAUTION Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television. English 02 Connections Connecting audio from external Components COMPONENT OUT FM ANT iPod DIGITAL AUDIO IN HDMI OUT HDMI IN OPTICAL SUBWOOFER WIRELESS Red Optical Cable (not supplied) Set-Top Box AUX IN Audio Cable (not supplied) If the external Analog component has only one Audio Out, connect either left or right. VIDEO OUT White VCR OPTICAL AUX OPTICAL : Connecting an External Digital Component Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box). 1. Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital component. 2. Press the FUNCTION button to select D.IN input. • The mode switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM ✎ NOTE To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV. This system supports Digital sampling frequencies of 32 kHz or higher from external digital components. This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported. AUX : Connecting an External Analog Component Analog signal components such as a VCR. 1. Connect AUX IN (Audio) on the product to the Audio Out of the external Analog component. • Be sure to match connector colors. 2. Press the FUNCTION button to select AUX input. • The mode switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM ✎ NOTE You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product. English Connections Connecting to a network You can connect this product to a network and use network based services such Smart Hub and BDLIVE (See pages 61~68), as well as receive software upgrades through the network connection. We recommend using a wireless router or IP router for the connection. For more information on router connection, refer to the user manual of the router or contact the router manufacturer for technical assistance. Cable Network 1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN terminal of your modem. 2. Set the network options. (See page 38) LAN DIGITAL AUDIO IN iPod HDMI OUT HDMI IN OPTICAL Router Broadband modem (with integrated router) Broadband service ✎ NOTE Or Broadband modem Broadband service Networking with PC for AllShare function (See page 70) Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the ISP’s policy. For more information, contact your ISP (Internet Service Provider). DSL users, please use a router to make a network connection. To use the AllShare function, you must connect your PC to the network as shown in the figure. English 02 Connections Wireless Network You can connect the home theatre to your network through a wireless IP sharer (router). To set the network configuration options. see page 38. Broadband service Wireless IP sharer PC 5V 500mA ASC IN Networking with PC for AllShare function (See page 70) ✎ NOTE To use a wireless network, your product must be connected to a wireless IP sharer (router). If the wireless IP sharer supports DHCP, your product can use a DHCP (dynamic) or static IP address to connect to the wireless network. This product supports IEEE 802.11b,g and n. We recommend using IEEE 802.11n. When you play video over a IEEE 802.11b or g connection, the video may not play smoothly. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure. If you select the Pure High-throughput (Greenfield) 802.11n mode and set your routers's Security Encryption type to WEP, TKIP or TKIPAES (WPS2Mixed), your Samsung home theatre will not support the connection in compliance with new Wi-Fi certification specifications. If your router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. You can set up the wireless network connection in three ways: - Using Auto Setup (the Auto Network Search function) through Wireless (General) - Using WPS (PBC) - Using One Foot Connection Wireless LAN, by its nature, may cause interference, depending on the operating conditions. (router performance, distance, obstacles, interference by other radio devices, etc). Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported. The home theatre supports the following security protocols only: 1) Authentication Mode : WEP, WPAPSK, WPA2PSK 2) Encryption Type : WEP, AES To use the AllShare function, you must connect your PC to your network as shown in the figure. The connection can be wired or wireless. English 27 Setup Initial Settings 1. Turn on your TV after connecting the product. When you connect and turn on the product to a TV for the first time, the Initial Settings screen appears. • Home Menu My Contents Videos Photos Music Function Initial Settings | On-Screen Language My Devices Internet Settings Select a language for the on-screen displays. Български Hrvatski Čeština Suomi Français Dansk Nederlands Deutsch Ελληνικά Eesti Indonesia Italiano Magyar 한국어 m Move " Enter 2. Press the ▲▼◄► buttons to select the desired language, and then press the ENTER button. 3. Press the ENTER button to select Start. 4. Press the ▲▼ buttons to select the desired TV Aspect Ratio, and then press the ENTER button. (See page 31) If you press the BLUE (D) button to skip Musical Room Calibration or Network Setup, you can access the Home menu even if the Calibration or the Network Setup is not completed. 5. Plug the ASC microphone into the ASC IN jack on the product. (See page 35) 6. Press the ENTER button to select the Start button. Setting the Musical Room Calibration function takes about 3 minutes. 7. Press the ▲▼ buttons to select the desired Network Settings : Wired, Wireless (General), WPS(PBC) or One Foot Connection, and then press the ENTER button. If you do not know the details of your Network Settings, press the BLUE (D) button on your remote instead to skip Network Settings here, finish the Initial Settings, and go to the Home menu. If you selected a Network Settings, go to pages 38~41 for more information about the Network settings. When done, go to Step 8. 8. The Home menu appears. (For more information about the Home menu, please see page 29.) English d WPS(PBC) English ✎ NOTE The Home menu will not appear if you do not configure the initial settings except as noted below. If you press the BLUE (D) button during the Musical Room Calibration/network setup, you can access the Home menu even if the network setup is not completed yet. If you want to display the Initial Setting screen again to make changes, select the Reset option. (See page 42) If you use an HDMI cable to connect the product to an Anynet+(HDMI-CEC)compliant Samsung TV and 1.) You have set the Anynet+(HDMI-CEC) feature to On in both the TV and the product and 2.) You have set the TV to a language supported by the product, the product will select that language as the preferred language automatically. If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. FULL SCREEN REPEAT 0 03 MUTE 2. Press the ◄► buttons to select Settings, and then press the ENTER button. DISC MENU MENU 3. Press the ▲▼ buttons to select the desired submenu, and then press the ENTER button. TITLE MENU POPUP 1 TOOLS INFO 4. Press the ▲▼ buttons to select the desired item, and then press the ENTER button. 3 2 RETURN TUNER MEMORY A B INIERNET @ Button : Press ✎ NOTE When the product is connected to a network, MO/ST C to move to 5. Press the EXIT button to exit the menu. 4 EXIT D DSP the select Internet from the Home menu. Download the desired content from Samsung Apps. (See pages 68~70) Home menu. 1 MENU 2 RETURN Button : Return to the previous menu. 3 ENTER / DIRECTION Button : Move the cursor or select an item. Activate the currently selected item. Confirm a setting. 4 EXIT Button : Press to exit the current menu. The access steps may differ depending on the menu you selected. The OSD (On Screen Display) may change in this product after you upgrade the software version. To access the Settings menu and sub-menus, follow these steps: 1. Press the POWER button. The Home Menu appears. • Home Menu My Contents Videos Photos 3 Music 1 Function My Devices 4 Internet Settings 2 5 d WPS(PBC) 1 Selects My Devices. 2 Selects Function. 3 Selects My Contents. 4 Selects Internet. 5 Selects Settings. 6 Displays the buttons available. 6 English Setup TUNING VOL /CH SFE MODESettings accessing the menu Setup Depending on the content and the position of Display You can configure various display options such as the TV Aspect Ratio, Resolution, etc. 3D Settings Screen Size Select whether to play a Blu-ray Disc with 3D contents in 3D Mode. Settings Display 3D Settings Audio Network System Language Security 3D Settings 3D Blu-ray Playback Mode Screen Size General Support : Auto : 55 If you want to enjoy 3D content, connect a > Move " Enter ' Return HDMI Deep Color : Auto 3D Blu-ray Discs are available in two formats: Blu-ray 3D and 3D only. You can choose to watch a Blu-ray 3D disc in 3D or 2D mode before playing the disc. • Auto : Automatically detect if a connected TV has 3D capability and play a Blu-ray 3D disc in 3D or 2D accordingly or a 3D only disc in 3D if the TV supports 3D. 3D only discs will not be played if your TV does not support 3D. • 3D 3D : Play 3D only and Blu-ray 3D discs in 3D mode at all times. • 3D 2D : Play Blu-ray 3D discs in 2D mode at all times. 3D only discs will not be played. ✎ NOTE To stop a movie during 3D playback, press the STOP(@) button once. The movie stops and the 3D mode option is de-activated. To change a 3D option selection when you are playing a 3D movie, press the STOP(@) button once. The Blu-ray menu appears. Press the STOP(@) button again, then select 3D Settings in the Blu-ray menu. English Lets you enter the actual screen size of your TV so that the product can adjust the image according to the screen size and display an optimal 3D image. (The maximum allowed screen size is 116 inches for this product.) ! CAUTION inch 3D Blu-ray Playback Mode 0 the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides. 3D device (3D compliant AV receiver or TV) to the product’s HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content. The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port. As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference. Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode. Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 138 inches (11.5 feet) from the screen. - Place the 3D video screen at eye level for the best 3D picture. When the product is connected to some 3D devices, the 3D effect may not function properly. 03 BD Wise (Samsung Products only) Depending on the type of television you have, you may want to adjust the screen size setting. BD Wise is Samsung’s latest inter-connectivity feature. • 16:9 Original : Select when you connect the product to a 16:9 TV screen. The product will display all content in its original aspect ratio. Content formatted in 4:3 will be displayed with black bars on the left and right. When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the BD/DVD disc. • Off : The output resolution stays fixed at the resolution you set previously in the Resolution menu, regardless of the resolution of the disc. See Resolution below. • On : The product outputs video at the original resolution and frame rate of the BD/DVD disc. • 16:9 Full : Select when you connect the product to a 16:9 TV screen. All content will fill the full screen. Content formatted in 4:3 will be stretched. • 4:3 Letter Box : Select when you connect the product to a 4:3 TV screen. The product will display all content in its original aspect ratio. Content formatted in 16:9 will be displayed with black bars on the top and bottom. • 4:3 Pan-Scan : Select when you connect the product to a 4:3 TV screen. 16:9 content will have the extreme left and right portions cut off. ✎ NOTE Depending on the disc type, some aspect ratios may not be available. If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted. If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture). Smart Hub Screen Size Set the Smart Hub Screen to the optimal size. • Size 1 : The Smart Hub screen size will be smaller than the default. You may see some black on sides of screen. • Size 2 : This is the default setting for Smart Hub. The product displays the normal Smart Hub screen size. • Size 3 : This will display a larger Smart Hub screen size. The image may be too large for your TV screen. ✎ NOTE When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu. If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function. For proper operation of BD Wise, set the BD Wise menu of both the product and the TV to On. Resolution Lets you set the output resolution of the Component and HDMI video signal to Auto, 1080p, 1080i, 720p, 480p, or 480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher the quality. • Auto : Automatically sets the output resolution to the connected TV’s maximum resolution. • BD Wise : Automatically sets the resolution to the resolution of the BD/DVD disc if you have connected the product via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On. See BD Wise above.) • 1080p : Outputs 1080 lines of progressive video. (HDMI only) • 1080i : Outputs 1080 lines of interlaced video. • 720p : Outputs 720 lines of progressive video. • 480p : Outputs 480 lines of progressive video. • 480i : Outputs 480 lines of interlaced video. (VIDEO only) English 31 Setup TV Aspect Setup Resolution according to the output mode • Blu-ray Disc/E-contents/Digital Contents playback HDMI / connected HDMI / not connected HDMI Mode Output Component Mode Blu-ray Disc E-contents/ Digital contents Component/ VIDEO Mode Blu-ray Disc E-contents/ Digital contents VIDEO Mode BD Wise Resolution of Blu-ray Disc 1080p@60F 480i - - - Auto Max. Resolution of TV input Max. Resolution of TV input 480i - - - Setup 1080p@60F 1080p@60F 1080p@60F 480i - - - Movie Frame : Auto (24Fs) 1080p@24F 1080p@24F 480i - - - 1080i 1080i 1080i 480i 480i 1080i 480i 720p 720p 720p 480i 480i 720p 480i 480p 480p 480p 480i 480i 480p 480i 480i - - - 480i 480i 480i • DVD playback 32 HDMI / connected Output HDMI / not connected HDMI Mode Component/VIDEO Mode Component Mode VIDEO Mode BD Wise 480i 480i - - Auto Max. Resolution of TV input 480i - - 1080p@60F 1080p@60F 480i - - 1080i 1080i 480i 480p 480i 720p 720p 480i 480p 480i 480p 480p 480i 480p 480i 480i - - 480i 480i Setup English 03 If the TV you connected to the product does not support Movie Frame or the resolution you selected, the message “If no pictures are shown after the selection, please wait for 15 seconds. And then, the resolution will be reverted to the previous value automatically. Would you like to make a selection?” appears. If you select Yes, the TV’s screen will go blank for 15 seconds, and then the resolution will revert to the previous resolution automatically. If the screen stays blank after you have changed the resolution, remove all discs, and then press and hold the STOP (@) button on the front of the product for more than 5 seconds. All settings are restored to the factory default. Follow the steps on the previous page to access each mode and select the Display Setup that your TV will support. Movie Frame (24 Fs) Setting the Movie Frame (24Fs) feature to Auto allows you to adjust the product’s HDMI output to 24 frames per second for improved picture quality. You can enjoy the Movie Frame (24Fs) feature only on a TV supporting this frame rate. You can select Movie Frame only when the product is in the HDMI 1080i or 1080p output resolution modes. • Auto : Movie Frame (24Fs) functions work. • Off : Movie Frame (24Fs) functions are off. HDMI Deep Color Lets you output video from the HDMI OUT jack with Deep Color. Deep Color provides more accurate color reproduction with greater color depth. When the factory default settings are restored, • Auto: The product outputs video with Deep Color to a connected TV which supports HDMI Deep Color. • Off : The picture is output without Deep Color. The Blu-ray Disc must have the 24 frame Still Mode all stored user BD data is deleted. feature for the product to use the Movie Frame (24Fs) mode. If both HDMI and Component jacks are connected and you are currently viewing Component output, the resolution is fixed to 480i. HDMI Color Format Lets you set the color space format for HDMI output to match the capabilities of the connected device (TV, monitor, etc). • Auto : Automatically sets the product to the optimum format supported by your device. • YCbCr (4:4:4) : If your TV supports the YCbCr color space via HDMI, select this to output the normal YCbCr color gamut. • RGB (Standard) : Select RGB (Standard) to output the normal RGB color gamut. • RGB (Enhanced) : If you have connected the product to a DVI display device such as a monitor, select RGB (Enhanced) to output the enhanced RGB color gamut. Lets you set the type of picture the product displays when you pause DVD playback. • Auto: Automatically shows the best still picture depending on the content. • Frame : Select when pausing a scene with a little action. • Field : Select when pausing a scene with a lot of action. Progressive Mode Lets you improve picture quality when viewing DVDs. • Auto : Select to have the product automatically select the best picture quality for the DVD you’re watching. • Video : Select for the best picture quality from concert or TV show DVDs. English 33 Setup ✎ NOTE Setup audio Speaker Settings Settings Speaker Settings Display Audio Network System Language Level | Distance Test Tone Distance If you cannot place the speakers at equal distances from the listening position, you can adjust the delay time of the audio signals from the front, front top, Center, surround and subwoofer speakers. • You can set the Speaker Distance between 1ft (0.3m) and 30ft (9.2m). : Off Settings Security General Support > Move " Enter ' Return Audio Network System Language Security Level General You can adjust the balance and level for each speaker. Adjusting Front/Center/Surround/Front Top/ Subwoofer Speaker Level Distance Display Support Front L Front R Center Surround L Surround R Front Top L Front Top R Subwoofer Test Tone ◄ : : : : : : : : 10(ft) 3.0(m) | 10(ft) 3.0(m) 10(ft) 3.0(m) 10(ft) 3.0(m) 10(ft) 3.0(m) 10(ft) 3.0(m) 10(ft) 3.0(m) 10(ft) 3.0(m) Off > Move < Change ' Return Test Tone • You can adjust the volume level in steps from +6dB to -6dB. Use the Test Tone feature to check the speaker connections. • The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB. Press the _, + buttons to select ON. Settings Level Display Audio Network System Language Security General Support Front L Front R Center Surround L Surround R Front Top L Front Top R Subwoofer Test Tone ◄ : : : : : : : : 0 dB | 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB 0 dB Off > Move < Change ' Return • A test tone will be sent to Front L ; Center ; Front R ; Surround R ; Front Top R ; Front Top L ; Surround L ; Subwoofer in order so you can make sure the speakers are set up correctly. To stop the test tone, press the _, + buttons to select Off. Settings Speaker Settings Display Audio Network System Language Level Distance Test Tone ◄ On | Security General Support > Move " Enter ' Return ✎ NOTE When HDMI Audio is ON (audio is produced through TV speakers), the Test Tone function is not available. English 03 By setting the Musical Room Calibration (MRC) function just once when you relocate or install the product, you can have the product automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 7.1-channel sound field optimized for your environment. When the Musical Room Calibration function is 500mA ASC IN TR R/F 500mA ASC IN ASC microphone TL L/F Musical Room Calibration Mode You will hear either the Musical Room Calibration mode or the User Speaker Settings. • Off: You will hear sound in the Speaker Setting value. • On: You will hear sound in the Musical Room Calibration mode. Measurement 1. Plug the ASC microphone into the ASC IN jack. 2. Place the ASC microphone at the listening position. • Musical Room Calibration will be automatically set up in the following sequence: Front L ; Center ; Front R ; Surround R ; Front Top R ; Front Top L ; Surround L ; Subwoofer • Press the RETURN button to cancel the Musical Room Calibration Setting. ✎ NOTE Running the Musical Room Calibration function takes about 3 minutes. Make sure there is no disc in the product when you run the Musical Room Calibration function. If the ASC microphone is disconnected during the Musical Room Calibration setup, the setup will be canceled. activated, the DSP, Dolby Pro Logic ll and SFE Mode will not work. If the product is connected to external devices or other components (such as an iPod, AUX, D.IN), the Musical Room Calibration Setup may not work properly. Noise may result in incorrect measurements. Ensure the room is quiet when you run the Musical Room Calibration. Place the microphone in the main listening position. Make sure there are no objects between the speakers and microphone. Note that the test tones of the speakers may be loud. Do not place the microphone behind furniture or too close to the wall. Otherwise, it can produce an incorrect test result. Karaoke Scoring Karaoke score display can be toggled On or Off. • Off : Turns off the karaoke score display. • On : After the singing, the score is displayed on the screen. ✎ NOTE This function is available only for the BD/DVD. Karaoke score may be affected by ambient noise. User EQ You can configure the equalizer settings manually to your preference. Settings Display Audio Network System Language Security General Support 6 · · · · · 0 · · · · · -6 0 250Hz A User EQ 0 0 0 0 0 0 600Hz 1kHz 3kHz 6kHz 10kHz 15kHz Reset > Adjust < Move ' Return English Setup Musical Room Calibration Setup HDMI Audio The audio signals transmitted over the HDMI Cable can be toggled On/Off. • Off : Video is transmitted over the HDMI connection cable only, and audio is output through your product speakers only. • On : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only. ✎ NOTE HDMI Audio is automatically down-mixed to 2ch for TV speakers. Audio Return Channel You can enjoy TV sound from the Home Theatre speakers by using just one HDMI cable. • Auto : Listen to TV sound from the Home Theatre speakers if your TV is compatible with the Audio Return Channel function. • Off : Turn the Audio Return Channel function off. ✎ NOTE When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available. Using an ARC (Audio Return Channel) uncertified HDMI cable may cause a problem in compatibility. ARC function is only available if an ARCcompliant TV is connected. Digital Output You set the Digital Output to match the capabilities of the AV receiver you’ve connected to the product : • PCM : Choose if you have connected an HDMI supported AV receiver. • Bitstream (Unprocessed) : Select if you have connected an HDMI supported AV receiver with Dolby TrueHD and DTS-HD Master Audio decoding capabilities. • Bitstream (Re-encoded DTS) : Choose if you have connected an AV receiver using a Digital Optical input that can decode DTS. 36 English • Bitstream (Re-encoded Dolby D) : Select if you don’t have an HDMI supported AV receiver, but have an AV receiver with Dolby Digital decoding capabilities. For more details, please refer to the digital output selection table. (See page 37) Blu-ray Discs may include three audio streams : - Main Feature Audio : The audio soundtrack of the main feature. - BONUSVIEW audio : An additional soundtrack such as the director or actor’s commentary. - Navigation Sound Effects : When you choose some menu navigation, Navigation Sound Effects may sound. Navigation Sound Effects are different on each Blu-ray Disc. ✎ NOTE Digital Output can be activated when HDMI Audio is ON. Be sure to select the correct Digital Output or you will hear no sound or just loud noise. If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM. Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects. Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects. This Digital Output setup does not effect the Analog (L/R) audio or HDMI audio output to your TV. It effects the optical and HDMI audio output when your product is connected to an AV receiver. If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream). 03 Setup Digital Output Selection Setup PCM Audio Stream on DVD Definition for Blu-ray Disc Bitstream (Re-encoded DTS) Bitstream (Re-encoded Dolby D) HDMI supported HDMI supported HDMI supported HDMI supported AV receiver AV receiver AV receiver AV receiver Connection Audio Stream on Blu-ray Disc Bitstream (Unprocessed) PCM Up to 7.1ch PCM DTS re-encoded Re-encoded Dolby Digital * Dolby Digital Up to 7.1ch Dolby Digital DTS re-encoded Re-encoded Dolby Digital * Dolby Digital Plus Up to 7.1ch Dolby Digital Plus DTS re-encoded Re-encoded Dolby Digital * Dolby TrueHD Up to 7.1ch Dolby TrueHD DTS re-encoded Re-encoded Dolby Digital * DTS Up to 6.1ch DTS DTS re-encoded Re-encoded Dolby Digital * DTS-HD HRA Up to 7.1ch DTS-HD HRA DTS re-encoded Re-encoded Dolby Digital * DTS-HD MA Up to 7.1ch DTS-HD MA DTS re-encoded Re-encoded Dolby Digital * PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch Dolby Digital Up to 5.1ch Dolby Digital Dolby Digital Dolby Digital DTS Up to 6.1ch DTS DTS DTS Any Outputs only the main feature audio Decodes the main stream so that your feature audio and AV receiver can BONUSVIEW audio decode the audio stream together bitstream. into PCM audio and You will not hear adds Navigation BONUSVIEW Sound Effects. audio or Navigation Sound Effects. Decodes the main Decodes the main feature audio and feature audio and BONUSVIEW audio BONUSVIEW audio stream together stream together into into PCM audio and PCM audio and adds adds Navigation Navigation Sound Sound Effects, then Effects, then rere-encodes the encodes the PCM PCM audio into DTS audio into Dolby digital bitstream. bitstream or PCM. * If the Source Stream is 2ch, “Re-encoded Dolby D” Setting are not applied. Ouput will be LPCM 2ch. Dynamic Range Control You can listen at low volumes, but still hear dialog clearly. This is only active if your product detects a Dolby Digital signal. • Auto : The Dynamic Range Control will be set automatically based on the information provided by the Dolby TrueHD Soundtrack. • Off : Movie soundtracks are played using the standard Dynamic Range. • On : When Movie soundtracks are played at low volume or through smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud. English 37 Setup Audio Sync Wired Network Video may fall out of sync with the audio when the product is connected to a digital TV. If this occurs, adjust the audio delay time to match the audio to the video. • You can set the audio delay time between 0 msec and 300 msec. Set it to the optimal status. Setting up a Wired Connection - auto 1. Press the ▲▼ buttons to select Wired. Settings Display Audio Network System network Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you are using a wired or wireless connection, we recommend using the Auto procedures. If you are using a wireless connection and your router has the capability, you can use WPS(PBC) or One Foot Connection. If your IP address is static, you must use the manual set up procedure for both wired and wireless connections. Network Settings To begin setting up the network connection for your product, follow these steps: 1. In the Home menu, press the ◄► buttons to select Settings, and then press the ENTER button. 2. Press the ▲▼ buttons to select Network, and then press the ENTER button. 3. Press the ▲▼ buttons to select Network Settings, and then press the ENTER button. 4. Press the ▲▼ buttons to select Wired, Wireless (General), WPS(PBC) or One Foot Connection, and then press the ENTER button. 5. If you have a wired network, go to Wired Network below. If you have a wireless network, go to Wireless Network on pages 39~41. English Language Security General Support Network Settings Select a network connection type. Wired Wireless (general) WPS(PBC) One Foot Connection Connect to the network using LAN cable. Please make sure that the LAN cable is connected. > Move " Enter ' Return 2. Press the ENTER button. The Network Status screen appears. The product connects to the network after the network connection is verified. Setting up a Wired Connection - manual If you have a static IP address or the Auto Setting does not work, you’ll need to set the Network Settings values manually. To view your Network Settings values on most Windows computers, follow these steps: 1. Right click the Network icon on the bottom right of the Windows desktop. 2. In the pop-up menu, click Status. 3. On the dialog that appears, click the Support tab. 4. On the Support tab, click the Details button. The Network settings are displayed. 03 Wireless Network 1. Press the ▲▼ buttons to select Wired, and then press the ENTER button. • Wireless (General) 2. Press the ◄► buttons to select IP Settings, and then press the ENTER button. Settings Display Audio Network System Language Security General Support IP Mode IP Settings Manual 0 . 0 . 0 . 0 0 . 0 . 0 . 0 0 . 0 . 0 . 0 IP Address Subnet Mask Gateway DNS Mode DNS Server m Move OK Manual 0 . 0 . 0 . 0 Number " Enter ' Return 3. Press the ENTER button to select IP Mode. 4. Press the ▲▼ buttons to select Manual, and then press the ENTER button. 5. Press the ▼ button to go to the first entry field (IP Address). 6. Use the number buttons on your remote to enter numbers. 7. When done with each field, press the ► button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back. 8. Enter the IP Address, Subnet Mask, and Gateway values. 9. Press the ▼ button to go to DNS Mode. 10. Press the ▼ button to go to the first DNS entry field. Enter the numbers as above. 11. Press the ENTER button to select OK. The Network Status screen appears. The product connects to the network after the network connection is verified. You can setup a wireless network three ways: • Using WPS(PBC). • One Foot Connection Wireless (General) includes both Automatic and Manual setup procedures. Setting up the Wireless network Connection - auto Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the Auto setup process. 1. Press the ▲▼ buttons to select Wireless (General). Settings Network Settings Display Select a network connection type. Audio Network System Wired Wireless Language (general) Security WPS(PBC) General One Foot Support Connection Set up wireless network by selecting your Wireless Router. You may need to enter security key depending on the setting of the Wireless Router. > Move " Enter ' Return 2. Press the ENTER button. When done, it displays a list of the available networks. 3. Press the ▲▼ buttons to select the desired network, and then press the ENTER button. The Security screen appears. English Setup To enter the Network settings into your product, follow these steps: Setup 4. On the Security screen, enter your network’s Pass Phrase. Enter numbers directly using your remote control. To select a letter, press the ▲▼◄► buttons to move the cursor, then press the ENTER button. Settings Display Audio Network System Language Security General Support Enter security key. Network Settings 0 entered a b c d e f 1 2 3 m n o p q r 7 8 9 g s h a/A t i u * j v k w Delete l x 4 y Space 5 z To enter the Network settings into your product, follow these steps: 1. Follow Steps 1 through 5 in the ‘Setting Up the Wireless Network Connection - Auto’ procedure. 2. When done, press the ▲▼◄► buttons to move the cursor to Done, and then press the ENTER button. The Network Status screen appears. Settings 6 Done Display 0 Audio Network a Previous m Move " Enter ' Return System Language Security General ✎ NOTE Support You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem. IP Mode IP Settings Manual 0 . 0 . 0 . 0 0 . 0 . 0 . 0 0 . 0 . 0 . 0 IP Address Subnet Mask Gateway DNS Mode DNS Server OK Manual 0 . 0 . 0 . 0 > Move " Enter ' Return 3. On the Network Status screen, select Cancel, and then press Enter. 4. Press the ◄► buttons to select IP Settings, and then press the ENTER button. 5. Press the ENTER button to select IP Mode. 6. Press the ▲▼ buttons to select Manual, and then press the ENTER button. Setting up the Wireless network Connection - manual 7. Press the ▼ button to go to the first entry field (IP Address). If the Auto Setting does not work, you need to enter the Network settings values manually. 8. Use the number buttons to enter numbers. 9. When done with each field, press the ► button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back. 5. When done, press the ▲▼◄► buttons to move the cursor to Done, and then press the ENTER button. The Network Status screen appears. The product connects to the network after the network connection is verified. To view the Network Settings values on most Windows computers, follow these steps: 1. Right click the Network icon on the bottom right of the screen. 2. In the pop-up menu, click Status. 3. On the dialog that appears, click the Support tab. 4. On the Support tab, click the Details button. The Network settings are displayed. 0 English 10. Enter the IP Address, Subnet Mask, and Gateway values. 11. Press the ▼ to go to DNS Mode. 12. Press the ▼ button to go to the first DNS entry field. Enter the numbers as above. 13. The Network Status screen appears. The product connects to the network after the network connection is verified. 03 The easiest way to set up the wireless network connection is using the WPS(PBC) function or the One Foot Connection function. If your wireless router has a WPS(PBC) button, follow these steps: 1. Press the ▲▼ buttons to select WPS(PBC). Settings Network Settings Display Select a network connection type. Audio Network System Wired Wireless Language (general) Security WPS(PBC) General One Foot Support Connection Connect to the Wireless Router easily by pressing the WPS(PBC) button. Choose this if your Wireless Router supports Push Button Configuration(PBC). > Move " Enter ' Return 3. Place the Samsung Wireless Router within 25 cm (10 inches) of your product to connect. 4. Wait until the connection is automatically established. Network Status Check whether a connection to the network and the Internet have been established. Settings Network Status Display Audio Network System KT_WLAN MAC Address IP Address Subnet Mask Gateway DNS Server Cannot connect to the Wireless Router. Try the following. Language XX:XX:XX:XX:XX:XX 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 - Ensure the Wireless Router is powered on and try re-setting the power of the Wireless Router. Security - Check the security key if the Wireless Router has a security key. General 2. Press the ENTER button. 3. Press the WPS(PBC) button on your router within two minutes. Your product displays the Network Selection Screen, and automatically acquires all the network settings values it needs and connects to your network. When it is done, it displays an OK button. Press the ENTER button on your remote. One Foot Connection You can set up the wireless connection automatically if you have a Samsung Wireless Router which supports One Foot Connection. To connect using the One Foot Connection function, follow these steps: 1. Press the ▲▼ buttons to select One Foot Connection. Settings Network Settings Display Select a network connection type. Audio Network System Wired Wireless Language (general) Security WPS(PBC) General One Foot Support Connection Connect to your wireless network automatically if your Wireless Router supports One Foot Connection. Select this connection type after placing the Wireless Router within 10 inches(25cm) of product. Support Network Settings IP Settings Retry OK < Move " Enter ' Return BD-LIVE Internet Connection Set to allow or prohibit an Internet connection when you use the BD-LIVE service. • Allow (All) : The Internet connection is allowed for all BD-LIVE contents. • Allow (Valid Only) : The Internet connection is allowed only for BD-LIVE contents containing a valid certificate. • Prohibit : No Internet connection is allowed for any BD-LIVE content. ✎ NOTE What is a valid certificate? When the product uses BD-LIVE to send the disc data and a request to the server to certify the disc, the server uses the transmitted data to check if the disc is valid and sends the certificate back to the product. The Internet connection may be restricted while you are using BD-LIVE contents. > Move " Enter ' Return English 1 Setup 2. Press the ENTER button. WPS(PBC) Setup System Initial Settings By using the Initial Settings function, you can set the language, Musical Room Calibration, Network Settings, etc. For more information about the Initial Settings function, refer to the Initial Settings section of this user manual. (See pages 28~46) Anynet+ (HDMI-CEC) Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature. To operate this function, connect this product to a Samsung TV with an HDMI cable. With Anynet+ on, you can operate this product using a Samsung TV remote control and start disc playback simply by pressing the PLAY (+) button on the TV’s remote control. For more information, please see the TV user manual. • Off : Anynet+ functions will not work. • On : Anynet+ functions will work. ✎ NOTE This function is not available if the HDMI cable does not support CEC. If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function. Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV. BD Data Management Lets you manage the downloaded contents you accessed through a Blu-ray Disc that supports the BD-LIVE service and stored on an attached Flash memory device. You can check the device’s information including the storage size, delete the BD data, or change the Flash memory device. BD Data Management Screen Information : • Total Size : Total memory size of the device. • Available Size : Available memory in the device. • Delete BD Data : Delete all BD data in the storage. • Select Device : Change location of desired memory to store BD data. ✎ NOTE In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback. Only those USB devices formatted in the FAT file system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed. The Resume Play function may not work after you format the storage device. The total memory available to BD Data Management may differ, depending on the conditions. Time Zone You can specify the time zone that is applicable to your area. Settings Display Audio Time Zone Network System Language Security General Support GMT + 00:00 London, Lisbon, Casablanca < Change " Save ' Return DivX® Video On Demand View DivX® VOD Registration Codes to purchase and play DivX® VOD contents or view the deregistratiion code to degregister this product. Reset All settings will revert to the default except for the network and Smart Hub settings. English 03 You can select the language you prefer for the Home menu, disc menu, etc. • On-Screen Menu : Select the language for the on-screen displays. • Disc Menu : Select the language for the disc menu displays. • Audio : Select the language for disc audio. • Subtitle : Select the language for disc subtitles. ✎ NOTE Setup Language Change Password Change the 4-digit password used to access security functions. If you forgot your password 1. Remove the disc. 2. Press and hold the STOP (@) button on the front panel for 5 seconds or more. All settings will revert to the factory settings. ✎ NOTE The selected language will only appear if When the factory default settings are restored, Security General it is supported on the disc. This function works in conjunction with Blu-ray and DVD discs that have been assigned an age rating or numeric rating that indicates the maturity level of the content. These numbers help you control the types of Blu-ray and/DVD discs that your family can watch. When you access this function for the first time, the password setup screen appears. Enter a desired 4-digit password using the number buttons. (The default password is 0000.) After you have set your password, select an age rating you want to set for the BD Parental Rating and a rating level you want to set for the DVD Parental Rating. The product will only play Blu-ray discs rated at or below the age rating and DVD discs rated below the numeric rating unless the password is entered. Larger numbers indicate more mature content. BD Parental Rating This will prohibit playback of Blu-ray disc rated above Parental Rating. all the user stored BD data will be deleted. Front Display Change the brightness of the front panel. • Auto : Dim during playback. • Dim : Dim the display window. • Bright : Brighten the display window. ✎ NOTE You cannot change the brighness of the Power button and the Function button. Light Effect You can activate or deactivate the light effect on the top of the product. • Always On : Activate Light Effect at all times. Select this for retail display. • Auto : Activates Light Effect when you turn the product on and off or when you insert or eject a disc. Select when installing the product in your home. • Off : Turn Light Effect off at all times. DVD Parental Rating Prevent playback of DVD discs with specific numerical ratings unless a password is entered. English 43 Setup Network Remote Control The four methods are explained below. The Network Remote Control function lets you control your Blu-ray Home Theatre from a remote device such as a smart phone through a wireless connection to your local area network. By Internet To use the Network Remote Control function, follow these steps: 1. Select On in the Network Remote Control menu. 2. Install the Samsung network remote control application to control your product on your compatible portable device. 3. Make sure your portable device and your product are connected to the same wireless router. 4. Start the application on your portable device. The application should find your product and display it on a list. 5. Select the product. 6. If this is the first time you are using the function, it will ask you to allow or deny remote control of the product. Select Allow. 7. Follow the instructions that came with the application to control the product. To upgrade by Internet, follow these steps: 1. Select By Internet, and then press the ENTER button. The Connecting to Server message appears. 2. If there is a download available, the Download pop-up appears with a progress bar and the download starts. 3. When the download is complete, the Upgrade Query window appears with three choices: Upgrade Now, Upgrade Later, or Don’t Upgrade. 4. If you select Upgrade Now, the product upgrades the software, turns off, and then turns on automatically. 5. If you do not make a selection in one minute or select Upgrade Later, the product stores the new upgrade software. You can upgrade the software later using the By Downloaded function. 6. If you select Don’t Upgrade, the product cancels the upgrade. ✎ NOTE Your product must be connected to the Support Software Upgrade The Software Upgrade menu allows you to upgrade the product’s software for performance improvements or additional services. You can upgrade in four ways: • • • • By Internet By USB By Disc By Downloaded (File) 44 English Internet to use the By Internet function. The upgrade is complete when the product turns off, and then turns on again by itself. Never turn the product off or back on manually during the update process. Samsung Electronics shall take no legal responsibility for product malfunction caused by an unstable Internet connection or consumer negligence during a software upgrade. If you want to cancel the upgrade while the upgrade software is downloading, press the ENTER button. 03 To upgrade by USB, follow these steps: 1. Visit www.samsung.com/bluraysupport 2. Download the latest USB software upgrade zip archive to your computer. 3. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file. 4. Copy the folder to a USB flash drive. 5. Make sure the disc tray is empty, and then insert the USB flash drive into the USB port of the product. 6. In the product’s menu, go to Settings > Support > Software Upgrade. 7. Select By USB. ✎ NOTE 7. In the product’s menu, go to Settings > Support > Software upgrade. 8. Select By Disc. ✎ NOTE When the system upgrade is done, check the software details in the software Upgrade menu. Do not turn off the product during the Software Upgrade. It may cause the product malfunction. By Downloaded The By Downloaded option lets you upgrade using a file the product downloaded earlier but you decided not to install immediately or a file downloaded by the product in Standby Mode (See Download in Standby Mode below). To upgrade By Downloaded, follow these steps: The disc tray must be empty when you 1. If upgrade software has been downloaded, you will see the software version number to the right of By Downloaded. When the software upgrade is done, check 2. Select By Downloaded, and then press the ENTER button. Do not turn off the product during the 3. The product displays a message asking if you want to upgrade. Select Yes. The product begins the upgrade. upgrade the software using the USB Host jack. the software details in the software Upgrade menu. software upgrade. It may cause the product to malfunction. Software upgrades using the USB Host jack must be performed with a USB memory flash stick only. By Disc To upgrade by Disc, follow these steps: 1. Visit www.samsung.com/bluraysupport. 2. Download the latest disc software upgrade zip archive to your computer. 3. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file. 4. When the update is complete, the product turns off automatically, and then turns on. ✎ NOTE When the system upgrade is done, check the software details in the software Upgrade menu. Do not turn off the product during the software Upgrade. It may cause the product to malfunction. To use the By Downloaded function, your product must be connected to the Internet. 4. Write the folder onto a disc. We recommend a CD-R or DVD-R. 5. Finalize the disc before you remove it from your computer. 6. Insert the disc into product. English 45 Setup By USB Setup Download in Standby Mode You can set the Download in Standby Mode function so that the product downloads new upgrade software when it is in Standby mode. In Standby mode, the product is off, but its Internet connection is active. This allows the product to download upgrade software automatically, when you are not using it. To set Download in Standby Mode, follow these steps: 1. Press the ▲▼ buttons to select Download in Standby Mode, and then press the ENTER button. 2. Select On or Off. • Off : If you select Off, the product will notify you with a pop up message when new upgrade software is available. • On : If you select On, the product will automatically download new upgrade software when it is in Standby mode with the power off. If it downloads new upgrade software, the product will ask you if you want to install it when you turn the product on. ✎ NOTE To use the Download in Standby Mode function, your product must be connected to the Internet. Contact Samsung Provides contact information for assistance with your product. 46 English 04 Basic Functions Basic Functions • Audio CD (CD-DA) Playing a Disc track 1 track 2 track 3 track 4 track 5 Playback 1. Insert a disc into the disc slot with the disc's label facing up. 2. Press the PLay (+) button. folder (group) 1 file 1 file 2 Playback related buttons PLAY ( +) Starts playback. STOP ( @ ) Stops playback. • If you press the button once : The stop position is memorized. • If you press the button twice : The stop position is not memorized. PAUSE ( # ) • MP3, WMA, DivX, MKV and MP4 folder (group) 2 file 2 file 3 POWER FUNCTION TV SOURCE DVD RECEIVER/TV SLEEP Playing a 2D video in 3D mode 1 hZ You can enjoy an ordinary 2D video in 3D mode. ✎ NOTE Pauses playback. 2 3 4 5 6 7 8 For some discs, the product may not STOP memorize the stop positon when you press the STOP ( @ ) button. Video files with high Bitrates of 20Mbps or more strain the product’s capabilities and may stop playing during play back. 0 Hub Home menu in 3D mode, it will switch to 2D automatically. using the Disc menu/title menu/ Popup menu MUTE Using the Disc Menu VOL • Blu-ray Disc, DVD-VIDEO chapter 1 title 2 chapter 2 chapter 3 1. During playback, press the DISC menu button on the remote control. 2. Press the ▲▼_ + buttons to make a selection, and then press the enter button. ✎ NOTE TUNING /CH SFE MODE hZ Disc Structure The content of discs are usually divided as shown below. 9 REPEAT If you move to the Home or Smart ✎ NOTE title 1 chapter 1 chapter 2 file 1 DISC MENU MENU TITLE MENU POPUP TOOLS INFO RETURN EXIT Depending on the disc, the menu items may differ and this menu may not be available. A INTERNET@ English TUNER MEMORY B C MO/ST D DSP REPEAT 0 Basic Functions MUTE POWER FUNCTION TV SOURCE Using the Title Menu DVD RECEIVER/TV TUNING /CH SLEEP SFE MODE Z 1 DISC MENU MENU 1. During playback, press 1 the TITLE 2 MENU button on the remote control. TOOLS 4 to 5 2. Press the ▲▼_ + buttons POWER make the desired selection, then press the ENTER button. 7 8 DVD RECEIVER/TV TITLE MENU 3 4 76 9 0 INFO FUNCTION TV SOURCE REPEAT SLEEP EXIT Depending on the disc, the menu items may TUNER differ and this menu may not be available. MEMORY 1 2 3MO/ST The Title Menu will onlyA be displayed B C if thereD are at least two titlesINTERNET on the @ disc. DSP 4 5 Playing the Title List 6 MUTE 7 8 9VOL 0 z REPEAT VOL TUNING /CHMENU DISC SFE MODE 1. During playback, press the DISC MENU or TITLE MENU button. TITLE MENU TOOLS POPUP INFO RETURN Using the Popup Menu TUNING /CH SFE MODE A B h RETURN EXIT INTERNET@ MENU TUNER TITLE MENU MEMORY MO/ST POPUP DISC MENU 1. During playback, press the POPUP button on the remote Acontrol.B C @ 2. Press the ▲▼_ + INTERNET buttons or TOOLS ENTER button to select the desired menu. D DSP INFO ✎ NOTE Depending on the disc, the menu items may RETURN EXIT differ and this menu may not be available. TUNER MEMORY A 48 English B REPEAT C MO/ST D DSP hzZyx • During playback, press the SEARCH (()) button. Each time you press the SEARCH (()) button, the playback speed will change as follows. MUTE BD-ROM, BD-RE/-R, DVD-RW/-R, TUNING /CH DVD+RW/+R, SFE MODE DVD-VIDEO MENU TITLE MENU DivX, MKV, MP4 POPUP DISC MENU MENU 2. Press the ▲▼ buttons to select an entry you want to play from Title List, then press the ENTER TOOLS button. MUTE VOL During playback, you can search quickly through a2chapter3or track, and use the skip function to jump to the next selection. 5 6 Searching for a Desired Scene 8 9 POPUP 0 RETURN INTERNET@ SLEEP Using the Search and Skip Functions DVD RECEIVER/TV VOL ✎ NOTE FUNCTION TV SOURCE POWER )1)2)3 )4)5)6)7 (1(2(3 (4(5(6(7 )1)2)3 (1(2(3 INFO to normal speed playback, press the • To return PLAY (+) button. ✎ NOTE The home theatre does not play sound in EXIT search mode. TUNER MEMORY If youMO/ST press the ( or ) button too quickly might think you are just holding Cthis product D the button down. This will lead to improper DSP operation. Be sure to not press these buttons too rapidly. Skipping Chapters hzZyx • During playback, press the SKIP ([]) button. If you press the SKIP (]) button, the disc moves to the next chapter. If you press the SKIP ([) button, the disc moves to the beginning of the chapter. One more press makes the disc move to the beginning of the previous chapter. 04 Repeat Basic Functions Slow motion Play/Step motion Play > Off Slow Motion Play h�Z�� • In pause ( # ) mode, press the SEARCH ()) button. If you press the SEARCH ()) button, the playback speed is reduced to * 1/8 * 1/4 * 1/2 • To return to normal speed playback, press the PLAY (+ ) button. ✎ NOTE 3. To return to normal play, press the REPEAT button again. ✎ NOTE DVD RECEIVER/TV SLEEP Depending on the disc, the Repeat function may not be available. 1 4 mode. Slow motion operates only in the forward direction. 2 3 5 6 h�Z� 7 8 9 1. During playback, press the REPEAT button on the remote control. 0 Step Motion Play h�Z�� • In pause mode, press the PAUSE ( # ) button. Each time the PAUSE ( # ) button is pressed, a new frame will be appear. • To return to normal speed playback, press the PLAY ( + ) button. ✎ NOTE The product does not play sound in stepTVFUNCTION POWER SOURCE mode. Step motion operates only in the forward DVD RECEIVER/TV SLEEP repeat Playback 1 2 Repeat the Title or Chapter 4 FUNCTION TV SOURCE Repeat the Section The product does not play sound in slow direction. POWER 4. Press the ▲▼ buttons to select Off, then press the ENTER button. 5 6 h�Z� Repeat the disc title or7chapter.8 1. During playback, press the REPEAT button on the remote control. 0 2. Press the ▲▼ buttons to select REPEAT A-B. Repeat > Repeat A-B : Off " Mark A MUTE TUNING 3. Press the ENTER button VOL at the point where /CH you want repeat play to start SFE (A).MODE 4. Press the ENTER button at the point where DISCto MENU MENU TITLE MENU you want repeat play stop (B). POPUP 5. To return to normal play, press the REPEAT button again. TOOLS 3 INFO 6. Press the ENTER button. ✎ NOTE If you set point (B) before 5 seconds has elapsed, a prohibitionRETURN message will appear. EXIT 9 REPEAT REPEAT TUNER MEMORY A B C INTERNET@ MO/ST D DSP 2. Press the ▲▼ buttons to select Chapter or Title, then press the ENTER button. English MUTE VOL SFE MODE TUNING /CH MUTE VOL Basic Functions DISC MENU MENU using the tooLS button During playback, you can operate the disc menu by pressing the TOOLS button. TOOLS • TOOLS Menu Screen RETURN Title Search Chapter Search Time Search Picture Settings Audio User EQ Subtitle Angle Tools 1/2 : 1/20 A : 00:00:13/01:34:37 : Normal INTERNET@ : 1/4 ENG Multi CH : : TUNING /CH SFE MODE B 0/7 Off 1/1 TITLE MENU Information about the primary / secondary POPUP audio modes will be also displayed if the BlurayINFODisc has a BONUSVIEW section. Use the ◄► button to switch between primary and secondary audio modes. The languages available depend on the languages that are encoded on the disc. This EXIT function or certain languages not be available. TUNER Some Blu-ray Discs may allow you to select MEMORY MO/ST C either D the multi-channel LPCM or Dolby digital audio soundtrack in English. DSP Selecting the Subtitle Language < Change " Enter ' Return ✎ NOTE ▪ Depending on the disc, the TOOLS menu may differ. Moving to a Desired Scene Directly h�Z� hZ� 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select Subtitle. 3. Press the ◄► buttons to select the desired subtitle language. ✎ NOTE Depending on the Blu-ray Disc / DVD, you may 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select Title, Chapter or Playing Time. 3. Enter the desired Title, Chapter or Playing Time using the number buttons, then press the ENTER button. Selecting the Audio Language h�Z� 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select Audio. 3. Press the ENTER button. 4. Press the ▲▼ buttons to select the audio language you want. ✎ NOTE The ◄► indicator will not be displayed on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings. 0 English be able to change the subtitle language in the Disc Menu. Press the DISC MENU button. The subtitle languages available depend on the subtitle languages encoded on the disc. This function or certain languages may not be available on all Blu-ray Discs/DVDs. Information about the primary / secondary subtitle modes will also be displayed if the Bluray Disc has a BONUSVIEW section. This function changes both the primary and secondary subtitles at the same time. The total number of subtitles is the sum of the primary and secondary subtitles. 04 � • You must have some experience with video extraction and editing in order to use this feature properly. • To use the caption function, save the caption file (*.smi) with the same file name as that of the DivX media file (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi • You can use up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name. Changing the Camera Angle hZ • User : The user can adjust the sharpness, noise reduction, Contrast, Brightness, Color, Tint(G/R) function. ✎ NOTE If the system is connected to a BD Wise- compliant TV that has set BD Wise to On, the picture setting menu will not appear. Setting the BONUSVIEW h The BONUSVIEW feature allows you to view additional content (such as commentaries) in a small screen window while the movie is playing. This function is only available if the disc has the Bonusview feature. When a Blu-ray Disc/DVD contains multiple angles of a particular scene, you can use the ANGLE function. 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select Angle. 3. Press the ◄► buttons to select the desired Angle. Selecting the Picture Settings h�Z� This function enables you to adjust video quality. 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select Picture Settings, then press the ENTER button. 3. Press the ◄► buttons to select the desired Mode. • Dynamic : Choose this setting to increase Sharpness. • Normal : Choose this setting for most viewing applications. • Movie : This is the best setting for watching movies. Primary a audio/video Secondary a audio/video 1. During playback, press the TOOLS button. 2. Press the ▲▼ buttons to select BONUSVIEW Video or BONUSVIEW Audio. 3. Press the ◄► buttons to select the desired bonusview. ✎ NOTE If you switch from BONUSVIEW Video, BONUSVIEW Audio will change automatically in accordance with BONUSVIEW Video. Tools BONUSVIEW Video Off BONUSVIEW Audio : 0/1 Off Picture Settings < Change " Enter English 1 Basic Functions Caption Function Basic Functions FUNCTION TV SOURCE POWER Listening to music SLEEP RECEIVER BD TV 2 1 3 7 BD @ SLEEP 8 TV 9 ECHO REPEAT 1 0 2 3 9 STOP button : Stops a track. 4 5 6 0 ] button : Plays the next track. ! [ button : Plays the previous track. If you press this button after three seconds of playback in the Playlist, the current track will be replayed from the beginning. But, if you press this button within three seconds after playback starts in the Playlist, the previous track will be played. @ NUMBER button : During the Playlist playback, press the desired track number. The selected track will be played. (only Audio CD(CD-DA) 7 8 9 FULL SCREEN MUTE REPEAT 0 ! 8 ► button : During playback, moves to the next page in the Music List or moves to the next track in the Playlist. ◄ button : During playback, moves to the previous page in the Music List or moves to the previous track in the Playlist. o� Buttons on the Remote Control 4 5 6 used for Music Playback FULL SCREEN ENTER button : Plays the selected track. FUNCTION TV SOURCE POWER RECEIVER 7 VOL TUNING /CH SFE MODE 1 2 0 DISC MENU 9 8 7 MENU TITLE MENU MUTE POPUP MIC VOL+ TOOLS 3 4 INFO VOL TUNING /CH SFE MODE DISC MENU RETURN 5 MIC VOLTITLEEXIT MENU MENU POPUP iPod SYNC TUNER MEMORY A B C SMART SEARCH S/W LEVEL 2D→3D DSP VERTICAL SURROUND TOOLS MO/ST INFO D 6 HUB 3D SOUND RETURN 1 EXIT REPEAT buttons : Selects the play mode in the MO/ST iPod SYNC Playlist. TUNER MEMORY A B C D 2 SEARCH SMART buttonsSEARCH : S/W LEVEL 2D→3D HUB Audio CD (CD-DA) - Fast Play. DSP 3D SOUND MP3 - Jump Play. (10 seconds) 3 PAUSE button : Pauses playback. 4 PLAY button : Plays the currently selected track. 5 ▲▼ buttons : Selects a track in the Music List or Playlist. 6 YELLOW (C) button : Select Edit Mode or Play Mode. VERTICAL SURROUND English DVD RECEIVER/TV SLEEP 2 3 4 5 6 Repeat an Audio CD 7 (CD-DA)/MP3 8 9 1. Insert an Audio CD (CD-DA) or an MP3 Disc into the disc slot. • For an Audio CD (CD-DA), the first track will be played automatically. • For an MP3 disc, press the ◄► buttons to select Music, then press the ENTER button. 1. During the Playlist playback, press 0 the REPEAT button. Audio CD (CD-DA)/MP3 Screen Elements 1 2 3 Music 1/13 TRACK 001 TRACK 001 00:43 03:56 04:41 TRACK 004 00:13 / 00:43 Audio CD 04:02 " Enter < Pages 5 Off Tracks on a disc are played Audio CD in the order in which they (CD-DA)/MP3 were recorded MUTE on the disc. ( ) One Song Audio CD Current track is repeated. (CD-DA)/MP3 ( /CH Audio CD SFE MODE All tracks are repeated. (CD-DA)/MP3 ) All ✎ NOTE TUNING VOL DISC MENU MENU TITLE MENU POPUP TOOLS You can play theINFO set Shuffle Mode to On. tracks in a random order. TRACK 003 + 2. Select the desired play mode by pressing the REPEAT button repeatedly. During playback, press the TOOLS button and TRACK 002 7 6 REPEAT Tools ' Return 4 Playlist 1. Insert an Audio CD (CD-DA) or an MP3 Disc RETURN EXIT into the disc slot. TUNER MO/ST • For an Audio CD (CD-DA), the fiMEMORY rst track will A B C D be played automatically. 1 Displays the music information. 2 Displays the playlist. 3 Shows the current track/total tracks. 4 Displays buttons available. 5 Shows the current play time/total play time. 3. Press the YELLOW (C) button to switch to Edit Mode. 6 Displays the current playback status. 7 Displays the repeated playback status. 4. Press ▲▼◄► to select a desired track, and then press ENTER. Repeat this procedure to select additional tracks. @ DSP to • For an MP3 disc,INTERNET press the ◄► buttons select Music, then press the ENTER button. 2. To move to the Music List, press the STOP (@) or RETURN button. The Music List screen is displayed. • The selected file will be checked. 2. Press the ▲▼ buttons to select the track you want to play, and then press the ENTER button. • To cancel your selection, press ENTER again to uncheck the track. English Basic Functions Playing an Audio CD (CD-DA)/MP3 04 1 Basic Functions Audio CD| Music TRACK 001 TRACK 002 TRACK 003 1/2 Page TRACK 004 03:56 04:41 04:02 TRACK 005 TRACK 006 03:43 03:40 POWER TRACK 007 04:06 c Close Edit Mode ( ) Page FUNCTION TV SOURCE TRACK 008 03:52 Tools DVD RECEIVER/TV " Select ' Return SLEEP 5. When done, press the TOOLS button. 6. To play the selected track(s), select Play 2 then press 3 Selected in the Tools1menu, and ENTER. Music TRACK 001 4 5 7 8 6 9 1/3 TRACK 001 REPEAT 00:43 0 TRACK 002 03:56 04:41 00:13 / 00:43 Audio CD " Enter Tools ' Return MUTE 7. To return to the Edit Mode, press STOP or RETURN. TUNING 8. To exit Edit Mode, press VOL the YELLOW (C) /CH SFE MODE button. ✎ NOTE DISC MENU MENU TITLE MENU You can create a playlist with up to 99 tracks POPUP on Audio CD (CD-DA). TOOLS INFO Sound mode DSP (Digital Signal Processor) Function EXIT You can select mode to RETURN optimize the sound for sound based on your tastes. TUNER Press the DSP button. A INTERNET@ MEMORY B SMART SOUND MP3 ENHANCER POWER BASS USER EQ DSPOFF English DVD RECEIVER/TV SLEEP 2 3 • SMART SOUND : Regulates and4stabilizes5the volume level and prevents a drastic volume change when you change channels or during a 7 8 scene transition. • MP3 ENHANCER : This also helps enhance 0 your sound experience (ex. mp3 music). You can upscale your MP3 level sound (24 kHz, 8bit) to CD level sound (44.1 kHz, 16bit). • POWER BASS : This function stresses low tones and provides thudding sound effects. • USER EQ : You can configure the equalizer MUTE settings manually to your preference. SFE (Sound Field Effect) MODE VOL You can set the SFE mode best suited for the type of music you are listening to. DISC MENU SFE MODE MENU Press the SFE MODE button. C MO/ST D DSP 9 REPEAT TUNING /CH TITLE MENU INFO Phillharmonic Hall in Bratislava (Hall 2) Also provides a clear vocal as if you are listening in a concert RETURN hall but, less powerful than HALL1. TUNER Jazz Club in Seoul B A Recommended setting forB Jazz. C MEMORY INTERNET@ Church in Seoul Gives the feel of being in a grand church. Amphitheater (Rock) Recommended setting for Rock. Off 6 POPUP TOOLS Symphony Provides a clear vocal as if you Hall in Boston are listening in a concert hall. (Hall 1) TRACK 003 + FUNCTION TV SOURCE 1 Selected Items : 3 00:43 POWER Select this for normal listening. EXIT MO/ST D DSP DISC MENU MENU TITLE MENU POPUP INFO RETURN EXIT TUNER MEMORY B C INTERNET@ D settings. Press iPod SYNC on the remote control to change audio delay. Supported Models : classic/3G nano/4G nano/120GB classic/160GB Classic/5G nano DSP You can select the desired Dolby Pro Logic II audio mode. Press the The models below support audio sync MO/ST PL II button. Music When listening to music, you can experience sound effects as if you are listening to the actual performance. Movie Adds realism to the movie soundtrack. 3D Sound You can enjoy more natural and vivid surround sound with enriched tones by adjusting the depth of sound using the level options. Off High Medium Low Prologic You can listen to a 2CH sound source in 5.1CH surround sound with all speakers active. - A specific speaker(s) may not output depending on the input signal. Matrix You will hear multi channel surround sound. Stereo Select this to listen to sound from the front left and right speakers and the subwoofer only. ✎ NOTE It is not available in FM or W.iPod mode. Vertical Surround Implementing the vertical sound field effect, it reinforces the sense of space for music and movie in addition to vivid sound tones. Off High Low Off. Playing back a Picture ✎ NOTE G Before selecting Dolby Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound. iPod SYNC If you insert your iPod player into the iPod Dock that has already been connected to the system, you can the video files in your iPod player through the connected TV. B If the video signal does not synchronize properly with the audio signal, press iPod SYNC on the remote control to correct the synchronization. Viewing Photo Files 1. Connect a USB memory that contains JPEG files or insert a disc that contains JPEG files. 2. Press the ◄► buttons to select the My Contents, and then press the ENTER button after press the ▲▼ buttons to select the Photos. 3. Press the ▲▼◄► buttons to select the photo you want to play, and then press the ENTER button. ✎ NOTE You can't enlarge the subtitle and PG graphic in the full screen mode. ✎ NOTE Before you can play the video files in the iPod player, you must connect the Audio/Video terminals of the TV to the home theatre using the Composite (A/V) cable. English 55 Basic Functions Dolby Pro Logic II ModeA 04 TOOLS MUTE Basic Functions Using the TOOLS button VOL DISC MENU MENU TITLE MENU POPUP Playing back a uSB Storage Device During the slide show playback, you can use various function by pressing the TOOLS button. TOOLS F INFO You can use the USB connection to play multimedia files (MP3, JPEG, DivX, etc) downloaded from the USB storage device. Tools Pause Slide Show Slide Show Speed : Normal Slide Show Effect : Blind Background Music : Off Background Music Setting Zoom Rotate Picture Setting Information TUNING /CH SFE MODE RETURN 1. TUNER MEMORY A B C INTERNET@ ✎ NOTE Before you can enable the background music function, the photo file should exist in the same storage media with the music file. However, the sound quality can be affected by the Bitrate of the MP3 file, the size of the photo and the encoding method. MO/ST MyD Contents Videos DSP Photos Music " Enter ' Return • Pause Slide Show : Select to pause the slide show. • Slide Show Speed : Select to adjust the slide show speed. • Slide Show Effect : Select to set the slide show effects. • Background Music : Select to listen to music while viewing a slide show. • Background Music Setting : Select to set the background music. • Zoom : Select to enlarge the current picture. (Enlarge up to 4 times) • Rotate : Select to rotate the picture. (Rotate the picture either clockwise or counter clockwise.) • Picture Setting : Select to adjust the picture quality. • Information : Shows the picture information including the name and size, etc. EXIT Move to the home menu. Function My Devices Internet Settings c Safely Remove USB d WPS(PBC) 2. In Stop mode, connect the USB storage device to the USB port on the front panel of the product. My Contents Videos Connected Device USB Function My Devices Photos Music Internet " Enter ' Return Settings i Safely Remove USB d WPS(PBC) 3. Press the ENTER button. 4. Press the ▲▼◄► buttons to select Videos, Music or Photos, and then press the ENTER button. 5. For playing back Video, Music or Photo files, refer to pages 47~56. ✎ NOTE You must remove the USB storage device safely (by performing the “Safely Remove USB” function) to prevent a possible damage to the USB memory. Press the MENU button to move to the home menu, select the YELLOW (C) button, and then press the ENTER button. If you insert the disc when playing USB storage device, the device mode is changed to “BD/DVD” automatically. English 04 Connecting an iPod/iPhone using the uSB Cable Using buttons on the Remote Control If the home theatre is connected to an iPod/iPhone using the USB cable (not included), you can play music in iPod/iPhone through the home theatre. POWER FUNCTION TV SOURCE DVD RECEIVER/TV SLEEP 1. Press the FUNCTION button to select FM. 2. Tune in to the desired station. • Preset Tuning 1 : You must first add a desired frequency as a preset. Press the STOP (@) button to select PRESET and then press the TUNING/CH( ) button to 1 select the2preset 3 station. 4 (@) button 5 to 6 • Manual Tuning : Press the STOP select MANUAL and then press the TUNING/ CH( ) button to tune in to 7 a lower or8higher 9 1. frequency. REPEAT • Automatic Tuning : Press the STOP (@)0button to select MANUAL and then press and hold the TUNING/CH( ) button to automatically search the band. 2. 3. Setting Mono/Stereo MUTE Press the MO/ST button. • Each time the button is pressed, the VOL and sound switches between STEREO SFE MODE MONO. • In a poor reception area, select MONO DISC MENU MENU for a clear, interference-free broadcast. Presetting Stations Basic Functions Listening to radio TUNING /CH 5V 500mA ASC IN 500mA Connect an iPod/iPhone using the USB cable to the front USB port. • Your iPod is automatically turned on. • The “iPod” message appears on the TV screen. Press the ENTER button. Select the music file to play. - You can use the remote control or the product to control simple playback functions such as the PLAY, PAUSE, STOP, [ /] and( /)buttons. (See page 16.) ✎ NOTE TITLE MENU TOOLS POPUP EXIT MO/ST D DSP Dock. If you want to return to the iPod menus while the iPod player is connected using the USB cable, press FUNCTION on the remote control or press on the front panel of the system and select R. IPOD. The FUNCTION mode switches as follows: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM INFO Example : Presetting FM 89.10 into memory 1. Press the FUNCTION button to select FM. 2. Press the TUNING/CH( ) button to select RETURN <89.10>. TUNER 3. Press the TUNER MEMORY button. MEMORY • NUMBER flashes on the display. A B C @ INTERNET 4. Press the TUNER MEMORY button again. • Press the TUNER MEMORY button before NUMBER disappears from the display. • NUMBER disappears from the display and the station is stored in memory. 5. To preset another station, repeat steps 2 to 4. • To tune in to a preset station, press the TUNING/CH( ) button to select a channel. You can play a video only when you use the iPod Connecting an iPod/iPhone using the Dock If the home theatre is connected to the iPod/iPhone specific dock, you can play videos or music in an iPod/iPhone through the home theatre. COMPONENT OUT FM ANT LAN iPod DIGITAL AUDIO IN HDMI OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP HDMI IN OPTICAL WIRELESS AUX IN VIDEO OUT iPod English SPEAKER IMPEDANCE : 3 Basic Functions Playing Music 6. Select the video file to play. - You can use the remote control or the product to control simple playback functions such as the PLAY, PAUSE, STOP, [ /] and( /)buttons. (See page 16.) My Contents Videos Connected Device iPod Function My Devices Photos ✎ NOTE Music You must have the VIDEO output Internet " Enter ' Return Settings d WPS(PBC) 1. Connect the iPod dock connector to the iPod Jack on the rear panel of the product. 2. Place the iPod in the supplied iPod Dock. • Your iPod automatically turns on. • The “iPod” message appears on the TV screen. 3. Press the ENTER button. 4. Press the ◄▲▼ buttons to select Music, and then press the ENTER button. 5. Select the music file to play. - You can use the remote control or product to control simple playback functions such as the PLAY, PAUSE, STOP, [/ ], (/ ) and REPEAT buttons. See page 16. ✎ NOTE Adjust the volume to a moderate level before you connect your iPod to the product. When the product is on and you connect an iPod, the product will charge the iPod's battery. Make sure to connect the dock connector so that the label “” faces upward. Watching a Movie You can play video files stored in the iPod player by connecting it to the product. 1. Connect the iPod dock connector to the iPod Jack on the rear panel of the product. 2. In the iPod screen, move to Videos > Settings, then set the TV Out option and the TV signal. 3. Place the iPod in the supplied iPod Dock. • The “iPod” message appears on the TV screen. 4. Press the ENTER button. 5. Press the ◄▲▼ buttons to select Video, and then press the ENTER button. English (Composite) connected to your TV to view iPod video (See page 24). If you want to play iPod video via VIDEO output, set Anynet+ (HDMI-CEC) to off. No other screen than the playback screen will appear on the TV. View other iPod screens on the iPod player. If the connected iPod does not support video playback, the "Playing video files is not supported on this iPod model." message appears when you select the Video menu. If you want to return to the iPod menus while the iPod player is connected using the dock, press FUNCTION on the remote control or press on the front panel of the system and select R. IPOD. The FUNCTION mode switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1; H. IN2 ; FM use an iPod/iPhone with a Wireless Dock Cradle (sold separately) for iPod/iPhone You can enjoy finer quality music through the speakers by transmitting an iPod/iPhone’s audio signal using a Wireless Transmitter. To connect the Cradle to the main unit when you use the Cradle the first time, you have to set the Linking ID manually. (see page 60) After you set the Linking ID, the Cradle will connect to the Wireless Transmitter automtically when you turn it on. To use the Wireless Dock Cradle: Turn on the main unit and connect the iPod/ iPhone to the Wireless transmitter. Then, press the button on the product to select "W. IPOD" mode. The FUNCTION mode of the main unit switches as follows : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM ( See page 14) 04 LIN K STA ND LIN K BY STA ND BY CH AR GE CH AR iPod nano (5th generation) iPod nano (4th generation) iPod nano (3rd generation) iPod nano (2nd generation) iPod nano (1st generation) iPhone 4 iPhone 3GS iPhone 3G iPhone Basic Functions How to charge the Wireless Transmitter GE ✎ NOTE 1. Connect the Wireless Transmitter to the Charging Cradle. 2. Connect the DC power adapter to a wall socket. • The charging indicator lights and charging starts. After the battery is fully charged, the charging indicator turns Green. “Made for iPod” means Operation status of the charging cradle's LED Display Function GREEN LED ON Power on /Charging completed RED LED ON Charging. ✎ NOTE The LED indicates the charging state of the built-in battery in the wireless iPod transmitter. Check the charging state of iPod/iPhone by checking the charging indication of its battery. ! CAUTION Wireless Dock Cradle can be linked with Home Theatre when SWA-5000 is used. The charger can only recharge Samsung wireless transmitters whose specifications are compliant with the charger. iPod/iPhone models you Can use with this Product iPod touch (3rd generation) iPod touch (2nd generation) iPod touch (1st generation) iPod classic iPod with video iPod with dock connector iPod with Click Wheel that an electronic accessory has been designed to connect specifically to iPods and has been certified by the developer to meet Apple performance standards. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhones and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. The volume control may not operate normally with iPod and iPhone models not listed above. If you have a problem with any of the models listed above, please update the software of the iPod/iPhone to the lastest version. Depending on the software version of the iPod, control problems may occur. This is not a malfunction of the Home Theatre. Depending on the software version or the type of the iPod, some operations may differ. Install the latest iPod software. (recommended) Some actions like iPod SYNC may depend on video sources or the iPod model you have. You can enjoy music or videos through the BD/DVD function and enjoy music, videos or photos through the Remote iPod function. You need to use iPod Dock to enjoy videos or photos. Playback of applications' contents through the product is not guaranteed. We recommend playing contents downloaded to the iPod. If you have a problem using your iPod, please visit www.apple.com/support/ipod. English Basic Functions How to Link the Wireless transmitter with the main unit Function Display LINK (Blue LED) STANDBY (Red LED) LED ON Pairing successfully completed STANDBY LED BLINK (Long blink) Processing iPod/ iPhone LOW BATTERY LED BLINK (Short blink) Processing pairing Pairing failed 1. Turn off your Home Theater. 2. Press the 4, 7, 6, 3 buttons on the remote control in order. • The Power LED blinks once. 3. Connect the iPod/iPhone to the Wireless transmitter. ! CAUTION LIN K STA ND BY CH AR GE 4. Turn on the iPod/iPhone. Press the "ID SET" button on the back of the Wireless transmitter for 5 seconds. The link light on the wireless transmitter blinks rapidly. 5. Turn on your product. • To listen to music from your iPod/iPhone over the product, press the button to select "W. IPOD" mode. • After you select "W. IPOD" mode, turn the volume of the product down to avoid hearing damage. • You can control the speaker volume of the iPod/iPhone with a volume wheel or a volume bar. • When the iPod/iPhone is stopped or in a power saving mode, the Wireless transmitter enters Sleep Mode. When iPod/iPhone is set to Deep Sleep Mode, the Wireless transmitter turns off. Operation status of the wireless transmitter's LED If you use a wireless device such as a laptop computer, an AP, or Wifi, near the main home theater unit, an unstable operation error can occur. Do not pair the SWA-5000 and iPod/iPhone at the same time. If you pair them at the same time, the iPod/iPhone and SWA-5000 may not connect to the product. The maximum transmission distance from the product to the wireless transmitter is about 16.4 feet, but may FUNCTION TV SOURCE vary depending on your POWER operation environment. The audio signal may be weakened or even lost where there is an obstacle such as a wall or partition DVD RECEIVER/TV between the product and wireless transmitter.SLEEP You can also weaken or lose signal if you move theECHO wireless transmitter around. STA NK GE STAN DB Y CH AR 0 GE 7 POWER 8 6 9 TV SOURCE 0 K LI 5 DVD RECEIVER/TV 1. Connect the microphone to the MIC jack on the front panel. 2. Press the ECHO button to adjust 2 1 the echo level of the microphone. 3. Press the MIC VOL button to adjust MUTE the voice volume of the 4 microphone. 5 LIN AR 4 Watch the video and sing along the lyrics displayed REPEAT on the TV screen against the accompaniment. CH 3 You can enjoy the feeling of a karaoke bar in the comfort of your home. FUNCTION ✎ NOTE ND BY 2 1 Connecting microphone 7 VOL SLEEP ECHO 3 MIC VOL+ 6 TUNING /CH 8 9 The microphone operates only inSFE MODE REPEAT Home menu, BD playback and DVD MIC VOL0MENU TITLE DISC MENU MENU playback modes. POPUP The karaoke scoring displays the score automatically when the Karaoke Scoring is set to INFO On and a microphone is TOOLS connected. Disconnect the microphone if you do not want to display the score. MUTE English MIC VOL+ RETURN VOL A INTERNET@ EXIT TUNING /CH MO/ST TUNER SFE MODE MEMORY B C D DSP 05 Network Services Read the following instructions before using any network service. 1. Connect the product to the network. (see pages 26~27) 2. Configure the network settings. (see pages 38~41) 3. The Smart Hub screen appears. ✎ NOTE Certain applications are available only in certain countries. 4. The Terms of Service Agreement screen appears. If you want to agree, press the ◄► buttons to select Agree, then press the ENTER button. ✎ NOTE Screens can take a few seconds to appear. using Smart Hub Using Smart Hub, you can stream movies, videos, and music from the Internet, access various for pay or free-of-charge applications and view them on your TV. Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games. 5. The Service Update screen appears and installs a number of services and applications. When done, it closes. The applications and services downloaded are displayed on the Smart Hub screen. This may take some time. ✎ NOTE Smart Hub may close momentarily during the You can also start this function by pressing the SMART HUB button on the remote control. installation process. A number of screens may appear after installation. You can press the ENTER button to close them or let them close on their own. Starting Smart Hub the First Time To start Smart Hub for the first time, follow these steps : 6. To start an application, press the ▲▼◄► buttons to highlight a widget, then press the ENTER button. 1. Go to the Home menu. My Contents Videos Photos Music Function My Devices Internet Settings c Safely Remove USB d WPS(PBC) 2. Press the ◄► buttons to select Internet, and press the ENTER button. English 1 Network Services You can enjoy various network services such as Smart Hub or BD-LIVE by connecting the product to your network. Network Services Smart Hub at a Glance 1 2 3 4 Search All Your Movie Samsung Apps Contents 1 Contents 2 6 Navigation Help : Displays the remote control buttons you can use to navigate in Smart Hub. • RED (A) : To log in to Smart Hub. • GREEN (B) : To sort the applications. • YELLOW (C) : To edit the applications. • BLUE (D) : To change the settings of Smart Hub. 7 My Applications : Displays your personal gallery of applications which you can add to, modify, and delete. 5 Contents 3 Contents 4 Recommended Contents 1 Contents 2 Contents 3 Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx Contents 1 Contents 2 Contents 3 Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx Contents 7 Contents 8 Contents 9 Contents 10 Contents 11 Contents 12 Contents 13 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx a Login b Sorting c Edit d Setting 7 6 1 Commercial : Displays the Smart Hub Guide, an introduction to the product, and new application introductions. 2 Your Video : Provides recommendations for videos based on your tastes. • Lets you see movie recommendations based on your previous preferences. • Lets you select a movie, displays a list of VOD (Video on Demand) providers that have the movie, and then lets you choose a provider for streaming. (Streaming is unavailable in some areas.) • For instructions to use Your Video, please visit www.samsung.com. • This feature is limited to certain regions. 3 Search : Provides an integrated search of your video providers and connected AllShare devices. • Usable while using Smart Hub (except when you are watching a Blu-ray Disc). • For easy access, use the SEARCH button on the remote control. • For instructions to use search function, please visit www.samsung.com. 4 Samsung Apps : You can download various for pay or free-of-charge application services. 5 Recommended : Displays recommended contents managed by Samsung. English ✎ NOTE Samsung Electronics takes no legal responsibility for any interruption of the Smart Hub service caused by the service provider for any reason. The Smart Hub service downloads and processes data via the Internet so that you can enjoy the Internet contents on your TV screen. If the Internet connection is unstable, the service may be delayed or interrupted. Furthermore, the product may turn off automatically in response to conditions on the Internet. If this occurs, check the Internet connection and try again. Application services may be provided in English only and the contents available may vary, depending on your area. For more information about a Smart Hub service, visit the web site of the applicable service provider. The services provided are subject to change by the Smart Hub service provider without notice. The Smart Hub service contents may differ depending on the product’s firmware version. For pay DivX contents with copy protection can only be played through a composite, a component or an HDMI cable. 05 Creating an Account Through your remote, you can use the OnScreen Keypad to enter letters, numbers, and symbols. To establish your own, exclusive, configuration of Smart Hub, create your own Smart TV Account. 1 2 .,– 1 4 2 3 def jkl mno tuv wxyz T9 ab Search Your Video 9 0 Shift Delete Ab AB 1 Smart Hub ID 6 Password Contents 1 Contents 2 xxxxxxxx xxxxxxxx Contents 7 Contents 8 xxxxxxxx xxxxxxxx 2 Press the FULL SCREEN button on the remote control to shift the input mode. : ab, Ab, AB, numbers or icons. 3 Displays the current input mode. 4 Press the GREEN (B) button on the remote control to change the input method. (T9 or ABC) 5 Press the TOOLS button on the remote control to change the language. 6 Press the REPEAT button on the remote control to delete a character. Press [ENTER] Contents 2 Contents 3 Press [ENTER]xxxxxxxx xxxxxxxx Contents 3 Login xxxxxxxx Create Account Contents 9 xxxxxxxx Contents 3 Contents 4 % Contents 4 Contents 5 xxxxxxxx xxxxxxxx Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx Cancel Find Password Contents 10 Contents 11 Contents 12 xxxxxxxx xxxxxxxx xxxxxxxx 2. Press the ▲▼◄► buttons to select Create Account, and then press the ENTER button. 3. On the next screen, select Smart TV ID, and then press the ENTER button. An entry screen and keypad appear. 4. Use the keypad to enter your e-mail address. This will serve as your ID. ✎ NOTE The keypad works like the keypad on a cell phone. 5. When done, press the ENTER button to select OK, and then press the ENTER button again. The Create Account screen reappears. 6. Select Password, and then press the ENTER button. The Password screen and a keypad appear. 7. Use the keypad to enter a password. The password can be any combination of letters, numbers, and symbols. Entering Text, Numbers and Symbols To enter text, press the number button on the remote that corresponds to the letter you want to enter. Press the button rapidly to enter a letter that is not the first letter listed on the On-Screen keypad button. For example, if you want to enter the letter b, press the 2 button on your remote rapidly twice. To enter the first letter listed on a button, press, release, and then wait. To move within the text, use the Arrow buttons. To delete text, move the cursor to the right of the character you want to delete, and then press the REPEAT button. To change case or enter numbers or punctuation, press the FULL SCREEN button. xxxxxxxx Contents 2 a Login b Sort by c Edit Mode d Settings 5 The current keypad. Use to enter letters, numbers, and symbols. Contents 1 Contents 1 Login Remember Smart TV Account Password 1 Samsung Apps Recommended b Input Method / Language: English 4 Press the RED (A) button on your remote control. The Login screen appears. 6 8 pqrs 1. 3 abc 5 ghi 7 To create an account, follow these steps: ✎ NOTE Press the RED (A) button on your remote to show or hide the password as you enter it. English Network Services Using the Keypad Network Services 8. When done, press the ENTER button to select OK, and then press the ENTER button again. The Create Account screen re-appears. 9. Select Confirm password, and then press the ENTER button. 10. Repeat Steps 7 and 8. 11. When the Create Account screen reappears, select Create Account, and then press the ENTER button. The Confirmation window appears. 12. Select OK, and then press the ENTER button. The Continue to Register Service window appears. 13. Select Connect Service, and then press the ENTER button. 2. Select the Down Arrow next to the Smart TV ID field, and then press the ENTER button. 3. Select your ID from the list that appears, and then press the ENTER button. The Login reappears. 4. Select Password, and then press the ENTER button. The Password window and a keypad appears. 5. Using the keypad and your remote, enter your password. When done, press the ENTER button, select OK, and then press the ENTER button again. ✎ NOTE If you want Smart Hub to enter your password automatically, select Remember my Smart TV ID and password after you have entered your password, and then press the ENTER button. A check appears. Smart Hub will now enter your password automatically when you select or enter your ID. 14. The Register Service Account Window appears. • If you have existing accounts with any of the listed providers, you can associate the provider account and the provider account password with your Smart TV Account. Registration makes it easier to access the providers web site. For registration instructions, go to Step 2 in Account Management under the Settings Menu. • If you don’t have existing provider accounts or do not want to register existing accounts at this time, select OK, and then press the ENTER button. You can also let the window close on its own in about a minute. ✎ NOTE You must use an e-mail address as an ID. You can register up to 10 User Accounts. You do not need an account to use Smart Hub. Account Log In To log in to your Smart TV Account, follow these steps: 1. With the Smart Hub main screen displayed on your TV, press the RED (A) button on your remote. The Login screen appears. 64 English The Settings Menu - BLUE (D) The Settings Menu Screen gives you access to account management, account reset, and account properties functions. To access the Settings Menu, and then select a menu item, follow these steps: 1. Press the BLUE (D) button on your remote. 2. Press the ▲▼ to select a menu item, and then press the ENTER button. The functions on the Settings Menu screen are described below. ✎ NOTE The Service Manager item listed in the Settings Menu is not available for Blu-ray Home Theatres. Account Management The Account Management Menu contains functions that let you register your service provider accounts, change your Smart Hub password, and delete or deactivate your Smart TV Account. 05 Change Password If you have existing accounts with any of the providers listed by the Register Service Account function, you can associate the provider account and the provider account password with your Smart TV Account. If you associate the account, you will be able to log onto the account through Smart Hub easily, without entering your account name or password. The Change Password function lets you change your Smart Hub password. To change the password, follow these steps: To use the Account Management function, follow these steps: 1. In the Account Management menu, select Register Service Account, and then press the ENTER button. The Register Service Account Window appears. 2. Press the ▲▼ arrow buttons to select a Service Provider you want to associate with your Smart TV Account, and then press the ENTER button. ✎ NOTE If you have a Samsung account and you want to use the Samsung Apps function in Smart Hub, you must register your Samsung Apps account here. See page 68 for more information. 3. Using your remote and the on-screen Keypad, enter your site ID and password. When done, press the ENTER button. ✎ NOTE This is the ID and password you normally use to access your account on this site. 4. If you have entered the ID and password correctly, the Registered Successfully message appears. 5. If you pressed OK, repeat Steps 2 through 4 to associate another Service Provider. 6. When you are done, press the RETURN button. 1. Select Change Password, and then press the ENTER button. 2. Enter your current password. The next screen appears. 3. On the next screen, enter a new password on the first line. Enter it again on the second line to confirm. 4. The Changing Password Complete message screen appears. Press the ENTER button or wait for the screen to close - about 5 seconds. Remove Service Accounts The Remove Service Accounts function cancels all your current registered Service Accounts that you registered on the Register Service Account screen. Deactivate Account The Deactivate Account function deactivates your Smart TV Account and deletes it and all your account settings entirely from Smart Hub. Reset The Reset function initializes all downloaded widgets, erases all user accounts and settings from the product, and resets all Smart Hub settings to the factory default settings. It then restarts Smart Hub as if it were starting for the first time. Your account, however, remains on the Smart Hub server. To log into your account, enter your ID and password on the Create Account screen. To use the Reset function, follow these steps: 1. In the Account Management menu, select Reset, and then press the ENTER button. The Reset screen appears. 2. Enter the your Security password. This is the password you entered if you set up a BD or DVD Parental rating (See page 43). If you did not, enter 0000. English 65 Network Services Register Service Account Network Services 3. 4. After a few moments, Smart Hub automatically resets. The screen may go black, then Smart Hub re-appears. In a few moments, it starts the re-initialization procedure. To complete the re-initialization, go to Step 4 in Starting Smart Hub for the First Time. (See page 61) 2. The functions in the Edit Mode Menu bar are described below. ✎ NOTE Some menu items may not appear on the screen. To see these items, press the ◄► to move to the screen edge, and then press one more time to reveal the items. ✎ NOTE If you forgot your password, press the STOP ( @ ) button on the front panel of the product for more than 5 seconds with no disc inserted. Press the ▲▼◄► to select a menu item, and then press the ENTER button. You can close the bar by highlighting the X on the bottom right side, and then pressing the ENTER button. Properties Move The Properties menu item lists three functions that display information about Smart Hub : The Move function lets you change the screen position of a widget. To use the Move function, follow these steps: More 1. Press the YELLOW (C) button on your remote. 2. Select a widget, and then press the ENTER button. A check appears above the widget. Check the speed of your internet connection 3. Runs a test which shows how fast your connection to the Samsung's server is in Mbps (Megabits per second). Speeds lower than 1.5 Mbps can limit your enjoyment of Smart Hub. Press the ▲▼◄► to select Move, and then press the ENTER button. The Move window opens. 4. Press the ▲▼◄► to move the icon. Press the ENTER button when the icon is in the position of your choice. The widget moves to its new location. Lists information about Smart Hub including version number, the number of services installed, memory usage, and the unique product ID. Terms of Service Agreement Displays the Terms of Service Agreement. The Edit Mode Menu - YELLOW (C) The functions in the Edit Mode menu let you manipulate the widgets in the My Applications section of the Smart Hub screen. Using these functions, you can lock and unlock access to some widgets, New Folder and move widgets to them, rename folders, delete widgets, and change the position of widgets on the screen. To access the Edit Mode Menu, and then select a menu item, follow these steps: 1. Press the YELLOW (C) button on your remote. The Edit Mode menu bar appears on the bottom of the screen. 66 English New Folder The New Folder function lets you create and name new folders. Once you have created a folder, you can move widgets into it. To use the New Folder function, follow these steps: 1. Press the YELLOW (C) button on your remote. 2. Press the ▲▼◄► to move the cursor to New Folder, and then press the ENTER button. The New Folder window and a keypad appear. 3. Use the keypad to enter the name of the folder, and then press the ENTER button. The New Folder screen closes and the New Folder appears on the Smart Hub screen. 05 Rename Folder The Move to Folder function lets you move a widget to a folder. To use the Move to Folder function, follow these steps: The Rename Folder function lets you rename folders. To use the Rename Folder function, follow these steps: 1. Press the YELLOW (C) button on your remote. 1. Press the YELLOW (C) button on your remote. 2. Select a widget, and then press the ENTER button. 2. Press the ▲▼◄► to select a folder, and then press the ENTER button. 3. Press the ▲▼◄► to select Move to Folder, and then press the ENTER button. The Move to Folder window opens. 3. 4. Press the ▲▼◄► to select a folder, and then press the ENTER button. The Moved to Folder message appears, and then closes. The widget has been moved to the folder. Press the ▲▼◄► to select Rename a Folder, and then press the ENTER button. The Folder Rename window and a keyboard appears. 4. Use the key board to enter a new name, and then press the ENTER button. The Rename window closes and the new name appears below the folder. To Access Widgets in a Folder 1. Close the Edit Mode menu. Lock 2. In My Applications, press the ▲▼◄► to select a folder, and then press the ENTER button. The folder opens. The Lock function lets you lock some widgets in My Applications so they can not be opened without entering the Parental Security Code. 3. Select a widget, and then press the ENTER button. The widget’s application or service starts. To use the Lock function, follow these steps: To Edit Items in a Folder 1. Press the YELLOW (C) button on your remote. 2. Press the ▲▼◄► to select a widget, and then press the ENTER button. If the widget can be locked, the Lock menu item is enabled. 3. Press the ▲▼◄► to select Lock, and then press the ENTER button. The Security window appears. 4. Enter your Parental Security Code (See page 43). If you have not created a Parental Security Code, enter 0000. 5. Press the ENTER button. The Lock Service window appears confirming the lock, and then closes. A lock symbol appears next to the widget. Select a folder, and then press the ENTER button. The folder opens. Press the YELLOW (C) button on your remote. The Edit buttons appear at the bottom of the screen. These buttons work the same as the Edit Mode menu buttons on the main screen. For example, to move a widget back to the My Applications main screen: 1. Select the widget. 2. Select Move to Folder, and then press the ENTER button. The Move to Folder window appears. 3. Select My Applications, and then press the ENTER button. The Move to Folder window closes and the widget returns to the main My Applications screen. English 67 Network Services Move to Folder Network Services Unlock 1. Press the YELLOW (C) button on your remote. 2. Press the ▲▼◄► to select a locked widget, and then press the ENTER button. 3. Press the ▲▼◄► to select Unlock, and then press the ENTER button. The Security window appears. 4. Enter the Parental Security Code (See page 43). If you have not created a Parental Security Code, enter 0000. 5. Press the ENTER button. The Lock Service Released window appears confirming the lock has been release, and then closes. Samsung Apps Samsung Apps lets you download for pay or free-of-charge applications and services to your Blu-ray Home Theatre and view or use them on your TV. These applications and services include videos, music, photos, games, news, sports, etc. Widgets for the new apps appear in My Applications. Additional applications and services are added regularly. For Pay Apps Delete To download for pay apps, you need to create a Samsung Account and add a credit card to the account. The Delete function lets you delete widgets from My Applications. To use the Delete function, follow these steps: To create a Samsung account, please visit www. samsung.com 1. Press the YELLOW (C) button on your remote. 2. Press the ▲▼◄► to select a widget, and then press the ENTER button. 3. Press the ▲▼◄► to select Delete, and then press the ENTER button. The message, "Do you want to delete the selected item(s)?" appears. 4. Select Yes, and then press the ENTER button. The widget is deleted. The Sort Menu - GREEN (B) The functions in the Sort Menu let you sort the widgets in My Applications by Name, Date, Frequency (of use), and Category. If you manually change the position of a widget, the Sort Menu automatically highlights User Defined when you start it. To sort the widgets in My Applications, follow these steps: 1. Press the GREEN (B) button on your remote. 2. Press the ◄► to select a sorting method, and then press the ENTER button. Smart Hub sorts the widgets by the method you have chosen. 68 English ✎ NOTE This service may not provided in some countries. Accessing the Samsung Apps Screen To access Samsung Apps, press the ▲▼◄► buttons to navigate to the Samsung Apps area on the Smart Hub main screen, and then press the ENTER button. The Samsung Apps screen appears. ✎ NOTE If this is the first time you are accessing this screen, the terms of service window appears. Select Agree, and then press the ENTER button. 05 Samsung Apps by category To use the Samsung Apps screen, follow these steps: The following categories are available: 1. Press the ◄► buttons to move to the category list on the left. 2. Press the ▲▼ to highlight a category. In a few seconds, the Samsung Apps screen displays the applications in that category. The Sort tabs appear across the top. 3. Press the ► button to move to the displayed applications or services. 4. Press the ▲▼◄► buttons to select an application or service, and then press the ENTER button. The Application Details screen appears describing the service or application. 5. ✎ Select Download Now, and then press the ENTER button. If the application or service is free, it downloads and runs. If not, and there is a fee, follow the directions on the screen to complete the download. NOTE Some apps are free to download, but require registration with the provider or a paid account with the provider to use. Widgets for applications and services you have downloaded from Samsung Apps appear in My Applications. • What’s New? : Displays newly registered applications. • Video : Displays various video media such as movies, TV shows, and short length videos. • Game : Displays various games such as sudoku and chess. • Sports : Displays various sports media services such as match information, images, and short length videos. • Lifestyle : Includes various lifestyle media services such as music, personal photo management tools, and social networking such as Facebook and Twitter. • Information : Includes various information services such as news, stocks, and weather. • Other : Includes other miscellaneous services. My Account My Account gives you access to your Samsung Apps order and download history, and to the My Apps Cash screen. You must have a Samsung account to access this information. Help If you have questions about Samsung Apps, check Help first. If none of the tips apply, please visit www.samsung.com. Sort By Tabs To use the Help function, follow these steps: You can access the Sort By tabs on the top of the screen using the ▲▼◄► buttons. Each tab displays the services or applications in the category you chose, sorted by the criteria on the tab (Recommended, Most Downloaded, Most Recent, Name). 1. Press the ▲▼◄► buttons to select Help, and then press the ENTER button. 2. Press the ◄► to enter Help after it appears. 3. Press the ▲▼ to scroll the Help text. 4. Press the ◄ to exit Help. You can also use the BLUE (D) button on your remote to access the Sort By tabs. Each time you press the BLUE (D) button, you change the display from one sort tab to the next. English 69 Network Services Using the Samsung Apps Screen Network Services Using the colored buttons on your remote with Samsung Apps • RED (A) (Login) : To log into your Smart TV Account. • GREEN (B) (Thumbnail/List View) : To toggle applications between Thumbnail and List view. • BLUE (D) (Sort By) : To sort the applications in a category by Recommended, Most Downloaded, Most Recent, or Name. • Return : To return to the previous menu. ✎ NOTE The Internet contents services may be added or deleted by providers without notice. For instructions to use Your Video or Search Function, please visit www.samsung.com BD-LIVE™ Once the product is connected to the network, you can enjoy various movie-related service contents using a BD-LIVE compliant disc. 1. Attach a USB memory stick to the USB jack on the front of the product, and then check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services. 2. Insert a Blu-ray disc that supports BD-LIVE. 3. Select an item from various BD-LIVE service contents provided by the disc manufacturer. ✎ NOTE The way you use BD-LIVE and the provided contents may differ, depending on the disc manufacturer. 70 English Using the AllShare Function AllShare lets you play music, video, and photo files located in your PC or your DLNA compatible mobile phone or NAS on the product. To use AllShare with your product, you must connect the product to your network (See pages 26~27). To use AllShare with your PC, you must install AllShare software on your PC. If you have a DLNA compatible mobile phone or NAS, you can use AllShare without any additional software. You can download the PC software and get detailed instructions for using AllShare from the Samsung. com web site. 06 Other information Other information Troubleshooting Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics. Symptom Check/Remedy I cannot eject the disc. • Is the power cord plugged securely into the outlet? • Turn off the power and then turn it back on. The iPod fails to connect. • Check the condition of the iPod connector and Dock. • Change S/W to software. Playback does not start. • Check the region number of the BD/DVD. BD/DVD discs purchased from abroad may not be playable. • CD-ROMs and DVD-ROMs cannot be played on this Product. • Make sure that the rating level is correct. Playback does not start immediately when the Play/Pause button is pressed. • Are you using a deformed disc or a disc with scratches on the surface? • Wipe the disc clean. Sound is not produced. • T he home theatre does not play sound during fast playback, slow playback,and step motion playback. • A re the speakers connected properly? Is the speaker setup correctly customized? • Is the disc severely damaged? Sound can be heard only from a few speakers and not all 8. • On certain BD/DVD discs, sound is output from the front speakers only. • Check if the speakers are connected properly. • Adjust the volume. • When listening to a CD, radio or TV, sound is output to the front speakers only. Select "PRO LOGIC II" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers. Dolby Digital 7.1 CH Surround Sound is not produced. • Is there "Dolby Digital 7.1 CH" mark on the disc? Dolby Digital 7.1 CH Surround Sound is produced only if the disc is recorded with 7.1 channel sound. • Is the audio language correctly set to Dolby Digital 7.1-CH in the information display? The remote control does not work. • Are you operating the remote within its operational range and within the proper angle relative to the sensor? • Are the batteries drained? • Have you selected the mode (TV/BD) functions of the remote control (TV or BD) correctly? • Disc is rotating but no picture is produced. • Picture quality is poor and picture is shaking. • Is the TV power on? • Are the video cables connected properly? • Is the disc dirty or damaged? • A poorly manufactured disc may not be playable. Audio language and subtitles do not work. • Audio language and subtitles will not work if the disc does not contain them. Menu screen does not appear even when the menu function is selected. • Are you using a disc that does not contain menus? English 71 Other information Symptom Check/Remedy Aspect ratio cannot be changed. • You can play 16:9 BD/DVDs in 16:9 Wide mode, 4:3 Letter Box mode, or 4:3 Pan - Scan mode, but 4:3 BD/DVDs can be seen in 4:3 ratio only. Refer to the Blu-ray Disc jacket and then select the appropriate function. • The product is not working. (Example: The power goes out or a strange noise is heard.) • Press and hold the romote control's STOP ( @ ) button for 5 seconds in STANDBY mode. • The Product is not working normally. You have forgotten the rating level password. - Using the RESET function will erase all stored settings. Do not use this unless necessary. • With no disc in the product, press and hold the product's STOP ( @ ) button for longer than 5 seconds. INIT appears on the display and all settings will return to the default values. And then press the POWER button. - Using the RESET function will erase all stored settings. Do not use this unless necessary. Can't receive radio broadcasts. • Is the antenna connected properly? • If the antenna's input signal is weak, install an external FM antenna in an area with good reception. While listening to TV audio through the Product, no sound is heard. • If the EJECT ( ) button is pressed while listening to TV audio using the D.IN or AUX functions, the BD/DVD functions are turned on and the TV audio is muted. "Not Available" appears on screen. • The features or action cannot be completed at this time because: 1. The BD/DVD’s software restricts it. 2. The BD/DVD’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment. 4. You’ve requested a title or chapter number or search time that is out of range. If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV. • Press and hold the STOP ( @ ) button on front panel for more than 5 seconds with no disc inserted. All settings will revert to the factory settings. No HDMI output. • Check the connection between the TV and the HDMI jack of the Product. • Check if your TV supports 480p/720p/1080i/1080p HDMI input resolution. Abnormal HDMI output screen. • If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection). 72 English 06 Other information Symptom Check/Remedy PC Share Manager function I can see folders shared through the PC Share Manager, but I cannot see the files. • Since it shows only files corresponding to the Image, Music, and Movie categories, files that do not correspond to these categories may not be displayed. AllShare function Video is played intermittently. • Check if the network is stable. • Check if the network cable is properly connected and if the network is not overloaded. • Wireless connection between the server and the product is unstable. Check the connection. AllShare connection between TV and PC is unstable. • IP address under the same subnetwork should be unique, otherwise IP collision can results in such a phenomenon. • Check if you have a firewall enabled. If so, disable the firewall function. BD-LIVE I cannot connect to the BD-LIVE server. • Check whether the network connection is successful or not by using Network Test menu. • Check whether the USB memory device is connected with product or not. • The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 42) • Please check whether the BD-LIVE Internet Connection menu is set to Allow(All). • If all above fails, contact the contents provider or update the latest firmware. When using the BD-LIVE service, an error occurs. • T he memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 42) ✎ NOTE When the factory default settings are restored, all the user data stored in the BD data will be deleted. English 73 Other information Specifications General FM Tuner Weight 3.5 kg Dimensions 429.3 (W) x 58.4 (H) x 325.1 (D) mm Operating Temperature Range +5°C to +35°C Operating Humidity Range 10 % to 75 % Signal/noise ratio 55 dB Usable sensitivity 12 dB Total harmonic distortion 0.5 % BD (Blu-ray Disc) Reading Speed : 9.834 m/sec DVD (Digital Versatile Disc) Disc CD : 12cm (COMPACT DISC) CD : 8cm (COMPACT DISC) Composite Video Reading Speed : 6.98 ~ 7.68 m/sec. Approx. Play Time (Single Sided, Single Layer Disc) : 135 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 74 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 20 min. 1 channel : 1.0 Vp-p (75 Ω load) Blu-ray Disc : 480i DVD : 480i Y : 1.0 Vp-p (75 Ω load) Video Output Component Video Pr : 0.70 Vp-p (75 Ω load) Pb : 0.70 Vp-p (75 Ω load) BD : 480i DVD : 480p, 480i Video/Audio Amplifier HDMI English PCM multichannel audio, Bitstream audio, PCM audio Front speaker output 165W x 2(3Ω) Front Top speaker output 165W x 2(3Ω) Center speaker output 170W(3Ω) Surround speaker output 165W x 2(3Ω) Subwoofer speaker output 170W(3Ω) Frequency response 74 1080p, 1080i, 720p, 480p Analog input 20Hz~20kHz (±3dB) Digital input 20Hz~40kHz (±-4dB) S/N Ratio 70dB Channel separation 60dB Input sensitivity (AUX)500mV 06 Speaker 7.1ch speaker system Front Front Top Surround Center Impedance 3Ω 3Ω 3Ω 3Ω Subwoofer 3Ω Frequency range 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 40Hz ~ 160Hz Output sound pressure 86dB/W/M level 86dB/W/M 86dB/W/M 86dB/W/M 88dB/W/M Rated input 165W 165W 165W 170W 170W Maximum input 330W 330W 330W 340W 340W Dimensions (W x H x D) Front/Front Top : 90 x 1320 x 119 mm (Stand base : 250 x 250) Surround : 90 x 1300 x 119 mm (stand base : 250 x 250) Center : 360 x 74.5 x 68.5 mm Subwoofer : 200 x 390 x 350 mm Weights Front/Front Top : 4.96 Kg, Surround : 3.80 Kg Center : 0.98 Kg, Subwoofer : 5.70 Kg *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - Design and specifications are subject to change without prior notice. - For the power supply and Power Consumption, refer to the label attached to the product. SWA-5000 Weight Dimensions (W x H x D) Operating Temperature Range Operating Humidity Range Output 1.14 Kg Frequency range 76.2 x 228.6 x 152.4 mm +5°C to +35°C 10% ~ 75% 165W x 2 CH 20Hz~20KHz S/N Ratio 65dB English 75 Other information Speaker system Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Center. Area ` North America Contact Center Web Site Canada Mexico U.S.A 1-800-SAMSUNG (726-7864) 01-800-SAMSUNG (726-7864) 1-800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com Argentine Brazil Chile Colombia Costa Rica Dominica Ecuador El Salvador Guatemala Honduras Jamaica Nicaragua Panama Peru Puerto Rico Trinidad & Tobago Venezuela 0800-333-3733 0800-124-421 / 4004-0000 800-SAMSUNG (726-7864) 01-8000112112 0-800-507-7267 1-800-751-2676 1-800-10-7267 800-6225 1-800-299-0013 800-7919267 1-800-234-7267 00-1800-5077267 800-7267 0-800-777-08 1-800-682-3180 www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com 1-800-SAMSUNG (726-7864) www.samsung.com 0-800-100-5303 www.samsung.com Albania 42 27 5755 0810 - SAMSUNG (7267864, € 0.07/min) - ` Latin America ` Europe Austria Belgium 02-201-24-18 Bosnia Bulgaria Croatia 05 133 1999 07001 33 11 062 SAMSUNG (062 726 7864) 800-SAMSUNG (800-726786) Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8 70 70 19 70 030 - 6227 515 01 48 63 00 00 01805 - SAMSUNG (726-7864 € 0,14/Min) 06-80-SAMSUNG (726-7864) 800-SAMSUNG (726-7864) +381 0113216899 261 03 710 023 207 777 020 405 888 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) 815-56 480 0 801 1SAMSUNG (172678) / 022-607-93-33 80820-SAMSUNG (726-7864) 1. 0 8010 SAMSUNG (72678) doar din reţeaua Romtelecom, tarif local 2. 021.206.01.10 - din orice reţea, tarif normal Czech Denmark Finland France Germany Hungary Italia Kosovo Luxemburg Macedonia Montenegro Netherlands Norway Poland Portugal Rumania www.samsung.com www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French) www.samsung.com www.samsung.com Area Serbia Slovakia Spain Sweden Contact Center 0700 Samsung (0700 726 7864) 0800-SAMSUNG (726-7864) 902-1-SAMSUNG (902 172 678) 0771 726 7864 (SAMSUNG) Switzerland 0848-SAMSUNG (7267864, CHF 0.08/min) U.k Eire Lithuania Latvia Estonia 0330 SAMSUNG (7267864) 0818 717100 8-800-77777 8000-7267 800-7267 Russia Georgia Armenia Azerbaijan Uzbekistan Kyrgyzstan Tadjikistan 8-800-555-55-55 8-800-555-555 0-800-05-555 088-55-55-555 8-10-800-500-55-500 (GSM: 7799) 8-10-800-500-55-500 00-800-500-55-500 8-10-800-500-55-500 Ukraine 0-800-502-000 Belarus Moldova 810-800-500-55-500 00-800-500-55-500 Australia New Zealand China 1300 362 603 0800 SAMSUNG (0800 726 786) 400-810-5858 / 010-6475 1880 Hong Kong (852) 3698 4698 ` CIS Kazakhstan ` Asia Pacific Web Site www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com/ch www.samsung.com/ ch_fr/(French) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.ua www.samsung.com/ ua_ru www.samsung.com www.samsung.com www.samsung.com www.samsung.com/hk www.samsung.com/ hk_en/ www.samsung.com Philippines www.samsung.com www.samsung.com www.samsung.com - Singapore Thailand Taiwan Vietnam 3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282 0800-112-8888 / 021-5699-7777 0120-327-527 1800-88-9999 1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777 1800-SAMSUNG (726-7864) 1800-29-3232 / 02-689-3232 0800-329-999 1 800 588 889 Bahrain Egypt Jordan Morocco Oman Saudi Arabia Turkey U.A.E 8000-4726 08000-726786 800-22273 080 100 2255 800-SAMSUNG (726-7864) 9200-21230 444 77 11 800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Nigeria South Africa 0800-SAMSUNG (726-7864) 0860-SAMSUNG (726-7864 ) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com India Indonesia Japan Malaysia ` Middle East ` Africa www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com HT-D6750WK Sistema de Entretenimento em Casa Blu-ray™ de 7,1 Canais manual do utilizador imagine as possibilidades Obrigado por ter adquirido este produto Samsung. Para receber assistência completa, registe o produto em www.samsung.com/register Informações de segurança Avisos de segurança PARA REDUZIR O RISCO DE CHOQUE ELÉCTRICO, NÃO RETIRE A TAMPA (OU PARTE POSTERIOR). NO INTERIOR NÃO EXISTEM PEÇAS PASSÍVEIS DE REPARAÇÃO PELO UTILIZADOR. QUALQUER REPARAÇÃO DEVE SER EFECTUADA POR PESSOAL TÉCNICO QUALIFICADO. CUIDADO RISCO DE CHOQUE ELÉCTRICO NÃO ABRIR Este símbolo indica “tensão perigosa” no interior do produto, representando um risco de choque eléctrico ou lesões pessoais. CUIDADO : PARA EVITAR CHOQUES ELÉCTRICOS, INSIRA A LÂMINA LARGA DA FICHA TOTALMENTE NA TOMADA. AVISO • Para reduzir o risco de fogo ou choque eléctrico, não exponha este equipamento à chuva ou humidade. CLASS 1 KLASSE 1 LUOKAN 1 KLASS 1 PRODUCTO Este símbolo indica a presença de instruções importantes juntamente com o produto. LASER PRODUCT LASER PRODUKT LASER LAITE LASER APPARAT LÁSER CLASE 1 CUIDADO Este leitor de CD está classificado como um produto LASER CLASSE 1. • O aparelho não deve ser exposto a gotas ou a salpicos; não devem ser colocados objectos com líquidos como, por exemplo, vasos, em cima do aparelho. • A ficha de alimentação é utilizada como forma de ligar e desligar o dispositivo e, por este motivo, o acesso à mesma deve estar completamente desimpedido. • Este equipamento deve sempre ser ligado a uma tomada de CA com ligação à terra. • Para desligar o aparelho da corrente eléctrica, é preciso retirar a ficha da tomada; como tal, o acesso à ficha tem que estar completamente desimpedido. A utilização dos controlos e ajustes ou a realização de procedimentos de forma diferente à especificada no presente manual, poderá resultar na exposição a radiação perigosa. Português CUIDADO • PRESENÇA DE RADIAÇÃO INVISÍVEL AO ABRIR O EQUIPAMENTO E CONTORNAR O DISCO DE BLOQUEIO; EVITE EXPOSIÇÃO AO RAIO. Precauções • Certifique-se de que a fonte de alimentação de CA em sua casa está em conformidade com o indicado no autocolante de identificação, situado na parte de trás do produto. • Instale o produto na horizontal, sobre uma base adequada (móvel), com espaço suficiente à volta para permitir a ventilação (7,5~10 cm). • Não coloque o produto sobre amplificadores ou sobre outro tipo de equipamento que possa aquecer. Certifique-se de que os orifícios de ventilação não estão tapados. • Não empilhe nada sobre o produto. • Antes de deslocar o produto, assegure-se de que o compartimento de inserção do disco se encontra vazio. • Para desligar o produto completamente da fonte de alimentação, retire a ficha da tomada. - Se o produto não for utilizado durante um período prolongado, desligue a ficha da tomada. • Durante trovoadas, desligue a ficha de corrente de CA da rede eléctrica. Os picos de tensão durante uma trovoada podem danificar o produto. • Não exponha o produto à luz solar directa nem a outras fontes de calor. Se o fizer, o produto poderá sobreaquecer e ficar danificado. • Proteja o produto da humidade e excesso de calor ou de outro equipamento que produza fortes campos magnéticos ou eléctricos (por exemplo, colunas de som). • Desligue o cabo de alimentação da tomada de CA em caso de avaria. • O produto não se destina a utilização industrial. Utilize este produto apenas para fins pessoais. • Pode ocorrer condensação se o produto ou o disco tiverem sido armazenados em temperaturas baixas. Se transportar o produto no Inverno, aguarde aproximadamente 2 horas para que o produto fique à temperatura ambiente, antes de utilizar. • As pilhas utilizadas neste produto contêm químicos nocivos para o ambiente. Não deite as pilhas no lixo doméstico. Ver TV utilizando a função 3D INFORMAÇÕES DE SAÚDE E SEGURANÇA IMPORTANTES RELATIVAS À VISUALIZAÇÃO DE IMAGENS EM 3D. Leia atentamente as seguintes informações de segurança antes de utilizar a função de 3D do televisor. AVISO • Alguns espectadores poderão sentir desconforto durante a visualização de imagens 3D, como tonturas, náuseas e dores de cabeça. Se apresentar algum destes sintomas, interrompa a visualização de imagens 3D, retire os óculos de 3D e repouse. • A visualização de imagens 3D durante um período prolongado pode causar fadiga ocular. Se sentir fadiga ocular, interrompa a visualização de imagens 3D, retire os óculos de 3D e repouse. • As crianças que utilizam a função 3D devem ser vigiadas por um adulto responsável. Em caso de queixas de vista cansada, dores de cabeça, tonturas ou náuseas, faça com que a criança interrompa a visualização e repouse. • Não utilize os óculos 3D activos para outros fins (por exemplo, como óculos normais, óculos de sol, óculos de protecção, etc.) • Não utilize a função 3D nem os óculos 3D activos enquanto se desloca. A utilização da função 3D ou dos óculos 3D activos enquanto se desloca pode provocar lesões corporais causadas pela colisão com objectos e quedas. Português Informações de segurança Cuidados a ter no Manuseamento e Armazenamento de Discos Pequenos riscos nos discos podem reduzir a qualidade do som e imagem ou causar saltos durante a reprodução. Tenha especial cuidado para não riscar os discos durante o seu manuseamento. Pegar nos discos • Não toque na superfície do lado de reprodução do disco. • Segure no disco pelas extremidades, de modo a que as impressões digitais não toquem na superfície. • Não cole papel ou fita adesiva no disco. Armazenamento dos discos • Não guarde os discos em locais com exposição directa à luz solar • Guarde os discos numa área com boa ventilação • Mantenha os discos numa capa de protecção limpa. Armazene-os verticalmente. ✎ NOTA Tenha cuidado para não permitir a presença de resíduos ou pó nos discos. Não coloque no leitor discos rachados ou riscados. Manusear e Armazenar Discos Se o disco tiver marcas de impressões digitais ou detritos, limpe-o com uma solução detergente suave diluída em água e seque-o com um pano macio. • Ao limpar, limpe com cuidado em movimentos do interior para o exterior do disco ✎ NOTA Poderá formar-se condensação se o ar quente do exterior entrar em contacto com as partes frias no interior do produto. Sempre que se forma condensação no interior do produto, este poderá não funcionar correctamente. Se ocorrer a formação de condensação, remova o disco e deixe o produto ligado durante 1 ou 2 horas. Português Licença • Dolby e o símbolo double-D são marcas comerciais registadas da Dolby Laboratories. • ACERCA DE DIVX VIDEO: DivX® é um formato de vídeo digital criado pela DivX,Inc. Este é um dispositivo com Certificação DivX oficial que reproduz vídeo DivX. Visite www.divx.com para obter mais informações e ferramentas de software para converter os seus ficheiros em vídeo DivX. ACERCA DE DIVX VIDEO-ONDEMAND: Este dispositivo DivX Certified® tem de ser registado para que possa reproduzir conteúdos DivX Video-on-Demand (VOD). Para gerar o código de registo, localize a secção DivX VOD no menu de configuração do dispositivo. Aceda ao sítio da Web vod.divx.com para obter mais informações sobre como concluir o registo. DivX certificado para reproduzir vídeo DivX até HD 1080p, incluindo conteúdos especiais. DivX®, DivX Certified® e os logótipos associados são marcas comerciais da DivX, Inc. e são utilizados sob licença. • The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. • Oracle e Java são marcas comerciais registadas da Oracle e/ou respectivas empresas afiliadas. Outros nomes podem ser marcas comerciais dos respectivos proprietários. • Este item incorpora a tecnologia de proteção contra cópia que é protegida pelas patentes dos EUA e outros direitos de propriedade intelectual da Rovi Corporation. A engenharia reversa e desmontagem são proibidas. • Blu-ray Disc™, Blu-ray™ e os logótipos são marcas comerciais da Blu-ray Disc Association. • iPod é uma marca comercial da Apple Inc., registada nos E.U.A e/ou noutros países. iPhone é uma marca comercial da Apple Inc. • < Aviso de Licença de Open Source > • No caso da utilização de software “open source”, as respectivas Licenças Open Source estão disponíveis no menu do produto. Copyright © 2011 Samsung Electronics Co., Ltd. Todos os direitos reservados. Índice Informa ções de segurança 2 Introdução 2 3 4 4 4 8 9 13 14 14 15 16 Principais funções do novo Sistema de Cinema em Casa Blu-ray Ícones utilizados no manual Tipos de disco e Características Acessórios Descrição Painel Anterior Painel Posterior Controlo remoto Ligações 18 22 23 25 26 Ligar as colunas Ligar Dispositivos externos/televisor através de HDMI Ligar a antena FM Ligar áudio a partir de componentes externos Ligar à rede Configurar 28 29 30 30 31 31 31 31 33 33 33 33 33 34 34 35 35 35 36 36 36 37 38 38 38 41 41 42 42 42 42 42 42 42 43 Definições Iniciais Aceder ao menu Definições visualização Definições de 3D formato da imagem Smart Hub Screen Size (Tamanho do Ecrã Smart Hub) BD Wise (apenas em Produtos Samsung) Resolução Formato de cor HDMI Movie Frame (Filme) (24Fs) HDMI Deep Color Modo de pausa Modo progressivo Áudio Configuração do alto-falante Calibragem da Sala Musical Pontuação de Karaoke EQ Pess. Áudio HDMI Canal de Retorno de Áudio Saída Digital Compressão de Gama Dinâmica Audio Sync (Sinc. Áudio) Rede Definições de Rede Estado da Rede Ligação à Internet BD-LIVE Sistema Definições Iniciais Anynet+ (HDMI-CEC) Gestão de Dados BD Time Zone (Fuso Horário) DivX® Video On Demand Reset (Repor) Idioma 7 18 28 7 Avisos de segurança Precauções Cuidados a ter no Manuseamento e Armazenamento de Discos Licença Copyright Português Índice Configurar 43 43 43 43 43 43 43 44 44 44 46 segurança BD Parental Rating (Classificação Parental DVD) DVD Parental Rating (Classificação Parental DVD) Alterar palavra-passe geral Visor anterior Light Effect (Efeito de luz) Network Remote Control (Controlo Remoto da Rede) suporte Actualização de Software Contactar a Samsung Funções básicas 47 47 48 49 60 60 Reproduzir um disco Utilizar os menus Disco/Título/Contexto Utilizar as funções Procurar e Avançar reprodução em câmara lenta / reprodução por fotogramas reprodução kepetitiva utilizar o botão tooLs (ferrAMentAs) ouvir Música Modo de som reproduzir uma Imagem reproduzir um Dispositivo de Armazenamento usB Ouvir rádio Ligar um iPod/iPhone Utilizando o Cabo USB Ligar um iPod/iPhone utilizando a Base Utilize o iPod/iPhone com uma base sem fios (vendido em separado) para iPod/iPhone Modelos do iPod/iPhone Que Pode Utilizar com Este Produto Como Ligar o Transmissor Sem Fios à Unidade Principal Conectando o microfone Serviços da Rede 61 68 70 70 Utilizar o Smart Hub Samsung Apps BD-LIVE™ utilizar a função Allshare Outras Informações 71 74 Resolução de problemas Características técnicas 43 47 49 50 52 54 55 56 57 57 57 58 59 61 71 • As imagens e ilustrações incluídas neste Manual do Utilizador são fornecidas apenas como referência e podem não corresponder exactamente ao produto real. Português 01 Introdução Introdução Principais funções do novo Sistema de Cinema em Casa Blu-ray Características do produto 3D Este produto pode reproduzir conteúdos 3D através de um cabo HDMI. Para implementar o efeito 3D, ligue um dispositivo 3D (receptor de AV compatível com 3D, televisor compatível com 3D) ao produto com um cabo HDMI e reproduza os conteúdos em 3D, utilizando óculos específicos para 3D. Módulo receptor sem fios O módulo receptor sem fios de canal posterior da Samsung suprime a necessidade de cabos entre o produto e as colunas posteriores. Em vez disso, as colunas posteriores ligam a um módulo receptor compacto sem fios que comunica com o produto. Smart Hub Pode transferir vários serviços e aplicações cobrados ou gratuitos através de uma ligação de rede. Estas aplicações fornecem vários serviços de Internet e conteúdos incluindo notícias, previsões meteorológicas, cotações da bolsa, filmes e música. AllShare Pode reproduzir vídeos, música e fotografias guardados nos seus dispositivos (como um PC, telemóvel ou armazenamento ligado à rede) através do sistema de cinema em casa utilizando uma ligação de rede. Função de Sincronização de Áudio Pode existir um atraso do vídeo em relação ao áudio se o produto estiver ligado a um televisor digital. Para compensar este atraso, pode ajustar o tempo de atraso do áudio de forma a ficar sincronizado com o vídeo. Função de sincronização com iPod Se existir atraso entre o sinal de vídeo de um leitor iPod ligado ao produto e o sinal de áudio, pode definir o tempo de atraso de áudio para que a reprodução de vídeo e áudio coincidam. Suporte de iPod & iPhone Se ligou um leitor iPod ao sistema de cinema em casa utilizando o cabo USB específico do iPod/iPhone, pode reproduzir os ficheiros de música no iPod/iPhone através das colunas ligadas. Também pode reproduzir ficheiros de vídeo utilizando a base específica para iPod e desfrutar da música do iPod utilizando o transmissor sem fios (vendido separadamente). BD Wise O BD Wise ajusta automaticamente os produtos Samsung compatíveis com BD Wise, seleccionando as definições ideais. Esta função só é activada se os produtos Samsung compatíveis com BD Wise estiverem ligados entre si por um cabo HDMI. Som 3D Pode desfrutar de som surround mais natural e intenso com tonalidades mais ricas ajustando a profundidade de som utilizando as opções de nível. Canal de Retorno de Áudio (ARC, Audio Return Channel) Pode usufruir do som do televisor pelas colunas do Sistema de cinema em casa, utilizando apenas um cabo HDMI. Português Introdução Ícones utilizados no manual Certifique-se de que compreende os termos seguintes antes de ler o resto do manual de utilizador. Termo Logótipo Ícone h � Z BD-ROM BD-RE/-R DVD-VIDEO Definição Indica uma função disponível num disco BD-ROM. Indica uma função disponível num disco BD-RE/-R gravado no formato BD-RE. Indica uma função disponível num disco DVD-VIDEO. DVD-RW(V) DVD-R � DVD+RW Indica uma função disponível num disco DVD+RW ou DVD-RW(V)/DVDR/ +R que tenha sido gravado e finalizado. DVD+R MP3 WMA - JPEG - o � G DivX MKV MP4 DivX � Indica uma função disponível num disco CD-RW/-R, DVD-RW/-R ou num dispositivo de armazenamento de USB com conteúdos em DivX. F IIndica uma função disponível num dispositivo de armazenamento USB. CD de áudio Dispositivo de armazenamento USB - CUIDADO - NOTA - Tecla de atalho - ! ✎ Indica uma função disponível num CD-RW/-R de áudio (formato CD-DA). Indica uma função disponível num disco CD-RW/-R, DVD-RW/-R ou num dispositivo de armazenamento de USB com conteúdos de MP3 ou WMA. Indica uma função disponível num disco CD-RW/-R, DVD-RW/-R ou num dispositivo de armazenamento de USB com conteúdos em JPEG. Indica uma situação em que a função não pode ser utilizada ou em que as definições foram canceladas. Indica sugestões ou instruções na página que ajudam na utilização de cada função. Indica que esta função permite o acesso directo e mais fácil a uma opção, bastando premir o botão adequado no controlo remoto. • Este produto é compatível apenas com o sistema de cores PAL. • Os discos NTSC não são reproduzidos. Português 01 Introdução Tipos de disco e Características Logótipos de discos que podem ser reproduzidos Compatibilidade com Blu-ray Disc Os discos Blu-ray são um formato novo e em desenvolvimento. Por isso, podem surgir problemas de compatibilidade. Nem todos os discos são compatíveis e nem todos serão reproduzidos. Para obter mais informações, consulte a secção Tipo de disco e Características deste Manual. Blu-ray Disc Blu-ray Disc 3D Dolby Digital Plus Dolby TrueHD DTS-HD High Resolution Audio Java DTS-HD Master Audio | Essential BD-LIVE ✎ NOTA A reprodução pode não funcionar com alguns tipos de disco ou quando são executadas operações específicas, tais como a alteração do ângulo e do formato. As caixas dos discos incluem informações detalhadas sobre os mesmos. Se necessário, consulte estas informações. Evite que o disco fique sujo ou riscado. Marcas de impressões digitais, poeiras, sujidade, riscos ou cinza de cigarro na superfície de gravação podem impedir a reprodução do disco. Ao reproduzir um título de BD-Java, o carregamento pode ser mais demorado do que o normal ou algumas funções poderão ficar mais lentas. Discos que não podem ser reproduzidos Disco HD DVD DVD-RAM Disco DVD-R de 3.9 GB para edição. DVD-RW (modo VR) Super Audio CD (excepto camada de CD) Disco DVD-ROM/PD/MV, etc. CVD/CD-ROM/ CDV/CD-G/CD-I/LD • Reprodução apenas de áudio de CDGs e não de gráficos. • • • • • • ✎ NOTA Pode não ser possível reproduzir neste produto alguns discos comerciais e DVDs adquiridos fora da sua região. Se um disco DVD-R/-RW não tiver sido gravado adequadamente em formato de vídeo DVD, não será possível reproduzi-lo neste produto. Português Introdução Código de região BD-RE/-R O produto e os discos estão codificados por região. Para que os discos possam ser reproduzidos, estes códigos de região têm de coincidir. Se os códigos não coincidirem, o disco não é reproduzido. O Código de Região deste produto é descrito no painel anterior do produto. Os discos Blu-ray RE/-R podem ser gravados e reproduzidos. Este produto pode reproduzir um disco BD-RE/-R gravado com outro gravador de Blu-ray Disc compatível. Código Tipo de disco de região Blu-ray DVD-VIDEO Área a América do Norte, América Central, América do Sul, Coreia, Japão, Taiwan, Hong Kong e Sudoeste Asiático. b Europa, Gronelândia, Territórios Franceses, Médio Oriente, África, Austrália e Nova Zelândia. c Índia, China, Rússia, Ásia Central e do Sul. 1 Os E.U.A., territórios pertencentes ao E.U.A. e Canadá 2 Europa, Japão, Médio Oriente, Egipto, África do Sul, Gronelândia 3 Taiwan, Coreia, Filipinas, Indonésia, Hong Kong 4 México, América do Sul, América Central, Austrália, Nova Zelândia, Ilhas do Pacífico, Caraíbas 5 Rússia, Europa Oriental, Índia, a maior parte de África, Coreia do Norte, Mongólia 6 China BD-ROM Se um disco DVD-R/-RW não tiver sido gravado adequadamente em formato de vídeo DVD, não será possível reproduzi-lo neste produto. Português • Este produto reproduz discos DVD comerciais pré-gravados (discos DVD-VIDEO) com filmes. • Ao passar da primeira camada para a segunda camada de um disco DVD de vídeo de dupla camada, pode ocorrer uma distorção temporária do som e da imagem. Não se trata de um erro de funcionamento do produto. DVD-RW/-R/+R Este produto reproduz discos DVD-RW/-R/+R gravados e finalizados por um videogravador de DVD. A capacidade de reprodução pode depender das condições de gravação. DVD+RW Tipos de Disco 10 DVD-VIDEO • Este produto pode reproduzir discos DVD+RW gravados com um videogravador de DVD. A capacidade de reprodução pode depender das condições de gravação. CD de Áudio (CD-DA) • Este produto reproduz discos CD-RW/-R com o formato de áudio CD-DA. • Este produto pode não reproduzir alguns discos CDRW/-R devido ao estado da gravação. CD-RW/-R • Utilize discos CD-RW/-R de 700 MB (80 minutos). Não utilize discos de 800 MB (90 minutos) ou de capacidade superior, uma vez que estes podem não ser reproduzidos. • Se a sessão de gravação do disco CD-R/-RW não tiver sido encerrada, poderão ocorrer atrasos na reprodução do início do disco ou todos os ficheiros gravados poderão não ser reproduzidos. • Alguns discos CD-R/-RW podem não ser reproduzidos neste produto, consoante o dispositivo utilizado na gravação dos discos. Com conteúdos gravados em suportes CD-R/RW em CDs de utilização pessoal, a capacidade de reprodução varia conforme os conteúdos e os discos. 01 Introdução Formato de Disco Utilizar discos JPEG • O sistema de cinema em casa pode reproduzir discos D-R/-RW, DVD-RW/-R gravados no formato UDF ou JOLIET. • Só podem ser reproduzidos ficheiros JPEG com a extensão ".jpg", ".JPG", ".jpeg" ou "JPEG". • O formato JPEG progressivo é suportado. DVD-RW/-R (V) • Este formato é utilizado para gravar dados em discos DVD-RW ou DVD-R. Este produto pode reproduzir discos DVD-RW ou DVD-R caso tenham sido finalizados. • Se um disco tiver sido gravado no modo de vídeo por um gravador de outro fabricante, mas não tiver sido finalizado, este produto não poderá reproduzi-lo. Formatos de Ficheiros Suportados Suporte de Ficheiros de Vìdeo Extensão de ficheiro *.avi Contentor AVI Codec de Vídeo Codec de Aúdio Resolução DivX 3.11/4.x/5.1/6.0 MP3 AC3 LPCM ADPCM DTS Core 1920x1080 MP3 AC3 LPCM ADPCM DTS Core 1920x1080 1920x1080 Motion JPEG MP3 AC3 LPCM ADPCM WMA Window Media Video v9 WMA 1920x1080 H.264 BP/MP/HP MP3 ADPCM AAC 1920x1080 ADPCM AAC HE-AAC 1920x1080 H.264 BP/MP/HP MPEG4 SP/ASP Motion JPEG DivX 3.11/4.x/5.1/6.0 *.mkv MKV H.264 BP/MP/HP MPEG4 SP/ASP Motion JPEG DivX 3.11/4.x/5.1/6.0 *.asf *.wmv ASF ASF *.mp4 MP4 *.3gp 3GPP H.264 BP/MP/HP MPEG4 SP/ASP MPEG4 SP/ASP H.264 BP/MP/HP MPEG4 SP/ASP 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080 Português 11 Introdução Extensão de ficheiro Contentor Codec de Vídeo Codec de Aúdio Resolução *.vro VRO VOB MPEG2 AC3 MPEG LPCM 1920x1080 MPEG1 AC3 MPEG LPCM AAC MPEG1 *.mpg *.mpeg MPEG2 PS H.264 H.264 TS 352x288 1920x1080 1920x1080 AC3 AAC MP3 DD+ HE-AAC MPEG2 *.ts *.tp *.trp 352x288 VC1 1920x1080 1920x1080 1920x1080 Restrições • A lguns dos Codecs indicados na lista acima não são suportados, caso exista algum problema com os conteúdos. • Origens de vídeo danificadas ou origens com informações de conteúdo incorrectas não serão reproduzidos correctamente. • Uma origem de AV com uma taxa de fotogramas ou uma taxa de transmissão acima do normal poderá não ser reproduzida correctamente. • Se a tabela do índice estiver danificada, a função Seek (Jump) (Procurar (saltar)) não é suportada. • Se reproduzir um vídeo através da rede, este poderá não ser reproduzido correctamente, dependendo do estado da rede. Descodificador de vídeo • Suporta até H.264 Nível 4.1. • Não suporta H.264 FMO/ASO/RS, VC1 SP/MP/AP L4, AVCHD. • MPEG4 SP, ASP: - Inferior a 1280 x 720: 60 fotogramas no máximo - Superior a 1280 x 720: 30 fotogramas no máximo • Não suporta GMC 2 ou superior. Descodificador de áudio • • • • Suporta até WMA 7,8,9. Não suporta WMA 9 PRO com mais de dois canais (multicanal). Não suporta WMA 9 sem perda, Voice. Não suporta velocidade de amostragem WMA de 22050Hz mono. Suporte de Ficheiros de Música Extensão de ficheiro *.mp3 *.wma 12 Português Contentor MP3 WMA Codec de Aúdio MP3 WMA Suporte - Compatível com WMA, versão 10 * Frequências de amostragem (em kHz) - 8, 11, 16, 22, 32, 44.1, 48 * Velocidade de transmissão - Todas as transmissões no intervalo de 5kbps a 384kbps 01 6) Ligue dispositivos USB directamente à porta USB do produto. A ligação através de um cabo USB pode causar problemas de compatibilidade. 7) Inserir mais de um dispositivo de memória num leitor de vários cartões pode provocar o incorrecto funcionamento do leitor. 8) O produto não suporta o protocolo PTP para câmaras digitais. 9) Não desligue um dispositivo USB durante o processo de “carregamento”. 10) Quanto maior for a resolução da imagem, mais demorada será a respectiva apresentação. 11) Este leitor não reproduz ficheiros MP3 com DRM (Digital Rights Management) transferidos de sítios comerciais. Dispositivos suportados: Dispositivo de armazenamento USB, leitor MP3, câmara digital, leitor de cartões USB 1) O produto não suporta pastas ou nomes de ficheiros com mais de 125 caracteres. 2) Um arquivo de legenda maior que 300 KB talvez não seja corretamente exibido. 3) Alguns dispositivos USB/câmara digital podem não ser compatíveis com o produto. 4) O produto suporta os sistemas de ficheiros FAT16 e FAT32. 5) Os ficheiros de fotografia (JPEG), música (MP3,) e vídeo devem incluir nomes de ficheiro em coreano ou inglês. Caso contrário, os ficheiros não serão reproduzidos. Acessórios Verifique na embalagem os acessórios fornecidos indicados abaixo. Cabo HDMI Cabo de vídeo Antena de FM Pano macio Microfone ASC Base de iPod FUNCTION TV SOURCE POWER RECEIVER SLEEP BD TV 1 2 4 3 5 7 6 8 9 FULL SCREEN REPEAT 0 MUTE VOL TUNING /CH SFE MODE DISC MENU MENU TITLE MENU POPUP TOOLS INFO RETURN EXIT iPod SYNC A NETFLIX 3D SOUND Manual do utilizador TUNER MEMORY MO/ST B C SMART SEARCH 'ĺ' DSP VERTICAL SURROUND D HUB Controlo remoto / Pilhas (tamanho AAA) CH AR GE Base sem fios para iPod/iPhone: HT-WDC10 (vendido em separado) CHA RGE CH ARG LIN E K STA NDB Y LI NK STAN DB Y CHARG E Transmissor sem fios Suporte para carregamento Cabo do transformador CC Transformador de CC LIN K STA LINK ND BY STANDB Y Português 13 Introdução Notas sobre conexão USB Introdução Descrição Painel Anterior 1 2 3 4 5 6 7 8 9 10 11 12 13 5V 500mA MIC ASC IN 1 BOTÃO POWER ( 2 BOTÃO FUNÇÃO Os modos mudam da seguinte forma: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM 3 4 5 6 ECRà Apresenta o estado da reprodução, o tempo decorrido, etc. BOTÃO STOP Pára a reprodução do disco. BOTÃO REPRODUZIR/PAUSA Reproduz um disco ou pausa uma reprodução. BOTÃO ENTRAR Selecciona itens do menu ou inicia um disco Blu-ray. (Não inicia um disco DVD.) 7 8 BOTÃO EJECTAR Ejecta um disco. TABULEIRO DE DISCOS Insira aqui o disco. 9 SENSOR DO CONTROLO REMOTO Detecta sinais do controlo remoto. 10 Conector de MICROFONE Conecta-se ao microfone. 11 FICHA DE ENTRADA ASC Utilizada para ligar o microfone ASC para configurar a função MAC (Musical Auto Calibration). 12 CONTROLO DE VOLUME Regulação do volume. PORTA USB Pode ligar uma memória USB e utilizá-la como armazenamento quando o produto está ligado ao BD-LIVE. Também pode utilizar o anfitrião USB para actualizações de software e reprodução de MP3/JPEG/DivX/MKV/MP4. Pode também utilizar a função R.IPOD quando um iPod estiver ligado. 13 ) Liga e desliga o produto. ✎ NOTA Tem de utilizar uma memória USB para actualizar o software utilizando a ficha de anfitrião USB. Quando o produto apresenta o menu do Blu-ray Disc, não é possível iniciar o filme, premindo o botão PLAY (REPRODUZIR) no produto ou no controlo remoto. Para reproduzir o filme, deverá seleccionar Play Movie (Reproduzir Filme) ou Start (Iniciar) no menu do disco e, em seguida, prima o botão ENTRAR. 14 Português 01 Introdução Painel Posterior 1 2 3 4 5 LAN iPod DIGITAL AUDIO IN HDMI OUT HDMI IN 6 7 8 9 10 COMPONENT OUT FM ANT 11 CENTER 12 SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP OPTICAL WIRELESS AUX IN VIDEO OUT SPEAKER IMPEDANCE : 3 1 TERMINAL DE REDE LOCAL Pode ser utilizada para serviços baseados em rede (consulte as páginas 61~68), BD-LIVE e actualização de software com a ligação de rede. 2 FICHA iPod Ligue o conector da base para iPod aqui. 3 FICHA DE ENTRADA DE ÁUDIO DIGITAL EXTERNA (ÓPTICA) Ligue à ficha de saída Óptica Digital de um dispositivo externo utilizando um cabo Óptico Digital. 4 FICHA DE SAÍDA HDMI Utilize um cabo HDMI e ligue este terminal de saída HDMI ao terminal de entrada HDMI no seu televisor para obter a melhor qualidade de imagem. 5 FICHAS DE ENTRADA HDMI Recebe sinais de áudio e de vídeo digital em simultâneo utilizando um cabo HDMI. 6 TOMADA DE ANTENA FM Ligue a antena FM. 7 LIGAÇÃO CARTÃO TX (SEM FIOS) O cartão TX permite a comunicação entre o produto e o módulo receptor sem fios opcional. 8 FICHAS DE ENTRADA AUXILIAR Ligue à saída analógica de 2 canais de um dispositivo externo (como um videogravdor) 9 FICHAS DE SAÍDA DE VÍDEO COMPONENTE Ligue um televisor com entradas de vídeo componentes a estas fichas. 10 FICHA DE SAÍDA DE VÍDEO Permite ligar a ficha de entrada do vídeo do televisor (VIDEO IN) à ficha de saída de vídeo (VIDEO OUT) deste produto. 11 CONECTORES DE SAÍDA DE ALTOFALANTE Ligue as colunas frontais, frontal superior, centrais e o subwoofer. 12 VENTILADOR O ventilador fornece ar fresco ao produto para que este não sobreaqueça e está permanentemente em funcionamento quando o produto está ligado. ! CUIDADO Mantenha uma distância mínima de 10 cm em redor do sistema de cinema em casa para garantir uma ventilação adequada. Não obstrua o ventilador nem os orifícios de ventilação. Português 15 Introdução Controlo remoto Apresentação do Controlo Remoto Liga e desliga o produto. Para mudar para o modo TV, prima o botão TV. Para mudar para o modo Home Theater, prima o botão BD. Prima os botões numéricos para seleccionar as opções. FUNCTION TV SOURCE POWER RECEIVER SLEEP BD ECHO TV 1 2 3 4 5 6 7 8 FULL SCREEN 3 4 5 6 9 7 8 REPEAT FULL SCREEN MUTE MIC VOL+ SFE MODE TUNING /CH Regule o volume. VOL Prima para avançar para o menu inicial. DISC MENU MIC VOLTITLE MENU MENU POPUP TOOLS INFO RETURN EXIT Seleccione os itens do menu no ecrã e altere o valor do menu. Prima para aplicar o Efeito de som 3D. Prima para procurar conteúdos. Seleccione o modo de áudio Dolby Pro Logic II pretendido. 16 Português 9 REPEAT Prima para procurar para a frente ou para trás, durante a reprodução. Prima para colocar um disco na pausa. Desliga o som temporariamente. Regresse ao menu anterior. Corrija a sincronização de áudio durante a reprodução do conteúdo de vídeo do iPod. Estes botões são utilizados para os menus no produto e também para várias funções dos discos Blu-ray. Prima para utilizar o Smart Hub. Para ejectar o disco. Permite repetir um título, um 0 capítulo, uma faixa ou um disco. Prima para parar/reproduzir um disco. Prima para utilizar o menu Ferramentas. SLEEP ECHO 2 Prima para avançar ou recuar na reprodução. Prima para ver o menu do disco. FUNCTION TV SOURCE 1 0 Prima para visualizar em ecrã completo no televisor. Prima para seleccionar o modo de Blu-ray. ou POWER Prima para seleccionar o modo de vídeo da TV. SLEEP :Define o tempo para RECEIVER desligar o produto. BD ECHO :Ajusta o nível TV de eco do microfone. TUNING/CH:Procure estações deMIC VOL+ MUTE rádio FM activas e mude de canal. MIC VOL :Ajusta o volume do TUNING VOL MICROFONE. /CH SFE MODE Pode definir o modo SFE (Sound Field Effect) que melhor se adequa ao estilo de música que MIC VOLMENU TITLE MENU está a ouvir. DISC MENU POPUP Utilize para aceder o menu de contexto ou ao menu do Título. TOOLS Utilize para visualizar as informações de reprodução ao reproduzir um disco Blu-ray/DVD. INFO Prima para sair do menu. iPod SYNC TUNER MEMORY A B C D SMART SEARCH S/W LEVEL 2D→3D DSP VERTICAL SURROUND MO/ST HUB 3D SOUND RETURN EXIT Utilizado para definir uma frequência TUNER de rádio predefinida.iPod SYNC MEMORY MO/ST A ou STERO B C D Seleccione MONO (ESTÉREO) paraSMART transmissão SEARCH de S/Wrádio. LEVEL 2D→3D HUB Prima para usufruir de vídeo 2D 3D SOUND DSP normal no modo 3D. VERTICAL SURROUND Activa o efeito de som vertical. Utilizado para ajustar o nível do subwoofer. Regular e estabilizar o nível do volume. (Digital Signal Processor) 01 * Tamanho das pilhas: AAA ✎ NOTA Certifique-se de que faz corresponder as extremidades “+” e “-” das pilhas com o diagrama no interior do compartimento. Tendo como referência a utilização típica de um televisor, as pilhas duram cerca de um ano. O controlo remoto pode ser utilizado até uma distância de aproximadamente 7 metros em linha recta. Configurar o Controlo Remoto Pode controlar determinadas funções do televisor com este controlo remoto. Controlar um televisor com o controlo remoto 1. Prima o botão TV para colocar o controlo remoto no modo TV. Lista de códigos de marcas de televisores Marca Código Marca Código Admiral (M.Wards) 56, 57, 58 Mitsubishi/ MGA 18, 40, 59, 60, 75 A Mark 01, 15 MTC 18 NEC 18, 19, 20, 40, 59, 60 Anam 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14 Nikei 03 Onking 03 AOC 01, 18, 40, 48 Bell & Howell (M.Wards) 57, 58, 81 Brocsonic 59, 60 Candle 18 4. S e o televisor se desligar, a configuração está concluída. • Pode utilizar os botões TV POWER (LIGAR TV), VOLUME, CHANNEL (CANAL) e os botões numéricos (0~9). ✎ NOTA O controlo remoto poderá não funcionar em algumas marcas de televisores. Além disso, algumas operações poderão não ser possíveis, consoante a marca do seu televisor. Por predefinição, o controlo remoto funciona com televisores Samsung. 03 Panasonic 06, 07, 08, 09, 54, 66, 67, 73, 74 Penney 18 Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 Philips 15, 17, 18, 40, 48, 54, 62, 72 Cetronic 03 Citizen 03, 18, 25 Cinema 97 Pioneer 63, 66, 80, 91 Classic 03 Portland 15, 18, 59 Concerto 18 Proton 40 Contec 46 Quasar 06, 66, 67 Coronado 15 Craig 03, 05, 61, 82, 83, 84 Radio Shack 17, 48, 56, 60, 61, 75 Croslex 62 RCA/ Proscan 18, 59, 67, 76, 77, 78, 92, 93, 94 Realistic 03, 19 Crown 03 Curtis Mates 59, 61, 63 CXC 03 Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 2. Ligue o televisor. 3. Prima o botão POWER (LIGAR) para ligar o televisor. • Se houver mais do que um código para o seu televisor na tabela, introduza um código de cada vez para determinar qual deles funciona. • Exemplo: Para um televisor Samsung Enquanto mantém premido o botão POWER (LIGAR), utilize os botões para introduzir 00. Se não funcionar, experimente 15 e depois 16, etc. Onwa Daytron 40 Dynasty 03 Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 Fisher 19, 65 Funai 03 Futuretech 03 General Electric (GE) 06, 40, 56, 59, 66, 67, 68 Hall Mark 40 Hitachi 15, 18, 50, 59, 69 Inkel 45 JC Penny 56, 59, 67, 86 JVC 70 KTV 59, 61, 87, 88 KEC 03, 15, 40 KMC 15 LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 Sampo 40 Samsung 00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98 Sanyo 19, 61, 65 Scott 03, 40, 60, 61 Sears 15, 18, 19 Sharp 15, 57, 64 Signature 2000 (M.Wards) 57, 58 Sony 50, 51, 52, 53, 55 Soundesign 03, 40 Spectricon 01 SSS 18 Sylvania 18, 40, 48, 54, 59, 60, 62 Symphonic 61, 95, 96 Tatung 06 Techwood 18 Teknika 03, 15, 18, 25 TMK 18, 40 Toshiba 19, 57, 63, 71 Vidtech 18 Videch 59, 60, 69 Luxman 18 Wards LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 15, 17, 18, 40, 48, 54, 60, 64 Yamaha 18 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 York 40 Yupiteru 03 Marantz 40, 54 Zenith 58, 79 Matsui 54 Zonda 01 MGA 18, 40 Dongyang 03, 54 Português 17 Introdução Colocar pilhas no controlo remoto Ligações Esta secção descreve vários métodos para ligar o produto a outros componentes externos. Antes de deslocar ou instalar o produto, desligue o aparelho e retire o cabo de alimentação. Ligar as Colunas Posição do produto Coloque-o num suporte, numa prateleira, ou sob o suporte do televisor. Seleccionar a posição de audição A posição de audição deve ser a uma distância de cerca de 2,5 a 3 vezes o tamanho do ecrã do televisor. Exemplo: Para televisores de 32", 2~2,4m Para um televisor de 55", 3,5~4m Colunas Anteriores Frontais Coloque estas colunas à frente da sua posição de audição, viradas para dentro (cerca de 45°) na sua direcção. Coloque as colunas de forma a que os respectivos tweeters fiquem à mesma altura que os seus ouvidos. Alinhe a parte da frente das colunas frontais com a parte da frente da coluna central ou coloque-as ligeiramente à frente da coluna central. Coluna Central f O ideal é instalá-la à mesma altura que as colunas anteriores. Também pode instalá-la directamente sobre ou sob o televisor. Colunas Surroundhj Coloque estas colunas lateralmente em relação à sua posição de audição. Se não tiver espaço suficiente, coloque estas colunas de forma a ficarem de frente uma para a outra. Coloque-as aproximadamente entre 60 e 90 cm acima do nível de audição, ligeiramente inclinadas para baixo. Ao contrário das colunas anteriores e central, as colunas surround * processam sobretudo efeitos sonoros e nem sempre emit em som. Subwoofer g 1 Português A posição do subwoofer não é tão importante. Coloque-o onde pretender. 02 Ligações Componentes das Colunas (L) (R) ANTERIORES/FRONTAIS SWA-5000 SUPORTE (L) Cartão TX SUBWOOFER (R) Módulo Receptor sem Fios Cabo das colunas (2EA) PARAFUSO (4x20): 16EA PARAFUSO: 6EA SURROUND CENTRAL BASE DE SUPORTE: 4EA CABO DAS COLUNAS Instalando os Alto-falantes no Pedestal da Cômoda alta 1. Vire a Base do suporte ao contrário e ligue-a ao Suporte. 2. Introduza os parafusos pequenos (4X20, para ligar o Suporte & Base do suporte) no sentido dos ponteiros do relógio nos quatro orifícios marcados, utilizando uma chave de parafusos, conforme demonstrado na ilustração. ! CUIDADO 1 2 Base de suporte Suporte 3 4 Coluna Ao utilizar a chave de parafusos tenha o cuidado 3. 4. 5. 6. de não exercer demasiada pressão. Caso contrário, o orifício ou o parafuso poderão ficar danificados. (chave de parafusos – inferior a 15 kg. f/cm) Insira outro parafuso grande (5X15, para ligar 5 o Suporte & Base do suporte), no sentido horário, no orifício na parte traseira do altofalante usando uma chave de fenda. Conecte o alto-falante superior no pedestal montado. Insira outro parafuso grande (5X15, para conectar o alto-falante e o pedestal), no sentido horário, no orifício na parte traseira do alto-falante usando uma chave de fenda. Esta é a aparência depois que o alto-falante é instalado. Siga esta etapa para instalar outro alto-falante. Suporte 6 Português 1 Ligações Ligar as Colunas 1. Prima a patilha do terminal na parte posterior da coluna. 2. Introduza o fio preto no terminal preto (–) e o fio vermelho no terminal vermelho (+) e, em seguida, solte a patilha. 3. Ligue as fichas da coluna à parte posterior do produto, fazendo corresponder as cores das fichas das colunas com as cores das tomadas das colunas. 4. Com o produto desligado, introduza o cartão TX na respectiva porta de ligação (SEM FIOS) na parte lateral do produto. • Segure no cartão TX de modo a que a etiqueta "WIRELESS" fique voltada para cima e insira o cartão na porta. • O cartão TX permite a comunicação entre o produto e o módulo receptor sem fios. 5. Ligue as colunas surround esquerda e direita ao módulo receptor sem fios. 6. Ligue o cabo de alimentação do módulo receptor sem fios à tomada eléctrica. 7. Ligue o produto. O produto e o módulo receptor sem fios estão agora em comunicação e as colunas surround emitem som. Preto Vermelho COMPONENT OUT FM ANT SUBWOOFER WIRELESS AUX IN VIDEO OUT Cartão TX Colunas Anteriores/Frontais (L) Coluna Central Subwoofer CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP VIDEO OUT SPEAKER IMPEDANCE : 3 COMPONENT OUT AUX IN Coluna Módulo Receptor sem Fios Coluna Surround (L) Surround (R) Este produto deve ser ligado apenas ao modelo SWA-5000. 0 Português VIDEO OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP SPEAKER IMPEDANCE : 3 CENTER Colunas Anteriores/Frontais (R) SPEAKER IMPEDANCE : 3 02 Não deixe que crianças brinquem próximo das colunas. Podem ocorrer acidentes caso alguma das colunas caia. Ao ligar os cabos das colunas às colunas, certifique-se de que a polaridade (+/ –) é correcta. Mantenha o subwoofer fora do alcance das crianças para impedir que coloquem as mãos ou quaisquer objectos no canal (orifício) da coluna subwoofer. Não pendure o subwoofer na parede pelo canal de som (orifício). Não insira nenhum outro cartão a não ser o cartão TX específico para o produto. Se inserir um cartão TX diferente, poderá danificar o produto e poderá não ser possível remover o cartão facilmente. Não insira o cartão TX ao contrário ou na direcção oposta. Insira o cartão TX com o produto desligado. Se inserir o cartão quando o sistema está ligado poderão ocorrer problemas. A antena de recepção sem fios está incorporada no módulo receptor sem fios. Mantenha-a afastada de água e humidade. Para obter um som optimizado, certifique-se de que a área em torno da localização do módulo receptor sem fios não se encontra obstruída. Se não for emitido qualquer som das colunas surround sem fios, mude o modo para Dolby Pro Logic II. No modo de 2 canais, não será emitido qualquer som pelas colunas surround sem fios. ✎ NOTA Se colocar uma coluna perto do televisor, as cores do televisor poderão aparecer distorcidas devido à presença de um campo magnético. Coloque o módulo receptor sem fios na parte posterior da posição de audição. Se o módulo receptor sem fios estiver demasiado perto do produto, poderão ser audíveis algumas interrupções devido à interferência. Se utilizar um dispositivo como, por exemplo, um micro-ondas, uma placa de rede LAN sem fios ou qualquer outro dispositivo que utilize a frequência de 2,4/5,8 GHz junto do produto, poderão ocorrer algumas interrupções de som devido a interferência. A distância máxima de transmissão entre produto e o módulo receptor sem fios é de cerca de 10 metros, mas pode variar conforme o ambiente operativo. Se existir uma parede de betão armado ou de metal entre o produto e o módulo receptor, o sistema poderá não funcionar, uma vez que as ondas de rádio não conseguem penetrar o metal. Se o produto não estabelecer ligação sem fios, é necessário configurar o ID entre o produto e o módulo receptor sem fios. Com o produto desligada, prima "0""1""3""5" no controlo remoto. Com o módulo receptor sem fios ligado, prima o botão sem soltar o botão "ID SET" na parte posterior do módulo receptor sem fios durante 5 segundos e, em seguida, ligue o produto. Português 21 Ligações ! CUIDADO Ligações Ligar Dispositivos externos/televisor através de HDMI HDMI é uma interface digital padrão para a ligação de dispositivos como um televisor, projector, leitor de DVD, leitor de Blu-ray, Set-top Box e outros. Uma vez que HDMI é um formato totalmente digital, pode desfrutar de vídeo e som de qualidade digital tal como inicialmente criado, sem as distorções que podem surgir quando conteúdo digital é convertido em analógico. Leitor de DVD ou de Blu-ray SAT (Satellite/Set-top box) ENTRADA HDMI COMPONENT OUT FM ANT LAN iPod DIGITAL AUDIO IN HDMI OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP HDMI IN OPTICAL WIRELESS AUX IN VIDEO OUT SPEAKER IMPEDANCE : 3 SAÍDA HDMI SAÍDA HDMI: Ligação a um televisor com um cabo HDMI (MELHOR QUALIDADE) Ligue um cabo HDMI (não fornecido) entre a ficha HDMI OUT na parte posterior do produto e a ficha de HDMI IN do seu televisor. ✎ NOTA Dependendo do televisor, algumas resoluções de saída HDMI podem não funcionar. Depois de efectuar a ligação de vídeo, defina a origem da entrada de vídeo do televisor de modo a corresponder à saída de vídeo respectiva (HDMI, Componente ou Composta) do produto. Consulte o manual de utilizador do televisor para obter mais informações sobre como seleccionar a origem da entrada de vídeo. Se configurou o controlo remoto do produto para comandar o televisor, prima o botão TV SOURCE no controlo remoto e seleccione HDMI como a origem externa do televisor. É necessário ter uma ligação HDMI para visualizar vídeos com a tecnologia 3D. Um cabo HDMI longo poderá causar interferências. Caso existam interferências, defina a opção Deep Color (Cor Profunda) como Off (Desligado) no menu. Português 02 1. Ligue um cabo HDMI (não fornecido) entre a ficha HDMI IN na parte posterior do produto e a ficha HDMI OUT do dispositivo digital. 2. Prima o botão FUNCTION (FUNÇÃO) para seleccionar a entrada H. IN1 ou H. IN2. Os modos mudam da seguinte forma : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM Função de Detecção Automática de HDMI Se ligou o sistema de cinema em casa por cabo HDMI, a saída de vídeo de cinema em casa muda automaticamente para o modo HDMI quando ligar o mesmo. Para obter mais informações sobre as resoluções de vídeo HDMI disponíveis, consulte a página 32. • Esta função não está disponível se o cabo HDMI não suportar CEC. • Descrição da ligação HDMI - A ligação HDMI emite apenas um sinal digital puro para o televisor. - Se o televisor não suportar HDCP, podem surgir interferências no ecrã. • O que é HDCP? HDCP (High-band width Digital Content Protection - Protecção de conteúdos digitais com elevada largura de banda) é um sistema que impede que o conteúdo de um BD/DVD emitido por HDMI seja copiado. Assegura uma ligação digital segura entre uma fonte de vídeo (PC, DVD, etc.) e um dispositivo de visualização (televisor, projector. etc.). Os conteúdos são codificados no dispositivo fonte para impedir que sejam efectuadas cópias não autorizadas. ! CUIDADO A função Anynet+ é suportada apenas quando um cabo HDMI é ligado a ficha HDMI OUT (SAÍDA HDMI) do produto. Ligar a antena fM Antena de FM (fornecida) 1. Ligue a antena FM fornecida à ficha de Antena FM. 2. Desloque lentamente o fio da antena até encontrar um local com boa recepção e prenda-a a uma parede ou a outra superfície rígida. ✎ NOTA FM ANT Este produto não recebe emissões AM. WIRELESS Português Ligações ENTRADA HDMI: Ligação a um Componente Externo com um Cabo HDMI Ligações Vermelho Azul Verde MÉTODO 1 COMPONENT OUT CENTER SPEAKERS OUT FRONT FRONT TOP Amarelo SUBWOOFER FRONT AUX IN VIDEO OUT MÉTODO 2 FRONT TOP SPEAKER IMPEDANCE : 3 MÉTODO 1: Vídeo Componente (QUALIDADE MELHOR) Se o televisor estiver equipado com entradas de vídeo componente, ligue um cabo de vídeo componente (não fornecido) entre a ficha de saída de vídeo componente (Pr, Pb and Y) na parte posterior do produto e a ficha de entrada de vídeo componente do televisor. ✎ NOTA Pode seleccionar entre várias definições de resolução, tais como 1080i, 720p, 480p e 480i, dependendo do tipo de disco. (Consulte a página 32) A resolução real pode ser diferente da definição no menu de configuração, se ambos os cabos Componente e HDMI estiverem ligados. A resolução pode também ser diferente, dependendo do disco. (Consulte a página 32) Depois de efectuar a ligação de vídeo, defina a origem da entrada de vídeo do televisor de modo a corresponder à saída de vídeo respectiva (HDMI, Componente ou Composta) do produto. Consulte o manual de utilizador do televisor para obter mais informações sobre como seleccionar a origem da entrada de vídeo. Se configurou o controlo remoto do produto para comandar o televisor, prima o botão TV SOURCE (ORIGEM TV) no controlo remoto e seleccione COMPONENT (COMPONENTE) como origem externa do televisor. Na reprodução de um DVD, se as fichas HDMI e Componente estiverem ligadas e seleccionar o modo Componente 1080p, 1080i, 720p ou 480p, o menu Programação de ecrã apresenta uma resolução de saída de 1080p, 1080i, 720p ou 480p. A resolução real é 480i. MÉTODO 2: Vídeo Composto (BOA QUALIDADE) Ligue o cabo de vídeo fornecido entre a ficha de Saída de vídeo, na parte posterior do produto, e a ficha de entrada de vídeo no seu televisor. ✎ NOTA A origem de VÍDEO tem sempre a resolução de saída 480i, independentemente da resolução definida no menu de configuração. (Consulte a página 32) Depois de efectuar a ligação de vídeo, defina a origem da entrada de vídeo do televisor de modo a corresponder à saída de vídeo respectiva (HDMI, Componente ou Composta) do produto. Consulte o manual de utilizador do televisor para obter mais informações sobre como seleccionar a origem da entrada de vídeo. Se configurou o controlo remoto do produto para comandar o televisor, prima o botão TV SOURCE (ORIGEM TV) no controlo remoto e seleccione VIDEO como a origem externa do televisor. ! CUIDADO Não ligue a unidade através de um gravador de vídeo. Os sinais de vídeo recebidos de um gravador de vídeo podem ser afectados por sistemas de protecção de direitos de autor e a imagem pode ser apresentada com distorção. Português 02 COMPONENT OUT FM ANT iPod DIGITAL AUDIO IN HDMI OUT Ligações Ligar áudio a partir de Componentes externos HDMI IN OPTICAL SUBWOOFER WIRELESS Vermelho Cabo Óptico (não fornecido) Descodificador ÓPTICO AUX IN Cabo de Áudio (não fornecido) Se o componente analógico externo tiver apenas uma saída de áudio (Audio Out), pode ligar o lado esquerdo Descodificador VCR ou direito. VIDEO OUT Branco VCR AUX ÓPTICO: Ligar um Componente Digital Externo Componentes de sinal digital, tais como uma caixa de recepção do serviço de cabo ou um receptor de satélite (Descodificador). 1. Ligue a Entrada digital (ÓPTICA) do produto à Saída digital componente digital externo. 2. Prima o botão FUNCTION (FUNÇÃO) para seleccionar a entrada D.IN. • Os modos alternam da seguinte forma : BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM ✎ NOTA Para ver vídeos a partir da caixa de recepção do serviço de cabo ou do receptor de satélite, tem de ligar a saída de vídeo a um televisor. Este sistema suporta frequências de amostragem digitais de 32 kHz, ou superiores, de componentes digitais externos. Este sistema suporta apenas áudio DTS e Dolby digital. áudio MPEG, de fluxo de bits, não é suportado. AUX: Ligar um Componente Externo Analógico Componentes de sinal analógico, como por exemplo um videogravador. 1. Estabeleça a ligação entre a entrada AUX IN (áudio) no produto e a saída de áudio do componente analógico externo. • Certifique-se de que faz corresponder as cores dos conectores. 2. Prima o botão FUNCTION (FUNÇÃO) para seleccionar a entrada AUX. • Os modos alternam da seguinte forma: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM ✎ NOTA Pode ligar a ficha de saída de vídeo do videogravador ao televisor e ligar as fichas de saída de áudio do videogravador a este dispositivo. Português Ligações Ligar à rede Pode ligar este produto a uma rede e utilizar serviços baseados na rede como Smart Hub e BDLIVE (Consulte as páginas 61~68), bem como receber actualizações de software através da rede sem fios. Recomendamos a utilização de um router sem fios ou um router IP para a ligação. Para obter mais informações sobre a ligação do router, consulte o manual do utilizador do router ou contacte o fabricante do mesmo para obter assistência técnica. Rede por Cabo 1. Utilizando o cabo Direct LAN (cabo UTP), ligue o terminal LAN do produto ao terminal LAN do modem. 2. Defina as opções de rede. (Consulte as páginas 38) LAN DIGITAL AUDIO IN iPod HDMI OUT HDMI IN OPTICAL Router Modem de banda larga (com router integrado) Serviço de Banda Larga Ou Modem de banda larga Serviço de Banda Larga Funcionar em rede com a função PC para AllShare (Consulte as página 70) ✎ NOTA O acesso pela Internet ao servidor de actualizações de software da Samsung poderá não ser permitido, consoante o router que utilizar ou conforme a política do fornecedor ISP. Para obter mais informações, contacte o seu fornecedor ISP (Internet Service Provider). Os utilizadores de DSL devem utilizar um router para estabelecer a ligação à rede. Para utilizar a função AllShare, ligue um PC à rede conforme demonstrado na imagem. Português 02 Ligações Rede sem fios Pode ligar à rede através de um IP Sharer sem fios (router). Para definir as opções de configuração, consulte a página 38. Serviço de banda larga IP Sharer sem fios PC 5V 500mA ASC IN Funcionar em rede com a função PC para AllShare (Consulte as página 70) ✎ NOTA Para utilizar uma rede sem fios, o produto tem de estar ligado a um IP Sharer sem fios (router). Se o IP Sharer sem fios suportar DHCP, o produto pode utilizar um endereço de DHCP (dinâmico) ou de IP estático para ligar à rede sem fios. Este produto suporta IEEE 802.11b,g e n. Recomendamos a utilização de IEEE 802.11n. Ao reproduzir vídeo com uma ligação IEEE 802.11b ou g, o vídeo pode não ser reproduzido nas melhores condições. Seleccione um canal para o IP Sharer sem fios que não esteja a ser utilizado. Se o canal definido para o IP Sharer sem fios estiver a ser utilizado por outro dispositivo, poderão ocorrer interferências e falha na comunicação. Se seleccionar o modo de saída “Pure High” (Greenfield) 802.11n e tiver definido o tipo de Codificação de segurança do router como WEP, TKIP ou TKIPAES (WPS2Mixed), o sistema de cinema em casa Samsung não suporta a ligação em conformidade com as novas especificações da certificação Wi-Fi. Se o router suportar WPS (Wi-Fi Protected Setup), pode ligar à rede através de PBC (Push Button Configuration) ou de um PIN (Personal Identification Number) WPS irá configurar automaticamente a chave SSID e WPA em qualquer um dos modos. Pode configurar a ligação da rede sem fios de três formas: - Configuração automática (utilizando a função de procura de rede automática) Sem fios (Geral) - Utilizando PBC(WPS) - Utilizando One Foot Connection (Ligação “One Foot") A rede local sem fios pode, por natureza, provocar interferências, dependendo das condições de utilização (desempenho do Ponto de acesso, distância, obstáculos, interferência de outros dispositivos de rádio, etc). Seleccione o modo Infrastructure do IP sharer sem fios. O modo Ad-hoc não é suportado. O sistema de cinema em casa suporta apenas os seguintes protocolos de segurança: 1) Modo de Autenticação: WEP, WPAPSK, WPA2PSK 2) Tipo de Encriptação: WEP, AES Para utilizar a função AllShare, deve ligar o PC à rede conforme demonstrado na imagem. Pode estabelecer uma ligação com ou sem fios. Português 27 Configurar Definições Iniciais 1. Ligue o televisor depois de ligar o produto. Quando o produto é ligado ao televisor pela primeira vez, é apresentado o ecrã Initial Settings (Definição Inicial). • Menu Home Meu conteúdo Vídeos Fotos Música Função Configurações Iniciais | Idioma do Menu Meu Dispositivo Internet Configurações Selecione o idioma para as visualizações na tela. Български Hrvatski Čeština Suomi Français Dansk Nederlands Deutsch Ελληνικά Eesti Indonesia Italiano English Magyar 한국어 m Mover " Entrar 2. Prima os botões ▲▼◄► para seleccionar o idioma pretendido e, em seguida, prima o botão ENTRAR. 3. Prima o botão ENTRAR para seleccionar o botão Start (Iniciar). 4. Prima os botões ▲▼ para seleccionar o formato de imagem de TV pretendido e, em seguida, prima o botão ENTRAR. (Consulte a página 31) Se premir o botão AZUL (D) para ignorar a Musical Room Calibration (Calibragem Musical Automática) ou a Network Setup (Configuração da Rede), pode aceder ao menu inicial mesmo que a calibração ou a configuração da rede não esteja concluída. 5. Ligue o microfone ASC à ficha ASC IN no produto. (Consulte a página 35) 6. Prima o botão ENTRAR para seleccionar o botão Start (Iniciar). A configuração da função Calibragem Musical Automática leva aproximadamente 3 minutos. 7. Prima os botões ▲▼ para seleccionar as Definições de Rede pretendidas. (Wired) Com fios, Wireless (General) (Sem fios (Geral)), WPS(PBC) ou Ligação “One Foot” e, em seguida, prima o botão ENTRAR. Se não souber os detalhes das Definições de Rede, prima o botão AZUL (D) do controlo remoto para ignorar as Definições de Rede, conclua as Definições Iniciais e aceda ao menu inicial. Se seleccionou Definições de Rede, consulte as páginas 38~41 para obter mais informações sobre as definições de rede. Quando terminar, avance para o Passo 8. 8. É apresentado o menu inicial. (Para obter mais informações sobre o menu inicial, consulte a página 29). Português d WPS(PBC) ✎ NOTA O menu inicial não é apresentado se não configurar as definições iniciais, excepto na situação seguinte. Se premir o botão AZUL (D) durante a Calibragem de Sala Musical/configuração da rede, pode aceder ao menu inicial mesmo que a configuração da rede ainda não esteja concluída. Se pretender visualizar novamente o ecrã Definição Inicial para efectuar alterações, seleccione a opção Reset (Repor). (Consulte a página 42) Se utilizar um cabo HDMI para ligar o produto a um televisor Samsung compatível com Anynet+(HDMI-CEC) e 1.) Definiu a função Anynet+(HDMI-CEC) como Ligado no televisor e no produto e 2.) Tiver definido o televisor para um idioma suportado pelo produto, este irá seleccionar esse idioma como o idioma preferido, automaticamente. Se o produto ficar parado durante mais de 5 minutos, será apresentada uma protecção de ecrã no televisor. Se o produto ficar no modo de protecção de ecrã durante mais de 20 minutos, a alimentação desliga-se automaticamente, FULL SCREEN REPEAT 0 03 MUTE 2. Prima os botões ◄► para seleccionar Settings (Definições) e, em seguida, prima o botão ENTRAR. DISC MENU MENU TITLE MENU 3. Prima os botões ▲▼ para seleccionar o submenu pretendido e, em seguida, prima o botão ENTRAR. POPUP 1 TOOLS INFO 4. Prima os botões ▲▼ para seleccionar o item pretendido e, em seguida, prima o botão ENTRAR. 3 2 RETURN A 4 EXIT TUNER MEMORY MO/ST C D B 1 INIERNET @ Botão MENU: Prima para avançarDSP para o menu inicial. 2 Botão RETURN (RETROCEDER): Regressa ao menu anterior. 3 Botão ENTRAR / DIRECTION (ENTRAR / DIRECÇÃO): Desloca o cursor ou um item seleccionado. Activa o item seleccionado. Confirma uma definição. 4 5. Prima o botão EXIT (SAIR) para sair do menu. ✎ NOTA Quando o produto está ligado à rede, seleccione a opção Internet no menu Home. Transfira os conteúdos pretendidos de Samsung Apps. (Consulte as páginas 68~70) Os passos de acesso podem variar consoante o menu seleccionado. O texto apresentado no ecrã pode ser alterado Botão EXIT (SAIR): Prima para sair do menu. no produto após actualizar a versão de software. Para aceder ao menu Definições e respectivos submenus, execute os passos seguintes: 1. Prima o botão POWER (LIGAR). É apresentado o Menu Home. • Menu Home Meu conteúdo Vídeos Fotos 3 Música 1 Função Meu Dispositivo 4 Internet Configurações 2 5 d WPS(PBC) 1 Selecciona My Devices (Os meus dispositivos). 2 Selecciona Function (Função). 3 Selecciona My Contents (Os meus conteúdos). 4 Selecciona Internet. 5 Selecciona Settings (Definições). 6 Apresenta os botões disponíveis. 6 Português Configurar TUNING VOL /CH MODE Aceder ao SFE menu Defi nições Configurar visualização Pode configurar várias opções de visualização como o TV Aspect (Formato da imagem), Resolution (Resolução), etc. Seleccione para reproduzir um Blu-ray Disc com conteúdos 3D no Modo 3D. Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte Config. 3D Config. 3D Modo de Repr. 3D Blu-ray Tamanho da Tela : Automático : 55 polegada > Mover " Entrar ' Retornar Profundidade de Cor HDMI : Automático Modo de Reprodução de Blu-ray 3D Pode optar por ver um Blu-ray Disc compatível com 2D/3D no modo 3D ou 2D antes de reproduzir o disco. Este é automaticamente reproduzido no modo 2D se o TV não suportar 3D. • Auto : Detecta automaticamente a capacidade de reprodução em 3D do televisor ligado e reproduz um Blu-ray Disc compatível com 2D/3D em 3D ou 2D. Os Blu-ray Discs 3D podem não ser reproduzidos se o televisor não foi compatível com 3D. • 3D 3D : Os Blu-ray Discs compatíveis com 2D/3D são sempre reproduzidos no modo 3D. • 3D 2D : Os Blu-ray Discs compatíveis com 2D/3D são sempre reproduzidos no modo 2D. Os Blu-ray Discs 3D podem não ser reproduzidos. ✎ NOTA Para parar a reprodução de um filme em 3D, prima o botão STOP (PARAR) (@) uma vez. A reprodução do filme pára e a opção de modo 3D é desactivada. Para alterar uma opção de 3D durante a reprodução de um filme 3D, prima o botão STOP(@) uma vez. É apresentado o menu Bluray. Prima o botão STOP(@) novamente e, em seguida, seleccione 3D Settings (Definições de 3D) no menu Blu-ray. 0 Português no ecrã do televisor, poderão ser apresentadas barras negras verticais dos num dos lados da imagem ou em ambos. Tamanho do ecrã Definições de 3D Configurações Consoante o contexto e a posição da imagem Permite introduzir o tamanho real do ecrã do televisor para que o produto possa ajustar a imagem conforme o tamanho do ecrã e assim apresentar uma imagem 3D optimizada. (O tamanho de ecrã máximo permitido é de 116 polegadas, para este produto.) ! CUIDADO Se pretender visualizar conteúdos em 3D, ligue um dispositivo 3D (receptor de AV ou televisor compatível com 3D) à porta HDMI OUT do produto, utilizando um cabo HDMI de alta velocidade. Ponha óculos 3D antes de reproduzir conteúdo em 3D. O produto emite sinais 3D apenas através do cabo HDMI ligado à porta HDMI OUT. Como a resolução de vídeo no modo de reprodução de 3D é definida conforme a resolução do vídeo 3D original, não pode alterar a resolução. Algumas funções como BD Wise, regulação do tamanho do ecrã e ajuste da resolução podem não funcionar correctamente no modo de reprodução de 3D. Mantenha uma distância mínima do televisor de três vezes a largura do ecrã quando visualizar imagens 3D. Por exemplo, se o monitor for de 46 polegadas, mantenha-se a uma distância de 138 polegadas (3,5 metros) do ecrã. - Posicione o ecrã de vídeo 3D ao nível de visão para uma visualização de 3D optimizada. Quando o produto está ligado a determinados dispositivos 3D, o efeito 3D poderá não funcionar correctamente. Dependendo do tipo de televisor, pode ajustar a definição do ecrã. O BD Wise é a mais recente função de inter-ligação da Samsung. Quando ligar um produto Samsung e um televisor Samsung com BD Wise entre si, através de HDMI, e a função BD Wise estiver ligada no produto e no televisor, o produto emite vídeo com a resolução de vídeo e velocidade de fotogramas do disco BD/DVD. • Off (Desligado): A resolução de saída permanece fixa na resolução previamente definida no menu Resolução, independentemente da resolução do disco.Consulte a secção Resolução abaixo. • On (Ligado): O produto emite vídeo na resolução original e na taxa de fotogramas do disco BD/ DVD. • 16:9 Original: Seleccione esta opção quando ligar o produto a um televisor com ecrã 16:9. O produto apresenta todos os conteúdos no respectivo formato de imagem original. O conteúdo formatado em 4:3 é apresentado com barras negras nos lados esquerdo e direito. • 16:9 Cheio: Seleccione esta opção quando li gar o produto a um televisor com ecrã 16:9. O conteúdo preencherá a totalidade do ecrã. O conteúdo formatado em 4:3 é esticado. • 4:3 Normal: Seleccione esta opção quando ligar o produto a um televisor com ecrã 4:3. O produto apresenta todos os conteúdos no respectivo formato de imagem original. O conteúdo formatado em 16:9 é apresentado com barras pretas em cima e em baixo. • 4:3 Convertido: Seleccione esta opção quando ligar o produto a um televisor com ecrã 4:3. O conteúdo 16:9 terá as partes das extremidades esquerda e direita cortadas. ✎ NOTA Dependendo do tipo de disco, alguns formatos poderão não estar disponíveis. Se seleccionar um formato de imagem diferente do formato de imagem do ecrã do seu televisor, as imagens poderão parecer distorcidas. Se seleccionar 16:9 Original, o conteúdo pode ser apresentado no formato 4:3 Pillarbox (barras negras nos lados da imagem). Smart Hub Screen Size (Tamanho do Ecrã Smart Hub) Defina o ecrã Smart Hub como o tamanho optimizado. • Tamanho 1: O tamanho de ecrã Smart Hub será inferior à predefinição. Podem ser apresentadas barras laterais negras no ecrã. • Tamanho 2: Corresponde à predefinição do Smart Hub. O produto apresenta o tamanho normal do ecrã Smart Hub. • Tamanho 3: O ecrã Smart Hub é apresentado com um tamanho maior. A imagem pode ser demasiado grande para o ecrã do televisor. ✎ NOTA Quando o BD Wise está ligado, a definição Resolução assume automaticamente a predefinição de BD Wise e BD Wise é apresentado no menu Resolução. Se o produto estiver ligado a um dispositivo que não suporte BD Wise, não pode utilizar a função BD wise. Para que o BD Wise funcione correctamente, defina os menus BD Wise do produto e do televisor como On (Ligado). Resolução Permite definir a resolução de saída do sinal de vídeo Componente e HDMI como Auto, 1080p, 1080i, 720p, 480p ou 480i. O número indica o número de linhas de vídeo por fotograma. O “i” e o “p” indicam se a leitura é entrelaçada ou progressiva, respectivamente. Quanto maior for o número de linhas, melhor é a qualidade. • Auto : Define automaticamente a resolução de saída para a resolução máxima do televisor ligado. • BD Wise : Define automaticamente a resolução como a resolução do disco BD/DVD, caso tenha ligado o produto através de HDMI a um televisor com a função BD Wise. (O item do menu da função BD Wise só é apresentado se a função BD Wise estiver activada. Consulte a secção sobre BD Wise acima.) • 1080p : A saída equivale a 1080 linhas de vídeo progressivo. (apenas HDMI) • 1080i : A saída equivale a 1080 linhas de vídeo entrelaçado. • 720p : Emite 720 linhas de vídeo progressivo. • 480p : Emite 480 linhas de vídeo progressivo. • 480i : Emite 480 linhas de vídeo entrelaçado. (apenas VÍDEO) Português 31 Configurar BD Wise (apenas em Produtos Samsung) 03 formato da imagem Configurar Resolução de acordo com o modo de saída • Reprodução de Blu-ray Disc/Conteúdos Electrónicos/Conteúdos Digitais HDMI / ligado HDMI / desligado Modo HDMI Saída Modo Componente Blu-ray Disc Conteúdos electrónicos/ Conteúdos digitais Modo Componente/ VÍDEO Blu-ray Disc Conteúdos electrónicos/ Conteúdos digitais BD Wise Resolução do Blu-ray Disc 1080p@60F 480i - - - Auto Resolução máx. de entrada da TV Resolução máx. de entrada da TV 480i - - - 1080p@60F 1080p@60F 1080p@60F 480i - - - Área vis. vídeo : Auto (24Fs) 1080p@24F 1080p@24F 480i - - - 1080i 1080i 1080i 480i 480i 1080i 480i 720p 720p 720p 480i 480i 720p 480i 480p 480p 480p 480i 480i 480p 480i 480i - - - 480i 480i 480i Configurar Modo VÍDEO • Reprodução de DVD 32 HDMI / ligado Saída HDMI / desligado Modo HDMI Modo Componente/ VÍDEO Modo Componente Modo VÍDEO BD Wise 480i 480i - - Auto Resolução máx. de entrada da TV 480i - - 1080p@60F 1080p@60F 480i - - 1080i 1080i 480i 480p 480i 720p 720p 480i 480p 480i 480p 480p 480i 480p 480i 480i - - 480i 480i Configurar Português 03 Se o televisor ligado não suportar Movie Frame (Filme) ou a resolução seleccionada, é apresentada a mensagem “If no pictures are shown after the selection, please wait for 15 seconds” (“Se não for apresentada qualquer imagem após a selecção, aguarde 15 segundos”). Em seguida, a resolução é revertida para o valor anterior automaticamente. É a apresentada a mensagem “Would you like to make a selection?” (Pretende efectuar uma selecção?"). Se seleccionar Yes (Sim) e a resolução não for suportada, o ecrã do televisor ficará em branco. Aguarde 15 segundos para que a resolução reverta automaticamente para o valor anterior. Se o ecrã estiver em branco, mantenha premido o botão STOP (@) localizado no painel anterior do produto durante mais de 5 segundos (sem um disco inserido). Todas as definições são repostas para os valores de origem. Siga os passos indicados na página anterior para aceder a cada um dos modos e seleccione a opção Display Setup (Programação do ecrã) suportada pelo seu televisor. Quando as predefinições de fábrica são repostas, todos os dados do utilizador guardados em BD Data (BD Data) serão eliminados. O Blu-ray Disc tem de dispor da funcionalidade de 24 fotogramas para ser possível utilizar o modo Movie Frame (Filme) (24 Fs). Se as fichas de HDMI e Componente estiverem ligadas e estiver a visualizar a saída de componente, a resolução é definida como 480i. Formato de cor HDMI Permite definir o formato de colorimetria para a saída HDMI de modo a que corresponda às capacidades do dispositivo ligado, (televisor, monitor, etc). • Auto: Define automaticamente o produto para utilizar o formato ideal suportado pelo dispositivo. • YCbCr (4:4:4): Se o televisor suportar o esquema de cores YCbCr com HDMI, seleccione esta opção para emitir com a gama de cor YCbCr normal. • RGB (Padrão): Seleccione RGB (Padrão) para emitir a gama de cor RGB normal. • RGB (Melhorado): Caso tenha ligado o produto a um dispositivo de visualização DVI, tal como um monitor, seleccione RGB (Melhorado) para emitir a gama de cores RGB melhorado. Movie Frame (Filme) (24Fs) Definir a função Movie Frame (Filme) (24Fs) como Auto permite ajustar a saída HDMI do produto para 24 fotogramas por segundo, para obter uma melhor qualidade de imagem. Só pode usufruir da funcionalidade Área vis. vídeo (24F) num televisor que suporte esta velocidade de fotogramas. Só é possível seleccionar Área vis. vídeo quando o produto se encontra nos modos de resolução de saída HDMI 1080i ou 1080p. • Auto: As funções de Área vis. vídeo (24F) podem ser utilizadas. • Off (Desligado): As funções de Movie Frame (Filme) (24Fs) estão desligadas. HDMI Deep Color Permite emitir vídeo a partir do terminal HDMI OUT com Cor Profunda. Esta opção permite uma reprodução das cores mais precisa e com maior profundidade. • Auto: O produto emite vídeo com Deep Color (Cor Profunda) num televisor ligado com suporte de Deep Color HDMI. • Off (Desligado): A imagem é emitida sem Deep Color (Cor Profunda). Modo de pausa Define o tipo de imagem apresentada quando interrompe a reprodução do DVD. • Auto: Define automaticamente a melhor imagem fixa consoante o conteúdo. • Frame (Moldura) : Seleccione ao parar uma cena com pouca acção. • Field (Campo) : Seleccione ao parar uma cena com muita acção. Modo progressivo Active este modo para melhorar a qualidade de imagem ao visualizar DVDs. • Auto : Seleccione esta opção para que o produto defina automaticamente a melhor qualidade de imagem para o DVD a ser reproduzido. • Video (Vídeo) : Seleccione esta opção para obter a melhor qualidade de imagem em DVDs de concertos ou programas de televisão. Português 33 Configurar ✎ NOTA Configurar áudio Configuração do Alto-falante Configurações Imagem Áudio Configuração do Alto-falante Nível Rede Sistema Idioma | Distância Distância Se não for possível colocar as colunas a igual distância da posição de audição, pode regular o tempo de atraso dos sinais de áudio provenientes das colunas dianteiras, central, surround e subwoofer. • Pode definir a distância das colunas entre 0,3 m e 9,2m. Tonalidade de teste : Desligado Configurações Segurança Geral Suporte > Mover " Entrar 'Retornar Imagem Áudio Rede Sistema Idioma Segurança Nível Geral Você pode ajustar o equilíbrio e o nível para cada alto-falante. Regular o nível das colunas Frontal/Central/ Surround/Frontal superior /Subwoofer • O nível de volume pode ser ajustado em passos de +6dB a –6dB. • O som fica mais alto conforme você se aproxima de +6dB e mais silencioso conforme você se aproxima de -6dB. Configurações Nível Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte Frontal E ◄ 0 dB | Frontal D : 0 dB Central : 0 dB Surround E : 0 dB Surround D : 0 dB Frontal Superior E : 0 dB Frontal Superior D : 0 dB Subwoofer : 0 dB Tonalidade de teste : Desligado > Mover < Alterar ' Retornar Suporte Distância Frontal E ◄ 10(ft) 3.0(m) | Frontal D : 10(ft) 3.0(m) Central : 10(ft) 3.0(m) Surround E : 10(ft) 3.0(m) Surround D : 10(ft) 3.0(m) Frontal Superior E :10(ft) 3.0(m) Frontal Superior D :10(ft) 3.0(m) Subwoofer : 10(ft) 3.0(m) Tonalidade de teste : Desligado > Mover < Alterar 'Retornar Tonalidade de Teste Utilize a função Test Tone (Tonalidade de teste) para verificar as ligações das colunas. Prima os botões _, + para seleccionar ON (Ligado). • É enviada uma tonalidade de teste para as colunas Frontal E ; Central ; Frontal D ; Surround D ; Frontal Superior D ; Frontal Superior E ; Surround E ; Subwoofer por esta ordem, para se certificar de que as colunas estão correctamente configuradas. Para parar a tonalidade de teste, prima os botões _,, + para seleccionar Off (Desligar) (Desligar). Configurações Imagem Áudio Rede Sistema Idioma Configuração do Alto-falante Nível Distância Tonalidade de teste ◄ Ligado | Segurança Geral Suporte > Mover " Entrar ' Retornar ✎ NOTA Quando o HDMI ON estiver activado (o som é emitido pelas colunas do televisor), a funcionalidade de Tonalidade de teste não está disponível. Português 03 Se activar a função MRC (Calibragem da Sala Musical) apenas uma vez, quando muda a localização do produto ou quando o instala, pode fazer com que o produto reconheça automaticamente a distância entre as colunas, os níveis entre canais e as características da frequência para criar um campo acústico de 7,1 canais optimizado para o seu ambiente. Se o microfone de ASC for desligado durante a 500mA ASC IN TR R/F 500mA ASC IN ASC microphone TL L/F configuração da Calibragem de Sala Musical, a configuração é cancelada. Quando a função de Calibragem de Sala Musical está activada, os modos DSP, Dolby Pro Logic ll e SFE não podem ser utilizados. Se o produto estiver ligado a dispositivos externos ou outros componentes (como um iPod, AUX, D. IN), a configuração de Calibragem de Sala Musical poderá não funcionar correctamente. A presença de ruído pode resultar numa medição incorrecta. Certifique-se de que o ambiente está calmo quando efectuar a Calibragem da Sala de Música. Coloque o microfone na posição de audição principal. Certifique-se de que não existem objectos entre as colunas e o microfone. Tenha em atenção que as tonalidades de teste das colunas podem ter um volume alto. Não coloque o microfone atrás de objectos nem demasiado próximo da parede. Caso contrário, o resultado do teste poderá ser incorrecto. Modo de Calibragem da Sala Musical Pontuação de Karaoke Poderá ouvir o modo de calibragem musical automática ou as definições de colunas do utilizador. • Off (Desligado): O som é emitido conforme as definições das colunas. • On (Ligado): O som é emitido no modo de calibragem de sala musical. A apresentação da pontuação de Karaoke pode ser activada ou desactivada. • Off (Desligado):Desactiva a apresentação da pontuação de karaoke. • On (Ligado): Depois de cantar, a pontuação é apresentada no ecrã. ✎ NOTA Medição Esta função está disponível apenas para 1. Ligue o microfone ASC à ficha ASC IN. 2. Coloque o microfone ASC na posição de audição. • A Calibragem Musical Automática será automaticamente definida de acordo com a seguinte sequência: Frontal E ; Central ; Frontal D ; Surround D ; Frontal Superior D ; Frontal Superior E ; Surround E ; Subwoofer • Prima o botão RETURN (RETROCEDER) para cancelar a definição de Calibragem Musical Automática. A pontuação do Karaoke pode ser afecta ✎ NOTA A definição da função de Calibragem de Sala Musical demora cerca de 3 minutos. Certifique-se de que o produto não tem qualquer disco inserido quando executar a função de Calibragem de Sala Musical. discos BD/DVD. pelo ruído ambiente. EQ Pess. Pode definir as configurações do equalizador manualmente, de acordo com as suas preferências. Configurações Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte 6 · · · · · 0 · · · · · -6 0 250Hz A EQ Pess. 0 0 0 0 0 0 600Hz 1kHz 3kHz 6kHz 10kHz 15kHz Rest. > Ajustar < Mover ' Retornar Português Configurar Calibragem da Sala Musical Configurar Áudio HDMI Os sinais de áudio transmitidos através do cabo de HDMI podem ser ligados ou desligados. • Off (Desligado) : O vídeo é transmitido apenas através do cabo de ligação HDMI e apenas é emitido som pelas colunas do produto. • On (Ligado) : Os sinais de vídeo e áudio são transmitidos através do cabo de ligação HDMI e o áudio é enviado apenas para as colunas do televisor. ✎ NOTA A função de áudio HDMI é automaticamente ajustada para 2 canais para colunas de televisores. Canal de Retorno de Áudio Pode usufruir do som do televisor pelas colunas do Sistema de cinema em casa, utilizando apenas um cabo HDMI. • Auto: Permite ouvir o som do televisor através das colunas do Sistema de cinema em casa, desde que o televisor seja compatível com a função de canal de retorno de áudio. • Off (Desligado): Desactiva a função de canal de retorno de áudio. NOTA ✎ Quando a função Anynet+(HDMI-CEC) está desligada, a função de Audio Return Channel (Retorno de Áudio) não está disponível. Utilizar um cabo HDMI sem certificação ARC (Audio Return Channel) pode causar problemas de compatibilidade. A função ARC só está disponível se o televisor for compatível com ARC. • Fluxo de bits (Dolby D recodificado) : Seleccione esta opção se não tiver um receptor de AV com suporte de HDMI, mas tiver um receptor de AV com capacidades de descodificação Dolby Digital. Para obter mais informações, consulte a tabela de selecção de saída digital. (Consulte a página 37) Os Blu-ray Discs podem incluir três sequências de áudio: - Main Feature Audio (Áudio principal): A faixa de áudio principal. - BONUSVIEW audio (Áudio BONUSVIEW): Faixa de áudio adicional, como comentários do realizador ou dos actores. - Navigation Sound Effects (Efeitos sonoros de navegação): Quando selecciona itens do menu de navegação, pode ser emitido um efeito sonoro de navegação. Os efeitos sonoros de navegação são diferentes em cada Blu-ray Disc. ✎ NOTA Pode ser activada quando o HDMI Audio estiver ON (LIGADO). Certifique-se de que selecciona a saída digital correcta, caso contrário poderá não será emitido qualquer som ou o produto poderá emitir um ruído alto. Se o dispositivo HDMI (receptor, televisor) não for compatível com formatos comprimidos (Dolby Digital, DTS), o sinal de áudio é emitido como PCM. Saída Digital Os DVDs padrão não têm áudio BONUSVIEW Defina a Saída digital de modo a corresponder às capacidades do receptor AV que ligou ao produto: • PCM : Seleccione esta opção se tiver ligado um receptor de AV com suporte de HDMI. • Fluxo de bits (Não processado) : Seleccione esta opção se tiver ligado um receptor AV com suporte de HDMI com capacidade de descodificação Dolby TrueHD e DTS-HD Master Audio. • Fluxo de bits (DTS recodificado) : Seleccione esta opção se tiver ligado um receptor AV com uma Entrada óptica digital capaz de descodificar DTS. Alguns Blu-ray Discs não têm áudio 36 Português nem efeitos sonoros de navegação. BONUSVIEW nem efeitos sonoros de navegação. Esta configuração da Saída digital não efectua a saída de áudio analógico (esquerda/direita) ou de áudio HDMI na sua televisão. Efectua a saída óptica e de áudio HDMI quando ligada a um receptor. Se reproduzir faixas de áudio MPEG, a saída de áudio é PCM, independentemente da selecção de saída digital (PCM ou Fluxo de bits). 03 Definição PCM Fluxo de bits (Não processado) Fluxo de bits (DTS Recodificado) Fluxo de bits (Dolby D. Recodificado) Ligação Receptor AV com suporte de HDMI Receptor AV com suporte de HDMI Receptor AV com suporte de HDMI Receptor AV com suporte de HDMI PCM Up to 7.1ch PCM DTS re-encoded Dolby Digital recodificado * Dolby Digital Up to 7.1ch Dolby Digital DTS re-encoded Dolby Digital recodificado * Dolby Digital Plus Up to 7.1ch Dolby Digital Plus DTS re-encoded Dolby Digital recodificado * Dolby TrueHD Up to 7.1ch Dolby TrueHD DTS re-encoded Dolby Digital recodificado * DTS Up to 6.1ch DTS DTS re-encoded Dolby Digital recodificado * DTS-HD HRA Up to 7.1ch DTS-HD HRA DTS re-encoded Dolby Digital recodificado * DTS-HD MA Up to 7.1ch DTS-HD MA DTS re-encoded Dolby Digital recodificado ** PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch Dolby Digital Up to 5.1ch Dolby Digital Dolby Digital Dolby Digital DTS Up to 6.1ch DTS DTS DTS Emite apenas a sequência de áudio principal para que o receptor AV descodifique o fluxo de bits de áudio. Não é emitido áudio BONUSVIEW nem efeitos sonoros de navegação. Descodifica o áudio principal e o áudio BONUSVIEW em conjunto para áudio PCM e adiciona efeitos sonoros de navegação e, em seguida, volta a codificar o áudio PCM em fluxo de bits de DTS. Descodifica o áudio principal e o áudio BONUSVIEW em conjunto para áudio PCM e adiciona efeitos sonoros de navegação e, em seguida, volta a codificar o áudio PCM em fluxo de bits Dolby Digital ou PCM. Sequência de áudio no Blu-ray Disc Sequência de áudio em DVD Definição para Blu-ray Disc Qualquer Descodifica o áudio principal e o áudio BONUSVIEW em conjunto para áudio PCM e adiciona efeitos sonoros de navegação. * Se a sequência de origem for de 2 canais, a definição “Dolby D Recodificado” não é aplicada. A saída será LPCM 2 canais. Compressão de Gama Dinâmica Pode ouvir diálogos nitidamente mesmo com som baixo. Esta opção apenas se encontra activa quando é detectado um sinal Dolby Digital. • Auto : Dynamic Range Control (Controlo do Intervalo Dinâmico) será configurado automaticamente com base nas informações fornecidas pela Dolby TrueHD Soundtrack. • Off (Desligado) : A faixas sonoras dos filmes são reproduzidas utilizando a Gama Dinâmica padrão. • On (Ligado) : Quando o som do filme é reproduzido com um volume baixo ou utilizando colunas mais pequenas, o sistema pode aplicar a compressão adequada para tornar os conteúdos de baixo volume mais perceptíveis e prevenir que os picos de som fiquem demasiado altos. Português 37 Configurar Selecção para Saída Digital Configurar Audio Sync (Sinc. Áudio) O vídeo pode ficar dessincronizado em relação ao som quando o produto está ligado a um televisor digital. Se tal acontecer, regule o tempo de atraso do som de modo a coincidir com o vídeo. • Pode definir o tempo de atraso de áudio entre 0 ms e 300 ms. Defina este valor para obter o estado ideal. rede Antes de começar, contacte o seu fornecedor de serviços de Internet para determinar se o endereço IP é estático ou dinâmico. Se for dinâmico e estiver a utilizar uma ligação com ou sem fios, recomendamos a utilização dos procedimentos Auto. Se estiver a utilizar uma ligação sem fios e o router tiver capacidade, pode utilizar WPS(PBC) ou One Foot Connection (Ligação "one foot"). Se o endereço IP for estático, terá de utilizar o procedimento de configuração manual para as ligações com e sem fios. Definições de Rede Para iniciar a configuração da ligação à rede do produto, siga os passos seguintes: 1. No menu inicial, prima os botões ◄► para seleccionar Settings (Definições) e, em seguida, prima o botão ENTRAR. 2. Prima os botões ▲▼ para seleccionar Network (Rede) e, em seguida, prima o botão ENTRAR. 3. Prima os botões ▲▼ para seleccionar Network Settings (Definição de rede) e, em seguida, prima o botão ENTRAR. 4. Prima os botões ▲▼ para seleccionar Wired (Com fios), Sem fios (Geral), WPS (PBC) ou Ligação One Foot e, em seguida, prima o botão ENTRAR. 5. Se tiver uma rede com fios, avance para a secção Rede com fios. Se utilizar um rede sem fios, consulte a secção Rede sem Fios nas páginas 39~41. Português Rede com Fios Configurar uma Ligação com fios- Auto 1. Prima os botões ▲▼ para seleccionar Wired (Com fios). Configurações Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte Configurações de Rede Selecione um tipo de conexão de rede. Cable Sem fio (Geral) WPS(PBC) One Foot Connection Conecte à rede usando o cabo da rede. Verifique se o cabo da rede está conectado. > Mover " Entrar ' Retornar 2. Prima o botão ENTRAR. É apresentado o ecrã Estado da Rede. O produto estabelece ligação à rede após a ligação à rede ter sido verificada. Configurar uma Ligação com fios – Manual Se tiver um endereço de IP estático ou a Definição Automática não funcionar, terá de definir os valores da Configuração de rede manualmente. Para obter os valores da configuração de rede na maioria dos computadores Windows, siga os passos seguintes: 1. Clique com o botão direito do rato no ícone Rede no canto inferior direito do ambiente de trabalho do Windows. 2. No menu de contexto, clique em Estado. 3. Na caixa de diálogo apresentada, clique no separador Suporte. 4. No separador Suporte, clique no botão Detalhes. São apresentadas as definições de rede. 03 Rede sem Fios 1. Prima os botões ▲▼ para seleccionar Wired (Com fios), em seguida, prima o botão ENTRAR. • Sem fios (Geral) 2. Prima os botões ◄► para seleccionar IP Settings (Definições de IP) e, em seguida, prima o botão ENTRAR. Configurações Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte Modo de IP Config de IP Manual 0 . 0 . 0 . 0 0 . 0 . 0 . 0 Endereço IP Máscara Sub-rede 0 . 0 . 0 . 0 Gateway Modo de DNS Servidor DNS m Mover OK Manual 0 . 0 . 0 . 0 Número " Entrar ' Retornar 3. Prima o botão ENTRAR para seleccionar a opção IP Mode (Modo IP). 4. Prima os botões ▲▼ para seleccionar Manual e, em seguida, prima o botão ENTRAR. 5. Prima o botão ▼ para aceder ao primeiro campo de introdução, (Endereço IP). 6. Utilize os botões numéricos no controlo remoto para introduzir números. 7. Quando terminar o preenchimento de um campo, prima o botão ► para avançar para o campo seguinte. Também pode utilizar os botões de setas para mudar para a opção anterior, seguinte ou retroceder. 8. 9. Introduza os valores de IP Address (Endereço de IP), Subnet Mask (Máscara de Sub-rede ), e Gateway. Prima o botão ▼ para aceder ao DNS Mode (modo DNS). 10. Prima o botão ▼ para aceder ao primeiro campo de introdução DNS. Introduza os números indicados. 11. Prima o botão ENTRAR para seleccionar OK. É apresentado o ecrã Estado da Rede. O produto estabelece ligação à rede após a ligação à rede ter sido verificada. Pode configurar a rede sem fios de três formas: • Utilizando WPS(PBC). • Ligação "One Foot" A opção Wireless (General) (Sem fios (Geral)) inclui os procedimentos de configuração Automático e Manual. Configurar a Ligação de rede sem fios - Auto A maioria das redes sem fios possui um sistema de segurança opcional em que os dispositivos têm de aceder à rede para transmitir um código de segurança codificado, denominado Chave de Acesso ou Chave de Segurança. A Chave de Segurança é baseada numa Frase–passe, normalmente constituída por uma sequência de letras e números, de um determinado comprimento, introduzida pelo utilizador ao configurar a segurança da rede sem fios. Se utilizar este método para configurar a ligação à rede, e tiver definido uma Chave de Segurança para a rede sem fios, será necessário introduzir a Frase-passe durante o processo de configuração automático. 1. Prima os botões ▲▼ para seleccionar Wireless (General) (Sem Fios (Geral)). Configurações Configurações de Rede Imagem Selecione um tipo de conexão de rede. Áudio Redeork Sistemam Cable Sem fio Idiomaage (Geral) Segurançaty WPS(PBC) Geralal One Foot Connection Suporteort Configure a rede sem fio selecionando o Roteador sem fio. Talvez seja preciso informar a chave de segurança dependendo da definição do Roteador sem fio. > Mover " Entrar ' Retornar 2. Prima o botão ENTRAR. Quando o leitor concluir a procura, é apresentada uma lista das redes disponíveis. 3. Prima os botões ▲▼ para seleccionar a rede pretendida e, em seguida, prima o botão ENTRAR. É apresentado o ecrã Segurança. Português Configurar Para introduzir as definições de rede no produto, siga os passos seguintes: Configurar 4. No ecrã Segurança, introduza a Frase-passe da sua rede. Introduza números directamente utilizando o controlo remoto. Para seleccionar uma letra, prima os botões ▲▼◄► para mover o cursor e, em seguida, prima o botão ENTRAR. Configurações Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte Ins chave seg. Configurações de Rede 0 ENTRARed a b c d e f 1 2 3 m n o p q r 7 8 9 * Excluir g s h a/A t i u j v k w l x 4 y Espaço 5 z Para introduzir as definições de rede no produto, siga os passos seguintes: 1. Siga os Passos 1 a 5 no procedimento ‘Configurar a Ligação à Rede Sem Fios – Automático’. 2. Quando terminar, prima os botões ▲▼◄► para mover o cursor até Done (Concluído) e, em seguida, prima o botão ENTRAR. É apresentado o ecrã Estado da Rede. Configurações 6 Imagem Áudio 0 Rede Concluído Sistema a Anterior m Mover " Entrar ' Retornar Idioma Segurança Geral Suporte ✎ NOTA Config de IP Modo de IP Manual 0 . 0 . 0 . 0 0 . 0 . 0 . 0 0 . 0 . 0 . 0 Endereço IP áscara Sub-rede Gateway DNS Mode DNS Server OK Manual 0 . 0 . 0 . 0 > Mover " Entrar ' Retornar Poderá localizar a Frase-passe num dos ecrãs de configuração utilizados para configurar o router ou modem. 5. Quando terminar, prima os botões ▲▼◄► para mover o cursor até Done (Concluído) e, em seguida, prima o botão ENTRAR. É apresentado o ecrã Estado da Rede. O produto estabelece ligação à rede após a ligação à rede ter sido verificada. Configurar a Ligação de rede sem fios - Manual Se a configuração automática não funcionar, é necessário efectuar a configuração da rede manualmente. Para obter os valores da configuração de rede na maioria dos computadores Windows, siga os passos seguintes: 1. Clique com o botão direito do rato no ícone Rede no canto inferior direito do ecrã. 3. No ecrã Estado da Rede, seleccione Cancelar e, em seguida, prima o botão ENTRAR. 4. Prima os botões ◄► para seleccionar IP Settings (Definições de IP ) e, em seguida, prima o botão ENTRAR. 5. Prima o botão ENTRAR para seleccionar a opção IP Mode (Modo IP). 6. Prima os botões ▲▼ para seleccionar Manual e, em seguida, prima o botão ENTRAR. 7. Prima o botão ▼ para aceder ao primeiro campo de introdução, (Endereço IP). 8. Utilize os botões numéricos para introduzir números. 9. Quando terminar o preenchimento de um campo, prima o botão ► para avançar para o campo seguinte. Também pode utilizar os botões de setas para mudar para a opção anterior, seguinte ou retroceder. 2. No menu de contexto, clique em Estado. 10. Introduza os valores de IP Address (Endereço de IP), Subnet Mask (Máscara de Sub-rede), e Gateway. 3. Na caixa de diálogo apresentada, clique no separador Suporte. 11. Prima o botão ▼ para aceder ao DNS Mode (Modo DNS). 4. No separador Suporte, clique no botão Detalhes. São apresentadas as definições de rede. 12. Prima o botão ▼ para aceder ao primeiro campo de introdução DNS. Introduza os números indicados. 0 13. É apresentado o ecrã Estado da Rede. O produto estabelece ligação à rede após a ligação à rede ter sido verificada. Português 03 A forma mais fácil de configurar a ligação de rede sem fios é utilizando a função WPS(PBC) ou a função One Foot Connection (Ligação "One Foot"). Se o router sem fios incluir um botão WPS(PBC), execute os passos seguintes: 1. Prima os botões ◄► para seleccionar WPS(PBC). Configurações Configurações de Rede Imagem Selecione um tipo de conexão de rede. Áudio Redeork Sistem Cable Sem fio Idiomage (Geral) Segurity WPS(PBC) Geral One Foot Suporrt Connection 3. Coloque o router sem fios Samsung a uma distância de 25 cm do produto para estabelecer ligação. 4. Aguarde até a ligação ser estabelecida automaticamente. Estado da Rede Verifique se foi estabelecida uma ligação à rede e à Internet. Configurações Imagemy Conecte-se ao Roteador sem fio facilmente, pressionando o botão WPS(PBC). Selecione essa opção se o Roteador sem fio suportar a configuração de PBC. > Mover " Entrar ' Retornar Áudio Redeoork Sistem 3. Prima o botão WPS(PBC) no router até dois minutos depois. O produto apresenta o ecrã de selecção de rede e adquire automaticamente todos os valores da configuração de rede necessários e estabelece ligação à rede. Quando a operação estiver concluída, é apresentado o botão OK. Prima o botão ENTRAR no controlo remoto. Endereço MAC XX:XX:XX:XX:XX:XX Endereço IP 0.0.0.0 Máscara Sub-rede 0.0.0.0 Gateway 0.0.0.0 Servidor DNS 0.0.0.0 IdiomeNão é possível se conectar ao roteador sem fio. Tente o seguinte. - Verifique se o Roteador sem fio está ligado; desconecte-o e reconecte-o. Segur - Verifique a chave de segurança se o roteador sem fio tiver uma. Geral 2. Prima o botão ENTRAR. KT_WLAN Status da Rede Suportert Configurações de Rede Config de IP Tentar Nov. OK < Mover " Entrar ' Retornar Ligação à Internet BD-LIVE Pode configurar a ligação sem fios automaticamente se tiver um router sem fios Samsung compatível com a Ligação “One Foot”. Para ligar utilizar a função de Ligação “One Foot”, siga estes passos: Configure esta opção para permitir a ligação à Internet quando o serviço BD-LIVE é utilizado. • Allow (All) (Autorizar (Tudo)) : A ligação à Internet será permitida para todos os conteúdos BD-LIVE. • Allow (Valid Only) (Autorizar (Apenas itens válidos)) : A ligação à Internet apenas será permitida para os conteúdos BD-LIVE com um certificado válido. • Prohibit (Proibir) : Não será permitida qualquer ligação à Internet para qualquer conteúdo BDLIVE. 1. Prima os botões ▲▼ para seleccionar One Foot Connection (Ligação “One Foot”). ✎ NOTA Ligação "One Foot" O que é um certificado válido? Configurações Configurações de Rede Imagem Selecione um tipo de conexão de rede. Áudio Redeork Sistemam Cable Sem fio Idiomaage (Geral) Segurançay WPS(PBC) Geral One Foot SuportertConnection Conecte-se à rede sem fio automaticamente se o roteador sem fio suportar o One Foot Connection. Selecione esse tipo de conexão após colocar o roteador sem fio a 25 cm do produto. > Mover " Entrar ' Retornar Quando o produto utiliza BD-LIVE para enviar os dados ao disco e um pedido ao servidor para certificar o disco, o servidor utiliza os dados transferidos para verificar se o disco é válido e devolve o certificado ao produto. A ligação à Internet pode ficar limitada durante a utilização dos conteúdos BD-LIVE. Português 1 Configurar 2. Prima o botão ENTRAR. WPS(PBC) Configurar sistema Definições Iniciais Na opção Initial Settings (Definição Inicial), pode defi nir o idioma, o formato da imagem, as definições de rede, etc. Para obter mais informações sobre as definições, consulte a secção correspondente neste manual do utilizador. (Consulte as páginas 28~46) Anynet+ (HDMI-CEC) Anynet+ é uma função prática que proporciona o funcionamento deste aparelho através de outros produtos Samsung que disponham da funcionalidade Anynet+. Para utilizar esta função, ligue este produto a um televisor Samsung com um cabo HDMI. Pode utilizar este produto utilizando um controlo remoto da Samsung e inicie a reprodução do disco premindo apenas o botão PLAY (REPRODUZIR) (+) no controlo remoto do televisor. Para obter mais informações, consulte o manual de utilizador da televisão. • Off (Desl.) : As funções Anynet+ não estão disponíveis. • On (Lig.) : As funções Anynet+ estão disponíveis. ✎ NOTA Esta função não está disponível se o cabo HDMI não suportar CEC. Se o seu televisor Samsung tiver um logótipo n signifi ca que suporta a função Anynet+. Dependendo do televisor, certas resoluções de saída HDMI podem não funcionar. Consulte o manual do utilizador do televisor. Gestão de Dados BD Permite gerir os conteúdos transferidos aos quais acedeu através de um Blu-ray Disc com suporte do serviço BD-LIVE e armazenados num dispositivo de memória ligado. Pode verificar as informações do dispositivo, incluindo o tamanho de armazenamento, eliminar os dados BD ou alterar o dispositivo de memória. Português Informações do Ecrã Gestão de Dados da BD: • Total Size (Espaço total) : Tamanho total do dispositivo. • Available Size (Espaço disponível) : Tamanho disponível no dispositivo. • Delete BD Data (Eliminar Dados BD) : Eliminar todos os dados BD no armazenamento. • Select Device (Seleccionar Dispositivo) : Altere a localização da memória pretendida para guardar dados BD. ✎ NOTA No modo de memória externa, a reprodução do disco será interrompida se desligar o dispositivo USB durante a reprodução. Só são suportados dispositivos USB formatados no sistema de ficheiros FAT (etiqueta de volume DOS 8.3). É recomendado utilizar dispositivos USB com suporte do protocolo USB 2.0, de velocidade de leitura/ gravação de 4 MB/seg ou superior. A função Resume Play (Retomar reprodução) poderá não funcionar após a formatação do dispositivo de armazenamento. O tamanho total de Gestão de Dados BD pode variar, consoante a versão de software. Time Zone (Fuso Horário) Pode especificar o fuso horário aplicável ao local. Configurações Fuso Horário Imagem Áudio Rede Sistema Idioma Segurança Geral Suporte GMT + 00:00 Londres, Lisboa, Casablanca < Alterar " Salvar ' Retornar DivX® Video On Demand Pode ver os Códigos de Registo de DivX® VOD para adquirir e reproduzir conteúdos DivX® VOD ou ver o código de cancelamento do registo para anular o registo deste produto. Reset (Repor) Será reposta a predefinição de todas as configurações, excepto as definições de rede e do Smart Hub. 03 Pode seleccionar o idioma pretendido no menu inicial, no menu do disco, etc. • On-Screen Menu (Menu no ecrã): Seleccione o idioma dos menus no ecrã. • Disc Menu (Menu do disco): Seleccione o idioma dos menus no disco. • Audio (Áudio): Seleccione o idioma do áudio do disco. • Subtitle (Legenda): Seleccione o idioma das legendas. Alterar palavra-passe Altere a palavra-passe de 4 dígitos utilizada para aceder às funções de segurança. Se se esquecer da palavra-passe 1. Retire o disco. 2. Prima sem soltar o botão STOP (@) existente no painel anterior durante 5 segundos ou mais. Todas as programações são repostas nos valores de origem. ✎ NOTA Quando as predefinições de fábrica são ✎ NOTA O idioma seleccionado só aparece se for suportado pelo disco. repostas, todos os dados do utilizador guardados em BD Data (BD Data) serão eliminados. segurança Esta função funciona em conjunto com os discos Blu-ray Disc/DVDs aos quais foi atribuído uma determinada classifi cação, o que ajuda o utilizador a controlar quais os tipos de discos Blu-ray Disc/ DVDs que a sua família pode ver. Quando acede a esta função pela primeira vez, é apresentado o ecrã de configuração da palavrapasse. Introduza a palavra-passe de 4 dígitos pretendida utilizando os botões numéricos. (A palavra-passe predefinida é 0000.) Após ter configurado a palavra-passe, seleccione uma classificação etária que pretende definir para a Classificação Parental BD e um nível de classificação que pretende definir para a Classificação Parental DVD. O produto só reproduz discos Blu-ray com classificação igual ou superior à classificação etária e os discos DVD com uma classificação inferior só são reproduzidos se for introduzida a palavra-passe. Números elevados indicam conteúdo mais maduro. BD Parental Rating (Classificação Parental DVD) Esta opção impede a reprodução de discos Bluray com classificação parental. DVD Parental Rating (Classificação Parental DVD) geral Visor anterior Altere a luminosidade do painel anterior. • Auto : Escurecer durante a reprodução. • Dim (Escuro) : Escurece a janela do visor. • Bright (Claro) : Ilumina a janela do visor. ✎ NOTA Não pode alterar a luminosidade do botão de alimentação e do botão de funções. Light Effect (Efeito de luz) Pode activar ou desactivar o efeito de luz na parte superior do produto. • Always On (Sempre ligado): O efeito de luz está sempre activado. Seleccione esta opção em caso de apresentação do produto. • Auto : Activa o efeito de luz quando liga ou desliga o produto ou quando insere ou ejecta um disco. Seleccione quando instalar o produto em casa. • Off (Desligado) : Mantém o efeito de luz desligado. Impede a reprodução de DVDs com classificações numéricas específicas, excepto se for introduzida uma palavra-passe. Português 43 Configurar Idioma Configurar Network Remote Control (Controlo Remoto da Rede) Os quatro métodos são explicados abaixo. A função de Controlo Remoto da Rede permite controlar o Sistema de Cinema em Casa Blu-ray a partir de um dispositivo remoto, como um smart phone com uma ligação sem fios à sua rede local. Para actualizar pela Internet, siga estes passos: Para utilizar a função de Controlo Remoto da Rede, siga os passos seguintes: 1. Seleccione On (Ligado) no menu de Controlo Remoto da Rede. 2. Instale a aplicação de controlo remoto de rede Samsung para controlar o produto no seu dispositivo portátil compatível. 3. Certifique-se de que o dispositivo portátil e o produto estão ligados ao mesmo router sem fios. 4. Inicie a aplicação no dispositivo portátil. A aplicação deverá detectar o produto e apresentá-lo numa lista. Pela Internet 1. Seleccione By Internet (Por Internet ), e, em seguida, prima o botão ENTRAR. É apresentada a mensagem A ligar ao servidor. 2. Se existir uma transferência disponível, é apresentada a janela Transferir com uma barra de progresso e a transferência é iniciada. 3. Se existir uma transferência disponível, é apresentada a janela Transferir com uma barra de progresso e a transferência é iniciada. 4. Se seleccionar Upgrade Now (Actualizar Agora), o produto actualiza o software, desliga-se e, em seguida, liga-se automaticamente. 6. Se estiver a utilizar a função pela primeira vez, ser-lhe-á perguntado se pretende autorizar ou recusar o controlo remoto do produto. Seleccione Allow (Autorizar). 5. Se não fizer qualquer selecção dentro de um minuto ou seleccionar Upgrade Later (Actualizar Mais Tarde), o produto armazena o novo software actualizado. Pode actualizar o software mais tarde utilizando a função Por Transferência. 7. Siga as instruções fornecidas com a aplicação para controlar o produto. 6. Se seleccionar Don’t Upgrade (Não Actualizar), o produto cancela a actualização. 5. Seleccione o produto. suporte Actualização de Software O menu Actualização do Software permite actualizar o software do produto para obter melhorias de desempenho ou serviços adicionais. Pode efectuar a actualização de quatro formas: • • • • Pela Internet Por USB Por Disco Por ficheiros transferidos ✎ NOTA O produto tem de estar ligado à Internet para utilizar a função Pela Internet. A actualização estará concluída quando o produto se desligar e, em seguida, voltar a ligar-se automaticamente. Nunca desligue nem volte a ligar o produto manualmente durante o processo de actualização. A Samsung Electronics não tem qualquer responsabilidade legal por qualquer avaria do produto provocada por uma ligação à Internet instável ou por negligência do consumidor durante uma actualização do software. Se pretender cancelar a actualização enquanto o software de actualização está a ser transferido, prima o botão ENTRAR. 44 Português 2. Transfira o arquivo zip da actualização de software USB mais recente para o seu computador. 3. Descompacte o arquivo zip para o computador. Deverá ter uma única pasta com o mesmo nome do ficheiro zip. 4. Copie a pasta para uma memória USB. 5. Certifique-se de que o tabuleiro do disco está vazio e, em seguida, insira a memória USB na porta USB do produto. 6. No menu do produto, aceda a Settings (Definições) > Support (Suporte) > Software Upgrade (Actualização de Software). 7. Seleccione Por USB. ✎ NOTA O tabuleiro do disco tem de estar vazio quando actualizar o software utilizando a ficha de anfitrião USB. 8. Seleccione Por Disco. ✎ NOTA Quando a actualização do sistema estiver concluída, verifique os detalhes do software no menu de actualização do software. Não desligue o produto durante a Actualização de software. Poderá provocar uma avaria no produto. By Downloaded (Por Transf.) A função By Downloaded (Por Transf.) permite efectuar actualizações utilizando um ficheiro transferido pelo produto anteriormente, mas que o utilizador decidiu não instalar de imediato, ou um ficheiro transferido pelo produto no Modo de espera (Consulte a secção Transferir no Modo de Espera abaixo). Para actualizar por transferência, siga estes passos: Quando a actualização do software estiver 1. Se tiver transferido software de actualização, o número da versão de software será apresentado à direita da opção Por Transf. Não desligue o produto durante a 2. Seleccione Por transferência e, em seguida, prima o botão ENTRAR. concluída, verifique os detalhes do software no menu Actualização do Software. actualização do software. Poderá provocar uma avaria no produto. As actualizações de software através da ficha de anfitrião USB devem ser executadas apenas com uma memória USB. Por Disco Para actualizar por disco, siga estes passos: 1. Visite a página www.samsung.com/ bluraysupport. 2. Transfira o arquivo zip da actualização de software de disco mais recente para o seu computador. 3. Descompacte o arquivo zip para o computador. Deverá ter uma única pasta com o mesmo nome do ficheiro zip. 4. Grave a pasta para um disco. Recomendamos um CD-R ou DVD-R. 5. Finalize o disco antes de o remover do computador. 3. O produto apresenta uma mensagem a confirmar se pretende actualizar. Seleccione Yes (Sim). O produto inicia a actualização. 4. Quando a actualização concluir, o produto desliga-se automaticamente e, em seguida, volta a ligar. ✎ NOTA Quando a actualização do sistema estiver concluída, verifique os detalhes do software no menu de actualização do software. Não desligue o produto durante a actualização do software. Poderá provocar uma avaria no produto. Para utilizar a função By Downloaded (Por Transf.), o produto tem de estar ligado à Internet. 6. Insira o disco no produto. Português 45 Configurar Para actualizar por USB, siga os passos seguintes: 1. Visite a página www.samsung.com/ bluraysupport. 7. No menu do produto, aceda a Settings (Definições) > Support (Suporte) > Software upgrade (Actualização de Software). 03 Por USB Configurar Transferência em Modo de Esperad Pode definir a função Transferência em Modo de Espera, para que o produto transfira novo software de actualização quando estiver em modo de espera. Em modo de espera, o produto está desligado, mas a ligação à Internet está activa. Permite a transferência automática de actualizações de software, mesmo quando não esteja a utilizar o produto. Para definir a Transferência em Modo de Espera, siga estes passos: 1. Prima os botões ▲▼ para seleccionar Download in Standby Mode (Transferir no Modo de Espera ) e, em seguida, prima o botão ENTRAR. 2. Seleccione On (Ligado) ou Off (Desligado). • Off (Desligado): Se seleccionar Off (Desligado), o produto irá notificar o utilizador com uma mensagem emergente sempre que ficarem disponíveis novas actualizações de software. • On (Ligado): Se seleccionar On (Ligado), o produto transfere automaticamente novas actualizações de software quando se encontrar em modo de espera, desligado. Se o produto transferir novo software de actualização, será apresentada uma mensagem a confirmar se pretende instalá-lo quando ligar o leitor. ✎ NOTA Para utilizar a função Transferência em Modo de Espera, o produto tem de estar ligado à Internet. Contactar a Samsung Indica as informações de contacto para obter assistência para o seu produto. 46 Português 04 Funções Básicas Funções Básicas • CD de Áudio (CD-DA) reproduzir um Disco faixa 1 faixa 1 faixa 1 faixa 1 faixa 1 Reprodução 1. Com cuidado, coloque um disco no tabuleiro com a respectiva etiqueta voltada para cima. 2. Prima o botão PLAY (reProDuZIr ) (+). Botões Relacionados com a Reprodução PLAY (REPRODUZIR) ( +) • MP3, WMA, DivX, MKV e MP4 pasta (grupo) 1 pasta (grupo) 2 ficheiro 1 ficheiro 2 ficheiro 1 ficheiro 2 ficheiro 3 POWER FUNCTION TV SOURCE DVD RECEIVER/TV SLEEP Inicia a reprodução. Reproduzir vídeo 2D no modo 3D Pára a reprodução. • Se premir o botão uma vez: A STOP posição é memorizada. (PARAR) ( @ ) • Se premir o botão duas vezes: A posição não é memorizada. 3 4 5 6 7 8 memorizar a posição de STOP (PARAR) quando o botão STOP (PARAR) ( @ ) é premido. Ficheiros de vídeo com velocidades de transmissão elevadas de 20 Mbps ou mais forçam a capacidade do produto e podem parar durante a reprodução. Estrutura do Disco Os conteúdos do disco estão normalmente divididos do seguinte modo. • Blu-ray Disc, DVD-VIDEO 0 utilizar os menus Disco/título/ Contexto MUTE Utilizar o menu do disco VOL DISC MENU 1. Durante a reprodução, prima o botão DISC MENU (MENU DO DISCO) no controlo remoto. 2. Prima os botões ▲▼_+ para efectuar a selecção pretendida e, em seguida, prima o botão ENTRAR. MENU TITLE MENU POPUP TOOLS Consoante o disco, os itens do menu INFO RETURN podem ser diferentes e este menu pode não estar disponível. A INTERNET@ Português TUNING /CH SFE MODE hZ ✎ NOTA capítulo 3 9 REPEAT menu inicial do Smart Hub em modo 3D, este passa automaticamente para 2D. Com alguns discos, o produto pode não capítulo 1 2 Se avançar para o menu inicial ou o ✎ NOTA título 2 capítulo 2 Pode usufruir de vídeo 2D normal no modo 3D. ✎ NOTA PAUSE Pausa a reprodução. (PAUSA) ( # ) título 1 capítulo 1 capítulo 2 1 hZ EXIT TUNER MEMORY B C MO/ST D DSP REPEAT 0 Funções básicas FUNCTION TV SOURCE POWER Utilizar o menu de títulos VOL FUNCTION TV SOURCE POWER MUTE Utilizar as funções Procurar e Avançar TUNING DVD RECEIVER/TV SLEEP /CH Durante a reprodução, pode efectuar pesquisas rápidas em capítulos ou faixas e utilizar a função Skip 2 (Avançar) 3 para avançar para a selecção seguinte. Z SFE MODE DVD RECEIVER/TV SLEEP 1. Durante a reprodução, prima oMENU DISC MENU TITLE 1MENU botão TITLE MENU (MENU DO POPUP 1 2 3 TÍTULO) no controlo remoto. 4 TOOLS+ para INFO 2. Prima os botões ▲▼_ 4 5e, efectuar a selecção pretendida 76 em seguida, prima o botão ENTRAR. ✎ NOTA 7 8 POWER 5 6 uma Cena Procurar 8 9 FUNCTION TV SOURCE Consoante o disco, RETURN os itens do0menu 2 REPEAT EXIT SEARCH (PROCURAR) (()). Sempre que premir o botão SEARCH (PROCURAR) (()) a velocidade de reprodução muda do seguinte modo. 3 Reproduzir a Lista de títulos MUTE 4 5 7VOL 8 6VOL z 9 POPUP A B TOOLS 2. Prima os botões ▲▼_ + ou o botão ENTRAR para seleccionar o menu pretendido. ✎ NOTA RETURN h D TITLE MENU DSP POPUP Português MEMORY B MO/ST rapidamente, o produto poderá assumir que D se trata de uma pressão longa. Tal poderá DSP originar uma operação não pretendida. Certifique-se de que não prime estes botões demasiado rapidamente. C Avançar Capítulos hzZyx EXIT TUNERestar ser diferentes e este menu pode não MEMORY MO/ST disponível. A B C D 48 som EXIT no modo de procura. TUNERSe premir o botão ( ou ) demasiado INFO Consoante o disco, os itens do menu podem INTERNET@ O sistema de cinema em casa não reproduz RETURN C )1)2)3 (1(2(3 ✎ NOTA INFO /CH @ INTERNET SFE MODE TUNER MEMORY MO/ST )1)2)3 )4)5)6)7 (1(2(3 (4(5(6(7 • Para voltar INFO à velocidade normal de reprodução, prima o botão PLAY (REPRODUZIR) (+). TITLE MENU TOOLS POPUP Utilizar o menu de contexto TUNING RETURN AEXIT DISC MENU 1. Durante a reprodução, prima oMENU INTERNET@ botão POPUP (CONTEXTO) no controlo remoto. TITLE MENU DivX, MKV, MP4 MENU REPEAT 2. Prima os botões ▲▼ para TOOLS da Lista seleccionar uma entrada de títulos que pretenda reproduzir e, em seguida, prima o ENTRAR. MUTE VOL BD-ROM, BD-RE/-R, DVD-RW/-R, TUNING DVD+RW/+R, /CH SFE MODE DVD-VIDEO MUTE TUNING /CHMENU DISC 1. Durante a reprodução, prima SFE o MODE botão DISC MENU (MENU DO 0 DISCO) ou o botão DISC TITLE MENU MENU MENU (MENU DO TÍTULO). hzZyx 0 • Durante a reprodução, prima o botão podem ser diferentes e este menu pode não TUNER DVD RECEIVER/TV MEMORY SLEEP MO/ST estar disponível. A B C D O menu de título sóINTERNET é apresentado se o @ DSP disco contiver pelo menos dois títulos. 1 9 REPEAT DSP • Durante a reprodução, prima o botão SKIP (AVANÇAR) ([]). Se premir o botão SKIP(AVANÇAR) (]) avança para o capítulo seguinte. Se premir o botão SKIP(AVANÇAR) ([) volta ao início do capítulo. Se voltar a premir, volta ao início do capítulo anterior. 04 Reprodução em Câmara Lenta Repetir h�Z�� • No modo de pausa ( # ), prima o botão SEARCH (PROCURAR) ()). Se premir o botão SEARCH (PROCURAR) ()) a velocidade de reprodução é reduzida * 1/8 * 1/4 * 1/2 • Para voltar à velocidade normal de reprodução, prima o botão PLAY (REPRODUZIR) (+ ). ✎ NOTA Não é emitido som durante a reprodução em câmara lenta. A reprodução em câmara lenta só funciona no sentido progressivo. 3. Para voltar à reprodução normal, prima o botão REPEAT (REPETIR). FUNCTION 4. Prima os botões ▲▼POWER para seleccionar OffTV SOURCE (Desl.) e, em seguida, prima o botão ENTRAR. ✎ NOTA • No modo de pausa, prima o botão PAUSE (PAUSA) ( # ). Sempre que premir o botão PAUSE (PAUSA) ( # ) é apresentada uma nova imagem. • Para voltar à velocidade normal de reprodução, prima o botão PLAY (REPRODUZIR) ( + ). ✎ NOTA POWER Não é emitido som durante o modo de reprodução por fotogramas. sentido progressivo. reprodução Kepetitiva 2 3 Repetir o Título ou o Capítulo 4 5 SLEEP pode não estar disponível. Repetir a Secção 1 2 3 4 5 6 h�Z� 7 8 9 1. Durante a reprodução, prima o botão REPEAT (REPETIR) no controlo0 remoto. 6 REPEAT 2. Prima os botões ▲▼ para seleccionar Repeat A-B (Repetir A-B). Repetir > Repetir A-B : Desligado " Marca A MUTE FUNCTION TV SOURCE A reprodução porDVD fotogramas só funciona no RECEIVER/TV SLEEP 1 DVD RECEIVER/TV Consoante o disco, a função de repetição Reprodução por Fotogramas h�Z�� > Desligado TUNING VOL SFE MODE 3. Prima o botão ENTRAR no ponto onde /CH pretende iniciar a reprodução repetitiva (A). 4. Prima o botão ENTRAR no ponto DISC MENU MENU ondeTITLE MENU pretende parar a reprodução repetitiva (B). POPUP 5. Para voltar à reprodução normal, prima o TOOLS INFO botão REPEAT (REPETIR). 6. Prima o botão ENTRAR. h�Z� 7 8 9 ✎ NOTA Permite repetir o título ou o capítulo do disco. 0 REPEAT Se definir o ponto (B) RETURN antes de terem decorrido EXIT 5 segundos, é apresentada a mensagem de TUNER proibição. MEMORY MO/ST 1. Durante a reprodução, prima o botão REPEAT (REPETIR) no controlo remoto. A B C INTERNET@ Português MUTE VOL TUNING /CH D DSP Funções Básicas 2. Prima os botões ▲▼ para seleccionar Chapter (Capítulo) ou o Title (Título) e, em seguida, prima o botão ENTRAR. reprodução em câmara lenta / reprodução por fotogramas MUTE Funções Básicas VOL SFE MODE DISC MENU MENU POPUP O indicador ◄► não será apresentado no TOOLS • Ecrã TOOLS (FERRAMENTAS) RETURN Ferramentas Pesq por título Buscar Capítulos Pesq por título Configs imagem Áudio EQ Pess. Legendas Ângulo 1/2 : 1/20 A : 00:00:13/01:34:37 : Normal INTERNET@ : 1/4 ENG Multi CH : 0/7 Desligado : 1/1 < Alterar " Entrar ' Retornar ✎ NOTA ▪ Consoante o disco o menu TOOLS TITLE MENU ✎ NOTA utilizar o botão tooLs (ferrAMentAs) Durante a reprodução, pode utilizar o menu de disco premindo o botão TOOLS (FERRAMENTAS). TUNING /CH B INFO ecrã se a secção BONUSVIEW não contiver definições de áudio BONUSVIEW. Caso o Blu-ray Disc tenha uma secção BONUSVIEW, as informações sobre o modo primário / secundário também são EXIT apresentadas. Utilize o botão ◄► para TUNER MEMORY alternar MO/ST entre os modos de áudio primário e C secundário. D Esta DSP função depende dos idiomas de áudio codificados no disco e pode não estar disponível. Alguns discos Blu-ray podem permitir a selecção de bandas sonoras de áudio LPCM de vários canais ou em Dolby Digital em Inglês. Seleccionar o Idioma das Legendas hZ� (FERRAMENTAS) pode ser diferente. Avançar Directamente para uma Cena h�Z� 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 2. Prima os botões ▲▼ para seleccionar Subtitle (Legendas). 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 3. Prima os botões ◄► para seleccionar o idioma pretendido para as legendas. 2. Prima os botões ▲▼para seleccionar Title (Título), Chapter (Capítulo) ou Playing Time (Tempo Reprodução). ✎ NOTA 3. Introduza o Title (Título), Chapter (Capítulo) ou Playing Time (Tempo Reprodução) pretendido utilizando os botões numéricos e, em seguida, prima o botão ENTRAR. Conforme o disco Blu-ray/DVD, poderá alterar Seleccionar o Idioma de Áudio h�Z� 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 2. Prima os botões ▲▼ para seleccionar Audio (Áudio). 3. Prima o botão ENTRAR. 4. Prima os botões ▲▼ para seleccionar o idioma de áudio pretendido. 0 Português as legendas no Disc Menu (Menu do disco). Prima o botão DISC MENU (MENU DO DISCO). Esta função depende das legendas codificadas no disco e pode não estar disponível em todos os Blu-ray Discs/DVDs. Caso o Blu-ray Disc tenha uma secção BONUSVIEW, as informações sobre o modo primário / secundário também são apresentadas. Esta função altera em simultâneo as legendas principais e secundárias. O número de legendas corresponde à soma das legendas primárias e secundárias. • É necessário ter alguma experiência com extracção e edição de vídeo para utilizar esta função adequadamente. • Para utilizar a função de legendagem, guarde o ficheiro de legendas (*.smi) com o mesmo nome de ficheiro do ficheiro de vídeo DivX (*. avi) e na mesma pasta. Exemplo. Root Samsung_007CD1.avi Samsung_007CD1.smi • Até 60 caracteres alfanuméricos ou 30 caracteres asiáticos (caracteres de 2 bytes, como caracteres coreanos ou chineses) para o nome de fi cheiro. Alterar o Ângulo da Câmara hZ ✎ NOTA Se o sistema estiver ligado a um televisor compatível com BD Wise que tenha BD Wise Ligado, o menu da configuração da imagem não será apresentado. Definir BONUSVIEW h A função BONUSVIEW permite ver conteúdo adicional (como por exemplo, comentários) numa janela mais pequena, enquanto o filme é reproduzido. Esta função só está disponível se o disco incluir a funcionalidade bonusview. Quando um disco Blu-ray/DVD contém vários ângulos de uma determinada cena, pode seleccionar a função ANGLE (ÂNGULO). 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 2. Prima os botões ▲▼ para seleccionar Angle (Ângulo). 3. Prima os botões ◄► para seleccionar o Angle (Ângulo) pretendido. Seleccionar as Definições da Imagem h�Z� Esta função permite ajustar a qualidade do vídeo. 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 2. Prima os botões ▲▼ para seleccionar Picture Setting (Definições de imagem) e, em seguida, prima o botão ENTRAR. 3. Prima os botões ◄► para seleccionar o Mode (Modo) pretendido. • Dynamic (Dinâmico) : Seleccione esta opção para aument ar a nitidez. • Normal : Seleccione esta opção para a maioria das aplicações de visualização. • Movie (Filme) : A melhor opção para ver filmes. Áudio/vídeo principal Áudio/vídeo secundário 1. Durante a reprodução, prima o botão TOOLS (FERRAMENTAS). 2. Prima os botões ▲▼ para seleccionar BONUSVIEW Video (Vídeo da BONUSVIEW) ou BONUSVIEW Audio (Áudio da BONUSVIEW). 3. Prima os botões ◄►para seleccionar o bonusview pretendido. ✎ NOTA Se mudar do Vídeo da BONUSVIEW, o áudio da BONUSVIEW é alterado automaticamente, de acordo com o Vídeo da BONUSVIEW. Ferramentas Vídeo da BONUSVIEW Desl. Áudio da BONUSVIEW : 0/1 Desl. Configs Imagem < Alterar " Entrar Português 1 Funções Básicas � • Utilizador: O utilizador pode regular a nitidez, redução de ruído, Contraste, Luminosidade, Cor e função de Tonalidade (G/R). 04 Função de Legendagem Funções Básicas FUNCTION TV SOURCE POWER ouvir MúsicaSLEEP RECEIVER BD TV 2 1 3 7 BD @ ! SLEEP 8 TV 8 Botão ► : Durante a reprodução, avança para a página seguinte na Lista de música ou para a faixa seguinte na Lista de reprodução. Botão ◄ : Durante a reprodução, avança para a página anterior na Lista de música ou para a faixa anterior na Lista de reprodução. o� Botões do Controlo Remoto 4 5 6 utilizados para Reproduzir Música FULL SCREEN Botão ENTRAR : Reproduz a faixa seleccionada. FUNCTION TV SOURCE POWER RECEIVER 7 9 ECHO REPEAT 1 0 2 3 9 Botão STOP : Pára a reprodução de uma faixa. 4 5 6 0 Botão ] : Reproduz a faixa seguinte. ! Botão [ : Reproduz a faixa anterior. Se premiu este botão após três segundos de reprodução da Lista de reprodução, a faixa actual é novamente reproduzida a partir do início. No entanto, se carregou neste botão três segundos após a reprodução da Lista de reprodução ser iniciada, é reproduzida a faixa anterior. @ Botão NUMBER (NUMÉRICOS) : Durante a reprodução da Lista de reprodução, prima o número da faixa pretendida. A faixa seleccionada é reproduzida. (apenas CD de áudio (CD-DA)) 7 8 9 FULL SCREEN MUTE REPEAT 0 VOL TUNING /CH SFE MODE 1 2 0 DISC MENU 9 8 7 MENU TITLE MENU MUTE POPUP MIC VOL+ TOOLS 3 4 INFO VOL TUNING /CH SFE MODE DISC MENU RETURN 5 MIC VOLTITLEEXIT MENU MENU POPUP iPod SYNC TUNER MEMORY A B C SMART SEARCH S/W LEVEL 2D→3D DSP VERTICAL SURROUND TOOLS MO/ST INFO D 6 HUB 3D SOUND RETURN 1 EXIT Botão REPEAT (REPETIR): Selecciona o modo MO/ST iPod SYNC de reprodução na Lista de reprodução. TUNER MEMORY A B C D 2 2D→3D SMART SEARCH S/W LEVEL Botões SEARCH (PROCURAR): HUB Reprodução rápida (CDs de áudio (CD-DA)). DSP 3D SOUND Avança a reprodução (MP3). (10 segundos) 3 Botões PAUSE (PAUSA) : Pausa a reprodução. 4 Botões PLAY (REPRODUZIR) : Reproduz a faixa seleccionada. 5 Botões ▲▼ : Selecciona uma faixa na lista de músicas ou na lista de reprodução. 6 Botões AMARELO (C) : Seleccione o Modo de edição ou o Modo de reprodução. VERTICAL SURROUND Português DVD RECEIVER/TV SLEEP 2 3 4 5 6 Repetir um CD de Áudio 7 (CD-DA)/MP3 8 9 1. Introduza um CD de áudio (CD-DA) ou MP3 no suporte do disco. • Num CD de áudio (CD-DA), a primeira faixa é reproduzida automaticamente. • Num disco de MP3, prima os botões ◄► para seleccionar Music (Música) e, em seguida, prima o botão ENTRAR. 1. Durante a reprodução da Lista de reprodução, prima o botão 0 REPEAT (REPETIR). 2. Seleccione o modo de reprodução pretendido premindo o botão REPEAT (REPETIR) repetidamente. Elementos do Ecrã de CD de Áudio (CD-DA)/MP 1 2 Off (Desl.) 3 As faixas MUTE existentes no CD de Áudio disco são reproduzidas (CD-DA)/MP3 pela ordem em que foram TUNING gravadas. VOL SFE MODE Música 1/13 TRACK 001 TRACK 001 DISC MENU ) Todos TRACK 002 03:56 7 6 TRACK 003 ✎ NOTA 04:41 00:13 / 00:43 + CD Áudio TRACK 004 MENU TITLE MENU Audio CD Repete todas as faixas. POPUP (CD-DA)/MP3 TOOLS INFO Durante a reprodução, prima o botão TOOLS 04:02 " Entrar < Pages Ferramentas ' Retornar e active o Modo Aleatório. Pode reproduzir as faixas aleatoriamente. RETURN 5 /CH ( ) Audio CD A faixa actual é repetida. Uma música (CD-DA)/MP3 ( 00:43 REPEAT 4 1 Apresenta informações sobre a música. 2 Apresenta a lista de reprodução. 3 Indica a faixa total/total de faixas. 4 Apresenta os botões disponíveis. 5 Indica o tempo de reprodução actual e total. 6 Indica o estado actual de reprodução. 7 Apresenta o estado actual de reprodução repetida. 2. Prima os botões ▲▼ para seleccionar a faixa que pretende reproduzir e, em seguida, prima o botão ENTRAR. Lista de Reprodução EXIT TUNER MEMORY MO/ST 1. Introduza um CD de Aáudio (CD-DA) B C ou MP3 D no suporte do disco. INTERNET@ DSP • Num CD de áudio (CD-DA), a primeira faixa é reproduzida automaticamente. • Num disco de MP3, prima os botões ◄► para seleccionar Music (Música) e, em seguida, prima o botão ENTRAR. 2. Para avançar para Lista de músicas, prima o botão STOP (@) ou RETURN (RETROCEDER). É apresentado o ecrã Lista de músicas. 3. Prima o botão AMARELO (C) para mudar para o Edit Mode (Mod Editar). 4. Prima ▲▼◄► para seleccionar uma faixa pretendida e, em seguida, prima ENTRAR. Repita este procedimento para seleccionar mais faixas. • O ficheiro pretendido fica seleccionado. • Para cancelar a selecção, prima ENTRAR novamente para desmarcar a faixa. Português Funções Básicas Playing an Audio CD (CD-DA)/MP3 04 1 Funções Básicas Audio CD | Música Selected Items : 3 TRACK 001 TRACK 002 00:43 03:56 TRACK 003 POWER 04:41 TRACK 005 03:43 TRACK 004 04:02 TRACK 006 FUNCTION TV SOURCE 03:40 TRACK 007 04:06 1/2 Page TRACK 008 DVD RECEIVER/TV c Fechar Modo Editar ( ) Página 03:52 SLEEP Ferramentas " Selec. ' Retornar 5. Quando terminar, prima 1 o botão2 TOOLS.3 6. Para reproduzir a(s) faixas(s) seleccionada(s), seleccione Reproduzir menu Ferramentas e 4 5 6 prima ENTRAR. 7 Música TRACK 001 8 0 TRACK 001 00:43 9 1/3 REPEAT TRACK 003 04:41 Ferramentas ' Retornar MUTE 7. Para regressar ao Edit Mode (Mod Editar), TUNING prima STOP (PARAR) VOLou RETURN. SFE MODE /CH 8. Para sair do modo de edição, prima o botão AMARELO (C). DISC MENU ✎ NOTA MENU TITLE MENU POPUP Pode criar uma lista de reprodução com um INFO máximo de 99 faixasTOOLS no CD de áudio (CD-DA). Modo de som Função DSP (DigitalRETURN Signal Processor) EXIT TUNER o som Pode seleccionar o modo para optimizar MEMORY MO/ST com base nas suas preferências. A B C D Prima o botão DSP. INTERNET@ SMART SOUND MP3 ENHANCER POWER BASS USER EQ DSPOFF Português SLEEP Pode definir o modo SFE que melhor se adequa ao estilo de música que está a ouvir. DISC MENU 00:13 / 00:43 " Entrar DVD RECEIVER/TV • SMART SOUND (SOM INTELIGENTE) : Esta função regula e estabiliza o nível de volume sempre que ocorre uma mudança de volume 1 uma2 drástica ao mudar de canal ou durante transição de cenas. • MP3 ENHANCER (OPTIMIZADOR 4 DE MP3): 5 Esta função ajuda também a melhorar a experiência auditiva (por. ex. música mp3). Pode 7 8 aperfeiçoar o som de nível MP3 (24 kHz, 8 bits) para som de nível de CD (44.1 kHz, 16 bits). 0 • POWER BASS (BAIXOS INTENSOS): Esta função acentua os tons baixos proporcionando um efeito sonoro mais abafado. • USER EQ : Pode definir as configurações do equalizador manualmente, de acordo com as MUTE suas preferências. VOL 03:56 CD Áudio FUNCTION TV SOURCE MODO SFE (Sound Field Effect) TRACK 002 + POWER DSP SFE MODE MENU Prima o botão SFE MODE (MODO SFE). Sala de Concertos de Boston (Sala 1) Permite ouvir um som claro, como se fosse ouvido numa sala de espectáculos. Sala de Concertos de Bratislava (Sala 2) Também emite um som claro, RETURN como se fosse ouvido numa sala de espectáculos, mas comTUNER MEMORY menos intensidade do que A B C HALL1. TOOLS INTERNET@ Clube de Jazz em Seul B Definição recomendada para ouvir Jazz. Igreja em Seul Cria a sensação de estar no interior de uma grande igreja. Anfiteatro (Rock) Definição recomendada para ouvir Rock. Desligado Seleccione esta opção para uma audição normal. 3 6 9 REPEAT TUNING /CH TITLE MENU POPUP INFO EXIT MO/ST D DSP DISC MENU MENU TITLE MENU POPUP INFO RETURN EXIT TUNER MEMORY B C INTERNET@ PL II. Music (Música) Ao ouvir música, pode sentir os efeitos de som tal como se assistisse a um concerto ao vivo. Movie (Filme) Confere realismo ao som do filme. Prologic D de sincronização de áudio. Prima o botão iPod SYNC no controlo remoto para alterar o atraso de áudio. Modelos suportados: classic/3G nano/4G nano/120GB classic/160GB Classic/5G nano DSP Pode seleccionar o modo de áudio Dolby Pro Logic II pretendido. Prima o botão Os modelos seguintes suportam definições MO/ST É possível ouvir uma fonte de som de 2 canais em som surround de 5.1 canais com todos os alto-falantes ativos. - Um alto-falante específico talvez não transmita som dependendo do sinal de entrada. Som 3D Pode desfrutar de som surround mais natural e intenso com tonalidades mais ricas ajustando a profundidade de som utilizando as opções de nível. Off (Desligado) High (Alto) Medium Low (Baixo) ✎ NOTA Não está disponível no modo FM ou W.iPod. Surround Vertical Matrix (Matriz) Será emitido som surround multicanal. Stereo (Estéreo) Seleccione este modo para ouvir som emitido apenas pelas colunas frontais esquerda e direita e pelo subwoofer. ✎ NOTA Quando seleccionar o modo Dolby Pro Logic II, ligue o dispositivo externo às fichas de AUDIO INPUT (entrada de áudio) (L e R) do produto. Se ligar apenas a uma das entradas (L ou R), não poderá ouvir um som surround. Implementar o efeito de campo de som vertical, reforça a sensação de espaço musical e a ligação com a imagem, além de permitir sons mais vívidos. Off (Desligado) High (Alto) Low (Baixo) Off (Desligado). reproduzir uma Imagem G Ver Ficheiros de Fotografias Se o sinal de vídeo não estiver correctamente sincronizado com o sinal de áudio, prima o botão iPod SYNC no controlo remoto para corrigir a sincronização. 1. Ligue uma memória USB que tenha ficheiros JPEG, ou insira um disco com ficheiros JPEG. 2. Prima os botões ◄► para seleccionar My contents (Meu conteúdo) e, em seguida, prima o botão ENTRAR, depois de premir os botões ▲▼ para seleccionar Fotografias. 3. Prima os botões ▲▼◄► para seleccionar a fotografia que pretende reproduzir e, em seguida, prima o botão ENTRAR. ✎ NOTA ✎ NOTA SINCRONIZAÇÃO COM iPod Se introduzir o seu leitor de iPod numa base para iPod ligada ao sistema, os ficheiros de vídeo no leitor iPod podem ser reproduzidos no televisor ligado. Antes de reproduzir os ficheiros de vídeo no B leitor iPod, terá de ligar os terminais de Áudio/ Vídeo do televisor ao sistema de cinema em casa utilizando o cabo Composto (A/V). Pode aumentar o tamanho das legendas e do EQ gráfico no modo de ecrã completo. Português 55 Funções básicas Modo Dolby Pro Logic IIA 04 TOOLS MUTE Funções Básicas Utilizar o botão TOOLS (FERRAMENTAS) VOL DISC MENU Durante a reprodução de uma apresentação, pode utilizar várias funções premindo o botão TOOLS (FERRAMENTAS) (FERRAMENTAS). Ferramentas TUNING /CH SFE MODE reproduzir um Dispositivo de Armazenamento usb MENU TITLE MENU POPUP TOOLS Pode utilizar uma ligação USB para reproduzir ficheiros multimédia (MP3, JPEG, DivX, etc.) transferidos do dispositivo de armazenamento USB. EXIT para o menu inicial. 1. Avança RETURN Parar Apresentação de Diapositivos Slide Show Speed : Normal Slide Show Effect : Blind Background Music : Off A Definição da Música de Fundo INTERNET@ Zoom Rodar Definição de Imagem Informação TUNER MEMORY B C • Pause Slide Show (Parar Apresentação de Diapositivos): Seleccione esta opção se pretender parar a apresentação. • Slide Show Speed (Vel. apres. Imagens): Seleccione esta opção se pretender ajustar a velocidade da apresentação. • Slide Show Effect (Efeito de apresentação): Seleccione para definir o efeito de apresentação. • Background Music (Música de Fundo): Seleccione para ouvir música enquanto vê uma apresentação. • Background Music Setting (Definição da Música de Fundo): Seleccione para definir a música de fundo. • Zoom : Seleccione esta opção se pretender ampliar a imagem actual. (Amplia até 4 vezes) • Rotate (Rodar): Seleccione esta opção se pretender rodar a imagem. (Roda a imagem para a direita ou para a esquerda.) • Picture Setting (Definição de Imagem): Seleccione para ajustar a qualidade da imagem. • Information (Informação): Indica as informações das imagens incluindo o nome e tamanho, etc. ✎ NOTA Antes de activar a função de música de fundo, Português MO/ST Meu conteúdo D Vídeos DSP Fotos Música " Entrar ' Retornar deverá certificar-se de que o ficheiro de fotografia está guardado no mesmo suporte de armazenamento que o ficheiro de música. Contudo, a qualidade do som pode ser afectada pela velocidade de transmissão do ficheiro MP3, pelo tamanho da fotografia e pelo método de codificação. F INFO Função Meu dispositivo Internet Configurações c Remover USB com segurança d WPS(PBC) 2. No modo Stop, ligue o dispositivo de armazenamento USB à porta USB no painel anterior do produto. Meu conteúdo Vídeos Dispositivo Conectado USB Função My Devices Photos Music Internet " Entrar ' Retornar Configurações i Remover USB com segurança d WPS(PBC) 3. Prima o botão ENTRAR. 4. Prima os botões ▲▼◄► para seleccionar os vídeos, a música ou as fotografi as pretendidos e, em seguida, prima o botão ENTRAR. 5. Para reproduzir ficheiros de vídeo, música ou fotografi a consulte as páginas 47~56. ✎ NOTA Tem de remover o dispositivo de armazenamento USB em segurança (executando a função “Safely Remove USB”) para evitar possíveis danos na memória USB. Prima o botão MENU para avançar para o menu iniciar e seleccione o botão AMARELO (C) e prima o botão ENTRAR. Se inserir um disco durante a reprodução do dispositivo de armazenamento USB, o modo do dispositivo é automaticamente alterado para “DVD ou BD". 04 FUNCTION TV SOURCE Utilizar botões do Controlo Remoto DVD RECEIVER/TV SLEEP Ligar um iPod/iPhone utilizando o Cabo usb Se o sistema de cinema em casa estiver ligado a um iPod/iPhone através do cabo USB (não fornecido), pode reproduzir música no iPod/iPhone, utilizando o sistema. 1. Prima o botão FUNCTION (FUNÇÃO) para seleccionar FM. 2. Sintonize a estação de rádio pretendida. 1 2 3 • Sintonização Automática 1: Em primeiro lugar, tem de adicionar uma frequência 4pretendida 5 como 6 uma pré-sintonização. Prima o botão STOP (PARAR) (@) para seleccionar PRESET 8 9 (PROGRAMAR) e, em seguida,7prima o botão TUNING/CH ( ) para seleccionar a estação REPEAT programada. 0 1. • Sintonização manual: Prima o botão STOP (PARAR) (@) para seleccionar MANUAL e, em seguida, prima o botão TUNING/CH ( ) para sintonizar uma frequência mais baixa ou mais alta. • Sintonização automática: Prima o botão STOP 2. (PARAR) (@) para seleccionar MANUAL e, em 3. MUTE seguida, prima sem soltar o botão TUNING/CH ( ) para procurar automaticamente a banda. VOL Definir o modo Mono/Estéreo SFE MODE Prima o botão MO/ST. • Sempre que o botão for premido,DISCo MENU modo MENU alterna entre STEREO (ESTÉREO) e MONO. TUNING /CH TITLE MENU • Numa área com fraca recepção de sinal, TOOLS seleccione MONO para uma transmissão sem interferências. 5V 500mA ASC IN 500mA Ligue o iPod/iPhone com o cabo USB à porta USB anterior. • O iPod liga-se automaticamente. • É apresentada a mensagem “iPod” no ecrã do televisor. Prima o botão ENTRAR. Seleccione o ficheiro de música que pretende reproduzir. - Pode utilizar o controlo remoto ou o produto para controlar funções simples de reprodução, como os botões PLAY (REPRODUZIR), PAUSE (PAUSA), STOP (PARAR), [ /] e ( /). (Consulte a página 16.) ✎ NOTA POPUP INFO Programar Estações Exemplo: Predefinir FM 89.10 na memória RETURN 1. Prima o botão FUNCTION (FUNÇÃO) para TUNER seleccionar FM. MEMORY 2. Prima o botão TUNING/CH ( ) para A B C seleccionar <89.10>. INTERNET@ 3. Prima o botão TUNER MEMORY (MEMÓRIA SINTONIZADOR). • O NÚMERO fica intermitente no ecrã. 4. Prima o botão TUNER MEMORY (MEMÓRIA SINTONIZADOR). • Prima o botão TUNER MEMORY (MEMÓRIA SINTONIZADOR) antes do NÚMERO desaparecer do ecrã. • O NÚMERO desaparece do ecrã e a estação é memorizada. 5. Para programar outra estação, repita os passos 2 a 4. • Para sintonizar uma estação programada, prima o botão TUNING/CH ( ) no controlo remoto para seleccionar um canal. Funções Básicas ouvir rádio POWER EXIT MO/ST D DSP Pode reproduzir um vídeo apenas quando utiliza a base para iPod. Se pretender regressar aos menus do iPod com o leitor iPod ligado através do cabo USB, prima FUNCTION (FUNÇÃO) no controlo remoto ou prima no painel anterior do sistema e seleccione R. IPOD. O modo FUNCTION (FUNÇÃO) muda da seguinte maneira: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM Ligar um iPod/iPhone utilizando a base Se o sistema de cinema em casa estiver ligado a um iPod/iPhone através da base específica, pode reproduzir vídeos ou música no iPod/iPhone utilizando o sistema de cinema em casa. COMPONENT OUT FM ANT LAN iPod DIGITAL AUDIO IN HDMI OUT CENTER SPEAKERS OUT FRONT FRONT TOP SUBWOOFER FRONT FRONT TOP HDMI IN OPTICAL WIRELESS AUX IN VIDEO OUT iPod Português SPEAKER IMPEDANCE : 3 Funções Básicas Reproduzir Música Meu conteúdo Vídeos Disp. Conectado iPod Função My Devices Photos Music Internet " Entrar ' Retornar Configurações ✎ NOTA d WPS(PBC) 1. Ligue o conector de base do iPod à ficha do iPod, na parte posterior do produto. 2. Coloque o iPod na base de iPod fornecida. • O iPod liga-se automaticamente. • É apresentada a mensagem “iPod” no ecrã do televisor. 3. Prima o botão ENTRAR. 4. Prima os botões ◄▲▼ para seleccionar Music (Música) e, em seguida, prima o botão ENTRAR. 5. Seleccione o ficheiro de música que pretende reproduzir. - Pode utilizar o controlo remoto ou o produto para controlar funções simples de reprodução, como os botões PLAY (REPRODUZIR), PAUSE (PAUSA), STOP (PARAR), [/ ], (/ ) e REPEAT (REPETIR). Consulte a página 16. ✎ NOTA Regule o volume para um nível moderado antes de ligar o seu iPod e o produto. Se o produto estiver ligado e ligar um iPod, o produto carregará a bateria do iPod. Certifique-se de que liga o conector da base de modo a que a etiqueta“” fique virada para cima. Ver um Filme Pode reproduzir ficheiros de vídeo guardados no leitor iPod, ligando o leitor ao produto. 1. Ligue o conector de base do iPod à ficha de iPod, na parte posterior do produto. 2. No ecrã do iPod, aceda a Settings (Definições) > Videos (Vídeos) e, em seguida, defina a opção TV Out (Saída de TV) e o sinal de televisão. 3. Coloque o iPod na base de iPod fornecida. • É apresentada a mensagem “iPo d” no ecrã do televisor. 4. Prima o botão ENTRAR. Português 5. Prima os botões ◄▲▼ para seleccionar Video, e, em seguida, prima o botão ENTRAR. 6. Seleccione o ficheiro de vídeo que pretende reproduzir. - Pode utilizar o controlo remoto ou o produto para controlar funções simples de reprodução, como os botões PLAY (REPRODUZIR), PAUSE (PAUSA), STOP (PARAR), [ /] e( /). (Consulte a página 16.) É necessário ter a saída de VÍDEO (Composto) ligada ao televisor para ver vídeo do iPod (Consulte a página 24). Se pretende assistir a vídeos do iPod através da tomada de saída de vídeo, desactive a opção Anynet+(HDMI-CEC). No televisor só é apresentado o ecrã da reprodução. Verifique os outros ecrãs no leitor iPod. Se o iPod ligado não suportar a reprodução de vídeo, a mensagem "Playing video files is not supported on this iPod model." quando selecciona o menu Vídeo. Se pretender regressar aos menus do iPod com o leitor iPod ligado utilizando a base, prima o botão FUNCTION no controlo remoto ou prima no painel anterior do sistema e seleccione “R. IPOD”. O modo FUNCTION (FUNÇÃO) muda da seguinte forma: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1; H. IN2 ; FM utilize o iPod/iPhone com uma base sem fios (vendido em separado) para iPod/iPhone Pode desfrutar de som de melhor qualidade nas colunas transmitindo um sinal de áudio do iPod/ iPhone utilizando um Transmissor Sem Fios. Para ligar o Suporte à unidade principal aquando da primeira utilização do Suporte, terá de definir o ID de Ligação manualmente. (consulte a página 60) Após definir o ID de Ligação, o Suporte irá ligar o Suporte ao Transmissor sem Fios automaticamente quando é ligado. Para utilizar o Suporte da Base Sem Fios: Ligue a unidade principal e ligue o iPod/iPhone ao Transmissor Sem Fios. Em seguida, prima o botão no produto para seleccionar o modo "W.IPOD". O modo FUNCTION (FUNÇÃO) da unidade principal muda da seguinte maneira: BD/DVD ; D. IN ; AUX ; R. IPOD ; W. IPOD ; H. IN1 ; H. IN2 ; FM (consulte a página 14) K STA ND K BY STA ND BY CH AR GE CH AR iPod nano (5ª geração) iPod nano (4ª geração) iPod nano (3ª geração) iPod nano (2ª geração) iPod nanoiPod nano (1ª geração) iPhone 4 iPhone 3GS iPhone 3G iPhone Funções Básicas LIN LIN 04 Como Carregar o Transmissor Sem Fios ✎ NOTA GE A indicação “Made for 1. Ligue o Transmissor Sem Fios ao Suporte para carregamento. 2. Ligue o transformador de CA a uma tomada de parede. • O indicador de carregamento acende-se e o carregamento é iniciado. Quando a bateria está completamente carregada o indicador fica Verde. Estados do LED do suporte para carregamento VISOR Função LED VERDE ACESO Carregado/Carregamento concluídO LED VERMELHO ACESO ! A carregar. ✎ NOTA O LED indica o estado de carregamento da bateria incorporada no transmissor sem fios do iPod. Verifique o estado de carregamento do iPod/iPhone verificando a indicação de carregamento da respectiva bateria. CUIDADO O LED indica o estado de carregamento da bateria incorporada no transmissor sem fios do iPod. Verifique o estado de carregamento do iPod/ iPhone verificando a indicação de carregamento da respectiva bateria. Modelos do iPod/iPhone Que Pode utilizar com este Produto iPod touch (3ª geração) iPod touch (2ª geração) iPod touch iPod touch (1ª geração) iPod classic iPod com vídeo iPod com conector de base iPod com Roda de Clique iPod” significa que um acessório electrónico foi concebido para ligar especificamente a iPods e que foi certificado pelo fabricante para respeitar as normas de desempenho da Apple. A indicação “Made for iPhone” significa que um acessório electrónico foi concebido para ligar especificamente a um iPhone e que foi certificado pelo fabricante para respeitar as normas de desempenho da Apple. Apple não é responsável pelo funcionamento deste dispositivo nem pela sua conformidade com as normas de segurança e regulamentos. Não é possível operar normalmente o controlo de volume nos modelos do iPod e iPhone que não estejam indicados na lista acima. Se ocorrer um erro com algum dos modelos acima mencionados, actualize o software do iPod/iPhone para a versão mais recente. Dependendo da versão do software do iPod, é possível que ocorram problemas de controlo. Não se trata de um erro do Sistema de Cinema em Casa. Dependendo do tipo ou da versão do software do iPod, algumas operações podem ser diferentes. Instale o software mais recente do iPod. (recomendado) Algumas acções como iPod SYNC (SINCRONIZAÇÃO iPod) podem depender de origens de vídeo ou do modelo do iPod. Pode desfrutar de música ou videis através da função BD/DVD e desfrutar de música, vídeos ou fotografias com a função Remote iPod. É necessário utilizar a base de iPod para visualizar vídeos ou fotografias. Não é possível garantir a reprodução de conteúdos das aplicações no produto. Recomendamos a reprodução de conteúdos transferidos no iPod. Se ocorrerem problemas ao utilizar o iPod, visite o sítio da Web www.apple.com/support/ipod Português Funções Básicas Como Ligar o transmissor sem fios à unidade Principal 1. Desligue o Sistema de cinema em casa. 2. Prima os botões 4, 7, 6, 3 no controlo remoto por ordem. • O LED de Alimentação pisca uma vez. Função VISOR LED ACESO 3. Ligue o iPod/iPhone ao Transmissor sem fios. INTERMITENTE (LED Azul) EM ESPERA (LED Vermelho) Emparelhamento concluído com êxito EM ESPERA STANDBY LED A processar iPod/ INTERMITENTE iPhone (Intermitente lento) LED A processar o INTERMITENTE Emparelhamento (Intermitente rápido) LIN K STA ND BY CH AR GE 4. Ligue o iPod/iPhone. Prima o botão "ID SET" no painel posterior do Transmissor sem fios durante 5 segundos. A luz de ligação no transmissor sem fios fica intermitente rápido. 5. Ligue o produto. • Para ouvir música do iPod/iPhone no produto, prima o botão para seleccionar o modo "W.IPOD". • Depois de seleccionar o modo "W.IPOD", reduza o volume do produto para evitar danos de audição. • Pode controlar o volume das colunas do iPod/ iPhone com o botão ou barra de volume. • Quando parar o iPod/iPhone ou quando o produto estiver em modo de economia de energia, o Transmissor sem fios muda para o modo Inactivo. Quando o iPod/iPhone está no modo Inactivo, o Transmissor sem fios desligase. Estados do LED do transmissor sem fios LIN K STA ND BY CH AR NK STAN DB Y REPEAT Você pode desfrutar da sensação de um karaokê bar 0 no conforto de sua casa. RECEIVER/TV SLEEP Assista ao vídeo e canteDVDjunto com as ECHO letras exibidas na tela da TV e o acompanhamento. 1 conector2 3 1. Encaixe o microfone no MIC na parte frontal do produto. MUTE MIC VOL+ 2. Pressione o botão ECHO para ajustar 4 5 6 o nível de eco do microfone. TUNING 3. Pressione o botão MIC VOL para 7 VOL SFE 8 MODE /CH 9 ajustar o volume do microfone. GE 0 Português Se utilizar a unidade principal do sistema de cinema em casa junto de um dispositivo sem fios, como por exemplo, um computador portátil, um AP ou Wifi, podem ocorrer erros de funcionamento. Não efectue o emparelhamento do SWA-5000 e do iPod/iPhone ao mesmo tempo. Se efectuar o emparelhamento ao mesmo tempo, o iPod/iPhone FUNCTION e POWER TV SOURCE o SWA-5000 poderão não ser ligados ao produto. A distância de transmissão entre o produto e o transmissor sem fios é DVD deRECEIVER/TV cerca de 5 metros,SLEEP mas pode variar conforme o ambiente de funcionamento. ECHO O sinal de áudio pode ficar mais fraco ou mesmo perder-se, caso exista um obstáculo como uma 2 1 3 parede ou divisão entre o produto e o transmissor sem fios. Pode também enfraquecer ou perder o 4 sem5fios. 6 sinal, se deslocar o transmissor Conectando o7Microfone 8 TVFUNCTION 9 POWER SOURCE CH AR Falha ao emparelhar ! CUIDADO REPEAT ✎ NOTA LI GE BATERIA FRACA 0 DISC MENU MIC VOL- MENU O microfone funciona apenas no menu TITLE MENU Inicial, nos modos de reprodução de BD ePOPUP DVD. A pontuação de karaoke é apresentada TOOLS INFO automaticamente quando a função de pontuação de Karaoke está activada e está ligado um microfone. Desligue o microfone se não pretender MUTE MIC VOL+ visualizar a pontuação. RETURN VOL A EXIT TUNING TUNER SFE MODE MEMORY /CH MO/ST B INTERNET@ DISC MENU MENU C D DSP MIC VOLTITLE MENU Verifique as instruções seguintes antes de utilizar qualquer serviço da rede. 1. Ligue o produto à rede. (Consulte as páginas 26~27) 2. Configure as defi nições da rede. (Consulte as páginas 38~41) utilizar o smart Hub Utilizando o Smart Hub, pode transmitir em sequência filmes, vídeos e música da Internet, aceder a várias aplicações cobradas ou gratuitas e visualizá-las no seu televisor. O conteúdo das aplicações inclui notícias, desporto, previsões meteorológicas, cotações da bolsa, mapas, fotografias e jogos. Pode também iniciar esta função premindo o botão SMART HUB no controlo remoto. 3. É apresentado o ecrã do Smart Hub. ✎ NOTA Algumas aplicações estão disponíveis apenas em determinados países. 4. É apresentado o ecrã Terms of Service Agreement (Acordo de Termos do Serviço). Se pretender aceitar, prima os botões ◄► para seleccionar Agree (Aceito) e, em seguida, prima o botão ENTRAR. ✎ NOTA Os ecrãs poderão demorar algum tempo a ser apresentados. 5. O ecrã Service Update (Actualização de Serviços) é apresentado e instala um conjunto de serviços e aplicações. Uma vez concluído o processo, o ecrã é fechado. As aplicações e serviços transferidos são apresentados no ecrã do Smart Hub. Este procedimento pode demorar algum tempo. ✎ NOTA O Smart Hub poderá ser momentaneamente fechado durante o processo de instalação. Iniciar o Smart Hub pela primeira vez Para iniciar o Smart Hub pela primeira vez, execute os passos seguintes: Após a instalação, poderão ser apresentados alguns ecrãs. Pode premir o botão ENTRAR para fechar os ecrãs ou aguarde que se fechem automaticamente. 6. Para iniciar uma aplicação, prima os botões ▲▼◄► para realçar um widget e, em seguida, prima o botão ENTRAR. 1. Aceda ao menu inicial. Meu conteúdo Vídeos Fotos Música Função Meu Dispositivo Internet Configurações c Remover USB com segurança. d WPS(PBC) 2. Prima os botões ◄► para seleccionar Internet e prima o botão ENTRAR. Português 1 Serviços da Rede Pode utilizar vários serviços fornecidos pela rede, como o Smart Hub ou o BD-LIVE, ligando o produto à rede. 05 Serviços da Rede Serviços da Rede O Smart Hub em Resumo 1 2 3 4 Search All Your Movie Samsung Apps Contents 1 Contents 2 6 Ajuda à navegação : Apresenta os botões do controlo remoto que pode utilizar para navegar no Smart Hub. • VERMELHO (A) : Para iniciar sessão no Smart Hub. • VERDE (B) : Para ordenar as aplicações. • AMARELO (C) : Para editar as aplicações. • AZUL (D) : Para alterar as definições do Smart Hub. 7 My Applications (As Minhas Aplicações) : Apresenta a galeria pessoal de aplicações, que pode adicionar, modificar e eliminar. 5 Contents 3 Contents 4 Recommended Contents 1 Contents 2 xxxxxxxx xxxxxxxx Contents 1 Contents 2 Contents 3 Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx Contents 3 Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx Contents 7 Contents 8 Contents 9 Contents 10 Contents 11 Contents 12 Contents 13 xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx a Login b Classif. c Editar d Config. 7 6 1 Anúncios : Apresenta o Guia do Smart Hub, uma introdução ao produto e introduções de novas aplicações. 2 O seu vídeo : Faculta recomendações para vídeos, com base nos gostos do utilizador. • Permite-lhe visualizar recomendações de filmes com base nas suas preferências anteriores. • Permite-lhe seleccionar um filme, apresenta uma lista de fornecedores de VOD (Video on Demand) que tenham o filme disponível e, em seguida, permite-lhe seleccionar um fornecedor para transmissão em sequência. (A transmissão em sequência não está disponível em todas as áreas.) • Para obter instruções de utilização da função Your Video (Os Seus Vídeos), visite a página www.samsung.com. • Esta funcionalidade está limitada a algumas regiões. 3 Procura : Faculta uma procura integrada dos seus fornecedores de vídeo e dispositivos AllShare ligados. • Pode ser utilizada ao utilizar o Smart Hub (excepto se estiver a assistir a um Blu-ray Disc). • Para aceder facilmente, utilize o botão SEARCH no controlo remoto. • Para obter instruções de utilização da função de pesquisa, visite a página www.samsung. com. 4 Samsung Apps : Pode transferir vários serviços e aplicações cobrados ou gratuitos. 5 Recommended (Recomendado) : Indica conteúdos recomendados geridos pela Samsung. Português ✎ NOTA A Samsung Electronics declina qualquer responsabilidade legal por quaisquer interrupções do serviço Smart Hub causadas pelo fornecedor de serviços, independentemente do motivo. O serviço Smart Hub transfere e processa dados através da Internet, pelo que pode desfrutar de conteúdos da Internet no ecrã do televisor. Se a ligação à Internet for instável, o serviço poderá ser mais demorado ou interrompido. Além disso, o produto poderá desligar-se automaticamente como resposta a condições da Internet. Se tal ocorrer, verifique a ligação à Internet e tente novamente. Os serviços de aplicações podem ser fornecidos apenas em inglês e os conteúdos disponíveis podem variar, consoante a região. Para obter mais informações sobre um serviço Smart Hub, visite o sítio da Web do fornecedor de serviços aplicável. Os serviços fornecidos estão sujeitos a alteração pelo fornecedor de serviços Smart Hub sem aviso prévio. Os conteúdos do serviço Smart Hub podem variar consoante a versão de firmware do produto. Só é possível reproduzir conteúdos DivX não gratuitos com protecção de cópia com um cabo composto, componentes ou HDMI. 03 Criar uma conta Com o controlo remoto, pode utilizar o teclado no ecrã para introduzir letras, números e símbolos. Para estabelecer a sua própria configuração exclusiva do Smart Hub, crie uma conta Smart TV. 1 2 .,– 1 4 2 3 def jkl mno tuv wxyz ab b Método de Entrada 4 Search Your Video Excluir Ab Prima o botão VERMELHO (A) no controlo remoto. É apresentado o ecrã Login (Início de Sessão). 9 0 Alternar T9 6 8 pqrs 1. 3 abc 5 ghi 7 Para criar uma conta, execute os seguintes passos: AB 1 6 Samsung Apps Recommended ID de Smart Hub Senha Idioma: English 5 Contents 1 xxxxxxxx Contents 2 xxxxxxxx xxxxxxxx Contents 8 xxxxxxxx xxxxxxxx Press. [ENTRAR] Contents 2 Contents 3 Press. [ENTRAR] xxxxxxxx xxxxxxxx Contents 2 Contents 3 Login xxxxxxxx Criar Conta Contents 9 xxxxxxxx Contents 3 Contents 4 % Contents 4 Contents 5 xxxxxxxx xxxxxxxx Lembrar meu ID e senha do SmartTV. Contents 1 Contents 7 Contents 1 Login Contents 4 Contents 5 Contents 6 xxxxxxxx xxxxxxxx xxxxxxxx Cancelar Esq. sua Senha Contents 10 Contents 11 Contents 12 xxxxxxxx xxxxxxxx xxxxxxxx a Login b Classif. c Modo Editar d Config. 1 O teclado actual. Utilize para introduzir letras, números e símbolos. 2. 2 Prima o botão FULL SCREEN no controlo remoto para alterar o modo de introdução. : ab, Ab, AB, números ou ícones. Prima os botões ▲▼◄► para seleccionar o Create Account (Criar Conta) e prima o botão ENTRAR. 3. 3 Apresenta o modo de introdução actual. No ecrã seguinte, seleccione Smart TV ID e prima o botão ENTRAR. São apresentados um ecrã de introdução e um teclado. 4 Prima o botão VERDE (B) no controlo remoto para alterar o método de entrada. (T9 ou ABC) 4. Utilize o teclado para introduzir o seu endereço de e-mail. Este será o seu ID. 5 Prima o botão FERRAMENTAS no controlo remoto para alterar o idioma. ✎ NOTA 6 Prima o botão REPEAT no controlo remoto para eliminar um carácter. O teclado funciona como o teclado de um telemóvel. 5. Quando terminar, prima o botão ENTRAR para seleccionar OK e, em seguida, prima o botão ENTRAR novamente. O ecrã de criação de conta volta a ser apresentado. 6. Seleccione Password (Palavra-passe) e, em seguida, prima o botão ENTRAR. São apresentados o ecrã Password (Palavrapasse) e um teclado. 7. Utilize o teclado para introduzir uma palavrapasse. A palavra-passe pode corresponder a qualquer combinação de letras, números e símbolos. Introduzir texto, números e símbolos Para introduzir texto, prima o botão numérico correspondente à letra que pretende introduzir no controlo remoto. Prima o botão rapidamente para introduzir uma letra que não corresponda à primeira letra apresentada no botão do teclado no ecrã. Por exemplo, se pretender introduzir a letra b, prima rapidamente o botão 2 duas vezes no controlo remoto. Para introduzir a primeira letra apresentada num botão, prima o botão, solte-o e aguarde. Para mover o cursor no texto, utilize os botões de seta. Para eliminar texto, mova o cursor para o carácter que pretende eliminar e, em seguida, prima o botão REPEAT. Para alterar para maiúsculas ou minúsculas ou introduzir números ou pontuação, prima o botão FULL SCREEN. ✎ NOTA Prima o botão VERMELHO (A) no controlo remoto para apresentar ou ocultar a palavrapasse à medida que é introduzida. Português Configurar Utilizar o Teclado Serviços da Rede 8. 9. 10. 11. 12. 13. 14. Quando terminar, prima o botão ENTRAR para seleccionar OK e, em seguida, prima o botão ENTRAR novamente. Volta a ser apresentando o ecrã Create Account (Criar Conta). Seleccione Confirm password (Confirmar palavra-passe) e, em seguida, prima o botão ENTRAR. Repita os passos 7 e 8. Quando o ecrã para criar conta for apresentado novamente, seleccione Create Account (Criar conta) e, em seguida, prima o botão ENTRAR. É apresentada a janela de confirmação. Seleccione OK e, em seguida, prima o botão ENTRAR. É apresentada a janela Continue to Register Service (Continuar a Registar Serviço). Seleccione Connect Service (Serviço de ligação) e, em seguida, prima o botão ENTRAR. É apresentada a janela Register Service Account (Registar Conta de Serviço). • Se já tiver contas existentes com qualquer um dos fornecedores indicados, pode associar a conta do fornecedor e a palavra-passe da conta do fornecedor à sua conta Smart TV. O registo facilita o acesso ao sítio da Web dos fornecedores. Para obter instruções de registo, aceda ao passo 2 da secção Account Management (Gestão de Contas), no menu Definições. • Se não tiver qualquer conta existente de fornecedores ou se não pretender as contas existentes, seleccione OK e, em seguida, prima o botão ENTRAR. Pode também deixar que a janela se feche autonomamente após cerca de um minuto. ✎ NOTA Tem de utilizar um endereço de e-mail como ID. Pode registar até 10 contas de utilizador. Não é necessário ter uma conta para utilizar o Smart Hub. Início de sessão na conta Para iniciar sessão na sua conta Smart TV, execute os seguintes passos: 1. Com o ecrã principal do Smart Hub apresentado no televisor, prima o botão VERMELHO (A) no controlo remoto. É apresentado o ecrã Login (Início de Sessão). 64 Português 2. Seleccione a Down Arrow (seta para baixo) junto ao campo Smart TV ID e, em seguida, prima o botão ENTRAR. 3. Seleccione o seu ID da lista apresentada e, em seguida, prima o botão ENTRAR. É novamente apresentado o ecrã Login (Início de Sessão). 4. Seleccione Password (Palavra-passe) e, em seguida, prima o botão ENTRAR. São apresentados a janela Password (Palavrapasse) e um teclado. 5. Com o teclado e o controlo remoto, introduza a palavra-passe. Quando terminar, prima o botão ENTRAR para seleccionar OK e, em seguida, prima o botão ENTRAR novamente. ✎ NOTA Se pretender que o Smart Hub introduza a palavra-passe automaticamente, seleccione Remember my Smart TV ID and password (Guardar o meu ID e palavra-passe Smart TV) depois de ter introduzido a palavra-passe e, em seguida, prima o botão ENTRAR. É apresentada uma marca de verificação. O Smart Hub introduzirá agora a palavra-passe automaticamente quando seleccionar ou introduzir o seu ID. O Menu de Definições – AZUL (D) O ecrã do menu Definições oferece-lhe acesso às funções de gestão de contas, reposição de contas e propriedades de contas. Para aceder ao menu Definições e seleccionar um item de menu, execute os seguintes passos: 1. Prima o botão AZUL (D) no controlo remoto. 2. Prima ▲▼ para seleccionar um item de menu e, em seguida, prima o botão ENTRAR. As funções do menu Definições são descritas em seguida. ✎ NOTA O item Service Manager (Gestor de Serviço) indicado no menu de definições não está disponível para Sistemas de Cinema em Casa Blu-ray. Gestão de Contas O menu Account Management (Gestão de Contas) inclui funções que lhe permitem registar as suas contas de fornecedores de serviços, alterar a sua palavra-passe do Smart Hub e eliminar ou desactivar a sua conta Smart TV. 05 Alterar a Palavra-passe Se já tiver contas existentes de qualquer um dos fornecedores apresentados pela função Register Service Account (Registar Conta de Serviço), pode associar a conta do fornecedor e a palavrapasse da conta do fornecedor à sua conta Smart TV. Se associar uma conta, poderá iniciar facilmente sessão nessa conta através do Smart Hub, sem introduzir o nome ou palavra-passe da conta. A função Alterar a palavra-passe permite-lhe alterar a palavra-passe do Smart Hub. Para alterar a palavra-passe, execute os seguintes passos: 1. Seleccione Change Password (Alterar Palavra-passe) e, em seguida, prima o botão ENTRAR. 2. Introduza a palavra-passe actual. É apresentado o ecrã seguinte. Para utilizar a função Account Management (Gestão de Contas), execute os seguintes passos: 3. No ecrã seguinte, introduza uma nova palavra-passe na primeira linha. Introduza-a na segunda linha para confirmar. 1. No menu de gestão de conta, seleccione Register Service Account (Registar Conta de Serviço) e prima o botão ENTRAR. É apresentada a janela Register Service Account (Registar Conta de Serviço). 4. É apresentado o ecrã de mensagem Changing Password Complete (Alteração de palavra-passe concluída). Prima o botão ENTRAR ou aguarde cerca de 5 segundos até que o ecrã seja encerrado. 2. Prima os botões com as setas ▲▼ para seleccionar o fornecedor de serviço que pretende associar à sua conta Smart TV Account e, em seguida, prima o botão ENTRAR. Remover Contas de Serviço ✎ NOTA Se tiver uma conta Samsung e pretender utilizar a função Samsung Apps no Smart Hub, tem de registar a sua conta Samsung Apps aqui. Para obter mais informações, consulte a página 68. 3. Com o controlo remoto e o teclado no ecrã, introduza o ID do sítio e a palavra-passe. Quando terminar, prima o botão ENTRAR. ✎ NOTA Estes correspondem ao ID e à palavra-passe que utiliza normalmente para aceder à conta neste sítio. 4. Se tiver introduzido o ID e a palavra-passe correctamente, é apresentada a mensagem Registered Successfully (Registado com êxito). 5. Se premir OK, repita os Passos de 2 a 4 para associar outro fornecedor de serviços. 6. Quando terminar, prima o botão RETURN. A função Remove Service Accounts (Remover Contas de Serviço) cancela todas as contas de serviço actualmente registadas no ecrã Register Service Account (Registar Conta de Serviço). Desactivar Conta A função Deactivate Account (Desactivar Conta) desactiva a conta Smart TV e elimina-a, bem como todas as respectivas definições, do Smart Hub. Reset (Repor) A função Reset (Repor) inicializa todos os widgets transferidos, apaga todas as contas e definições de utilizador do produto e repõe todas as predefinições de fábrica do Smart Hub. Em seguida, reinicia o Smart Hub como se estivesse a ser iniciado pela primeira vez. No entanto, a sua conta permanece no servidor Smart Hub. Para iniciar sessão na conta, introduza o seu ID e palavra-passe no ecrã Create Account (Criar Conta). Para utilizar a função Reset (Repor), execute os seguintes passos: 1. No menu Account Management (Gestão de Contas), seleccione Reset (Repor) e, em seguida, prima o botão ENTRAR. É apresentado o ecrã Reset (Repor). 2. Introduza a sua palavra-passe de segurança. Esta corresponde à palavra-passe que introduziu se tiver configurado uma classificação parental para BD ou DVD (consulte a página 42). Se não tiver configurado, introduza 0000. Português 65 Serviços da Rede Registar Conta de Serviço Serviços da Rede 3. 4. Após alguns instantes, o Smart Hub é automaticamente reposto. O ecrã pode ficar a preto e, em seguida o Smart Hub reaparece. Após alguns instantes, o procedimento de reinicialização é iniciado. Para concluir a reinicialização, aceda ao passo 4 da secção Iniciar o Smart Hub pela primeira vez. (Consulte a página 61) 2. As funções da barra de menu Edit Mode (Modo de Edição) são descritas em seguida. ✎ NOTA ✎ NOTA Se se esqueceu da palavra-passe, prima o botão STOP (PARAR) ( @ ) no painel anterior do produto durante mais de 5 segundos, sem qualquer disco inserido. Properties (Propriedades) O item de menu Properties (Propriedades) inclui três funções que apresentam informações sobre o Smart Hub: Mais Apresenta informações sobre o Smart Hub, incluindo o número da versão, o número de serviços instalados, a utilização da memória e o ID exclusivo do produto. Check the speed of your internet connection (Verificar a velocidade da ligação à Internet) Executa um teste que indica a velocidade do servidor da Samsung em Mbps (Megabits por segundo). Velocidades inferiores a 1,5 Mbps podem limitar a experiência de utilização do Smart Hub. Prima ▲▼◄► para seleccionar um item de menu e, em seguida, prima o botão ENTRAR. Alguns itens de menu poderão não ser apresentados no ecrã. Para ver estes itens, prima os botões◄► para avançar para a extremidade do ecrã e, em seguida, prima uma ou mais vezes para visualizar os itens. Pode fechar a barra, realçando o X no canto inferior direito e, em seguida, premindo o botão ENTRAR. Mover A função Mover permite-lhe alterar a posição de um widget no ecrã. Para utilizar a função Mover, execute os seguintes passos: 1. Prima o botão AMARELO (C) no controlo remoto. 2. Seleccione um widget e, em seguida, prima o botão ENTRAR. É apresentada uma marca de verificação sobre o widget. 3. Prima ▲▼◄► para seleccionar Move (Mover) e, em seguida, prima o botão ENTRAR. É apresentada a janela Move (Mover). 4. Prima os botões ▲▼◄► para mover o ícone. Prima o botão ENTRAR quando o ícone estiver na posição pretendida. O widget é movido para a nova localização. Terms of Service Agreement (Acordo de Termos do Serviço) Apresenta o Acordo de Termos do Serviço. Nova Pasta O menu Modo de Edição - AMARELO (C) A função New Folder (Nova Pasta) permite-lhe criar e atribuir um nome a novas pastas. Após a criação de uma pasta, pode mover widgets para a mesma. Para utilizar a função New Folder (Nova Pasta), execute os seguintes passos: As funções do menu Edit Mode (Modo de Edição) permitem-lhe manipular os widgets na secção My Applications (As Minhas Aplicações) do ecrã do Smart Hub. Utilizando estas funções, pode bloquear e desbloquear o acesso a alguns widgets, criar pastas novas e mover widgets para estas pastas, mudar o nome de pastas, eliminar widgets e alterar a posição dos widgets no ecrã. Para aceder ao menu Edit Mode (Modo de Edição) e seleccionar um item de menu, execute os seguintes passos: 1. Prima o botão AMARELO (C) no controlo remoto. A barra do menu Edit Mode (Modo de Edição) é apresentada na parte inferior do ecrã. 66 Português 1. Prima o botão AMARELO (C) no controlo remoto. 2. Prima os botões ▲▼◄► para mover o cursor para a nova pasta e, em seguida, prima o botão ENTRAR. São apresentados a janela New Folder (Nova Pasta) e um teclado. 3. Utilize o teclado para introduzir o nome da pasta e, em seguida, prima o botão ENTRAR. O ecrã New Folder (Nova Pasta) é fechado e a nova pasta é apresentada no ecrã do Smart Hub. 05 Mudar o Nome da Pasta A função Move to Folder (Mover para a Pasta) permite-lhe mover um widget para uma pasta. Para utilizar a função Move to Folder (Mover para a Pasta), execute os seguintes passos: A função Rename Folder (Mudar o Nome da Pasta) permite mudar o nome das pastas. Para utilizar a função Rename Folder (Mudar o Nome da Pasta), execute os seguintes passos: 1. Prima o botão AMARELO (C) no controlo remoto. 2. 3. 4. 1. Seleccione um widget e, em seguida, prima o botão ENTRAR. Prima o botão AMARELO (C) no controlo remoto. 2. Prima os botões ▲▼◄► para seleccionar Move to Folder (Mover para a Pasta) e, em seguida, prima o botão ENTRAR. É aberta a janela Move to Folder (Mover para a Pasta). Prima ▲▼◄► para seleccionar uma pasta e, em seguida, prima o botão ENTRAR. 3. Prima ▲▼◄► para seleccionar Rename a Folder (Mudar o Nome da Pasta) e, em seguida, prima o botão ENTRAR. São apresentados a janela Folder Rename (Mudar o Nome da Pasta) e um teclado. 4. Utilize o teclado para introduzir o nome da nova pasta e, em seguida, prima o botão ENTRAR. A janela Rename (Mudar o Nome) é fechada e o novo nome é apresentado sob a pasta. Prima ▲▼◄► para seleccionar uma pasta e, em seguida, prima o botão ENTRAR. É apresentada a mensagem Moved to Folder (Movido para a pasta), sendo, em seguida, fechada. O widget foi movido para a pasta. Para aceder a widgets numa pasta 1. Para aceder a widgets numa pasta Feche o menu Edit Mode (Modo de Edição). 2. Em My Applications (As Minhas Aplicações), prima os botões ▲▼◄► para seleccionar uma pasta e, em seguida, prima o botão ENTRAR. A pasta é aberta. 3. Seleccione um widget e, em seguida, prima o botão ENTRAR. A aplicação ou serviço do widget é iniciado. Para editar itens numa pasta Seleccione uma pasta e, em seguida, prima o botão ENTRAR. A pasta é aberta. Prima o botão AMARELO (C) no controlo remoto. Os botões de edição são apresentados na parte inferior do ecrã. Estes botões funcionam da mesma forma que os botões do menu Edit Mode (Modo de Edição) no ecrã principal. Por exemplo, para mover um widget novamente para o ecrã principal My Applications (As Minhas Aplicações): Bloquear A função Lock (Bloquear) permite-lhe bloquear alguns widgets em My Applications (As Minhas Aplicações), para que não possam ser abertas sem a introdução do Código de Segurança Parental. Para utilizar a função Lock (Bloquear), execute os seguintes passos: 1. 2. 3. 1. Seleccione o widget. 2. Seleccione Move to Folder (Mover para a Pasta) e, em seguida, prima o botão ENTRAR. É apresentada a janela Move to Folder (Mover para a Pasta). 4. 3. Seleccione My Applications (As Minhas Aplicações) e, em seguida, prima o botão ENTRAR. A janela Move to Folder (Mover para a Pasta) é fechada e o widget regressa ao ecrã principal My Applications (As Minhas Aplicações). 5. Prima o botão AMARELO (C) no controlo remoto. Prima ▲▼◄► para seleccionar um widget e, em seguida, prima o botão ENTRAR. Se for possível bloquear o widget, o item de menu Lock (Bloquear) fica activado. Prima ▲▼◄► para seleccionar Lock (Bloquear) e, em seguida, prima o botão ENTRAR. É apresentada a janela Segurança. Introduza o Código de Segurança Parental (consulte a página 43). Se não tiver criado um Código de Segurança Parental, introduza 0000. Prima o botão ENTRAR. A janela Lock Service (Bloquear Serviço) é apresentada, confirmando o bloqueio, sendo, em seguida, encerrada. É apresentado um símbolo de bloqueio junto ao widget. Português 67 Serviços da Rede Mover para a Pasta Serviços da Rede Desbloquear 1. 2. 3. 4. 5. Prima o botão AMARELO (C) no controlo remoto. Prima ▲▼◄► para seleccionar um widget bloqueado e, em seguida, prima o botão ENTRAR. Prima ▲▼◄► para seleccionar Unlock (Desbloquear) e, em seguida, prima o botão ENTRAR. É apresentada a janela Segurança. Introduza o Código de Segurança Parental (consulte a página 43). Se não tiver criado um Código de Segurança Parental, introduza 0000. Prima o botão ENTRAR. A janela Lock Service Released (Bloqueio de Serviço Removido) é apresentada, confirmando que o bloqueio foi removido, sendo, em seguida, encerrada. Eliminar A função Delete (Eliminar) permite-lhe eliminar widgets de My Applications (As Minhas Aplicações). Para utilizar a função Delete (Eliminar), execute os seguintes passos: 1. Prima o botão AMARELO (C) no controlo remoto. 2. Prima ▲▼◄► para seleccionar um widget e, em seguida, prima o botão ENTRAR. 3. Prima ▲▼◄► para seleccionar Delete (Eliminar) e, em seguida, prima o botão ENTRAR. A mensagem “Do you want to delete selected item(s)? (Pretende eliminar o(s) item(ns) seleccionado(s)?)” é apresentada. 4. Seleccione Yes (Sim) e, em seguida, prima o botão ENTRAR. O widget é eliminado. O menu Sort (Ordenar) - VERDE (B) As funções do menu Sort (Ordenar) permitem-lhe ordenar os widgets em My Applications (As Minhas Aplicações) por nome, data, frequência (de utilização) e categoria. Se alterar manualmente a posição de um widget, o menu Sort (Ordenar) realça automaticamente User Defined (Definido pelo Utilizador) quando o widget for iniciado. Para ordenar os widgets em My Applications (As Minhas Aplicações), execute os seguintes passos: 1. Prima o botão VERDE (B) no controlo remoto. 2. Prima ◄► para seleccionar um widget e, em seguida, prima o botão ENTRAR. O Smart Hub ordena os widgets pelo método seleccionado. 68 Português Samsung Apps A função Samsung Apps permite-lhe transferir aplicações e serviços cobrados e gratuitos para o seu Sistema de Cinema em Casa de Blu-ray Disc e visualizá-los ou utilizá-los no seu televisor. Estas aplicações e serviços incluem vídeos, música, fotografias, jogos, notícias, desportos, etc. Os widgets da nova aplicação é apresentado em My Applications (As minhas aplicações). São adicionados regularmente novas aplicações e serviços. Para aplicações cobradas Para transferir aplicações cobradas, tem de criar uma conta Samsung e adicionar um cartão de crédito à conta. Para criar uma conta Samsung, visite o endereço www.samsung.com ✎ NOTA Este serviço poderá não ser disponibilizado em alguns países. Aceder ao ecrã Samsung Apps Para aceder ao ecrã Samsung Apps, prima os botões ▲▼◄► para navegar até à área Samsung Apps no ecrã principal do Smart Hub e, em seguida, prima o botão ENTRAR. O ecrã Samsung Apps é apresentado. ✎ NOTA Se for a primeira vez que está a aceder a este ecrã, é apresentada a janela de termos do serviço. Seleccione Agree (Aceitar) e, em seguida, prima o botão ENTRAR. 05 Samsung Apps por categoria Para utilizar o ecrã Samsung Apps, execute os seguintes passos: 1. Prima os botões ◄► para avançar para a lista de categorias à esquerda. 2. Prima os botões ▲▼ para realçar uma categoria. Após alguns segundos, o ecrã Samsung Apps apresenta as aplicações dessa categoria. Os separadores de ordenação são apresentados na parte superior. 3. Prima o botão ► para mover as aplicações ou serviços apresentados. 4. Prima os botões ▲▼◄► para seleccionar uma aplicação ou serviço e, em seguida, prima o botão ENTRAR. O ecrã Application Details (Detalhes da aplicação) é apresentado a descrever o serviço ou aplicação. 5. Seleccione Download Now (Transferir Agora) e, em seguida, prima o botão ENTRAR. Se a aplicação ou serviço for gratuito, é transferido e executado. Se for cobrado, siga as instruções no ecrã para concluir a transferência. Estão disponíveis as seguintes categorias: ✎ NOTA A função My Account (A Minha Conta) ajuda-o a aceder ao histórico de encomenda e transferência de Samsung Apps e ao ecrã My Apps Cash. Tem de ter uma conta Samsung para aceder a estas informações. A transferência de algumas aplicações é gratuita, mas estas requerem o registo ou uma conta paga junto do fornecedor para serem utilizadas. Os widgets de aplicações e serviços transferidos da função Samsung Apps são apresentados em My Applications (As Minhas Aplicações). Separadores Sort By (Ordenar por) Pode aceder aos separadores Sort By (Ordenar por) na parte superior do ecrã, utilizando os botões ▲▼◄►. Cada separador apresenta os serviços ou aplicações na categoria seleccionada, ordenados pelos critérios do separador (Recommended (Recomendado), Most Downloaded (Os mais transferidos), Most Recent (O mais recente), Name (Nome)). Pode também utilizar o botão AZUL (D) do controlo remoto para aceder aos separadores Sort By (Ordenar por). Sempre que prime o botão AZUL (D), muda de um separador de ordenação para o seguinte. • What’s New? (Novidades) : Apresenta aplicações registadas recentemente. • Video : Apresenta vários suportes de vídeo, tais como filmes, programas de TV e vídeos de curta duração. • Game (Jogos) : Apresenta vários jogos como, por exemplo, sudoku e xadrez. • Sports (Desporto) : Apresenta vários serviços multimédia relacionados com desporto, tais como informações de jogos, imagens e vídeos de curta duração. • Lifestyle (Estilo de Vida) : Inclui vários serviços multimédia relacionados com o estilo de vida, tais como música, ferramentas de gestão pessoal de fotografias e redes sociais como o Facebook e o Twitter. • Information (Informação) : Inclui vários serviços de informação como, por exemplo, notícias, bolsa e meteorologia. • Outros : Inclui outros serviços diversos. My Account (A Minha Conta) Help (Ajuda) Em caso de dúvidas sobre as Samsung Apps, consulte primeiro a Ajuda. Se nenhuma das sugestões for útil, visite o sítio da Web www. samsung.com. Para utilizar a função Help (Ajuda), execute os seguintes passos: 1. Prima os botões ▲▼◄► para seleccionar Help (Ajuda) e, em seguida, prima o botão ENTRAR. 2. Prima os botões ◄► para aceder à Ajuda quando esta for apresentada. 3. Prima os botões ▲▼ para percorrer o texto da Ajuda. 4. Prima o botão ◄ para sair da Ajuda. Português 69 Serviços da Rede Utilizar o ecrã Samsung Apps Serviços da Rede Utilizar os botões coloridos do controlo remoto com Samsung Apps • VERMELHO(A) (Início de sessão) : Para iniciar sessão na sua conta Smart TV. • VERDE (B) (Vista de Miniaturas/Lista) : Para alternar a apresentação de aplicações entre a vista Thumbnail (Miniaturas) e List (Lista). • AZUL (D) (Ordenar por) : Para ordenar as aplicações por categorias: Recommended (Recomendadas), Most Downloaded (As Mais Transferidas), Most Recent (As Mais Recentes) ou Name (Nome). • Voltar : Para regressar ao menu anterior. ✎ NOTA Os serviços de conteúdos da Internet podem ser adicionados ou eliminados pelos fornecedores sem aviso prévio. Para obter instruções de utilização da função Your Video (Os Seus Vídeos) ou Search (Pesquisar), visite o sítio da Web www. samsung.com BD-LIVE™ Depois de ligar o produto rede, pode usufruir de vários conteúdos relativos a filmes, utilizando um disco compatível com BD-LIVE. 1. Ligue uma memória USB à ficha USB no painel anterior do produto e, em seguida, verifique a memória restante. O dispositivo de memória tem de ter, pelo menos, 1 GB de espaço livre para guardar os serviços BDLIVE. 2. Introduza um disco Blu-ray que suporte BDLIVE. 3. Seleccione um item dos vários conteúdos BD-LIVE fornecidos pelo fabricante do disco. ✎ NOTA A forma de utilização do BD-LIVE e os conteúdos fornecidos podem variar, consoante o fabricante do disco. 70 Português utilizar a função Allshare A função AllShare permite reproduzir ficheiros de música, vídeo e fotografias localizados no PC ou no telemóvel compatível com DLNA ou NAS no produto. Para utilizar a função AllShare no produto, deve ligar o mesmo à rede (Consulte as páginas 26~27). Para utilizar a função AllShare com o PC, tem de instalar o software AllShare no PC. Se tiver um telemóvel compatível com DLNA ou NAS, pode utilizar a função AllShare sem software adicional. Pode transferir o software de PC e obter instruções detalhadas para utilizar a função AllShare no sítio da Web Samsung.com. 06 Outras Informações Consulte a tabela abaixo sempre que este produto não funcionar correctamente. Se o problema não se encontrar descrito na tabela ou se as instruções não forem úteis, desligue o produto, desligue o cabo de alimentação e contacte Centro de Assistência Electrónica da Samsung. Sintoma Verificação/Resolução Não consigo ejectar o disco. • O cabo de alimentação está correctamente ligado à tomada? • Desligue a alimentação e ligue-a novamente. O iPod não liga. • Verifique o estado do conector do iPod. • Altere S/W para software. A reprodução não é iniciada. • Verifique o número de região do BD/DVD. Poderá não ser possível reproduzir discos BD/DVD adquiridos no estrangeiro. • Não é possível reproduzir CD-ROMs e DVD-ROMs neste produto. • Certifique-se de que o nível de classificação está correcto. A reprodução não tem início imediatamente após premir o botão Play/Pause. • Está a utilizar um disco deformado ou um disco com riscos na superfície? • Limpe o disco. Não é emitido som. • O sistema de cinema em casa não reproduz som durante a reprodução rápida, reprodução em câmara lenta ou reprodução por fotogramas. • As colunas estão correctamente ligadas? A configuração das colunas está correcta? • O disco está muito danificado? Só é emitido som de algumas colunas e não das 8 colunas. • Em determinados discos BD/DVD, o som é emitido apenas das colunas dianteiras. • Verifique se as colunas estão ligadas correctamente. • Regule o volume. • Ao ouvir um CD, rádio ou som de um televisor, o som é emitido apenas pelas colunas frontais. Seleccione "PRÓ LOGIC II" premindo PL II (Dolby Pro Logic II) no controlo remoto para utilizar as seis colunas. Não é emitido som surround em 7.1 canais Dolby Digital. • O disco tem a marca "Dolby Digital 7.1 CH"? O som Dolby Digital surround em 7,1 canais é emitido apenas se o disco tiver sido gravado com som em 7,1 canais. • O idioma de áudio está definido correctamente para Dolby Digital de 5,1 CH no ecrã de informações? O controlo remoto não funciona. • Está a utilizar o controlo remoto dentro dos limites de funcionamento e no ângulo correcto em relação ao sensor? • As pilhas estão gastas? • Seleccionou o modo (TV/BD) correctamente no controlo remoto (TV ou BD)? • O disco está a rodar mas não é produzida qualquer imagem. • A qualidade da imagem é fraca e a imagem é instável. • A alimentação do televisor está ligada? • Os cabos de vídeo estão correctamente ligados? • O disco está danificado ou com impurezas? • Um disco com defeito de fabrico poderá não ser reproduzível. O idioma de áudio e das legendas não funcionam. •O idioma de áudio e das legendas não funcionam se o disco não contiver os dados respectivos. O ecrã do menu não é apresentado mesmo que a função do menu esteja seleccionada. • Está a utilizar um disco que não contém menus? Português 71 Outras Informações Resolução de problemas Outras Informações Sintoma Verificação/Resolução Não é possível alterar o formato da imagem. • Pode reproduzir BD/DVDs de 16:9 no modo 16:9 panorâmico, no modo 4:3 Letter Box, ou no modo 4:3 Pan - Scan, mas os BD/DVDs de 4:3 só podem ver visualizados no modo 4:3. Consulte a caixa do disco Blu-ray e, em seguida, seleccione a função apropriada. • O produto não funciona. (Exemplo: O produto desliga-se ou é emitido um ruído.) • Prima sem soltar o botão STOP (PARAR) ( @ ) do controlo remoto durante 5 segundos no modo EM ESPERA. • O produto não funciona correctamente. Esqueceu-se da palavra-passe de classificação parental. - Utilizar a função RESET (REINICIAR), apaga todas as definições guardadas. Não utilize esta função a não ser que seja necessário. • Sem qualquer disco inserido no produto, mantenha premido o botão STOP ( @ ) durante mais de 5 segundos. É apresentada a indicação INIT no ecrã e todas as definições são repostas para os valores predefinidos. Em seguida, prima o botão POWER (LIGAR). - Utilizar a função RESET (REINICIAR), apaga todas as definições guardadas. Não utilize esta função a não ser que seja necessário. Não é possível sintonizar uma transmissão de rádio. • A antena está correctamente ligada? • Se o sinal de recepção da antena for fraco, instale a antena externa de FM num local com boa recepção. Ao ouvir áudio do televisor no produto, não é emitido som. • S e o botão EJECT ( ) for premido durante a audição de som do televisor utilizando as funções D.IN ou AUX, as funções do BD/DVD ligam-se cortando o som do televisor. A mensagem "Not Available" (“Indisponível”) é apresentada no ecrã. • As funções ou a acção não pode ser concluída porque: 1. O software do BD/DVD não o permite. 2. O software do BD/DVD não suporta a função (por exemplo, ângulos) 3. A função não está disponível. 4. Solicitou um título ou um capítulo ou hora de procura fora do intervalo. Se a saída HDMI estiver definida numa resolução que o televisor não suporte (por exemplo, 1080p), a imagem pode não ser apresentada no televisor. • Mantenha premido o botão STOP ( @ ) no painel anterior, durante mais de 5 segundos sem qualquer disco inserido. Todas as definições revertem para os valores de fábrica. Sem saída HDMI. • Verifique a ligação entre o televisor e a ficha HDMI do produto. • Verifique se o televisor suporta as resoluções de entrada HDMI de 480p/ 720p/1080i/1080p. Ecrã de saída de HDMI irregular. • Se a imagem no televisor apresentar interferências, significa que o televisor não é compatível com HDCP (High-bandwidth Digital Content Protection – Protecção de conteúdos digitais com elevada largura de banda). 72 Português 06 Verificação/Resolução Função PC Share Manager As pastas partilhadas no PC Share Manager são apresentadas, mas os ficheiros não. • Como o programa apresenta apenas ficheiros correspondentes a imagens, músicas ou filmes, os ficheiros que não pertençam a estas categorias podem não ser apresentados. Função AllShare O vídeo é reproduzido de modo intermitente. • Verifique se a rede está estável. • Verifique se o cabo de rede está correctamente ligado e a rede não está sobrecarregada. • A ligação sem fios entre o servidor e o produto é instável. Verifique a ligação. A ligação AllShare entre o televisor e o PC é instável. • O endereço IP na mesma sub-rede deve ser único, caso contrário um conflito entre IPs pode estar na causa do problema. • Verifique se a firewall está activada. Se estiver, desactive a função de firewall. BD-LIVE Não consigo ligar ao servidor BDLIVE. • Verifique se a ligação à rede está ou não a funcionar utilizando o menu de teste da rede. • Verifique se o dispositivo de memória USB está ligado ou não ao produto. • O dispositivo de memória tem de ter pelo menos 1 GB de espaço livre para guardar os serviços BD-LIVE. Pode verificar qual o espaço disponível na gestão de dados de BD. (Consulte a página 42) • Verifique se o menu Ligação à internet do BD-Live está definido como Allow (All) (Permitir (Tudo)). • Se o problema se mantiver após o procedimento anterior, contacte o fornecedor de conteúdos ou actualize com o firmware mais recente. Ocorre um erro ao utilizar o serviço BD-LIVE. •O dispositivo de memória tem de ter pelo menos 1 GB de espaço livre para guardar os serviços BD-LIVE. Pode verificar qual o espaço disponível na gestão de dados de BD. (Consulte a página 42) ✎ NOTA Quando as predefinições de fábrica são repostas, todos os dados do utilizador guardados em BD Data (BD Data) serão eliminados. Português 73 Outras Informações Sintoma Outras Informações Características técnicas Geral Sintonizador FM Peso 3.5 kg Dimensões Limites da temperatura de funcionamento Limites da humidade de funcionamento Relação sinal/ruído 429.3 (L) x 58.4 (A) x 325.1 (P) mm Sensibilidade útil 12 dB Distorção harmónica total 0.5 % BD (Blu-ray Disc) Velocidade de leitura: 9.834 m/seg. DVD (Digital Versatile Disc) Disco CD : 12cm (COMPACT DISC) CD : 8cm (COMPACT DISC) Vídeo composto +5°C a +35°C 10 % a 75 % 55 dB Velocidade de leitura: 6.98 ~ 7.68 m/seg. Tempo de reprodução aproximado (disco de lado único, camada única): 135 min. Velocidade de leitura: 4.8 ~ 5.6 m/seg. Tempo máximo de reprodução: 74 min. Velocidade de leitura: 4.8 ~ 5.6 m/seg. Tempo máximo de reprodução: 20 min. 1 canal : 1.0 Vp-p (carga de 75 Ω) Blu-ray Disc : 480i DVD : 480i Y : 1.0 Vp-p (carga de 75 Ω) Saída de Vídeo Vídeo Componente Pr : 0.70 Vp-p (carga de 75 Ω) Pb : 0.70 Vp-p (carga de 75 Ω) BD : 480i DVD : 480p, 480i Vídeo/Áudio Amplificador HDMI Áudio PCM multi-canal, áudio de fluxo de bits, áudio PCM Saída da coluna frontal 165W x 2(3Ω) Saída da coluna frontal superior 165W x 2(3Ω) Saída da coluna central 170W(3Ω) Saída da coluna surround 165W x 2(3Ω) Saída do subwoofer 170W(3Ω) Resposta em frequência 74 1080p, 1080i, 720p, 480p Entrada analógica 20Hz~20kHz (±3dB) Entrada digital 20Hz~40kHz (±-4dB) Relação S/N 70dB Separação do canal 60dB Sensibilidade de entrada (AUX)500mV Português 06 Coluna Sistema de colunas de 7.1 canais Frontal frontal superior Surround Central Impedância 3Ω 3Ω 3Ω 3Ω Subwoofer 3Ω Intervalo da frequência 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 40Hz ~ 160Hz Nível de pressão do som de saída 86dB/W/M 86dB/W/M 86dB/W/M 86dB/W/M 88dB/W/M Potência consumida 165W 165W 165W 170W 170W Entrada máxima 330W 330W 330W 340W 340W Dimensões (L x A x P) Colunas Anteriores/Frontais : 90 x 1320 x 119 mm (base do suporte : 250 x 250) Surround : 90 x 1300 x 119 mm (base do suporte : 250 x 250) Central : 360 x 74.5 x 68.5 mm Subwoofer : 200 x 390 x 350 mm Pesos Colunas Anteriores/Frontais : 4.96 Kg, Surround : 3.80 Kg Central : 0.98 Kg, Subwoofer : 5.70 Kg *: Especificação nominal - A Samsung Electronics Co., Ltd reserva-se ao direito de alterar as especificações sem aviso prévio. - O peso e as dimensões indicados são aproximados. - A concepção e as especificações estão sujeitas a alteração sem aviso prévio. - Para obter informações sobre alimentação e consumo de energia, consulte a etiqueta no produto. SWA-5000 Peso Dimensões (L x A x P) Limites da temperatura de funcionamento Limites da humidade de funcionamento Saída 1.14 Kg Frequência de resposta 76.2 x 228.6 x 152.4 mm +5°C a +35°C 10% ~ 75% 165W x 2 CH 20Hz~20KHz Relação S/N 65dB Português 75 Outras Informações Sistema de colunas English Avis Cinavia : This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be in interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004 - 2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. Français Avis Cinavia : Ce produit utilise la technologie Cinavia pour limiter l’utilisation de copies illégales de certains films et vidéos disponibles dans le commerce et de leur bande sonore. Lorsqu’une utilisation illégale ou une reproduction interdite est détectée, un message s’affiche et la lecture ou la reproduction s’interrompt. De plus amples renseignements sur la technologie Cinavia sont disponibles auprès du Centre d’information des consommateurs en ligne de Cinavia sur http://www.cinavia.com. Pour obtenir des renseignements supplémentaires par la poste sur Cinavia, envoyez votre demande avec votre adresse au : Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA. Ce produit intègre une technologie sous licence de Verance Corporation protégée par le brevet américain 7,369,677 et d'autres brevets américains et internationaux déposés ou en attente, de même que par des droits d'auteur et le secret industriel pour certains aspects de cette technologie. Cinavia est une marque de commerce de Verance Corporation. Copyright 2004-2010 Verance Corporation. Tous droits réservés par Verance. Il est interdit de tenter de démonter l’appareil et d’en étudier le fonctionnement en vue de le reproduire. Español Aviso de Cinavia: Este producto utiliza tecnología Cinavia para limitar el uso de copias no autorizadas de algunas películas de producción comercial, videos y sus bandas sonoras. Cuando se detecta el uso de una copia no autorizada, aparecerá un mensaje y se interrumpirá la reproducción o la copia. Información adicional sobre la tecnología Cinavia se facilita en el Centro de información al cliente en línea de Cinavia en http://www.cinavia.com. Para solicitar información adicional sobre Cinavia por correo, envíe una tarjeta con su dirección postal a: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, EE.UU. Este producto incorpora tecnología de propietario bajo licencia de Verance Corporation y está protegido mediante la patente en EE.UU. 7.369.677 y otras patentes en EE.UU. y en otros países pendientes, así como por copyright y la protección de secreto comercial de ciertos aspectos tecnológicos. Cinavia es una marca comercial de Verance Corporation. Copyright 2004-2010 Verance Corporation. Todos los derechos reservados por Verance. La ingeniería inversa o desensamblaje están prohibidos. Português Nota da Cinavia: Esse produto usa tecnologia Cinavia para limitar o uso de cópias não autorizadas de filmes e vídeos produzidos comercialmente e sua trilha sonora. Quando se detecta o uso proibido de uma cópia não autorizada, aparece uma mensagem e a reprodução ou cópia é interrompida. Há mais informações sobre a tecnologia Cinavia na Central Cinavia on-line de informações ao cliente, em http://www.cinavia.com. Para solicitar mais informações sobre a Cinavia pelo correio, envie um cartão postal com seu endereço para: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Esse produto incorpora tecnologia proprietária sob licença da Verance Corporation e protegida pela Patente 7.369.677 dos EUA e outras patentes nos EUA e no mundo todo, emitidas e pendentes, além de direitos autorais e proteção ao segredo comercial de certos aspectos dessa tecnologia. Cinavia é uma marca registrada da Verance Corporation. Copyright 2004-2010 Verance Corporation. Todos os direitos reservados à Verance. É proibido realizar engenharia reversa ou desmontagem. Français Avis de Cinavia : Ce produit utilise la technologie Cinavia pour limiter l'utilisation de copies non autorisées de certains films et vidéos commerciaux ainsi que leurs bandes son. Lorsqu'une copie non autorisée est détectée, un message est affiché et la lecture ou la copie est interrompue. Des informations complémentaires concernant la technologie Cinavia sont disponibles sur le site http:// www.cinavia.com du Centre d'information consommateur Cinavia. Pour toute demande d'informations complémentaires concernant Cinavia par courrier, veuillez écrire à l'adresse suivante : Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Ce produit intègre la technologie de protection de la propriété sous licence Verance Corporation protégée par les brevets américains 7,369,677 et d’autres brevets américains et internationaux accordés et en attente ainsi que la protection des droits d'auteur et de l'information commerciale confidentielle pour certains aspects de cette technologie. Cinavia est une marque commerciale de Verance Corporation. Copyright 2004-2010 Verance Corporation. Tous droits réservés par Verance. Il est interdit de tenter de démonter l’appareil et d’en étudier le fonctionnement en vue de le reproduire. Italiano Avvertenza Cinavia : Questo prodotto utilizza tecnologia Cinavia per limitare l'uso di copie non autorizzate di film e video commerciali e relative tracce audio. Se viene rilevato l'uso proibito di una copia non autorizzata, viene visualizzato un messaggio che interrompe la riproduzione o la copia. Per maggiori informazioni sulla tecnologia Cinavia consultare il centro online di informazioni ai consumatori di Cinavia all'indirizzo http://www.cinavia.com. Per richiedere maggiori informazioni su Cinavia per e-mail, inviare un messaggio con il proprio indirizzo a: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Questo prodotto è dotato di tecnologia proprietaria di Verance Corporation ed è protetto dal brevetto U.S.A. 7.369.677 e da altri brevetti U.S.A. e di altri Paesi registrati e in attesa di registrazione, di una protezione del copyright e del segreto aziendale per alcuni aspetti di tale tecnologia. Cinavia è un marchio di Verance Corporation. Copyright 2004-2010 Verance Corporation. Verance. Tutti i diritti riservati. Sono vietati il reverse engineering o lo smontaggio. Português Aviso Cinavia : Este produto utiliza tecnologia Cinavia para limitar a utilização não autorizada de cópias de alguns filmes e vídeos produzidos comercialmente e respectivas bandas sonoras. Quando a utilização proibida de uma cópia não autorizada é detectada, é apresentada uma mensagem e a reprodução ou cópia é interrompida. Poderá obter mais informações sobre a tecnologia Cinavia no Centro de Informação ao Consumidor Online da Cinavia em http://www.cinavia. com. Para solicitar informações adicionais sobre a Cinavia por correio, envie um bilhete postal com a sua morada para: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Este produto incorpora tecnologia proprietária ao abrigo da licença da Verance Corporation e protegida pela patente americana, 7,369,677 e outras patentes dos EUA e de outros países, emitidas ou cuja aprovação esteja pendente, bem com direitos de autor e protecção de segredo comercial para determinados aspectos da tecnologia mencionada. A Cinavia é uma marca comercial da Verance Corporation. Direitos de autor 2004-2010 Verance Corporation. Todos os direitos reservados pela Verance. É proibido qualquer procedimento de desmontagem ou montagem. Español Aviso de Cinavia : Este producto utiliza tecnología Cinavia para limitar el uso de copias no autorizadas de algunas películas de producción comercial, vídeos y sus bandas sonoras. Cuando se detecta el uso de una copia no autorizada, aparecerá un mensaje y se interrumpirá la reproducción o la copia. Información adicional sobre la tecnología Cinavia se facilita en el Centro de información al cliente en línea de Cinavia en http://www.cinavia.com. Para solicitar información adicional sobre Cinavia por correo, envíe una tarjeta con su dirección postal a: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, EE.UU. Este producto incorpora tecnología de propietario bajo licencia de Verance Corporation y está protegido mediante la patente en EE.UU. 7.369.677 y otras patentes en EE.UU. y en otros países pendientes, así como por copyright y la protección de secreto comercial de ciertos aspectos tecnológicos. Cinavia es una marca comercial de Verance Corporation. Copyright 2004-2010 Verance Corporation. Todos los derechos reservados por Verance. La ingeniería inversa o desensamblaje están prohibidos. Nederlands Opmerking betreffende Cinavia : Dit product maakt gebruik van Cinavia-technologie om het gebruik van illegale exemplaren van sommige commercieel geproduceerde films en video's en de soundtracks ervan te beperken. Wanneer wordt gedetecteerd dat een illegale kopie wordt gebruikt, wordt een bericht weergegeven en zal het afspelen of kopiëren worden onderbroken. U vindt meer informatie over Cinavia-technologie bij het Cinavia Online Consumer Information Centre op http://www.cinavia.com. Als u aanvullende informatie over Cinavia via de post wenst te ontvangen, stuurt u een postkaart met uw postadres naar: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Dit product omvat bedrijfseigen technologie onder licentie van de Verance Corporation en wordt beschermd door U.S. Patent 7.369.677 en andere Amerikaanse en internationale patenten die zijn verstrekt of nog in behandeling zijn, naast de bescherming van copyrights en bedrijfsgeheimen voor bepaalde aspecten van dergelijke technologie. Cinavia is een handelsmerk van Verance Corporation. Copyright 2004-2010 Verance Corporation. Alle rechten voorbehouden door Verance. Reverseengineering of demontage is verboden. Dansk Bemærkning vedr. Cinavia : Dette produkt anvender Cinavia-teknologi til begrænsning af ikkeautoriseret kopiering af visse kommercielt producerede film og videoer samt deres lydspor. Når forbudt anvendelse af en ikke-autoriseret kopi detekteres, vises en meddelelse, og afspilning eller kopiering bliver afbrudt. Flere informationer om Cinavia-teknologi fås hos Cinavias onlineforbrugerinformationscenter på http:// www.cinavia.com. For at få flere informationer om Cinavia pr. post kan du sende et postkort med din postadresse til: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Dette produkt anvender producentspecifik teknologi under licens fra Verance Corporation og er beskyttet af USA-patent 7.369.677 og andre USA- og vendensomfattende patenter, både allerede udstedte og under ansøgning, samt copyright og beskyttelse af handelshemmeligheder for visse dele af sådan teknologi. Cinavia er et varemærke tilhørende Verance Corporation. Copyright 2004-2010 Verance Corporation. Alle rettigheder forbeholdes Verance. Reverse engineering eller adskillelse er forbudt. Suomi Cinavia-ilmoitus: Tämä tuote käyttää Cinaviatekniikkaa rajoittaakseen joidenkin kaupallisesti tuotettujen elokuvien ja videoiden sekä niiden ääniraitojen luvattomien kopioiden käyttöä. Kun luvattoman kopion kielletty käyttö tunnistetaan, viesti tulee näkyviin ja toisto tai kopiointi keskeytetään. Saat lisätietoja Cinavia-tekniikasta Cinavia Online Consumer Information Centre -kuluttajakeskuksesta osoitteessa http://www.cinavia.com. Voit pyytää lisätietoja Cinaviasta postitse lähettämällä postikortin, joka sisältää postiosoitteesi, osoitteeseen: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Tässä tuotteessa käytetään valmistajien tekniikkaa Verance Corporationin lisenssillä. Käyttöä suojaavat USA:n patentin 7,369,677 ja muut USA:n sekä maailmanlaajuiset myönnetyt ja vireillä olevat patentit sekä tiettyjen tekniikan osien tekijänoikeus- ja kauppasalaisuussuojat. Cinavia on Verance Corporationin tavaramerkki. Copyright 2004-2010 Verance Corporation. Verance pidättää kaikki oikeudet. Käytetyn salaustekniikan purkaminen on kielletty. Norsk Cinavia-merknad : Dette produktet bruker Cinaviateknologi for å begrense bruken av uautoriserte kopier av enkelte kommersielt produserte filmer, videoer og deres lydspor. Når det detekteres forbudt bruk av en uautorisert kopi, vises en melding og avspillingen eller kopieringen vil bli avbrutt. Mer informasjon om Cinaviateknologien finner du hos Cinavias forbrukersenter på http://www. cinavia. com. For mer informasjon om Cinavia via regulær post, send et postkort med din postadresse til: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Dette produktet innbefatter proprietær teknologi på lisens fra Verance Corporation og er beskyttet av amerikansk patent 7,369,677 og andre amerikanske og verdensomfattende patenter og patentsøknader, samt beskyttelse av copyright og forretningshemmeligheter for visse aspekter av slik teknologi. Cinavia er et varemerke som tilhører Sony Corporation. Copyright 2004-2010 Verance Corporation. Alle rettigheter forbeholdt for Verance. Omvendt utvikling eller demontering er forbudt. Svenska Cinavia-meddelande : Den här produkten använder Cinavia-teknik för att begränsa antalet obehöriga kopior på vissa kommersiellt producerade filmer och videor och deras ljudspår. Om en förbjuden användning av en obehörig kopia upptäcks visas ett meddelande och uppspelningen eller kopieringen avbryts. Mer information om Cinavia-tekniken erbjuds av Cinavia Online Consumer Information Centre på adressen http://www.cinavia.com. För att begära ytterligare information om Cinavia via post, skicka ett vykort med din adress till: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Den här produkten införlivar egendomsteknik på licens från Verance Corporation och skyddas av det amerikanska patentet 7,369,677 och andra patent i USA och internationellt och väntande patent, samt upphovsrätt och varumärkesskydd för vissa delar av sådan teknik. Cinavia är ett varumärke som tillhör Verance Corporation. Upphovsrätt 2004-2010 Verance Corporation. Med ensamrätt för Verance. Reverse engineering och nedmontering är förbjudet. Česky Upozornění k technologii Cinavia : Tento přístroj využívá technologii Cinavia k omezení použití neoprávněných kopií některých komerčních filmů a videí a jejich zvukových stop. Při zjištění zakázaného použití neautorizované kopie se zobrazí hlášení a přehrávání nebo kopírování je přerušeno. Další informace o technologii Cinavia naleznete v Online středisku informací pro spotřebitele na webu http://www.cinavia.com. Další informace o technologii Cinavia si můžete vyžádat také poštou. Pošlete svou korespondenční adresu na adresu: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Tento přístroj využívá proprietární technologii licencovanou společností Verance Corporation a je chráněn patentem USA č. 7 369 677 a dalšími vydanými a přihlášenými patenty ve Spojených státech amerických a dalších zemích. Na některé aspekty této technologie se také vztahuje ochrana autorských práv a obchodního tajemství. Cinavia je ochranná známka společnosti Verance Corporation. Copyright 2004-2010 Verance Corporation. Všechna práva vyhrazena společností Verance. Zpětná analýza a převod do strojového kódu jsou zakázány. Deutsch Cinavia Hinweise : Dieses Gerät nutzt die Cinavia Technologie um die Erstellung illegaler Kopien kommerziell produzierter Filme und Videos sowie deren Soundtracks zu verhindern. Wenn die verbotene Nutzung einer illegalen Kopie festgestellt wird, erscheint eine Meldung und die Wiedergabe bzw. der Kopiervorgang werden abgebrochen. Mehr Informationen über die Cinavia Technologie finden Sie im Online Kundeninformationszentrum unter http://www.cinavia. com. Wenn Sie zusätzliche Informationen über Cinavia über E-Mail erhalten möchten, senden Sie bitte eine Postkarte mit Ihrer E-Mail Adresse an: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Dieses Gerät nutzt geschützte Technologie unter der Lizenz von Verance Corporation und ist durch das U.S. Patent 7.369.677 und andere in der USA und weltweit ausgestellten & angemeldeten Patenten sowie durch die Urheberrechte und die Sicherung von Betriebsgeheimnissen bestimmter Aspekte dieser Technologie geschützt. Cinavia ist eine Handelsmarke von Verance Corporation. Copyright 2004-2010 Verance Corporation. Alle Rechte vorbehalten für Verance Reverse Engineering oder Demontage sind verboten. Magyar Cinavia figyelmeztetés : A készülék a Cinavia technológiáját használja a kereskedelmi forgalomban lévő filmek és videók, valamint hangsávjaik illetéktelen másolásának megakadályozására. Ha illetéktelen másolat tiltott használatát érzékeli, a készülék megjelenít egy üzenetet, és a lejátszás vagy másolás félbeszakad. A Cinavia technológiáról további információkat a Cinavia Online ügyfélszolgálaton kaphat a http:// www.cinavia.com címen. További információk a Cinaviáról postai úton küldjön egy levelezőlapot a postacímével a következő címre: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. A termék egy szerzõi jogvédelmi technológiát alkalmaz, mely eljárást a Verance Corporation birtokol, és az USA-ban bejegyzett 7,369,677 számú szabadalom, illetve más, az USÁban és máshol bejegyzett szabadalmak és szerzõi jogok védenek, és az ilyen technológiákra vonatkozó kereskedelmi titkok. A Cinavia a Verance Corporation védjegye. Copyright 2004-2010 Verance Corporation. A Verance minden jogot fenntart. A rendszer visszafejtése vagy visszafordítása tilos. Polski Komentarz Cinavia : Urządzenie to korzysta z technologii Cinavia w celu ograniczenia wykorzystania nieupoważnionych kopii pewnych filmów i obrazów wideo wyprodukowanych w celach komercyjnych, oraz ich ścieżek dźwiękowych. W przypadku wykrycia zakazanego użycia nieautoryzowanej kopii, zostanie wyświetlony komunikat i proces odtwarzania i kopiowania zostanie zatrzymany. Więcej informacji o technologii Cinavia można uzyskać w Centrum obsługi klienta Cinavia online: http:// www.cinavia.com. Aby poprosić o przesłanie dodatkowych informacji o Cinavia pocztą, wyślij kartkę ze swoim adresem pocztowym na adres: Centrum informacji konsumenta Cinavia, P.O. Box 86851, San Diego, CA, 92138, USA. Urządzenie to zostało wyprodukowane z zastosowaniem technologii własnościowej na licencji firmy Verance Corporation, i jest chronione amerykańskim patentem 7,369,677 oraz innymi patentami Stanów Zjednoczonych i innych krajów, wydanymi i wydawanymi, oraz prawami autorskimi, a także chroniony tajemnicą handlową obejmującą określone aspekty takiej technologii. Cinavia jest znakiem towarowym firmy Verance Corporation. Copyright 2004–2010 Verance Corporation. Wszystkie prawa zastrzeżone przez firmę Verance. Niedozwolone jest odtwarzanie wsteczne (ang. reverse engineering) i rozmontowywanie urządzenia. Slovensky Upozornenie na technológiu Cinavia : Tento výrobok využíva technológiu Cinavia na obmedzenie používania neoprávnených kópií niektorých komerčne vyrábaných filmov a videí a ich zvukových záznamov. Keď sa zistí, že došlo k zakázanému použitiu neoprávnenej kópie, zobrazí sa správa a prehrávanie alebo kopírovanie sa preruší. Viac informácií o technológií Cinavia nájdete na on-line informačnom centre pre spotrebiteľov Cinavia na lokalite http://www.cinavia.com. Ak chcete požiadať o zaslanie ďalších informácií o technológii Cinavia poštou, zašlite list s vašou poštovou adresou na adresu: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Tento výrobok obsahuje súkromnú technológiu na základe licencie od spoločnosti Verance Corporation, ktorá je chránená americkým patentom č. 7 369 677 a ďalšími patentmi a patentovými prihláškami v USA a na celom svete, pričom niektoré aspekty tejto technológie podliehajú aj ochrane autorským právom a ochrane obchodného tajomstva. Cinavia je obchodná značka spoločnosti Verance Corporation. Autorské práva 2004 - 2010 Verance Corporation. Spoločnosť Verance si vyhradzuje všetky práva. Spätná analýza alebo prevod do strojového kódu sú zakázané. Slovenščina Obvestilo o tehnologiji Cinavia: Ta izdelek uporablja tehnologijo Cinavia za omejitev uporabe nepooblaščenih kopij nekaterih komercialno posnetih filmov in videoposnetkov ter njihovih zvočnih posnetkov. Kadar naprava zazna uporaba nepooblaščene kopije, se bo prikazalo sporočilo in predvajanje ali kopiranje se bo prekinilo. Več informacij o tehnologiji Cinavia najdete v spletnem informacijskem središču za stranke Cinavia na http://www.cinavia.com. Če želite prejeti dodatne informacije o tehnologiji Cinavia po pošti, nam pošljite svoj domači naslov na: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Ta izdelek vsebuje lastniško tehnologijo z licenco družbe Verance Corporation in je zaščiten z ameriškim patentom 7,369,677 ter drugimi izdanimi ali vloženimi ameriškimi in svetovnimi patenti, kot tudi z zakoni o varstvu pravic in nerazkrivanju poslovnih skrivnosti za določene vidike takšne tehnologije. Cinavia je blagovna znamka družbe Verance Corporation. Avtorske pravice 2004-2010 Verance Corporation. Vse pravice si pridržuje družba Verance. Obratno inženirstvo in razstavljanje sta prepovedana. Български Бележка за Cinavia : Този продукт използва технологията Cinavia, за да ограничи използването на неоторизирани копия на някои филми, видеоклипове и саундтраци. Когато се засече забранено ползване на неоторизирано копие, ще се покаже съобщение и възпроизвеждането или копирането ще се прекъсне. Повече информация за технологията Cinavia се предоставя от онлайн центъра за информация за клиенти на Cinavia на http://www.cinavia.com. За да поискате допълнителна информация от Cinavia по пощата, изпратете запитванията с вашия пощенски адрес на: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Този продукт използва фирмена технология под лиценз от Verance Corporation и е защитен с патент на САЩ 7,369,677 и други издадени и заявени патенти в САЩ и по целия свят, както и от защита на авторското право и търговските тайни за определени аспекти от такава технология. Cinavia е търговска марка на Verance Corporation. Copyright 2004-2010 Verance Corporation. Всички права запазени от Verance. Забранен е инженеринг или демонтиране в обратен ред. Română Notă din partea Cinavia : Acest aparat utilizează tehnologie Cinavia pentru a limita utilizarea unor copii neautorizate ale unor filme sau materiale video produse spre comercializare, precum şi a coloanelor sonore asociate acestora. Dacă este detectată utilizarea ilegală sa unei copii neautorizate, va fi afişat un mesaj şi redarea sau copierea este întreruptă. Pentru informaţii suplimentare despre tehnologia Cinavia, consultaţi Centrul online de informaţii pentru consumatori Cinavia, la adresa http://www.cinavia.com. Pentru a solicita prin poştă informaţii suplimentare despre Cinavia, trimiteţi un plic timbrat cu adresa dvs. la: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Acest aparat încorporează tehnologie de proprietate sub licenţă de la Verance Corporation şi este protejat de către brevetul SUA 7.369.677 şi de către alte brevete din SUA şi din întreaga lume emise şi în curs de emitere, precum şi de către legea drepturilor de autor şi a secretului comercial privind anumite aspecte ale acestei tehnologii. Cinavia este o marcă comercială a Verance Corporation. Copyright 2004-2010 Verance Corporation. Toate drepturile sunt rezervate de Verance. Este interzisă demontarea sau dezasamblarea produsului. Ελληνικά Ειδοποίηση τεχνολογίας Cinavia : Αυτό το προϊόν χρησιμοποιεί τεχνολογία Cinavia για τον περιορισμό της χρήσης μη εξουσιοδοτημένων αντιγράφων ορισμένων ταινιών και βίντεο που διατίθενται στο εμπόριο, καθώς και της ηχητικής επένδυσής τους. Αν ανιχνευτεί απαγορευμένη χρήση ενός μη εξουσιοδοτημένου αντιγράφου, εμφανίζεται ένα μήνυμα και διακόπτεται η αναπαραγωγή ή αντιγραφή. Περισσότερες πληροφορίες για την τεχνολογία Cinavia παρέχονται στο Διαδικτυακό κέντρο πληροφόρησης πελατών της Cinavia, στη διεύθυνση http://www.cinavia.com. Για να ζητήσετε πρόσθετες πληροφορίες σχετικά με την τεχνολογία Cinavia μέσω ταχυδρομείου, στείλτε μια κάρτα με την ταχυδρομική διεύθυνσή σας στο: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Το προϊόν αυτό ενσωματώνει αποκλειστική τεχνολογία που χρησιμοποιείται κατόπιν αδείας από τη Verance Corporation, η οποία προστατεύεται από το δίπλωμα ευρεσιτεχνίας Η.Π.Α. με αριθμό 7.369.677 και άλλα διπλώματα ευρεσιτεχνίας που έχουν εκδοθεί και εκκρεμούν στις Η.Π.Α. και διεθνώς, καθώς και από προστασία πνευματικών δικαιωμάτων και εμπορικών μυστικών για ορισμένα στοιχεία της συγκεκριμένης τεχνολογίας. Η επωνυμία Cinavia είναι εμπορικό σήμα της Verance Corporation. Πνευματικά δικαιώματα 2004-2010 Verance Corporation. Με την επιφύλαξη παντός δικαιώματος από τη Verance. Απαγορεύεται η αποσυμπίληση ή ανακατασκευή κώδικα. Hrvatski Obavijest o tehnologiji Cinavia : ovaj proizvod rabi tehnologiju Cinavia kako bi se ograničila uporaba neovlaštenih kopija nekih komercijalno proizvedenih filmova i videozapisa i njihovih zvučnih zapisa. Kada se otkrije zabranjena uporaba neovlaštene kopije, prikazat će se poruka i prekinut će se reproduciranje i kopiranje. Ostale informacije o tehnologiji Cinavia dostupne su u mrežnom informacijskom centru za korisnike tvrtke Cinavia na http://www.cinavia. com. Kako biste zatražili dodatne informacije o tehnologiji Cinavia putem pošte, pošaljite nam dopis na poštansku adresu: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, SAD. Ovaj proizvod sadržava zakonom zaštićenu tehnologiju pod licencom korporacije Verance i zaštićen je američkim patentom 7,369,677 i ostalim američkim i svjetskim patentima koji su izdanje i čije je izdanje u tijeku, kao i zaštitama autorskih prava i poslovnih tajni za određene aspekte te tehnologije. Cinavia je zaštitni znak korporacije Verance. Autorsko pravo 2004-2010 Verance Corporation. Sva prava pridržava Verance. Zabranjeni su obrnuti inženjering i rastavljanje. Srpski Cinavia obaveštenje : Ovaj proizvod koristi Cinavia tehnologiju za ograničenje upotrebe neovlašćenih kopija nekih komercijalno proizvedenih filmova i video zapisa i zvučnih zapisa. Kada se otkrije upotreba neovlašćene kopije, prikazaće se poruka i reprodukcija ili kopiranje će biti prekinuto. Više informacija o Cinavia tehnologija dostupne su na internet informacionom centru za potrošače Cinavia na adresi http://www.cinavia. com. Da biste zatražili dodatne informacije o Cinavia-i putem pošte, pošaljite razglednicu sa vaše e-adrese: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, SAD. Ovaj proizvod sadrži tehnologiju u vlasništvu pod licencom kompanije Verance Corporation i zaštićen je američkim patentom 7,369,677 i drugim američkim i svetskim patentima koji su potvrđeni ili su na čekanju, kao i zaštitom autorskih prava i poslovne tajne za određene aspekte takve tehnologije. Cinavia je zaštitni znak kompanije Verance Corporation. Copyright 2004-2010 Verance Corporation. Sva prava zadržana od strane kompanije Verance. Reinženjering ili demontaža su zabranjeni. Қазақша Cinavia ескертуі : Бұл өнімде коммерциялық фильм мен бейнелердің және олардың саунд-тректерінің рұқсатсыз көшірмелерін шектеу үшін Cinavia технологиясы пайдаланылады. Пайдалануға тыйым салынған рұқсатсыз көшірмені пайдалану анықталса, хабар көрсетіледі және ойнату немесе көшіру үзіледі. Cinavia технологиясы туралы қосымша ақпарат http : //www.cinavia.com торабындағы Cinavia желілік тұтынушылар туралы ақпарат орталығында берілген. Cinavia туралы қосымша ақпаратты пошта арқылы сұрау үшін пошта мекенжайыңыз бар ашықхатты мына мекенжайға жіберіңіз : Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Бұл Verance корпорациясының лицензиясы бар жекеменшік технологияны қамтиды және АҚШ-тың 7,369,677 патентімен, әрі шығарылған және күтудегі басқа АҚШ және дүниежүзілік патенттермен, сондай-ақ, авторлық құқықтармен және осындай технологияның белгілі бір жақтарын құпия қорғаныспен қорғалған. Cinavia – Verance корпорациясының сауда белгісі. Авторлық құқықтар, 2004-2010 Verance корпорациясы. Барлық құқықтар Verance корпорациясымен қорғалған. Кері жобалауға және бөлшектеуге тыйым салынады. Русский Уведомление о Cinavia: Данный продукт оснащен технологией Cinavia, которая не позволяет использовать незаконно сделанные копии серийно изготавливаемых записей фильмов и видео, а также музыку из этих фильмов и видео. В случае обнаружения использования незаконно сделанной копии на экране появится соответствующее сообщение, и процесс воспроизведения или копирования будет прерван. Дополнительные сведения о технологии Cinavia представлены на сайте Центра информации для потребителей Cinavia по адресу: http://www.cinavia.com. Чтобы запросить дополнительные сведения о технологии Cinavia по почте, отправьте нам открытку с вашим почтовым адресом: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Данный продукт оснащен запатентованной технологией с лицензией от Verance Corporation и защищенной патентом США 7,369,677 и другими патентами США и международными патентами, изданными и рассматриваемыми, а определенные аспекты этой технологии – авторскими правами и охраной секретов производствам. Cinavia является товарным знаком корпорации Verance Corporation. Verance Corporation, 20042010 гг. Все права защищены корпорацией Verance. Инженерный анализ и разборка запрещены. Українська Зауваження щодо Cinavia: у цьому продукті використовується технологія Cinavia, що обмежує використання несанкціонованих копій деяких комерційних кінофільмів і відеозаписів, а також використаних у них звукових доріжок. У разі виявлення забороненого використання несанкціонованої копії, відобразиться відповідне повідомлення, а відтворення або копіювання буде призупинено. Додаткові відомості про технологію Cinavia можна знайти в Інформаційному онлайн-центрі Cinavia за веб-адресою http://www.cinavia.com. Щоб надіслати запит на отримання додаткової інформації про Cinavia поштою, надішліть поштову листівку зі своєю поштовою адресою на таку адресу: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. У цьому продукті використано запатентовану технологію, ліцензовану компанії Verance Corporation і захищену патентом США 7 369 677 та іншими всесвітніми патентами, виданими та такими, що очікують затвердження, а також авторським правом і принципами охорони таємниць виробництва певних аспектів цієї технології. Cinavia є торговельною маркою Verance Corporation. Авторське право належить корпорації Verance Corporation, 2004-2010 рр. Усі права належать корпорації Verance. Забороняється вносити зміни до конструкції продукту або розбирати його. 繁體中文 Cinavia 聲明:本產品使用 Cinavia 技術來限制 使用某些商業製造的電影和視訊及其聲道的未經授權副本。當偵測 到禁止使用的未經授權副本時,將會顯示一則訊息,並且播放或複 製動作將會中斷。 Cinavia 技術的詳細資訊在 Cinavia 線上消費者資訊中心中提供,網址為:http://www. cinavia.com。若要透過郵件請求關於 Cinavia 的其他資訊,請將含有您的郵寄地址的明信片寄往:Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. 本产品融合了在获得 Verance Corporation 许可并且受美国专利 7,369,677 以及其他在盖和世界各地已公布和正在申请的专利保护 ,并且受此类技术特定方面的版权和商业秘密保护。 Cinavia 是 Verance Corporation 的商标。20042010 Verance Corporation 版权所有。Verance 保留一切权利。严禁进行逆向工程和反汇编。 中国语 Cinavia 声明:本产品使用 Cinavia 技术来限制使用 一些商业制造的电影和视频及其声道的未获得授权的副本。检测到 禁止使用未获得授权的副本的情况时,将会显示消息,并且播放或 复制将会中断。 有关 Cinavia 技术的更多信息,在 Cinavia 在线消费者信息中心提供,网址如下:http://www. cinavia.com。要通过邮件请求关于 Cinavia 的更多信息,请将含有您的邮寄地址的明信片寄往:Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. 本产品融合了在获得 Verance Corporation 许可并且受美国专利 7,369,677 以及其他在盖和世界各地已公布和正在申请的专利保护 ,并且受此类技术特定方面的版权和商业秘密保护。 Cinavia 是 Verance Corporation 的商标。20042010 Verance Corporation 版权所有。Verance 保留一切权利。严禁进行逆向工程和反汇编。 ל עגונב העדוה עברית-Cinavia : שמתשמ הז רצומ תיגולונכטבCinavia יתלב םיקתעהב שומישה תא ליבגהל ידכ םהלש לוקה יספו תירחסמ הקפהב םיטרס לש םייקוח. ההוזי רשאכ יקוח יתלב קתועב רוסא שומיש, וא הלעפה לכו העדוה ךכ לע גצות וקספוי הקתעה. תיגולונכט תודוא ףסונ עדימCinavia עדימה זכרמב אוצמל ןתינ לש ןכרצל ןווקמהCinavia תבותכבhttp://www.cinavia.com. תודוא ףסונ עדימ תלבקלCinavia ראודב, ךתבותכ םע היולג חלש לא: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. דיגאת םעטמ ןוישיר תחת תיניינק היגולונכט בלשמ הז רצומ Verance יאקירמא טנטפ ידי לע ןגומ אוהו7,369,677 םיטנטפו םייולתו םידמוע םהש וא ולבקתהש םירחא םיימלועו םיאקירמא, םיטבה רובע םיירחסמ תודוסו םירצוי תויוכז לע הנגה ידי לע םג ומכ וזכ היגולונכט לש םימיוסמ. Cinavia דיגאת לש ירחסמ למס אוה Verance. םירצוי תויוכז2004 - 2010 דיגאתVerance. לכ ל תורומש תויוכזה-Verance. וא רוחאל הסדנה עצבל רוסיא לח רצומה קוריפ. Thai ประกาศเกี่ยวกับ Cinavia : ผลิตภัณฑ์นี้ใช้เทคโนโลยี Cinavia เพื่อจำกัดการใช้งานแผ่น ที่ไม่ได้รับอนุญาตของฟิล์มและวิดีโอและแทร็กเสียงที่ผลิตม าเพื่อการค้าบางแผ่น เมื่อพบการใช้งานต้องห้ามของแผ่นที่ไ ม่ได้รับอนุญาต ข้อความจะปรากฏขึ้นและการเล่นหรือการคัด ลอกจะหยุดทำงาน ข้อมูลเพิ่มเติมเกี่ยวกับเทคโนโลยี Cinavia มีให้ที่ศูนย์ ข้อมูลลูกค้าทางออนไลน์ของ Cinavia ที่ http://www. cinavia.com หากต้องการขอรับข้อมูลเพิ่มเติมเกี่ยวกับ Cinavia ทางไปรษณีย์ ส่งโปสการ์ดที่มีที่อยู่ของคุณไป ที่: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA ผลิตภัณฑ์นี้รวมเอาเทคโนโลยีเอกสิทธิ์เฉพาะภายใต้การอ นุญาตจาก Verance Corporation และได้รบ ั ความคุม ้ ครอง โดยสิทธิบัตรสหรัฐฯ เลขที่ 7,369,677 และสิทธิบัตรสหรัฐ ฯ อื่นๆ และทั่วโลกที่ประกาศแล้วและรอการพิจารณา รวม ทั้งลิขสิทธิ์และการป้องกันความลับทางการค้าในบางด้าน ของเทคโนโลยีดังกล่าว Cinavia เป็นเครื่องหมายการค้าข อง Verance Corporation ลิขสิทธิ์ 2004-2010 Verance Corporation สงวนสิทธิ์ทั้งหมดโดย Verance ห้ามดำเนิน การทางวิศวกรรมย้อนกลับหรือถอดชิ้นส่วนผลิตภัณฑ์ Türkçe Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Centre at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. This product incorporates proprietary technology under licence from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited. Indonesia Pemberitahuan Cinavia : Produk ini menggunakan teknologi Cinavia untuk membatasi penggunaan tanpa izin salinan film dan video tertentu yang diproduksi secara komersial serta soundtracknya. Apabila penggunaan salinan tanpa izin yang dilarang terdeteksi, pesan akan ditampilkan dan pemutaran atau penyalinan akan dihentikan. Informasi selengkapnya tentang teknologi Cinavia tersedia di Pusat Informasi Pelanggan Online Cinavia di http://www.cinavia.com. Untuk meminta informasi tambahan mengenai Conavia melaui pos, kirimkan kartu pos dengan alamat surat Anda ke: Cinavia Consumer Information Centre,P.O.Box 86851, San Diego, CA, 92138, USA. Produk ini menerapkan teknologi milik sendiri berdasarkan lisensi dari Verance Corporation dan dilindungi oleh Paten AS 7,369,677 dan paten AS dan di seluruh dunia lainnya yang terdaftar dan dalam pendaftaran, serta perlindungan hak cipta dan rahasia dagang atas aspek tertentu dari teknologi tersebut. Cinavia adalah merek dagang dari Verance Corporation. Hak Cipta 2004-2010 Verance Corporation. Semua hak dimiliki oleh Verance. Rekayasa balik atau pembongkaran dilarang. Tiếng Việt Thông báo của Cinavia: Sản phẩm này sử dụng công nghệ Cinavia để hạn chế việc sử dụng các bản sao trái phép một số bộ phim và video được sản xuất thương mại và các đoạn âm thanh của chúng. Khi bị phát hiện sử dụng bản sao trái phép, một thông báo sẽ được hiển thị và việc phát lại hoặc sao chép sẽ bị gián đoạn. Thông tin khác về công nghệ Cinavia được cung cấp tại Trung tâm thông tin dành cho người tiêu dùng trực tuyến Cinavia ở địa chỉ http://www.cinavia.com. Để yêu cầu thông tin khác về Cinavia qua thư, hãy gửi một danh thiếp kèm theo địa chỉ nhận thư của bạn đến: Cinavia Consumer Information Centre, P.O. Box 86851, San Diego, CA, 92138, USA. Sản phẩm này tích hợp công nghệ độc quyền theo giấy phép của Verance Corporation và được bảo hộ bởi Bằng sáng chế Hoa Kỳ 7,369,677 và các bằng sáng chế của Hoa Kỳ và trên toàn thế giới khác đã được cấp và đang chờ cấp cũng như sự bảo vệ bí mật thương mại và bản quyền đối với các khía cạnh cụ thể của công nghệ đó. Cinavia là nhãn hiệu của Verance Corporation. Bản quyền 2004-2010 Verance Corporation. Mọi quyền được bảo lưu bởi Verance. Nghiêm cấm thiết kế đối chiếu và tháo rời sản phẩm. ΔϴΑήόϟΔϐϠϟ Entre em contato com a SAMSUNG NO MUNDO TODO Se tiver dúvidas ou comentários relacionados aos produtos Samsung, entre em contato com a Central de atendimento ao cliente SAMSUNG. Area ` North America Contact Center Web Site Canada Mexico U.S.A 1-800-SAMSUNG (726-7864) 01-800-SAMSUNG (726-7864) 1-800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com Argentine Brazil Chile Colombia Costa Rica Dominica Ecuador El Salvador Guatemala Honduras Jamaica Nicaragua Panama Peru Puerto Rico Trinidad & Tobago Venezuela 0800-333-3733 0800-124-421 / 4004-0000 800-SAMSUNG (726-7864) 01-8000112112 0-800-507-7267 1-800-751-2676 1-800-10-7267 800-6225 1-800-299-0013 800-7919267 1-800-234-7267 00-1800-5077267 800-7267 0-800-777-08 1-800-682-3180 www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com 1-800-SAMSUNG (726-7864) www.samsung.com 0-800-100-5303 www.samsung.com Albania 42 27 5755 0810 - SAMSUNG (7267864, € 0.07/min) - ` Latin America ` Europe Austria Belgium 02-201-24-18 Bosnia Bulgaria Croatia 05 133 1999 07001 33 11 062 SAMSUNG (062 726 7864) 800-SAMSUNG (800-726786) Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8 70 70 19 70 030 - 6227 515 01 48 63 00 00 01805 - SAMSUNG (726-7864 € 0,14/Min) 06-80-SAMSUNG (726-7864) 800-SAMSUNG (726-7864) +381 0113216899 261 03 710 023 207 777 020 405 888 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) 815-56 480 0 801 1SAMSUNG (172678) / 022-607-93-33 80820-SAMSUNG (726-7864) 1. 0 8010 SAMSUNG (72678) doar din reţeaua Romtelecom, tarif local 2. 021.206.01.10 - din orice reţea, tarif normal Czech Denmark Finland France Germany Hungary Italia Kosovo Luxemburg Macedonia Montenegro Netherlands Norway Poland Portugal Rumania www.samsung.com www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French) www.samsung.com www.samsung.com Area Serbia Slovakia Spain Sweden Contact Center 0700 Samsung (0700 726 7864) 0800-SAMSUNG (726-7864) 902-1-SAMSUNG (902 172 678) 0771 726 7864 (SAMSUNG) Switzerland 0848-SAMSUNG (7267864, CHF 0.08/min) U.k Eire Lithuania Latvia Estonia 0330 SAMSUNG (7267864) 0818 717100 8-800-77777 8000-7267 800-7267 Russia Georgia Armenia Azerbaijan Uzbekistan Kyrgyzstan Tadjikistan 8-800-555-55-55 8-800-555-555 0-800-05-555 088-55-55-555 8-10-800-500-55-500 (GSM: 7799) 8-10-800-500-55-500 00-800-500-55-500 8-10-800-500-55-500 Ukraine 0-800-502-000 Belarus Moldova 810-800-500-55-500 00-800-500-55-500 Australia New Zealand China 1300 362 603 0800 SAMSUNG (0800 726 786) 400-810-5858 / 010-6475 1880 Hong Kong (852) 3698 4698 ` CIS Kazakhstan ` Asia Pacific Web Site www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com/ch www.samsung.com/ ch_fr/(French) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.ua www.samsung.com/ ua_ru www.samsung.com www.samsung.com www.samsung.com www.samsung.com/hk www.samsung.com/ hk_en/ www.samsung.com Philippines www.samsung.com www.samsung.com www.samsung.com - Singapore Thailand Taiwan Vietnam 3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282 0800-112-8888 / 021-5699-7777 0120-327-527 1800-88-9999 1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777 1800-SAMSUNG (726-7864) 1800-29-3232 / 02-689-3232 0800-329-999 1 800 588 889 Bahrain Egypt Jordan Morocco Oman Saudi Arabia Turkey U.A.E 8000-4726 08000-726786 800-22273 080 100 2255 800-SAMSUNG (726-7864) 9200-21230 444 77 11 800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Nigeria South Africa 0800-SAMSUNG (726-7864) 0860-SAMSUNG (726-7864 ) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com India Indonesia Japan Malaysia ` Middle East ` Africa www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com
