Panasonic TH37PX81FV Quick Start Guide
Add to my manuals
20 Pages
Panasonic TH42PX81FV is a plasma television that offers a rich multimedia experience with its ability to connect to various devices and play content from different sources. It features a 42-inch plasma display panel with high-definition resolution, providing stunning visuals for movies, TV shows, and gaming. With its built-in SD card reader, you can easily view photos and videos directly from your memory card. Additionally, the TV has multiple HDMI ports, allowing you to connect multiple devices simultaneously, such as DVD players, gaming consoles, and set-top boxes.
advertisement
▼
Scroll to page 2
of 20

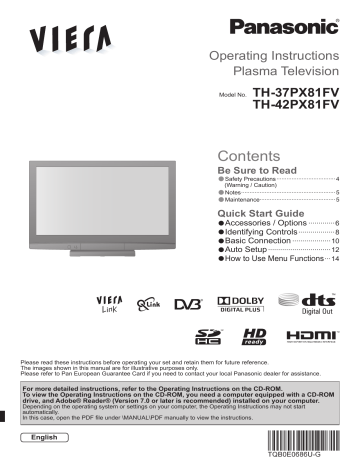

Operating Instructions Plasma Television Model No. TH-37PX81FV TH-42PX81FV Contents Be Sure to Read • •• Quick Start Guide •• •• • Safety Precautions ··································· 4 (Warning / Caution) Notes ························································ 5 Maintenance············································· 5 Accessories / Options ············· 6 Identifying Controls ·················· 8 Basic Connection ··················· 10 Auto Setup ······························· 12 How to Use Menu Functions ··· 14 Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance. For more detailed instructions, refer to the Operating Instructions on the CD-ROM. To view the Operating Instructions on the CD-ROM, you need a computer equipped with a CD-ROM drive, and Adobe® Reader® (Version 7.0 or later is recommended) installed on your computer. Depending on the operating system or settings on your computer, the Operating Instructions may not start automatically. In this case, open the PDF file under \MANUAL\PDF manually to view the instructions. English Turn your own living room into a movie theatre! Experience an amazing level of multi- Notice for DVB functions • •• • 2 Any functions related to DVB (Digital Video Broadcasting) will work in areas where DVB-T (MPEG2 and MPEG4-AVC) digital terrestrial broadcasting are received. Consult your local Panasonic dealer with coverage areas. DVB functions may not be available in some countries. Some functions may not be available in some countries. This TV has the capability for DVB specifications. But future DVB services cannot be guaranteed. media excitement Enjoy rich multi-media SD memory Card Camcorder Personal computer Amplifier with Speaker system DVD Recorder VCR Set top box DVD player Up to 100,000 hours Plasma Panel Lifetime The Plasma display panel used in the 2008 VIERA TV range is rated for up to 100,000 hours.∗ ∗This measurement is based on the time taken for the brightness of the panel to reduce to half of it’s maximum level. The time taken to reach this level may vary depending on the image content and the environment where the TV is used. Image retention and malfunctions are not taken into account. 3 Safety Precautions Warning Handling the mains plug and lead •• •• •• •• Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.) Ensure that the mains plug is easily accessible. Ensure the earth pin on the mains plug is securely connected to prevent electrical shock. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection. Do not touch the mains plug with a wet hand. (This may cause electrical shock.) Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.) Do not damage the mains lead. (A damaged lead may cause fire or electrical shock.) Do not move the TV with the lead plugged in the socket outlet. Do not place a heavy object on the lead or place the lead near a high-temperature object. Do not twist the lead, bend it excessively, or stretch it. Do not pull on the lead. Hold onto the mains plug body when disconnecting lead. Do not use a damaged mains plug or socket outlet. •• •• If you find any abnormality, remove the mains plug immediately! AC 220-240 V 50 / 60 Hz Power source • This TV is designed to operate on 220-240 V, 50 / 60 Hz AC. Do not remove covers NEVER modify the TV yourself (High-voltage components may cause serious electrical shock.) Have the TV checked, adjusted, or repaired at your local Panasonic dealer. • Keep liquids away from the TV • • To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the TV. (including on shelves above, etc.) Do not expose to direct sunlight and other sources of heat • 4 Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV. Do not place foreign objects inside the TV • Do not allow any objects to drop into the TV through the air vents (fire or electrical shock may result). Do not place the TV on sloped or unstable surfaces • The TV may fall off or tip over. Use only the dedicated pedestals / mounting equipment • • Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use approved pedestals / mounts (p. 6). Do not allow children to handle SD Card • As with a small object, SD Card can be swallowed by young children. Please remove SD Card immediately after use. Notes Caution ■When cleaning the TV, remove the mains plug ■•When the TV is not going to be used for a long period of time, remove the mains plug • Cleaning an energized TV may cause electrical shock. This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet. ■Transport only in upright position • Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry. ■Allow sufficient space around the TV for radiated heat Minimum distance 10 This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty. Typical still images Programme number and other logos Image displayed in 4:3 mode Video game Computer image To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. •• •• ■Auto power standby function • If no signal is received and no operation is performed in Analogue TV mode for 30 minutes, the TV will automatically go to standby mode. ■Keep the TV away from these types of 10 10 Do not display a still picture for a long time 7 equipment • (cm) When using the pedestal, keep the space between the bottom of the TV and the floor surface. In case of using Wall-hanging bracket, follow the manual of it. • ■Do not expose your ears to excessive volume from the headphones • Irreversible damage can be caused. Maintenance First, remove the mains plug from the socket outlet. Display panel Notes / Maintenance Safety Precautions Blocked ventilation by newspapers, table cloths, curtains, etc. may cause overheating, fire or electrical shock. •• • • • ■Do not block the rear air vents • Electronic equipment In particular, do not place video equipment near the TV (electromagnetic interference may distort images / sound). Equipment with an infrared sensor This TV also emits infrared rays (this may affect operation of other equipment). Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry. Caution • • The surface of the display panel has been specially treated and may be easily damaged. Do not tap or scratch the surface with your fingernail or other hard object. Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances (this may degrade surface quality). Cabinet, Pedestal Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth. Caution • • • Take care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure.) Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint). Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. Mains plug Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fire or electrical shock.) 5 Accessories / Options Standard accessories Remote Control • Check that you have the accessories and items shown Batteries for the Remote Control (2) N2QAYB000239 • Clamper p. 8 Mains Lead p. 11 R6 (UM3) TV Operating Instructions Cleaning cloth Pedestal p. 7 Pan European Guarantee Card • This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children. Optional accessories Wall-hanging bracket (vertical) •• • • • (angle) •• TY-WK42PV3W TY-WK42PV4W TY-WK42PR3W TY-WK42PR4W Caution In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent the TV from tipping over. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage. Installing / removing remote’s batteries 1 Pull open Hook 2 Close Note the correct polarity (+ or -) Caution •• •• • 6 Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. Do not mix old and new batteries. Do not mix different battery types (such as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd) batteries. Do not burn or breakup batteries. Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Attaching the pedestal Warning Do not disassemble or modify the pedestal. Otherwise the TV may fall over and become damaged, and personal injury may result. • Caution Do not use any other TV and displays. Otherwise the TV may fall over and become damaged, and personal injury may result. Do not use the pedestal if it becomes warped or physically damaged. If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened. If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result. Ensure that the TV does not fall over. If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result. Two or more people are required to install and remove the TV. If two or more people are not present, the TV may be dropped, and personal injury may result. • • • • • Assembly screw (4) (silver) • XYN5+F18FN Assembly screw (4) (black) • THEL062N Pole (2) •• L M5 × 18 Base • R : TBLA3632 L : TBLA3633 TBLX0053 R M5 × 25 ■Assembling the pedestal R D L Front Accessories / Options •• • A • Use the four assembly screws to fasten the left and right poles to the base securely. Make sure that the screws are securely tightened. Forcing the assembly screws the wrong way will strip the threads. “L” or “R” mark is stamped on the bottom of the pole. ■Securing the TV Use the assembly screws to fasten securely. Make sure that the screws are securely tightened. Carry out the work on a horizontal and level surface. •• B View from the bottom Arrow mark Hole for pedestal installation D 7 Accessories / Options Using the clamper Rear of the TV • •• ■ Attach the clamper hole Do not bundle the RF cable and mains lead together (could cause distorted image). Fix cables with clampers as necessary. When using the optional accessory, follow the option’s assembly manual to fix cables. ■ Bundle the cables To remove from the TV: To loosen: snaps Insert the clamper in a hole Keep pushing both side snaps hooks Set the tip in the hooks Keep pushing the knob knob Identifying Controls TV Function select PULL / Contrast / Brightness / Colour / •Volume Sharpness / Tint (NTSC mode) / Bass / Lift door to open Treble / Balance / Auto Setup AV3 Changes the input mode Headphones jack AV3 terminals SD Card slot Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On. Recording LED •C.A.T.S. (Contrast Automatic Tracking System) sensor •Remote control signal receiver Standby for Direct TV Recording :orange Senses brightness to adjust picture quality in “Eco” mode in Picture Menu (p. 16) Mains power On / Off switch • 8 Switch On to turn on the TV or turn the TV to standby mode by the remote control Power LED • • Standby: red On: green When using the remote control, indicates the TV has received a command. Identifying Controls Remote Control Standby On / Off switch Input mode selection •Aspect • • VIERA Link Menu •Guide • OK •• •• Switches TV On or Off standby Changes aspect ratio from Aspect Selection list Also possible by pressing this button repeatedly until you reach the desired aspect INPUT SD Card OPTION SD CARD EXIT Press to access VIERA Link Menu directly Displays Programme Guide or Programme List RETURN • Cursor buttons • Return • Coloured buttons • Makes selections and adjustments Used for the selection, navigation and operation of various functions • Subtitles • Numeric buttons •• Switches to teletext mode Hold Freeze / unfreeze picture Holds the current teletext page (teletext mode) • Programme Information Returns to the teletext index page (teletext mode) Sound Mute • Programme Up / Down • • Displays programme information Switches sound mute On or Off Volume Up / Down Selects programme in sequence VCR / DVD Panasonic equipment operations Identifying Controls Accessories / Options Index Changes programme and teletext pages When in Standby mode, switches TV On •• •• Displays subtitles Direct TV Recording • MULTI WINDOW Resets picture and sound settings to their default levels Easy setting for viewing and sound options Returns to the previous menu Press to access VIERA Link, Picture, Sound and Setup Menus Teletext • Switches to SD Card viewing mode Returns to the normal viewing screen Main Menu Normalise • Option Menu • Exit Confirms selections and choices Press after selecting programme positions to quickly change programme • TV - switches DVB / Analogue mode AV - switches to AV input mode from Input Selection list Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection DIRECT TV REC N Surround • Switches Surround On or Off 9 Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first. Example 1 Connecting aerial Example 2 Connecting DVD Recorder / VCR TV only TV, DVD Recorder or VCR Rear of the TV Aerial Rear of the TV Aerial AC 220-240 V 50 / 60 Hz AC 220-240 V 50 / 60 Hz Mains lead (supplied) Mains lead (supplied) RF cable HDMI 1 HDMI 2 AV 1 RGB VIDEO HDMI 3 AV 2 PC HDMI 1 HDMI 2 AV 1 RGB VIDEO S VIDEO RGB VIDEO HDMI 3 COMPONENT AV 2 PC RGB VIDEO S VIDEO COMPONENT AUDIO AUDIO OUT IN AUDIO AUDIO OUT IN Y Y L L PB R R PR L L PB R R PR DIGITAL AUDIO OUT DIGITAL AUDIO OUT RF cable SCART cable (fully wired) RF OUT DVD Recorder or VCR RF IN 10 •• • RF cable Note Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link. For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using HDMI cable. Read the manual of the equipment too. Example 3 Connecting DVD Recorder / VCR and Set top box TV, DVD Recorder / VCR and Set top box Rear of the TV Aerial Make sure that the mains lead is securely fixed. Push until both side tabs click • AC 220-240 V 50 / 60 Hz To remove from the TV: tabs Press both tabs and pull on mains connector to release • Mains lead (supplied) Basic Connection RF cable HDMI 1 HDMI 2 AV 1 RGB VIDEO HDMI 3 AV 2 PC RGB VIDEO S VIDEO COMPONENT AUDIO AUDIO OUT IN Y L L PB R R PR DIGITAL AUDIO OUT SCART cable (fully wired) RF OUT DVD Recorder or VCR RF IN RF cable Fully wired HDMI compliant cable SCART cable (fully wired) RF OUT RF cable RF IN Set top box RF cable RF IN 11 Auto Setup Search and store TV programmes automatically. These steps are not necessary if the setup has been completed by your local dealer. 1 Plug the TV into mains socket and switch On 2 Select the language INPUT (Takes a few seconds to be displayed) • You can now use the remote control to turn On the TV or turn the TV to standby mode. (Power LED: On) select Menüsprache Deutsch English Français Italiano Español Português Nederlands Dansk Svenska Norsk Suomi Türkçe Еλληνικά Srpski Hrvatski Slovenščina Latviešu eesti keel Lietuvių Polski čeština Magyar Slovenčina Български Românǎ store OPTION SD CARD EXIT 3 Select your country 4 Start Auto Setup select Country France Norway Sweden Others RETURN Auto Setup - Digital and Analogue Digital Scan Analogue Scan This will take about 6 minutes. Channel Service Name 62 CBBC Channel 62 BBC Radio Wales 62 E4 62 Cartoon Nwk 29 33 BBC1 Free TV: 4 Pay TV: 0 5 2 Radio: 0 Searching 78 69 41 1 Type Quality Free TV 10 Free TV 10 Free TV 10 Free TV 10 Analogue Analogue Data: 0 Analogue: 2 EXIT RETURN Sending Preset Data Please wait! 0% 100% • • • Remote control unavailable 5 TV Auto Setup will start to search for TV programmes and store them. The sorted programme order depends upon the TV signal, the broadcasting system and reception conditions. Depending on the selected countries, you may be required to select the Favourite Network. If Q-Link, VIERA Link or similar technology, compatible recorder is connected, programme, language, country / region settings are automatically downloaded to the recorder. Select the picture setting Please select your viewing environment. Home Shop • “Shop” and “Home” are equal to “Dynamic” and “Normal” respectively - “Viewing Mode” in “Picture Menu” (p. 16) select set Auto Setup is now complete and your TV is ready for viewing. 12 Many features available on this TV can be accessed via the On Screen Display menu. ■ How to use remote control MENU Open the main menu Move the cursor / select the menu Move the cursor / adjust levels / select from a range of options Access the menu / store settings after adjustments have been made or options have been set RETURN Using the On Screen Displays EXIT Return to the previous menu Exit the menu system and return to the normal viewing screen • (example: Sound Menu) Sound Menu Mode Bass Treble Balance Headphone Volume Surround Volume Correction Speaker Distance to Wall MPX Select EXIT Change RETURN 1/2 Music Auto Setup ■ ON SCREEN HELP Instructions box Off Over 30cm Stereo Page up Page down On-screen operation guide will help you. •• •• Note If tuning has failed “Auto Setup” (p. 18) If downloading has failed “Download” (p. 18) To initialize all settings “Shipping Condition” (p. 19) If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch. 13 How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. INPUT 1 Display the menu 2 Select the menu • MENU Displays the functions that can be set (varies according to the input signal) OPTION SD CARD EXIT access Main Menu VIERA Link Picture RETURN select Sound Setup (example: Picture Menu) Select the item 3 Picture Menu 1/2 Viewing Mode Contrast Brightness Colour Sharpness Tint Colour Balance Colour Management P-NR Dynamic select Warm Off Off (example: Picture Menu) Adjust or select 4 MULTI WINDOW Picture Menu 1/2 Viewing Mode Contrast Brightness Colour Sharpness Tint Colour Balance Colour Management P-NR DIRECT TV REC N Dynamic change store or access (Required by some functions) Warm Off Off (example: Picture Menu) ■Choose from among ■To reset the settings alternatives Number and positions of alternatives ■ To return to TV at any time EXIT Colour Balance Normal Changed ■Adjust using the slide bar Sharpness ■ To return to the previous screen RETURN • • • To reset the picture settings only “Reset to Default” in Picture Menu (p. 16) To reset the sound settings only “Reset to Default” in Sound Menu (p. 17) To reset the picture and sound settings together Moved ■Go to the next screen Tuning Menu Access Displays the next screen N • volume level and (Also aspect mode are reset) To initialize all settings “Shipping Condition” in Setup Menu (p. 19) ■ To change menu ■Enter characters by free input menu pages You can enter names or numbers freely for some items. up Set characters User input Name down 14 A U a u B V b v C W c w D X d x E F G Y Z e f g y z ( H I J K L M N O P Q R S T 0 1 2 3 4 5 6 7 8 9 ! : # h i j k l m n o p q r s t ) + - . * _ select set Store RETURN ■ Overview Main Menu VIERA Link Picture VIERA Link Menu Pause Live TV Direct TV Rec VIERA Link Control Speaker Selection Access Start Recorder Home Cinema (p. 16) Sound Setup The menu of the accessed equipment Picture Menu 1/2 Viewing Mode Contrast Brightness Colour Sharpness Tint Colour Balance Colour Management P-NR Dynamic Warm Off Off Picture Menu 2/2 3D-COMB Reset to Default Off Set (p. 16) 1/2 Sound Menu Music Off Over 30cm Stereo How to Use Menu Functions Sound Menu • Mode Bass Treble Balance Headphone Volume Surround Volume Correction Speaker Distance to Wall MPX 2/2 Auto Auto 0dB Auto Set Audio Preference SPDIF Selection MPEG Optical Level HDMI1 Input Reset to Default (p. 17) Setup Menu 1/3 AV Colour System DVB Profile Edit DVB Service List Analogue Service List Link Settings Child Lock Tuning Menu Off Timer Language Preferred Subtitle Type Teletext Auto Access Access Access Access Access Access Off Access Standard TOP Setup Menu VIERA Link Q-Link AV2 out Power off Link Power on Link Download West Access Access Access Off Off On Access 3 seconds Setup Menu Only available items can be selected. (p. 18) Tuning Menu Auto Setup DVB Manual Tuning Analogue Manual Tuning Add New DVB Services Favourite Network New Service Message DVB Signal Condition Add DVB Services Access Access Access Access Access On Access Access 3/3 Auto 100Hz Access Access Access (p. 18 and p. 19) • On AV2 TV Set Set Access 2/3 Teletext Character Set Shipping Condition Common Interface System Update Power Save Side Panel Picture Overscan Input Labels Banner Display Timeout Time Zone Refresh Rate Software License System Information Link Settings (p. 18) Language OSD Language Preferred Audio 1 Preferred Audio 2 Preferred Subtitles 1 Preferred Subtitles 2 Preferred Teletext Access English English English English English (p. 19) 15 How to Use Menu Functions ■Menu list Menu Item Adjustments / Configurations (alternatives) VIERA Link Pause Live TV Direct TV Rec VIERA Link Control Controls the connected equipment with VIERA Link function, and enables various convenient recording, playback, etc. You can also access VIERA Link Menu directly using the VIERA Link button on the remote control. • Speaker Selection Viewing Mode Basic picture mode (Dynamic / Normal / Cinema / Eco) Dynamic : Provides enhanced picture contrast and sharpness when viewing in a bright room Normal : Recommended for viewing under normal ambient room lighting conditions Cinema : For watching movies in a darkened room producing a cinema-like picture Eco : Adjusts picture settings automatically dependent on ambient lighting conditions Set for each input signal • Contrast, Brightness, Increases or decreases the levels of these options according to your personal preference Colour, Sharpness Picture 16 Tint With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste For NTSC signal reception only Colour Balance Allows you to set the overall colour tone of the picture (Cool / Normal / Warm) Colour Management Automatically adjusts colours to vivid ones (Off / On) Not valid on PC signal P-NR Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture (Off / Min / Mid / Max) Not valid on PC signal 3D-COMB Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to “On” to display sharper and more accurate colours (Off / On) For PAL or NTSC signal reception only Not valid on RGB, S-Video, Component, PC, HDMI and SD Card Reset to Default Press the OK button to reset the present Picture Mode to the default settings • • • •• ■Menu list Menu Item Adjustments / Configurations (alternatives) Mode Basic sound mode (Music / Speech) Bass Increases or decreases level to enhance or minimise lower, deeper sound output Treble Increases or decreases level to enhance or minimise sharper, higher sound output Balance Adjusts volume level of right and left speakers Headphone Volume Adjusts the volume of the headphones Surround Surround sound settings (Off / On) Provides a dynamic enhancer to simulate improved spatial effects Switching is also possible by the Surround button on the remote control. Volume Correction Adjusts volume of individual programme or input mode Speaker Distance to Wall Adjusts the low frequency sound (Over 30cm / Up to 30cm) If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended. If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended. MPX Select stereo / monaural (Mono / Stereo) Normally: Stereo Stereo signal cannot be received: Mono M1 / M2: Available while mono signal is transmitted Analogue mode only • •• •• •• How to Use Menu Functions SPDIF Selection Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal (Auto / PCM) Auto : Dolby Digital Plus and Dolby Digital are output as Dolby Digital Bitstream. HE-AAC (48 kHz) is output as DTS. MPEG is output as PCM. PCM : Digital output signal is fixed to PCM. DVB mode only • • • • • • Sound Audio Preference Selects the initial setting for audio tracks (Auto / MPEG) Auto : Automatically selects the audio tracks if programme has more than two tracks. The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG. MPEG : The priority is given to MPEG as long as the programme contains MPEG audio. Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio. HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission. MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality. Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes. DVB mode only • •• MPEG Optical Level Normally, MPEG sound is larger comparing with the other types of audio track You can adjust the audio level of MPEG output from DIGITAL AUDIO OUT terminal as the initial setting 0dB to -12dB in -2dB reductions DVB mode only HDMI1 Input Select to fit the input signal (Auto / Digital / Analogue) Auto : Automatic detection of digital or analogue sound source Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection HDMI input mode only HDMI2 / 3 terminals are for digital signal only No setting for HDMI2 / 3 available Reset to Default Press the OK button to reset the present Sound Mode to the default settings •• •• • A different menu will be displayed while PC or SD Card is used. Only available items can be selected. 17 How to Use Menu Functions ■Menu list Menu Item Adjustments / Configurations (alternatives) AV Colour System Selects optional colour system based on video signals in AV mode (Auto / PAL / SECAM / M.NTSC / NTSC) DVB Profile Edit Creates list of favourite programmes DVB Service List Skips the unwanted DVB programmes Analogue Service List Skips the unwanted Analogue programmes or edits Analogue programmes Link Settings Setup VIERA Link Sets to use VIERA Link functions (Off / On) Q-Link Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) Select the connected terminal to the recorder even it is not compatible with Q-Link. AV1 / AV2 out Chooses the signal to be transmitted from the TV to Q-Link (TV / AV1 / AV2 / AV3 / Monitor) Monitor: Image displayed on screen Component, PC and HDMI signals cannot be outputted. Power off Link Sets to use Power off Link function (No / Set) Power on Link Sets to use Power on Link function (No / Set) Download Downloads programme, language, country / region settings to a Q-Link or VIERA Link compatible equipment connected to the TV Child Lock Tuning Menu 18 • •• Locks a programme / AV input to prevent access to it Auto Setup Automatically sets the programmes received in the area DVB Manual Tuning Sets the DVB programmes manually Analogue Manual Tuning Sets the Analogue programmes manually Add New DVB Services Adds new DVB services Favourite Network Selects your favourite network for each broadcasters New Service Message Selects whether to give a notification message when a new DVB service is found DVB Signal Condition Checks the DVB signal condition Add DVB Services Retunes all TV programmes to add DVB services All the previous tuning settings are erased. Use this function if DVB services start in your area. •• ■Menu list Menu Item Off Timer OSD Language Language Preferred Audio 1/2 Preferred Subtitles 1 / 2 Adjustments / Configurations (alternatives) Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) Changes language for on-screen displays Selects the preferred language for DVB multi audio (depending on the broadcaster) Selects the preferred language for DVB subtitles (depending on the broadcaster) Preferred Teletext Selects the preferred language for DVB teletext service (depending on the broadcaster) Selects the preferred subtitle type (Standard / Hard of Hearing) “Hard of Hearing” provides aids in understanding and enjoyment with DVB subtitles (depending on the broadcaster). “Preferred Subtitles 1 / 2” in “Language” are given priority. Teletext Teletext display mode (TOP (FLOF) / List) Teletext Character Set Selects teletext language (West / East1 / East2) West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc. East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc. East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc. Shipping Condition Resets all settings, for example, when moving house Common Interface Uses include to watch pay-TV System Update Downloads new software to TV Power Save Reduces brightness of picture to economise on power consumption (Off / On) Side Panel Increases the brightness of the side panel (Off / Low / Mid / High) The recommended setting is “High” to prevent panel “image retention”. Picture Overscan Selects the screen area displaying the image (Off / On) On : Enlarged the image to hide the edge of the image. Off : Displayed the image in the original size. Set to “On” if noise is generated on the edge of the screen. This function is available when aspect is set to Auto (16:9 signal only) or 16:9. This function can be memorized separately for SD (Standard definition) and HD (High definition) signals. Input Labels Labels or skips each input terminal Banner Display Timeout Sets how long the information banner stays on screen 0 (No display) to 10 sec. in 1-sec. increments Time Zone Adjusts the time data Refresh Rate Changes the image processing of the panel (depending on the input signal) (50Hz / 100Hz) Set to “100Hz” normally Software License Displays the software licence information System Information Displays the system information of this TV • • •• • •• • How to Use Menu Functions • • Setup •• Preferred Subtitle Type • • A different menu will be displayed while PC or SD Card is used. Only available items can be selected. 19 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Power Source Power Consumption • TH-37PX81FV AC 220-240 V, 50 / 60 Hz Average use 235 W Standby condition 0.7 W (Without monitor out recording) 20 W (With monitor out recording) TH-42PX81FV 255 W This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024. Customer’s Record The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes. Model Number Serial Number Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic-europe.com © 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Printed in Czech Republic
