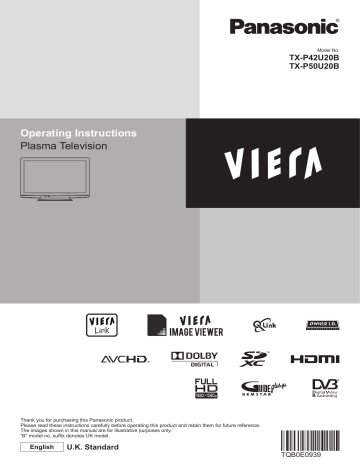

Panasonic TXP42U20B Operating Instructions

Model No.
TX-P42U20B
TX-P50U20B
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
“B” model no. suffix denotes UK model.
English
U.K. Standard
TQB0E0939
Features
■DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts
Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20)
Instantly call up favourite channels with Favourites Edit. (p. 39)
■FULL HD
This TV uses a high definition panel to produce high definition pictures close to their original resolution.
■GUIDE Plus+ (p. 18)
■
This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 67)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
●This TV incorporates HDMI (Version 1.4 with Audio Return Channel) and HDMI (Version 1.3a with x.v.Colour™) technology.
■VIERA IMAGE VIEWER - Media Player (p. 50 - 53)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
■SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
■AVCHD
It is possible to play moving pictures recorded on an SD Card in AVCHD format.
AVCHD is a high definition video recording format. (p. 52)
■Dolby Digital decoder
■
■
■
■
It is possible to decode Dolby Digital audio track (multi-channel sound) and output as a Dolby Digital
multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 54 - 61)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated
settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS
button.
Owner ID (p. 47)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the
Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 15 and p. 29)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and
aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack
independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by
TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV
channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue
channels are permanently turned off, it will not be possible to recover them.
●To retune your TV “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 36)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels
via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new
position.)
●Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some
cases, despite good reception of analogue channels.
2
Contents
Be Sure to Read
● Safety Precautions (Warning / Caution) ················· 4
0.001 msec Panel Response Time
Extremely fast response time to minimise picture
lag.
Quick Start Guide
2,000,000:1 Dynamic Contrast
A wide contrast ratio will deliver pictures with a
deep black level and a brighter white level for
greater image depth.
● Identifying
V-Audio
Utilises Panasonic’s advanced digital
amplification technology.
∗This measurement is based on the time taken for the
brightness of the panel to reduce to half of it’s maximum level.
The time taken to reach this level may vary depending on the
image content and the environment where the TV is used.
Image retention and malfunctions are not taken into account.
digital tick
The digital tick logo indicates that a digital
tuner is built-in.
Freeview
Freeview is the way to enjoy digital TV for free.
long time
This causes the image to remain on the plasma screen
(“image retention”).
This is not considered a malfunction and is not covered
by the warranty.
Typical still images
●Channel number and other logos
●Image displayed in 4:3 mode
●Video game
●Computer image
To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are sent
or no operations are performed. (p. 68)
equipment
●Electronic equipment
In particular, do not place video equipment near the
TV. Electromagnetic interference may distort images
/ sound.
●Equipment with an infrared sensor
This TV also emits infrared rays. This may affect
operation of other equipment.
Basic Features
● Watching TV ························································· 14
● Using TV Guide ···················································· 18
● Viewing Teletext···················································· 21
● Watching External inputs ······································ 24
● How to Use VIERA TOOLS ·································· 26
● How to Use Menu Functions ································ 27
Advanced Features
● Retuning from Setup Menu ·································· 36
● Tuning and Editing Channels ······························· 38
● Timer Programming ·············································· 42
● Child Lock ····························································· 44
● Input Labels ·························································· 45
● Shipping Condition ··············································· 46
● Owner ID ······························································ 47
● Using Common Interface ······································ 48
● Updating the TV Software ···································· 49
● Using Media Player ·············································· 50
● Link Functions ····················································· 54
(Q-Link / VIERA Link)
● External Equipment ·············································· 62
FAQs, etc.
● Technical Information ··········································· 64
● FAQs ···································································· 68
● On screen messages ··········································· 71
● Maintenance ························································· 73
● Glossary ······························································· 73
● Index ····································································· 74
● Licence ································································· 74
● Specifications ······················································· 75
FAQs, etc.
■Keep the TV away from these types of
Enjoy your TV!
Advanced
■Do not display a still picture for a
/ Options ······························· 6
Controls ··································· 8
● Basic Connection ···································· 10
● Auto Setup ·············································· 12
Basic
Up to 100,000 hours Plasma Panel Lifetime
The Plasma display panel used in the 2010 VIERA
TV range is rated for up to 100,000 hours.∗
● Accessories
Quick Start Guide
Intelligent Frame Creation
This increases the frame count and allows
natural frame-to-frame transitions, for flickerless motion images with high resolution.
3
Safety Precautions
Warning
■Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●This TV is designed to operate on AC 220-240 V,
50 / 60 Hz.
●Insert the mains plug fully into the socket outlet.
●Ensure that the mains plug is easily accessible.
●Remove the mains plug when cleaning the TV.
●Do not touch the mains plug with a wet hand.
If you detect anything unusual, immediately
switch off the mains supply switch and
remove the mains plug.
●Do not damage the mains lead.
• Do not place a heavy
object on the lead.
• Do not place the lead
near a high temperature
object.
AC 220-240 V
50 / 60 Hz
• Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
• Do not move the TV with the lead plugged into a
socket outlet.
• Do not twist the lead, bend it excessively or
stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
●Do not use any mains lead other than that provided with this TV.
●Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective
earthing connection.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a
rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark ASA or the BSI mark
on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for
your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
4
Warning
■Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●Do not remove covers and never modify the TV yourself as live parts are accessible when they are
removed. There are no user serviceable parts inside.
●Do not expose the TV to rain or excessive moisture. This TV must not be exposed
to dripping or splashing water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.
●Do not expose the TV to direct sunlight and other sources of heat. To prevent fire
never place any type of candle or naked flame on top or near the TV.
●Do not place the TV on sloped or unstable surfaces.
●Do not insert foreign objects into the TV through the air vents.
●Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to
perform the setup or installation of approved wall-hanging brackets.
●Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
■Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young
children accidentally.
●Keep the dangerous parts out of reach of young children.
●Do not allow children to handle SD Card. As with any small object, the SD Card could be
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.
■Ventilation
Caution
Allow sufficient space around the TV in order to help prevent excessive
heat, which could lead to early failure of some electronic components.
Minimum distance
ventilation openings with items such as newspapers,
tablecloths and curtains.
●Whether you are using the pedestal or not, always ensure the vents in the
bottom of the TV are not blocked and there is sufficient space to enable
adequate ventilation.
10
●Ventilation should not be impeded by covering the
10
10
7
(cm)
■Moving the TV
Before moving the TV, disconnect all cables.
●The TV is heavy. Move the TV with at least two people. Support as shown to
avoid injury by the TV tipping or falling.
●Transport only in upright position. Transporting the TV with its display panel
facing upward or downward may cause damage to the internal circuitry.
■When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
●Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
■Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
5
Accessories / Options
Standard accessories
□ Remote Control
TV
Check that you have the accessories and items shown
□ Batteries for the
AV
●N2QAYB000487
Remote Control (2)
abc
●R6
def
ghi
jkl
mno
pqrs
tuv
wxyz
□ Mains Lead
●K2CT3YY00021
p. 11
TV
□ Operating Instructions
□ Product Registration Leaflet
□ Pedestal
TX-P42U20B:
TX-P50U20B:
●TBLX0160
●TBLX0161
●TXFBL01LFUU ●TXFBL01LFUU
p. 7
Optional accessories
Wall-hanging bracket
●TY-WK4P1RW
□ Ferrite core
●J0KG00000012
p. 63
Use the Ferrite cores to
comply with the EMC
standard.
Please contact your nearest Panasonic dealer to purchase the recommended
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.
Rear of the TV
400 mm
300 mm
Screw for fixing the TV onto the wall-hanging bracket
(not supplied with the TV)
Depth of screw:
minimum 15 mm, maximum 30 mm
Diameter: M8
(View from the side)
Holes for wall-hanging
bracket installation
Warning
●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal
injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask
your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing
without a qualified installer will void your warranty.
●Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to
prevent the TV from falling off.
●Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
damage which will void your warranty.
●Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in
the wall before hanging bracket.
●To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended
period of time.
Installing / removing remote’s batteries
1
Pull
open
Hook
Close
Note the correct
polarity (+ or -)
●Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
●Do not mix old and new batteries.
●Do not mix different battery types (such as alkaline and manganese batteries).
●Do not use rechargeable (Ni-Cd) batteries.
●Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
●Do not disassemble or modify the remote control.
Caution
6
2
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and
cautions below:
Warning
●Do not disassemble or modify the pedestal.
Caution
Panasonic dealer immediately.
●During setup, make sure that all screws are securely tightened.
●Ensure that the TV does not suffer any impact during installation of the pedestal.
●Ensure that children do not climb onto the pedestal.
●Install or remove the TV from the pedestal with at least two people.
Assembly screw (4)
(silver)
●THEL078N
Pole (2)
Base
●R :TBLA3685
●L :TBLA3686
●TBLX0160
(TX-P42U20B)
●TBLX0161
(TX-P50U20B)
L
M5 × 18
R
M5 × 30
■Assembling the pedestal
Use the assembly screws
to fasten the left and right
poles
to the base
securely.
●Make sure that the screws are securely tightened.
●Forcing the assembly screws the wrong way will strip
the threads.
●“L” or “R” mark is stamped on the bottom of the pole.
A
R
Front
L
D
●Accessories / Options
●XYN5+F18FN
Assembly screw (4)
(black)
Quick Start Guide
●Do not use with any other TVs or displays.
●Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest
■Securing the TV
Use the assembly screws
to fasten the pedestal
securely to the TV.
●Make sure that the screws are securely tightened.
●Carry out the work on a horizontal and level surface.
B
Arrow mark
View from the bottom
Hole for pedestal installation
D
7
Identifying Controls
Remote Control
Input mode selection
●TV - switches between DVB and
Analogue modes (p. 14)
●AV - switches to AV input mode from Input
Media Player (p. 50)
Selection list (p. 24)
●Switches to SD Card viewing mode
(VIERA IMAGE VIEWER)
Direct TV Recording (p. 56 and p. 58)
●Records programme immediately in
Standby On / Off switch
DVD Recorder / VCR with Q-Link or
VIERA Link connection
●Switches TV On or Off standby
Main Menu (p. 27)
●Press to access the Picture, Sound and
SD CARD
Setup Menus
Aspect (p. 16)
INPUT
TV
AV
MENU ASPECT
N DIRECT TV REC
Channel / Programme Information (p. 15)
EXIT
●Displays channel and programme
OPTION
RETURN
●Used for the selection, navigation and
TEXT STTL INDEX HOLD
def
ghi
jkl
mno
pqrs
tuv
wxyz
Subtitles (p. 16)
LAST VIEW
●Displays subtitles
●Returns to the previous menu / page
●Freeze / unfreeze picture (p. 15)
●Holds the current teletext page (teletext
mode) (p. 22)
●Returns to the teletext index page
(teletext mode)
Last view (p. 17)
●Switches to previously viewed channel or
input mode
Numeric buttons
(Press for about 1 second)
Return
Index (p. 23)
●Switches to teletext mode
●Changes channel and teletext pages
●Sets characters
●When in Standby mode, switches TV On
Cursor buttons
Hold
abc
operation of various functions
Teletext (p. 21)
●Displays TV Guide
●Makes selections and adjustments
sound options
Coloured buttons
(red-green-yellow-blue)
●Returns to the normal viewing screen
TV Guide (p. 18)
by using numeric buttons to change a
channel quickly
●Easy setting for viewing and
Exit
VIERA Link and Media Player
●Accesses VIERA Link Menu
Option Menu (p. 17)
default levels
●Easily accesses special features such as
VIERA Link Menu (p. 58)
●Confirms selections and choices
●Press after entering channel position
●Resets picture and sound settings to their
VIERA TOOLS (p. 26)
information
OK
Normalise (p. 27)
Channel Up / Down
●Selects channel in sequence
PROGRAMME
Sound Mute
●Switches sound mute On or Off
Connected equipment operations
REC
Volume Up / Down
TV
8
(p. 25 and p. 60)
TV
Function select
●Volume / Contrast / Brightness / Colour / Sharpness / Tint (NTSC signal) / Bass (“Music” or
Common
Interface
“Speech” mode in the Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) /
Balance / Auto Setup (p. 36 and p. 37)
F
TV
Changes the input mode
CI slot (p. 48)
SD Card slot (p. 50)
Remote control signal receiver
●Do not place any objects between the TV remote control
signal receiver and remote control.
Mains power On / Off switch
This LED is not indicated for this
model.
●Use to switch the mains power.
If you turned the TV Off during
Standby mode by the remote control
last time, the TV will be in Standby
mode when you turn the TV On with
Mains power On / Off switch.
C.A.T.S. (Contrast Automatic Tracking System) sensor
●Senses brightness to adjust picture quality when “C.A.T.S.”
in the Picture Menu is set to “On” (p. 28)
Power and Timer LED
●Red: Standby
Green: On
Orange: Timer Programming On
Orange (flash): Ext Rec. of Timer Programming or
Direct TV Recording in progress
Red with orange flash: Standby with Timer Programming
On or Direct TV Recording
●The LED blinks when the TV receives a command from
the remote control.
●Identifying Controls
Headphones jack (p. 63)
Quick Start Guide
AV
Increases or decreases the channel position by one.
When a function is already displayed, press to increase or decrease
the selected function.
When in Standby mode, switches TV On (Press for about 1 second).
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
■How to use remote control
MENU
EXIT
Open the main menu
Move the cursor / adjust levels / select from
a range of options
Move the cursor / select the menu item
Access the menu / store settings after
adjustments have been made or options
have been set
Exit the menu system and return to the
normal viewing screen
RETURN
Return to the previous menu
■ON SCREEN HELP Instructions box - Operation guide
Example (Owner ID):
Owner ID
Please enter new PIN
PIN
EXIT
* * * *
0
9
PIN entry
RETURN
Operation guide will help you.
■Auto power standby function
●The TV will automatically go to Standby mode in the following conditions:
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• “Off Timer” is active in the Setup Menu (p. 17)
• no operation is performed for the period selected in “Auto Standby” (p. 32)
●This function does not affect Ext Rec. of Timer Programming and Direct TV Recording.
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only
TV, DVD Recorder or VCR
Rear of the TV
Terrestrial
aerial
Rear of the TV
Terrestrial
aerial
AC 220-240 V
50 / 60 Hz
AC 220-240 V
50 / 60 Hz
RF cable
Mains lead
(supplied)
Mains lead
(supplied)
Aerial input
terminal
Fully wired HDMI
compliant cable
Aerial input
terminal
Fully wired
SCART cable
HDMI
AV
RF OUT
DVD Recorder or VCR
RF IN
Note
RF cable
RF cable
●Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 56).
●Connect to the TV’s AV1 for a Satellite receiver.
●For HDMI-compatible equipment, it is possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI
cable (p. 62).
10
●Q-Link connection p. 54
●VIERA Link connection p. 54 and p. 55
●Please also read the manual of the equipment being connected.
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Terrestrial
aerial
Make sure that
the mains lead is
securely fixed.
Push until both side
tabs click
●To remove from the TV:
Mains lead
(supplied)
tabs
Press both tabs and pull on
mains connector to release
●Basic Connection
AC 220-240 V
50 / 60 Hz
Quick Start Guide
Rear of the TV
RF cable
Aerial input terminal
Fully wired HDMI
compliant cable
Fully wired HDMI
compliant cable
Fully wired
SCART cable
HDMI
Fully wired
SCART cable
TV/AV Recorder/AV
Fully wired
SCART cable
AV 2
AV 1
HDMI
DVD Recorder or VCR
Satellite receiver
RF OUT
RF OUT
RF IN
RF cable
RF IN
RF cable
11
Auto Setup
Search and store TV channels automatically.
●These steps are not necessary if the setup has been completed by your local dealer.
●Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
1
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
●If the red LED shows on the TV, press the
Standby On / Off switch on the remote
control for at least 1 second to turn the TV
On.
Auto Setup - DVB and Analogue
DVB Scan
CH 21
Analogue Scan
CH 21
This will take about 6 minutes.
CH
Channel Name
62
CBBC Channel
62
BBC Radio Wales
62
E4
62
Cartoon Nwk
29
BBC1
33
Free TV: 8
Pay TV: 0
Radio: 0
Searching
68
68
Type
Quality
Free TV
10
Free TV
10
Free TV
10
Free TV
10
Analogue
Analogue
Data: 0
Analogue: 2
Sending Preset Data
Please wait!
0%
INPUT
TV
AV
ASPECT
100%
Remote control unavailable
N DIRECT TV REC
EXIT
OPTION
RETURN
2
def
ghi
jkl
mno
pqrs
tuv
wxyz
Owner ID
Please enter new PIN
PIN
* * * *
Please enter your own choice of PIN number,
name, etc. (p. 13) to help the police to crack
crime.
●Make a note of the PIN number in case you
forget it. The PIN number cannot be reset.
●You can input or change the Owner ID later.
“Owner ID” (p. 47)
EXIT
●To skip this step
●This step will be skipped in the Auto
3
PROGRAMME
If Q-Link, or similar technology (p. 56),
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)
●If downloading has failed, you can download
later through the Setup Menu.
“Q-Link Download” (p. 30)
Input Owner ID
TEXT STTL INDEX HOLD
abc
Auto Setup will start to search for TV
channels and store them in the numbered
order as specified by the broadcasters.
●Actual number of channels may differ due
to channel duplication.
Select “Home”
Setup after “Shipping Condition” (p. 46) is
performed.
Please select your viewing environment.
Home
Shop
select
set
Select “Home” viewing environment (highlight
“Home” in yellow) to use in your home
environment.
TV
Auto Setup is now complete and your TV is ready for viewing.
●To check channel list at-a-glance
“Using TV Guide” (p. 18)
●To edit or hide (skip) channels
“Tuning and Editing Channels” (p. 38 - 41)
●If tuning has failed, check the connection of
the RF cable, and then, follow the on screen
instructions.
12
■How to input Owner ID
Enter the PIN number (4 digits)
Owner ID
Please enter new PIN
PIN
* * * *
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
●Enter the PIN number twice at first setting.
Enter your name, house number, and postcode, in that order
Select the item (NAME / HOUSE NO / POSTCODE)
access
select
Set characters one by one
select
User input
NAME
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
7
2
abc
5
jkl
8
tuv
“Characters table for numeric buttons” (p. 66)
set
3
def
6
mno
9
wxyz
0
Return to select other items
RETURN
●Select the next item and repeat the operations.
Exit to go to next step
●Auto Setup
4
ghi
pqrs
●You can set characters by using numeric buttons.
Quick Start Guide
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
EXIT
■“Shop” viewing environment (for shop display only)
“Shop” viewing environment is the demonstration mode to explain main features of this TV.
Select “Home” viewing environment to use in your home environment.
●You can return to viewing environment selection screen at the stage of Shop confirmation screen and
Automatic Demo Off / On selection screen.
Return to viewing environment selection screen
Shop
You have selected shop mode
Automatic Demo
Off
RETURN
On
Select “Home”
Please select your viewing environment.
Home
Shop
select
set
Auto Setup is complete
●To change viewing environment later on, you will need to initialise all settings by accessing
Shipping Condition.
“Shipping Condition” (p. 46)
Note
●If tuning has failed or to retune all channels “Auto Setup” (p. 36 and p. 37)
●To re-initialise all settings “Shipping Condition” (p. 46)
●If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
with Mains power On / Off switch.
13
Watching TV
INPUT
TV
AV
MENU ASPECT
N DIRECT TV REC
EXIT
OPTION
1
Turn power on
2
Select DVB or Analogue
●Also possible by pressing the TV button on the side panel of the
TV
(Press for about 1 second)
●Mains power On / Off switch should be On. (p. 9)
TV. (p. 9)
RETURN
1 BBC ONE WALES
19:35
Coronation Street
19:30 - 20:00
All DVB Channels
Information banner appears
whenever you select a channel
●For details p. 15
For info press
Now
TEXT STTL INDEX HOLD
ghi
pqrs
abc
def
jkl
mno
tuv
3
Select a channel
wxyz
up
down
or
abc
DVB channel position numbers run from
1 onwards.
Analogue channel position numbers run in
the ranges 0 - 99.
●To select a two or three-digit channel
position number, e.g. 399
def
ghi
jkl
mno
pqrs
tuv
wxyz
LAST VIEW
wxyz
def
PROGRAMME
wxyz
Volume
TV
Note
●To watch pay-TV
“Using Common Interface”
(p. 48)
■Select a channel using Information banner (p. 15)
It is possible to confirm the channel name and programme information by using the Information banner before changing
channels.
Display Information banner if it is
not displayed
While the banner is displayed,
select the channel
select channel
watch
●Possible to set display timeout in
“Banner Display Timeout” (p. 31).
■Select a channel using TV Guide (p. 18)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
Display
TV Guide
Select a current
programme or channel
select
Select “View”
(DVB mode)
Eastender
19:30- 20:00
View
access
14
Timer Programming
●To use Timer Programming
select
watch
p. 19
■Other useful functions
Hold
HOLD
Freeze / unfreeze picture
Display Information banner
Display Information banner
●Also appears when changing a channel
“All DVB Channels” or “Favourites1-4” (p. 39)
●To switch
blue
Channel type
(if it is Radio or Data channel)
Current time
Channel position and name
Example (DVB):
1 BBC ONE Wales
Programme
Radio
Coronation Street
19:30 - 20:00
Encrypted
Mute
Now
AD
STTL
All DVB Channels
Select favourites
For info press
TEXT Multi Audio
45
Progress time indicator of the selected programme
Basic
Programme Start /
Finish time
19:35
Features available / Message meanings
Example (Analogue):
3 ITV
Radio
19:35
All Analogue Channels
itv1
CH23
Mute
For info press
Encrypted
AD
Subtitles TEXT
NICAM
45
●To confirm another tuned
channel name
●To watch the channel listed in the banner
●Information on the next programme
(DVB)
●To hide
EXIT
●Extra information
(DVB)
●To set display timeout
(press again to hide the
banner)
“Banner Display Timeout” (p. 31)
●“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as
available on particular programmes, but may not be available for all
individual programmes being broadcast.
Display the extra information to confirm availability of these functions.
●Watching TV
Channel number
Mute
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
AD
Audio Description service available
●This function can aid visually-impaired viewers by
adding an additional audio track to describe events
on screen.
●For settings p. 29
STTL
Subtitle service available
TEXT
Teletext service available
Multi Audio
Multiple audio available
Stereo, Mono, NICAM
Audio mode
1 - 90
Off Timer remaining time
●For settings p. 17
Example:
1 BBC ONE Wales
19:35
Coronation Street
19:30 - 20:00
Now
All DVB Channels
Select favourites
Exit info
[AD]
AD
15
Watching TV
■Other useful functions
Display subtitles
■DVB mode
Display / hide subtitles (if available)
STTL
●To change the language for DVB (if available)
“Preferred Subtitles” (p. 31)
■Analogue mode
Display subtitles
●To hide subtitles
STTL
EXIT
Note
●This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23)
●You cannot change the channel when this function is active.
Aspect
ASPECT
Change the aspect ratio (image size)
Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the
aspect ratio automatically according to the Aspect Control Signal (p. 64).
■If you would like to change the aspect ratio manually
Display Aspect Selection list
ASPECT
While the list is displayed, select the mode
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
Change
store
EXIT
RETURN
select
Aspect Selection list
●To change the mode using the ASPECT button only
ASPECT
Auto
16:9
14:9
4:3
Note
(Press repeatedly until you reach the desired mode)
The best ratio is chosen and the image expanded to fill the screen.
For details p. 64
Directly displays the image at 16:9
without distortion (anamorphic).
Displays the image at the standard 14:9
without distortion.
Displays the image at the standard 4:3
without distortion.
Zoom1
Zoom2
Zoom3
Displays a 16:9 letterbox or 4:3 image
without distortion.
Displays a 16:9 letterbox (anamorphic)
image full-screen without distortion.
Displays a 2.35:1 letterbox (anamorphic)
image full-screen without distortion.
At 16:9, displays the image at its maximum
(with slight enlargement).
●Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.
●Not available when the subtitle function is active.
●Not available in teletext service.
●Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
16
■Other useful functions
Display the selectable settings for the current programme
Check or change the current
programme status instantly
OPTION
●To change
change
select
Multi Audio (DVB mode)
Allows you to select between alternative language
for sound tracks (if available)
●This setting is not memorized and it will return to the
default setting once you exit the current programme.
NICAM (Analogue mode)
Switches NICAM sound (if available)
Sound Menu (p. 29)
Volume Correction
Adjusts volume of individual channel or input mode
Monaural Audio (DVB mode)
Allows you to select stereo / monaural (if available)
Audio Description (DVB mode)
Set to “Auto” if the programme has Audio Description
service, then you will hear an additional audio track to
describe events on screen
●To adjust the volume for Audio Description
“Audio Description Menu” (p. 29)
Subtitle Language (DVB mode)
Allows you to select the language in which subtitles
should appear (if available)
Switch to previously viewed
channel or input mode easily
Basic
Last view
●Press again to return to the present view.
LAST VIEW
Note
Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Display the menu
MENU
Select “Setup”
Main Menu
Select “Off Timer” and set the time
access
Sound
Setup
select
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
Off
set
select
●Watching TV
●Switching channel is not available while Ext Rec. of Timer Programming or Direct TV Recording is in progress.
●Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.
●To cancel Set to “Off” or turn the TV off.
●To display the remaining time Information banner (p. 15)
Note
●When the remaining time is within 3 minutes, the remaining time will flash on the screen.
17
Using TV Guide
TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes
currently broadcast and the forthcoming broadcasts over the next seven days (depending on the
broadcasters).
●This TV supports the GUIDE Plus+ system.
●The Gemstar branding partner will supply the rating informations in the programme information and the
recommended group in the Search list.
●DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A”
means Analogue channel. There will be no programme listings for Analogue channels.
●When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time
before the TV Guide is completely shown.
INPUT
TV
AV
ASPECT MENU
N DIRECT TV REC
EXIT
1
2
Select DVB or Analogue
TV
View TV Guide
Example:
Current date and time
TV Guide date Programme
Logo of the
Gemstar branding partner
TV Guide
Wed 28 Oct 2009
10:46
TV Guide time
OPTION
RETURN
Advertisement
D: DVB
A: Analogue
TEXT STTL INDEX HOLD
EXIT
■To view a
channel list of the
selected category
blue
■To search
programme types
and view a channel
list of the searched
programmes
(DVB mode)
yellow
■To search
programme titles
and view a list
of the searched
programmes
(DVB mode)
yellow
18
Select a current
programme or channel
select
or
All Channels
All DVB Channels
All Analogue Channels
Free DVB Channels
TV/Data DVB Channels
Favourites1
Favourites2
Favourites3
Favourites4
Search
Channel position
and name
Select “View”
(DVB mode)
Eastender
19:30- 20:00
View
access
Category
All Channels
All Channels
Time: 19:30
20:00
20:30
21:00
Eastender
DIY SOS
Holiday News
D 1 BBC ONE
D 7 BBC THREE
Hot Wars
Holiday Program
D 14 E4
Emmerdal.
Coronation Street
The Bill
D 70 BBC FOUR
10 O’ clock News BBC
Pepsi Char.
Good bye
D 72 BBC 2W
Panorama
Spring watch
Coast
D 105 BBCi
I’ m A Celebrity
Pop Idol
News
D 719 BBC Radi
Rugby
15 To 1
Sports
Select channel
Info
EXIT
Page up
GUIDE RETURN
Select programme
Timer Programming
Page down
OPTION Select Advert
RETURN
-24 hours
+24 hours
Search
Category
■To watch the programme
■To return to TV
Search
Wed 28 Oct
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
Timer Programming
●To use Timer Programming
select
watch
p. 19
■To the previous day
(Category list)
(DVB mode)
Only Analogue channels
are listed
red
select category
view
●To list favourite channels
■To the next day
(Search list)
Search Titles...
Movie
News and Factual
Entertainment
Sport
Children’s
p. 39
select type
(DVB mode)
green
view
.
.
.
Search
Search Titles...
Movie
News and Factual
Entertainment
Sport
Children’s
.
.
.
.
Set characters one by one
(maximum: 19 characters)
(Search list)
select
“Search Titles...”
access
Search
select
set
green
You can set characters by using
numeric buttons.
“Characters table for numeric
buttons” (p. 66)
●All the programme titles including the word you set will be listed.
●Searching without any characters will list all programmes including current programmes.
■Other useful functions
Timer Programming (DVB mode)
Timer Programming can remind you to watch a programme or record one on an external recorder.
Select the
forthcoming
programme
select
set
Select the function
(Reminder or Ext Rec.)
Wed 28 Oct 2009 10:46
Timer Programming
Function
No.
Ext Rec.
D
Date
Channel Name
1 BBC ONE
DIY SOS
Guide
Guide
Wed 28 Oct
Start
store
End
20:00 20:30
(30 mi n. )
---
---
--/--
--:---:-( --- min.)
---
---
--/--
--:---:-(--- min.)
---
---
--/--
--:---:-(--- min.)
---
---
--/--
--:---:-(--- min.)
LED
select LED will turn to orange if
(Timer Programming screen)
Timer Programming is set.
(Orange LED will flash if Ext Rec. of
Timer Programming is in progress.)
Ext Rec. : to record the programme to the recorder
When the start time comes, the channel will be switched automatically and
the video and audio signals will be output. 2 mins. before the starting time,
a reminder message appears if you are watching TV.
Reminder : to remind you to watch the programme
When you are watching TV, a reminder message appears 2 mins. before
the start time. Press the OK button to switch to the programmed channel.
■To check / change / cancel a timer programming event
■To return to TV Guide
■If you select a current programme
“Timer Programming” (p. 43)
RETURN
select
access
Basic
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select “Timer Programming” and set “Ext Rec.” to record from the time Eastender
19:30- 20:00
you finish programming the timer event setting.
View
Timer Programming
Note
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
●No other channel can be selected while Ext Rec. of Timer Programming is in progress.
●When recording programmes, be sure to make the proper settings on the recorder connected to the TV.
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 56) and the “Link
Settings” (p. 30) are completed, no setting of the recorder is required. Also read the manual of the recorder.
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow the
change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other
programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct
information is received from broadcasters.
Timer Programming
No.
Func t i o n
Ext Rec.
D
Reminder
D
Ext Rec.
D
Ext Rec.
D
---
Wed 28 Oct 2009 10:46
Date
Channel Name
1 BBC ONE
DIY SOS
14 E 4
T h e Bill
Guide
Guide
Guide
72 BBC 2W
<T IM E R>
1 BBC ONE
Red Cap
---
Start
End
Wed 28 Oct
20:00 20:30
(30 min.)
Wed 28 Oct
21:00 22:30
(90 min.)
Wed 28 Oct
22:45 23:00
(15 min.)
Thu 29 Oct
10:30 11:30
(60 min.)
--/--
--:---:-(--- min.)
“Guide” is displayed if
the timer is set from the
TV Guide
(Guide link programming)
“S/P” is displayed if the timer
is set from the TV Guide
(Timer Programming screen) and the programme is a
Split Programme
S/P
●Using TV Guide
●This function is not available in Analogue mode.
●Timer Programming can store up to 15 events.
●Timer Programming reminder messages will remain displayed until one of the following occurs:
“ ” or “ ” will be displayed in the TV Guide if Timer
Programming is set as the Guide link programming.
TV Guide
Wed 28 Oct 2009
10:46
Search
Wed 28 Oct
All Channels
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
Time:
D 1 BBC ONE
D 7 BBC THREE
D 14 E4
D 70 BBC FOUR
D 72 BBC 2W
D 105 BBCi
D 719 BBC Radi
19:30
Eastender
20:00
DIY SOS
20:30
21:00
Holiday News
Hot Wars
Holiday Program
Emmerdal.
Coronation Street
The Bill
10 O’ clock News BBC
Pepsi Char.
Good bye
Panorama
Spring watch
Coast
I’ m A Celebrity
Pop Idol
News
Rugby
15 To 1
Sports
Note
●If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no
longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.
●Whilst making the Split Programme programming event for Ext Rec., you cannot record any channels
between the interrupted programmes.
●The Split Programme programming event for Reminder will be cleared by pressing the OK button once to
view.
●The Split Programme programming event for Reminder will switch to the programmed channel by pressing
the OK button even if it is between the interrupted programmes.
●The Split Programme programming does not work if the separated parts are broadcast on different channels.
19
Using TV Guide
■Other useful functions
View details of the programme (DVB mode)
Select the programme
View details
TV Guide
Wed 28 Oct 2009
10:46
select
Wed 28 Oct 2009
DIY SOS
BBC ONE
20:00 - 20:30, 30 min.
Details
EXIT
Timer Programming
Return to list
RETURN
●Press again to return to TV Guide.
View advertisement
Enter your postcode when using this function for the first time
“Postcode” in “GUIDE Plus+ Settings” (p. 32)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to
enter it again.
If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be
displayed correctly.
Display advertisement information
OPTION
●To display the latest advertisement, you will need to update the information.
To update the information continuously, the TV must be left in Standby mode at night.
■To change advertisements
■To return to TV Guide
OPTION
or
RETURN
Note
●Some advertisements are for future programmes.
In this case it is possible to use the Guide link programming function (p. 19).
●The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot
be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
20
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
●The availability of teletext services for a programme is indicated by “TEXT” in the information banner.
Information banner (p. 15)
1 BBC ONE Wales
19:35
Coronation Street
19:30 - 20:00
Now
All DVB Channels
Select favourites
For info press
TEXT
Displayed if programme has teletext service
Digital teletext (MHEG)
Digital teletext services
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and
controlled in a manner decided by the broadcaster.
INPUT
TV
AV
ASPECT MENU
N DIRECT TV REC
OPTION
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
Switch to Teletext
3
How to use
TEXT
17:51 28 Feb
In all cases, it is possible to navigate the pages using buttons on the
remote control, but because the commands available must apply to all
manufacturers of digital equipment, some on screen commands may
not correspond exactly to the remote control buttons.
For example:
●When “select” or “go” is displayed
●When “◄”, “►”, “▲”, “▼” symbol is displayed
●When the key words are displayed on colour bar
PROGRAMME
●When options with numbers are displayed
■To return to TV
TV
●Viewing Teletext
●Using TV Guide
TEXT STTL INDEX HOLD
2
Basic
EXIT
1
Select DVB
●DVB programmes have digital teletext services (MHEG).
TV
red green yellow blue
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
TEXT
Note
●As soon as you switch to a digital channel with links to a teletext service,
software is downloaded in the background to enable the teletext function.
This means that when switching to a digital channel, you should wait for
approximately 5 seconds before pressing the TEXT button - this will allow
the software to download. If you press the TEXT button before download is
complete, it will be ignored and you will have to press the TEXT button again
when the download is complete.
●While navigating digital teletext, you will find there is a short delay when
moving between pages while the page downloads. There is often a prompt
shown somewhere on the page (for example “Loading”) to let you know that
this is happening.
21
Viewing Teletext
Analogue teletext
Analogue teletext services
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)
■To change mode
INPUT
TV
AV
ASPECT
MENU
“Teletext” in the Setup Menu (p. 31)
1
Select Analogue
2
Switch to Teletext
TV
N DIRECT TV REC
EXIT
OPTION
TEXT
Sub page number
●Displays the
<< 01 02 03 04 05 06 07
Current
page
number
index page
(content varies
depending on the
broadcasters)
RETURN
Colour bar
jkl
mno
pqrs
tuv
wxyz
Select the page
3
def
ghi
Time / date
TELETEXT
INFORMATION
TEXT STTL INDEX HOLD
abc
>>
17:51 28 Feb
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
up
or
down
■To adjust contrast
■To return to TV
PROGRAMME
or
green yellow blue
red
(Corresponds to the colour bar)
As the blue bar is displayed
MENU
(press twice)
EXIT
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU
●To rehide
red
red
FULL / TOP / BOTTOM
(TOP)
(BOTTOM)
MENU
green
(Expand the TOP half)
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
●To resume HOLD
22
(Expand the BOTTOM half)
Normal (FULL)
INDEX
Return to the main index page
INDEX
Subtitles
View a favourite page stored
●Factory setting is “P888” (subtitle service) on the blue button (List mode).
STTL
View in multi window
Watch TV and Teletext in two windows at once
●Operations can be made only in Teletext screen.
●Each time pressed: Teletext
TV and Teletext
TEXT
TV
Store frequently viewed pages
Store frequently viewed pages in the colour bar
(List mode only)
As page is
displayed
do not change number on
blue button.
press
and
hold
Corresponding
coloured button
Basic
●If you wish to use Subtitles,
The number changes to white.
■To change stored pages
Enter new page number
Coloured button
you want to change
press
and
hold
def
ghi
jkl
mno
pqrs
tuv
wxyz
●Viewing Teletext
abc
View sub page
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
■To view specific sub page
Enter the
4-digit number
MENU
blue
example: P6
mno
●Sub pages:
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
View the updated page
P108
MENU
yellow
Appears when
updating is
completed
yellow
(You cannot change the channel.)
●The news page provides a function that indicates arrival of latest news (“News Flash”).
23
Watching External inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
●To connect the equipment
p. 10, 11 and p. 62
The Remote Control is capable of operating some functions of selected external equipment.
1
Turn the TV on
■When connecting with SCART as example 2 or 3 (p. 10 and p. 11)
Receives input signals automatically when playback starts
●Input signals are automatically identified by the SCART (pin 8) terminal.
●This function is also available for HDMI connections (p. 62).
■If input mode is not switched automatically
Perform
ASPECT MENU
N DIRECT TV REC
EXIT
OPTION
RETURN
2
Display the Input select menu
3
Select the input mode connected to the equipment
TEXT STTL INDEX HOLD
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
PROGRAMME
and
●Check the setup of the equipment.
INPUT
TV
AV
AV
Input Selection
AV1
AV2/S
AV3
COMPONENT
HDMI1
HDMI2
TV
select
watch
●You can also select the input using the AV button on the remote
control or the side panel of the TV.
Press the button repeatedly until the desired input is selected.
●In order to switch between AV2 and AV2S, move the indicator by pressing
left and right cursor button.
●You can label or skip each input mode “Input Labels” (p. 45)
Skipped inputs will not be displayed when the AV button is pressed.
4
View
Displays the selected mode
REC
TV
■To return to TV
TV
24
Note
●If the external equipment has an aspect adjustment function, set it to “16:9”.
●For details, see the manual of the equipment or ask your local dealer.
Screen display
Terminal
Manual input
setting
(default
in “Input Labels” )
Auto input
mode or
(EC
VIERA Link )
AV1
AV2
AV3
COMPONENT
HDMI1
HDMI2
AV1
AV1-RGB
AV2
AV2-S-Video
AV2-RGB
AV3
COMPONENT
HDMI1
HDMI2
EC/AV1
EC/AV1-RGB
EC/AV2
EC/AV2-S-Video
EC/AV2-RGB
EC/HDMI1
―
―
●Applicable for
EC mode and
VIERA Link
●If the above information is permanently displayed on the top left of the screen, press the
EC/HDMI2
●Applicable
for
VIERA Link
button to clear.
Operating the equipment with the TV remote control
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
If you operate the connected equipment in VIERA Link (p. 60), select the code “73”.
Press and hold
during the following operations
Enter the appropriate code,
see table below
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
Type of the equipment
DVD Recorder, DVD Player
Player theatre, Blu-ray Disc theatre
VCR
The equipment using in VIERA Link
“VIERA Link Control” (p. 60)
●Watching External inputs
■How to change the code for the type of the equipment
Basic
The Panasonic equipment connected to the TV can be directly operated with the below buttons of
this TV remote control.
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
PROGRAMME
Channel Up / Down
Select channel
REC
Record
Start recording
Press
Code
70 (default)
71
72
73
Note
●Confirm if the remote control works correctly after changing the code.
●The codes may be reset to default values if batteries are replaced.
●Some operations may not be possible on some equipment models.
25
How to Use VIERA TOOLS
You can access some special features easily by using the VIERA TOOLS function.
●For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings
are completed.
“Summary of Q-Link and VIERA Link features” (p. 54 and p. 55), “Preparations” (p. 57)
After connection, turn the equipment on and then switch the TV on.
●For “Photo” and “Video” functions to operate correctly, ensure the SD Card has photo or video data on it and
insert it into the SD Card slot properly.
”Using Media Player” (p. 50)
INPUT
TV
AV
ASPECT MENU
1
Display icons of the feature
2
Select a feature
TO
VIERA OLS
N DIRECT TV REC
EXIT
select
OPTION
access
RETURN
TEXT STTL INDEX HOLD
VIERA Link Control
3
Follow the operations of each feature
●VIERA Link Control “VIERA Link Control” (p. 60)
When two or more compatible equipment are connected, a selection screen
will be displayed.
Please select the correct description and access.
PROGRAMME
●Pause Live TV
“Pause Live TV” (p. 59)
●Photo
“Photo mode” (p. 50)
●Video
“Video mode” (p. 52)
TV
■To return to TV
EXIT
or
TO
VIERA OLS
Note
●If the selected feature is not available, the demonstration to explain how to use it
can be displayed. Press the OK button to view the demonstration after selecting the
unavailable feature.
26
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
INPUT
TV
AV
ASPECT
MENU
1
Display the menu
●Displays the functions that can be set
MENU
2
Select the menu
(varies according to the input signal)
N DIRECT TV REC
EXIT
access
Main Menu
Sound
Setup
OPTION
select
RETURN
TEXT STTL INDEX HOLD
Select the item
3
Example (Picture Menu):
Picture Menu
Viewing Mode
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S.
1/2
Dynamic
select
Warm
Off
Off
Basic
Adjust or select
4
Example (Picture Menu):
PROGRAMME
REC
1/2
Dynamic
change
store or access
(Required by
some functions)
Warm
Off
Off
TV
■To return to TV
at any time
■Choose from among
■To reset the settings
●To reset the picture settings only
alternatives
EXIT
Number and positions of alternatives
Colour Balance
■To return to
the previous
screen
RETURN
Normal
Changed
■Adjust using the slide bar
Sharpness
(
Moved
■To change
menu pages
up
down
■Go to the next screen
Child Lock
“Reset to Defaults” in the
Picture Menu (p. 28)
●To reset the sound settings only
“Reset to Defaults” in the
Sound Menu (p. 29)
●To reset the picture and sound
settings together
N
Also volume level and
aspect mode are reset
●To initialize all settings
“Shipping Condition” in the
Setup Menu (p. 46)
Access
)
●How to Use Menu Functions
●How to Use VIERA TOOLS
Picture Menu
Viewing Mode
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S.
Displays the next screen
■Enter characters by free input menu
You can enter names or numbers freely for some items.
Set characters one by one
User input
Name
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
4
ghi
7
pqrs
2
abc
5
jkl
8
tuv
3
def
6
select
Store
RETURN
set
mno
9
wxyz
0
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 66)
27
How to Use Menu Functions
■Menu list
Menu
28
Item
Adjustments / Configurations (alternatives)
Viewing Mode
Basic picture mode (Dynamic / Normal / Cinema / True Cinema / Game)
In each Viewing Mode, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance,
Vivid Colour, C.A.T.S., P-NR and 3D-COMB can be adjusted and stored to suit your
particular viewing requirement.
●Set for each input signal.
Dynamic
: Provides enhanced picture contrast and sharpness when viewing in a
bright room.
Normal
: Recommended for viewing under normal ambient room lighting
conditions.
Cinema
: For watching movies in a darkened room with the improved performance
of contrast, black and colour reproduction
True Cinema : Precisely reproduces the original quality of the image without any revision.
Game
: Fast response signal specifically to provide suitable images for playing
games
●Not valid on TV mode
●A continuous record of time spent using Game mode can be displayed
in the top right of the screen.
“Playing Time Display” (p. 31)
Contrast, Brightness,
Colour, Sharpness
Increases or decreases the levels of these options according to your personal preference
Tint
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
●For NTSC signal reception only
Colour Balance
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
●Not valid when “Viewing Mode” is set to “True Cinema”
Vivid Colour
Automatically adjusts colours to vivid ones (Off / On)
C.A.T.S.
Contrast Automatic Tracking System (Automatic Brightness Control function)
Adjusts picture settings automatically dependent on ambient lighting conditions
(Off / On)
P-NR
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
3D-COMB
Makes still or slow moving pictures look more vivid (Off / On)
●Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.
Set to “On” to display sharper and more accurate colours.
●Not valid on RGB, S-Video, Component, HDMI and SD Card inputs
Picture Display
Turns the screen off when you select “Off” (Off / On)
●The sound is active even if the screen turns off.
●Press any button (except Standby) to turn the screen on.
●This function is effective in reducing power consumption when listening to the sound
without watching the TV screen.
Reset to Defaults
Press the OK button to reset the present Picture Viewing Mode to the default settings
Menu
Item
Adjustments / Configurations (alternatives)
Increases or decreases level to enhance or minimise lower, deeper sound output
Treble
Increases or decreases level to enhance or minimise sharper, higher sound output
Equalizer
Adjusts the frequency level to suit your favourite sound quality
●This function is available when “Mode” is set to “User”.
●Select the frequency and change the frequency level by using the cursor button.
●If you want to enhance the bass sound, raise the level of the lower frequency. If you
want to enhance the treble sound, raise the level of the higher frequency.
●To reset the levels of each frequency to the default settings, select the “Reset to
Defaults” by using cursor button, and then press the OK button.
Balance
Adjusts volume level of right and left speakers
Headphone Volume
Adjusts the volume of the headphones
Surround
Surround sound settings (Off / V-Audio)
V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects
Volume Correction
Adjusts the volume of individual channel or input mode
Speaker Distance to
Wall
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
●If the gap between the TV and wall is over 30 cm, “Over 30cm” is recommended.
●If the gap between the TV and wall is within 30 cm, “Up to 30cm” is recommended.
Preferred Multi Audio
Selects the preferred language for digital channel multi audio (depending on the
broadcaster) (English / Welsh / Gaelic)
NICAM
Near Instantaneous Companded Audio Multiplex
Reproduces NICAM stereo sound (Off / On)
●Off if reception is poor (FM monaural sound)
●Analogue mode only
HDMI1 / 2 Input
Select to fit the input signal (Digital / Analogue) (p. 67)
Digital
: When sound is carried via the HDMI cable connection
Analogue : When sound is not carried via the HDMI cable connection
●HDMI input mode only
Audio Description Menu
Audio Description
Useful for visually-impaired viewers (Off / Auto)
Set to “Auto” to activate the description sound track if available
●The availability of audio description sound track is indicated by “AD” in the information
banner (p. 15).
●DVB mode only
Volume
Adjusts the volume for Audio Description
●DVB mode only
Speakers
Set to “On” to activate the description sound track from TV speakers (Off / On)
●DVB mode only
Headphones
Set to “On” to activate the description sound track from headphones (Off / On)
●DVB mode only
Reset to Defaults
●How to Use Menu Functions
Bass
Basic
Sound
Mode
Selects the basic sound mode (Music / Speech / User)
●The selected mode affects all input signals.
Music: Improves sound quality for watching music videos, etc.
Speech: Improves sound quality for watching news, drama, etc.
●In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those
settings will be stored for each mode.
User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.
●For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and
“Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below)
Press the OK button to reset the present Sound Mode, Balance, Headphone Volume
and Surround to the default settings
●A different menu will be displayed in the mode of SD Card. (p. 51 and p. 53)
●Only available items can be selected.
29
How to Use Menu Functions
Menu
Item
Timer Programming
Sets a timer to remind watching or record forthcoming programmes (p. 42)
Off Timer
Sets the time until the TV automatically goes to Standby mode
(Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 17)
Link Settings
Setup
VIERA Link
Sets to use VIERA Link functions (Off / On) (p. 57)
Q-Link
Selects which AV terminal is to be used for data communication between this TV and a
compatible recorder (AV1 / AV2) (p. 56)
●Select the connected terminal to the recorder even it is not compatible with Q-Link.
AV1 / AV2 out
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
●Monitor: Image displayed on screen
●Component and HDMI signals cannot be output.
Standby Power
Save
Controls the power consumption in Standby mode of the connected equipment to
reduce the consumption (Off / On) (p. 58)
●This function is available when “VIERA Link” is set to “On”.
Intelligent Auto
Standby
Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 58)
●This function is available when “VIERA Link” is set to “On”.
Q-Link Download
Downloads analogue channel information to a Q-Link compatible equipment
connected to the TV
Child Lock
DVB Tuning Menu
30
Adjustments / Configurations (alternatives)
Locks a channel / AV input to prevent access to it (p. 44)
Favourites Edit
Creates a list of favourite DVB channels (p. 39)
Channel List
Skips the unwanted DVB channels or edits DVB channels (p. 39)
Auto Setup
Automatically sets the DVB channels received in the area (p. 36)
Channel Sorting
by Region
Automatically sorts tuned channels according to the available region (p. 38)
Manual Tuning
Sets the DVB channels manually (p. 38)
Update Channel
List
Updates DVB Channel List while keeping your settings (p. 40)
New Channel
Message
Selects whether to give a notification message when a new DVB channel is found
(Off / On) (p. 40)
Signal Condition
Checks the DVB signal condition (p. 40)
Menu
Item
Adjustments / Configurations (alternatives)
Analogue Tuning Menu
Auto Setup
Automatically sets the Analogue channels received in the area (p. 37)
Manual Tuning
Sets the Analogue channels manually (p. 41)
Teletext
Analogue teletext display mode (FASTEXT / List) (p. 22)
Preferred Subtitles
Selects the preferred language for digital channel subtitles (depending on the
broadcaster) (English / Welsh / Gaelic)
●To display subtitles p. 15
Side Panel
Increases the brightness of the side panel (Off / Low / Mid / High)
●The recommended setting is “High” to prevent panel “image retention”.
Input Labels
Labels or skips each input terminal (p. 45)
Banner Display
Timeout
Sets how long the Information banner (p. 15) stays on screen
(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)
Playing Time Display
Set to “On” to display a continuous record of time spent using Game mode every
30 mins (Off / On)
●This function is available when “Game” is selected in “Viewing Mode” (p. 28).
Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is
selected (Off / 5 / 10 / 15 / 20 seconds)
●The sound is active even if the screen turns off.
●Press any button (except Standby) to turn the screen on.
●This function is effective in reducing power consumption when listening to a
radio channel.
●How to Use Menu Functions
Display Settings
Skips the unwanted Analogue channels or edits Analogue channels (p. 41)
Basic
Setup
Channel List
●A different menu will be displayed in the mode of SD Card. (p. 51 and p. 53)
●Only available items can be selected.
31
How to Use Menu Functions
Menu
Item
Adjustments / Configurations (alternatives)
System Menu
Shipping Condition
Resets all settings, for example, when moving house (p. 46)
Owner ID
Inputs the owner ID (p. 47)
Common Interface
Uses include to watch pay-TV (p. 48)
System Update
Downloads new software to TV (p. 49)
Software Licence
Displays the software licence information
System Information
Displays the system information of this TV
GUIDE Plus+
Settings
Postcode
Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 20)
System
Information
Displays the system information of the GUIDE Plus+ system
Setup
Other Settings
Power on Preference
Automatically selects the input when the TV is turned on (TV / AV)
Set to “TV” to view picture from TV tuner.
Set to “AV” to view input from an external equipment connected to a SCART
terminal, e.g. satellite receiver.
●The external equipment must be switched on and sending a control signal for
automatic switching at power on to occur.
Power on Channel
List
Automatically selects All Channels or Favourites list in the Information banner
(p. 15) when the TV is turned on (All Channel List / Last)
Set to “All Channel List” to display all the channels.
Set to “Last” to display the one you selected last time.
●Not available on analogue mode
Auto Standby
Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selected times (Off / 2 / 4 hours)
●Starting Timer Programming automatically does not affect this function.
●Automatic input switching with the connected equipment affects this function and
time-count will be reset.
●The notification message will appear 3 minutes before going to Standby mode.
Power Save
Reduces brightness of picture to economise on power consumption (Off / On)
16:9 Overscan
Selects the screen area displaying the image (Off / On)
On : Enlarges the image to hide the edge of the image.
Off : Displays the image in the original size.
●Set to “On” if noise is generated on the edge of the screen.
●This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
●This function can be memorized separately for SD (Standard definition) and HD
(High definition) signals.
DVI Input Setting
Changes the black level in the image for HDMI input mode with DVI input signal
manually (Normal / Full)
●When the DVI input signal from the external equipment, especially from PC, is
displayed, the black level may not be suitable. In this case, select “Full”.
●The black level for HDMI input signal will be adjusted automatically.
●For HDMI input mode with DVI input signal only
●A different menu will be displayed in the mode of SD Card. (p. 51 and p. 53)
●Only available items can be selected.
●If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.
To return to “Home” viewing environment initialise all settings by accessing Shipping Condition.
”Shipping Condition” (p. 46)
32
■Overview (Picture, Sound)
●How to operate
p. 27
Main Menu
Sound
Setup
Picture Menu
Viewing Mode
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
C.A.T.S.
Picture Menu
P-NR
3D-COMB
Picture Display
Reset to Defaults
1/2
Dynamic
Available in NTSC
Warm
Off
Off
2/2
Off
Off
On
Reset
Not available when
“Viewing Mode” is set to
“True Cinema”
Available in NTSC / PAL
(p. 28)
1/2
Music
Available when “Mode” is set to
“Music” or “Speech”
Access
Available when “Mode” is set to
“User”
Off
Over 30cm
English
Equalizer
2/2
Off
Digital
Access
Reset
Reset to Defaults
150 250 500 1k
2k
4k
8k 12k Hz
(p. 29)
Available in DVB
Available in Analogue
Available in HDMI
Available in DVB
●How to Use Menu Functions
Sound Menu
NICAM
HDMI1 Input
Audio Description
Reset to Defaults
Basic
Sound Menu
Mode
Bass
Treble
Equalizer
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance to Wall
Preferred Multi Audio
Audio Description Menu
Audio Description
Volume
Speakers
Headphones
Off
Off
Off
(p. 29)
33
How to Use Menu Functions
■Overview (Setup)
●How to operate
p. 27
Wed 28 Oct 2009 10:46
Timer Programming
N o.
Func t i on
Main Menu
D
Reminder
D
14 E4
The B i l l
Ext Rec.
D
72 BBC 2W
< TI ME R >
Ext Rec.
D
---
Date
C ha nne l N a m e
Ext Rec.
1 BBC ONE
D I Y S OS
Guide
Guide
Guide
1 BBC ONE
Red Cap
S/P
---
Sound
Start
Wed 28 Oct
Wed 28 Oct
End
20:00 20:30
(3 0 min.)
21:00 22:30
(9 0 min.)
Wed 28 Oct
22:45 23:00
(1 5 min.)
Thu 29 Oct
10: 30 11: 30
(60 min.)
--/--
--:---:-(--- min.)
(p. 43)
Setup
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Analogue Tuning Menu
Display Settings
System Menu
Other Settings
Access
Off
Access
Access
Access
Access
Access
Access
Access
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
(p. 44)
(p. 30 - 32)
Other Settings
GUIDE Plus+ Settings
Power on Preference
Power on Channel List
Auto Standby
Power Save
16:9 Overscan
DVI Input Setting
Access
TV
Last
Off
Off
On
Normal
Available in DVB
(p. 32)
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
Available in DVB
Available in HDMI
with DVI input signal
Access
Access
Access
Access
Access
Access
On
Access
(p. 36 and p. 38)
Guide Plus+ Settings Menu
Postcode
Access
System Information
Access
(p. 32)
Enter Postcode
Postcode
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z
0 1 2 3 4 5 6 7 8 9
1
.!:#
4
ghi
7
pqrs
2
abc
5
jkl
8
tuv
DVB Signal Condition
Channel Name
Signal Quality
Signal Strength
Bit Error Rate
Network Name
Parameter
70 CBBC Channel
0
0
10
10
0.00E+00
Wenvoe
[CH62] 802 MHz
(p. 40)
3
def
6
mno
9
wxyz
0
(p. 32)
Available in Analogue
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
Display Settings
Teletext
Preferred Subtitles
Side Panel
Input Labels
Banner Display Timeout
Playing Time Display
Radio Mode
(p. 37 and p. 40)
Available in Analogue
FASTEXT
English
Off
Access
3 seconds
On
Off
Access
Access
Access
Available in DVB
(p. 31)
Input Labels
AV1
AV2/S
AV3
COMPONENT
HDMI1
HDMI2
DVB
Analogue
DVD
AV2/S
AV3
COMPONENT
HDMI1
HDMI2
DVB
Analogue
(p. 45)
System Menu
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
Access
Access
Access
Access
Access
Access
(p. 32)
34
Link Settings
VIERA Link
Q-Link
AV2 out
Standby Power Save
Intelligent Auto Standby
Q-Link Download
1/2
On
AV2
TV
On
On (No reminder)
Access
Sending Preset Data
Please wait!
0%
100%
Remote control unavailable
(p. 30)
(p. 30)
Child Lock List - TV and AV
Child Lock
Change PIN
Child Lock List
Access
Access
(p. 44)
4
7
14
VCR
1
2
Name
BBC 1 Wales
BBC THREE
E4
Input
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
BBC1
*****
AV1
AV2/S
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Lock
Lock
Lock
Lock
Lock
Lock
Lock
Lock
(p. 44)
DVB Favourites Editor
DVB Auto Setup
CH 21
68
This will take about 3 minutes.
CH
Channel Name
62
CBBC Channel
62
BBC Radio Wales
62
E4
62
Cartoon Nwk
Free TV: 4
Pay TV: 0
Type
Free TV
Free TV
Free TV
Free TV
Radio: 0
Quality
10
10
10
10
All DVB Channels
1
7
14
70
72
105
719
720
Favourites1
BBC One Wales
BBC THREE
E4
CBBC Channel
Cartoon Nwk
BBCi
BBC Radio Wales
BBC Radio Cymru
Basic
Progress
All DVB Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
(p. 39)
(p. 39)
Data: 0
Searching
(p. 36)
Channel Sorting by Region
DVB Manual Tuning
Progress
Analogue Scan
CH 21
This will take about 3 minutes.
CH
68
Channel Name
Type
Pay TV: 0
Radio: 0
Type
1068
10
New
Pay TV: 0
Radio: 0
Stopped
Data: 0
Region choice available
(p. 40)
Analogue Auto Setup
Analogue Manual Tuning
CH33
68
21
(p. 41)
(p. 38)
(p. 38)
Data: 0
Searching
1 BBC1
Manual Tuning
GBR>
Best signal quality (All Regions)
England Regions>
Quality
Free TV: 0
Free TV: 0
474 MHz
[CH21]
0
21
0
Channel Name
Scan
This will take about 3 minutes.
CH
29
30
CH 21
68
Channel Name
Analogue Channel List
1 BBC1
2 *****
3 *****
4
5
6
7
●How to Use Menu Functions
DVB Update Channel List
Frequency
Signal
Quality
Analogue
Scan
Signal Strength
No.
(p. 41)
Analogue: 2
Searching
(p. 37)
Shipping Condition
Available in DVB
Common Interface
Slot 1:
All tuning data will be erased
Are you sure?
Are you sure?
Owner ID
Please enter PIN for access
PIN
* * * *
Module inserted
(p. 48)
(p. 47)
(p. 46)
System Update
Auto Update Search in Standby
System Update Search Now
On
Access
(p. 49)
35
Retuning from Setup Menu
Auto Setup retunes all channels automatically.
DVB channels
Automatically retune all DVB channels received in the area.
●Only DVB channels are retuned in DVB mode.
●All the previous tuning settings (Favourites Edit and Channel List, etc.) are erased.
●If a Child Lock PIN number (p. 44) has been set, it must be entered.
INPUT
TV
AV
ASPECT
MENU
N DIRECT TV REC
EXIT
OPTION
RETURN
1
Select DVB
2
Display the menu
3
Select “Setup”
TV
MENU
access
Main Menu
Sound
Setup
select
TEXT STTL INDEX HOLD
4
5
PROGRAMME
■To return to TV
EXIT
■For Auto Setup, using
the buttons on the side
panel of the TV (p. 9)
Press repeatedly until
“Auto Setup” appears
6
Select “DVB Tuning Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select “Auto Setup”
access
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Access
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
On
Signal Condition
select
Start Auto Setup
DVB Auto Setup
DVB Auto Setup
Progress
All DVB tuning data will be erased
CH 21
68
This will take about 3 minutes.
CH
Channel Name
62
CBBC Channel
62
BBC Radio Wales
62
E4
62
Cartoon Nwk
Free TV: 4
Pay TV: 0
Type
Free TV
Free TV
Free TV
Free TV
Radio: 0
Settings are made automatically
Access “Auto Setup”
TV
Start “Auto Setup”
When the operation is completed, the channel at
channel position “1” will be displayed.
TV
Note
●If tuning has not been done completely
F
“Manual Tuning” (p. 38)
TV
AV
36
Data: 0
Searching
F
●To return to TV
Quality
10
10
10
10
F
Analogue channels
Automatically retune all Analogue channels received in the area.
●Only Analogue channels are retuned in Analogue mode.
●All the previous tuning settings are erased.
●If a Child Lock PIN number (p. 44) has been set, it must be entered.
INPUT
TV
AV
ASPECT
MENU
N DIRECT TV REC
EXIT
3
Select “Setup”
RETURN
TV
Display the menu
MENU
●Retuning from Setup Menu
OPTION
1
2
Select Analogue
access
Main Menu
Sound
Setup
select
TEXT STTL INDEX HOLD
4
5
PROGRAMME
Select “Analogue Tuning Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
Analogue Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select “Auto Setup”
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
access
Access
EXIT
6
■For Auto Setup, using
the buttons on the side
panel of the TV (p. 9)
Press repeatedly until
“Auto Setup” appears
F
Access “Auto Setup”
Start Auto Setup
Analogue Auto Setup
All analogue tuning data will be erased
Analogue Auto Setup
Scan
This will take about 3 minutes.
CH
29
30
CH 21
68
Advanced
select
■To return to TV
Channel Name
Analogue: 2
Searching
Settings are made automatically
●The analogue settings are downloaded to a Q-Link compatible
equipment connected to the TV in Analogue mode.
TV
Start “Auto Setup”
When the operation is completed, the channel at
channel position “1” will be displayed.
TV
Note
F
●If tuning has not been done completely
“Manual Tuning” (p. 41)
TV
AV
●To return to TV
F
37
Tuning and Editing Channels
(DVB)
You can retune channels or make your favourite channel lists, skip unwanted channels, etc.
INPUT
TV
AV
ASPECT
MENU
N DIRECT TV REC
EXIT
OPTION
RETURN
1
2
3
Select DVB
TV
Display the menu
MENU
Select “Setup”
access
Main Menu
Sound
Setup
select
TEXT STTL INDEX HOLD
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
4
5
PROGRAMME
Select “DVB Tuning Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select one of the following functions
DVB Tuning Menu
Favourites Edit
Channel List
Auto Setup
Channel Sorting by Region
Manual Tuning
Update Channel List
New Channel Message
Signal Condition
access
Access
Access
Access
Access
Access
Access
On
Access
select
●Auto Setup
TV
■To return to TV
EXIT
“Retuning from Setup Menu” (p. 36)
6
Set
Sort DVB channels according to the region Channel Sorting by Region
You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear
nearer the top of your Channel List.
Normally, you should select “Best signal quality (All Regions)”.
access
Channel Sorting by Region
GBR>
Best signal quality (All Regions)
England Regions>
select region
(select repeatedly until you reach the available region)
Region choice available
●If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the
top of your Channel List. If you have any image or sound problems, select “Best signal quality (All Regions)”
instead.
Set DVB channel manually Manual Tuning
Normally use “Auto Setup” or “Update Channel List” to retune DVB channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
DVB Manual Tuning
Frequency
Signal
Quality
Analogue
Scan
Signal Strength
No.
474 MHz
[CH21]
0
21
0
Channel Name
Type
select frequency
1068
10
New
search
38
Free TV: 0
Pay TV: 0
Radio: 0
Stopped
Data: 0
●All channels found will be added to the Channel List.
List favourite DVB channels Favourites Edit
Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4).
The DVB Favourites lists are available for switching in the Information banner (p. 15) and from “Category” in the
TV Guide (p. 18).
Select a channel to list
DVB Favourites Editor
Favourites1
All DVB Channels
1
7
14
70
72
105
719
720
BBC One Wales
BBC THREE
E4
CBBC Channel
Cartoon Nwk
BBCi
BBC Radio Wales
BBC Radio Cymru
select
Add it to the Favourites list
Favourites1
All DVB Channels
BBC One Wales
BBC THREE
E4
CBBC Channel
Cartoon Nwk
BBCi
BBC Radio Wales
BBC Radio Cymru
green
●To add all channels to the list
DVB Favourites Editor
1
7
14
70
72
105
719
720
●To display other Favourites
Encrypted channel
yellow
1 BBC One Wales
Select the field of Favourites to edit and:
●To delete a channel
●To delete all channels
Select the channel
●To name the Favourites
red
Set characters one by one
(maximum: ten characters)
Store
RETURN
select
User input
Name
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
4
2
abc
5
ghi
jkl
7
8
pqrs
tuv
set
You can set characters by using
numeric buttons.
“Characters table for numeric
buttons” (p. 66)
3
def
6
mno
9
wxyz
0
●To move the channel
green
yellow
Select the new position
Confirm
●Tuning and Editing Channels
■To edit Favourites list
A channel is added
green
or
Select the turn
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
Store
Advanced
RETURN
Note
●Channel position numbers (known as logical channel numbers) can be swapped in Channel List.
To swap the channel position number
“Channel List” (below)
Skip unwanted DVB channels, Edit DVB Channels Channel List
You can hide unwanted DVB channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
All DVB Channels
70 CBBC Channel
72 Cartoon Nwk
105 BBCi
719 BBC Radio Wales
720 BBC Radio Cymru
1 BBC ONE Wales
7 BBC THREE
reveal / hide
■To edit channels
You can also edit each channel in Channel List.
1 BBC ONE Wales
Coronation Street
19:30 - 20:00
●To retune each channel - Manual Tuning (p. 38)
(only for the revealed channels)
(logical channel number)
yellow
Channel position number
Select a channel to edit and:
●To swap the channel position number
●To reveal all channels
: reveal
: hide (skip)
select
green
19:35
Now
All DVB Channels
Select favourites
For info press
red
Enter the new position number
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
Store
green
39
Tuning and Editing Channels
Update DVB channel automatically Update Channel List
You can add new channels, delete removed channels, update channel name and position automatically to
Channel List.
●Channel List is updated while keeping your settings in Favourites Edit,
DVB Update Channel List
Progress
Analogue Scan
CH 21
This will take about 3 minutes.
CH
Free TV: 0
68
Channel Name
Pay TV: 0
Type
Radio: 0
Channel List, Child Lock, Timer Programming, etc.
Quality
Data: 0
Searching
Display a notification message New Channel Message
Selects whether to give a notification message when a new DVB channel is found. (Off / On)
New channels found!
Press OK to update channel list.
Press EXIT to ignore.
●Selecting OK will perform “Update Channel List”.
Check DVB signal Signal Condition
Selects a channel and checks the DVB signal condition.
DVB Signal Condition
Channel Name
Signal Quality
Signal Strength
Bit Error Rate
Network Name
Parameter
A good Signal Strength is not an indication of best signal for DVB reception.
Please use the Signal Quality indicator as follows:
Signal Quality:
●Green bar Good
●Yellow bar Poor
●Red bar Bad (Check the Terrestrial aerial)
70 CBBC Channel
0
0
●To change the channel
10
10
0.00E+00
Wenvoe
[CH62] 802 MHz
(Analogue)
You can retune channels or skip unwanted channels, edit channels etc.
INPUT
TV
MENU
EXIT
RETURN
1
2
Select Analogue
3
Select “Setup”
TV
Display the menu
MENU
access
Main Menu
Sound
Setup
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
4
5
select
Select “Analogue Tuning Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
Analogue Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select one of the following functions
Analogue Tuning Menu
Channel List
Auto Setup
Manual Tuning
access
Access
Access
Access
select
■To return to TV
EXIT
40
●Auto Setup
“Retuning from Setup Menu” (p. 37)
6
Set
Skip unwanted Analogue channels, Edit Analogue channels Channel List
You can hide unwanted Analogue channels.
The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.
Select a channel and reveal / hide
reveal / hide
Analogue Channel List
1 BBC1
2 *****
3 *****
4
5
6
7
●To reveal all channels
: reveal
: hide (skip)
select
yellow
■To edit channels
You can also edit each channel in Channel List.
3 ITV
Select a channel to edit and:
Radio
●To retune each channel - Manual Tuning (below)
green
●To rename the channel name
All Analogue Channels
For info press
Mute
●To move the channel position
23:35
itv
CH23
blue
Encrypted
AD
Subtitles TXT Multi Audio
45
red
Store
Select the new position
green
Set characters one by one
(maximum: five characters)
Store
RETURN
select
Edit channel name
Name
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
4
2
abc
5
ghi
jkl
7
8
pqrs
tuv
●Tuning and Editing Channels
Channel position
Channel name
set
3
def
6
mno
9
wxyz
0
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 66)
Advanced
Note
●If a VCR is connected only with the RF cable, edit “VCR”.
Set Analogue channel manually Manual Tuning
Set Analogue channel manually after Auto Setup.
●If a VCR is connected only with the RF cable, it is recommended to select channel position “0”.
Analogue Manual Tuning
1 BBC1
Manual Tuning
CH33
68
21
Select the channel position
abc
Select the channel
Search and store
def
ghi
jkl
mno
pqrs
tuv
wxyz
search
store
41
Timer Programming
Timer Programming from Menu
The Timer Programming menu allows you to choose programmes that you wish to remind watching or
record to the external recorder. At the correct time, the TV will tune to the correct channel automatically
to record even if the TV is in Standby mode.
TV Guide may also be used to set timer programming event (p. 19).
●Timer Programming can store up to 15 events.
●For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed,
the TV must be On.
●No other channel can be selected while Ext Rec. of a Timer Programming is in progress.
●It may not be possible to record an encrypted programme (which is copy-protected).
●When recording programmes, be sure to make the proper settings on the recorder connected to the TV.
If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 56) and the “Link Settings”
(p. 30) are correct, no setting of the recorder is required. Also read the manual of the recorder.
●If the recorder is not compatible with Q-Link or similar technologies, set “Q-Link” in the Setup Menu (p. 30) to the
connected terminal (AV1 or AV2), and set the timer of the recorder in addition to the Timer Programming on the
TV. For preparations of a recorder, read the manual of the recorder.
●Recordings are always in standard definition composite video via SCART, even if the original programme is in
high definition.
INPUT
TV
1
Select the tuner you want to use (DVB or Analogue)
2
Display the menu
3
Select “Setup”
TV
MENU
EXIT
MENU
access
Main Menu
Sound
Setup
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
4
■To return to TV
EXIT
■To unlock the tuner
select
Select “Timer Programming”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Access
Off
select
(stop recording)
EXIT
5
Set
Note
●Check that the LED is orange. If not, timer programmes are not active or not stored.
●Timer Programming reminder messages will remain displayed until one of the following occurs:
• You press the OK button to view the programme or the EXIT button to cancel the reminder.
• The timer programming event that the reminder is set for ends.
●“!” identifies that any timer programming events have overlapped. “Ext Rec.” is given priority over “Reminder”.
When two or more “Ext Rec.” overlap, the first timer programming event starts and finishes as programmed. The
next timer programming event will then start.
●2 mins. before the starting time, a reminder message appears if you are watching TV.
• To remove the message and start the programme
• To cancel the Timer Programming
EXIT
●Ext Rec. of Timer Programming will automatically change to the programmed channel 10 seconds before the
start time.
42
●To stop recording of the timer programming event, it may be necessary to stop the recorder manually.
●Ext Rec. of Timer Programming will be performed even if the TV is in Pause Live TV recording (p. 59). In this
case, the Pause Live TV recording will be cancelled.
Set timer programming event details Timer Programming
Start making the settings
Select the function (Reminder or Ext Rec.)
select
Ext Rec. : to record the programme to the recorder
When the start time comes, the channel will be switched automatically and
the video and audio signals will be output. 2 mins. before the starting time, a
reminder message appears if you are watching TV.
Reminder : to remind you to watch the programme
When you are watching TV, a reminder message appears 2 mins. before the
start time. Press the OK button to switch to the programmed channel.
Set the channel, date and time (repeat the operations as below)
Set items in the order of
to .
●
select
the item
, and can also be
entered with numeric buttons.
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
set
Wed 28 Oct 2009 10:46
Timer Programming
No.
Function
Ext Rec.
D
72 BBC 2W
<TIMER>
Reminder
D
14 E 4
The Bill
Ext Rec.
D
1 BBC ONE
DIY SOS
Ext Rec.
D
1 BBC ONE
<TIMER>
---
Date
Cha n n e l Na m e
Guide
S/P
STTL
End
Wed 28 Oct
20:00 21:30
(90 min.)
Wed 28 Oct
21:00 22:00
(60 min.)
Wed 28 Oct
22:45 23:00
(15 min.)
Thu 29 Oct
10:30 11:30
(60 min.)
--/--
--:---:-(--- min )
---
Channel number
Store
Start
Date
D: DVB
A: Analogue
●You cannot change the
mode within the menu.
■To change a timer programming event
■To cancel a timer programming event
Select the programme to be deleted
■To record with subtitles (if available)
●To indicate this
(press again to
remove subtitles)
Duration (automatic display)
Ending time
Starting time
●Daily Sun-Sat: Sunday to Saturday
●Daily Mon-Sat: Monday to Saturday
●Daily Mon-Fri: Monday to Friday
daily or weekly
(press repeatedly) ●Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:
one day ahead
Same time on the same day every week
access
select
Correct as necessary
(as above)
red
●Each time pressed:
Select the programme to record with subtitles
yellow
■To cancel a timer programming event temporarily
Select the programme to be cancelled
yellow
Advanced
Select the programme to be changed
Records with subtitles (if available)
●Timer Programming
Timer programming - Programmes according to the time setting
Displayed if the
timer programming
Guide: Guide link programming - Programmes according to the TV Guide signal (p. 19)
events are overlapped
S/P: Split Programme programming (p. 19)
blue
auto
off
●Each time pressed:
cancel
stop cancelling
■To view details of the programming (only for Guide link programming)
Select the programme to be viewed
●Press again to return to
Timer Programming menu.
■Guide link programming (Timer Programming from the TV Guide signal)
●This function is not available in Analogue mode.
p. 19
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if
programme start and end times are changed by the broadcaster, the timer programming event will follow the
change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other
programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct
information is received from broadcasters.
43
Child Lock
You can lock specific channels / AV input terminals and control who watches them.
When the locked channel / input is selected, a message appears; by entering the PIN number, you can
watch it.
INPUT
TV
AV
ASPECT
MENU
1
Display the menu
2
Select “Setup”
MENU
N DIRECT TV REC
EXIT
OPTION
access
Main Menu
Sound
RETURN
Setup
select
TEXT STTL INDEX HOLD
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
3
Select “Child Lock”
4
■To return to TV
PROGRAMME
EXIT
access
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
Off
select
Access
Set
Control channel audience Child Lock
Enter the PIN number (4 digits)
Child Lock-PIN Entry
Please enter new PIN
PIN
* * * *
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
●Enter the PIN number twice at first setting.
●Make a note of the PIN number in case you forget it.
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
access
Access
select
Select the channel / input to be locked
lock
Child Lock List - TV and AV
4
7
14
VCR
1
2
Name
BBC 1 Wales
BBC THREE
E4
BBC1
*****
AV1
AV2/S
Input
DVB
DVB
DVB
Analogue
Analogue
Analogue
External
External
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Lock
Lock
Lock
Lock
Lock
Lock
Lock
Lock
select
Appears when the channel / input is locked
■To change the PIN number
Select “Change PIN”
Child Lock
Change PIN
Child Lock List
Access
Enter a new PIN number twice
access
select
Note
●To cancel Select the locked channel / input
●To jump to the top of the next input red
●To lock all green
●To cancel all locks yellow
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
●Setting “Shipping Condition” (p. 46) erases the PIN number and all settings.
44
Input Labels
For easier identification and selection of the input mode, you can label each input mode or skip terminals
that are not connected to any equipment.
●To select the input mode
INPUT
TV
AV
ASPECT
MENU
p. 24
1
Display the menu
2
Select “Setup”
MENU
N DIRECT TV REC
EXIT
access
Main Menu
Sound
OPTION
Setup
RETURN
3
TEXT STTL INDEX HOLD
PROGRAMME
5
TV
EXIT
access
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
Off
select
Access
Select “Input Labels”
access
Display Settings
Preferred Subtitle Type
Side Panel
Input Labels
Banner Display Timeout
Radio Mode
English
Off
Access
3 seconds
Off
select
Select a input terminal and set
Input Labels
AV1
AV2/S
AV3
COMPONENT
HDMI1
HDMI2
DVB
Analogue
DVD
AV2/S
AV3
COMPONENT
HDMI1
HDMI2
DVB
Analogue
set
select
The labels you set will be displayed in the “Input Selection” menu (p. 24) or
banner.
●If “Skip” is selected, the input will not be displayed in the “Input Selection”
menu and you cannot select the mode.
Advanced
■To return to TV
Select “Display Settings”
●Input Labels
●Child Lock
4
select
■User input
You can name each input mode yourself.
Select “User input”
Set characters one by one
(maximum: ten characters)
Store
User input
Name
select
access
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
4
2
abc
5
3
set
6
jkl
mno
7
8
9
tuv
RETURN
def
ghi
pqrs
select
wxyz
0
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 66)
45
Shipping Condition
Resets the TV to its original condition with no channels tuned in.
All settings other than “Owner ID” are reset (channels, picture, sound settings, etc.).
INPUT
TV
AV
ASPECT
MENU
1
Display the menu
2
Select “Setup”
MENU
N DIRECT TV REC
EXIT
access
Main Menu
Sound
OPTION
Setup
RETURN
3
TEXT STTL INDEX HOLD
4
PROGRAMME
5
TV
select
Select ”System Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select “Shipping Condition”
System Menu
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
access
Access
select
Set
■To return to TV
EXIT
Restore Settings Shipping Condition
Check the message and initialise
Shipping Condition
All tuning data will be erased
Are you sure?
Are you sure?
Confirm
EXIT
(confirm)
(confirm)
RETURN
(start Shipping Condition)
Follow the on screen instructions
Reset to Factory Shipping Condition
Completed.
Please switch off TV.
●“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)
■To retune TV channels only, e.g. after moving house
“Retuning from Setup Menu” (p. 36 and p. 37)
46
Owner ID
Entry of the PIN number and personal information (your name, address and postcode).
In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.
1
Display the menu
MENU
MENU
2
EXIT
Select “Setup”
access
Main Menu
Sound
Setup
select
RETURN
3
def
ghi
jkl
mno
pqrs
tuv
wxyz
4
■To return to TV
EXIT
5
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
●Owner ID
●Shipping Condition
abc
Select “System Menu”
Select “Owner ID”
System Menu
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
access
Access
select
Set
Input owner ID Owner ID
Enter the PIN number (4 digits)
* * * *
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
●Enter the PIN number twice at first setting.
●Make a note of the PIN number in case you forget it.
The PIN number cannot be reset.
Enter your name, house number, and postcode, in that order
Select NAME / HOUSE NO / POSTCODE
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
Set characters one by one
Return to select
other items
User input
NAME
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
access
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
select
.!:#
4
ghi
7
pqrs
2
abc
5
jkl
8
tuv
3
def
6
mno
9
wxyz
0
select
F
EXIT
“Characters table for numeric buttons” (p. 66)
Owner ID
NAME
HOUSE NO
POSTCODE
EXIT
F
■To change the PIN number
Select “PIN”
or
Exit the menu
●You can set characters by using numeric buttons.
TV
●The PIN number is not displayed.
Owner ID-Data Entry
PIN
NAME
HOUSE NO
POSTCODE
RETURN
set
■To check the personal information stored
Hold down for about 6 sec.
Advanced
Owner ID
Please enter new PIN
PIN
AV
Enter a new PIN number twice
access
select
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
47
Using Common Interface
The Common Interface Module menu provides access to software contained on Common Interface (CI)
Modules.
This TV works only Pay TV modules complying with CI standard.
●This function is not available for BSkyB’s Sky channels.
Caution
CI slot
or removing the CI module.
Insert or remove
straightly and completely
●Turn Off Mains power On / Off switch whenever inserting
●If a viewing card and a card reader come as a set, first
insert the card reader, then insert the viewing card into the
card reader.
●Insert the module in the correct direction.
CI module
Side of the TV
Insert the CI module (optional)
●The features that appear on screen are dependent on the contents of the selected CI module.
●Follow the instructions that came with the viewing card to tune in the pay-TV channels. If pay-TV channels do not
appear, perform the below to verify the card is recognized by the TV.
●For more details, see the manual of the CI module, or check with the broadcaster.
INPUT
TV
MENU
EXIT
1
2
Select DVB
3
Select “Setup”
TV
Display the menu
MENU
access
Main Menu
Sound
Setup
4
5
TV
■To return to TV
EXIT
6
7
select
Select ”System Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select “Common Interface”
System Menu
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
access
Access
select
Access Common Interface
Common Interface
Slot 1:
Module inserted
Follow the on screen operation guide
(Check the instructions provided with the CI module)
For example: select, go
Coloured characters
48
red green yellow blue
●On screen operation guide may not correspond to the remote control
buttons.
Updating the TV Software
From time to time, a new version of software may become available for download to enhance the
performance or operations of the TV.
In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new
available software is found.
●To download
●If you choose not to download
EXIT
You can update any new software automatically, or manually.
1
Display the menu
MENU
MENU
EXIT
2
Select “Setup”
access
Main Menu
Sound
Setup
4
■To return to TV
EXIT
5
●Updating the TV Software
●Using Common Interface
3
select
Select “System Menu”
Setup Menu
Timer Programming
Off Timer
Link Settings
Child Lock
DVB Tuning Menu
Display Settings
System Menu
Other Settings
access
Off
select
Access
Select “System Update”
System Menu
Shipping Condition
Owner ID
Common Interface
System Update
Software Licence
System Information
access
select
Access
Set
■To update automatically
Select “Auto Update Search in Standby” and set to “On”
System Update
●Automatically performs a search in standby and
Auto Update Search in Standby
On
downloads an update, if any software updates are
set
System Update Search Now
available.
select
●The automatic updating is performed at night under
the following conditions:
• Standby (TV turned Off with the remote control)
• Ext Rec. of Timer Programming or Direct TV
Recording is not in progress.
If System Update is performed, the software will be updated (it may change TV functions).
If you do not wish to do so, set “Auto Update Search in Standby” to “Off”. The notification
banner will keep appearing during the period of new software availability, usually 2 to 3 days.
■To update immediately
Select “System Update Search Now”
System Update
Auto Update Search in Standby
System Update Search Now
access
Off
Access
select
Searches for an update
(for several mins.) and
displays a corresponding
message if any
Advanced
Update TV’s software system System Update
Download
Note
●Download may take up to 60 mins.
●During software download and update, DO NOT perform any operations on the TV or switch Off the TV.
49
Using Media Player
Viewing from SD Card (VIERA IMAGE VIEWER)
Photo mode : Still pictures recorded by digital cameras will be displayed.
Video mode : Moving pictures recorded by digital video cameras will be played back.
●During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals,
but no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the
Setup Menu (p. 30).
●“Date” shows the date on which the recording was made by the digital camera or digital video camera. The file
without record of the date is shown “**/**/****”.
●For details on SD Cards p. 65
■To insert the SD Card
Gently insert the
SD Card label
surface facing front.
■To remove the
SD Card
Label
surface
Push the centre
of the card
Cutout
Push until a
click is heard
Photo mode
Photo mode will read all “.jpg” extension files in the card.
1
Insert the SD Card and
start Media Player
2
Select “Photo”
Media Player
Signal output from all AV terminals will be
disabled during Media Player view.
Press OK to proceed.
Press EXIT to return to TV viewing.
Media Player
select
access
SD CARD
●You can also access Photo mode directly by
Contents Select
MENU
EXIT
using VIERA TOOLS.
“How to Use VIERA TOOLS” (p. 26)
Select
EXIT
RETURN
Access
Video
Error display
(images that could not be loaded, etc.)
Media Player
All photos
The thumbnail of all the photos on the
SD Card will be displayed.
●To change the background music
“Photo Setup” (p. 51)
●To display the information of the
highlighted photo
RETURN
View
Select
Slideshow
EXIT
RETURN
Info
View Select
Contents Select
(Thumbnail - All photos)
■Single view - Photos are displayed one at a time.
1/48
File name
Date
23/10/2009
Size
1600X1200
file number /
total file number
Select the file from the thumbnail of photos to be viewed
●To display / hide the operation guide
select
access
●To operate Single view
■To return to TV
EXIT
or
Rotate
EXIT
Select
RETURN
Slideshow
SD CARD
■To return to
the previous
screen
RETURN
Single view
Single view
Operation guide
●To return to thumbnail
RETURN
■Slideshow - Slideshow will complete when all photos have been viewed within the present
thumbnail.
Select the file from the
thumbnail of photos
for the first view
Start
Slideshow
select
50
(Single view)
To the previous photo
Rotate 90˚ (anti-clockwise)
To the next photo
Slideshow
Rotate 90˚ (clockwise)
red
●To display / hide the operation guide
●To pause (return to Single view)
●To return to thumbnail
RETURN
Photo Setup
Choose the settings for Photo mode.
Display
the menu
Select “Photo Setup”
Select the items and set
access
Main Menu
Photo Setup Menu
Back Ground Music
Frame
Colour Effect
Transition Effect
Aspect
Interval
Repeat
MENU
select
Sound
Photo Setup
Video Setup
●Other items
Menu
Item
Back Ground
Music
Frame
Colour Effect
Aspect
Interval
Repeat
set
select
p. 28, 29 and p. 53
Adjustments / Configurations (alternatives)
Selects the back ground music during the Photo mode (Off / Type1 / Type2 / Type3)
●Type1, Type2 and Type3 are the fixed music each installed in this TV.
Selects the frame type of the slideshow (Off / Multi / Collage)
Multi : 9 photos are displayed orderly at once.
Collage: Each photo is displayed at a random position and random scale.
Selects the colour effect of photos on Single view and Slideshow
(Off / Sepia / Gray scale)
Selects the transition effect for switching the photo during the slideshow
(Off / Fade / Slide / Dissolve / Motion / Random)
Fade
: The next photo fades in gradually.
Slide
: The next photo slides and appears from the left side.
Dissolve : Each photo is dissolved when switching to the next photo.
Motion : Each photo is displayed with an effect of enlarging, reducing, moving up
or moving down.
Random : Each transition is selected at random.
●This function is available when “Frame” is set to “Off”.
Selects whether enlarged or original viewing on Single view and Slideshow
(Original / Zoom)
●Depending on the photo size, it may not be fully enlarged to fill the screen, e.g.
portrait style picture.
Selects slideshow interval (Short / Normal / Long)
Slideshow repeat (Off / On)
●Using Media Player
Photo Setup
Transition
Effect
Type1
Off
Off
Fade
Original
Normal
On
Change to the Video mode
You can switch to the Video mode of the Media Player from the thumbnail view.
While the thumbnail is displayed,
display the contents selection
Select “Video”
Media Player
All photos
select
access
●For details of the Video mode operations
Contents Select
EXIT
“Video mode” (p. 52)
Select
RETURN
View
Access
Select
Slideshow
EXIT
RETURN
View Select
Info
Video
Contents Select
■To sort by folder, recorded date or recorded month
Display the
view selection
green
Select the sort type
Folder view
Sort by Date
Sort by Month
access
Displays the thumbnail
grouped by folder
●The files which are not into a
folder will be collected to the
folder named “/”.
Select one of the sorted group to display
the thumbnail of the selected group
Media Player
select
●The group of the photos
●To return to the thumbnail
of all photos
access
green
select
“All photos”
without recorded date is
shown as “Unknown”.
Displays the thumbnail
grouped by the same month
Sort by Date
23/10/2009
25/10/2009
01/11/2009
05/11/2009
10/11/2009
24/11/2009
01/12/2009
03/12/2009
20/12/2009
22/12/2009
Access
Select
Displays the thumbnail
grouped by the same date
Slideshow
EXIT
RETURN
22/11/2009
23/11/2009
Info
View Select
Contents Select
select
thumbnail of the
selected group
●To display the information of the
highlighted group
●The group of the photos
without recorded date is
shown as “Unknown”.
Advanced
blue
23/10/2009
1/12
Folder name
23/10/2009
Number of files
3
group number /
total group
number
folder name,
date or month
51
Using Media Player
Viewing from SD Card (VIERA IMAGE VIEWER)
Video mode
Video mode supports AVCHD and MPEG2 file formats.
1
Insert the SD Card and
start Media Player
2
Select “Video”
Media Player
Signal output from all AV terminals will be
disabled during Media Player view.
Press OK to proceed.
Press EXIT to return to TV viewing.
Media Player
select
SD CARD
access
MENU ASPECT
●You can also access Video mode directly by
Contents Select
EXIT
EXIT
using VIERA TOOLS
“How to Use VIERA TOOLS” (p. 26)
Select
RETURN
Access
Video
images that could not be loaded, etc.
Media Player
OPTION
Video
Title view
RETURN
Trip1
Trip2
Trip3
Trip4
Trip5
Room
Nature1
Nature2
Nature3
Nature4
Nature5
Nature6
2009_4
2009_7
2009_9
Access
EXIT
RETURN
Select
Info
Play
Contents Select
The thumbnail of video titles on the SD Card
will be displayed.
The preview will start when the title is
highlighted if it supports a preview.
●To turn off the preview
“Video Setup” (p. 53)
●To display the information of the
highlighted title
(Thumbnail - Title view)
1/15
■Playback from Title view
Title
Trip1
Trip1
Date & Time
19/02/2009 11:21
Number of scenes
8
Duration
00h15m39s
Playback of the selected title will start.
Select the title
Start playback
select
file format
title number /
total title number
red
■Playback from the selected scene in the title
Playback will start from the selected scene to the end of the title.
Select the title
Select the scene to start playback
Media Player
select
Trip1_1
Video
Trip1_2
Title view > Trip1
Trip1_3
Trip1_4
Trip1_5
Trip1_6
select
Trip1_7
access
playback
Trip1_8
TV
Play
Select
The preview will start when the
scene is highlighted if it supports a
preview.
(Thumbnail - Scene view) ●To turn off the preview
“Video Setup” (p. 53)
●To display the information of the highlighted scene
EXIT
RETURN
Info
Contents Select
■To return to TV
EXIT
or
SD CARD
●To repeat playback
“Video Setup” (p. 53)
scene number / total scene number
Scene
Trip1_1
Date & Time
19/02/2009 11:21
Duration
00h04m12s
■To return to
the previous
screen
file format
1/8
Trip1
■How to operate in the playback
●To display / hide the operation guide
RETURN
and information banner
●To operate the playback
EXIT
RETURN
Title
Date & Time
Trip1
19/02/2009
11:21
00:02.05 / 00:15.39
Operation guide
(Playback)
information banner
●To change aspect
(only for the 4:3 video content)
ASPECT
52
●To return to thumbnail
RETURN
Rewind
Pause / Playback
Playback
Fast forward
Stop
●To the previous scene
●To the next scene
green
red
Sound Settings
You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.
■To confirm or change the current sound status (during playback)
Display the Option menu
OPTION
Option Menu
Multi Audio
Change the sound (if the video has multiple audio signals)
●It may take several seconds to change the sound.
change
Stereo
(current sound status)
■Audio output settings
Display
the menu
Select “Sound”
Select “SPDIF Selection” and set
access
Main Menu
Sound Menu
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance to Wall
SPDIF Selection
MENU
select
Sound
Photo Setup
Video Setup
Item
Sound
SPDIF
Selection
set
select
Off
Over 30cm
Auto
Adjustments / Configurations (alternatives)
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal
(Auto / PCM)
Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM: Digital output signal is fixed to PCM.
Video Setup
Choose the settings for Video mode.
Display
the menu
Select “Video Setup”
Select “Other Settings”
Video Setup Menu
Display Settings
Other Settings
Main Menu
MENU
Select the items and set
Other Settings
16:9 Overscan
Video Preview
Repeat
Access
Sound
On
On
Off
access
Photo Setup
set
select
Video Setup
select
●Other items
Other
Settings
Video
Setup
●Display Settings
●16:9 Overscan
p. 28, 29 and p. 51
p. 31
p. 32
Item
Adjustments / Configurations (alternatives)
Sets to start the preview of the title or scene in the thumbnail screen (Off / On)
Video
●Image may not be displayed for an instant in the thumbnail screen. Set the preview
Preview
“Off” to resolve this.
Repeat Playback repeat within the title (Off / On)
Advanced
Menu
●Using Media Player
Menu
1/2
Music
Change to the Photo mode
You can switch to the Photo mode of the Media Player from the thumbnail view.
While the thumbnail is displayed,
display the contents selection
Select “Photo”
Media Player
blue
Trip1
Nature2
Video
Title view
Trip2
Trip3
Trip4
Trip5
Room
Nature1
Nature3
Nature4
Nature5
Nature6
2009_4
2009_7
Contents Select
EXIT
2009_9
Access
Select
Play
EXIT
RETURN
Info
●For details of the Photo mode operations
“Photo mode” (p. 50)
Select
RETURN
Access
select
access
Video
Contents Select
Note
●The structure of titles and scenes may vary depending on the digital video camera used.
53
Link Functions (Q-Link
VIERA Link)
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 56)
VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, energy saving, creation of a home theatre, etc.,
without complicated setting. (p. 57 - 61)
You can use Q-Link and VIERA Link functions together.
●This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s
version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.
●VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.
Summary of Q-Link and VIERA Link features
■Q-Link (SCART connection only)
Features
Connected equipment DVD Recorder / VCR Connection
with Q-Link function
Analogue channel download
DVD Recorder / VCR
with Q-Link function
Easy playback
SCART cable
Power on link
●Use a fully wired SCART cable.
●Connect the DVD Recorder / VCR supporting Q-Link
Power off link
to the TV’s AV1 or AV2 terminal via a SCART cable.
Direct TV Recording
■VIERA Link (HDMI connection only)
Connected equipment
Features
DIGA Recorder with
VIERA Link function
Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control
–
DVD Player /
Blu-ray Disc Player with
VIERA Link function
–
HD Video Camera /
LUMIX Camera with
VIERA Link function
–
∗3
∗3
–
∗3
∗34
∗
∗3
∗3
–
–
–
–
–
∗1
∗1
–
∗1
–
–
Connection
DIGA Recorder / DVD Player / Blu-ray Disc Player /
HD Video Camera / LUMIX Camera
with VIERA Link function
HDMI cable
●Use a fully wired HDMI compliant cable.
●Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable.
●For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read
the manual of the equipment.
■VIERA Link (HDMI and SCART connections)
Connected equipment DIGA Recorder with Connection
VIERA Link function
54
Features
Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control
HDMI cable
SCART cable
∗3
∗3
∗24
∗
∗2
∗1
–
DIGA Recorder
with VIERA Link
function
●Use a fully wired HDMI compliant cable.
●Connect the equipment supporting VIERA Link to
the TV’s HDMI1 or HDMI2 terminal via an HDMI
cable.
●Use a fully wired SCART cable.
●Connect the equipment supporting VIERA Link to
the TV’s AV1 or AV2 terminal via a SCART cable.
■VIERA Link (HDMI and Audio out connections)
Connected equipment
Features
Analogue channel download
Easy playback
Power on link
Power off link
Reduce unnecessary power consumption
in standby
Auto standby for unnecessary equipment
Pause Live TV programme
Direct TV Recording
Control the menu of the connected
equipment by VIERA remote control
Speaker control
Player theatre with
VIERA Link function
Blu-ray Disc theatre with
VIERA Link function
Amplifier with
VIERA Link function
–
–
∗5
–
–
–
∗3
–
–
–
–
Connection
●To use Player theatre /
Speaker system
Blu-ray Disc theatre:
Optical digital
audio cable
or
RCA cable
or
SCART cable
∗36
∗
–
–
∗1
∗36
∗
∗3
–
–
∗1
–
●To use Amplifier:
Speaker system
HDMI cable
Player theatre /
Blu-ray Disc theatre
with VIERA Link
function
Amplifier with
VIERA Link
function
Optical digital
audio cable
or
RCA cable
or
SCART cable
HDMI
cable
∗7
HDMI
cable
●Link Functions
(Q-Link / VIERA Link)
HDMI cable
∗5
∗7
SCART cable
DIGA Recorder with
VIERA Link function
●Use a fully wired HDMI compliant cable.
●Connect the equipment supporting VIERA Link to the TV’s HDMI2 terminal via an HDMI cable.
●Use a fully wired SCART cable.
●If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or
AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 30).
●Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV.
Advanced
HD Video Camera /
LUMIX Camera with
VIERA Link function
∗1: Available with the equipment which has “HDAVI Control 2 or later” function.
∗2: Available with the equipment which has “HDAVI Control 3 or later” function.
∗3: Available with the equipment which has “HDAVI Control 4 or later” function.
∗4: Available with DIGA Recorder which has HDD.
∗5: while playingback a disc
∗6: except for watching a disc
∗7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical
digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2
terminal via an HDMI cable.
■VIERA Link Control of compatible equipment (VIERA Link Control
p. 60)
●Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.
This includes connections to equipment already connected to the TV.
For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.
Type of the equipment
Recorder (DIGA Recorder, etc.)
Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,
Digital Camera, Player theatre, Blu-ray Disc theatre, etc.)
Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.)
Tuner (Set top box, etc.)
Maximum number
3
3
1
4
55
Link Functions (Q-Link
VIERA Link)
Q-Link
■Preparations
●Connect the DVD Recorder / VCR with the following logos:
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
●Q-Link connection p. 54
●Use fully wired SCART cable.
●Set up the DVD Recorder / VCR. Read the manual of the recorder.
●Q-Link terminal setup in the Setup Menu “Q-Link” (p. 30), “AV1 / AV2 out” (p. 30)
●Download Analogue channel setting “Analogue channel download” (see below)
■Features available
Analogue channel download
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue
is still broadcast). Digital channel settings are not downloaded.
●To download the Analogue channel settings
“Q-Link Download” (p. 30) or “Auto Setup” in Analogue mode
(p. 37) or “Auto Setup” - when first using the TV (p. 12)
Direct TV Recording - What you see is What you record
Recording the current programme on a DVD Recorder / VCR immediately.
●Available conditions:
INPUT
TV
AV
ASPECT MENU
N DIRECT TV REC
EXIT
OPTION
RETURN
Picture source
DIRECT TV REC
Analogue
DVB
AV
(watching recorder’s tuner)
AV
(watching recorder’s external input)
AV
(watching TV’s external input)
Mode
TV
AV
TV
Recording from
TV monitor out
Recorder’s tuner
TV monitor out
AV
Recorder’s tuner
AV
Recorder’s
external input
AV
TV monitor out
●When Direct TV Recording is performed, the recorder is automatically
turned on if it is in Standby mode.
TEXT STTL INDEX HOLD
●Changing channel or turning off the TV is available while the recorder is
recording from its own tuner.
●Changing channel is not available while the recorder is recording from
the TV tuner.
■To stop recording
Unlock the tuner
Tuner Locked
EXIT
Press EXIT to unlock.
Any timer programme in progress will also be deleted.
Continue
Unlock
Power on link and Easy playback
When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the
equipment is activated, the TV is turned on and the input mode is switched automatically so that you
can view the content. (Only when the TV is in Standby mode.)
Power off link
When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when
the videocassette or disc is not active.)
●This function will work even if the TV enters Standby mode automatically by auto power standby function.
• “DATA LOGIC” (a trademark of Metz Corporation)
• “Easy Link” (a trademark of Philips Corporation)
Note
• “Megalogic” (a trademark of Grundig Corporation)
• “SMARTLINK” (a trademark of Sony Corporation)
●Some recorders are not compatible. Read the manual of the recorder.
56
VIERA Link “
Control™”∗
∗Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 5” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically (p. 54 and p. 55).
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
●Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the
connected equipment’s version of HDAVI Control.
●VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
●Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
●For information about applicable Panasonic equipment, consult your local Panasonic dealer
or refer to www.panasonic.co.uk
■Preparations
●Connect the equipment that supports VIERA Link.
●VIERA Link connection p. 54 and p. 55
●Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.
●Link Functions
(Q-Link / VIERA Link)
Recommended Panasonic HDMI cables’ part numbers:
• RP-CDHS15 (1.5 m)
• RP-CDHS30 (3.0 m)
• RP-CDHS50 (5.0 m)
●Use a fully wired SCART cable.
●Set up the connected equipment. Read the manual of the equipment.
●For optimal recording, the settings of the recorder may need to be changed. For details, read the manual
of the recorder.
●Download Analogue channel setting “Analogue channel download” (see below)
●Set VIERA Link On in the Setup Menu “VIERA Link” (p. 30)
●Set up the TV
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1 or HDMI2 (p. 24), and make sure that an image is displayed correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
■Features available
Analogue channel download
●To download the Analogue channel settings
“Q-Link Download” (p. 30) or “Auto Setup” in Analogue mode
(p. 37) or “Auto Setup” - when first using the TV (p. 12)
Easy playback
Advanced
Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue
is still broadcast). Digital channel settings are not downloaded.
Automatic Input switching - When the connected equipment is operated (during playback or menu
operations, etc.), the input mode is switched automatically. When playback is stopped or menus are
exited, the input mode returns to the original setting.
Power on link
When the connected equipment starts playback or the direct navigator / function menu for
the equipment is activated, the TV is automatically turned on and the input mode is switched
automatically so that you can view the content. (Only when the TV is in Standby mode.)
Power off link
When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.
●This function will work even if the TV enters Standby mode automatically by auto power standby function.
57
Link Functions (Q-Link
VIERA Link)
■Features available
Reduce unnecessary power consumption in standby Standby Power Save
Set Standby Power Save “On” in the Setup Menu to use this function
“Standby Power Save” (p. 30)
The power consumption in Standby mode of the connected equipment is controlled in synchronization with the
TV On / Off state.
When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power
consumption in Standby mode of the connected equipment is automatically minimized.
When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the
connected equipment is increased to reduce the startup time.
●This function is effective if the connected equipment can change the power consumption in Standby mode
and is set to higher consumption.
Auto standby for unnecessary equipment Intelligent Auto Standby
Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to
use this function
“Intelligent Auto Standby” (p. 30)
When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically
to reduce power consumption. For example, when the input mode is switched from HDMI, the connected
equipment will go into Standby mode / when Speaker Selection is changed to “TV”, the Player theatre will go
into Standby mode (except when watching a disc).
●If you select “On (With reminder)”, the on screen message will be displayed before the connected equipment
turns to Standby.
●This function may not work properly depending on the connected equipment. If required, set to “Off”.
■Features available (Using VIERA Link Menu)
Direct TV Recording - What you see is What you record Direct TV Rec
Recording the current programme on a DIGA Recorder immediately.
●If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and
HDMI2 for two recorders, connect the DIGA Recorder to HDMI1.
●If Direct TV Recording does not operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 54 and p. 55), “Preparations” (p. 57)
●If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required
and the programme is recorded by Q-Link function (p. 56).
●Depending on the programme, a SCART connection may be required to record.
●Changing channel or turning off the TV is available while the recorder is recording from its own tuner.
●Changing channel is not available while the recorder is recording from the TV tuner.
INPUT
TV
AV
ASPECT MENU
N DIRECT TV REC
EXIT
1
2
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
start
Start
Start
Recorder
Home Cinema
select
●You can also start recording directly
OPTION
RETURN
DIRECT TV REC
■To stop recording
Select “Stop” in “Direct TV Rec” and access
TEXT STTL INDEX HOLD
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Stop
Recorder
Home Cinema
select
stop
●You can also stop recording directly.
Unlock the tuner
Tuner Locked
Press EXIT to unlock.
Any timer programme in progress will also be deleted.
Continue
58
Unlock
EXIT
■Features available (Using VIERA Link Menu)
Pause Live TV programme Pause Live TV
You can pause the live TV programme and resume the programme later.
The live TV programme will be recorded on HDD of the connected DIGA Recorder.
●This function is available with a DIGA Recorder which has HDD.
●If you connect a variety of recorders including other manufacturers’ recorders at the same time, please
connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use
HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1.
●If Pause Live TV does not operate, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 54 and p. 55), “Preparations” (p. 57)
Access and pause the live TV programme
INPUT
TV
AV
ASPECT MENU
2
Select “Pause Live TV” and pause
N DIRECT TV REC
EXIT
RETURN
TEXT STTL INDEX HOLD
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
pause
Start
Start
Recorder
Home Cinema
select
The TV picture will be paused.
●You can also pause directly by using VIERA TOOLS
“How to Use VIERA TOOLS” (p. 26)
●Live TV programme is recorded on HDD from where it was paused.
●If the paused TV picture disappears after a few minutes
OPTION
(the paused picture will be restored)
●Follow the operation guide to operate Pause Live TV function.
■To operate Pause Live TV
●Operations may be different
search backward
pause
search forward
playback
stop
depending on the recorder. In this
case, follow the operation guide or
read the manual of the recorder.
Advanced
●If you stop playback, the recorded programme
PROGRAMME
●Link Functions
(Q-Link / VIERA Link)
OPTION
1
Display “VIERA Link Menu”
will be deleted from HDD.
■To return to Live TV
(stop playback of Pause Live TV / cancel pause)
TV
Select “Yes”
TV
Pause Live TV
select
Stop Pause Live TV?
Yes
No
stop
●If you stop playback or cancel pause, the recorded programme will be
deleted from HDD.
59
Link Functions (Q-Link
VIERA Link)
■Features available (Using VIERA Link Menu)
Control the menu of the connected equipment by VIERA remote control
VIERA Link Control
You can control some functions of the connected equipment with this TV remote control (point the
remote control at the TV’s signal receiver).
●If you cannot operate the menu of the connected equipment, check the settings and the equipment
“Summary of Q-Link and VIERA Link features” (p. 54 and p. 55), “Preparations” (p. 57)
●For details of the operations for the connected equipment, read the manual of the equipment.
Access and operate the menu of the equipment
INPUT
TV
AV
ASPECT MENU
1
Display “VIERA Link Menu”
2
Select “VIERA Link Control”
N DIRECT TV REC
EXIT
OPTION
RETURN
3
TEXT STTL INDEX HOLD
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
Select the equipment you want to access
The type of the connected equipment is displayed.
Select the type of the equipment and access.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
access
Recorder / Player / Home Cinema / Video Camera / LUMIX /
Digital Camera / Other
●You can also access directly by using VIERA TOOLS
■If multiple recorders or
“How to Use VIERA TOOLS” (p. 26)
●The displayed item may vary depending on the connected
players are connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
equipment.
●“Home Cinema” means Player theatre, Blu-ray Disc theatre or
Recorder theatre.
Start
Start
Recorder2
Home Cinema
●“Other” means Tuner set top box.
Recorder1-3 / Player1-3
The number is given from
the TV’s lower HDMI terminal
number connected to the same
type equipment. For example,
two recorders to HDMI1
and HDMI2, in this case the
recorder connected to HDMI1
is displayed as “Recorder1”,
and the recorder connected
to HDMI2 is displayed as
“Recorder2”.
■If you access
non-VIERA Link equipment
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
60
Start
Start
Recorder
Home Cinema
The type of the connected
equipment is displayed.
You can access the menu
of the equipment. But you
cannot operate it. Use its own
remote control to operate the
equipment.
The menu of the accessed equipment
(Input mode will be changed automatically)
4
Operate the menu of the equipment
Available VIERA remote control buttons:
(depending on the connected equipment)
INPUT
TV
AV
ASPECT MENU
N DIRECT TV REC
EXIT
Set the code of the remote control to
“73”
“How to change the code for the type of
the equipment” (p. 25)
Follow the operation guide
OPTION
RETURN
TEXT STTL INDEX HOLD
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
●To display the operation guide
OPTION
If other manufacturers’ equipment is
accessed, Setup / Contents Selection
menu may be displayed.
●When the key words are displayed on
colour bar
red green yellow blue
PROGRAMME
REC
Note
●Some operations may not be available
depending on the equipment. In this case
use its own remote control to operate the
equipment.
■Features available (Using VIERA Link Menu)
Speaker control Speaker Selection
You can control the home theatre speakers with this TV remote control (point the remote control at
the TV’s signal receiver).
●If you cannot control the home theatre speakers with this remote control, check the settings and the
equipment
“Summary of Q-Link and VIERA Link features” (p. 54 and p. 55), “Preparations” (p. 57)
Access and control the speaker volume
Display “VIERA Link Menu”
INPUT
TV
AV
ASPECT MENU
1
N DIRECT TV REC
EXIT
2
OPTION
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Start
Start
Recorder
Home Cinema
select
RETURN
3
Set to “Home Cinema” or “TV”
set
■Home Cinema
The Player theatre, Blu-ray Disc theatre or Amplifier will be
automatically turned on if it is in Standby mode and the sound
will be output from theatre speakers connected to the equipment.
●Link Functions
(Q-Link / VIERA Link)
TEXT STTL INDEX HOLD
●Volume up / down
PROGRAMME
●Mute
■TV
TV
TV speakers are active.
Advanced
●The sound of the TV speakers is muted.
●When the equipment is turned off, the TV speakers will be activated.
Note
●If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an
Amplifier, connect the Amplifier to the TV with an HDMI cable and an Optical
digital audio cable (p. 55), and then select “Home Cinema”. If your Amplifier has
“HDAVI Control 5” function, you only need to connect with an HDMI cable. In this
case, connect your Amplifier to the TV’s HDMI2 terminal.
To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an
HDMI cable from the DIGA Recorder to the Amplifier (p. 55).
Note
●These functions may not work properly depending on the connected equipment.
●Image or sound may not be available for the first few seconds when Input mode is switched.
●Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier.
Read the manual of the equipment.
●“HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible
equipment. This standard is compatible with conventional HDAVI equipment.
“System Information” (p. 32)
●To confirm this TV’s version of HDAVI Control
61
External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifications (p. 67).
To watch satellite
broadcasts
HD Satellite
receiver
Fully wired SCART cable
(Viewing)
Camcorder /
Game equipment
Fully wired HDMI
compliant cable
(Listening)
To enjoy the sound from the external equipment
in multi-channel sound (e.g. Dolby Digital 5.1ch),
connect the equipment to the amplifier.
For the connections, read the manuals of the
equipment and amplifier.
To listen with
speakers
or
Optical digital
audio cable
RCA cable
Amplifier with
speaker system
To watch DVDs
Fully wired
SCART cable
(Listening)
DVD Player
(Viewing)
■Types of connectable equipment to each terminal
Terminal
AV1
AV2
(with HDMI)
(with HDMI)
Recording / Playback
(equipment)
To record / playback videocassettes / DVDs
(VCR / DVD Recorder)
To watch DVDs (DVD Player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifier with speaker system
Q-Link
VIERA Link
Direct TV Recording
: Recommended Connection
∗1 : applicable if your amplifier has ARC (Audio Return Channel) function
62
AV3
Rear of the TV
HDMI equipment
“HDMI connection” (p. 67)
DVD Recorder
Fully wired HDMI
compliant cable
Less than
10 cm
Headphones
Ferrite core (supplied)
●To adjust volume
“Headphone Volume” in
the Sound Menu (p. 29)
or
(M3 stereo
mini plug)
Installing the Ferrite core
Open
RF cable
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
●External Equipment
Terrestrial
aerial
To record /
playback
COMPONENT
AUDIO OUT
Advanced
DVD Recorder /
VCR
DIGITAL AUDIO OUT
Y
L
L
PB
R
PR
R
1
2
∗1
63
Technical Information
Auto Aspect
The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 16)
■Aspect Control Signal
“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART /
HDMI terminal is found.
The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio.
This function will work in any aspect mode.
Input terminal
RF
AV1 (Composite)
AV2 (Composite or S-Video)
AV3
COMPONENT
HDMI1
HDMI2
Input signal format
DVB
PAL I
PAL 525/60 6.0 MHz
M.NTSC 6.0 MHz
PAL
PAL 525/60
M.NTSC
NTSC
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
Widescreen signal
(WSS)
Aspect Control Signal
Control signal
through SCART (pin8) / HDMI terminal
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
■Auto mode
Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS,
Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen).
This process may take several minutes, depending on the darkness of the image.
Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the
best ratio and expands the image to fill the screen.
If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.
Note
●The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top
and bottom of the screen may appear.
●If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
tracking of the VCR. Read the manual of the VCR.
64
SD Card
2.1 mm
If the SD Card does not meet SD standards,
it may cause the TV to malfunction.
32 mm
24 mm
■Cautions in handling SD Card
●Do not remove the card while the TV is accessing data (this can damage card or TV).
●Do not touch the pins on the back of the card.
●Do not subject the card to a high pressure or impact.
●Insert the card in the correct direction (otherwise the card or TV may be damaged).
●Electrical interference, static electricity, or erroneous operation may damage the data or card.
●Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of
the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)
■Data format for Card browsing
●Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF∗ and EXIF standards
Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0)
Image resolution - 8 × 8 to 30,719 × 17,279 pixels
●Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio
format that is either MPEG-1/Layer-2 format or Dolby Digital format
(Files recorded with vertical frequency 50 Hz are applicable. A modified data with a PC may not be
displayed correctly.)
●Card format : SDXC Card - exFAT
SDHC Card / SD Card - FAT16 or FAT32
●Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB),
miniSD Card (2 GB) (requiring miniSD adapter)
●If miniSD Card is used, insert / remove it together with the adapter.
●Check the latest information on the card type at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/
∗DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).
Note
●Technical Information
●Format the card with the recording equipment.
●The picture may not appear correctly on this TV depending on the recording equipment used.
●Display may take some time when there are many files and folders.
●This function cannot display Motion JPEG or still images that are not JPEG format (i.e. TIFF, BMP).
●Data modified with a PC may not be displayed.
●Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.
●Partly degraded files might be displayed at a reduced resolution.
●The folder and file names may be different depending on the digital camera or digital video camera used.
●Do not use two-byte characters or other special codes.
●The card may become unusable with this TV if the file or folder names are changed.
FAQs, etc.
65
Technical Information
Characters table for numeric buttons
You can enter characters by using numeric buttons for free input items.
Press the numeric button repeatedly until you reach the desired character.
abc
def ●The character is set automatically if you do not press the button for
one second.
ghi
jkl
mno
pqrs
tuv
wxyz ●You can also set the character by pressing the OK button or
other numeric buttons within one second.
User input
Name
A
U
a
u
B
V
b
v
C
W
c
w
D
X
d
x
E F G
Y Z
e f g
y z (
H I J K L M N O P Q R S T
0 1 2 3 4 5 6 7 8 9 ! : #
h i j k l m n o p q r s t
) + - . * _
1
.!:#
4
ghi
7
pqrs
2
abc
5
jkl
8
tuv
3
def
6
mno
9
wxyz
0
Characters table:
The number of
times to press
1
2
3
4
5
6
7
8
9
10
11
.
a
1
b
!
c
:
2
#
A
+
B
C
*
_
(
)
d
g
j
m
p
t
w
Space
e
h
k
n
q
u
x
0
f
i
l
o
r
v
y
3
4
5
6
s
8
z
D
G
J
M
7
T
9
E
H
K
N
P
U
W
F
I
L
O
Q
V
X
R
S
Y
Z
Numeric
buttons
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
SCART and HDMI terminal information
■AV1 SCART terminal
■AV2 SCART terminal
(RGB, VIDEO, Q-Link)
(RGB, VIDEO, S-VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO
switching.
Socket Earth
CVBS out (video)
CVBS earth
Red in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
Socket Earth
CVBS out (video)
CVBS earth
Red in, S.C. - in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
CVBS in (video)
RGB status earth
Status RGB
Earth
-Q-Link data
Status CVBS
Audio in (L)
Audio earth
Audio in (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
CVBS in (video)
RGB status earth
Status RGB
Earth
-Q-Link data
Status CVBS
Audio in (L)
Audio earth
Audio in (R)
■HDMI terminal
Hot Plug Detect
19
DDC/CEC Ground 17
SCL
15
CEC
13
TMDS Clock Shield 11
TMDS Data0−
9
TMDS Data0+
7
TMDS Data1 Shield 5
TMDS Data2−
3
TMDS Data2+
1
66
18 +5V Power
16 SDA
14 Reserved
(in cable but N.C. on device)
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
HDMI connection
HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying
with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the
equipment.
HDMI-compatible equipment(∗1) with an HDMI or DVI output terminal, such as a DVD player, a set top box or a
game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
For information about connections, see “External Equipment” (p. 62).
■Applicable HDMI features
●Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (below)
Match the output setting of the digital equipment.
●Input PC signal : “Input signal that can be displayed” (below)
Match the output setting of the PC.
●VIERA Link (HDAVI Control 5) : “VIERA Link” (p. 57)
●x.v.Colour™
●Audio Return Channel(∗3) (HDMI2 terminal only)
■DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable(∗2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (AV3 AUDIO
terminals).
Note
●Audio settings can be made on the “HDMI1 / 2” in the Sound Menu. (p. 29)
●If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
●These HDMI connectors are “type A”.
●These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
protection.
●Equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
“S-VIDEO”, or “VIDEO” to receive analogue signals.
●This TV incorporates HDMI™ technology.
(∗1): The HDMI logo is displayed on HDMI-compliant equipment.
(∗2): Enquire at your local digital equipment retailer shop.
(∗3): Audio Return Channel (ARC) is a function to be able to
send digital sound signals via an HDMI cable.
Input signal that can be displayed
∗ Mark: Applicable input signal
Signal name
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
PC (from HDMI terminal)
Note
HDMI
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
Applicable input signal for PC is basically compatible to HDMI standard timing.
Horizontal frequency (kHz)
31.47
45.00
67.50
Vertical frequency (Hz)
60.00
60.00
60.00
●Signals other than above may not be displayed properly.
●The above signals are reformatted for optimal viewing on your display.
●PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient
FAQs, etc.
Signal name
640 × 480 @60 Hz
750 (720) / 60p
1,125 (1,080) / 60p
COMPONENT
∗
∗
∗
∗
∗
∗
∗
∗
●Technical Information
COMPONENT (Y, PB, PR), HDMI
clarity.
67
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care
Centre for assistance. For details p. 76
Block noise, frozen or
disappearing image occurs
in digital mode / White spots
or shadow image (ghosting)
occurs in analogue mode /
Some channels cannot be
tuned
●Check the position, direction and connection of
the aerial.
●Check “Signal Condition” (p. 40). If “Signal
Quality” is displayed in red, the digital signal is
weak.
●Check your postcode area is able to receive
the Freeview channels at www.freeview.co.uk
●Digital signals may be relatively low to
prevent interference with analogue signals
for the period of Digital Switchover. Check
the schedule of Digital Switchover at www.
digitaluk.co.uk
●Weather conditions will affect signal reception
(heavy rain, snow, etc.), in particular in poor
reception areas. Even during good weather,
high pressure can cause poor reception of
some channels.
●Due to the digital reception technologies
involved, quality of the digital signals may be
relatively low in some cases, despite good
reception of analogue channels.
●Turn the TV off with the Mains power On / Off
switch, and then on again.
●If problem persists, consult your local dealer.
Neither image nor sound is
produced
●Is the TV in AV mode?
●Check the correct AV input mode is selected.
●Check the mains lead is plugged into the
socket outlet.
●Has the TV been turned On?
●Check the Picture Menu (p. 28) and volume.
●Check all required cables and connections are
firmly in place.
Auto aspect
●Auto aspect is designed to provide you with the
best ratio to fill the screen. (p. 64)
●Press the ASPECT button if you would like to
change the aspect ratio manually (p. 16).
68
S-Video / black and white picture
●A black and white picture may be seen when the TV is
set to S-Video when the connected equipment is not.
Change the setting on the TV (p. 24).
●Check that the output of the external equipment
matches the input of the TV. If the output of the external
equipment is set to S-Video, the TV must also be set to
S-Video (p. 24).
Input mode, i.e. EC/AV1 remains
on the screen
●Press the
button to clear this message.
Press again to redisplay.
Q-Link function does not work
●Confirm SCART cable and connection.
Also set “AV1 / AV2 out” in the Setup Menu (p. 30).
“VIERA Link” function does
not work and an error message
appears
●Confirm the connection. (p. 54 and p. 55)
●Turn the connected equipment on and then switch the
TV on. (p. 57)
Recording does not start
immediately
●Check the settings of the recorder. For details, read the
manual of the recorder.
Contrast is reduced
●Contrast is lowered in the following conditions without
any user operation for a few minutes:
• no signal in DVB or AV mode
• selection of a locked channel
• selection of a invalid channel
• selection of a radio channel
• displayed menu
• digital teletext (no video contents)
• thumbnail or still picture in SD Card mode
Problem
Chaotic image, noisy
No image can be displayed
Screen
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
Actions
●Set “P-NR” in the Picture Menu (to remove noise). (p. 28)
●Check nearby electrical products
(fluorescent lamp, DECT phones, mobile phones, microwave, etc.).
●Is “Contrast”, “Brightness” or “Colour” in the Picture Menu set to the
minimum? (p. 28)
●Please also refer to “Neither image nor sound is produced” (p. 68).
●Reset channels. (p. 36 and p. 37)
●Please also refer to “Neither image nor sound is produced” (p. 68).
●Turn the TV Off with Mains power On / Off switch, then turn it On
again.
●If the problem persists, perform “Shipping Condition” (p. 46).
●Sound signal reception may be deteriorated.
●Set “NICAM” (p. 29) in the Sound Menu to “Off”. (Analogue only)
●Please also refer to “Neither image nor sound is produced” (p. 68).
Digital Channel
No programmes shown on TV
Guide
Cannot find a channel
you have previously watched
●Reset channels. (p. 36 and p. 37)
●Check the digital transmission by contacting Digital UK on
08456 50 50 50 or at www.digitaluk.co.uk
●Check the analogue broadcast (if still available in your area).
●Consult an aerial engineer to check the alignment of your aerial.
●The channel may broadcast for part of the day.
●Check the channel in the TV Guide. (p. 18)
●Channel position numbers may be changed by broadcasters.
●Reset channels. (p. 36 and p. 37)
●Frequently Asked Questions
Sound level is low
or sound is distorted
Sound
No sound is produced
●Is “Sound mute” active? (p. 8)
●Is the volume set to the minimum?
●Is Speaker Selection (VIERA Link) set to “TV”?
●Please also refer to “Neither image nor sound is produced” (p. 68).
FAQs, etc.
69
FAQs
Problem
Actions
●Set the sound setting of the connected equipment to
Sound is unusual
“2ch L.PCM”.
●Check the “HDMI1 / 2 Input” setting in the Sound Menu. (p. 29)
●If digital sound connection has a problem, select analogue sound
connection. (p. 67)
HDMI
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
●Check the HDMI cable is connected properly. (p. 62)
●Turn the TV and equipment Off, then turn them On again.
●Check an input signal from the equipment. (p. 67)
●Check the output resolution of the equipment.
●Use equipment compliant with EIA/CEA-861/861B.
●Press and hold the standby On / Off switch on the remote control
The TV does not switch On
for about 1 second if Power LED is red.
●Check the mains lead is plugged into the socket.
●The fuse in the mains plug may have blown. Replace it with one of
an identical rating (p. 4).
The TV goes into Standby mode
Other
The remote control does not work
or is intermittent
●Auto power standby function is activated. (p. 9)
●The TV enters Standby mode about 30 mins. after analogue
broadcast ends.
●Are the batteries installed correctly? (p. 6)
●Has the TV been switched On?
●The batteries may be running low. Replace them.
●Point the remote control directly at the front of the TV (within about
7 m and a 30 degree angle of the front of the TV).
●Situate the TV so that sunshine or other sources of bright light do
not shine on the TV’s remote control signal receiver.
Parts of the TV become hot
An error message appears
70
●Temperature rises of parts of the front, top and rear panels will not
pose any problems in terms of performance or quality of the TV.
●Follow the message’s instructions.
●If the problem persists, contact your local Panasonic dealer or the
authorized Service Centre.
On screen messages
Message
Meaning / Action
All tuning data will be erased
●“Shipping Condition” will erase all tuning data (p. 46).
Are you sure ?
●Confirm correct operation.
Are you sure you want to delete this
timer ?
Press OK to delete timer.
Press RETURN to return.
●Confirm correct operation.
●The signal is weak. Check the aerial is plugged in properly. It may
be necessary to have an aerial installer check the signal and aerial
alignment.
●Reset channels. (p. 36 and p. 37)
Bad signal
●The selected channel is locked in Child Lock (p. 44). You must enter the
Child Lock is active!
Press OK to enter PIN.
PIN number before the channel will be displayed.
●It is not possible to record from COMPONENT or HDMI. Connect the
recorder to the TV using a fully wired SCART cable for recording from the
TV tuner.
●Confirm Q-Link or VIERA Link settings (p. 54 - 57).
Feature not available.
Feature not available.
Press OK to view how it works.
●The selected feature on VIERA TOOLS is not available. Press the OK
button to view the demonstration to explain how to use it.
∗∗∗
Found new software version
.
Press OK to start update
(may take 40 mins)
or Press EXIT to ignore
and you can update when TV is in standby
●There is a new software available.
Invalid operation - Please check settings
and connections.
●Check the Q-Link or VIERA Link connection and setting (p. 54 - 57).
Invalid system time. Please exit !
●Cannot get the time information and cannot edit Timer Programming
Max. number of timers already set !
New channels found!
Press OK to update channel list.
Press EXIT to ignore.
●Cannot get the time information. If there is no time displayed on the
Information banner, check the connection of the RF cable.
●The maximum number of timer programming events is 15.
●There may be new channels available.
●This message will appear each time a change is made by the
broadcasters. This message can be deactivated by setting “New Channel
Message” to Off in “DVB Tuning Menu”.
Selecting OK will perform “Update Channel List”.
●Follow the on screen instructions.
●Please also refer to p. 68.
●If channels are still not found, consult your local Panasonic dealer.
No module inserted
●Check the CI module is inserted completely (p. 48).
No recording - Already recording
●The equipment may already be recording.
No recording - Check media
●The tape or disc may be “write protected”, full, missing or damaged.
No recording - Playing
●The equipment may be playing the tape or disc.
No recording - Unknown reason
●The recording may not be performed. Check the equipment.
No service
●The broadcaster has stopped the service. Check the channel in the TV
No signal
●The TV cannot detect the signal. Check the connection of the RF cable.
FAQs, etc.
No channel found.
Please check aerial or local signal
availability.
Press OK to start Auto Setup.
●On screen messages
●Frequently Asked Questions
Invalid system time, Timer Programming
will not work.
Please press TV button on remote control
and check time display on Banner
screen. Check the connection of the RF cable.
Guide. (p. 18)
71
On screen messages
Message
Meaning / Action
PIN incorrect!
●The PIN number you entered is wrong.
Please check settings and connections
on HDMI devices.
●Communication error in VIERA Link function (p. 57).
Please wait.
●A function is in progress.
Recording this channel now
●The recorder is recording the programme from its own tuner. You can turn
the TV off and leave the equipment recording in the normal way.
Reset to Factory Shipping Condition
Completed.
Please switch off TV.
●“Auto Setup” will automatically start when Mains power On / Off switch is
Sending Preset Data
●Q-Link or VIERA Link channel download is in progress.
Software successfully updated.
Press EXIT to continue.
●The software updating is finished.
Software update failed. Please try again
later.
Press EXIT to continue.
●Perform “System Update Search Now” in System Update (p. 49).
This timer will not follow the TV Guide
information.
Press OK to continue, RETURN to restore
original timer.
●If you edit the start time or end time of Guide link programming by
Timer already expired !
Timer Event Due to Start
:
has been
programmed for External recording
at
:
next turned On. (p. 12)
If this is still unsuccessful, there may not be any new software available.
more than 10 minutes, it will no longer be performed as Guide link
programming. The programming will be performed according to the time
setting.
●The starting time in Timer Programming has already passed. Set the
timer correctly (p. 43).
∗∗∗ ∗∗∗
∗∗ ∗∗
●This message will appear 2 mins. before timer programming event for
Timer incorrect !
●Set the start and end times in Timer Programming correctly (p. 43).
external recording due to start.
●Timer programming events are overlapped. Press the OK button to keep
Timer overlap.
Press OK to keep, RETURN to edit.
Tuner Locked
Press EXIT to unlock.
Any timer programme in progress will
also be deleted.
Unable to download, please check
equipment
the overlapped setting. “Ext Rec.” is given priority over “Reminder”. When
two or more “Ext Rec.” overlap, the first timer programming event starts
and finishes as programmed. The next timer programming event can then
start.
●If you want to unlock the tuner, cancel Direct TV Recording (p. 56 and
p. 58) or Ext Rec. of Timer Programming (p. 43).
●The tape or disc is active. Stop the equipment and try again.
■Media Player
72
Cannot read file
●The file is damaged or unreadable.
●The TV does not support the format.
No SD card inserted
●Confirm the SD Card is inserted correctly.
No valid file to play
●The card has no data.
Please confirm the SD card is OK
●The inserted SD Card has a problem.
This operation is not possible
●The selected operation is not available.
(For the applicable formats and data
p. 65)
Maintenance
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.
For stubborn dirt:
Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring
the cloth and wipe the surface. Finally, wipe away all the moisture.
Caution
●Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
●Take care not to subject the TV’s surfaces to water or detergent more than requires. A liquid inside the TV could
lead to product failure.
●Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may
degrade surface quality or cause peeling of the paint.
●Take care not to tap or scratch the surface with your fingernail or other hard objects.
●Do not allow the cabinet or pedestal to make contact with a rubber or PVC substance for a long time. This may
degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Glossary
■AVCHD
Advanced Video Codec High Definition - A standard
for high definition video cameras that can be used to
record and play high resolution HD images
Digital Visual Interface - A high quality video interface
standard to connect to the display
■EPG
Electronic Programme Guide - A digital guide showing
scheduled programmes
■HDMI
High-Definition Multimedia Interface - A digital audio
and video interface for transmitting uncompressed
digital signals on a single cable
■JPEG
Joint Photographic Experts Group - A standard for
compressing colour still pictures
■MPEG2
■NTSC
National Television System Committee - One of the
television signals used in USA, etc.
■RF
Radio Frequency - Signal received from terrestrial
aerial
■RGB / S-Video / Video
Choose between these three video formats
depending on personal preference and equipment
requirement
(RGB - Red, Green and Blue)
■SCART
21 pin connection used for video, audio and switching
signals (Also known as Euro SCART and Peritel)
■Shop viewing environment
Shop viewing environment is the demonstration
mode to explain main features of this TV in an easy
understandable way. This mode will work if you select
“Shop” in “Auto Setup” (p. 12).
■SPDIF
A standard audio transfer file format
■VCR
Video Cassette Recorder
FAQs, etc.
Moving Picture Experts Group phase 2 - A standard
for efficiently compressing and expanding colour
videos
Near Instantaneous Companded Audio Multiplex A format for digital sound over television
●Maintenance ●Glossary
●On screen messages
■DVB
Digital Video Broadcasting
■DVD
Digital Versatile Disc
■DVI
■NICAM
73
Index
A Accessories ······································································· 6
B
C
D
E
F
G
H
I
L
M
Analogue Tuning Menu ············································· 37, 40
Aspect ······································································· 16, 64
Audio Description ······················································ 17, 29
Auto Setup··························································· 12, 36, 37
Auto Standby ··································································· 32
AV1 / AV2 out····························································· 30, 56
Banner Display Timeout ·················································· 31
Category list ···································································· 18
C.A.T.S. ··········································································· 28
Channel List ······························································ 39, 41
Channel Sorting by Region ············································· 38
Child Lock········································································ 44
Common Interface ··························································· 48
COMPONENT ··························································· 63, 67
Connection ········································ 10, 11, 54, 55, 62, 63
Direct TV Recording ·················································· 56, 58
DVB Tuning Menu ····················································· 36, 38
DVI ·················································································· 67
DVI Input Setting ····························································· 32
DVD Recorder ········································· 10, 11, 25, 62, 63
EPG ················································································· 18
External equipment ································· 10, 11, 24, 62, 63
External input ···························································· 24, 25
FAQs ·········································································· 68-70
Favourites Edit ································································ 39
Free input menu ························································ 27, 66
Glossary ·········································································· 73
Guide link programming ·················································· 19
GUIDE Plus+ Settings ····················································· 32
HDMI ··································································· 66, 67, 75
Hold ··········································································· 15, 22
Home Cinema ································································· 61
Information banner ·························································· 15
Input Labels ····································································· 45
Input signal ······································································ 67
Last view ········································································· 17
Licence ············································································ 74
Mains Lead ······································································ 11
Mains power On / Off switch ······································· 9, 12
Maintenance ···································································· 73
Manual Tuning ··························································· 38, 41
Media Player ······························································ 50-53
Menu Functions ·························································· 27-35
Mode ··············································································· 29
Monaural Audio ······························································· 17
Multi Audio ······································································· 17
N New Channel Message ··················································· 40
O
P
Q
R
S
T
U
V
W
Z
NICAM ············································································· 29
Normalise ···································································· 8, 27
NTSC········································································· 28, 75
Off Timer ···································································· 17, 30
Optional accessories ························································· 6
Owner ID ··································································· 12, 47
PAL ·················································································· 75
Pedestal ············································································ 7
Photo mode ····································································· 50
PIN number ························································· 12, 44, 47
Playing Time Display ······················································· 31
P-NR················································································ 28
Power and Timer LED ··········································· 9, 19, 42
Q-Link ·································································· 30, 54, 56
Q-Link Download ······················································· 12, 30
Quick Start Guide ························································· 6-13
Radio Mode ····································································· 31
Remote control ······························································ 6, 8
Reset to Defaults ······················································· 28, 29
RGB················································································· 75
Sales and Support Information ········································ 76
Satellite receiver ························································ 11, 62
SCART ······································································ 66, 75
SD Card····································································· 50, 65
Search list········································································ 18
Shipping Condition ·························································· 46
Signal Condition ······························································ 40
Slideshow ········································································ 50
Specifications ·································································· 75
Split Programme······························································ 19
Subtitles····································································· 16, 23
S-Video ······································································ 66, 75
System Update ································································ 49
Teletext ······································································· 21-23
Timer Programming ··················································· 19, 42
TV Guide ···································································· 18-20
Update Channel List ························································ 40
V-Audio ············································································ 29
VCR ························································· 10, 11, 25, 62, 63
Video mode ····································································· 52
VIERA Link ····················································· 54, 55, 57-61
VIERA TOOLS ································································· 26
Viewing Mode ·································································· 28
Vivid Colour ····································································· 28
Volume Correction ····················································· 17, 29
WSS ················································································ 64
Zoom ··············································································· 16
Licence
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
●DVB and the DVB logos are trademarks of the DVB Project.
●SDXC Logo is a trademark of SD-3C, LLC.
●HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
●HDAVI Control™ is a trademark of Panasonic Corporation.
●“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.
●x.v.Colour™ is a trademark.
●Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
●GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3) subject
of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International,
Inc. and/or its related affiliates.
74
Specifications
TX-P42U20B
TX-P50U20B
AC 220-240 V, 50 / 60 Hz
275 W
320 W
0.40 W
Standby Power Consumption
15.00 W (With monitor out recording)
Aspect Ratio
16:9
106 cm (diagonal)
127 cm (diagonal)
Visible screen size
921 mm (W) × 518 mm (H)
1,105 mm (W) × 622 mm (H)
Number of pixels
2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
Speaker
160 mm × 40 mm × 2 pcs, 6 Ω
Audio Output
20 W (10 W + 10 W)
Headphones
M3 (3.5 mm) stereo mini Jack × 1
PAL I
UHF E21-68
PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc
Receiving Systems /
playback from DVD player and recorder.
Band name
DVB-T
Digital terrestrial services via UHF aerial input.
M.NTSC
Playback from M.NTSC Video recorders (VCR).
NTSC (AV input only) Playback from NTSC Video recorders (VCR).
Aerial input
UHF
Temperature : 0 °C - 35 °C
Operating Conditions
Humidity
: 20 % - 80 % RH (non-condensing)
AV1 (SCART terminal)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 (SCART terminal)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
VIDEO
RCA PIN Type × 1
1.0 V[p-p] (75 Ω)
AV3
AUDIO L - R RCA PIN Type × 2
0.5 V[rms]
Y
1.0 V[p-p] (including synchronization)
COMPONENT VIDEO
PB, PR
±0.35 V[p-p]
TYPE A Connectors
HDMI1 : HDMI (Version 1.3 with x.v.Colour™)
HDMI 1 / 2
HDMI2 : HDMI (Version 1.4 with Audio Return Channel) , x.v.Colour™
Others
●This TV supports “HDAVI Control 5” function.
SD Card slot × 1
Card slot
Common Interface slot × 1
AUDIO L - R RCA PIN Type × 2
0.5 V[rms] (high impedance)
Output
DIGITAL
PCM / Dolby Digital, Fiber optic
AUDIO OUT
1,029 mm × 704 mm × 334 mm (With Pedestal) 1,218 mm × 814 mm × 401 mm (With Pedestal)
Dimensions (W × H × D)
1,029 mm × 661 mm × 93 mm (TV only)
1,218 mm × 769 mm × 93 mm (TV only)
31.0 k Net (With Pedestal)
25.0 k Net (With Pedestal)
Mass
23.0 k Net (TV only)
29.0 k Net (TV only)
Power Source
Rated Power Consumption
Display
panel
Sound
Connection Terminals
EN55013, EN61000-3-2, EN61000-3-3, EN55020
GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR
THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO
EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY
AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES
RELATING TO THE GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
FAQs, etc.
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to
(i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a
consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide
AVC Video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
●Specifications
●Index ●Licence
●Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
●This equipment complies with the EMC standards listed below.
75
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products
and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products
and used batteries, please take them to applicable collection points, in accordance with your national legislation and the
Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your
waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or
dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.
Sales and Support Information
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information: www.panasonic.co.uk
• E-mail: [email protected]
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre
Monday ─ Thursday 9:00am ─ 5:30pm, Friday 9:30am ─ 5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website
for further details.
Declaration of Conformity (DoC)
If you want to get a copy of the original DoC of this TV, please visit the following website:
http://www.doc.panasonic.de
Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Panasonic (U. K.) Ltd.
Serial Number
M0310-0
Willoughby Road, Bracknell, Berks RG12 8FP
Web Site : http://panasonic.net
© Panasonic Corporation 2010
Printed in Czech Republic
