AEG T65476AH1 heat pump tumble dryer boasts a generous 7 kg drum capacity, making it ideal for medium-sized households. It features a sensor drying system that automatically adjusts the drying time and temperature to protect your clothes, and a handy time delay function that lets you dry your laundry whenever it suits you.
advertisement
▼
Scroll to page 2
of 24

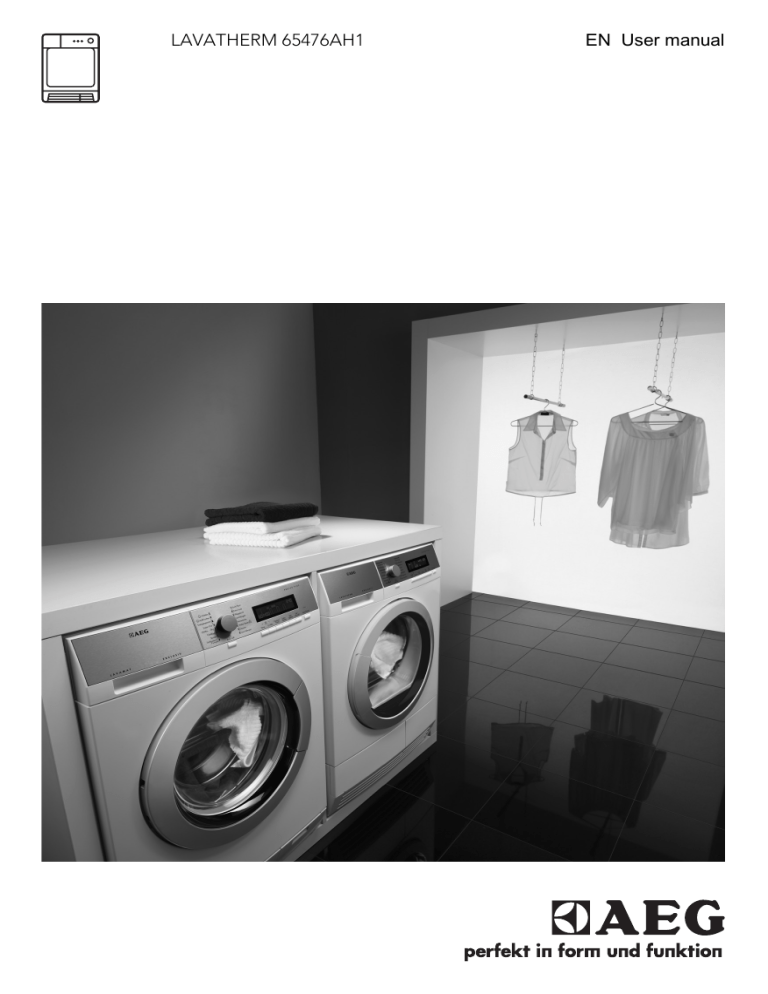

LAVATHERM 65476AH1 EN User manual 2 www.aeg.com CONTENTS 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 USING THE APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website for: Get usage advice, brochures, trouble shooter, service information: www.aeg.com Register your product for better service: www.aeg.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop CUSTOMER CARE AND SERVICE We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice. ENGLISH 1. 3 SAFETY INSTRUCTIONS Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction for the operation of the appliance by a person who is responsible for their safety. • Do not let children play with the appliance. • Keep all packaging away from children. • Keep all detergents away from children. • Keep children and pets away from the appliance door when it is open. • Cleaning and user maintenance shall not be made by children without supervision. 1.2 Installation • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean. • Do not install or use the appliance where the temperature is less than 5°C or higher than 35°C. • Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, • • • • • • • • • • where the appliance door can not be fully opened. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Always move the appliance vertically. The rear surface of the appliance must be put against the wall. Make sure that there is air circulation between the appliance and the floor. Make sure the carpet does not obstruct the ventilation openings in the base of the appliance (if applicable). Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. (if applicable) If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions, supplied with the accessory. Read it carefully before installation (Refer to the Installation leaflet). Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. The appliance can be installed as freestanding or below the kitchen counter with correct space (Refer to the Installation leaflet). When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is. Electrical connection WARNING! Risk of fire and electrical shock. • The appliance must be earthed. • Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. • Always use a correctly installed shockproof socket. 4 www.aeg.com • Do not use multi-plug adapters and extension cables. • Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre. • Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. • Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. • Do not touch the mains cable or the mains plug with wet hands. • This appliance complies with the E.E.C. Directives. 1.3 Use WARNING! Risk of fire, explosion, electric shock or damage to the appliance • Use this appliance in a household only. • Do not change the specification of this appliance. • The final part of the drying cycle occurs without heat (cool down cycle) to ensure that the items will not be damaged. If you stop the appliance before the end of the drying cycle, immediately remove and spread out all items, so that the heat can dissipate. • If you use fabric softener or similar products, obey the instructions on the packaging. • Do not run the appliance without a filter. Clean the lint filter before or after each use. • Wipe away lint that has accumulated around the appliance. • Do not dry the damaged items which contain padding or fillings. • Do not dry items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads.. • Before drying items that have been in contact with substances such as cooking oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes and wax removers, wash them in hot water with an extra amount of detergent. • Do not dry items in the appliance if industrial chemicals have been used for cleaning. • Make sure that no gas lighters or matches have been left in the pockets of the clothing. • Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label. • Do not dry not washed items in the appliance. • If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer. • Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets. • Do not sit or stand on the open door. • Obey the maximum load volume of 7 kg (refer to the “Programme chart” chapter). • Do not dry dripping wet clothes in the tumble dryer. 1.4 Care and Cleaning WARNING! Risk of injury or damage to the appliance. • Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. • Do not use water spray and steam to clean the appliance. • Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. 1.5 Disposal WARNING! Risk of injury or suffocation. ENGLISH • Disconnect the appliance from the mains supply. • Cut off the mains cable and discard it. • Remove the door catch to prevent children and pets to get closed in the appliance. • The compressor and its system in the tumble dryer is filled with the special agent which is free from fluoro-chlorohydrocarbons. This system must stay tight. The damage of the system can cause a leakage. Compressor WARNING! Risk of damage of the appliance. 2. PRODUCT DESCRIPTION 1 2 3 4 11 5 10 6 9 7 8 1 Water container 7 Adjustable feet 2 Control panel 8 Heat exchanger door 3 Load door (reversible) 4 Primary filter 9 Heat exchanger filters cover 10 Lock knob 5 Sliding button to open the heat ex- 11 Rating plate changer door 6 Airflow slots 5 6 www.aeg.com 3. ACCESSORIES 3.1 Stacking kit in loop. Decrease the length of the hose if necessary. Read carefully the instructions supplied with the accessory. 3.3 Pedestal with the drawer Accessory name: SKP11, STA8, STA9 Available from your authorized vendor. Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached. Read carefully the instructions supplied with the accessory. 3.2 Draining kit Accessory name: PDSTP10. It is available from your authorized vendor. To put the appliance higher at the level which helps to easy load and remove the laundry. The drawer can be used for laundry storage e.g. : towels, cleaning products and more. Read carefully the instructions supplied with the accessory. 3.4 Drying rack Accessory name: DK11. It is available from your authorized vendor (can be attached to some types of the tumble dryers) The accessory for through draining of the condensed water into a basin, siphon, gully, etc. After the installation, the water container is drained automatically. The water container must stay in the appliance. The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be Accessory name: RA5, RA6, RA11, RA12 It is available from your authorized vendor (can be attached to some types of the tumble dryers). Do the check with the vendor or on the web site if the accessory is compatible with your appliance. ENGLISH Drying rack accessory let to dry safely in the tumble dryer: • sport shoes • wool 7 • soft toys • lingerie Read carefully the instructions supplied with the accessory. 4. CONTROL PANEL 1 2 3 4 5 6 1 The programme dial 7 The display 2 The 8 The 3 The On/Off push button Anticrease push button 4 The Buzzer push button 5 The Time Drying push button 6 The Delay Start push button 7 8 9 Start/Pause push button 9 The indication lamps: drain the water container, clean the primary filter, clean the heat exchanger filters 5. BEFORE FIRST USE Clean the tumble dryer drum with a moist cloth or set a short programme (e.g. 30 minutes time programme) with the load of moist cloths. At the beginning of drying cycle (3-5 min.) there could be a slightly higher sound level. It is because of start of the compressor that is normal for compressor powered appliances such: refrigerators, freezers . 6. PROGRAMMES Programmes Load1 ) Properties / Fabric mark Cottons Available functions 8 www.aeg.com Programmes Load1 ) Properties / Fabric mark Available functions Extra Dry 7 kg To dry cotton pieces of clothing. Drying level: extra dry. / all except: Time Drying Strong 7 kg To dry cotton pieces of clothing. Drying level: strong dry. / all except: Time Drying Cupboard 7 kg To dry cotton pieces of clothing. Drying level: cupboard dry. / all except: Time Drying 7 kg To dry cotton pieces of clothing. Drying level: applicable to iron. / all except: Time Drying Jeans 7 kg To dry leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams). / all except: Time Drying Pillows 3 kg To dry single or double duvet and pillows (with feather, down or synthetic fillings). / all except: Anticrease and Time Drying Dry Dry 2) Iron Dry 2) Time 7 kg To dry laundry with the time set by the user. The time value must be related to the load. To dry one item or small quantities of the laundry we recommend to use short times. / all Synthetics To dry synthetic pieces of clothing. Drying level: extra dry. / all except: Time Drying Cupboard 3,5 kg To dry synthetic pieces of clothing. Drying level: cupboard dry. / Dry 2) all except: Time Drying Extra Dry Iron Dry 3,5 kg To dry synthetic pieces of clothing. 3,5 kg Drying level: applicable to iron. / all except: Time Drying ENGLISH Programmes Easy Iron Load1 ) Properties / Fabric mark Available functions To dry easy care fabrics such shirts and blouses; for minimum ironing effort. The results can be different for to 1 kg the different types of fabric and its (or 5 finish. Put fabrics in the tumble dryer shirts) straight. After the cycle, immediately remove dried fabrics and put on a cloths hanger. / all except: Time Drying Sports 2 kg To dry sportswear, thin fabrics, microfiber, polyester, which are not ironed. all except: Time Drying Silk/ Lingerie 1 kg To dry silk/lingerie with warm air and gentle movement. / all except: Anticrease Time and Drying Wool Refresh 1 kg To refresh the cloths made of wool. The cloths become soft and cosy. We recommend to remove the cloths immediately after the programme end. / 9 Buzzer , Time Drying 3), Delay Start 1) Maximal weight of dry clothes 2) For test institutes only: To make a performance test use the standard programmes which are specified in the EN 61121 document. You must clean the heat exchanger filters after each 3 cycles. 3) Only with the drying rack — see chapter ACCESSORIES 7. USING THE APPLIANCE 7.1 Preparing the laundry Dry only the laundry applicable to dry in the tumble dryer. Make sure if the laundry is applicable to dry in the tumble dryer. Do the check of the fabric mark on the clothes. Fabric Property mark Applicable to dry in the tumble dryer Applicable to dry in the tumble dryer at standard temperature Fabric Property mark Applicable to dry in the tumble dryer at decreased temperature Not applicable to dry in the tumble dryer Correctly prepare the laundry: • close zips, button up duvet covers and attach loose ties or ribbons (e.g. ribbons of aprons) - laundry can tangle • make sure the pockets are empty - remove metal items (paper clips, safety pins, etc.). 10 www.aeg.com • turn items with 2 fabric layers inside out (e.g. cotton lined anoraks, the cotton fabric layer must be external). Dry only: • cotton and linen with Cottons programmes • synthetic and mixtures with Synthetic programmes • separately the strong coloured textiles and the light coloured textiles - colours can bleed • cotton jersey and knitwear only with the applicable programmes - items can shrink Do not put more laundry than the maximum load which is 7kg. 7.2 Loading the laundry 1. 2. 3. Pull the appliance door Load loosely the laundry. Close the appliance door. CAUTION! Do not lock the laundry in between the appliance door and rubber seal. 7.3 Switching on the appliance Push the On/Off button to activate or to deactivate the appliance. When the appliance is on, some indications come in to the view on the display. 7.5 Setting a programme Use the programme dial to set the programme. The possible time to complete the programme come into view on the display. The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For the other programmes the drying time is related to the recommended loads. The drying time of the cotton and jeans programmes with the load more than 5 kg is longer. 7.6 Special functions Together with the programme you can set 1 or more special functions. To activate or deactivate the function push the applicable push button. 7.4 Auto stand-by function To decrease the energy consumption, the automatic stand-by function deactivates the appliance: • if the Start/Pause button was not pushed in the time of 5 minutes. • after 5 minutes from the programme end. Push the On/Off button to activate the appliance. When the function is activated the LED above the push button comes into the view. On/Off Anticrease Buzzer Time Drying Delay Start Start/Pause ENGLISH 7.7 The Anticrease function Extends anticrease phase (30 minutes) at the end of the drying cycle to 90 minutes. This function prevents laundry from creases. Laundry can be removed during the anticrease phase. 7.8 The Buzzer function When the buzzer function is activated you can hear the buzzer at the: • cycle end • anti-crease phase start and end • cycle interruption The buzzer function is by default always on. You can use this function to activate or deactivate the sound. 7.9 The Time Drying function Operates only with the Time programme. Lets the user to set special time of drying programme from minimum 10 min. to maximum of 2 hours (in 10 min. steps). 7.10 The Delay Start function Let to delay the start of a drying programme from minimum of 30 minutes to maximum of 20 hours. 1. Set the drying programme and functions. 2. Push the Delay start button again and again until the necessary time of the delay come into the view on the if the programme display (e.g. has to start after 12 hours.) 3. To activate the Delay start function, push the Start/Pause button. The time to start decreases on the display. 7.11 Starting a programme 11 To activate the programme push the Start/Pause button. The LED above the push button changes the color to red. 7.12 Change a programme To change a programme, turn the programme selector to Stop and then set the programme again. 7.13 Child lock function The child lock can be set to prevent the children to play with the appliance. The child lock function locks all push buttons and the programme dial (this function does not lock On/Off button). To activate the child lock function push the Time Drying and Delay Start buttons at come the same time until the symbol into view on the display. To deactivate push again the above buttons until the symbol go out of view. You can activate the child lock function: • before you push the Start/Pause button - the appliance cannot start • after you push the Start/Pause button - all the push buttons and the programme dial are deactivated 7.14 At the end of programme When the drying cycle is completed, the symbol flashes on the display. If the Buzzer function is on, an acoustic signal sounds intermittently for one minute. To remove the laundry: 1. Push the On/Off button for 2 seconds to deactivate the appliance. 2. Open the appliance door. 3. Remove the laundry. 4. Close the appliance door. After each drying cycle: • clean the filter • drain the water container (See chapter CARE AND CLEANING.) 12 www.aeg.com 8. HINTS AND TIPS 8.1 Ecological hints • Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically. • Use the condensate as distilled water, e.g. for steam ironing. If it is necessary clean the condensate before (e.g. with a coffee filter) to remove possible small pieces of fluff. • Always keep the airflow slots on the bottom of the appliance clear. • Use the load volumes which are specified in the programmes chapter. • Make sure that is good airflow in the appliance installation position. • Clean the primary filter after each drying cycle. • Clean the heat exchanger filters when the applicable indicator comes into the view on the control panel. • Spin good the laundry before drying. 8.2 Adjustment of the remaining laundry moisture degree To change the default degree of the remaining moisture of the laundry: 1. Turn the programme dial to available programme. 2. Push at the same time the Anticrease and the Time Drying buttons. Hold down until one of the symbols go into view on the display: – the maximum dry laundry – the more dry laundry – the default dry laundry Push the Start Pause button again and again until you set necessary level. 4. To memorise the setting push at the same time the Anticrease and the Time Drying buttons. 3. 8.3 Water container full — indication By default the indication LED is always on. It comes into the view at the end of the cycle or when the water container is full. When you use an external equipment to drain the container, the LED can be off. To activate or deactivate the indication: 1. Turn the programme dial to available programme. 2. Push at the same time the Anticrease and Delay Start buttons and hold down until you see the correct setting: – the LED is off and the symbol goes into the view - The LED is permanently off – the LED is on and the symbol goes into the view - The LED is activated 9. CARE AND CLEANING 9.1 Cleaning the primary filter At the end of each cycle the applicable indicator (clean the primary filter) is on to tell you that the primary filter must be cleaned. The filter collects the fluff. The fluff occurs while the cloths are dried in the tumble dryer. ENGLISH 13 To clean the primary filter: 1 1. 2. Open the door. Pull the filter. 3. Open the filter. 4. Use a moist hand to clean the filter. 5. If necessary clean the filter with warm water using a brush. Close the filter. 2 14 www.aeg.com 6. Remove fluff from the filter socket. For this a vacuum cleaner can be used. 7. Put the filter inside the filter socket. CAUTION! Do not operate the tumble dryer without the primary filter or with damaged or blocked filter. Clean the primary filter after each drying cycle. Clogged filter increases the cycle time and causes higher energy consumption. If the condensed water container is full, the programme breaks off automatically and the drain the condensed water container LED is on. To continue the programme, drain the condensed water container and press the start button. To drain the condensed water container automatically you can install draining accessory (see chapter: ACCESSORIES) 9.2 Draining the condensed water container Drain the condensed water container after each drying cycle. To drain the condensed water container: 1. Pull the condensed water container and keep it in horizontal position. 2. Move the plastic connection out and drain the condensed water container into a sink or equivalent receptacle. 3. Move plastic connection in and install water container. WARNING! Risk of poisoning. The condensed water is not applicable to drink or to prepare food. The condensed water can be used as distilled water, e.g. for steam ironing. If necessary filter the condensed water (e.g. with a coffee filter) to remove possible residue and small pieces of fluff. 9.3 Cleaning the heat exchanger filters If the applicable indicator (clean the heat exchanger filters) is on, the filters must be cleaned. The frequency to clean the filters is related to the laundry type and its quantity. If you dry with the maximum load, clean the filters after each 3 cycles. ENGLISH 15 To clean the filters: 1. 2. Open the loading door. Move the release button on the bottom of the door opening and open the heat exchanger door. 3. Turn the blockage to unlock the heat exchanger cover. 4. Lower the heat exchanger filters cover. 5. Lift the primary filter. Hold the heat exchanger filter and pull it out from the bottom compartment. 16 www.aeg.com 6. Push the hook to open the filter. 7. Use a moist hand to clean the filter. If necessary clean the filter with warm water using a brush. Close the filter. 8. Clean the small filter from the base ENGLISH 9. CAUTION! Do not operate the tumble dryer when the heat exchanger filters are blocked with fluff. This could cause the damage to the tumble dryer. This also increases energy consumption. Do not use sharp objects to clean the heat exchanger compartment. Do not operate the tumble dryer without the filters. 9.4 Cleaning the drum WARNING! Disconnect the appliance before you clean it. Use a standard neutral soap detergent to clean the inner surface of the drum 17 If necessary, one time for each 6 months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner. 10. Put the small filter and heat exchanger filter back. 11. Close the heat exchanger cover. 12. Lock the blockage until it snaps. 13. Close the heat exchanger filters cover. 14. Close the heat exchanger door. 15. Put the primary filter. and drum ribs. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use abrasive materials or steel wool to clean the drum. 9.5 Cleaning the control panel and housing Use a standard neutral soap detergent to clean the control panel and housing. Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. CAUTION! Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance. 18 www.aeg.com 10. TROUBLESHOOTING 10.1 Troubleshooting Problem1) Possible cause The tumble dryer is not connected to mains supply. Remedy Connect in at mains socket. Check fuse in fuse box (domestic installation). The loading door is opened. Close the loading door. The tumble The On/Off button was not Push the On/Off button. dryer does pushed. not operate. The Start/Pause button was not Push the Start/Pause button. pushed. Unsatisfactory drying results. The door does not close. Err (Error) on the display. No drum light 5) The appliance is in the standby mode. Push the On/Off button. Incorrect programme selection. Do the selection of the applicable programme. 2) The filter is clogged. Clean the filter. 3) The Dry Plus function was in minimum mode. Change the Dry Plus function to the moderate or maximum mode. The heat exchanger filters are clogged. Clean the heat exchanger filters. 3) Too high volume of the load. Obey the maximum load volume. The airflow grill is clogged. Clean the airflow grill in the bottom of the appliance. Dirt on the inner surface of the drum. Clean the inner surface of the drum. Too high water hardness. Set applicable water hardness4). The filter not locked in the position. Put the filter in the correct position. The laundry is locked between the door and the seal. Put the load correctly in the drum. You try to change the programme or the function after the start of the cycle. Turn the tumble dryer off and on. Make the new selection. The function you try to activate Turn the tumble dryer off and is not applicable with the selecon. Make the new selection. ted programme. Defective drum light. Contact the service centre to replace the drum light. ENGLISH 19 Problem1) Possible cause Abnormally elapsing time on the display.) The time to end is calculated on the basis of the volume and dampness of the laundry. The automatic procedure — this is not the appliance malfunction. Programme inactive. The water container is full. Drain the water container3) , push the Start/Pause button. Too small laundry volume. Do the selection of time programme. The time value must be related to the load. To dry one item or small quantities of the laundry we recommend to use short times. The laundry is too dry. Do the selection of time programme or higher drying level (e.g. Extra Dry ) The filter is clogged. Clean the filter. Too high volume of the load. Obey the maximum load volume. Remedy Drying cycle too short. Drying cycle The laundry not spun sufficientSpin correctly the laundry. too long 6) ly. Very high room temperature this is not the appliance malfunction. If possible, lower the room temperature. 1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Make a selection of the new programme. Push the Start/Pause button. Does not operate? - contact the service centre and give the error code. 2) follow the programme description — see PROGRAMMES chapter 3) see CARE AND CLEANING chapter 4) see section WATER HARDNESS in HINTS AND TIPS chapter 5) Only the tumble dryers with drum light. 6) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle complete section). 11. TECHNICAL INFORMATION height x width x depth 850 x 600 x 600 mm (maximal 640 mm) drum volume 118 l maximum depth with the load door opened 1090 mm 20 www.aeg.com maximum width with the load door opened 950 mm adjustable height 850 mm (+ 15 mm - feet regulation) the appliance weight 50 kg maximum load volume 7 kg voltage 230 V frequency 50 Hz necessary fuse 5A total power 950 W energy efficiency class A+ energy consumption kWh/cycle 1) 2,17 kWh annual energy consumption2) 260 kWh left—on mode power absorption 0,44 W off mode power absorption 0,44 W type of use Domestic permitted ambient temperature + 5°C to + 35°C 1) 7 kg of cotton, centrifuged at 1000 rpm with reference to EN 61121 2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012). 12. INSTALLATION 12.1 Unpacking CAUTION! Before use all parts of the transport packaging must be removed. To remove the polystyrene blockages: 1. Open the load door. 2. Pull plastic hose with the polystyrene blockages out from the drum. It is possible to adjust the height of the tumble dryer. To do that adjust the feet (see picture). ENGLISH 21 600 mm 15mm > 850 mm 600 mm 12.2 Installation under a counter 12.3 The load door reversal The appliance can be installed as freestanding or below the kitchen counter with correct space (see picture). The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance. (see separate leaflet). 13. ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office. 22 www.aeg.com ENGLISH 23 136922442-A-302013 www.aeg.com/shop
