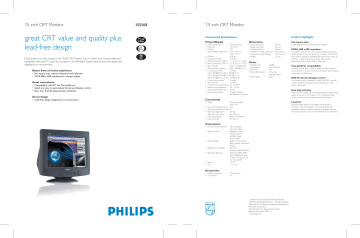

15 inch CRT Monitor
great CRT value and quality plus
lead-free design
Great quality and value merge in the 105S6 CRT monitor. Easy to install, easy to personalize and
compatible with both PC and Mac computers, this affordable display features lead-free design that
safeguards our environment.
Better front of screen experience
• Flat square tube reduces distortion and reflection
• SVGA 800 x 600 resolution for sharper display
105S68
15 inch CRT Monitor
Commercial Specifications
Product Highlights
Picture/Display
Dimensions
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Display screen type
Panel size
Phosphor
Recommended display area
Flat square tube
15"/ 36 cm
P22
270 x 202 mm
(10.6" x 8.0")
Dot pitch
0.28 mm
Horizontal dot pitch
0.24 mm
White chromaticity, 6500º K x = 0.313 / y = 0.329
White chromaticity, 9300º K x = 0.283 / y = 0.297
Max. resolution
1024 x 768 @ 60 Hz
Recommended resolution
800 x 600 @ 85 Hz
Factory preset modes
6 modes:
640 x 480 @ 60 Hz, 640 x 480 @ 75 Hz,
720 x 400 @ 70 Hz, 800 x 600 @ 75 Hz,
800 x 600 @ 85 Hz, 1024 x 768 @ 60 Hz
Factory preload modes
9 modes
Video dot rate
75 MHz
Horizontal scanning frequency 30 - 54 KHz
Vertical scanning frequency
50 - 120 Hz
Recommended refresh rate
85 Hz
Screen enhancements
Anti-glare Polarizer,
Anti-Reflection, Anti-Static
Great convenience
• Compatibility with PC and Mac platforms
• Quick and easy to personalize On-Screen-Display control
• Easy, user friendly plug-and-play installation
•
•
•
•
•
•
Green design
• Lead-free design safeguards our environment
Connectivity
Flat square tube
Depth (with base)
Height (with base)
Width (with base)
Temperature range (operation)
Temperature range (storage)
Weight
387 mm
362 mm
360 mm
0°C to 40°C
-25°C to 65°C
11.5 kg
Power
•
•
•
•
Complies with
Consumption
Off mode
Power LED indicator
• Power supply
NUTEK
62 W (Typical)
5W
Off, amber;
Operation, green
Built-in
• OSD languages
• Plug & Play compatibility
• Regulatory approvals
• Swivel
• Tilt
The ability to work with a variety of platforms; Philips monitors
are compatible to connect with PC by employing a VGA connection
and connect with Macintosh.
OSD On-Screen-Display control
Lead-free
Lead-free display products are designed and produced in
compliance with strict European Community Restriction of
Hazardous Substances (RoHS) standards that restrict lead and
other toxic substances that can harm health and the environment.
Menu languages,
On-screen display
Brightness control,
Contrast control,
Left/Right, Menu,
Power On/Off
English, French, German,
Italian, Spanish, Portuguese,
Russian
DDC 2B
Windows 98/ME/2000/XP
FDA, EZU, MEEI, PCBC,
GOST, SEMKO, CE Mark,
TÜV/GS, TÜV Ergo, FCC-B,
UL, CSA, NUTEK
+/- 90°
-5° to 15°
Accessories
• Included accessories
• User manual
Two-platform compatibility
Plug-and-play is a perpheral connectivity standard. A plug and play
display device can be connected to a PC and operate without
requiring user intervention to adjust complicated settings.
Convenience
• Monitor controls
For graphics monitors, the screen resolution signifies the number
of dots (pixels) on the entire screen. For example, a 800-by-600
pixel screen is capable of displaying 800 distinct dots on each of
600 lines, or about 600 thousand pixels. SVGA provides
resolutions of 640 by 480 or 800 by 600 pixels.
Easy plug-and-play
D-sub Video cable,
Power cord
Sync input impedance (ohm) 4.7 k
Video input impedance (ohm) 75
Video input signal levels
0.7 Vpp
Video sync input signal
Separate sync
Video sync polarities
Positive and Negative
Cable connection
AC Power in
• Convenience enhancements
SVGA, 800 x 600 resolution
An on-screen panel for adjusting a monitor. The OSD is used for
contrast, brightness, horizontal, vertical positioning and other
monitor adjustments.
• Cables
•
•
•
•
•
•
A tube designed to reduce distortion and reflection.
AC Power cord
Yes
Trademarks owned by Royal Philips Electronics
2004 © Royal Philips Electronics - All rights reserved
Microsoft and Windows are registered trademarks of
Microsoft Corporation.
All data subject to change without notice
Release date: January 2005, v.2
