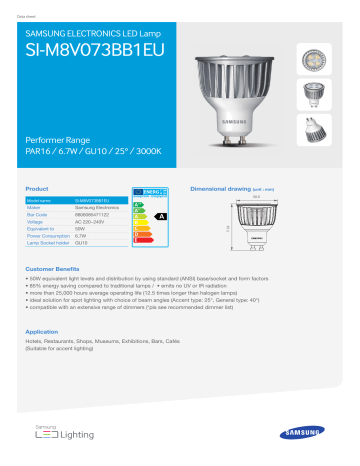

Data sheet
SAMSUNG ELECTRONICS LED Lamp
SI-M8V073BB1EU
Performer Range
PAR16 / 6.7W / GU10 / 25° / 3000K
Product
Dimensional drawing (unit : mm)
SI-M8V073BB1EU
Maker
Samsung Electronics
Bar Code
8806085471122
Voltage
AC 220~240V
Equivalent to
50W
Power Consumption
6.7W
Lamp Socket holder
GU10
50.0
61.0
Model name
Customer Benefits
• 50W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 85% energy saving compared to traditional lamps / • emits no UV or IR radiation
• more than 25,000 hours average operating life (12.5 times longer than halogen lamps)
• ideal solution for spot lighting with choice of beam angles (Accent type: 25°, General type: 40°)
• compatible with an extensive range of dimmers (*pls see recommended dimmer list)
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
SAMSUNG ELECTRONICS LED Lamp
SI-M8V073BB1EU
Specifications
Lighting Data
SI-M8V073BB1EU
Lumen output (lm)
Lamp efficacy (lm/W)
Frequency (Hz)
Input current (mA)
Power factor
CBCP (cd)
Lumen Maintenance Factor
Warm-up time
Color consistency
On/Off cycles
Beam angle (°)
Operating temperature (°C)
Average lifetime (hrs)
Color description
Color temperature (K)
CRI (Ra)
Diameter (mm)
Overall length (mm)
370
55
50/60
32
≧ 0.8
1,650
L70
Instant full light
≤ MacAdam 6-step
50,000
25
-20~+40
25,000 (25.4 years*)
Warm White
3000
80
50.0
61.0
0.1
Yes
85
A
Starting time (s)
Dimmable
Weight (g)
Energy Efficiency Index
(0~180)
1700
(90~270)
1000
500
100
(uni : cd)
90°
1m
1650 lx
2m
413 lx
3m
183 lx
90°
60°
60°
30°
30°
0°
Light Distribution
Spectral power density [Arb.]
Model name
Illuminance (lx)
1.20
1.00
0.80
0.60
0.40
0.20
0.00
380
430
480
530
580
630
680
730
780
Wavelength [nm]
Spectral Power Distribution
Packaging Details
Energy consumption
(kWh/1000h)
7
• Single Box (1pc) : 54mm×54mm×75mm / 120g
Certification
CE
• Middle Box (10pc/box) : 285mm×115mm×80mm / 1,290g
• Outer carton (40pc/box) : 296mm×248mm×183mm / 5,610g
※Specifications are subject to change without notice.
* years : Average usage of 2.7hrs per Day
Dimmer Compatibility
Dimmer
Manufacturer
Model
Power
Input
Country/
Frequency Region
BERKER
PEHA
PEHA
JUNG
JUNG
BUSCH-JAEGER
BUSCH-JAEGER
BUSCH-JAEGER
GIRA
JUNG
BUSCH-JAEGER
NIKO
Schneider electric
ELKO
2873
433HAB
434
266GDE
225NVDE
2247U
6513U-102
2250U
0307/00
211GDE
2200U-503
310-01X00
MEK-S 300LR
315GLE
500W
315W
400W
600W
500W
500W
420W
600W
400W
1000W
400W
300W
20~300W
20~315W
230V
230V
230V
230V
230V
230V
230V
230V
230V
230V
230V
230V
230V
230V
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
50Hz
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
Dimming Level
@ 1 lamp (flux%)
Dimming Performance
@ Multi-­Lamps
Max
Min
2 Lamp
3 Lamp
4 Lamp
5 Lamp
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
1%
5%
3%
5%
10%
4%
5%
5%
3%
32%
20%
13%
16%
15%
Good
Good
Good
Good
Good
Good
Good
Good
Good
Poor
Poor
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Poor
Poor
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Poor
Poor
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Poor
Poor
Good
Good
Good
Note 1. Dimming Performance : Good(Dimming Coverage without flicker : 75% ↑), Working(41~74% ), Poor(40% ↓)
2. This result can only be used as reference. The result may vary according to actual field conditions.
