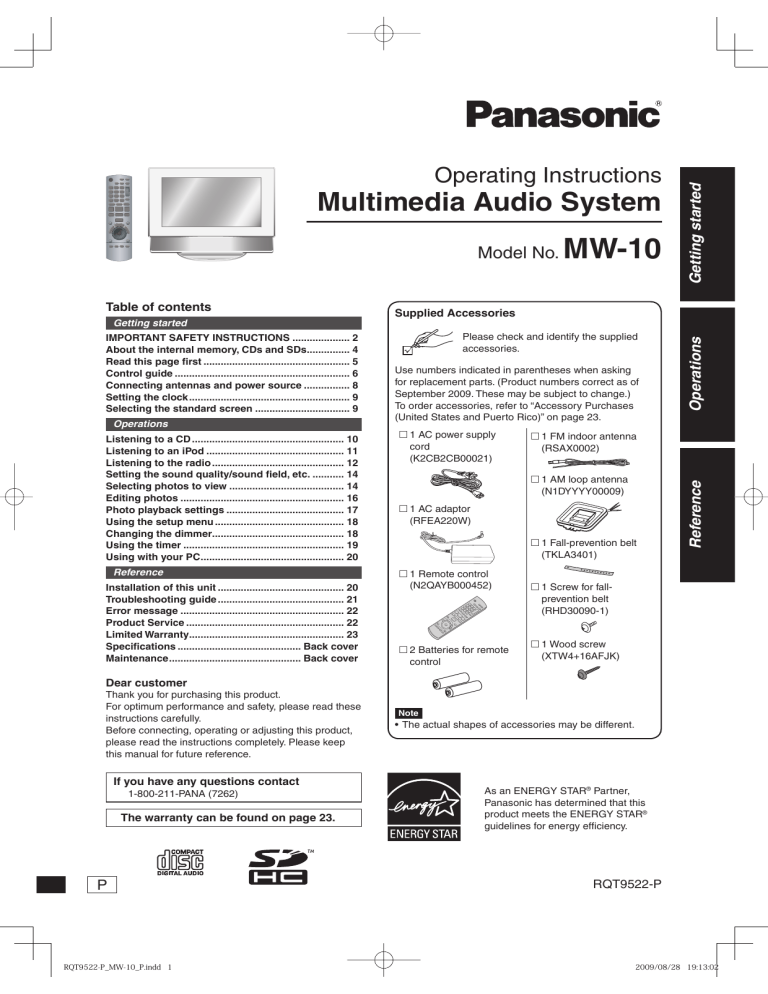

Multimedia Audio System
Model No.
IMPORTANT SAFETY INSTRUCTIONS .................... 2
About the internal memory, CDs and SDs............... 4
Read this page first ................................................... 5
Control guide ............................................................. 6
Connecting antennas and power source ................ 8
Setting the clock ........................................................ 9
Selecting the standard screen ................................. 9
Operations
Listening to a CD ..................................................... 10
Listening to an iPod ................................................ 11
Listening to the radio .............................................. 12
Setting the sound quality/sound field, etc. ........... 14
Selecting photos to view ........................................ 14
Editing photos ......................................................... 16
Photo playback settings ......................................... 17
Using the setup menu ............................................. 18
Changing the dimmer.............................................. 18
Using the timer ........................................................ 19
Using with your PC .................................................. 20
Reference
Installation of this unit ............................................ 20
Troubleshooting guide ............................................ 21
Error message ......................................................... 22
Product Service ....................................................... 22
Limited Warranty...................................................... 23
Specifications ........................................... Back cover
Maintenance .............................................. Back cover
Supplied Accessories
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when asking
for replacement parts. (Product numbers correct as of
September 2009. These may be subject to change.)
To order accessories, refer to “Accessory Purchases
(United States and Puerto Rico)” on page 23.
1 AC power supply
cord
(K2CB2CB00021)
1 FM indoor antenna
(RSAX0002)
1 AM loop antenna
(N1DYYYY00009)
1 AC adaptor
(RFEA220W)
1 Fall-prevention belt
(TKLA3401)
1 Remote control
(N2QAYB000452)
2 Batteries for remote
control
Operations
Getting started
Reference
Table of contents
MW-10
Getting started
Operating Instructions
1 Screw for fallprevention belt
(RHD30090-1)
1 Wood screw
(XTW4+16AFJK)
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this product,
please read the instructions completely. Please keep
this manual for future reference.
If you have any questions contact
1-800-211-PANA (7262)
The warranty can be found on page 23.
P
RQT9522-P̲MW-10̲P.indd 1
Note
• The actual shapes of accessories may be different.
As an ENERGY STAR® Partner,
Panasonic has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
RQT9522-P
2009/08/28 19:13:02
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable
safety instructions listed below. Keep these operating instructions handy for future reference.
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
z DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
z USE ONLY THE RECOMMENDED ACCESSORIES.
z DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
The socket outlet shall be installed near the equipment
and easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.
AC adaptor
This AC adaptor operates on AC between 110V and 240V.
But
• In the U.S.A. and Canada, the AC adaptor must be
connected to a 120V AC power supply only.
• When connecting to an AC supply outside of the U.S.A.
or Canada, use a plug adaptor to suit the AC outlet
configuration.
• When connecting to a supply of greater than AC 125V,
ensure the cord you use is suited to the voltage of the AC
supply and the rated current of the AC adaptor.
• Contact an electrical parts distributor for assistance in
selecting a suitable AC plug adaptor or AC cord set.
-If you see this symbolInformation on Disposal in other Countries outside the
European Union
This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
RQT9522
CAUTION
2
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
RQT9522-P̲MW-10̲P.indd 2
2009/08/28 19:13:03
Listening caution
EST. 1924
Selecting fine audio equipment such as the unit you’ve just
purchased is only the start of your musical enjoyment. Now
it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the
Electronic Industries Association’s
Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that lets the
sound come through loud and clear without annoying blaring
or distortion-and, most importantly, without affecting your
sensitive hearing.
We recommend that you avoid prolonged exposure to
excessive noise.
Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
• Leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening
for a lifetime.
• SDHC Logo is a trademark.
• Macintosh and Mac OS are registered trademarks or
trademarks of Apple Inc.
• Other names, company names and product names
appearing in this document are the registered trademarks
or trademarks of the respective developer companies.
Note that TM or ® mark do not appear in this document is
some cases.
Getting started
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
FCC Caution: To assure continued compliance, follow the
attached installation instructions and use only shielded
interface cables with ferrite core when connecting to
computer or peripheral devices.
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: MW-10
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
1-800-211-PANA (7262)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT SAFETY INSTRUCTIONS
FCC Note:
Please note that Panasonic assumes no liability for
indemnification for loss of contents (data) due to some
failures, and direct or indirect damage while this unit is
used.
MW-10
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
The model number and serial number of this product can
be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep
for future reference.
MODEL NUMBER
MW-10
RQT9522
SERIAL NUMBER
3
RQT9522-P̲MW-10̲P.indd 3
2009/08/28 19:13:04
About the internal memory, CDs and SDs
About the internal memory
Back up the internal memory periodically.
It is recommended that you back up the internal memory
to your PC or an SD card periodically to prevent the data
from being lost due to static electricity, electromagnetic
wave, malfunctions, etc.
• Note that Panasonic assumes no liability for indemnification
for any damage of the internal memory contents caused by
use of this product, failures, malfunctions, etc.
• If this unit is repaired, the internal memory may be
restored to the factory default conditions.
About CDs
Use CDs with this mark. (8cm/12cm)
Do not use irregularly shaped CDs such as a heart-shaped
CD. (Malfunction may occur.)
Use discs that meet standard including discs with the above
mark. Playback of illegally copied discs and nonstandard
discs is not guaranteed.
Note about using a DualDisc
The digital audio content side of a DualDisc does not meet
the technical specifications of the Compact Disc Digital
Audio (CD-DA) format so play may not be possible.
„ CD-R and CD-RW
This unit is compatible with playback of CD-R and CD-RW discs
recorded in the CD-DA and JPEG format. Finalizing¼ the disc is
necessary when the recording finishes. However, playback may
not be possible depending on the recording conditions.
¼
Process data so it can be played on CD-R/CD-RW
playback compatible devices.
Restrictions on this unit
• Usable formats are ISO9660 level 1, level 2 (excluding
extended formats), and Joliet.
• This unit is compatible with the multi-session. However,
with too many sessions, it may take time for playback to
start and data may not be loaded. Reducing the number of
sessions is recommended.
• Discs recorded in the packet write format cannot be played back.
• Files in folders located at up to sixth hierarchy in the disc
can be played back.
• Maximum of 1000 files are guaranteed for playback.
• If one disc contains both JPEG and CD-DA format data,
only the format recorded in the first session is played back.
„ How to hold a disc
Do not touch the recorded surface.
„ Handling precautions
• Do not write on the label side with a ball-point pen or other
writing instrument.
• Do not use record cleaning sprays, benzine, thinner or
other solvent.
• Do not attach labels or stickers to discs.
• Do not use scratch-proof protectors or covers.
• Do not use CDs with the seal or label peeled off or the
glue running over.
• Do not use CDs whose disc sides are printed using a
commercially available label printer.
About SDs
Usable cards (¼P5)
• The usable area will be less than the indicated capacity.
• Multimedia cards (MMC) cannot be used.
• This unit (SDHC compliant equipment) supports both
SD cards and SDHC cards. You can use SDHC cards on
equipment that supports them. You cannot use SDHC
cards on equipment that supports SD cards only. When
you use SDHC cards on other equipment, make sure to
read the equipment’s operating instructions.
„ Write-Protect switch
When the switch is slid to the “LOCK” side, it is not possible
to write or delete data on the card and format it. When the
switch is unlocked, these functions become available.
A Write-protect
B When recording/editing
A
B
„ Handling cautions
•
•
•
•
•
Be sure to store the card when not in use.
Do not disassemble or modify the card.
Do not remove the attached label.
Do not attach a new label or seal.
Do not touch the metal terminal on the back side with hand
or metal.
Cautions when disposing of/transferring SD
cards and the unit
Format and Delete functions of this unit or a PC only change
the file management information and cannot completely
erase data stored on the SD card or in the internal memory
of this unit.
When disposing of/transferring SD cards, it is recommended
that you physically destroy the SD card itself or completely
erase the data on the SD card using a commercially
available data erasing software for PCs.
When disposing of/transferring the unit, perform physical
format. (¼below)
Manage data on the SD card and in the internal memory
under your responsibility.
„ To completely delete data in the internal
memory using the physical format (approx.
22 minutes)
1. Press and hold [DEL] for 3 seconds or more when
“Photos set as protected will also be deleted. Do you
really want to perform this operation?” is displayed at
“Format Internal Memory” (¼P18) in “Settings Menu”.
2. Press [w, q] to select “Yes” and press [OK].
RQT9522
„ For dirt
• Wipe with a soft cloth moistened with water, and then wipe
with a dried cloth.
„ For dew
• Wipe with a soft and dried cloth.
4
RQT9522-P̲MW-10̲P.indd 4
2009/08/28 19:13:04
Read this page first
„ Playable JPEG files
Simultaneous playback of music and pictures
• You can enjoy high-quality audio of CD, iPod or radio on
this compact body.
• While listening, you can play back pictures recorded onto
a CD/SD or the internal memory using the digital photo
frame.
CD
1
Files in folders lower than the sixth hierarchy cannot
be played back. Also, files in folder “SD_VIDEO” and
“SD_AUDIO” cannot be played back.
Total Time 60:12
CDDA
2:20
„ Usable SD cards
CD
7 types of display mode + 12 types of clock/calendar
screen
• The screen design can be changed according to your
preference. The clock and calendar can be displayed as
well as pictures and audio information.
2009
12
Sep
Sun Mon Tue Wed Thu Fri Sat
9
3
Panasonic SD cards are recommended.
SD memory card
Formatted in FAT12 or FAT16 format
(8 MB to 2 GB)
compliant with the SD standard
SDHC memory card Formatted in FAT32 format
(4 GB to 32 GB)
compliant with the SD standard
miniSD/
Be sure to attach the dedicated
miniSDHC card
adaptor when using on this unit.
(¼P6)
microSD/
microSDHC card
6
Descriptions in these operating instructions
CD (music CD), CD-R and CD-RW
ΠCD or disc
SD memory card, SDHC memory card, miniSD card,
microSD card, miniSDHC card and microSDHC card
ΠSD or SD card
Playable media and file formats
Media
Internal memory
Commercially
available music
CD
CDs
CD-R/CD-RW
SD¼1
iPod¼1
File format
Audio
z JPEG¼1
–
z CD-DA
¼2
–
z CD-DA¼2
z JPEG¼1
–
z JPEG¼1
Audio and motion picture files
playable on your iPod
See the descriptions at right for details.
¼2
File format used for commercially available music CDs
WMA and MP3 files copied onto CD-R or CD-RW cannot
be played back.
iPod touch second generation
iPod nano fourth generation
(video)
iPod classic
iPod touch first generation
iPod nano third generation (video)
iPod classic
iPod nano second generation
(aluminum)
iPod fifth generation (video)
iPod fifth generation (video)
iPod nano first generation
iPod fourth generation (color
display)
iPod fourth generation (color
display)
iPod fourth generation
iPod fourth generation
iPod mini
8 GB, 16 GB, 32 GB
8 GB, 16 GB
120 GB
8 GB, 16 GB, 32 GB
4 GB, 8 GB
80 GB, 160 GB
2 GB, 4 GB, 8 GB
60 GB, 80 GB
30 GB
1 GB, 2 GB, 4 GB
40 GB, 60 GB
20 GB, 30 GB
40 GB
20 GB
4 GB, 6 GB
• Depending on the iPod in use or its version, operations or
displays may differ from the normal ones, but this will not
affect the basic playback. Use the latest version if possible.
• You cannot save data onto the iPod using this unit.
RQT9522
¼1
„ Types of iPod that can be used on this unit (as
of August, 2009)
About the internal memory, CDs and SDs / Read this page first
Track
1/22
(Playback may not be possible in some cases.)
Max. 5120 × 3840 pixels
Number of pixels
Min. 64 × 64 pixels
Maximum file size
10 MB
Approximate number of folders SD: 1000 folders
practically usable
CD: 100 folders
SD: 40000 files (1000 files
Approximate number of files
per folder)
practically usable
CD: 1000 files (1000 files
per folder)
Getting started
What you can do on this unit
5
RQT9522-P̲MW-10̲P.indd 5
2009/08/28 19:13:05
Control guide
Main unit
4
1
2
3
6
7
8
9
5
10
11
18
17
16
12
15
14
13
1 Display
2 SD cover (¼below)
3 Speaker
4 SD card slot/SD indicator
Lights on: When an SD card is inserted
Blinks: When data is being written onto an SD card
5 USB port (¼P20)
6 Adjusting the volume
7 Switching the display mode (¼P9)
8 CD open button (¼below)
9 Exhaust hole
bk [POWER8] Standby/on switch
bl Power indicator
bm iPod insertion part (¼P11)
bn AC adaptor terminal (¼P8)
bo W (Headphone) jack (¼below)
bp FM/AM antenna terminals
bq [u/t, y/i] Skipping/Searching a track, tuning of radio
br [q/h] Audio play/pause
bs [AUDIO SELECTOR] Switching the audio selector (¼P10, 11, 12)
Note
• When the display is opened, do not place your hand or any other
objects on it.
To use a headphone
Inserting a CD
A Headphone (not included)
Plug type: 3.5 mm stereo mini plug
B Right side
A
B
Note
• Reduce the volume level and connect the
headphones.
• Avoid listening for prolonged periods of time to
prevent hearing damage.
RQT9522
Note for the display part
Using this unit with the display open is not
recommended.
• If the display is open, functions that can be used
will be restricted.
• If you do not operate the unit with the display open
for approx. 10 minutes, the unit is automatically
turned off.
• When you open the display, the inside may be hot.
This is not a malfunction.
1. Press the CD open button to
open the display part.
2. Insert the CD.
C Label side
Insert the center hole of the CD
firmly.
C
• Do not touch the CD lens.
3. Press the upper part of the display by hand and close it.
To remove the CD, stop the playback, and then press the CD open
button to remove.
Inserting an SD card
1. Open the SD cover.
2. Insert the SD card.
Face (with the corner cut) (D) up
and insert straight to the end.
• When using a miniSD or microSD,
the dedicated adaptors (E) are
necessary.
3. Close the SD cover.
D
„ To remove an SD card
Stop the playback, and press the center
of the SD card. When the card slightly
pops out, pull it out with your fingers.
• Never remove the SD card while the
SD indicator is blinking. Otherwise, the
data may be destroyed.
• Keep the Memory Card out of reach of
children to prevent swallowing.
E
6
RQT9522-P̲MW-10̲P.indd 6
2009/08/28 19:13:05
This manual explains the remote control operations in most sections.
AUDIO
INFO
2
TIMER
SETUP
SOUND
DIMMER
19
3
VOL
MUTE
4
5
6
7
DEL
21
REPEAT
PLAY MODE
23
iPod
CD
FM
24
RADIO OFF
MEDIA
9
AM
25
26
CLOCK
27
DISPLAY MODE
12
TRACKS
ECT
SEL
SELECT
PHO
TOS
10
OK
SLIDE
SHOW
28
RETURN
29
13
14
20
22
PROGRAM
8
11
17
18
ZOOM
ROTATE
INFO
MENU
30
15
31
cm Repeating music (¼P10, 12)
cn Setting the audio playback mode
(¼P10, 12, 13)
co Listening to FM broadcast
cp Stopping the audio/Turning off the
radio
cq Listening to AM broadcast
cr Displaying the clock/calendar
cs Selecting a track/broadcasting station
(¼P10, 11, 13)
ct Returning to the previous screen/
Displaying photos with thumbnails
dk Displaying the photo setting menu
dl Displaying the photo information
One-touch playback
If you press [CD q/h], [iPod q/h],
[FM] or [AM] while the unit is off, the
unit is automatically turned on and
the audio playback or radio reception
starts. (Only when the media such as
CD and iPod has already been set.)
Control guide
16
1
1 Standby/on switch
2 Displaying audio information
3 Selecting numbers (¼P9, 10, 13, 19)
4 Canceling programed tracks/preset
registrations (¼P10, 13)
5 Program play of CD/Setting radio
(¼P10, 13)
6 CD play/pause
7 iPod play/pause
8 Skipping/Searching a track/Tuning of
radio
9 Switching photo media (¼P14, 15)
bk Switching the display mode (¼P9)
bl Selecting photos (¼P14, 15)
bm Selecting to confirm
bn Viewing the slideshow
bo Zooming in/out photos
bp Rotating photos
bq Setting the timer (¼P19)
br Displaying the setup menu (¼P18)
bs Setting the dimmer
bt Setting the sound field/sound quality
effect (¼P14)
ck Adjusting the volume
cl Muting the sound
Getting started
Remote control
To use the remote control
„ Insert batteries
1. Open by pressing the lid edge. (A)
2. Insert the batteries (B: R6/LR6, AA) and
close the cover.
A
C Place this side in before the other side
when you close.
• Use a manganese dry battery or an
C
B
alkali dry battery.
• Insert so the poles (+ and –) match those in the remote control.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long
period of time with doors and windows closed.
„ Use
„ Caution
D
E
F
G
„ When you set the unit in a
cabinet
The remote controlling range may
decrease depending on the thickness or
colors of glass cabinet doors.
RQT9522
D Remote control signal sensor
E Approx. 7 meters
F Approx. 30º
G Transmission window
• Do not place an object between the
signal sensor and the remote control.
• Do not place the signal sensor under
direct sunlight or the strong light of an
inverter fluorescent lamp.
• Keep the transmission window and the
unit’s sensor free from dust.
7
RQT9522-P̲MW-10̲P.indd 7
2009/08/28 19:13:06
Connecting antennas and power source
1
Back of
product
A
2
B
C
D
F
3
I
H
E
1. Connect the FM indoor antenna.
• Insert firmly to the end.
• Receive broadcast signals (¼P12) after connection
and fix the end of the antenna using a tape (A) at the
least noisy position.
2. Connect the AM loop antenna.
B Insert into the groove. Insert firmly until it clicks.
C Red D White E Black
F Use a Phillips-head screwdriver, etc. Do not screw
too tightly. Otherwise, the screwdriver goes around in
circle and cannot be fixed.
• Receive broadcast signals (¼P12) after connection
and place the antenna at the least noisy position.
• Do not use any other AM loop antennas except the
supplied one.
3. Connect the AC power supply cord.
G AC adaptor
H AC power supply cord
I To household AC outlet (Connect last.)
Note
When the Demo function (¼P18) is activated
When connecting the AC
Start Demo
power supply cord, the unit
Disable the Demo function
is automatically turned on
and the screen shown at
right appears.
When not using the demo function¼, press [e, r] on the
remote control to select the setting to disable it, and then
press [OK].
¼
With the demo function, simple explanations about the
unit’s functions are displayed on the display part.
• If it is set to Enable or operation is not performed for
more than 2 minutes, the demo function is activated. If
the unit is operated, the demo function is canceled and
the standard screen appears.
• You can switch the demo function to Enable/Disable by
pressing [DISPLAY MODE] on the main unit for approx. 2
seconds while audio is stopped.
„ To remove the AC power supply cord
Turn the unit off.
After the screen completely turns off, pull out the AC power
supply cord.
„ About speakers
• These speakers do not have magnetic shielding. Do not
place them near televisions, personal computers or other
devices easily influenced by magnetism.
• You can damage your speakers and shorten their useful
life if you play sound at high levels over extended periods.
• When the sound is distorted or the sound quality is
adjusted, turn down the volume even in the normal use.
(Failure to do so may cause the speakers to be damaged.)
• The speaker nets cannot be removed.
RQT9522
• While using this unit, the AC adaptor may become a little
hot. This is not a malfunction.
• The included AC power supply cord and AC adaptor
are for use with this unit only. Do not use it with other
equipment.
• Do not use AC power supply cord and AC adaptor from
other equipment with this unit.
G
8
RQT9522-P̲MW-10̲P.indd 8
2009/08/28 19:13:06
Setting the clock
Selecting the standard screen
This unit is equipped with the calendar and timer functions.
Set the time first.
You can select the standard screen normally displayed
among 7 types of audio/photo screen or 12 types of clock/
calendar screen.
Audio/photo screen
1. Press Standby/on switch to turn on the unit.
4. Press [e, r] to select “Set
Clock” and press [OK].
Settings Menu
Image Quality Settings
Clock/Calendar Settings
Demo Mode
Remote Control Mode
Clock/Calendar Settings
Select Design
Set Clock
Set Date Indication
Set Clock Indication
5. Press [w, q] to select the
Month Day Year
items (Month, Day, Year, Hour,
8
24 20 09
¼
Minute and AM/PM ), and
press [e, r] to set.
¼
Only for the 12-hour display (¼P18)
• You can also use the numbered buttons.
e.g.) 9: [0] ˆ [9]
10: [1] ˆ [0]
Hour Minute
10
:
24
Press [DISPLAY MODE] to select the screen.
Each time you press the button, the screen changes as
follows.
A Audio + photo (factory setting)
B Photo
C Clock + photo
D Calendar + photo
E Audio¼
F Audio + clock¼
G Audio + calendar¼
AM
A
„ When the introduction screen for the time
setting appears
If you attempt to operate a function that requires time setting
while the time is not set, the introduction screen for the time
setting appears.
1. Press [e, r] to select “Set time” and press [OK].
2. Perform the above steps 5 and 6.
C
B
CD
D
Track
Sun Mon Tue Wed Thu Fri Sat
9
3
6
1/22
Total Time 60:12
CDDA
Sep. 30. 2009 Wed
2:20
G
F
CD
E
CD
CD
Sep 10:08 AM
1
12
Track
2
6
Sun Mon Tue Wed Thu Fri Sat
1
Track
1
9
3
Track
1
7
3
8
4
5
9
10
11
12
13
14
15
16
17
18
19
20
21
22
6
1/22
Total Time 60:12
1/22
CDDA
Total Time 60:12
Sep. 30. 2009 Wed
Total Time 60:12
1/22
CDDA
2:20
¼
CDDA
2:20
2:20
After the photo operation is performed, the screen B
appears.
Press [CLOCK].
Press [CLOCK].
Clock/calendar screen
You can select the clock/calendar
screen for your preference among
12 types of layout.
Note
• Period that can be set: January 2000 to December 2099
• There is a small precision error of the clock. Periodical time
correction is recommended.
• If the AC power supply cord is removed or blackout occurs,
check the time.
Sep 10:08 AM
2009
12
1
2009
6. Press [OK].
The clock starts from 00 second and the standard
screen (¼right) appears.
• To return to the previous screen, press [ RETURN].
Getting started
3. Press [e, r] to select “Clock/
Calendar Settings” and press
[OK].
12
9
3
6
Sep. 30. 2009 Wed
1. Press [SETUP].
2. Press [e, r] to select “Clock/
Calendar Settings” and press
[OK].
3. Press [e, r] to select “Select
Design” and press [OK].
Settings Menu
Image Quality Settings
Clock/Calendar Settings
Demo Mode
Remote Control Mode
Clock/Calendar Settings
Select Design
Set Clock
Set Date Indication
Set Clock Indication
4. Press [e, r, w, q] to select the screen and press
[OK].
• To return to the previous screen, press [ RETURN].
• To view a calendar of different month, press [w, q] while
the calendar is displayed.
Note
RQT9522
• When pressing [e] while the photo is displayed, you can
view the photo playback information.
• When the audio screen is not displayed during audio
playback and [r] is pressed, you can view the audio
playback information.
• The design change of the clock/calendar is reflected on
the audio/photo screen as well.
Connecting antennas and power source / Setting the clock / Selecting the standard screen
2. Press [SETUP].
9
RQT9522-P̲MW-10̲P.indd 9
2009/08/28 19:13:06
Listening to a CD
• Playable CDs ¼P5
1. Insert the CD containing audio data (¼P6)
2. Press [CD q/h].
• For the main unit, press
[AUDIO SELECTOR] to
select “CD” and press
[q/h].
Playback will start.
e.g.) Audio screen
A Playing track
B Playback status
C Track number/Number of
tracks
D Elapsed playing time
Stop
Pause
Skip
Fast backward/Fast
forward (Search)
Adjusting the volume
Viewing audio
information
A
CD
1
Track
1/22
1
4
5
6
7
8
9
10
11
12
2
13
3
14
15
16
17
18
19
20
21
22
Total Time 60:12
CDDA
2:20
BC
D
[g]
[CD q/h]
• Press again to resume.
[u/t, y/i]
[u/t, y/i]
While playing or paused, press
and hold the button until it
reaches the desired position.
[+ VOL –]
[AUDIO INFO]
Various playback methods
Direct playback
On the standard screen
Select with the numbered
buttons.
• To select the number above 9
e.g.) 16: [ 10] ˆ [1] ˆ [6]
1 Track/
Random
While stopped or during playback
Press [PLAY MODE].
Each time you press, the play
mode is switched as below.
Normal: Normal playback
1 Track: Only the selected 1
track is played.
Random: Tracks are played
at random.
Repeat
Normal/1 Track/
Random/Program
playback is repeated.
While stopped or during playback
Press [REPEAT].
• “&” is displayed during the
Repeat play.
• To cancel, press [REPEAT]
again.
„ Various operations for the program playback
To stop
Press [g].
• The programed contents are saved.
To return to the normal playback mode
Press [PLAY MODE] while stopped.
• The programed contents are saved.
• To set the program playback mode again, press
[PROGRAM] while stopped.
To add tracks for the program playback
While stopped, press [PROGRAM] and then the numbered
buttons to select tracks.
To cancel the last selected track for program
Press [PROGRAM] and then [DEL] while stopped.
• You cannot select tracks to delete.
To cancel all programs
1. While stopped, press [PROGRAM] and then [g].
2. Press [w, q] to select “Yes” and press [OK].
Note
• During the random playback
– Cannot skip to the track once played.
– Searching is available within the track being played only.
• During the program playback
– The direct playback is not available.
– Searching is available within the track being played only.
• The programed contents are saved even if the unit is
turned off or the selector is switched. However, it is
canceled when the display is opened.
• No sound is heard during Search.
RQT9522
Searching for the
track to listen
1. Press [SELECT TRACKS].
The track list is displayed.
2. Press [e, r] to select the
track and press [OK].
The playback starts with the
selected track.
While stopped
1. Press [PROGRAM].
The program screen appears.
2. Press the numbered buttons
to select tracks.
• To select the number above
Program
9
You can select desired
e.g.) 16: [ 10] ˆ [1] ˆ [6]
tracks (up to 24 tracks) 3. Repeat step 2 and select
and listen in your
more tracks.
preferred order.
If you attempt to select 25
or more tracks, the error
message appears.
4. Press [CD q/h].
The program playback starts
and the standard screen is
restored.
10
RQT9522-P̲MW-10̲P.indd 10
2009/08/28 19:13:07
Listening to an iPod
Usable iPods ¼P5
Playing music and video on the iPod
1. Attach the Dock adaptor supplied with the iPod.
• Insert until it clicks.
A MW-10 top view
B Dock adaptor C Hook
2. Attach the iPod (D).
• Insert and remove the iPod slowly.
• Do not insert the iPod back to front.
D
B
C
1. Attach the iPod. (¼left)
2. Press [iPod q/h].
• For the main unit, press
[AUDIO SELECTOR] to
select “iPod” and press
[q/h].
Playback will start.
e.g.) Audio screen
Playlist name
A
Artist name
Album name
Track name
B Playback status
C Track number/Number of
tracks
D Elapsed playing time
Pause
A
Skip
Fast backward/Fast
forward (Search)
Recharging starts when the iPod is connected.
When the unit is off, the recharging indicator appears on the
unit’s screen.
• The recharging indicator may not disappear even if the
recharging is complete.
Note
• Disconnect the iPod from the unit after recharging is
complete when you will not use it for a long period of time.
Even if the battery is discharged naturally after recharging,
the battery is not additionally charged.
• When the Dock adaptor is not supplied with the iPod,
purchase it from Apple Inc.
• Please read the operating instructions supplied with the
iPod.
• No warranty is provided against any trouble about the iPod
data management.
„ iPod track selection menu
Playlists
Artists
Albums
Songs
Podcasts
iPod
Andes
Los Panas
Al Partir
1/22
Al Final
Al Partir
Ave de Cristal
Condor Malcu
Cutimuy
El Arbol de mi Destino
El ultimo Amanecer
Ingratitud
La Ventana
Mi Pecado
2:20
BC
D
[iPod q/h] or [g]
• Press [iPod q/h] to resume.
While playing or paused
[u/t, y/i]
[u/t, y/i]
While playing or paused, press
and hold the button until it
reaches the desired position.
[+ VOL –]
[AUDIO INFO]
Note
• Depending on the display specifications, the iPod video is
displayed slightly horizontally long.
• If you open the display during the video playback, the
display becomes dark, however, the video playback
continues.
• For iPod, video playback may not be available depending
on the version.
• Photos on the iPod cannot be played on this unit.
„ Searching for the track/video to play
1. Press [SELECT TRACKS].
2. Press [e, r] to select “Music”, “Videos” or “List of
Currently Playing Tracks” and press [OK].
• When you select “Music”, the track selection menu
appears. (¼left)
3. Press [e, r] and [OK] to search for the track and play.
• When you press [w, q] on the screen that displays the
selection tab ( , ), you can switch the list.
RQT9522
Audiobooks
Searching from all playlists
Searching from artist names
Searching from album titles
Searching from all tracks
registered to the iPod
Searching from episodes of radio
program obtained at iTunes store
Searching from titles in
Audiobooks purchased at iTunes
store or “audible.com”
Adjusting the volume
Viewing audio
information
A
Operations
• Turn off the iPod before attaching.
• Remove the iPod if it is in the iPod case.
Turn down the volume of this unit.
Listening to a CD / Listening to an iPod
Attaching/Recharging the iPod
11
RQT9522-P̲MW-10̲P.indd 11
2009/08/28 19:13:08
Listening to an iPod
Shuffle
(only for music)
Tracks or albums are
played at random.
Press [PLAY MODE].
Each time you press
Songs ˆ Albums ˆ Off
Repeat
Normal/Shuffle
playback can be
repeated.
Press [REPEAT].
Each time you press
One ˆ All ˆ Off
Note
• For the album shuffle, the tracks in the album are played
back in the proper order.
• If video is played back, the Shuffle setting may become
“OFF”.
• When a play mode is switched, the track list display on the
audio playback screen may be different from the tracks
played back. If this occurs, select tracks from the track
selection menu again.
Listening to the radio
Adjust the frequency to listen (Manual Tuning)
1. Press [FM] or [AM].
• For the main unit, press [AUDIO SELECTOR] to
select “FM” or “AM”.
2. Press [PLAY MODE] to select “Manual Tuning”.
3. Press [u/t, y/i] to
tune in the station you like.
A Lights up when signals are
received.
B Lights up when the FM
stereo broadcast is
received.
Automatic tuning
Stopping the radio
sound
88.1
Manual
MHz
Stereo
Press and hold [u/t, y/i]
until the frequency indicator starts
to run.
• Stops when the broadcast is
received.
• If jamming is present in the
surroundings during the
automatic tuning, the broadcast
may not be received and the
frequency may stop.
• To stop the automatic tuning,
press [u/t, y/i] again.
[g]
To listen to the radio again, press
[FM] or [AM]. (For the main unit,
press [AUDIO SELECTOR].)
„ FM frequency step
The step is factory-set to 200 kHz, but you can change it to
receive broadcasts allocated to 100 kHz steps.
1. Press [FM].
2. Press [PROGRAM].
3. Press [e, r] to select the “Frequency Step” and press
[OK].
4. Press [e, r] to select the “100 kHz” or “200 kHz” and
press [OK].
RQT9522
“Made for iPod” means that an electronic accessory
has been designed to connect specifically to iPod and
has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards.
iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
FM
B
„ If the iPod with Shuffle/Repeat set is attached
to this unit:
Playback is performed with the same playback method.
Also, even if the iPod is removed after the playback method
is set on this unit, the iPod still keeps the same playback
method.
A
12
RQT9522-P̲MW-10̲P.indd 12
2009/08/28 19:13:08
Up to 30 FM stations and 15 AM stations can be memorized.
2 methods are available for this.
Auto Memory
Memorizing broadcast
stations automatically,
starting with the
frequency memorized
first and memorizing
the upper stations.
Registering preset
channels
Memorizing your
favorite broadcast
stations manually
You can select either the
minimum frequency level or any
frequency level as a memory
starting position.
1. Press [FM] or [AM].
• To start memorizing from
an arbitrary frequency,
adjust to the frequency level
beforehand.
2. Press [PROGRAM].
3. Press [e, r] to select the
“Auto Memory” and press
[OK].
4. Press [e, r] to select the
“Minimum Frequency” or
“Current Frequency” and
press [OK].
The Auto memory starts.
When it finishes, the unit
receives the broadcast station
last memorized.
1. Receive the broadcast
station to memorize. (¼P12)
• The monaural setting
(¼right) can be registered
for FM.
2. Press [PROGRAM].
3. Press [e, r] to select
“Register/Delete Preset” and
press [OK].
4. Press [e, r] to select the
channel and press [OK].
1. Press [PROGRAM].
2. Press [e, r] to select “Register/Delete Preset” and press
[OK].
3. Press [e, r] to select the channel to delete and press
[DEL].
• The message for deletion appears.
„ If noise is excessive when receiving FM stereo
signals
1. Press and hold [PLAY MODE] approx. 2 seconds or more
to select “Mono”.
Each time you press and hold
Auto (Stereo)
Mono
“Mono” is displayed.
• When the reception frequency is changed with the manual
tuning, the setting returns to “Auto (Stereo)”. Normally, set
“Auto (Stereo)”.
„ If noise is excessive when receiving AM
broadcast signals (BP: Beat-proof)
1. Press [PROGRAM].
2. Press [e, r] to select “Beat-proof”.
3. Press [w, q] to select the least noisy setting among “BP1”
to “BP4”.
4. Press [ RETURN] to return to the standard screen.
• Keep distance as far as possible among the AM loop
antenna, AC adaptor and the main unit.
„ When radio reception is poor
Use an outdoor antenna if radio reception is poor.
FM outdoor antenna (using a television antenna)
Remove the included FM indoor antenna.
Connect a coaxial cable (commercially available) (A) to
the FM antenna terminal (B) of this unit and TV antenna
terminal (Type F) (C).
B
A
C
„ Listening to the channel memorized
beforehand
If the reception is still poor with the above connection,
an FM dedicated antenna (commercially available) or
a booster (amplifier, commercially available) may be
necessary. Consult your dealer for details.
RQT9522
Preset Tuning
1. Press [FM] or [AM].
2. Press [PLAY MODE] to
select “Preset Tuning”.
3. Press [u/t, y/i] to
select the channel.
• You can also select with the
numbered buttons.
• Also, you can press
[SELECT TRACKS], press
[e, r] to select the channel
and press [OK].
Operations
„ Memorizing broadcast stations
„ To cancel the memorized broadcast stations
Listening to an iPod / Listening to the radio
Memorizing broadcast stations to listen (Preset
Tuning)
13
RQT9522-P̲MW-10̲P.indd 13
2009/08/28 19:13:09
Setting the sound quality/
sound field, etc.
Changing the sound quality/sound field
1. Press [SOUND].
2. Press [e, r] to select the
effect (¼below), and press
[w, q] to select a setting.
When [ RETURN] is pressed,
the standard screen is restored.
Sound Settings
Equalizer
Bass
Treble
Surround
D.BASS
„ Sound setting items
Factory settings are indicated with underlines.
Equalizer
You can select the
sound quality for your
preference according
to audio sources.
Surround
You can enjoy broader
sounds.
D.BASS
You can enjoy rich
bass sounds.
Manual
Adjusts the level of high range
and low range separately.
(¼below)
Flat
When the sound quality effect is
not used
Heavy
Adds punch to rock
Clear
Clarifies higher range for jazz
Soft
For background music
Vocal
Adds gloss to vocal
When “Manual” is selected
Press [e, r] to select “Bass”
(Low range) or “Treble” (High
range) and press [w, q] to select
the level (-4 to +4).
On / Off
Selecting photos to view
You can play back photos on the SD, CD or in the internal
memory.
• To view photos in the internal memory, make copies of
those photos beforehand. (¼P16)
• Playable photos (JPEG) ¼P5
When inserting the SD card or CD containing photo
files
The photo playback menu
SD Card Menu
appears.
View Most Recent Photos
Select Photo to View
Press [e, r] to select the menu
Copy Photo
and press [OK].
Cancel
View Most Recent Photos
(Only for the SD)
Select Photo to View (¼below, P15)
Copy Photo (¼P16)
• If “Cancel” is selected, the standard screen is restored.
The following explains the method of how to select and play
photos among all photos on the all selected media when the
SD or CD is already inserted.
1. Press [PHOTO MEDIA] to
select “Internal Memory”,
“SD” or “CD”.
Each time you press, the media
is switched.
• You can also use [e, r].
Select Photo Media
Internal Memory
SD
CD
2. Press [SELECT PHOTOS].
3. Press [e, r] to select “All
Photos” and press [OK].
4. Press [e, r, w, q] to select
the photo and press [OK].
The photo is displayed.
Internal Memory Photo Selection Menu
All Photos
Recently Imported Photos
Date Search
Folder Search
„ Performing the slideshow
On / Off
• This effect may be less achieved
according to the sound sources
for playback.
Muting the volume
Note
• Displaying photos may take time. Displaying photos on
a CD in particular may take several tens of seconds.
Because of this, the photos may be displayed later than
the slideshow interval (¼P17).
• Slideshows of the internal memory and SD card are
repeatedly played back.
RQT9522
Press [MUTE].
Press again to resume.
• This is also canceled by adjusting
the volume or operating the
power source.
Press [SLIDE SHOW] or [OK].
The slideshow starts with the displayed photo.
• When [OK] is pressed again, the single view is restored.
• You can set the order, effect and interval of slideshow.
(¼P17)
14
RQT9522-P̲MW-10̲P.indd 14
2009/08/28 19:13:09
Scrolling photos
(Only for the SD/internal
memory)
Press and hold [w, q].
• When you release your finger,
scrolling stops and the photo
displayed in the center is
displayed with the single view.
• The thumbnail screen can be
scrolled as well.
2. Press [SELECT PHOTOS].
3. Press [e, r] to select the photo categories
(¼below) and press [OK].
• The type of category differs depending on the
media.
4. Select photos according to the on-screen
instructions.
„ Photo categories
All Photos
(¼P14)
Press [ZOOM (PHOTO)].
Each time you press
×1 ˆ ×1.5 ˆ ×2
Recently Imported
Photos
• While zoomed, you can move
to preferred position using
[e, r, w, q].
(Only for the internal memory)
Select from photos imported to
the internal memory recently.
• Photos directly copied from a
computer are not included.
Date Search
(Only for the SD/internal
memory)
Photos are selected by date.
Folder Search
Select from the folder.
SD Favorite
(1 to 10)¼2
(Only for the SD)
Select from photos registered as
“Favorite” on the Panasonic digital
camera LUMIX, etc.
LUMIX: SD Favorite 4
• For details on how to register
“Favorite” on the LUMIX, etc.,
see those operating instructions.
Favorite (1 to 3)
(Only for the internal memory)
Select from photos registered as
“Favorite” on this unit. (¼P16)
Zooming pictures
Rotating pictures
Press [ROTATE (PHOTO)].
• Each time you press, the photo
rotates anticlockwise by 90°.
Viewing photo
information
Press [INFO (PHOTO)].
• The file name, number of pixels,
date of capture, etc. of photo
are displayed.
• When the scroll bar is displayed,
you can move across the screen
using [e, r].
• To return to the original screen,
press [ RETURN].
¼1
1. Press [PHOTO MEDIA] to select “Internal
Memory”, “SD” or “CD”.
Thumbnail is a reduced image of multiple pictures to view
them as a list.
Note
Displayed only if photos are present.
Note
• The slideshow is performed only within the selected
category.
• The “SD Favorite” is classified based on the DPOF setting
information, which means the Favorite set on units other
than Panasonic products may not be classified as “SD
Favorite”.
• A date for Date Search can be selected from January 2000
to December 2099.
RQT9522
• If some images cannot be displayed with the thumbnail
view, “ ” is displayed. Also, depending on the photo or
media, the scrolling thumbnail images may be displayed
as “ ”.
• Scrolling is not possible during the random playback of
photos. Also, you cannot return to the previous photo even
if you press [w].
• When the photo is zoomed or its information is displayed
during the slideshow, if the previous screen is not restored,
the screen is not switched to the next photo.
• When the display part is opened during the slideshow
playback, the slideshow is paused.
• If the unit is turned off or media are removed, the image
rotation setting for SD/CD is canceled.
¼2
Operations
Selecting photos from
the thumbnail¼1 view
1. Press [ RETURN].
The photo thumbnail screen
appears.
2. Press [e, r, w, q] to select
photos and press [OK].
Viewing categorized photos
Setting the sound quality/sound field, etc. / Selecting photos to view
„ Operations during photo playback
15
RQT9522-P̲MW-10̲P.indd 15
2009/08/28 19:13:09
Editing photos
Copying photos
Registering the photo as “Favorite”
You can copy photos from the SD or CD to the internal
memory (4 GB).
• Select the photo category. (¼P15)
• Stop audio beforehand.
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Copy
Photo” and press [OK].
3. Press [e, r] to select “Import
from SD” or “Import from CD”
and press [OK].
(Only for the internal memory)
Photos can be registered with any of “Favorite (1 to 3)”.
• Select “Internal Memory” among photo media. (¼P14)
• Select the photo category. (¼P15)
• Stop audio beforehand.
Photo Menu
Copy Photo
Edit Photo
Photo Playback Settings
Copy Photo
Import from SD
Import from CD
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Edit
Photo” and press [OK].
3. Press [e, r] to select “Edit
Favorites” and press [OK].
Compression when Importing
4. Press [e, r, w, q] to select the photo and press
[OK].
is displayed on the selected photos. To cancel,
press [OK] again.
• If you press [MENU (PHOTO)], you can select
“Select All” or “Clear All” of photos, or switch to
single view.
5. Press [MENU (PHOTO)], press [e, r] to select
“Copy” and press [OK].
6. Press [w, q] to select “Yes” and press [OK].
„ To stop copying
Press [ RETURN].
• Photos already copied remain in the internal memory.
Compressing data
when imported
The number of photos that can be
copied can be increased.
Factory setting: Off
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Copy
Photo” and press [OK].
3. Press [e, r] to select
“Compression when Importing”.
4. Press [w, q] to select “On”.
4. Press [e, r] to select
“Favorite 1”, “Favorite 2” or
“Favorite 3” and press [OK].
Copy Photo
Edit Photo
Photo Playback Settings
Edit Photo
Edit Favorites
Reset Favorites
Delete Files
Set Protection
Favorite 1
Favorite 2
Favorite 3
5. Press [e, r, w, q] to select the photo and press
[OK].
is displayed on the selected photo (If it is
“Favorite 1”). To cancel, press [OK] again.
• If you press [MENU (PHOTO)], you can select
“Select All” or “Clear All” of photos, or switch to
single view.
6. Press [MENU (PHOTO)], press [e, r] to select
“End Editing of Favorites” and press [OK].
Viewing registered
photos
Resetting the
registration
Note
• If copied, the file names and folder names of photo are
named as below.
Example: If copied on August 24, 2009
Folder name: 090824_1
File name: 08240001.JPG
• The size of the compressed photo cannot be recovered to
the original data size.
• If you open the display while copying from CD to the
internal memory, the copy is interrupted. (Photos already
copied remain in the internal memory.)
• Even if photos are set to Favorite or protected, the
information is not copied.
• Due to the restriction of the file system, the displayed
internal memory capacity does not accord to the amount
of file data that can be copied.
Photo Menu
See “Viewing categorized photos”
(¼P15)
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Edit
Photo” and press [OK].
3. Press [e, r] to select “Reset
Favorites” and press [OK].
4. Press [e, r] to select Favorite
to reset and press [OK].
5. Press [w, q] to select “Yes” and
press [OK].
Note
• Up to 999 photos can be registered with “Favorite (1 to 3)”
respectively.
• Some photos may not be registered.
RQT9522
• Backing up the photos in the internal memory to the SD
card ¼P18
• Copying photos from a computer ¼P20
16
RQT9522-P̲MW-10̲P.indd 16
2009/08/28 19:13:10
Photo playback settings
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Photo
Playback Settings” and press
[OK].
Photo Menu
Copy Photo
Edit Photo
Photo Playback Settings
1. Press [MENU (PHOTO)].
3. Press [e, r] to select the item (¼below).
2. Press [e, r] to select “Edit Photo” and press
[OK].
4. Press [w, q] to select the setting.
To return to the standard screen, press [
few times.
4. Press [e, r, w, q] to select the photo and press
[OK].
is displayed on the selected photos. To cancel,
press [OK] again.
• If you press [MENU (PHOTO)], you can select
“Select All” or “Clear All” of photos, or switch to
single view.
„ Setting items for photo playback
Factory settings are indicated with underlines.
Date Indication
Color Effects
5. Press [MENU (PHOTO)], press [e, r] to select
“Delete” and press [OK].
6. Press [w, q] to select “Yes” and press [OK].
Slideshow Order
Note
• The deleted photos cannot be recovered.
• To delete completely, perform “Format Internal Memory”.
(¼P18)
Protecting photos
(Only for the internal memory)
You can protect photos to prevent them from being deleted
by mistake.
• Select “Internal Memory” among photo media. (¼P14)
• Select the photo category. (¼P15)
• Stop audio beforehand.
Slideshow Effects
1. Press [MENU (PHOTO)].
2. Press [e, r] to select “Edit Photo” and press
[OK].
3. Press [e, r] to select “Set Protection” and press
[OK].
4. Press [e, r, w, q] to select the photo and press
[OK].
is displayed on the selected photos. To cancel,
press [OK] again.
• If you press [MENU (PHOTO)], you can select
“Select All” or “Clear All” of photos, or switch to
single view.
5. Press [MENU (PHOTO)], press [e, r] to select
“End Protection Setting” and press [OK].
Note
• Even if protection is set to photos, they can be deleted if
the internal memory is formatted.
RETURN] a
Slideshow Interval
On / Off
Color/Black and White/Sepia
• When photos are displayed with the
thumbnail view, they are displayed
with the original color tone.
Normal:
Plays in the order of file names.
Random:
Photos in the category are played
at random.
• The settings are saved even
if the unit is turned off or the
media is switched.
Fade:
The next photo is gradually displayed
and played while switching photos.
Motion:
Plays while enlarging and moving
the photo up and down, right and
left, and in the diagonal direction.
Slide-in:
Plays switching photos with flowing
movement from right to left.
• When “Motion” is set, the
“Slideshow Interval” setting is
disabled.
5 sec/10 sec/30 sec/
5 min/10 min/30 min/
1 hour/3 hours/12 hours/24 hours
Change On The Hour:
Photos are switched on the hour
every hour.
Change Daily:
Photos are switched when the
calendar date is changed.
Sync Music:
Photos are switched every time
the CD/iPod track is switched.
If [u/t, y/i] is pressed
and skipped, photos are switched
as well. (Not switched while
stopped or paused.)
• When the slideshow playback is
performed for the small number
of photos with a short interval,
the photos may not be normally
displayed.
Operations
3. Press [e, r] to select “Delete Files” and press
[OK].
Editing photos / Photo playback settings
(Only for the internal memory)
• Select “Internal Memory” among photo media. (¼P14)
• Select the photo category. (¼P15)
• Stop audio beforehand.
„ Basic operation
RQT9522
Deleting photos
17
RQT9522-P̲MW-10̲P.indd 17
2009/08/28 19:13:10
Using the setup menu
„ Basic operation
1. Press [SETUP].
Settings Menu
2. Press [e, r] to select the
item (¼below) and press
[OK].
Image Quality Settings
Clock/Calendar Settings
Demo Mode
Remote Control Mode
3. Make the setting according to the on-screen
instructions.
To return to the standard screen, press [ RETURN] a
few times.
„ Setting items
Factory settings are indicated with underlines.
Image Quality
Settings
Clock/Calendar
Settings
Demo Mode
Remote Control
Mode
RQT9522
Initialize Settings
18
RQT9522-P̲MW-10̲P.indd 18
Select “Image Quality Mode” or
“Adjust Brightness” in step 3 in
the basic operation. And then
make each setting.
„ Image Quality Mode
Standard:
Standard image quality
Soft:
Eye-friendly image quality
Dynamic:
Vivid image quality with clear
distinction of bright and dark
„ Adjust Brightness
(Only when Dimmer is “Off”)
Brightness is adjusted with the
range from “1” to “10”. The default
setting is “10”.
Select Design ¼P9
Set Clock ¼P9
Set Date Indication:
Select Month/Day/Year or Day/
Month/Year.
Set Clock Indication:
Select “12-hour System” or
“24-hour System”.
Disable/Enable
For the Demo function ¼P8
Change the remote control mode
of this unit and remote control
when malfunction occurs on
this unit while using the remote
control of other devices.
Example: When setting the
remote control mode to 2
1. Select “Remote Control 2” in
step 3 in the basic operation
and press [OK].
2. Press and hold [OK] on the
remote control without aiming it
at this unit, and press and hold
the numbered button [2] for more
than 2 seconds.
3. Press [OK].
This unit’s settings are returned to
the factory defaults.
1. Select “Yes” in step 3 in the
basic operation and press [OK].
2. Select “Yes” again and press
[OK].
• The clock setting and photo files
in the internal memory remain
the same.
1. Select “Yes” in step 3 in the
basic operation and press [OK].
2. Select “Yes” again and press
Format Card
[OK].
• All the data on the SD card is
deleted.
Photo data in the internal memory
is backed up to the SD card.
Select “Yes” in step 3 in the basic
operation and press [OK].
• If [ RETURN] is pressed
during backup and stopped,
photo data already backed up
Back Up Internal
remains on the SD card.
• The “Favorite” settings, rotation
Memory
or protection information of
photos cannot be backed up.
• Backup time will be longer
depending on the number
of photos to be saved or the
amount of data. (Approx.
10 minutes per 1000 files)
1. Select “Yes” in step 3 in the
basic operation and press [OK].
2. Select “Yes” again and press
[OK].
• Protected photos are also
Format Internal
deleted.
• Even if you format the internal
Memory
memory or delete all photos
(¼P17), the size of used area
of the internal memory will not
become zero since the system
uses some area.
You can confirm the system
software information (version) of
this unit.
• For the latest version of
System Software Info
information, see the following
homepage.
http://panasonic.jp/support/global/
cs/audio/
This is a function when updating
the system software is necessary
in the future to improve the
performance.
Please make sure to complete
user registration which is
Update System
necessary to receive information
Software
related to the system software
update.
For details, see the following
homepage.
http://panasonic.jp/support/global/
cs/audio/
Changing the dimmer
Press [DIMMER].
Each time you press the button:
Off (normal)
On
• Factory setting: Off
• The setting is saved even if the unit is turned off.
2009/08/28 19:13:11
Using the timer
Photos or audio are automatically played at the set time.
“Timer 1”, “Timer 2” and “Timer 3” can be set.
• Set the clock beforehand (¼P9)
• To listen to the radio, tune in to channels beforehand.
In the timer setting, set only audio source and volume for audio playback. For Random, Repeat play, etc. make the settings
before the timer playback starts.
AM12
3
Timer
6
9
Sun
3. Set the standby setting to
Enable.
1. Press [e, r] to select
“Standby” and press [OK].
2. Press [e, r] to select
“Enable This Timer” and
press [OK].
4. Set the day.
1. Press [e, r] to select “Day”
and press [OK].
2. Press [e, r] to select the
day, add the check mark with
[w, q] and press [OK].
5. Set the time.
1. Press [e, r] to select “Time”
and press [OK].
2. Press [w, q, e, r] to set
the start/end time and press
[OK].
M
Timer 1 Settings
Standby
Enable
Day
Unset
Time
12:00 A
Timer 1 Day Settings
Sunday
Monday
Tuesday
Wednesday
Thursday
Start Time
Ʒ7 ⿉ 00
End Time
AM Ʒ8
⿉ 00
AM
Timer 1 Audio Settings
Audio Playback
Playback Time
Update Source/Volume
On
1 hour
Source: CD
1 hour
Playback Time
Update Source/Volume
Source:CD
Volume:25
The sound source and volume are displayed.
• When you do not change, press [w, q] to select
“No” and press [OK].
• When you change, make the setting using the
audio selection button or volume button, press
[w, q] to select “Yes” and press [OK].
As a test, the sound source can be played.
9. Press [e, r] to select “Confirm” and press [OK].
10.Press [e, r] to select “Confirm” and press [OK].
If the operation time overlaps other timer settings, the
confirmation message appears.
• If “Yes” is selected, other timers with the overlapped
time are disabled.
• If “No” is selected, the original screen is restored with
the contents of timer setting reserved.
11.Press [ RETURN].
The standard screen is restored.
Audio Playback
On
Playback Time
30 minutes
Update Source/Volume
Source: CD
„ To return to the previous screen
Press [
8. Press [e, r] to select
“Update Source/Volume” and
press [OK].
Timer 1 Audio Settings
Confirm
• You can also use the numbered buttons.
e.g.) 9: [0] ˆ [9]
10: [1] ˆ [0]
6. Select Audio Playback ON/
OFF.
1. Press [e, r] to select “Audio
Playback” and press [OK].
2. Press [e, r] to select “Audio
Playback”, press [w, q] to
select “On” or “Off”.
7. Press [e, r] to select
“Playback Time” and press
[w, q] to select the playback
time.
10 minutes/30 minutes/1 hour/
2 hours/3 hours/No Limit
RETURN].
„ To return to the timer setting menu
Press [zTIMER].
„ To disable the set timer
Select “Disable This Timer” in step 3 -2 and press [OK].
„ To delete the timer setting
Select “Initialize This Timer” in step 3 -2 and press [OK].
When the timer is set
RQT9522
• When the unit is turned on, if the audio playback is “On”,
“z” is displayed one minute before the timer start time.
• At the timer start time, the sound is faded in to the set
volume and the audio is played back. (z blinks)
Note
• The timer operates at the set time unless you set it to
“Disable”.
• The timer less than 10 minutes may not be displayed on
the timer setting screen. (When the audio playback is “On”,
only “ ” is displayed.)
• When the Setup Menu, etc. is displayed, audio playback
with the timer does not start.
• Audio playback with the timer may not start if the audio
media selected for “Audio Playback” is the same as the
one selected when the timer starts.
– During CD playback, pause or search
– During iPod playback or search
– When the radio frequency being received is the same,
and the Auto/Monaural setting is the same
Using the setup menu / Changing the dimmer / Using the timer
2. Press [w, q] to select “Timer
1 Settings” and press [OK].
Timer 1 Settings
Only when audio playback is set
Operations
The following explains the case when setting “Timer 1” as
an example.
Timer Setting Menu
1. Press [zTIMER].
19
RQT9522-P̲MW-10̲P.indd 19
2009/08/28 19:13:11
Using with your PC
Photo files can be exchanged among this unit’s internal
memory, SD and computer.
Do not use any other cables except a genuine Panasonic
USB connection cable (K2KZ4CB00015; optional).
System configurations required
OS for PC
• Windows Vista®
• Windows® XP
• Mac OS X
Port
• USB port
• Turn the unit off beforehand.
• Start up the computer beforehand.
• You cannot operate this unit while connecting with the
computer.
• If the USB connection cable is removed, this unit is turned
off.
• Data exchange with iPod is not possible.
• If you make multiple USB connections or use hubs with 1
computer, malfunction may occur.
• If you are using the 10.2 or older version of Mac OS X,
set the write-protect switch of SDHC memory card to the
“LOCK” side when importing photos from the SDHC card
to the computer.
• When this unit is connected, do not use the format function
of the computer to format this unit’s internal memory or SD
card.
• Operations are not necessarily guaranteed for all
computers.
Installation of this unit
1. Confirm the direction of the USB connection
cable (optional) and insert it to the USB port of
this unit.
When installing the unit on the table, etc., make sure the
display part does not protrude from the table when it is
opened. The unit may fall down and drop.
2. Insert the USB connection cable to the computer.
3. Turn this unit on.
4. Press [e, r] to select the USB connection
memory (“Internal Memory” or “SD Card”) and
press [OK].
This unit functions as a reader/writer and is
recognised as an external device of computer.
„ To remove the USB connection cable
Double-click the icon (Windows XP:
, Windows Vista: )
on the task tray of computer and remove it according to the
on-screen instruction. (The above may not be displayed
depending on the OS setting. In this case, make sure to
confirm that the message indicating communication is in
process is not displayed on this unit’s display, and then
remove the cable.)
• For Macintosh, follow the removal method for Mac OS
device.
To fix the unit
When installing the unit on the table with narrow depth, use
the included fall-prevention belt to fix the unit to the wall or
pillar. (The following illustration is a setting example.)
A Wall, pillar, etc.
B Fall-prevention belt (included)
C Wood screw (included) (Black), etc.
D Bottom face of this unit
E Screw for fall-prevention belt (included) (Silver)
A
B
„ To switch the USB connection memory
Remove the USB connection cable once, then reconnect it
and perform the above steps 3 and 4.
C
„ To exchange photo files with a computer
1. Open the folder to exchange photo files on the computer.
2. Perform the above steps 1 to 4.
3. Open this unit’s drive icon in “My Computer” or
“Computer” of your PC.
• For Macintosh, this unit’s drive is displayed on the
desktop.
4. Open the photo folder on this unit.
5. Exchange files between the folders.
• Folders and files can be dragged and dropped.
RQT9522
Note
• If you remove and insert the USB connection cable or SD
card while “Accessing. Do not remove the card or cable.”
message is displayed, the data on the SD card may be lost
or damaged.
D
E
Note
• Be sure to use the screw for fall-prevention belt to attach to
the bottom face of this unit.
• If you tighten the screw for fall-prevention belt too tightly, it
goes around in circle and cannot be fixed.
• Keep the screws out of reach of children to prevent
swallowing.
20
RQT9522-P̲MW-10̲P.indd 20
2009/08/28 19:13:12
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on page 23.
This unit may become hot if used for a long period of time, however, this is not a problem for use.
Press [POWER8] of the main unit for more than 10 seconds to turn the unit off. If the
problem persists, do the following operations and return the settings to the factory defaults.
1. Remove the AC power supply cord once. Then connect the AC power supply cord
while pressing down [POWER8] of the main unit.
2. Press and hold [POWER8] of the main unit until “The settings have been reset.”
appears on the display.
When the unit is turned on,
“Please wait.” is displayed for a
long period of time.
When photos are present in the internal memory or the SD card has been inserted, it
may take long time for the unit to become operable after it is turned on.
Booming noise occurs during
audio playback.
There may be the AC power supply cord of another device or fluorescent light near this unit.
ˆ Keep the electric appliances as far away as possible from this unit.
Operations
All operations are ignored.
Using with your PC
„ Common problems with the whole system
„ CD
The display does not change even A nonstandard disc was inserted. (¼P4)
after the CD is inserted.
Playback does not start even after There was extreme temperature difference, such as when carrying the unit from the cold
place to the warm place. Dew condensation might have occurred on the lens.
the play button is pressed.
ˆ Wait approx. 1 hour before use.
Specific parts are not played normally. ˆ Wipe the CD with a soft cloth. (¼P4)
The display part is not closed properly. ˆ Check if the CD is set at the correct position. (¼P6)
„ SD
Reference
Data on the SD card cannot be read. ˆ Use the SD card, file format and folder hierarchy compatible with this unit. (¼P5)
Photos cannot be played or
edited.
ˆ Insert the SD card compatible with this unit. (¼P5)
ˆ Insert the SD card correctly. (¼P6)
ˆ Cancel the write protection switch if it is on the “LOCK” side. (¼P4)
„ iPod
The iPod is not recognised even if ˆ Check if the iPod is compatible with this unit. (¼P5)
connected.
ˆ Confirm the iPod video settings.
The display of the iPod video
playback shows an unexpected one.
iPod videos cannot be played back. ˆ Check your iPod version.
„ Radio
FM and AM broadcasts cannot be
received properly.
Noise and sound distortion are
excessive.
“ ” does not light up.
ˆ Connect the FM indoor antenna or AM loop antenna. (¼P8)
ˆ Change the setting location or direction of antennas.
ˆ Separate the antenna wire and AC adaptor as far as possible.
ˆ If the transmitting location is far or there is a big building or mountain near the unit,
use an outdoor antenna. (¼P13)
TV, VCR, PC or BS tuner may be on. Or the mobile phone may be charged near the unit.
ˆ Turn each device off or keep those devices as far away as possible from this unit.
„ Remote control
ˆ Insert (+, –) of battery correctly. (¼P7)
ˆ Replace with the new battery. (¼P7)
ˆ If the remote control mode on the main unit does not match the one on the remote
control, match the mode of the remote control to the one of the main unit. (¼P18)
ˆ If the display is opened, close it.
Another device does not operate
properly when using the remote
control of this unit.
The unit does not operate
properly when using the remote
control of another device.
ˆ Change the remote control mode of this unit so another device does not interfere with
this unit’s operation. (¼P18)
RQT9522
Cannot operate the remote
control.
Installation of this unit / Troubleshooting guide
Video playback becomes
impossible on the iPod.
21
RQT9522-P̲MW-10̲P.indd 21
2009/08/28 19:13:13
Troubleshooting guide
„ Photo
Photos are not displayed on the
thumbnail screen.
The date displayed using the Date
Search differs from the shooting date.
Editing (copying, etc.) takes long time.
Photos edited on the computer, etc. may not be displayed.
A date when a file was updated may be displayed for photos edited on the computer,
etc.
When there are many files and folders, editing may take long time.
Error message
No card.
This card cannot be read.
The SD card is not inserted.
ˆ Insert the SD card.
This SD card cannot be played on this unit.
ˆ Insert the playable SD card. (¼P5)
The write protection switch of the
SD card is set to “LOCK.”
The SD card is write-protected.
ˆ Cancel the write protection switch. (¼P4)
No disc.
This disc cannot be played.
This disc cannot be read.
No compatible device is
connected.
The CD is not inserted.
This CD cannot be played on this unit.
ˆ Insert the playable CD.
This card cannot be played.
A communication error occurred.
No photo files.
The iPod is not connected.
ˆ Connect the iPod correctly. (¼P11)
The iPod incompatible with this unit is connected.
ˆ Use the iPod compatible with this unit. (¼P5)
The iPod is not connected.
ˆ Connect the iPod correctly. (¼P11)
There are no photo files on the selected media.
ˆ Select the media containing photos. (¼P14)
This photo cannot be played.
This photo cannot be played on this unit.
Playback cannot continue
because there was a photo file
error.
The clock and calendar cannot be used
because the time has not been set.
Timer audio playback could not be
started.
Set the mode on your remote
control to “Mode 1” (or “Mode 2”).
Abnormality occurred during the playback of photo files.
ˆ Remove the media once and check if the photo files are compatible with this unit
(¼P5). Then, insert the media again.
To use the clock/calendar, clock setting is necessary.
ˆ Press [e, r] to select “Set time” and set clock. (¼P9)
Timer cannot start on this screen.
ˆ Restore the standard screen before the start time of the timer.
The remote control mode settings do not match the main unit settings.
Press the displayed numbered button and [OK] for more than 2 seconds and switch the
remote control mode of the remote control.
RQT9522
Product Service
22
1. Damage requiring service — The unit should be
serviced by qualified service personnel if:
(a) The AC Adaptor, AC power supply cord or the plug
has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a
marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing — Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3. Replacement parts — When parts need replacing
ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics
as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
RQT9522-P̲MW-10̲P.indd 22
4. Safety check — After repairs or service, ask the servicer
to perform safety checks to confirm that the unit is in
proper working condition.
The servicer will require all components to service your
system.
Therefore, should service ever be necessary, be sure to
bring the entire system.
Product information
For product information or assistance with product
operation:
Refer to “Customer Services Directory (United States and
Puerto Rico)” on page 23.
2009/08/28 19:13:13
Limited Warranty
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Audio Products
Limited Warranty
Product or Part Name
Parts
Labor
Audio Products (except items listed below)
One (1) year
One (1) year
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
One (1) year
Not Applicable
Accessories: Headphones, Cartridges,
Microphones, Adapters
Rechargeable Batteries DVD-R/-RAM
Discs (in exchange for defective item)
SD Memory Cards, Rechargeable Battery
Packs (in exchange for defective item)
Ninety (90) days Ninety (90) days
Ten (10) days
Not Applicable
Ninety (90) days Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must carry-in or mail-in your
product during the warranty period. If non-rechargeable batteries are included, they
are not warranted. This warranty only applies to products purchased and serviced
in the United States or Puerto Rico. This warranty is extended only to the original
purchaser of a new product which was not sold “as is”. A purchase receipt or other
proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States and Puerto Rico call 1-800211-PANA (7262) or visit Panasonic Web Site: http://www.panasonic.com
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial
use (such as in a hotel, office, restaurant, or other business), rental use of
the product, service by anyone other than a Factory Service Center or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. (As examples, this excludes damages for lost time, travel to and
from the servicer, loss of media or images, data or other memory content. The
items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions
may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Service Center. If the
problem is not handled to your satisfaction, then write to the warrantor’s Consumer
Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
Reference
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for
the length of the period indicated on the chart below, which starts with the date of
original purchase (“warranty period”), at its option either (a) repair your product with
new or refurbished parts, or (b) replace it with a new or a refurbished product. The
decision to repair or replace will be made by the warrantor.
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts
and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 9 pm, EST.)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
Troubleshooting guide / Error message /
Product Service / Limited Warranty
Customer Services Directory (United States and Puerto Rico)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
RQT9522
As of October 2008
23
RQT9522-P̲MW-10̲P.indd 23
2009/08/28 19:13:13
Specifications
„ AMPLIFIER SECTION
„ SPEAKER SECTION
RMS Output Power
Stereo mode
Both ch driven 5 W Per channel
6 Ω, 1 kHz, 10 % THD
Total RMS Stereo mode power: 10 W
FTC Output Power
Stereo mode
Both ch driven 5 W Per channel
6 Ω, 90 Hz - 20 kHz, 10% THD
Total FTC Stereo mode power: 10 W
Input and Output
terminal
Headphone: stereo mini plug (3.5 mm)
Used Headphone impedance: 16 to 64 Ω
iPod: iPod special terminal
USB: USB 2.0 High speed
„ FM TUNER SECTION
Type
1 way, 1 speaker system
Full range: 4 cm × 2 cone type
Impedance
6Ω
Input power (IEC)
10 W (Max)
Magnetic-shield design
No
Playback frequency
range
70 Hz to 25 kHz (-16 dB)
120 Hz to 22 kHz (-10 dB)
„ GENERAL
Dimensions
(W x H x D)
252 mm × 201 mm × 150 mm
(9-15/16" × 7-15/16" × 5-29/32")
Preset Memory
30 stations
Mass
Approx. 1.9 kg (4.2 lbs)
Frequency range
87.9 to 107.9 MHz (200 kHz steps)
87.5 to 108.0 MHz (100 kHz steps)
Permissible operating
temperature
0 ºC to + 35 ºC
(32 ºF to + 95 ºF)
Sensitivity
16.3 dBf (1.8 μV, IHF’58)
75 Ω (unbalanced)
Permissible relative
humidity
35 % to 80 % RH (No condensation)
Antenna terminal
Power consumption in standby mode¼: Approx. 0.3 W
„ AM TUNER SECTION
Preset Memory
15 stations
Frequency range
520 to 1710 kHz (10 kHz steps)
Sensitivity (S/N 20 dB)
500 μV/m
¼
restrictions of font data.
• Since the internal memory includes area that contains management
„ CD SECTION
Beam source
Semiconductor laser
Wavelength
795 nm
Number of channels
2 channels (Stereo)
Wow and flutter
Below measurable limit
Playable disc
CD, CD-R, CD-RW
Playable format disc
CD-DA
4 GB
„ AC ADAPTOR SECTION
Input
AC 110 V to 240 V, 36 W, 50/60 Hz
Output
DC 12 V, 2000 mA
„ PHOTO SECTION
LCD size
9 inch
Aspect ratio
16:9
Use File format
(CD/SD/Internal
memory)
JPEG: Exif 2.2, JFIF
• Progressive JPEG No Support
¼
4:2:0, 4:2:2, 4:4:4 type base line JPEG
5120 × 3840
Minimum number of
pixels
64 × 64
Maximum decode
file size
10 MB
The LCD display on the display part is made with high-precision
technology employed, but black dots may sometimes appear on the
LCD display or the display may always light (with red, blue and green
dots). This is not a malfunction. The pixels on the LCD display are
managed with more than 99.99% of high accuracy, however, the pixel
deficiency may occur within 0.01% of probability. We assure you that
these dots are not recorded on the SD card or internal memory.
Maintenance
¼
Maximum number of
pixels
information such as file system, the actual capacity that can be
used is less. Also, the memory capacity in general is calculated as
1 GB =1,000,000,000 bytes, however, on this unit, it is calculated as
1 GB = 1,024 × 1,024 × 1,024= 1,073,741,824 bytes. Therefore, the
displayed capacity is less than the general value.
Auto power save: This unit is equipped with the Auto power save
function that automatically reduces the power consumption when
operations such as audio playback, media insertion/removal, etc.
are not performed approx. 10 minutes.
„ INTERNAL MEMORY SECTION
Mounted capacity
Without iPod charge
• Specifications are subject to change without notice.
• Some characters are not displayed on this unit due to the
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
Unplug the AC power supply cord from the household AC outlet
and wipe it using a soft and dry cloth.
• When the dirt is heavy, wring water out of a wet cloth to wipe the
dirt and then wipe with a dry cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen
detergent, etc. This might cause the exterior case to be deformed
or the coating to come off.
• Before using chemically treated cloth, read the instructions that
come with the cloth carefully.
En
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
© Panasonic Corporation 2009
Printed in Malaysia
RQT9522-P̲MW-10̲P.indd 24
RQT9522-P
H0809WM0
2009/08/28 19:13:14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
