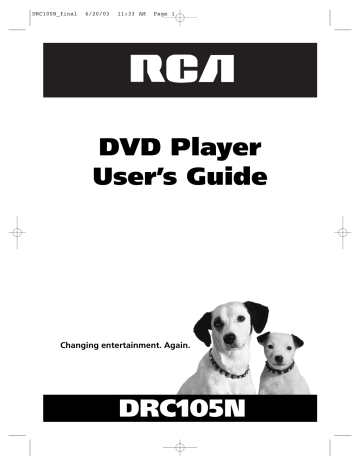

DRC105N_final 6/20/03 11:33 AM Page 1 DVD Player User’s Guide Changing entertainment. Again. DRC105N DRC105N_final 6/20/03 11:33 AM WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN. This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. Page 2 To reduce risk of electrical shock, do not remove cover or back (no user serviceable parts inside). Refer servicing to qualified personnel. This symbol indicates important instructions accompanying the product FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect this equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference--Causing Equipment Regulations. Refer to the identification/rating label located on the back panel of your product for its proper operating voltage. Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqú au fond. Product Registration: Please fill out the product registration card packed with this product, and return it immediately. Returning this card enables us to contact you if necessary. Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the player. Model number: DRC105N Serial Number: Purchase date: Dealer address and phone: WARNING To reduce the risk of fire or shock hazard, do not expose this DVD player to rain or moisture. No objects filled with liquids, such as vases, shall be placed on the apparatus. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTION FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it. Note: This device is protected by U.S. patent numbers 4,631,603 and 4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision’s copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play the disc. The Region number for this DVD player is Region No 1. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. CLASS 1 LASER PRODUCT DRC105N_final 6/20/03 11:33 AM Page 3 Table Of Contents Bookmark Icon (DVD Info Display) ..........................21 Creating a Bookmark ..........................................21 Using a Bookmark ................................................21 Clearing a Bookmark ............................................21 Camera Angle Icon (DVD Info Display) ..................22 PBC Playback Control (Video CD Info Display) ....22 Playing mp3 and WMA music files and displaying JPEG files ....................................................................22 Displaying JPEG files or playing mp3 or WMA files ............................................................................22 Playing JPEG and mp3 music files at the same time ..........................................................................24 Chapter 1: Connections and Setup Things to consider before you connect ....................4 Install Batteries in the Remote ..................................4 Explanation of Jacks and Cables ................................5 Video Jacks and Cables ..........................................5 Audio Jacks and Cables ..........................................6 Front of the DVD Player ..............................................7 Connection: DVD + TV + VCR ....................................9 Point the Remote at the DVD Player and Put it in DVD Mode ..................................................................10 Turn on the TV and DVD Player ..............................10 Using Different Menus ..........................................10 How to find your TV’s Video Input Channel ............11 Next Steps ..............................................................11 Chapter 4: Menu System The DVD Player Menu System ................................25 The Play Menu ........................................................25 The Play Mode Menu ................................................25 Start ..........................................................................25 Random Play ..........................................................25 Program Play ..........................................................26 AutoPlay ..................................................................26 IntroScan (Audio CD only) ................................26 The Parental Control Menu ......................................27 Locking your DVD Player ....................................27 Unlocking your DVD Player ................................28 Changing Your Password ......................................28 Explanation of Rating Limits ................................28 The Display Menu ......................................................30 TV Image ..................................................................30 The Sound Menu ........................................................31 Sound Logic ............................................................31 Digital Output ........................................................31 The Languages Menu ................................................32 Chapter 2:The Remote Control Button Descriptions for DVD Mode ........................12 Button description for TV and VCR function buttons ........................................................................13 Using the remote to Navigate through On-Screen Menus ..........................................................................13 Chapter 3: Playing Discs Compatible discs ........................................................14 Regional Coding ........................................................14 How to load and play a disc ......................................14 Search Options ..........................................................14 Picture Scan ............................................................14 Freeze Frame and Frame Advance ....................15 Slow Motion (in Freeze Frame Mode) ............15 Playback options ........................................................15 Chapter Advance ..................................................15 Zoom ........................................................................15 Scene Again™ ........................................................15 Using the On-Screen Info Display ............................16 How to Navigate the Info Display ............................17 Time Display (all Info Displays) ................................17 Title/Track Icon (all Info Displays) ..........................17 Chapter Icon (DVD Info Display) ............................17 Subtitles Icon (DVD Info Display) ............................18 Audio Language Icon (DVD Info Display) ................18 Play Mode Icon (DVD, CD Info Displays) ................19 Play Mode Options ................................................19 Chapter 5:Additional Information Troubleshooting ..........................................................33 Maintenance of Cabinet ............................................36 Formation of Condensation ................................36 Handling Discs ........................................................36 Cleaning Discs ........................................................36 Handling Cautions ................................................36 Limited Warranty ......................................................37 Accessory Information ..............................................39 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home use only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. 3 DRC105N_final 6/20/03 11:33 AM Page 4 Connections and Setup Chapter 1 Things to consider before you connect Protect components from overheating • Don’t block ventilation holes on any of the components. Arrange the components so that air can circulate freely. • Don’t stack components. • When you place components in a stand, make sure you allow adequate ventilation. • If you connect an audio receiver or amplifier, place it on the top shelf. Position cables properly to avoid audio interference • Insert each cable firmly into the designated jack. • If you place components above the TV, route all cables down the side of the back of the TV instead of straight down the middle of the back of the TV. • If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin lead cables away from audio/video cables. Note: Some discs may not be compatible due to laser pickup and disc design. Install Batteries in the Remote 1 2 3 1. Remove the battery compartment cover. 2. Insert the batteries (provided), by matching the diagram in the battery compartment to make sure + and – are in the proper position. 3. Put the battery cover back in place. Important Battery Information • If you’re not going to use the remote for a month or more, be sure to remove the batteries because they can leak and cause damage. • Dispose of batteries in the proper manner, according to federal, state, and local regulations. • Any battery may leak electrolyte if mixed with a different battery type, if inserted incorrectly, if all batteries are not replaced at the same time, if disposed of in fire, or if an attempt is made to charge a battery not intended to be recharged. • Discard leaky batteries immediately. Leaking batteries can cause skin burns or other personal injury. 4 DRC105N_final 6/20/03 11:33 AM Page 5 Connections and Setup COMPONENT VIDEO OUT Pb Pr AUDIO OUT Y NORMAL L VIDEO OUT COAXIAL S-VIDEO AUDIO OUT OUT PROGRESSIVE SCAN Y, PR, PB ONLY Back of the DVD Player R Explanation of Jacks and Cables There are several ways to connect your DVD Player to your TV depending upon the cables you have and the jacks that are on the back of your TV. Different jacks and cables provide a different level of performance.The jacks on the back of your DVD Player and the cables used to connect them are explained below. VIDEO OUT Jack and Cable VIDEO OUT VIDEO OUT jack The basic Video jack (usually color-coded yellow) is also referred to as composite video. Composite video is better than the video quality you get from an RF coaxial cable (the type used to plug the cable feed into a TV). Usually the video cable is bundled with the audio cables (white and red). Video cable (yellow) Video Selection switch NORMAL PRO GRESSIVE SC AN Y, PR, PB ONLY Video Selection switch If you connect the DVD Player to a TV that is capable of progressive scanning the signal, you need to use the Y, Pb, Pr jacks and video cables. It is essential you turn the VIDEO SELECTION switch to the PROG. SCAN ONLY position. If you use S-VIDEO OUT or VIDEO OUT jacks for your connection, leave the switch in REGULAR CONNECTIONS position. S-VIDEO OUT Jack and Cable S-VIDEO jack S-Video cable The S-VIDEO OUT (separate video) jack provides better picture quality than composite video (the VIDEO OUT jack) because the color is kept separate from the black and white part of the video signal. If your TV has an S-Video jack, connect the DVD Player to the TV with an S-Video cable. Note: Remember to connect the audio cables because the S-Video cable carries only the picture signal, not the sound. VIDEO OUT Pr Y Video Jacks and Cables Pb COMPONENT VIDEO OUT REGULAR AND PROG. SCAN (Y, Pb, Pr) Jacks and Component Video Cables Component video jacks and cables are often color-coded (red, blue, and green). The Y, Pb, Pr jacks provide optimum picture quality because the video signal is separated into three parts. To ensure maximum picture quality, use three video-grade cables (yellow) for the connection.You can also buy bundled component video cables that are color-coded to match the Y, Pb, Pr jacks (red, green, and blue). Note: Remember to connect the audio cables because the component cable carries only the picture signal, not the sound. 5 Connections and Setup Audio Jacks and Cables AUDIO L (left) and R (right) AUDIO OUT R AUDIO R and L jacks L Audio/ Video cables These jacks send the audio from the disc you’re playing to the TV.The audio jacks and cables are often color-coded (red for right audio, and white for left audio).You must connect audio cables to the AUDIO L and R jacks on the DVD Player and the corresponding Audio Input Jacks on the TV no matter which Video jack you connect (VIDEO; S-VIDEO;Y, Pb, Pr). Notes: If your component has only one input for audio (mono), connect it to the left (white L/Mono) audio jack on the TV and don’t connect the right audio part of the cable. COAXIAL AUDIO OUT Jack Digital Coaxial cable If you’re connecting this DVD player to an audio video receiver that has a COAXIAL DIGITAL INPUT jack, use a Digital Coaxial cable to connect it to the DVD player’s COAXIAL OUT jack. COAXIAL DIGITAL OUT COAXIAL jack 6 DRC105N_final 6/20/03 11:33 AM Page 7 Connections and Setup PLAY Front of the DVD Player (buttons appear left to right below) STANDBY/ON - Turns the player on and off.The indicator lights when the player is in standby mode (off), and is not lit when the player is on. OPEN/CLOSE - Opens and closes disc tray. PLAY - Begins disc play. STOP - Stops disc play. (Prev.) - Goes to the beginning of the previous chapter or track. (Next) - Skips to next chapter or track L.E.D.s (Light Emitting Diodes) - One light corresponds to the STANDBY/ON button.The other light corresponds to playback status. For connection example, go to next page 7 Connections and Setup COMPONENT VIDEO OUT AUDIO OUT Pr Pb Y NORMAL L VIDEO OUT COAXIAL S-VIDEO AUDIO OUT OUT PROGRESSIVE SCAN Y, PR, PB ONLY R TV COMPONENT VIDEO I NPUT PR PB Y VCR 8 DRC105N_final 6/20/03 11:33 AM Page 9 Connections and Setup Connection: DVD + TV + VCR 1. Connect the audio cables to the AUDIO OUT L (left – white) and R (right – red) jacks on the back of your DVD Player, and to the corresponding Audio Input jacks on your TV (sometimes labeled AUDIO IN L and R). 2. Connect the video cable. 2a. Basic video connection – Connect the video cable (yellow) to the VIDEO OUT jack on the back of your DVD Player, and to the Video Input jack on your TV (sometimes labeled VIDEO IN). 2b. S-Video (optional) – If your TV has an S-Video jack, connect the S-Video cable (not provided) to the S-VIDEO OUT jack on the back of your DVD Player and to the S-VIDEO jack on your TV. 2c. If your TV has component video jacks (Y, Pb, Pr) jacks, use video-grade cables (not provided) to connect the TV to the DVD player’s COMPONENT VIDEO OUT (REGULAR AND PROG. SCAN)— Y to Y, Pb to Pb, R to R). It is essential to match the color coded connectors with a compatible TV. – OR – – OR – Note: If your TV or monitor has progressive scanning capability, you need, to make sure you choose correct setting on the back of the DVD Player (step 6 below). 3. Connect the antenna or cable to the Antenna Input jack on the VCR (sometimes labeled IN FROM ANTENNA). 4. Connect a coaxial cable to the Antenna Output jack on the VCR (OUT TO TV) and to the Antenna Input jack (CABLE/ANTENNA) on the TV. 5. Insert the AC power cord into an AC outlet. 6. If your TV is capable of using progressive scanning and you connected the DVD Player to the TV by connecting the Component Video Jacks (Y, Pb, Pr), make sure you change the Video Selection switch setting to PROGRESSIVE SCAN ONLY position on the back of the player. All other connections should leave the Video Selection switch set to NORMAL connections (VIDEO, S-VIDEO, COMPONENT) Go to page 8 Note: If your TV doesn’t have Audio and Video Input Jacks and only has an RF jack, you need to connect an RF modulator (not provided). For information, go to page 39. 9 DRC105N_final 6/20/03 11:33 AM Page 10 Connections and Setup Point the Remote at the DVD Player and Put it in DVD Mode When you want the remote to operate the DVD Player, point the remote at the DVD Player, not the TV. Make sure the remote is in DVD mode - press the DVD button. Also, you must make sure there is a clear path between the remote control and the DVD Player because the remote control uses infrared (IR) technology that sends a command from the remote control to the IR sensor on the front of the DVD player. Turn on the TV and DVD Player 1. Turn on your TV and tune it to the correct Video Input Channel (if you don’t know which channel is the Video Input channel, go to page 11 for help). English Select a Menu Language Francais Select langue de menu Español 2. The first time you turn on your DVD player, a Language Selection menu appears. If you want the DVD player’s menus to appear in English, press the OK button on the remote control. If you prefer another language, press the button until that language is highlighted and press OK to select the it. Selecione Idioma Menu Using Different Menus Each disc is programmed with different features.There are three separate types of menus that you can use to access features: Resume Play Play Mode Parental Control Display Sound Languages Press Play to resume playback. • The Disc menu – The Disc menu is part of each disc and is separate from the DVD player’s menu.The contents of each Disc menu varies according to how the disc was authored and what features are included.The Disc menu is turned on and off (while the disc is playing) with the MENU button on the remote. • The DVD player’s Info Display – The Info Display appears as icons across the top of the screen. It can only be accessed while you are playing a disc. It’s turned on and off with the INFO button on the remote. • The DVD player menu – The DVD player’s menu system is accessed only when a disc isn’t playing. It appears automatically when you press the STOP button on the remote. Remember: A feature will only work if the disc was programmed with that feature. For example, if you choose subtitles on the Info Display, the subtitles will only appear if the disc was created with subtitles. If a menu or icon is “grayed out” it means that item (or feature) isn’t available. 10 DRC105N_final 6/20/03 11:33 AM Page 11 Connections and Setup How to find your TV’s Video Input Channel In order to see what’s playing on your DVD Player, you need to tune the TV to the Video Input Channel that corresponds to the jacks you used to connect the DVD Player to the TV.The Video Input Channel(s) varies for different brands and different models of TVs. If your TV is an RCA, GE, or Proscan brand, the DVD’s remote probably operates it. Just press the TV button, and then press the INPUT button until you see the DVD’s main menu, screen saver, or the disc you’re playing. If your TV is another brand, check the list below: Consult the instruction manual that came with your TV. If you can’t find the information in the manual, or can’t find the manual, review the following list. • There might be a button on the TV’s remote control that accesses the Video Input Channel (see table below for examples). • You might select the Video Input Channel from the TV’s on-screen menu system. • You might tune to it by pressing a specific channel number (see table below). • Press the Channel up and/or down buttons on the TV’s remote control (sometimes the Video Input Channel is stored in your TV’s channel list). Video Input Channel Variations Button/Switch on the TV Button on the TV remote Channel Number VIDEO VID1 S-VID 00 93 SIGNAL LINE INPUT 90 VID 1 VID 1 VID SOURCE 91 VID 2 VID 2 VIDEO AUX 92 INPUT Next Steps Before you start playing discs, you might want to get familiar with the remote control - Chapter 2 has details. Playing Discs is found in Chapter 3; the menu system is outlined in Chapter 4; and Chapter 5 contains troubleshooting, Limited Warranty, and accessory information. 11 Button Descriptions for DVD Mode In addition to operating your DVD Player, the remote that came with it will operate most RCA, GE, and Proscan TVs and VCRs. However, this page only describes the buttons on the remote that you will use with your DVD Player. For descriptions of remote control buttons to be used with your TV and VCR (RCA, GE, and Proscan only), go to the next page. ON• OF F GOBACK MUTE RETU R N 12 DRC105N_final 6/20/03 11:33 AM Page 13 The Remote Control Button description for TV and VCR function buttons This remote operates most TVs and VCRs that carry the RCA, GE, or Proscan brand.The following list (in alphabetical order) provides basic information about how these buttons will operate when in TV or VCR mode. CH +/In TV mode, changes channels. GO BACK/RETURN In TV mode, goes back to the last channel the TV was tuned to. GUIDE INPUT LOCK MUTE RECORD SEARCH TIMER TV TV•VCR VCR VOL </> SPEED In TV mode, accesses the GUIDE Plus+ programming guide if the TV has that feature. In TV mode, tunes to the TV’s Video Input Channel(s). For more information about Video I Input Channels, go to page 11. In VCR mode, accesses the childlock function. Lowers the volume to minimum level. Press again to restore volume. In VCR mode, used to record a program. In VCR mode, accesses Index search feature. In VCR mode, accesses the timer recording menu. Puts the remote in TV mode so it operates the TV (RCA, GE, and Proscan TVs only). Functions as a TV/VCR button in VCR mode Puts the remote in VCR mode so it operates the VCR (RCA, GE, and Proscan VCRs only). Decreases and increases volume level. In VCR mode, selects tape speed. Using the remote to Navigate through OnScreen Menus ON• OF F DVD VCR TV GOBACK CH VOL MUTE Left arrow OK button RETU R N CLEAR MEN U AU DIO Up arrow ANGLE LOC K SUBTIT LE TIT LE TIMER GUIDE Down arrow INFO 1 2 3 4 5 6 7 8 INPUT 0 Right arrow Use the the arrow buttons on the remote to move through on-screen menus in the direction of the arrow button (to go right, press the right arrow button; to move left, press the left arrow button, etc.).The arrow buttons are used to highlight an option. Once highlighted, press the OK button to select that menu option. 9 PLAY MODE TV• VCR REVERSE PLAY FORWAR D RECOR D STOP PAUSE AGAIN ZO OM OPEN• CLOSE S PE ED SEARCH No matter which on-screen display you’re using (the DVD player’s menu, the Info Display that appears during playback, or a disc’s menu), you’ll use the same buttons on the remote control to move through the onscreen display: the four arrow buttons and the OK button. Use the arrow buttons to highlight onscreen options. Use the OK button to select an option that is highlighted. 13 DRC105N_final 6/20/03 11:33 AM Page 14 Playing Discs Chapter 3 Compatible discs VIDEO CD Note: Some discs may not be compatible due to laser pickup and design. This DVD Player is capable of playing the following types of discs: DVDs, Audio CDs,Video CDs, and CDs with mp3 files,WMA files (Windows Media Audio), and JPEG files on them. Before you put a disc in the player, make sure it is compatible. You can’t play the following types of discs: Laserdiscs, CD-I, CD-ROM (computer-only discs), DVD-ROM, or discs recorded using other broadcast standards (i.e. PAL or SECAM); CD-G discs. Regional Coding Both the DVD Player and the discs are coded by region.These regional codes must match in order for the disc to play.This player’s code is region 1. ALL means all regions. Other regions are: 2: Europe, the Middle East, Rep. of South Africa, Japan - 3: Southeast Asia,Taiwan - 4: Central America, South America, Australia, Mexico, New Zealand - 5: Russian Federation, Africa (except Egypt and Rep. of South Africa), India, Pakistan - 6: China. How to load and play a disc Turn on your DVD Player and your TV. 1. If necessary, tune the TV to its Video Input channel (for help, go to page 11). 2. Press the OPEN/CLOSE button (the disc tray opens). Place a disc gently into the tray with the disc’s label facing up (double-sided discs have content on both sides, so you can place either side up). 3. Press the OPEN/CLOSE or PLAY button.The disc tray closes.The DVD Player reads the disc’s table of contents, and then one of three things happens depending on how the disc was programmed: • The disc starts playing • The disc menu appears. One of the options will start playing the disc. Highlight that option and press OK. • The DVD Player’s main menu appears (since the Play menu is already highlighted, just press the OK button). Search Options To search a disc, you can use the FORWARD button or the REVERSE button.You can also utilize the following search features: Picture Scan When you’re playing a disc, each time you press FORWARD or REVERSE, your DVD Player scans the disc faster until you reach the fastest scan speed.To resume normal playback, press PLAY. 14 DRC105N_final 6/20/03 11:33 AM Page 15 Playing Discs Freeze Frame and Frame Advance While a disc is playing, press PAUSE to freeze the picture.To advance one frame at a time, press PAUSE again (the on-screen icon changes from PAUSE to FRAME). Each time you press the FORWARD or REVERSE button, the picture goes to the next (or previous) frame.To resume normal playback, press PLAY. Note: If you pause a DVD disc or VCD disc for a long period of time, the video will disappear from the screen. Press any button on the remote to revert to the place on the disc where you paused playback. Slow Motion (in Freeze Frame Mode) While a disc is playing, press PAUSE. Press REVERSE or FORWARD (each time you press REVERSE or FORWARD the slow motion will get even slower until you reach the slowest speed). To resume normal playback, press PLAY. Playback options Many of your DVD Player’s playback features are accessed through the Info Display, the banner at the top of the screen that appears during playback (for more information, go to page 16). Additionally, with some discs you can access playback features directly from the remote control. Chapter Advance While a disc is playing, you can skip forward or backward a chapter or track at a time by pressing the CH+ and/or CH- buttons (also labeled and ). Zoom 1. While you’re playing a disc, press ZOOM (the player zooms in on the image). Each time you press ZOOM, the picture is magnified even more (until you get to the maximum zoom level). 2. To see other parts of the picture when you’ve zoomed in on the image, try pressing the , and , buttons to go in corresponding directions.This feature is called pan and scan. Scene Again™ While you’re playing a DVD disc, press the AGAIN button on the remote (the disc automatically repeats approximately the last few seconds of the movie). 15 DRC105N_final 6/20/03 11:33 AM Page 16 Playing Discs Using the On-Screen Info Display The Info Display appears across the top of the screen when you press the INFO button on the remote while you’re playing a disc. Use the and buttons to highlight different icons. Once an icon is highlighted, follow the on-screen instructions, and use the or buttons on the remote to scroll through the options. You can only access the Info Display when you’re playing a disc. Also, the Info Display features are only available if the disc was created with that particular feature. If one of the icons is “grayed out,” that feature isn’t available for the disc you’re playing. The invalid symbol appears on the screen when you press a button that doesn’t have any function. To make the Info Display disappear from the screen, press INFO on the remote. DVD Disc Info Display Time display Chapter Title Audio Subtitles Bookmark Play Mode Angle Audio CD Info Display Time display Track Play Mode Bookmark Video CD (VCD) Info Display Time display Track PlayBack 16 Audio Play Mode DRC105N_final 6/20/03 11:33 AM Page 17 Playing Discs How to Navigate the Info Display Up To access the Info Display, press the INFO button on the remote while you’re playing a disc. Left Down Right Use the and arrow buttons on the remote to highlight different icons. Once an icon is highlighted, follow the on-screen instructions, and use the or buttons to scroll through options. Time Display (all Info Displays) This feature displays the time that has elapsed during playback. For DVD discs, the time displayed refers to the current title and acts as a Time Search feature.You can skip right to any scene. Highlight the Time Display, and use the number buttons on the remote to enter the elapsed time you want to go to.You must use two digits for each field. For example, if you enter 01:35:12, playback will start 1 hour, 35 minutes, and 12 seconds into the title. Note: For Audio CDs, the time displayed refers to the track that’s playing. Title/Track Icon (all Info Displays) Some DVD discs contain more than one title. Each title is divided into chapters. CDs are divided into separate tracks.To select a title/track: After you highlight the Title/Track icon, use the number button(s) on the remote to enter the title number (track number) and press OK, or press the or buttons to scroll through the titles/tracks. Note: Many discs only have one title. Chapter Icon (DVD Info Display) A title can be divided into individual chapters (similar to tracks on a CD).To skip to a specific chapter: After you highlight the Chapter icon, use the or buttons to scroll through different chapters. Use the number buttons to enter a specific chapter number. Note: The Chapter feature won’t work if the disc isn’t formatted with separate chapters. 17 Subtitles Icon (DVD Info Display) By default, subtitles are off.To turn subtitles on: 1. While a disc is playing, press INFO (the Info Display appears). 2. Use the button to scroll to the Subtitle icon. 3. To change the subtitle language, press the or button repeatedly to see what subtitle languages are available (the subtitle language options appear in the box at the bottom of the Info Display). 4. Press OK. Notes: Changing the subtitle language with the Info Display will only affect the disc you are currently playing. When the disc is removed or the player is turned off, the subtitle language will revert to the language setting specified through the DVD player’s main menu. 18 DRC105N_final 6/20/03 11:33 AM Page 19 Playing Discs Play Mode Icon (DVD, CD Info Displays) The Play Mode options available depend upon the type of disc you’re playing.The default play mode (standard play) plays the disc’s contents in the order in which the disc was created (i.e., track 1 plays first, followed by track 2, etc.). Play Mode Options Repeat: DVDs, Audio CDs,VCDs and mp3s. Random Play: Audio CDs and mp3s (tracks play in random order). Program Play: DVDs, Audio CDs and mp3s (create your own playlist by defining the order of the tracks in the DVD Player’s Play Mode menu— page 26.) Introscan: Audio CDs. Plays the first few seconds of each track. Repeat By default the Repeat feature is Off.The options available depend upon the type of disc you’re playing. • With DVD discs you can repeat the title, chapter or use AB repeat. • With Audio CDs you can repeat the disc, a track, or create a program that plays repeatedly. • With mp3s you can repeat the disc, a track, or create a program that plays repeatedly. Repeating Discs, Titles, Chapters, or Tracks 1. While a disc is playing, press INFO (the Info Display appears). 2. Press the button until the Play Mode icon is highlighted. 3. Press the or button to scroll through the different options until you see the repeat option you want to use (the options appear at the bottom of the Info Display). Press OK to select and activate. 4. To turn off the Repeat feature, press the until Play Mode: Standard appears. 19 or button repeatedly DRC105N_final 6/20/03 11:33 AM Page 20 Playing Discs AB Repeat AB Repeat lets you define a specific segment on the disc that you want to repeat.To watch a scene over and over: 1. With the Play Mode icon highlighted in the Info Display, press the or buttons until Repeat Mode: AB. Press OK to set A point appears at the bottom of the Info Display. Press OK when the disc gets to the beginning point of the segment (the A point) that you want to repeat. 2. Allow the disc to play to the end of the segment you want to repeat. Don’t fast forward - the disc has to play in standard playback mode to set the B point (the end point of the segment). Press OK to set the B point (the segment will play repeatedly until you turn off the Repeat feature). 3. To turn off the Repeat feature, press the button on the remote until Play Mode: Standard appears at the bottom of the Info Display. Press OK. Repeat is also cancelled when you eject the disc. Random (DVD,Audio CD and mp3s) 1. With the Play Mode icon highlighted in the Info Display, press the button until Play Mode: Random appears in the text at the bottom of the Info Display. Press OK (the tracks start playing in random order). To switch back to Standard Playback, press the or button repeatedly until Play Mode: Standard appears in the text bar underneath the Info Display icons. Note: The player defaults to Standard Playback whenever you put a new CD into the DVD player. Program Play (DVD and Audio CD Info Displays) The Program Play Mode (DVD, Audio CD and mp3s) is only available after you set up a program through the DVD Player’s menu. Go to page 26 for instructions. IntroScan (Audio CD Info Display) Use this feature to preview the first few seconds of each track on a CD. After you’ve highlighted the the Play Mode icon, press the or button on the remote until Play Mode: Introscan appears. If necessary, press the OK button (the first few seconds of each track starts playing). • After Introscan previews all of the tracks, it stops. • If you want to play the track that Introscan is previewing, press the PLAY button (the current track starts playing in its entirety). • To stop IntroScan, press the STOP button (the main menu appears). 20 DRC105N_final 6/20/03 11:33 AM Page 21 Playing Discs Bookmark Icon (DVD Info Display) The Bookmark feature lets you mark a point on the disc so that when you turn the player off and back on (without having ejected the disc), you can quickly start playing the disc from a bookmarked point. Creating a Bookmark 1. Highlight the Bookmark icon on the Info Display. Press OK (the Bookmark Banner appears). 2. Highlight an unused bookmark.When the disc reaches the scene you want to mark, press the OK button on the remote (the bookmark icon changes to two icons side-by-side: an arrow and a trash can). To play the disc from the bookmarked scene, highlight the arrow and press the OK button. To delete the bookmark, highlight the trash can and press OK. This is the Bookmark Banner. Play arrow icon Unused bookmark icon 3. To remove the Info Display and/or Bookmark Banner, press the INFO button on the remote. Using a Bookmark 1. While you’re playing a disc, press the INFO button on the remote (the Info Display appears). 2. Press the button to highlight the Bookmark icon, and press OK (the Bookmark Banner appears). 3. Use the , , and buttons on the remote to highlight the play arrow icon that’s next to the bookmarked scene you want to activate. 4. Press OK (the disc starts playing from the bookmarked scene). Clearing a Bookmark The bookmarks are erased each time you remove a disc from the player and/or when the power is turned off. 1. While you’re playing a disc, press the INFO button on the remote (the Info Display appears). 2. Press the button to highlight the Bookmark icon, and press OK (the Bookmark Banner appears). 3. Use the , , and buttons on the remote to highlight the trashcan icon that’s next to the bookmarked scene you want to delete, and press OK (the bookmark is cleared, and the trashcan icon changes back to an unused bookmark icon). Trashcan icon 21 DRC105N_final 6/20/03 11:33 AM Page 22 Playing Discs Camera Angle Icon (DVD Info Display) Some discs contain multiple angles of a particular scene or sequence. If the disc only has one angle, this feature won’t work. Currently, very few discs have this feature. 1. While a disc is playing, press ANGLE on the remote. If the disc wasn’t created with multiple angles, (the invalid symbol) appears. If the disc contains multiple angles, the Angle icon appears with the current angle number and the number of angles available. For example, 1/4 indicates that Angle 1 is displayed and there are 4 different angles available. 2. Press the ANGLE button again to go to the second camera angle. Press ANGLE again to go to the third angle, etc. 3. To resume normal playback, scroll through the camera angles until you get to Angle Off. PBC - Playback Control (Video CD Info Display) Playback Control functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included on the disc. 1. While the Video CD is playing, press INFO (the Info Display appears). 2. Highlight the PBC icon. Press or buttons to toggle between on and off. Playing mp3 and WMA music files and displaying JPEG files mp3 is an audio file format which compresses recorded music. It was developed by Fraunhofer Gesellschaft in collaboration with Thomson Inc.The main advantage of the mp3 format is that it means CD-quality music tracks can be stored on a personal computer in user-friendly, compressed files. WMA (Windows Media Audio) is another audio file format developed by Microsoft. JPEG files are image files. Note: The time taken for the contents of the disc to be displayed varies according to the size and number of JPEG files actually on the disc. If nothing is displayed after a few minutes, it is likely that certain files are too large.Try reducing the files’ resolution and write another disc. Displaying JPEG files or playing mp3 or WMA files Before inserting a disc, check that it is compatible with the player. 1. Open the tray by pressing the OPEN•CLOSE button. 2. Place the disc with the printed side facing up. 3. If the AutoPlay option in the Play Mode menu is enabled (see page 26), the disc’s contents are displayed, otherwise press the PLAY button to display them. 22 DRC105N_final 6/20/03 11:33 AM Page 23 Playing Discs Winamp 2.7ful cjjb2000a _ _ _ AL)_ _ TEG _ _ 4. Select a folder using the and buttons on the remote control, then press OK to display the list of files or press PLAY to start playing all the files contained in the folder. -3.jA- - LET _S_ -3.jA- - C _ _ _ I Example of folder list .. PLAY 01.THE REASON -3.jA- - LET_S_ 02.IMMORTALIT 04. WHY ON WHY 03.TREAT HER 04.WHY ON WHY 05.LOVE IS IN Example of mp3 files 5. Select a file using the , , and then press PLAY to start playback. buttons, Note: when a music file (mp3 or WMA) is selected for more than two seconds, the player lets you hear the first few seconds of the song. • mp3 or WMA file: the player begins by playing the selected file, then all the files and subfolders contained in the same folder.The player then plays the contents of the folders at the same level as the folder containing the file selected at the start. Note: while listening you can use the or button to go back to the previous track or go on to the next one and press the MENU button to display the disc’s contents. Continued on next page 23 DRC105N_final 6/20/03 11:33 AM Page 24 Playing Discs • .. wiseview.jpg JPEG file: the player starts the slide show with the JPEG file you have selected and proceeds to display all the JPEG files in the same folder, then all the JPEG files in the subfolders located in the same folder. Note: During the slide show you can use the ANGLE button to rotate the picture 90°, the ZOOM button to magnify the picture, the or buttons to go back to the previous picture or go on to the next one and the MENU button to interrupt the slide show and display the disc’s contents. Press Play to start. 6. Press the INFO button to display the Info menu during playback. • mp3 file: press the AUDIO or PLAY MODE button several times to select a playback mode (standard, program, random, repeat). • JPEG file: press the button to select a projection speed. 7. When the player has played all the files the music or slide show stops and the disc’s contents appear. 8. Press STOP to end playback. Playing JPEG and mp3 music files at the same time You can display JPEG files while listening to mp3 music files recorded on the same disc. It is not possible to play JPEG and WMA music files at the same time. 1. Insert the disc containing the two types of file in the player. 2. Select an image file using the , , and buttons, then press OK to confirm your selection.The name of the folder where the file is located and the name of the file appear on the right in the "Current selection" section. 3. Then select an mp3 music file using the , , and buttons, then press OK to confirm your selection.The name of the folder where the file is located and the name of the file appear on the right in the "Current selection" section. Note: To delete your selection, press the CLEAR button. 4. Press the PLAY button to start playing the two files at the same time. Note:You can also select a folder containing JPEG and mp3 files using the , , and buttons, then press PLAY. In this case, the player starts playing the pictures and music at the same time beginning with the first file of each type. • The player starts the slide show with the JPEG file selected and proceeds by displaying all the JPEG files in the same folder, and then all the JPEG files in the subfolders located in the same folder. At the same time, the player plays the selected mp3 file, then all the mp3 files in the same folder, and finally the mp3 files contained in the folders located at the same level as the folder containing the file selected at the start. Note: If the mp3 files are finished playing before the end of the slide show, the player starts playing the mp3 files again until the slide show ends. 5. Press INFO to access the Info menu during simultaneous playback.You can change the slide show’s projection speed. 6. During simultaneous playback you can use the ANGLE button to rotate the picture 90°.The or buttons to go back to the previous picture or go on to the next one. 24 DRC105N_final 6/20/03 11:33 AM Page 25 Menu System Chapter 4 The DVD Player Menu System The DVD player menu system is not the same as the disc menu or the Info Display.The DVD player menu appears when there’s no disc playing. If you are playing a disc, press STOP on the remote control to stop playback (the DVD player menu appears). If the screensaver is on the screen, press STOP or CLEAR. Use the arrow buttons, , , and , on the remote to highlight different menu items. Use the OK button to select a menu that is highlighted. Throughout the menu system, text appears at the bottom of the page to explain what to do. To return to a previous menu, press the Play The Play Menu Insert Disc The Play menu doesn’t have submenus or options like the other main menu options. Instead the status changes: if you’re playing a disc and access the main menu, the menu appears as Resume Play; if you haven’t started playing the disc, the title of the disc appears next to the Play menu. Play Mode Parental Control Display Sound Languages The Play Mode Menu Play Start Play Mode Random Play Parental Control Program Play Display AutoPlay Sound IntroScan Languages (left arrow) button. Off Discs are formatted to play chapters (or tracks on audio CDs) in a certain (standard) order. If you’d like to play chapters or tracks in a different order, you can use the Play Mode menu to do so.You must have a disc in the player with the disc tray closed in order to access all of the Play Mode items. Note: All of the play mode options, except for Program Play can be accessed during playback via the DVD player’s Info Display (page 16). Start The DVD Player’s default play mode is Start.The chapters and tracks on a disc play in the order listed on the disc starting with chapter (track) 1. Random Play The Random Play option plays a disc’s chapters in random order. Use the arrow buttons to highlight Random Play, and press the OK button. To stop Random playback, press the STOP button twice. To resume normal playback, press PLAY. 25 DRC105N_final 6/20/03 11:33 AM Page 26 Menu System Program Play With this option, you choose the order in which the chapters (or tracks) play. 1. Highlight Program Play, and press the OK button (the Program Playlist screen appears). Follow the on-screen instructions to create your program: 1a. DVD: select a title using the and buttons and press the list of chapters.To select a chapter, press the and buttons. 1b. Audio CD: select a track using the the tracks. and button to access the buttons, or select All to start playing all Note: When a track is selected for more than two seconds, the first few seconds of the track plays. 1c. mp3 CD: select a folder using the and access the list of files, then select a file using the buttons, then press the and buttons. button to Note: When an mp3 file is selected for more than two seconds, the first few seconds of the track plays. 2. Press OK to add the title, chapter (DVD), track (audio CD) or file (mp3) selected, to the list. Press the CLEAR button to remove the last title/chapter/track/file from the list. Press PLAY to start program play. Repeat steps 1 and 2 as often as necessary. AutoPlay You can set up the DVD Player so a disc automatically starts playing whenever the disc tray is closed. Highlight AutoPlay and press OK (On appears next to the AutoPlay menu).To turn AutoPlay off, just press OK again while AutoPlay is highlighted. Note: AutoPlay isn’t available for mp3 discs (the mp3 menu will appear when you insert the disc). IntroScan (Audio CD only) This option plays the first 10 seconds of each track. After you’ve highlighted the IntroScan menu, press OK (the first 10 seconds of each track start playing); press STOP to stop IntroScan or PLAY to continue playing the current track. Note: IntroScan is also available while you’re playing a CD via the Info Display (page 16). 26 DRC105N_final 6/20/03 11:33 AM Page 27 Menu System The Parental Control Menu You can set up ratings limits and lock your player in order to control the type of content people watch on your DVD Player.The padlock icon indicates whether the player is locked or unlocked. Locked: You need to enter the password in order to play discs that have a higher rating than what you’ve allowed.When the player is locked, nobody can access the Parental Control menu without entering the password. Unlocked: No password required to play discs. Even if you’ve set ratings limits, they won’t be enforced when the player is unlocked. Locking your DVD Player Resume Play 1. If you’re playing a disc, press STOP (the DVD Player’s Play Mode Parental Control Lock Display Password Sound Rating Limits Languages Unrated Titles Use a password to lock the player and put into effect any limits you have set up. Lock Enter Password Password Rating Limits Unrated Titles Confirm Password main menu appears). 2. Press the button until Parental Control is highlighted, and press OK (the Parental Control menu items appear). 3. Since Lock is highlighted, just press the OK button on the remote (the Enter Password screen appears). 4. Use the number buttons on the remote control to enter your password and press OK (Confirm Password appears). Enter the same numbers you entered before and press OK (if necessary, press the button to return to the previous menu). Notes: Once the player is locked, you’ll need to enter the password every time you access the Parental Control menu. The player is shipped without any rating limits set.You need to set Ratings Limits (go to page xx for instructions) in order for the player to prevent people from playing discs with certain ratings. 27 DRC105N_final 6/20/03 11:33 AM Page 28 Menu System Unlocking your DVD Player 1. If you’re playing a disc, press STOP (the DVD Player’s main menu appears). 2. Press the button until Parental Control is highlighted, and press OK (the Enter Password screen appears). 3. Use the number buttons to enter the password you created, and press OK (the Parental Control menu items appear). 4. Press the button until Unlock is highlighted, and press OK. If asked, enter your password to confirm that you want to unlock the player (if necessary, press the button to return to the previous menu). Lock Enter New Password Changing Your Password You can change your password, but the player must be locked. Password Rating Limits Unrated Titles 1. If a disc is playing, press STOP (the main menu appears). 2. Press the down the arrow button until Parental Control is highlighted, and press OK. If asked, enter your current password if asked (the Parental Control menu items appear). 3. Press the button to highlight Password, and press OK (the Enter New Password screen appears). 4. Use the number buttons on the remote to enter the four-digit number that you want to use as your new password, and press OK (you will be prompted to enter your new password again to confirm). Enter your password, and press OK. Explanation of Ratings Limits Resume Play Parental Control Lock Display Password Sound Rating Limits Languages Unrated Titles Play Mode Use a password to lock the player and put into effect any limits you have set up. The Rating Limits feature lets you determine what types of discs can be played in the player, and what types of discs will require a password to override the rating limit that you’ve set. In the United States of America (USA), the ratings feature is based on the ratings set up by the MPAA (Motion Pictures Association of America) such as R, PG, G, etc. Some countries use a different rating system. The system ranks the ratings from 1 to 8 in order to accommodate the ratings systems used in other countries (1 is considered material that is least offensive and 8 is considered the most offensive). Note: In order for the Ratings Limits to be enforced, the DVD Player must be locked and the disc you’re playing must contain a movie (or a title) that is rated. 28 6/20/03 11:33 AM Page 29 Menu System To set Ratings for Rated Titles: 8 Least Restrictive 7 DRC105N_final *MPAA ratings may vary from disc to disc. 6 5 4 3 2 1 Most Restrictive Password Required Free Access The Rating Limits menu enables you to block discs that contain movies with a rating assigned to them (R, PG-13, PG, G, etc.) from being played unless you enter the password you created in the Password menu. 1. From the main menu, highlight Parental Control and press OK (enter your password if asked). 2. Highlight Rating Limits and press OK (the 8-level rating list appears). 3. Use the or buttons to move the bar to the highest rating you find acceptable. Notes: Ratings that won’t require a password (free access) appear under the bar. Ratings that will require a password, appear above the bar. 4. Press OK. 5. To return to the main menu, press the button until the main menu appears on the screen. Unrated Titles Unrated Titles Free Access Password Required Some discs contain titles that don’t have a rating assigned to them. Sometimes, movies you might find the most explicit are unrated.You can restrict access by requiring a password for unrated titles. 1. From the main menu, use the , , and buttons to highlight Parental Control and press OK (enter your password if asked). 2. Press the button until Unrated Titles is highlighted, and press OK (another screen appears). 3. Press the button to highlight Password Required, and press OK (your password will be required to play Unrated Titles as long as you make sure you lock the player). 4. To return to the main menu, press the button until the main menu appears on the screen. Note:You must lock the player in order for ratings limits to be enforced. 29 DRC105N_final 6/20/03 11:33 AM Page 30 Menu System The Display Menu The Display menu contains the settings that affect how a disc’s content looks on your TV and the brightness of the display that’s on the front of the DVD Player. TV Image Play Sound The TV Image menu adjusts the way a movie appears on your TV. Standard TVs are 4 x 3 format. Depending on the type of television you have, you may want to adjust the screen setting (also called the aspect ratio). Languages 1. With the player on (no disc playing), press MENU Play Mode Parental Control TV Image Display (the main menu appears). If a disc is playing, press STOP. 2. Use the or buttons to highlight Display. Press the OK button on the remote (the Display choices appear). 3. Since the TV Image is the first submenu, it’s already highlighted. Press the OK button (the TV Image options appear). 4. Use the or buttons to highlight your choice (the options are explained below), and press OK to select. 4 x 3 Letterbox – Choose this setting if you want to see movies in their original aspect ratio (height-to-width ratio).You’ll see the entire frame of the movie, but it will take up a smaller portion of the screen vertically.The movie might appear with black bars at the top and bottom of the screen. 4 x 3 Standard – Choose this setting if you want the movie to fill the entire screen of your TV.This might mean that parts of the picture (the left and right edges) won’t be seen. 30 DRC105N_final 6/20/03 11:33 AM Page 31 Menu System 16 x 9 Widescreen – Choose this setting if your DVD Player is connected to a wide-screen TV. If you choose this setting and you don’t have a widescreen TV, the images on the screen might appear distorted due to vertical compression. If you play a disc recorded in 4 x 3 format on a widescreen TV, the left and right side of the screen will appear black. The Sound Menu The Sound menu lets you adjust the player’s settings to match the equipment you connected to your DVD Player, and to use the DVD Player’s Sound features. Sound Logic The Sound Logic feature compresses the dynamic range (quietest sound to loudest sound) of a disc’s soundtrack to even out the range of volume. 1. From the Main Menu, (player on, no disc playing), highlight Sound and press the OK button on the remote (the Sound options appear). 2. If Sound Logic isn’t already highlighted, press the button on the remote control to highlight it and press OK (the Sound Logic options appear). 3. Use the or buttons to highlight a choice and press the OK button: None - this is the default (Sound Logic is turned off). Compressed - the volume range is compressed (loud sounds quieter and soft sounds louder). Note: The performance of the Sound Logic feature varies depending upon the equipment you have connected to your DVD Player and the audio format of the disc you’re playing. Digital Output If you connected your DVD player to a receiver via the COAXIAL AUDIO OUT jack on the back of the player, choose both Dolby Digital and DTS settings. 1. If the main menu isn’t on the screen, press the STOP button (the main menu appears). 2. Use the or buttons to highlight Sound. Press OK. 3. Use the or buttons to highlight the Digital Output menu. Press OK (the options or buttons to highlight your selection. Press OK to select. appear). 4. Use the 5. Press the button to return to the Sound menu or press MENU to exit the menu system. Note: If you choose the DTS setting and your receiver, decoder, or the disc doesn’t support the DTS format, you won’t hear any audio. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. DTS is a registered trademark of Digital Home Theater Systems, Inc. 31 DRC105N_final 6/20/03 11:33 AM Page 32 Menu System The Languages Menu Resume Play Lock Display Sound Languages Player Menus Play Mode English Disc Menus Audio Subtitle The Languages menu enables you to set preferred language options for: • Player Menus (the DVD Player’s menu system) • Disc Menus • Audio (the dialogue of DVD titles) • Subtitles The way you choose languages is the same for each of the Languages submenus. 1. From the Main Menu, (player on, no disc playing), highlight Languages and press the OK button on the remote (the Languages options appear). Resume Play Play Mode Display Sound Languages Player Menus Disc Menus Lock English Audio Francais Subtitle Español 2. Use the or buttons to highlight the option you want to change, and press OK (the languages appear). 3. Press the or buttons to highlight the language in which you want to use and press OK. 4. To return to the previous menu, press the button if necessary. Notes: Discs are created differently. The DVD player can’t override some language preferences. If a disc’s software was created to play the movie (title) in a preferred language, the preference you set might be ignored. Also, if the language isn’t available on the movie you’re playing, the disc’s default language will be chosen.You must turn on the Subtitle feature in order for them to appear when you’re playing a disc. If the disc wasn’t created with subtitles, you won’t be able to use the Subtitle feature. If the disc wasn’t created with the Subtitle language you choose in the Subtitles menu, the discs default subtitle language will be chosen. 32 DRC105N_final 6/20/03 11:33 AM Page 33 Chapter 5 Additional Information Troubleshooting You can correct most problems you have with your product by consulting the Troubleshooting list that follows. Note: If you prefer, we can provide you with the name of an Authorized Service Representative who will visit your home for a fee to install your electronic entertainment system and to instruct you in its operation. For details about this service, call 1-888-206-3359 or visit rca.com. Player won’t work • Reset the player: press and hold the button on the front of the DVD Player and press the STOP button on the remote at the same time — hold both keys for a few seconds before you release both buttons.You’ll need to setup your menu preferences if you changed them since this Reset Procedure returns the DVD Player’s menus to the settings they had when the product shipped to retail stores. • Try unplugging the AC power cord, wait 2 minutes, and plug it back in. No power • Plug in the DVD Player. Make sure both ends of the AC power cord are securely plugged into the player and into an AC outlet. Player turns off automatically • The power automatically turns off after the player has been in stop mode for approximately 30 minutes.Turn power back on. Disc won’t play • Insert a disc with the label side facing up. • Check the type of disc you put into the player.This player only plays DVD video discs, Video CDs, CDs with mp3 files,WMA files and/or JPEG files on them, and audio CDs. • If you’re trying to play a disc with JPEG files on it, the player might not read the disc if it has larger files on it. • Both the player and the disc are coded by region. If the regional codes don’t match, the disc cannot be played.This player is Region No. 1. Play starts, but then stops immediately • The disc is dirty. Clean it. • Condensation has formed. Allow player to dry out. No picture • • • • Turn on the TV. Tune your TV to its Video Input Channel (go to page 11). Make sure your player is connected properly. The Video Selection switch might be in the wrong position. It should be in the NORMAL position if you connected the DVD Player to the TV using the S-Video jack,VIDEO OUT jack (yellow) jacks, or the COMPONENT (Y, Pb, Pr) jacks if the TV is a uses the more common interlace scanning technology. If you connected the DVD player to a TV that uses progressive scanning technology via the COMPONENT (Y, Pb, Pr) jacks, set the switch to the PROGRESSIVE SCAN ONLY setting. 33 DRC105N_final 6/20/03 11:33 AM Page 34 Additional Information No sound or distorted sound • Make sure your player is connected properly. Make sure all cables are securely inserted into the appropriate jacks. • You may need to readjust the Digital Output setting (from the Sound menu — page 31). If you selected DTS and your DVD player isn’t connected to a DTS decoder or receiver, either you won’t hear any audio or it will be distorted. Also, if you’ve connected a DTS receiver or decoder and chose the correct setting in the Digital Output menu, but the disc doesn’t support the DTS audio format you won’t hear any audio or you’ll hear distorted audio. • Turn your TV to its Video Input Channel (go to page 11). • Sound is muted when you’re using search features (fast forward, reverse, frame advance, etc.). • If you connected an audio receiver to your DVD Player, make sure you chose the correct input setting on the receiver. Remote control won’t work • You might be in the wrong mode.To operate your DVD Player, press the DVD button on the remote before you press any other buttons. If you’re operating the TV, press the TV button first, etc. (this remote operates most RCA, GE, and Proscan TVs). • Check battery installation— the direction of the + and – on the batteries must match information in battery compartment cover. • Insert new batteries in the remote. • Operate the remote control at a distance of no more than 20 feet. • Remove any obstacles between the remote and the DVD Player. If your DVD Player is in an entertainment cabinet, the glass doors might obstruct the remote control from operating the DVD Player. Open the doors. • Drain the remote’s microprocessor — remove the batteries; press and hold the 1 button for 60 seconds; replace the batteries and try the remote again. Can’t advance through a movie • You can’t advance through the opening credits and warning information that appear at the beginning of movies because the disc is programmed to prohibit that action. The invalid icon appears on screen The feature or action cannot be completed at this time for one of the following reasons: • The disc’s software restricts it. • The disc’s software doesn’t support that feature (e.g., angles). • The feature is not available at the moment. • You’ve requested a title or chapter number that is out of range. The picture is distorted • Did you connect your VCR to the DVD Player? Disconnect it, and connect the VCR directly to the TV and the DVD Player directly to the TV. See chapter 1 for correct setup and connection information. • The disc might be damaged.Try another disc. • If you’re using FORWARD or REVERSE buttons, it is normal for some distortion to appear while scanning. 34 DRC105N_final 6/20/03 11:33 AM Page 35 Additional Information A screen saver appears on the TV • Your player is equipped with a screen saver that appears on the TV after your player has been idle for several minutes.To make it disappear, press STOP or CLEAR on the remote. Subtitle and/or audio language is not the one selected from the initial setting • If the subtitle and/or audio language does not exist on the disc, the initial settings will not be seen/heard.The disc’s priority language is selected instead. Set the subtitle and/or audio language manually through the Info Display or the player menu. The menu is displayed in a foreign language • The Language menu (Player Menus) is set to that language. Go to Languages in the main DVD player menu and select the Player Menus option. Highlight the language you prefer, and press OK. Play doesn’t begin • The rating of the title on the disc exceeds the rating limit set in the Ratings Limits menu. Unlock the player and/or change the rating limit in those menus. No forward or reverse scan • Some discs have sections that prohibit rapid scanning, or title and chapter skip. • If you’re trying to skip through the warning information and credits at the beginning of a movie, you won’t be able to.This part of the movie is often programmed to prohibit skipping through it. Desired angle cannot be changed • Most Region 1 discs don’t have the multi-camera angle system, and some discs only have multiple angles during certain parts of the movie. Picture is too tall and thin • Change the aspect ratio: go to the main menu, select Display, select TV Image. Go to page 30 for more information. Picture is too short and wide • Change the aspect ratio: go to the main menu, select Display, and select TV Image. Go to page 30 for more information. Cannot copy discs to video tape • You can’t record DVD discs onto videocassettes because the discs are encoded with anti-copy protection. Disc won’t eject • When you put a disc into the player, the player might take up to 15 seconds to read the disc.You won’t be able to eject the disc during this time.Wait 15 seconds and try again. I forgot my password • Press and hold the STOP button on the front of the DVD Player, and press the STOP button on the remote control at the same time for a few seconds. I get an “Incompatible file” message when I try to play JPEG files • Some JPEG files might be too large to be displayed, or a large file is blocking the player from displaying all the other JPEG files on the disc. Continued on next page 35 DRC105N_final 6/20/03 11:33 AM Page 36 Additional Information Disc tray won’t open • The tray lock feature might be set.To unlock the disc tray, press the STOP key on the front of the DVD player and press the ON•OFF button on the remote at the same time — hold down both buttons for a few seconds. Maintenance of Cabinet For safety reasons, when cleaning the cabinet be sure to disconnect the AC power cord from the AC outlet. • Do not use benzene, thinner, or other solvents for cleaning. • Wipe the cabinet with a soft cloth. Formation of Condensation • Due to sharp changes in temperature and humidity, condensation may form if warm air comes in contact with any cold parts inside the player. • When condensation forms inside the player, the player may not operate correctly. If this occurs, leave the player at room temperature until the inside of the player becomes dry and operational. • If condensation forms on a disc, wipe the disc with a soft, dry cloth by moving the cloth from the center hole toward the outer edge. Handling Discs • Don’t touch the disc’s signal surfaces. Hold by the edges or by one edge and the hole in the center. • Don’t affix labels or adhesive tape to label surfaces. Don’t scratch or damage the label. • Do not use damaged (cracked or warped) discs. Cleaning Discs • Dirty discs can cause reduced video and audio performance. Always keep discs clean by wiping them gently with a soft cloth from the inner edge toward the outer perimeter. • If a disc becomes dirty, wet a soft cloth in water, wring it out well.Wipe the dirt away gently, and remove any water drops with a dry cloth. • Do not use record-cleaning sprays or anti-static agents on discs. Also, never clean the discs with benzene, thinner, or other volatile solvents which may cause damage to the disc surface. Handling Cautions • Before connecting other components to this player, be sure to turn all components off. • Don’t move the player while a disc is being played.The disc may get scratched or broken, and the player’s internal parts may be damaged. • Don’t put any container filled with liquid or any small metal objects on the player. • Be careful not to put your hand into the disc tray. • Don’t place anything other than the disc in the disc tray. • Exterior influences such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the ON•OFF button, or disconnect and then reconnect the AC power cord to the AC power outlet.The player will operate normally. • Be sure to remove the disc and turn off the player after use. 36 DRC105N_final 6/20/03 11:33 AM Page 37 Additional Information Limited Warranty What your warranty covers: • Defect in materials or workmanship. For how long after your purchase: • 90 days from date of purchase - Unit exchange, which includes parts and labor. • 91 days to 1 year from date of purchase - Unit exchange, which includes parts only; you pay the labor. • The warranty for rental units begins with the first rental or 45 days from date of shipment to the rental firm, whichever comes first. What we will do: During the initial 90 days: • Provide you with a new, or at our option, a refurbished unit.The exchange unit is under warranty for the remainder of the original product’s warranty period. After the 90 days and within one year: Provide you with a new or, at our option, refurbished unit.The exchange unit is under warranty for the remainder of the original product’s warranty period.We will bill you a flat exchange charge to replace a defective unit.This charge covers the labor cost for its repair. How to make a warranty claim: • Properly pack your unit. Include any cables, etc., which were originally provided with the product. We recommend using the original carton and packing materials. • Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the product is within the warranty period must be presented to obtain warranty service. For rental firms, proof of first rental is also required. • Also print your name and address and a description of the defect. Send via standard UPS or its equivalent to: Thomson Inc. 11721 B Alameda Avenue Socorro,Texas 79927 • Pay any charges billed to you by the Exchange Center for service not covered by the warranty. • Insure your shipment for loss or damage.Thomson accepts no liability in case of damage or loss en route to Thomson. • A new or refurbished unit will be shipped to you freight prepaid. Continued on next page 37 DRC105N_final 6/20/03 11:33 AM Page 38 Additional Information What your warranty does not cover: • Acts of nature, such as but not limited to lightning damage. • Adjustment of customer controls. • Damage from misuse or neglect. • A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes. • Batteries. • Units purchased or serviced outside the U.S.A. • Shipping damage if the unit was not packed and shipped in the manner prescribed by Thomson. Product Registration: Please complete the online Product Registration on RCA.com or complete and mail the Product Registration Card packed with your unit. It will make it easier to contact you should it ever be necessary. The return of the card is not required for warranty coverage. Limitation of Warranty: • THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. • REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. THOMSON INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF INDIANA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. How state law relates to warranty: • Some states do not allow the exclusion nor limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. • This warranty gives you specific legal rights, and you also may have other rights that vary from state to state. If you purchased your product outside the United States: * This warranty does not apply. See your dealer for warranty information. 38 Accessory Information There are accessories available to complement your DVD Player. Prices are subject to change without notice. All accessories are subject to availability. A shipping and handling fee will be charged upon ordering, and we are required by law to collect the appropriate sales tax for each individual state, county, and locality to which the merchandise is being sent. How to Order To place an order by phone, have your Visa, MasterCard, or Discover Card ready and call the tollfree number listed below. 1-800-338-0376 (Use this number only to place an order for accessory items.) You can buy some accessories on-line at www.rca.com Note: Products shown might not be available from www.rca.com web site. busy protected wiring off reset Surge Protector (SCTV 4000C), price $49.95 8 outlets, 2090 joules $100,000 Equipment Guarantee 6’ Cord with Right Angle Plug Includes 6’ Phone Line and 3’ Coaxial Cable Remote Control (RCR311DA1) part number 260607 price $19.99 39 DRC105N_final 6/20/03 11:33 AM Page 40 Visit our website at www.rca.com Please do not send any products to the Indianapolis address listed below or on the carton.This will only add delays in service for your product. Thomson Inc. 10330 North Meridian Street Indianapolis, IN 46290 ©2003 Thomson Inc. Trademark(s) ® Registered Marca(s) Registrada(s) Printed in China TOCOM 1616595A THOMSON
