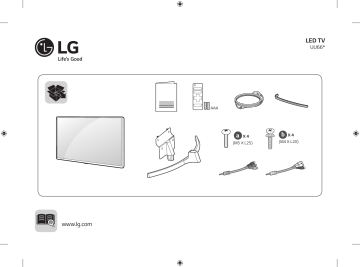

LG 65UU665H Owner's manual

LED TV
UU66*
12
14
16
20
AAA
a
X4
(M5 X L25)
www.lg.com
b
X4
(M4 X L20)
1
2
3
4
a
5
6
b
7
8
ANTENNA/
CABLE IN
HDMI IN
HDMI IN/ARC
USB IN
H/P OUT
CLOCK
OPTICAL DIGITAL
H/P OUT
CLOCK
OPTICAL DIGITAL
AUDIO OUT
PCMCIA CARD SLOT
Satellite IN
AV IN
VIDEO
L/MONO AUDIOR
COMPONENT IN
AUDIO
VIDEO
HDMI-DVI IN
AV IN
AUDIO OUT
HDMI IN
DVI OUT
1
2
3
4
0
1
2
A
E
D
B
G
F
65UU665H-TC
C
A
B
C
D
E
F
1468
911
311
854
89.9
22.5
Power requirement / Persyaratan daya /
F
G
21.0
AC 100-240 V ~ 50 / 60 Hz
OWNER’S MANUAL
Safety and Reference
LED TV*
* Disclaimer
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain
it for future reference.
*MFL70180547*
(1807-REV01)
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Warning! Safety Instructions
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK,
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
•• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
•• Do not place the TV and/or remote control in the following
environments:
-- Keep the product away from direct sunlight.
-- An area with high humidity such as a bathroom
-- Near any heat source such as stoves and other devices that produce
heat.
-- Near kitchen counters or humidifiers where they can easily be
exposed to steam or oil.
-- An area exposed to rain or wind.
-- Do not expose to dripping or splashing and do not place objects
filled with liquids, such as vases, cups, etc. on or over the apparatus
(e.g., on shelves above the unit).
-- Near flammable objects such as gasoline or candles, or expose the
TV to direct air conditioning.
-- Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock, combustion/
explosion, malfunction or product deformation.
2
•• Ventilation
-- Install your TV where there is proper ventilation. Do not install in a
confined space such as a bookcase.
-- Do not install the product on a carpet or cushion.
-- Do not block or cover the product with cloth or other materials
while unit is plugged in.
•• Take care not to touch the ventilation openings. When watching the
TV for a long period, the ventilation openings may become hot.
•• Protect the power cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the device.
•• Do not move the TV whilst the Power cord is plugged in.
•• Do not use a damaged or loosely fitting power cord.
•• Be sure do grasp the plug when unplugging the power cord. Do not
pull on the power cord to unplug the TV.
•• Do not connect too many devices to the same AC power outlet as this
could result in fire or electric shock.
•• Disconnecting the Device from the Main Power
-- The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
•• Do not let your children climb or cling onto the TV. Otherwise, the TV
may fall over, which may cause serious injury.
•• Outdoor Antenna Grounding (Can differ by country):
-- If an outdoor antenna is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits as
death or serious injury can occur.
Be sure the antenna system is grounded to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National Electrical Code, ANSI/
NFPA 70
•• Batteries
-- Store the accessories (battery, etc.) in a safe location out of the
reach of children.
-- Do not short circuit, disassemble, or allow the batteries to
overheat. Do not dispose of batteries in a fire. Batteries should not
be exposed to excessive heat.
•• Moving
-- When moving, make sure the product is turned off, unplugged, and
all cables have been removed. It may take 2 or more people to carry
larger TVs. Do not press or put stress on the front panel of the TV.
Otherwise, this may result in product damage, fire hazard or injury.
•• Keep the packing anti-moisture material or vinyl packing out of the
reach of children.
•• Do not allow an impact shock, any objects to fall into the product,
and do not drop anything onto the screen.
•• Do not press strongly upon the panel with a hand or a sharp
object such as a nail, pencil, or pen, or make a scratch on it. It may
cause damage to screen.
•• Cleaning
-- When cleaning, unplug the power cord and wipe gently with a
soft/dry cloth. Do not spray water or other liquids directly on the
TV. Do not clean your TV with chemicals including glass cleaner, any
type of air freshener, insecticide, lubricants, wax (car, industrial),
abrasive, thinner, benzene, alcohol etc., which can damage the
product and/or its panel. Otherwise, this may result in electric
shock or product damage.
ENGLISH
•• Grounding (Except for devices which are not grounded.)
-- TV with a three-prong grounded AC plug must be connected to a
three-prong grounded AC outlet. Ensure that you connect the earth
ground wire to prevent possible electric shock.
•• Never touch this apparatus or antenna during a lightning storm. You
may be electrocuted.
•• Make sure the power cord is connected securely to the TV and wall
socket if not secured damage to the Plug and socket may occur and in
extreme cases a fire may break out.
•• Do not insert metallic or inflammable objects into the product. If a
foreign object is dropped into the product, unplug the power cord
and contact the customer service.
•• Do not touch the end of the power cord while it is plugged in. You
may be electrocuted.
•• If any of the following occur, unplug the product immediately
and contact your local customer service.
-- The product has been damaged.
-- If water or another substance enters the product (like an AC
adapter, power cord, or TV).
-- If you smell smoke or other odors coming from the TV
-- When lightning storms or when unused for long periods of time.
Even the TV is turned off by remote control or button, AC power
source is connected to the unit if not unplugged in.
•• Do not use high voltage electrical equipment near the TV (e.g., a bug
zapper). This may result in product malfunction.
•• Do not attempt to modify this product in any way without written
authorization from LG Electronics. Accidental fire or electric shock
can occur. Contact your local customer service for service or repair.
Unauthorized modification could void the user’s authority to operate
this product.
•• Use only an authorized attachments / accessories approved by
LG Electronics. Otherwise, this may result in fire, electric shock,
malfunction, or product damage.
•• Never disassemble the AC adapter or power cord. This may result in
fire or electric shock.
•• Handle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
•• To reduce the risk of fire or electrical shock, do not touch the TV with
wet hands. If the power cord prongs are wet or covered with dust, dry
the power plug completely or wipe dust off.
3
ENGLISH
Preparing
Separate Purchase
•• If the TV is turned on for the first time after it was shipped from the
factory, initialization of the TV may take a few minutes.
•• Image shown may differ from your TV.
•• Your TV’s OSD (On Screen Display) may differ slightly from that shown
in this manual.
•• The available menus and options may differ from the input source or
product model that you are using.
•• New features may be added to this TV in the future.
•• The device must be easily accessed to a location outlet near the
access. Some devices are not made by turning on / off button, turning
off the device and unplugging the power cord.
•• The items supplied with your product may vary depending on the
model.
•• Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
•• For an optimal connection, HDMI cables and USB devices should have
bezels less than 10 mm thick and 18 mm width. Use an extension
cable that supports USB if the USB cable or USB memory stick
does not fit into your TV’s USB port.
Separate purchase items can be changed or modified for quality
improvement without any notification. Contact your dealer to buy these
items. These devices only work with certain models.
B
B
A
A
* A<
= 10 mm
* B<
= 18 mm
•• Use a certified cable with the HDMI logo attached.
•• If you do not use a certified HDMI cable, the screen may not display or
a connection error may occur. (Recommended HDMI Cable Types)
-- High-Speed HDMI®/TM Cable (3 m or less)
-- High-Speed HDMI®/TM Cable with Ethernet (3 m or less)
4
The model name or design may be changed depending on the upgrade
of product functions, manufacturer’s circumstances or policies.
LED Clock
(Depending on model)
LEC-005
Magic Remote Control
(Depending on model)
AN-MR650H
AN-MR18HA
Check whether your TV model supports Bluetooth in the Wireless
Module Specification to verify whether it can be used with the Magic
Remote.
Lifting and moving the TV
Wall Mounting Bracket
(Depending on model)
A
B
49UU76*
43UU64*
43UU66*
VESA (A x B) (mm)
200 x 200
Standard screw
M6
Number of screws
4
LSW240B
Wall mount bracket
MSW240
65UU76*
Model
60/65UU64*
65UU66*
VESA (A x B) (mm)
300 x 300
55UU76*
49/55UU64*
49/55UU66*
300 x 300
M6
4
OLW480B
MSW240
Standard screw
Number of screws
M8
4
Model
M6
4
Wall mount bracket OLW480B
Please note the following advice to prevent the TV from being scratched
or damaged and for safe transportation regardless of its type and size.
ENGLISH
Make sure to use screws and wall mount bracket that meet the VESA
standard. Standard dimensions for the wall mount kits are described in
the following table.
•• It is recommended to move the TV in the box or packing material that
the TV originally came in.
•• Before moving or lifting the TV, disconnect the power cord and all
cables.
•• When holding the TV, the screen should face away from you to avoid
damage.
•• Hold the top and bottom of the TV frame firmly. Make sure not to
hold the transparent part, speaker, or speaker grill area.
70/75/86UU64*
600 x 400
LSW640B
•• When transporting a large TV, there should be at least 2 people.
•• When transporting the TV by hand, hold the TV as shown in the
following illustration.
•• When transporting the TV, do not expose the TV to jolts or excessive
vibration.
•• When transporting the TV, keep the TV upright, never turn the TV on
its side or tilt towards the left or right.
•• Do not apply excessive pressure to cause flexing / bending of frame
chassis as it may damage screen.
•• When handling the TV, be careful not to damage the protruding
buttons.
•• Avoid touching the screen at all times, as this may result in
damage to the screen.
•• Do not move the TV by holding the cable holders, as the
cable holders may break, and injuries and damage to the TV
may occur.
•• When attaching the stand to the TV set, place the screen
facing down on a cushioned table or flat surface to protect
the screen from scratches.
5
Mounting on a Table
Attaching the TV to a Desk
(Depending on model)
ENGLISH
1 Lift and tilt the TV into its upright position on a table.
• Leave a 10 cm (minimum) space from the wall for proper
ventilation.
The TV should be attached to a desk so it cannot be pulled in a forward/
backward direction, potentially causing injury or damaging the product.
A type
10 cm
10 cm
10 cm
10 cm
10 cm
(Depending on model)
2 Connect the power cord to a wall outlet.
•• Do not apply foreign substances (oils, lubricants, etc.) to the
screw parts when assembling the product.
(Doing so may damage the product.)
•• If you install the TV on a stand, you need to take actions
to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.
•• Do not use any unapproved items to ensure the safety and
product life span.
•• Any damage or injuries caused by using unapproved items
are not covered by the manufacturer’s warranty.
•• Make sure that the screws are inserted correctly and fastened
securely. (If they are not fastened securely enough, the TV
may tilt forward after being installed.) Do not use too much
force and over tighten the screws; otherwise screw may be
damaged and not tighten correctly.
•• If a television is not positioned in a sufficiently stable
location, it can be potentially hazardous due to falling. Many
injuries, particularly to children, can be avoided by taking
simple precautions such as:
»» Using cabinets or stands recommended by the
manufacturer of the television.
»» Only using furniture that can safely support the television.
»» Ensuring the television is not overhanging the edge of the
supporting furniture.
»» Not placing the television on tall furniture (for example,
cupboards or bookcases) without anchoring both the
furniture and the television to a suitable support.
»» Not standing the televisions on cloth or other materials
placed between the television and supporting furniture.
»» Educating children about the dangers of climbing on
furniture to reach the television or its controls.
6
4-Screws
(Not supplied with TV)
Stand
Desk
•• Screw : M5 x L (*L: Table depth + 8~10 mm)
ex) Table depth: 15 mm, Screw: M5 x L25
B type
2-Screws for Stand Fixing,
2-Washers for Stand Fixing,
2-Nuts for Stand Fixing
(Supplied with TV)
Stand
Desk
Mounting to the Wall
The Kensington security system connector is located at the rear of the
TV. For more information of installation and using, refer to the manual
provided with the Kensington security system or visit
http://www.kensington.com. Connect the Kensington security system
cable between the TV and a table.
Attach an optional wall mount bracket at the rear of the TV carefully
and install the wall mount bracket on a solid wall perpendicular to
the floor. When you attach the TV to other building materials, please
contact qualified personnel. LG recommends that wall mounting be
performed by a qualified professional installer. We recommend the use
of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with
cables connected. When you do not use LG’s wall mount bracket, please
use a wall mount bracket where the device is adequately secured to the
wall with enough space to allow connectivity to external devices. It is
advised to connect all the cables before installing fixed wall mounts.
10 cm
(Depending on model)
Securing the TV to a Wall
10 cm
ENGLISH
Using the Kensington security
system
m
10 c
10 cm
10 cm
(Depending on model)
(Depending on model)
1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back
of the TV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on the rear
of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
•• Remove the stand before installing the TV on a wall mount
by performing the stand attachment in reverse.
•• For more information of screws and wall mount bracket,
refer to the Separate purchase.
•• If you intend to mount the product to a wall, attach VESA
standard mounting interface (optional parts) to the back
of the product. When you install the set to use the wall
mounting bracket (optional parts), fix it carefully so as not
to drop.
•• When mounting a TV on the wall, make sure not to install
the TV by hanging the power and signal cables on the back
of the TV.
•• Do not install this product on a wall if it could be exposed
to oil or oil mist. This may damage the product and cause
it to fall.
•• Use a platform or cabinet that is strong and large enough to support
the TV securely.
•• Brackets, bolts and ropes are not provided. You can obtain additional
accessories from your local dealer.
7
•• When installing the wall mounting bracket, it is recommended to
cover the stand hole using tape, in order to prevent the influx of dust
and insects. (Depending on model)
Satellite dish
Connect the TV to a satellite dish to a satellite socket with a satellite RF
cable (75 Ω). (Depending on model)
ENGLISH
CI module
View the encrypted (pay) services in digital TV mode. (Depending on
model)
Stand hole
•• Check if the CI module is inserted into the PCMCIA card slot in the
right direction. If the module is not inserted properly, this can cause
damage to the TV and the PCMCIA card slot.
•• If the TV does not display any video and audio when CI+ CAM is
connected, please contact to the Terrestrial/Cable/Satellite Service
Operator.
Other connections
Connect your TV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
HDMI
Connections
Connect various external devices to the TV and switch input modes to
select an external device. For more information of external device’s
connection, refer to the manual provided with each device.
Antenna/Cable
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
•• Use a signal splitter to use more than 2 TVs.
•• If the image quality is poor, install a signal amplifier properly to
improve the image quality.
•• If the image quality is poor with an antenna connected, try to realign
the antenna in the correct direction.
•• An antenna cable and converter are not supplied.
•• For a location that is not supported with ULTRA HD broadcasting,
this TV cannot receive ULTRA HD broadcasts directly. (Depending on
model)
8
•• Supported HDMI Audio format (Depending on model):
DTS (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz),
DTS HD (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz),
True HD (48 kHz),
Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz),
PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
(Only UHD models)
••
( ) Picture Additional Settings
HDMI ULTRA HD Deep Colour
-- On : Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
-- Off : Support 4K @ 50/60 Hz 8 bit (4:2:0)
If the device connected to Input Port also supports ULTRA HD Deep
Colour, your picture may be clearer. However, if the device doesn’t
support it, it may not work properly. In that case, change the TV’s
HDMI ULTRA HD Deep Colour setting to Off.
USB
External Speakers
Some USB Hubs may not work. If a USB device connected through a USB
Hub is not detected, connect it directly to the USB port on the TV.
External Devices
Available external devices are: Blu-ray player, HD receivers, DVD players,
VCRs, audio systems, USB storage devices, PC, gaming devices, and
other external devices.
•• The external device connection may differ from the model.
•• Connect external devices to the TV regardless of the order of the TV
port.
•• Refer to the external equipment’s manual for operating instructions.
•• If you connect a gaming device to the TV, use the cable supplied with
the gaming device.
•• In PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change the
PC output to another resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the Picture menu until
the picture is clear.
•• In PC mode, some resolution settings may not work properly
depending on the graphics card.
•• If ULTRA HD content is played on your PC, video or audio may become
disrupted intermittently depending on your PC’s performance.
(Depending on model)
•• When connecting via a wired LAN, it is recommended to use a CAT 7
cable. (Only when
port is provided.)
ENGLISH
•• Use USB 1 port when connecting a webcam. USB 2 port may not
support some webcam. (Depending on model)
EXTERNAL
SPEAKER OUT
or
STEREO
(8 )
VOLUME
CONTROL
Control port for Speaker out
+
UP
-
DOWN
GND
RIGHT
LEFT
GND
: Depending on model
•• Use only with the 3 Pole 3.5 mm Stereo Jack.
•• Do not connect your headphones or earphones to the port
for connecting an external speaker.
9
Method of volume control port
(Depending on model)
Network
Wired network connection
•• Cable Spec.
ENGLISH
(Depending on model)
Each Up / Down pin is
pulled to 3.3 V with CPU
GPIO.
This TV can be connected to a Pro:Centric server via the LAN port. After
making the physical connection, the TV needs to be set up for network
communication.
Connect the LAN port of the Modem or Router from Pro:Centric server
to the LAN port on the TV.
GND / UP / DOWN
CPU detects transition
from 3.3 V to GND level for
volume control.
2
1
Broadband Modem
Broadband Modem
Pro:Centric Server
Router
Broadband Modem
: Depending on model
Pro:Centric Server
Connect the LAN port of the Modem or Router to the LAN port
on the TV.
Connect the LAN port of the PC to the AUX LAN port on the TV.
•• Do not connect a modular phone cable to the LAN port.
•• Since there are various connection methods, please follow
the specifications of your telecommunication carrier or
internet service provider.
10
Using Button
Adjusting the Angle of the
TV to suit view
You can simply operate the TV functions, using the button.
ENGLISH
(Depending on model)
Swivel 20 degrees to the left or right and adjust the angle of the TV to
suit your view.
20˚
Basic functions
Power On (Press)
Power Off1 (Press and Hold)
20˚
•• When adjusting the angle of the product, watch out for your
fingers.
-- Personal injury may occur if hands or fingers are pinched.
If the product is tilted too much, it may fall, causing
damage or injury.
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close.
2 You can access and adjust the menu by pressing the button when
TV is on.
3 You can use the function when you access menu control.
Adjusting the menu
When the TV is turned on, press the
the Menu items using the button.
button one time. You can adjust
Turns the power off.
Changes the input source.
Scrolls through the saved programmes.
Adjusts the volume level.
11
Using Remote Control
ENGLISH
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.
Make sure to point the remote control toward the remote control sensor
on the TV.
(Some buttons and services may not be provided depending on models
or regions.)
12
* To use the button, press and hold for more than 3 seconds.
(POWER) Turns the TV on or off.
Adjusts the brightness of the screen to reduce
energy consumption.
By zooming in on the selected area, you can view
it in full screen.
Changes the input source.
Selects Radio, TV and DTV programme.
Number buttons Enters numbers.
Alphabet buttons Enters letters.
Accesses the saved programme list.
(Space) Opens an empty space on the screen keyboard.
Returns to the previously viewed programme.
Adjusts the volume level.
Accesses the Home menu.
* Shows the previous history.
Shows the previous history.
Mutes all sounds.
* Accesses the Accessibility menu.
Scrolls through the saved programmes.
Moves to the previous or next screen.
Shows programme guide.
Displays and removes hotel interactive menu.
Views the information of the current programme and screen.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
Selects menus or options and confirms your input.
Accesses the main menus.
(BACK) Returns to the previous level.
Clears on-screen displays and return to TV viewing.
These access special functions in some menus.
Teletext buttons (
) These buttons are used for
teletext.
Recalls your preferred subtitle in digital mode.
Control buttons (
) Controls media contents.
This function is not supported.
Selects the MHP TV menu source.
Audio descriptions function will be enabled.
Sets the alarm function.
Troubleshooting
The software version can be updated for improvement in performance.
Customer needs to ensure the compatibility of customer’s equipment
with LGE software. If needed, please consult with LGE and upload
revised software version according to the guidance provided by LGE.
Cannot control the TV with the remote control.
•• Check the remote control sensor on the product and try again.
•• Check if there is any obstacle between the product and the remote
control.
•• Check if the batteries are still working and properly installed ( to
, to ).
No image display and no sound is produced.
•• Check if the product is turned on.
•• Check if the power cord is connected to a wall outlet.
•• Check if there is a problem in the wall outlet by connecting other
products.
The TV turns off suddenly.
•• Check the power control settings. The power supply may be
interrupted.
•• Check if the auto-off function is activated on the settings related
time.
•• If there is no signal while the TV is on, the TV will turn off
automatically after 15 minutes of inactivity.
Abnormal display
•• If the product feels cold to the touch, there may be a small “flicker”
when it is turned on. This is normal, there is nothing wrong with
product.
•• This panel is an advanced product that contains millions of pixels.
You may see tiny black dots and/or brightly coloured dots (red, blue
or green) at a size of 1 ppm on the panel. This does not indicate a
malfunction and does not affect the performance and reliability of
the product. This phenomenon also occurs in third-party products
and is not subject to exchange or refund.
•• You may find different brightness and colour of the panel depending
on your viewing position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is
not related with the product performance, and it is not malfunction.
•• Displaying a still image for a prolonged period of time may cause
image sticking. Avoid displaying a fixed image on the TV screen for a
long period of time.
ENGLISH
•• Do not mix new batteries with old batteries. This may cause
the batteries to overheat and leak.
•• Failure to match the correct polarities of the battery may
cause the battery to burst or leak, resulting in fire, personal
injury, or ambient pollution.
•• This apparatus uses batteries. In your community there
might be regulations that require you to dispose of these
batteries properly due to environmental considerations.
Please contact your local authorities for disposal or recycling
information.
•• Batteries inside or inside the product shall not be exposed to
excessive heat such as sunshine, fire or the like.
•• In Analogue TV and some countries, some remote control
buttons may not work.
Generated sound
•• “Cracking” noise: A cracking noise that occurs when watching or
turning off the TV is generated by plastic thermal contraction due to
temperature and humidity. This noise is common for products where
thermal deformation is required.
•• Electrical circuit humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit, which supplies a large
amount of current to operate a product. It varies depending on the
product. This generated sound does not affect the performance and
reliability of the product.
•• When cleaning the product, be careful not to allow any
liquid or foreign objects to enter the gap between the
upper, left or right side of the panel and the guide panel.
(Depending on model)
•• Make sure to wring any excess water or cleaner from the
cloth.
•• Do not spray water or cleaner directly onto the TV screen.
•• Make sure to spray just enough of water or cleaner onto a
dry cloth to wipe the screen.
When connecting to the PC (HDMI/RGB/DVI(Depending on model)), no
signal is detected.
•• Turn the TV off/on using the remote control.
•• Reconnect the RGB/HDMI cable.
•• Restart the PC with the TV on.
13
Specifications
(Depending on country)
ENGLISH
Broadcasting Specifications
Digital TV
Television system
Programme Coverage
Maximum number of
storable programmes
Analogue TV
PAL B/B, PAL B/G, PAL D/K, PAL-I
DVB-T/T2¹
SECAM B/G, SECAM D/K
DVB-T/T2/C/S/S2²
NTSC-M
VHF, UHF
VHF, UHF, CATV
C-Band², Ku-Band²
ATV & DVB-T/T2 : 3,000
DVB-S/S2 : 6,000
External antenna
impedance
75 Ω
CI Module (W x H x D)
100.0 mm x 55.0 mm x 5.0 mm
1 Only DVB-T2 support models. (Despite DVB-T2 Model, DVB-T/T2 does not apply in Philippine)
2 Only DVB-T2/C/S2 support models.
14
Wireless module (LGSBWAC72) specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range
Output Power (Max.)
14 dBm
5150 to 5725 MHz
16.5 dBm
5725 to 5850 MHz (Not for EU)
11.5 dBm
ENGLISH
2400 to 2483.5 MHz
Bluetooth
Frequency Range
Output Power (Max.)
2400 to 2483.5 MHz
8.5 dBm
As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional
frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
“IEEE 802.11ac” is not available in all countries.
Environment condition
Operating Temperature
0 °C to 40 °C
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C to 60 °C
Storage Humidity
Less than 85 %
15
HDMI/DVI1-DTV supported mode
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
31.469
59.94
31.5
31.47
60.00
59.94
720 x 576p
31.5
31.25
44.96
60.00
50.00
59.94
1280 x 720p
45
60.00
37.5
28.125
Resolution
ENGLISH
640 x 480p
720 x 480p
1920 x 1080i
1920 x 1080p
3840 x 2160p
4096 x 2160p
1 Except for UU64*
16
HDMI/DVI1-PC supported Mode
•• PC audio is not supported.
•• Use HDMI IN 1 for PC mode. (Depending on model)
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 350
31.468
70.09
720 x 400
31.469
70.08
640 x 480
31.469
59.94
800 x 600
37.879
60.31
50.00
50.00
1024 x 768
48.363
60.00
1360 x 768
47.712
60.015
33.72
59.94
1152 x 864
54.348
60.053
33.75
26.97
60.00
23.976
1280 x 1024
63.981
60.020
27.00
24.000
1920 x 1080
33.71
29.97
33.75
30.00
56.25
50.00
67.432
59.94
67.5
60.00
135
120
134.86
119.88
112.5
53.95
100
23.98
54
24.00
56.25
25.00
61.43
29.97
67.5
30.00
112.5
50.00
134.865
59.94
135
53.95
60.00
23.98
54
24.00
56.25
25.00
61.43
29.97
67.5
30.00
112.5
50.00
134.865
59.94
135
60.00
3840 x 2160
4096 x 2160
1 Except for UU64*
67.5
60
135
120
54
24.00
56.25
25.00
67.5
30.00
53.95
23.97
54
24
Component port connecting
information
Supported Audio Formats
Component ports on the TV
Y
Video output ports on DVD player
PB
PR
.mp3
Item
Info
Bit rate
32 Kbps - 320 Kbps
Sample freq.
16 kHz - 48 kHz
Support
MPEG1, MPEG2
mono, stereo
Y
PB
PR
Y
B-Y
R-Y
Channels
Y
Cb
Cr
Bit rate
-
Y
Pb
Pr
Sample freq.
8 kHz - 96 kHz
Support
PCM
.wav
Signal
Component
Channels
mono, stereo
480i / 576i
O
Bit rate
64 kbps - 320 kbps
480p / 576p
O
Sample freq.
8 kHz - 48 kHz
720p / 1080i
O
Support
Vorbis
O
1080p
(Only 50 Hz / 60 Hz)
Supported Photo Formats
File
Format
.jpeg, .jpg,
.jpe
.ogg
Format
JPEG
.bmp
BMP
128 kbps - 320 kbps
Sample freq.
8 kHz - 48 kHz
Support
WMA
Channels
up to 6 ch
Bit rate
-
Minimum: 64 (W) x 64 (H)
Sample freq.
8 kHz - 96 kHz
.flac
Maximum (Normal Type):
Support
FLAC
15,360 (W) x 8,640 (H)
Channels
mono, stereo
1,920 (W) x 1,440 (H)
PNG
mono, stereo
Bit rate
Resolution
Maximum (Progressive Type):
.png
.wma
Channels
ENGLISH
File
Format
(Depending on model)
•• The number of supported programmes may vary depending on the
sample frequency.
Minimum: 64 (W) x 64 (H)
Maximum: 5,760 (W) x 5,760 (H)
Minimum: 64 (W) x 64 (H)
Maximum: 1,920 (W) x 1,080 (H)
17
Supported Video Formats
Extension
ENGLISH
.asf
.wmv
Codec
Video
VC-1 Advanced Profile (except for
WMVA), VC-1 Simple and Main Profiles
Audio
WMA Standard (except for WMA v1/
WMA Speech)
Video
Xvid (except 3 warp-point GMC), H.264/
AVC, Motion Jpeg, MPEG-4
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III
(MP3), Dolby Digital, LPCM, ADPCM, DTS
Video
H.264/AVC, MPEG-4, HEVC
Audio
Dolby Digital, Dolby Digital Plus, AAC,
MPEG-1 Layer III (MP3)
.avi
.mp4
.m4v
.mov
.3gp
Video
H.264/AVC, MPEG-4
.3g2
Audio
AAC, AMR-NB, AMR-WB
Video
MPEG-2, MPEG-4, H.264/AVC, VP8,
VP9, HEVC
Audio
Dolby Digital, Dolby Digital Plus, AAC,
PCM, DTS, MPEG-1 Layer I, II, MPEG-1
Layer III (MP3)
Video
H.264/AVC, MPEG-2, HEVC
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III
(MP3), Dolby Digital, Dolby Digital Plus,
AAC, PCM
.mkv
.ts
.trp
.tp
.mts
.mpg
.mpeg
.dat
.vob
Video
MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III
(MP3)
Video
MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I, II,
DVD-LPCM
.rm1
Video
RV30, RV40
.rmvb1
Audio
Realaudio6(cook), AAC LC, HE-AAC
.mkv
Video
H.264/AVC, HEVC
Audio
Dolby Digital, Dolby Digital Plus, AAC
.mp4
.ts
1 Depending on country
18
Open Source Software
Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source
licenses, that is contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
[email protected]. This offer is valid for a period of three years after
our last shipment of this product. This offer is valid to anyone in receipt
of this information.
Licenses
Supported licenses may differ by model.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
For DTS patents, see http://patents.dts.com. Manufactured under
license from DTS Licensing Limited. DTS, the Symbol, & DTS and the
Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and
DTS Virtual:X are registered trademarks or trademarks of DTS, Inc.
in the United States and/or other countries. © DTS, Inc. All Rights
Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are
trademarks of Dolby Laboratories.
(Depending on model)
IR CODES
•• This feature is not available for all models.
08
Function
(POWER)
95
AF
0B
F0
Note
Remote control Button
(Power On/Off)
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Number Key 0-9
10-19
Alphabet buttons
Remote control Button
(Space)
53
1A
02
03
7C
B5
09
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
00
Remote control Button
01
Remote control Button
AB
0C
AA
Remote control Button
Remote control Button
Remote control Button
Code
(Hexa)
40
41
Function
ENGLISH
Code
(Hexa)
Note
Remote control Button
Remote control Button
07
Remote control Button
06
Remote control Button
44
43
28
5B
Remote control Button
Remote control Button
Remote control Button
Remote control Button
(BACK)
72
Remote control Button
71
Remote control Button
63
Remote control Button
61
Remote control Button
20
21
39
B1
B0
BA
8F
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
Remote control Button
8E
Remote control Button
DC
Remote control Button
9F
91
E8
Remote control Button
Remote control Button
Remote control Button
19
Phone jack Type
(Depending on model)
USB IN
EXTERNAL CONTROL
DEVICE SETUP
(PC)
(TV)
•• You need to purchase the phone-jack to RS-232C cable required for
the connection between the PC and the TV, which is specified in the
(TV)
(PC)
manual.
* For other models, connect to the USB port.
ENGLISH
RS-232C IN
RS-232C Setup
Connect the RS-232C (serial port) input jack to an external control
device (such as a computer or an A/V control system) to control the
product’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the
product back panel.
•• RS-232C connection cables are not supplied with the product.
RS-232C IN
(CONTROL & SERVICE)
1
* The connection interface may differ from3 your TV.
(PC)
4
2
4
2
RS-232C IN
(TV)
(TV)
(CONTROL & SERVICE)
Type of Connector : D-Sub 9-Pin
Male
RS-232C IN
(CONTROL & SERVICE)
1
5
(*Not Provided)
6
No.
(Depending on model)
9
Pin name
2
3.5 V
RXD (Receive data)
3
TXD (Transmit data)
4
IR OUT from TV
5
GND
6
No Connection
7
No Connection (5 V available in some models)
8
No Connection
9
No Connection (12 V available in some models)
1
20
(TV)
1
3
(PC)
(PC)
SERVICE ONLY
(CONTROL & SERVICE)
RS-232C Configurations
Command Reference List
(Depending on model)
7-Wire Configurations
(Standard RS-232C cable)
TV
3
2
5
6
4
8
7
D-Sub 9
TXD
RXD
GND
DSR
DTR
CTS
RTS
3-Wire Configurations
(Not standard)
RXD
TXD
GND
DTR
DSR
RTS
CTS
PC
2
3
5
4
6
7
8
D-Sub 9
TV
3
2
5
6
4
8
7
D-Sub 9
Communication Parameters
•• Baud rate: 9,600 bps (UART)
•• Data length: 8 bits
•• Parity : None
•• Stop bit: 1 bit
•• Communication code: ASCII code
•• Use a crossed (reverse) cable.
TXD
RXD
GND
DSR
DTR
RTS
CTS
Data
ENGLISH
RXD
TXD
GND
DTR
DSR
RTS
CTS
PC
2
3
5
4
6
7
8
D-Sub 9
Command1 Command2
(Hexadecimal)
1 Power
k
a
00 to 01
2 Aspect Ratio
k
c
(See p. 22)
3 Screen Mute
k
d
(See p. 23)
4 Volume Mute
k
e
00 to 01
5 Volume
Control
k
f
00 to 64
6 Contrast
k
g
00 to 64
7 Brightness
k
h
00 to 64
8 Colour
k
i
00 to 64
9 Tint
k
j
00 to 64
10 Sharpness
k
k
00 to 32
11 OSD Select
k
l
00 to 01
12 Remote
Control Lock
Mode
k
m
00 to 01
13 Balance
k
t
00 to 64
14 Colour
Temperature
x
u
00 to 64
15 Energy Saving
j
q
(See p. 25)
16 Auto
Configuration
j
u
01
17 Equalizer
j
v
(See p. 25)
18 Tune
Command
m
a
(See p. 25)
19 Programme
Skip/Add
m
b
00 to 01
20 Key
m
c
(See p. 26)
21 Control
Backlight
m
g
00 to 64
22 Input select
x
b
(See p. 26)
•• During USB operations such as DivX or EMF, all commands except
Power(ka) and Key(mc) are not executed and treated as NG.
21
Transmission / Receiving Protocol
(Depending on Model)
ENGLISH
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
1 Power (Command: k a)
►To
► control Power On/Off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
[Command1] : First command to control the TV. (j, k, m or x)
Data 00 : Off
Data 01 : On
[Command2] : Second command to control the TV.
Ack
[Set ID] : You can adjust the set ID to choose desired monitor ID
number in option menu. Adjustment range is 1 to 99. When selecting
Set ID ‘0’, every connected set is controlled. Set ID is indicated as
decimal (1 to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on
transmission/receiving protocol.
[Data] : To transmit command data. Transmit ‘FF’ data to read status
of command.
[Cr] : Carriage Return
ASCII code ‘0 x 0D’
[ ] : ASCII code ‘space (0 x 20)’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format
when receiving normal data. At this time, if the data is data read
mode, it indicates present status data. If the data is data write
mode, it returns the data of the PC computer.
Error Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
►To
► Show TV is Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Ack
[a][ ][Set ID][ ][OK/NG][Data][x]
* Similarly, if other functions transmit ‘0 x FF’ data based on this
format, Acknowledgement data feed back presents status about
each function.
* OK Ack., Error Ack. and other message may display on the screen
when TV is power On.
2 Aspect Ratio (Command: k c) (Main Picture Size)
►To
► adjust the screen format. (Main picture format) You can also
adjust the screen format using the picture settings.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
* The set transmits ACK (acknowledgement) based on this format
when receiving abnormal data from non-viable functions or
communication errors.
Data 01 : 4:3 (Normal screen - Just Scan Off)
Data 02 : 16:9 (Wide screen - Just Scan Off)
Data 06 : Original (Just Scan Off)
Data 09 : Just Scan
Data 00 : Illegal Code
Ack
[Command2][ ][Set ID][ ][NG][Data][x]
[c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
22
3 Screen Mute (Command: k d)
6 Contrast (Command: k g)
►To
► select screen mute on/off.
►To
► adjust screen contrast.
You can also adjust contrast in the picture settings.
Transmission
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on) / Video mute off
Data 01 : Screen mute on (Picture off)
Data 10 : Video mute on
Data Min : 00 to Max : 64
* Refer to "Real data mapping".
Ack
Ack
[d][ ][Set ID][ ][OK/NG][Data][x]
[g][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On Screen Display
(OSD). But, in case of Screen mute on, TV will not display OSD.
7 Brightness (Command: k h)
4 Volume Mute (Command: k e)
►To
► adjust screen brightness.
You can also adjust brightness in the picture settings.
►To
► control volume mute on/off.
You can also adjust mute using the mute button on remote control.
Transmission
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
Data 01 : Volume mute off (Volume on)
Ack
[e][ ][Set ID][ ][OK/NG][Data][x]
5 Volume Control (Command: k f)
►To
► adjust volume.
You can also adjust volume with the volume buttons on remote
control.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to "Real data mapping".
ENGLISH
[k][d][ ][Set ID][ ][Data][Cr]
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to "Real data mapping".
Ack
[h][ ][Set ID][ ][OK/NG][Data][x]
8 Colour (Command: k i)
►To
► adjust the screen colour.
You can also adjust colour in the picture settings.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
* Refer to "Real data mapping".
Ack
[i][ ][Set ID][ ][OK/NG][Data][x]
Ack
[f][ ][Set ID][ ][OK/NG][Data][x]
23
9 Tint (Command: k j)
12 Remote Control Lock Mode (Command: k m)
►To
► adjust the screen tint.
You can also adjust tint in the picture settings.
►To
► lock the front panel controls on the monitor and remote control.
ENGLISH
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
* Refer to "Real data mapping".
Ack
[j][ ][Set ID][ ][OK/NG][Data][x]
10 Sharpness (Command: k k)
►To
► adjust the screen sharpness.
You can also adjust sharpness in the picture settings.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
* Refer to "Real data mapping".
Ack
[k][ ][Set ID][ ][OK/NG][Data][x]
11 OSD Select (Command: k l)
►To
► select OSD (On Screen Display) on/off when controlling remotely.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 00 : Off
Data 01 : On
Ack
[l][ ][Set ID][ ][OK/NG][Data][x]
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Off
Data 01 : On
Ack
[m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this mode. When main
power is on/off, external control lock is released.
* In the standby mode, if key lock is on, TV will not turn on by power
on key of IR & Local Key.
13 Balance (Command: k t)
►To
► adjust balance.
You can also adjust balance in the audio settings.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data L : 00 to R : 64
* Refer to "Real data mapping".
Ack
[t][ ][Set ID][ ][OK/NG][Data][x]
14 Colour Temperature (Command: x u)
►To
► adjust Colour Temperature. You can also adjust Colour
Temperature in the picture settings.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data Warm: 00 to Cool:64
* Refer to "Real data mapping".
Ack
[u][ ][Set ID][ ][OK/NG][Data][x]
24
15 Energy Saving (Command: j q)
17 Equalizer (Command : j v)
►To
► reduce the power consumption of the TV. You can also adjust
Energy Saving in picture settings.
►To
► adjust equalizer.
Transmission
Transmission
ENGLISH
[j][v][ ][Set ID][ ][Data][Cr]
[j][q][ ][Set ID][ ][Data][Cr]
Power Saving
Function
7 6 5 4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
MSB
Level
Low
Power
Low
Power
Low
Power
Low
Power
Low
Power
Low
Power
3
2
1
0
0
0
0
0
Off
0
0
0
1
Minimum
0
0
1
0
Medium
0
0
1
1
Maximum
0
1
0
1
Screen Off
0
1
0
0
Auto
Ack
[q][ ][Set ID][ ][OK/NG][Data][x]
16 Auto Configuration (Command: j u) (Only RGB support model)
►To
► adjust picture position and minimize image shaking
automatically. It works only in RGB (PC) mode.
[j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set
Ack
[u][ ][Set ID][ ][OK/NG][Data][x]
0
0
0
0
0
0
0
Data
Frequency
►‘Auto’
►
is available in TV that supports ‘Intelligent Sensor’.
Transmission
LSB
0
Description
7 6 5
Frequency
4 3 2 1 0
Step
0 0 0
1st Band
0 0 0 0 0
0 (decimal)
0 0 1
2nd Band
0 0 0 0 1
1 (decimal)
0 1 0
3rd Band
... ... ... ... ...
...
0 1 1
4th Band
1 0 0 1 1
19 (decimal)
1 0 0
5th Band
1 0 1 0 0
20 (decimal)
Ack
[v][ ][Set ID][ ][OK/NG][Data][x]
18 Tune Command (Command: m a)
►Select
►
channel to following physical number.
Transmission
[m][a][ ][Set ID][ ][Data 00][ ][Data 01][ ][Data 02][Cr]
Data 00 : High channel data
Data 01 : Low channel data
ex. No. 47 00 2F (2FH)
No. 394 01 8A (18AH),
DTV No. 0 Don’t care
Data 02 : [Antenna]
0 x 00 : Analogue Main
0 x 10 : DTV Main
0 x 20 : Radio
[Cable]
0 x 80 : Analogue Main
0 x 90 : DTV Main
0 x A0 : Radio
[Satellite] (Depending on model)
0 x 40 : DTV Main
0 x 50 : Radio Main
Channel data range
Min : 00 Max : 270F (0 to 9999)
Ack
[a][ ][Set ID][ ][OK/NG][Data][x]
25
19 Programme Skip/Add (Command: m b)
22 Input select (Command: x b) (Main Picture Input)
►To
► set skip status for the current Programme.
►To
► select input source for main picture.
Transmission
Transmission
ENGLISH
[m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Skip
Data 01 : Add
Ack
[x][b][ ][Set ID][ ][Data][Cr]
Data Structure
MSB
[b][ ][Set ID][ ][OK/NG][Data][x]
0
LSB
0
0
0
0
External Input
20 Key (Command: m c)
0
0
Input Number
►To
► send IR remote key code.
External Input
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
0
0
0
DTV
Data IR CODES
0
0
0
1
Analogue
Ack
0
0
1
0
AV
0
1
0
0
Component
0
1
1
0
RGB
0
1
1
1
1
0
0
0
1
0
0
1
1
0
1
0
[c][ ][Set ID][ ][OK/NG][Data][x]
21 Control Backlight (Command: m g)
►To
► control the backlight.
Transmission
[m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack
Input Number
[g][ ][Set ID][ ][OK/NG][Data][x]
HDMI
Data
0
0
0
0
Input1
0
0
0
1
Input2
0
0
1
0
Input3
0
0
1
1
Input4
Ack
[b][ ][Set ID][ ][OK/NG][Data][x]
26
Data
0
0
* Real data mapping
00 :
Step 0
Step 10 (Set ID 10)
F:
10 :
Step 15 (Set ID 15)
Step 16 (Set ID 16)
64 :
Step 100
6E :
Step 110
73 :
74 :
Step 115
Step 116
CF :
Step 199
FE :
FF :
Step 254
Step 255
ENGLISH
A:
27
Regulatory
ENGLISH
WARNING!
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to
children, can be avoided by taking simple precautions such as:
•
•
•
•
Using cabinets or stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television
set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be applied.
Symbols
Refers to alternating current(AC).
Refers to direct current(DC).
Refers to class II equipment.
Refers to stand-by.
Refer to “ON” (power).
Refers to dangerous voltage.
28
ENGLISH
29
ENGLISH
30
ENGLISH
31
Record the model number and serial number of the TV.
Refer to the label on the back cover and quote this
information to your dealer when requiring any service.
MODEL
SERIAL
