LG DP372B Owner's Manual
Add to my manuals17 Pages
LG DP372B: Immerse yourself in a world of multimedia entertainment with this versatile player. Supporting a wide range of disc formats including DVD, CD, and DivX, it's your gateway to cinematic experiences, music enjoyment, and vibrant photo viewing. Connect it to your TV via HDMI for an immersive audio-visual feast or utilize the USB port to effortlessly access content from external storage devices.
advertisement
▼
Scroll to page 2
of 17

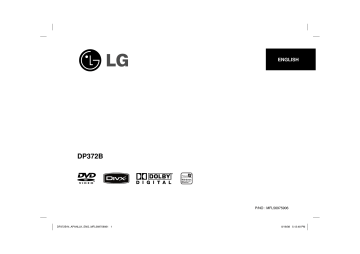

ENGLISH DP372B P/NO : MFL56975906 DP372B-N_APANLLK_ENG_MFL569759061 1 8/18/08 5:13:48 PM Safety Precaution CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the productʼs enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this ownerʼs manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. CAUTION • The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains etc. • No naked flame sources, such as lighted candles, should be placed on the apparatus. • Used batteries should be disposed of safely and not incinerated. Attention should be shown to the environment aspects of battery disposal. • Use the apparatus in tropical and moderate climates only. • The excessive sound pressure from earphones and headphones can cause hearing loss. • The battery shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. 2 DP372B-N_APANLLK_ENG_MFL569759062 2 8/18/08 5:13:48 PM INSTRUCCIONES IMPORTANTES DE SEGURIDAD 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 3 DP372B-N_APANLLK_ENG_MFL569759063 3 8/18/08 5:13:48 PM Contents Types of Playable Discs ............................................................................. 4 Rechargeable battery ................................................................................. 4 Main Unit .................................................................................................... 5 Remote Control .......................................................................................... 6 Power connections ..................................................................................... 7 Hooking up the unit ................................................................................... 8 Revolving the LCD panel ........................................................................... 8 Selecting the operation mode .................................................................... 8 Adjust the settings ..................................................................................... 9 Displaying Disc Information ...................................................................... 10 Playing a Disc............................................................................................11 Playing a DivX movie file.......................................................................... 12 Listening to Music Disc or files................................................................. 13 Viewing photo files ................................................................................... 13 Using an USB Flash Drive ....................................................................... 14 Language Codes ...................................................................................... 15 Area Codes .............................................................................................. 15 Troubleshooting ........................................................................................ 16 Specifications ........................................................................................... 16 Types of Playable Discs Type Logo DVD-VIDEO: Discs such as movies that can be purchased or rented. DVD-R: Video mode and finalized only DVD-RW: VR mode, Video mode and finalized only DVD+R: Video mode only DVD+RW: Video mode only Audio CD: Music CDs or CD-R/CD-RW in music CD format that can be purchased. This unit plays DVD±R/RW and CD-R/RW that contains audio titles, DivX, MP3, WMA and/or JPEG files. Some DVD±RW/DVD±R or CD-RW/CD-R cannot be played on this unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. About the Symbol Display “ ” may appear on your TV display during operation and indicates that the function explained in this ownerʼs manual is not available on that disc. Regional Codes This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or “ALL”. • Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unitʼs regional code or the disc cannot play. • If you try to play a DVD with a different regional code from your player, the message “Check Regional Code” appears on the TV screen. Copyrights It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Rechargeable battery • Its internal rechargeable battery provides you with the freedom to pass it around and play the files without the power cord. • The internal rechargeable battery will start charging only when the unit is turned off and the AC adapter is connected to a power outlet. • The charging stops if you turn on the unit. • The charging will take approximately 2 hour 30 minutes. • Operating time on battery: approximately 2 hour 20 minutes. The operating time on battery may vary depending on the battery status, operational status and environment conditions. • The battery indicator will turn red while charging. Once the charging is complete, the indicator light changes to green. • When the remaining time of the battery power is under a few minutes, “ will blink on the screen. ” 4 DP372B-N_APANLLK_ENG_MFL569759064 4 8/18/08 5:13:49 PM Main Unit a LCD screen b Playback Control Buttons • N (Play): Starts playback. • x (Stop): Stops playback. • X (PAUSE/STEP): Pauses playback temporarily/ press repeatedly for frame-by-frame playback. • . (Skip): Search backward* or returns to the beginning of current chapter or track or go to the previous chapter or track. • > (Skip): Search forward* or Go to next chapter or track. * Press and hold button for about two seconds. c Remote sensor: Point the remote control here. To control the unit using the remote control, do not fold the LCD panel down. d Speakers e Function Buttons • • • • • • POWER (1): Turn the unit ON or OFF. SETUP: Accesses or exits the setup menu. MENU: Accesses the DVD menu. DISPLAY: Accesses On-Screen Display. LCD MODE: Selects the LCD mode. (16:9, 4:3 or Off) COLOR/BRIGHT*: Displays the Brightness or Color menu for LCD display. • MODE: Selects a operation mode between [DISC] and [USB]. * To adjust the color or brightness of the LCD display, press COLOR/ BRIGHT repeatedly on the main unit to display the Brightness or Color menu then use b / B to adjust the value. Press ENTER to confirm the adjustment. f Menu Control Buttons • b B v V (left/right/up/down): Selects an item in the menu. • ENTER: Confirms menu selection. g OPEN (Z): Opens the disc lid. h Disc Lid Volume: You can adjust the volume level using the volume controller on the right side. Earphones: Connect a earphones to the earphones jack on the right side to enjoy the sound individually. i Battery charge and power indicator • The indicator turns red in charging and changes to green color when the charging is complete. (Refer to page 4 for details.) • The indicator turns green for a few seconds when the unit is turned on. j USB Port: Connect an USB Flash Drive. 5 DP372B-N_APANLLK_ENG_MFL569759065 5 8/18/08 5:13:49 PM SKIP/SEARCH (. / >): Search* backward / forward. Go to next or previous chapter/track. * Press and hold button for about two seconds. Remote Control SLOW (t / T): Reverse/ Forward slow playback. l l l l l l l b l l l l l l l SETUP: Accesses or exits the setup menu. a vV b B: Navigates the menus. ): Confirms menu selection. • Dispose of battery safety in accordance with local laws. Do not dispose of in fire. RETURN (O): Press to move backwards in the menu or exit the menu. b Pinch the battery holder clip together then pull the tab to remove the battery holder. Insert the battery with the + facing in the same direction as the + on the battery holder. Replace the battery holder with battery into the Remote Control unit making sure that it is fully inserted. • Replace Remote Control unit battery with 3V micro lithium cells such as CR. 2025 or its equivalent. MENU: Accesses the DVD menu. ENTER ( Put the battery into the Remote Control DISPLAY: Accesses On-Screen Display. l l l l l l l c l l l l l l l PAUSE/STEP (X): Pauses playback temporarily/ press repeatedly for frame-by-frame playback. PLAY (N): Starts playback. c STOP (x): Stops playback. Numerical buttons: Selects numbered options in a menu. PROG.: Enters the program edit mode. CLEAR: Removes a track number on the Program List. d l l l l l l l d l l l l l l TITLE: Access the discʼs title menu. REPEAT: Repeats a chapter, track, title or all. A-B: Repeats a section. l l l l l l l a l l l l l l l POWER (1): Switches the unit ON or OFF. AUDIO ( channel. ): Selects an audio language or audio SUBTITLE ( ANGLE ( able. ): Selects a subtitle language. ZOOM: Enlarges video image. MARKER : Marks any point during playback. SEARCH : Displays [Marker Search] menu. RANDOM: Plays tracks in random order. Warning for replaceable lithium battery • danger of explosion if battery incorrectly replaced. • replace only with the same type battery. • additional warning marking close to the battery if intended to be replaced by users. l Warning : The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100 °C (212 °F). Replace the battery with Matsushita Elec. Ind. Co., Ltd. (Panasonic), part no. CR. 2025 only. Use of another battery may present a risk of fire or explosion. Dispose of used batteries. Keep batteries away from children. Do not disassemble or dispose of in fire. ): Selects a DVD camera angle, if avail- 6 DP372B-N_APANLLK_ENG_MFL569759066 6 8/18/08 5:13:50 PM Power connections Right side of unit Connecting the Power Cable Connect the supplied power cable from the unit to a power socket. Attach the power plug to the body of the AC adapter. (The actual set may differ from the drawing.) Plug into the carʼs cigarette lighter socket. Right side of the unit Plug into the “DC 12V IN” jack. Plug into a power source. Automotive adapter • This automotive adapter operates on DC 8.5-16V. • Contact an electrical parts distributor for assistance in selecting a suitable automotive adapter. • Manufactured by NANJING WANLIDA TECHNOLOGY CO., LTD. Power cord release knob Plug into the “DC 12V IN” jack. AC adapter • This AC adapter operates on 100-240V~ 1A 50/60Hz. • Contact an electrical parts distributor for assistance in selecting a suitable AC plug adapter or AC cord set. • Manufactured by NANJING WANLIDA TECHNOLOGY CO., LTD Connect the Automotive adapter This unit and its automotive adapter are designed for use in vehicles that have 8.516 volt, negative ground electrical systems. This is standard for most vehicles. If your vehicle has a different type of electrical system, the DC power system cannot be used. Caution • To prevent electrical shock and possible damage to your unit or vehicle, always unplug the automotive adapter from the cigarette lighter socket before you remove the plug from your unit. • A 3 amp. 250V fuse for protection is installed in the automotive adapter. • While the engine is being started, disconnect the automotive adapter from the carʼs cigarette lighter socket. • Do not operate your unit when the car battery is discharged. Peak current from the car generator may cause the DC fuse to blow. • If the vehicleʼs supply voltage drops below approximately 10 volts, your unit may not work properly. • Do not leave your unit in a place where the temperature exceeds 70°C (158°F), or the pick-up device may be damaged. Examples include: - Inside a car with the windows closed and in direct sunshine. - Near a heating appliance. 7 DP372B-N_APANLLK_ENG_MFL569759067 7 8/18/08 5:13:51 PM Hooking up the unit Revolving the LCD panel Audio and Video Connection You can revolve the LCD panel of the unit clockwise a maximum of 180 degrees for use. You can also operate the unit after revolving the LCD panel 180 degrees and folding it back down. Connect the AV OUT jack on the unit to the corresponding input jacks on your TV using the supplied AV cable as shown below. Right side of the unit Plug into the “AV OUT” jack. TV To revolve the LCD panel, place the unit on a stable and even surface such as on a table. Push the LCD panel up and then lift it into a vertical position. Revolve the LCD panel clockwise slowly 180 degrees. If you need, fold the LCD panel after revolving it. To revolve the LCD panel to its original position, open the LCD panel to a vertical position. Revolve the LCD panel counter clockwise slowly 180 degrees. • When finished using the unit, return the LCD panel to its original position. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • Do not leave the LCD panel in the face-up position, or sudden shocks may damage it. Selecting the operation mode You need to select a operation mode before using this unit. Press MODE on the unit and the operation mode selection menu appears. Use b / B to select a mode then press ENTER. • Select [DISC] to playback the inserted disc. • Select [USB] to playback the file(s) in the connected USB Flash Drive. 8 DP372B-N_APANLLK_ENG_MFL569759068 8 8/18/08 5:13:51 PM Adjust the display settings Adjust the settings BUTTON 1 Display setup menu: SETUP 2 Select a desired option on the first level: vV 3 Move to second level: B 4 Select a desired option on the second level: vV 5 Move to third level: B 6 Change the setting: v V / ENTER TV Aspect – Select which screen aspect to use based on the shape of your TV screen. [4:3]: Select when a standard 4:3 TV is connected. [16:9]: Select when a 16:9 wide TV is connected. Display Mode – If you selected 4:3, youʼll need to define how you would like widescreen programs and films to be displayed on your TV screen. [LetterBox]: This displays a widescreen picture with black bands at the top and bottom of the screen. [Panscan]: This fills the entire 4:3 screen, cropping the picture as necessary. Adjust the audio settings DRC (Dynamic Range Control) – Make the sound clear when the volume is turned down (Dolby Digital only). Set to [On] for this effect. Adjust the settings - more you can do Vocal – Set to [On] only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into normal stereo sound. When you turn on for the first time Adjust the lock settings The menu for a language selection will appear when you turn on the unit for the first time. You must select a language to use the unit. Use vV b B to select a language then press ENTER and the confirm menu will appear. Use b B to select [Enter] then press ENTER. You must set the [Area Code] option to use the lock options. Select [Area Code] option then press B. Enter a 4-digit password then press ENTER. Enter it again then press ENTER to verify. If you make a mistake while entering number, press CLEAR then correct it. Adjust the language settings Menu Language – Select a language for the Setup menu and on-screen display. If you forget your password you can reset it. First, remove the disc in the unit. Display setup menu then input the 6-digit number “210499” and the password will be cleared. Disc Audio/Subtitle/Menu – Select a language for the Disc Audio/Subtitle/ Menu. Rating – Select a rating level. The lower the level, the stricter the rating. Select [Unlock] to deactivate the rating. [Original]: Refers to the original language in which the disc was recorded. [Other]: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list. (see page 16) If you make a mistake while entering number, press CLEAR to delete numbers then correct it. [Off] (for Disc Subtitle): Turn off Subtitle. Password – Sets or changes the password for lock settings. [New]: Enter a new 4-digits password using the numerical buttons then press ENTER. Enter the password again to confirm. [Change]: Enter the new password twice after entering the current password. Area Code – Select a code for a geographic area as the playback rating level. This determines which areaʼs standards are used to rate DVDs controlled by the parental lock. (See page 16) 9 DP372B-N_APANLLK_ENG_MFL569759069 9 8/18/08 5:13:52 PM Adjust the others settings PBC (Playback Control) - Playback control provides special navigation features that are available on some disc. Select [On] to use this feature. B.L.E. (Black Level Expansion) – To select the black level of playback pictures. Set your preference and monitorʼs ability. DivX(R) VOD – We provide you with the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod. Press ENTER when [Select] icon is highlighted and you can view the registration code of the unit. All the downloaded videos from DivX® VOD can only be played back on this unit. Displaying Disc Information BUTTON 1 Press DISPLAY during playback: DISPLAY 2 Select an item: vV 3 Adjust the Display menu settings: b B / ENTER 4 Exit the menu: DISPLAY Displaying Disc Information - more you can do You can select an item by pressing vV and change or select the setting by pressing b B. Current title (or track) number/total number of titles (or tracks) Current chapter number/total number of chapters Elapsed playing time Selected audio language or channel Selected subtitle w Selected angle/total number of angles Symbol Used in this Manual A section whose title has one of the following symbols are applicable only to the disc or file represented by the symbol. ALL All discs and files ACD Audio CDs DVD DVD and finalized DVD±R/RW MP3 MP3 files DivX DivX files WMA WMA files f 10 DP372B-N_APANLLK_ENG_MFL5697590610 10 8/18/08 5:13:53 PM Pause a playback Playing a Disc BUTTON 1 Open the disc lid: 2 3 4 Insert a Disc: Close the disc lid: Start playback: 5 6 Adjust the volume: To stop playback: Frame-by-Frame playback N PLAY VOLUME Press REPEAT repeatedly to select an item to be repeated. The current title, chapter or track will be played back repeatedly. To return to normal playback, press REPEAT repeatedly to select [Off]. x STOP Stops the playback Press STOP (x) to stop playback, the unit records the stopped point depending on the disc. “ Xx ” appears on the screen briefly. Press PLAY ( N) to resume playback (from the scene point). If you press STOP (x) again or unload the disc (“ x ” appears on the screen), the unit will clear the stopped point. (Xx =Resume Stop, x =Complete Stop) The resume point may be cleared when a button is pressed. (for example: POWER, OPEN, etc) DVD Most DVD now have menus which load first before the film begins to play. You can navigate these menus using vV b B or number button to highlight an option. Press ENTER to select. Playing a DVD VR disc This unit will play DVD-RW disc that is recorded using the Video Recording (VR) format. When you insert a disc DVD VR disc, the menu will appear on the screen. Use vV to select a title then press PLAY ( N). To display DVD-VR menu, press MENU or TITLE. Some DVD-VR disc are made with CPRM data by DVD RECORDER. The unit does not support these kinds of discs. Skip to the next/previous chapter/track/file DivX DVD OPEN (Z) - Playing a Disc - more you can do Playing a DVD CD that has a menu ALL Press PAUSE/STEP (X) to pause playback. Press PLAY ( N) to continue playback. ALL Press SKIP (>) to move to the next chapter/track/file. Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback. Playing repeatedly ALL Fast forward or fast reverse DivX DVD ACD WMA MP3 Press and hold SKIP (. or >) to play fast forward or fast reverse during playback. You can change the various playback speed by pressing and hold SKIP (. or >) repeatedly. Press PLAY ( N) to continue play at normal speed. DVD Repeating a specific portion (A-B) DivX ACD Press A-B at the beginning of the portion you wish to repeat and again at the end of the portion. Your selected portion will be repeated continually. To return to normal playback, press A-B to select [Off]. Selecting a subtitle language DivX DVD During playback, press SUBTITLE ( language. Watching from a different angle ) repeatedly to select a desired subtitle DVD If the angle indicator appears on the screen for a moment, you can select a different camera angle by pressing ANGLE ( ) repeatedly. Hearing a different audio DVD DivX During playback, press AUDIO ( ) repeatedly to switch between the available audio languages, channels or encoding methods. Slow down the playing speed DVD ( DivX : Forward only) During playback, press SLOW (t or T) to slow down reverse or forward playback. You can change the various playback speed by pressing SLOW (t or T) repeatedly. Press PLAY ( N) to continue play at normal speed. Press SKIP (.) to return to the beginning of the current chapter/track/file. Press SKIP (.) twice briefly to step back to the previous chapter/track/file. 11 DP372B-N_APANLLK_ENG_MFL5697590611 11 8/18/08 5:13:54 PM Watching a enlarged video image DVD DivX Playing a DivX movie file During playback or pause mode, press ZOOM repeatedly to select zoom mode. You can move through the zoomed picture using vVb B buttons. Press CLEAR to exit. Viewing the title menu BUTTON DVD Press TITLE to display the disc's title menu, if available. Viewing the DVD menu DVD Press MENU to display the disc menu, if available. Starting play from selected time DVD DivX Searches for the starting point of entered time code. Press DISPLAY then select clock icon. Enter a time then press ENTER. For example, to find a scene at 1 hours, 10 minutes, and 20 seconds, enter "11020" and press ENTER. If you enter the wrong number, press CLEAR to enter again. Playing in random order ACD WMA MP3 During playback or in stop mode, press RANDOM for playback in random order. Press RANDOM again to return to normal playback. Mark a scene on a disc DVD DivX You can mark a position on a disc to return to at the place. Simply press MARKER at the desired position. The marker icon will appear on-screen briefly. Repeat to place up to nine markers. Also you can recall or clear the positions. Press SEARCH and [Marker Search] menu. Use b or B to select a desired marker on the menu, then press ENTER to recall it or CLEAR to clear it. Last Scene Memory DVD Open the disc lid: 2 3 4 Insert a disc: Close the disc lid: Select a movie file from the menu: 5 Start playback: N PLAY 6 To stop playback: x STOP OPEN (Z) v V, MENU Playing a DivX movie file - more you can do Changing the character set to display DivX® subtitle correctly Press and hold SUBTITLE for 3 seconds during playback. The language code will appear. Press b B to select another language code until the subtitle is displayed properly and then press ENTER. DivX file requirement DivX file compatibility with this player is limited as follows: • • • • ACD This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled. 1 • Screen Saver • • • • The screen saver appears when you leave the unit in Stop mode for about five minutes. If the Screen Saver is displayed for five minutes, the unit automatically turns itself off. • • Available resolution size: 720x576 (W x H) pixel. The file names of DivX and subtitle are limited to 20 characters. DivX file extensions: “.avi”, “.mpg”, “.mpeg” Playable DivX subtitle: SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt) Playable Codec format: “DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”, “MP43”, “3IVX” Only the playback function is supported with DivX 6.0 in the unit. Playable Audio format: “Dolby Digital”, “PCM”, “MP3”, “WMA” Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48 kHz (WMA) Bit rate: within 8 - 320 kbps (MP3), within 32 - 192 kbps (WMA), less than 4Mbps (DivX file) CD-R/RW, DVD±R/RW Format: ISO 9660 Maximum Files/Disc: Less than 650 (total number of files and folders) Mixed disc or USB Flash Drive – DivX, MP3/WMA and JPEG When playing a disc or USB Flash Drive contained with DivX, MP3/WMA and JPEG files together, you can select which menu of files you would like to play by pressing TITLE. 12 DP372B-N_APANLLK_ENG_MFL5697590612 12 8/18/08 5:13:55 PM Viewing photo files Listening to Music Disc or files BUTTON BUTTON 1 Open the disc lid: 2 3 4 Insert a disc: Close the disc lid: Select a music from the menu: 5 Start playback: N PLAY 6 To stop playback: x STOP 1 2 3 4 5 6 OPEN (Z) v V, MENU Listening to Music Disc or files - more you can do Creating your own program You can play the contents of a disc in the order you want by arranging the order of the musics on the disc. To add a music(s) on the program list, press PROG. to enter the program edit mode ( E mark appears on the menu). Select a desired music on the [List] then press ENTER to add the music to the program list. Select a music from the program list then press ENTER to start programmed playback. To clear a music from the program list, select the music you want to clear then press CLEAR in program edit mode. To clear all music from the program list, select [Clear All] then press ENTER in program edit mode. The program is cleared when the disc is removed or the unit is turned off. Displaying file information (ID3 TAG) Open the disc lid: Insert a disc: Close the disc lid: Select a photo file on the menu: Display the selected file in full screen: To return to the menu: OPEN (Z) v V, MENU N PLAY x STOP Viewing photo files - more you can do Viewing photo files as a slide show Use vV b B to highlight ( ) icon then press ENTER to start slide show. You can change slide show speed using b B when ( ) icon is highlighted. Skip to the next/previous photo Press SKIP (. or >) to view the previous/next photo. Rotate a photo Use vV to rotate the photo in full screen counter clockwise or clockwise while viewing a photo in full screen. Pause a slide show Press PAUSE/STEP (X) to pause a slide show. Press PLAY ( N) to continue the slide show. Listening to music during slide show While playing a MP3 file containing file information, you can display the information by pressing DISPLAY repeatedly. You can listen to music during slide show, if the disc contain music and photo files together. Use vV b B to highlight ( ) icon then press ENTER to start slide show. MP3/WMA music file requirement Watching a enlarged photo image MP3/WMA compatibility with this unit is limited as follows: • File extensions: “.mp3”, “.wma” While viewing a photo in full screen, press ZOOM repeatedly to select zoom mode. You can move through the zoomed photo using vVb B buttons. Press CLEAR to exit. • Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA) Photo file requirement • Bit rate: within 8 - 320kbps (MP3), within 32 - 192kbps (WMA) JPEG file compatibility with this unit is limited as follows: • CD-R/RW, DVD±R/RW Format: ISO 9660 • • • • • Maximum Files/Disc: Less than 650 (total number of files and folders) File extensions: “.jpg” Photo size: Less than 2MB recommended CD-R/RW, DVD±R/RW Format: ISO 9660 Maximum Files/Disc: Less than 650 (total number of files and folders) 13 DP372B-N_APANLLK_ENG_MFL5697590613 13 8/18/08 5:13:56 PM Using an USB Flash Drive You can play MP3/WMA/JPEG/DivX files in the USB Flash Drive with version 1.1. BUTTON 1 2 3 4 5 6 Connect an USB Flash Drive to the USB port on the unit: Display the menu to select the USB operation mode: Select [USB]: Select a file: Play the file: Remove the USB Flash Drive: MODE b B, ENTER v V, MENU N PLAY - Notes an USB Flash Drive • You can switch between [DISC] and [USB] mode using MODE button. • Do not extract the USB device in operating. • We recommend that you back up your important files in the USB Flash Drive to protect against accidental loss. • If you use a USB extension cable or USB HUB, the USB device might not be recognized. • Music files (MP3/WMA), photo files (JPEG) and DivX files can be played. For details of operations on each files, refer to relevant pages. • Maximum Files/USB Flash Drive: Less than 650 (total number of files and folders) • The USB function of this unit does not support all kinds of USB devices. • Digital camera and mobile phone are not supported. 14 DP372B-N_APANLLK_ENG_MFL5697590614 14 8/18/08 5:13:57 PM Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Afar Afrikaans Albanian Ameharic Arabic Armenian Assamese Aymara Azerbaijani Bashkir Basque Bengali, Bangla Bhutani Bihari Breton Bulgarian Burmese Byelorussian Chinese Code 6565 6570 8381 6577 6582 7289 6583 6588 6590 6665 6985 6678 6890 6672 6682 6671 7789 6669 9072 Language Croatian Czech Danish Dutch English Esperanto Estonian Faroese Fiji Finnish French Frisian Galician Georgian German Greek Greenlandic Guarani Gujarati Code 7282 6783 6865 7876 6978 6979 6984 7079 7074 7073 7082 7089 7176 7565 6869 6976 7576 7178 7185 Language Hausa Hebrew Hindi Hungarian Icelandic Indonesian Interlingua Irish Italian Javanese Kannada Kashmiri Kazakh Kirghiz Korean Kurdish Laothian Latin Latvian, Lettish Code 7265 7387 7273 7285 7383 7378 7365 7165 7384 7487 7578 7583 7575 7589 7579 7585 7679 7665 7686 Language Lingala Lithuanian Macedonian Malagasy Malay Malayalam Maori Marathi Moldavian Mongolian Nauru Nepali Norwegian Oriya Panjabi Pashto, Pushto Persian Polish Portuguese Code 7678 7684 7775 7771 7783 7776 7773 7782 7779 7778 7865 7869 7879 7982 8065 8083 7065 8076 8084 Language Quechua Rhaeto-Romance Rumanian Russian Samoan Sanskrit Scots Gaelic Serbian Serbo-Croatian Shona Sindhi Singhalese Slovak Slovenian Spanish Sudanese Swahili Swedish Tagalog Code 8185 8277 8279 8285 8377 8365 7168 8382 8372 8378 8368 8373 8375 8376 6983 8385 8387 8386 8476 Language Tajik Tamil Telugu Thai Tonga Turkish Turkmen Twi Ukrainian Urdu Uzbek Vietnamese Volapük Welsh Wolof Xhosa Yiddish Yoruba Zulu Code 8471 8465 8469 8472 8479 8482 8475 8487 8575 8582 8590 8673 8679 6789 8779 8872 7473 8979 9085 Area Codes Choose a area code from this list. Area Afghanistan Argentina Australia Austria Belgium Bhutan Bolivia Brazil Cambodia Canada Chile China Colombia Congo Code AF AR AU AT BE BT BO BR KH CA CL CN CO CG Area Costa Rica Croatia Czech Republic Denmark Ecuador Egypt El Salvador Ethiopia Fiji Finland France Germany Great Britain Greece Code CR HR CZ DK EC EG SV ET FJ FI FR DE GB GR Area Greenland Hong Kong Hungary India Indonesia Israel Italy Jamaica Japan Kenya Kuwait Libya Luxembourg Malaysia Code GL HK HU IN ID IL IT JM JP KE KW LY LU MY Area Maldives Mexico Monaco Mongolia Morocco Nepal Netherlands Netherlands Antilles New Zealand Nigeria Norway Oman Pakistan Panama Code MV MX MC MN MA NP NL AN NZ NG NO OM PK PA Area Paraguay Philippines Poland Portugal Romania Russian Federation Saudi Arabia Senegal Singapore Slovak Republic Slovenia South Africa South Korea Spain Code PY PH PL PT RO RU SA SN SG SK SI ZA KR ES Area Sri Lanka Sweden Switzerland Taiwan Thailand Turkey Uganda Ukraine United States Uruguay Uzbekistan Vietnam Zimbabwe Code LK SE CH TW TH TR UG UA US UY UZ VN ZW 15 DP372B-N_APANLLK_ENG_MFL5697590615 15 8/18/08 5:13:57 PM Troubleshooting Symptom No power. Specifications Cause Correction The power cord is disconnected. Plug the power cord into the wall outlet securely. General Power requirements Power consumption External Dimensions Net Weight (Approx.) Operating temperature: Operating humidity Laser Signal system DC 12V 12W 207 x 39 x 168 mm (W x H x D) 0.85kg 5 °C to 40 °C 5 % to 90 % Semiconductor laser NTSC The battery is discharged. Recharge the battery. The power is on, but the unit does not work. No disc is inserted. Insert a disc. The operation mode is not selected correctly. Use MODE button to select the operation mode. (Page 8) No picture. The TV is not set to receive the signal from the unit. Select the appropriate video input mode on the TV. The video cable is not connected securely. Connect the video cable securely. Connectors The LCD mode is set to [Off]. Select a LCD mode other than [Off]. The equipment connected with the audio cable is not set to receive the signal from the unit. Select the correct input mode of the audio amplifier. Audio/Video Output ø3.5mm mini jack x 1 - Video: 1.0 V (p-p), 75 Ω, sync negative - Audio: 1.5 Vrms (1 KHz, 0 dB) Earphone terminal ø3.5mm stereo mini jack x 2 The volume is set to minimum. Use the volume controller to adjust the volume. The AUDIO options are set to the wrong position. Set the AUDIO settings to the correct position. The unit does not start playback. An unplayable disc is inserted. Insert a playable disc. (Check the disc type and regional code.) Accessories The rating level is set. Change the rating level. • RCA Video/Audio cable The remote control does not work properly. The remote control is not pointed at the remote sensor on the unit. Point the remote control at the remote sensor of the unit. The remote control is too far from the unit. Operate the remote control closer to the unit. No sound. Liquid Crystal Display Panel size Projection system Driving system Resolution 7 inches wide (diagonal) R.G.B. stripe TFT active matrix 480 x 234 (WQVGA) • AC Adapter (MPA-630) • Automotive Adapter (DPDC1) • Remote Control • Battery for Remote Control (Lithium Battery) Designs and specifications are subject to change without prior notice. 16 DP372B-N_APANLLK_ENG_MFL5697590616 16 16 8/18/08 5:13:58 PM Enjoying in a car with the Headrest Mounting Bracket Headrest Mounting Bracket Installation a Separate the headrest. (Refer to your carʼs user guide.) You can enjoy video in the back seat attaching the unit to the back of the front seat. Warnings • The driver must not operate this unit while the vehicle is moving. Do not operate this unit where it can be viewed by the driver. Driver operation or viewing of this unit while the vehicle is moving will cause distraction which may result in serious accident and personal injury or property damage. • Do not attach or detach while driving, and do not attach in the following locations, otherwise it may result in injury or traffic accidents: – anywhere other than the back of the seat – in a location that interferes with the driverʼs view or operation of the car – in a location that interferes with the operation of an airbag – in a location that interferes with the driving instruments. • Depending on the type of headrest, you may not be able to attach the bracket. 19 cm or less DP372B-N_APANLLK_ENG_MFL5697590617 17 b Install the headrest mount cradle as shown in the figure. a Fixing Screw Fixes the unit on the bracket. b Tilt Fixing Screw Fixes a tilt angle of the bracket. c Horizontal Fixing Screw Fixes a horizontal angle of the bracket. c Fit the bracket body to the cradle. d Release knob Press both knobs to release the bracket body from the cradle. e Headrest Mounting Cradle d Put the unit on the bracket and fix it using the fixing screw. e Adjust the horizontal and tilt angle of the bracket and enjoy the unit. 8/18/08 5:13:58 PM
