Register your product and get support at
8602 series
www.philips.com/TVsupport

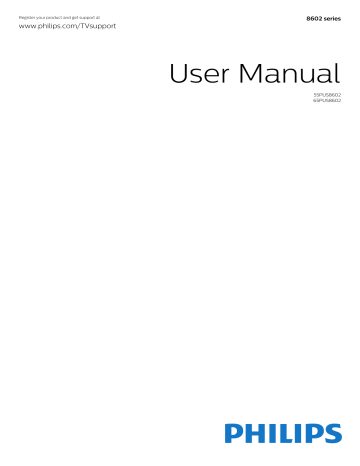

User Manual
55PUS8602
65PUS8602
Contents
1 What's new
1.1 Home and channels
4
1.2 Apps and Philips TV Collection
2 Setting Up
10 Internet
4
5
11 TV Menu
5
12 Sources
8
13 Networks
13.1 Network
13.2 Bluetooth
14 Settings
10
11
5.1 Install Channels
11
5.2 Channel Lists
11
5.3 Channel List sorting
11
5.4 Watching channels
12
5.5 Favourite Channels
14
5.6 Text / Teletext
15
5.7 Interactive TV
16
6.1 Satellite Installation
6.2 Antenna Installation
6.3 Channel List Copy
7 Connect Devices
18
25
8 Connect your Android TV
16 TV Guide
53
56
60
16.1 What You Need
60
16.2 TV Guide Data
60
16.3 Using the TV Guide
60
17 Recording and Pause TV
17.1 Recording
17.2 Pause TV
18.1 Philips TV Remote App
18.2 Google Cast
65
18.3 AirPlay
65
18.4 MHL
65
19 Games
33
66
19.1 What You Need
66
19.2 Gamepads
66
19.3 Play a Game
66
36
20 Ambilight
67
20.1 Ambilight Style
67
20.2 Ambilight Off
67
20.3 Ambilight Settings
67
20.4 Lounge Light Mode
67
38
21 Top Picks
2
62
62
63
18 Smartphones and Tablets
37
9.1 About Apps
37
9.2 Google Play
37
9.3 Start or Stop an App
9.4 Lock Apps
38
45
15.1 From a Computer or NAS
56
15.2 Favourites Menu
56
15.3 Most Popular Menu and Last Played Menu
15.4 From a USB Connection
56
15.5 Play your Videos
56
15.6 View your Photos
57
15.7 Play your Music
59
7.1 About Connections
25
7.2 CAM with Smart Card - CI+
26
7.3 Home Theatre System - HTS
27
7.4 Smartphones and Tablets
27
7.5 Blu-ray Disc Player
27
7.6 DVD Player
27
7.7 Bluetooth
28
7.8 Headphones
28
7.9 Game Console
29
7.10 USB Hard Drive
29
7.11 USB Keyboard
30
7.12 USB Flash Drive
30
7.13 Photo Camera
31
7.14 Camcorder
31
7.15 Computer
31
9 Apps
44
44
44
15 Videos, Photos and Music
18
21
23
8.1 Network and Internet
33
8.2 Google Account
35
8.3 Home Screen
35
8.4 Philips TV Collection App
43
14.1 Picture
45
14.2 Sound
48
14.3 Ambilight Settings
50
14.4 Eco Settings
51
14.5 General Settings
52
14.6 Clock, Region, and Language Settings
14.7 Android Settings
54
14.8 Universal Access Settings
54
14.9 Lock Settings
55
4.1 On or Standby
10
4.2 Keys on TV
10
6 Channel Installation
42
42
12.1 Switch to a device
43
12.2 Options for a TV Input
43
12.3 Device Name and Type
43
12.4 Rescan Connections
43
7
4 Switching On and Off
41
42
11.1 About TV Menu
11.2 Open TV Menu
3.1 Key Overview
7
3.2 Pair Your Remote Control to TV
3.3 Voice Search
8
3.4 IR Sensor
9
3.5 Batteries
9
3.6 Cleaning
9
5 Channels
41
10.1 Start Internet
41
10.2 Options on Internet
2.1 Read Safety
5
2.2 TV Stand and Wall Mounting
2.3 Tips on Placement
5
2.4 Power Cable
6
2.5 Antenna Cable
6
2.6 Satellite Dish
6
3 Remote Control
39
9.5 Manage Apps
9.6 Storage
40
4
69
65
65
56
21.1 About Top Picks
69
21.2 Now on TV
69
21.3 TV on Demand
69
21.4 Video on Demand
70
22 Netflix
23 Alexa
71
72
72
72
23.1 About Alexa
23.2 Using Alexa
24 Software
73
24.1 Update Software
73
24.2 Software Version
73
24.3 Automatic Software Update
24.4 Open Source Software
74
24.5 Open Source License
74
24.6 Announcements
74
25 Specifications
73
75
25.1 Environmental
75
25.2 Power
75
25.3 Operating System
75
25.4 Reception
76
25.5 Display Type
76
25.6 Display Input Resolution
25.7 Connectivity
76
25.8 Sound
76
25.9 Multimedia
76
26 Help and Support
76
78
26.1 Register your TV
78
26.2 Using Help
78
26.3 Troubleshooting
78
26.4 Online Help
80
26.5 Support and Repair
80
27 Safety and Care
27.1 Safety
81
27.2 Screen Care
28 Terms of Use
81
82
83
28.1 Terms of Use - TV
83
28.2 Terms of Use - Smart TV
83
28.3 Terms of Use - Philips TV Collection
29 Copyrights
83
84
29.1 MHL
84
29.2 HDMI
84
29.3 Dolby Audio
84
29.4 DTS Premium Sound ™
29.5 Wi-Fi Alliance
84
29.6 Kensington
84
29.7 Other Trademarks
84
84
30 Disclaimer regarding services and/or
software offered by third parties 86
Index
87
3
1
1.2
What's new
Apps and Philips TV
Collection
1.1
Home and channels
Favourite Apps on the first row
You can find more apps in the Apps page which can
be opened by clicking the Apps icon at the left end of
the Apps row. You can also add more apps as
favourite from the Apps page.
The new Home launcher
Press  HOME on your remote control to get your
new Android Home screen. From here you can decide
what to watch by browsing entertainment options
from app and live TV. Your Home has channels to let
you discover great contents from your favourite apps.
You can also add additional channels or find new
apps to get more contents.
Philips TV Collection
All your premium apps are available within the Philips
TV Collection app. Launch it using the banner on
the Apps row. The Philips TV Collection app will also
contain recommendations for new Apps and more.
“Play Next” channel
You can always know what to watch next from Play
Next channel on the Home screen. Start watching
from where you left off and get notifications about
new episodes in the Play Next channel. Press and
hold Select on a movie or TV show to add it directly
to the Play Next channel.
Accessing settings from Home
You can access All Settings menu via the icon at the
top right corner. You can also find the Frequent
settings menu and common menu items in the Philips
TV Menu, which can be invoked directly from the
remote control.
System bar on Home screen
The System bar on the top of Home screen contains
following features.
- Search button: to trigger Google search with voice
or text input.
- Input source: to launch the input source list and
switch to any of the connected devices.
- Notifications: to provide you the messages about
your Smart TV system.
- Settings: to access all setting menu and adjust the
TV settings.
- Clock: to indicate the system clock.
4
* Do not press on the sound bar while installing the
set.
** Do not remove sound bar or unplug the connectors
while the TV is On.
2
Setting Up
2.1
In case you lost the Quick Start Guide, you can
download it from www.philips.com.
Read Safety
Use the product type number of the TV to look for
the Quick Start Guide to download.
Read the safety instructions first before you use the
TV.
To read the instructions, in Help, press the colour
key  Keywords and look up Safety Instructions.
Wall Mounting
Your TV is also prepared for a VESA-compliant wall
mount bracket (sold separately).
Use the following VESA code when purchasing the
wall mount . . .
2.2
TV Stand and Wall Mounting
• 55PUS8602
VESA MIS-F 400x400, M6
• 65PUS8602
VESA MIS-F 400x400, M6
TV Stand
You can find the instructions for mounting the TV
stand in the Quick Start Guide that came with the TV.
In case you lost this guide, you can download it
from www.philips.com.
Preparation
Make sure that the metal screws, to mount the TV to
the VESA-compliant bracket, go about 10mm deep
inside the threaded bushes of the TV.
Use the product type number of the TV to look for
the Quick Start Guide to download.
Caution
Wall mounting the TV requires special skills and
should only be performed by qualified personnel. The
TV wall mounting should meet safety standards
according to the TVs weight. Also read the safety
precautions before positioning the TV.
TP Vision Europe B.V. bears no responsibility for
improper mounting or any mounting that results in
accident or injury.
Sound bar Speaker
Your TV comes with 1 detachable sound bar which is
separately packed in the TV box.
Mount and connect the supplied sound bar speaker
to your TV. The TV sound is incomplete without this
speaker.
Mount the sound bar speaker after you mount the TV
stand feet. Follow the instructions in the Quick Start
Guide that came with the TV.
Please do not turn on the TV until sound bar and its
connectors are set properly.
2.3
Tips on Placement
• Position the TV where light does not shine directly
on the screen.
• Dim lighting conditions in the room for best
Ambilight effect.
• The ideal distance to watch TV is 3 times its diagonal
screen size. When seated, your eyes should be level
with the centre of the screen.
• When wall mounted, position the TV up to 15 cm
away from the wall.
Note:
5
Please keep the TV away from dust-producing
sources such as stoves. It is suggested to clean the
dust regularly to avoid getting dust into the TV.
2.6
Satellite Dish
Attach the satellite F-type connector to the satellite
connection SAT at the back of the TV.
2.4
Power Cable
• Insert the power cable into the POWER connector
on the back of the TV.
• Make sure the power cable is securely inserted in
the connector.
• Make sure that the power plug, in the wall socket, is
accessible at all times.
• When you unplug the power cable, always pull the
plug, never pull the cable.
Although this TV has a very low standby power
consumption, unplug the power cable to save energy
if you do not use the TV for a long period of time.
For more information, in Help, press the colour
key  Keywords and look up Switching On for
more information on switching the TV on or off.
2.5
Antenna Cable
Insert the antenna plug firmly into
the Antenna socket at the back of the TV.
You can connect your own antenna or an antenna
signal from an antenna distribution system. Use an
IEC Coax 75 Ohm RF antenna connector.
Use this antenna connection for DVB-T and DVB-C
input signals.
6
3
Remote Control
3.1
Key Overview
Top
1 TV Menu
To open the TV Menu with typical TV functions.
2 -  SOURCES
To open or close the Sources menu.
3 -  INFO
To open or close programme info.
1 -  Standby / On
To switch the TV on or back to Standby.
2-
4 -  BACK
• To switch back to the previous channel you
selected.
• To return to previous menu.
VOICE microphone
3 -  LIST
To open or close the channel list.
5 -     Colour keys
Direct selection of options.
4 -  AMBILIGHT
To select one of the Ambilight style.
6 -  EXIT
To switch back to watching TV.
5 -  TV GUIDE
To open or close the TV Guide.
7 -  OPTIONS
To open or close the options menu.
6 -  SETTINGS
• To open the quick settings menu.
• To pair the remote control to the TV.
8 - OK key
To confirm a selection or setting.
9 - Arrow / navigation keys
To navigate up, down, left or right.
7 -  TOP PICKS
To open the menu with recommended programmes,
Video on Demand (Rental Videos) or Online TV
(Catch Up TV).
If available.
10 -  HOME
To open the Home menu.
8 -  VOICE
To start speaking your voice search.
Bottom
Middle
7
invited you to long press the PAIR key, and by
doing so, the pairing was done.
Note:
1 - Once the remote control has entered pairing
mode successfully, the blue LED indicator ring around
the microphone on the front side of the remote
control starts blinking.
2 - The remote control must be kept close to the TV
(within 1m distance) during pairing in order to ensure
success.
3 - If the TV does not launch the voice search
field when press VOICE, pairing was unsuccessful.
4 - It is advisable to wait until the set has fully started
up and launched all background processes before
pairing mode is entered as the toast message
containing further instructions may appear too late,
thereby negatively impacting the pairing procedure.
1- 
To open the Netflix App directly.
Pairing or pairing again
2 -  Volume
To adjust the volume level.
If the pairing with the remote control was lost, you
can pair the TV with the remote control again.
3 - Number keys
To select a channel directly.
You can simply long press
the PAIR key (approximate for 3 seconds) for
pairing.
4 - SUBTITLE
To switch Subtitles on, off or on during mute.
Alternatively, go  Settings > Wireless and networks
> Remote control > Pair remote control, then follow
the on-screen instructions.
5 - Playback and Record
• Play , to playback.
• Pause , to pause playback
• Stop , to stop playback
• Rewind , to rewind
• Fast forward , to go fast forward
• Record , to start recording
A message appears when the pairing is successful.
Remote Control Software
 Settings > Wireless and networks > Remote
control > Current software info
Once the remote control is paired, you can check the
current remote control software version.
6 -  Channel
To switch to the next or previous channel in the
channel list.
To open the next or previous page in Text/Teletext.
 Settings > Wireless and networks > Remote
control > Update remote control software
Check available remote control software for updates.
7 -  Mute
To mute the sound or to restore it.
3.3
8 - TEXT
To open or close Text/Teletext.
Voice Search
You can search for videos, music or anything else on
the Internet by simply using your voice. You can
speak into the microphone on the remote control.
3.2
Pair Your Remote Control to
TV
You need to pair the remote control to the TV before
use voice search.
To use Voice...
This remote control uses both Bluetooth and IR
(infrared) to send its commands to the TV.
1 - Press and hold VOICE on remote control, the
blue light on the remote control lights up and the
search field opens, the microphone is active.
2 - Speak out what you are looking for with clear
pronunciation. You can speak for 10 seconds before
the microphone switches off. It might take some time
for the results to appear.
• You can use this remote control via IR (infrared) for
most operations.
• To use advanced operation like voice search, you
need to pair (link) the TV with the remote control.
When you started the initial TV installation, the TV
8
3 - In the list of search results, you can select the
item you want.
Set the language you like to use with voice
interaction
 Settings > Android
settings > Preferences >
Speech
3.4
IR Sensor
The TV can receive commands from a remote control
that uses IR (infrared) to send commands. If you use
such a remote control, always make sure you point
the remote control at the infrared sensor on the front
of the TV.
 Warning
Do not put any objects in front of IR sensor of the TV,
it may block the IR signal.
3.5
Batteries
If the TV does not react on a key press on the remote
control, the batteries might be empty.
To replace the batteries, open the battery
compartment on the keyboard side of the remote
control.
1 - Use a small coin or other small, blunt object and
press the rectangular shaped release button to open
the battery lid.
2 - Replace the old batteries with 2
type AA-LR6-1.5V batteries. Make sure the + and
the - ends of the batteries line up correctly.
3 - Reposition the battery door and slide it back until
it clicks.
• Remove the batteries if you are not using the remote
control for a long time.
• Safely dispose of your old batteries according to the
end of use directions.
3.6
Cleaning
Your remote control is treated with a scratch-resistant
coating.
To clean the remote control, use a soft damp cloth.
Never use substances such as alcohol, chemicals or
household cleaners on the remote control.
9
4
4.2
Switching On and
Off
Keys on TV
If you lost the remote control or its batteries are
empty, you can still do some basic TV operations.
To open the basic menu…
4.1
1 - With the TV switched on, press the joystick key on
the back of the TV to bring up the basic menu.
2 - Press left or right to select  Volume,
 Channel or  Sources. Select  Demo, to start
a demo movie.
3 - Press up or down to adjust the volume or tune to
the next or previous channel. Press up or down to go
through the list of sources, including the tuner
selection. Press the joystick key to start the demo
movie.
4 - The menu will disappear automatically.
On or Standby
Make sure the TV is connected to the mains AC
power. Connect the supplied power cord to the AC
in connector at the back of the TV. The indicator light
at the bottom of the TV lights up.
Switch on
Press  on the remote control to switch the TV
on. Alternatively, press  HOME. You can also
press the small joystick key on the back of the TV to
switch the TV on in case you can't find the remote
control or its batteries are empty.
To switch the TV on standby, select  and press the
joystick key.
Switch to standby
To switch the TV to standby, press  on the remote
control. You can also press the small joystick key on
the back of the TV.
In standby mode, the TV is still connected to the
mains power but consumes very little energy.
To switch off the TV completely, disconnect the
power plug.
When disconnecting the power plug, always pull the
power plug, never the cord. Ensure that you have full
access to the power plug, power cord and outlet
socket at all times.
10
1 - With a channel list open on screen,
press  OPTIONS.
2 - Select Select Channel List and press OK.
3 - In the list menu, select one of the available
channel lists and press OK.
5
Channels
5.1
Alternatively, you can select the list name at the top
of the channel list and press OK to open the list
menu.
Install Channels
For more information, in Help, press the colour
key  Keywords and look up Channel, Antenna
Installation or Channel, Cable Installation.
Search for a Channel
5.2
Channel Lists
You can search for a channel to find it in a long list of
channels.
About Channel Lists
The TV can search for a channel within one of the 2
main channel lists - the Antenna or Cable channel list.
To search for a channel…
After a channel installation, all channels appear on
the channel list. Channels are shown with their name
and logo if this information is available.
1 - Press .
2 - Press OK to open the current channel list.
3 - Press  OPTIONS.
4 - Select Select Channel List and press OK.
5 - Select Filter Antenna Channels or Filter Cable
Channels and press OK.
6 - Select Search Channel and press OK to open
a text field.You can use the remote control keyboard
(if available) or the on-screen keyboard to enter text.
7 - Enter a number, a name or part of a name and
select Apply and press OK. The TV will search for
matching channel names in the list you selected.
With a channel list selected, press the
arrows  (up) or  (down) to select a channel,
then press OK to watch the selected channel. You
only tune to the channels in that list when
using   or   keys.
Channel icons
After an Automatic Channel Update of the channel
list, newly found channels are marked with
a  (star).
If you lock a channel, it will be marked with
a  (lock).
Search results are listed as a channel list - see the list
name at the top. The search results disappear once
you select another channel list or close the list with
search results.
Radio stations
If digital broadcasting is available, digital radio
stations are installed during installation. Switch to a
radio channel just like you switch to a TV channel. A
Cable (DVB-C) channel installation usually places
radio stations from channel number 1001 onwards.
5.3
Channel List sorting
This TV can receive digital television standard DVB. TV
may not work properly with some operators of digital
television, non-compliance with requirements of the
standard in full.
You can do channel list sorting with all channels. You
can set the channel list to show only TV channels or
only Radio stations. For Antenna/Cable channels you
can set the list to show the Free-to-Air or the
Scrambled channels.
To set a filter on a list with all channels…
Open a Channel List
1 - Press .
2 - Press OK to open the current channel list.
3 - Press  OPTIONS.
4 - Select Select Channel List and press OK.
5 - Select Filter Antenna Channels or Filter Cable
Channels according to the list you want to filter, and
press OK.
6 - In the Options menu, select the filter you want
and press OK to activate. The name of the filter
appears as part of the channel list name on top of the
channel list.
Next to the list with all channels, you can select a
filtered list or you can select one of the favourite lists
you created.
To open the current channel list…
1 - Press , to switch to TV.
2 - Press OK to open the current channel list.
3 - Press  BACK to close the channel list.
To select one of the channel lists…
11
7 - Press  (left) to go back one step or press
close the menu.
 to
If you lock or unlock channels in a channel list, you
only have to enter the PIN code just once until you
close the channel list.
For more information, in Help, press the colour
key  Keywords and look up Child Lock for more
information.
5.4
Watching channels
Tune to a Channel
Parental Rating
To start watching TV channels, press . The TV
tunes to the channel you last watched.
To prevent children from watching a programme not
suitable for their age, you can set an age rating.
Switch Channels
Digital channels can have their programmes age
rated. When the age rating of a programme is equal to
or higher than the age you have set as age rating for
your child, the programme will be locked. To watch a
locked programme, you must enter the Parental
Rating code first.
To switch channels, press   or  .
If you know the channel number, type in the number
with the number keys. Press OK after you entered
the number to switch immediately.
If the information is available from the Internet, the TV
shows the current programme name and details
followed by the next programme name and details.
To set an age rating…
1 - Select Settings > Child Lock > Parental
Rating and press OK.
2 - Enter a 4-digit Child lock code. If you did not set
a code yet, select Set Code in Child Lock. Enter a
4-digit Child lock code and confirm. Now you can set
an age rating.
3 - Back in Parental Rating, select the age and
press OK.
4 - Press  (left) repeatedly if necessary, to close
the menu.
Previous channel
To switch back to the previously tuned channel,
press  BACK.
You can also tune to channels from a Channel List.
Lock a Channel
To switch off the parental age rating, select None.
However, in some countries you must set an age
rating.
Lock and Unlock a Channel
To prevent children from watching a channel, you can
lock a channel. To watch a locked channel, you must
enter the 4 digit Child Lock PIN code first. You
cannot lock programmes from connected devices.
For some broadcasters/operators, the TV only locks
programmes with a higher rating. The parental age
rating is set for all channels.
To lock a channel…
1 - Press .
2 - Press OK to open the channel list. If necessary
change the channel list.
3 - Select the channel you want to lock.
4 - Press  OPTIONS and select Lock
Channel and press OK.
5 - Enter your 4 digit PIN code if the TV asks for it. A
locked channel is marked with a  (lock).
6 - Press  (left) to go back one step or
press  BACK to close the menu.
Channel Options
Open Options
While watching a channel, you can set some options.
Depending on the type of channel you are watching
(analogue or digital) or depending on the TV settings
you made, some options are available.
To open the options menu…
To unlock a channel…
1 - While watching a channel, press  OPTIONS.
2 - Press  OPTIONS again to close.
1 - Press .
2 - Press OK to open the channel list. If necessary
change the channel list.
3 - Select the channel you want to unlock.
4 - Press  OPTIONS and select Unlock
Channel and press OK.
5 - Enter your 4 digit PIN code if the TV asks for it.
6 - Press  (left) to go back one step or
press  BACK to close the menu.
Subtitles
12
Switch On
Select a Subtitle Language
Digital broadcasts can have subtitles for their
programmes.
If none of the preferred subtitle languages are
available, you can select another subtitle language if
available. If no subtitle languages are available, you
cannot select this option.
To show the subtitles…
Press  OPTIONS and select Subtitles.
You can switch subtitles On or
you can select Automatic.
To select a subtitle language when none of your
preferred languages are available…
Off. Alternatively
1 - Press  OPTIONS.
2 - Select Subtitle Language and select one of the
languages as subtitles temporarily.
Automatic
If language information is part of the digital broadcast
and the broadcasted programme is not in your
language (the language set on TV), the TV can show
subtitles automatically in one of your preferred
subtitle languages. One of these subtitle languages
must also be part of the broadcast.
Audio Language
Preferred Audio Language
A digital broadcast can offer several audio languages
(spoken languages) for a programme. You can set a
preferred primary and secondary audio language. If
audio in one of these languages is available, the TV
will switch to the audio language.
You can select your preferred subtitle languages
in Subtitle Language.
Subtitles from Text
To set the primary and secondary audio language…
If you tune to an analogue channel, you need to
make the subtitles available for each channel
manually.
1 - Switch to a channel and press TEXT to open
Text.
2 - Enter the page number for subtitles, usually 888.
3 - Press TEXT again, to close Text.
1 - Go to  Settings > Region and Language and
press OK.
2 - Select Languages > Primary
Audio or Secondary Audio.
3 - Select the language you need and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
If you select On in the Subtitle menu when watching
this analogue channel, subtitles will be shown if
available.
Select an Audio Language
To know if a channel is analogue or digital, switch to
the channel and open Information in  OPTIONS.
If none of the preferred audio languages are
available, you can select another audio language if
available. If no audio languages are available, you
cannot select this option.
Subtitle Language
To select an audio language when none of your
preferred languages are available…
Preferred Subtitle Languages
1 - Press  OPTIONS.
2 - Select Audio Language and select one of the
languages as audio temporarily.
A digital broadcast can offer several subtitle
languages for a programme. You can set a preferred
primary and secondary subtitle language. If subtitles
in one of these languages are available, the TV will
show the subtitles you selected.
Common Interface
To set the primary and secondary subtitle language…
If you installed a CAM in one of the Common
Interface slots, you can view the CAM and operator
information or do some CAM related settings.
1 - Go to  Settings > Region and Language and
press OK.
2 - Select Languages > Primary
Subtitles or Secondary Subtitles.
3 - Select the language you need and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
To view the CAM information…
1 - Press  SOURCES.
2 - Select the channel type you are using the CAM
for Watch TV.
3 - Press  OPTIONS and select Common
Interface.
13
4 - Select the appropriate Common Interface slot
and press  (right).
5 - Select the TV operator of the CAM and press OK.
The following screens come from the TV operator.
3 - In the Favourites List, select the channel you
want to reorder and press OK.
4 - With the  (up) or  (down) keys move the
channel where you want it.
5 - Press OK to confirm the new location.
6 - You can reorder channels with the same method
until you close the Favourites List with
the  BACK key.
HbbTV on this Channel
If you want to avoid access to HbbTV pages on a
specific channel, you can block the HbbTV pages for
this channel only.
5.5
Switch on HbbTV
Favourite Channels
Select Settings > General
settings > Advanced > HbbTV settings > HbbTV
> On.
About Favourite Channels
In a favourite channel list, you can collect the
channels you like.
You can create 4 different lists of favourite channels
for easy channel zapping. You can name each
Favourites List individually. Only in a Favourites List
you can reorder channels.
Programme Info
View programme details
To call up the details of the selected programme…
1 - Tune to the channel.
2 - Press  OPTIONS, select Programme Info and
press OK.
3 - To close this screen, press OK.
With a Favourites List selected, press the
arrows  (up) or  (down) to select a channel,
then press OK to watch the selected channel. You
only tune to the channels in that list when using 
 or   keys.
Alternatively, you can directly press  INFO* to
access the information of now and next programmes.
On Programme Info, press the colour
key  SCHEDULED to enter the scheduled
recording list, or repeatedly press  (right) to enter
the TV Guide.
Create a Favourites List
To create a favourite channels list…
1 - Press , to switch to TV.
2 - Press OK to open the current channel list.
3 - Press  OPTIONS.
4 - Select Create Favourites List and press OK.
5 - In the list at the left, select a channel you want as
a favourite and press OK. Channels come in the list at
the right in the order you add them. To undo, select
the channel in the list at the left and
press OK again.
6 - If necessary, you can go on selecting and adding
channels as favourites.
7 - To finish adding channels, press  BACK.
*If  INFO key is available on your remote control.
Mono / Stereo
You can switch the sound of an analogue channel to
Mono or Stereo.
To switch to Mono or Stereo…
1 - Tune to an analoge channel.
2 - Press  OPTIONS, select Mono/Stereo and
press  (right).
3 - Select Mono or Stereo and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
The TV will ask to rename the Favourites List. You can
use the on-screen keyboard.
1 - Use the on-screen keyboard to delete the
current name and enter a new name.
2 - When done, select Close and press OK.
Reorder Channels
The TV will switch to the newly created Favourites
List.
Only in a Favourites List you can change the
sequence of channels (reorder).
You can add a range of channels in one go or start a
Favourites List by duplicating the channel list with all
channels and removing the channels you do not
want.
To change the sequence of channels…
1 - Open the Favourites List you want to reorder.
2 - Press  OPTIONS, select Reorder
Channels and press OK.
The channels in the Favourites List are renumbered.
14
4 - With the  (up) or  (down) keys move the
channel where you want it.
5 - Press OK to confirm the new location.
6 - You can reorder channels with the same method
until you close the Favourites List with
the  BACK key.
Add a Range of Channels
To add a consecutive range of channels to a
Favourites List in one go, you can use Select Range.
To add a range of channels…
1 - Open the Favourites List where you want to add a
range of channels.
2 - Press  OPTIONS, select Select Range and
press OK.
3 - In the list at the left select the first channel of the
range you want to add and press OK.
4 - Press  (down) to select the last channel of the
range you want to add. The channels are marked at
the left.
5 - Press OK to add this range of channels and
confirm.
Favourites List on TV Guide
You can link the TV Guide for your Favourite List.
1 - While watching a TV channel, long press  >
Select channel List.
2 - Select a Favourites List and press OK.
3 - Press  TV GUIDE to open it.
With the TV Guide you can view a list of the current
and scheduled TV programmes of your favourite
channels. Along with your favourite channels, the first
3 most used channels from the broadcasters’ default
list will be appended after your favourite channels for
your preview. You need to add these channels into
your favourite list to enable its operation (refer to "TV
Guide" chapter).
You can also start creating a Favourites List from
Select Range.
Rename a Favourites List
You can only rename a Favourites List.
On each page of TV Guide, there is a "Did you know"
grid inserted on your favourite channel list. The "Did
you know"-channel provides useful tips to improve
the way you use your TV.
To rename a Favourites List…
1 - Open the Favourite List you want to rename.
2 - Press  OPTIONS, select Rename Favourites
List and press OK.
3 - Use the on-screen keyboard to delete the current
name and enter a new name.
4 - When done, select Close and press OK.
5 - Press  BACK to close the channel list.
5.6
Text / Teletext
Text Pages
Remove a Favourites List
To open Text/Teletext press TEXT, while you are
watching TV channels.
To close Text, press TEXT again.
You can only remove a Favourites List.
To remove a Favourites List…
Select a Text page
1 - Open the Favourites List you want to remove.
2 - Press  OPTIONS, select Remove Favourites
List and press OK.
3 - Confirm to remove the list.
4 - Press  BACK to close the channel list.
To select a page . . .
1 - Enter the page number with the number keys.
2 - Use the arrow keys to navigate.
3 - Press a colour key to select a colour-coded
subject at the bottom of the screen.
Text sub-pages
Reorder Channels
A Text page number can hold several subpages. The
subpage numbers are shown on a bar next to the
main page number.
To select a subpage, press  or .
Only in a Favourites List you can change the
sequence of channels (reorder).
To change the sequence of channels…
T.O.P. Text pages
1 - Open the Favourites List you want to reorder.
2 - Press  OPTIONS, select Reorder
Channels and press OK.
3 - In the Favourites List, select the channel you
want to reorder and press OK.
Some broadcasters offer T.O.P. Text.
To open T.O.P. Text pages within Text,
press  OPTIONS and select T.O.P. Overview.
Search Text
15
You can select a word and scan Text for all
occurences of this word.
graphics.
1 - Open a Text page and press OK.
2 - Select a word or number with the arrow keys.
3 - Press OK again to jump immediately to the next
occurence of this word or number.
4 - Press OK again to jump to the subsequent
occurence.
5 - To stop searching, press  (up) until nothing is
selected.
Text Setup
Text language
Some digital TV broadcasters have several Text
languages available.
To set your primary and secondary Text language . . .
1 - Select  Settings > Region and language and
press  (right) to enter the menu.
2 - Select Language > Primary Text or Secondary
Text and press OK.
3 - Select your preferred Text languages.
4 - Press  (left) repeatedly if necessary, to close
the menu.
Text from a connected device
Some devices that receive TV channels can also offer
Text.
To open Text from a connected device . . .
1 - Press  SOURCES, select the device and
press OK.
2 - While watching a channel on the device,
press  OPTIONS, select Show Device Keys and
select the  key and press OK.
3 - Press  BACK to hide the device keys.
4 - To close Text, press  BACK again.
Text 2.5
If available, Text 2.5 offers more colours and better
graphics. Text 2.5 is activated as a standard factory
setting.
To switch off Text 2.5…
Digital Text (UK only)
1 - Press TEXT.
2 - With Text/Teletext open on screen,
press  OPTIONS.
3 - Select Text 2.5 > Off and press OK.
4 - Press  (left) repeatedly if necessary, to close
the menu.
Some digital broadcasters offer dedicated Digital Text
or interactive TV on their digital TV channels. This
includes normal Text using the number, colour and
arrow keys to select and navigate.
To close Digital Text, press  BACK.
* The teletext can only be reached when the channels
are installed directly on the TV’s internal tuner and
the set is on TV mode. If a set-top box is being used,
the teletext will be unavailable via TV. In that case,
the set-top box’s teletext can be used instead.
5.7
Interactive TV
About iTV
With interactive TV, some digital broadcasters
combine their normal TV programme with information
or entertainment pages. On some pages, you can
respond to a programme or vote, do online shopping
or pay for a video-on-demand programme.
Text Options
In Text/Teletext, press  OPTIONS to select the
following…
• Freeze page / Unfreeze page
To start or stop the automatic rotation of subpages.
• Dual screen / Full screen
To show the TV channel and Text alongside each
other.
• T.O.P. overview
To open T.O.P. Text.
• Enlarge / Normal view
To enlarge the Text page for comfortable reading.
• Reveal
To unhide hidden information on a page.
• Cycle subpages
To cycle subpages when these are available.
• Language
To switch the group of characters that Text uses to
display correctly.
• Text 2.5
To activate the Text 2.5 for more colours and better
HbbTV, MHEG, . . .
Broadcasters use various interactive TV systems :
HbbTV (Hybrid Broadcast Broadband TV) or iTV
(Interactive TV - MHEG). Interactive TV is sometimes
referred to as Digital Text or Red button. But each
system is distinct.
Visit the broadcaster's Internet website for more
information.
16
What You Need
Interactive TV is only available on digital TV channels.
To enjoy the full benefits of Interactive TV, you need
a high-speed (broadband) Internet connection to the
TV.
HbbTV
If a TV channel offers HbbTV pages, you must first
switch on HbbTV in the TV settings to view the pages.
 Settings > General
settings > Advanced > HbbTV settings > HbbTV >
On.
Use iTV
Open iTV pages
Most channels that offer HbbTV or iTV invite you to
press the colour key  (red) or OK key to open
their interactive programme.
Navigate iTV pages
You can use the arrow and colour keys, the number
keys and the  BACK key to navigate the iTV
pages.
You can use the  (Play),  (Pause) and  (Stop)
keys to watch videos within iTV pages.
Digital Text (UK only)
To open Digital Text, press TEXT. To close,
press  BACK .
Close iTV pages
Most iTV pages inform you which key to use to close.
To force an iTV page to close, switch to the next TV
channel and press  BACK.
17
select Install.
8 - If a satellite offers Channel Packages, the TV will
show the available packages for that satellite. Select
the package you need. Some packages offer
a Quick or Full install for their available channels,
select one or the other. The TV will install the satellite
channels and radio stations.
9 - To store the satellite setup and installed channels
and radio stations, select Finish.
6
Channel Installation
6.1
Satellite Installation
About Installing Satellites
Up to 4 Satellites
Satellite Installation Settings
You can install up to 4 satellites (4 LNBs) on this TV.
Select the exact number of satellites you wish to
install at the start of the installation. This will speed up
the installation.
The satellite installation settings are preset according
your country. These settings determine how the TV
searches and installs satellites and its channels. You
can always change these settings.
Unicable
To change the satellite installation settings…
You can use a Unicable system to connect the
antenna dish to the TV. You can select Unicable for 1
or for 2 satellites at the start of the installation.
1 - Start the satellite installation.
2 - On the screen where you can start searching for
satellites, select Settings and press OK.
3 - Select the number of satellites you want to install
or select one of the Unicable systems. When you
select Unicable, you can choose the User Band
Numbers and enter the User Band Frequencies for
each tuner.
4 - When you're done, select Next and press OK.
5 - On the Settings menu, press the colour
key  Done to return to the screen to start
searching for satellites.
MDU - Multi-Dwelling-Unit
The built-in satellite tuners support MDU on the Astra
satellites and for Digiturk on the Eutelsat satellite.
MDU on Türksat is not supported.
Start the Installation
Make sure your satellite dish is connected correctly
and is perfectly aligned before you start the
installation.
Homing Transponder and LNB
In some countries, you can adjust the expert settings
for homing transponder and each LNB. Only use or
change these settings when a normal installation fails.
If you have non-standard satellite equipment, you
can use these settings to overrule the standard
settings. Some providers might give you some
transponder or LNB valeus which you can enter here.
To start the satellite installation…
1 - Select Settings > Channels > Satellite
Installation and press OK. Enter your PIN code if
necessary.
2 - Select Search for Satellite and press OK.
3 - Select Search and press OK. TV will search for
satellites.
4 - Select Install and press OK. The TV shows the
current satellite installation setup.
If you want to change this setup, select Settings.
If you don't want to change the setup, select Search.
Go to step 5.
Satellite CAMs
If you use a CAM – a Conditional Access Module with
a smart card – to watch satellite channels, we
recommend to do the satellite installation with the
CAM inserted in the TV.
5 - In Installation System, select the number of
satellites you want to install or select one of the
Unicable systems. When you select Unicable, you
can choose the User Band Numbers and enter the
User Band Frequencies for each tuner. In some
countries, you can adjust some expert settings for
each LNB in More Settings.
6 - The TV will search for the satellites available on
the alignment of your antenna dish. This may take a
few minutes. If a satellite is found, its name and
reception strength are shown on screen.
7 - When the TV found the satellites you need,
Most CAMs are used to descramble channels.
Newest generation CAMs (CI+ 1.3 with Operator
Profile), can install all the satellite channels by
themselves on your TV. The CAM will invite you to
install its satellite(s) and channels. These CAMs not
only install and descramble the channels but also
handle regular channel updates.
18
Channel Packages
User Band Frequency
Satellite operators can offer channel packages that
bundle free channels (free-to-air) and offer a sorting
that suits a country. Some satellites offer subscription
packages - a collection of channels you pay for.
Next to the unique user band number, the built-in
satellite receiver needs the frequency of the selected
user band number. These frequencies are mostly
shown next to the user band number on a Unicable
switchbox.
If you choose a subscription package, the TV might
ask you to select a Quick or Full installation.
Select Quick to install the channels of the package
only or select Full to install the package and all
other available channels too. We recommend a Quick
installation for subscription packages. If you have
additional satellites that are not part of your
subscription package, we recommend a Full
installation. All installed channels are put in the
channels list All.
Manual Channel Update
You can always start an channel update yourself.
To start a channel update manually…
1 - Select Settings > Channels > Satellite
Installation and press OK.
2 - Select Search for Channels and press OK.
3 - Select Update Channels and press OK. The TV
will start updating. The update may take a few
minutes.
4 - Follow the instructions on screen. The update
may take a few minutes.
5 - Select Finish and press OK.
Unicable Setup
The Unicable System
You can use a Single Cable system, MDU or Unicable
system* to connect the antenna dish to the TV. A
Single Cable system uses one cable to connect the
satellite dish to all satellite tuners in its system. A
Single Cable system is typically used in apartment
buildings. If you use a Unicable system, the TV will ask
you to assign a user band number and corresponding
frequency during the installation. You can install 1 or 2
satellites with Unicable on this TV.
Add a Satellite
You can add an additional satellite to your current
satellite installation. The installed satellites and their
channels remain untouched. Some satellite operators
do not allow adding a satellite.
The additional satellite should be seen as an extra, it
is not your main satellite subscription or not the main
satellite of which you use its channel package.
Typically, you would add a 4th satellite when you
have 3 satellites already installed. If you have 4
satellites installed, you might consider removing one
first to be able to add a new satellite.
If you notice some missing channels after a Unicable
installation, another installation might have been
done at the same moment on the Unicable system.
Do the installation again to install the missing
channels.
* Note: supports unicable systems EN 50494 only.
Setup
If you currently have only 1 or 2 satellites installed, the
current installation settings might not allow adding an
extra satellite. If you need to change the installation
settings, you must redo the complete satellite
installation. You cannot use Add satellite if a change
of settings is needed.
User Band Number
In a Unicable system, each connected satellite tuner
must be numbered (e.g. 0, 1, 2 or 3 etc.).
You can find the available user bands and their
number on the Unicable switchbox. User band is
sometimes shortened as UB. There are Unicable
switchboxes that offer 4 or 8 user bands. If you select
Unicable in the settings, the TV will ask you to assign
the unique user band number for each built-in
satellite tuners. A satellite tuner cannot have the same
user band number as another satellite tuner in the
Unicable system.
To add a satellite…
1 - Select Settings > Channels > Satellite
Installation and press OK.
2 - Select Search for satellite and press OK.
3 - Select Add Satellite and press OK. The current
satellites are shown.
4 - Select Search and press OK. The TV will
search for new satellites.
5 - If the TV has found one or more satellites,
select Install and press OK. The TV installs the
channels of the found satellites.
6 - Select Finish and press OK to store the
19
channels and radio stations.
Homing Transponder and LNB
You can remove one or more satellites from your
current satellite installation. You remove the satellite
and its channels. Some satellite operators do not
allow removing a satellite.
In some countries, you can adjust the expert settings
for homing transponder and each LNB. Only use or
change these settings when a normal installation fails.
If you have non-standard satellite equipment, you
can use these settings to overrule the standard
settings. Some providers might give you some
transponder or LNB valeus which you can enter here.
To remove satellites…
LNB Power
1 - Select Settings > Channels > Satellite
Installation and press OK.
2 - Select Search for satellite and press OK.
3 - Select Remove Satellite and press OK. The
current satellites are shown.
4 - Select a satellite and press OK to mark or
unmark them to remove.
5 - Press  (left) repeatedly if necessary, to close
the menu.
By default, LNB Power is set to Automatic.
Remove a Satellite
22 kHz Tone
By default, the Tone is set to Automatic.
Low LO Frequency / High LO Frequency
The local oscillator frequencies are set to standard
values. Adjust the values only in case of exceptional
equipment that needs different values.
Manual Installation
Problems
Manual Installation is intended for expert users.
The TV cannot find the satellites I want or the TV
You can use Manual Installation to quickly add new
channels from a satellite transponder. You need to
know the frequency and polarization of the
transponder. The TV will install all channels of that
transponder. If the transponder was installed before,
all its channels - the former and the new ones - are
moved to the end of the channel list All.
You cannot use Manual installation if you need to
change the number of satellites. If this is needed, you
have to do a complete installation with Install
Satellites.
installs the same satellite twice
• Make sure that the correct number of satellites is set
in Settings at the start of the installation. You can set
the TV to search for One, Two or 3/4 satellites.
A dual head LNB cannot find a second satellite
• If the TV finds one satellite but cannot find a second
one, turn the dish a few degrees. Align the dish to get
the strongest signal on the first satellite. Check the
signal strength indicator of the first satellite on screen.
With the first satellite set at the strongest signal, select
Search again to find the second satellite.
• Make sure the settings are set to Two Satellites.
To install a transponder…
1 - Select Settings > Channels > Satellite
Installation and press OK.
2 - Select Manual Installation and press  (right)
to enter the menu.
3 - If you have more than 1 satellite installed,
select LNB for which you want to add channels.
4 - Set the Polarisation you need. If you set
the Symbol Rate Mode to Manual, you can enter
the symbol rate in Symbol Rate manually.
5 - Press the arrows  (up) or  (down) to adjust
the frequency, and select Done.
6 - Select Search and press OK. The signal
strenght is shown on screen.
7 - If you want to store the channels of a new
transponder, select Store and press OK.
8 - Press  (left) repeatedly if necessary, to close
the menu.
Changing the installation settings did not solve my
problem
• All settings, satellites and channels are only stored
at the end of the installation when you finish.
All satellite channels are gone
• If you use a Unicable system, make sure you
assigned two unique user band numbers for both
built-in tuners in the Unicable settings. It might be
that another satellite receiver in your Unicable system
is using the same user band number.
Some satellite channels seem to have disappeared
from the channel list
• If some channels seem to be gone or displaced, the
broadcaster might have changed the transponder
location of these channels. To restore the channel
positions in the channel list, you can try an update of
20
the channel package.
Manual Channel Update
I cannot remove a satellite
You can always start an channel update yourself.
• Subscription packages do not allow removing a
satellite. To remove the satellite, you have to do a
complete installation again and select another
package.
To start a channel update manually…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Search for Channels and press OK.
4 - Select Start and press OK.
5 - Select Update Digital Channels,
select Next and press OK.
6 - Select Start and press OK to update the digital
channels. This can take a few minutes.
7 - Press  (left) to go back one step or
press  BACK to close the menu.
Sometimes the reception is poor
• Check if the satellite dish is solidly mounted. Strong
winds can move the dish.
• Snow and rain can degrade the reception.
6.2
Antenna Installation
Update Channels
Reinstall Channels
Automatic Channel Update
Reinstall All Channels
If you receive digital channels, you can set the TV to
automatically update these channels.
You can reinstall all channels and leave all other TV
settings untouched.
Once a day, at 7 AM, the TV updates the channels
and stores new channels. New channels are stored in
the Channels List and are marked with a  .
Channels without a signal are removed. The TV must
be in standby to automatically update channels. You
can switch off Auromatic Channel Update.
If a PIN code is set, you will need to enter this code
before you can reinstall channels.
To reinstall channels…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Search for Channels and press OK.
4 - Select Start and press OK.
5 - Select Reinstall Channels, select Next and
press OK.
6 - Select the country where you are now and
press OK.
7 - Select Next and press OK.
8 - Select the type of installation you want, Antenna
(DVB-T) or Cable (DVB-C) and press OK.
7 - Select Next and press OK.
10 - Select the type of channels you want, Digital
and Analogue Channels or Only Digital
Channels and press OK.
7 - Select Next and press OK.
12 - Select Start and press OK to update the
digital channels. This can take a few minutes.
13 - Press  (left) to go back one step or
press  BACK to close the menu.
To switch off the automatic update…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Automatic Channel Update and
press OK.
4 - Select Off and press OK.
5 - Press  (left) to go back one step or
press  BACK to close the menu.
When new channels are found or if channels are
updated or removed, a message is shown at TV start
up. To avoid this message to appear after every
channel update, you can switch it off.
To switch off the message…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
2 - Enter your PIN code if necessary.
3 - Select Channel Update Message and press OK.
4 - Select Off and press OK.
5 - Press  (left) to go back one step or
press  BACK to close the menu.
Reinstall TV
You can redo a full TV installation. The TV is
completely reinstalled.
In certain countries, the Automatic channel update is
done while watching TV or on any moment when the
TV is in standby.
To redo a full TV installation…
1 - Select Settings > General Settings >
TV and press OK.
21
Reinstall
2 - Enter your PIN code if necessary.
3 - Select Yes and press OK to confirm.
4 - The TV will reinstall completely. All settings will
be reset and installed channels will be replaced. The
installation can take a few minutes.
5 - Press  (left) to go back one step or
press  BACK to close the menu.
Frequency Scan
Select the method of searching for channels. You can
select the faster Quick Scan method and use the
predefined settings used by most cable operator in
your country.
If this results in having no channels installed or if
some channels are missing, you can select the
extended Full Scan method. This method will take
more time to search for and install channels.
DVB Settings
DVB-T or DVB-C Reception
Frequency Step Size
During the channel installation, just before you search
for channels, you selected Antenna (DVB-T) or Cable
(DVB-C). Antenna DVB-T searches for terrestrial
analogue channels and digital DVB-T/T2 channels.
Cable DVB-C searches for analogue and digital
channels available from a cable DVB-C operator.
The TV searches for channels in steps of 8MHz.
If this results in having no channels installed or if
some channels are missing, you can search in smaller
steps of 1MHz. Using the 1MHz steps will take more
time to search for and install channels.
DVB-C Channel Installation
For ease of use, all DVB-C settings are set to
automatic.
If your DVB-C operator gave you specific DVB-C
values, the network ID or network frequency, enter
these values when the TV asks for them during
installation.
Digital Channels
If you know your cable operator is not offering digital
channels, you can skip searching for digital channels.
Channel Number Conflicts
Analogue Channels
In some countries, different TV channels
(broadcasters) might have the same channel number.
While installing, the TV shows the list with channel
number conflicts. You need to select which TV
channel you want to install on a channel number with
multiple TV channels.
If you know your cable operator is not offering
analogue channels, you can skip searching for
analogue channels.
Free / Scrambled
If you have a subscription and a CAM - Conditional
Access Module for pay TV services, select Free +
Scrambled. If you did not subscribe to pay TV
channels or services, you can select Free
Channels Only .
Network Frequency Mode
If you intend to use the fast Quick Scan method
in Frequency Scan to search for channels,
select Automatic. The TV will use 1 of the predefined
network frequencies (or HC - homing channel) as
used by most cable operator in your country.
For more information, in Help, press the colour
key  Keywords and look up CAM, Conditional
Access Module.
If you received a specific network frequency value to
search for channels, select Manual.
Reception Quality
Network Frequency
You can check the quality and signal strength of a
digital channel. If you have your own antenna, you
can reposition the antenna to try and improve the
reception.
With the Network Frequency Mode set to Manual,
you can enter the network frequency value received
from your cable operator here. To enter the value, use
the number keys.
To check the reception quality of a digital channel…
1 - Tune to the channel.
2 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
Enter your PIN code if necessary.
22
3 - Select Digital: Reception Test and press OK.
4 - Select Search and press OK. The digital
frequency is shown for this channel.
5 - Select Search again and press OK to check the
signal quality of this frequency. The test result is
shown on screen. You can reposition the antenna or
check the connections to possibly improve the
reception.
6 - You can also change the frequency
yourself. Select the frequency number one by one
and use the  (up) or  (down) keys to change
the value. Select Search and press OK to test the
reception again.
7 - Press  (left) repeatedly if necessary, to close
the menu.
6.3
Channel List Copy
Introduction
Channel List Copy is intended for dealers and expert
users.
With Channel List Copy, you can copy the channels
installed on one TV onto another Philips TV of the
same range. With Channel List Copy, you avoid the
time-consuming channel search by uploading a
predefined channel list on a TV. Use a USB flash drive
of minimum 1 GB.
Conditions
• Both TVs are from the same year range.
• Both TVs have the same hardware type. Check the
hardware type on the TV type plate on the back of
the TV.
• Both TVs have compatible software versions.
Manual Installation
Analogue TV channels can be manually installed,
channel by channel.
Current channel version
To install analogue channels manually…
To check the current version of the channel list…
1 - Select Settings > Channels > Antenna/Cable
Installation or Antenna Installation and press OK.
Enter your PIN code if necessary.
2 - Select Analogue: Manual Installation and
press OK.
1 - Select Settings > Channels, select Channel
List Copy, select Current Version and press OK.
2 - Press OK to close.
Current software version
• System
To set up the TV system, select System.
Select your country or the part of the world where
you are now and press OK.
To check the cuurent version of the TV software…
1 - Select Settings > Update Software and
press  (right) to enter the menu.
2 - Select Current Software Info and press OK.
3 - The version, release notes and creation date are
shown. Also, the Netflix ESN Number is shown if
available.
4 - Press  (left) repeatedly if necessary, to close
the menu.
• Search Channel
To find a channel, select Search Channel and
press OK. You can enter a frequency yourself to find
a channel or let the TV search for a channel.
Press  (right) to select Search and press OK to
search for a channel automatically. The found
channel is shown on screen and if the reception is
poor, press Search again. If you want to store the
channel, select Done and press OK.
Copy a Channel List
• Store
You can store the channel on the current channel
number or as a new channel number.
Select Store Current Channel or Store as New
Channel and press OK. The new channel number is
shown briefly.
To copy a channel list…
1 - Switch on the TV. This TV should have channels
installed.
2 - Plug in a USB flash drive.
3 - Select Settings > Channels > Channel List
Copy and press OK.
4 - Select Copy to USB and press OK. You might
be asked to enter the Child Lock PIN code to copy the
channel list.
5 - When copying is done, unplug the USB flash
drive.
6 - Press  (left) repeatedly if necessary, to close
the menu.
You can redo these steps until you have found all
available analogue TV channels.
Now you can upload the copied channel list onto
another Philips TV.
23
Channel List Version
Check the current version of the channel list...
1 - Select Settings > Channels and
press  (right) to enter the menu.
2 - Select Channel List Copy and select Current
Version, then press OK.
3 - Press  (left) repeatedly if necessary, to close
the menu.
Upload a Channel List
To not Installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
To a TV that is not yet installed
1 - Plug in the power plug to start the installation and
select language and country. You can skip the
channel search. Finish the installation.
2 - Plug in the USB flash drive that holds the channel
list of the other TV.
3 - To start the channel list upload, select Settings
> Channels > Channel List Copy > Copy to TV and
press OK. Enter your PIN code if necessary.
4 - The TV notifies you if the channel list is copied to
the TV successfully. Unplug the USB flash drive.
To Installed TVs
Depending on whether your TV is already installed or
not, you must use a different method to upload a
channel list.
To an already installed TV
1 - Verify the country setting of the TV. (To verify this
setting, see chapter Reinstall All Channels. Start this
procedure until you reach the country setting.
Press  BACK to cancel the installation.)
If the country is correct continue with step 2.
If the country is not correct, you need to start a
reinstallation. See chapter Reinstall All Channels and
start the installation. Select the correct country and
skip the channels search. Finish the installation. When
done, continue with step 2.
2 - Plug in the USB flash drive that holds the channel
list of the other TV.
3 - To start the channel list upload, select Settings
> Channels > Channel List Copy > Copy to TV and
press OK. Enter your PIN code if necessary.
4 - The TV notifies you if the channel list is copied to
the TV successfully. Unplug the USB flash drive.
24
7
HDMI ARC
Connect Devices
All of the HDMI connections on the TV have HDMI
ARC (Audio Return Channel).
7.1
If the device, typically a Home Theatre System (HTS),
also has the HDMI ARC connection, connect it to any
of the HDMI connections on this TV. With the HDMI
ARC connection, you do not need to connect the
extra audio cable that sends the sound of the TV
picture to the HTS. The HDMI ARC connection
combines both signals.
About Connections
Connectivity Guide
Always connect a device to the TV with the highest
quality connection available. Also, use good quality
cables to ensure a good transfer of picture and
sound.
You can use any HDMI connection on this TV to
connect the HTS but ARC is only available for 1
device/connection at a time.
When you connect a device, the TV recognizes its
type and gives each device a correct type name. You
can change the type name if you wish. If a correct
type name for a device is set, the TV automatically
switches to the ideal TV settings when you switch to
this device in the Sources menu.
Antenna port
If you have a Set-top box (a digital receiver) or
Recorder, connect the antenna cables to run the
antenna signal through the Set-top box and/or
Recorder first before it enters the TV. In this way, the
antenna and the Set-top box can send possible
additional channels to the Recorder to record.
HDMI MHL
With HDMI MHL, you can send what you see on your
Android smartphone or tablet to a TV screen.
HDMI ports
The HDMI 1 connection on this TV
incorporates MHL 2.0 (Mobile High-Definition Link).
HDMI Quality
This wired connection offers great stability and
bandwidth, low latency, no wireless interference and
good quality sound reproduction. On top of that, the
MHL connection will charge the battery of your
smartphone or tablet. Although connected, your
mobile device will not be charging when the TV is on
standby.
An HDMI connection has the best picture and sound
quality. One HDMI cable combines video and audio
signals. Use an HDMI cable for TV signal.
For best signal quality transfer, use a High speed
HDMI cable and do not use an HDMI cable longer
than 5 m.
Inform yourself about what passive MHL cable is
suited for your mobile device. In particular, with the
HDMI connector for the TV on one side, the type of
connector you need to connect to your smartphone
or tablet.
If a device connected with HDMI is not working
correctly, check if a different HDMI Ultra HD setting
can solve this problem. In Help, press the colour
key  Keywords and look up HDMI Ultra HD.
Copy protection
MHL, Mobile High-Definition Link and the MHL Logo
are trademarks or registered trademarks of the MHL,
LLC.
HDMI cables support HDCP 2.2 (High-bandwidth
Digital Content Protection). HDCP is a copy protection
signal that prevents copying content from a DVD disc
or Blu-ray Disc. Also referred to as DRM (Digital
Rights Management).
25
HDMI CEC - EasyLink
An HDMI connection has the best picture and sound
quality. One HDMI cable combines video and audio
signals. Use an HDMI cable for High Definition (HD)
TV signals. For best signal quality transfer, use a High
speed HDMI cable and do not use an HDMI cable
longer than 5 m.
Smart Card
Connect HDMI CEC-compatible devices to your TV,
you can operate them with the TV remote control.
Switch on EasyLink
Digital TV operators provide a CI+ module
(Conditional Access Module - CAM) and an
accompanying smart card, when you subscribe to
their premium programmes.
 Settings > General
settings > EasyLink > EasyLink > On.
Insert the smart card into the CAM module. See the
instruction you received from the operator.
EasyLink HDMI CEC must be switched on on the TV
and the connected device.
To insert the CAM in the TV…
1 - Look on the CAM for the correct method of
insertion. Incorrect insertion can damage the CAM
and TV.
2 - While looking at the back of the TV, with the front
of the CAM facing towards you, gently insert the CAM
into the slot COMMON INTERFACE.
3 - Push the CAM in as far as it will go. Leave it in the
slot permanently.
Operate HDMI CEC-compatible devices with TV
remote control
 Settings > General
settings > EasyLink > EasyLink remote
control > On.
Note:
• EasyLink might not work with devices from other
brands.
• The HDMI CEC functionality has different names on
different brands. Some examples are: Anynet, Aquos
Link, Bravia Theatre Sync, Kuro Link, Simplink and
Viera Link. Not all brands are fully compatible with
EasyLink. Example HDMI CEC branding names are
property of their respective owners.
7.2
CAM with Smart Card - CI+
CI+
When you switch on the TV, it may take a few minutes
before the CAM is activated. If a CAM is inserted and
subscription fees are paid (subscription methods can
differ), you can watch the scrambled channels
supported by the CAM smart card.
This TV is ready for the CI+ Conditional Access .
With CI+ you can watch premium HD programmes,
like movies and sports, offered by digital TV operators
in your region. These programmes are scrambled by
the TV operator and descrambled with a prepaid CI+
module.
Digital TV operators provide a CI+ module
(Conditional Access Module - CAM) and an
accompanying smart card, when you subscribe to
their premium programmes. These programmes have
a high level of copy protection.
The CAM and smart card are exclusively for your TV. If
you remove the CAM, you will no longer be able to
watch the scrambled channels supported by the
CAM.
Contact a digital TV operator for more information on
terms & conditions.
26
a disc player to match the sound with the video.
Passwords and PIN codes
For some CAMs, you must enter a PIN code to watch
its channels. When you set the PIN code for the CAM,
we recommend you to use the same code you are
using to unlock the TV.
Problems with HTS sound
Sound with loud noise
To set the PIN code for the CAM…
If you watch a video from a plugged in USB flash drive
or connected computer, the sound from your Home
Theatre System might be distorted. This noise is heard
when the audio or video file has DTS sound but the
Home Theatre System has no DTS sound processing.
You can fix this by setting the Digital Out Format of
the TV to Stereo.
1 - Press  SOURCES .
2 - Select the channel type you are using the CAM
for Watch TV.
3 - Press  OPTIONS and select Common
Interface.
4 - Select the TV operator of the CAM. The following
screens come from the TV operator. Follow the onscreen instruction to look up the PIN code setting.
Select Settings
> Sound > Advanced >
Digital Out Format .
No sound
7.3
If you cannot hear the sound from the TV on your
Home Theatre System, check if you connected the
HDMI cable to an HDMI ARC connection on the
Home Theatre System. All HDMI connections on the
TV are HDMI ARC connections.
Home Theatre System - HTS
Connect with HDMI ARC
Use an HDMI cable to connect a Home Theatre
System (HTS) to the TV. You can connect a Philips
Soundbar or an HTS with a built-in disc player.
7.4
Smartphones and Tablets
HDMI ARC
To connect a smartphone or tablet to the TV, you can
use a wireless or wired connection.
If your Home Theatre System has an HDMI ARC
connection, you can use any HDMI connection on the
TV to connect. With HDMI ARC, you do not need to
connect the extra audio cable. The HDMI ARC
connection combines both signals.
All HDMI connections on the TV can offer the Audio
Return Channel (ARC) signal. But once you have
connected the Home Theatre System, the TV can
only send the ARC signal to this HDMI connection.
Wireless
For a wireless connection, on your smartphone or
tablet download the Philips TV Remote App from
your favourite app store.
Wired
Audio to video synchronisation (sync)
For a wired connection, use the HDMI 1 MHL
connection on the back of the TV.
If the sound does not match the video on screen, you
can set a delay on most Home Theatre Systems with
a disc player to match the sound with the video.
7.5
Blu-ray Disc Player
Connect with HDMI
Use a High speed HDMI cable to connect the Bluray Disc player to the TV.
Use an HDMI cable to connect a Home Theatre
System (HTS) to the TV. You can connect a Philips
Soundbar or an HTS with a built-in disc player.
If the Blu-ray Disc player has EasyLink HDMI CEC,
you can operate the player with the TV remote
control.
If the Home Theatre System has no HDMI ARC
connection, add an optical audio cable (Toslink) to
send the sound of the TV picture to the Home Theatre
System.
In Help, press the colour key  Keywords and
look up EasyLink HDMI CEC for more information.
Audio to video synchronisation (sync)
If the sound does not match the video on screen, you
can set a delay on most Home Theatre Systems with
27
need to unpair a paired device first if the maximum
number of paired devices was reached.
5 - Select the type of device and press OK.
6 - Press  (left) repeatedly if necessary, to close
the menu.
7.6
DVD Player
Use an HDMI cable to connect the DVD player to the
TV.
* Your TV doesn't support Bluetooth
subwoofer/speakers/headphones.
If the DVD player is connected with HDMI and has
EasyLink CEC, you can operate the player with the TV
remote control.
** HDMI connection is required for sound bar, speaker
and other audio device.
For more information on EasyLink, in Help, press the
colour key  Keywords and look up EasyLink
HDMI CEC.
Select a Device
To select a wireless device…
Y Pb Pr - Component Video is a high quality
connection.
1 - Select Settings > Wireless and Networks and
press OK.
2 - Select Bluetooth > Search Bluetooth
Device and press OK.
3 - In the list, select the wireless device and
press OK.
4 - Press  (left) repeatedly if necessary, to close
the menu.
The YPbPr connection can be used for High Definition
(HD) TV signals.
Remove a Device
You can connect or disconnect a wireless Bluetooth
device. You can also remove a wireless Bluetooth
device. If you remove a Bluetooth device, the device
will be unpaired.
To remove or disconnect a wireless device…
1 - Select Settings > Wireless and Networks and
press OK.
2 - Select Bluetooth > Remove Bluetooth
device and press OK.
3 - In the list, select the wireless device and
press OK.
4 - Select Disconnect or Remove and press OK.
5 - Select OK and press OK to confirm.
6 - Press  (left) repeatedly if necessary, to close
the menu.
7.7
Bluetooth
Pairing a Device
Read the user manual of the device for specific
information on pairing and on wireless range. Make
sure the Bluetooth setting on TV is switched on.
Once a wireless gamepad is paired, you can use it.
When a device is paired, you do not need to pair it
again unless you remove the device.
7.8
To pair a bluetooth device with the TV…
You can connect a set of headphones to
the  connection on the back of the TV. The
connection is a mini-jack 3.5mm. You can adjust the
volume of the headphones separately.
Headphones
1 - Switch on the bluetooth device and place it within
range of the TV.
2 - Select  Settings > Wireless and Networks and
press  (right) to enter the menu.
3 - Select Bluetooth > Search Bluetooth Device,
and press OK.
4 - Select Start and press OK. Follow the
instuctions on screen. You will pair the device with the
TV and the TV will store the connection. You might
To adjust the volume…
1 - Press , select Headphone Volume and
press OK.
2 - Press the arrows  (up) or  (down) to adjust
the value.
28
3 - Press  (left) repeatedly if necessary, to close
the menu.
7.10
USB Hard Drive
7.9
Game Console
What You Need
HDMI
If you connect a USB Hard Drive, you can pause or
record digital TV broadcasts (DVB broadcasts or
similar).
For best quality, connect the game console with a
High speed HDMI cable to the TV.
Minimum Disk Space
• To Pause
To pause a broadcast, you need a USB 2.0
compatible Hard Drive with a minimum of 4GB disk
space.
• To Record
To pause and record a broadcast, you need a
minimum of 250GB disk space.
For more information on how to install a USB Hard
Drive, in Help, press the colour
key  Keywords and look up USB Hard Drive,
installation.
Installation
Before you can pause or record a broadcast, you
must connect and format a USB Hard Drive.
Formatting removes all files from the USB Hard Drive.
Y Pb Pr
1 - Connect the USB Hard Drive to one of
the USB connections on the TV. Do not connect
another USB device to the other USB ports when
formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - When the TV is tuned to a digital TV channel,
press  (Pause). Trying to pause will start the
formatting.
Connect the game console with a component video
cable (Y Pb Pr) and an audio L/R cable to the TV.
Follow the instructions on screen.
When the USB Hard Drive is formatted, leave it
connected permanently.
29
For more information, in Help, press the colour
key  Keywords and look up Pause TV,
Recording, or Apps.
7.11
USB Keyboard
Connect
Connect a USB keyboard (USB-HID type) to enter text
on your TV.
Use one of the USB connections to connect.
Configure
Warning
The USB Hard Drive is formatted exclusively for this
TV, you cannot use the stored recordings on another
TV or PC. Do not copy or change recording files on
the USB Hard Drive with any PC application. This will
corrupt your recordings. When you format another
USB Hard Drive, the content on the former will be lost.
A USB Hard Drive installed on your TV will need
reformatting for use with a computer.
Install the keyboard
To install the USB keyboard, switch on the TV and
connect the USB keyboard to one of
the USB connections on the TV. When the TV
detects the keyboard for the first time, you can select
your keyboard lay-out and test your selection. If you
select a Cyrillic or Greek keyboard layout first, you
can select a secondary Latin keyboard layout.
To change the keyboard layout setting when a layout
was selected…
Formatting
1 - Select Settings > General Settings and
press  (right) to enter the menu.
2 - Select USB Keyboard Settings, and press OK to
start the keyboard setup.
Before you can pause or record a broadcast, or store
apps, you must connect and format a USB Hard
Drive. Formatting removes all files from the USB Hard
Drive. If you want to record broadcasts with TV Guide
data from the Internet, you must setup the Internet
connection first before you install the USB Hard Drive.
Warning
Special Keys
The USB Hard Drive is formatted exclusively for this
TV, you cannot use the stored recordings on another
TV or PC. Do not copy or change recording files on
the USB Hard Drive with any PC application. This will
corrupt your recordings. When you format another
USB Hard Drive, the content on the former will be lost.
A USB Hard Drive installed on your TV will need
reformatting for use with a computer.
Keys for entering text
• Enter key = OK
• Backspace = delete character before cursor
• Arrow keys = navigate within a text field
• To switch between keyboard layouts, if a secondary
layout is set, press the Ctrl + Spacebar keys
simultaneously.
Keys for apps and Internet pages
• Tab and Shift + Tab = Next and Previous
• Home = scroll to the top of the page
• End = scroll to the bottom of the page
• Page Up = jump one page up
• Page Down = jump one page down
• + = zoom in one step
• - = zoom out one step
• * = fit the web page to the screen width
* Connect the USB Hard Drive with size less than 2TB.
To format a USB Hard Drive…
1 - Connect the USB Hard Drive to one of the USB
connections on the TV. Do not connect another USB
device to the other USB ports when formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - Select Recordings if you want to perform Pause
TV and Recordings, otherwise, select Apps to store
apps. Follow the instructions on screen.
4 - All files and data will be removed after formatting.
5 - When the USB Hard Drive is formatted, leave it
connected permanently.
30
7.12
the user manual of the digital photo camera.
USB Flash Drive
Ultra HD on USB
You can view photos in Ultra HD resolution from a
connected USB device or flash drive. The TV will
downscale the resolution to Ultra HD if the resolution
of the photo is higher. You cannot play a native Ultra
HD video on any of the USB connections.
You can view photos or play your music and videos
from a connected USB flash drive.
Insert a USB flash drive in one of
the USB connections on the TV while the TV is
switched on.
For more information on viewing photos, in Help,
press the colour key  Keywords and look
up Photos, Videos and Music.
The TV detects the flash drive and opens a list
showing its content.
If the contents list does not appear automatically,
press  SOURCES and select USB.
7.14
Camcorder
To stop watching the USB flash drive content,
press  EXIT or select another activity.
To disconnect the USB flash drive, you can pull out
the flash drive anytime.
For best quality, use an HDMI cable to connect the
camcorder to the TV.
Ultra HD on USB
You can view photos in Ultra HD resolution from a
connected USB device or flash drive. The TV will
downscale the resolution to Ultra HD if the resolution
of the photo is higher.
For more information on watching or playing content
from a USB flash drive, in Help, press the colour
key  Keywords and look up Photos, Videos and
Music.
7.13
Photo Camera
To view photos stored on your digital photo camera,
you can connect the camera directly to the TV.
7.15
Computer
Use one of the USB connections on the TV to
connect. Switch on the camera after you made the
connection.
If the contents list does not appear automatically,
press  SOURCES , and select USB.
Your camera might need to be set to transfer its
content with PTP (Picture Transfer Protocol). Read
31
Connect
You can connect your computer to the TV and use
the TV as a PC monitor.
With HDMI
Use an HDMI cable to connect the computer to the
TV.
With DVI to HDMI
Alternatively, you can use a DVI to HDMI adapter
(sold separately) to connect the PC to HDMI and an
audio L/R cable (mini-jack 3.5mm) to AUDIO IN L/R
on the back of the TV.
32
1 - Go to the router, press the WPS button and return
to the TV within 2 minutes.
2 - Select Connect to make the connection.
3 - A message will be shown when the connection is
successful.
8
Connect your
Android TV
8.1
Make the Connection - WPS with PIN Code
Network and Internet
 Settings > Wireless and Networks > Wired or WiFi > Connect to Network > WPS with PIN Code.
Home Network
If your router has WPS with a PIN code, you can
directly connect to the router without scanning for
networks. If you have devices in your wireless
network that use the WEP security encryption system,
you cannot use WPS.
To enjoy the full capabilities of your Philips Android
TV, your TV must be connected to the Internet.
Connect the TV to a home network with a high-speed
Internet connection. You can connect your TV
wirelessly or wired to your network router.
1 - Write down the 8-digit PIN code shown on screen
and enter it in the router software on your PC. Consult
the router manual on where to enter the PIN code in
the router software.
2 - Select Connect to make the connection.
3 - A message will be shown when the connection is
successful.
Connect to Network
Wireless Connection
What You Need
Problems
To connect the TV to the Internet wirelessly, you need
a Wi-Fi router with a connection to the Internet.
Wireless network not found or distorted
• Microwave ovens, DECT phones or other Wi-Fi
802.11b/g/n devices in your proximity might disturb
the wireless network.
• Make sure that the firewalls in your network allow
access to the TV's wireless connection.
• If the wireless network does not work properly in
your home, try the wired network installation.
Use a high-speed (broadband) connection to the
Internet.
Make the Connection
Make the Connection - Wireless
Internet does not work
• If the connection to the router is OK, check the
router connection to the Internet.
 Settings > Wireless and Networks > Wired or WiFi > Connect to Network > Wireless.
1 - In the list of found networks, select on your
wireless network. If your network is not in the list
because the network name is hidden (you switched
off the SSID broadcast of the router), select Add New
Network to enter the network name yourself.
2 - Depending on the type of router, enter your
encryption key - WEP, WPA or WPA2. If you entered
the encryption key for this network before, you can
select OK to make the connection immediately.
3 - A message will be shown when the connection is
successful.
The PC and Internet connection are slow
• Look in your wireless router's user manual for
information on indoor range, transfer rate and other
factors of signal quality.
• Use a high-speed (broadband) Internet connection
for your router.
DHCP
• If the connection fails, you can check the DHCP
(Dynamic Host Configuration Protocol) setting of the
router. DHCP should be switched on.
In Help, press the colour key  Keywords and look
up Troubleshooting for more information.
Make the Connection - WPS
 Settings > Wireless and Networks > Wired or WiFi > Connect to Network > WPS.
Wired Connection
If your router has WPS, you can directly connect to
the router without scanning for networks. If you have
devices in your wireless network that use the WEP
security encryption system, you cannot use WPS.
33
network with Static IP addressing, set the TV to Static
IP.
What You Need
To connect the TV to the Internet, you need a
network router with a connection to the
Internet. Use a high-speed (broadband) connection
to the Internet.
Network Configuration - Static IP Configuration
 Settings > Wireless and Networks > Wired or WiFi > Network Configuration > Static IP
Configuration.
1 - Select Static IP Configuration and configure the
connection.
2 - You can set the number for IP
Address, Netmask, Gateway, DNS 1, or DNS 2.
Switch On with Wi-Fi (WoWLAN)
 Settings > Wireless and Networks > Wired or WiFi > Switch On with Wi-Fi (WoWLAN).
You can switch this TV on from your smartphone or
tablet if the TV is in Standby. The setting Switch On
with Wi-Fi (WoWLAN) must be switched on.
Make the Connection
Switch on with Chromecast
 Quick Menu >Frequent Settings > Wireless and
Networks > Wired or Wi-Fi > Connect to
Network > Wired.
 Settings > Wireless and Networks > Wired or WiFi > Switch on with Chromecst.
Set it On to allow this TV to be switched on from a
Chromecast app on your mobile device. Power
consumption of the TV in standby status will be
higher when switched this on. The Wi-Fi (WoWLAN)
setting should be turned on firstly before you can
change the setting of Switch on with Chromecast.
1 - Connect the router to the TV with a network cable
(Ethernet cable**).
2 - Make sure that the router is switched on.
3 - The TV constantly searches for the network
connection.
4 - A message will be shown when the connection is
successful.
Switch on Wi-Fi connection
If the connection fails, you can check the DHCP
setting of the router. DHCP should be switched on.
 Settings > Wireless and Networks > Wired or WiFi > Wi-Fi On/Off.
**To fulfill EMC regulations, use a shielded FTP Cat.
5E Ethernet cable.
You can switch on or off Wi-Fi connection on your
TV.
Network Settings
Digital Media Renderer - DMR
View Network Settings
 Settings > Wireless and Networks > Wired or WiFi > Digital Media Renderer - DMR.
 Settings > Wireless and Networks > Wired or WiFi > View Network Settings.
If your media files do not play on your TV, make sure
that the Digitial Media Renderer is switched on. As a
factory setting, DMR is switched on.
You can view all current network settings here. The IP
and MAC address, signal strength, speed, encryption
method, etc.
TV Network Name
Network Configuration - Static IP
 Settings > Wireless and Networks > Wired or WiFi > TV Network Name.
 Settings > Wireless and Networks > Wired or WiFi > Network Configuration > Static IP.
If you have more than one TV in your home network,
you can give the TV a unique name.
If you are an advanced user and want to install your
34
Android Settings
Clear Internet Memory
You can set or view several Android specific settings
or information. You can find the list of apps installed
on your TV and the storage space they need. You can
set the language you like to use with Voice
Search. You can configure the onscreen keyboard or
allow apps to use your location. Explore the different
Android settings. You can go
to www.support.google.com/androidtv for more
information on these settings.
 Settings > Wireless and Networks > Wired or WiFi > Clear Internet Memory.
With Clear Internet Memory you clear your Philips
server registration and parental rating settings, your
video store app logins, all Philips TV Collection
favourites, Internet bookmarks and history. Interactive
MHEG applications can also save so-called 'cookies',
on your TV. These files will also be cleared.
To open these settings…
1 - Select Settings > Android Settings, and
press OK.
2 - Explore the different Android settings.
3 - Press  BACK if necessary, to close the menu.
8.2
Google Account
Sign In
To enjoy the full capabilities of your Philips Android
TV, you can sign in to Google with your Google
Account.
8.3
By signing in you'll be able to play your favourite
games across phone, tablet and TV. You'll also get
customised video and music recommendations on
your TV home screen as well as access to YouTube,
Google Play and other apps.
About the Home Screen
Home Screen
To enjoy the benefits of your Android TV, connect the
TV to the Internet.
Like on your Android smartphone or tablet, the Home
screen is the centre of your TV. From the Home sreen
you can decide what to watch by browsing
entertainment options from app and live TV. Your
Home has channels to let you discover great contents
from your favourite apps. You can also add additional
channels or find new apps to get more contents.
Sign In
Use your existing Google Account to sign in to
Google on your TV. A Google Account consists of an
email address and a password. If you don't have an
Google Account yet, use your computer or tablet to
create one (accounts.google.com). To play games
with Google Play, you need a Google+ profile. If you
did not sign in during the first TV installation, you can
always sign in later.
The Home screen is organised in channels…
Apps
Your favourite Apps are placed on the first row. In this
row you will also find the Apps for TV, like Philips TV
Collection, Watch TV, TV Guide, Media and others.
You can find more apps in the Apps page which can
be opened by clicking the Apps icon at the left end of
the Apps row. You can also add more apps as
favourite from the Apps page.
To sign in after you did the TV installation…
1 - Select  Settings > Android Settings and
press OK.
2 - Press  (down) and select Personal > Add
account and press OK.
3 - Press OK on SIGN IN.
4 - With the on-screen keyboard, enter your email
address and press OK.
5 - Enter your password and press the same
small OK key to sign in.
6 - Press  (left) repeatedly if necessary, to close
the menu.
The Apps page contains all installed Apps that come
with the TV and the Apps you install from Philips TV
Collection or Google Play™ Store yourself.
Play Next channel
You can always know what to watch next from Play
Next channel on the Home screen. Start watching
from where you left off and get notifications about
new episodes in the Play Next channel. Press and
hold Select on a movie or TV show to add it directly
to the Play Next channel.
Google Play Movies & TV channel
Rent movies or TV shows on this channel from
35
Google Play Movies & TV.
installed ones.
4 - Browse through the apps and select the app icon
that you want to install, and press OK. It will open the
App info page.
5 - Select the Install button and press OK to install
the app.
Help channel
This channel contains "How to…" tutorial videos to let
you know how to unbox, how to connect external
devices, how to install channel, etc.
The installed app found in the Apps page, which can
be opened from the Android Home screen by
pressing the Apps icon at the left end of the Apps
row.
YouTube channel
This channel contains your Recommended,
Subscriptions or Trending YouTube videos.
Customize channels
Click the CUSTOMIZE CHANNELS button to add and
remove channels from your Home screen.
Terms of Use
To install and use the Philips TV Collection apps, you
must agree to the Terms of Use. If you did not agree
to these terms during the first TV installation, you can
always agree to them later. The moment you agree to
the Terms of Use, some apps will be available
immediately and you can browse the Philips TV
Collection to install other apps.
See also www.support.google.com/androidtv
Open the Home Screen
To open the Home screen and open an item…
1 - Press  HOME.
2 - Select an item and press OK to open or start it.
3 - Press  BACK continuously or
press  HOME can go back to Home screen.
To agree on the Terms of Use after you did the TV
installation…
1 - Press  HOME, select  Philips TV Collection
and press OK. Press the Options key to open the
Options menu.
2 - You can select Terms of Use, then press OK to
read.
3 - Select Accept and press OK. You cannot undo
this approval.
4 - Press  BACK to close the menu.
When opening the Home screen, the background
application/content playback will stop. You have to
select the application or content from the Home
screen to resume.
8.4
Philips TV Collection App
Privacy Settings
Featured Apps page
You can set some privacy settings for the Philips TV
Collection apps.
All your premium apps are available within the Philips
TV Collection app, under Featured apps section.
Launch it using the banner on the Apps row.
• You can allow technical statistics to be send to
Philips.
• You can allow personal recommendations.
• You can allow cookies.
• You can switch on the Child Lock for 18+ rated apps.
Philips TV Collection apps are made specially for TV.
Downloading and installing Philips TV Collection apps
are free of charge. The Philips TV Collection of apps
can differ per country or region. The Philips TV
Collection will also contain recommendations for new
Apps and more.
To set the Philips TV Collection privacy settings…
1 - Press  HOME, select  Philips TV Collection
and press OK. Press the Options key to open the
Options menu.
2 - You can select Privacy setting, then press OK.
3 - Select each setting and press OK to allow or
disallow. You can read about each setting in detail.
4 - Press  BACK to close the menu.
Some Philips TV Collection apps are pre-installed on
your TV. To install other apps from Philips TV
Collection, you will be asked to agree to the Terms of
Use. You can set the Privacy Settings according to
your preference.
To install an app from the Philips TV Collection…
1 - Press  HOME.
2 - Select  Philips TV Collection and press OK. It
will open the Featured apps section.
3 - Select the “All” tab and press OK. It will display all
the apps that are available to the user, including the
36
via the Apps page or by the Add app to favourites
item on the Apps row. Some Google Play products
and features aren't available in all countries.
9
Apps
Find more information on
support.google.com/androidtv
9.1
About Apps
You can find your favourite Apps on
Home menu.
Music
Apps row in the
With Google Play Music, you can play your favourite
music on TV.
Like apps on your smartphone or tablet, the apps on
your TV offer specific functions for an enriched TV
experience. Apps like YouTube, games, video stores
or weather forecasts (a.o.). You can use the Internet
Browser app to surf the Internet.
With Google Play Music you can buy new music on
your computer or mobile device. Or, on your TV, you
can sign up for All Access, the Google Play Music
subscription. Alternatively, you can play the music
you already own, stored on your computer.
Apps can come from the Philips TV Collection or
the Google Play™ Store . To get you started, some
practical apps are pre-installed on your TV.
What You Need
• your TV must be connected with the Internet
• you must sign in with your Google Account on TV
• add a credit card to your Google Account to take a
music subscription
To install apps from the Philips TV Collection or
the Google Play™ Store , the TV must be connected
to the Internet. You must agree to the Terms of Use to
use apps from the Philips TV Collection. You must
sign in with a Google Account to use the Google Play
apps and Google Play™ Store .
To start Google Play Music…
1 - Press  HOME.
2 - Select Google Play Music.
3 - Select the music you want and press OK.
4 - To stop the Music app, press  BACK
repeatedly or press  EXIT.
9.2
Google Play
If the App is not on you Home screen, you can add
via the Apps page or by the Add app to favourites
item on the Apps row. Some Google Play products
and features aren't available in all countries.
Movies and TV
With Google Play Movies & TV , you can rent or buy
movies and TV shows to watch on TV.
Find more information on
support.google.com/androidtv
What You Need
• your TV must be connected with the Internet
• you must sign in with your Google Account on TV
• add a credit card to your Google Account to
purchase movies and TV shows
Games
With Google Play Games, you can play games on TV.
Online or offline.
To rent or buy a movie or TV show…
1 - Press  HOME.
2 - Select Google Play Movies & TV.
3 - Select a movie or TV show and press OK.
4 - Select the purchase you want and press OK. You
will be taken through the purchase procedure.
You can see what your friends are playing currently or
you can join the game and compete. You can track
your achievements or start wherever you left off.
What You Need
• your TV must be connected with the Internet
• you must sign in with your Google Account on TV
• add a credit card to your Google Account to
purchase new games
To watch a rented or bought movie or TV show…
1 - Press  HOME.
2 - Select Google Play Movies & TV.
3 - Select the movie or TV show from your library in
the app, select the titel and press OK.
4 - You can use
the  (stop),  (pause),  (rewind) or  (fast
forward) keys on the remote control.
5 - To stop the Movies & TV app, press  BACK
repeatedly or press  EXIT.
Start the Google Play Games app to select and install
new game apps on your TV. Some games are free of
charge. A message appears if a particular game needs
a gamepad to play the game.
To start or stop a Google Play Game…
1 - Press  HOME.
If the App is not on you Home screen, you can add
37
2 - Select Google Play Games.
3 - Select a game to play or select a new game to
install and press OK.
4 - When done, press  BACK repeatedly or
press  EXIT or stop the app with its dedicated
exit/stop button.
Payments
To make a payment on Google Play on TV, you must
add a form of payment - a credit card (outside the
United States) - to your Google Account. When you
purchase a movie or TV show, you will be charged on
this credit card.
If the App is not on you Home screen, you can add
via the Apps page or by the Add app to favourites
item on the Apps row. Some Google Play products
and features aren't available in all countries.
To add a credit card …
Google Play Store
1 - On your computer, go to accounts.google.com
and sign in with the Google Account you will use with
Google Play on TV.
2 - Go to wallet.google.com to add a card to your
Google Account.
3 - Enter your credit card data and accept the terms
and conditions.
From the Google Play Store you can download and
install new apps. Some apps are free of charge.
9.3
Find more information on
support.google.com/androidtv
Start or Stop an App
What You Need
• your TV must be connected with the Internet
• you must sign in with your Google Account on TV
• add a credit card to your Google Account to
purchase apps
You can start an app from the Home screen.
To start an app…
1 - Press  HOME.
2 - Move to Apps row, select the app you want and
press OK.
3 - To stop an app, press  BACK or press  EXIT
or stop the app with its dedicated exit/stop button.
To install a new app…
1 - Press  HOME.
2 - Select Google Play Store and press OK.
3 - Select the app you want to install and press OK.
4 - To close the Google Play Store, press  BACK
repeatedly or press  EXIT.
When opening the Home screen, the background
application/content playback will stop. You have to
select the application or content from the Home
screen to resume.
Parental controls
In the Google Play Store, you can hide apps
according to users/buyers maturity. You need to enter
a PIN code to select or change the level of maturity.
9.4
To set the parental control…
Lock Apps
1 - Press  HOME.
2 - Select Google Play Store and press OK.
3 - Select Settings > Parental controls.
4 - Select the level of maturity you want.
5 - On request, enter the PIN code.
6 - To close the Google Play Store, press  BACK
repeatedly or press  EXIT.
About App Locks
You can lock apps unsuited for children. You can lock
18+ rated apps or set up a restricted profile in the
Home menu.
18+
If the App is not on you Home screen, you can add
via the Apps page or by the Add app to favourites
item on the Apps row. Some Google Play products
and features aren't available in all countries.
The 18+ app lock will ask for a PIN code when you try
to start an 18+ rated app. This lock is only valid for 18+
rated apps from the Philips apps.
Find more information
on support.google.com/androidtv
Restricted profile
You can set up a restructed profile for the Home
menu where only the apps you allow are available.
You need to enter a PIN code to set up and switch on
the restricted profile.
Google Play Store - Maturity
In the Google Play Store, you can hide apps
38
according to users/buyers maturity. You need to enter
a PIN code to select or change the level of maturity.
The level of maturity will determine which apps are
available for instalation.
2 - Press  (down) and select Personal > Security &
restrictions and press OK.
3 - Select Restricted Profile and press OK.
4 - Select Settings and press OK.
5 - Enter a PIN code with the remote control.
6 - Select Allowed apps and press OK.
7 - In the list of available apps, select an app and
press OK to allow or not allow this app.
8 - Press  BACK to go back one step or
press  EXIT to close the menu.
Lock 18+ rated apps
You can lock 18+ rated apps from the Philips apps.
This setting controls the 18+ setting in the Philips apps
Privacy Settings.
Now you can enter the restricted profile.
To lock 18+ rated apps…
With the PIN code, you can always change the PIN
code or edit the list of allowed or not allowed apps.
1 - Select Settings > Child Lock, select App
Lock and press OK.
2 - Select On and press OK.
3 - Press  (left) repeatedly if necessary, to close
the menu.
Enter
To enter (switch to) the restricted profile…
For more information, in Help, press the colour
key  Keywords and look up Child Lock, App
Lock for more information.
1 - Select Settings > Android Settings and
press OK.
2 - Press  (down) and
select Personal > Security & restrictions and
press OK.
3 - Select Enter restricted profile and press OK.
4 - Enter a PIN code with the remote control.
5 - Press  BACK to go back one step or press 
EXIT to close the menu.
Restricted Profile
About Restricted Profile
You can restrict the use of certain apps by switching
the TV to a restricted profile. The Home menu will
only show the apps you allowed. You need a PIN
code to switch out of the restricted profile.
You can see when a restricted profile is entered if an
icon appears in the Home screen. Scroll down
to  Settings and scroll to the far right.
With the TV switched to a restricted profile you
cannot…
Delete
• Find or open apps which are marked as Not allowed
• Access the Google Play Store
• Purchase through Google Play Movies & TV, nor
Google Play Games
• Use third-party apps that don't use the Google signin
To delete the restricted profile…
1 - Select Settings > Android Settings and
press OK.
2 - Press  (down) and
select Personal > Security & restrictions and
press OK
3 - Select Delete restricted profile and press OK.
4 - Enter the PIN code. The TV will delete the
restricted profile.
With the TV switched to a restricted profile you can…
• Watch content already rented or purchased from
Google Play Movies & TV
• Play games already purchased and installed from
Google Play Games
• Access the following settings: Wi-Fi network, Speech
and Accessibility
• Add Bluetooth accessories
9.5
Manage Apps
The Google Account on TV will stay logged in. Using a
restricted profile doesn't change the Google Account.
If you stop an app and return to the Home menu, the
app is not really stopped. The app is still running in
the background to be readily available when you start
it again. To run fluently, most apps need to save some
data in the cache memory of the TV. It might be good
to stop an app completely or clear the cache data of
a particular app to optimise the overall performance
of apps and to keep memory usage low on your
Android TV. Also, it is best to uninstall apps that you
Set Up
To set up the restricted profile…
1 - Select Settings > Android Settings and press
OK.
39
are not using anymore.
9.6
Storage
You can see how much storage space - the internal
TV memory - you are using for your apps, videos,
music, etc. You can see how much free space you still
have available for installing new apps. Check your
storage if apps start to run slow or in case of app
trouble.
To see how much storage you are using…
1 - Select Settings > Android Settings and
press OK.
2 - Select Device > Storage & reset and
press OK.
3 - View the storage usage of the TV memory.
4 - Press  BACK to go back one step or press
EXIT to close the menu.

USB Hard Drive
If you connect a USB Hard Drive, you can use the
drive to extent the TV memory to store more apps.
Allow the USB Hard Drive to be used as an additional
TV memory during the formatting process. The TV will
try to store new apps on the USB Hard Drive first.
Some apps do not allow to be stored on a USB Hard
Drive.
To migrate your existing data, go to All Settings >
Android Settings > Device> Storage & reset and select
the USB Hard Drive.
40
10
Internet
10.1
Start Internet
You can browse the Internet on your TV. You can
view any Internet website but most of them are not
prepared for a TV screen.
• Some plug-ins (e.g. to view pages or videos) are not
available on your TV.
• You cannot send or download files.
• Internet pages are shown one page at a time and
full screen.
To start the Internet browser…
1234-
Press  HOME.
Select Apps > Internet Browser and press OK.
Enter an Internet address and select to confirm.
To close Internet, press  HOME or  EXIT.
* Note: If Internet Browser is not on your Apps row,
you can press + icon on the end of the row to add the
app.
10.2
Options on Internet
Some extras are available for the Internet.
To open the extras…
1 - With the website open, press  OPTIONS.
2 - Select one of the items and press OK.
• Open Link in New Tab: To open a link in new tab.
• Close Current Tab: To close current tab.
• Add to speed dial: To enter a new Internet address.
• Add to bookmarks: Add the page as bookmark
• Page security: To view the security level of the
current page.
• New private tab: Open new private tab, and have
private browsing
• Settings: Settings for Zoom, Text size, Accessibility
mode, Always show menu bar, and clear (browsing)
history
• Help: Internet browser information
• Exit Internet browser: Close Internet browser
41
11
TV Menu
11.1
About TV Menu
If the TV cannot be connected with the Internet, you
can use the TV Menu as your Home menu.
In the TV Menu, you will find every TV function.
11.2
Open TV Menu
To open TV Menu and open an item…
1 - Press  to open TV Menu.
2 - Select an item and press OK to open or start it.
3 - Press  BACK to close TV Menu without
starting anything.
42
12
12.3
Sources
Device Name and Type
When you connect a new device to the TV and the TV
detects the device, you can assign an icon that fits the
device type. If you connect a device with an HDMI
cable and HDMI CEC, the TV detects the device type
automatically and the device gets an appropriate
icon.
12.1
Switch to a device
From the list of Sources, you can switch to any of the
connected devices. You can switch to a tuner to
watch TV, open the content of a connected USB Flash
Drive or see the recordings you made on a connected
USB Hard Drive. You can switch to your connected
devices to watch their programme, a digital receiver or
a Blu-ray Disc player.
The device type determines picture and sound styles,
resolution values, specific settings or the position
within the Sources menu. You don't have to worry
about the ideal settings.
Rename or Change Type
To switch to a connected device…
You can always change the name or change the type
of a connected device. Look for the  icon at the
right of the device name in the Sources menu. Some
TV input sources do not allow a name change.
1 - Press  SOURCES to open the Sources menu.
2 - Select one of the item in the source list and
press OK. The TV will show the programme or
content of the device.
3 - Press  SOURCES again to close the menu.
To change the device type…
One Touch Play
1 - Select the device in the Sources menu and press
 OPTIONS .
2 - Press  BACK to hide the on-screen keyboard.
3 - Press  (down) to find all available device
types. Select the type you want and press OK.
With the TV in standby, you can switch on a disc
player with your TV remote control.
To switch on both disc player and TV from standby
and start playing the disc immediately,
press  (play) on the TV remote control. The device
must be connected with an HDMI cable and both TV
and device must have HDMI CEC switched on.
4 - If you want to reset the type of the device to the
original connector type, select Reset and press OK.
5 - Select Close and press OK to close this menu.
To change the device name…
12.2
1 - Select the device in the Sources menu and Press
 OPTIONS .
2 - Use the on-screen Keyboard to delete the
current name and enter a new one. Press  to
confirm.
3 - Press  BACK to hide the on-screen keyboard.
4 - If you want to reset the name of the device to the
original connector name, select Reset and
press OK.
5 - Select Close and press OK to close this menu.
Options for a TV Input
Some TV input devices offer specific settings.
To set the options for a specific TV input…
1 - Press  SOURCES.
2 - Select the TV input in the list and press OK.
3 - Press  OPTIONS. You can set the options for
the selected TV input here.
4 - Press  OPTIONS again to close the Options
menu.
12.4
Possible options…
Rescan Connections
Controls
With this option you can operate the connected
device with the TV remote control. The device must
be connected with an HDMI cable and both TV and
device must have HDMI CEC switched on.
You can rescan all TV connections to update the
Sources menu with recently connected devices.
To rescan the connections…
1 - Press  SOURCES to open the Sources menu.
2 - Press  (up) to select the  icon at the top
right of the Sources menu.
3 - Press OK to start scanning the connections.
Newly connected devices will be added to the
Sources menu.
Device Info
Open this option to view information on the
connected device.
43
13
Networks
13.1
Network
For more information, in Help, press the colour
key  Keywords and look up Network, for more
information on connecting the TV to a network.
13.2
Bluetooth
Pairing a Device
For more information, in Help, press the colour
key  Keywords and look up Bluetooth,
Pairing for more information on pairing wireless
devices.
Select a Device
For more information, in Help, press the colour
key  Keywords and look up Bluetooth, Select
device for more information on how to select a
wireless device.
Remove a Device
For more information, in Help, press the colour
key  Keywords and look up Bluetooth, Remove
device for more information on how to unpair
(remove) a wireless Bluetooth device.
44
14
Colour, Contrast, Sharpness, Brightness
Settings
Adjust the picture colour
 Settings > Picture > Colour.
14.1
Press the arrows  (up) or  (down) to adjust the
colour saturation value of the picture.
Picture Settings
Adjust the picture contrast
Picture Style
 Settings > Picture > Contrast.
Select a style
Press the arrows  (up) or  (down) to adjust the
contrast value of the picture.
 Settings > All settings > Picture > Picture style.
You can decrease contrast value to reduce power
consumption.
For easy picture adjustment, you can select a preset
picture style.
• Personal - The picture preferences you set during
the first start up.
• Vivid - Ideal for daylight viewing
• Natural - Natural picture settings
•  Standard - Most energy conscious setting Factory setting
• Movie - Ideal for watching movies
• Game - Ideal for playing games
• Monitor* - Ideal for PC display
•  Day - For ISF Calibration
•  Night - For ISF Calibration
Adjust the picture sharpness
 Settings > Picture > Sharpness.
Press the arrows  (up) or  (down) to adjust the
sharpness value of the picture.
Adjust brightness
 Settings > Picture > Brightness.
Press the arrows  (up) or  (down) to set the
level of brightness of the picture signal.
* HDR is not supported in Monitor mode. The TV is
able to play HDR video in Monitor mode but no HDR
processing will be applied.
Note: Setting of brightness much away from
reference value (50) may result lower contrast.
When TV receives HDR signal, select a picture style
below:
• HDR Personal
• HDR Vivid
• HDR Natural
• HDR Movie
• HDR Game
•  Day - For ISF Calibration
•  Night - For ISF Calibration
Advanced Picture Settings
Colour Settings
Advanced Colour Settings
 Settings > All settings
Restore a Style
1 - Select the picture style you want to restore.
2 - Press the colour key  Restore style, and
press OK. The style is restored.
> Picture > Advanced > Colour.
Adjust the colour enhancement
 Settings > All settings
> Picture > Advanced > Colour > Colour
enhancement.
Customise a Style
Any picture setting you adjust, like Colour or Contrast,
is stored in the currently selected Picture Style. It
allows you to customise each style.
Only the style Personal can save its settings for
each source in the Sources menu.
Select Maximum, Medium, or Minimum to set the
level of the colour intensity and the details in bright
colours.
Adjust the colour gamut
 Settings > All settings
> Picture > Advanced > Colour > Colour gamut.
45
Select Normal or Wide to set the type of colour
gamut.
 Settings
> Picture > Advanced > Colour > RGB only
mode.
Select Red, Green, or Blue to switch picture as
selected colour only, or select Off to turn off RGB
mode.
Select the preset colour temperature
 Settings > All settings > Picture > Advanced >
Colour > Colour temperature.
Select Normal, Warm, or Cool to set the colour
temperature for your preference.
Advanced Contrast Settings
Customise colour temperature
Contrast Modes
 Settings > All settings > Picture > Advanced >
Colour > Custom Colour temperature.
 Settings >
Picture > Advanced > Contrast > Contrast mode.
Select Custom in Colour temperature menu
to customise a colour temperature yourself. Press
the arrows  (up) or  (down) to adjust the
value. WP is white point and BL is black level. You
can also select one of the presets in this menu.
Select Normal, Optimized for picture, or Optimized
for energy savings to set the TV automatically
reduces the contrast, for best power consumption or
for best picture experience, or select Off to switch
off the adjustment.
ISF Colour Settings
HDR Settings
About ISF
If you are watching HDR programmes - programmes
recorded in HDR - there is no need to upscale to HDR
and the HDR setting is unavailable. The TV can play
HDR programmes from a HDMI connection, from an
Internet source or from a connected USB memory
device.
Get the most out of your TV display with ISF®
Calibration. Ask a ISF calibration expert to come to
your home and set the TV to the most optimal picture
setting.
Ask your dealer for an ISF Calibration.
If you are watching HDR (High-Dynamic
Range) programmes - programmes recorded in HDR
- The TV will automatically switched to HDR mode
with indication.
Calibration benefits are…
• better picture clarity and sharpness
• better detail in bright and dark parts
• deeper and darker blacks
• better colour purity and quality
• optmise the picture viewing effect in your home for
both daylight and night conditions
HDR Upscaling control is unavailable. The TV can play
HDR programmes* from HDMI 1 or HDMI
2 connection, broadcasting, from an Internet source
or from a connected USB memory device.
The ISF Calibration expert stores and locks the ISF
settings as two picture styles.
When the ISF Calibration is done, press Settings >
All settings > Picture > Picture
Style >  Day or  Night. Select  Day to
watch TV during bright light conditions or
select  Night when it's dark.
* Only HDR10 and Hybrid Log Gamma HDR are
supported
HDR Upscalling, High Brightness and HDR
Conversion
 Settings > All settings
> Picture > Advanced > Contrast > HDR
upscalling / High Brightness / HDR Conversion.
Colour control (Hue, Saturation and Intensity)
Select On to boost the brightness and contrast of
the picture. The picture is much brighter and has a
higher level of contrast between lighter and darker
parts. HDR upscaling keeps colours rich and
saturated. Set the level of HDR Conversion or see the
demo on live video.
 Settings
> Picture > Advanced > Colour > Colour control.
Press the arrows  (up) or  (down) to adjust the
value of Hue, Saturation and Intensity, or
select Reset all to reset all value to default.
Note:
RGB only mode
• Available when SDR (Standard Dynamic Range)
46
signal is detected.
• Not available when video content is supported HDR.
Ultra Resolution
 Settings >
Picture > Advanced > Sharpness > Ultra
Resolution.
HDR Perfect
Select On to have a superior sharpness in line edges
and details.
 Settings > All settings
> Picture > Advanced > Contrast > HDR Perfect.
Select HDR Perfect for superior contrast and
brightness effect.
Picture Clean
Note: Available when HDR (High-Dynamic Range)
signal is detected.
Noise reduction
Dynamic Contrast
Select Maximum, Medium, or Minimum to set the
level for removing the noise in video content.
Noise is mostly visible as small moving dots in onscreen picture.
 Settings > Picture > Advanced > Picture
clean > Noise reduction.
 Settings >
Picture > Advanced > Contrast > Dynamic
contrast.
Select Maximum, Medium, or Minimum to set the
level at which the TV automatically enhances the
details in the dark, middle and light areas of the
picture.
MPEG Artefact Reduction
 Settings > Picture > Advanced > Picture
clean > MPEG Artefact Reduction.
Select Maximum, Medium, or Minimum to have
different degress of smoothing the artefects in digital
video content.
MPEG artefacts are mostly visible as small blocks or
jagged edges in on-screen images.
Video Contrast, Gamma
Video contrast
 Settings
> Picture > Advanced > Contrast > Video
contrast.
Press the arrows  (up) or
video contrast level.
Motion Settings
 (down) to adjust the
Perfect Natural Motion
Motion Styles
Gamma
 Settings
> Picture > Advanced > Motion > Motion styles.
 Settings
> Picture > Advanced > Contrast > Gamma.
Motion styles provides optimised motion setting
modes for different video content.
Press the arrows  (up) or  (down) to set a nonlinear setting for picture luminance and contrast.
Select one of the motion styles to have better viewing
experience.
(Movie, Sports, Standard, Smooth, Personal)
Light Sensor
Not available for below cases:
 Settings >
Picture > Advanced > Contrast > Light sensor.
•  Settings > Picture > Picture style > Monitor.
•  Settings > Picture > Picture style > Game.
Select On to adjust the picture settings
automatically to the lighting conditions of the room.
Perfect Natural Motion
 Settings > Picture > Advanced > Motion >
Perfect Natural Motion.
Advanced Sharpness Settings
Perfect Natural Motion makes any movement
smooth and fluent.
Select Maximum, Medium, or Minimum to have
47
different degress for reducing the motion judder,
visible in movies on TV.
Select Minimum or Off when noise appears in
playing moving picture on-screen.
can only shift the picture when it is zoomed in.
• Zoom – Select on the arrows to zoom in.
• Stretch – Select on the arrows to stretch the
picture vertically or horizontally.
• Undo – Select to return to the picture format you
started with.
Note: Only available when Motion styles set
to Personal.
Perfect Clear Motion
Quick Picture Setting
 Settings
> Picture > Advanced > Motion > Perfect Clear
Motion.
During the first installation, you did some picture
settings in a few easy steps. You can redo these steps
with Quick Picture Setting. To do these steps, make
sure the TV can tune to a TV channel or can show a
programme from a connected device.
Perfect Clear Motion makes any movement smooth
and fluent.
Select Maximum, Medium, or Minimum to have
different degress for reducing the motion judder,
visible in movies on TV.
Select Minimum or Off when noise appears in
playing moving picture on-screen.
To set the picture in a few easy steps…
1 - Select Settings > Picture and press  (right)
to enter the menu.
2 - Select Quick Picture Setting, and press OK.
3 - Use the navigation keys to select your choice.
4 - Press  (left) repeatedly if necessary, to close
the menu.
Note: Only available when Motion styles set
to Personal.
Picture Format
14.2
If the picture is not filling the whole screen, if black
bars are showing on the top or bottom or at both
sides, you can adjust the picture to fill the screen
completely.
Sound
To select one of the basic settings to fill the screen…
Select a style
1 - While watching a TV channel,
select Settings > Picture Format > Fill
Screen, Fit to Screen, Wide Screen and Original, and
press OK.
2 - Press  (left) repeatedly if necessary, to close
the menu.
• Fill Screen – automatically enlarges the picture to
fill the screen. Picture distortion is minimal, subtitles
remain visible. Not suitable for PC input. Some
extreme picture formats can still show black bars.
• Fit to Screen – automatically zooms in the picture
to fill the screen without distortion. Black bars may be
visible. Not suitable for PC input.
• Wide Screen – automatically zooms in the picture
to wide screen.
• Original – automatically zooms in the picture to
wide screen.
 Settings > All settings > Sound > Sound style.
To format the picture manually…
Expert mode settings
Sound Style
For easy sound adjustment, you can select a preset
setting with sound style.
• Original - Most neutral sound setting
• Movie - Ideal for watching movies
• Music - Ideal for listening to music
• Game - Ideal for gaming
• News - Ideal for speech
• Expert mode - Access to a more in depth sound
settings.
Restore a Style
1 - Select the sound style you want to restore.
2 - Press the colour key  Restore Style, and
press OK. The style is restored.
1 - While watching a TV channel, select Settings >
Picture Format > Advanced and press OK.
2 - Use Shift, Zoom, and Stretch to adjust the
picture.
3 - Or select Undo to return to the setting the
picture had when you opened Picture Format.
• Shift – Select on the arrows to shift the picture. You
DTS TruSurround
 Settings > All settings > Sound > Expert mode
settings > DTS TruSurround.
Press the arrows  (up) or  (down) to
adjust the level of DTS TruSurround.
48
Audio Out Settings
Clear dialogue
 Settings > Sound > Advanced > Audio out.
 Settings > All settings > Sound > Expert mode
settings > Clear dialogue > On.
Set the TV to play the sound on TV or on the
connected audio system.
Select On to get an improved sound quality for
speech programme.
You can select where you want to hear the TV sound
and how you want to control it.
• If you select TV speakers off, you permanently
switch off the TV speakers.
• If you select TV speakers, the TV speakers are
always on.
Equalizer
 Settings > All settings > Sound > Expert mode
settings > Equalizer.
With an audio device connected with HDMI CEC,
select HDMI sound system. The TV will switch off
the TV speakers when the device is playing the
sound.
Press the arrows  (up) or  (down) to
adjust the level of Equalizer.
Headphone Volume
Headphone volume
Digital Output Settings
 Settings > Sound > Headphone volume.
Digital output settings are available for optical and
HDMI ARC sound signals.
Press the arrows  (up) or  (down) to adjust the
volume of a connected headphone separately.
Digital out format
 Settings > Sound > Advanced > Digital out
format.
TV placement
Set the audio out signal of the TV to fit the sound
capabilities of the connected Home Theatre System.
 Settings > Sound > TV placement.
• Stereo (uncompressed): If your audio playback
devices have no multichannel sound processing,
select to only output stereo content to your audio
playback devices.
• Multichannel: Select to output multichannel audio
content (compressed multichannel sound signal) or
stereo audio content to your audio playback devices.
• Multichannel (bypass): Select to output Dolby
Digital Plus or DTS content to your audio playback
devices or Home theatre system.
Select On a TV stand or On the wall to have best
sound reproduction according to the setting.
Advanced Sound Settings
Volume Control
Auto volume
- Make sure your audio playback devices support
Dolby Atmos feature.
 Settings > All settings
> Sound > Advanced > Auto volume.
- SPDIF output (DIGITAL AUDIO OUT) will be
disabled when streaming Dolby Digital Plus content.
Select DTS TruVolume to deliver a robust consistent
output.
Select Night Mode for a more comfortable quiet
listening experience.
Digital out levelling
 Settings > Sound > Advanced > Digital out
levelling.
Delta volume
Adjust the loudness level from device which is
connected to digital audio output (SPDIF) or HDMI.
 Settings > All settings
> Sound > Advanced > Delta volume.
• Select More to have louder volume.
• Select Less to have softer volume.
Press the arrows  (up) or  (down) to adjust the
delta value for TV speaker volume.
Digital out delay
49
 Settings > Sound > Advanced > Digital out
delay.
audio.
Select one of the styles that follow the dynamics of
the sound.
For some Home Theatre Systems you might need to
adjust the audio sync delay to synchronise the audio
to the video. Select Off if a sound delay is set on
your Home Theatre System.
• Lumina - Mixes audio dynamics with video colours
• Colora - Based on audio dynamics
• Retro - Based on audio dynamics
• Spectrum - Based on audio dynamics
• Scanner - Based on audio dynamics
• Rhytm - Based on audio dynamics
• Party - A mix of all Follow Audio styles, one after
the other
Digital out offset (Only available when Digital out
delay set to On)
 Settings > Sound > Advanced > Digital out
offset.
If you cannot set a delay on the Home Theatre
System, you can set the TV to sync the sound. You
can set an offset that compensates for the time
necessary for the Home Theatre System to process
the sound of the TV picture. You can set the value in
steps of 5ms. Maximum setting is 60ms.
Follow colour
 Settings > Ambilight > Ambilight style > Follow
colour.
Select one of the preset colour styles.
• Hot lava - Red colour variations
• Deep water - Blue colour variations
• Fresh nature - Green colour variations
•  Warm white - Static colour
• Cool white - Static colour
14.3
Ambilight Settings
Turn Ambilight On or Off
Follow flag
Turn off Ambilight
 Settings > Ambilight > Ambilight style > Follow
flag.
Press  AMBILIGHT and select Off, or you can
turn Off by pressing  Settings >
Ambilight > Ambilight style > Off.
Let Ambilight follow the country flag you select.
Follow app
Ambilight Style
 Settings > Ambilight > Ambilight style > Follow
app.
You can select the way Ambilight follows.
This function is available when you control Ambilight
with an app.
 Settings > Ambilight > Ambilight style.
Follow video
Ambilight Brightness, Saturation
 Settings > Ambilight > Ambilight style > Follow
video.
Brightness
Select one of the styles that follow the dynamics of
the picture on your TV screen.
 Settings > Ambilight > Brightness.
Press the arrows  (up) or  (down) to set the
level of Ambilight brightness.
• Standard - Ideal for day to day TV watching
• Natural - Follows the picture or sound as truthful
as possible
• Football - Ideal for football games
• Vivid - Ideal for daylight conditions
• Game - Ideal for gaming
• Comfort - Ideal for a quiet evening
• Relax - Ideal for a lounge feeling
Saturation
 Settings > Ambilight > Saturation.
Press the arrows  (up) or  (down) to set the
level of Ambilight saturation.
Follow audio
 Settings > Ambilight > Ambilight style > Follow
50
Ambilight + Hue
Advanced Ambilight Settings
Configure
Neutralise the influence of a coloured wall on the
 Settings
> Ambilight > Ambilight+hue
Ambilight colours
 Settings > Ambilight > Advanced > Wall colour.
> Configure.
Setup your Philips Hue bulbs to follow the colours of
Ambilight.
Select the colour of the wall behind the TV and the TV
will modify the Ambilight colours to appear as they
are intended.
Switch Off
 ISF Tuning
Switch off Ambilight+hue
 Settings > Ambilight > Advanced >
tuning.
 Settings > Ambilight > Ambilight+hue > Switch
off.
 ISF
The ISF Calibration expert tunes and locks your
preferred colour for Ambilight. When the ISF
Calibration is done, select  Settings > Ambilight >
Ambilight style > Follow colour >  Warm white to
use ISF tuning for Ambilight.
Immersion
 Settings
> Ambilight > Ambilight+hue > Immersion.
Set Ambilight to switch off immediately or slowly
Press the arrows  (up) or  (down) to adjust
how accurate the Hue bulbs follow the Ambilight.
fade out when you switch off the TV
 Settings > Ambilight > Advanced > TV switch
off > Fade out to off / Immediately switch off.
Lounge Light+hue
If you installed Ambilight+hue, you can let the hue
bulbs follow Lounge Light from Ambilight. The Philips
hue lamps will expand the Lounge Light effect across
the room.
14.4
Eco Settings
Switch on/off the hue bulbs
Set energy saving level
 Settings > Ambilight > Ambilight+hue > Lounge
light+hue.
 Settings > Eco settings > Energy saving.
Select Maximum, Medium, or Minimum to have
different degress for energy saving, or select Off to
switch off energy saving mode.
View Configuration or Reset
View current setup of the Ambilight+hue, network,
Bridge and bulbs
Set screen off to save energy consumption
 Settings > Ambilight > Ambilight+hue > View
configuration.
 Settings > Eco settings > Screen off.
Select Screen off, the TV screen is switched off, to
switch the TV screen back on, press any key on the
remote control.
Reset current setup of the Ambilight+hue
 Settings > Ambilight > Ambilight+hue > Reset
configuration.
Switch on built-in ambient light sensor
 Settings > Eco settings > Light sensor.
Select Light sensor, the built-in ambient light sensor
lowers the brightness of the TV screen when the
surrounding light darkens. The built-in light sensor
automatically adjusts the picture, to the lighting
conditions of the room.
51
Set TV switch off timer
USB Keyboard Settings
 Settings > Eco settings > Switch off timer.
Set the keyboard layout for installed USB keyboard
Press the arrows  (up) or  (down) to adjust the
value. The value 0 (Off) deactivates the automatic
switch off.
 Settings > General settings > USB keyboard
settings.
Select Switch off timer, the TV switches off
automatically to save energy.
* TV switches off if receiving a TV signal but you don't
press a key on the remote control during a 4 hour
period.
Connect the USB keyboard to one of the USB
connections on this TV. When the TV detects the
keyboard for the first time, you can select your
keyboard lay-out and test your selection.
* TV switches off if not receiving a TV signal nor a
remote control command for 10 minutes.
Philips Logo Brightness
* If you use the TV as a monitor or use a digital
receiver to watch TV (a Set-Top Box - STB) and you
do not use the remote control of the TV, you should
deactivate this automatic switch off, to set the value
to 0.
Adjust the brightness of the Philips logo on the front
of the TV
 Settings > General settings > Philips Logo
Brightness.
14.5
General Settings
Home or Shop
USB Hard Drive
Select the location of your TV
 Settings > General settings > Location.
You need to set up and format a USB Hard Drive
before you record a channel.
Select Shop, the picture style is switched back
to Vivid, and can adjust shop settings.
Shop mode is for in-store promotion.
 Settings > General settings > USB Hard Drive.
Before you can pause or record a broadcast, or store
apps, you must connect and format a USB Hard
Drive. Formatting removes all files from the USB Hard
Drive. If you want to record broadcasts with TV Guide
data from the Internet, you must setup the Internet
connection first before you install the USB Hard Drive.
Shop Setup
Adjust shop settings
 Settings > General settings > Shop setup.
Warning
If the TV is set to Shop, you can set the availablility of
a specific demo for in store use.
The USB Hard Drive is formatted exclusively for this
TV, you cannot use the stored recordings on another
TV or PC. Do not copy or change recording files on
the USB Hard Drive with any PC application. This will
corrupt your recordings. When you format another
USB Hard Drive, the content on the former will be lost.
A USB Hard Drive installed on your TV will need
reformatting for use with a computer.
Adjust Picture and audio
 Settings > General settings > Shop setup >
Picture and audio.
Select Optimized for shop or custom for picture and
audio settings.
To format a USB Hard Drive…
1 - Connect the USB Hard Drive to one of
the USB connections on the TV. Do not connect
another USB device to the other USB ports when
formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - Select Recordings if you want to perform Pause
TV and Recordings, otherwise, select Apps to store
apps. Follow the instructions on screen.
4 - All files and data will be removed after formatting.
5 - When the USB Hard Drive is formatted, leave it
connected permanently.
Set Logos and banner
 Settings > General settings > Shop setup >
Logos and banner.
Set to display Feature logos and Promotional banner.
Demo Me autostart and Ambilight Demo autostart
 Settings > General settings > Shop setup >
52
Demo Me autostart / Ambilight Demo autostart.
Advanced
Turn On/Off the Demo Me or Ambilight Demo
autostart.
HbbTV Settings - Hybrid Broadcast Broadband TV
Switch on HbbTV
EasyLink - HDMI CEC
 Settings > General
settings > Advanced > HbbTV settings > HbbTV
> On.
Connect HDMI CEC-compatible devices to your TV,
you can operate them with the TV remote control.
Switch off HbbTV History Tracking
EasyLink HDMI CEC must be switched on on the TV
and the connected device.
 Settings > General
settings > Advanced > HbbTV settings > HbbTV
tracking > Off.
Switch on EasyLink
 Settings > General
settings > EasyLink > EasyLink > On.
Remove HbbTV Cookies
 Settings > General
settings > Advanced > HbbTV settings > HbbTV
cookies > On.
Operate HDMI CEC-compatible devices with TV
remote control
 Settings > General
settings > EasyLink > EasyLink remote
control > On.
CAM Profile Name
Set profile name for installed CI+/CAM
 Settings > General settings > CAM profile name.
Note:
• EasyLink might not work with devices from other
brands.
• The HDMI CEC functionality has different names on
different brands. Some examples are: Anynet, Aquos
Link, Bravia Theatre Sync, Kuro Link, Simplink and
Viera Link. Not all brands are fully compatible with
EasyLink. Example HDMI CEC branding names are
property of their respective owners.
Reset TV Settings and Reinstall TV
Reset all settings value to original TV settings
 Settings > General settings > Factory settings.
Redo full TV installation , and set TV status back to
the first time you switch on
HDMI Ultra HD
 Settings > General settings > Reinstall TV.
Connect the HDMI device and play Ultra HD signal on
your TV, might not work correctly or show distorted
picture or sound. To avoid the malfunctioning of such
a device, you can set the signal quality to a level the
device can handle.
Enter PIN code and select Yes, the TV will reinstall
completely.
All settings will be reset and installed channels will be
replaced.
The installation can take a few minute
Set the signal quality for each HDMI connectors
 Settings > General settings > HDMI Ultra
HD > HDMI 1&2 > Standard, Optimal, off.
14.6
Clock, Region, and Language
Settings
To change the settings, switch to the HDMI source
first. Select Optimal to enable the highest quality
HDMI signal for 4K Ultra HD and HDR content (4K60
4:4:4, 4K60 10-bit HDR).
Select Standard or Off if the picture or sound are
distorted.
53
Language
Correct clock manually
 Settings > Region and language > Language.
 Settings > Region and
language > Clock > Auto clock mode > Manual.
Change the language of the TV menu and
messages
 Settings > Region and
language > Clock > Date, Time.
 Settings > Region and
language > Language > Menu language.
Go to previous menu, and select Date and Time to
adjust the value.
Note:
• If none of the automatic settings display the time
correctly, you can set the time manually.
• If you schedule recordings from the TV Guide, we
recommend not to change the time and date
manually.
Set audio preference language
 Settings > Region and
language > Language > Primary audio, Secondary
audio.
Digital TV channels can broadcast audio with several
spoken languages for a programme. You can set a
preferred primary and secondary audio language. If
audio in one of these languages is available, the TV
will switch to this audio.
Set time zone or set a time offset for your region
Set subtitle preference language
Set the TV to switch to Standby automatically after a
 Settings > Region and
language > Language > Primary
subtitle, Secondary subtitle.
preset time
 Settings > Region and
language > Clock > Time zone.
 Settings > Region and
language > Clock > Sleep timer.
Digital channels can offer several subtitle languages
for a programme. You can set a preferred primary and
secondary subtitle language. If subtitles in one of
these languages are available, the TV will show the
subtitles you selected.
14.7
Android Settings
 Settings > Android settings.
View the list of installed Apps, check out the free
space to download more or uninstall an App.
Set teletex preference language
 Settings > Region and
language > Language > Primary text, Secondary
text.
14.8
Universal Access Settings
Some digital TV broadcasters have several Text
languages available.
 Settings > All settings > Universal access.
With Universal Access switched on, the TV is
prepared for use for the deaf, hard of hearing, blind or
partially sighted people.
Clock
 Settings > Region and language > Clock.
Switch on universal access settings
Correct clock automatically
 Settings > All settings > Universal
access > Universal access > On.
 Settings > Region and
language > Clock > Auto clock mode.
• The standard setting for the TV clock is Automatic.
The time information comes from the broadcasted
UTC - Coordinated Universal Time information.
• If the clock is not correct, you can set the TV clock
to Country dependent.
Universal access for hearing impaired people
 Settings > All settings > Universal
access > Hearing impaired > On.
54
• Some digital TV channels broadcast special audio
and subtitles adapted for the hard of hearing or deaf
people.
• Switched on, the TV automatically switches to the
adapted audio and subtitles, if available.
18+
The 18+ app lock will ask for a PIN code when you try
to start an 18+ rated app. This lock is only valid for 18+
rated apps from the Philips apps.
Restricted profile
You can set up a restructed profile for the Home
menu where only the apps you allow are available.
You need to enter a PIN code to set up and switch on
the restricted profile.
Universal access for blind or partially sighted
people
 Settings > All settings > Universal access > Audio
description > Audio description > On.
Google Play Store - Maturity
Digital TV channels can broadcast special audio
commentary describing what is happening on
screen.
In the Google Play Store, you can hide apps
according to users/buyers maturity. You need to enter
a PIN code to select or change the level of maturity.
The level of maturity will determine which apps are
available for instalation.
 Settings > All settings > Universal access > Audio
description > Mixed volume, Audio effects, Speech.
• Select Mixed volume, you can mix the volume of
the normal audio with the audio commentary. Press
the arrows  (up) or  (down) to adjust the value.
• Set Audio effect to On for extra audio effects in
the commentary audio, like stereo or fading sound.
• Select Speech to set speech
preference, Descriptive or Subtitles.
Lock for CAM
Set CAM PIN for recording
 Settings > Child lock > CAM PIN.
14.9
Lock Settings
Set Code and Change Code
Set new code or reset change code
 Settings > Child lock > Set code, Change code.
The child lock code is used to lock or unlock channels
or programmes.
Note:
If you forgot your PIN code, you can override the
current code use 8888 and enter a new code.
Lock for Programme
Set a minumum age to watch rated programmes
 Settings > Child lock > Parental rating.
Lock for App
Set lock on Philips apps
 Settings > Child lock > App lock.
You can lock apps unsuited for children. You can lock
18+ rated apps from the Philips apps or set up a
restricted profile in the Home menu.
55
15
15.3
Videos, Photos and
Music
Most Popular Menu and Last
Played Menu
View most popular files or clear the list
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and select  Most
popular.
3 - Select one of the file and press OK to view files
or press  Clear all to clear the list.
15.1
From a Computer or NAS
You can view your photos or play your music and
videos from a computer or a NAS (Network Attached
Storage) in your home network.
View last played files
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and select  Last
played.
3 - Select one of the file and press OK to view
files or press  Clear all to clear the list.
The TV and computer or NAS must be in the same
home network. On your computer or NAS, you need
to install Media Server Software. Your Media Server
must be set to share your files with the TV. The TV
shows your files and folders as they are organised by
the Media Server or as they are structured on your
computer or NAS.
The TV does not support subtitles on video streams
from a computer or NAS.
15.4
From a USB Connection
If the Media Server supports searching for files, a
search field is available.
You can view your photos or play your music and
videos from a connected USB flash drive or USB Hard
Drive.
To browse and play the files on your computer…
1 - Press  SOURCES, select  Network and
press OK.
2 - Select  SimplyShare Devices and
press  (right) to select the device you need.
3 - Once a SimplyShare device is connected, the
SimplyShare Devices item will be replaced by
connected device name.
4 - You can browse and play your files.
5 - To stop playing videos, photos and music,
press  EXIT.
With the TV switched on, plug in a USB flash drive or a
USB Hard Drive to one of the USB connections. The
TV detects the device and will list your media files.
If the list of files does not appear automatically…
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - You can browse your files in the folder structure
you have organised on the drive.
4 - Press  Play all to play all files in the USB
folder or press  Mark favourite to add the selected
folder to favourite menu -  Favourites.
5 - To stop playing videos, photos and music,
press  EXIT.
15.2
Favourites Menu
Add a folder or a file to favourites menu
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and select a folder or a
file.
3 - Press  Mark favourite (green) to add the
selected folder or file to the favourite menu.
Warning
If you try to pause or record a programme with a USB
Hard Drive connected, the TV will ask you to format
the USB Hard Drive. This formatting will delete all
current files on the USB Hard Drive.
View favourite files
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  Favourites.
3 - You can view all favourite files in the list.
56
15.5
Video Options
Play your Videos
Browse video files...
Play Videos
• List/Thumbnails – List or thumbnails views
• Shuffle – Play your files in a random order
• Repeat – Plays all videos in this folder once or
continuously
Open video folder
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Videos, you can press  Mark
favourite to add the video folder to favourite menu
-  Favourites.
• Info – Show video information
Playing video files...
• Mark as favourites – Mark the video as favourites
• Subtitle setting – Set subtitle font size, colour,
position...etc
• Info – Show video information
Play a video
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Videos and select one of video, you
can press  Play all to play all files in the folder or
press  Mark as favourite to add the selected
video to favourite menu -  Favourites.
15.6
View your Photos
View Photos
Open photo folder
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Photos, you can press  Mark
favourite to add the photo folder to favourite menu.
Control bar
View a photo
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Photos and select one of photos, you
can press  Slide show to play all files in the
folder or press  Mark favourite to add the
selected photo to favourite menu -  Favourites.
1 - Progress bar
2 - Playback control bar
-  : Jump to the previous video in a folder
-  : Jump to the next video in a folder
-  : Rewind
-  : Fast forward
-  : Pause the playback
Control bar
3 - Mark as favourites
4 - Play all videos
5 - Subtitle: switch subtitles On, Off or On During
Mute.
6 - Subtitle language: select a Subtitle Language
7 - Audio language: select an audio language
8 - Shuffle: play your files in a random order
9 - Repeat: plays all videos in this folder once or
continuously
57
View a 360 photo
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select 360 Photos and select one of photos, you
can press  Slide show to play all files in the
folder or press  Mark favourite to add the
selected photo to favourite menu -  Favourites.
Control bar
1 - Playback control bar
-  : Jump to the previous photo in a folder
-  : Jump to the next photo in a folder
-  : Pause the slideshow playback
2 - Mark as favourites
3 - Start a slideshow
4 - Rotate the photo
5 - Shuffle: play your files in a random order
6 - Repeat: plays all photos in this folder once or
continuously
7 - Stop the music playing in the background
8 - Set the speed of the slide show
1 - Playback control bar
-  : Jump to the previous photo in a folder
-  : Jump to the next photo in a folder
-  : Rewind playback at 2x, 4x, 32x speed
-  : Wind playback at 2x, 4x, 32x speed
-  : Pause the playback
Photo Options
Browse photo files...
• List/Thumbnails – List or thumbnails views
• Shuffle – Play your files in a random order
• Repeat – Play the slide show once or continuously
2 - Mark as favourites
3 - Play one / Play all: play one photo or play all
photos in this folder.
4 - Manual mode /Auto mode: when the 360 player
is started, it will auto pan the selected 360 photo from
left to right (0 to 360 degrees) in 360 view. When
manual mode is entered, the 360 player will stop
auto panning/rotating to allow
manually panning/rotating with the remote control
keys.
5 - Little Planet view: Little Planet is an alternate and
fun view of 360 photo. When Little Planet view is
started, the 360 photo will be rendered in a wrapped
around view like a planet.
6 - Shuffle: play your files in a random order.
7 - Repeat: plays all photos in this folder once or
continuously.
8 - Stop the music playing in the background.
• Stop music – Stop background music playing
• Slide Show Speed – Set the speed of the slide
show
• Info – Show photo information
Playing photo files...
• Mark as favourites – Mark the photo as favourites
• Info – Show photo information
View 360 Photos
Open 360 Photos folder
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select 360 Photos, you can press  Mark
favourite to add the 360 photos folder to favourite
menu.
58
-
360 Photo Options
Browse 360 photo files...
• List/Thumbnails – List or thumbnails views
• Shuffle – Play your files in a random order
• Repeat – Play your files once or continuously
• Stop music – Stop background music playing
 : Jump to the previous music in a folder
 : Jump to the next music in a folder
 : Rewind
 : Fast forward
 : Pause the playback
3 - Mark as favourites
4 - Play all music
5 - Shuffle: play your files in a random order
6 - Repeat: plays all music in this folder once or
continuously
Playing 360 photo files...
• Reset view – Rest the angle of view
• Info – Show 360 photo information
15.7
Music Options
Play your Music
Browse music files...
Play Music
• Shuffle – Play your files in a random order.
Open music folder
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Music, you can press  Mark
favourite to add the music folder to favourite menu
-  Favourites.
4 - You can quickly find a music using classification
- Genres, Artists, Albums, Tracks.
• Repeat – Plays all songs in this folder once or
continuously.
Playing music files...
• Mark as favourites – Mark the music as favourites
Play music
1 - Press  SOURCES, select  USB and
press OK.
2 - Select  USB Devices and press  (right) to
select the USB device you need.
3 - Select Music and select one of classifications to
view music files.
4 - Select a music and you can press  Play
all to play all files in the folder or press  Mark
favourite to add the selected music to favourite
menu -  Favourites.
Control bar
1 - Progress bar
2 - Playback control bar
59
to From the Internet automatically.
To make the recordings available in the list of
recordings, switch to the setting that was selected
when the recordings were made.
16
TV Guide
16.1
What You Need
16.3
Using the TV Guide
With the TV Guide you can view a list of the current
and scheduled TV programmes of your channels.
Depending on where the TV guide information (data)
is coming from, analogue and digital channels or only
digital channels are shown. Not all channels offer TV
Guide information.
Open the TV Guide
To open the TV Guide, press  TV GUIDE. The TV
Guide shows the channels of the selected tuner.
Press  TV GUIDE again to close.
The TV can collect TV Guide information for the
channels that are installed on the TV. The TV cannot
collect the TV Guide information for channels viewed
from a digital receiver or decoder.
The first time you open the TV Guide, the TV scans all
TV channels for programme information. This may
take several minutes. TV Guide data is stored on TV.
16.2
Tune to a Programme
TV Guide Data
From the TV Guide, you can tune to a current
programme.
The TV Guide receives information (data) from
broadcasters or from the Internet. In some regions
and for some channels, TV Guide information might
not be available. The TV can collect TV Guide
information for the channels that are installed on the
TV. The TV cannot collect the TV Guide information
from channels viewed from a digital receiver or
decoder.
To switch to the programme (channel), select the
programme and press OK.
View programme details
To call up the details of the selected programme…
1 - Press  OPTIONS, select Programme Info and
press OK.
2 - Press  BACK to close.
The TV comes with the information set to From the
Broadcaster.
If TV Guide information comes from the Internet, the
TV Guide can also list analogue channels next to the
digital channels.
Change Day
From the Internet
The TV Guide can show the scheduled programmes
for the upcoming days (maximum up to 8 days).
If the TV is connected to the Internet, you can set the
TV to receive the TV Guide information from the
Internet.
Press the colour key  Day and select the day you
need.
To set the TV Guide information…
1 - Press , select All Settings and press OK.
2 - Select General Settings and press  (right) to
enter the menu.
3 - Select Advanced > TV Guide > From the
Internet and press OK.
4 - Press  (left) repeatedly if necessary, to close
the menu.
Set a Reminder
You can set a reminder for a programme. A message
will alert you at the start of the programme. You can
tune to this channel immediately.
In the TV Guide a programme with a reminder is
marked with a  (clock).
Missing recordings
When some recordings seem to have disappeared
from the list of recordings, the TV Guide info (data)
might have changed. Recordings made with the
setting From the Broadcaster become invisible in
the list if you switch the setting to From the
Internet or vice versa. The TV might have switched
To set a reminder…
1 - Press  TV GUIDE and select an upcoming
programme.
2 - Press the colour key  Set Reminder and press
OK.
3 - Press  BACK to close the menu.
60
To clear a reminder…
Set a Recording
1 - Press  TV GUIDE and select a programme
with the reminder.
2 - Press the colour key  Clear Reminder and
press OK.
3 - Press  BACK to close the menu.
You can set a recording in the TV Guide*.
To see the recording list, press  Recordings , a
programme set to be recorded is marked with
a  (red dot) on the front of the programme name.
* Note: If a USB Hard drive is connected and ready for
recording, the colour key Set Reminder/Clear
Reminder will be changed to  Record/Clear
Recording. For more information about recording,
please refer to "Recording and Pause TV" chapter.
To record a programme…
1 - Press  TV GUIDE and select a future or
ongoing programme.
2 - Press the colour key  Record .
3 - Press  BACK to close the menu.
To cancel a recording…
Search by Genre
1 - Press  TV GUIDE and select the programme
set for recording.
2 - Press the colour key  Clear Recording .
3 - Press  BACK to close the menu.
If the information is available, you can look up
scheduled programmes by genre like movies, sports,
etc.
To search for programmes by genre…
* To record a TV programme you need…
1 - Press  TV GUIDE.
2 - Press  OPTIONS.
3 - Select Search by Genre and press OK.
4 - Select the genre you want and press OK. A list
with the found programmes appears.
5 - You can set reminders or schedule a recording on
a selected programme.
6 - Press  BACK to close the menu.
• a connected USB Hard Drive formatted on this TV
• digital TV channels installed on this TV
• to receive channel information for the on screen TV
Guide
• a reliable TV clock setting. If you reset the TV clock
manually, recordings may fail.
For more information on Recording, press the colour
key  Keywords and look up Recording.
* Not available when selecting DVB-S channel
List of Reminders
You can view a list of the reminders you have set.
List of Reminders
To open the list of reminders…
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - At the top of the screen,
select  Scheduled and press OK.
4 - In the list of scheduled recordings and reminders,
select the tab Reminders and press OK to view the
reminders only.
5 - Press the colour key  Remove to remove the
selected reminder. Press the colour
key  Record to record the selected programme.
6 - Press  BACK to close the menu.
61
17
Schedule a Recording
Recording and
Pause TV
You can schedule a recording of an upcoming
programme for today or a few days from today
(maximum of 8 days away). The TV will use the data
from the TV Guide to start and end the recording.
To record a programme…
17.1
1 - Press  TV GUIDE.
2 - On the TV Guide, select the channel and
programme you wish to record. Press  (right)
or  (left) to scroll through the programmes of a
channel. Use the colour key  Day to select the
day you need.
3 - With the programme highlighted, press the colour
key  Record . The programme is scheduled for
recording. A warning will show automatically when
overlapping recordings are scheduled. If you plan to
record a programme in your absence, remember to
leave the TV switched to Standby and the USB Hard
Drive switched on.
4 - The TV adds some time margin at the end of the
programme. You can adjust this margin with Auto
End Margin.
5 - Press  BACK to close the menu.
Recording
What You Need
You can record a digital TV broadcast and watch it
later.
To record a TV programme you need…
• a connected USB Hard Drive formatted on this TV
• digital TV channels installed on this TV
• to receive channel information for the on screen TV
Guide
• a reliable TV clock setting. If you reset the TV clock
manually, recordings may fail.
You cannot record when you are using Pause TV.
In terms enforcement of copyright legislation, some
DVB providers can apply different restriction by
means of DRM (Digital Right Management)
technology. In case of broadcasting protected
channels, recording, record validity or number of
views may be restricted. Recording may be
completely prohibited. In case of trying to record a
protected broadcasting or play back an expired
recording, an error message can appear.
List of Recordings
You can view and manage your recordings in the list
of recordings. Next to the list of recordings, there is a
separate list for scheduled recordings and reminders.
To open the list or recordings…
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - In the list of recordings, select the
tabs New, Watched or Expired and press OK to
filter your view.
4 - With a recording selected in the list, you can
remove the recording with the colour
key  Remove or stop an ongoing recording
with the colour key  Stop Recording . You can
rename a recording with the colour key  Rename .
5 - Press  BACK to close the menu.
For more information on installing a USB Hard Drive,
in Help, press the colour key  Keywords and
look up USB Hard Drive, installation.
Note:
Recording function is only for digital TV broadcast. It
is not possible to record content from external
devices (e.g. HDMI).
Record a Programme
Broadcasters can limit the number of days a recording
can be viewed. When this period expires, the
recording will be marked as expired. A recording in
the list can show the number of days before it expires.
Record Now
To record the programme you are watching right now,
press  (Record) on the remote control. The
recording will start immediately.
When a scheduled recording was prevented by the
broadcaster or when the broadcast was interrupted, a
recording is marked as Failed.
To stop the recording, press  (Stop).
When TV Guide data is available, the programme you
are watching will be recorded from the moment you
pressed the recording key until the programme
ends. If no TV Guide data is available, the recording
will only last 30 minutes. You can adjust the end time
of the recording in the list of Recordings.
Recording Conflicts
When two scheduled recordings are overlapping in
time, there is a recording conflict. To solve a recording
conflict, you can adjust the start and end time of one
62
or both scheduled recordings.
recordings and reminders.
To adjust the start or end time of a scheduled
recording…
Watch a Recording
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - At the top of the screen,
select  Scheduled and press OK.
4 - In the list of scheduled recordings and reminders,
select the tab Recordings and press OK to view
the scheduled recordings only.
5 - Select the scheduled recording that conflicts with
another scheduled recording and press the colour
key  Adjust Time .
6 - Select the start or end time and change the time
with the  (up) or  (down) keys.
Select Apply and press OK.
7 - Press  BACK to close the menu.
To watch a recording…
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - In the list of recordings, select the recording you
need and press OK to start watching.
4 - You can use the
keys  (pause),  (play),  (rewind),  (fast
forward) or  (stop).
5 - To switch back to watch TV, press  EXIT.
17.2
Pause TV
Auto End Margin
What You Need
You can set the time margin that the TV will add
automatically at the end of each scheduled recording.
You can pause a digital TV broadcast and resume
watching it a bit later.
To set the automatic end time margin…
To pause a TV programme you need…
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - Press  OPTIONS and select Auto End
Margin and press OK.
4 - Press  (up) or  (down) and press OK to
set the time margin added to a recording
automatically. You can add up to 45 minutes to a
recording.
5 - Press  BACK to close the menu.
• a connected USB Hard Drive formatted on this TV
• digital TV channels installed on this TV
• to receive channel information for the on screen TV
Guide
With the USB Hard Drive connected and formatted,
the TV continuously stores the TV broadcast you are
watching. When you switch to another channel, the
broadcast of the former channel is cleared. Also
when you switch the TV to standby the broadcast is
cleared.
Manual Recording
You cannot use Pause TV when you are recording.
You can schedule a recording that is not linked to a
TV programme. You set the tuner type, channel and
the start and end time yourself.
For more information, in Help, press the colour
key  Keywords and look up USB Hard Drive,
installation.
To schedule a recording manually…
1 - Press  TV GUIDE.
2 - Press the colour key  Recordings .
3 - At the top of the screen,
select  Scheduled and press OK.
4 - Press  OPTIONS, select Schedule and
press OK.
5 - Select the tuner from where you want to record
and press OK.
6 - Select the channel to record from and press OK.
7 - Select the day of the recording and press OK.
8 - Set the start and end time of the recording. Select
a button and use the  (up) or  (down) keys to
set the hours and minutes.
9 - Select Record and press OK to schedule the
manual recording.
Pause a Programme
To pause and resume a broadcast…
• To pause a broadcast, press  (Pause). A progress
bar at the bottom of the screen appears briefly.
• To call up the progress bar, press  (Pause) again.
• To resume watching, press  (Play).
With the progress bar on screen, press  (Rewind)
or press  (Forward) to select from where you want
to start viewing the paused broadcast. Press these
keys repeatedly to change speed.
You can pause a broadcast for a maximum time span
of 90 minutes.
To switch back to the live TV broadcast,
The recording will appear in the list of scheduled
63
press  (Stop).
Replay
Since the TV stores the broadcast you are watching,
you can mostly replay the broadcast for a few
seconds.
To replay a current broadcast…
1 - Press  (Pause)
2 - Press  (Rewind). You can
press  repeatedly to select from where you want
to start viewing the paused broadcast. Press these
keys repeatedly to change speed. At one point you
will reach the start of the broadcast storage or the
maximum time span.
3 - Press  (Play) to watch the broadcast again.
4 - Press  (Stop) to watch the broadcast live.
64
18
Cast to Your TV
Smartphones and
Tablets
To cast an app to the TV screen…
Philips TV Remote App
1 - On your smartphone or tablet, open an app that
supports Google Cast.
2 - Tab the Google Cast icon.
3 - Select the TV you would like to cast to.
4 - Press play on your smartphone or tablet. What
you selected should start playing on TV.
The new Philips TV Remote App on your smartphone
or tablet is your new TV buddy.
18.3
18.1
With the TV Remote App, you master your media
around you. Send photos, music or videos to your big
TV screen. Look up what you want to watch on the TV
Guide and watch it on your TV. With the TV Remote
App you can use your phone as a remote control, TV
can be switched on or off via your phone.
AirPlay
To add the AirPlay functionality to your Android TV,
you can download and install one of the several
Android apps that do just that. You can find several of
these apps in the Google Play Store.
Download the Philips TV Remote App from your
favourite app store today.
18.4
The Philips TV Remote App is available for iOS and
Android and is free of charge.
MHL
This TV is MHL™ compliant.
18.2
If your mobile device is also MHL compliant, you can
connect your mobile device with a MHL cable to the
TV. With the MHL cable connected you can share
what's on your mobile device on the TV screen. Your
mobile device charges its battery at the same time.
The MHL connection is ideal for watching movies or
playing games from your mobile device on TV for a
longer time.
Google Cast
What You Need
If an app on your mobile device has Google Cast, you
can cast your app on this TV. On the mobile app, look
for the Google Cast icon. You can use your mobile
device to control what's on TV. Google Cast works on
Android and iOS.
Charging
With the MHL cable connected, your device will
charge while the TV is switched on (not in standby).
Your mobile device must be connected to the same
Wi-Fi home network as your TV.
MHL Cable
Apps with Google Cast
You need a passive MHL cable (HDMI to Micro USB)
to connect your mobile device to the TV. You might
need an extra adapter to connect to your mobile
device. To connect the MHL cable to the TV use
the HDMI 1 MHL connection.
New Google Cast apps come available every
day. You can already try it with YouTube, Chrome,
Netflix, Photowall … or Big Web Quiz for
Chromecast. See also google.com/cast
Some Google Play products and features aren't
available in all countries.
Find more information
on support.google.com/androidtv
MHL, Mobile High-Definition Link and the MHL Logo
are trademarks or registered trademarks of the MHL,
LLC.
65
19
Games
19.1
What You Need
On this TV, you can play games…
• from the Philips TV Collection in the Home menu
• from the Google Play Store in the Home menu
• from a connected Game Console
Games from the Philips TV Collection or the Google
Play Store must be downloaded and installed on TV
before you can play them. Some games need a
gamepad to play.
To install game apps from the Philips TV Collection
or the Google Play Store, the TV must be connected
to the Internet. You must agree to the Terms of Use to
use apps from the Philips TV Collection. You must
sign in with a Google Account to use the Google Play
apps and Google Play Store.
19.2
Gamepads
To play games from the Internet on this TV, you can
connect a selected range of wireless Gamepads. The
TV can support 2 connected Gamepads at a time.
When you connect the Gamepad, you can use it
immediately.
For more information on connecting a gamepad,
in Help, press the colour key  Keywords and
look up Gamepad, connect.
19.3
Play a Game
From a Game Console
To start a game from a Game Console…
1 - Switch on the Game Console.
2 - Press  SOURCES and select a game console
or the name of the connection.
3 - Start the game.
4 - Press  BACK repeatedly or press  EXIT or
stop the app with its dedicated exit/stop button.
For more information on connecting a Game Console,
in Help, press the colour key  Keywords and
look up Game Console, connect.
66
• Rhytm - Based on audio dynamics
• Party - A mix of all Follow Audio styles, one after
the other
20
Ambilight
20.1
Follow Colour
Ambilight Style
You can set Ambilight to follow the video or the audio
dynamics of a TV programme. Alternatively, you can
set Ambilight to show a preset colour style or you can
switch Ambilight off.
Follow Video
You can set Ambilight to follow the video or the audio
dynamics of a TV programme. Alternatively, you can
set Ambilight to show a preset colour style or you can
switch Ambilight off.
If you select Follow Colour, you can select one of the
preset colour styles.
To set the Ambilight Style…
If you select Follow Video, you can select one of the
styles that follow the dynamics of the picture on your
TV screen.
1 - Press  AMBILIGHT.
2 - Select Follow Colour and press OK.
3 - Select the style you want and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
To set the Ambilight Style…
1 - Press  AMBILIGHT.
2 - Select Follow Video and press OK.
3 - Select the style you want and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
The available Follow Colour styles are…
• Hot Lava - Red colour variations
• Deep Water - Blue colour variations
• Fresh Nature - Green colour variations
•  Warm white - Static colour
• Cool White - Static colour
The available Follow Video styles are…
• Standard - Ideal for day to day TV watching
• Natural - Follows the picture or sound as truthful
as possible
• Football - Ideal for footbal games
• Vivid - Ideal for daylight conditions
20.2
Ambilight Off
• Game - Ideal for gaming
• Comfort - Ideal for a quiet evening
• Relax - Ideal for a lounge feeling
To switch off Ambilight…
1 - Press  AMBILIGHT.
2 - Select Off and press OK.
3 - Press  (left) to go back one step or
press  BACK to close the menu.
Follow Audio
You can set Ambilight to follow the video or the audio
dynamics of a TV programme. Alternatively, you can
set Ambilight to show a preset colour style or you can
switch Ambilight off.
20.3
Ambilight Settings
For more information, in Help, press the colour
key  Keywords and look up Ambilight,
Settings for more information.
If you select Follow Audio, you can select one of the
styles that follow the dynamics of the sound.
To set the Ambilight Style…
1 - Press  AMBILIGHT.
2 - Select Follow Audio and press OK.
3 - Select the style you want and press OK.
4 - Press  (left) to go back one step or
press  BACK to close the menu.
20.4
Lounge Light Mode
The lounge light mode of your TV allows you to
switch on the Ambilight when the TV is in standby. So
you can light up your room with Ambilight.
The available Follow Audio styles are…
• Lumina - Mixes audio dynamics with video colours
• Colora - Based on audio dynamics
• Retro - Based on audio dynamics
• Spectrum - Based on audio dynamics
• Scanner - Based on audio dynamics
After you have switched your TV to standby and wish
to switch on the Ambilight lounge light, follow these
steps:
67
1 - Press  AMBILIGHT.
2 - After you have pressed the  AMBILIGHT, the
Ambilight lounge light will be switched on.
3 - Press  AMBILIGHT again if you wish to change
to a different light effect.
4 - To switch off the Ambilight lounge light, press
 AMBILIGHT until you see the lights are turned off.
You may need to press  AMBILIGHT a few times.
68
accepted already when you connected to the
Internet.).
21
Top Picks
The icon  will only appear at the top of the screen
when Now on TV is available.
21.1
The TV does not store former recommendations.
About Top Picks
With  Top Picks your TV recommends…
Using Now on TV
• current TV programmes in Now on TV
• online TV services (Catch Up TV) in TV on Demand
• the latest rental videos in Video on Demand
To open Now on TV…
1 - Press  to open Quick Menu.
2 - Select  Top Picks to open the Top Picks menu.
3 - Select  Now on TV at the top of the screen
and press OK.
4 - Press  BACK to close.
To enjoy Top Picks, connect your TV to the
Internet. Make sure you agree to the Terms of Use.
The Top Picks information and services are only
available in selected countries.
When you open Now on TV, the TV may need a few
seconds to refresh the page information.
Terms of Use
To allow the TV to make these recommendations, you
must agree to the Terms of Use. To get personalised
recommendations based on your viewing habits,
make sure you checked the box for Personalized
Recommendations Service Opt-In.
In Now on TV you can…
• select and press OK on a programme icon to tune
to the ongoing programme.
• select and press OK on a scheduled programme
icon to tune to the channel already.
To open the Terms of Use…
You can use the colour keys on the remote control to
start, stop or clear a scheduled recording. You can
also set or remove a reminder that warns you when a
programme starts.
1 - Press  Top Picks.
2 - Press  OPTIONS, select Terms of Use and
press OK.
3 - Select Privacy Settings and press OK.
4 - Select Personalized Recommendations Service
Opt-In and press OK to check the box.
Press OK again to uncheck.
5 - Press  BACK to close the menu.
To leave Now on TV without tuning to another
channel, press  BACK.
21.3
TV on Demand
21.2
Now on TV
About TV on Demand
About Now on TV
With  TV on Demand , you can watch TV
programmes you missed or watch your favourite
programmes whenever it suits you best. This service is
also called Catch Up TV, Replay TV or Online TV.
Programmes available on TV on Demand are free to
watch.
With  Now on TV , the TV recommends the 10
most popular programmes to watch at this moment.
The TV recommends programmes on TV now or
starting within 15 minutes. The recommended
programmes are selected from the channels you
installed. The selection is made from channels of your
country. Also, you can let Now on TV do some
personalised recommendations for you, based on
programmes you watch regularly.
You can let TV on Demand do some personalised
recommendations of programmes, based on the TV
installation and the programmes you watch regularly.
The icon  will only appear at the top of the screen
when TV on Demand is available.
To make the Now on TV information available…
• the Now on TV information must be available in your
country.
• the TV must have channels installed.
• the TV must be connected to the Internet.
• the TV Clock must be set to Automatic or Country
Dependent.
• you must accept the Terms of Use (You might have
69
Using TV on Demand
You can select a specific video store if more than one
is available.
To open TV on Demand…
To rent a movie…
1 - Press  to open Quick Menu.
2 - Select  Top Picks to open the Top Picks menu.
3 - Select  TV on Demand at the top of the
screen and press OK.
4 - Press  (down) to open the page full screen.
5 - You can select a specific broadcaster if more than
one is available.
6 - Select a programme icon and press OK to start
watching.
7 - Press  BACK to close.
1 - Navigate the highlight on a movie poster. Limited
info will show after some seconds.
2 - Press OK to open the movie page of the video
store for a synopsis of the movie.
3 - Confirm your order.
4 - Make the payment on TV.
5 - Start watching. You can use the  (Play)
and  (Pause) keys.
When you open TV on Demand, the TV may need a
few seconds to refresh the page information.
Once a programme started, you can use
the  (Play) and  (Pause) keys.
21.4
Video on Demand
About Video on Demand
With  Video on Demand , you can rent movies
from an online rental video store.
You can let Video on Demand do some personalised
recommendations of movies, based on your country,
the TV installation and the programmes you watch
regularly.
The icon  will only appear at the top of the screen
when Video on Demand is available.
Payment
When you rent or buy a movie, you can pay the video
store securely with your credit card. Most video
stores ask you to create a login account the first time
you rent a movie.
Internet Traffic
Streaming a lot of videos may cause you to exceed
your monthly Internet traffic limit.
Using Video on Demand
To open Video on Demand…
1 - Press  to open Quick Menu.
2 - Select  Top Picks to open the Top Picks menu.
3 - Select  Video on Demand at the top of the
screen and press OK.
4 - Use the navigation keys to select a movie poster.
5 - Press  BACK to close.
When you open Video on Demand, the TV may need
a few seconds to refresh the page information.
70
22
Netflix
If you have a Netflix membership subscription, you
can enjoy Netflix on this TV. Your TV must be
connected to the Internet. In your region, Netflix
might only come available with future software
updates.
To open Netflix, press  to open the Netflix
App. You can open Netflix immediately from a TV in
standby.
www.netflix.com
71
4 - On your mobile device, sign in with the same
Google account in the Amazon Alexa companion app.
5 - Complete following steps in the Amazon Alexa
companion app. The first is to enable "Philips Smart
TV Control" skill. The second is to link your Google
account and then the final is to discover devices.
6 - Select Enable or Disable for the TV switch on
setting. You can use Alexa to turn your TV On/Off by
voice command.
7 - At the end of setup screen, you can select Done
to start to use Alexa. Select Manage TVs to do the
management of Alexa-paired TVs or un-pair the TVs
with Alexa.
23
Alexa
23.1
About Alexa
Your TV supports Amazon Alexa voice control
operations.
About Alexa
Alexa is a cloud-based voice service available on
Alexa Echo devices from Amazon and device
manufacturers. With Alexa working on your TV, you
can switch on/off TV, change channels, change
volume and more.
Go to alexa.amazon.com, click on Skills, and search
for “Philips Smart TV Control”. The skill will be listed in
the results.
To control your TV with Alexa, you will need...
• Philips Android Smart TV that supports Alexa
• Amazon Echo device
• Google account
• Mobile device such as your phone or tablet
• Wi-Fi network
About Alexa Skill
Alexa uses the Alexa Skills to extend the voice control
operations. Skills add new capabilities that create a
more personalised experience with your Alexa
enabled TV. "Philips Smart TV Control" skill can be
found on Alexa Skills store, it offers various voice
control commands to work with your Philips Android
Smart TV.
23.2
Using Alexa
To use Alexa, you need to first setup the Alexa client
service on your Philips Android Smart TV. Start the
setup by launching the "Amazon Alexa" app from the
Home screen of your TV. Follow the instructions and
complete the following steps:
- Select a name for your Android Smart TV for Alexa
to recognize.
- Select a Google account and sign-in.
- Return to this skill in the Alexa App on your phone
to enable it, link accounts, and discover your devices.
- Return to your TV to complete setup.
Setup on TV for Alexa
1 - Press  HOME and open "Amazon Alexa" app.
2 - You need Amazon Echo device and Alexa
companion app (on mobile device or web version) be
ready to start the setup.
3 - Follow the instructions on screen to accept
Privacy Policy terms, name your TV and sign in your
Google account. The Google account is needed to
pair with Alexa device.
72
1 - Insert the USB flash drive into your computer.
2 - On the USB flash drive, locate the
file update.htm and double click it.
3 - Click Send ID.
4 - If new software is available, download the .zip
file.
5 - After the download, unzip the file and copy the
file autorun.upg onto the USB flash drive. Do not
place this file in a folder.
24
Software
24.1
Update Software
Update from Internet
Update the TV software
1 - Insert the USB flash drive into the TV again. The
update starts automatically.
2 - A software update can take several minutes. Do
not press the  key on the TV or remote control. Do
not remove the USB flash drive.
3 - When the update is done, the TV will return to the
channel you were watching.
If the TV is connected to the Internet, you may receive
a message to update the TV software. You need a
high-speed (broadband) Internet connection. If you
receive this message, we recommend you to carry out
the update.
With the message on screen, select Update and
follow the instructions on-screen.
If a power cut occurs during the update, never
remove the USB flash drive from the TV. When the
power returns, the update will continue.
You can also look for a software update yourself.
During the software update, there is no picture and
the TV will switch off and on again. This might happen
several times. The update can take a few minutes.
Wait until the TV picture comes back up. Do not press
the power switch  on the TV or on the remote
control during the software update.
To prevent an accidental update of the TV software,
delete the autorun.upg file from the USB flash drive.
Look for OAD Updates
To look for a software update yourself…
Scan to search for an OAD (Over-the-air Download)
software update.
1 - Select Settings > Update Software > Search
for Updates and press OK.
2 - Select Internet (Recommended) and press OK.
3 - The TV will look for an update on the Internet.
4 - If an update is available, you can update the
software right away.
5 - A software update can take several minutes. Do
not press the  key on the TV or remote control.
6 - When the update is done, the TV will return to the
channel you were watching.
To look for OAD updates…
1 - Select Settings > Update Software > Search
for Updates > Look for OAD updates.
2 - Follow the instructions on screen.
* Note: The OAD software update is only available in
selected countries.
24.2
Update from USB
Software Version
It might be necessary to update the TV software.
To view the current TV software version…
You need a computer with an high-speed Internet
connection and a USB flash drive to upload the
software on the TV. Use a USB flash drive with at least
2Gb free space. Make sure that write protection is
switched off.
1 - Select Settings > UpdatesUpdate
Software > Current Software Info and press OK.
2 - The version, release notes and creation date are
shown. Also, the Netflix ESN Number is shown if
available.
3 - Press  (left) repeatedly if necessary, to close
the menu.
To update the TV software…
1 - Select Settings > Update Software >
for Updates and press OK.
2 - Select USB and press OK.
Search
Identify the TV
1 - Insert the USB flash drive into one of the USB
connections of the TV.
2 - Select Write to USB and press OK. An
identification file is written on the USB flash drive.
Download the software
73
INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, REGARDING THIS SOFTWARE. TP Vision
Netherlands B.V. offers no support for this software.
The preceding does not affect your warranties and
statutory rights regarding any TP Vision Netherlands
B.V. product(s) you purchased. It only applies to this
source code made available to you.
24.3
Automatic Software Update
To switch on Automatic software update to update
your TV software automatically. Leave the TV in
standby.
1 - Select Settings > Update
Software > Automatic Software Update and
press OK.
2 - Follow the on-screen instruction.
3 - Press  (left) repeatedly if necessary, to close
the menu.
24.6
Announcements
You can receive an announcement on new TV
software available for download or other software
related issues.
When the setting is enabled, the upgrade gets
downloaded when the TV is powered ON and
installed 15min after the TV has gone to standby (as
long as there are no recordings or other alarms
scheduled).
When the setting is disabled, the "Upgrade Now" /
"Later" OSD will be shown.
To read these announcements…
1 - Select Settings > Update
Software > Announcements, and press OK.
2 - If there is an announcement, you can read it or
select one of the announcements available.
3 - Press  (left) repeatedly if necessary, to close
the menu.
24.4
Open Source Software
This television contains open source software. TP
Vision Europe B.V. hereby offers to deliver, upon
request, a copy of the complete corresponding
source code for the copyrighted open source
software packages used in this product for which such
offer is requested by the respective licences.
This offer is valid up to three years after product
purchase to anyone in receipt of this information.
To obtain the source code, please write in English to .
..
[email protected]
24.5
Open Source License
About Open Source License
README for the source code of the parts of TP Vision
Netherlands B.V. TV software that fall under open
source licenses.
This is a document describing the distribution of the
source code used on the TP Vision Netherlands B.V.
TV, which fall either under the GNU General Public
License (the GPL), or the GNU Lesser General Public
License (the LGPL), or any other open source license.
Instructions to obtain copies of this software can be
found in the Directions For Use.
TP Vision Netherlands B.V. MAKES NO WARRANTIES
WHATSOEVER, EITHER EXPRESS OR IMPLIED,
74
25
Specifications
25.1
When this crossed-out wheeled bin symbol is
attached to a product it means that the product is
covered by the European Directive 2012/19/EU.
Environmental
European Energy Label
The European Energy Label informs you on the
energy efficiency class of this product. The greener
the energy efficiency class of this product is, the
lower the energy it consumes.
On the label, you can find the energy efficiency class,
the average power consumption of this product in use
and the average energy consumption for 1 year. You
can also find the power consumption values for this
product on the Philips website for your country
at www.philips.com/TV
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and do not
dispose of your old products with your normal
household waste. Correct disposal of your old
product helps to prevent potential negative
consequences for the environment and human
health.
Product Fiche
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot be
disposed with normal household waste.
55PUS8602
• Energy Efficiency Class : B
• Visible Screen Size : 139 cm / 55 inch
• On Mode Power Consumption (W) : 149 W
• Annual Energy Consumption (kWh) * : 218 kWh
• Standby Power Consumption (W) ** : 0.30 W
• Display Resolution (Pixels) : 3840 x 2160p
Please find out for yourself about the local rules on
separate collection of batteries because correct
disposal will help to prevent negative consequences
for the environment and human health.
65PUS8602
• Energy Efficiency Class : B
• Visible Screen Size : 164 cm / 65 inch
• On Mode Power Consumption (W) : 202 W
• Annual Energy Consumption (kWh) * : 295 kWh
• Standby Power Consumption (W) ** : 0.30 W
• Display Resolution (Pixels) : 3840 x 2160p
25.2
Power
* Energy consumption kWh per year, based on the
power consumption of the television operating 4
hours per day for 365 days. The actual energy
consumption depends on how the television is used.
Product specifications are subject to change without
notice. For more specification details of this product,
see www.philips.com/TVsupport
** When the TV is turned off with the remote control
and no function is active. Power consumption in full
standby mode < 0.3W. TV will take several minutes
going to full standby.
Power
• Mains power : AC 220-240V +/-10%
• Ambient temperature : 5°C to 35°C
• Power saving features : Eco mode, Picture mute (for
radio), Auto switch-off timer, Eco settings menu.
For power consumption information, see
chapter Product Fiche.
End of Use
Disposal of your old product and batteries
Your product is designed and manufactured with high
quality materials and components, which can be
recycled and reused.
75
• 800 x 600p - 60 Hz
• 1024 x 768p - 60 Hz
• 1280 x 1024p - 60 Hz
• 1920 x 1080p - 60 Hz
• 3840 x 2160p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz
25.3
Operating System
Android OS :
Android Oreo 8
25.7
25.4
Connectivity
Reception
TV Side
• Common Interface slot: CI+/CAM
• USB 1 - USB 2.0
• USB 2 - USB 3.0
• Headphones - Stereo mini-jack 3.5mm
• HDMI 1 in - ARC - MHL - Ultra HD - HDR
• HDMI 2 in - ARC - Ultra HD - HDR
• Aerial input : 75 ohm coaxial (IEC75)
• Tuner bands : Hyperband, S-Channel, UHF, VHF
• DVB : DVB-T2, DVB-C (cable) QAM
• Analogue video playback : SECAM, PAL
• Digital video playback : MPEG2 SD/HD (ISO/IEC
13818-2), MPEG4 SD/HD (ISO/IEC 14496-10), HEVC*
• Digital audio playback (ISO/IEC 13818-3)
• Satellite aerial input : 75 ohm F-type
• Input frequency range : 950 to 2150MHz
• Input level range : 25 to 65 dBm
• DVB-S/S2 QPSK, symbol rate 2 to 45M symbols,
SCPC and MCPC
• LNB : DiSEqC 1.0, 1 to 4 LNBs supported, Polarity
selection 13/18V, Band selection 22kHz, Tone burst
mode, LNB current 300mA max
TV Bottom
• Audio out - Optical Toslink
• Network LAN - RJ45
• YPbPr, L/R
• HDMI 4 in - ARC
• HDMI 3 in - ARC
• Antenna (75 ohm)
• Satellite tuner
* Only for DVB-T2, DVB-S2
25.8
Sound
25.5
Display Type
• Output power (RMS) : 50W
• Dolby Audio
• DTS Premium Sound ™
Diagonal screen size
• 139 cm / 55 inch
• 164 cm / 65 inch
25.9
Display resolution
• 3840 x 2160
Multimedia
Connections
• USB 2.0 / USB 3.0
• Ethernet LAN RJ-45
• Wi-Fi 802.11a/b/g/n/ac (built-in)
• BT 4.2 (* Your TV doesn't support Bluetooth
subwoofer/speakers/headphones)
25.6
Display Input Resolution
Video formats
Resolution — Refresh rate
Supported USB file systems
• FAT 16, FAT 32, NTFS
• 480i - 60 Hz
• 480p - 60 Hz
• 576i - 50 Hz
• 576p - 50 Hz
• 720p - 50 Hz, 60 Hz
• 1080i - 50 Hz, 60 Hz
• 1080p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz
• 2160p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz
Playback formats
• Containers: PS, TS, M2TS, TTS, AVCHD, MP4, M4V,
MKV, ASF, AVI, 3GP, Quicktime
• Video Codecs : AVI, MKV, HEVC, H264/MPEG-4
AVC, MPEG-1, MPEG-2, MPEG-4, VP9
• Audio Codecs : AAC, MP3, WAV, WMA (v2 up to
v9.2), WMA-PRO (v9 and v10)
• Subtitles :
– Formats : SRT, SUB, TXT, SMI
– Character encodings : UTF-8, Central Europe and
Eastern Europe (Windows-1250), Cyrillic
Computer formats
Resolutions (amongst others)
• 640 x 480p - 60 Hz
76
(Windows-1251), Greek (Windows-1253), Turkish
(Windows-1254), Western Europe (Windows-1252)
• Image Codecs : JPEG, GIF, PNG, BMP
• Limitations :
– Maximum supported total bit rate for a media file is
30Mbps.
– Maximum supported video bit rate for a media file
is 20Mbps.
– MPEG-4 AVC (H.264) is supported up to High
Profile @ L5.1.
– H.265 (HEVC) is supported upto Main / Main 10
Profile up to Level 5.1
Supported media server software (DMS)
• You can use any DLNA V1.5 certified media server
software (DMS class).
• You can use the Philips TV Remote app (iOS and
Android) on mobile devices.
Performance may vary, depending on the capabilities
of the mobile device and the software used.
77
Ambilight are working fine.
• Check the network - Check the network
connection.
• Update software - Check available software
updates.
• User manual - Read the user manual for TV
information.
• Troubleshooting - Find a solution for frequent ask
questions.
• Factory settings - Reset all settings to factory
settings.
• Reinstall TV - Reinstall and redo the complete TV
installation.
• Contact info - Show the telephone number or web
address for your country or region.
26
Help and Support
26.1
Register your TV
Register your TV and enjoy a range of benefits
including full support (including downloads),
privileged access to information about new products,
exclusive offers and discounts, the chance to win
prizes and even participate in special surveys about
new releases.
Go to www.philips.com/TVsupport
26.3
26.2
Troubleshooting
Using Help
Switch On and Remote Control
This TV offers help on screen  .
Open Help
The TV does not switch on
• Disconnect the power cable from the power outlet.
Wait for one minute then reconnect it.
• Make sure that the power cable is securely
connected.
Press the  key (blue) to open Help immediately.
Help will open on the chapter that is most relevant to
what you are doing or what is selected on TV. To look
up topics alphabetically, press the colour
key  Keywords .
Creaking sound at startup or switch off
To read the Help as a book, select Book.
When you are switching the TV on, off or to standby,
you hear a creaking sound from the TV chassis. The
creaking sound is due to the normal expansion and
contraction of the TV as it cools and warms up. This
does not affect performance.
You can also open  Help in the Quick menu.
Before you execute the Help instructions, close Help.
To close Help, press the colour key  Close .
For some activities, like Text (Teletext), the colour
keys have specific functions and cannot open Help.
TV does not respond to the remote control
The TV requires some time to start up. During this
time, the TV does not respond to the remote control
or TV controls. This is normal behaviour.
If the TV continues to be unresponsive to the remote
control, you can check if the remote control is working
by means of a mobile phone camera. Put the phone
in camera mode and point the remote control to the
camera lens. If you press any key on the remote
control and you notice the infra red LED flicker
through the camera, the remote control is working.
The TV needs to be checked.
If you do not notice the flickering, the remote control
might be broken or its batteries are low.
This method of checking the remote control is not
possible with remote controls which are wirelessly
paired with the TV.
TV Help on your tablet, smartphone or computer
To carry out extended sequences of instructions more
easily, you can download the TV Help in PDF format
to read on your smartphone, tablet or
computer. Alternatively, you can print the relevant
Help page from your computer.
To download the Help (user manual) go
to www.philips.com/TVsupport
 Quick Menu >  Help
You can use more Help functions to diagnose and get
more information about your TV.
• TV information - View the Model name, Serial
number and Software version of your TV.
• How to - You can see instructions on how to
install channels, sort channels, update TV software,
connect external devices and use Smart functions on
your TV.
The TV goes back to standby after showing the
Philips startup screen
When the TV is in standby, a Philips startup screen is
displayed, then the TV returns to standby mode. This
is normal behaviour. When the TV is disconnected
and reconnected to the power supply, the startup
• Check the TV - You can check if the picture, sound,
78
screen is displayed at the next startup. To switch on
the TV from standby, press  on the remote control
or on the TV.
Change to a different picture format.
Picture position is incorrect
Picture signals from some devices may not fit the
screen correctly. Check the signal output of the
connected device.
The standby light keeps on blinking
Disconnect the power cable from the power outlet.
Wait 5 minutes before you reconnect the power
cable. If the blinking reoccurs, contact Philips TV
Consumer Care.
Computer picture is not stable
Make sure that your PC uses the supported resolution
and refresh rate.
Channels
Sound
No digital channels found during the installation
See the technical specifications to make sure that
your TV supports DVB-T or DVB-C in your country.
Make sure that all cables are properly connected and
that the correct network is selected.
No sound or poor sound quality
Previously installed channels are not in the channel
• Make sure that the sound settings are correctly set.
• Make sure that all cables are properly connected.
• Make sure that the volume is not muted or set to
zero.
• Make sure that the TV audio output is connected to
the audio input on the Home Theatre System.
Sound should be heard from the HTS speakers.
• Some devices may require you to manually enable
HDMI audio output. If HDMI audio is already enabled,
but you still do not hear audio, try changing the digital
audio format of the device to PCM (Pulse Code
Modulation). Refer to the documentation
accompanying your device for instructions.
If no audio signal is detected, the TV automatically
switches the audio output off — this does not indicate
malfunction.
list
Make sure that the correct channel list is selected.
No picture / distorted picture
• Make sure that the antenna is properly connected to
the TV.
• Make sure that the correct device is selected as the
display source.
• Make sure that the external device or source is
properly connected.
Sound but no picture
• Make sure that the picture settings are set correctly.
HDMI and USB
Poor antenna reception
• Make sure that the antenna is properly connected to
the TV.
• Loud speakers, unearthed audio devices, neon
lights, high buildings and other large objects can
influence reception quality. If possible, try to improve
the reception quality by changing the antenna
direction or moving devices away from the TV.
• If reception on only one channel is poor, fine-tune
this channel with Manual Installation.
HDMI
• Note that HDCP (High-bandwidth Digital Content
Protection) support can delay the time taken for a TV
to display content from an HDMI device.
• If the TV does not recognise the HDMI device and
no picture is displayed, switch the source from one
device to another and back again.
• If the picture and sound of a device connected
to HDMI 3 or HDMI 4 is distorted, connect the
device to HDMI 1 or HDMI 2 on this TV.
• If the picture and sound of a device connected with
HDMI is distorted, check if a different HDMI Ultra
HD setting can solve this problem. In Help, press the
colour key  Keywords and look up HDMI Ultra
HD.
• If there are intermittent sound disruptions, make
sure that output settings from the HDMI device are
correct.
• If you use an HDMI-to-DVI adapter or HDMI-to-DVI
cable, make sure that an additional audio cable is
connected to AUDIO IN (mini-jack only), if available.
Poor picture from a device
• Make sure that the device is connected properly.
• Make sure that the picture settings are set correctly.
Picture settings change after a while
Make sure that Location is set to Home . You can
change and save settings in this mode.
A commercial banner appears
Make sure that Location is set to
Home.
Picture does not fit the screen
HDMI EasyLink does not work
79
• Make sure that your HDMI devices are HDMI-CEC
compatible. EasyLink features only work with devices
that are HDMI-CEC compatible.
4 - Press 3 times  (right), select your language and
press OK.
5 - Press  BACK to close the menu.
No volume icon shown
• When an HDMI-CEC audio device is connected and
you use the TV Remote Control to adjust the volume
level from the device, this behaviour is normal.
Photos, videos and music from a USB device do not
26.4
Online Help
show
• Make sure that the USB storage device is set to Mass
Storage Class compliant, as described in the storage
device's documentation.
• Make sure that the USB storage device is compatible
with the TV.
• Make sure that the audio and picture file formats are
supported by the TV.
To solve any Philips TV related problem, you can
consult our online support. You can select your
language and enter your product model number.
Go to www.philips.com/TVsupport
On the support site you can find your country's
telephone number to contact us as well as answers to
frequently asked questions (FAQs). In some countries,
you can chat with one of our collaborators and ask
your question directly or send a question by email.
You can download new TV software or the manual to
read on your computer.
Choppy playback of USB files
• The transfer performance of the USB storage device
may limit the data transfer rate to the TV which
causes poor playback.
26.5
Network
Support and Repair
Wi-Fi network not found or distorted
• Microwave ovens, DECT phones or other Wi-Fi
802.11b/g/n devices in your proximity might disturb
the wireless network.
• Make sure that the firewalls in your network allow
access to the TV's wireless connection.
• If the wireless network does not work properly in
your home, try the wired network installation.
For support and repair, call the Consumer Care
hotline in your country. Our service engineers will take
care of a repair, if necessary.
Find the telephone number in the printed
documentation that came with the TV.
Or consult our
website www.philips.com/TVsupport and select
your country if needed.
Internet does not work
• If the connection to the router is OK, check the
router connection to the Internet.
TV model number and serial number
The PC and Internet connection are slow
• Look in your wireless router's user manual for
information on indoor range, transfer rate and other
factors of signal quality.
• Use a high-speed (broadband) Internet connection
for your router.
You might be asked to provide the TV product model
number and serial number. Find these numbers on
the packaging label or on the type label on the back
or bottom of the TV.
DHCP
• If the connection fails, you can check the DHCP
(Dynamic Host Configuration Protocol) setting of the
router. DHCP should be switched on.
Do not attemp to repair the TV yourself. This may
cause severe injury, irrepairable damage to your TV or
void your warranty.
 Warning
Wrong Menu Language
Wrong menu language
Change the language back to your language.
1 - Press  HOME to go to Home screen .
2 - Select the  icon (Settings) from System bar on
the top of Home screen and press OK.
3 - Press 5 times  (down).
80
ensure that the power voltage matches the value
printed on the back of the TV. Never connect the TV
to the power outlet if the voltage is different.
27
Safety and Care
27.1
Risk of Injury to Children
Safety
Follow these precautions to prevent the TV from
toppling over and causing injury to children:
Important
• Never place the TV on a surface covered by a cloth
or other material that can be pulled away.
• Ensure that no part of the TV hangs over the edge of
the mounting surface.
• Never place the TV on tall furniture, such as a
bookcase, without anchoring both the furniture and
TV to the wall or a suitable support.
• Teach children about the dangers of climbing on
furniture to reach the TV.
Read and understand all safety instructions before
you use the TV. If damage is caused by failure to
follow instructions, the warranty does not apply.
Risk of Electric Shock or Fire
• Never expose the TV to rain or water. Never place
liquid containers, such as vases, near the TV.
If liquids are spilt on or into the TV, disconnect the TV
from the power outlet immediately.
Contact Philips TV Consumer Care to have the TV
checked before use.
• Never expose the TV, remote control or batteries to
excessive heat. Never place them near burning
candles, naked flames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation slots or other
openings on the TV.
• Never place heavy objects on the power cord.
• Avoid force coming onto power plugs. Loose power
plugs can cause arcing or fire. Ensure that no strain is
exerted on the power cord when you swivel the TV
screen.
• To disconnect the TV from the mains power, the
power plug of the TV must be disconnected. When
disconnecting the power, always pull the power plug,
never the cord. Ensure that you have full access to
the power plug, power cord and outlet socket at all
times.
Risk of swallowing batteries !
The remote control may contain coin-type batteries
which can easily be swallowed by small children.
Keep these batteries out of reach of children at all
times.
Risk of Overheating
Never install the TV in a confined space. Always leave
a space of at least 10 cm or 4 inches around the TV
for ventilation. Ensure curtains or other objects never
cover the ventilation slots on the TV.
Lightning Storms
Disconnect the TV from the power outlet and antenna
before lightning storms.
During lightning storms, never touch any part of the
TV, power cord or antenna cable.
Risk of Injury or Damage to the TV
Risk of Hearing Damage
• Two people are required to lift and carry a TV that
weighs more than 25 kg or 55 lbs.
• If you mount the TV on a stand, only use the
supplied stand. Secure the stand to the TV tightly.
Place the TV on a flat, level surface that can support
the weight of the TV and the stand.
• When wall mounted, ensure that the wall mount can
safely bear the weight of the TV set. TP Vision bears
no responsibility for improper wall mounting that
results in accident, injury or damage.
• Parts of this product are made of glass. Handle with
care to avoid injury or damage.
Avoid using earphones or headphones at high
volumes or for prolonged periods of time.
Low Temperatures
If the TV is transported in temperatures below 5°C or
41°F, unpack the TV and wait until the TV temperature
reaches room temperature before connecting the TV
to the power outlet.
Risk of damage to the TV !
Before you connect the TV to the power outlet,
81
Humidity
In rare occasions, depending on temperature and
humidity, minor condensation can occur on the inside
of the TV glass front (on some models). To prevent
this, do not expose the TV to direct sunlight, heat or
extreme humidity. If condensation occurs, it will
disappear spontaneously while the TV is playing for a
few hours.
The condensation moisture will not harm the TV or
cause malfunction.
27.2
Screen Care
• Never touch, push, rub or strike the screen with any
object.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft damp cloth and
wipe gently. Avoid touching the Ambilight LEDs on
the backside of the TV. Never use substances such as
alcohol, chemicals or household cleaners on the TV.
• To avoid deformations and colour fading, wipe off
water drops as quickly as possible.
• Avoid stationary images as much as possible.
Stationary images are images that remain onscreen
for extended periods of time. Stationary images
include onscreen menus, black bars, time displays,
etc. If you must use stationary images, reduce screen
contrast and brightness to avoid screen damage.
82
black dots or bright points of light (red, green or blue)
may appear constantly on the screen. This is a
structural property of the display (within common
industry standards) and is not a malfunction.
28
Terms of Use
28.1
CE compliance
Hereby, TP Vision Europe B.V. declares that this
television is in compliance with the essential
requirements and other relevant provisions of
Directives 2014/53/EU (RED), 2009/125/EC (Eco
Design) and 2011/65/EC (RoHS).
Terms of Use - TV
2018 © TP Vision Europe B.V. All rights reserved.
This product was brought to the market by TP Vision
Europe B.V. or one of its affiliates, hereinafter referred
to as TP Vision, which is the manufacturer of the
product. TP Vision is the warrantor in relation to the
TV with which this booklet was packaged. Philips and
the Philips Shield Emblem are registered trademarks
of Koninklijke Philips N.V.
Compliance with EMF
TP Vision manufactures and sells many products
targeted at consumers which, like any electronic
apparatus, in general have the ability to emit and
receive electromagnetic signals. One of TP Vision’s
leading business principles is to take all necessary
health and safety measures for our products, to
comply with all applicable legal requirements and to
stay well within the Electro Magnetic Field (EMF)
standards applicable at the time of producing the
products.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V
or their respective owners. TP Vision reserves the right
to change products at any time without being obliged
to adjust earlier supplies accordingly.
The written material packaged with the TV and the
manual stored in the memory of the TV or
downloaded from the Philips
website www.philips.com/TVsupport are believed to
be adequate for the intended use of the system.
TP Vision is committed to developing, producing and
marketing products that cause no adverse health
effects. TP Vision confirms that, as long as its products
are handled properly for their intended use, they are
safe to use according to scientific evidence available
today. TP Vision plays an active role in the
development of international EMF and safety
standards, enabling TP Vision to anticipate further
developments in standardisation for early integration
in its products.
The material in this manual is believed adequate for
the intended use of the system. If the product, or its
individual modules or procedures, are used for
purposes other than those specified herein,
confirmation of their validity and suitability must be
obtained. TP Vision warrants that the material itself
does not infringe any United States patents. No
further warranty is expressed or implied. TP Vision
cannot be held responsible neither for any errors in
the content of this document nor for any problems as
a result of the content in this document. Errors
reported to Philips will be adapted and published on
the Philips support website as soon as possible.
28.2
Terms of Use - Smart TV
You can see the terms of use, privacy policy, and also
set privacy settings of your Smart TV.
To open the terms of use of Smart TV page…
Terms of warranty - Risk of injury, damage to TV or
void of warranty!
Never attempt to repair the TV yourself. Use the TV
and accessories only as intended by the
manufacturer. The caution sign printed on the back of
the TV indicates risk of electric shock. Never remove
the TV cover. Always contact Philips TV Customer
Care for service or repairs. Find the telephone number
in the printed documentation that came with the
TV. Or consult our website
www.philips.com/TVsupport and select your country
if needed. Any operation expressly prohibited in this
manual, or any adjustments and assembly
procedures not recommended or authorised in this
manual, shall void the warranty.
1 - Press  HOME to open the Home menu.
2 - Select Apps to open apps.
28.3
Terms of Use - Philips TV
Collection
In Help, press the colour key  Keywords and look
up Terms of Use, Philips TV Collection for more
information.
Pixel characteristics
This TV product has a high number of colour pixels.
Although it has effective pixels of 99.999% or more,
83
29
29.4
Copyrights
DTS Premium Sound ™
DTS Premium Sound ™
29.1
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS Premium
Sound is a trademark of DTS, Inc. © DTS, Inc. All
Rights Reserved.
MHL
MHL
MHL, Mobile High-Definition Link and the MHL Logo
are trademarks or registered trademarks of the MHL,
LLC.
29.5
29.2
Wi-Fi Alliance
HDMI
Wi-Fi
HDMI
Wi-Fi®, the Wi-Fi CERTIFIED logo, the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
29.6
Kensington
29.3
Kensington
Dolby Audio
(If applicable)
Kensington and Micro Saver are registered US
trademarks of ACCO World Corporation with issued
registrations and pending applications in other
countries throughout the world.
Dolby Audio
Dolby, Dolby Audio, and the double-D symbol are
trademarks of Dolby Laboratories. Manufactured
under license from Dolby Laboratories. Confidential
unpublished works. Copyright © 1992-2015 Dolby
Laboratories. All rights reserved.
84
29.7
Other Trademarks
All other registered and unregistered trademarks are
the property of their respective owners.
85
30
Disclaimer regarding
services and/or
software offered by
third parties
Services and/or software offered by third parties may
be changed, suspended, or terminated without prior
notice. TP Vision does not bear any responsibility in
these sorts of situations.
86
Index
Contrast, Contrast Mode 46
Contrast, Dynamic Contrast 47
A
Age Rating 12
Alexa 72
Ambilight+hue, configuration 51
Ambilight+hue, Immersion 51
Ambilight+hue, on or off 51
Ambilight, Ambilight Style 67
Ambilight, Settings 50
Android Settings 35
Announcements 74
Antenna connection 6
Antenna, Manual Installation 23
APP lock 38
Apps 37
Audio Language 13
Audio Language, Primary 13
Audio Language, Secondary 13
Auto Volume Levelling 49
Automatic Channel Update 21
D
Digital Text 15
Disposal of TV or batteries 75
DVB (Digital Video Broadcast) 22
DVD player 28
E
EasyLink HDMI CEC 53
Eco Settings 51
End of use 75
European Ecolabel 75
F
Frequency Scan 22
Frequency Step Size 22
G
Game Console, connect 29
Gamepad, connect 28
Gaming 66
B
Blu-ray Disc player, connect 27
Bluetooth, Pairing 28
Bluetooth, Remove device 28
Bluetooth, Select device 28
H
Hard of hearing 54
HbbTV 17
HDMI MHL 25
HDMI Ultra HD 53
HDMI, ARC 25
Headphones, connect 28
Home 35
Home Theatre System, problems 27
Hue Bridge 51
Hue Bulbs 51
C
CAM, Conditional Access Module 26
Camcorder, connect 31
Channel 11
Channel List 11
Channel List Copy 23
Channel List Copy, copy 23
Channel List Copy, current version 24
Channel List Copy, upload 24
Channel List, about 11
Channel List, filter 11
Channel List, open 11
Channel List, search 11
Channel Update Message 21
Channel, age rating 12
Channel, Antenna Installation 21
Channel, Automatic Channel Update 21
Channel, Installation 21
Channel, Manual channel update 21
Channel, Options 12
Channel, Reinstall 21
Channel, Satellite Installation 18
Channel, switch to a channel 12
Channel, TV guide 60
Child Lock 55
Child Lock, App Lock 55
CI+ 26
Clear, Internet memory 34
Colour, colour control 46
Common Interface Slot 26
Computer, connect 31
Connect, USB Flash Drive 31
Connection, Satellite Connection 6
Connectivity Guide 25
Consumer Care 80
Contact Philips 80
I
Interactive TV 17
Interactive TV, about 16
I
iTV 16
K
Key on TV 10
L
Lounge Light 67
M
Manual Installation 23
Media 56
Media files, from a computer or NAS 56
Media files, from a USB drive 56
MPEG Artefact Reduction 47
N
Network Frequency 22
Network Frequency Mode 22
Network Installation 33
Network name 34
Network, connect 33
Network, setting 34
Network, Wired 33
87
Network, Wireless 33
Now on TV 69
Test Reception 22
Text 15
Text language, Primary 16
Text language, Secondary 16
Troubleshooting 78
TV Guide 60
TV Guide, data and information 60
TV Guide, Reminder 60
TV Installation 21
TV on Demand 69
TV placement 5
O
Online support 80
Open Source software 74
Options on a Channel 12
P
Parental Rating 12
Partially sighted 54
Pause TV 62
Photo camera, connect 31
Photos, Videos and Music 56
Picture Style 45
Picture style setting 45
Picture, picture format 48
Picture, quick settings 48
Power cable 6
Power consumption check 51
Problems, Channels 79
Problems, Connection, Internet 80
Problems, Connection, Wi-Fi 80
Problems, HDMI Connection 79
Problems, Picture 79
Problems, Remote control 78
Problems, Sound 79
Problems, USB Connection 79
Problems, Wrong menu language 80
Product Fiche 75
Programmes, Recommendations 69
U
Unicable 19
Universal Access 54
USB Hard Drive, disk space 29
USB Hard Drive, Installation 29
USB Keyboard 30
USB Keyboard, connect 30
V
Video on Demand 70
Viewing distance 5
W
Watch TV 12
Wi-Fi 33
Wired Network 33
Wireless Network 33
R
Radio stations 11
Reception Quality 22
Recording 62
Recording, TV Guide data 60
Register your product 78
Reinstall TV 21
Repair 80
S
Safety Instructions 81
Satellite CAMs 18
Satellite Installation 18
Satellite, Add Satellite 19
Satellite, Channel packages 19
Satellite, Manual Channel Update 19
Satellite, Manual Installation 20
Satellite, Remove Satellite 20
Satellite, Unicable 19
Screen care 82
Sharpness, MPEG Artefact Reduction 47
Smart Card, CAM 26
Software, Update 73
Sound Style 48
Standby 10
Subtitle 12
Subtitle Language 13
Subtitle Language, Primary 13
Subtitle Language, Secondary 13
Support, online 80
Switching On 10
T
Teletext 15
Terms of Use 83
Terms of Use, Philips TV Collection 36
88
Powered by TCPDF (www.tcpdf.org)
89
