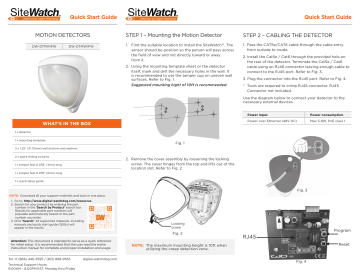

Quick Start Guide
MOTION DETECTORS
DW-DTPIRIPW
DW-DTMWIPW
Quick Start Guide
STEP 1 – Mounting the Motion Detector
STEP 2 – CABLING THE DETECTOR
1. Find the suitable location to install the SiteWatch™. The
sensor should be position so the person will pass across
the field of view and not directly toward or away from it.
1. Pass the CAT5e/CAT6 cable through the cable entry
from outside to inside.
2. Using the mounting template sheet or the detector
itself, mark and drill the necessary holes in the wall. It
is recommended to use the tamper cup on uneven wall
surfaces. Refer to Fig. 1.
Suggested mounting hight of 10ft is recommended.
2. Install the Cat5e / Cat6 through the provided hole on
the rear of the detector. Terminate the Cat5e / Cat6
cable using an RJ46 connector leaving enough cable to
connect to the RJ45 port. Refer to Fig. 3.
3. Plug the connector into the RJ45 port. Refer to Fig. 4.
* Tools are required to crimp RJ45 connector. RJ45 Connector not included.
Use the diagram below to connect your detector to the
necessary external devices.
WHAT’S IN THE BOX
Power input
Power consumption
Power over Ethernet (48V DC)
Max 3.8W, PoE class 1
1 x detector
1 x mounting template
Fig. 1
3 x 1.25” (31.75mm) wall anchors and washers
2 x spare sliding curtains
2. Remove the cover assembly by loosening the locking
screw. The cover hinges from the top and lifts out of the
location slot. Refer to Fig. 2.
1 x tamper feet 0.039” (1mm) long
1 x tamper feet 0.078” (2mm) long.
1 x quick setup guide
Fig. 3
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources.
2. Search for your product by entering the part
number in the ‘Search by Product’ search bar. Results for applicable part numbers will
populate automatically based on the part
number you enter.
3. Click ‘Search’. All supported materials, including
manuals and quick start guide (QSGs) will
appear in the results.
Locking
screw
Fig. 2
Attention: This document is intended to serve as a quick reference
for initial setup. It is recommended that the user read the entire
instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
digital-watchdog.com
Program
RJ45
Reset
NOTE: The maximum mounting height is 10ft when
utilizing the creep detection zone.
Fig. 4
Quick Start Guide
STEP 3 – INSTALLING THE DETECTOR
STEP 4 – PROGRAMMING THE DETECTOR
1. Nylon washers provided must be used with screws.
2. Ensure cable entry and screw holes are sealed with
water-based sealant.
*NOTE: Do not use silicone-based sealant.
Tamper Cup
3. Screw the unit to the wall ensuring that the rear tamper
pin is correctly located and that the tamper micro
switch is closed.
4. To aid installation, two spare tamper feet are provided.
One is 0.04” (1mm) longer and the other is 0.08” (2mm)
longer than the tamper foot originally fitted. The tamper
foot is a push fit and can be removed by carefully
pulling it from the pin.
5. When the detector is aligned, connected, and
programmed to suit the installation, close the front
cover and lock as shown.
The DW-DTPIRIPW and DW-DTMWIPW can be setup remotely via the detector’s web interface. To open the detector’s web interface:
1. Open a web browser.
2. Enter the detector’s default IP address in the in the address bar.
The detector’s default IP address is 192.168.0.10.
3. If this is the first time you are accessing your detector’s web interface, you will be prompted to setup the username
and password. Follow the guidelines at the bottom of the page to create an adequate password.
* NOTE: Default IP address: 192.168.1.10
NOTE: Please see the full product manual for web
viewer setup, functions and camera
settings options.
Factory resetting the detector:
1. Make sure the detector is powered on.
2. Hold down the reset button for 8 seconds.
3. Release reset button, the status LED on the board
will turn off for a second.
4. The units IP address and login details are now
reset back to factory values.
Rev Date: 09/19
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
