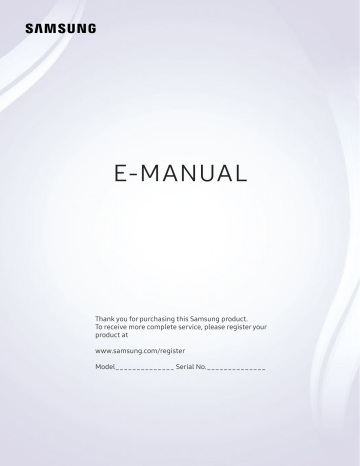

E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at www.samsung.com/register
Model______________ Serial No.______________
Contents
Quick Guides
2 Updating the TV’s software to the latest version
3 Updating the TV automatically
3 Getting support through Remote Management
4 Finding the contact information for service
Connections
6 Connecting to your Internet network
Troubleshooting Internet Connectivity Issues
8 Troubleshooting wired Internet connectivity issues
9 Troubleshooting wireless Internet connectivity issues
10 Connecting with an HDMI cable
11 Connecting with a component cable
11 Connecting with a composite (A/V) cable
Audio Input and Output Connections
12 Connecting with an HDMI (ARC) cable
12 Connecting with a digital audio (optical) cable
12 Connecting through a wireless network
13 Connecting through the HDMI port ― Screen sharing (HDMI)
14 Viewing the screen of a mobile device on your TV (Screen
Switching between external devices connected to the TV
16 Editing the name and icon of an external device
18 Connection notes for audio devices
19 Connection notes for computers
19 Connection notes for mobile devices
Peripherals
20 Connecting an external device through Anynet+ and using their menus
Controlling the TV with a Keyboard
Entering Text using the On-Screen QWERTY Keyboard
II
II
Smart Features
26 Launching Smart Hub automatically
26 Launching the last used app automatically
27 Testing Smart Hub connections
27 Creating and managing your Samsung account
28 Signing in to a Samsung account
30 Installing and running an app
31 Managing purchased or installed apps
33 Using the buttons in the e-Manual
TV Viewing
Viewing Broadcast Information at a Glance
39 Setting up a schedule viewing for a channel
42 Re-registering and deleting a channel
42 Editing registered channels
Creating a Personal Favorites List
43 Registering channels as favorites
44 Viewing and selecting channels on Favorites lists only
44 Adding channels to favorites list
44 Removing channels from a favorites list
44 Rearranging a favorites list
45 Changing the broadcast signal
45 Scanning for available channels
45 Configuring advanced broadcasting audio settings
III
Picture and Sound
46 Configuring advanced picture settings
Setting the Viewing Environment for External Devices
48 Playing games on an optimized screen
48 Registering the TV as a DivX-certified device (watching for pay DivX movies)
50 Configuring advanced sound settings
Using the Sound Support Functions
System and Support
Setting the Time and Using the Timer
Using the Screen Burn Protection and Energy Saving Functions
54 Reducing the energy consumption of the TV
55 Updating the TV’s software to the latest version
55 Updating the TV automatically
Protecting the TV from Hacking and Malicious Code
56 Scanning the TV and connected storage for malicious code
56 Running the accessibility functions
56 Enabling voice guides for the visually impaired
57 Enabling audio for the video description function
57 White text on black background (high contrast)
57 Enlarging the font (for the visually impaired)
58 Learning about the remote control (for the visually impaired)
59 Configuring advanced system settings
60 Checking digital channel signal info and strength
60 Restoring the TV to the factory settings
IV
IV
Troubleshooting
61 Getting support through Remote Management
62 Finding the contact information for service
Diagnosing TV operational issues
There Is a Problem with the Picture
I Can't Hear the Sound Clearly
There Is a Problem with the Broadcast
The TV Won't Connect to the Internet
Anynet+ (HDMI-CEC) Isn't Working
I Have Trouble Launching/Using Apps
Precautions and Notes
Read Before Using the Internet
Read Before Playing Photo, Video, or Music Files
74 Limitations on use of photo, video, and music files
75 Supported external subtitles
75 Supported internal subtitles
76 Supported image formats and resolutions
76 Supported music formats and codecs
79 Picture sizes and input signals
80 Installing an anti-theft lock
80 Read before setting up a wireless Internet connection
Read Before Connecting a Computer (Supported Resolutions)
Supported Resolutions for Video Signals
Blocking programs based on their TV Rating
85 Blocking movies base on their Movie Rating (MPAA)
85 Blocking programs based on their Canadian English Rating
86 Blocking programs based on their Canadian French Rating
86 Blocking Programs based on their Downloadable U.S. Rating
87 Buttons and functions available while playing multimedia content
V
Accessibility Guidance
90 Accessibility short cut menu
Using the TV with Voice Guide on
99 Creating a Personal Favorites List
102 Displaying the Home Screen in the Smart Hub
Audio description feature on the remote control
VI
Quick Guides
You can learn quickly how to run and use the frequently used functions.
Using Smart Hub
Connect to Smart Hub for apps, games, movies, and more.
Enjoy the multiple functions provided by Smart Hub simultaneously on a single screen.
Source
TV
Source
HDMI 1 HDMI 2 USB
Connection
Guide
" The image on your TV may differ from the image above depending on your model and geographical area.
When you press the button on your remote control, you can use the following functions and features.
1 Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.
2 Source
You can select an external device connected to the TV.
"
For more information, refer to "Switching between external devices connected to the TV."
- 1 -
3 Search
You can search data for channels, programs, movie titles, and apps from Smart Hub.
"
For more information, refer to "Smart Hub."
4 APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.
" To use this feature, the TV must be connected to the Internet.
"
For more information, refer to "Using the APPS Service."
Updating the TV’s Software
View your TV's software version and update it if necessary.
Settings Support Software Update
Try Now
Updating the TV’s software to the latest version
[ DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.
Updating through the Internet
Settings Support Software Update Update Now
" Updating from the Internet requires an active Internet connection.
Updating through a USB device
Settings Support Software Update Update Now
After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the TV to update.
" To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.
- 2 -
Updating the TV automatically
Settings Support Software Update Auto Update
If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned on.
If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function disabled, use the Select button to turn it off.
" This function may take a longer time if another network function is running concurrently.
" This function requires an Internet connection.
Getting Support
Get help directly from Samsung if you have a problem with your TV.
Getting support through Remote Management
Settings Support Remote Management
After consenting to our service agreement, you can use Remote Management to access Remote Support and have a Samsung service technician diagnose your TV, correct problems, and update your TV's software, remotely, via the web. You can also turn Remote Management on and off.
" This function requires an Internet connection.
What is Remote Support?
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:
● Diagnose your TV
● Adjust the TV settings for you
● Perform a factory reset on your TV
● Install recommended firmware updates
- 3 -
How does Remote Support Work?
You can easily have a Samsung Tech service your TV remotely:
1. Call the Samsung Contact Center and ask for remote support.
2. Open the menu on your TV and go to the Support section.
3. Select Remote Management , then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.
4. The agent will then access your TV.
Finding the contact information for service
Settings Support About This TV
You can view the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, Open Source License and other information you may need to get service support from a Samsung call agent or the Samsung website.
" You can also view information by scanning the QR code of your TV.
Requesting service
Settings Support Request Support
You can request service when you encounter a problem with the TV. Select the item matching the problem that you encountered, and then select Request Now or Schedule Appointment Send . Your service request will be registered. A servicer near you will contact you to set up or confirm your service appointment. The Samsung Contact
Center will contact you to set up or confirm your service appointment.
" You must agree to the terms and conditions for the service request.
" This function is not available in specific geographical areas.
" This function requires an Internet connection.
- 4 -
Connections
You can watch live broadcasts by connecting an antenna and antenna cable to your TV and can get access to the
Internet by using a LAN cable or wireless router. Using various connectors, you can also connect external devices.
Connection Guide
You can view detailed information about external devices that can be connected to the TV.
Source Connection Guide
It shows you how to connect various external devices such as set-top boxes, game consoles, and PCs using pictures.
If you select the connection method and an external device, the connection details appear.
Connection Guide
Cable Box/Disc Player
Game Console
PC
Audio Device
Mobile Device
External Storage
Accessory
HDMI
AV
Component
" The image on your TV may differ from the image above depending on your model and geographical area.
Connecting an Antenna
You can connect an antenna cable to your TV.
" An antenna connection is not necessary if you connect a cable or satellite box.
ANT IN
- 5 -
Connecting to the Internet
You can get access to the Internet through your TV.
Connecting to your Internet network
Settings General Network Open Network Settings
Connect to an available network.
Establishing a wired Internet connection
Settings General Network Open Network Settings Wired
If you connect a LAN cable, the TV automatically accesses the Internet.
LAN
" Use a CAT 7 (*STP type) cable for the connection.
* Shielded Twist Pair
" The TV will not be able to connect to the Internet if your network speed is below 10 Mbps.
- 6 -
Establishing a wireless Internet connection
Settings General Network Open Network Settings Wireless
Make sure that you have the wireless router's SSID (name) and password settings before attempting to connect, and then follow the directions on the screen.
Wireless Connection
Select your wireless network.
Refresh
" The image on your TV may differ from the image above depending on your model and geographical area.
" If no wireless router is found, select Add Network at the bottom of the list and enter the network name (SSID).
" If your wireless router has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or PBC button on your router within 2 minutes. The TV will connect automatically.
Checking the Internet connection status
Settings General Network Network Status
View the current network and Internet status.
- 7 -
Resetting Your Network
Settings General Network Reset Network
Restore the network settings to the factory default.
" This function is not available on certain models in specific geographical areas.
Changing the name of the TV on a network
Settings General System Manager Device Name
You can change the name of the TV on the network. Select User Input at the bottom of the list and change the name.
Setting up a network IP settings according to IPv6
Settings General Network Expert Settings IPv6
" This function is not available on certain models in specific geographical areas.
Checking an Internet connection set up over IPv6
Settings General Network Expert Settings IPv6 Status
" This function is not available on certain models in specific geographical areas.
Troubleshooting Internet Connectivity Issues
If your TV won't connect to the Internet, try the solutions below.
Troubleshooting wired Internet connectivity issues
Try Now
After reading the following content, troubleshoot the wired Internet connection issue. If the problem persists, contact your Internet Service Provider.
No network cable found
Make sure that the LAN cable is plugged in on both ends. If it is plugged in, make sure that the router is turned on. If the router is on, try turning it off and then on.
- 8 -
IP auto setting failed
1. Configure the settings in IP Settings .
2. Make sure that the DHCP server is enabled on the router, and then reset the router.
Unable to connect to the network
1. Check all IP Settings .
2. After checking the DHCP server status (must be active) on the router, remove the LAN cable, and then connect it again.
Connected to a local network, but not to the Internet
1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings .
Network setup is complete, but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Troubleshooting wireless Internet connectivity issues
After reading the following content, troubleshoot the wireless Internet connection issue. If the problem persists, contact your Internet Service Provider.
Wireless network connection failed
If a selected wireless router is not found, go to Open Network Settings , and then select the correct router.
Unable to connect to a wireless router
1. Check if the router is turned on. If it is, turn it off and then on.
2. Enter the correct password if required.
- 9 -
IP auto setting failed
1. Configure the settings in IP Settings .
2. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3. Enter the correct password if required.
Unable to connect to the network
1. Check all IP Settings .
2. Enter the correct password if required.
Connected to a local network, but not to the Internet
1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in IP Settings .
Network setup is complete, but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Connecting Video Devices
Make the correct video connections between your TV and your external devices.
Connecting with an HDMI cable
HDMI IN
- 10 -
Connecting with a component cable
Connect the component cable to the component input connections of the TV and the component output connections of the device as shown in the image below.
Connecting with a composite (A/V) cable
Connect the AV cable to the input connections of the TV and the AV output connections of the device as shown in the image below.
If you are using the TV's AV input connectors, connect the device's video output to the TV using a Y connector.
" Connect AV (composite) equipment to AV In only. Do not connect to Component In.
- 11 -
Audio Input and Output Connections
Make the correct audio connections between your TV and your external devices.
"
For more information about how to select external speakers, refer to "Selecting speakers."
Connecting with an HDMI (ARC) cable
HDMI IN
(ARC)
Connecting with a digital audio (optical) cable
DIGITAL
AUDIO OUT
(OPTICAL)
Connecting through a wireless network
You can connect the TV to a Samsung wireless audio device through your wireless network. The two devices must be connected to the same network. For more information about the connection and its use, refer to the user manual of the audio device.
- 12 -
Connecting a Computer
Use the TV as a computer monitor or connect the TV to a computer via your network and access the computer's content.
Connecting through the HDMI port ― Screen sharing (HDMI)
HDMI IN
DVI
HDMI IN
HDMI
" When your PC is connected, select PC for the Device Icon
- 13 -
Connecting a Mobile Device
View a mobile device's screen and multi-media content by connecting the mobile device to your TV or network.
After you connect a mobile device that supports screen mirroring to your TV, you can use screen mirroring to view the screen of the mobile device on your TV wirelessly and play the video, audio, or photo files currently playing on the mobile device on your TV.
Connecting to a Network
Connecting to the Same Wireless Network
Connect the mobile device and TV to the same wireless network.
"
" For more information about the wireless network connection from a mobile device, refer to its user guide.
" When a mobile device is connected to the TV using the Wi-Fi direct function, you can enjoy the photos, videos, and music stored on the mobile device through the TV.
Viewing the screen of a mobile device on your TV (Screen Sharing)
When you run the Smart View on a mobile device, you can view the screen of the mobile device on the TV.
1. Run the Smart View (Screen Mirroring) on your mobile device. The device searches for TVs that can be connected.
2. Select the desired TV from the searched result. The TV and the mobile device are connected.
● If there is no TV found, try again after turning both off and on.
● If you have multiple TVs, assign a different name to each TV in Settings General System
Manager Device Name to make selection easy.
- 14 -
Managing a Mobile Device
Settings General External Device Manager Device Connect Manager
● Access Notification
Set whether to display a notification when a mobile device attempts to connect to the TV for the first time.
● Device List
View and manage a list of mobile devices that have requested permission to connect to the TV.
Switching between external devices connected to the TV
You can switch between TV programs and the content of external devices.
Changing the input signal
Source
When you select a connected external device on the Source screen, the output of the selected device is displayed on the TV's screen.
" To control a device (Blu-ray player, game console, etc.) that supports universal remote control with the TV's remote, connect the device to an HDMI port on the TV, and then turn on the device. Lets you switch to the output of the device automatically or lets you configure universal remote control for the device automatically. To configure the device for universal remote control automatically, point the TV's remote control at the device. Note that this function may not be supported depending on the device and geographical area.
" When a USB device is connected to the USB port, a pop-up message appears that lets you switch easily to the media content listed on the device.
- 15 -
Editing the name and icon of an external device
Source
You can change the port name for a connected external device or add it to Home Screen.
Source
Edit
Information
Add to Home
Source
" The image on your TV may differ from the image above depending on your model and geographical area.
1. Move the focus to a connected external device.
2. Press the Up directional button. The following 3 functions become available. (Note that available functions may differ with the port type.)
1 Edit
You can change the port name of an external device for easy identification.
2 Information
You can view detailed information about an external device.
3 Add to Home
You can add the port of an external device to the Home Screen for quick switching.
- 16 -
Using additional functions
You can use the following features on the Source screen.
● Connection Guide : The guide to device connections
Connection Notes
When connecting an external device, note the following:
" The number of connectors and their names and locations may differ with the model.
" Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may differ with the manufacturer.
Connection notes for HDMI
● The following types of HDMI cables are recommended:
–
–
High-Speed HDMI Cable
High-Speed HDMI Cable with Ethernet
● Use an HDMI cable with a thickness of 0.66 inches (17 mm) or less.
● Using a non-certified HDMI cable may result in a blank screen or a connection error.
● Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.
● This TV does not support HDMI Ethernet Channel. Ethernet is a Local Area Network (LAN) built with coaxial cables standardized by the IEEE.
- 17 -
● Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead. If your PC does not support HDMI video out, connect your PC with an HDMI-DVI cable.
"
For more information, refer to "Connecting a Computer."
Connection notes for audio devices
● For better audio quality, it is a good idea to use an AV receiver.
● Connecting a device using an optical cable does not automatically change the audio output to the devices speakers. To change the audio output to the device, do one of the following:
●
–
–
Use the Quick Settings screen to change to the connected device:
Use the Select button to select Audio Out/Optical on the Sound Output menu. ( Settings up directional button Sound Output ).
Use the Settings screen to change to the connected device:
Select Audio Out/Optical on the Sound Output menu. ( Settings Sound Sound Output ).
An unusual noise coming from a connected audio device while you are using it may indicate a problem with the audio device itself. If this occurs, ask for assistance from the audio device's manufacturer.
● Digital audio is only available with 5.1-channel broadcasts.
- 18 -
Connection notes for computers
●
For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported
● As long as file sharing is activated, unauthorized access may occur. When you do not need to access data, disable file sharing.
● Your PC and Smart TV must be connected to each other on the same network.
● When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network’s configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.
Connection notes for mobile devices
● To use the Smart View function, the mobile device must support a mirroring function such as AllShare Cast or Smart View. To check whether your mobile device supports the mirroring function, please visit the mobile device manufacturer's website.
● To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. Please check if your mobile device supports Wi-Fi Direct.
● The mobile device and your Smart TV must be connected to each other on the same network.
● The video or audio may stop intermittently, depending on network conditions.
● When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage system, sharing may not be supported due to the network’s configuration, quality, or functionality, for example, if the network has an NAS (Network-Attached Storage) device.
- 19 -
Peripherals
Connect external devices such as a keyboard for ease of use.
Using Anynet+ (HDMI-CEC)
Control an external device connected via Anynet+ (HDMI-CEC) with the remote control.
You can use the TV's remote control to control external devices that are connected to the TV by an HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC) with the remote control.
Connecting an external device through Anynet+ and using their menus
Settings General External Device Manager Anynet+ (HDMI-CEC)
1. Set Anynet+ (HDMI-CEC) to On .
2. Connect an HDMI-CEC-compliant device to the TV.
3. Turn on the connected external device. The device is automatically connected to the TV. After connection is finished, you can access the menu of the connected device on your TV screen using your TV remote and control the device.
" The connecting process can take up to 2 minutes to complete.
- 20 -
Read before connecting an Anynet+ (HDMI-CEC) device
" Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
" Anynet+ (HDMI-CEC)-enabled devices must be connected to the TV with an HDMI cable. Note that some HDMI cables may not support Anynet+ (HDMI-CEC).
" The TV remote control may not work under certain circumstances. If this occurs, set up the device as an Anynet+ (HDMI-
CEC)-enabled device again.
" Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
" Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theaters.
Anynet+ (HDMI-CEC) can control only one home theater system.
" To listen to 5.1-channel audio from an external device, connect the device to the TV via an HDMI cable and connect a 5.1 home theater system directly to the external device's digital audio output connector.
- 21 -
Controlling the TV with a Keyboard
Connecting a keyboard makes it easier to control the TV.
Connecting a USB keyboard
Plug the keyboard cable into the USB port.
Using the keyboard
Keyboard
Directional keys
Windows key
Enter key
ESC key
F1 / F2 / F3 / F4 key
F5 key
F6 key
F7 key
F8 key
F9 / F10 key
F11 / F12 key
Moves the focus
Displays the TV settings
Selects or runs a focused item
Returns to the previous screen
Color buttons ― / / /
Launches the Home Screen
Displays the source screen
Launches the Channel List
Mutes the sound
Adjusts the volume
Changes the channel
Remote control functions
Setting up the keyboard
In Settings General External Device Manager Keyboard Manager , you can set the following functions.
● Keyboard Language
● Keyboard Type
- 22 -
Entering Text using the On-Screen QWERTY Keyboard
Use the QWERTY keyboard to enter text on your TV.
Recommended text
Options Predict Next Character
" The image on your TV may differ from the image above depending on your model and geographical area.
Using additional functions
Select on the QWERTY keyboard screen. The following options are available:
" The options available may differ depending on the function running currently.
● Recommended text
● Reset Recommended Text Memory
● Predict Next Character (when using direction buttons)
● Language
- 23 -
Smart Features
You can enjoy various apps with Smart Hub.
Smart Hub
View descriptions of Smart Hub's basic functions.
After pressing the button on your remote control, you can surf the web and download apps with Smart Hub.
" Some of the Smart Hub services are paid services.
" To use Smart Hub , the TV must be connected to the Internet.
" Some Smart Hub features may not be available depending on the service provider, language, or region.
" Smart Hub service outages can be caused by disruptions in your Internet service.
" You can view the entire text of the Terms and Privacy Policy document by navigating to Settings Support
Terms and Privacy Policy . If you want to stop using Smart Hub , you can cancel the agreement. Try Now
" To cancel the Smart Hub service agreement though it is a required one, select Reset ( Settings General
Support Self Diagnosis Reset ) and then press the right directional button at the Smart Hub Terms & Conditions,
Privacy Policy step.
Displaying the Home Screen
Press the button.
Source
TV
Source
HDMI 1 HDMI 2 USB
Connection
Guide
" The image on your TV may differ from the image above depending on your model and geographical area.
- 24 -
On the Home Screen, you can easily run the apps you have used previously or frequently. The apps can also be moved or deleted from the screen.
1 Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons. Pressing Settings displays all setting menus available.
● Picture Mode
You can select the picture mode that provides the best viewing experience.
● Sound Mode
You can select a sound mode to optimize your listening experience.
● Sound Output
You can select which speakers the TV uses for audio output.
● Caption
You can watch TV broadcasts with captions.
●
" This function is not available on certain models in specific geographical areas.
Sleep Timer
You can automatically shut off the TV after a pre-set period of time.
● Network
You can view the current network and Internet status.
2 Source
You can select an external device connected to the TV.
"
3 Search
You can search the apps or games in Smart Hub services.
4 APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.
" To use this feature, the TV must be connected to the Internet.
"
For more information, refer to "Using the APPS Service."
- 25 -
Move
Remove
5
Moving an item on the Home Screen
Move the focus to the app you want to move, press the down directional button on the remote control, and then select Move . Move the app to the desired position by pressing the left or right directional button, and then press the
Select button. The selected app is moved on the Home screen.
6
Removing an item on the Home Screen
Move the focus to the app you want to delete, press the down directional button on the remote control, and then select Remove . The selected app is deleted.
Launching Smart Hub automatically
Settings General Smart Features Autorun Smart Hub
When you set Autorun Smart Hub to On , the TV displays the Home Screen automatically when you turn the TV on.
Launching the last used app automatically
Settings General Smart Features Autorun Last App
If Autorun Last App is set to On , the last used app is automatically run when you turn on the TV.
- 26 -
Testing Smart Hub connections
Settings Support Self Diagnosis Start Smart Hub Connection Test
Resetting Smart Hub
Settings Support Self Diagnosis Reset Smart Hub
Using a Samsung account
Create and manage your own Samsung account.
Settings General System Manager Samsung Account
Creating and managing your Samsung account
" You can view the entire text of the Terms & Policy in Settings General System Manager Samsung
Account My Account Samsung Account Privacy Policy after logging in to your Samsung account.
" You can also create a Samsung account at http://account.samsung.com. Once you have an account, you can use the same
ID on both the TV and the Samsung website.
Creating a new account
Settings General System Manager Samsung Account
(
Add Account
)
Create
Account
To create a new Samsung account, follow the instructions on the screen.
" For more information about the terms, select View Details .
" To protect personal information, select Profile image selection and password entry (High security) in the field below the password entry bar.
" If you want the TV to log you into your account automatically whenever you turn on the TV, click Sign me in automatically .
Creating a Samsung account using a Facebook account
Settings General System Manager Samsung Account
(
Add Account
)
Create with Facebook
- 27 -
Creating a Samsung account using a PayPal account
Settings General System Manager Samsung Account
(
Add Account
)
Create with PayPal
Signing in to a Samsung account
Settings General System Manager Samsung Account Sign In
Changing and adding information to a Samsung account
Settings General System Manager Samsung Account My Account Edit profile
" To change the account information, you must be logged in to your Samsung account.
Managing payment information saved on the TV
Settings General System Manager Samsung Account My Account Payment
Info
" To manage the payment information, you must be logged in to your Samsung account.
Configure the sync internet settings
Settings General System Manager Samsung Account My Account Sync
Internet
" To configure the sync internet settings, you must be logged in to your Samsung account.
Deleting a Samsung account from the TV
Settings General System Manager Samsung Account My Account Remove
Account
" To remove account information, you must be logged in to your Samsung account.
Signing out of your Samsung account
To sign out of your Samsung account, move the focus to your account at Settings General System
Manager Samsung Account , and then press the Select button. When a pop-up message appears, select Yes .
- 28 -
Viewing the user agreement and privacy policy
Settings General System Manager Samsung Account My Account Samsung
Account Privacy Policy
" To view the user agreement and privacy policy, you must be logged in to your Samsung account.
Using the APPS Service
Download and run various apps from Smart Hub.
APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.
" To use this feature, the TV must be connected to the Internet.
" When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ with the geographical area.
APPS
Editor's Choice
Most Popular
" The image on your TV may differ from the image above depending on your model and geographical area.
1 Sign In
Selecting Sign In displays the Samsung Account screen on which you can create a Samsung account or log in to the system.
- 29 -
2 App Search
You can search for available apps.
3 Settings
You can manage the installed apps.
Installing and running an app
Installing an app
1. Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2. Select Install . When the installation is complete, you can run the app immediately.
" You can view installed apps on the Settings screen.
" When the TV's internal memory is insufficient, you can install an app on a USB device.
" You can run an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while an app is running, the app is terminated.
" You cannot run an app installed on a USB device on a PC or another TV.
Launching an app
You can run the app desired from Downloaded App .
The icons below appear within the selected app's icon and indicate the following:
● : The app is installed on a USB device.
●
●
●
●
: The app has a password.
: The app is installed.
: The app needs to be updated.
: The app supports Smart View.
- 30 -
Managing purchased or installed apps
Select Settings on APPS . You can manage installed apps.
Settings
Auto Update : On
Delete
Add to Home
Lock
Move
Reinstall
View Details
" The image on your TV may differ from the image above depending on your model and geographical area.
1
Removing an app
1. Select an app to delete.
2. Select Delete . The selected app is deleted.
" Ensure that the related app data is also removed when you remove an app.
2
Adding apps to the Home Screen
1. Select an app to add.
2. Select Add to Home .
3. After the Home screen appears, move the selected app to the desired location.
4. Press the Select button. The selected app is added to the Home Screen.
- 31 -
3
Locking and unlocking apps
1. Select an app to lock or unlock.
2. Select Lock/Unlock . The selected app is locked or unlocked.
" To lock or unlock an app, enter the PIN. The default PIN is "0000." You can set the PIN in Settings General
System Manager Change PIN .
4
Moving apps
1. Select an app to move.
2. Select Move .
3. Move the app to the desired location.
4. Press the Select button.
" This function is not available on certain models in specific geographical areas.
5
Reinstalling an app
1. Select the app to install again.
2. Select Reinstall . Reinstallation starts.
6
Checking the app information details
1. Select the app to check.
2. Select View Details .
3. The app information screen appears.
7
Automatically updating apps
Installed apps can be automatically updated. If you do not want apps automatically updated, set Auto Update to Off .
" Automatic update is enabled only when the TV is connected to the Internet.
Rating apps
You can rate an app on the detailed information screen using the left or right directional button on the remote.
- 32 -
Using the e-Manual
Control and read the manual embedded in your TV.
Launching the e-Manual
Settings Support Open e-Manual
You can view the embedded e-Manual that contains information about your TV's key features.
" Alternatively, you can download a copy of the e-Manual from Samsung's website.
" Words in blue (e.g., Picture Mode ) indicate a menu item.
Using the buttons in the e-Manual
● ( Search )
●
●
●
●
( Index )
( Recently Viewed Topics )
( Try Now ): Allows you to access the corresponding menu item and try out the feature right away.
( Link ): Allows you to access the corresponding reference page.
" Some menu screens cannot be accessed from the e-Manual.
Using the Internet
Surf the Internet on your TV.
Internet
" When you select Internet , you can see recently viewed web sites or featured recommendations. When you select a desired web site, you can get immediate access to it.
" You can use the Internet more easily after connecting a keyboard and mouse.
" You can scroll web pages with the Directional pad.
" The web pages may differ from those on a PC.
" For more information about the Internet
, refer to "Read Before Using the Internet."
- 33 -
Playing pictures/video/music
Play media content stored on your TV, USB devices, smartphones, cameras, PCs, etc.
Source
Connected Device
Samsung USB
Samsung USB
Filter By : All Sort By : Title Options
" The image on your TV may differ from the image above depending on your model and geographical area.
You can play media content saved on storage devices, such as USB devices, mobile devices, and cameras, on the TV.
Try Now
" You cannot play media content if the content or the storage device is not supported by the TV. For more information, refer
to "Read Before Playing Photo, Video, or Music Files."
"
To connect the TV to a computer, refer to "Connecting a Computer."
" Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.
"
To connect the TV to a mobile device, refer to "Connecting a Mobile Device."
You can use the following functions on the media content list screen of a storage device.
1 Filter By
Filters the media content by type of media. (music, photo, video, recorded contents, etc.)
- 34 -
2 Sort By
Sorts the content list by title, date, or channel.
3 Options
Deletes or plays the selected media content in the media content list. When you select Refresh , the content list is reloaded.
" You can delete only the recorded content. To delete content, change the Filter By option to Recorded .
Playing media content
Playing multimedia content on PC or mobile device
1. Select a device with media content in Source . The media content list in the device appears.
2. Select a media content item from the list. The content is played.
"
" The content may not be played depending on the encoding method or file format. Furthermore, several functions may be restricted.
" Content on devices connected to the TV via your network may not play smoothly due to the network communication problems. If this occurs, use a USB device.
"
For more information about connection to PC, refer to "Connecting a Computer."
"
For more information about connection to mobile device, refer to "Connecting a Mobile Device."
Playing multimedia content on USB device
1. Connect a USB device to the USB port. A pop-up message appears that lets you move easily to the multimedia content list on the device.
2. Select a content item to play from the list. The content is played back.
- 35 -
Using the Music Service
This service is a music service app that recommends songs.
Music
Music
Featured
" The image on your TV may differ from the image above depending on your model and geographical area.
This service is a music service app that interworks with other music apps to recommend songs. You can search for and hear songs that you want. If you select a song, an associated app is run to play the song.
" This function may not be supported depending on the geographical region.
1 Search
You can search for music that you want.
- 36 -
Using the Sports Service
This service displays information about your favorite sports teams.
Sports
Sports
On Now
Upcoming
" The image on your TV may differ from the image above depending on your model and geographical area.
This service displays the match or game schedules of your favorite sports teams and the results.
" This function may not be supported depending on the geographical region.
1 Search
You can search your favorite sports teams.
2 Settings
You can set your favorite sports teams and events. You can also activate the notification service that shows the match schedules and results of the selected teams.
- 37 -
TV Viewing
You can use convenient features while watching TV. Additionally, you can edit the channel list or create favorite channel lists.
Viewing Broadcast Information at a Glance
See an overview of each channel's program lineup.
Using the guide
Live TV Guide Try Now
Guide
Channel List Schedule Manager
" The image on your TV may differ from the image above depending on your model and geographical area.
In the Guide , you can see the daily program schedules for each broadcaster, see program information, choose a program to watch, and set up a schedule viewing.
In the Guide , you can see only the TV programs scheduled after the current time.
" To view the Guide , you must first set the TV's clock ( Settings General System Manager Time Clock ).
- 38 -
To start Scheduled viewing, and other function for a program listed in the Guide, first move the cursor to it and then operate the remote control as follows:
– For a program currently being broadcast: Press and hold the Select button.
– For a program scheduled to be broadcast: Press the Select button.
● Schedule Viewing : You can schedule viewing of a broadcast scheduled program.
●
" For more information about watching or Schedule Viewing
, refer to "Setting Up a Schedule Viewing."
Cancel Scheduled Viewing : You can cancel scheduled viewings.
● View Details : You can see detailed information about the selected program. The information may differ with the broadcast signal. If information is not provided with the program, nothing appears.
Setting Up a Schedule Viewing
Configure the TV to show a specific channel or program at a specific time and date.
" The appears next to programs that have been configured for a schedule viewing.
" To set up a schedule viewing, you must first set the TV's clock ( Settings General System Manager Time
Clock ).
Setting up a schedule viewing for a channel
Using the schedule viewing options from the guide screen
On the Guide screen, select a program you would like to view, press and hold the Select button, and then select
Schedule Viewing in the pop-up menu that appears.
Using the schedule viewing options in the program info window
Press the Select button while watching TV. The Program Info window appears. Select a program that will be broadcast using the left or right directional buttons. Press and hold the Select button, and then select Schedule
Viewing to schedule viewing of that program.
- 39 -
Using schedule viewing to view programs at a specified time on a specified date
Live TV Schedule Manager Add Viewing
To schedule a viewing, set the values for Antenna , Channel , Repeat , Date and Start Time of the broadcast program to view, and then select Save .
" Check the current time in Settings General System Manager Time Clock .
Editing a schedule viewing
Live TV Schedule Manager
" You can set up a maximum total of 30 Schedule Viewing entries.
Setting the Schedule Viewing Time
Live TV Schedule Manager Edit
You can set the start time of a schedule viewing. The start time can be set up to 10 minutes before the program starts.
Canceling a schedule viewing
Live TV Schedule Manager Delete
Checking scheduled viewings
Live TV Schedule Manager View Details
- 40 -
Using the Channel List
Change the channel or check programs on other digital channels.
Live TV Channel List
Using the Channel List , you can change the channel or check programs on other digital channels while watching TV.
The Channel List screen contains the following icons:
● : A favorite channel
● : A locked channel.
If you press the right directional button when viewing the Channel List screen, you can use the following functions:
● All Channels
Displays the channels that the TV found during the Auto Program channel search.
● Favorites
Displays favorites lists 1 to 5.
● Air or Cable
Allows you to select Air or Cable as the DTV mode. Air is suitable for homes equipped with separate, over-theair antennas. Cable is suitable for homes that subscribe to a local cable-service. You do not need to use this function if your TV is connected to a cable or satellite box.
- 41 -
Editing channels
Edit the channels stored on your TV.
Live TV Channel List All Channels Edit Channels
The Edit Channels screen contains the following icons:
● : A favorite channel
● : A locked channel.
Re-registering and deleting a channel
Removing registered channels
To remove a channel, select it, and then select Delete .
Adding back removed channels
You can add back removed channels from the Edit Channel list only. Removed channels are displayed in gray in the
All Channels list. To display the Edit Channel list, select Live TV Channel List All Channels Edit Channels .
Then, to add back a removed channel, select it, and then select Restore .
Editing registered channels
You can access the following options by selecting All Channels Edit Channels:
Changing a channel name
After selecting a channel to change in Edit Channels , select Rename Channel to change the channel name.
" This function is only available for selected channels.
" This function is available for analog channels only.
- 42 -
Using Program Rating Lock
Settings Broadcasting Program Rating Lock Settings
Try Now
This function is useful for controlling what children watch on TV. Program Rating Lock Settings does not, however, block programs originating from external sources, such as Blu-ray players, DVD players, or USB files.
Every time you access Program Rating Lock Settings , you must enter the security PIN. You must also enter this PIN to watch a blocked program. The default PIN is 0000. To change the PIN, go to Settings General System
Manager Change PIN .
" Program Rating Lock Settings may not be supported depending on your input signal.
"
For more information about how to set your password, refer to "Setting up a password."
"
Watching blocked / restricted programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating Lock Settings blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Creating a Personal Favorites List
Designate frequently watched channels as favorite channels.
Favorite channels are highlighted in the Edit Channels and All Channels screens with the symbol.
Registering channels as favorites
Live TV Channel List
1. Press the right directional button on your remote control.
2. Select Favorites .
3. Select one of the five favorites lists.
4. Move to Edit Favorites .
5. Select a channel to add to the favorites list.
6. Select . The selected channel is registered in the favorites list.
- 43 -
Viewing and selecting channels on Favorites lists only
Live TV Channel List
1. Press the right directional button on your remote control.
2. Select Favorites .
3. Select the desired list among the five favorites lists on the screen. The channels in the selected favorites list appear.
" Only favorites lists that contain registered channels will display channels.
Editing a Favorites List
Edit a favorites channel list.
Live TV Channel List
After pressing the right directional button on your remote control, select Favorites Favorites 1 - Favorites 5 Edit
Favorites . The Edit Favorites screen appears.
Adding channels to favorites list
Select channels to add and select the icon. The selected channels are added to favorites list.
Removing channels from a favorites list
Select channels in a favorites list, and then select the button.
Rearranging a favorites list
Select one or more channels, and then select Change order . The Change order highlight appears. Press the up/down directional buttons to indicate the new location for the channels. Press the Select button to set the channels into their new location.
Renaming a favorites list
Select the favorites list you want to rename, and then select Rename Favorites . Enter a new name using the onscreen keyboard that appears, and then select Done .
- 44 -
TV-Viewing Support Functions
Use the functions that are available while watching TV.
Changing the broadcast signal
Live TV Channel List
After pressing the right directional button on your remote control, select Antenna to choose Air or Cable .
" You do not need to use this function if your TV is connected to a cable or satellite box.
Scanning for available channels
Settings Broadcasting Auto Program
" Do not use this function if your TV is connected to a cable or satellite box.
" If the TV has saved channels, Auto Program deletes the existing list, and then saves the newly scanned channels.
Configuring advanced broadcasting audio settings
Settings Broadcasting Audio Options
Audio Options functions differently for analog and digital channels.
" This function is not available on certain models in specific geographical areas.
Selecting a Language
Settings Broadcasting Audio Options Preferred Language
This is the language you will hear while watching TV if the language is included in the broadcast signal.
Listening to Multi-Track Sound
Settings Broadcasting Audio Options Multi-Track Sound
- 45 -
Picture and Sound
You can change the settings for the picture and the sound according to your preference.
Adjusting the Picture Quality
Change the Picture Mode and adjust Expert Settings.
Choosing a picture mode
Settings Picture Picture Mode Try Now
You can select the Picture Mode that provides the best viewing experience.
● Dynamic
Makes the picture brighter and clearer in bright viewing environments.
● Standard
Is the default mode suitable for general viewing environments.
● Natural
Reduces eye strain for a comfortable viewing experience.
● Movie
Is suitable for watching TV or movies in a dark room.
Configuring advanced picture settings
Settings Picture Expert Settings Try Now
Configure the screen settings to your taste by using the following functions:
● Backlight
● Brightness
● Contrast
● Sharpness
● Color
- 46 -
● Tint (G/R)
● Apply Picture Settings
● Digital Clean View
● Auto Motion Plus Settings
●
" When LED Clear Motion is set to On , the screen appears darker than when it is Off .
Local Dimming
●
" This function is not available on certain models in specific geographical areas.
Contrast Enhancer
● Film Mode
●
" This function is only available when the input signal is TV, AV, Component (480i, 1080i), or HDMI (1080i).
Color Tone
" Cool and Standard are only available when Picture Mode is set to Dynamic .
●
" Color Tone is only available when the TV is connected to a computer via an HDMI-to-DVI cable.
White Balance
● Gamma
● RGB Only Mode
● Color Space Settings
● Reset Picture
- 47 -
Setting the Viewing Environment for External Devices
You can optimize the TV for viewing specific video formats.
Playing games on an optimized screen
Settings General External Device Manager Game Mode
You can enable the game mode to optimize the TV's settings for playing video games with a gaming console, such as a PlayStation™ or Xbox™.
" The game mode is not available for normal TV viewing.
" The screen may shake somewhat.
" When Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically.
" To use other external device on the same port, remove the game console connection, turn off the function, and then connect the external device to the port.
Using HDMI black level
Settings General External Device Manager HDMI Black Level
Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast, or dull colors generated by external devices connected to the TV via an HDMI cable.
" This function is only available when the input signal, connected to the TV via an HDMI connector, is set to RGB444.
Registering the TV as a DivX-certified device (watching for pay DivX movies)
Settings General External Device Manager DivX® Video On Demand
" Digital Rights Management (DRM) is a technical security mechanism that protects the content provider's copyright.
" You can watch recorded movies or free DivX movies without registration.
" Visit the DivX website (http://www.divx.com) and log in to your user account before registering the TV as a DivX-certified device. If you do not have an account, create one.
- 48 -
Picture Support Functions
Configure the picture settings for your TV.
Changing the picture size
Settings Picture Picture Size Settings Picture Size Try Now
You can change the size of the picture displayed on the TV screen.
● 16:9 Standard
● Custom
● 4:3
[ Do not watch your TV in 4:3 mode for extended periods of time. This can cause the black bars, which appear at the top, bottom, left, and right sides of the screen in 4:3 mode, to "burn in" and appear as temporary or permanent after images on the screen. Damage to the screen caused by screen "burn in" is not covered by your warranty.
"
Fitting the picture to the screen
Settings Picture Picture Size Settings Fit to Screen
" The availability of this function depends on the Picture Size .
" The availability of this function depends on broadcasting signals.
Adjusting the picture size and/or position
Settings Picture Picture Size Settings Zoom and Position
" This function is available only if Picture Size is set to Custom .
" To change the picture position on analog channels, first enlarge the picture and then change the position.
- 49 -
Adjusting the Sound Quality
Change the Sound Mode and adjust Expert Settings.
Choosing a sound mode
Settings Sound Sound Mode Try Now
You can select a favorite sound mode suitable for the content type or the listening environment.
● Standard
● Optimized
● Amplify
Configuring advanced sound settings
Settings Sound Expert Settings
Try Now
You can personalize the sound quality by adjusting the following settings.
● Balance
● Equalizer
● HDMI Input Audio Format
● Digital Output Audio Format
" If you use a receiver that does not support Dolby Digital Plus, you will hear no sound if you select Dolby Digital+ .
● Audio Delay
● Sound Feedback
● Reset Sound
- 50 -
Using the Sound Support Functions
Configure the sound settings for your TV.
Selecting speakers
Settings Sound Sound Output Try Now
You can select which speakers the TV uses for audio output.
" External speakers may not be controlled with remote. When an external speaker is enabled, some sound menus are not supported.
Using the surround effect function and Multiroom speakers to create a surround sound configuration
Settings Sound Wi-Fi Speaker Surround Setup
Try Now
If you've connected one or more multiroom speakers to the TV, you can create an optimal sound set up by configuring the surround effect settings. You can select any of the Multiroom speaker configurations, with or without a sound bar.
After you have configured the surround effect, you can hear the TV's audio through the Multiroom speaker(s).
" This function is not available on certain models in specific geographical areas.
" The Surround Setup function is only available when at least one Samsung Multiroom Link compatible speaker is connected to the TV.
" The Multiroom Link function is deactivated when you activate Smart View (Screen Mirroring).
" The audio from the secondary device(s) may lag behind the audio and video of the main device that is playing the source content.
- 51 -
System and Support
You can configure system and support settings such as time, screen burn protection, software update, etc.
Setting the Time and Using the Timer
Set the current time and use the timer function.
Setting the current time
Settings General System Manager Time
You can set the Clock manually or automatically. Once the Clock is set, you can view the current time on the TV anytime.
You must set the clock in the following cases:
● The power cable is disconnected and then connected.
● The Clock Mode is changed from Manual to Auto .
● The TV is not connected to the Internet.
● No broadcast signals are received.
Setting the clock automatically
Settings General System Manager Time Clock Clock Mode Auto
" This function works only when the TV is connected to the Internet or is receiving digital broadcasts through an antenna connected.
" Depending on the broadcast signal, the displayed time may differ.
" The accuracy of the time information received may differ with the channel and signal.
- 52 -
Adjusting the clock for DST and time zone
Settings General System Manager Time Clock
Sets the right time by setting Daylight Savings Time (DST) and your local time zone.
" This function is only available when the Clock Mode is set to Auto .
● Time Zone
Selects your time zone.
● DST
Switches the Daylight Saving Time (DST) function on or off.
" This function is only available when the Clock Mode is set to Auto .
Changing the current time
Settings General System Manager Time Clock Time Offset
" Time Offset adjusts the time through a network connection. This function is only available if Clock Mode is set to Auto and the TV is connected to the Internet though a local area network.
" Time Offset adjusts the time if the TV fails to receive time information through normal digital broadcast signals.
Setting the clock manually
Settings General System Manager Time Clock Clock Mode Manual
When Clock Mode is set to Manual , you can directly enter the current time. Select the date and time by using the directional buttons on the remote control.
Using the timers
Using the sleep timer
Settings General System Manager Time Sleep Timer
You can use this function to automatically shut off the TV after a pre-set period of time. You can set the sleep timer to up to 180 minutes to automatically turn off the TV.
Turning off the TV using the off timer
Settings General System Manager Time Off Timer
You can set Off Timer to shut off the TV automatically at a specific time. Off Timer is only available if the Clock has been set.
- 53 -
Using the Screen Burn Protection and Energy Saving Functions
Protect the screen from screen burn-in and reduce the TV's energy consumption.
Preventing screen burn
Settings General System Manager Auto Protection Time
Still images can leave burned-in after-images if left on the screen for a long period of time. If a still image continues for two hours, the screen burn protection function can be activated automatically to protect the screen from burnedin after-images.
Reducing the energy consumption of the TV
Settings General Eco Solution
Try Now
You can adjust the brightness level of the TV, reduce overall power consumption, and prevent overheating.
" This function is not available on certain models in specific geographical areas.
● Ambient Light Detection
Automatically adjusts the brightness level of the TV, according to the ambient light level, to reduce power consumption. If the Ambient Light Detection has adjusted the screen brightness to a too bright or dark level, you can select Minimum Backlight to manually adjust the minimum screen brightness.
● Minimum Backlight
When the Ambient Light Detection is turned on, you can manually adjust the minimum brightness of the TV screen to consider the brightness level of the surroundings. This function acts only when the value is less than the setting in Settings Picture Expert Settings Backlight .
● Power Saving Mode
Allows you to select a brightness setting from the list to reduce the TV's power consumption.
● Motion Lighting
Adjusts the brightness in response to on-screen movements to reduce power consumption.
● Auto Power Off
Automatically turns off the TV to reduce unnecessary power consumption if there is no operation for 4 hours.
- 54 -
Updating the TV’s Software
View your TV's software version and update it if necessary.
Settings Support Software Update
Try Now
Updating the TV’s software to the latest version
[ DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically after completing the software update. Video and audio settings will be reset to their defaults after a software update.
Updating through the Internet
Settings Support Software Update Update Now
" Updating from the Internet requires an active Internet connection.
Updating through a USB device
Settings Support Software Update Update Now
After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device to the TV to update.
" To update using a USB flash drive, download the update package from Samsung.com to your computer. Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update package.
Updating the TV automatically
Settings Support Software Update Auto Update
If the TV is connected to the Internet, you can have the TV update its software automatically while you are watching the TV. When the background update is completed, it is applied the next time the TV is turned on.
If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you want this function disabled, use the Select button to turn it off.
" This function may take a longer time if another network function is running concurrently.
" This function requires an Internet connection.
- 55 -
Protecting the TV from Hacking and Malicious Code
Protect your TV from hacking attempts and malicious code.
Settings General System Manager Smart Security
You can use Smart Security to protect the TV from hacking and malicious code when it is connected to the Internet.
Scanning the TV and connected storage for malicious code
Settings General System Manager Smart Security Scan
If malicious code is found, the results of the scan will appear on the screen. This result window displays all malicious code found. You can quarantine (isolate) the code. Quarantining prevents it from executing.
1. Select all the malicious code to quarantine.
2. Select Isolate . The selected malicious code is relocated to the Isolated List .
" The Isolated List displays all quarantined malicious codes.
Using Other Functions
View other functions.
Running the accessibility functions
Settings General Accessibility
Try Now
Enabling voice guides for the visually impaired
Settings General Accessibility Voice Guide Settings
You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this function, set Voice Guide to On . With Voice Guide on, the TV provides voice guides for channel change, volume adjust, information on current and upcoming programs, schedule viewing, other TV functions, various content in the Web
Browser, and in Search .
" The Voice Guide is provided in the language that is specified on the Language screen. However, some languages are not supported by Voice Guide even though they are listed in the Language screen. English is always supported.
" Availability depends on the specific model.
- 56 -
Changing the volume, speed, and pitch of the Voice Guide
You can configure the volume, speed, and pitch level of the Voice Guide .
Enabling audio for the video description function
Settings General Accessibility Video Description
You can activate an audio guide that provides an audio description of video scenes for the visually impaired. This function is only available with broadcasts that provide this service.
White text on black background (high contrast)
Settings General Accessibility High Contrast
You can change major service screens to white text on a black background or change the transparent TV menus to opaque so that text can be more easily read. To activate this function, set High Contrast to On .
Enlarging the font (for the visually impaired)
Settings General Accessibility Enlarge
You can enlarge the size of the font on the screen. To activate, set Enlarge to On .
- 57 -
Learning about the remote control (for the visually impaired)
Settings General Accessibility Learn TV Remote
This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control.
When this function is activated, you can press a button on the remote control and the TV will tell you its name. To return to the previous screen, press the button twice. To exit, press and hold the button.
" This function is only available when Voice Guide is enabled.
Learning about the TV menu
Settings General Accessibility Learn Menu Screen
Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.
Showing captions
Settings General Accessibility Caption Settings Caption
Set Caption to On to watch programs with the captions displayed.
" Captions are not displayed by programs that do not support captions.
" The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.
Selecting the caption language
Settings General Accessibility Caption Settings Caption Mode
● Default / CC1 ~ CC4 / Text1 ~ Text4
(Analog channels only) Operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcast signal, the analog caption function may or may not work with digital channels.)
● Default / Service1 ~ Service6 / CC1 ~ CC4 / Text1 ~ Text4
(Digital channels only) Works with digital channels. Service1 – Service6 may not be available in digital caption mode depending on the broadcast.
- 58 -
Setting the digital caption related options
Settings General Accessibility Caption Settings Digital Caption Options
You can change the font color, background color, and size settings.
" The foreground and background colors and opacity settings cannot be the same.
Configuring advanced system settings
Settings General System Manager Try Now
Changing the menu language
Settings General System Manager Language
Setting up a password
Settings General System Manager Change PIN
The PIN input window appears. Enter a PIN. Enter it again to confirm it. The default PIN is 0000.
" If you forget your PIN, you can reset it with your remote control. With the TV turned on, press the following buttons on the remote control in the order shown to reset the PIN to 0000.
- 59 -
Checking Notifications
Settings General System Manager View Notifications
You can view the list of event messages generated by the TV. View Notifications appears on the screen when events such as an update release for an app or a Samsung account login/logout occurs.
" To delete all notifications, select Delete All .
" To check the SMART TV's service notifications in a Internet , select Service Notice .
Using the TV as a display model (for retail stores)
Settings General System Manager Usage Mode
You can turn the TV into a display model for retail environments by setting Usage Mode to Retail Mode .
" For all other uses, select Home Mode .
" With Retail Mode , some functions are disabled, and the TV automatically resets itself after a preset amount of time.
Checking digital channel signal info and strength
Settings Support Self Diagnosis Signal Information
" If your TV is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.
Restoring the TV to the factory settings
Settings Support Self Diagnosis Reset
You can restore all TV settings (excluding the Internet and network settings) to the factory defaults.
1. Select Reset . The security PIN entry window appears.
2. Enter the security PIN, and then select Yes . All settings are then reset. The TV turns off and on again automatically and displays the Setup screen.
" For more information on Setup , refer to the user manual that came with the TV.
- 60 -
Troubleshooting
If you have a problem with your TV, you can access various solutions while watching TV. If your problem is not addressed in the Troubleshooting section, contact the Samsung Call Center.
Getting Support
Get help directly from Samsung if you have a problem with your TV.
Getting support through Remote Management
Settings Support Remote Management Try Now
After consenting to our service agreement, you can use Remote Management to access Remote Support and have a Samsung service technician diagnose your TV, correct problems, and update your TV's software remotely, via the web. You can also turn Remote Management on and off.
" This function requires an Internet connection.
What is Remote Support?
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:
● Diagnose your TV
● Adjust the TV settings for you
● Perform a factory reset on your TV
● Install recommended firmware updates
How does Remote Support Work?
You can easily have a Samsung Tech service your TV remotely:
1. Call the Samsung Contact Center and ask for remote support.
2. Open the menu on your TV and go to the Support section.
3. Select Remote Management , then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.
4. The agent will then access your TV.
- 61 -
Finding the contact information for service
Settings Support About This TV
Try Now
You can view the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, information about Smart Hub, and other information you may need to get service support from a
Samsung call agent or the Samsung website.
" You can also view information by scanning the QR code of your TV.
Requesting service
Settings Support Request Support Try Now
You can request service when you encounter a problem with the TV. Select the item matching the problem that you encountered, and then select Request Now or Schedule Appointment Send . Your service request will be registered. A servicer near you will contact you to set up or confirm your service appointment. The Samsung Contact
Center will contact you to set up or confirm your service appointment.
" You must agree to the terms and conditions for the service request.
" This function is not available in specific geographical areas.
" This function requires an Internet connection.
Diagnosing TV operational issues
You can diagnose issues with your TV and Smart Hub and run reset functions.
Settings Support Self Diagnosis
Try Now
You can use the Picture Test to help diagnose video issues and the Sound Test to diagnose sound issues. You can also view signal strength information for over-the-air digital signals, test the Smart Hub Internet connection, and run the
Smart Hub and TV factory reset functions.
- 62 -
There Is a Problem with the Picture
When the TV has trouble with the picture, these steps may help resolve the problem.
Testing the picture
Settings Support Self Diagnosis Start Picture Test
Before you review the list of problems and solutions below, use Start Picture Test to determine if the problem is caused by the TV. Start Picture Test displays a high definition picture you can examine for flaws or faults.
The problem
Flickering and Dimming
Try this!
If your Samsung Television is flickering or dimming sporadically, you may need to disable some of the energy efficiency features. Disable Power Saving Mode ( Settings
General Eco Solution Power Saving Mode ), Ambient Light Detection ( Settings
General Eco Solution Ambient Light Detection ), or Motion Lighting (
Settings General Eco Solution Motion Lighting ).
Component Connections/
Screen Color
If the color on your Samsung television screen is not correct or the black and white colors are off, run Start Picture Test ( Settings Support Self Diagnosis Start Picture
Test ).
If the test results indicate that the problem is not caused by the TV, do the following:
● Confirm that the video input connectors are connected to the correct external device video output connectors.
● Check the other connections as well. If the TV is connected to an external device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged into their proper connectors.
Screen Brightness
Ghosting, Blurring, or
Juddering
Unwanted Powering Off
Problems Powering On
If the colors on your Samsung TV are correct but just a little too dark or bright, try adjusting the following settings first.
● Select Settings Picture Expert Settings and adjust the Backlight , Contrast ,
Brightness , Sharpness , Color , or Tint (G/R) settings.
If you notice ghosting or blurring on the screen, use the Auto Motion Plus Settings function
( Settings Picture Expert Settings Auto Motion Plus Settings ) to resolve the issue.
If your Samsung TV appears to turn off by itself, try disabling some of the TV's energy efficiency functions. See if Sleep Timer ( Settings General System Manager
Time Sleep Timer ) has been enabled. The Sleep Timer automatically turns the TV off after a specified period of time. If the Sleep Timer has not been enabled, see if Auto Power Off (
Settings General Eco Solution Auto Power Off ) has been enabled and disable it.
If you are having problems powering on your Samsung television, there are a number of things to check before calling the service department. Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally. Make sure that the antenna cable or cable TV cable is firmly connected. If you have a cable or satellite box, confirm that it is plugged in and turned on.
- 63 -
The problem
Unable to find a Channel
The TV image does not look as good as it did in the store.
The picture is distorted.
The color is wrong or missing.
The color is poor or the picture is not bright enough.
Try this!
If your TV is not connected to a cable or satellite box, run Auto Program ( Settings
Broadcasting Auto Program ).
Store displays are all tuned to digital, HD (high definition) channels.
If you have an analog cable or satellite box, upgrade to a digital cable or satellite box. Use
HDMI or Component cables to deliver HD (high definition) picture quality.
Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that is broadcasting HD content.
● Cable/Satellite Subscribers: Try HD channels from the channel lineup.
● Air/Cable Antenna Connection: Try HD channels after running the Auto Program function.
Adjust the cable or satellite box's video output resolution to 1080i or 720p.
The compression of video content may cause picture distortions, especially in fast moving pictures from sports programs and action movies.
If the signal reception is weak or poor, screen distortion may be visible but it is not a malfunction.
Mobile phones used close to the TV (within 3.2 ft) may cause noise on analog and digital channels.
If you’re using a Component connection, make sure that the Component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
Go to Picture and then adjust the Picture Mode , Brightness , Sharpness , and Color settings.
See if Power Saving Mode ( Settings General Eco Solution Power Saving
Mode ) has been enabled.
Try resetting the picture. ( Settings Picture Expert Settings Reset Picture )
There is a dotted line on the edge of the screen.
Change Picture Size Settings to 16:9 Standard .
" If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung’s Call Center for assistance.
" If the test picture is displayed properly, there may be a problem with an external device. Please check the connections.
" If the problem persists, check the signal strength or refer to the external device’s user manual.
- 64 -
I Can't Hear the Sound Clearly
When the TV has difficulties with sound, these steps may help resolve the problem.
Testing the sound
Settings Support Self Diagnosis Start Sound Test
If the TV plays the Start Sound Test melody without distortion, there may be a problem with an external device or the broadcast signal's strength.
Try this!
The problem
There is no sound or the sound is too low at maximum volume.
Check the volume control of the device (cable or satellite box, DVD, Blu-ray, etc.) connected to your TV.
The picture is good but there is no sound.
Set Settings Sound Sound Output to TV Speaker .
If you are using an external device, check the device’s audio output option. (For example, you may need to change your cable box’s audio option to HDMI if the box connected to your
TV is using an HDMI cable.)
To listen to computer sound, connect an external speaker to the computer’s audio output connector.
If your TV has a headphone jack, make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the device’s power cable.
No sound is heard.
The speakers are making an odd sound.
Check whether the Digital Output Audio Format is set to Dolby Digital+ in
Settings Sound Expert Settings Digital Output Audio Format . If you are using a receiver that does not support Dolby Digital Plus, you will hear no sound when you select
Dolby Digital+ .
Make sure that the audio cable is connected to the correct audio output connector on the external device.
For antenna or cable connections, check the signal information. A low signal level may cause sound distortions.
Run Start Sound Test ( Settings Support Self Diagnosis Start Sound
Test ).
- 65 -
There Is a Problem with the Broadcast
When the TV has difficulties receiving broadcasts, these steps may help resolve the problem.
The problem
“Weak or No Signal” displayed in TV mode/ cannot find channel.
The TV is not receiving all channels.
There are no captions with digital channels.
The picture is distorted.
The picture quality is low.
Try this!
Select Source to confirm that the correct input source has been selected.
If the TV is not connected to a cable or satellite box, run Auto Program to search for channels
( Settings Broadcasting Auto Program ).
Confirm that the coaxial cable is securely connected to the TV.
Run Start Setup ( Settings General Start Setup ) or Auto Program (
Settings Broadcasting Auto Program ).
Go to Caption Settings ( Settings General Accessibility Caption Settings ) and change the Caption Mode .
Some channels may not have caption data.
The compression of the video content may cause picture distortions. This is especially true with fast moving pictures from sports programs and action movies.
A weak signal can cause picture distortions. This is not a problem with the TV.
Select high definition (HD) channels or programs.
My Computer Won't Connect
When the TV has difficulties connecting to a PC, these steps may help resolve the problem.
The problem
The "Mode Not Supported" message appears.
The video is OK but there is no audio.
Try this!
Set your PC’s output resolution so it matches a resolution supported by the TV.
If you are using an HDMI connection, check the audio output setting on your PC.
If you are using an HDMI-to-DVI cable, a separate audio cable is required. Note that the
HDMI-to-DVI connection is only supported by the HDMI (DVI) port and does not transmit audio. To listen to the computer sound, connect external speakers to the audio output connection of the computer.
- 66 -
The TV Won't Connect to the Internet
When the TV has difficulties connecting to the Internet, these steps may help resolve the problem.
The problem
The TV cannot connect to your network or apps (for
Internet compatible models only).
The wireless network connection failed.
Make sure the TV has a network connection ( Settings General Network
Network Status ).
Contact your Internet service provider.
Try this!
Confirm your wireless modem/router is on and connected to the Internet.
The wireless network signal is too weak.
The software update over the Internet has failed.
Position your wireless router, modem router, or access point in a central location. Avoid putting it in a corner.
Use a wireless repeater to get an instant boost in your wireless signal strength. Place the repeater halfway between your wireless router and your TV.
The most common wireless technology, 802.11g (wireless-G), operates at a frequency of
2.4 GHz. This frequency is widely used by many cordless phones, microwave ovens, baby monitors, garage doors, and other wireless devices. Reduce interference by not using or turning off wireless devices that use the 2.4 GHz frequency. Instead, use devices that communicate via the 5.0 GHz frequency.
Check the network connection status ( Settings General Network
Network Status ).
If the TV is not connected to a network, connect it to a network.
The upgrade stops if you already have the latest software version.
- 67 -
Anynet+ (HDMI-CEC) Isn't Working
When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.
The problem
Anynet+ does not work.
I want to start Anynet+.
Try this!
Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
Check if the power cord of the Anynet+ device is properly connected.
Check the cable connections of the Anynet+ device.
Go to Anynet+ (HDMI-CEC) ( Settings General External Device Manager
Anynet+ (HDMI-CEC) ) and see if Anynet+ (HDMI-CEC) has been set to On .
Anynet+ may not function when some other functions are active, including Channel Search,
Smart Hub, Initial Setup, etc.
If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.
Move the focus to the Anynet+ device at Source , and then press Select button.
Check if the Anynet+ device is properly connected to the TV, and then select Anynet+ (HDMI-
CEC) ( Settings General External Device Manager Anynet+ (HDMI-CEC) ) menu to see if Anynet+ (HDMI-CEC) is set to On .
I want to exit Anynet+.
The connected device is not displayed.
The TV audio is not being played through the receiver.
Set Anynet+ (HDMI-CEC) ( Settings General External Device Manager
Anynet+ (HDMI-CEC) ) to Off .
The message "Connecting to Anynet+ device..." or
"Disconnecting from
Anynet+ device" appears on the screen.
The Anynet+ device won't play.
You cannot use the remote control when the TV is configuring Anynet+ or switching to a viewing mode. Use the remote control after the TV has completed the Anynet+ configuration or has switched to a viewing mode.
You cannot use the play function when Start Setup is in progress.
Check whether the device supports Anynet+.
Check whether the HDMI cable is properly connected.
Go to Anynet+ (HDMI-CEC) ( Settings General External Device Manager
Anynet+ (HDMI-CEC) ) and see if Anynet+ (HDMI-CEC) has been set to On .
Scan for Anynet+ devices again.
Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.
If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.
Connect an optical cable to the TV and the receiver.
ARC enables the TV to output digital sound via the HDMI (ARC) port.
However, ARC is only available when the TV is connected to an audio receiver that supports
ARC.
- 68 -
I Have Trouble Launching/Using Apps
When apps aren't working, these steps may help resolve the problem.
The problem
I launched an app, but it's in English. How can I change the language?
My application is not working.
Try this!
Languages supported by the app may be different from the user interface language. The ability to change the language depends on the service provider.
Check with the service provider.
Refer to the Help section on the application service provider's website.
My File Won't Play
When files aren't playing, this may help resolve the problem.
The problem
Some files can't be played.
Try this!
This problem may occur with high-bitrate files. Most files can be played back, but you might experience problems with high-bitrate files.
I Want to Reset the TV
Initialize the settings to factory defaults.
Reset
Reset Settings
Path
Settings
Support Self Diagnosis
Reset
Reset Smart Hub
Settings
Support Self Diagnosis
Reset Smart Hub
Description
Resets Picture , Sound , Broadcasting , and all other settings, except for the network settings, to the default settings.
Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts, linked service accounts, Smart Hub service agreements, and Smart Hub applications.
- 69 -
Other Issues
Use these procedures to resolve other issues that may occur.
The problem
The TV is hot.
The picture won’t display in full screen.
Try this!
Watching TV for an extended period of time causes the panel to generate heat. The heat from the panel is dissipated through internal vents running along the top of the TV. The bottom, however, may feel hot to the touch after extended use. Children watching TV need constant adult supervision to prevent them from touching the TV. This heat, however, is not a defect and does not affect the TV's functionality.
HD channels will have black bars on either side of the screen when displaying upscaled SD
(4:3) content.
Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.
Adjust the picture size options on your external device or set the TV to full screen.
The "Mode Not Supported" message appears.
The output resolution of the attached device is not supported by the TV. Check the TV's supported resolutions and adjust the external device’s output resolution accordingly.
The Captions item in the TV is grayed out.
The TV smells of plastic.
Signal Information under
Self Diagnosis isn't activated.
When an external device is connected with an HDMI or Component cable, the Caption function is unavailable. Adjust the caption setting on the external device.
This smell is normal and will dissipate over time.
Verify that the current channel is a digital channel.
Signal Information is only available for digital channels.
The TV is tilted to the side.
Remove the base stand from the TV and reassemble it.
The stand is wobbly or crooked.
The remote control does not work.
The Broadcasting function has been deactivated.
Make sure the indicator arrows on the stand and stand holder are properly aligned.
The TV ships with protective stickers covering some of the sensors. Make sure all of the stickers have been removed.
Broadcasting is only available when the Source is set to TV .
Broadcasting cannot be accessed while you watch TV using a cable or satellite box.
- 70 -
The problem
There is an intermittent loss of audio or video.
Try this!
Check the cable connections and reconnect them.
Loss of audio or video can be caused by using overly rigid or thick cables.
Make sure the cables are flexible enough for long term use. If you are mounting the TV to a wall, we recommend using cables with 90-degree connectors.
There are small particles on the TV's bezel.
This is part of the product’s design and is not a defect.
The settings are lost after
5 minutes or every time the
TV is turned off.
If Usage Mode is set to Retail Mode , the TV's audio and video settings are automatically reset every 5 minutes.
Change Usage Mode ( Settings General System Manager Usage Mode ) to
Home Mode .
A POP (TV’s internal banner ad) appears on the screen.
The TV is making a popping noise.
The TV is making a humming noise.
Change Usage Mode
Home Mode .
( Settings General System Manager not indicate a product malfunction. The TV is safe to use.
Usage Mode ) to
The expansion and contraction of the TV's outer casing may cause a popping noise. This does
Your TV utilizes high-speed switching circuits and high levels of electrical current.
Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.
Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.
Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.
- 71 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Read Before Using APPS
Read this information before using APPS.
● Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Visit http:// www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
● Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
● Application services may be provided in English only and available content may differ with the geographical area.
● For more information about applications, visit the applicable service provider's website.
● An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
● Application services and updates may become unavailable.
● Application content is subject to change by the service provider without prior notice.
● Specific services may differ with the version of the application installed on the TV.
● An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
● Depending on the service provider's policies, certain applications may not support multitasking.
- 72 -
Read Before Using the Internet
Read this information before using the Internet .
● The Internet is not compatible with Java applications.
● You can download the supported types of files, such as videos, mp3 files, and images, but you cannot download files that are not supported by the TV. If you attempt to download an unsupported file, you will receive an error message instead.
● The Internet may not be able to access certain websites.
● The TV does not support playback of flash videos.
● E-commerce for online purchases is not supported.
● With websites that have scrollable windows, scrolling a window can result in corrupted characters.
● ActiveX is not supported.
● Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
● The response to remote commands and the resulting on-screen display may be delayed while a web page is loading.
● Loading a web page may be delayed or suspended completely with certain operating systems.
● The copy and paste operations are not supported.
● When composing an email or a simple message, certain functions such as the font size and color selection may not be available.
● There is a limit to the number of bookmarks and the size of the log file that can be saved.
● The number of windows that can be opened concurrently differs with the search conditions and the TV model.
● The web browsing speed will differ with the network environment.
● If the Clock ( Settings General System Manager Time Clock ) has not been set, the browsing history will not be saved.
● The browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
- 73 -
● Depending on the types of video/audio codecs supported, it might not be possible to play certain video and audio files while playing HTML5 Video/Audio.
● Video sources from PC-optimized streaming service providers may not play properly on our proprietary
Internet .
Read Before Playing Photo, Video, or Music Files
Read this information before playing media content.
Limitations on use of photo, video, and music files
Try Now
● The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the USB port. The TV may not be able to recognize a USB device or read the files on the device if it is connected with a USB extension cable. Do not disconnect USB devices while they are transferring files.
● When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard drive with its own power adapter.
● Certain digital cameras and audio devices may not be compatible with the TV.
● If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. USB devices that use high-power input should be connect to the USB [5V, 1A] port.
● The TV supports the FAT, exFAT, and NTFS file systems.
● After sorting files in the Folder view mode, the TV can display up to 1,000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
● Certain files, depending on how they are encoded, may not play on the TV.
● Certain files are not supported on all models.
- 74 -
Supported external subtitles
Name
MPEG-4 Timed text
SAMI
SubRip
SubViewer
Micro DVD
SubStation Alpha
Advanced SubStation Alpha
Powerdivx
SMPTE-TT Text
Supported internal subtitles
Name
Xsub
SubStation Alpha
Advanced SubStation Alpha
SubRip
VobSub
MPEG-4 Timed text
TTML in smooth streaming
SMPTE-TT TEXT
SMPTE-TT PNG
Format
.ttxt
.smi
.srt
.sub
.sub or .txt
.ssa
.ass
.psb
.xml
Container
AVI
MKV
MKV
MKV
MKV
MP4
MP4
MP4
MP4
- 75 -
Supported image formats and resolutions
File extension
Format
JPEG
PNG
BMP
*.mpo
MPO
" The MPO format is supported partly.
Supported music formats and codecs
File extension
*.mp3
*.m4a
*.mpa
*.aac
*.flac
*.ogg
Format
MPEG
MPEG4
FLAC
OGG
Codec
MPEG1 Audio Layer 3
AAC
FLAC
Vorbis
*.wma
WMA WMA
Note
Supports up to 2 channels
Supports up to 2 channels
Supports WMA 10 Pro up to 5.1 channels.
WMA lossless audio is not supported.
Supports up to the M2 profile.
Resolution
15360 x 8640
4096 x 4096
4096 x 4096
15360 x 8640
*.wav
*.mid
*.midi
*.ape
*.aif
*.aiff
*.m4a
wav midi ape
AIFF
ALAC wav midi ape
AIFF
ALAC
Supports type 0 and type 1.
Seek is not supported.
Supports USB device only.
- 76 -
Supported video codecs
File format
Container Video codecs
H.264 BP/MP/HP
HEVC (H.265 - Main, Main10)
Motion JPEG
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.mov
*.flv
*.vob
*.svi
*.m2ts
*.mts
*.divx
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.webm
*.rmvb
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
SVAF
WebM
RMVB
MVC
DivX 3.11 / 4 / 5 / 6
MPEG4 SP/ASP
Window Media Video v9 (VC1)
MPEG2
MPEG1
Microsoft MPEG-4 v1, v2, v3
Window Media Video v7 (WMV1), v8 (WMV2)
H.263 Sorrenson
VP6
VP8
RV8/9/10 (RV30/40)
Resolution
1920 x 1080
1366 x 768
1360 x 768
" Depending on the model.
Frame rate
(fps)
60
Bitrate
(Mbps)
Audio codecs
30
60
30
60
20
Dolby Digital
LPCM
ADPCM(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital Plus
MPEG(MP3)
DTS (Core, LBR HD_
MA, HD_HRA,)
G.711(A-Law,
μ-Law)
Vorbis
RealAudio 6
- 77 -
Other restrictions
● Codecs may not function properly if there is a problem with the content.
● Video content does not play or does not play correctly if there is an error in the content or container.
● Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility ratings.
● If the Index Table is has an error, the Seek (Jump) function will not work.
● When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
● Some USB/digital camera devices may not be compatible with the TV.
● HEVC codec is only available in MKV / MP4 / TS containers.
● The MVC codec is supported partly.
Video decoders
● H.264 FHD is supported up to Level 4.1. (TV does not support FMO / ASO / RS)
● VC1 AP L4 is not supported.
● GMC 2 or above is not supported.
Audio decoders
● Supports WMA 10 Pro up to 5.1 channels. Supports up to the M2 profile. WMA lossless audio is not supported.
● QCELP and AMR NB/WB are not supported.
● Vorbis is supported for up to 5.1 channels.
● Dolby Digital Plus is supported for up to 5.1 channels.
● The DTS LBR codec is only available for MKV / MP4 / TS containers.
● The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec
- 78 -
Read After Installing the TV
Read this information after installing the TV.
Picture sizes and input signals
The Picture Size settings are applied to the current source. The applied Picture Size Settings will remain in effect whenever you select that source unless you change them.
Component
Input signal Picture size
16:9 Standard , Custom , 4:3
Digital channel (720p)
Digital channel (1080i, 1080p)
HDMI (720p)
HDMI (1080i, 1080p)
USB (720p)
USB (1080i/p @ 60 Hz)
16:9 Standard , Custom , 4:3
16:9 Standard , Custom , 4:3
16:9 Standard , Custom , 4:3
16:9 Standard , Custom , 4:3
16:9 Standard , Custom , 4:3
16:9 Standard , Custom , 4:3
- 79 -
Installing an anti-theft lock
An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the lock slot on the back of the TV. The slot has a icon next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is sold separately. The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual for more information.
" This function is not available on certain models in specific geographical areas.
Read before setting up a wireless Internet connection
Precautions for wireless Internet
● This TV supports the IEEE 802.11 a /b /g /n /ac communication protocols. Samsung recommends using IEEE
802.11n. Video files stored on a device connected to the TV via a Home Network may not play back smoothly.
●
" IEEE 802.11 ac communication protocol is not available on certain models.
To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.
● Select a channel that is not currently in use for the wireless router. If the channel set for the wireless router is currently being used by another device, the result is usually interference and/or a communications failure.
● Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a password using characters and numbers. This password is then needed to connect to a security-enabled AP.
Wireless security protocols
The TV only supports the following wireless network security protocols. The TV cannot connect to non-certified wireless routers.
– Authentication Modes: WEP, WPAPSK, WPA2PSK
– Encryption Types: WEP, TKIP, AES
In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode. If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification
Number). WPS automatically configures the SSID and WPA key settings.
- 80 -
Read Before Connecting a Computer (Supported Resolutions)
Check the supported resolution for PC input signals.
When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next page. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolution is 1920 x 1080 at 60 Hz. Choosing a resolution not included in the tables can result in a blank screen or just the power indicator turning on. Refer to the user manual of your graphics card for compatible resolutions.
" Depending on the model.
IBM
Resolution
(Dots x lines)
720 x 400
Display format
70 Hz
Horizontal frequency
(KHz)
31.469
Vertical frequency
(Hz)
70.087
Clock frequency
(MHz)
28.322
Polarity
(horizontal / vertical)
- / +
MAC
Resolution
(Dots x lines)
640 x 480
832 x 624
1152 x 870
Display format
67 Hz
75 Hz
75 Hz
Horizontal frequency
(KHz)
35.000
49.726
68.681
Vertical frequency
(Hz)
66.667
74.551
75.062
Clock frequency
(MHz)
30.240
57.284
100.000
Polarity
(horizontal / vertical)
- / -
- / -
- / -
- 81 -
VESA DMT
Display format
72 Hz
75 Hz
60 Hz
70 Hz
60 Hz
72 Hz
75 Hz
60 Hz
75 Hz
75 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
75 Hz
60 Hz
" Depending on the model.
Resolution
(Dots x lines)
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 720
1280 x 800
1280 x 1024
1280 x 1024
1360 x 768
1366 x 768
1440 x 900
1600 x 900RB
1680 x 1050
1920 x 1080
45.000
49.702
63.981
79.976
47.712
47.712
55.935
60.000
65.290
67.500
Horizontal frequency
(KHz)
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
67.500
Clock frequency
(MHz)
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
74.250
83.500
108.000
135.000
85.500
85.500
106.500
108.000
146.250
148.500
Vertical frequency
(Hz)
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.000
59.810
60.020
75.025
60.015
59.790
59.887
60.000
59.954
60.000
Polarity
(horizontal / vertical)
+ / +
+ / +
- / -
- / -
- / -
- / -
- / -
+ / +
+ / +
+ / +
+ / +
+ / +
- / +
+ / +
- / +
+ / +
- / +
+ / +
+ / +
+ / +
- 82 -
Supported Resolutions for Video Signals
Check the supported resolution for video signals.
CEA-861
Resolution
(Dots x lines)
720(1440) x 480i
720(1440) x 576i
720 x 480
720 x 576
1280 x 720
1280 x 720
1920 x 1080i
1920 x 1080i
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
Display format
60 Hz
50 Hz
60 Hz
50 Hz
60 Hz
50 Hz
30 Hz
50 Hz
60 Hz
50 Hz
60 Hz
25 Hz
24 Hz
Horizontal frequency
(KHz)
15.734
15.625
31.469
31.250
45.000
37.500
33.750
28.125
67.500
56.250
33.750
28.125
27.000
Vertical frequency
(Hz)
59.940
50.000
59.940
50.000
60.000
50.000
60.000
50.000
60.000
50.000
30.000
25.000
24.000
Clock frequency
(MHz)
27.000
27.000
27.000
27.000
74.250
74.250
74.250
74.250
148.500
148.500
74.250
74.250
74.250
Polarity
(horizontal / vertical)
- / -
- / -
- / -
+ / +
+ / +
+ / +
+ / +
- / -
+ / +
+ / +
+ / +
+ / +
+ / +
- 83 -
Blocking programs based on their TV Rating
Read this information before viewing a blocking program.
To block content, select a rating category to lock. All programs at that level and higher are blocked and require the
PIN to watch. To unblock a category, select the lock icon. To unblock all the categories in a row, select the lock under
ALL .
Categories on the left:
● TV-Y : Young children
● TV-Y7 : Children 7 and over
● TV-G : General audience
● TV-PG : Parental guidance
● TV-14 : Viewers 14 and over
● TV-MA : Mature audience
Categories on the top:
● ALL : Lock all TV ratings.
● FV : Fantasy violence
● V : Violence
● S : Sexual situations
● L : Adult Language
● D : Sexually Suggestive Dialog
- 84 -
Blocking movies base on their Movie Rating (MPAA)
This rating system applies to all materials with supplied ratings in the U.S.A.
From the MPAA:
“The Motion Picture Association of America (MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children.”
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a category, select the lock icon.
● G : General audience (no restrictions).
● PG : Parental guidance suggested.
● PG-13 : Parents strongly cautioned.
● R : Restricted. Children under 17 should be accompanied by an adult.
● NC-17 : No children under age 17.
● X : Adults only.
● NR : Not rated.
Blocking programs based on their Canadian English Rating
This rating system applies to all rated material viewed on English-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a category, select the lock icon.
● C : Programming intended for children under age 8
● C8+ : Programming generally considered acceptable for children 8 years and over to watch on their own
● G : General programming, suitable for all audiences
● PG : Parental Guidance
● 14+ : Programming containing themes or content that may not be suitable for viewers under the age of 14
● 18+ : Adult programming
- 85 -
Blocking programs based on their Canadian French Rating
This rating system applies to all rated material viewed on French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a category, select the lock icon.
● G : General
● 8 ans+ : Programming acceptable for children 8 years and over to watch on their own
● 13 ans+ : Programming that may not be suitable for children under the age of 13
● 16 ans+ : Programming not suitable for children under the age of 16
● 18 ans+ : Programming restricted to adults
Blocking Programs based on their Downloadable U.S. Rating
This rating system only applies to material originating from US DTV channels.
Parental restriction information is automatically downloaded while you watch DTV channels. This download may take several seconds. If the information is unavailable from the broadcasting station, the Downloadable U.S. Rating menu is deactivated.
Parental restriction levels differ with the broadcasting station. The default menu name and the Downloadable U.S.
Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downloadable U.S. Rating menu appears only in
English.
Select a lock beside one of the rating categories to block that category and all higher categories. To unblock a category, select the lock icon.
- 86 -
Buttons and Functions
Review available media playback, control, and record buttons and descriptions of how they are used.
" The available buttons and functions may differ with the content you are viewing or playing.
Buttons and functions available while playing multimedia content
Press the Select button while playing any video, photo, or recorded content. The following buttons appear.
" The provided buttons or functions may differ with the media content type.
● Pause / Play or Start
Pauses or plays the multimedia content. You can use the following functions when the video is paused.
●
– Slow Rewind or Slow Forward : Allows you to play the video slowly (1/8, 1/4, 1/2) backward or forward by selecting the or button. To increase the rewind or forward speed in slow mode up to 3 times, select the button repeateldy. To return to normal speed, select the button or press the button.
Previous / Next
Displays the previous or the next multimedia content file.
● Rewind / Fast Forward
Rewinds or fast forwards the multimedia content. To increase the rewind or fast forward speed up to 3 times faster than normal, select the button repeatedly. To return to normal speed, select the button or press the
button.
● Repeat
Plays the current multimedia content repeatedly or all multimedia content files in the same folder repeatedly.
● Shuffle
Plays music files in random order.
● Picture Off
Plays multimedia content with the screen off.
● Rotate left / Rotate right
Rotates a photo left or right.
- 87 -
● Zoom
Zooms a photo in by up to a factor of 4.
● Screen Fit
Fits a photo to the screen.
● Background Music
During a slideshow, plays or pauses the background music.
● Options
" The available options may differ with the model and content.
Function
Slideshow Speed
Slideshow Effect
Background Music
Information
Subtitles
Rotate
Audio Language
Description
Sets the slideshow speed.
Applies transition effects to the slide show.
Plays background music while the TV displays photos.
" The music files must be saved in the same USB device as the photo files.
" To pause the background music, select Background Music on the playback screen.
Displays detailed information about the current multimedia content.
Controls video subtitles.
Subtitles : Turns the subtitles on or off.
Language : Sets the caption language.
Sync : Adjusts the synchronization when the video and the subtitles are not synchronized.
Reset Sync : Resets the subtitle synchronization adjustment to 0.
Size : Changes the font size of the subtitles.
Encoding : Displays a list of encoding languages. Allows you to change the encoding language when subtitles are displayed incorrectly.
Edge Type : Adjusts the position of text and subtitle edges.
Edge Color : Changes the color of subtitle edges.
Rotates the video.
This function is only available if the video supports multi-track sound.
- 88 -
License
Check the license information and trademarks applied in your TV.
This DivX Certified® device can play DivX® HD video files (including .avi, .divx).
Download free software at www.divx.com to create, play and stream digital videos.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.
This DivX Certified® device can play DivX® HD video (including .avi, .divx).
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 8,656,183; 8,731,369; RE45,052.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS Premium Sound|5.1, DTS Digital Surround, DTS Express, and DTS Neo2:5 are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries.
© DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage. (http:// opensource.samsung.com) Open Source
License Notice is written only English.
- 89 -
Accessibility Guidance
Provides a menu and a remote control guide that aid the visually impaired.
Learn Menu Screen
Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.
Using the accessibility menu
View descriptions of accessibility menu functions.
Accessibility short cut menu
● Voice Guide . This works on every screen on the TV and when turned on speaks to identify items displayed on screen. For example, it tells you the selected volume, the current channel and program information. It also reads out the program information in the Electronic Program Guide (EPG).
● High Contrast mode allows you to display all menus with an opaque black background and a white font, providing maximum contrast.
● Enlarge enables the important elements on the screen such as the name of programs to be larger.
● Learn TV Remote opens a menu screen containing a picture of the remote control. On this screen, pressing the power button (top left button) will turn off the TV, but when any other button is pressed the TV will say the button name and briefly tell what that button does. This teaching mode helps you to learn the location and operation of the buttons on the standard remote control without affecting normal TV operation. Press the return button twice to return to the previous screen.
● Learn Menu Screen . Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select.
- 90 -
Accessing the accessibility menu to change Voice Guide settings
You can also go to an accessibility menu from the main TV menu. This provides more options, for example, to change the speed of Voice Guide.
The TV will not verbalize this menu unless Voice Guide is already turned on.
1. Press the button.
2. Press the left arrow key until you reach Settings .
3. Press Select and a menu will open.
4. Press the down arrow to reach General , and then press Select to open this menu.
5. Use the arrow buttons to go to the Accessibility option, and then press Select to open this menu.
6. The menu will appear with Voice Guide Settings being the first option. Highlight Voice Guide Settings , and then press Select.
7. A menu appears with the options to change speed, and pitch and tone.
8. Select the options using the arrow buttons, and then press Select.
- 91 -
Using the TV with Voice Guide on
You can turn on Voice Guide that describe the menu options aloud to aid the visually impaired.
Watching TV
Turning the TV on
Press the button to turn the TV on. Voice guide will speak the channel number, channel name, program title and the start and end times for this program.
Changing channel
You can change the channel in a number of ways. Every time you change channels, the new channel details will be announced.
● Channel up/down button
● Open the channel list, use the up and down arrow buttons to move between channels, and then press Select.
● Use the number buttons directly on the standard remote control.
- 92 -
Changing volume
Use the volume button on the left to change the volume. Every time you change the volume, the new volume level will be announced.
Using program information
When watching live TV, press the Select button to bring up program information at the top of the screen. Voice Guide will speak the program details and say if it has Audio Description and Subtitles available. Press the left and right arrow buttons to see what is on later on the same channel. Press the up and down arrow buttons to move to the other channels and see what is on at the moment on these channels.
Press and hold Select to bring up more detailed program information.
Voice Guide will speak the program details including the synopsis. Beneath the synopsis there are buttons that allow you to carry out functions such as, schedule viewing. This synopsis cannot currently be interrupted, so you will need to listen it in its entirety. Use the left and right arrow buttons to move between the buttons, and then press Select when you have reached the one you want. You can also press to go back or go directly to live TV.
- 93 -
Using the guide
See an overview of each channel's program lineup.
Live TV Guide
You can see the daily program schedules for each broadcaster and program information in the Guide . You can also use the Guide to select programs to watch.
" In the Guide , you can see only the TV programs scheduled after the current time.
" The information in the Guide is for digital channels only. Analog channels are not supported.
" To view the Guide , you must first set the TV's clock ( Settings General System Manager Time Clock ).
The clock should have been set to automatic when the TV was installed. If you need to set the clock again, follow the instructions below.
1. Press the button to open Smart Hub .
2. Press the left arrow until you reach Settings .
3. Press Select to open the main menu.
4. Use the up and down arrows to move through this menu until you reach General , and then press Select.
5. Again, use the up and down arrows to move through this menu until you reach System Manager , and then press Select.
6. Again, use the up and down arrow buttons to reach Time , and then press Select.
7. Move to Clock , and then press Select. Move to the Clock Mode item, and then press Select.
8. Move to the Auto setting, and then press Select. Alternatively you can select Manual , and then use the menu to set the time.
- 94 -
When you open the Guide , a table grid of channels and programs is displayed. The top row shows Channel Filter being displayed then the day and times. Each row has a channel name on the left and programs on that channel on the right.
In the Guide , use the up and down arrow buttons to move between channels and the left and right buttons to move between programs within a channel. You can use the button to go to the current time.
If you are using the standard remote control, you will be able to move backwards and forwards 24 hours through the program guide by using the and buttons.
When you move the focus to a program, you will hear the program title, start/end time, and synopsis. You will also hear if the Audio Description and Caption are available for the program. When you move the focus to a different channel, you will hear the channel name and number, and then the program details. If you move to a different day, you will hear the day announced for the first program you reach on that day. The day is not repeated, so if you are not sure what the day is, you can move forwards and backwards 24 hours and then the day will be announced.
To view a program on now
Move to a program that is currently broadcasting, and then press Select to go to live TV on the channel and program you selected in the guide.
Other options in the guide
After moving to a desired program, press and hold the Select button on the remote control. A pop-up window listing the following functions appears.
Use the up and down arrow buttons to move within this menu, and then press Select to choose an item. Press to close the menu and go back to the Guide .
● Scheduled viewing
After selecting Schedule Viewing , you can schedule viewing for a broadcast scheduled program.
- 95 -
● Detailed information
After selecting View Details , you can see the detailed information on the selected program. The information may differ with the broadcast signal. If the information is not provided with the program, nothing appears.
Press Select on the View Details option. This will open the Details page for that program which will display a synopsis. To close this page, press the Select button.
● Displaying Schedule Manager
After selecting Schedule Manager , you can see the Schedule Manager screen.
When you have scheduled a program to view, an icon will be shown next to the program title in the Guide denoting if the program is scheduled to view. Voice Guide will not speak this information. To find out if a program is scheduled to view, press and hold the Select button. The option in the menu will be Cancel schedule instead of schedule viewing. Press to go back to the Guide without changing the setting.
Displaying your favorite channels:
If you have set up favorite channels, you will be able to filter the Guide , so that only those channels are shown. This makes it easier to find channels you want.
To display your favorites list, move to the current time (press the button) and then press the left arrow to move to the list of channels. Use the up arrow to move up the list until you reach the Channel Filter button. Press Select to bring up a list of options. Use the up and down arrows to move between the categories in the list. Highlight the option you want, for example, Favorites 1 , and then press Select. The Guide will then show the information for only those channels.
" When you have set a filter in the Guide , it will remain when you close and re-open the Guide . If you find that you don’t have the channels you think you should, it is a good idea to check the category, and then select “ All ” which will display all tuned channels.
- 96 -
Setting Up a Schedule Viewing
Configure the TV to show a specific channel or program at a specific time and date.
The icon appears next to programs that have been configured for a schedule viewing.
Setting up a schedule viewing for a channel
● The Guide Screen
On the Guide screen, select a program you would like to view, and then press and hold the Select button.
Select Schedule Viewing on the pop-up menu that appears.
● The Program Info Screen
Press the Select button while watching the TV. The Program Info window appears. Select a broadcast scheduled program by using the left or right directional buttons, and then press and hold the Select button.
You can schedule watching the program by selecting Schedule Viewing .
Cancelling a schedule viewing
Live TV Schedule Manager Scheduled Remove
You can cancel a scheduled viewing via the Guide or Smart Hub .
From the program guide, move to the program, and then press and hold Select. Move to the Cancel Schedule option, and then press Select. You will return to the program guide with the scheduled viewing removed.
To use Smart Hub , press the button to open Smart Hub , press the up arrow to move to the top row and the right arrow to move to Schedule Manager . Press Select to open Schedule Manager . Press the left or right arrows to highlight Schedules , and then press Select. Use the down arrow to move to the list of programs scheduled to view.
Move to the program you want, and then press the right arrow to move to a list of options. Use the up and down arrows to move between these options until you reach the Delete button. Press the Select button to remove the scheduled viewing.
- 97 -
Using the Channel List
See how to list the channels available on your TV.
Live TV Channel List
Using Channel List , you can change the channel or check programs on other digital channels while watching TV.
Press and button on the remote to open Smart Hub , press the left or right arrows to move to Live TV , press the up arrow to move to the top row, press the right arrow to move to Channel List , and then press the Select button.
This shows a list of the channels and the program currently on. The focus will be on the channel you are currently watching, showing channel name, channel number, and program title.
Use the up and down arrows to move within the channel list (or use the channel button to go up and down a page at a time).
Pressing the right arrow takes you to the Category List . Use the up and down arrows to move within this list. Press
Select to choose an option. You will open a second list. Use the up and down arrows to move between the items in the list. Press Select to choose one.
● All Channels
Displays the channels that have been automatically searched.
● Favorites
Displays Favorites Lists 1 to 5. Use the up and down arrows to move between the lists of favorites. Highlight the one you want, and then press Select. The channel list will now show only the channels in this list.
● Category
Sorts the list so that it includes channels of a selected genre only. However, Category can only be used with channels that contain genre information. Use the up and down arrows to move within the list of genres (or
TV, radio, data). Highlight the genre you want, and then press Select. The channel list will now show only the channels in this genre.
● Sort
Sorts the list by Channel Number or by Name .
●
" This option is only available on digital channels and may not always be available.
Air or Cable
Allows you to choose between Air , and Cable .
" This option is only available on certain models in specific geographical areas.
- 98 -
Creating a Personal Favorites List
Designate frequently watched channels as favorite channels.
Favorite channels are highlighted in the Edit Channel and All screens with the symbol .
" There is currently no feedback with Voice Guide for this.
Registering channels as favorites
Live TV Channel List
1. Press the right directional button on your remote control.
2. Select Favorites .
3. Select a desired favorites list.
4. Move to Edit Favorites .
5. Select a channel to add to the favorites list
6. Press Select. The selected channel is added to the favorites list.
To add channels to a favorites list - Detail
1. Open the Channel List .
2. Press the right arrow to move to the Category List .
3. Use the up and down arrow buttons to move to Favorites , and then press Select. You will see Favorites Lists 1 to 5. The five lists let you set up different lists of favorites.
4. Use the up and down arrow buttons to move to the list you want, and then press Select.
5. Use the up and down arrow buttons to move between channels. When you reach a channel you want as a favorite, press Select. This will select the channel and put a check in the checkbox.
6. When you have selected all the channels you want, press the right arrow button.
7. On the next screen, highlight Add to Favorites , and then press Select. The selected channels are added to the
Favorites List.
- 99 -
Deleting channels from a favorites list – Detail
1. Open the Channel List .
2. Press the right arrow to move to the Category List .
3. Use the up and down arrow buttons to move to Favorites , and then press Select. You will see Favorites Lists 1 to 5.
4. Use the up and down arrow buttons to move to the list you want, and then press Select.
5. Use the up arrow buttons to move to Edit Favorites , and then press Select.
6. Use the right arrow button to move to Favorites , move to the channel to remove, and then press Select. Repeat for other channels to remove.
7. Press the left arrow button to move to the Add to Favorites / Remove from Favorites buttons.
8. Highlight Remove from Favorites , and then press Select to remove the selected channels from the Favorites
List.
9. Press the right arrow button.
10. On the next screen, highlight the Exit button, and then press Select.
Viewing and selecting channels on favorites lists only
Live TV Channel List
1. Open the channel list by pressing the Channel List button
2. Press the right directional button on your remote control. Use the up and down arrow buttons to move within the list.
3. Highlight Favorites , and then press Select.
4. Use the up and down arrow buttons to move within the list. Select the desired list among five favorites lists on the screen. The channels in the selected favorites list appear.
" A list of channels appears only if the favorite list you selected contains channels.
- 100 -
Using Smart Hub
Learn how to open Smart Hub to access apps, games, movies, and more.
Smart Hub
After pressing the button on your remote control, you can surf the web and download apps with Smart Hub.
" Some Smart Hub services are for pay services. To use a for pay service, you must have an account with the service provider
or a Samsung account. For more information, refer to "Using a Samsung account."
" To use this feature, the TV must be connected to the Internet.
" Some Smart Hub features may not be available depending on the service provider, language, or region.
" Smart Hub service outages can be caused by disruptions to your Internet service.
" You can view the entire text of the Terms and Privacy Policy by navigating to Settings Support Terms and
Privacy Policy .
" To cancel the Smart Hub service agreement though it is a required one, select Reset ( Settings General
Support Self Diagnosis Reset ) and then press the right directional button at the Smart Hub Terms & Conditions,
Privacy Policy step.
Press the button on your remote. This will bring up a display with 2 rows. The focus will be on Live TV on the bottom row. The options on the top row change depending on the item selected in the bottom row.
The bottom row contains 4 buttons to the left of Live TV. These are:
● Search – to search for data about channels, programs, movie titles, and apps in Smart Hub.
●
●
Source – to select an external device connected to the TV
Settings – a quick settings menu appears on the top row. You can quickly set frequently used functions.
● APPS - You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.
- 101 -
The buttons to the right of the Live TV option provide quick access to apps such as Netflix and Amazon . Currently, many of these apps are not accessible with Voice Guide.
Use the left and right arrow buttons to move between options on a row and the up and down arrows to move between rows. Press Select to access an option.
When you open Smart Hub , you will be on Live TV . Press the up arrow to move to the top row. You will be on the
Guide button. The items in this row are:
● Guide –select to open the program guide
● Channel List – select to open the channel list
● To the right of the Channel List button, you will find a list of recently viewed channels. Highlight one of the channels in the list, and then press Select to go quickly to that channel.
Displaying the Home Screen in the Smart Hub
On the Home Screen, you can easily run apps you have used previously or frequently. The apps can also be moved on or deleted from the screen.
The Smart Hub has 2 rows. When it opens, the focus is on Live TV on the bottom row. The options on the top row change depending on the item selected in the bottom row. Use the up and down arrows to move between the rows and the left/right arrow buttons to move within a row.
The bottom row contains 4 buttons to the left of Live TV. These are Settings , Source , Search , and APPS :
● Settings
When the focus is moved to the icon, a list of quick settings icons appears above the top of the menu. You can quickly set frequently used functions by clicking the icons.
– Picture Mode
You can select the picture mode that provides the best viewing experience.
– Sound Mode
You can select a sound mode to optimize your listening experience.
- 102 -
– Sound Output
You can select which speakers the TV uses for audio output.
– Caption
You can watch TV broadcasts with captions.
–
" This function is not available on certain models in specific geographical areas.
Sleep Timer
–
You can automatically shut off the TV after a pre-set period of time.
Network
You can view the current network and Internet status.
● Source
You can select an external device connected to the TV.
●
"
For more information, refer to "Switching between external devices connected to the TV."
Search
You can search the apps or games in Smart Hub services. The search option brings up an on-screen keyboard laid out as a qwerty keyboard with the focus on the number 1.
● APPS
You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding apps on your TV.
"
- 103 -
Using the e-Manual
Open the user manual embedded in your TV.
Launching the e-Manual
Press the menu button on the standard remote control to open the menu. Alternatively, press the button to open
Smart Hub , press the left arrow until you reach settings, and then press Select.
Use the up and down arrows to move within this menu. Move to the Support option, select the e-Manual option, and then press Select to open it.
Settings Support Open e-Manual
You can view the embedded e-Manual containing information about your TV's key features.
" Alternatively, you can download a copy of the e-Manual from Samsung's website.
" Words in blue (e.g., Picture Mode ) indicate a menu item.
The e-Manual contains 2 rows of buttons. Use the up and down arrows to move between rows and the left and right arrows to move within a row. Press Select to open the section you want to read.
The e-Manual contains a section called " Learn TV Remote " in the " Accessibility Guidance " (at the right corner of the screen). This is particularly useful for people who cannot easily see the buttons on the control or who are not clear what each button does. In this section the buttons on the remote control will not affect the TV.
- 104 -
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Flat 81.3 cm (32") LED
- HD 1366 x 768 pixels
- ATSC
- Smart TV Screen mirroring
- Wi-Fi Ethernet LAN
- 20 W
Related manuals
advertisement
