Bosch OTC2310 is a heavy-duty air-operated grease gun designed for continuous flow lubrication tasks. Its large pumping chamber and rapid operation make it ideal for high-volume greasing applications. The automatic air bleeder ensures smooth operation, while the 24" high-pressure grease hose and 3-jaw slim coupler provide easy access to hard-to-reach fittings. With a maximum pressure of 4800 PSI, the OTC2310 can handle even the toughest greasing jobs.
advertisement

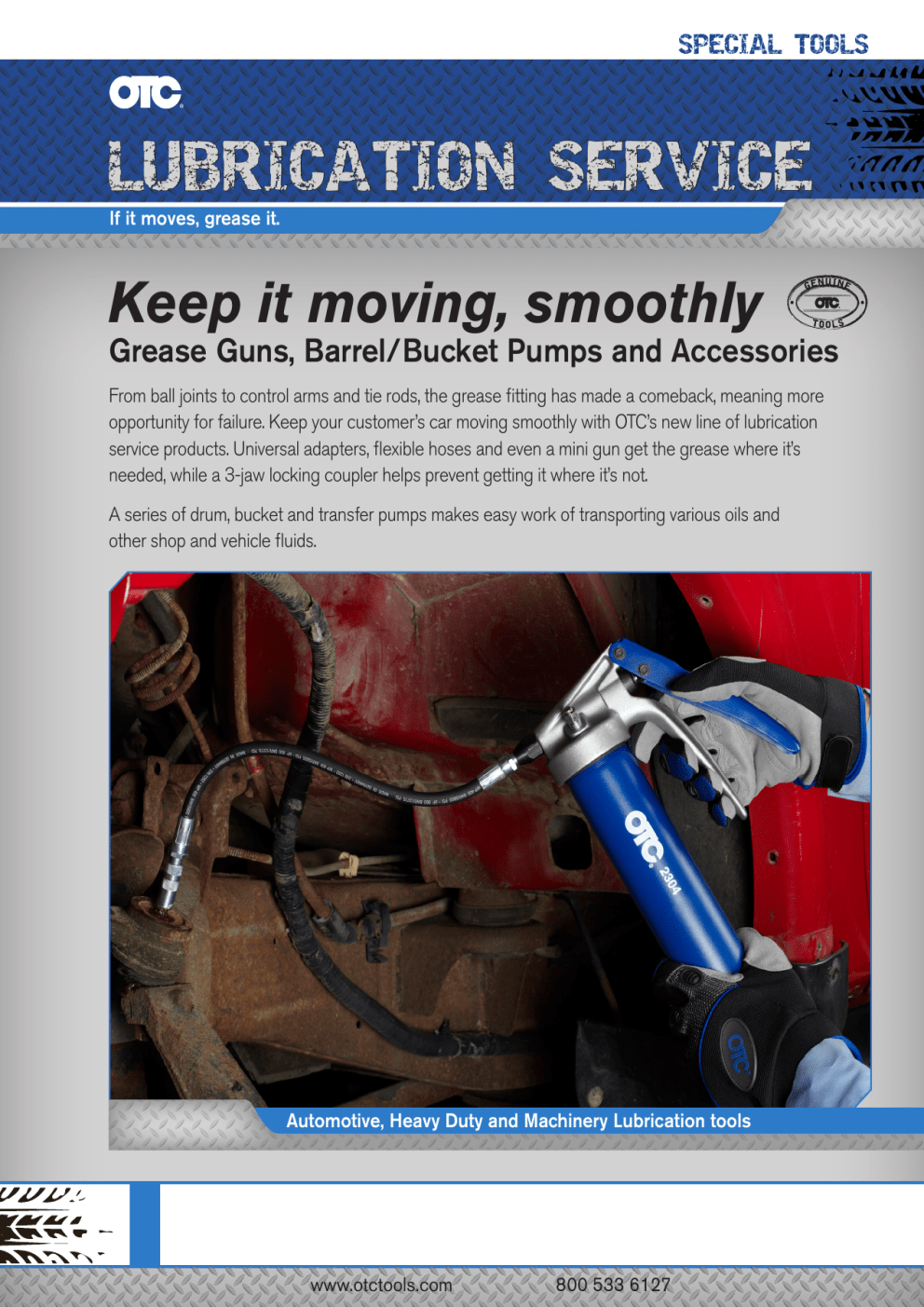

SPECIAL TOOLS
LUBRICATION SERVICE
If it moves, grease it.
Keep it moving, smoothly
Grease Guns, Barrel/Bucket Pumps and Accessories
From ball joints to control arms and tie rods, the grease fitting has made a comeback, meaning more opportunity for failure. Keep your customer’s car moving smoothly with OTC’s new line of lubrication service products. Universal adapters, flexible hoses and even a mini gun get the grease where it’s needed, while a 3-jaw locking coupler helps prevent getting it where it’s not.
A series of drum, bucket and transfer pumps makes easy work of transporting various oils and other shop and vehicle fluids.
Automotive, Heavy Duty and Machinery Lubrication tools www.otctools.com 800 533 6127
SPECIAL TOOLS
LUBRICATION SERVICE
Grease Guns
2300
PROFESSIONAL LEVER GREASE GUN
Heavy duty die cast aluminum grease gun head.
Grease gun head fitted with automatic air bleeder.
Large diameter piston for working in cold.
Built-in variable stroke for greasing fittings with limited access.
Includes 6" bent steel extension, easy access 24" high
pressure hose and 3 jaw slim coupler.
10,000 PSI.
For use with 14 oz. grease cartridge.
2304
PROFESSIONAL PISTOL GREASE GUN
Heavy duty die cast aluminum grease gun head with
integrated die cast fixed handle.
Grease gun head fitted with automatic air bleeder.
Large diameter piston for working in cold.
Built-in variable stroke for greasing fittings with limited access.
Includes 4" straight steel extension, easy access 24" high
pressure grease hose and 3 jaw slim coupler.
7500 PSI.
For use with 14 oz. grease cartridge.
2302
“MINI” LEVER GREASE GUN
Die cast aluminum grease gun head.
Lever action with best in class performance, delivers 6000 PSI.
Includes bent 6" steel extension with 3 jaw slim coupler.
For use with 3 oz. grease cartridge.
2310
AIR OPERATED GREASE GUN-
CONTINUOUS FLOW
Heavy duty die cast aluminum grease gun head.
Grease gun head fitted with automatic air bleeder.
Larger pumping chamber, honed for rapid operation.
Includes 6" bent steel extension, easy access 24" high
pressure grease hose and 3 jaw slim coupler.
4800 PSI.
For use with 14 oz. grease cartridge.
www.otctools.com 800 533 6127
SPECIAL TOOLS
LUBRICATION SERVICE
Grease Guns and Accessories
2332
QUICK CONNECT GREASING
ACCESSORY KIT
7 piece Quick Connect Greasing Accessory Kit
Includes 1 each of the following quick connect
Accessories:
1. Recessed lube adapter.
2. Angle lube adapter.
3. Narrow needle nose adapter.
4. Seal off dispenser.
5. Right angled grease coupler.
6. Heavy duty hose fitted with spring guard and slim coupler.
7. Grease injector needle 1.42" long x 18G.
2340
HEAVY DUTY GREASE GUN HOLDER
Great grease gun storage accessory.
Can be mounted to walls, machinery, or heavy equipment.
Design to retain your grease gun in high vibration environments.
Works with all standard 14 oz. grease guns and
16 oz. suction guns.
2334
GREASE FITTING UNBLOCKER
Opens clogged grease fittings and loosens hardened
grease joints.
Comes with grease coupler.
Includes flexible hose to reach difficult areas.
Built in hand guard for safe usage.
Includes two spare piston seals.
ACCESSORIES
2320 Slim Coupler
2322 Right Angle Grease Coupler
2325 14 inch Grease Gun Hose
2326 24 inch Grease Gun Hose
2327 Narrow Needle
Nose Dispenser
2328 Grease Injector Needle
2330 SAE Grease Fitting
Assortment kit (80 piece) www.otctools.com 800 533 6127
SPECIAL TOOLS
LUBRICATION SERVICE
Barrel/Bucket Pumps
2350
LEVER ACTION DRUM PUMP
Lever Action Drum Pump
Fits 15 – 55 gallon drums.
Telescoping suction tube.
3 Position Handle for different fluid viscosity.
Extra tall pump cylinder allows smaller bucket to be
placed under spout.
Brass piston rings for extended wear resistance.
Threaded outlet spout for use with common hoses.
Up to 14 oz. / stroke.
For use with oil based fluids, heating oils, motor
oils, heavy and light oils, diesel and kerosene.
2352
LEVER ACTION BUCKET PUMP
Fits 5 gallon pails.
Includes 12" drum cover.
3 position handle for different fluid viscosity.
Steel discharge spout.
Supplied with 5' hose.
Up to 4.6 oz. / stroke.
For use with transmission differentials and heavier oils.
2355
PROFESSIONAL ROTARY DRUM PUMP
Professional pump with die cast aluminum body and zinc
rotor and vanes.
Fits 15 – 55 gallon drums.
Includes 3 piece threaded suction tube.
Horizontal pump outlet connects to a filter or meter.
Up to 7 oz. / rotation.
For use with lubricating oils, diesel, gasoline, kerosene etc.
2359
SUCTION OIL GUN
For use with gear oils to get them both into/out of
gear boxes, transfer cases and differentials.
16 oz capacity and 14" hose.
2357
BRASS TRANSFER PUMP
Drain oil from crankcase or ATF through dipstick tube – from
underhood – not undercar.
Pumps 3.2 oz per stroke.
13-128 ©2013 Bosch Automotive Service Solutions. All rights reserved. Because of ongoing product improvements, we reserve the right to change design, materials and specifications without notice. Certain kits may require additional cables or adapters.
Product shipped may differ from photo(s) shown.
www.otctools.com 800 533 6127
