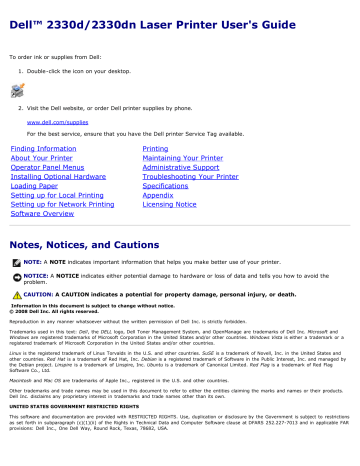

Dell™ 2330d/2330dn Laser Printer User's Guide

To order ink or supplies from Dell:

1. Double-click the icon on your desktop.

2. Visit the Dell website, or order Dell printer supplies by phone.

www.dell.com/supplies

For the best service, ensure that you have the Dell printer Service Tag available.

Finding Information

About Your Printer

Operator Panel Menus

Installing Optional Hardware

Loading Paper

Setting up for Local Printing

Setting up for Network Printing

Software Overview

Printing

Maintaining Your Printer

Administrative Support

Troubleshooting Your Printer

Specifications

Appendix

Licensing Notice

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your printer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

© 2008 Dell Inc. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Dell Toner Management System, and OpenManage are trademarks of Dell Inc. Microsoft and

Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows Vista is either a trademark or a registered trademark of Microsoft Corporation in the United States and/or other countries.

Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. SuSE is a trademark of Novell, Inc. in the United States and other countries. Red Hat is a trademark of Red Hat, Inc. Debian is a registered trademark of Software in the Public Interest, Inc. and managed by the Debian project. Linspire is a trademark of Linspire, Inc. Ubuntu is a trademark of Canonical Limited. Red Flag is a trademark of Red Flag

Software Co., Ltd.

Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Dell Inc., One Dell Way, Round Rock, Texas, 78682, USA.

Model 2330d-2330dn

June 2008 SRV HX750 Rev. A00

Finding Information

Finding Information About the Printer

What are you looking for?

How to set up my printer

Find it here

Setting Up Your Printer poster

How to print

How to care for and maintain my printer

How to contact Dell™

NOTE: The Owner's Manual may not be available in your country or region.

Owner's Manual

Safety information for preparing to operate my printer

Regulatory information

Warranty information

Product Information Guide

User's Guide

Supported paper type and sizes

How to select and store print media

How to load printable media into my printer

How to configure printer settings

How to set up and use printer software

How to care for and maintain my printer

How to troubleshoot and solve problems

Software and Drivers—Certified drivers for your printer and installers for Dell printer software

Readme files—Last minute technical changes, or advanced technical reference material for experienced users or technicians

Drivers and Utilities CD

Express Service Code and Number

How to identify your printer when you use support.dell.com

or contact support

How to find the Express Service Code to direct your call when contacting support

NOTE: If you purchased your Dell computer and printer at the same time, documentation and drivers for your printer are already installed on your computer.

Express Service Code and Number

These labels are located on your printer.

The illustration below shows the location of the label on the printer.

Solutions—Troubleshooting hints and tips, frequently asked questions, documentation, driver downloads, and product upgrades

Upgrades—Upgrade information for components such as memory, network cards, and optional equipment

Customer Care—Contact information, service call and order status, warranty, and repair information

For more information about their location, see

Understanding

Printer Parts

.

Dell Support Website— support.dell.com

NOTE: Select your region or business segment to view the appropriate support site.

Supplies for my printer

Accessories for my printer

Replacement toner and parts for my printer

Dell Printer Supplies Website— www.dell.com/supplies

You can purchase printer supplies online, by phone, or in select retail stores.

Printing

Printing Documents

Printing Using the Multipurpose Feeder

Printing a Two-Sided Document (Duplex Printing)

Printing Multiple Page Images on One Page (N-Up Printing)

Printing a Booklet

Printing on Envelopes

Printing on Letterhead

Printing a Poster

Printing on Transparencies

Canceling a Print Job

Printing Documents

1. Turn on your computer and printer, and make sure they are connected.

2. Load the paper. For more information, see

Loading Paper

.

3. With your document open, click File

®

Print .

The Print dialog box opens.

4. Click Preferences , Properties , Options , or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

5. On the Print Setup and Advanced tabs, make any necessary changes for your document.

6. After customizing your settings, click OK .

The Printing Preferences dialog box closes.

7. Click OK or Print .

Printing Using the Multipurpose Feeder

The multipurpose feeder is located at the front of your printer and can feed up to 50 sheets of print media at a time. For more information on how to configure the multipurpose feeder, see

Configuring the Multipurpose Feeder


®

Print .

2. Click Properties (or Options , Printer , or Setup , depending on the application or operating system).


3. Click the Paper tab.

4. Select MP Feeder from the Paper Tray drop-down list.

NOTE: MP Feeder appears in the Paper Source when Cassette configuration is selected.

5. Select the appropriate paper type.

6. Make any necessary changes to your document.

7. Click OK .

8. Click OK on the Print window to send the job to print.

Printing a Two-Sided Document (Duplex Printing)

Printing on both sides of the paper reduces printing costs.

You can choose how you want your job duplexed: long edge or short edge.

Long Edge

Pages are bound along the long edge of the page (left edge for portrait, top edge for landscape.

Short Edge

Pages are bound along the short edge of the page (top edge for portrait, left edge for landscape.


®

Print .



3. Click the Page Layout tab.

4. Under 2-sided printing , select 2-sided long edge or 2-sided short edge (depending on your printing needs).

5. Click OK .

6. Click OK .

Printing Multiple Page Images on One Page (N-Up Printing)

The Multipage Printing (N-up) setting is used to print multiple page images on a single page. For example, 2-up means two page images are printed on one page.

The printer uses the Multipage Order, Multipage View, and Multipage Border settings to determine the order and orientation of the page images, and whether a border is printed around each page image.


®

Print .



3. In the Multipage printing (N-up) section, specify the number of pages you want printed on a sheet by typing a number or using the arrows in the combo box.

4. Click OK .


Printing a Booklet

The Booklet setting lets you print multiple pages in booklet form without having to re-format your document so the pages print in the proper order. The pages print so the finished collated document may be folded along the center of each page to form a booklet.

If the document contains many pages, a booklet may have too many pages to fold easily. If you are printing a fairly large booklet, you might want to use the Sheets per Bundle option to specify how many physical pages are put into one bundle.

The printer prints the necessary number of bundles, which you can then bind into one booklet. Printing in bundles helps the outside edge of the pages line up more evenly.

You must specify whether or not you want to print using any duplex printing options before you select to print using the booklet function. Once you choose Print Using Booklet , the controls for the duplex options become inactive and remain at the last setting used.


®

Print .



3. Click More Page Layout Options .

4. Click Booklet .

5. Click OK twice.


Printing on Envelopes

1. Turn on your computer and printer, and ensure that they are connected.


®

Print .

The Print dialog box opens.




5. Select Envelope from the Paper Type drop-down list.

6. Make any necessary changes to your document.

7. Click OK .


Printing on Letterhead

1. Ensure that the letterhead is properly loaded according to the paper source you are using:

Tray 1 or 2 —Load the letterhead with the print side facing down. The top edge of the sheet with the logo should be placed at the front of the tray.

Multipurpose feeder —Load the letterhead with the print side facing up and the top of the sheet entering the printer first.


®

Print .




5. Select Letterhead from the Paper Type drop-down list.

6. Select the appropriate paper size and tray.

7. Click OK .


Printing a Poster

The Poster setting lets you print a single image across several pages. Once printed, you can combine the pages to create one large image.


®

Print .



3. Click More Page Layout Options .

4. Click Poster .

5. Select the poster size you want by choosing the number of pages to use in the poster.

6. To print crop marks on the page, select Print crop marks .

7. Select the amount of overlap you want each page to have.

8. Click OK twice.


Printing on Transparencies

1. Load transparencies.

2. With a document open, click File

®

Print .


The Printing Preferences dialog box appears.


5. Select Transparency from the Paper Type drop-down list.

6. Click OK twice.


NOTE: To prevent smudging, remove each transparency as it exits, and let it dry before stacking. Transparencies may require up to 15 minutes to dry.

Canceling a Print Job

From the Printer Operator Panel

Press the Cancel button twice to stop the current print job.

From Your Computer

1. In Windows Vista (default Start menu): a. Click ® Control Panel .

b. Click Hardware and Sound .

c. Click Printers .

In Windows ® XP (default Start menu): a. Click Start

®

Control Panel .

b. Double-click Printers and Other Hardware .

c. Double-click Printers and Faxes .

In Windows XP (Classic Start menu): Click Start

®

Settings

®

Printers and Faxes .

In Windows Vista (Classic Start menu) and all other Windows versions: Click Start

®

Settings

®

Printers .

2. Double-click the printer you are using to print the job.

A list of print jobs appears.

3. Right-click the document you want to stop printing, and then click Cancel .

About Your Printer

Understanding Printer Parts

Understanding the Operator Panel

Choosing the Right Cable

Understanding Printer Parts

Part

1 Front exit

2 Output bin extender

3 Multipurpose feeder cover

4 Standard tray (Tray 1)

5 Optional 550-sheet drawer

(Tray 2)

6 Memory access door

7 Door release button

8 Operator panel

Description

Slot from where the paper exits the printer.

Support for the paper as it exits the printer.

Door to gain access to the multipurpose feeder.

Standard paper tray that can hold 250 sheets of paper.

Tray that can be purchased separately to increase the amount of blank paper that your printer can hold.

Door to access the printer memory.

Button to open the front cover of the printer.

Panel on the printer to control print jobs.

9 Multipurpose feeder Tray to manually load various paper types such as envelopes.

10 Multipurpose feeder tray

11 Extension tray

12 Width guides

13 Width guide tab

Support for the paper as it is loaded into the multipurpose feeder.

Additional support for print media other than paper, such as envelopes, to prevent bending or wrinkling.

Guides for the print media loaded into the multipurpose feeder.

Slide the tab to adjust the width guides.

Part

14 Express service code

15 Supplies reorder label

Description

A series of numbers that identify your printer when you use support.dell.com

or contact technical support.

Enter the Express Service Code to direct your call when contacting technical support.

NOTE: The Express Service Code is not available in all countries.

Information on where you can order toner cartridges or paper: visit www.dell.com/supplies .

Part

16 USB port

17 Network port

(2330dn only)

18 Parallel port

19 Power cord connector

20 Power switch

Description

Slot into which you plug the USB cable (sold separately). The other end of the USB cable plugs into your computer. Locally attaches printer to the computer.

Slot into which you plug the Ethernet cable (sold separately). The other end of the Ethernet cable plugs into the network port. Attaches printer to the network.

Slot into which you plug the parallel cable (sold separately). The other end of the parallel cable plugs into your computer. Locally attaches printer to the computer.

Connects the printer to the power outlet using the supplied country-specific power cord.

Switch to turn the printer on or off.

21 Locking device

22 Rear exit

Security lock that provides physical security to your printer.

Door allows print jobs to exit the printer flat, such as those printed on transparencies or cardstock.

Understanding the Operator Panel

The operator panel contains:

Power indicator light

Two-line LCD display

Six buttons

Use the

1 Display

2 Left arrow button

3 Back button

4 Menu button

5 Stop/Cancel button

6 Right arrow button

7 Select button

8 Indicator light

Icon To

View the number of copies to be printed as well as error codes.

Scroll through menus, submenus, or settings on the display.

Move to the previous or next option. Each press moves one item in the list or to a different setting for a menu item.

Return to the previous screen.

Open the menu. Pressing the menu button while in the menus will return the user to the top level menu screen

NOTE:

The menus are available only when the printer is in the Ready state.

Cancel a print job in progress.

Exit a menu or submenu, and return to the default screen.

Scroll through menus, submenus, or settings on the display.

Move to the previous or next option. Each press moves one item in the list or to a different setting for a menu item.

Select a menu or submenu item that appears on the display.

Submit a chosen value or setting for the printer.

Indicate the printer status:

Green—The printer is warming up, processing data, or printing.

Yellow—Operator intervention needed.

Choosing the Right Cable

Your printer interconnection cable must meet the following requirements:

Connection

USB

Parallel

10/100/1000 Ethernet

Cable certification

USB 2.0

IEEE-1284

CAT-5E

Maintaining Your Printer

Ordering Supplies

Storing Supplies

Replacing Supplies

Cleaning Your Printer

CAUTION: Before performing any of the procedures listed in this section, read and follow the safety information in your User's Guide .

Dell™ toner cartridges are available only through Dell. You can order more toner online at www.dell.com/supplies .

CAUTION: It is recommended that Dell toner cartridges be used for your printer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Ordering Supplies

Printer Attached to a Network

1. Type your printer IP address in your Web browser to launch the Dell Configuration Web Tool.

2. Click www.dell.com/supplies .

Printer Attached Locally to a Computer

1. In Windows Vista™ (default Start menu): a. Click ® Programs .

b. Click Dell Printers .

c. Click Dell 2330d/2330dn Laser Printer .

In Windows ® XP and 2000 ,

Click Start

®

Programs or All Programs

®

Dell Printers

®

Dell 2330d/2330dn Laser Printer .

2. Click Dell Printer Supplies Reorder Application .

The Order Toner Cartridges window opens.

3. Choose your printer model from the list.

4. Enter your Dell printer Service Tag number.

NOTE: Your Service Tag number is located inside the front cover of your printer.

5. Click Visit Dell's cartridge ordering website .

Storing Supplies

Storing Print Media

Use the following guidelines for proper print media storage. These help avoid paper feeding problems and uneven print quality.

For best results, store print media in an environment where the temperature is approximately 21°C (70°F) and the relative humidity is 40%.

Store cartons of print media on a pallet or shelf, rather than directly on the floor.

If you store individual packages of print media out of the original carton, ensure that they rest on a flat surface so the edges do not buckle or curl.

Do not place anything on top of the print media packages.

Storing the Toner Cartridge

Store the toner cartridge in the original packaging until you are ready to install it.

Do not store the toner in:

Temperatures greater than 40°C (104°F).

An environment with extreme changes in humidity or temperature.

Direct sunlight.

Dusty places.

A car for a long period of time.

An environment where corrosive gases are present.

An environment with salty air.

Replacing Supplies

Replacing the Imaging Drum

You can determine approximately how full the imaging drum is by printing the printer settings configuration sheet. This helps you decide when you might need to order replacement supplies.

To ensure print quality and to avoid damage to the printer, the printer stops operating after the imaging drum has reached a maximum of 30,000 pages. The printer automatically notifies you before the imaging drum reaches this point.

While the printer may continue to function properly after the imaging drum has reached its official end-of-life, print quality significantly decreases until the imaging drum stops operating at the maximum of 30,000 pages.

NOTICE: When replacing the imaging drum, do not leave it exposed to direct light for an extended period of time.

Extended light exposure can cause print quality problems.

1. Turn the printer off.

2. Open the front cover by pressing the door release button on the right side of the printer and lowering the cover.

3. Pull the toner cartridge assembly up and out using the handle after pressing the button on the base of the imaging drum.

4. Place the toner cartridge assembly on a flat, clean surface.

5. Lift the base of the imaging drum, gently pull it up, and slide it out of the printer.

6. Unpack the new imaging drum kit.

NOTICE: Do not leave the new imaging drum kit exposed to direct light for an extended period of time. Extended light exposure can cause print quality problems.

7. Install the toner cartridge assembly into the new imaging drum kit by aligning the white rollers on the toner cartridge with the white arrows on the tracks of the imaging drum kit and pushing the toner cartridge in as far as it will go. The cartridge clicks into place when correctly installed.

8. Install the imaging drum kit with the toner cartridge assembly into the printer by aligning the blue arrow guides of the imaging drum kit with the blue arrows found in the printer and pushing the imaging drum into the printer as far as it will go. The imaging drum kit clicks into place when correctly installed.

9. After you replace the imaging drum, you should reset the imaging drum's counter. To reset the counter, see the instruction sheet that shipped with the new imaging drum kit.

NOTICE: Resetting the imaging drum's counter without replacing the imaging drum may damage your printer and void your warranty.

10. Close the front cover.

Replacing the Toner Cartridge

You can determine approximately how much toner is left in your cartridge by printing the printer settings configuration sheet.

This helps you decide when you might need to order replacement supplies.

When the

Toner low

message appears, or when you experience faded print, remove the toner cartridge. Firmly shake it sideto-side and front-to-back several times to redistribute the toner, and then reinsert it and continue printing. Repeat this procedure multiple times until print remains faded. When the print remains faded, replace the toner cartridge.

NOTE: You can still print for a short time after the

Toner low

message appears, but print quality decreases as the toner level decreases.

NOTICE: When replacing a toner cartridge, do not leave the new cartridge exposed to direct light for an extended period of time. Extended light exposure can cause print quality problems.


2. Open the front cover by pressing the button on the right side of the printer and lowering the cover.

3. Press the button on the base of the imaging drum and pull the toner cartridge assembly up and out using the handle.

4. Unpack the new toner cartridge assembly.

NOTICE: When replacing a toner cartridge assembly, do not leave the new cartridge exposed to direct light for an extended period of time. Extended light exposure can cause print quality problems.

5. Rotate the cartridge in all directions to distribute the toner.

6. Install the new toner cartridge assembly by aligning the white rollers on the toner cartridge with the arrows on the tracks of the imaging drum kit and pushing the toner cartridge in as far as it will go. The cartridge clicks into place when correctly installed.


Cleaning Your Printer

Cleaning the Printhead Lens

CAUTION: Using controls, making adjustments, or performing procedures other than those specified in your user documentation or in the instructions provided to you by Dell may result in exposure to hazardous radiation.

1. Turn the printer off and unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.


3. With the toner cartridge still attached, lift the base of the imaging drum kit and gently pull it up and out of the printer.

NOTE: Do not press the button on the base of the imaging drum kit.

Place the imaging drum kit with the toner cartridge assembly on a flat, clean surface.

NOTICE: Do not leave the imaging drum kit and toner cartridge assembly exposed to direct light for an extended period of time. Extended light exposure can cause print quality problems.

4. Locate the glass printhead lens, which is located within the recessed area in the top of the printer.

5. Gently wipe the printhead lens with a clean, dry, lint-free cloth.

NOTICE: Not using a clean, dry, lint-free cloth may result in damage to the printhead lens.

6. Install the imaging drum kit with the toner cartridge by aligning the blue arrow guides of the imaging drum kit with the blue arrows found in the printer and pushing the imaging drum into the printer as far as it will go. The imaging drum kit clicks into place when correctly installed.


8. Turn the printer back on.

Cleaning the Exterior of the Printer

1. Make sure that the printer is turned off and unplugged from the wall outlet.

CAUTION: To avoid the risk of electric shock, unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.

2. Remove paper from the paper support and paper exit tray.

3. Dampen a clean, lint-free cloth with water.

NOTICE: Do not use household cleaners or detergents, as they may damage the finish of the printer.

4. Wipe only the outside of the printer, making sure to remove any ink residue that has accumulated on the paper exit tray.

NOTICE: Using a damp cloth to clean the interior may cause damage to your printer. Damage to the printer caused by not following the correct instructions for cleaning will not be covered under warranty.

5. Make sure the paper support and paper exit tray are dry before beginning a new print job.

Operator Panel Menus

Menu List

Paper Menu

Reports

Network/Ports

Settings

Menu List

Main Menu

Paper Menu

Reports

Network/Ports

Settings

1. From the menu list, use the Arrow buttons to scroll the main menu.

2. Press the Select button .

3. Press the Right Arrow button until the heading you want appears on the display, and then press the Select button

.

4. Use the Arrow buttons to scroll through the available menu items.

5. When the setting you want appears on the display, press the Select button to save the setting.

Paper Menu

Main

Menu

Paper

Menu

Mode Main

Menu

Default

Source

Mode Main Menu

Tray <x>*

MP Feeder

Manual Paper

Manual Env

Configure MP Cassette*

Manual

NOTE: The Cassette setting configures the multipurpose feeder as an automatic paper source.

Substitute

Size

Off

Statement/A5

Letter/A4

All Listed*

Custom Types Custom Type <x> (where x represents 1–6)

Size/Type

Recycled

Tray <x>

MP Feeder

Manual Paper

Manual Envelope

Duplex

Paper Texture Plain*

Card Stock

Transparency

Labels

Bond

Letterhead

Preprinted

Colored Paper

Envelope

Rough Envelope

Light Paper

Heavy Paper

Rough/Cotton

Recycled

Custom Type <x> (where x represents 1–6)

Paper Weight Plain*

Card Stock

Transparency

Labels

Bond

Letterhead

Preprinted

Colored Paper

Envelope

Rough Envelope

Light Paper

Heavy Paper

Rough/Cotton

Recycled


Paper Loading Bond

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton

Recycled

Universal

Setup


Units of Measure

Portrait Width

Portrait Height

*Factory default setting

Feed Direction

1. From the menu list, use the Arrow buttons to scroll the Paper menu.



.



Paper Mode Main Menu

From this menu:

You can:

Default

Source

Set a default paper source for all print jobs.

Tray <x>*

MP Feeder

Manual Paper

Manual Env

Configure

MP

NOTE: The items on the default source varies depending on the device type and the attachments and/or supplies installed on it. Size and Type settings are configured for each of the listed Default Source option under Tray Configuration.

Determine when the printer selects paper from the multipurpose feeder and the mode of operation of the multipurpose feeder.

Cassette*—Treats the multipurpose feeder like any other tray. If a print job requests a size or type that is only loaded in the multipurpose feeder, the printer pulls print media from the multipurpose feeder for the job.

Substitute

Size

Manual—Treats the multipurpose feeder like a manual feed tray. Load Manual appears when a single sheet of print media needs to be inserted into the multipurpose feeder.

NOTE: The Cassette setting configures the multipurpose feeder as an automatic paper source.

Substitute a specified paper size if the requested paper size is not available.

Off

Statement/A5

Letter/A4

All Listed*

Custom

Types

Specify the type of print media associated with each Custom Type available in the

Paper Type menu.


Recycled


Size/Type

From this menu:

Tray <x> Size

Tray <x> Type

MP Feeder Size

You can:

Identify the default size for each source.

A4* (non-US)

A5

A6

JIS B5

Letter* (US)

Legal

Executive

Folio

Statement

Universal

NOTE: For more information, see

Universal Setup .

Identify the type of print media loaded in each source.

Plain*

Card Stock

Transparency

Labels

Bond

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton

Recycled


Identify the size of print media loaded in the multipurpose feeder.

A4* (non-US)

A5

A6

JIS B5

Letter* (US)

Legal

MP Feeder Type

Manual Paper Size

Manual Paper Type

Executive

Folio

Statement

Universal


Universal Setup .

7 3/4 Envelope

9 Envelope

10 Envelope

B5 Envelope

C5 Envelope

DL Envelope

Other Envelope

Identify the type of print media loaded in the multipurpose feeder.

Plain

Card Stock

Transparency

Recycled

Labels

Bond

Letterhead

Preprinted

Colored Paper

Envelope

Rough Envelope

Light Paper

Heavy Paper

Rough/Cotton


NOTE: Custom Type 6 is the default paper type.

Identify the size of print media loaded manually in the multipurpose feeder.

A4* (non-US)

A5

A6

JIS B5

Letter* (US)

Legal

Executive

Folio

Statement

Universal


Universal Setup .

Identify the type of print media loaded manually in the multipurpose feeder.

Plain*

Card Stock

Transparency

Recycled

Labels

Bond

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton

Duplex Size

Duplex Type

Manual Envelope

Size

Manual Envelope

Type


Identify the size of print media loaded for integrated duplex printing.

A4*

Folio

Identify the type of print media loaded for integrated duplex printing.

Plain*

Recycled

Bond

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton


Identify the envelope size being manually loaded.

7 3/4 Envelope

9 Envelope

10 Envelope* (US)

B5 Envelope

C5 Envelope

DL Envelope* (non-US)

Other Envelope

Identify the envelope type being manually loaded.

Envelope*

Rough Envelope



Paper Texture

From this menu:

Plain

Card Stock

Transparency

Labels

Bond

Letterhead

Preprinted

Colored Paper

Envelope

Rough Envelope

Light Paper

Heavy Paper

You can:

Specify the relative texture of the print media loaded in a specific tray.

Normal*

Rough

Smooth

Rough/Cotton

Recycled



Paper Weight

From this menu:

Plain

Card Stock

Transparency

Labels

Bond

Letterhead

Preprinted

Colored Paper

Envelope

Rough Envelope

Light Paper

Heavy Paper

Rough/Cotton

Recycled

Custom Type <x>

(where x represents

1–6)


You can:

Identify the relative weight of the print media loaded in a specific tray and ensures that the toner adheres properly to the printed page.

Light

Heavy

Normal*

Paper Loading

From this menu:

Bond

Letterhead

Preprinted

Colored Paper

Light Paper

Heavy Paper

Rough/Cotton

Recycled



You can:

Determine whether 2-sided printing occurs for all jobs specifying a print media type.

Duplex

Off*

Universal Setup

From this menu:

You can:

Units of

Measure

Specify the height, width, and feed direction of the Universal Paper Size.

Inches* (US)

Millimeters* (non-US)

Portrait

Width

Portrait

Height

Set the portrait width of the universal media.

3–48 inches

76–1219 mm

NOTE: If the width exceeds the maximum, the printer uses the maximum width allowed.

NOTE: 12 inches is the US factory default setting. Inches can be increased in

0.01-inch increments.

NOTE: 305 mm is the international factory default setting. Millimeters can be increased in 1-mm increments.

Set the portrait height of the universal media.

3–48 inches

76–1219 mm

NOTE: If the height exceeds the maximum, the printer uses the maximum height allowed.

NOTE: 19 inches is the US factory default setting. Inches can be increased in

0.01-inch increments.

NOTE: 483 mm is the international factory default setting. Millimeters can be increased in 1-mm increments.

Feed

Direction

Specify the feed direction of the Universal Paper Size.

Short Edge*

Long Edge

NOTE: Feed Direction only appears if the longest edge of the media is shorter than the Maximum Physical Width of the printer.


Reports

Mode

Reports

Mode Main Menu

Menu Settings Page

Device Statistics

Network Setup Page

Profiles List

Print Fonts

Print Directory

Asset Report

1. From the menu list, use the Arrow buttons to scroll the Reports menu.



.



From this menu:

Menu

Settings

Page

You can:

Display information relating to:

Current settings for each of the menu items for all menus

Cartridge information

List of installed options and features

Device

Statistics

Network

Setup Page

View information relating to:

Job Information

Supply Information

Printer

USB Direct

NOTE: The details presented on this page vary for every device type.

List important print server information (e.g., hardware addresses, firmware revision level, protocol settings, etc.).

The page displays specific details about the devices:

Standard Network Card

Integrated Network Option Settings

TCP/IP

IPv6

NOTE: The Compi: field that appears on this screen always displays in English, regardless of the value of the device's Display.

Profiles List View profiles stored in the printer.

Print Fonts Print a sample of all the fonts available for the printer language currently set in the printer.

PCL Fonts

PostScript Fonts

Print

Directory

Asset

Report

View a list of resources that are stored in the user area of the flash and disk options.

NOTE: The Print Directory Page appears only when a non-defective flash option or a non-defective disk option is installed and formatted.

Manage the printer's asset information (e.g., serial number, model name, etc.).

Network/Ports

Mode

Network/Port

Mode Main Menu

Network

USB

Parallel

Network Mode

Main Menu

Network

Mode Main Menu

PCL SmartSwitch

PS SmartSwitch

NPA Mode

Network Buffer

MAC Binary PS

Standard Network Setup

Each Network sub-menu only appears if the device has a standard network card or if additional network card have been installed.

Use the Network menu to change printer settings on jobs sent through a network port (either Standard Network or Network

Opt <x>).

1. From the menu list, use the Arrow buttons to scroll the Network menu.



.



Network Mode Main Menu

From this menu:

You can:

PCL

SmartSwitch

Set the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer language.

On*

Off

PS

SmartSwitch

NPA Mode

Set the printer to automatically switch to PostScript emulation when a print job requires it, regardless of the default printer language.

On*

Off

Send print jobs to the printer and query printer status information simultaneously.

On

Off

Network

Buffer

Auto*

Assign a size to the network input buffer.

Auto*

Disabled

3K to <maximum size allowed> (in 1K increments).

MAC Binary PS Configure the printer to process Macintosh binary PostScript emulation print jobs.

Off

On

Auto*

Standard

Network

Setup

Define basic printer network settings.

On*

Off

* Factory default setting

USB Mode

Mode Mode Main Menu

USB PCL SmartSwitch

PS SmartSwitch

NPA Mode

USB Buffer

MAC Binary PS

USB With ENA

NOTE: Applicable only to Dell 3300 Wireless

Print Adapter (Sold separately).

IPX Frame

Use the USB menu to change printer settings on jobs sent through a USB port.

1. From the menu list, use the Arrow buttons to scroll the USB menu.



.



USB Mode Main Menu

From this menu:

You can:

PCL

SmartSwitch


PS

SmartSwitch

Set the printer to automatically switch to PostScript emulation when a print job requires it, regardless of the default printer language.

On*

Off

NPA Mode

On*

Off

Send print jobs to the printer and query printer status information at the same time.

Off

On

Auto*

USB Buffer Assign a size to the USB input buffer.

Auto*

Disabled


MAC Binary

PS

Configure the printer to process Macintosh binary PostScript emulation print jobs.

Off

On

Auto*

USB With

ENA ENA Address—Set the USB port ENA address

ENA Netmask—Set the USB port ENA Netmask

ENA Gateway—Set the USB port ENA Gateway

NOTE: 4-field IP address (0.0.0.0*)

NOTE: The settings are shown when an ENA is attached.

NOTE: This is applicable only to Dell 3300 Wireless Print Adapter (Sold separately).

IPX Frame

Ethernet

802.2

Ethernet

802.3

Ethernet

Type II

Ethernet

SNAP

Allow the adapter to initiate conversations by setting the Ethernet value.

Off

On*


Parallel Mode

Mode Mode Main Menu

Parallel PCL SmartSwitch

PS SmartSwitch

NPA Mode

Parallel Buffer

Advanced Status

Protocol

Honor Init

Parallel Mode 2

MAC Binary PS

Parallel With ENA

Use the Parallel menu to change printer settings on jobs sent through a parallel port.

1. From the menu list, use the Arrow buttons to scroll the Parallel menu.



.



Parallel Mode Main Menu

From this menu:

You can:

PCL

SmartSwitch


On*

Off

PS

SmartSwitch

Set the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer language.

On*

Off

NPA Mode Send print jobs to the printer and query printer status information at the same time.

Off

On

Auto*

Parallel

Buffer

Advanced

Status

Protocol

Assign a size to the parallel input buffer.

Auto*

Disabled


Enable bidirectional communication through the parallel port.

On*

Off

Specify the parallel interface protocol.

Receive information at a much higher transmission rate if the printer is set to

Fastbytes (if computer supports Fastbytes), or receive information at a normal transmission rate if the printer is set to Standard.

Honor Init

Standard

Fastbytes*

Determine whether the printer honors hardware initialization requests from the computer. The computer requests initialization by activating the INIT signal on the parallel interface.

Many personal computers activate the INIT signal each time the computer is turned on and off.

On

Off*

Parallel

Mode 2

MAC Binary

PS

Determine whether the parallel port data is sampled on the leading (on) or trailing

(off) edge of the strobe.

Off

On*

NOTE: This menu appears only if supported by the parallel port.

Configure the printer to process Macintosh binary PostScript emulation print jobs.

Off

On

Auto*

Parallel With

ENA

ENA

Address

ENA

Netmask

ENA

Gateway

Configure the parallel port ENA address, Netmask, and Gateway settings.

4 field IP address (0.0.0.0*)

NOTE: These settings are shown only when ENA is attached through the parallel port.


Settings

Mode

Settings

Mode Main Menu

General Settings

Setup Menu

Finishing Menu

Quality Menu

Utilities Menu

PostScript Menu

PCL Emul Menu

General Settings Mode

Main Menu

General Settings

Mode Main Menu

Display Language

Run Initial Setup

Alarms

Timeouts

Print Recovery

Factory Defaults

1. From the menu list, use the Arrow buttons to scroll to the General Settings menu.



.



General Settings Mode Main Menu

From this menu:

You can:

Display

Language

Set the language of the text appearing on the display.

English*

Arabic

Brazilian Portuguese

Czech

Danish

Dutch

Finnish

French

German

Greek

Hebrew

Iberian Portuguese

Italian

Japanese (Kanji)

Norwegian

Polish

Russian

Simplified Chinese

Spanish

Swedish

Turkish

Run

Initial

Setup

Launch a setup wizard when the printer is powered on.

Yes*

No

Alarms Set an alarm to sound when the printer requires operator intervention.

Alarm control

Off

Single*

Continuous

Toner Alarm

Off*

Single

Continuous

Timeouts Specify the number of minutes of inactivity before the system enters a lower power state.

Power Saver Mode

Disabled

1–240 minutes

60 minutes*

Screen Timeout

15*–300 seconds

Print Timeout

Disabled

1–255 seconds

90 seconds*

Wait Timeout

Disabled

15–65535 seconds

40 seconds*

Network Job Timeout

Disabled

10–255 seconds

90 seconds*

Print

Recovery

Specify whether the printer continues from certain offline situations, reprints jammed pages, or waits until the entire page is processed and ready to be printed.

Auto Continue

Disabled*

5–255 seconds

Jam Recovery

On

Off

Auto*

Page Protect

On

Off*

Factory

Defaults

Reset and restore appropriate settings to their factory default values.

Do Not Restore*

Restore


Setup Mode

Main Menu

Setup

Mode Main Menu

Printer Language

Print Area

Download Target

Resource Save

1. From the menu list, use the Arrow buttons to scroll to the Setup menu.



.



Use the Setup menu to configure how the printer formats the end of a line depending on the computer system being used.

Setup Mode Main Menu

From this menu:

You can:

Printer

Language

Define the default printer language used to communicate data from the computer to the printer.

PS Emulation

PCL Emulation*

Print Area Modify the logical and physical printable area.

Normal*

Whole Page

Download

Target

Resource

Save

Specify the storage location for downloaded resources.

RAM*

Flash

NOTE: Download Target appears only if flash option is installed.

Specify whether all permanent downloaded resources, such as fonts and macros stored in RAM, are saved if the printer receives a job that requires more memory than is available.

Off*—The printer retains downloaded resources only until memory is needed. It then deletes those resources associated with the inactive printer language.

On—The printer retains all downloaded resources for all printer languages during language changes and printer resets. If the printer runs out of memory, 38 Memory Full appears.


Finishing Mode

Main Menu

Finishing

Mode Main Menu

Sides (Duplex)

Duplex Bind

Copies

Blank Pages

Collation

Separator Sheets

Separator Source

N-up (Pages/Side)

N-up Ordering

Orientation

N-up Border

The finishing menu specifies the default finishing for all print jobs.

1. From the menu list, use the Arrow buttons to scroll to the Finishing menu.



.



Finishing Mode Main Menu

From this menu:

You can:

Sides

(Duplex)

Enable duplex (2-sided) printing.

On

Off*

Duplex Bind Define the way duplexed pages are bound and how the printing on the back of the page is oriented in relation to the printing on the front of the page.

Long Edge*

Short Edge

Copies Specify a default number of copies for each print job.

1*–999

Blank Pages Define whether blank pages are inserted in a print job.

Do Not Print*

Print

Collation Stack the pages of a print job in sequence when printing multiple copies.

Separator

Sheets

On—Prints the entire job the number of times specified by the

Copies menu item. For example, if you set Copies to 2 and send three pages to print, the printer prints page 1, page 2, page 3, page 1, page 2, page 3.

Off*—Prints each page of a job the number of times specified by the Copies menu item. For example, if you set Copies to 2 and send three pages to print, the printer prints page 1, page 1, page 2, page 2, page 3, page 3.

Specify whether blank separator sheets are inserted.

None*

Between Copies

Between Jobs

Between Pages

Separator

Source

Specify the paper source for separator sheets.

Tray <x>*

MP Feeder

N-up

(Pages/Side)

NOTE: From the Paper menu, Configure MP must be set to Cassette in order for MP Feeder to appear as a menu setting.

Specify that multiple-page images be printed on one side of a sheet of paper.

Off*

2 Up

3 Up

4 Up

6 Up

9 Up

12 Up

16 Up

N-up

Ordering

Specify the positioning of multiple-page images when using multipage print.

Horizontal*

Vertical

Reverse Horizontal

Reverse Vertical

NOTE: Positioning depends on the number of images and whether the images are in portrait or landscape orientation.

Orientation Specify the orientation of a multiple-page sheet.

Auto*

Long Edge

Short Edge

N-up Border Print a border around each page image when using multi-page print.

None*

Solid


Quality Mode

Mode Menu

Quality

Mode Main Menu

Print Resolution

Pixel Boost

Toner Darkness

Enhance Fine Lines

Gray Correction

Brightness

Contrast

1. From the menu list, use the Arrow buttons to scroll to the Quality menu.



.



Quality Mode Main Menu

From this menu:

You can:

Print

Resolution

Specify the printed output resolution.

1200 dpi*

4800 CQ

Pixel

Boost

Approximate a high-resolution printer font and allow a rough preview of how the page would look when printed.

Off*

Fonts Only

Fonts/Images

Fonts/Images 2

Toner

Darkness

Enhance

Fine Lines

Gray

Lighten or darken printed output and conserve toner.

Ranges 1–5

4*

Select a lower value for finer line width, lighter grayscale images, and lighter printed output.

Select a higher value for bolder line widths or darker grayscale images.

NOTE: Selecting a smaller number can help conserve toner.

Enable a print mode preferable for files such as architectural drawings, maps, electrical circuit diagrams, and flow charts.

Off*

On

NOTE: This setting is available only on the PCL emulation driver,

PostScript emulation driver, or on the printer Embedded Web

Server.

Automatically adjust the contrast enhancement applied to images.

Correction

Auto*

Off

Manual

Auto applies different gray values to each object on the printed page.

Off turns off gray correction.

Brightness Adjust the gray value of printed images.

-6 to +6

0*

Contrast Adjust the contrast of printed images.

0–5

0*


Utilities Mode

Mode Menu

Utilities

Mode Main Menu

Hex Trace

Use the Utilities menu to troubleshoot printer problems.

1. From the menu list, use the Arrow buttons to scroll to the Utilities menu.



.



Utilities Mode Main Menu

From this menu:

You can:

Hex

Trace

Determine if there is a problem with the cable or language interpreter when unexpected character prints or missing characters are encountered

Isolate printing problems and their source

Identify what information is received by the printer

PostScript Mode

Mode Menu

PostScript

Mode Main Menu

Print PS Error

Font Priority

1. From the menu list, use the Arrow buttons to scroll to the PostScript menu.



.



PostScript Mode Main Menu

From this menu:

You can:

Print

PS

Error

Print a page containing the PostScript emulation error.

On

Off*

Font

Priority

Establish the font search order.

Resident*

Flash

NOTE: Font Priority is displayed only when a non-defective, non-write or -Read/Write protected flash option is installed in the device.


PCL Emul Mode

Mode Menu

PCL Emul

Mode Main Menu

Font Source

Font Name

Symbol Set

PCL Emulation Settings

Tray Renumber

1. From the menu list, use the Arrow buttons to scroll to the PCL Emul menu.



.



PCL Emul Mode Main Menu

From this menu: You can:

Font Source

Font Name

Specify the set of fonts used by the Font Name menu item.

Resident*

All

Identify a specific font and the option where it is stored.

Range: R0* – R90

Symbol Set Specify the symbol set for each font name.

Default: 10U PC-8

PCL Emulation Settings

Point Size

NOTE: Only for PostScript emulation and typographic fonts.

Change the point size for scalable typographic fonts.

1.00 – 1008.00 in increments of 0.25

12.00*

Pitch

Orientation

Lines per Page

Assign the font pitch for scalable monospaced fonts.

Range: 0.08 – 100.00 in increments of 0.01

10.00*

Specify the orientation of text and graphics on the page.

Portrait*

Landscape

Assign the number of lines that print on each page.

1–255

60*

A4 Width

Auto CR after LF

Auto LF after CR

Tray Renumber

Assign MP Feeder

Assign Tray <x>

Assign Manual Paper

Assign Man Env

View Factory Def

Restore Defaults

Set the printer to print on A4-size paper.

198 mm*

203 mm

Specify whether the printer automatically performs a carriage return (CR) after a line feed (LF) control command.

On

Off*

Specify whether the printer automatically performs a line feed (LF) after a carriage return (CR) control command.

On

Off*

Configure the printer to work with printer software or programs that use different source assignments for trays, drawers, and feeders.

200 = Off*

0–199

Display the factory default setting assigned to each tray, drawer, or feeder.

Return all tray, drawer, and feeder assignments to the factory default settings.


Administrative Support

Using the Embedded Web Server

Locking the Operator Panel Menus Using the Embedded Web Server

Creating an Administrative Password

Using the Embedded Web Server

If the printer is installed on a network, the Embedded Web Server is available for a range of functions:

Configuring printer settings

Checking the status of the printer supplies

Configuring network settings

Creating a password for certain menus

Viewing reports

Restoring the factory default settings

Viewing the virtual display

To access the Embedded Web Server, type the printer IP address into the address field of your Web browser.

NOTE: If you do not know the IP address of the printer, print a network setup page and locate the IP address in the

TCP/IP section. For more information, see Printing a Network Setup Page .

Locking the Operator Panel Menus Using the Embedded Web

Server

You can use the operator panel lockout functionality to create a PIN and choose specific menus to lock. Each time a locked menu is selected, the user will be prompted to enter the correct PIN. The PIN does not affect access through the Embedded

Web Server.

NOTE: Locking the printer operator panel will prevent a user from entering the printer operator panel both remotely and at the printer.

To lock operator panel menus:

1. Open a Web browser. In the address bar, type the IP address of the printer or print server to be protected using the format: http://ip_address/ .

2. Click Configuration .

3. Under Security , choose the menus you want to protect.

4. Create and re-enter the PIN.

NOTE: PINs must be 4 digits and numeric (0–9).

5. Click Submit to save the PIN.

To change the PIN, click Reset Form .

Creating an Administrative Password

Creating an administrative password allows a system support person to password-protect printer settings.

To prevent a user from changing a printer setting, the operator panel should be locked and an administrative password should be set. For more information, see

Locking the Operator Panel Menus Using the Embedded Web Server .

NOTE: When the administrative password is set, the web server will require the password to be entered before the web server will allow the user to enter any link on the Printer Settings page, with the exception of the report links.

1. Open a Web browser.

2. In the address bar, type the network printer or print server IP address, and then press Enter .


4. Under Other Settings, click Security .

5. Assign password security for specific device settings.

6. Create advanced or user password.

NOTE: Password range is 8–128 characters.

7. Click Submit .

To reset the password, click Reset Form or click the Change/Remove Advanced Password link.

Installing Optional Hardware

Installing the 550-Sheet Optional Drawer

Installing an Optional Memory Card

Installing the 550-Sheet Optional Drawer

An optional drawer attaches under the printer. A drawer consists of two parts: a tray and a support unit. Your printer supports one optional drawer that holds up to 550 sheets of paper.

CAUTION: If you are installing a drawer after setting up the printer, turn off the printer, and unplug the power cable before continuing.


2. Unpack the drawer, and remove any packing material.

3. Place the drawer in the location you have chosen for your printer.

NOTE: If you have optional memory to install, leave clearance on the right side of the printer.

4. Align the holes in the printer with the positioning posts on the drawer, and lower the printer into place.


6. In Windows Vista ™: a. Click ® Control Panel .


c. Click Printers .

In Windows ® XP and 2000 :

a. Click Start ® Control Panel .



7. Right-click the Dell 2330d/2330dn Laser Printer icon.

8. Click Properties .

9. Click Install Options .

10. Click Ask Printer .

11. Click OK .

12. Click OK , and then close the Printers folder.

Installing an Optional Memory Card

The system board has one connector for an optional memory card. The printer can support up to 160 MB for a non-network printer and 288 MB for a network printer. The printer memory can only be upgraded using 128 MB memory cards for both network and non-network printers. The network printer can also be upgraded using 256 MB memory cards.

CAUTION: If you are installing a memory card after setting up the printer, turn off the printer, and unplug the power cable before continuing.


2. Open the memory access door on the right side of the printer.

NOTICE: Do not remove the memory card or touch the printer near the area of the memory card while actively reading, writing, or printing from these devices. Data corruption can occur.

3. Push open the latches on both ends of the memory connector.

NOTICE: Memory cards are easily damaged by static electricity. Touch a grounded metal surface before you touch a memory card.

NOTE: Memory cards designed for other printers may not work with your printer.

4. Unpack the memory card.

Avoid touching the connection points along the edge of the card.

5. Align the notches on the bottom of the card with the notches on the connector.

6. Push the memory card firmly into the connector until the latches on both ends of the connector snap into place.

It may require some force to fully seat the card.

7. Ensure that each latch fits over the notch on each end of the card.

8. Close the side cover.


10. In Windows Vista: a. Click ® Control Panel .


c. Click Printers .

In Windows ® XP and 2000 : a. Click Start ® Control Panel .




12. Click Properties .

13. Click Install Options .

NOTE: Memory cards designed for other printers may not work with your printer.

14. Click Ask Printer .

15. Click OK .

16. Click OK , and then close the Printers folder.

Troubleshooting Your Printer

Frequently Asked Questions (FAQ): Dell 2330d/2330dn Laser

Printer Issues and Solutions

Setup Problems

Error Messages

General Guidelines for Selecting or Loading Print Media

Avoiding Jams and Misfeeds

Clearing Paper Jams

Paper Problems

Printing Problems

Print Quality Problems

Frequently Asked Questions (FAQ): Mac OS ®

Issues, and Solutions

Features,

Calling for Service

Frequently Asked Questions (FAQ): Dell 2330d/2330dn Laser

Printer Issues and Solutions

How do I install the Dell™ 2330d/2330dn Laser Printer driver and software in Windows connection?

® via USB or Parallel

See

Installing the Printer Drivers

.

NOTE: DO NOT connect the printer to the computer using a USB cable and turn on the printer before trying to install the printer driver.

Why do I get garbled text printed out continuously?

Try any of the following:

1. Check the USB cable connections between the computer and the printer.

2. Try using a different USB cable, if available.

3. Uninstall and reinstall the Dell 2330d/2330dn Laser Printer driver.

NOTE: For the local Status Monitor Center to work properly, bidirectional communication support must be in place so that the printer and computer can communicate. An exception is added to the

Windows Firewall to allow this communication.

If this does not resolve this issue, check the USB cable connection with the printer. If failure persists, then changing the USB cable might help.

If the above steps do not resolve this issue, then try uninstalling and reinstalling the Dell 2330d/2330dn

Laser Printer driver.

How do I install the optional 550-sheet drawer (Tray 2)?

See


.

Why can’t I choose the optional 550-sheet drawer (Tray 2) in the printer driver?

See


.

How do I set up trays to print with legal-size paper?

See

Loading the 250-Sheet and 550-Sheet Paper Trays .

How do I install the Dell 2330d/2330dn Laser Printer driver through network for Windows?

See

Setting up for Network Printing .

How do I reset the imaging drum counter?

To reset the counter, see the instruction sheet that shipped with the new imaging drum kit. For more information,

see Replacing the Imaging Drum

.

NOTE: Resetting the imaging drum counter without replacing the imaging drum may damage your printer and void your warranty.

NOTE: Use this setting to return the imaging drum counter to zero. The replace imaging drum message will be cleared only when the imaging drum has been changed.

How do I reset factory defaults?

See

General Settings Mode

.

How do I find the printer IP and MAC address?

See

Printing a Network Setup Page .

How do I change the printer IP address by using the Dell Printer Configuration Web Tool?

See

Dell Printer Configuration Web Tool .

I am unable to set up wireless connection with Dell Wireless Print Adapter 3300.

Go to support.dell.com

and see the section under Problems with 3300 Wireless Print Adapter .

Setup Problems

Computer Problems

Verify that your printer is compatible with your computer.

The printer supports Windows Server 2008, Windows Vista™, Windows XP, Windows Server 2003, Windows 2000, Macintosh ®

OS ® 10.3 and above.

Windows ME, Windows NT, Windows 98, Windows 95, Macintosh OS 9x and 10.2 are not supported by this printer.

Ensure that you have turned on both your printer and your computer.

Check the USB cable.

Ensure that the USB cable is firmly connected to your printer and your computer.

Shut down the computer, reconnect the USB cable as shown on the Setting Up Your Printer poster, and then restart the computer.

If the software installation screen does not appear automatically, install the software manually.

1. Insert the Drivers and Utilities CD.

2. In Windows Vista , click ® Computer .

In Windows XP , click Start

®

My Computer .

In Windows 2000 , double-click My Computer from your desktop.

3. Double-click the CD-ROM drive icon, and then double-click setup.exe

.

4. When the printer software installation screen appears, click Personal Installation or Network Installation .

5. Follow the instructions on your screen to complete the installation.

Determine if the printer software is installed.

In Windows Vista:

1. Click ® Programs .

2. Click Dell Printers .

In Windows XP and Windows 2000:

Click Start

®


®

Dell Printers

®


If the printer does not appear in the list of printers, the printer software is not installed. Install the printer software. For more information, see

Removing and Reinstalling Software .

Correct communication problems between the printer and the computer.

Remove the USB cable from your printer and your computer. Reconnect the USB cable to your printer and your computer.

Turn off the printer. Unplug the printer power cable from the electrical outlet. Reconnect the printer power cable to the electrical outlet, and turn on the printer.

Restart your computer.

If the problem still exists, replace the USB cable.

Set your printer as the default printer.

1. In Windows Vista : a. Click ® Control Panel .


c. Click Printers .


®

Control Panel

®

Printers and Other Hardware

®


In Windows 2000 , click Start

®

Settings

®

Printers .


3. Select Set as Default Printer .

Printer won't print and print jobs are stuck in the print queue.

Check for multiple instances of the printer installed on your computer.



c. Click Printers .


®

Control Panel

®


®



®

Settings

®

Printers .

2. Check for multiple objects for your printer.

3. Print a job to each of these print objects to see which printer is active.

4. Set that print object as the default printer: a. Right-click the Dell 2330d/2330dn Laser Printer icon.

b. Click Set as Default Printer .

5. Delete the other copies of the print object by right-clicking the printer name and selecting Delete .

To prevent multiple instances of the printer in your Printers folder, ensure you always plug the USB cable back into the same USB port that was originally used for the printer. Also, do not install printer drivers multiple times from the

Drivers and Utilities CD.

Printer Problems

Ensure the printer power cable is firmly connected to the printer and the electrical outlet.

Determine if the printer has been held or paused.



c. Click Printers .

In Windows XP, click Start

®

Control Panel

®


®



®

Settings

®

Printers .


3. Make sure Pause Printing is not selected. If Pause Printing is selected, click it to clear the option.

Ensure you installed the toner cartridge correctly and removed the sticker and tape from the cartridge.

Make sure you loaded the paper correctly.

For more information, see Loading Paper

.

Error Messages

Close Door

The printer front cover is open. Close the front door of the printer.

Install Tray <x> or Cancel Print Job

The printer is requesting that a specified device be installed so it can print a job. Insert the specified tray or press the Cancel button to cancel the print job.

Load <Input Src> With <Custom Type Name>

Load the specified paper into the designated source to clear the message or press the Cancel button to cancel the print job.

Load <Input Src> With <Custom String>

Load the specified paper into the designated source or press the Cancel button to cancel the print job.

Load <Input Src> With <Size>

Load the input source with the correct paper size or press the Cancel button to cancel the print job.

Load <Input Src> With <Type> <Size>

Load the input source with the correct paper type and size or press the Cancel button to cancel the print job.

Load Multipurpose Feeder With <Custom Type Name>

Load the multipurpose feeder with the correct paper type and size.

If there is no paper in the multipurpose feeder, feed a sheet of paper through the multipurpose feeder to clear the message.

To Ignore the request and print on paper that is already being used in one of the input sources, press the Back button

. The current job may not print correctly.

If the printer finds a source that has paper of the correct type, it uses the paper from that source. If the printer cannot find a source with the correct paper type, it prints on the paper that is installed in the default paper source.

To cancel the print job, press the Cancel button .

Load Multipurpose Feeder With <Custom String>

Load the specified paper in the multipurpose feeder.

To ignore the request and print on paper already installed in one of the input sources, press the Back button . The current job may not print correctly.

If the printer finds a tray of the correct type and size, it feeds paper from that tray. If the printer cannot find a tray with the correct paper type and size, it prints on whatever paper is loaded in the default input source.


Load Multipurpose Feeder With <Size>

Load the multipurpose feeder with the correct paper size.

If there is no paper in the multipurpose feeder, feed a sheet of paper to clear the message.

To ignore the request and print on paper that is already being used in one of the input source, press the Back button

. The current job may not print correctly.

If the printer finds a source that has paper of the correct type, it uses the paper from that source. If the printer cannot find a source with the correct paper type, it prints on the paper that is installed in the default paper source.


Load Multipurpose Feeder With <Type> <Size>

Load the correct paper type and size in the multipurpose feeder.

To ignore the request and print on paper already installed in one of the input sources, press the Back button . The current job may not print correctly.

If the printer finds a tray of the correct type and size, it feeds paper from that tray. If the printer cannot find a tray with the correct paper type and size, it prints on whatever paper is loaded in the default input source.


Output Bin Full — Remove Paper

Remove any paper from the output bin.

To continue the print job, press the Back button . The current job may not print correctly.


30 Invalid Refill, Change Toner Cartridge

The printer has detected a refilled toner cartridge. Remove the toner cartridge and install a new one.

31 Missing or Defective Cartridge

If the toner cartridge is not installed, install it.

If the toner cartridge is installed, remove it and install a new toner cartridge.

31 Defective Toner Cartridge

Remove and install a new toner cartridge.

32 Unsupported Toner Cartridge

Remove the specified toner cartridge, and then install a supported one.

34 Short Paper

Ensure that the paper you loaded is large enough.

Check for a paper jam.

To clear the message and continue printing, press the Back button . The remaining pages of the print job may not print correctly.


35 Insufficient Memory to Support Resource Save Feature

To ignore Resource Save and continue printing, press the Back button . The current job may not print correctly.


To enable Resource Save after receiving this message, make sure the link buffers are set to Auto, and then exit the menus to activate the link buffer changes. When

Ready

appears, enable Resource Save.

For more information on how to enable Resource Save, see Setup Mode

.

To prevent this error in the future, install additional memory.

37 Insufficient Memory to Collate Job

The printer memory does not have enough free space to collate the job.

Press the Back button to print the portion of the job already stored and begin collating the rest of the print job. The current job may not print correctly.

To cancel the current print job, press the Cancel button .

To prevent this error in the future:

Install additional memory.

Simplify the job. Reduce the complexity of the page by reducing the amount of text or graphics on the page and

deleting unnecessary fonts or macros.

37 Insufficient Defrag Memory

To clear the message, press the Back button . The current job may not print correctly.


To prevent this error in the future install additional memory.

38 Memory Full

To clear the message and continue printing, press the Back button . The remainder of the print job may not print correctly.



Simplify the job. Reduce the complexity of the page by minimizing the amount of texts or graphics on the page and deleting unnecessary fonts or macros.

Install additional memory.

39 Complex Page, Some Data May Not Have Printed

Press the Back button to clear the message and continue printing. The current job may not print correctly.

To cancel the current print job, press the Cancel button .


Simplify the job. Reduce the complexity of the page by minimizing the amount of texts or graphics on the page and deleting unnecessary fonts or macros.

Install additional printer memory.

54 Standard Network Software Error

Turn the printer off and then back on to reset the printer.

Upgrade the network firmware in the printer or print server.

To ignore the message and continue printing, press the Back button . The current job may not print correctly.


56 Standard Parallel Port Disabled

The printer discards any data received through the parallel port.



Ensure that the Parallel Buffer menu item is not set to Disabled. For more information see

Parallel Buffer .

56 Standard USB Port Disabled

The printer discards any data received through the USB port.



Ensure that the USB Buffer menu item is not set to Disabled. For more information, see

USB Buffer .

58 Too Many Flash Options

Remove the memory from your printer. Your printer supports up to 160 MB for a non-network printer and 288 MB for a network printer.

58 Too Many Trays Attached

Turn the printer off.

Unplug the power cord from the wall outlet.

Remove the excess trays.

Turn the printer back on.

59 Unsupported Tray <x>

Remove the specified tray, and wait for the message to clear. You must remove the unsupported tray in order to print.

Turn the printer off.

Unplug the power cord from the wall outlet.

Remove the unsupported tray.

Connect the power cord to a properly grounded outlet.

Turn the printer back on.

81 Engine Code CRC Failure



84 Imaging Drum Life Warning/PC Unit Life Warning

NOTE: You receive the imaging drum life warning only if you have the Toner Alarm set to On.



Print a Printer Settings configuration sheet to determine the imaging drum level. For more information, see

Menu

Settings Page

.

Replace the imaging drum, and then reset the counter.

84 Replace Imaging Drum/Replace PC Unit

Your printer will not print any more pages until the imaging drum has been replaced.

Replace the imaging drum, and reset the counter.

88 Toner Low

Remove the toner cartridge, and firmly shake it to redistribute the toner within the cartridge.

Replace the toner cartridge.

88 Replace Toner Cartridge

Replace the specified toner cartridge.

To ignore the message and continue printing, press the Back button . The remainder of the print job may not print correctly.


200 Paper Jam

There is a paper jam at the printer input sensor.

1. Turn the printer off before checking the printer.



CAUTION: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.

4. Lift the base of the imaging drum kit and gently pull it up and slide it out of the printer.


5. Remove the jammed paper.

6. Install the toner cartridge assembly into the imaging drum kit by aligning the white rollers on the toner cartridge with the white arrows on the tracks of the imaging drum kit and pushing the toner cartridge in as far as it will go. The cartridge clicks into place when correctly installed.




10. Send the print job to the printer again.

201 Paper Jam

There is a paper jam between the printer input and paper exit sensors.





4. Lift the base of the imaging drum kit and gently pull it up and slide it out of the printer.



6. Install the toner cartridge assembly into the imaging drum kit by aligning the white rollers on the toner cartridge with the white arrows on the tracks of the imaging drum kit and pushing the toner cartridge in as far as it will go. The cartridge clicks into place when correctly installed.





202 Paper Jam

There is a paper jam at the printer exit sensor.


2. Open the rear exit.


4. Close the rear exit.



231 Paper Jam — Check Duplex

There is a paper jam in the rear of the duplex paper path.








There is a paper jam in the front of the duplex unit.


2. Remove Tray 1.



4. Replace Tray 1.




There is a paper jam in the duplex unit, but the printer cannot identify the location.


2. Remove Tray 1.


3. Remove any jammed paper.

4. Replace Tray 1.


6. Remove any jammed paper.





There is a paper jam at the output bin because the paper used was too narrow for the duplex unit.





5. Replace the narrow paper in Tray 1 with a wider paper.



24x Paper Jam — Check Tray <x>

Jam in Tray 1


2. Pull Tray 1 out.


3. Remove the jam.

4. Insert the tray.



Jam in Tray 2


2. Pull Tray 2 out.


3. Remove the jam.

CAUTION: Make sure all paper fragments are removed.

4. Insert the tray.


6. Send your print job to the printer again.

251 Paper Jam — Check Multipurpose Feeder


2. Remove the paper from the multipurpose feeder.

3. Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.

4. Load the paper into the multipurpose feeder.

5. Slide the paper guide toward the inside of the tray until it lightly rests against the edge of the paper.



General Guidelines for Selecting or Loading Print Media

Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.

Use only high-quality, copier-grade paper for the best print quality.

Avoid paper with embossed lettering, perforations, or a texture that is too smooth or rough. Paper jams may occur.

Store paper in its packaging until you are ready to use it. Place cartons on pallets or shelves, not on the floor.

Do not place heavy objects on top of the media, whether or not it is packaged.

Keep paper away from moisture or other conditions that can cause it to wrinkle or curl.

Store unused paper at temperatures ranging between 15°C and 30°C (59°F and 86°F). The relative humidity should be between 10% and 70%.

During storage, you should use moisture-proof wrap, such as a plastic container or bag, to prevent dust and moisture from contaminating the paper.

Avoiding Jams and Misfeeds

You can avoid most jams and misfeeds by following these guidelines:

Use paper that follows the printer's media guidelines. For more information, see

Loading Paper .

Make sure that the paper is properly loaded in the input tray.

Do not overload the input tray.

Do not remove paper from the input tray while printing.

Flex, fan, and straighten the paper before loading.

Do not use creased, damp, or curled paper.

Orient the paper according to the instructions for the printer.

Clearing Paper Jams

It is recommended that you clear the entire paper path when a paper jam occurs.

NOTE: Turn the printer off before checking the printer.

CAUTION: To reduce the risk of injury when clearing paper jams allow the surface to cool before touching.

Paper jam in the paper path

1. Pull the paper firmly to remove it. If you cannot reach the paper because it is too far into the printer, open the front cover of the printer by pressing the button on the right side of the printer and lowering the cover.

2. Press the button on the toner cartridge assembly, and then pull the toner cartridge up and out using the handle.

3. Pull the paper out.

4. Reinstall the toner cartridge by aligning the white rollers on the toner cartridge with the white arrows on the tracks of the imaging drum and pushing the toner cartridge in as far as it will go. The cartridge clicks into place when correctly installed.


Paper jam not visible

Near the multipurpose feeder

1. Open the multipurpose feeder door.

2. Firmly grasp the paper, and gently pull it from the printer.

3. Close the multipurpose feeder door.

Near the paper input tray

1. Remove the paper input tray.


3. Replace the paper input tray.

Near the output bin extender

1. Press the door release button on the right side of the printer to open the front cover.



Near the rear exit

1. Open the rear exit door.


3. Close the rear exit door.

Turn the printer back on and send your print job to the printer again.

Paper Problems



.

Use only paper recommended for your printer.

For more information, see Print Media Guidelines

.

Load a smaller amount of paper when printing multiple pages.

For more information, see Print Media Guidelines

.

Make sure the paper is not wrinkled, torn, or damaged.

Check for a paper jam.

For more information, see Clearing Paper Jams

.

Printing Problems

Check the toner level, and install a new toner cartridge if necessary.

For more information, see Replacing the Toner Cartridge

.

Free up memory resources on your computer when print speed is slow

Close all applications not in use.

Try minimizing the number and size of graphics and images in your document.

Consider purchasing more Random Access Memory (RAM) for your computer.

Remove fonts that you rarely use from your system.

Uninstall the printer software, and then reinstall it.

Select a lower print quality from the Printing Preferences dialog box.



.

Print Quality Problems

Use the following information to find solutions for printing problems you encounter. If you cannot fix the problem, contact Dell at support.dell.com

. You may have a printer part that requires cleaning or replacement by a service technician.

Print is too light.

The Toner Darkness 1 setting is too light.

You are using paper that does not meet the printer specifications.

The toner cartridge is low on toner.

The toner cartridge is defective.

Try the following:

Select a different Toner Darkness

1

setting before sending the job to print.

Load paper from a new package.

Avoid textured paper with rough finishes.

Ensure that the paper you load in the trays is not damp.


Print is too dark, or the background is gray.

The Toner Darkness 1 setting is too dark.

The toner cartridge is worn or defective.

Try the following:

Select a different Toner Darkness

1

setting.


White lines appear on the page.

The printhead lens is dirty.


The fuser

2

is defective.

Try the following:

Clean the printhead lens.


Replace the fuser

2

.

Streaked horizontal lines appear on the page.

The toner cartridge may be defective, empty, or worn.

The fuser 2 may be worn or defective.

Try the following:


Replace the fuser 2 .

Streaked vertical lines appear on the page.

Toner is smeared before fusing to the paper.


Try the following:

If the paper is stiff, try feeding from another tray or the multipurpose feeder.


The page contains print irregularities.

Paper has absorbed moisture due to high humidity.

You are using paper that does not meet the printer specifications.

The fuser

2

is worn or defective.

Try the following:

Load paper from a fresh package into the paper tray.

Avoid textured paper with rough finishes.

Ensure that the Paper Type setting matches the paper loaded in the tray.


The transparency print quality is poor. (Print has inappropriate light or dark spots, toner is smeared, or horizontal or vertical light bands appear.)

You are using transparencies that do not meet the printer specifications.

The Paper Type setting is set to something other than Transparency.

Try the following:

Use only transparencies recommended by Dell.

Ensure that the Paper Type setting is Transparency.

Toner specks appear on the page.


The fuser 2 is worn or defective.

Toner is in the paper path.

Try the following:



Call for service.

Toner rubs off the paper easily when you handle the sheets.

The Paper Texture setting is wrong for the type of paper or specialty media you are using.

The Paper Weight setting is wrong for the type of paper or specialty media you are using.

The fuser 2 is worn or defective.

Try the following:

Ensure that the Paper Texture setting matches the paper loaded in the tray.

Change the Paper Weight setting to the appropriate weight.


Print density is uneven.



Ghost images appear on the page.

The Paper Type is set incorrectly.

The toner level is low.

Try the following:

Ensure that the Paper Type setting matches the paper loaded in the tray.


Print only appears on one side of the page.

The toner cartridge is not properly installed.

Remove and reinsert the toner cartridge.

Margins are incorrect.

The Paper Size is set incorrectly.

Ensure that the Paper Size setting matches the paper loaded in the tray.

Print is skewed (inappropriately slanted).

The guides in the selected tray are not in the correct position for the paper size loaded in the tray.

The multipurpose feeder guides are not in the correct position for the paper size loaded in the feeder.

Try the following:

Move the guides in the tray so they rest against the edges of the paper.

Move the multipurpose feeder guides so they rest against the edges of the paper.

Printed pages are blank.

The toner cartridge is empty or defective.


Printed pages are solid black.


Your printer requires servicing.

Try the following:


Call for service.

Paper curls badly once it prints and exits to the bin.

The Paper Texture setting is wrong for the type of paper or specialty media you are using.

Ensure that the Paper Texture setting matches the paper loaded in the tray.

1 For more information, see

Quality Mode

.

2 Call a service technician to replace the fuser.

Frequently Asked Questions (FAQ): Mac OS

®

and Solutions

Features, Issues,

This document provides answers to common questions regarding printing, the printer software, and how the software interacts with the Macintosh Operating System (OS). Keeping your printer software and computer system up-to-date minimizes printing issues and ensures the best results from your printer and Mac OS. To keep your printer software current, visit the Web site of your printer manufacturer, and download the most recent Web package. To keep your Mac OS current, periodically check for updates at http://www.info.apple.com/support/downloads.html

.

Mac OS X Features

Why do some applications not print multiple copies as expected?

Some applications handle the printing of multiple copies differently. Some versions of Microsoft Word and Adobe

Reader treat multiple copies of a job as a single copy job with multiple pages. The following features will not work as expected when printing multiple copies using these applications.

Feature

Separator Sheets Between Copies

Duplex/Print on Both Sides

Multiple Pages per Sheet

Verify Print

Malfunction

A sheet may be added only after the entire job is printed.

Copies may print on the same sheet.

Copies may print on the same sheet.

All copies may be verified before they are printed.

To print multiple copies of a PDF file with these features, use Apple Preview or Adobe Acrobat Reader 5.

How do I manage network printers?

Use MarkVision™ Professional to manage your network printers. This application replaces MarkVision for

Macintosh and is compatible with Mac OS X or higher.

Mac OS X Known Issues and Solutions

How do I format my document to print on custom paper sizes?

Use the Page Setup dialog to add a custom paper size to the Paper Size menu.

For Mac OS X version 10.4:

1. Choose File

®

Page Setup .

2. From the Paper Size pop-up menu, choose Manage Custom Sizes .

3. From the Custom Page Sizes pane, click + to create a new custom paper size.

4. On the list that appears, double-click Untitled to rename the custom paper size.

5. Enter the appropriate page size and margins of the custom paper size.

6. Click OK to return to the Page Setup dialog.

7. From the Paper Size pop-up menu, choose the custom paper size you created.

8. Click OK .

For Mac OS X version 10.3:

1. Choose File

®

Page Setup .

2. From the Settings pop-up menu, choose Custom Paper Size .

3. Click New , and then enter the appropriate information about the custom paper size.

4. Click Save .

NOTE: You must click Save before clicking OK or switching back to the Page Attributes pane in the

Settings pop-up menu.

5. From the Settings pop-up menu, choose Page Attributes .

6. From the Paper Size pop-up menu, choose the custom paper size.

This newly added custom paper size is an available option for all print jobs, regardless of the selection in the

“Format for” menu. Another way to use custom paper for print jobs is to choose the source that contains the custom paper in the “All pages from” pop-up menu on the Paper Feed pane of the Print dialog.

Why are screen fonts provided?

PostScript fonts are stored in the printer. Matching screen fonts let you create documents that use the PostScript fonts.

Why are there duplicates of some of the screen fonts?

The fonts in your printer are not identical to the screen fonts provided by Apple. Dell provides screen fonts that match the printer fonts. Using these screen fonts allows you to make sure that the printed output will match what you see on the computer screen.

How do I install screen fonts?

Move the fonts you want to use from the /Users/Shared/Dell/Screen Fonts folder to the Library/Fonts folder in your home directory or at the root of the boot disk. Because most of the preinstalled fonts on Mac OS X are in

/System/Library/Fonts, you can place your new fonts in either of these two locations without having to move the preexisting ones. The system will find fonts first in your home Library, then in the Library at the root of the boot disk, and then in /System/Library.

How do I use an external print server when the data mode is TBCP (for printers that support external print servers)?

Check the Data Mode setting:

1. Enter the IP address of the print server into your Web browser.

2. From the menus at the left of the Web page, choose Configuration .

3. From the list of configuration options on the right, choose AppleTalk .

4. From the AppleTalk page, choose Advanced Settings .

5. From the AppleTalk Advanced Settings page, view the Data Mode pop-up menu. If the menu is set to

IOP/EOP, do not change it. If it is set to TBCP, change it to Raw Mode.

Calling for Service

Before calling for service, check the following:

Is the power cable plugged into the printer?

Is the power cable plugged directly into a properly grounded electrical outlet?

Is your printer properly connected to your computer or network?

Are all other devices attached to your printer plugged in and turned on?

Is the electrical outlet turned off by any switches?

Did a fuse blow?

Has a power outage occurred in your area?

Is a toner cartridge installed in your printer?

Is the printer cover closed properly?

Try turning your printer off and back on again. If your printer is still not operating properly, call for service. If you are able to print, press the Menu button to print a menu settings page, which lists the printer model type and other information the service representative may need to know.

For more information, contact Dell at support.dell.com

.

Loading Paper

Setting the Paper Size and Paper Type

Loading the 250-Sheet and 550-Sheet Paper Trays

Using the Rear Exit

Using the Multipurpose Feeder

Linking and Unlinking Trays

Setting the Paper Size and Paper Type

NOTE: You must install the software for your printer before configuring the paper trays. For more information, see

Setting up for Local Printing

or

Setting up for Network Printing .

Dell™ 2330d Laser Printer — Attached Locally to a Computer

After you set the Paper Size and Paper Type to the correct settings for the size and type used in the trays, then any trays containing the same size and type are automatically linked by the printer.

NOTE: If the size of the paper being loaded now is the same size as the previously loaded paper, do not change the

Paper Size setting.

1. Ensure that the printer is on and

Ready

appears.

2. From the operator panel, press the Menu button until

Paper Menu

appears.


4. Press the Arrow buttons until

Size/Type

appears, and then press the Select button .

Select Source

appears.

5. Press the Arrow buttons until the correct source appears, and then press the Select button .

Size

appears under the source name.


7. Press the Arrow buttons until the correct size appears, and then press the Select button .

Submitting Changes

appears, followed by

Size

.

8. Press the Arrow buttons until

Type

appears, and then press the Select button .

9. Press the Arrow buttons until the correct type appears, and then press the Select button .

Submitting Changes

appears, followed by

Type

.

Dell 2330dn Laser Printer — Attached to a Network

Setting the paper size and type for the printer is done through the Dell Printer Configuration Web Tool.

NOTE: Configuring paper trays through the Dell Printer Configuration Web Tool is available only on the Dell 2330dn

Laser Printer.

1. Type your network printer's IP address in your Web browser.

NOTE: If you do not know your printer's IP address, print a network setup page, which lists the IP address. For more information see

Printing a Network Setup Page

.

2. When the Printer Status page opens, select Printer Settings in the left column.

3. From the Printer Settings page, select Paper Menu .

4. Select Paper Size .

5. Select the paper size you have in each tray.

6. Click Submit .

7. Select Printer Settings in the left column.

8. From the Printer Settings page, select Paper Menu .

9. Select Paper Type .

10. Select the paper type you have in each tray.

11. Click Submit .

Loading the 250-Sheet and 550-Sheet Paper Trays

Follow these instructions to load paper in the 250-sheet and 550-sheet paper trays.

1. Remove the tray.

2. If you are loading legal or folio-size paper, you must adjust the paper tray to accommodate the larger paper.

a. Press down on the latch at the back of the tray.

b. Expand the tray until the extender locks into place.

c. Move the rear paper guide to the back of the paper tray.

3. Flex a stack of paper back and forth. Straighten the edges on a level surface.

4. Load the paper in the tray with the print side facing down.

Ensure that the paper is below the maximum fill line on the side paper guides. Overloading may cause paper jams.

5. Slide the two side guides and the rear guide until they rest against the edges of the paper.

6. Replace the tray.

7. Extend the paper support on the output bin.

Using the Rear Exit

The single-sheet rear exit provides a straight-through paper path to help reduce curling and potential jams. This is especially useful for specialty media, such as transparencies, envelopes, labels, card stock, or index cards.

To use the rear exit, open the rear exit door. When the rear exit door is open, all print jobs come out the rear exit. When closed, all print jobs are sent to the output bin on top of the printer.

Using the Multipurpose Feeder

Configuring the Multipurpose Feeder

This setting is used to designate the mode of operation for the multipurpose feeder.

Mode

Cassette* The multipurpose feeder source: functions as a non-sensing automatic source is assigned an installed size and paper type like any of the other input sources is included in the value lists of all printer settings such as the Paper

Source

Manual The multipurpose feeder source: is used strictly for manual feed is removed from the value lists of all printer settings including Paper

Source

When manual feed is selected, the printer suspends printing and prompts the user to manually load print media to the multipurpose feeder.


1. From the operator panel menu list, use the Arrow buttons to scroll the Paper menu.



.



Opening the Multipurpose Feeder

The multipurpose feeder is located at the front of your printer and can feed 50 sheets of print media at a time. You can use the multipurpose feeder to make quick runs of paper types or sizes that are not currently loaded in the paper tray.

To open the multipurpose feeder:

1. Pull the multipurpose feeder door down.

2. Slide the multipurpose feeder tray forward.

3. Pull the extension so it flips forward.

4. Guide the extension down gently to fully extend the multipurpose feeder.

Loading the Multipurpose Feeder

To load the multipurpose feeder:

1. Place a sheet of the selected print media, print side facing up, at the center of the multipurpose feeder, but only to the point where its leading edge can contact the paper guides. Otherwise, the printer engages the print media too soon and likely skews the print job.

NOTE: Do not exceed the maximum stack height by forcing paper or specialty media under the stack height limiters which are located on the guides.

2. Adjust the paper guides to the print media's width.

3. Prepare the print media for loading.

Flex sheets of paper or paper labels back and forth to loosen them, and then fan them. Do not fold or crease the paper or labels. Straighten the edges on a level surface.

NOTE: Avoid touching the print side of the transparencies. Be careful not to scratch them.

Flex a stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level surface.

NOTE: Fanning prevents the edges of envelopes from sticking together. It helps them feed properly to avoid jams. Do not fold or crease envelopes.

4. Hold both sides of the print media close to the multipurpose feeder, and push it into the printer until it automatically engages.

There is a brief pause between the time the printer engages the print media and when it feeds into the printer.

NOTICE: Do not force the print media into the feeder. Forcing the media causes jams.

Insert envelopes with the flap side facing down and with the stamp area as shown.

NOTE: For best performance do not use envelopes that have postage stamps attached.

Hold transparencies by the edges, and avoid touching the print side. Oil from your fingers that is deposited on the transparency can affect print quality.

Load letterhead facing up, with the top of the sheet entering the printer first.

If you experience problems with paper feed, turn the paper around.

Linking and Unlinking Trays

Linking trays

Tray linking is useful for large print jobs or multiple copies. When one linked tray is empty, paper feeds from the next linked tray. When the Paper Size and Paper Type settings are the same for any trays, the trays are automatically linked. The Paper

Size setting is automatically sensed according to the position of the paper guides in each tray except the multipurpose feeder.

The Paper Size setting for the multipurpose feeder must be set manually from the Paper Size menu. The Paper Type setting must be set for all trays from the Paper Type menu. The Paper Type menu and the Paper Size menu are both available from the Paper Size/Type menu.

Unlinking trays

Unlinked trays have settings that are not the same as the settings of any other tray.

To unlink a tray, change the following tray settings so that they do not match the settings of any other tray:

Paper Type (for example: Plain Paper, Letterhead, Custom Type <x>)

Paper Type names describe the paper characteristics. If the name that best describes your paper is used by linked trays, assign a different Paper Type name to the tray, such as Custom Type <x>, or define your own custom name.

Paper Size (for example: letter, A4, statement)

Load a different paper size to change the Paper Size setting for a tray automatically. Paper Size settings for the multipurpose feeder are not automatic; they must be set manually from the Paper Size menu.

NOTICE: Do not assign a Paper Type name that does not accurately describe the type of paper loaded in the tray. The temperature of the fuser varies according to the specified Paper Type. Paper may not be properly processed if an inaccurate Paper Type is selected.

Specifications

Overview

Environmental Specifications

Noise Emissions Levels

Emulation, Compatibility, and Connectivity

Operating System Support

MIB Compatibility

Print Media Guidelines

Media Types and Sizes

Font Summary

Cables

Certifications

Overview

Base memory

Maximum memory

Connectivity

Ships with print cartridge yield at approximately 5% coverage

NOTE: Toner yield based on printing pages with 5% page coverage in accordance with

ISO/IEC 19752 testing methodology. Yields vary with usage and environmental conditions.

Duty cycle (average)

Duty cycle (maximum)

Printer life

2330d

32 MB

160 MB

Parallel

USB 2.0

2330dn

32 MB

288 MB

Parallel

USB 2.0

10/100/1000

Ethernet

2,000 pages 2,000 pages

500 pages/month

25,000 pages/month

120,000 pages

500 pages/month

25,000 pages/month

120,000 pages

Environmental Specifications

Condition Temperature Relative humidity (noncondensing)

8 to 80% Operation 16 to 32°C

(60 to 90°F)

Storage 0 to 40°C

(32 to 104°F)

Shipping -20 to 40°C (-

4 to 104°F)

8 to 80%

8 to 95%

Altitude

0 to 2,500 M (8,200 feet)

0.25 atmospheric pressure (equivalent to

10,300 M; 34,000 feet)

Noise Emissions Levels

The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.

Operating Mode Bystander Emission Sound Pressure Level Limit Declared Sound Power Level Limit (LWAd)

Printing 52 dBA 6.5 Bels

Idle 26 dBA Inaudible

Emulation, Compatibility, and Connectivity

Emulations Dell 2330d Laser Printer

PostScript 3

HBP 1

PCL 5e

PCL 6

Dell 2330dn Laser Printer

PostScript 3

HBP 1

PCL 5e

PCL 6

Compatibility

Microsoft

®

Windows

Windows Vista™

Windows XP

®

Server 2008

Windows Server 2003

Windows 2000

Debian™ GNU/Linux 4.0

Linspire

Ubuntu 7.1.0, 8.0.4, 8.0.4 LTS

Red Flag Linux ® Desktop 5.0, 6.0

Red Hat Enterprise Linux WS 3, 4, 5

SUSE LINUX Enterprise Server 8, 9, 10

SUSE Linux Enterprise Desktop 10 open SUSE Linux 10.2, 10.3, 11

Linpus LINUX Desktop 9.2, 9.3

HP-UX 11.11, 11.23, 11.31

Macintosh ® OS ® X

Connectivity

Parallel

USB

10/100/1000 Ethernet (2330dn only)

1

HBP supports both GDI (pre-Vista) and XPS (Vista).

Operating System Support

Your printer supports:

Microsoft Windows Server 2008

Windows Vista

Windows XP

Windows Server 2003

Windows 2000

Debian GNU/Linux 4.0

Linspire

Ubuntu 7.1.0, 8.0.4, 8.0.4 LTS

Red Flag Linux Desktop 5.0, 6.0

Red Hat Enterprise Linux WS 3, 4, 5

SUSE LINUX Enterprise Server 8, 9, 10

SUSE Linux Enterprise Desktop 10 open SUSE Linux 10.2, 10.3, 11

Linpus LINUX Desktop 9.2, 9.3

HP-UX 11.11, 11.23, 11.31

Macintosh OS X

MIB Compatibility

A Management Information Base (MIB) is a database containing information about network devices (such as adapters, bridges, routers, or computers). This information helps network administrators manage the network (analyze performance, traffic, errors, and so on). This printer complies with standard industry MIB specifications, allowing the printer to be recognized and managed by various printer and network management software systems, such as Dell OpenManage™, IT

Assistant, Hewlett-Packard OpenView, CA Unicenter, Hewlett-Packard Web JetAdmin, Lexmark MarkVision Professional, and so on.

Print Media Guidelines

Selecting the right paper or other media reduces printing problems. For best print quality, try a sample of the paper or specialty media you are considering before buying large quantities.

CAUTION: Your product uses a printing process that heats the print media, and heat can cause certain media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting appropriate print media to avoid the possibility of harmful emissions.

Use 20 lb (70 g/m 2 ) xerographic paper.

Use transparencies designed for laser printers.

Use paper labels designed for laser printers.

Use envelopes made from 24 lb (90 g/m 2 ) bond paper. To reduce paper jams, do not use envelopes that:

Have excessive curl.

Are stuck together.

Contain windows, holes, perforations, cutouts, or embossing.

Use metal clasps, string ties, or metal folding bars.

Have postage stamps attached.

Have any exposed adhesive when the flap is in the sealed position.

Use card stock with a maximum weight of 163 g/m

2

and a minimum size of 3x5 in. (76.2x127 mm).

Media Types and Sizes

Source

250-sheet standard tray

(Tray 1)

Media and Size

A4, A5, A6

2

, JIS B5, Letter, Legal, Executive, Folio,

Statement, Universal

Minimum feed size is 105 mm x 148 mm (4.13 x

5.82 in.) Maximum feed size is 216 x 356 mm (8.5

x 14 in.)

Types

Paper

Paper labels 3

Transparencies

Weight

60–

90 g/m

(16–

24 lb)

2

Capacity 1

(Sheets)

250 sheets of paper

50 paper labels 4

Optional 550-sheet drawer (Tray 2)

A4, A5, A6 x 14 in.)

2 , JIS B5, Letter, Legal, Executive, Folio,

Statement, Universal

Minimum feed size is 149 mm x 210 mm (5.86 x

8.26 in.) Maximum feed size is 216 x 356 mm (8.5

A4, A5, A6 2 , JIS B5, Letter, Legal, Executive, Folio,

Statement, Universal, 7 3/4 Envelope, 9 Envelope,

10 Envelope, B5 Envelope, C5 Envelope, DL

Envelope, Other Envelope

Minimum feed size is 76.2 x 127 mm (3.9 x 4.9 in.)

Maximum paper size (Universal size) is 216 x

356 mm (8.5 x 14 in.)

Maximum envelope size (Other size) is 216 x

356 mm (8.5 x 14 in.)

Paper

Paper labels 3

Transparencies

Paper

Paper labels 3

60–

90 g/m

(16–

24 lb)

2

50 transparencies

550 sheets of paper

50 paper labels

4

50 transparencies

50 sheets of paper

Multipurpose Feeder

NOTE: When printing card stock using the multipurpose feeder, open the rear exit.

Transparencies

Card stock

Envelopes

60–

163 g/m

(16–

43 lb)

2

Duplex (two-sided printing)

A4, Folio, Letter, Legal Paper only

1 Capacity is based on 75 g/m2 (20 lb) paper or specialty media unless otherwise noted.

60–

163 g/m

(16–

43 lb)

2

15 paper labels 4

10 transparencies

10 sheets of card stock

7 envelopes

Inapplicable

2 A6 is supported only for grain long papers.

3 Single-sided paper labels are supported for occasional use. It is recommended to print 20 or less pages of paper labels a month. Vinyl, pharmacy, or dual-sided labels are not supported.

4

The capacity may be reduced on specific kinds of paper labels.

Font Summary

Fonts/Options

Font Load Description

PCL Bit Mapped

PCL Scalable

PS Scalable

2330d

Light (8.31M01)

2

89

89

2330dn

Light (8.31M01)

2

89

89

PCL Font List

Font Name

Courier

Courier Italic

Courier Bold

Courier Bold Italic

CG Times

CG Times Bold Italic

Univers Medium

Univers Medium Italic

Univers Bold

Univers Bold Italic

PCL XL Font

Name

Courier

Courier It

Courier Bd

Courier BdIt

CG Times

CG Times BdIt

Univers Md

Univers MdIt

Univers Bd

Univers BdIt

Times New Roman TimesNewRmn

Times New Roman Italic TimesNewRmn It

Bitmap/Scalable

Times New Roman Bold TimesNewRmn Bd S

Times New Roman Bold

Italic

TimesNewRmn

BdIt

S

Arial

Arial Italic

Arial

Arial It

S

S

S

S

S

S

S

S

S

S

S

S

S

S

Arial Bold

Arial Bold

Letter Gothic

Letter Gothic Italic

Letter Gothic Bold

Univers Condensed

Medium

Arial Bd

Italic Arial BdIt

LetterGothic

LetterGothic It

LetterGothic Bd

Univers CdMd

S

S

S

S

S

S

Univers Condensed

Medium

Italic Univers

CdMdIt

Univers Condensed Bold Univers CdBd

S

Univers Condensed Bold Italic Univers

CdBdIt

Garamond Antiqua

Garamond Kursiv

Garamond Antiqua S

Garamond Krsv S

S

S

Garamond Halbfett

Garamond Kursiv

Halbfett

Garamond Hlb S

Garamond KrsvHlb S

CG Omega

CG Omega Italic

CG Omega Bold

CG Omega Bold Italic

Antique Olive

Antique Olive Italic

Antique Olive Bold

Albertus Medium

Albertus Extra Bold

Clarendon Condensed

Bold

CG Omega

CG Omega It

CG Omega Bd

CG Omega BdIt

AntiqOlive

AntiqOlive It

AntiqOlive Bd

Albertus Md

Albertus Xb

Clarendon CdBd

S

S

S

S

S

S

S

S

S

S

Marigold

Coronet

Helvetica

Helvetica Italic

Helvetica Bold

Helvetica Bold Italic

Helvetica Narrow

Helvetica Narrow Italic

Helvetica Narrow Bold

Helvetica Narrow Bold

Italic

Marigold

Coronet

Helvetica

Helvetica It

Helvetica Ob

Helvetica BdOb

Helvetica Nr

Helvetica NrOb

Helvetica NrBd

Helvetica NrBdOb

Palatino Roman

Palatino Italic

Palatino Bold

Palatino Bold Italic

Palatino Rmn

Palatino It

Palatino Bd

Palatino BdIt

ITC Bookman Light ITCBookman Lt

ITC Bookman Light Italic ITCBookman LtIt

ITC Bookman Demi ITCBookman Db S

ITC Bookman Demi Italic ITCBookman DbIt S

S

S

ITC Avant Garde Book

ITC Avant Garde Book

Oblique

ITCAvantGard Bk S

ITCAvantGardBkOb S

S

S

S

S

S

S

S

S

S

S

S

S

S

S

ITC Avant Garde Demi

ITC Avant Garde Demi

Oblique

Century Schoolbook

Roman

Century Schoolbook

Italic

ITCAvantGard Db S

ITCAvantGardDbOb S

NwCentSchlbk Rmn S

NwCentSchlbk It S

Century Schoolbook Bold NwCentSchlbk Bd S

Century Schoolbook Bold

Italic

NwCentSchlbkBdIt S

ITC Zapf Chancery

Medium Italic

ZapfChanceryMdIt S

CourierPS

CourierPS Oblique

CourierPS Bold

CourierPS Bold Oblique

CourierPS

CourierPS Ob

CourierPS Bd

CourierPS BdOb

S

S

S

S

Times Roman

Times Italic

Times Bold

Times Bold Italic

C39 Narrow

C39 Regular

C39 Wide

OCR-A

OCR-B

Wingdings

Symbol

SymbolPS

ITC Zapf Dingbats

Times Rmn

Times It

Times Bd

Times BdIt

Helvetica Light

Helvetica Light Oblique

Helvetica Lt

Helvetica LtOb

Helvetica Black Helvetica Blk

Helvetica Black Oblique Helvetica BlkOb

Line Printer 16

POSTNET Barcode

Line Printer xxx

POSTNET

BARCODE

S

S

S

S

B

B

S

S

S

S

S

S

S

S

S

S

S

S

S

Resident PCL Symbol Sets

Symbol Set Name

Latin 1 Legal

Windows 3.0 Latin 1

Windows 98 Latin 1

ISO 8859-1 Latin 1 (ECMA-94)

Latin 2

Latin 5

Latin 6

Cyrillic

ISO 8859-15 Latin 9

PC-8 Code Page 437

PC-8 Danish/Norwegian (437N)

PC-850 Multilingual

PC-858 Multilingual Euro

PC-860 Portugal

PC-861 Iceland

PC-863 Canadian French

PC-865 Nordic

PC-1004 OS/2

ABICOMP Brazil/Portugal

ABICOMP International

Roman-8

Roman-9

Roman Extension

PS Text

Macintosh Text

DeskTop

Ventura International

Windows 98 Latin 2

ISO 8859-2 Latin 2

PC-852 Latin 2

PC-8 Polish Mazovia

PC-8 PC Nova

Windows 98 Latin 5

ISO 8859-9 Latin 5

PC-857 Latin 5 (Turkish)

PC-853 Latin 3 (Turkish)

PC-8 Turkish (437T)

Turkish-8

Windows 98 Latin 6 (Baltic)

ISO 8859-10 Latin 6

PC-775 Baltic (PC-8 Latin 6)

Windows 98 Cyrillic

ISO 8859-5 Latin/Cyrillic

PC-866 Cyrillic

PC-855 Cyrillic

Greek

Specials

7-bit ISO

Russian-GOST

PC-8 Bulgarian

Ukrainian

Windows 98 Greek

ISO 8859-7 Latin/Greek

PC-869 Greece

PC-851 Greece

PC-8 Latin/Greek

PC-8 Greek Alternate

Greek-8

Ventura Math

PS Math

Math-8

Pi Font

Microsoft Publishing

PC-911 Katakana

POSTNET Barcode

OCR-A

OCR-B

C39 Bar Code (Upper Case)

C39 Bar Code (plus Lower Case)

C39 Bar Code (plus Human Readable)

Symbol

Wingdings

Ventura ITC Zapf Dingbats

PS ITC Zapf Dingbats

PCL ITC Zapf Dingbats

ISO 4: United Kingdom

ISO 6: ASCII

ISO 11: Swedish for Names

ISO 15: Italian

ISO 17: Spanish

ISO 21: German

ISO 60: Norwegian version 1

ISO 69: French

ISO 2: IRV (Int'l Ref Version)

ISO 25: French

ISO : German

ISO 14: JIS ASCII

ISO 57: Chinese

ISO 10: Swedish

ISO : Spanish

ISO 85: Spanish

ISO 16: Portuguese

ISO 84: Portuguese

ISO 61: Norwegian version 2

PS Font List

PostScript Font Name

AlbertusMT

AlbertusMT-Italic

AlbertusMT-Light

AntiqueOlive-Roman

AntiqueOlive-Italic

AntiqueOlive-Bold

AntiqueOlive-Compact

ArialMT

Arial-ItalicMT

Arial-BoldMT

Arial-BoldItalicMT

AvantGarde-Book

AvantGarde-BookOblique

AvantGarde-Demi

AvantGarde-DemiOblique

Bookman-Light

Bookman-LightItalic

Bookman-Demi

Bookman-DemiItalic

Coronet-Regular

Courier

Courier-Oblique

Courier-Bold

Courier-BoldOblique

Garamond-Antiqua

Garamond-Kursiv

Garamond-Halbfett

Garamond-KursivHalbfett

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

Character Sets Supported

L1

L1

L1

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6, Cyr, Grk




L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

Helvetica

Helvetica-Oblique

Helvetica-Bold

Helvetica-BoldOblique

Helvetica-Light

Helvetica-LightOblique

Helvetica-Black

Helvetica-BlackOblique

Helvetica-Narrow

Helvetica-Narrow-Oblique

Helvetica-Narrow-Bold

Helvetica-Narrow-BoldOblique

Intl-CG-Times

Intl-CG-Times-Italic

Intl-CG-Times-Bold

Intl-CG-Times-BoldItalic

Intl-Courier

Intl-Courier-Oblique

Intl-Courier-Bold

Intl-Courier-BoldOblique

Intl-Univers-Medium

Intl-Univers-MediumItalic

Intl-Univers-Bold

Intl-Univers-BoldItalic

LetterGothic

LetterGothic-Slanted

LetterGothic-Bold

LetterGothic-BoldSlanted

Marigold

NewCenturySchlbk-Roman

NewCenturySchlbk-Italic

NewCenturySchlbk-Bold

NewCenturySchlbk-BoldItalic

Optima

Optima-Italic

Optima-Bold

Optima-BoldItalic

Palatino-Roman

Palatino-Italic

Palatino-Bold

L1

L1

L1

L1

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6













L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

Palatino-BoldItalic

Symbol

Times-Roman

Times-Italic

Times-Bold

Times-BoldItalic

TimesNewRomanPSMT

TimesNewRomanPS-ItalicMT

TimesNewRomanPS-BoldMT

TimesNewRomanPS-BoldItalicMT

Univers

Univers-Oblique

Univers-Bold

Univers-BoldOblique

Univers-Condensed

Univers-CondensedOblique

L1, L2, L5, L6 non-text font

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6





L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

L1, L2, L5, L6

Univers-CondensedBold

Univers-CondensedBoldOblique

Wingdings-Regular

ZapfChancery-MediumItalic

L1, L2, L5, L6

L1, L2, L5, L6 non-text font

L1, L2, L5, L6

ZapfDingbats non-text font

Character Set Abbreviations: L1 = Latin 1; L2 = Latin 2; L5 = Latin 5;

L6 = Latin 6; Cyr = Cyrillic; Grk = Greek.

Cables

Your printer interconnection cable must meet the following requirements:

Connection

USB

Parallel

10/100/1000 Ethernet

Cable certification

USB 2.0

IEEE-1284

CAT-5E

Certifications

USB-IF

Setting up for Local Printing

Windows ®

Mac OS

®

X: Adding the Printer in Print Center or Printer Setup Utility

Linux ®

Windows

®

Some Windows operating systems may already include a printer driver that is compatible with the printer.

NOTE: Installing custom drivers do not replace the system driver. A separate printer object is created and appears in the Printers folder.

Operating System:

Microsoft ® Windows Server 2008

Windows Vista™

Windows XP

Windows Server 2003

Windows 2000

Use this type of cable:

USB or Parallel

Installing the Printer Drivers

NOTE: Windows Server 2008, Windows Vista, Windows XP, Windows Server 2003, and Windows 2000 require that you have administrative access to install printer drivers on your computer.


The Drivers and Utilities CD launches the installation software automatically.

2. When the Drivers and Utilities CD screen appears, click Personal Installation — Install the printer for use on this computer only , and then click Next .

3. Select your printer from the drop-down menu.

4. Select Typical Installation (recommended) , and then click Install .

5. Click Finish , connect the printer to the computer using a USB or parallel cable, and turn on the printer.

The installation prompts you when the setup is completed.

Installing Additional Printer Drivers

1. Turn on your computer, and insert the Drivers and Utilities CD.

When the Drivers and Utilities CD launches, click Cancel .

2. In Windows Vista (default Start menu) : a. Click ® Control Panel .


c. Click Printers .

In Windows XP (default Start menu) : a. Click Start

®

Control Panel .



In Windows XP (Classic Start menu) : Click Start

®

Settings

®


In Windows Vista (Classic Start menu) and all other Windows versions : Click Start

®

Settings

®

Printers .

3. Double-click Add Printer .

The Add Printer Wizard opens.

4. Click Next .

5. Select Local printer attached to this computer , and then click Next .

You are prompted to attach the printer to the computer.

6. Select the port you want your printer to use, and then click Next .

7. Select Have Disk .

8. Browse to your CD drive, and select the correct directory for your operating system.

NOTE: If you installed the printer drivers from the Drivers and Utilities CD before you connected the printer to your computer, the PCL-XL driver for your operating system was installed by default.

Operating System

Windows Server 2008

Windows Vista

Windows XP

Windows Server 2003

Windows 2000

Software Path

D:\Drivers\Print\Win_2kXP\, where D:\ is the letter of your CD-ROM.

NOTE: After selecting the directory containing your printer drivers, you may be prompted for additional files in order to continue installation. Insert the operating system CD, and then click OK .

9. Click Open , and then click OK .

10. Select the type of driver you want to install (PCL, HBP, or PS) in the Manufacturer list, and the printer model in the

Printers list, and then click Next .

11. Proceed through the rest of the Add Printer Wizard , and then click Finish to install the printer driver.

Installing Additional Printer Software

1. Turn on your computer, and insert the Drivers and Utilities CD.

The Drivers and Utilities CD should launch the installation software automatically.

2. Select Additional Software Installation - Install the printer support software , and then click Next .

3. Select the check boxes next to the printer software you want to install, and then click Install .

The software is installed on your computer.

Mac OS

®

Utility

X: Adding the Printer in Print Center or Printer Setup

Macintosh

®

OS X version 10.3 and higher is required for USB printing. In order to print to a USB printer, add the printer in

Print Center or Printer Setup Utility.

1. Install support for the printer on the computer.

a. Insert the Drivers and Utilities CD.

b. Double-click the installer package for the printer.

c. Continue past the Welcome screen and the Read me.

d. Click Continue after viewing the license agreement, and then click Agree to accept the terms of the agreement.

e. Select a destination for the installation, and then click Continue .

f. Click Install on the Easy Install screen.

g. Enter the administrator password, and then click OK .

The software is installed on the computer.

h. Quit the installer when it is finished.

2. Open Printer Setup Utility , located in /Applications/Utilities .

3. If the USB printer appears in the Printer List: The printer has been set up successfully, and you can quit the application.

If the USB printer does not appear in the Printer List: Ensure that the USB cable is properly connected between the printer and the computer and that the printer is turned on. After the printer appears in the Printer List, the printer has been set up successfully, and you can quit the application.

Linux

®

Local printing is supported on many Linux platforms, such as Red Hat, SUSE, Debian™ GNU/Linux, Ubuntu, Red Flag Linux, and Linspire.

Printer software packages and installation instructions are available on the Drivers and Utilities CD. All the printer software supports local printing using a parallel connection.

To launch the installation instructions for Linux:

1. Insert the Drivers and Utilities CD. If the Drivers and Utilities CD automatically launches, click Cancel .

2. Browse to D:\unix\docs\<your language>\index.html

, where D:\ is the letter of your CD-ROM drive.

Appendix

Dell Technical Support Policy

Contacting Dell

Warranty and Return Policy

Dell Technical Support Policy

Technician-assisted technical support requires the cooperation and participation of the customer in the troubleshooting process and provides for restoration of the Operating System, application software and hardware drivers to the original default configuration as shipped from Dell, as well as the verification of appropriate functionality of the printer and all Dellinstalled hardware. In addition to this technician assisted technical support, online technical support is available at Dell

Support. Additional technical support options may be available for purchase.

Dell provides limited technical support for the printer and any Dell-installed software and peripherals. Support for third-party software and peripherals is provided by the original manufacturer, including those purchased and/or installed through

Software & Peripherals (DellWare), ReadyWare, and Custom Factory Integration (CFI/DellPlus).

Contacting Dell

You can access Dell Support at support.dell.com

. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.

You can contact Dell electronically using the following addresses:

World Wide Web www.dell.com/ www.dell.com/ap/ (Asian/Pacific countries only) www.dell.com/jp/ (Japan only) www.euro.dell.com

(Europe only) www.dell.com/la/ (Latin American and Caribbean countries) www.dell.ca

(Canada only)

Anonymous file transfer protocol (FTP) ftp.dell.com

Log in as user: anonymous, and use your email address as your password.

Electronic Support Service [email protected]

[email protected]

[email protected]

(Latin America and Caribbean countries only) [email protected]

(Asian/Pacific countries only) support.jp.dell.com

(Japan only)

support.euro.dell.com

(Europe only)

Electronic Quote Service [email protected]

(Asian/Pacific countries only) [email protected]

(Canada only)

Warranty and Return Policy

Dell Inc. (“Dell”) manufactures its hardware products from parts and components that are new or equivalent to new in accordance with industry-standard practices. For information about the Dell warranty for your printer, refer to the Product

Information Guide .

Setting up for Network Printing

Windows ®

Install the Shared Printer on Client Computers

Mac OS ® X: Adding the Printer in Print Center or Printer Setup Utility

Linux

®

Printing a Network Setup Page

Windows

®

In Windows environments, network printers can be configured for direct printing or shared printing. Both network printing methods require the installation of the printer software and the creation of a network printer port.

Supported Printer Drivers

Custom drivers are available on the Drivers and Utilities CD.

Supported Network Printer Ports

Microsoft ® Standard TCP/IP port—Windows Server 2008, Windows Vista™, Windows XP, Windows Server 2003, and

Windows 2000

Printer network ports—Windows Server 2008, Windows Vista, Windows XP, Windows Server 2003, and Windows 2000

For basic printer functionality, install printer software, and use a system network printer port, such as a Line Printer Remote

(LPR) or a standard TCP/IP port. The printer software and port let you maintain a consistent user interface for use with all the printers on the network. Using a custom network port provides enhanced functionality, such as printer status alerts.

Network Printing Options

In Windows environments, network printers can be configured for direct printing or shared printing. Both network printing options require the installation of printer software and the creation of a network port.

IP Printing Shared Printing

Printer is connected directly to the network using a network cable, such as an Ethernet cable.

Printer software is typically installed on each network computer.

Printer is connected to one of the computers on the network using a local cable, such as a USB or parallel cable.

Printer software is installed on the computer attached to the printer.

During software installation, the printer is set up to be

“shared” so that other network computers can print to it.

Direct Attachment With a Network Cable (Using a Print Server)

A print server is any designated computer that centrally manages all client print jobs. If you are sharing your printer in a small workgroup environment and want to control all print jobs on this network, connect the printer to a print server.

NOTE: Print a printer settings page to get the IP address and MAC address of the printer network adapter before setting up the network printer. For more information, see




2. When the Drivers and Utilities CD screen appears, click Network Installation - Install the printer for use on a network , and then click Next .

3. Select I am setting up a print server to share printers with others on the network , and then click Next .

4. Select the network printer(s) you want to install.

If you do not see your printer listed, click Refresh List to refresh the list, or click Manual Add to add a printer to the network.

5. Click Next .

6. For each printer driver listed:

NOTE: Three printer drivers are listed for each printer you selected: a Printer Control Language (PCL), PostScript

(PS), and Host Based Printing (HBP) driver.

a. Select the printer driver from the list.

b. If you want to change the printer name, enter a new name in the Printer Name field.

c. If you want other users to access this printer, select Share this printer with other computers , and then enter a share name that users can easily identify.

d. If you want this printer to be the default printer, select Set this printer to default .

e. If you do not want to install the particular driver for the printer, select Do not install this printer .

7. Click Next .

8. Select the check box next to the software and documentation you want to install, and then click Install .

The drivers, additional software, and documentation are installed on your computer. When the installation is completed, a Congratulations!

screen appears.

9. If you do not want to print a test page: Click Finish .

If you want to print a test page: a. Select the check box next to the printer(s) on which you want to print a test page.

b. Click Print Test Page .

c. Verify the test page printed on the printer(s).

d. Click Finish .

Direct Attachment With a Network Cable (No Print Server)



2. When the Drivers and Utilities CD screen appears, click Network Installation - Install the printer for use on a network , and then click Next .

3. Select I want to use a network printer on this computer , and then click Next .

4. Select the network printer(s) you want to install.

If you do not see your printer listed, click Refresh List to refresh the list, or click Manual Add to add a printer to the network.

5. Click Next .

6. For each printer driver listed:

NOTE: Three printer drivers are listed for each printer you selected, a Printer Control Language (PCL), PostScript

(PS), and Host Based Printing (HBP) driver.

a. Select the printer driver from the list.

b. If you want to change the printer name, enter a new name in the Printer Name field.

c. If you want other users to access this printer, select Share this printer with other computers , and then enter a share name that users can easily identify.

d. If you want this printer to be the default printer, select Set this printer to default .

e. If you do not want to install the particular driver for the printer, select Do not install this printer .

7. Click Next .

8. Select the check box next to the software and documentation you want to install, and then click Install .

The drivers, additional software, and documentation are installed on your computer. When the installation is completed, a Congratulations!

screen appears.

9. If you do not want to print a test page: Click Finish .

If you want to print a test page: a. Select the check box next to the printer(s) on which you want to print a test page.

b. Click Print Test Page .

c. Verify the test page printed on the printer(s).

d. Click Finish .

Shared Printing

You can use Microsoft's Point and Print or Peer-to-Peer methods to share a printer on the network with a USB or parallel cable connection. In order to use one of these methods, you must first share the printer and then install the shared printer on client computers.

However, if you use one of these Microsoft methods, you will not have all the Dell features, such as the Status Monitor, that are installed using the Drivers and Utilities CD.

NOTE: Windows Vista and Windows XP Professional require that you have administrative access to share a printer.

Share the Printer



c. Click Printers .

In Windows XP (default Start menu): a. Click Start

®

Control Panel .




®

Settings

®

Printers .


®

Settings

®


2. Right-click your printer.

3. Click Sharing .

4. If you are using Windows Vista, you may be prompted to change the sharing options before you can continue. Click the

Change Sharing Options button, and then click Continue on the next dialog box.

5. Select Share this printer , and then type a name for the printer.

6. Click Additional Drivers , and then select the operating systems of all network clients printing to this printer.

7. Click OK .

If you are missing files, you are prompted to insert the server operating system CD.

a. Insert the Drivers and Utilities CD, ensure that the drive letter is correct for your CD-ROM drive, and then click

OK .

b. If you are using Windows Vista: Browse to a client computer running the operating system, and then click OK .

For all other Windows versions: Insert the operating system CD, ensure that the drive letter is correct for your

CD-ROM drive, and then click OK .

8. Click Close .

To check that the printer was successfully shared:

Ensure that the printer object in the Printers folder shows it is shared. For example, in Windows 2000, a hand is

shown underneath the printer icon.

Browse My Network Places or Network Neighborhood . Find the host name of the server, and look for the shared name you assigned to the printer.

Now that the printer is shared, you can install the printer on network clients using the Point and Print method or the Peer-to-

Peer method.

Install the Shared Printer on Client Computers

Point and Print

This method is the best use of system resources. The printer server handles driver modifications and print job processing. This lets network clients return to their programs much faster.

If you use the Point and Print method, a subset of software information is copied from the print server to the client computer.

This is just enough information to send a print job to the printer.

1. On the Windows desktop of the client computer, double-click My Network Places or Network Neighborhood .

2. Double-click the host name of the print server computer.

3. Right-click the shared printer name, and then click Install or Connect .

Wait for the software information to copy from the print server computer to the client computer, and for a new printer object to be added to the Printers folder. The time this takes varies, based on network traffic and other factors.

4. Close My Network Places or Network Neighborhood.

5. Print a test page to verify printer installation.

a. In Windows Vista (default Start menu):

1. Click ® Control Panel .

2. Click Hardware and Sound .

3. Click Printers .

In Windows XP (default Start menu):

1. Click Start

®

Control Panel .

2. Double-click Printers and Other Hardware .

3. Double-click Printers and Faxes .


®

Settings

®



®

Settings

®

Printers .

b. Right-click the printer you just created.

c. Click Properties .

d. Click Print Test Page .

When a test page prints successfully, printer installation is completed.

Peer-to-Peer

If you use the Peer-to-Peer method, the printer software is fully installed on each client computer. Network clients retain control of software modifications. The client computer handles the print job processing.



c. Click Printers .

In Windows XP (default Start menu) : a. Click Start

®

Control Panel .




®

Settings

®



®

Settings

®

Printers .

2. Click Add Printer to launch the Add Printer Wizard.

3. Click Network Print Server .

4. Select the network printer from the Shared printers list. If the printer is not listed, type the path of the printer in the text box. For example:

\\<print server host name>\<shared printer name>

.

The print server host name is the name of the print server computer that identifies it to the network. The shared printer name is the name assigned during the print server installation process.

5. Click OK .

If this is a new printer, you may be prompted to install printer software. If no system software is available, then you need to provide a path to available software.

6. Select whether you want this printer to be the default printer for the client, and then click Finish .

7. Print a test page to verify printer installation.

a. In Windows Vista (default Start menu):


2. Click Hardware and Sound .

3. Click Printers .

In Windows XP (default Start menu):

1. Click Start

®

Control Panel .

2. Double-click Printers and Other Hardware .

3. Double-click Printers and Faxes .


®

Settings

®



®

Settings

®

Printers .

b. Right-click the printer you just created.

c. Click Properties .

d. Click Print Test Page .

When a test page prints successfully, printer installation is completed.

Mac OS

®

Utility

X: Adding the Printer in Print Center or Printer Setup

Macintosh

®

OS X version 10.3 and higher is required for network printing. In order to print to a network printer, add the printer in Print Center or Printer Setup Utility.

1. Install support for the printer on the computer.

a. Insert the Drivers and Utilities CD.

b. Double-click the installer package for the printer.

c. Continue past the Welcome screen and the Read me.

d. Click Continue after viewing the license agreement, and then click Agree to accept the terms of the agreement.

e. Select a destination for the installation, and then click Continue .

f. Click Install on the Easy Install screen.

g. Enter the administrator password, and then click OK .

The software is installed on the computer.

h. Quit the installer when it is finished.

2. Open Printer Setup Utility located in /Applications/Utilities .

3. From the Printers menu, select Add Printer .

4. If you want to print using IP Printing: a. Click the IP Printer toolbar icon.

b. Enter the IP address of the printer.

c. Choose the printer manufacturer from the Printer Model pop-up menu.

d. Select the printer from the list, and then click Add .

If you want to print using AppleTalk: a. Click More Printers...

and then choose AppleTalk from the pop-up menu.

b. Choose the AppleTalk Zone from the list.

NOTE: Look under the AppleTalk heading on the printer network setup page to know which zone and printer to select.

c. Choose the printer from the list, and then click Add .

5. Verify the printer installation.

a. Open TextEdit in /Applications .

b. From the File menu, choose Print .

c. Choose Summary from the Copies & Pages pop-up menu.

d. If the correct PPD for the printer model is displayed under the Error Reporting group: Setup is completed.

If Generic PostScript Printer is displayed under the Error Reporting group: Delete the printer from the Printer

List in Print Center or Printer Setup Utility , and follow the instructions again to set up the printer.

Linux

®

Printer software packages and installation instructions are available on the Drivers and Utilities CD.

To launch the installation instructions for Linux:

1. Insert the Drivers and Utilities CD. If the Drivers and Utilities CD automatically launches, click Cancel .

2. Browse to D:\unix\docs\<your language>\index.html

, where D:\ is the letter of your CD-ROM drive.

Printing a Network Setup Page

A network setup page lists the configuration settings of the printer, including the IP address and MAC address. This information is very helpful when troubleshooting the network configuration of the printer.

To print a network setup page:

1. Press the Menu button .

2. Navigate to the

Reports

menu.

3. Select

Network Setup Page

, and press the Select button .

Licensing Notice

BSD License and Warranty statements

GNU License

Microsoft Print Schema License Agreement

The printer resident software contains:

Software developed and copyrighted by Dell and/or third parties

Dell modified software licensed under the provisions of the GNU General Public License version 2 and the GNU Lesser

General Public License version 2.1

Software licensed under the BSD license and warranty statements

Software based in part on the work of the Independent JPEG Group.

The Dell modified GNU licensed software is free software; you can redistribute it and/or modify it under the terms of the licenses referenced above. These licenses do not provide you any rights to the Dell- or third-party-copyrighted software in this printer.

Since the GNU licensed software that the Dell modifications are based upon is supplied explicitly without warranty, use of the

Dell modified version is similarly provided without warranty. See the warranty disclaimers in the referenced licenses for additional details.

BSD License and Warranty statements

Copyright (c) 1991 The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE

DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,

WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT

OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

GNU License

GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library

General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a

"work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the

Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the

Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a. You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b. You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c. If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the

Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a. Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b. Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c. Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components

(compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this

License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this

License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the

Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity

of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time.

Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free

Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT

PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR

OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE

PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR

ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED

INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY

OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

1 April 1989

Lexmark International, Inc.

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc.

59 Temple Place, Suite 330, Boston, MA 02111-1307 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version

2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU

Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public

License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary

General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the

Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the

Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called

"this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a. The modified work must itself be a software library.

b. You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.

c. You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

d. If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the

Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General

Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public

License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the

Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library

(because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of

Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the

Library itself.

6. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this

License. Also, you must do one of these things: a. Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.) b. Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c. Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in

Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d. If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e. Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two

things: a. Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

b. Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License.

Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this

License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this

License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT

PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR

OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY

PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR

ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER

SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

1 April 1990

Lexmark International, Inc.

That’s all there is to it!

Microsoft Print Schema License Agreement

This product uses Microsoft Print Schema technology. You may find the terms and conditions upon which Microsoft is licensing such intellectual property at http://go.microsoft.com/fwlink/?LinkId=83288 .

The Microsoft Print Schema technology source code may incorporate intellectual property owned by Microsoft Corporation. Our provision of this source code does not include any licenses or any other rights to you under any Microsoft intellectual property.

If you would like a license from Microsoft (e.g., to rebrand or redistribute), you need to contact Microsoft directly.

Software Overview

Status Monitor Center

Set IP Address Utility

Dell Printer Software Uninstall Utility

Driver Profiler

Dell Printer Configuration Web Tool

Dell Printer Alert Utility

Removing and Reinstalling Software

Installing the Optional XPS Driver

Dell Toner Management System™

Use the Drivers and Utilities CD that came with your printer to install a combination of software applications, depending on your operating system.

NOTE: If you purchased your printer and computer separately, you must use the Drivers and Utilities CD to install these software applications.

NOTE: These software applications are not available with Linux or Macintosh.

Status Monitor Center

NOTE: For the local Status Monitor Center to work properly, bidirectional communication support must be in place so the printer and computer can communicate. An exception is added to the Windows

®

Firewall to allow this communication.

Use the Status Monitor Center to manage multiple Status Monitors.

Double-click a printer name to open its Status Monitor, or select Run to open a Status Monitor for a particular printer.

Select Update to change the appearance of the list of printers.

Select Help to read the online Help.

Set IP Address Utility

NOTE: This application is not available when the printer is locally attached to a computer. For the Set IP Address Utility to work properly, add an exception to the Windows ® Firewall.

The Set IP Address Utility lets you set up an IP address and other important IP parameters. To set the IP address manually:

1. Connect the network cable, and turn the printer on.

Wait for a moment to make sure the IP address is assigned. Print a network setup page. For more information, see


2. If the printer MAC address is already known, then get the printer IP address by using the Set IP Address Utility to match the network MAC address with the printer network adapter.

3. Click on the TCP/IP Settings.

4. To set the printer IP address manually, click the Manual Add option.

NOTE: Choose "Network Port (TCP/IP)" during installation (instead of Dell Enhance Port) to avoid using the wrong

IP address setting ("Manual Add" option).

5. Click Submit .

Change the Printer IP address Using the Dell Printer Configuration Web Tool.

1. Launch the Embedded Web Server (EWS) by typing your network printer IP address in your web browser.


3. Under Printer Server Settings , click TCP/IP .

4. Click Set static IP address .

5. Enter the IP Address , Netmask , and Gateway settings.

NOTE: If you do not know these settings, contact your network administrator.

6. Click Submit .

7. Enter the new IP address in your browser to continue using the EWS.

Dell Printer Software Uninstall Utility

Use the Uninstall Software Utility to remove any currently installed printer software or printer objects.

1. In Windows Vista (default Start menu): a. Click ® Programs .



In Windows XP and 2000 :

Click Start

®


®

Dell Printers

®


2. Click Dell Printer Software Uninstall .

3. Select the components you want to uninstall, and then click Next .

4. Click Finish .

5. When the uninstall is completed, click OK .

Driver Profiler

Use the Driver Profiler to create driver profiles that contain custom driver settings. A driver profile can contain a group of saved printer driver settings and other data for such things as:

Print orientation and N-Up (document settings)

Installation status of an output tray (printer options)

User-defined paper sizes (custom papers)

Simple text and watermarks

Overlay references

Font references

Form associations

Dell Printer Configuration Web Tool

NOTE: This application is not available when the printer is connected locally to a computer.

Have you ever sent a print job to the network printer down the hall, only to find it didn't print because of a paper jam or an empty paper tray? One of the features of the Dell Printer Configuration Web Tool is the E-mail Alert Setup, which sends you, or the key operator, an e-mail when the printer needs supplies or intervention.

If you fill out printer inventory reports requiring the asset tag number of all of the printers in your area, the Dell Printer

Configuration Web Tool has a Printer Information feature that makes it easy. Type the IP address of each printer on the network to display the asset tag number.

The Dell Printer Configuration Web Tool feature also lets you change printer settings and keep track of printing trends. If you are a network administrator, you can easily copy the printer's settings to one or all printers on the network—right from your

Web browser.

To launch the Dell Printer Configuration Web Tool, type your network printer's IP address in your Web browser.

If you do not know what your printer's IP address is, print a network setup page, which lists the IP address.

To print a network setup page, press the Menu button .

For more information, see Printing a Network Setup Page .

Use the Dell Printer Configuration Web Tool for:

Printer Status —Get immediate feedback on printer supply status. When toner is running low, click the toner supplies link on the first screen to order additional toner cartridges.

Printer Settings —Change printer settings, view the operator panel remotely, and update the print server firmware.

Copy Printer Settings —Quickly clone the printer's settings to another printer or printers on the network by typing each printer's IP address.

NOTE: You must be a network administrator to use this feature.

Printing Statistics —Keep track of printing trends, such as paper usage and types of jobs being printed.

Printer Information —Get the information you need for service calls, inventory reports, or the status of current memory and engine code levels.

E-mail Alert Setup —Receive an e-mail when the printer needs supplies or intervention. Type your name or the key operator's name in the e-mail list box to be notified.

Set Password —Lock the operator panel with a password so that other users don't inadvertently change the printer

settings you selected. For more information, see Locking the Operator Panel Menus Using the Embedded Web Server

.

NOTE: You must be a network administrator to use this feature.

Online Help —Click Help to visit the Dell website for printer troubleshooting.

Dell Printer Alert Utility

NOTE: This application is not available with Windows 2000.

The Dell Printer Alert Utility informs you when there are errors requiring your intervention on your printer. When there is an error, a bubble appears telling you what the error is, and points you to the appropriate recovery information.

NOTE: For the Dell Printer Alert Utility to work properly, bidirectional communication support must be in place so the printer and computer can communicate. An exception is added to the Windows Firewall to allow this communication.

If you opted to install the Dell Printer Alert Utility with your printer software, the utility automatically launches when the software installation is completed. The utility is active if you see in the System Tray.

To disable the Dell Printer Alert Utility:

1. From the System Tray, right click the icon.

2. Select Exit .

To re-enable the Dell Printer Alert Utility:





Click Start

®


®

Dell Printers

®


2. Click Printer Alert Utility .

Removing and Reinstalling Software

If your printer does not function properly, or if communication error messages appear when using your printer, you can remove and reinstall the printer software.

1. In Windows Vista: a. Click ® Programs .



In Windows XP and Windows 2000 :

Click Start

®


®

Dell Printers

®


2. Click Dell Printer Software Uninstall .

3. Follow the instructions on the screen.

4. Restart your computer.

5. Insert the Drivers and Utilities CD, and then follow the instructions on the screen.

If the installation screen does not appear: a. In Windows Vista , click ® Computer .


®

My Computer .

In Windows 2000 , double-click My Computer from your desktop.

b. Double-click the CD-ROM drive icon, and then double-click setup.exe

.

c. When the printer software installation screen appears, click Personal Installation , Network Installation , or

Additional Software Installation .

d. Follow the instructions on your screen to complete the installation.

Installing the Optional XPS Driver

The XML Paper Specification (XPS) driver is an optional printer driver designed to make use of the advanced XPS color and graphics features that are only available for Windows Vista™ users. In order to use XPS features, you must install the XPS driver as an additional driver after you install your printer.

NOTE: Before installing the XPS driver, complete the steps on the Setting Up Your Printer poster to install the printer on your computer.

To install the driver:


2. Under Hardware and Sound , click Printer , and then click Add a Printer .

3. From the Add Printer dialog box, choose one of the following:

If you are using a USB connection, make sure the USB cable is connected to the computer and printer, and then do the following: a. Click Add a local printer .

b. From the Use an existing port: drop-down menu, select Virtual printer port for USB , and then click

Next .

If you are using an Ethernet or wireless connection, make sure the printer is connected to the network, and then do the following: a. Click Add a network, wireless or Bluetooth printer .

b. Select your printer from the list.

c. If your printer is not in the list, click The printer that I want isn't listed .

d. Select Add a printer using a TCP/IP address or hostname , and then click Next .

e. To locate your printer IP address, print a Network Setup Page from the Network Setup menu under the

Setup menu on the printer.

f. Type your printer IP address in the Hostname or IP address: box, and then click Next .

4. Click Have disk .

The Install From Disk dialog box opens.

5. Click Browse , and then navigate to the XPS driver files on your computer: a. Click Computer , and then double-click (C:) .

b. Double-click Drivers , and then double-click PRINTER .

c. Double-click the folder that has your printer model number, and then double-click Drivers .

d. Double-click xps , and then click Open .

e. From the Install From Disk dialog box, click OK .

6. Click Next on the following two dialog boxes.

For more information on the XPS driver, see the XPS readme file on the Drivers and Utilities CD. The file is located in the xps folder with the setupxps batch file (D:\Drivers\xps\readme).

Dell Toner Management System™

Printing Status Window

NOTE: For the Printing Status Window to work properly, bidirectional communication support must be in place so the printer and computer can communicate. An exception is added to the Windows

®

Firewall to allow this communication.

The Printing Status window displays the status of the printer (Printer Ready, Printer Offline, and Error-Check Printer) and the name of the job when you send a job to print.

The Printing Status window also displays the level of toner so you can:

Monitor the toner level for your printer.

Click Order Toner to order replacement toner cartridges.

Dell Printer Supplies Reorder Application

The Order Supplies dialog box can be launched from the Printing Status window, the Programs window, or the desktop icon.

You can order toner by phone or from the Web.

If ordering online, launch the Dell Printer Supplies Reorder Application:





Click Start

®


®

Dell Printers

®


2. Click Dell Printer Supplies Reorder Application .

The Order Supplies dialog box opens.

3. Follow the instructions on the screen.

If ordering from the Web, click Visit Dell's cartridge ordering web site .

If ordering by phone, call the number that appears under the By Telephone heading.

No results
