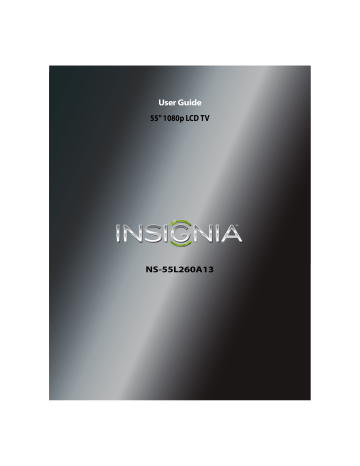

User Guide
55" 1080p LCD TV
NS-55L260A13
ii
Contents
Installing the stand or wall-mount bracket . . . . . . . . . . . . . . . . . . . . . . . .5
Connecting a cable or satellite box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting an antenna or cable TV (no box) . . . . . . . . . . . . . . . . . . . . . 13
Connecting a DVD or Blu-ray player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting a camcorder or game console . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting a basic home theater system . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting a home theater system with multiple devices . . . . . . . . 19
Installing remote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Turning on your TV for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
www.insigniaproducts.com
Contents
Selecting the video input source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the computer image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting component video settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Automatically scanning for channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Checking the digital signal strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting or changing the password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Downloading rating information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Turning closed captioning on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting the analog closed captioning mode . . . . . . . . . . . . . . . . . . . 36
Customizing digital closed captioning styles . . . . . . . . . . . . . . . . . . . . . 36
Selecting the menu language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Restoring settings to the defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
www.insigniaproducts.com
iii
Turning Device Auto Power Off on or off . . . . . . . . . . . . . . . . . . . . . . . . . 41
Turning TV Auto Power On on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Turning Audio Receiver on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Opening an INlink-compatible device’s root menu . . . . . . . . . . . . . . . 42
Displaying a list of INlink-compatible (HDMI CEC) devices . . . . . . . . 43
Viewing photos in a slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Customizing slideshow settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Programming universal remote controls . . . . . . . . . . . . . . . . . . . . . . . . 49
Programming a different universal remote control . . . . . . . . . . . . . . . 49
Common universal remote control codes . . . . . . . . . . . . . . . . . . . . . . . . 49
One-year limited warranty - Insignia Televisions . . . . . . . . . . . . . . . . . 51
How long does the coverage last? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
What does this warranty cover? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
How to obtain warranty service? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
What does the warranty not cover? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
iv
www.insigniaproducts.com
f
CHILD SAFETY
It makes a difference how and where you use your flat panel display
As you enjoy your new product, keep these safety tips in mind
The issue
The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer’s recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.
TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.
Tune into safety
•
•
•
•
•
•
One size of TV stand does
not
fit all. Use only a TV stand rated for the weight of your TV.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t let children climb on or play with entertainment system furniture and TVs.
Don’t place TVs on furniture that can easily be used as steps, such as a crate or chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger-than-life” TV.
Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.
Make sure that you route all cords and cables so that they cannot be pulled or grabbed by curious children.
Wall mounting
•
•
•
If you decide to wall mount your TV, always remember:
One size of wall mount does
not
fit all. Use only a wall mount rated for the weight of your TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory as suitable for your TV.
Follow all instructions supplied by the TV and wall mount manufacturers.
If you have any doubts about your ability to safely wall mount your TV, get help from a professional installer.
•
Make sure that the wall where you are mounting the TV is appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.
TVs can be heavy. At least two people are required for safe wall mount installation.
1
www.insigniaproducts.com
NS-55L260A13
2
Important Safety
Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.
1
Read these instructions.
2
Keep these instructions.
3
Heed all warnings.
4
Follow all instructions.
5
Do not use this apparatus near water.
6
Clean only with dry cloth.
7
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11
Only use attachments/accessories specified by the manufacturer.
12
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13
Unplug this apparatus during lightning storms or when unused for long periods of time.
14
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15
The
wall plug
is the disconnecting device. The plug must remain readily operable.
16
An apparatus with three-prong, grounding-type plug is a Class I apparatus which needs to be grounded to prevent possible electric shock.
Make sure that you connect the Class I apparatus to a grounding-type, three-prong outlet.
17
Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.
18
The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.
WARNING
Electric shock hazard
To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.
Lightning
For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.
Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
Handling the LCD panel
• Your TV’s screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.
• If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least
15 minutes or longer in clean water.
Replacement parts
When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.
Safety check
After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.
www.insigniaproducts.com
Power source
Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.
Servicing
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
CAUTION
Damage requiring service
Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.
Outdoor antenna grounding
If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges.
Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
1
2
7
1
Antenna lead-in wire
2
Grounding clamp
3
Antenna discharge unit
4
Grounding conductors
5
Ground clamps
6
Power service grounding electrode system
7
Electric service equipment
3
4
5
6
Note to CATV system installer
Article 820 of the National Electrical Code,
ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.
Condensation
Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.
Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.
Mobile telephone warning
To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.
End of life directives
Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated for environmental reasons. Your TV also contains material that can be recycled and reused. For disposal or recycling information, contact your local authorities to find a recycler in your area.
Non-active pixels
The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.
www.insigniaproducts.com
3
NS-55L260A13 Insignia 55" 1080p LCD TV
Insignia 55" 1080p LCD TV
Introduction
Congratulations on your purchase of a high-quality
Insignia product. Your NS-55L260A13 represents the state of the art in LCD TV design and is designed for reliable and trouble-free performance.
INlink
Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different components discover and communicate with each other. (See page
for instructions on how to use INlink.)
Insignia Motion 120Hz:
With a 120 Hz screen refresh rate twice the rate of a
60 Hz screen, a screen with 1,080 lines of resolution
(up from 720 lines in the last generation of HDTVs), and special motion-detection technology, you will experience a picture with clearer detail and brightness, smoother transitions, and reduced motion blurring, particularly when watching fast-motion sports and action scenes. (See page 25 for instructions on how to adjust the TV picture.)
Game mode:
Video games generally require adjustments to the television picture settings to get the maximum experience. By simply pressing a button on your remote control, your television settings will automatically adjust for video games. It couldn't be easier. (See page 25 for instruction on how to turn
Game Mode on and off.)
4
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Installing the stand or wall-mount bracket
Notes
• If you plan to wall-mount your TV, do not install the stand.
• Store the stand and stand screws in case you decide to use the stand in the future.
Installing the stand
To install the stand:
1
Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2
Align the stand with the screw holes in the stand column, then secure the stand plate to the stand column with the four provided screws.
Screw type Screw length # of screws
M5 16 mm 4
Installing a wall-mount bracket
Warning
This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See
“
.)
To attach your TV to a wall-mount bracket:
1
Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2
Remove the four bottom screws that secure the stand column to the TV, then remove the stand column.
3
Install the stand cover.
www.insigniaproducts.com
5
NS-55L260A13 Insignia 55" 1080p LCD TV
4
Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that came with the wall-mount bracket for information about how to correctly hang your TV.
Note
• The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.
• The mounting holes on the back of your TV take type M6 screws.
15.75 in. (400 mm)
TV components
Package contents
• Remote control and batteries (2 AAA)
• Stand and screws (4)
• Stand cover
• Quick Setup Guide
• Important Information
Front
4
5
1
2
3
MENU
INPUT
VOLUME
CHANNEL
6 7
Wall-mount brackets
# Item
1
MENU
Description
Press to open the on-screen menu.
2
INPUT
Press to open the
Input source
list, then press one or more times to select a video input source. For more information, see “
Selecting the video input source ”
on page
.
In menu mode, press to confirm selections.
3
VOLUME+/VOLUME–
4
CHANNEL
S
/CHANNEL
T
5
6
7
(power)
Power indicator
Remote control sensor
Press to increase or decrease the volume.
Press to go to the next or previous channel in the channel list. For more information, see “
” on page
.
Press to turn your TV on or off (standby mode).
When your TV is off, power still flows through it. To disconnect power, unplug the power cord.
Turns off when your TV is on.
Lights red when your TV is (standby mode).
Receives signals from the remote control. Do not block.
6
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Side Back
1
2
3
# Item
1
HDMI3
2
ANT/CABLE
3
/AUDIO OUT
4
COMPONENT IN
5
AV IN
6
USB
5
4
1
2
PC IN
3
4
5
6
Description
Connect HDMI devices to this jack. For more information see “
Using HDMI (best) ” on page 10
or
.
Connect an antenna or cable TV to this jack. For more
information, see “ Connecting an antenna or cable TV
Connect headphones, an analog audio amplifier, a home theater system, or a sound bar to this jack. For more information, see “
” on page
.
Connect the video (
Y
,
Pb
,
Pr
) and audio (
L
and
R
) for a component video device to these jacks. For more information, see “
Using component video (better)
” on page
Connect the video (
VIDEO
) and audio (
L
and
R
) for a composite video device to these jacks. For more
information, see “ Using composite video (good) ” on
page
Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information,
see “ Connecting a USB flash drive ” on page 17 and
“
” on page
.
# Item
1
HDMI1/ARC
2
PC/DVI AUDIO IN
3
HDMI2/DVI
4
VGA
5
DIGITAL OUTPUT
(coaxial)
Description
Connect an HDMI device to this jack. For more
information see “ Using HDMI (best)
” on page
or
If you are connecting a home theater system, we recommend that you connect it to this jack.
Connect the audio for a computer to this jack. For more information, see “
OR
Connect the audio for a DVI device to the this jack. For
Connect an HDMI device to this jack. For more
information see “ Using HDMI (best)
” on page
or
OR
Connect the video for a DVI device to this jack. For
more information, see “ Using DVI (same as HDMI but requires a sound connection) ” on page 11
or
Connect the video for a computer to this jack. For more information, see “
” on page
.
Connect a digital audio amplifier or home theater system to this jack to listen to TV audio through the
amplifier speakers. For more information, see “ Using digital audio ” on page 18 .
www.insigniaproducts.com
7
NS-55L260A13 Insignia 55" 1080p LCD TV
Remote control
*
# Button
10
/MUTE
11 VOL+/–
12
SLEEP
13 ZOOM
14
(return)
15
S T W X
16
HOME
17
INFO
18
CCD
19 FAVORITE
20
CH /CH
21
22 MTS/SAP
8
#
1
Button
(power)
2
Quick Launch Inputs
3
Numbers
4
5
ENTER
6
7
MENU
EXIT
8
INPUT
9
CH-LIST
Description
Press to turn your TV on or off (standby mode). When your TV is off, power still flows through it. To disconnect power, unplug the power cord.
TV
—Press to select your TV as the input source.
VIDEO
—Press to select the device connected to the
COMPONENT
video jacks or
AV IN/VIDEO
jack.
HDMI
—Press one or more times to select the device connected to the
HDMI1/ARC
,
HDMI2/DVI
, or
HDMI3
jack.
ACC
—This button has no function.
Press to enter channel numbers and the parental control password.
Press to enter a digital sub-channel number. For more
information, see “ Selecting a channel ” on page 24 .
Press to confirm selections or changes.
Press to open the on-screen menu.
Press to close the on-screen menu.
Press to open the
Input source
list, press
S
or
T
on the remote control to select the video input source, then press
ENTER
. For more information, see
“
Selecting the video input source
” on page
.
Press to open the channel list.
23
AUDIO
24
INlink Controls www.insigniaproducts.com
Description
Press to mute the sound. Press again to restore the sound.
Press to increase or decrease the volume.
Press to set the sleep timer. You can select
Off
,
5
,
10
,
15
,
30
,
60
,
90
,
120
,
180
, or
240
minutes. For more information, see “
” on page
.
Press to change how the picture looks on the screen
(aspect ratio). For more information, see “
Aspect ratio options ” on page 25 .
In TV mode, press to return to the previous channel.
In USB mode, press to go back to a higher level folder.
Press to navigate in on-screen menus and to adjust settings.
Press to open the on-screen menu.
Press to display TV status information, such as the channel number, channel name (if available), or signal source. For more information, see “
” on page
.
Press to turn closed captioning on or off. You can select
CC Off
,
CC On
, or
CC on Mute
. For more information, see “
Turning closed captioning on or off ” on page 35 .
Press to open the
Favorite
channel list. For more
information, see “ Setting up a favorite channel list
” on page
30 and “ Viewing a favorite channel
” on page
.
Press to change TV channels. For more information, see “
” on page
.
Press to select the picture mode. You can select
Vivid
,
Standard
,
Energy Savings
,
Theater
,
Sports
, or
Custom
. For more information, see “Picture Mode” in
“ Adjusting the TV picture ” on page 24 .
Press to select the audio mode for an analog program.
You can select:
•
MONO
—Select this option if there is noise or static on weak stereo broadcasts.
•
STEREO
—Select this option for programs broadcast in stereo.
•
SAP
—Select this option to listen to a secondary audio program, if available.
Press to select the sound mode. You can select
Standard
,
News
,
Music
,
Movie
, or
Custom
. For more information, see “Sound Mode” in “
” on page
.
Press to control INlink-compatible (HDMI CEC) devices.
For more information, see “ Using INlink
” on page
.
Insignia 55" 1080p LCD TV
Making connections
What connection should I use?
Your TV has several connection types for connecting devices to your TV.
For the best video quality, you should connect a device to the best available connection.
Use the following tables to identify cables:
Connection type and jack
Video quality Cable connector
HDMI video/audio
Best (use this if your devices have HDMI)
Connection type and jack
Coaxial digital audio
Analog audio
VGA (computer) video and audio
Component video (requires an audio connection)
Better than composite or coaxial
Composite video
(requires an audio connection)
Better than coaxial
Coaxial video/audio
Good
Cable connectors
You can use the
HDMI2/DVI
jack on your TV to connect a DVI device to your TV. You need to attach an HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device.
Cautions
• Check the jacks for position and type before making any connections.
• Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
• The external audio/video equipment shown may be different from your equipment. If you have questions, refer to the documentation that came with your equipment.
• Always unplug the power cord when connecting external equipment.
www.insigniaproducts.com
9
Connecting power
To connect the power:
• Plug the AC power cord into a power outlet.
Cautions
• Your TV should only be operated from the power source indicated on the label.
• Always unplug the AC power cord from the power outlet when you will not be using your
TV for an extended period of time.
NS-55L260A13 Insignia 55" 1080p LCD TV
Connecting a cable or satellite box
Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see “
.
Using HDMI (best)
To connect a cable or satellite box using HDMI:
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3
Connect an HDMI cable (not provided) to one of the
HDMI
jacks on the side or back of your TV and to the
HDMI OUT
jack on the cable or satellite box.
Side of TV
Cable or satellite box
4
Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5
Go through the Setup Wizard on page
Note
An HDMI cable carries both audio and video. You do not need to use any audio cables.
10
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Using DVI (same as HDMI but requires a sound connection)
Note
You must use the
HDMI2/DVI
jack to connect a cable or satellite box using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers.
To connect a cable or satellite box using DVI:
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3
Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the adapter to the
DVI OUT
jack on the cable or satellite box.
4
Connect the other end of the cable to the
HDMI2/DVI
jack on the back of your TV.
Using component video (better)
To connect a cable or satellite box using component video:
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3
Connect a component video cable (not provided) to the
COMPONENT IN Y
,
P
B
, and
P
R
video jacks on the side of your TV and the component video out jacks on the cable or satellite box.
Cables are often color-coded to match color-coded jacks.
Side of TV
Audio cable
PC IN
Back of TV
3.5mm audio cable
Cable or satellite box
5
Connect a 3.5mm audio cable (not provided) to the
PC/DVI AUDIO IN
jack on the back of your
TV and to the
AUDIO OUT
jacks on the cable or satellite box.
Note
When you connect the audio using the
PC/DVI
AUDIO IN
jack, the audio output is analog.
6
Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
7
Go through the Setup Wizard on page
.
Cable or satellite box
Component video cable
4
Connect an audio cable (not provided) to the
COMPONENT IN L/R
audio jacks on the side of your TV and to the audio out jacks on the cable or satellite TV box.
Note
When you connect the audio using the
COMPONENT IN L/R
audio jacks, the audio output is analog.
5
Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
6
Go through the Setup Wizard on page
www.insigniaproducts.com
11
NS-55L260A13 Insignia 55" 1080p LCD TV
Using composite video (good)
To connect a cable or satellite box using composite video:
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3
Connect an AV cable (not provided) to the
AV IN VIDEO
jack and
AV IN L /R
audio jacks on the side of your TV and to the composite video and audio out jacks on the cable or satellite box.
Note
When you connect the audio using the
AV IN L
/
R
audio jacks, the audio output is analog.
Cables are often color-coded to match color-coded jacks.
Side of TV
Using coaxial (good)
To connect a cable or satellite box using coaxial:
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3
Connect a coaxial cable (not provided) to the
ANT/CABLE
jack on the side of your TV and to the coaxial out jack on the cable or satellite box.
Side of TV
Coaxial cable
Cable or satellite box
AV cable
Cable or satellite box
4
Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5
Go through the Setup Wizard on page
.
4
Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5
Go through the Setup Wizard on page
Notes
• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.
12
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Connecting an antenna or cable TV (no box)
To connect an antenna or cable TV (no box):
1
Make sure that your TV’s power cord is unplugged, and all connected equipment is turned off.
2
Connect a coaxial cable (not provided) to the
ANT/CABLE
jack on the side of your TV and to the antenna or cable TV wall jack.
Antenna or cable TV (no box)
Side of TV
Connecting a DVD or Blu-ray player
Using HDMI (best)
To connect a DVD or Blu-ray player using HDMI:
1
Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2
Connect an HDMI cable (not provided) to one of the
HDMI
jacks on the side or back of your TV and to the
HDMI OUT
jack on the DVD or
Blu-ray player.
Side of TV
Coaxial cable
DVD or Blu-ray player
HDMI cable
3
Plug your TV’s power cord into a power outlet, then turn on your TV.
4
Go through the Setup Wizard on page
.
Notes
• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.
www.insigniaproducts.com
3
Plug your TV’s power cord into a power outlet, then turn on your TV.
4
Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
5
Press
INPUT
to open the
Input source
list.
6
Press
S
or
T
to highlight
HDMI 1
,
HDMI 2
, or
HDMI 3
, then press
ENTER
.
Note
You can also press
HDMI
repeatedly to select the
DVD or Blu-ray player.
13
NS-55L260A13 Insignia 55" 1080p LCD TV
Using DVI (same as HDMI but requires a sound connection)
Note
You must use the
HDMI2/DVI
jack to connect a DVD or Blu-ray player using DVI. If you use another
HDMI
jack, you will not hear sound from the TV speakers.
To connect a DVD or Blu-ray player using DVI:
1
Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2
Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the adapter to the
DVI OUT
jack on the
DVD or Blu-ray player.
3
Connect the other end of the cable to the
HDMI2/DVI
jack on the back of your TV.
Using component video (better)
To connect a DVD or Blu-ray player using component video:
1
Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2
Connect a component video cable (not provided) to the
COMPONENT IN Y
,
P
B
, and
P
R
jacks on the side of your TV and to the
COMPONENT OUT
jacks on the component video device.
Cables are often color-coded to match color-coded jacks.
Side of TV
14
DVD or Blu-ray player
Audio cable
Component video cable
PC IN
Back of TV
DVD or Blu-ray player
3.5mm audio cable
4
Connect a 3.5mm audio cable (not provided) to the
PC/DVI AUDIO IN
jack on the back of your
TV and to the
AUDIO OUT
jacks on the DVD or
Blu-ray player.
5
Plug your TV’s power cord into a power outlet, then turn on your TV.
6
Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
7
Press
INPUT
to open the
Input source
list.
8
Press
S
or
T
to select
HDMI 2
, then press
ENTER
.
Note
You can also press
HDMI
one or more times to select the DVD or Blu-ray player.
3
Connect an audio cable (not provided) to the
COMPONENT IN L/R
audio jacks on the side of your TV and to the
L/R AUDIO OUT
jacks on the
DVD or Blu-ray player.
Notes
• When you connect the audio using the
COMPONENT IN L/R
audio jacks, the audio output is analog.
4
Plug your TV’s power cord into a power outlet, then turn on your TV.
5
Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
6
Press
INPUT
to open the
Input source
list.
7
Press S or T to select
Component
, then press
ENTER
.
Note
You can also press
VIDEO
to select the DVD or Blu-ray player.
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Using composite video (good)
To connect a DVD or Blu-ray player using composite video:
1
Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2
Connect an AV cable (not provided) to the
AV IN VIDEO
jack and
AV IN L/R
audio jacks on the side of your TV and to the
AV OUT
jacks on the DVD or Blu-ray player.
Note
When you connect the audio using the
AV IN L /R
audio jacks, the audio output is analog.
Cables are often color-coded to match color-coded jacks.
Side of TV
Connecting a VCR
To connect a VCR:
1
Make sure that your TV’s power cord is unplugged and the VCR is turned off.
2
Connect an AV cable (not provided) to the
AV IN VIDEO
jack and
AV IN L/R
audio jacks on the side of your TV and to the
AV OUT
jacks on the VCR.
Note
When you connect the audio using the
AV IN L/R
audio jacks, the audio output is analog.
Cables are often color-coded to match color-coded jacks.
Side of TV
VCR
AV cable
DVD or Blu-ray player
AV cable
3
Plug your TV’s power cord into a power outlet, then turn on your TV.
4
Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
5
Press
INPUT
to open the
Input source
list.
6
Press
S
or
T
to select
AV
, then press
ENTER
.
Notes
You can also press
VIDEO
to select the DVD or Blu-ray player.
3
Plug your TV’s power cord into a power outlet, then turn on your TV and the VCR.
4
Press
INPUT
to open the
Input source
list.
5
Press S or T to select
AV
, then press
ENTER
.
Note
You can also press
VIDEO
to select the VCR.
6
Insert a videotape in the VCR, then press
PLAY
on the VCR.
www.insigniaproducts.com
15
NS-55L260A13 Insignia 55" 1080p LCD TV
Connecting a camcorder or game console
Note
If your camcorder or game console has an HDMI connection, we recommend that you use the HDMI connection to get the best quality possible.
To connect a camcorder or game console:
1
Make sure that your TV’s power cord is unplugged and the camcorder or game console is turned off.
2
Connect an AV cable (not provided) to the
AV IN VIDEO
jack and
AV IN L /R
audio jacks on the side of your TV and to the
AV OUT
jacks on the camcorder or game console.
Note
When you connect the audio using the
AV IN L/R
audio jacks, the audio output is analog.
Cables are often color-coded to match color-coded jacks.
Side of TV
Connecting a computer
Using VGA
To connect a computer using VGA:
1
Make sure that your TV’s power cord is unplugged and the computer is turned off.
2
Connect a VGA cable (not provided) to the
VGA
jack on the back of your TV and to the
VGA
jack on the computer.
PC IN
Back of TV
Audio cable with stereo mini plug
Camcorder or game console
AV cable
VGA cable
3
Connect an audio cable with a stereo mini plug
(not provided) to the
PC/DVI AUDIO IN
jack on the back of your TV and to the
AUDIO OUT
jack on the computer.
4
Plug your TV’s power cord into a power outlet, then turn on your TV and the computer.
5
Press
INPUT
to open the
Input source
list.
6
Press
S
or
T
to select
VGA
, then press
ENTER
.
7
Adjust the display properties on the computer, if necessary.
3
Plug your TV’s power cord into a power outlet, then turn on your TV.
4
Turn on the camcorder or game console, then set it to the correct output mode. For more information, see the documentation that came with the camcorder or game console.
5
Press
INPUT
to open the
Input source
list.
6
Press S or T to select
AV
, then press
ENTER
.
Notes
You can also press
VIDEO
to select the camcorder or game console.
16
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Using HDMI
To connect a computer using HDMI:
1
Make sure that your TV’s power cord is unplugged and the computer is turned off.
2
Connect an HDMI cable (not provided) to one of the
HDMI
jacks on the side or back of your TV and to the
HDMI OUT
jack on the computer.
Side of TV
HDMI cable
Connecting a USB flash drive
To connect a USB flash drive:
1
Plug a USB flash drive into the
USB
port on the side of your TV.
Side of TV
USB flash drive
3
Plug your TV’s power cord into a power outlet, then turn on your TV and the computer.
4
Press
INPUT
to open the
Input source
list.
5
Press
S
or
T
to highlight
HDMI 1, HDMI 2
, or
HDMI 3
, then press
ENTER
.
Note
You can also press
HDMI
repeatedly to select the computer.
6
Adjust the display properties on the computer, if necessary.
Caution
Do not remove the USB flash drive or turn off the TV while using the USB flash drive. You may lose data or damage the USB flash drive.
2
Turn on your TV.
3
Press
INPUT
to open the
Input source
list.
4
Press
S
or
T
to select
USB
, then press
ENTER
.
Note
The
Photos
viewer only supports JPEG format images (with “.jpg” file extensions) and not all JPEG files are compatible with your TV.
For more information, see “
” on page
.
www.insigniaproducts.com
17
NS-55L260A13 Insignia 55" 1080p LCD TV
Connecting headphones
The TV speakers are muted when headphones are attached.
Warning
Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound.
To connect headphones:
• Connect the headphones to the
/AUDIO OUT
jack on the side of your TV.
Side of TV
Connecting a basic home theater system
Note
When you connect a home theater using digital audio, audio plays through both the home theater speakers and the TV speakers. If you do not want audio to play through the TV speakers, set the
TV
Speakers
setting on the
Audio
menu to
Off
. For more
information, see “ Adjusting sound settings ” on
page
Using digital audio
To connect a basic home theater system using digital audio:
1
Make sure that your TV’s power cord is unplugged and the home theater system is turned off.
2
Connect a digital coaxial audio cable (not provided) to the
DIGITAL OUTPUT
jack on the back of your TV and to the coaxial
AUDIO IN
jack on the digital home theater system.
Home theater system
PC IN
Back of TV
Note
You can also connect an amplifier, home theater system, or sound bar to the
/AUDIO OUT
jack. If you want to connect an amplifier, home theater system, or sound bar, you need to disconnect the headphones.
18
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Using analog audio
Note
When you connect a home theater using analog audio, audio plays through both the home theater speakers and the TV speakers. If you do not want audio to play through the TV speakers, set the
TV
Speakers
setting on the
Audio
menu to
Off
. For more information, see “
” on page
.
To connect a home theater system using analog audio:
1
Make sure that your TV’s power cord is unplugged and the home theater system is turned off.
2
Connect a 3.5mm audio cable (not provided) to the
/AUDIO OUT
jack on the side of your TV and to the
AUDIO IN
jacks on the analog home theater system.
Side of TV
Home theater system
Connecting a home theater system with multiple devices
Cable/satellite box
Blu-ray player/DVD player/VCR
Camcorder/game console
AV receiver
USB flash drive
Antenna or cable
TV connected directly to the wall jack
Computer
3.5mm audio cable
The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation that came with your devices for connection information.
Just remember to use the best connection types available for the best picture and sound. For information about connection types, see “
” on page
.
Note
You can connect headphones, an amplifier, a home theater system, or a sound bar to the
/AUDIO OUT
jack. If you want to use headphones, you need to disconnect the amplifier, home theater system, or sound bar.
www.insigniaproducts.com
19
NS-55L260A13 Insignia 55" 1080p LCD TV
Using the remote control
Installing remote control batteries
To install remote control batteries:
1
Press the release button on the back of the remote to remove the battery compartment cover.
2
Insert two AAA batteries into the battery compartment. Make sure that you match the + and – symbols on the batteries with the + and – symbols in the battery compartment.
Turning on your TV for the first time
The first time you turn on your TV, the Setup Wizard opens. The Setup Wizard guides you through setting up basic settings including the menu language, time setting, picture mode, TV signal source, and the channel list.
To set up your TV:
1
Make sure that you have:
• Installed the remote control batteries. (See page
for details.)
• Connected an antenna, cable TV, or satellite
TV. (See page
through
for details.)
• Connected the power cord. (See page 10
for details.)
2
Press (power) to turn on your TV. The
Choose
Your Menu Language
screen opens.
Choose
<
our Menu
/ or or
English
Espa ñol
Move OK
E NTE R
Select
Set menu language to
ç
ME NU
Previous
Espa ñol
E XIT
Exit
3
Replace the battery compartment cover.
Cautions
• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
• Make sure that batteries are disposed of correctly. Do not burn or incinerate.
Notes
• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for an extended period of time, remove the batteries.
Aiming the remote control
To aim the remote control:
• Point the remote control towards the remote sensor on the front of your TV.
3
Press
S
or
T
to highlight the language you want, then press
ENTER
. The
Choose Your Time
Setting
screen opens.
Choose Your T ime Setting
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
Auto
Atlantic
On
October
AM
Move OK
E NTE R
Select
ME NU
If automatic options are automatically set by TV source
Previous
E XIT
Exit
4
Press S or T to highlight
Mode
, then press
W or X to select
Manual
(to set the date and time manually) or
Auto
(to set the date and time automatically from a TV signal source based on the time zone you select).
Note
If you select
Auto
, the displayed time will be incorrect until your TV gets the correct time from a
TV signal source.
20
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
5
Press S or T to highlight
Time Zone
, then press
W or X to select your time zone. You can select
Eastern
,
Central
,
Mountain
,
Pacific
,
Alaska
,
Hawaii
,
Atlantic
, or
Newfoundland
.
6
Press
S
or
T
to highlight
Daylight Savings
, then press W or X to select
On
(if your viewing area observes Daylight Savings Time) or
Off
(if your viewing area does not observe Daylight
Savings Time).
7
If you selected
Manual
for
Mode
, set the date by pressing S or T to highlight
Year
,
Month
, or
Day
, then pressing W or X to adjust the setting.
8
If you selected
Manual
for
Mode
, set the time by pressing S or T to highlight
Time
, then pressing
W
or
X
to select the hour, minute, or
AM/PM field. Press S or T to adjust the setting.
9
Press
ENTER
. The
Choose Your Picture Mode
screen opens.
Choose Your Picture Mode
Home Mode
Retail Mode
Move OK
E NTE R
Select
Reduces total power consumption
ME NU
Previous
E XIT
Exit
10
Press
S
or
T
to highlight
Home Mode
or
Retail
Mode
, then press
ENTER
.
If you selected
Retail Mode
, the message “If you select Retail Mode, then Energy savings is not realized” appears. Select
Yes
to continue using
Retail Mode
, or select
No
to change your selection, then press
ENTER
.
The
Choose Your TV Source
screen opens.
Choose Your TV Source
Antenna
Cable
Satellite Box
Move
OK
E NTE R
Se lect
ME NU
Select if using an antenna for standard or HD TV
Previous
E XIT
Exit
11
Press S or T to highlight
Antenna
,
Cable
, or
Satellite Box
, then press
ENTER
.
A
If you select
Antenna
, your TV scans for available channels. The scan may take several minutes.
Scanning for Channels
Digital Channels
Analog Channels
Channel scan may take 20+ minutes
ME NU
Previous Move OK
E NTE R
Select
Channel scan may take 20+ minutes
E XIT
Exit
During scanning, your TV searches for digital channels first. When the digital channel search is complete, a message appears asking if you want to search for analog channels. Select
Yes
to continue searching for analog channels, or select
No
to stop searching for channels.
Note
You can press
EXIT
to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.
B
If you select
Cable
, a message asks if you have a cable box:
Do you have a Cable Box?
No
Yes
Move
OK
E NTE R
Select
ME NU
Previous
E XIT
Exit
• Select
No
, then press
ENTER
if no cable box is connected. Your TV scans for available channels. The scan may take several minutes.
www.insigniaproducts.com
21
22
NS-55L260A13 Insignia 55" 1080p LCD TV
• Select
Yes
, then press
ENTER
if a cable box is connected. A message asks how you connected the cable box to your TV.
How did you connect the cable box to the TV?
AV, Component, or HDMI
Coaxial
Move
OK
E NTE R
Select
• Select
AV
,
Component
, or
HDMI
, then press
ENTER
if you connected a cable box to your TV using one of these cables. Read the message, then press
ENTER
to close the wizard.
• Select
Coaxial
, then press
ENTER
if you connected a cable box to your TV using a coaxial cable. Read the message, then press
ENTER
to start the channel scan
(VHF channels only).
Note
You can press
EXIT
to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.
C
If you select
Satellite Box
, a message asks how you connected the satellite box to your TV:
How did you connect the satellite box to the TV?
AV, Component, or HDMI
Coaxial
Move OK
E NTE R
Select
ME NU
Previous
ME NU
Previous
E XIT
Exit
E XIT
Exit
• Select
AV
,
Component
, or
HDMI
, then press
ENTER
if you connected a satellite box to your TV using one of these cables.
Read the message, then press
ENTER
to close the wizard.
• Select
Coaxial
, then press
ENTER
if you connected a satellite box to your TV using a coaxial cable. Read the message, then press
ENTER
to start the channel scan (VHF channels only).
Note
You can press
EXIT
to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.
12
To watch TV, press
INPUT
, press S or T to highlight the video input source for your TV in the
Input source
list, then press
ENTER
.
• If your TV is connected to an antenna, cable TV
(no box), or cable or satellite TV box using a coaxial cable, select
TV
.
• If your TV is connected to a cable or satellite box using an HDMI cable or HDMI cable with a
DVI adapter, select
HDMI 1
,
HDMI 2
or
HDMI 3
.
• If your TV is connected to a cable or satellite box using a component video cable, select
Component
.
• If your TV is connected to a cable or satellite box using a composite video cable, select
AV
.
Understanding the basics
Turning your TV on or off
To turn your TV on or off:
1
Make sure that the power cord is connected to a power outlet.
2
Press (power) to turn on your TV. The power indicator turns off.
3
Press (power) again to turn off your TV. Your
TV enters standby mode, and the power indicator LED turns red.
Warning
When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power cord.
Note
If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.
Selecting the video input source
To select the video input source:
1
Turn on your TV, then press
INPUT
. The
Input source
list opens.
Input source
TV
AV
Component
VGA
HDMI 1
HDMI 2
HDMI 3
USB
2
Press
S
or
T
to select a video input source, then press
ENTER
.
You can also press a Quick Launch Input button to select the video input source.
• Press
TV
to select TV (if your TV is connected to an antenna, cable TV (no box), or cable or satellite TV using a coaxial cable).
• Press
VIDEO
to select component or composite input.
• Press
HDMI
one or more times to cycle between the HDMI inputs.
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
On-screen menu overview
Notes
• Depending on the signal source selected, you may see different options on your screen. The following menus are shown in TV mode (except the
Photos
menu).
• Menu items that are not selectable are grayed out.
• Menus in this manual are described in TV mode, unless otherwise indicated.
• The screens shown in this manual are for explanation purposes and may vary from the actual screens on your TV.
Picture menu (TV mode)
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
Settings menu (TV mode)
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
Set various TV options.
OK
ENTER
Select
MENU
Previous
EXIT
English
Exit
Photos menu (USB mode)
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Photos
Browse Photos
Favorite Photos
View Slideshow
Settings
Move
OK
ENTER
Select
MENU
Previous
View files from a USB flash device that is connected to the TV.
EXIT
Exit
Audio menu (TV mode)
Audio
Sound Mode
Balance
Advanced Audio
Reset Audio Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Music
0
Navigating the menus
Press
MENU
to open the on-screen menu.
Move
OK
ENTER
Select
Adjust settings to affect sound quality.
MENU
Previous
EXIT
Exit
Press the right or left arrow to move the cursor on the screen or to adjust a selected item.
Press the up or down arrow to select menu options.
Channels menu (TV mode)
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
Move
OK
ENTER
Adjust channel options.
Select
MENU
Previous
EXIT
Exit
Press
ENTER
to confirm a selection or enter a sub-menu.
Press
MENU
to return to the previous menu.
Press
EXIT
to close the menu.
www.insigniaproducts.com
23
NS-55L260A13 Insignia 55" 1080p LCD TV
Selecting a channel
To select a channel:
• Press
CH
or
CH
to go to the next or previous channel on the memorized channel list.
• Press the number buttons to enter the analog or main digital channel number you want, then wait for the channel to change or press
ENTER
to immediately change the channel.
• To select a digital sub-channel, press the number buttons to select the main digital channel, press
(dot), then press the number button for the sub-channel. Wait for the channel to change, or press
ENTER
to immediately change the channel.
For example, to tune to channel 5.1, press
5
,
(dot), then
1
.
Note
Button presses must be within three seconds of each other.
• Press (return) to go to the last viewed channel.
• Press
CH-LIST
to open the channel list, press S or
T to highlight a channel, then press
ENTER
.
Hidden channels are grayed and cannot be selected. See “
Hiding channels ” on page 29 .
• Press
FAVORITE
to open the favorite channel list, press S or T to highlight a channel, then press
ENTER
.
Note
If a list has more than one page, press
S
or
T
to scroll through the pages.
Adjusting the volume
To adjust the volume:
• Press
VOL+
or
VOL–
to increase or decrease the volume.
• Press
MUTE
to turn off the sound. Press
MUTE
again to turn the sound back on.
Viewing channel information
To view channel information:
• Press
INFO
to view an information banner. The information banner shows the current program information such as channel number, video input source, and resolution.
• Digital channel information—Displays the channel number, station name, channel label, broadcast program name, TV rating, signal type, audio information, resolution, CC mode, current time, and current program start and end times.
• Analog channel information—Displays channel number, channel label (if present), signal type, audio information, and resolution.
Viewing system information
To view system information:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS
PHOTOS
Settings
Parental Controls
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
System info
Move
OK
ENTER
Select
Display information about your TV.
MENU
Previous
English
EXIT
Exit
3
Press S or T to highlight
System Info
, then press
ENTER
. Information about the TV software version is displayed.
4
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Adjusting the picture
Adjusting the TV picture
To adjust the TV picture:
1
Press
MENU
. The on-screen menu opens with the
menu displayed.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
T
or
ENTER
to access the menu.
24
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
3
Press S or T to highlight an option, then press
ENTER
to access the option. You can select:
•
Picture Mode
—Selects the picture mode. You can select:
•
Vivid
—(a bright and vivid picture).
Significantly increases the contrast, brightness, and sharpness. This selection is good for video games, animation, and in bright light environments.
•
Standard
—(a standard picture).
Moderately increases the contrast, brightness, and sharpness. This selection is good for standard TV broadcasts.
•
Energy Savings
—(the backlight brightness is decreased). Your TV has a backlight that provides light for displaying a picture. By reducing the amount of light, your TV uses less energy.
•
Theater
—(a finely detailed picture).
Adjusts the brightness and contrast and lowers the sharpness for a more realistic picture. This selection is good for watching the highest quality video such as Blu-ray
Discs, DVDs, and HDTV.
•
Custom
—(customized picture). Lets you manually adjust picture settings such as brightness, contrast, and sharpness.
•
Game
—Adjusts the picture for the ultimate gaming experience. You can select
On
or
Off
.
Note
You can also press
to select the picture mode.
•
Brightness
—Adjusts the brightness of the dark areas of the picture.
•
Contrast
—Adjusts the brightness of the light areas of the picture.
•
Color
—Adjusts the color intensity of the picture. A low setting may make the color look faded. A high setting may make the color look artificial.
•
Tint
—Adjusts the color balance of the picture.
Use this control to make skin tones look more natural.
•
Sharpness
—Adjusts the color detail of images. If you set this control too high, dark images may appear with light or white edges.
•
Advanced Video
—Opens the
Picture · Advanced Video
menu where you can adjust additional video options.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Picture Advanced Video
Backlight 75
Insignia Motion 120Hz Medium
Aspect Ratio
Color Temperature
Wide
Cool
Overscan
Noise Reduction
Adaptive Contrast
Dynamic Backlight (DCR)
On
Middle
On
High
Move
OK
ENTER
Select
MENU
Previous
Provides smooth and clear picture motion for normal use
EXIT
Exit
•
Backlight
—Sets the overall brilliance of the screen. When
Dynamic Backlight
(DCR)
is turned on, you cannot change the
Backlight
setting.
•
Insignia Motion 120
—Eliminates motion blur with clear detail and smooth motion.
You can select:
•
Low
—Sets the effect to minimum.
•
Medium
—Provides smooth and clear picture motion for normal use.
•
High
—Eliminates motion blur with clear detail and smooth motion.
•
Off
—Turns off
Insignia Motion 120Hz
.
•
Aspect Ratio
—Selects the aspect ratio of the picture.
Example Aspect ratio options
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left and right of the image.
Zoom:
Expands the image to fill the screen. The top and bottom of the image may be cropped.
Wide:
Use this option to view content recorded in a 16:9
(wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and the TV program.
Note: Auto
is only available when
Auto Zoom
in the
Channels
menu is set to
On
.
Note
You can also press
ZOOM
to select the aspect ratio.
•
Color Temperature
—Selects the color temperature. You can select
Cool
(to enhance the blues),
Normal
, or
Warm
(to enhance the reds).
•
Overscan
—Adjusts the picture’s reproduction rate. You can select
On
or
Off
.
•
Noise Reduction
—Selects the noise reduction mode to reduce picture noise
(snow). You can select
Low
,
Middle
,
High
, or
Off
.
www.insigniaproducts.com
25
NS-55L260A13 Insignia 55" 1080p LCD TV
•
Adaptive Contrast
—Automatically adjusts picture detail and brightness. You can select
On
or
Off
.
•
Dynamic Backlight (DCR)
—Enhances the contrast ratio between light and dark areas of the picture. You can select
Off
,
Low
, or
High
.
•
Reset Picture Settings
—Resets all picture settings to factory mode.
4
Press W or X to adjust the option, or press S or
T to select a setting.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Adjusting the computer image
To adjust the computer image:
1
Make sure that your TV is in VGA mode. For more information, see “
Selecting the video input source ” on page 22
.
2
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
5
Press S or T to highlight an option, then press
ENTER
to access the option. You can select:
•
Auto Adjust
—Automatically adjusts the image settings such as position and phase.
•
H. Position
—Moves the image right or left.
•
V. Position
—Moves the image up or down.
•
Clock
—Adjusts the sample frequency.
•
Phase
—Adjusts the focus of stable images.
•
Reset Computer Settings
—Resets all computer settings to factory mode.
6
Press W or X to adjust the option, or press S or
T to select a setting.
7
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Adjusting component video settings
You can adjust the horizontal distortion that may occur when watching video from a component video device.
To adjust component video settings:
1
Make sure that you have a device connected to the
Y/P
B
/P
R
(component video) jacks on the side of your TV.
2
Press
VIDEO
to select the component video device.
3
Press
MENU
. The on-screen menu opens.
3
Press W or X to highlight
SETTINGS
, then press
ENTER
. The
Settings
menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
PICTURE AUDIO CHANNELS SETTINGS
PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Select
MENU
Set options for when a computer is connected to the TV.
Previous
EXIT
English
Exit
4
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
4
Press
S
or
T
to highlight
Computer Settings
, then press
ENTER
. The
Settings · Computer
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
System info
Move
Set various TV options.
OK
ENTER
Select
MENU
Previous
English
EXIT
Exit
Settings Computer Settings
Auto Adjust
H. Position
V. Position
Clock
Phase
Reset Computer Settings
AUDIO CHANNELS SETTINGS PHOTOS
63
48
127
29
Move
OK
ENTER
Select
MENU
Adjust to the PC signal timing automatically when ON.
Previous
EXIT
Exit
5
Press
S
or
T
to highlight
Component Settings
, then press
ENTER
.
6
Press
S
or
T
to highlight an option, then press
ENTER
to access the option. You can select:
•
Phase
—Minimizes horizontal distortion.
•
Reset Component Settings
—Resets all component video settings to factory mode.
26
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
7
Press W or X to adjust the option, or press S or
T to select a setting.
8
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Adjusting the sound
Adjusting sound settings
To adjust sound settings:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
AUDIO
, then press T or
ENTER
. The
Audio
menu opens.
Audio
Sound Mode
Balance
Advanced Audio
Reset Audio Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Music
0
Move
OK
ENTER
Select
Adjust settings to affect sound quality.
MENU
Previous
EXIT
Exit
3
Press S or T to highlight an option, then press
ENTER
to access the option. You can select:
•
Sound Mode
—Selects the sound mode. You can select:
•
Standard
—Balances treble and bass. This setting is good for watching standard TV broadcasts.
•
Theater
—Enhances treble and bass for a rich sound experience. This setting is good for watching DVDs, Blu-ray discs, and
HDTV.
•
News
—Enhances vocals for TV audio. This setting is good for watching news broadcasts.
•
Music
—Preserves the original sound. This setting is good for listening to music.
•
Custom
—Lets you manually adjust sound settings.
•
Balance
—Adjusts the balance between the left and right audio channels.
•
Advanced Audio
—Opens the
Audio · Advanced Audio
menu where you can adjust additional audio options.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Audio • Advanced Audio
Bass 50
Treble 50
TV Speakers On
Digital Audio/SPDIF
MTS/SAP
Raw
Stereo
Audio Language
English
Move
OK
ENTER
Select
Choose where to play TV audio.
MENU
Previous
EXIT
Exit
•
Bass
—Adjusts the low sounds.
•
Treble
—Adjusts the high sounds.
•
TV Speakers
—Selects where to play TV audio. When you connect an external audio system to your TV, audio plays through both the external audio system and the TV speakers. You can select
On
(default setting) to play audio through both the external audio system and the TV speakers, or select
Off
to turn off the TV speakers and play audio only through the external audio system.
•
Digital Audio/SPDIF
—Sends digital audio to an external audio system. You can select
PCM
(to output audio in 2-channel stereo), or
RAW
(to pass through the original digital audio sound).
•
MTS/SAP
—(Analog channels only) Selects the audio mode. You can select:
•
MONO
—Select this option if there is noise or static on weak stereo broadcasts.
•
STEREO
—Select this option for programs broadcast in stereo.
•
SAP
—Select this option to listen to a secondary audio program, if available.
Note
You can also press
MTS/SAP
one or more times to select the audio mode.
•
Audio Language
—(Digital channels only)
Selects an alternate audio language, if available.
•
Reset Audio Settings
—Reset all audio settings to factory defaults.
4
Press
W
or
X
to adjust the option, or press
S
or
T
to select a setting.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
27
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Playing TV audio only
You can turn off the picture on your TV and listen to the program audio only.
To play TV audio only:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
Changing channel settings
Automatically scanning for channels
When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press
CH
or
CH
, your TV goes to the next or previous channel in the channel list.
If the TV signal source changes, for example you change from an outdoor antenna to cable TV (no box), you need to scan for channels.
To automatically scan for channels:
1
Press
MENU
. The on-screen menu opens.
2
Press
W
or
X
to highlight
CHANNELS
, then press
T
or
ENTER
. The
Channels
menu opens.
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
CHANNELS
, then press
T or
ENTER
. The
Channels
menu opens.
Move
OK
ENTER
Select
Play the audio with the picture on.
MENU
Previous
EXIT
Exit
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
3
Press S or T to highlight
Audio Only
, then press
ENTER
.
4
Press S or T to select
On
.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Notes
•
Audio Only
works only when the input source is
TV, and your TV is receiving a broadcast signal.
• To exit audio only mode, press any button.
When you exit audio only mode, the
Audio
Only
option is automatically reset to
Off
.
Move
OK
ENTER
Select
Automatically search for channels.
MENU
Previous
EXIT
Exit
3
Press S or T to highlight
Auto Channel Search
, then press
ENTER
. The
Channels · Auto Channel
Search
screen opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Channels Auto Channel Search
Choose your TV source
Antenna
Cable
Satellite Box
Move
OK
ENTER
Select
Select if using an antenna for standard or HD TV.
MENU
Previous
EXIT
Exit
28
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
4
Press S or T to highlight
Antenna
,
Cable
, or
Satellite Box
, then press
ENTER
.
A
If you select
Antenna
, your TV scans for available channels. The scan may take several minutes.
B
If you select
Cable
, a message asks if you have a cable box:
• Select
No
, then press
ENTER
if no cable box is connected. Your TV scans for available channels. The scan may take several minutes.
• Select
Yes
, then press
ENTER
if a cable box is connected. A message asks how you connected the cable box to your TV:
• Select
AV
,
Component
, or
HDMI
, then press
ENTER
if you connected a cable box to your TV using one of these cables. Read the message, then press
ENTER
to close the wizard.
• Select
Coaxial
, then press
ENTER
if you connected a cable box to your TV using a coaxial cable. Read the message, then press
ENTER
to start the channel scan
(VHF channels only).
C
If you select
Satellite Box
, a message asks how you connected the satellite box to your
TV:
• Select
AV
,
Component
, or
HDMI
, then press
ENTER
if you connected a satellite box to your TV using one of these cables.
Read the message, then press
ENTER
to close the wizard.
• Select
Coaxial
, then press
ENTER
if you connected a satellite box to your TV using a coaxial cable. Read the message, then press
ENTER
to start the channel scan (VHF channels only).
Note
You can press
EXIT
to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.
Hiding channels
You can hide channels in the channel list. When you press
CH
or
CH
, your TV skips the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.
To hide channels:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
CHANNELS
, then press
T or
ENTER
. The
Channels
menu opens.
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio Only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
Move
OK
ENTER
Select
MENU
Manually add and skip channels in your program list.
Previous
EXIT
Exit
3
Press S or T to highlight
Add/Skip Channels
, then press
ENTER
. The
Channels · Add/Skip
Channels
screen opens.
Channels • Add/Skip Channels
Ch 5
Ch 5-1
Ch 5-2
Ch 5-3
Ch 5-4
Ch 6
Ch 7
Ch 17
Analog
Digital
Digital
Digital
Digital
Analog
Analog
Analog
AUDIO CHANNELS SETTINGS PHOTOS
AT05-1
AT05-2
AT05-3
AT05-4
ENTER
MENU
Manually add and skip channels in your program list.
Previous
EXIT
Exit
4
Press
S T W
or
X
to highlight the channel you want to hide, then press
ENTER
. The check mark disappears.
Notes
• A channel with a check mark is not hidden. A channel with no check mark is hidden.
• If the list has more than one page, press
S
or
T to scroll through the pages.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
www.insigniaproducts.com
29
NS-55L260A13 Insignia 55" 1080p LCD TV
Setting up a favorite channel list
You can create a favorite channel list so you can quickly browse through your favorite channels by pressing
FAVORITE
, then selecting a channel from the favorite channel list.
To set up a favorite channel list:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
CHANNELS
, then press
T
or
ENTER
. The
Channels
menu opens.
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio Only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
4
Press S T W or X to highlight the channel you want to add to the favorites list, then press
ENTER
. A check mark appears next to the channel.
Notes
• To remove a channel from the favorites list, highlight the channel, then press
ENTER
. The check mark disappears and the channel is removed from the list.
• If the list has more than one page, press
S
or
T to scroll through the pages.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Viewing a favorite channel
To view a favorite channel:
1
Press
FAVORITE
. The favorite channel list opens.
2
Press
S
or
T
to highlight a channel, then press
ENTER
.
Checking the digital signal strength
You can check the digital signal strength to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.
To check the digital signal strength:
1
Press
MENU
. The on-screen menu opens.
Move
OK
ENTER
Select
Add channels to create a favorites list.
MENU
Previous
EXIT
Exit
3
Press S or T to highlight
Favorites
, then press
ENTER
. The
Channels · Favorites
screen opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Channels • Favorites
Ch 5
Ch 5-1
Ch 5-2
Ch 5-3
Ch 5-4
Ch 6
Ch 7
Ch 17
Analog
Digital
Digital
Digital
Digital
Analog
Analog
Analog
AT05-1
AT05-2
AT05-3
AT05-4
MENU
Previous
EXIT
Exit
ENTER
Add channels to create a favorites list.
2
Press W or X to highlight
CHANNELS
, then press
T or
ENTER
. The
Channels
menu opens.
Channels
Auto Channel Search
Add/Skip Channels
Favorites
Channel Strength
Audio Only
Auto Zoom
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
On
Move
OK
ENTER
Select
MENU
Display signal strength of selected digital channels.
Previous
EXIT
Exit
30
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
3
Press S or T to highlight
Channel Strength
, then press
ENTER
. The signal strength meter is displayed.
Now 67%
Channel Strength
0
5-2AT05-2
100
Peak 67%
4
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Setting parental controls
Setting or changing the password
Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program
(with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter a password.
To set or change the password:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens with
Parental Controls
highlighted.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
3
Press
ENTER
. The
Enter Password
screen opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Enter Password
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Enter your 4-digit password. Default is 0000, Please change your password.
4
Press the number buttons to enter the four-digit password. The default password is
0000
. You should change the password to a number you can remember. The
Settings-Parental Controls
menu opens.
Settings Parental
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
Change Password
RRT5
Reset RRT5
AUDIO CHANNELS SETTINGS
PHOTOS
Off
Off
Move
OK
ENTER
Select
MENU
Previous
Enter a new 4-digit password then re-enter it for confirmation.
EXIT
Exit
5
Press S or T to highlight
Change Password
, then press
ENTER
. The
Settings · Parental
Controls · Change Password
screen opens.
Enter new password
Confirm new password
6
Press the number buttons to enter a password, then enter the password again.
Note
If you forget your password, enter
9999
.
7
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
31
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Locking control buttons
When the button lock is turned
On
, the buttons on the side of your TV are locked, and you can only operate your TV using the remote control.
To lock control buttons:
1
Press
MENU
. The on-screen menu opens.
4
Press the number buttons to enter the four-digit password. The
Settings · Parental Controls
menu opens with
Button Lock
highlighted.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
Settings Parental
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
Change Password
RRT5
Reset RRT5
AUDIO CHANNELS SETTINGS PHOTOS
Off
On
Off
Off
Move
OK
ENTER
Select
Do not lock the buttons on the TV .
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens with
Parental Controls
highlighted.
5
Press
ENTER
.
6
Press
S
or
T
to select
On
(locks the buttons) or
Off
(unlocks the buttons).
7
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Blocking unrated TV
To block unrated TV:
1
Press
MENU
. The on-screen menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
3
Press
ENTER
. The
Enter Password
screen opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens with
Parental Controls
highlighted.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Enter Password
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Enter your 4-digit password. Default is 0000, Please change your password.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
32
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
3
Press
ENTER
. The
Enter Password
screen opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Enter Password
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Enter your 4-digit password. Default is 0000, Please change your password.
Some of the age-based TV Parental Guidelines ratings also have content-based ratings.
U.S. TV content ratings
L
S
V
D
All
FV
All ratings are blocked
Fantasy violence
Strong language
Sexual situations
Violence
Suggestive dialog
4
Press the number buttons to enter the four-digit password. The
Settings · Parental Controls
menu opens.
Settings Parental
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
Change Password
RRT5
Reset RRT5
Off
On
AUDIO CHANNELS SETTINGS PHOTOS
Off
Off
Move
OK
ENTER
Select
MENU
Do not block TV programs that do not have a rating .
Previous
EXIT
Exit
U.S. movie (MPAA) ratings
None
G
PG
PG-13
R
NC-17
X
Movie not rated
General audiences
Parental guidance suggested
Suitable for children 13 and older
Parental guidance suggested for children under 17
Not suitable for children under 17
Adults only
Canadian rating levels
Canadian English ratings
E
C
C8+
G
PG
14+
18+
Exempt programming
Suitable for all children
Suitable for children 8 and older
General audiences
Parental guidance suggested
Suitable for children 14 and older
Adult only
5
Press S or T to highlight
Block Unrated TV
, then press
ENTER
.
6
Press S or T to select
On
(to block unrated TV) or
Off
(to unblock unrated TV).
7
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Setting parental control levels
You can set parental controls for the U.S. and
Canada.
U.S. rating levels
U.S. TV ratings
NONE
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Not rated
All children
Suitable for children 7 and older
General audiences
Parental guidance suggested
Parental guidance strongly suggested
Mature audiences only
Canadian French ratings
E
G
8ans+
13ans+
16ans+
18ans+
Exempt programming
General audiences
Suitable for children 8 and older
Suitable for children 13 and older
Suitable for children 16 and older
Adult only
To set parental control levels:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit www.insigniaproducts.com
33
34
NS-55L260A13 Insignia 55" 1080p LCD TV
2
Press W or X to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens with
Parental Controls
highlighted.
Canadian Parental Locks
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings Parental Canadian Ratings
Canadian
Parental
Locks
Canadian English
E
C
C8+
G
PG
14+
18+
Canadian French
E
G
8 ans+
13 ans+
16 ans+
18 ans+
Move
OK
ENTER
Select
MENU
Restrict movie and TV programs by Canadian Ratings.
Previous
EXIT
Exit
3
Press
ENTER
. The
Enter Password
screen opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Enter Password
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Enter your 4-digit password. Default is 0000, Please change your password.
4
Press the number buttons to enter the four-digit password. The
Settings · Parental Controls
menu opens.
6
Press
W
or
X
to highlight:
•
Movie Ratings
or
TV Ratings
for USA ratings.
•
English Rating
or
French Rating
for Canadian ratings.
7
Press
S
or
T
to select the rating. If a rating has sub-ratings, press
W
or
X
to highlight a sub-rating.
Note
When you block a rating, that rating and all higher ratings are blocked.
8
Press
ENTER
to confirm. A lock symbol appears when a rating is blocked.
9
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Downloading rating information
You can download rating information to use when setting parental controls.
To download rating information:
1
Press
MENU
. The on-screen menu opens.
Settings Parental
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
Change Password
RRT5
Reset RRT5
AUDIO CHANNELS SETTINGS PHOTOS
Off
Off
Move
OK
ENTER
Select
Restrict movie and TV programs by US Ratings.
MENU
Previous
EXIT
Exit
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
5
Press S or T to highlight
USA Parental Locks
, then press
ENTER
. (To set Canadian ratings, select
Canadian Parental Locks
.)
USA Parental Locks
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings Parental USA Parental Locks
USA
Parental
Locks
Movie Ratings
None
G
PG
PG-13
R
NC-17
X
None
TV-Y
TV-Y7
TV-G
TV-PG
TV14
TV-MA
TV Ratings
All D L S V FV
Move
OK
ENTER
Select
Restrict movie and TV programs by US Ratings.
MENU
Previous
EXIT
Exit www.insigniaproducts.com
Insignia 55" 1080p LCD TV
2
Press W or X to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens with
Parental Controls
highlighted.
Using closed captioning
Turning closed captioning on or off
To turn closed captioning on or off:
1
Press
MENU
. The on-screen menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
3
Press
ENTER
. The
Enter Password
screen opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Enter Password
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Enter your 4-digit password. Default is 0000, Please change your password.
4
Press the number buttons to enter the four-digit password. The
Settings · Parental Controls
menu opens.
2
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Captioning
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
Set TV parental controls.
OK
ENTER
Select
MENU
Previous
EXIT
English
Exit
3
Press S or T to highlight
Closed Caption
, then press
ENTER
. The
Settings · Closed Caption
menu opens.
Settings Parental
Button Lock
Block Unrated TV
USA Parental Locks
Canadian Parental Locks
Change Password
RRT5
Reset RRT5
AUDIO CHANNELS SETTINGS PHOTOS
Off
Off
Move
OK
ENTER
Select
MENU
Previous
Display an advanced V-Chip ratings table for digital channels.
EXIT
Exit
Settings Closed Captioning
Caption Control
Analog Caption
Digital Caption
Digital CC Settings
AUDIO CHANNELS SETTINGS PHOTOS
CC Off
CC1
CS1
5
Press S or T to highlight
RRT5
, then press
ENTER
.
If the program is broadcast with RRT5 rating information, the information is downloaded automatically and can be used for parental controls.
6
To reset RRT information to factory mode, press
S or T to highlight
Reset RRT5
, then press
ENTER
. A box opens. Follow the on-screen instructions.
7
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Move
OK
ENTER
Select
Turn Closed Captioning off.
MENU
Previous
EXIT
Exit
4
Press S or T to highlight
Caption Control
, then press
ENTER
. A menu opens.
5
Press S or T to select
CC Off
(turns off closed captioning),
CC On
(turns on closed captioning), or
CC on Mute
(turns on closed captioning when the sound is muted).
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Note
You can also press
CCD
to turn closed captioning on or off.
35
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Selecting the analog closed captioning mode
To select the analog closed captioning mode:
1
Press
MENU
. The on-screen menu opens.
Customizing digital closed captioning styles
To customize digital closed captioning styles:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Captioning
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Set TV parental controls.
Select
MENU
Previous
EXIT
English
Exit
3
Press
S
or
T
to highlight
Closed Caption
, then press
ENTER
. The
Settings · Closed Caption
menu opens.
Settings Closed Captioning
Caption Control
Analog Caption
Digital Caption
Digital CC Settings
AUDIO CHANNELS SETTINGS PHOTOS
CC Off
CC1
CS1
2
Press
W
or
X
to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Captioning
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
Set TV parental controls.
OK
ENTER
Select
MENU
Previous
EXIT
English
Exit
3
Press
S
or
T
to highlight
Closed Caption
, then press
ENTER
. The
Settings · Closed Caption
menu opens.
Settings Closed Caption
Caption Control
Analog Caption
Digital Caption
Digital CC Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
CC Off
CC1
CS1
36
Move
OK
ENTER
Select
MENU
Set Closed Caption for standard (analog) programs.
Previous
EXIT
Exit
4
Press S or T to highlight
Analog Caption
, then press
ENTER
. A menu opens.
5
Press S or T to select an analog caption setting.
You can select:
•
CC1
through
CC4
—Closed captioning appears in a small banner across the bottom of the screen.
CC1
is usually the “printed” version of the audio.
CC2
through
CC4
display content provided by the broadcaster.
•
Text1
through
Text4
—Closed captioning covers half or all of the screen.
Text1
through
Text4
display content provided by the broadcaster.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
www.insigniaproducts.com
Move
OK
ENTER
Select
MENU
Set Closed Caption for standard (digital) programs.
Previous
EXIT
Exit
4
Press S or T to highlight
Digital Caption
, then press
ENTER
. A menu opens.
5
Press S or T to highlight a digital caption setting, then press
ENTER
. You can select
CS1
through
CS6
or
CC1
through
CC4
.
6
Press
MENU
to return to the previous menu.
Insignia 55" 1080p LCD TV
7
Press S or T to highlight
Digital CC Settings
, then press
ENTER
. The
Settings · Closed
Caption · Digital CC Settings
menu opens with
Style
highlighted.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings Closed Caption Digital CC Settings
Style
Size
Font
Text Color
Text Opacity
Background Color
Background Opacity
Window Color
Custom
Large
Default
White
Solid
Black
Solid
Black
Move
OK
ENTER
Select
MENU
Previous
Set the look of digital CC. Automatic uses broadcaster’s style.
EXIT
Exit
8
Press
ENTER
, then press
W
or
X
to select
Custom
.
9
Press
S
or
T
to highlight an option, then press
ENTER
. You can select:
•
Size
—Selects the font size.
•
Font
—Selects the font style.
•
Text Color
—Selects the color for the words.
•
Text Opacity
—Selects the opacity level for the words.
•
Background Color
—Selects the color for the background.
•
Background Opacity
—Selects the opacity level for the background.
•
Window Color
—Selects the color of the window edge.
•
Window Opacity
—Selects the transparency of the window edge.
10
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Adjusting time settings
Setting the clock
To set the clock:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Select
Set Date/Time and Sleep Timer.
MENU
Previous
EXIT
English
Exit
3
Press S or T to highlight
Time
, then press
ENTER
. The
Settings · Time
menu opens.
Settings Time
Date/Time
Sleep Timer
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
Move
OK
ENTER
Select
MENU
Previous
Adjust the date and time to get the correct program times.
EXIT
Exit
4
Press S or T to highlight
Date/Time
, then press
ENTER
. The
Settings · Time · Date/Time
menu opens.
Settings Time Date/Time
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
AUDIO CHANNELS SETTINGS PHOTOS
Auto
Pacific
Off
2004
June
30
07 : 11 PM
Move
OK
ENTER
Select
MENU
If Automatic, options are automatically set by TV source.
Previous
EXIT
Exit
5
Press
S
or
T
to highlight
Mode
, then press
ENTER
. A menu opens.
6
Press
S
or
T
to highlight
Manual
(to set the options manually) or
Auto
(the options are automatically set by the TV signal source).
7
Press
ENTER
to close the menu.
8
Press
S
or
T
to highlight
Time Zone
, then press
ENTER
. The
Time · Time Zone
menu opens.
9
Press
S
or
T
to select your time zone, then press
ENTER
. You can select
Eastern
,
Central
,
Mountain
,
Pacific
,
Alaska
,
Hawaii
,
Atlantic
or
Newfoundland
.
37
www.insigniaproducts.com
10
Press
ENTER
to close the menu.
11
If your viewing area observes daylight savings time, press S or T to highlight
Daylight
Savings
, then press
ENTER
.
12
Press S or T to select
On
or
Off
, then press
ENTER
to close the menu.
13
If you selected
Manual
for
Mode
:
• Press S or T to highlight
Year
,
Month
, or
Day
, press W or X to adjust the setting, then press
ENTER
.
• Press S or T to highlight
Time
, press W or X to highlight the hour, minute, or AM/PM field, then press S or T to adjust the setting. When you are finished, press
ENTER
.
14
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Setting the sleep timer
You can specify the amount of time before your TV automatically turns off.
To set the sleep timer:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Select
Set Date/Time and Sleep Timer.
MENU
Previous
EXIT
English
Exit
NS-55L260A13 Insignia 55" 1080p LCD TV
3
Press S or T to highlight
Time
, then press
ENTER
. The
Settings · Time
menu opens.
Settings Time
Date/Time
Sleep Timer
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Off
Move
OK
ENTER
Select
Set a time for the TV to turn off automatically.
MENU
Previous
EXIT
Exit
4
Press S or T to highlight
Sleep Timer
, then press
ENTER
. A menu opens.
5
Press S or T to select the amount of time before your TV turns off automatically. You can select
Off
,
5
,
10
,
15
,
30
,
60
,
90
,
120
,
180
, or
240
minutes.
To turn off the sleep timer, select
Off
.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Note
You can also press
SLEEP
to set the sleep timer.
38
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Adjusting menu settings
Selecting the menu language
To select the menu language:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit p
2
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS
PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Select
MENU
Set menu language to English, Français, or Español.
Previous
EXIT
English
Exit
3
Press S or T to highlight
Menu Language
, then press
ENTER
. A menu opens.
4
Press S or T to highlight a language, then press
ENTER
. You can select
English
,
Français
, or
Español
.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Labeling an input source
You can add a label to an input source to make it easier to identify.
To label an input source:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
Move
OK
ENTER
Select
MENU
Create labels for the devices connected to your TV.
Previous
EXIT
English
Exit
3
Press S or T to highlight
Input Labels
, then press
ENTER
. The
Settings · Input Labels
screen opens with the input source field highlighted.
Settings Input Labels
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
TV Custom
Move
OK
ENTER
Select
MENU
Create labels for the devices connected to your TV.
Previous
EXIT
Exit
4
Press
S
or
T
to select the input source you want to label, then press X to move to the custom label field.
Settings Input Labels
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
TV Custom
Move
OK
ENTER
Select
MENU
Create labels for the devices connected to your TV.
Previous
EXIT
Exit
5
Press S or T to select the label you want. You can select
Blu-ray
,
DVD
,
VCR
,
Cable box
,
Satellite
,
DVR/PVR
,
Set top box
,
Receiver
,
PC
,
Game
,
Camcorder
, or
USB
.
6
When you have completed the label, press
MENU
. The next time you press
INPUT
, your label will appear in the
Input source
list.
7
Press
EXIT
to close the menu.
39
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Restoring settings to the defaults
When you restore default settings, all the settings you have customized (except the password and parental rating) are reset.
To restore settings to the defaults:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
Turning INlink on or off
To turn INlink on or off:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
System Info
Reset to Default
2
Press
W
or
X
to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
Move
OK
ENTER
Select
MENU
Change power on options or reset TV to factory default.
Previous
EXIT
Exit
3
Press S or T to highlight
Reset to Default
, then press
ENTER
. A confirmation message opens.
4
Press W or X to select
Yes
(to reset) or
No
(to not reset), then press
ENTER
.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
Using INlink
INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV. To use INlink, you must set the
INlink Control
setting on the
Settings-INlink
menu to
On
.
Note
• HDMI cables must be used to connect HDMI
CEC-compatible devices to your TV.
• The connected device’s HDMI CEC feature must be turned on.
• If you connect an HDMI device that is not HDMI
CEC-compatible, all the
INlink Control
features do not work.
• Depending on the connected HDMI device, the
INlink Control
feature may not work.
3
Press S or T to highlight
INlink
, then press
ENTER
. The
Settings · INlink menu
opens.
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
On
Off
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
4
Press
S
or
T
to highlight
INlink Control
, then press
ENTER
.
5
Press
S
or
T
to highlight
On
or
Off
, then press
ENTER
.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
40
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Turning Device Auto Power Off on or off
When Inlink is turned on,
Device Auto Power Off
turns off HDMI CEC devices when you turn off your TV.
To turn Device Auto Power Off on or off:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
Turning TV Auto Power On on or off
When INlink is turned on and you turn on an HDMI
CEC device,
TV Auto Power On
turns on your TV automatically.
To turn TV Auto Power On on or off:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
3
Press S or T to highlight
INlink
, then press
ENTER
. The
Settings · INlink menu
opens.
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
AUDIO CHANNELS SETTINGS
PHOTOS
On
On
On
Off
Move
OK
ENTER
Select
MENU
Previous
EXIT
Exit
Automatically turn off HDMI CEC devices when the TV is turned off and INLink is set to On.
4
Press S or T to highlight
Device Auto Power
Off
, then press
ENTER
.
5
Press S or T to highlight
On
(turns off the connected devices when you turn off your TV) or
Off
(does not turn off the connected devices when you turn off your TV), then press
ENTER
.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
3
Press S or T to highlight
INlink
, then press
ENTER
. The
Settings · INlink menu
opens.
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
On
Off
Move
OK
ENTER
Select
MENU
Previous
Automatically turn on the TV when an HDMI CEC device is used.
EXIT
Exit
4
Press
S
or
T
to highlight
TV Auto Power On
, then press
ENTER
.
5
Press
S
or
T
to highlight
On
(turns on your TV when you turn on the connected device) or
Off
(does not turn on your TV when you turn on the connected device), then press
ENTER
.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
www.insigniaproducts.com
41
NS-55L260A13 Insignia 55" 1080p LCD TV
Turning Audio Receiver on or off
When INlink is turned on and you have connected an audio receiver to your TV, turning on Audio
Receiver lets you use your TV’s remote control to control the volume on the audio receiver.
To turn Audio Receiver on or off:
1
Press
MENU
. The on-screen menu opens.
Opening an INlink-compatible device’s root menu
You can open an INlink-compatible device’s root menu, then use your TV’s remote control to control the device.
To open an INlink-compatible device’s root menu:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
2
Press W or X to highlight
SETTINGS
, then press
T
or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
3
Press S or T to highlight
INlink
, then press
ENTER
. The
Settings · INlink menu
opens.
3
Press S or T to highlight
INlink
, then press
ENTER
. The
Settings · INlink menu
opens.
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
On
Off
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
On
Off
Move
OK
ENTER
Select
MENU
Previous
Receiver’s volume can be controlled by TV’s remote control.
EXIT
Exit
Move
OK
ENTER
Select
MENU
Previous
Control the menu of the HDMI CEC device with the TV remote control.
EXIT
Exit
4
Press
S
or
T
to highlight
Audio Receiver
, then press
ENTER
.
5
Press
S
or
T
to highlight
On
(your TV’s remote control controls the connected audio receiver’s volume) or
Off
(your TV’s remote control does not control the connected audio receiver’s volume), then press
ENTER
.
6
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
4
Press
S
or
T
to highlight
Root Menu
, then press
ENTER
. The device’s root menu opens, and you can use your TV’s remote control to control the device.
42
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Displaying a list of INlink-compatible
(HDMI CEC) devices
You can display a list of HDMI CEC devices that are connected to your TV.
To display a list of INlink-compatible (HDMI CEC) devices:
1
Press
MENU
. The on-screen menu opens.
P i c t u r e M o d e
Brightness
Contrast
Color
Tint
Sharpness
Advanced Video
Reset Picture Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
48
52
68
0
10
Move
OK
ENTER
Select
Adjust settings to affect picture quality.
MENU
Previous
EXIT
Exit
2
Press
W
or
X
to highlight
SETTINGS
, then press
T or
ENTER
. The
Settings
menu opens.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Settings
Parental Controls
Closed Caption
Time
Menu Language
Input Labels
INlink
Computer Settings
Component Settings
English
Move
OK
ENTER
Select
MENU
Previous
EXIT
Allow the TV to automatically control CEC devices connected to the TV via HDMI.
Exit
Using a USB flash drive
You can connect a USB flash drive to your TV to view compatible JPEG pictures.
Notes
• Never remove the USB flash drive or turn off your TV while viewing JPEG pictures.
• The JPEG picture viewer only supports JPEG format images (with “.jpg” file extensions) and not all JPEG files are compatible with your TV.
Switching to USB mode
To switch to USB mode:
1
Make sure that you have connected the USB flash drive to the USB port on your TV.
2
Press
INPUT
. The
Input source
list opens.
3
Press S or T to highlight
USB
, then press
ENTER
. The
Photos
menu opens.
Note
To exit USB mode, press
INPUT
to open the
Input source
list, then select another input source.
OR
Press a Quick Launch Input button.
Browsing photos
To browse photos:
1
Switch to USB mode. See “
” on page
Photos
menu opens.
Photos
Browse Photos
Favorite Photos
View Slideshow
Settings
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
3
Press S or T to highlight INlink, then press
ENTER
. The
Settings · INlink menu
opens.
Move
OK
ENTER
Select
Find photos that are on the USB flash device.
MENU
Previous
EXIT
Exit
Settings INlink
INlink Control
Device Auto Power Off
TV Auto Power On
Audio Receiver
Root Menu
INlink Device Lists
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
On
Off
2
Press S or T to highlight
Browse Photos
, then press
ENTER
. The screen displays folder names and photo files stored on the USB flash drive in a thumbnail index with the first photo or folder highlighted. A control bar appears at the bottom of the screen.
Move
OK
ENTER
Select
MENU
Previous
Go to device list to register new devices or remove devices from the list.
EXIT
Exit
4
Press
S
or
T
to highlight
INlink Device Lists
, then press
ENTER
. A list of the HDMI
CEC-compatible devices you have connected appears.
5
Press
MENU
to return to the previous menu, or press
EXIT
to close the menu.
MOVE
OK
ENTER
SELECT
MENU
PREVIOUS
EXIT
EXIT
43
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
3
To navigate the thumbnail index screen, press:
• S T W or X to browse through the files and folders.
•
ENTER
to view a highlighted photo full-screen or open a highlighted folder.
•
MENU
to open the
menu.
•
FAVORITE
to add or remove a photo from the favorite photo list. A heart appears on a photo that has been added to the favorite photo list.
• Press
EXIT
to close the control bar.
When a photo is displayed full-screen, a control bar appears at the bottom of the photo. The file name, picture resolution, size, and date are displayed on the bottom of the control bar. If you do not press a button within 10 seconds, the control bar closes. Press any button to open the control bar again.
2
Press S or T to highlight
Favorite Photos
, then press
ENTER
. A thumbnail index of your favorite photos opens with a control bar at the bottom of the screen. A heart appears on a favorite photo.
MOVE OK
ENTER
SELECT
MENU
PREVIOUS
EXIT
EXIT
You select photos and navigate on the photo screen in the same way you do when you are browsing through photos. For more information, see “
” on page
Viewing photos in a slideshow
You can view your photos in a slideshow.
To view photos in a slideshow:
1
Switch to USB mode. See “
” on page
Move
ENTER
Rotate
ZOOM
Zoom
MENU
Previous
EXIT
Exit
Fill
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Photos
Browse Photos
Favorite Photos
View Slideshow
Settings
4
To navigate on the photo screen, press:
• W or S to go to the previous photo.
• X or T to go to the next photo.
•
ENTER
to rotate the photo clockwise.
•
ZOOM
one or more times to enlarge the image by 1×, 2×, or 4× or to select
Fill
(to fill the screen). You can press S T W or X to pan the photo.
•
EXIT
to return to the thumbnail index.
•
MENU
to return to the
menu.
Viewing favorite photos
After you created your favorite photo list, you can browse among your favorite photos quickly.
To view favorite photos:
1
Switch to USB mode. See “ Switching to USB mode ” on page 43
. The
Photos
menu opens.
Move
OK
ENTER
Select
View your photos in a slideshow.
MENU
Previous
EXIT
Exit
2
Press S or T to highlight
View Slideshow
, then press
ENTER
. A slideshow starts with the first photo in the current folder.
3
To control the slideshow, press:
•
ENTER
to pause or start the slideshow.
•
EXIT
to exit the slideshow and return to the thumbnail index.
•
MENU
to go to the
menu.
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Photos
Browse Photos
Favorite Photos
View Slideshow
Settings
Move
OK
ENTER
Select
MENU
View only the photos you selected as your favorites.
Previous
EXIT
Exit
44
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Customizing slideshow settings
You can customize the slideshow settings, including
Repeat
,
Shuffle
,
Speed
, and
Transition
.
To customize slideshow settings:
1
Switch to USB mode. See “ Switching to USB mode ” on page 43
. The
Photos
menu opens.
Photos
Browse Photos
Favorite Photos
View Slideshow
Settings
Move
OK
ENTER
Select
MENU
Previous
View files from a USB device that is connected to the TV.
Photos Settings
Repeat
Shuffle
Speed
Transition
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
On
On
6sec
None
Move
OK
ENTER
Select
Repeat the slideshow when it reaches the end.
MENU
Previous
EXIT
Exit
2
Press
S
or
T
to highlight
Settings
, then press
ENTER
. The
Photos · Settings
menu opens.
EXIT
Exit
3
Press S or T to highlight an option, then press
ENTER
. You can select:
•
Repeat
—Repeats the slideshow when it reaches the end. You can select
On
or
Off
.
•
Shuffle
—Displays the slideshow photos in random order. You can select
On
or
Off
.
•
Speed
—Sets the amount of time a photo is displayed before the slideshow moves to the next photo. You can select
4 Sec
,
6 Sec
, or
8 Sec
.
•
Transition
—Selects the way photos transition when moving to the next file in the slideshow.
You can select:
•
None
—No transition effect.
•
Fade to Black
—Fades the screen to black between photos.
•
Vertical Wipe
—Wipes the screen from left to right between photos.
•
Horizontal Wipe
—Wipes the screen from top to bottom between photos.
•
Random
—Randomly selects a transition effect.
4
Press
EXIT
to close the menu.
Maintaining
• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.
• Storage temperatures are 32° to 122°F (0° to 50°C).
• Working temperatures are 41° to 104°F
(5° to 40°C).
• Do not place your TV in direct sunlight or near a heat source.
Cleaning the TV cabinet
Clean the cabinet with a soft, lint-free cloth. If the cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the cabinet with the cloth. Use a clean cloth to dry the cabinet.
Cleaning the TV screen
Clean the screen with a soft, lint-free cloth.
Troubleshooting
Warning
Do not try to repair your TV yourself. Contact authorized service personnel.
Video and audio
Problem
Picture does not fill the screen. There are black bars around the picture.
Solution
• Change the aspect ratio. An increasing amount of digital TV and movies are presented in wide
screen (16:9). See “ Aspect ratio options
” on page
.
No picture (screen is not lit) and no sound.
• Press on the TV or the remote control.
• Make sure that the
Audio Only
option is set to
Off
. See “
Playing TV audio only ” on page 28 .
• Make sure that the video cables are connected securely to your TV.
• Adjust the contrast and brightness. See
“ Adjusting the TV picture ” on page 24 .
• Make sure that the power cord is plugged in.
• Make sure that the correct video input source is selected. See “
Selecting the video input source ”
on page
• Try another channel. The station may be experiencing problems.
• Make sure that the incoming signal is compatible.
• Make sure that the antenna or cable TV is connected correctly and securely. See
“ Connecting a cable or satellite box ” on page 10
or “
Connecting an antenna or cable TV (no box)
” on page
• Check the closed caption settings. Some TEXT modes can block the screen.
45
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Problem
Dark, poor, or no picture
(screen is lit), but sound is good.
Solution
• Try another channel. The station may be experiencing problems.
• Make sure that the antenna or cable TV is connected correctly and securely. See
“
Connecting a cable or satellite box
” on page
or “ Connecting an antenna or cable TV (no box) ”
on page
.
•
Adjust the brightness. See “ Adjusting the TV picture ” on page 24 .
• Make sure that the correct picture mode is
selected. See “ Adjusting the TV picture ” on
page
• If you are using an antenna, the digital channel signal may be low. To check the digital channel
signal strength, see “ Checking the digital signal strength ” on page 30 .
• If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
• Make sure that the video cables are connected securely to your TV.
• The video cable(s) you are using may be bad. Try a new set.
• Try another channel. The station may be experiencing problems.
No color, dark picture, or color is not correct.
• Try another channel. The station may be experiencing problems.
• Adjust the color settings. See “
Adjusting the TV picture ” on page 24 .
• Make sure that the video cables are connected correctly and securely to your TV.
• Make sure that the antenna or cable TV is connected correctly and securely. See
“
Connecting a cable or satellite box
” on page
or “ Connecting an antenna or cable TV (no box) ”
on page
.
• If you are using an antenna, the digital channel signal may be low. To check the digital channel
signal strength, see “ Checking the digital signal strength ” on page 30 .
• If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
Only snow (noise) appears on the screen.
• Try another channel. The station may be experiencing problems.
• Make sure that the antenna or cable TV is connected correctly and securely. See
“
Connecting a cable or satellite box
” on page
or “ Connecting an antenna or cable TV (no box) ”
on page
.
• If you are using an antenna, the digital channel signal may be low. To check the digital channel
signal strength, see “ Checking the digital signal strength ” on page 30 .
• If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
Picture quality is good on some channels and poor on others. Sound is good.
• The problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
Problem
Dotted lines or stripes appear on the screen.
Double images.
The picture has a few bright or dark spots.
Good picture, but no sound.
Poor picture.
Good sound but poor color.
Audio noise.
Solution
• Make sure that the antenna or cable TV is connected correctly and securely. See
“ Connecting a cable or satellite box ” on page 10
or “
Connecting an antenna or cable TV (no box)
” on page
• If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “
Checking the digital signal strength
” on page
.
• If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
• Make sure that the video cables are connected securely to your TV.
• The video cable(s) you are using may be bad. Try a new set.
• Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
• Use a highly directional outdoor antenna, cable
TV, or satellite TV.
• A few bright or dark spots on an LCD screen is normal. It does not affect the operation of your TV.
• Increase the volume.
• Make sure that the sound is not muted.
• Make sure that you do not have headphones connected. When headphones are connected, no sound comes from the TV speakers.
• Make sure that the correct audio mode is selected.
• Make sure that the audio cables are connected correctly and securely to your TV.
• Make sure that the antenna or cable TV is connected correctly and securely. See
“ Connecting a cable or satellite box ” on page 10
or “
Connecting an antenna or cable TV (no box)
” on page
• If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “
Checking the digital signal strength
” on page
.
• The audio cable(s) you are using may be bad. Try a new set.
• Make sure that the room is not too bright. Light reflecting off the screen can make the picture difficult to see.
• If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
• Adjust the contrast, color, and brightness settings. See “
page
.
• Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
46
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Problem
No output from one of the speakers.
Solution
•
Adjust the audio balance. See “ Adjusting sound settings ” on page 27 .
• Make sure that the audio cables are connected correctly and securely to your TV.
After images appear.
• Do not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after-image to be burned into the screen. This type of damage is not covered by your warranty.
Remote control
Problem
Remote control does not work.
Trouble programming your existing universal remote control.
Solution
• Make sure that the power cord is correctly connected to your TV and a power outlet.
• Make sure that there are no obstructions between the remote control and the remote control sensor on the front of the TV.
• Point the remote control directly at the remote control sensor on your TV. For the location of the
remote control sensor, see “ Front
” on page
• The supplied batteries are wrapped tightly in clear plastic. Make sure that you have removed this plastic from the batteries.
• Make sure that the batteries are installed correctly. See “
Installing remote control batteries
” on page
.
• Replace dead batteries with new batteries. See
“ Installing remote control batteries
” on page
.
• See instructions and a table of common codes in
“ Programming a different universal remote control ” on page 49 .
• Codes are subject to change. For up-to-date codes, go to www.insigniaproducts.com/remotecodes
• Replace dead batteries with new batteries. See
“ Installing remote control batteries
” on page
.
• Refer to the User Guide that accompanied your universal remote control and contact the manufacturer if problems persist.
General
Problem
No power.
“No signal” error message is displayed.
Solution
• Make sure that the power cord is correctly connected to your TV and a power outlet.
• Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.
• Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
• Press
INPUT
and make sure that you have selected the correct input for the device or service you are trying to use.
• If you are using a cable or satellite box, use the remote that came with that box to change channels.
• Make sure that you have the correct input selected to view channels from the cable or satellite box.
Problem
After Auto Channel
Search, there are no channels.
One or more channels do not display.
Password is lost.
Some settings cannot be accessed.
TV cabinet creaks.
Control buttons do not work.
TV keeps turning off.
Solution
• Reception can vary by channel depending on the broadcast power level of a given station. Contact your cable or satellite TV provider.
• Make sure that the antenna or cable/satellite TV is connected securely to your TV.
• Try replacing the cable between the antenna/cable or cable/satellite box and your
TV.
• Make sure that the channels are not blocked. See
“
Setting parental control levels ” on page 33 .
• Make sure that the channels are not hidden. The channel may have been deleted from the channel list. You can tune to the channel by pressing the number buttons or you can add the
channel back to the channel list. See “ Hiding channels
” on page
.
• If you are using a cable or satellite box, use the remote that came with that box to change channels.
• Make sure that you have the correct input selected to view channels from the cable or satellite box.
• If you are using an antenna, the digital channel signal may be low. To check the digital channel
signal strength, see “ Checking the digital signal strength ” on page 30 .
• Enter
9999
to access parental controls, then set a new password. See “
Setting or changing the password ” on page 31 .
• If a setting is grayed, the setting is not available in the current video input mode.
• When the TV is in use, the temperature rises naturally and may cause the cabinet to expand or contract which can cause a creaking noise.
This is not a malfunction.
• Make sure that the
Button Lock
option is set to
Off
. See “ Locking control buttons ” on page 32
.
• Unplug the power cord, wait a few seconds, then plug the cord back in and turn on your TV.
• Make sure that the sleep timer is not turned on.
See “
Setting the sleep timer ” on page 38 .
Note
: If the problem is not solved by using these troubleshooting instructions, turn off your TV, then turn it on again.
www.insigniaproducts.com
47
NS-55L260A13 Insignia 55" 1080p LCD TV
Specifications
Specifications are subject to change without notice.
Dimensions and weight
Without stand
With stand
52 × 31.8 × 4.6 in. (132 × 80.9 × 11.5 cm)
75.0 lbs.(34 kg)
52 × 34.1 × 15 in. (132 × 86.5 × 38 cm)
84.9 lbs. (38.5 kg)
Screen
Screen size measured diagonally
Display type
Panel 60 Hz vs.120 Hz
Display resolution
Panel resolution
Aspect ratio
Contrast ratio (typical)–panel
Dynamic contrast ratio– list value
Brightness (center typical) cd/m2
Comb filter
Response time
Horizontal viewing angle
Vertical viewing angle
Display resolutions
HDMI 1.3
Component video
Tuner
Analog
Digital
Inputs
55 in.
LCD
120Hz
1080p
1920 (H) × 1080 (V)
16:9
1100:1
3000:1
400 nits
3d y/c digital
5 ms
178
178
1080p, 1080i, 720p, 480p, 480i
1080i, 720p, 480p, 480i
NTSC
ATSC, 8-VSB, Clear-QAM
HDMI/DVI
1 (side) 2 (back)
E-EDID compliant
HDCP compliant
1 (side)
1 (side)
Component video
Composite video
Shared audio (component and composite)
S-Video
PC/VGA
3.5mm PC audio input
USB
No
No
Yes (back)
Yes (back)
1 (side)
Support JPEG and firmware upgrade
Outputs
Video
Analog audio
Digital audio
WiFi
Ethernet
Headphone
Audio
No
Yes (side)
1 coaxial (back)
No
No
Yes (side)
Speakers
Number: 2
Watts per channel: 10W
Power
Miscellaneous
OSD languages
INlink
Power consumption
Power input
Game Mode
ENERGY STAR qualified
Internet connectable
TV base screws
V-Chip (version 2.0)
Sleep timer
Channel labeling
VESA mount (mm)
(horizontal × vertical)
On: 285 W
Standby: <1W
120V/60Hz
English, French, Spanish
Yes
Yes
No
No
M5 type (20 mm length) (4 pcs)
M6 type (16 mm length) (4 pcs)
Yes
Yes
No
400 × 400
Note
The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.
48
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
Programming universal remote controls
Programming a different universal remote control
You can operate your Insignia TV with a new or existing universal remote control.
To program a different universal remote control:
1
See the table in “
Common universal remote control codes
” for common codes. If you have problems programming your remote or need a different remote control code, visit www.insigniaproducts.com/remotecodes for the latest remote control code information.
2
Follow your universal remote control’s instructions to enter the TV code you found in
Step 1.
Tips
• If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control’s instructions for details.
• If your universal remote control has a “Learn” feature, you can manually program it using the
Insignia TV remote to “teach” the commands one at a time. See your universal remote control’s instructions for details.
For additional help and information:
• Visit: http://www.insigniaproducts.com/remotecodes
• Call technical support for the universal remote control or cable/satellite company of the remote/set-top box you are trying to program.
• Call the Insignia Customer Care Center
1-877-467-4289.
Common universal remote control codes
The following is a list of the most common remote control codes. Codes for other remote controls are available online at: http://www.insigniaproducts.com/remotecodes or check with your cable or satellite TV provider for the remote control code.
Insignia TV codes for universal remote controls (for all
Insignia TVs manufactured after Jan. 1, 2007)
Universal remote control makes and models
One for All 0054
Phillips
RCA
0198, 0490
135
Sony
068, 069, 078, 096, 100, 164, 168, 229,
026
Cablevision
Set-top box makes and models
068, 069, 078, 096, 100, 164, 168, 229,
026
Charter
Comcast
Cox
2002, 1204, 1423, 1517, 0171, 1963,
0463, 1463, 0842, 1326, 167, 415, 424,
450, 456, 461, 507, 523, 567, 577, 586
10171, 11204, 11326, 11463, 11517,
11641, 11780, 11785, 11892, 11963,
12002
1326, 1463
DirectTV
Dish Network
Time Warner
TiVo
Verizon
10171, 11204, 11326, 11517, 11564,
11641, 11963, 12002
720
400, 450, 461, 456, 10463, 1463, 0463
0091
0198, 0490
Tips
• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.
• If your universal remote control isn’t listed on the chart, refer to your universal remote control’s instructions and try codes for the brands Orion, Emerson, Memorex, Sansui,
Sylvania, or Zenith. You may need to try several codes before finding a match.
49
www.insigniaproducts.com
NS-55L260A13 Insignia 55" 1080p LCD TV
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC warning
Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.
Cables
Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Standard Television Receiving Apparatus — Appareil de réception télévision ordinaire, Canada BETS-7 / NTMR-7
Dolby License Notice and Trademark Acknowledgement
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
HDMI
HDMI, the HDMI logo, and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
50
www.insigniaproducts.com
Insignia 55" 1080p LCD TV
One-year limited warranty -
Insignia Televisions
Definitions:
Insignia Products (“Insignia”) warrants to you, the original purchaser of this new Insignia-branded television (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one
(1) year from the date of your purchase of the Product (“Warranty
Period”). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or
Future Shop authorized dealer of Insignia brand products only that are packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of
Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy or Future Shop retail store location and your television Product has a screen size of less than 42 inches, please take your original receipt and the
Product to any Best Buy or Future Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy or
Future Shop online web site, mail your original receipt and the
Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
To obtain in-home warranty service for a television with a screen
42 inches or larger, in the United States call 1-888-BESTBUY,
Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275.
Call agents will diagnose and correct the issue over the phone or will have a Insignia-approved repair technician dispatched to your home.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at
Best Buy or Future Shop branded retail stores or websites to the original purchaser of the product in the county where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as power surges
• Accident(s)
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance www.insigniaproducts.com
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA,
AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT,
LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES
NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE
PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE
PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289 www.insigniaproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand names are trademarks of their respective owners.
51
www.insigniaproducts.com
(877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN 55423-3645 USA
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries.
All other products and brand names are trademarks of their respective owners.
ENGLISH
11-1312
advertisement
Related manuals
advertisement
Table of contents
- 5 CHILD SAFETY
- 6 Important Safety Instructions
- 6 WARNING
- 6 Electric shock hazard
- 6 Lightning
- 6 Power lines
- 6 Handling the LCD panel
- 6 Replacement parts
- 6 Safety check
- 7 Power source
- 7 Servicing
- 7 CAUTION
- 7 Damage requiring service
- 7 Outdoor antenna grounding
- 7 Note to CATV system installer
- 7 Condensation
- 7 Mobile telephone warning
- 7 End of life directives
- 7 Non-active pixels
- 8 Introduction
- 8 INlink
- 8 Insignia Motion 120Hz:
- 8 Game mode:
- 9 Installing the stand or wall-mount bracket
- 9 Installing the stand
- 9 Installing a wall-mount bracket
- 10 TV components
- 10 Package contents
- 10 Front
- 11 Side
- 11 Back
- 12 Remote control
- 13 Making connections
- 13 What connection should I use?
- 14 Connecting power
- 14 Connecting a cable or satellite box
- 14 Using HDMI (best)
- 15 Using DVI (same as HDMI but requires a sound connection)
- 15 Using component video (better)
- 16 Using composite video (good)
- 16 Using coaxial (good)
- 17 Connecting an antenna or cable TV (no box)
- 17 Connecting a DVD or Blu-ray player
- 17 Using HDMI (best)
- 18 Using DVI (same as HDMI but requires a sound connection)
- 18 Using component video (better)
- 19 Using composite video (good)
- 19 Connecting a VCR
- 20 Connecting a camcorder or game console
- 20 Connecting a computer
- 20 Using VGA
- 21 Using HDMI
- 21 Connecting a USB flash drive
- 22 Connecting headphones
- 22 Connecting a basic home theater system
- 22 Using digital audio
- 23 Using analog audio
- 23 Connecting a home theater system with multiple devices
- 24 Using the remote control
- 24 Installing remote control batteries
- 24 Aiming the remote control
- 24 Turning on your TV for the first time
- 26 Understanding the basics
- 26 Turning your TV on or off
- 26 Selecting the video input source
- 27 On-screen menu overview
- 27 Navigating the menus
- 28 Selecting a channel
- 28 Adjusting the volume
- 28 Viewing channel information
- 28 Viewing system information
- 28 Adjusting the picture
- 28 Adjusting the TV picture
- 30 Adjusting the computer image
- 30 Adjusting component video settings
- 31 Adjusting the sound
- 31 Adjusting sound settings
- 32 Playing TV audio only
- 32 Changing channel settings
- 32 Automatically scanning for channels
- 33 Hiding channels
- 34 Setting up a favorite channel list
- 34 Viewing a favorite channel
- 34 Checking the digital signal strength
- 35 Setting parental controls
- 35 Setting or changing the password
- 36 Locking control buttons
- 36 Blocking unrated TV
- 37 Setting parental control levels
- 37 U.S. rating levels
- 37 Canadian rating levels
- 38 Downloading rating information
- 39 Using closed captioning
- 39 Turning closed captioning on or off
- 40 Selecting the analog closed captioning mode
- 40 Customizing digital closed captioning styles
- 41 Adjusting time settings
- 41 Setting the clock
- 42 Setting the sleep timer
- 43 Adjusting menu settings
- 43 Selecting the menu language
- 43 Labeling an input source
- 44 Restoring settings to the defaults
- 44 Using INlink
- 44 Turning INlink on or off
- 45 Turning Device Auto Power Off on or off
- 45 Turning TV Auto Power On on or off
- 46 Turning Audio Receiver on or off
- 46 Opening an INlink-compatible device’s root menu
- 47 Displaying a list of INlink-compatible (HDMI CEC) devices
- 47 Using a USB flash drive
- 47 Switching to USB mode
- 47 Browsing photos
- 48 Viewing favorite photos
- 48 Viewing photos in a slideshow
- 49 Customizing slideshow settings
- 49 Maintaining
- 49 Cleaning the TV cabinet
- 49 Cleaning the TV screen
- 49 Troubleshooting
- 49 Video and audio
- 51 Remote control
- 51 General
- 52 Specifications
- 52 Dimensions and weight
- 52 Screen
- 52 Display resolutions
- 52 Tuner
- 52 Inputs
- 52 Outputs
- 52 Audio
- 52 Power
- 52 Miscellaneous
- 53 Programming universal remote controls
- 53 Programming a different universal remote control
- 53 Common universal remote control codes
- 53 Insignia TV codes for universal remote controls (for all Insignia TVs manufactured after Jan. 1, 2007)
- 54 Legal notices
- 54 FCC Part 15
- 54 FCC warning
- 54 Cables
- 54 Canada ICES-003 statement
- 54 Dolby License Notice and Trademark Acknowledgement
- 54 HDMI
- 55 One-year limited warranty - Insignia Televisions
- 55 Definitions:
- 55 How long does the coverage last?
- 55 What does this warranty cover?
- 55 How to obtain warranty service?
- 55 Where is the warranty valid?
- 55 What does the warranty not cover?
