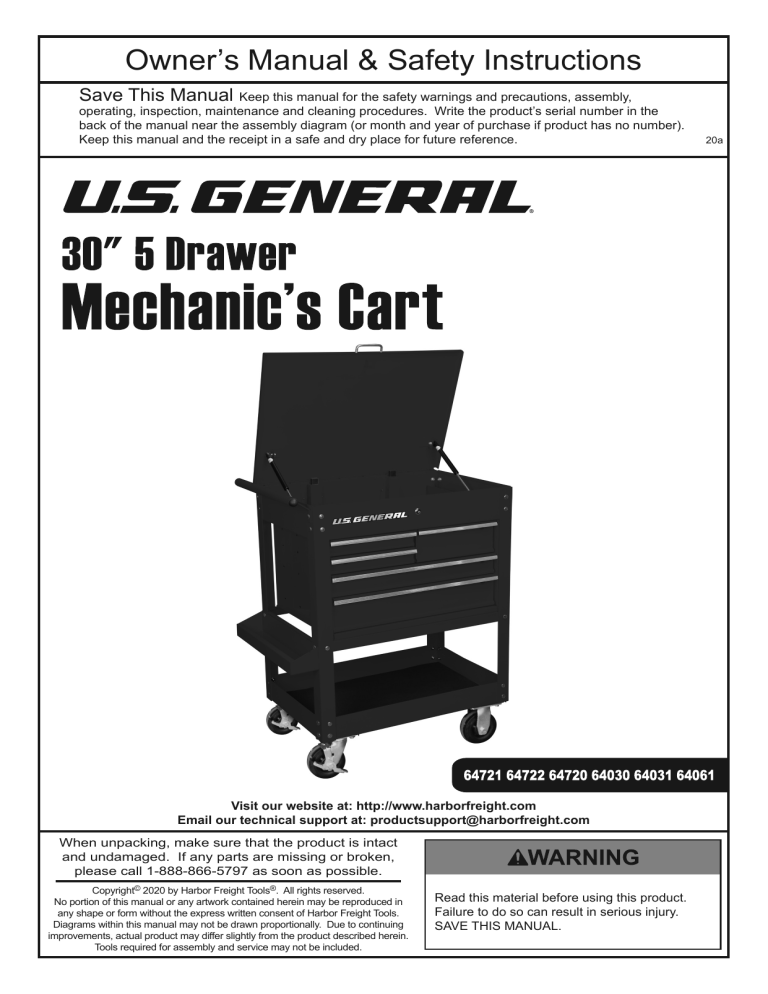

Owner’s Manual & Safety Instructions
Save This Manual
Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 20a
Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.
Copyright © 2020 by Harbor Freight Tools ® . All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Specifications
Total Combined Weight Capacity
(Evenly distributed from bottom up.)
700 lb
Page 2 For technical questions, please call 1-888-866-5797.
Mechanic’s Carts
IMPORTANT SAFETY INFORMATION
Assembly Precautions
1. Assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
Use Precautions
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Cart.
TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:
1. DO NOT SIT, STAND OR CLIMB ON THIS ITEM. 7. Do not lift using handle(s).
Do not lift while loaded.
2. This product is not a toy nor a toy chest.
Do not allow children to play with or near this item.
3. Do not exceed 700 lb weight capacity, evenly distributed from bottom up.
Uneven loading causes tipping.
Be aware of dynamic loading!
Sudden load movement may briefly create excess load causing product failure.
8. Lock Swivel Casters after moving.
9. Do not mount on truck bed or any other moving object.
10. Use as intended only.
11. Inspect before every use; do not use if parts are loose or damaged.
4. Do not open more than one Drawer at once.
Lid must be open for Drawers to be unlocked.
5. Close and lock Drawers before moving.
12. Maintain product labels and nameplates.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Cart.
Do not roll Cart over concrete seams or other rough/uneven surfaces.
Mechanic’s Carts For technical questions, please call 1-888-866-5797.
Page 3
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product.
Note: Finger tighten hardware until assembly is complete.
1. Assemble on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Cart.
5. Attach Front/Back Cross Supports (15) to the inside of Posts using four sets of Bolts (21a) and Nuts (21b).
6. On the same side as Locking Swivel Casters, attach Tray (30) to the outside, and a Side
Cross Support (14) to the inside of Posts using two sets of Bolts (21a) and Nuts (21b).
2. Attach two Fixed Casters (19) to one side of the Bottom Shelf (16), using eight sets of
Bolts (22a), Washers (22c) and Nuts (22b).
3. Attach two Locking Swivel Casters (20) to the other side, using eight sets of Bolts (22a), Washers (22c) and Nuts (22b).
Locking
Swivel Caster
Bottom
Shelf
Fixed
Caster
7. On the other side, attach the remaining Side
Cross Support to the inside of Posts using two sets of Bolts (21a) and Nuts (21b).
Back
Cross
Support
Side
Cross
Support
Tray
Nut Bolt
Side
Cross
Support
Front
Cross
Support
Nut
Washer
Bolt
Figure A
Figure C
4. Attach Posts (17) to the outside corners of the Bottom Shelf, using sixteen sets of Bolts (21a) and Nuts (21b).
Note: Make sure the bolt holes on the upper ends of Posts measure 1-3/8" from the top and the lower holes measure 1" from the bottom ends.
WARNING!
The Chest is heavy; do not attempt to lift and lower onto Cross Supports without assistance.
8. With assistance, lift up the Chest, then lower it carefully between the Posts until its bottom edges rest on the Cross Supports. Attach Chest to the
Front Cross Support, using two Hex Bolts (31).
1-3/8" Post
Chest
Bolt
1"
Page 4
Nut
Figure B
For technical questions, please call 1-888-866-5797.
Bolt
Front
Cross
Support
Figure D
Mechanic’s Carts
Lid
Handle Bracket
Nut Bolt
9. Attach Side Handle (18) to lower holes on same side as Locking Swivel Casters, using two sets of Bolts (22a) and Nuts (21b).
10. Attach Lid Handle (28) using two Screws (32).
11. Place one Bracket (26) in each corner of
Chest. Attach Posts to chest using fourteen sets of Bolts (21a) and Nuts (21b).
12. Tighten all hardware, starting at the bottom.
Bolt
Screws
Nut
Nut
Side
Handle
Bolt
Figure E
Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product.
1. Unlock Drawers and fill Cart evenly, from bottom to top. Do not exceed weight capacities.
2. Close all Drawers and lock them.
3. Unlock Swivel Casters.
4. Roll Cart to a flat, level, hard and smooth surface capable of safely supporting a fully loaded Cart. Do not roll Cart over concrete seams or other rough/uneven surfaces.
5. Lock Swivel Casters.
Maintenance and Servicing
Procedures not specifically explained in this manual must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If any part becomes damaged, have the problem corrected before further use.
1. PERIODICALLY, inspect the general condition of the Cart. Check for:
• loose hardware
• misalignment or binding of moving parts
• brake operation
• caster swivel function and movement
• cracked or broken parts
• any other condition that may affect its safe operation.
2. Wipe external surfaces of the Cart with clean cloth.
3. Lubricate Drawer Slides as needed.
Mechanic’s Carts For technical questions, please call 1-888-866-5797.
Page 5
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List and Diagram
Parts List
Part
1
2
Lid
Lock Bar
Description
3a Lock
3b Key (not shown)
5
6
7
8
Drawer Handle
Drawer Handle
Left Drawer Latch
Right Drawer Latch
9 Drawer Slide
10 Top Left Drawer
11 Top Right Drawer
12 Middle Drawer
13 Bottom Drawer
14 Side Cross Support
15 Front/Back Cross Support
16 Bottom Shelf
17 Post
18 Side Handle
Qty
1
10
2
1
1
1
1
4
2
2
1
3
2
2
3
2
1
4
Part Description
19 Fixed Caster
20 Locking Swivel Caster
21a Bolt M8 x 16
21b Flange Nut M8
22a Bolt M8 x 20
22b Locknut M8
22c Washer
23 Top Compartment Liner
24 Top Drawer Liner
25 Middle/Bottom Drawer Liner
26 Bracket
27 Gas Strut
28 Lid Handle
29 Bottom Shelf Liner
30 Tray
31 Hex Bolt
32 Screw
Note: A few pieces of extra hardware may be included.
Qty
2
4
2
1
3
2
2
2
1
1
18
20
16
1
2
38
40
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Parts may not be interchangeable. Specify UPC number when ordering:
Green: 193175311283
Orange: 193175311290
Yellow: 193175311306
Black: 193175345622
Blue: 193175370150
Red: 193175345684
Page 6 For technical questions, please call 1-888-866-5797.
Mechanic’s Carts
Assembly Diagram
Mechanic’s Carts For technical questions, please call 1-888-866-5797.
Page 7
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
