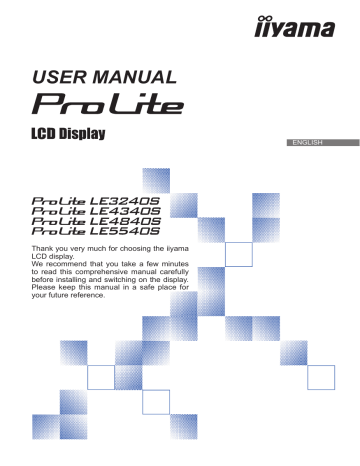

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD display.
We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the display.
Please keep this manual in a safe place for your future reference.
CE MARKING DECLARATION OF CONFORMITY
This LCD display complies with the requirements of the EC/EU Directive 2014/30/EU “EMC
Directive”, 2014/35/EU “Low Voltage Directive” and 2011/65/EU “RoHS Directive”.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PL3240/PL4340/PL4840/PL5540
We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com
You can access the Web page of different countries from there.
We reserve the right to change specifications without notice.
All trademarks used in this user manual are the property of their respective owners.
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS .........................................3
CUSTOMER SERVICE ...................................................................5
CLEANING ......................................................................................5
BEFORE YOU OPERATE THE DISPLAY ............................................6
FEATURES......................................................................................6
CHECKING THE CONTENTS OF THE PACKAGE ........................6
UNPACKING : ProLite LE5540S .....................................................7
CONTROLS AND CONNECTORS : DISPLAY ................................8
INSTALLATION .............................................................................10
CONTROLS AND CONNECTORS : REMOTE CONTROL ...........11
PREPARING THE REMOTE CONTROL.......................................12
BASIC OPERATION ......................................................................13
CONNECTING YOUR THE DISPLAY ...........................................16
COMPUTER SETTING .................................................................18
OPERATING THE DISPLAY ...............................................................19
ADJUSTMENT MENU CONTENTS ..............................................21
POWER MANAGEMENT FEATURE .............................................33
TROUBLE SHOOTING ......................................................................34
RECYCLING INFORMATION .............................................................35
APPENDIX ........................................................................................36
SPECIFICATIONS : ProLite LE3240S ..........................................36
SPECIFICATIONS : ProLite LE4340S ..........................................37
SPECIFICATIONS : ProLite LE4840S ..........................................38
SPECIFICATIONS : ProLite LE5540S ..........................................39
DIMENSIONS : ProLite LE3240S .................................................40
DIMENSIONS : ProLite LE4340S .................................................40
DIMENSIONS : ProLite LE4840S .................................................41
DIMENSIONS : ProLite LE5540S .................................................41
COMPLIANT TIMING ....................................................................42
FOR YOUR SAFETY
SAFETY PRECAUTIONS
WARNING
STOP OPERATING THE DISPLAY WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the display and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the display. Removing the cabinet may expose you to the danger of fire or electric shock.
DO NOT PUT ANY OBJECT INTO THE DISPLAY
Do not put any solid objects or liquids such as water into the display. In case of an accident, unplug your display immediately and contact your dealer or iiyama service center. Using the display with any object inside may cause fire, electric shock or damage.
INSTALL THE DISPLAY ON A FLAT, STABLE SURFACE
The display may cause an injury if it falls or is dropped.
DO NOT USE THE DISPLAY NEAR WATER
Do not use where water may be splashed or spilt onto the display as it may cause fire or electric shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the display only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the display or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the display during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.
FOR YOUR SAFETY 1
CAUTION
INSTALLATION LOCATION
Do not install the display where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the display.
DO NOT PLACE THE DISPLAY IN A HAZARDOUS POSITION
The display may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the display, and that all cables are routed such that children may not pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the display from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the display at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the display. Ventilation slots on the back of the cabinet will be blocked and the display may overheat if the stand is removed. This may cause fire or damage. Operating the display on its back, side, upside down or on a carpet or any other soft material may also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE DISPLAY
When you move the display, turn off the power switch, unplug the display and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.
UNPLUG THE DISPLAY
If the display is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE DISPLAY ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the display, otherwise, you may damage your computer.
REMARK FOR 24/7 USAGE
This product is not specifically designed for 24/7 usage. (Recommended operating time is 12 hours/
Day.)
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the display against a bright background or in a dark room.
For optimal viewing comfort, the display should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the display over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.
2 FOR YOUR SAFETY
SPECIAL NOTES ON LCD MONITORS
NOTE
- When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
- You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
FOR YOUR SAFETY 3
USAGE CONFIRMATION
This product is designed for optimum usage at 12hours per day.
The display is compatible for usage in Landscape applications.
IMAGE PERSISTENCE / IMAGE STICKING
Please be aware that all LCD screens can experience Image Persistence or Image Sticking. This occurs when a residual image remains visible on a screen when static images are displayed for long periods of time. LCD Image Persistence is not permanent but constant images being displayed for a long period of time should be avoided.
To counteract Image Persistence, turn off the monitor for as long as the previous image was displayed, so if an image was on the monitor for 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image.
For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.
Other ways to reduce the risk of Image Persistence will be to utilise the FAN-on function (if available), Low Backlight and Low Brightness settings.
FOR EXTENDED USE AS A PUBLIC DISPLAY
When a static image is displayed for hours, an electric charge trace remains near the electrode inside the LCD producing a “ghost” image. (Image Persistence).
Image Persistence is not a permanent feature.
To prevent Image Sticking and promote longer life expectancy of display, we recommend the following:
1. Avoid static images displayed for long periods – change static images on continuous loop.
2. Turn off monitor when not in use, either by remote control or use Power Management or Schedule functions.
3. When monitor is installed in high ambient temperature environment(s) or in an enclosed position, utilise the Cooling Fan, Screen Saver and Low Brightness functions.
4. Suitable ventilation for any monitor is an expectation of any installation – climate control systems may need to be employed.
5. We strongly recommend utilisation of active cooling with fans for long operation times or high ambient temperature environments.
4 FOR YOUR SAFETY
CUSTOMER SERVICE
NOTE
discarded, please contact your dealer or iiyama service center for advice or replacement packaging.
CLEANING
WARNING
unplug the power cable immediately and contact your dealer or iiyama service center.
CAUTION
clean it.
NOTE
the LCD screen.
Thinner
Spray-type cleaner
Benzine
Wax
Abrasive cleaner
Acid or Alkaline solvent may cause degeneration or loss of paint on the cabinet.
CABINET
Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
LCD
SCREEN
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
FOR YOUR SAFETY 5
BEFORE YOU OPERATE THE DISPLAY
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1400:1 (Typical) / Brightness 350cd/m
2
(Typical) : ProLite LE3240S
High Contrast 3000:1 (Typical) / Brightness 350cd/m 2 (Typical) : ProLite LE4340S
High Contrast 4000:1 (Typical) / Brightness 350cd/m
2
(Typical) : ProLite LE4840S
High Contrast 1200:1 (Typical) / Brightness 350cd/m 2 (Typical) : ProLite LE5540S
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 10W Stereo Speakers
Plug & Play VESA DDC2B Compliant
Windows
®
XP/Vista/7/8/8.1/10 Compliant
Power Management (VESA DPMS Compliant)
VESA Mounting Standard (100mm×100mm, 200mm×200mm) Compliant :
ProLite LE3240S
VESA Mounting Standard (200mm×200mm, 400mm×400mm) Compliant :
ProLite LE4340S
/
ProLite LE4840S
VESA Mounting Standard (400mm×200mm, 400mm×400mm) Compliant :
ProLite LE5540S
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the display. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.
Power Cable*
RS-232C Cable
POP Label
Safety Guide
VGA Cable
Remote Control
iiyama Logo Sticker
Quick Start Guide
DVI-D Cable
Battery (2pcs)
EU Energy Label
CAUTION
* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.
6 BEFORE YOU OPERATE THE DISPLAY
UNPACKING : ProLite LE5540S
Before unpacking your display, prepare a stable, level, and clean surface near a wall outlet.
Set the LCD display box in an upright position and open from the top of the box before removing the top cushions.
Remove the carton holders.
Remove the top cushion and take the accessories box and the display out.
Pinch and Pull the Knob.
CAUTION
Moving the display requires at least two people. If not, it may drop and could result in a serious injury.
When moving/shipping the display, please hold by the carton holders.
BEFORE YOU OPERATE THE DISPLAY 7
CONTROLS AND CONNECTORS : DISPLAY
<Back Controller>
MUTE INPUT MENU
-
+
MUTE
INPUT
MENU
Power Button
Mute Button
Enter / Input
Select Button
+ Button
- Button
Up Button
Down Button
Menu Button
<Front>
Power Indicator
Green
Orange
Red
Off
Lighting : Normal Operation
Flash : Power Management ( ECO Mode : Normal )
* If there is no input signal from the computer and passes for 10 minutes.
If turn off the Power Button on the Remote Control and the
Back Controller. Power Management (ECO Mode : Normal)
If turn off the Power Button on the Remote Control and the Back Controller. Power Management (ECO Mode :
Low power standby)
Power Off
Remote Sensor Remote Sensor
<Remote sensor and power indicator - location>
1. Pull down the lens to improve remote control performance and ensure good visibility of the power status diode.
2. Push up the lens before mounting the display for video wall application.
3. Pull/Push the lens until hearing the click sound.
Push right to hide the lens
8 BEFORE YOU OPERATE THE DISPLAY
Push left to extend the lens
<Back>
Y Pb Pr
AC IN
AC SWITCH
(ON) / (OFF)
PC AUDIO IN
HDMI IN
DVI IN
VGA IN
COMPONENT
VIDEO
(VIDEO IN)
AUDIO IN
AUDIO OUT
IR OUT
IR IN
LAN
RS232C OUT
RS232C IN
USB
Keyhole for
Security Lock
SPEAKERS
AC-INLET
MAIN
POWER
Mini Jack
HDMI
DVI-D
VGA
RCA G/B/R
RCA L/R
RCA L/R
IR
IR
RJ45
Mini Jack
Mini Jack
USB
AC Connector( : Alternating current) (AC-IN)
Main Power Switch
Audio Connector
HDMI Connector
DVI-D Connector
VGA Connector
Component Video Connector
Audio Connector
Headphone Connector
IR Connector
IR Connector
RJ45 Connector
RS232C Connector
RS232C Connector
USB Connector
Keyhole for Security Lock
Speakers
BEFORE YOU OPERATE THE DISPLAY 9
INSTALLATION
CAUTION
Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel.
Moving the display requires at least two people.
Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount.
[WALL MOUNTING]
Mounting Stage Screw
L
Chassis
CAUTION
When using the wall mounting, consideration of thickness of the mounting stage needs to be taken.
Tighten the M4/M6* Screw with washer which “L” length is 10mm to fasten the display. Using a screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the display.
* M4 Screw : ProLite LE3240S
M6 Screw : ProLite LE4340S / ProLite LE4840S / ProLite LE5540S
[ROTATING THE DISPLAY]
It is designed to be compatible in landscape mode.
Available
Not Available
A
Landscape
Power indicator
A
10 BEFORE YOU OPERATE THE DISPLAY
CONTROLS AND CONNECTORS : REMOTE CONTROL
[PLAY]
INPUT
TV
LIST
CH - / +
HOME
OK
ADJUST
BACK
VOLUME - / +
MUTE
COLOR
NUMERIC
FORMAT
INFO
OPTIONS
Turns the display ON and OFF.
Control playback of media files.
: Play
: Stop
: Pause
: Quick-Return
: Fast-Forward
Selects the source.
Press or button to select from
USB, Network, HDMI, DVI, YPbPr,
AV or VGA. Press [OK] button to confirm and exit.
Not available on this model.
Opens the display’s on-screen menu systems.
Navigates through submenus and settings.
: Up Button
: Down Button
: Left Button
: Right Button
Confirms your selection or save changes.
Selects the direct menu.
PC mode : Sound style, Audio out,
Picture format, Picture shift
Video mode : Picture Style, Sound style, Audio out, Picture format,
Picture shift
Returns to a previous menu or closes the OSD Menu.
VOLUME-: Decreases the sound volume.
VOLUME+: Increases the sound volume.
Turns on or off the mute function when the Menu is not displayed.
Select tasks or options.
Enter text for network setting.
Change picture format.
Provides source and resolution information.
Access currently available options, picture and sound menus.
BEFORE YOU OPERATE THE DISPLAY 11
PREPARING THE REMOTE CONTROL
To use the remote control, insert the two dry batteries.
CAUTION
Do not use any other batteries other than those specified in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+" and "-" indications in the battery compartment. Burst batteries or the electrolyte from these batteries may cause stains, fire or injury.
Slide back and remove the battery cover in the direction of the arrow.
Align and insert two AAA batteries according to their plus and minus ports (as indicated in the remote control).
Battery x 2
Replace the battery cover in the direction of the arrow and snap it back into place.
NOTE
Replace with new batteries when the Remote Control does not work close to the display.
Use AAA dry batteries.
Operate the Remote Control by pointing it toward the Remote Sensor on the display.
Other manufacturers remote control will not work with this display. Use the provided
Remote Control ONLY.
Used batteries needed to follow the local rules to be discarded. (Suggestion: to dispose of used batteries please follow correct policy as per your local regulations.)
12 BEFORE YOU OPERATE THE DISPLAY
BASIC OPERATION
Turning the display ON
The display is turned On and the Power Indicator turns to
Green when you press the POWER button on the display or the Remote Control. The display is turned Off and the Power
Indicator turns to Orange when you press the POWER button on the display or the Remote Control. Press again to turn On the display.
NOTE
Even when using the power management mode or turning OFF the Power Switch, the display will consume a small amount of electricity. Disconnect the Power Cable from the power supply whenever the display is not in use or during the night, to avoid unnecessary power consumption.
[Display]
MUTE INPUT MENU
[Remote Control]
Display the adjustment menu page
The menu page appears on the screen when you press the
MENU button on the display or the HOME button on the
Remote Control.
The menu page disappears when you press the BACK button on the Remote Control again.
[Display]
MUTE INPUT MENU
[Remote Control]
BEFORE YOU OPERATE THE DISPLAY 13
Move the cursor vertically
Select adjustment by pressing the / button on the display or the / button on the remote control while the menu page is displayed on the screen.
[Display]
MUTE INPUT MENU
[Remote Control]
Move the cursor horizontally
Select menu or setting, or perform the adjustment by pressing the + / - button on the display or the / button on the remote control while the menu page is displayed on the screen.
[Display]
MUTE INPUT MENU
[Remote Control]
14 BEFORE YOU OPERATE THE DISPLAY
Adjust the volume of sound
Press the + / - button on the display or the remote control to adjust the volume of sound when the menu page is not displayed on the screen.
[Display]
MUTE INPUT MENU
[Remote Control]
Switch the input signal
This is activated when you successively press the INPUT button on the display or the Remote Control.
[Display]
MUTE INPUT MENU
[Remote Control]
BEFORE YOU OPERATE THE DISPLAY 15
CONNECTING YOUR THE DISPLAY
Ensure that both the computer and the display are switched off.
Connect the computer to the display with the signal cable.
Connect the computer to the display with the RS-232C Cable.
Connect the Power Cable to the display first and then to the power supply.
Turn on your display (Main Power Switch and Power Switch) and computer.
NOTE
The signal cables used for connecting the computer and display may vary with the type of computer used. An incorrect connection may cause serious damage to both the display and the computer. The cable supplied with the display is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
Make sure you tighten the finger screws at each end of the Signal Cable.
Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.
[Example of Connection]
<Back>
Power Cable (Accessory)
DVI-D Cable (Accessory)
VGA Cable (Accessory)
Computer
AV Equipment etc.
HDMI Cable (Not Included)
16 BEFORE YOU OPERATE THE DISPLAY
[ Connection example with the peripheral device ]
CAUTION
Turn off the power switch and unplug the display and peripherals before connection to avoid electric shock or damage.
NOTE
R e f e r t o t h e u s e r m a n u a l o f peripherals at the same time.
Ensure you have the necessary cables as required.
Y Pb Pr
Red
White
Red
White
[ To setup the network ]
1. Switch on the router and switch on its DHCP setting.
2. Connect the router to this display with an Ethernet cable.
3. Press HOME button on the remote control, then select Setup.
4. Select "Connect to network", then press OK button.
5. Follow the on-screen instructions to install the network.
6. Wait for this display to find the network connection.
7. If you are prompted, agree to the “End User Licence Agreement”.
NOTE
Connecting with a shielded CAT-5 Ethernet cable to comply with the EMC directive.
INTERNET
Monitor
[RJ-45]
ROUTER
[RJ-45]
PC
BEFORE YOU OPERATE THE DISPLAY 17
COMPUTER SETTING
Signal Timing
Change to the desired signal timing listed on page 42: COMPLIANT TIMING.
Windows XP/Vista/7/8/8.1/10 Plug & Play
The iiyama LCD display complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the display to DDC2B compliant computer with the Signal Cable supplied.
For installation on Windows XP: The display Information File for iiyama displays may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com
NOTE
systems. For further information, please contact your computer dealer first for advice.
Procedure for turning ON the Power Switch
Turn ON the display first, and then the computer.
18 BEFORE YOU OPERATE THE DISPLAY
OPERATING THE DISPLAY
To create the best picture, your iiyama LCD display has been preset at the factory with the COMPLIANT
TIMING shown on page 42. You are also able to adjust the picture by following the button operation shown below.
Press the HOME button on the remote control or the MENU button on the Display to start the On Screen Display feature. There are additional Menu items which can be switched by using the / buttons on the remote control or the / buttons on the display.
Sound
General settings
Network settings
Picture Mode
Reset
Backlight
Contrast
Brightness
Hue
Colour
Sharpness
Advanced
Foramat and edges
Custom
Vivid
Natural
Standard
Movie
Energy saving
Select the Menu item of the adjustment you want to make. Press the OK button on the remote control or the INPUT button on the display and enter the menu page.
Then, use the / buttons on the remote control or the / buttons on the display to highlight the desired adjustment item.
Press the OK button on the remote control or the INPUT button on the display again.
Use the / buttons on the remote control or the + / - buttons on the display to make the appropriate adjustment or setting.
Press the BACK button on the remote control or the MENU button on the display to leave the menu, and the settings you just made would be automatically saved.
For example, to correct for sharpness, select Menu item of "Picture". Press the OK button on the remote control or the INPUT button on the display. Then, select "Sharpness" by using the / buttons on the remote control or the / buttons on the display.
Use the / buttons on the remote control or the + / - buttons on the display to change the sharpness settings. The sharpness of the overall display should be changing accordingly while you are doing this.
Sound
General settings
Network settings
Picture Mode
Reset
Backlight
Contrast
Brightness
Hue
Colour
Sharpness
Advanced
Foramat and edges
50
Press the BACK button on the remote control or the MENU button on the display lastly, it ends, all changes are saved in the memory.
NOTE
BACK button on the remote control or the INPUT button on the display can be used to return previous menu item.
Turning off the power should be avoided while using the Menu.
OPERATING THE DISPLAY 19
Direct
* Available for Remote Control only.
Press the ADJUST button when Menu is not displayed.
Direct menu below appears.
Access predefined sound settings.
Adjust audio output volume.
Change the picture format.
Move the position of the picture.
Select a predefined picture settings.
20 OPERATING THE DISPLAY
ADJUSTMENT MENU CONTENTS
Sound
General settings
Network settings
Picture Mode
Reset
Backlight
Contrast
Brightness
Hue
Colour
Sharpness
Advanced
Foramat and edges
Custom
Vivid
Natural
Standard
Movie
Energy saving
Adjustment Item
Picture Mode*
Reset
2
Direct
Problem / Option Button to Press
Custom
Vivid
Natural
Standard
Movie
Energy saving
Yes
No
Displays a picture on a screen set by Image Settings adjustments.
For displaying outdoor scenery images.
For displaying natural images.
For general windows environment and the display default setting.
For movie and video environment.
For photo environment.
To display the image while reducing power.
Picture setting will be restored to factory-preset data.
Return to Menu.
Brightness of back light is reduced.
Backlight
Contrast
Brightness*
Hue
Colour
Sharpness*
1
2
Too dull
Too intense
Too dark
Too bright
Purplish
Greenish
Too week
Too strong
Too soft
Too sharp
Advanced
Noise reduction*
2
Off
LOW
MIDDLE
HIGH
Noise Reduction is turned off.
Electronic image noise caused by different media players is reduced.
Electronic image noise caused by different media players is reduced more than Low.
Electronic image noise caused by different media players is reduced more than Mid.
*
1
*
2
Adjust the Brightness when you are using the display in a dark room and feel the screen is too bright.
Only HDMI(Video), YPbPr and AV input.
OPERATING THE DISPLAY 21
Sound
General settings
Network settings
Picture Mode
Reset
Backlight
Contrast
Brightness
Hue
Colour
Sharpness
Advanced
Foramat and edges
Custom
Vivid
Natural
Standard
Movie
Energy saving
Adjustment Item
Advanced
Problem / Option Button to Press
Gamma
Color temp.
Advanced sharpness*
Dynamic contrast*
Dynamic backlight*
Colour
2
2
2 enhancement* 2
Off
On
Off
You can set the Gamma.
-4 - 4
Cool Bluish white
Normal
Warm
Greenish white
Reddish white
Custom
R-WP(Red)
G-W(Green)
Too weak
Too strong
B-WP(Blue)
Advanced sharpness is turned off.
Enhance the picture edge and lines.
Dynamic contrast is turned off.
LOW
MIDDLE
HIGH
Off
Dynamically enhance the details areas of the picture.
Dynamically enhance the details areas of the picture more than LOW.
Dynamically enhance the details areas of the picture more than MIDDLE.
Dynamic backlight is turned off.
Standard
Best Power
Best Picture
Off
LOW
MIDDLE
HIGH
Optimize dynamic power consumption and picture contrast.
Optimize dynamic power consumption.
Optimize dynamic picture contrast.
Colour enhancement is turned off.
Colour enhancement the vividness and details of colours.
Colour enhancement the vividness and details of colours more than LOW.
Colour enhancement the vividness and details of colours more than MIDDLE.
* 2 Only HDMI(Video), YPbPr and AV input.
22 OPERATING THE DISPLAY
Sound
General settings
Network settings
Picture Mode
Reset
Backlight
Contrast
Brightness
Hue
Colour
Sharpness
Advanced
Foramat and edges
Custom
Vivid
Natural
Standard
Movie
Energy saving
Adjustment Item
Format and edges
Problem / Option Button to Press
Picture format
Screen edges* 2
Direct
Picture shift
*
2
Only HDMI(Video), YPbPr and AV input.
Auto zoom
Movie expand 16:9
Wide screen
Unscaled
Enlarges the image on the screen to the original screen ratio.
Scale 4:3 format to 16:9.
Not recommended for HD or PC.
Shows widescreen format content stretched.
Not recommended for HD or PC.
Display all pictures in the original resolution.
4:3 Display all pictures in 4:3 aspect ratio.
Change the picture size.
0 ( ) - 10 ( )
Move the position of the picture.
OPERATING THE DISPLAY 23
Sound
Sound
General settings
Network settings
Sound Mode
Reset
Bass
Treble
Audio out
Advanced
Custom
Original
Movie
Music
Game
News
Adjustment Item
Sound Mode
Reset
Bass
Treble
Audio out
Advanced
Direct
Direct
Problem / Option Button to Press
Custom
Original
Movie
Music
Game
News
Yes
No
Recalls customized settings.
Set the original sound quality.
Sound quality suitable for the movie.
Sound quality suitable for the music.
Sound quality suitable for the game.
Sound quality suitable for the news.
Sound setting will be restored to factory-preset data.
Return to Menu.
Too weak
Too strong
Too weak
Too strong
Adjust audio output volume.
Too soft
Too loud
Auto volume leveling
Speaker
Clear sound
Off
On
Off
On
Off
On
Auto volume leveling is turned off.
Enable the reduction of sudden volume changes.
Turn Off the internal speaker.
Turn On the internal speaker.
Clear sound is turned off.
Enable the volume
24 OPERATING THE DISPLAY
General settings
Adjustment Item
Menu Language
Monitor id
ECO Mode
Auto Search
Clock
Scheduling
Sleep timer
Auto switch off
Sound
General settings
Network settings
Menu Language
Monitor id
ECO Mode
Auto Search
Clock
Scheduling
Sleep timer
Auto switch off
Auto adjust
Pixel shift
Control settings
Opening logo
English
Français
Italiano
Español
Deutsch
Nederlands
Polski
Русский
Česky
Problem / Option Button to Press
English English
Français
Italiano
Español
French
Italian
Spanish
Deutsch German
Set ID to the display.
1 - 255
Normal
Low power standby
Nederlands
Polski
Česky
Control over LAN is supported.
Control over LAN is not supported.
Dutch
Polish
Russian
Czech
Japanese
Off
On
Auto Search is turned off.
Automatically detects available input sources.
Adjust the current date and time for the internal clock.
Daylight saving(Daylight saving time/Standard time)/Date/Time
NOTE
You must set this item when using "Scheduling".
Schedule1
Schedule2
Schedule3
Status
Source
On Time
Off Time
Repeat modes
Off Schedule is turned off.
On Schedule is turned on.
Select default input source to use when the display is automatically turned on next time.
USB/HDMI/DVI/YPbPr/AV/VGA
Set the time for the display to turn on and turn off.
Sets a recurring schedule.
No Repeat / Every Sunday / Every Monday
/ Every Tuesday / Every Wednesday / Every
Thursday / Every Friday / Every Saturday
Set the file to be started when the power is turned on.
Playlist setting
Switch off this display after a specified time.
0 - 180 mins
Set the time for this display to be switched off after a period of no activity.
0 - 240 mins
NOTE
If the button operation is performed within the set time, the time count of the Auto Switch Off will be reset. The display will be turned off when the set time has elapsed.
OPERATING THE DISPLAY 25
General settings
Sound
General settings
Network settings
Monitor id
ECO Mode
Auto Search
Clock
Scheduling
Sleep timer
Auto switch off
Auto adjust
Pixel shift
Control settings
Opening logo
Factory settings
Adjustment Item
Auto adjust *
Pixel shift *
2
1
Control settings
On
Problem / Option Button to Press
Start
Cancel
Off
Local KB lock
RC lock
Adjust H. / V. Position, Clock and Phase automatically.
Return to Menu.
Pixel shift is turned off.
Move the screen image automatically to protect the display from “burn-in” or “after-image” symptoms If not operating even 30 seconds.
Choose to enable or disable the back controller function of this display.
Unlock Enable the button function.
Lock all
Lock but volume
Lock all the button function.
Disable all the button function except the VOL+ and VOL- button.
Lock but power
Disable all the button function except the power button.
Choose to enable or disable the button function of the remote control.
Unlock
Lock all
Lock but volume
Lock but power
Enable the button function.
Lock all the button function.
Disable all the button function except the VOL+ and VOL- button.
Disable all the button function except the power button.
NOTE
To disable the lock function from "Local KB lock" or "RC lock" item, press HOME button and 1998 on the remote control.
Opening Logo
Factory settings
Off
On
OK
Cancel iiyama Logo does not display when the display is turned on. iiyama Logo displayed when the display is turned on.
Factory-preset data is restored.
Return to Menu.
* 1
*
2
Only VGA input.
Only HDMI(Video), YPbPr and AV input.
26 OPERATING THE DISPLAY
Network Settings
Sound
General settings
Network settings
View network settings
Network Configuration
Static IP Configuration
Digital Media Render...
Wake on lan
Network name
Adjustment Item
View network settings
Network Configuration
Static IP Configuration
Digital Media Renderer
- DMR
Wake on lan *
Network name
Problem / Option Button to Press
View connected network status.
Select how this display should assign addresses to the network resources.
DHCP & Auto IP / Static IP
Assign {IP address}, {Netmask}, {Gateway}, {DNS1}, and {DNS2} for this display.
Off
On
Digital Media Renderer - DMR is turned off.
Receive multimedia files from Smart phones or Tablets connected to your network.
Off
On
Wake on lan is turned off.
Turn the display on remotely over LAN network.
Rename this display for easy identification.
* Wake on lan can not select when ECO Mode is Low power standby.
OPERATING THE DISPLAY 27
[Play Multimedia Files]
You can play videos, photos, and music on your display from:
· Your computer connected through your network.
· A USB device connected to this display.
Play files from computer
To play files from computer, you will need:
· A wired network, connected with a Universal Plug and Play (uPnP) router.
· Optional: A LAN cable that connects your display to your network.
· A media server running on your computer.
· Appropriate settings on your computer firewall to allow you to run the media server.
1. Install a media server on your computer to share media files. These are some media servers:
• For PC: Windows Media Player 11 (or higher) or TVersity
2. Switch on media sharing on your computer using the media server. For more information on
how to set up the media server, refer to the website of the media server.
2. Select [network], then press OK button.
3. Select a file from the content browser, then press OK button to start playing.
4. Press the Play buttons on the remote control to control playing.
* • Select the top bar to filter our files by type.
• Select [Sort] to arrange the files by album name, artist, or other fields.
Play multimedia files from USB device
This display can play music, movie, or photo files from your USB device.
1. Connect your USB device to the USB port on this display.
2. Press SOURCE button, select USB, then press OK button.
3. The connected USB device is detected automatically for all its playable files which will be
automatically sorted into 3 types: Music, Movie and Photo.
4. Press the BACK button to go up to the top layer in the screen. Press or button to
select the file type. Press OK button to enter its play list.
5. Select the file you want. Press OK button to start playing.
6. Follow the on-screen instruction to control the play option.
7. Press the PLAY buttons ( , , , , ) to control playing.
28 OPERATING THE DISPLAY
2.0
FAT32
• Music: MP3, WMA, M4A, AAC, AC3
• Movie: AVI, MP4, MOV, MPG/MPEG
• Photo: JPEG, BMP, GIF
CAUTION
• The manufacturer is not responsible if the USB device is not supported, nor is it responsible for damage to or loss of data in the device.
• Do not overload the USB port. If you connect a USB storage device that consumes more than
500mA power, make sure that it is connected to its own external power supply.
NOTE
When you are playing multimedia files from USB device and turn the display off. It will set input source to the last real input source, such as HDMI, DVI, YPbPr, AV and VGA when you turn the display on next time.
OPERATING THE DISPLAY 29
[Play options]
Playing music files
1. Select Music in the top bar.
2. Select one music track, then press OK button.
Album
1. Music 05:05
Info Play All Sort USB device Options
3. Press the BACK button to display the play menu.
• Play All : To play all the tracks in a folder.
• Sort : It classifies the track.
• USB device : Music list of the USB device will be displayed.
• CH+ / CH- : To skip to the next or previous track.
• OK : To pause the track or resume.
• / : To skip backward or forward 10 seconds.
• / : To search backward or forward. Press repeatedly to toggle between different speeds.
• : To stop the music.
While playing music, press OPTIONS button.
• Repeat : To play a track or an album repeatedly.
• Play once : To play a track once.
• Media Server : Select the media server.
• Shuffle On / Shuffle Off : Enable or disable random play of tracks.
NOTE
To view information about a song (for example, title, artist or duration), select the song, press the
BACK button to display the play menu and then press the INFO button. To hide the information, press the INFO button again.
After pressing the OK button to select a song, the menu screen dissapears when the INFO button is selected again. When press the BACK button to display the menu screen.
Play photo files from music file menu
While playing a music file, press the BACK button, go to the top of the screen, select a picture and then select slide show.
30 OPERATING THE DISPLAY
Playing movie files
1. Select Movie in the top bar.
2. Select a video, then press OK button.
Track
Info Play All USB device Options
• Play All : To play all the videos in a folder.
• Sort : It classifies the movie.
• USB device : Movie list of the USB device will be displayed.
• CH+ / CH- : To skip to the next or previous video.
• OK : To pause the video or resume.
• / : To skip backward or forward 10 seconds.
• / : To search backward or forward. Press repeatedly to toggle between different speeds.
• : To stop the video.
While playing video, press OPTIONS button.
<Option>
• Subtitles : Select the available subtitle settings.
• Subtitles On / Off : Subtitle display on / off.
• On During Mute : Enable the subtitle display.
Subtitle can be switched on/off by pressing the Mute button.
• Subtitle Language : Select the language for subtitles if available.
• Character Set : Select the correct character set for the subtitles.
• Audio Language : Select an audio language.
• Repeat : To play the video file repeatedly.
• Play once : To play the video file once.
• Media Server : Select the media server.
• Shuffle On / Shuffle Off : Enable or disable random play of video files.
• Status : Displays video information.
<Picture and Sound>
• Picture Mode / Sound Mode / Audio out / Picture Format
<Eco Setting>
Screen Off : Turn off the screen to save power consumption. To display again, press any button on the remote control.
<Clock>
• Clock : Clock display on / off.
• Sleep timer
OPERATING THE DISPLAY 31
Playing photo files
1. Select Photo in the top bar.
2. Select a photo thumbnail, then press OK button.
Date
Info Play All Sort USB device Options
• Play All : To play all the photo in a folder. (multiple photo)
• Sort : It classifies the photo.
• USB device : Photo list of the USB device will be displayed.
• / : To skip to the previous or next photo, then press OK button at the end.
• : To stop the slideshow.
While you play a slideshow, press OPTIONS button.
<Option>
• Shuffle On / Shuffle Off : Enable or disable random picture in the slideshow.
• Repeat : To watch a slideshow.
• Play once : To watch once.
• Slideshow Time : Select the displaying time for each photo in the slideshow.
• Slideshow Transitions : Select the transition from one photo to the next.
• Media Server : Select the media server.
<Picture and Sound>
• Picture Mode / Sound Mode / Audio out / Picture Format
<Eco Setting>
Screen Off : Turn off the screen to save power consumption. To display again, press any button on the remote control.
Folder
It lists the files in the USB device. It is possible to play directly from the USB.
32 OPERATING THE DISPLAY
POWER MANAGEMENT FEATURE
The power management feature of this product complies with power saving requirement of VESA
DPMS. When activated, it automatically reduces unnecessary power consumption of the display when your computer is not in use.
To use the feature, the display needs to be connected to a VESA DPMS compliant computer.
There is a power management step the display takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.
When the H-sync signal / V-sync signal / H and V sync signals from the computer are off, the display enters into Power Management Mode which reduces the power consumption to less than 0.5W. The screen becomes dark. From Power Management Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.
NORMAL MODE
POWER MANAGEMENT MODE
Power Indicator
Green
Red
POWER 0
CONSUMPTION
0.5 W 100%
NOTE
off the Power Switch whenever the display is not in use, during the night and weekends, to avoid unnecessary power consumption.
signal is missing. In this instance, the POWER MANAGEMENT feature may not work properly.
OPERATING THE DISPLAY 33
TROUBLE SHOOTING
If the display fails to operate correctly, please follow the steps below for a possible solution.
1. Perform the adjustments described in OPERATING THE DISPLAY, depending on the problem you have. If the display does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE
DISPLAY or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the display and contact your dealer or iiyama service center for further assistance.
Problem
The picture does not appear.
Check
display.
The screen is not synchronized.
display.
display.
T h e s c r e e n position is not in the center.
The screen is too bright or too dark.
display.
display.
T h e s c r e e n i s shaking.
display.
display.
No sound.
the display.
The sound is too loud or too quiet.
A strange noise is heard.
the display.
34 TROUBLE SHOOTING
RECYCLING INFORMATION
For better environment protection please don't dispose your display.
Please visit our web site: www.iiyama.com/recycle for monitor recycling.
Recycling information 35
APPENDIX
Design and specifications are subject to change without prior notice.
SPECIFICATIONS : ProLite LE3240S
Size Category 32"
Panel technology IPS
LCD
Panel
Size
Pixel pitch
Brightness
Contrast ratio
Diagonal: 31,5" (80cm)
0.36375mm H × 0.36375mm V
350cd/m 2 (Typical)
1400 : 1 (Typical)
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time 8ms (Typical, Gray to Gray)
Display Colors
Sync Frequency
Maximum Resolution
Approx.16.7M
Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
1920 × 1080, 2.1 MegaPixels
Input Connector
Input Audio Connector
Input Component
Connector
LAN
Serial Port
Plug & Play
VGA, DVI-D, HDMI mini jack, RCA (L/R)
RCA (Video/L/R)
RJ45
RS-232C In/Out mini jack
VESA DDC2B TM
Input Sync Signal
Input Video Signal
Input Audio Signal
IR Extender Connector
USB Connector
Headphone Connector
Speakers
Maximum Screen Size
Power Source
Power Consumption*
Dimensions / Net Weight
Environmental
Considerations
Approvals
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75
Ω,
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
0.5Vrms maximum
IR In/Out
USB2.0 (USB Media Player)
RCA(L/R)
Internal: 10W×2 (Stereo speakers)
698.40mm W × 392.85mm H / 27.5" W × 15.5" H
100-240VAC, 50/60Hz, 1.5A
42W typical, Power management mode : 0.5W maximum
Energy Efficiency Class: B
726.5 × 425.5 × 63.5mm / 28.6 × 16.8 × 2.5" (W×H×D)
5.2kg / 11.5lbs
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 - 80% (No condensation)
-20 to 60°C / 4 to 140°F
5 - 95% (No condensation)
CE, TÜV-Bauart
NOTE *
Audio equipment are not connected.
36 APPENDIX
SPECIFICATIONS : ProLite LE4340S
Size Category
LCD
Panel
Serial Port
Plug & Play
Input Sync Signal
Input Video Signal
Input Audio Signal
43"
Panel technology AMVA3
Size Diagonal: 43" (108cm)
Pixel pitch
Brightness
0.49mm H × 0.49mm V
350cd/m
2
(Typical)
Contrast ratio 3000 : 1 (Typical)
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time 8ms (Typical, Gray to Gray)
Display Colors
Sync Frequency
Maximum Resolution
Input Connector
Input Audio Connector
Input Component
Connector
LAN
Approx.16.7M
Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
1920 × 1080, 2.1 MegaPixels
VGA, DVI-D, HDMI mini jack, RCA (L/R)
RCA (Video/L/R)
RJ45
RS-232C In/Out mini jack
VESA DDC2B TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75
Ω,
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
0.5Vrms maximum
IR Extender Connector
USB Connector
Headphone Connector
Speakers
Maximum Screen Size
Power Source
Power Consumption*
Dimensions / Net Weight
Environmental
Considerations
Approvals
IR In/Out
USB2.0 (USB Media Player)
RCA(L/R)
Internal: 10W×2 (Stereo speakers)
940.90mm W × 529.25mm H / 37" W × 20.8" H
100-240VAC, 50/60Hz, 2.5A
73W typical, Power management mode: 0.5W maximum
Energy Efficiency Class: B
968.0 × 559.5 × 61.0mm / 38.1 × 22.0 × 2.4" (W×H×D)
8.7kg / 19.2lbs
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 - 80% (No condensation)
-20 to 60°C / 4 to 140°F
5 - 95% (No condensation)
CE, EAC, TÜV-Bauart
NOTE *
Audio equipment are not connected.
APPENDIX 37
SPECIFICATIONS : ProLite LE4840S
Size Category 48"
Panel technology SVA
LCD
Panel
Size
Pixel pitch
Brightness
Contrast ratio
Diagonal: 48" (121cm)
0.549mm H × 0.549mm V
350cd/m 2 (Typical)
4000 : 1 (Typical)
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time 8ms (Typical, Gray to Gray)
Display Colors
Sync Frequency
Maximum Resolution
Input Connector
Approx.10.6B
Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
1920 × 1080, 2.1 MegaPixels
VGA, DVI-D, HDMI mini jack, RCA (L/R) Input Audio Connector
Input Component
Connector
LAN
Serial Port
RCA (Video/L/R)
RJ45
RS-232C In/Out mini jack
Plug & Play
Input Sync Signal
Input Video Signal
VESA DDC2B
TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75
Ω,
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
0.5Vrms maximum Input Audio Signal
IR Extender Connector
USB Connector
Output Audio Connector
IR In/Out
USB2.0 (USB Media Player)
RCA(L/R)
Internal: 10W×2 (Stereo speakers) Speakers
Maximum Screen Size
Power Source
Power Consumption*
Dimensions / Net Weight
Environmental
Considerations
Approvals
1054.08mm W × 592.92mm H / 41.5" W × 23.3" H
100-240VAC, 50/60Hz, 2.5A
89W typical, Power management mode: 0.5W maximum
Energy Efficiency Class: B
1082.0 × 623.5 × 61.0mm / 42.6 × 24.5 × 2.4" (W×H×D)
11.5kg / 25.4lbs
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 - 80% (No condensation)
-20 to 60°C / 4 to 140°F
5 - 95% (No condensation)
CE, EAC, TÜV-Bauart
NOTE *
Audio equipment are not connected.
38 APPENDIX
SPECIFICATIONS : ProLite LE5540S
Size Category
LCD
Panel
Serial Port
Plug & Play
Input Sync Signal
Input Video Signal
Input Audio Signal
55"
Panel technology IPS
Size Diagonal: 55" (139cm)
Pixel pitch
Brightness
0.63mm H × 0.63mm V
350cd/m
2
(Typical)
Contrast ratio 1200 : 1 (Typical)
Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
Response time 8ms (Typical, Gray to Gray)
Display Colors
Sync Frequency
Maximum Resolution
Input Connector
Input Audio Connector
Input Component
Connector
LAN
Approx.16.7M
Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz
1920 × 1080, 2.1 MegaPixels
VGA, DVI-D, HDMI mini jack, RCA (L/R)
RCA (Video/L/R)
RJ45
RS-232C In/Out mini jack
VESA DDC2B TM
Separate sync: TTL, Positive or Negative
Analog: 0.7Vp-p (Standard), 75
Ω,
Positive
Digital: DVI (Digital Visual Interface Standard Rev.1.0) compliance
Digital: HDMI
0.5Vrms maximum
IR Extender Connector
USB Connector
Output Audio Connector
Speakers
Maximum Screen Size
Power Source
Power Consumption*
Dimensions / Net Weight
Environmental
Considerations
Approvals
IR In/Out
USB2.0 (USB Media Player)
RCA(L/R)
Internal: 10W×2 (Stereo speakers)
1209.6mm W × 680.4mm H / 47.6" W × 26.8" H
100-240VAC, 50/60Hz, 2.5A
98W typical, Power management mode: 0.5W maximum
Energy Efficiency Class: A
1238.5 × 711.0 × 60.0mm / 48.8 × 28.0 × 2.4" (W×H×D)
16.0kg / 35.3lbs
Operating:
Storage:
Temperature
Humidity
Temperature
Humidity
0 to 40°C / 32 to 104°F
20 - 80% (No condensation)
-20 to 60°C / 4 to 140°F
5 - 95% (No condensation)
CE, EAC, TÜV-Bauart
NOTE *
Audio equipment are not connected.
APPENDIX 39
DIMENSIONS : ProLite LE3240S
610.0mm/24.0”
726.5mm/28.6”
702.5mm/27.7”
396.5mm/15.6” 425.5mm/16.8”
8xM4 SCREW HOLE
(VESA MOUNT)
200.0mm/7.9”
100.0mm/3.9”
DIMENSIONS : ProLite LE4340S
724.0mm/28.5”
45.0mm/1.8” 60.0mm/2.4”
968.0mm/38.1”
944.5mm/37.2”
532.5mm/21.0” 559.5mm/22.0”
8xM6 SCREW HOLE
(VESA MOUNT)
400.0mm/15.7”
200.0mm/7.9”
40 APPENDIX
DIMENSIONS : ProLite LE4840S
724.0mm/28.5”
1082.0mm/42.6”
1058.0mm/41.7”
597.0mm/23.5” 623.5mm/24.5”
8xM6 SCREW HOLE
(VESA MOUNT)
400.0mm/15.7”
200.0mm/7.9”
DIMENSIONS : ProLite LE5540S
944.0mm/37.2”
46.5mm/1.8” 60.0mm/2.4”
1238.5mm/48.8”
1213.5mm/47.8”
684.0mm/26.9” 71
8xM6 SCREW HOLE
(VESA MOUNT)
400.0mm/15.7”
400.0mm/15.7”
APPENDIX 41
COMPLIANT TIMING
Timing
VESA
IBM
MAC
SD
HD
VGA 640x480
SVGA 800x600
XGA 1024x768
WXGA 1280x768
WXGA 1280x800
SXGA 1280x960
SXGA 1280x1024
WXGA1360x768
WXGA1366x768
UXGA 1600x1200
FHD 1920x1080
720x400
640x480
832x624
1152x870
NTSC(SD480i)
PAL(SD576i)
SECAM(SD576i)
480i
576i
480p
576p
720p
1080i
1080p
60Hz
50Hz
60Hz
50Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
* means supported the timing.
31.469 59.940
25.175
37.861 72.809
31.500
37.500 75.000
31.500
37.879 60.317
40.000
46.875 75.000
49.500
48.363 60.004
65.000
60.023 75.029
78.750
47.776 59.870
79.500
49.702 59.810
83.500
60.000 60.000 108.000
63.981 60.020 108.000
47.712 60.020
85.500
47.712 59.700
85.500
75.000 60.000 162.000
67.500 60.000 148.500
31.467 70.080
28.320
35.000 66.667
30.240
49.725 74.500
57.283
68.681 75.062 100.000
15.734 59.940
13.500
15.625 59.940
13.500
15.625 59.940
13.500
15.734 59.940
27.000
15.625 50.000
13.500
31.469 59.940
27.000
31.250 50.000
27.000
37.500 50.000
27.000
45.000 60.000
74.250
28.125 50.000
74.250
33.716 60.000
74.250
56.250 50.000 148.500
67.500 60.000 148.500
42 APPENDIX
M150LL21
advertisement
Key Features
- Digital signage flat panel Black
- 80 cm (31.5") 1920 x 1080 pixels LED 350 cd/m²
- 8 ms
- Ethernet LAN
- Built-in speaker(s) 20 W
Related manuals
advertisement
Table of contents
- 5 FOR YOUR SAFETY
- 5 SAFETY PRECAUTIONS
- 7 SPECIAL NOTES ON LCD MONITORS
- 9 CUSTOMER SERVICE
- 9 CLEANING
- 10 BEFORE YOU OPERATE THE DISPLAY
- 10 FEATURES
- 10 CHECKING THE CONTENTS OF THE PACKAGE
- 11 UNPACKING : ProLite LE5540S
- 12 CONTROLS AND CONNECTORS : DISPLAY
- 14 INSTALLATION
- 15 CONTROLS AND CONNECTORS : REMOTE CONTROL
- 16 PREPARING THE REMOTE CONTROL
- 17 BASIC OPERATION
- 20 CONNECTING YOUR THE DISPLAY
- 22 COMPUTER SETTING
- 23 OPERATING THE DISPLAY
- 25 ADJUSTMENT MENU CONTENTS
- 37 POWER MANAGEMENT FEATURE
- 38 TROUBLE SHOOTING
- 39 RECYCLING INFORMATION
- 40 APPENDIX
- 40 SPECIFICATIONS : ProLite LE3240S
- 41 SPECIFICATIONS : ProLite LE4340S
- 42 SPECIFICATIONS : ProLite LE4840S
- 43 SPECIFICATIONS : ProLite LE5540S
- 44 DIMENSIONS : ProLite LE3240S
- 44 DIMENSIONS : ProLite LE4340S
- 45 DIMENSIONS : ProLite LE4840S
- 45 DIMENSIONS : ProLite LE5540S
- 46 COMPLIANT TIMING
