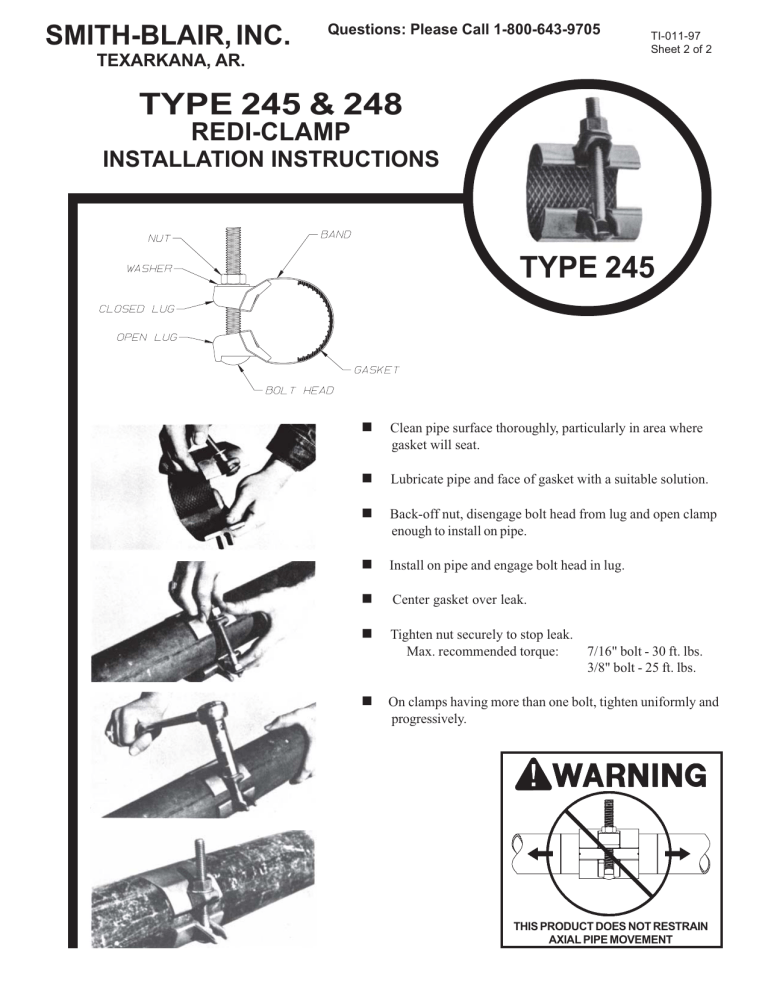

TYPE 245 & 248
REDI-CLAMP
INSTALLATION INSTRUCTIONS
TYPE 245
„ Clean pipe surface thoroughly, particularly in area where
gasket will seat.
„ Lubricate pipe and face of gasket with a suitable solution.
„ Back-off nut, disengage bolt head from lug and open clamp
enough to install on pipe.
„ Install on pipe and engage bolt head in lug.
„ Center gasket over leak.
„ Tighten nut securely to stop leak.
Max. recommended torque:
7/16" bolt - 30 ft. lbs.
3/8" bolt - 25 ft. lbs.
„ On clamps having more than one bolt, tighten uniformly and
progressively.
THIS PRODUCT DOES NOT RESTRAIN
AXIAL PIPE MOVEMENT
