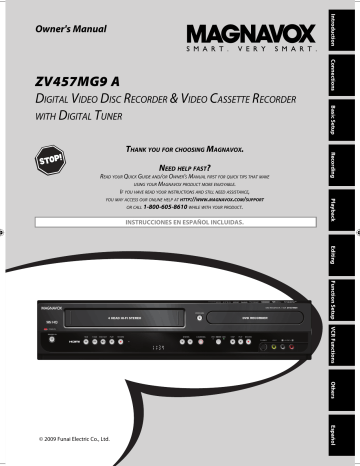

Owner's Manual
ZV457MG9 A
D
IGITAL
V
IDEO
D
ISC
R
ECORDER
& V
IDEO
C
ASSETTE
R
ECORDER
WITH
D
IGITAL
T
UNER
T
HANK YOU FOR CHOOSING
M
AGNAVOX
.
N
EED HELP FAST
?
R
EAD YOUR
Q
UICK
G
UIDE AND
/
OR
O
WNER
'
S
M
ANUAL FIRST FOR QUICK TIPS THAT MAKE
USING YOUR
M
AGNAVOX PRODUCT MORE ENJOYABLE
.
I
F YOU HAVE READ YOUR INSTRUCTIONS AND STILL NEED ASSISTANCE
,
YOU MAY ACCESS OUR ONLINE HELP AT HTTP
://
WWW
.
MAGNAVOX
.
COM
/
SUPPORT
OR CALL
1-800-605-8610
WHILE WITH YOUR PRODUCT
.
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
© 2009 Funai Electric Co., Ltd.
4.
Prepare
1 After all the connections are complete, connect the AC power cord.
2 Insert two Size AA (R6) batteries.
5.
Record(DVD)
Press [DVD] first.
1 Insert a recordable disc (refer to page
26 in the Owner's Manual on how to insert a disc).
3 Press [STANDBY-ON ] to turn on the unit.
4 Turn on your TV.
5 Press the button on the TV’s remote control that accesses the external input channel repeatedly until you see "Initial Setup" menu. (Please refer to your TV’s owner's manual.)
Initial Setup
OSD Language
English
Français
Español
Select the language for Setup display.
If the TV is connected by an HDMI cable, it may take a while for the "Initial Setup" menu to come up.
6 Use [ K / L ] to select your desired language, then press [OK].
7 Use [ K / L ] to select the type of broadcasting signal, then press [OK].
Channel Preset
Make sure the antenna is connected to “ANTENNA IN” jack.
Antenna
Cable (Analog)
Cable (Analog / Digital)
“Auto Presetting Now”
If a PBS (public broadcasting station) is available in your area, clock setting will automatically be performed and the correct clock will be displayed following the channel preset procedure.
Initial setting is then complete.
Press [RETURN] to exit.
If a PBS (public broadcasting station) is not available in your area, press [OK] . Then proceed to step 5 in "Manual Clock Setting" on page 32 in the Owner's Manual.
Align the disc to the disc tray guide.
2 Press [REC MODE] repeatedly to select a recording mode.
3 Select the appropriate external input channel by pressing [SOURCE] or
[CHANNEL / ].
Press [DTV/TV] to select analog TV or digital TV, then use [CHANNEL / ] or [the Number buttons] and [ • ] (for digital TV channels) to select a desired channel to record.
4 Press [REC] to start recording.
5 Press [STOP C ] to stop recording.
The title list will appear automatically after writing to a disc completes. e.g.) DVD+R
Please finalize the disc when the writing is completed before playing back on other DVD players.
Writing to Disc 90%
• Press [STOP C ] to exit the title list.
You will need to finalize DVD+R, DVD-RW or DVD-R to play them back on other DVD players. Refer to page 54 in the Owner's
Manual on how to finalize a disc.
i n fo
For more info, please contact 1-800-605-8610 or visit : http://www.magnavox.com/support
Manual
Please read the supplied Owner's
Manual for the detailed instructions.
1.
Quick Guide
Digital Video Disc Recorder & Video Cassette Recorder with Digital Tuner ZV457MG9 A
Antenna
Connection
2.
Select
3.
Connect
4.
Prepare
5.
Record (DVD)
1.
Antenna Connection
rear of this unit
HDMI OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO
COAXIAL
L
R
OUT
PB
/CB
IN
PR
/CR
OUT
L
R
L
IN
ANTENNA
R
OUT
RF coaxial cable
ANT. IN
IN
ANTENNA
This connection is for
TV loop through only
When you use the cable/satellite box,
please connect according to below rear of this unit
OUT
IN --- AUDIO --- OUT
L L
IN
ANTENNA
R
IN --- VIDEO --- OUT
R
RF coaxial cable
ANT.OUT
ANT. IN
RCA video cable
RCA audio cable cable/satellite box
E9S80UD
1VMN26714
★★★★★
RF coaxial cable
Your TV
VHF / UHF antenna or cable TV company
Printed in China
2.
Select
the appropriate connection
Best
Video
Audio
Progressive-compatible
HDMI cable HDMI IN
HDMI cable sends both audio and video digital signals.
(No additional audio connection is required.)
HDMI cable not included.
High Speed HDMI Cable (also known as HDMI category 2 cable) is recommended for the better compatibility.
Your TV
High
Definition
TV
Better
Progressive-compatible(480p)
COMPONENT
VIDEO IN
Y
P
B
Video
Component video cable
P
R
+
Audio
Audio cable
L
AUDIO IN
R
Cables used in this connection are as follows:
• Audio cable (L/R) x 1 (Included )
• Component video cable x 1 (Cable not included.)
Basic
Video
+
Audio
Supports only 480i resolution.
Video cable
Audio cable
VIDEO IN
AUDIO IN
R
L
Your TV
Your TV
Standard
Definition
TV
Refer to “Connecting to a TV Using the S-Video Out Jack” on page 17 in the
Owner’s Manual for the connection using an S-video cable.
Cables used in this connection are as follows:
• Audio cable (L/R) x1 (Included)
• Video cable x1(Included) i n fo
For more info, please contact 1-800-605-8610 or visit : http://www.magnavox.com/support
3.
Connect
HDMI Cable
HDMI OUT
Your TV
R
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
S-VIDEO
Y
IN --- AUDIO --- OUT
COAXIAL
L OUT
PB
/CB IN
L
R
IN --- VIDEO --- OUT
R
L IN
ANTENNA
PR
/CR
HDMI cable
HDMI IN
HDMI OUT
Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.
Component Video Cable and Audio Cable
HDMI OUT
R
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
S-VIDEO
Y
IN --- AUDIO --- OUT
COAXIAL
L OUT
PB
/CB IN
L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
PR
/CR
AUDIO
OUT
DVD / VCR
COMPONENT
VIDEO OUT
Y
L
R
P
B
/C
B
P
R
/C
R
Component video cable
Audio cable
Video Cable and Audio Cable
HDMI OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO
COAXIAL
L OUT
PB
/CB IN
OUT
IN --- AUDIO --- OUT
L L
IN
ANTENNA
R R
IN --- VIDEO --- OUT
R
PR
/CR
COMPONENT
VIDEO IN
Y
P
B
/C
B
L
P
R
/C
R
AUDIO IN
R
Your TV
Your TV
IN --- AUDIO --- OUT
L L
R
IN --- VIDEO --- OUT
R
Audio cable
VIDEO IN
L
AUDIO IN
R
Video cable
Manual
Please read the supplied Owner's Manual for the detailed instructions.
SAFETY INFORMATION
The model and serial numbers of this unit may be found on the cabinet.
You should record and retain those numbers for future reference.
Model No.:
Serial No.:
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The important note is located on the rear or bottom of the cabinet.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.
2 EN
SAFETY INFORMATION
LASER SAFETY
This apparatus employs a laser. Only a qualified service person should remove the cover or attempt to service this apparatus, due to possible eye injury.
CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION: Visible and invisible laser radiation when open and interlock defeated. Do not stare into beam.
LOCATION: Inside, near the deck mechanism.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.
To Avoid the Hazards of Electrical Shock and Fire
•
•
• Do not handle the power cord with wet hands.
Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug.
Do not put your fingers or objects into the unit.
Location and Handling
•
•
•
•
• Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration.
Avoid a place with drastic temperature changes.
Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit.
Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.
Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.
Dew Condensation Warning
• Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.
- The unit is moved from a cold place to a warm place.
- Under conditions of high humidity.
- After heating a cold room.
Note about Recycling
•
•
This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.
Notice for Progressive Scan Output
• Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p(480p) DVD player, please contact our customer service center.
EN 3
Supplied Accessories
remote control (NB884UD) with batteries (AAx2)
RF coaxial cable (WPZ0901TM005/WPZ0901TM002) owner's manual (1VMN26713) quick guide (1VMN26714)
SAFETY INFORMATION
RCA audio/video cables (WPZ0102TM018/WPZ0102LTE01)
Cleaning discs
• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.
Cleaning the disc lens
• If this unit still does not perform properly although you refer to the relevant sections and to
“TROUBLESHOOTING” in this owner's manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.
Disc handling
• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
Auto head cleaning
• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.
• Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.
1. Please visit your local Audio/Video store and purchase a good quality VHS video head cleaner.
2. If a video head cleaner does not solve the problem, please consult your dealer or an Authorized Service Center.
Note
• Remember to read the instructions along with the video head cleaner before use.
• Clean video heads only when problems occur.
Maintenance
Servicing
• Please refer to relevant topics on “TROUBLESHOOTING” on pages 97-100 before returning the product.
• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug and please call our help line mentioned on the front page to locate an Authorized Service
Center.
Cleaning the cabinet
• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.
IR signal check
If the remote control does not work properly, you can test if the remote control sends out the infrared signal with AM radio or a digital camera (including built-in camera of cellular phone). It will help to define the cause of malfunction.
• With an AM radio:
Tune an AM radio to a station with no broadcasting. Press a button on remote control toward the radio. Sound will be fluttering when you press any key and the radio receives the signal. This means the remote control is working.
• With a digital camera (including built-in camera of cellular phone):
Direct a digital camera to remote control, press and hold a button on remote control. If infrared light appears through digital camera, the remote control is working.
4 EN
Trademark Information
SAFETY INFORMATION is trademark of Eastman Kodak Company.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Dolby Digital Recording
“Dolby® Digital Recording enables consumers to record high-quality video with stereo sound on recordable
DVD discs. The technology, when utilized instead of
PCM recording, also saves recordable disc space, allowing for higher video resolution or extended recording time on each DVD. DVDs created using Dolby Digital
Recording will play back on all DVD-video players.”
Note: This is true when the players are compatible with actual recordable DVD discs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
© 2009 Funai Electric Co., Ltd.
All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.
with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.
EN 5
CONTENTS
Introduction
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Symbols Used in this Owner’s Manual . . . . . . . . . . . . . . .9
FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . 10
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connections
CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Antenna Connection (Required) . . . . . . . . . . . . . . . . . . . 15
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting to a TV with an HDMI™
Compatible Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting to a TV Using
Component Video Out Jacks . . . . . . . . . . . . . . . . . . . . . . 17
Connecting to a TV Using the S-Video Out Jack . . . . 17
Connecting to a TV Using Audio / Video Jacks. . . . . . 18
Connecting to a Cable / Satellite Box . . . . . . . . . . . . . . 19
Connecting to a TV without Audio / Video Jacks . . . 20
Digital Audio Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 21
Basic Setup
BEFORE YOU START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Finding the Viewing Channel on Your TV . . . . . . . . . . 22
Guide to On-Screen Display / Menu. . . . . . . . . . . . . . . . 23
Main Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Switching DVD / VCR Mode. . . . . . . . . . . . . . . . . . . . . . . . 26
How to Insert a Disc / Cassette Tape . . . . . . . . . . . . . . . 26
INITIAL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CHANNEL SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adding / Deleting Channels . . . . . . . . . . . . . . . . . . . . . . . 29
SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Auto Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Manual Clock Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Daylight Saving Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TUNER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Switching Analog Mode / Digital Mode . . . . . . . . . . . . 33
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Selecting TV Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DTV Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Closed Caption Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Recording
INFORMATION ON DVD RECORDING . . . . . . . . . . . . . 39
BEFORE RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Make Recording Compatible . . . . . . . . . . . . . . . . . . . . . . 40
Setting for Auto Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Recording the DTV Closed Caption . . . . . . . . . . . . . . . . 40
BASIC RECORDING &
ONE-TOUCH TIMER RECORDING . . . . . . . . . . . . . . . . . 41
TIMER RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Hints for Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . 46
OVERWRITING UNNECESSARY TITLE . . . . . . . . . . . . . 47
Overwriting from the Beginning of the Title. . . . . . . . 47
Overwriting in the Middle of the Title . . . . . . . . . . . . . . 47
Hints for Overwriting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
SETTINGS FOR AN EXTERNAL DEVICE . . . . . . . . . . . . 49
Connection to an External Device. . . . . . . . . . . . . . . . . . 49
Recording from an External Device . . . . . . . . . . . . . . . . 50
BI-DIRECTIONAL DUBBING . . . . . . . . . . . . . . . . . . . . . . 51
SETTING A DISC TO PROTECT . . . . . . . . . . . . . . . . . . . . 53
PLAYING THE DISCS ON OTHER DVD PLAYERS . . . . 54
Finalizing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Auto Finalizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6 EN
CONTENTS
Playback
INFORMATION ON PLAYBACK . . . . . . . . . . . . . . . . . . . 56
BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Direct Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Playback from the Title List . . . . . . . . . . . . . . . . . . . . . . . . 59
Playing Back an Audio CD and a CD-RW / -R with MP3 / JPEG Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Using the Title / Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . 61
Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
SPECIAL PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Fast Forward / Fast Reverse Playback . . . . . . . . . . . . . . 62
Skipping TV Commercials During Playback. . . . . . . . . 62
Rapid Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Step by Step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Slow Forward / Slow Reverse Playback. . . . . . . . . . . . . 63
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Marker Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Slide Show . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Program Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
SELECTING THE FORMAT OF AUDIO AND VIDEO . . 68
Switching Subtitles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Switching Audio Soundtrack . . . . . . . . . . . . . . . . . . . . . . 68
Switching Virtual Surround System . . . . . . . . . . . . . . . . 69
Switching Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . 69
Reducing Block Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Editing
INFORMATION ON DISC EDITING. . . . . . . . . . . . . . . . . 70
Guide to a Title List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Editing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
EDITING DISCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Deleting a Title. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Putting Names on Titles . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Setting Chapter Marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Clearing Chapter Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Hiding Chapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Setting Pictures for Thumbnails. . . . . . . . . . . . . . . . . . . . 77
Dividing a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Putting Name on Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Erasing Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Making Edits Compatible . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Function Setup
LIST OF SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
SETUPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Reset All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
VCR Functions
VCR FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Information on VCR Functions . . . . . . . . . . . . . . . . . . . . . 94
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
One-touch Timer Recording (OTR) . . . . . . . . . . . . . . . . . 95
Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Others
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
LANGUAGE CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Español
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . Back cover
EN 7
FEATURES
This unit not only plays back DVD, CD and VCR but also offers features for you to record on DVD and edit them after that. The following features are offered with this unit.
Recording
This unit is compatible with DVD+RW/DVD-RW, which are rewritable repeatedly and DVD+R/DVD-R, which are available for recording once. Even if you choose DVD-
RW/DVD-R, these discs will automatically be recorded in the DVD+VR mode. Also, this unit allows you to record to the cassette tape. You can choose either one for your convenience.
DVD VCR
Up to 12 program recording:
You can program the unit to record up to 12 programs within a one-month period. Daily or weekly program recordings are also available.
One-touch timer recording (OTR):
You can easily set a recording time as you prefer. Every time [REC] is pressed during recording, the recording time will be increased by 30 minutes up to 6 hours for
DVD, and 8 hours for VCR. The recording automatically stops when the recording time you set is reached or the disc is full.
Dubbing mode:
You can copy a DVD to a cassette tape or copy a cassette tape to a DVD. This function will be possible only if the
DVD or a cassette tape is not copy protected.
You cannot record on a cassette tape when its erase-protection tab is removed.
Left channel stereo recording:
This unit can record the sound of the left channel monaural input as left and right channels automatically.
DVD
Automatic chapter mark setting:
Chapter marks will be put on recordings as you set before attempting to record.
Automatic title list making:
The unit makes a title list with the index automatically.
VCR
Quick search for what you want to watch:
You can easily find the part you want to watch using the index search/time search functions. An index mark will be assigned at the beginning of each recording you make.
For time search function, you can go to a specific point on a cassette tape by entering the exact amount of time you wish to skip.
Editing
DVD
Deleting titles:
You can delete titles which you do not need anymore.
Putting names on titles:
You can put your favorite names on titles.
Setting / clearing chapter marks:
You can set / clear chapter marks on titles.
Hiding chapters:
To keep others from playing back some chapters without permission, you can hide chapters.
Setting pictures for thumbnails:
You can change pictures for thumbnails.
Dividing titles (DVD+RW/DVD-RW only):
You can divide a title into 2 or more.
Putting name on disc:
You can put your favorite disc name.
Compatibility
DVD
Available for playing back discs on a regular DVD player:
Recorded discs can be played back on regular DVD players, including computer DVD drives compatible with DVD-video playback. Although DVD+R are playable on other units without finalization in most cases, it is recommended to finalize in order to stabilize the performance. For DVD-RW/-R, you need to finalize the recorded discs to play back on other DVD players.
Playback
DVD
Theater surround sound in your home:
When connecting the unit to an amplifier or a decoder which is compatible with Dolby Digital, you can experience the theater surround sound from discs with surround sound system.
Quick search for what you want to watch:
You can easily find the part you want to watch using the search function. Search for a desired point on a disc by title, chapter or time.
Virtual surround system:
You can enjoy stereophonic space through your existing
2 channel stereo system.
Playing back MP3 / JPEG / Kodak Picture CD files:
You can enjoy MP3 / JPEG / Kodak Picture CD files which are recorded on CD-RW/-R.
Others
DVD VCR
Progressive scan system
Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional television signals.
HDMI (High-Definition Multimedia Interface)
You can enjoy clearer audio/video output when connecting this unit to a display device with an HDMI-compatible port.
8 EN
FEATURES
Symbols Used in this Owner’s Manual
To specify for what disc type each function is, we put the following symbols at the beginning of each item to operate.
* DVD-RW/-R recorded in VR mode or non compatible recording format are not playable.
* DVD-RW recorded in the mode other than +VR is not recordable on this unit unless you erase all contents in the disc (refer to page 80).
* DVD-R recorded in the mode other than +VR is not recordable on this unit.
Symbol Description
For Recording, Playing Back, and Editing
Description refers to DVD+RW
Description refers to DVD+R
Description refers to DVD-RW
Description refers to DVD-R
For Recording and Playing Back
Description refers to VHS tapes
Use only cassettes marked VHS ( )
For Playback only
Description refers to DVD-video
Description refers to audio CD
Description refers to video CD with PBC function
Description refers to video CD without PBC function
Description refers to CD-RW/-R with MP3 files
Description refers to CD-RW/-R with JPEG files
(Kodak Picture CD files included)
If you do not find any of the symbols listed above under the function heading, the operation is applicable to all media.
EN 9
Front Panel
FUNCTIONAL OVERVIEW
1 2* 3
ZV457MG9
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8* 7 6 5 4
(
*
) The unit can also be turned on by pressing these buttons or inserting a cassette tape.
1. Cassette compartment (VCR)
Insert a cassette tape here.
2. OPEN/CLOSE button (DVD)*
Press to open or close the disc tray.
3. Disc tray (DVD)
Place a disc when it is open.
4. AUDIO input jacks (L2) (DVD/VCR)
Use to connect external device with an RCA audio cable.
5. VIDEO input jack (L2) (DVD/VCR)
Use to connect external device with an RCA video cable.
6. S-VIDEO input jack (L2) (DVD/VCR)
Use to connect the S-video output of external device with an S-video cable.
7. RECORD button (DVD)
• Press once to start a recording.
• Press repeatedly to start the one-touch timer recording.
8. PLAY button (DVD)*
Press to start or resume playback.
9. STOP button (DVD)
Press to stop playback or recording.
Press to stop the proceeding timer recording in DVD.
10. DVD indicator
Lights up when the DVD output mode is selected.
11. SOURCE button (DVD/VCR)
Press to select the component you wish to operate.
12. VCR indicator
Lights up when the VCR output mode is selected.
13. D.DUBBING button (DVD/VCR)
Press to start VCR to DVD (DVD to VCR) duplication which you set in the main menu.
14. CHANNEL L / K buttons (DVD/VCR)
Press to change the channel up and down.
15. Display (DVD/VCR)
Refer to “Front Panel Display” on page 14.
16. Infrared sensor window (DVD/VCR)
Receive signals from your remote control so that you can control the unit from a distance.
17. I RECORD button (VCR)
Press once to start a recording. Press repeatedly to start the one-touch timer recording.
18. B PLAY button (VCR)
Press to start playback.
19. C A STOP/EJECT button (VCR)
20.
• compartment.
Press to stop the proceeding timer recording in VCR.
D F.FWD button (VCR)
Press to rapidly advance the cassette tape, or view the picture rapidly in forward during playback (forward search).
21. E REW button (VCR)
Press to rewind the cassette tape, or to view the picture rapidly in reverse during playback (rewind search).
22. y STANDBY-ON button (DVD/VCR)
Press to turn on the unit, or to turn the unit to the standby mode. (To completely shut down the unit, you must unplug the AC power cord.)
23. POWER-ON indicator (DVD/VCR)
Red LED lights up when power is on.
10 EN
Rear Panel
1
HDMI OUT
2
FUNCTIONAL OVERVIEW
3
DIGITAL
AUDIO OUT
AUDIO
OUT
COAXIAL
L
R
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO IN --- AUDIO --- OUT
OUT
P
/C
B
B
IN
L
R
IN --- VIDEO --- OUT
R
L
ANTENNA
IN
P
R
/C
R
12 5 11 10 9 8 7 6 5 4
1. AC Power Cord
• Connect to a standard AC outlet to supply power to this unit.
• Unplug this cord from the AC outlet to completely shut down the unit.
2. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
3. ANTENNA OUT jack
Use to connect an RF coaxial cable to pass the signal from the ANTENNA IN to your TV monitor.
4. ANTENNA IN jack
Use to connect an antenna.
5. AUDIO OUT jacks
Use to connect a TV monitor, AV receiver or other device with an RCA audio cable.
6. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other device with an RCA video cable.
7. VIDEO IN jack (L1)
Use to connect external device with an RCA video cable.
8. AUDIO IN jacks (L1)
Use to connect external device with an RCA audio cable.
9. S-VIDEO IN jack (L1)
Use to connect the S-video output of external device with an S-video cable.
10. COMPONENT VIDEO OUT jacks
Use to connect a TV monitor with component video inputs with a component video cable.
11. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV receiver or other device with an S-video cable.
12. COAXIAL DIGITAL AUDIO OUT jack
Use to connect an AV receiver, Dolby Digital decoder or other device with a digital audio coaxial input jack with a digital audio coaxial cable.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
• This unit does not have the RF modulator.
Caution on using S-video, component, or HDMI connection for VCR:
• Only the playback video/audio are available with these connections.
EN 11
2 Insert batteries.
FUNCTIONAL OVERVIEW
Remote Control
Installing the Batteries in the Remote Control
Install the batteries (AAx2) matching the polarity indicated inside battery compartment of the remote control.
1 Open the cover.
Using a Remote Control
Keep in mind the following when using the remote control:
• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.
• Remote control for different devices can interfere with each other. Avoid using remote control for other device located close to the unit.
• Replace the batteries when you notice a fall off in the operating range of the remote control.
• The maximum operable ranges from the unit are as follows.
- Line of sight : approx. 23 feet (7m)
- Either side of the center:
approx. 16 feet (5m) within 30°
- Above: approx. 16 feet (5m) within 15°
- Below: approx. 10 feet (3m) within 30°
Make sure to match + and - on the batteries to the marks indicated in the battery compartment.
16 feet (5m)
30˚
3 Close the cover.
1
2
3
23 feet (7m) 16 feet (5m)
30˚
Note
Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:
• Do not mix new and old batteries together.
• Do not use different kinds of batteries together.
Although they may look similar, different batteries may have different voltages.
• Make sure that the + and - ends of each battery match the indications in the battery compartment.
• Remove batteries from battery compartment that is not going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.
• Do not recharge, short-circuit, heat, burn or disassemble batteries.
12 EN
9
8
10
12
11
1413
15
4
5
6
7
16
17
18
19
21
20
22
23
24
26
25
27
29
28
31
30
32
33
34
FUNCTIONAL OVERVIEW
1. DTV/TV button (DVD/VCR)
• Press to switch between digital TV (DTV) mode and analog TV (TV) mode.
2. STANDBY-ON y button (DVD/VCR)
• Press to turn on the unit, or to turn the unit to the standby mode. (To completely shut down the unit, you must unplug the AC power cord.)
3. Number/Character buttons (DVD/VCR)
• Press to select channel numbers.
• Press to select a title/chapter/track/file on display.
• Press to enter values for the settings in the main menu.
• Press to enter title names.
• Press to start the index/time search in VCR mode.
4. Confirm ( • ) button (DVD/VCR)
Analog
• Press to confirm the channel selection made by
[the Number buttons] .
• Press to confirm the major / minor channel selection made by [the Number buttons] .
5. DISPLAY button (DVD/VCR)
• Press to display the display menu on or off.
6. DISC MENU button (DVD)
• Press to display the disc menu.
7. OK button (DVD/VCR)
• Press to confirm or select menu items.
8. SETUP button (DVD/VCR)
• Press to display the main menu.
• During DVD playback, press and hold for more than
3 seconds to switch the progressive scanning mode to the interlace mode.
9. VCR button
• Press to select the VCR output mode.
10. PREV H button (DVD)
• During playback, press to return to the beginning of the current chapter, track or file.
• When playback is in pause, press repeatedly to reverse the playback step by step.
11. REW E button (DVD/VCR)
• During playback, press to fast reverse playback.
• When playback is paused, press to slow reverse playback.
VCR
• During playback, press to rewind the cassette tape or to view the picture rapidly in reverse.
12. CM SKIP button (DVD)
• During playback, press to skip 30 seconds.
13. PAUSE F button (DVD/VCR)
• Press to pause playback or recording.
14. D.DUBBING button (DVD/VCR)
• Press to start VCR to DVD (DVD to VCR) duplication which you set in the main menu.
15. REC MODE button (DVD/VCR)
• Press repeatedly to switch the recording mode.
16. SOURCE button (DVD/VCR)
• Press to select the appropriate input.
17. OPEN/CLOSE A button (DVD/VCR)
DVD
• Press to open or close the disc tray.
VCR
• Press to remove the cassette tape from the cassette compartment.
18. CHANNEL / buttons (DVD/VCR)
DVD mode:
• Press to change the channel up and down.
19. HDMI button (DVD)
• Press to set the HDMI connector’s video signal output mode.
20. CLEAR button (DVD/VCR)
DVD
• Press to clear the password once entered or to cancel the programming for CD or to clear the selected marker number, etc.
• Press to reset the tape counter.
21. AUDIO button (DVD/VCR)
DTV
• Press to switch the audio language for digital TV.
• Press to display the audio menu during playback.
• During playback of a Hi-Fi videotape, press to change the audio out setting.
22. TIMER button (DVD/VCR)
• Press to display the timer programming list.
23. TITLE button (DVD)
• Press to display the title list.
24. Cursor K / L / { / B buttons (DVD/VCR)
• Press to select items or settings.
25. RETURN button (DVD/VCR)
• Press to return to the previously displayed menu screen.
26. DVD button
• Press to select the DVD output mode.
27. PLAY B button (DVD/VCR)
• Press to start playback or resume playback.
28.
NEXT G button (DVD)
• During playback, press to skip to the next chapter, track or file.
• When playback is in pause, press repeatedly to forward the playback step by step.
29. STOP C button (DVD/VCR)
• Press to stop playback or recording.
• Press to exit from the title list.
30. FFW D button (DVD/VCR)
DVD
• During playback, press to fast forward playback.
• When playback is paused, press to slow forward playback.
• During playback, press to rapidly advance the cassette tape or view the picture rapidly in forward.
• When playback is paused, press to view the cassette tape in slow motion.
31. RAPID PLAY button (DVD)
• During playback, press to play back in a slightly faster/slower mode with keeping the audio quality.
32. SEARCH button (VCR)
Press to call up the index or time search menu.
33. TIMER SET button (DVD/VCR)
• Press to set the unit in the timer standby mode. In the timer standby mode, press to cancel the mode and to turn the unit on.
34. REC button (DVD/VCR)
• Press once to start a recording.
• Press repeatedly to start the one-touch timer recording.
• Press to change the channel up and down.
• Press to adjust the tracking during playback or in slow motion of the cassette tape.
• While playback is in still mode, you can adjust the picture blurred vertically.
Note
• If you turn this unit to the standby mode, [OPEN/CLOSE
A ] on the remote control is not available.
Be sure to use [ A OPEN/CLOSE] or [ C A STOP/EJECT] on the unit.
EN 13
FUNCTIONAL OVERVIEW
Front Panel Display
2 3
1
PM
DTV
BS CS DR
DB
CD
VCR
HDD
DVD
4
1.
PM : Appears in the afternoon with the clock display.
2.
DTV : Appears when the channel is in DTV mode.
3. Title / track / file and chapter mark
: Appears when indicating a title / track / file number.
: Appears when indicating a chapter number.
4. Current status of the unit
: Appears when playback is in pause, or in step by step playback.
: Appears when playing back a disc, or a cassette tape.
: Appears during slow forward
/ reverse playback.
5
: Appears when the timer programming or OTR has been set or is proceeding.
: Flashes when all timer recordings have been finished.
: Appears during recording process.
: Flashes when a recording is in pause.
: Appears when this unit is in
DVD output mode and a disc is in the unit.
: Appears during duplication process.
: Appears when this unit is in
VCR output mode and a cassette tape is in the unit.
: Appears during duplication process.
VCR : Appears when this unit is in
VCR output mode.
: Appears when the timer recording is proceeding in VCR.
: Appears when VCR is in the timer recording standby mode.
: Flashes when a program cannot be performed for some reasons.
DVD : Appears when this unit is in
DVD output mode.
: Appears when the timer recording is proceeding in
DVD.
: Appears when DVD is in the timer recording standby mode.
: Flashes when a program cannot be performed for some reasons.
DB : Appears during VCR to DVD duplication process.
: Appears during DVD to VCR duplication process.
5. Displays the following
• Elapsed playback time
• Current title / chapter / track / file number
• Recording time / remaining time
• Clock
• Selected channel number
• Remaining time for one-touch timer recording
• Selected HDMI output mode
• VCR tape counter
Display Message
DVD
Appears when the disc tray is opening.
DVD
Appears when the disc tray is closing.
DVD
Appears when a disc is loaded on the disc tray.
DVD
Appears when data is being recorded on a disc.
DVD
Appears when the PBC function is activated. (Video CD playback only. Refer to page 57.)
DVD
Appears when HDMI output mode (480p) is selected.
DVD
Appears when HDMI output mode (720p) is selected.
DVD
Appears when HDMI output mode (1080i) is selected.
DVD
Appears when HDMI output mode (1080p) is selected.
14 EN
CONNECTION
Read this first:
1) Disconnect the AC power cords of the devices from the AC outlet.
2) Make the connection as illustrated below.
3) After making all the connections, connect the AC power cords of the devices.
• Connect this unit directly to the TV. If the RCA audio/video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
Antenna Connection (Required)
rear of this unit
HDMI OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
COAXIAL
L
R
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO IN --- AUDIO --- OUT
OUT
P
/C
B
B
IN
L
R
IN --- VIDEO --- OUT
R
L
ANTENNA
IN
P R
/C R
RF coaxial cable
ANT. IN
This connection is for
TV loop through only
OUT
VHF / UHF antenna
ANTENNA
IN
RF coaxial cable or cable TV company
Choose one of the following connections depending on the jacks on your TV.
Note
• For your safety and to avoid damage to the device, please unplug the RF coaxial cable from the ANTENNA IN jack before moving the unit.
• If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than set-top versions.
• ANTENNA OUT jack is for tuner pass through only. DVD playback through the RF is not possible.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
Please purchase the rest of the necessary cables at your local store.
Overview
Higher
Quality
Standard
Quality
If Your TV has
HDMI IN
COMPONENT VIDEO IN
S-VIDEO IN
R L
AUDIO IN VIDEO IN
Refer to page
16 page
17 page
17 page
18
If you are using cable / satellite box
If your device has only an ANT. IN jack
ANT. IN page
19 page
20
EN 15
CONNECTION
Connecting to a TV with an HDMI™ Compatible Port
• HDMI outputs the video / audio signals without converting to analog signals.
• No audio connection is required.
HDMI cable
HDMI IN
HDMI OUT
HDMI OUT rear of this unit
DIGITAL
AUDIO OUT
COAXIAL
L
OUT IN
R
IN --- VIDEO --- OUT
R
OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO IN --- AUDIO --- OUT
L L
IN
ANTENNA
P
/C
B
B
R
P
/C
R
R
ANT. IN
This connection is for
TV loop through only
Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.
RF coaxial cable
OUT
ANTENNA
IN
RF coaxial cable or
VHF / UHF antenna cable TV company
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
Please purchase the rest of the necessary cables at your local store.
HDMI Mode and Actual Output Signals
Press [HDMI] to select the HDMI output mode. The output mode changes as follows every time [HDMI] is pressed.
Front Panel Display Video Output Signal
480 Progressive
Press [HDMI]
720 Progressive
Press [HDMI]
1080 interlaced
Press [HDMI]
1080 Progressive
Press [HDMI]
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display device (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your display device (or AV amplifier) for more information.
*HDMI: High Definition Multimedia Interface
• The HDMI mode that is not supported by display device will be skipped.
Note
• Some devices with an HDMI input may not operate properly with this unit.
• When using an HDCP-incompatible display device, the image will not be viewed properly.
• Among the devices that support HDMI, some devices can control other devices via the HDMI connector; this unit cannot be controlled by another device via the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency, the number of channels and bit length) may be limited by the device that is connected.
• Among the monitors that support HDMI, some do not support audio output (for example, projectors). In connections with device such as this unit, audio signals are not output from the HDMI output connector.
• When this unit’s HDMI connector is connected to a DVI-D compatible monitor (HDCP compatible) with an HDMI-DVI converter cable, the signals are output in digital RGB.
• When the power failure occurs, or when you unplug the unit, some problems in the HDMI setting might occur. Please check and set the HDMI setting again.
• HDMI video resolution cannot be changed when the unit is in VCR mode.
16 EN
CONNECTION
Connecting to a TV Using Component Video Out Jacks
AUDIO
OUT
L
R
RCA audio cable
RCA component video cable
DVD / VCR
(Green)
Y
(Blue)
(Red)
P
B
/C
B
P
R
/C
R
AUDIO IN
L
(Green)
R
COMPONENT
VIDEO IN
Y
(Blue)
(Red)
P
B
/C
B
P
R
/C
R rear of this unit
HDMI OUT
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
Y
S-VIDEO IN --- AUDIO --- OUT
COAXIAL
L
OUT /C
B
B
IN
L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
R R
R
RF coaxial cable
ANT. IN
This connection is for
TV loop through only
OUT
ANTENNA
IN
RF coaxial cable
VHF / UHF antenna or cable TV company
Connecting to a TV Using the S-Video Out Jack
RCA audio cable
AUDIO
OUT
S-VIDEO
L OUT
R S-video cable
AUDIO IN
L
R
S-VIDEO IN rear of this unit
HDMI OUT
DIGITAL
AUDIO OUT
COAXIAL
R
OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
Y
S-VIDEO IN --- AUDIO --- OUT
L
OUT
P B
/C
B
IN
L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
P R
/C
R
RF coaxial cable
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
ANT. IN
This connection is for
TV loop through only
OUT
ANTENNA
IN
RF coaxial cable
VHF / UHF antenna or cable TV company
EN 17
CONNECTION
Connecting to a TV Using Audio / Video Jacks
IN --- AUDIO --- OUT
L
R
IN --- VIDEO --- OUT
RCA audio cable
RCA video cable
AUDIO IN
L
R
VIDEO IN rear of this unit
HDMI OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
COAXIAL
L
R
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO IN --- AUDIO --- OUT
OUT
B
B
IN
L
R
IN --- VIDEO --- OUT
L
ANTENNA
IN
R
/C
R
RF coaxial cable
ANT. IN
This connection is for
TV loop through only
OUT
ANTENNA
IN
RF coaxial cable
VHF / UHF antenna or cable TV company
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
18 EN
CONNECTION
Connecting to a Cable / Satellite Box
RCA video cable
RCA audio cable rear of this unit
HDMI OUT
IN --- AUDIO --- OUT
L
R
IN --- VIDEO --- OUT
RCA audio cable
RCA video cable
AUDIO IN
L
R
VIDEO IN
R L
AUDIO OUT VIDEO OUT cable/satellite box
COAXIAL
L OUT
P
/C
B
B
IN
OUT
S-VIDEO
DVD/VCR
S-VIDEO IN --- AUDIO --- OUT
Y L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
R
P
/C
R
R
RF coaxial cable
ANT. IN
This connection is for
TV loop through only
OUT
RF coaxial cable
ANT.OUT
ANT. IN
RF coaxial cable
ANTENNA
IN satellite dish or cable TV company
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• Required cables and connecting methods differ depending on the cable/satellite box.
For more information, please contact your cable/satellite provider.
• Instead of using VIDEO OUT jack of this unit, you can also use S-VIDEO OUT jack, COMPONENT VIDEO OUT jack or
HDMI OUT jack for connecting to your TV.
With this setup:
• You can record any unscrambled channel by selecting the channel on the cable/satellite box. Be sure that the cable/satellite box is turned on.
• You cannot record one channel while watching another channel.
EN 19
CONNECTION
Connecting to a TV without Audio / Video Jacks
Set channel 3 or 4
ANT. IN rear of this unit
HDMI OUT
RF coaxial cable
R
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
S-VIDEO
Y
IN --- AUDIO --- OUT
COAXIAL
L
OUT
P B
/C
B
IN
L
R
IN --- VIDEO --- OUT
L
IN
ANTENNA
R
P R
/C
R
IN --- AUDIO --- OUT
L
R
IN --- VIDEO --- OUT
OUT
ANTENNA
IN
RF coaxial cable
RCA audio cable
RCA video cable
RF coaxial cable
TO TV
RF modulator
R L
AUDIO IN VIDEO IN
3 4
CHANNEL ANT. IN
Set channel 3 or 4
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
VHF / UHF antenna or cable TV company
20 EN
CONNECTION
Digital Audio Connection
Coaxial Cable Connection
Dolby Digital decoder
DIGITAL
AUDIO OUT
COAXIAL digital audio coaxial cable digital audio coaxial input jack
HDMI Audio Connection
AV receiver / amplifier with an HDMI input jack
HDMI IN
HDMI cable
HDMI OUT
COAXIAL
To set up “HDMI Audio” refer to pages 84 and 92.
To set up “Dolby Digital” refer to pages 82 and 87.
Audio format (disc)
Dolby Digital
LPCM
Dolby Digital Setting of this unit
PCM
Stream
PCM
Stream
HDMI OUT
HDMI OUT
HDMI
2channel PCM
Dolby Digital
2channel PCM rear of this unit
COAXIAL
L
R
OUT
P
/C
B
B
OUT
S-VIDEO
DVD/VCR
S-VIDEO IN --- AUDIO --- OUT
Y
IN
L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
P
/C
R
R rear of this unit
COAXIAL
L
R
OUT
P
B
IN
OUT
S-VIDEO
DVD/VCR
S-VIDEO IN --- AUDIO --- OUT
Y L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
P
R
Digital Output
2channel PCM
Dolby Digital
Actual Output
Cables not included.
Please purchase the necessary cables at your local store.
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel surround sound as movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
2 Channel Analog Audio Connection
stereo system
R L
AUDIO IN analog audio input jacks rear of this unit
HDMI OUT
RCA audio cable
AUDIO
OUT or
AUDIO OUT
L
R
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
COMPONENT S-VIDEO
Y
COAXIAL
L OUT
P
B
/C
IN
IN --- AUDIO --- OUT
L
R
IN --- VIDEO --- OUT
R
L
ANTENNA
IN
R
P
R
IN --- AUDIO --- OUT
L
R
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
EN 21
BEFORE YOU START
After you have completed all the connections, you must find the viewing channel (external input channel) on your TV.
Finding the Viewing Channel on Your TV
1 After you have made all the necessary connections, press
[STANDBY-ON y ] to turn on the unit.
2 Turn on your TV.
• If connected to your VCR make sure it is switched off or in standby mode before proceeding.
3 Press “2” on the TV’s remote control, then press channel down button repeatedly until you see “Initial
Setup” menu.
Initial Setup
OSD Language
English
Français
Español
Select the language for Setup display.
This is the correct viewing channel (external input channel) for the recorder.
• For some TVs, there may be a button on the
TV’s remote control that accesses the external input channel. It may be labeled “SOURCE” ,
“AV” , or “SELECT” . In such case, press it repeatedly. Refer to your TV’s user manual for details.
• If more than 10 minutes have passed since you have turned on the unit, you may see the
MAGNAVOX screen saver instead of “Initial
Setup” menu.
MAGNAVOX screen saver:
Input Mode Names for Common TV Brands (Example)
Admiral AUX
Curtis
Mathis
GE
LINE1, LINE2,
00, 90, 91, 92, 93
INPUT, TV/VCR,
00, 90, 91, 92, 93
Hitachi INPUT, AUX
JVC VIDEO, VIDEO 1,
VIDEO 2, VIDEO 3
Kenwood AUX
Panasonic TV/VIDEO
RCA
Samsung
Sanyo
Sharp
INPUT, TV/VCR,
00, 90, 91, 92, 93
TV/VIDEO
VIDEO
00
Sony VIDEO1, VIDEO2,
VIDEO3
LXI-Series 00 Toshiba TV/GAME
Magnavox AUX CHANNEL Zenith 00
Note
• Video input selection varies for different brand’s models of TVs.
• Consult your TV manufacturer if none of the above is successful.
4 Proceed to step 2 in “INITIAL
SETTING” on page 27.
22 EN
BEFORE YOU START
This unit uses the following on-screen displays and menus to guide you to the easy operations.
The on-screen displays give you the information on the loaded disc or the disc/file in playback, or the HDMI status, etc.
The menus allow you to change the various kinds of settings for playing back, recording, or editing to suit your preference.
Guide to On-Screen Display / Menu
The on-screen display changes in the following order as you press [DISPLAY].
OFF
DTV Program Guide (only in DTV mode)
Disc Information/Menu (only in DVD mode) or
VCR Information (only in VCR mode)
DVD mode
Disc Information / Menu
6
1/ 5 1/ 5 0:01:00 / 1:23:45
-RW
CH 10
1 2
Title Name Information (only in DVD mode)
(only when DVD+RW/DVD+R/DVD-RW/DVD-R is in playback) or
File Name Information (only in CD mode)
(only when a CD with MP3 / JPEG / Kodak picture CD files is in playback)
HDMI Information
(only for the images output through the HDMI output)
3
4
1
2
MP3 Tag Information
(only when an MP3 file is in playback)
DTV Program Guide
PROGRAM TITLE NAME
INFORMATION-1
INFORMATION-2
INFORMATION-3
INFORMATION-4
INFORMATION-5
INFORMATION-6
69.1
WLIW-DT
5
6
7
8
SP(2Hr) 1h53m
4 3
* This is an example screen only for explanation.
Displayed items vary depending on the disc you inserted.
1.
Indicates a disc type.
2.
Indicates a channel number or selected external input channel.
3.
Indicates a recording mode and possible recording time left.
4.
Indicates an operation status.
5. Each icon means:
: Search
: Audio
: Subtitle
: Angle
: Repeat
: Marker
: Noise Reduction
: Zoom
: Surround
6.
Indicates the current title number/total number of titles, the current chapter number/total number of chapters, and time lapse of the current title playback/ total duration of the title.
1.
Program title (max. 2 lines displayed)
2.
Closed Caption (Indicates that the program being broadcast is available with closed captioning.)
3.
Signal strength (Indicates the signal strength of the current channel.)
4.
Program guide (max. 6 lines displayed)
5.
Channel number
6.
Broadcast station
7.
Audio language (“Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.)
8.
Program rating
Note
• When the program guide is displayed in more than 7 lines, use [ K / L ] to scroll.
• “No description provided.” is displayed when the program guide is not provided.
EN 23
VCR mode 1
SP
VCR Information
BEFORE YOU START
MP3 Tag Information
• First, track name will be displayed.
Track Name
12:00AM
CH 21
Stereo
2
3
• If you press [DISPLAY] one more time, artist name will be displayed.
Artist Name
0:00:00 HIFI
4 5 6
* This is an example screen only for explanation.
Displayed items vary depending on the cassette tape you inserted.
* During stop mode or pause, VCR information is not available with HDMI connection.
• If you press [DISPLAY] one more time, album name will be displayed.
Album Name
• If there is no artist, track or album name, “Not Available” will be displayed.
1.
Indicates current video status.
2.
Indicates the current time.
3.
Indicates a current channel number (or selected external input channel) and an audio status of the program.
4.
Indicates a recording or playing back mode.
5.
Indicates a tape counter.
6.
Audio status of the current cassette tape.
HDMI Information
1 2
Video Info. : 480p
Audio Info. : Bitstream
/ YCbCr
Title/File Name Information
Title Name Information
Title Name
My Title
File Name Information
File Name
My File
4
*1.
Indicates the resolution of the HDMI output image.
*2.
Indicates the HDMI video format.
*3.
Indicates the HDMI audio format.
4.
Indicates current disc status.
* “- - -” will be displayed, when it does not have any information.
24 EN
BEFORE YOU START
Main Menu
Press [SETUP] to display the main menu. Then use
[ K / L ] to select a menu and press [OK] to display the menu. These menus provide entries to all main functions of the unit.
Setup
General Setting
Timer Programming
Title List
Disc Edit
DISC Playback Mode
8
General Setting
Playback
Display
Video
Recording
Clock
Channel
HDMI
Reset All
Parental Lock
Disc Audio
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
1. General Setting:
To go to general setting menu.
2. Timer Programming:
To program a timer recording.
3. Title List:
To call up the title list.
4. Disc Edit:
To set up the DVD setting.
5. DISC Playback Mode:
To set up the disc playback setting.
• “DISC Playback Mode” is available only when an audio
CD, a video CD, a CD-RW/-R with MP3 / JPEG / Kodak picture CD files is inserted into the unit.
General Setting Menu
1. Playback:
To set up the unit to play back discs as you prefer.
2. Display:
To set up the OSD screen as you prefer.
3. Video:
To set up the video setting.
4. Recording:
To set up the unit to record to discs as you prefer.
5. Clock:
To set up the clock of the unit as you need.
6. Channel:
To adjust the channel setting of the unit as you prefer.
7. HDMI:
To set up the HDMI connection setting.
8. Reset All:
To reset the setting to the factory default.
4
Disc Edit / DISC Playback Mode
<Disc Edit menu (DVD+RW)>
Disc Edit
1. Edit Disc Name:
Allows you to rename the disc.
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
<Disc Edit menu (DVD-RW)>
Disc Edit
Edit Disc Name
Erase Disc
Finalize
Disc Protect OFF ON
Allows you to erase all contents in the disc and format it.
3. Make Edits Compatible: (DVD+RW only)
Allows you to memorize the editing status on the disc if you have added or deleted chapters, or made chapters hidden on this unit, and to effect it when playing back on the other unit.
<Disc Edit menu (DVD+R/DVD-R)>
Disc Edit
Edit Disc Name
Finalize
Disc Protect OFF ON
Allows you to finalize a disc containing recorded titles.
4. Disc Protect :
Allows you to protect a disc from accidental editing or recording.
5. Random Play:
Allows you to activate the random playback feature.
<DISC Playback Mode menu (audio CD/VCD)>
DISC Playback Mode
Random Play
Program Play
PBC (Video CD only)
<DISC Playback Mode menu (MP3/JPEG)>
DISC Playback Mode
Music
Photo Random Play
Slide Show
Allows you to activate the program playback feature.
7. PBC (Video CD only):
Allows you to select images or information on the menu screen by activating PBC (playback control) function.
8. Music :
Allows you to make setting for MP3 playback.
9. Photo :
Allows you to make setting for JPEG playback.
10. Slide Show: (JPEG / Kodak Picture CD files only)
Allows you to select the display time of the slide show mode.
EN 25
BEFORE YOU START
Switching DVD / VCR Mode
Because this product is a combination of a VCR and a DVD recorder, you must select first which component you wish to operate.
DVD mode
Press [SOURCE] on the front panel, or press [DVD] on the remote control.
(Verify that the DVD indicator is lit.)
VCR mode
Press [SOURCE] on the front panel, or press [VCR] on the remote control.
(Verify that the VCR indicator is lit.)
VCR button
DVD button
DVD indicator
SOURCE button
VCR indicator
Note
• You cannot switch the mode while in the timer-standby mode.
• Playback will stop when you change the output mode.
How to Insert a Disc / Cassette Tape
How to Insert a Disc
1) Press [DVD].
2) Press [OPEN/CLOSE A ] to open the disc tray.
3) Place the disc on the disc tray with its label side facing up.
How to Insert a Cassette Tape
1) Press [VCR].
2) Insert a cassette tape as illustrated below.
4 HEAD HI-FI STEREO
Cassette compartment
Align the disc to the disc tray guide.
4) Press [OPEN/CLOSE A ] to close the disc tray.
It may take a while to load the disc.
To eject the disc:
Press [OPEN/CLOSE A ] to open the disc tray, then remove the disc before turning the unit to the standby mode.
• Insert from the flap side first with the window side facing up.
To eject the cassette tape:
Press [ C A STOP/EJECT] on the front panel or press
[OPEN/CLOSE A ] on the remote control.
Note
• If you turn this unit to the standby mode, [OPEN/CLOSE A ] on the remote control is not available.
Be sure to use [ A OPEN/CLOSE] or [ C A STOP/EJECT] on the unit.
26 EN
INITIAL SETTING
You need to follow these steps when you turn on this unit for the first time.
1 Follow the procedure in “Finding the
Viewing Channel on Your TV” on page 22 to display “Initial Setup” menu.
2 Use [ K / L ] to select your desired language, then press [OK].
Initial Setup
OSD Language
English
Français
Español
Select the language for Setup display.
3 Use [ K / L ] to select the type of broadcasting signal, then press [OK].
Initial Setup
Channel Preset
Make sure the antenna is connected to “ANTENNA IN” jack.
Antenna
Cable (Analog)
Cable (Analog / Digital)
Auto Preset will scan all terrestrial channels.
This may take a while to complete.
The unit will start getting channels available in your area.
Antenna:
(When using antenna)
The channels broadcasted in analog TV and digital TV are automatically scanned and memorized. Only the receivable channels in the area will be memorized.
Cable (Analog):
(When using basic cable)
The channels broadcasted in analog CATV are automatically scanned and memorized.
Cable (Analog / Digital):
(When using basic cable)
The channels broadcasted in analog CATV and digital
CATV are automatically scanned and memorized.
CH 1
Auto Presetting Now
4 If a PBS (public broadcasting station) is available in your area, clock setting will automatically be performed and the correct clock will be displayed following the channel preset procedure.
Initial setting is then complete.
Press [RETURN] to exit.
If a PBS (public broadcasting station) is not available in your area, press [OK] . Then proceed to step 5 in “Manual Clock Setting” on page 32.
EN 27
CHANNEL SETTING
If you have changed antenna connection, we recommend that you program available channels in your area with the following procedures.
Auto Channel Scan
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Channel”, then press [OK].
“Channel” menu will appear.
3 Use [ K / L ] to select “Auto Channel
Preset”, then press [OK].
4 Use [ K / L ] to select the type of broadcasting signal, then press [OK].
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog / Digital)
The unit will start getting channels available in your area.
• When aerial antenna is connected, select
“Antenna”.
• When connected to CATV, select “Cable
(Analog)” or “Cable (Analog / Digital)”.
To cancel the auto channel preset during scanning:
Press [RETURN] to go the previous screen or
[SETUP] to cancel.
5 When scanning is over, press [SETUP] to exit.
To cycle through only the memorized channels, use
[CHANNEL / ] .
To select a channel directly (including the ones not memorized), use [the Number buttons] and [ • ] (for digital TV channels).
Note
• If the auto channel preset is canceled during presetting, some channels not yet preset may not be received.
• You cannot change the channel when either VCR or
DVD is in any recording mode (basic recording, onetouch timer recording or timer recording).
28 EN
CHANNEL SETTING
Adding / Deleting Channels
You may want to add or delete TV channels if your channel lineup changes or if you no longer watch some channels.
Adding channel is only available for the analog TV channels.
Make sure
• You perform “Auto Channel Scan” before adding or deleting the channels.
1 Press [DTV/TV] to select the mode
(DTV or TV) to/from which you want to add/delete channels.
2 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
3 Use [ K / L ] to select “Channel”, then press [OK].
“Channel” menu will appear.
4 Use [ K / L ] to select “Manual Channel
Preset”, then press [OK].
Auto Channel Preset
Manual Channel Preset
TV Audio Select
• If you are adding or deleting analog TV/CATV channels, go to
ANALOG
to continue.
• If you are deleting digital TV/CATV channels, go to
DIGITAL
to continue.
EN 29
CHANNEL SETTING
ANALOG
5 Select the channel number to add or delete.
• Use [CHANNEL / ] to cycle through only the memorized channels.
• Use [ { / B ] to cycle through all the channels including the ones not memorized.
• Use [the Number buttons] to select a channel directly.
• When a memorized channel is selected, “Add” is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a default.
DIGITAL
5 Select the channel number to delete.
• Only the major channel is displayed in “Manual
Channel Preset” menu. (The channel number displayed in the parenthesis is a virtual channel number)
• Use [CHANNEL / ] to cycle through only the memorized channels.
• You cannot use [ { / B ] for the digital TV channel selection.
• Use [the Number buttons] to select a channel directly.
• When a memorized channel is selected, “Add” is checked and highlighted as a default.
• When an unmemorized channel is selected
“Delete” is checked and highlighted as a default.
6 Use [ K / L ] to select “Add” or
“Delete”, then press [OK].
Manual Channel Preset
CH 2
Add
Delete
6 Use [ K / L ] to select “Delete”, then press [OK]. Then select the next channel to delete.
• If the setting is complete, press [RETURN] to activate “Manual Channel Preset”.
Manual Channel Preset
Your setting will be activated and it will automatically switch to the next channel so that you can continue adding or deleting channels.
7 Press [SETUP] to exit.
DTV 2 (CH - - - )
Add
Delete
Your setting will be activated.
WARNING:
• For the digital TV channels, you cannot recover the deleted channels once they are deleted unless you perform the auto channel preset again.
7 Press [SETUP] to exit.
30 EN
SETTING THE CLOCK
Set the clock before you try the timer programming. If a PBS (public broadcasting station) is available in your area, follow “Auto Clock Setting” below. If not, follow “Manual Clock Setting” on page 32.
Auto Clock Setting
This unit can set the time and date automatically by referring to a PBS station.
Make sure
• The antenna/cable TV connections are correct.
• Channels are set. (Refer to page 28.)
• If this unit is connected to a cable/satellite box, select the local PBS station on them to set the clock automatically.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Clock”, then press [OK].
“Clock” menu will appear.
3 Use [ K / L ] to select “Auto Clock
Setting”, then press [OK].
4 Use [ K / L ] to select “Auto”, then press [OK].
Auto Clock Setting
OFF
Auto
Manual
5 Press [SETUP] to exit.
6 Press [STANDBY-ON ] to turn the unit to the standby mode.
This unit will search for the time only when the power is in the standby mode. Leave it in standby for several minutes to give this unit time to set the clock.
Note
• The clock may set itself automatically after you connect the antenna/cable signal and plug in the power cord.
• Only the analog PBS channel signal is effective for auto clock setting.
• The unit receives the clock data at 12:00 a.m. / p.m. from the PBS channel when the unit is in the standby mode.
If the unit chooses an incorrect PBS channel, set the PBS channel manually by following the steps below.
1 Select “Manual” at step 4, then press
[OK].
2 Use [the Number buttons] or [ K / L ] to enter your PBS channel number, then press [OK].
Set Channel No.
CH 1
3 Press [SETUP] and turn the unit to the standby mode.
EN 31
SETTING THE CLOCK
Manual Clock Setting
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
Daylight Saving Time
When “Daylight Saving Time” is “ON”, the unit clock will automatically adjust the time in order to fit the daylight saving time.
“ON (MAR - NOV)” has been selected as the default.
2 Use [ K / L ] to select “Clock”, then press [OK].
“Clock” menu will appear.
3 Use [ K / L ] to select “Clock Setting”, then press [OK].
4 Use [ K / L ] to select calendar or time, then press [OK].
Clock Setting
JAN / 01 / 2009 ( THU )
12 : 00 AM
5 Use [ { / B ] to select an item to set, and use [ K / L ] to select the contents to suit your preference, then press
[OK] when you finish setting all the contents.
Clock Setting
JAN / 01 / 2009 ( THU )
12 : 00 AM
Your setting will be activated.
The clock start counting when you press [OK] .
6 Press [SETUP] to exit.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2
3
4 Use [ K / L ] to select “ON (MAR -
NOV)”, “ON (APR - OCT)” or “OFF”, then press [OK].
Daylight Saving Time
5
Use [ K / L ] to select “Clock”, then press [OK].
“Clock” menu will appear.
Use [ K / L ] to select “Daylight Saving
Time”, then press [OK].
ON (MAR - NOV)
ON (APR - OCT)
OFF
ON (MAR - NOV):
Move forward one hour on the second Sunday in
March and move back one hour on the first
Sunday in November.
ON (APR - OCT):
Move forward one hour on the first Sunday in
April and move back one hour on the last
Sunday in October.
Press [SETUP] to exit.
Note
• Your setting will be canceled if you press [SETUP] before pressing [OK] at step 5.
• Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than
30 seconds when you set the clock manually.
• For setting the day, year, hour, and minute,
[the Number buttons] can also be used.
• You can set the built-in calendar from the year 2008 up to 2058.
32 EN
TUNER SETTINGS
Switching Analog Mode /
Digital Mode
You can easily switch the analog TV (NTSC) and digital TV
(ATSC) with the remote control.
About digital TV broadcasting:
With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality.
Press [DTV/TV] on the remote control.
• The analog mode and digital mode switch alternately.
Channel Selection
What is the minor channel?
By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously.
Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network.
Select channels by using [CHANNEL / ] or [the
Number buttons] found on remote control.
NTSC (analog mode)
[Air Time]
18:00
ATSC (digital mode)
[CHANNEL / ]
Use [CHANNEL / ] to change the channel.
18:30
CH4-1 smallest
CH smallest
CH
CH4-1 CH4-2 CH4-3
[the Number buttons]
Press the channel number with [the Number buttons] to select a channel you want to watch.
<Analog TV Channels>
Enter the channel number with [the Number buttons] to select a channel you want to watch.
For 1-digit number e.g.) 2 ch: [0] + [2] , [2] + [•] or
[2] + leave it for 2 seconds.
For 2-digit number e.g.) 12ch: [1] + [2]
<Digital TV Channels>
Enter the major and minor channel number with [the
Number buttons] to select a channel you want to watch.
For 1-digit number e.g.) 2.2 ch: major channel [0] + [2] or [2] + [•] minor channel [0] + [2] , [2] + [•] or
[2 ] + leave it for 2 seconds.
For 2-digit number e.g.) 35.16ch: major channel [3] + [5] minor channel [1] + [6]
• If you enter 1 digit for major channel and leave it for 2 seconds, the number will be taken as the major channel and lowest minor channel of the major channel will be displayed.
• If there is no minor channel input, lowest minor channel of the major channel will be displayed.
CH4 19:00
19:30
20:00
CH4-1
CH4-1 smallest
CH
CH4-2
CH4-3 smallest
CH major channel minor channel
: change automatically
: change manually by using [CHANNEL / ]
Note
• It may take up to 5 to 7 seconds to switch the digital
TV channels.
• In digital TV broadcasting, 2 or more channels, called minor channels, are simultaneously broadcast on one main channel, called major channel.
EN 33
TUNER SETTINGS
This section describes how to switch the TV audio. When you record a TV program, only the audio selected here will be recorded.
Selecting TV Audio
Digital TV
1 Press [AUDIO] to cycle through available audio languages.
English 1/2
• When you press [AUDIO] , selected language will be displayed on the TV screen.
• Every time you press [AUDIO] , the language will be switched.
e.g.) English 1/3
➔
Spanish 2/3
➔
Other 3/3
• Available languages differ depending on the broadcast.
• The language information display will automatically disappear.
• When you record digital TV broadcasting, the audio language you have selected will be recorded.
Note
• You cannot change the audio language for the recording of digital TV broadcasting.
• Pressing [AUDIO] does not control external device audio.
• When there is only one audio channel on the broadcast, pressing [AUDIO] does not display anything.
34 EN
Selecting TV Audio (cont’d)
TUNER SETTINGS
Analog TV
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Channel”, then press [OK].
“Channel” menu will appear.
3 Use [ K / L ] to select “TV Audio
Select”, then press [OK].
4 Use [ K / L ] to select “Stereo” or
“SAP”, then press [OK].
TV Audio Select
Stereo
SAP
Stereo:
Outputs main-audio.
SAP (secondary audio program):
Outputs sub-audio.
5 Press [SETUP] to exit.
Note on recording analog TV audio
• When you record an analog TV program available in second audio or stereo, you have to select either
“Stereo” or “SAP” in “General Setting” menu beforehand. Refer to the following table to check an appropriate setting.
Selected audio
Stereo
SAP
Broadcast audio
STEREO+SAP
STEREO
MONO+SAP
MONO
STEREO+SAP
STEREO
MONO+SAP
MONO
Disc recording
STEREO
STEREO
MONO
MONO
SAP
STEREO
SAP
MONO
Audio output
STEREO
STEREO
MONO
MONO
SAP
STEREO
SAP
MONO
EN 35
TUNER SETTINGS
DTV Closed Caption
Digital TV
Digital TV has its own closed captions called DTV CC. Use this menu to change the settings for DTV CC.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Display”, then press [OK].
3 Use [ K / L ] to select “DTV CC”, then press [OK].
OSD Language
Screen Saver
FL Dimmer
DTV CC
CC Style
V-Chip
4 Use [ K / L ] to select “Caption Service”, then press [OK].
DTV CC
Caption Service
Recording
5 Use [ K / L ] to the desired DTV closed caption, then press [OK].
Caption Service
OFF
Service1
Service2
Service3
Service4
Service5
Service6
OFF:
Select if you do not want DTV CC. This is the default.
Service 1 to Service 6:
Select one of these before changing any other item in the closed caption menu. Choose
“Service 1” under normal circumstances.
6 Press [SETUP] to exit.
36 EN
TUNER SETTINGS
Closed Caption Style
Digital TV
Digital TV can also change the style of its closed caption such as font, color or size, etc.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Display”, then press [OK].
3 Use [ K / L ] to select “CC Style”, then press [OK].
OSD Language
Screen Saver
FL Dimmer
DTV CC
CC Style
V-Chip
4 Use [ K / L ] to select “User Setting”, then press [OK].
CC Style
User Setting
Font Size
Font Style
Font Opacity
Font Color
Edge Type
Edge Color
Back Opacity
Back Color
5 Use [ K / L ] to select “ON”, then press
[OK].
User Setting
ON
OFF
EN 37
TUNER SETTINGS
6 Use [ K / L ] to select the item and switch the setting for each item you want to set, then press [OK].
• When “User Setting” is set to “ON”, you can set the following items. CC style set by “User
Setting” will be displayed.
• The setting description for each item is shown below.
<Font Size>
Font size of the displayed caption can be switched as below.
Font Size
Large
Middle
Small
<Font Style>
Font style of the displayed caption can be switched as below.
Font Style
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
<Font Opacity>
Font opacity of the displayed caption can be switched as below.
Font Opacity
Solid
Transparent
Translucent
Flash
<Font Color>
Font color of the displayed caption can be switched as below.
Font Color
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
7 Press [SETUP] to exit.
<Edge Type>
Edge type of the displayed caption can be switched as below.
Edge Type
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
<Edge Color>
Edge color of the displayed caption can be switched as below.
Edge Color
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
<Back Opacity>
Background opacity of the displayed caption can be switched as below.
Back Opacity
Solid
Transparent
Translucent
Flash
<Back Color>
Background color of the displayed caption can be switched as below.
Back Color
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
38 EN
INFORMATION ON DVD RECORDING
Before you make a recording, read the following information.
Recordable Discs
This unit can record to DVD+RW, DVD+R, DVD-RW and
DVD-R.
DVD+R/DVD-R can only be recorded to once. DVD+RW/
DVD-RW can be recorded to and erased many times.
DVD-RW/-R will be recorded in the DVD+VR mode automatically in this unit.
Logos
DVD+RW DVD+R
DVD-RW DVD-R
Attributes
8cm/12cm, single-sided, single layer disc
Approx. max. recording time
(SLP mode):
360 minutes (4.7GB) (for 12cm)
108 minutes (1.4GB) (for 8cm)
Recording Mode
You can select a recording mode among 6 options, and the recording time will depend on the recording mode you select as follows.
Disc size
8cm Disc
12cm Disc
Recording mode
HQ (1Hr)
SP (2Hr)
SPP (2.5Hr)
LP (3Hr)
EP (4Hr)
SLP (6Hr)
HQ (1Hr)
SP (2Hr)
SPP (2.5Hr)
LP (3Hr)
EP (4Hr)
SLP (6Hr)
Recording time
Video/sound
quality
18 min
36 min
45 min
54 min
72 min
108 min
60 min
120 min
150 min
180 min
240 min
360 min
(good)
(poor)
(good)
(poor)
• Following discs are recommended for good recording quality and are proven to be compatible with this unit.
However, depending on the media condition the unit may not read the disc properly.
Verbatim DVD+R 8x,
DVD-R 8x,
JVC
Maxell
SONY
DVD-RW 4x
DVD+RW 4x,
DVD-RW 2x
DVD+R 4x/8x/16x, DVD-R 8x/16x
DVD+R 4x/8x/16x, DVD+RW 4x
TDK DVD+R 4x/8x/16x
Performance of any other discs are not guaranteed.
• You can play back DVD+RW on most DVD players without finalizing. However, if you have added or deleted chapters, or made chapters hidden, you must perform “Make Edits Compatible” before being able to see those effects on other units. (Refer to page 81 for more details.) To play back discs other than DVD+RW on other DVD players, you will need to finalize.
Unrecordable Discs
• DVD-RW recorded in the mode other than +VR is not recordable on this unit unless you erase all contents in the disc (refer to page 80).
• DVD-R recorded in the mode other than +VR is not recordable on this unit.
• The recording time is only an estimate. The actual recording time may differ.
• The audio and video quality gets poorer as the recording time becomes longer.
• Each time [REC MODE] is pressed, recording mode and its allowed recording time will be displayed.
Note
• This unit cannot record to CD-RW or CD-R.
• All high definition pictures will be down converted to the standard definition pictures when they are recorded on this unit.
• DVD+RW/+R, DVD-RW/-R and CD-RW/-R recorded on a personal computer or a DVD or CD recorder may not be played back if the disc is damaged or dirty or if there is condensation on the player’s lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format it may not be played back because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
• Since the recording is made by the VBR (variable bit rate) method, depending on the picture you are recording, the actual remaining time for recording may be a little shorter than the remaining time displayed on the TV screen.
• You cannot record copy-protected program using this unit. (Copy-protected signal is included in DVDvideo or some satellite broadcasts.)
• You cannot record “copy-once only” program on
DVD.
EN 39
BEFORE RECORDING
Make Recording Compatible Setting for Auto Chapter
Use this feature to make the unfinalized +VR mode discs recorded on other unit recordable on this unit. When you make an additional recording on this unit with “Make
Recording Compatible” set to “ON”, the title menu is automatically converted to our style.
You can set a specified time for chapter marks.
1) Press [SETUP] and use [ K / L ] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
2) Use [ K / L ] to select “Recording”, then press [OK].
“Recording” menu will appear.
1) Press [SETUP] and use [ K / L ] to select “General
Setting”, then press [OK].
“General Setting” menu will appear.
3) Use [ K / L ] to select “Auto Chapter”, then press [OK].
2) Use [ K / L ] to select “Recording”, then press [OK].
“Recording” menu will appear.
3) Use [ K / L ] to select “Make Recording Compatible”, then press [OK].
4) Use [ K / L ] to select a desired time option, then press [OK].
Auto Chapter
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
4) Use [ K / L ] to select “ON” or “OFF”, then press [OK].
Make Recording Compatible
ON
OFF
ON: Title list will be replaced when you make additional recordings to the discs recorded by other units.
OFF: Prohibiting additional record to the disc that has a title list created by other units.
5) Press [SETUP] to exit.
Note
• The interval for auto chapter may be up to two minutes different from the time option you set.
• A blank chapter may be created depending on the remaining time of the disc.
5) Press [SETUP] to exit.
Recording the DTV Closed Caption
You can record the DTV Closed Caption as the part of the image for the recording program and see the recorded closed caption even with the TV that is not closed caption compliant.
1) Press [SETUP] and use [ K / L ] to select “General
Setting”, then press [OK].
2) Use [ K / L ] to select “Display”, then press [OK].
3) Use [ K / L ] to select “DTV CC”, then press [OK].
4) Use [ K / L ] to select “Recording”, then press [OK].
• If “Caption Service” is set to “OFF”, you cannot select
“Recording”.
5) Use [ K / L ] to select “ON”, then press [OK].
Recording
ON
OFF
6) Press [SETUP] to exit.
Note
• If “Caption Service” is set to “OFF”, the caption will not be recorded.
40 EN
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
Follow the steps to record TV programs.
Press [DVD] first.
1 Insert a recordable disc (refer to page
26 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 39 for the list of compatible discs.)
It may take a while to load the disc.
• When inserting a brand-new DVD+RW/DVD-RW, the unit automatically starts to format.
• If titles have been recorded on the disc, the title list is displayed. Press [STOP C ] to exit the title list.
2 Press [REC MODE] repeatedly to select a recording mode.
Refer to “Recording Mode” on page 39.
SP(2Hr) 0h58m
3 Select the appropriate external input channel by pressing [SOURCE] or
[CHANNEL / ].
Press [DTV/TV] to select analog TV or digital TV, then use [CHANNEL / ] or [the Number buttons] and [ • ] (for digital TV channels) to select a desired channel to record.
Refer to “Switching Analog Mode/Digital Mode” and “Channel Selection“ on page 33.
CH 12
EN 41
BASIC RECORDING & ONE-TOUCH TIMER RECORDING
4 Press [REC] to start recording.
“ I ” will be displayed for 4 seconds.
5 Press [STOP C ] to stop recording.
The recorded title will appear in the title list.
(Refer to “Guide to a Title List” on page 70.) e.g.) DVD+R
I
SP(2Hr) 2h00m
Press [PAUSE F ] to pause recording.
Press [PAUSE F] ] or [REC] again to restart recording.
To set one-touch timer recording (OTR)...
This is a simple way to set the recording time in blocks of 30 minutes.
Press [REC] repeatedly until the desired recording time
(30 minutes to 6 hours) appears on the TV screen.
One-touch timer recording will start.
I 0h30m
0h30m
(normal recording) 1h00m
6h00m 5h30m
To change the recording length during the one-touch timer recording:
Press [REC] repeatedly until the desired length appear.
To cancel the one-touch timer recording within the specified time:
Press [STOP C ] .
Please finalize the disc when the writing is completed before playing back on other DVD players.
Writing to Disc 90%
1 SP(2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
EMPTY TITLE
1:41:17 SP(2Hr)
• Press [STOP C ] to exit the title list.
Note
• When you press [REC] , recording starts immediately and continues until the disc is full or you stop recording.
• This unit cannot record images as aspect ratio of 16:9. The 16:9 images will be recorded as 4:3.
• When the unit clock has not been set, the space for a date and time of title names will be blank.
• When you record a TV program, you have to select the TV channel audio beforehand. Only the selected channel audio will be recorded. Refer to “Selecting TV Audio” on pages 34-35 for more details.
• This unit cannot record in both stereo and SAP (secondary audio program) at the same time.
• You cannot change the recording mode during the recording pause mode.
• You can change a channel to be recorded during the recording pause mode.
Note for one-touch timer recording
• The remaining recording time will be displayed on the front panel display during one-touch timer recording. Press
[DISPLAY] to see it on the TV screen.
• Unlike the timer recording, you can perform the following operations during one-touch timer recording.
- Turning the power to standby to stop one-touch timer recording.
- Using [REC] or [STOP C ] on the remote control.
• You cannot use the pause function during one-touch timer recording.
• When one-touch timer recording is finished and the power is turned to standby, the unit will switch to the timerstandby mode automatically if a timer recording has been programmed. Press [TIMER SET] to cancel the timerstandby mode to use the unit continuously.
42 EN
TIMER RECORDING
Guide to Timer Programming Display You can program the unit to record up to 12 programs within a month in advance. Daily or weekly program recordings are also available.
Before recording, make sure
• Set the clock before setting a timer programming.
• Insert a recordable disc with enough recordable space.
3
Timer Programming
1 2
JAN/ 2/09 12:00 AM 69.1 SP
SP (1:00) THU JAN/01 11:00AM
Date Start End CH
JAN/02 12:00AM 1:00AM DTV69.
6
1/1
4 5
1 Title of a timer program (Contains date, time, channel, recording mode of the program)
2 Current date and time
3 Recording mode, and length of the recording
4 Timer program list
5 Total number of pages and current page (2 pages maximum)
6 Recording media (“ ” (DVD) or “ ” (VCR))
1 Press [TIMER].
2 Use [ K / L ] to select “New Program”, then press [OK].
Timer Programming
THU JAN/01 11:00AM
Start End CH Date
Note
• If you have not set the clock yet:
Entry screen for the clock setting will appear instead of the timer programming list at step 1. Continue with the step 5 in “Manual Clock Setting” on page 32 before setting a timer programming.
• Use [ s / B ] to move the cursor to the left and the right in the entry screen for the timer programming.
• If a basic recording or one-touch timer recording is in progress on one component (e.g., VCR) and the timer recording set for the other component (e.g., DVD) is about to begin, the unit automatically switches to the programmed channel for timer recording 2 minutes before the programmed starting time, and the recording in progress (for VCR) will be canceled
UNLESS their recording channels are the same. If their recording channels are the same, the timer recording will start without canceling the recording currently in progress. In this case, the recording of the same channel will be made on both DVD and VCR.
• You cannot make a program whose recording time exceeds 12 hours.
• Cancel the timer-standby mode by pressing
[TIMER SET] before operation for either DVD or VCR.
When finished operating, press [TIMER SET] to resume the timer-standby mode.
• In the timer-standby mode, you can turn on the power and use the component (VCR or DVD) which is not currently timer-programmed.
• If there are 6 or more programs, use
[ H / G ] to change pages.
3 Use [ K / L ] to enter the date, then press [ B ].
Date
JAN/02
Start
- - : - -
End
- - : - -
CH REC To Mode
DTV69. 1 DVD SP
SP 2h00m
JAN/01
Daily
MON-SAT
MON-FRI
SAT
FRI
When pressing [ L ] at the current date, the date will change as follows.
e.g.) January 1st
SUN
JAN/31
EN 43
4 Use [ K / L / s / B ] or [the Number buttons] to enter the start and end time, then press [ B ].
Date Start End
- - : - -
Mode
SP
JAN/02
CH
DTV69. 1
12 : 00AM
REC To
DVD
SP 2h00m
TIMER RECORDING
7 Use [ K / L ] to select a recording mode.
Date
JAN/02
Start
REC To
DVD
End
Mode CH
DTV69. 1
12 : 00AM 1 : 00AM
SP
SP 1h00m
Refer to “Recording Mode” on page 39.
• When recording to DVD, you can check the remaining recordable space of the disc when you select the recording mode.
• You cannot make a program which recording time exceeds 12 hours.
5 Use [ K / L / s / B ] to select analog
(“- - -”) / digital (“DTV”) mode or external input (L1 / L2), then press [ B ].
e.g.) external input mode
Date
JAN/02
CH
DTV69. 1
Start
12 : 00AM
REC To
DVD
End
1 : 00AM
Mode
SP
SP 1h00m
Auto recording mode select (DVD only)...
When “Auto” is selected as a recording mode, the unit calculates how much time is available on the disc and selects the best recording mode available automatically to complete recording the program.
L1
Date
JAN/02
CH
Start
12 : 00AM
REC To
DVD
End
1 : 00AM
Mode
SP
SP 1h00m
To record from external input (e.g., cable/ satellite box), select L1 or L2.
Use [ K / L ] or [the Number buttons] to select the channel number to record, then press [ B ].
For digital mode, select both major and minor channels. Refer to “How to select a channel number for the timer recording” on page 45 for more details.
e.g.) analog mode
Date
JAN/02
CH
DTV69. 1
Start
12 : 00AM
REC To
DVD
End
1 : 00AM
Mode
Auto
Auto 1h00m
• “Auto” is only available for one program in the timer program list.
• The recording may be cut short when the available recording space of the disc is too limited.
Date
JAN/02
CH
10
Start
12 : 00AM
REC To
DVD e.g.) digital mode
End
1 : 00AM
Mode
SP
SP 1h00m
8 Press [OK] when all items are entered.
After displaying an instructive message for 10 seconds, timer program list will appear.
Press TIMER SET to Timer Standby mode.
When Timer set on DVD or VCR, it is not available in the standby mode.
Press TIMER SET to cancel the Standby mode.
Date
JAN/02
CH
DTV69. 1
Start
12 : 00AM
REC To
DVD
End
1 : 00AM
Mode
SP
SP 1h00m
6 Use [ K / L ] to select the recording media (“DVD” or “VCR”), then press
[ B ].
e.g.) recording to DVD
Date
JAN/02
CH
DTV69. 1
Start
12 : 00AM
REC To
DVD
End
1 : 00AM
Mode
SP
SP 1h00m
Timer Programming
JAN/ 2/09 12:00 AM 69.1 SP
SP (1:00) THU JAN/01 11:00AM
Date Start End CH
JAN/02 12:00AM 1:00AM DTV69.
Your program setting is now stored.
• To set another program, repeat steps 2 to 8.
• To exit, press [TIMER] or [SETUP] .
• When 2 or more programs are overlapped,
“Timer program overlapped” appears, and the overlapped program will be displayed in blue.
• To correct the timer program refer to
“Checking, canceling, or correcting the timer programming information” on page 45.
9 Press [TIMER SET] to set a timer programming.
will appear on the front panel display, while this unit waits to make the recording.
CS DR CD
HDD
DVD
“VCR” will appear on the front panel display if
VCR timer recording have been set.
44 EN
TIMER RECORDING
Analog TV
Analog CATV
Digital TV
How to select a channel number for the timer recording
For channel number 2-6 press, press [ B ] or [ • ] to decide the channels. For other channels (7-69), the channel will be decided as soon as you enter the channel number.
For channel number 1-12 press, press [ B ] or [ • ] to decide the channels. For other channels (13-
125), the channel will be decided as soon as you enter the channel number.
For channel number 1-9 press, press [ B ] or [ • ] to decide the channels. For other channels (10-99), the channel will be decided as soon as you enter the channel number.
Digital CATV For channel number 1-13 press, press [ B ] or [ • ] to decide the channels. For other channels (14-
135), the channel will be decided as soon as you enter the channel number.
minor channels For channel number 1-9 press, press [ B ] or [ • ] to decide the channels. For other channels (10-99), the channel will be decided as soon as you enter the channel number.
<Hint>
• You can decide the 1-digit channel number by pressing 0 first , then enter desired 1-digit channel number. e.g.) “5”: [0] + [5]
• For selecting the channels with [ K / L ] you need to press [ B ] or [ • ] to decide the channel number.
• For selecting the minor channels with [ K / L ] , please make sure the minor channel your are selecting is existed.
[ K / L ] does not skip the non-existed minor channels.
To stop the timer recording in progress
1) Press [STOP C ] on the remote control.
2) Confirmation message will appear. Select “Yes”, then press [OK].
• To stop the timer recording immediately, press
[ C STOP] on the unit.
If the timer program did not complete correctly, the error number appears in the timer programming list.
Timer Programming
FRI JAN/02 11:00AM
Date Start End CH
E41 JAN/02 12:00AM 1:00AM DTV69. 1
Checking, canceling, or correcting the timer programming information
1) Press [TIMER SET].
2) Press [TIMER].
3) Check the information.
Timer Programming
JAN/ 2/09 12:00 AM 69.1 SP
SP (1:00) THU JAN/01 11:00AM
Date Start End CH
JAN/02 12:00AM 1:00AM DTV69.
4-A) To delete the timer program:
1 Use [ K / L ] to select the program you want to delete, then press [OK].
2 Use [ K / L ] to select “Delete”, then press [OK].
Confirmation window will appear.
3 Use [ K / L ] to select “Yes”, then press [OK].
4-B) To correct the timer program:
1 Use [ K / L ] to select the program you want to correct, then press [OK].
2 Use [ K / L ] to select “Program Change”, then press [OK].
3 Correct the timer program by using
[ K / L / { / B ], then press [OK].
5) Press [TIMER] to exit.
6) Press [TIMER SET] to return to the timer standby mode.
Note
• Press [TIMER] to check the timer recording in progress.
When the timer recording is proceeding, that program will be highlighted with red. In this case, you cannot select any other program.
1/1
Each error number means:
E1-22
E37-39
E24
Recording error other than below
Unrecordable disc
E41
E42
Power failed
E25-26 Copy prohibited program
E29 Disc protected
E30
E35
E36
E40
Disc full
E43
E44
E45
PCA full *1
Already finalized video format disc
Some portion has not been recorded because of program overlapping.
Recording did not start at the start time.
E46
No disc when recording
Already 49 titles recorded
Already 254 chapters recorded
Copy prohibited program
It is impossible to record additionally on a disc recorded by other units when setting “
Make Recording
Compatible” to “OFF”.
• E23, E27, E28, E31, E32, E33 and E34 are not displayed.
• A program with the error number is grayed in the timer programming list.
• Timer program with an error number will be cleared once the entry screen for the program is displayed.
*1 PCA is a disc's space reserved for recording test.
EN 45
TIMER RECORDING
Hints for Timer Recording
• If there is a power failure or this unit has been unplugged for more than 30 seconds, the clock setting and all timer programming will be lost.
• If a disc is not inserted, "DVD" on the front panel display flashes and timer recording cannot be performed. In some cases, will appear momentarily around the start time as the unit attempts to record. Please insert a recordable disc.
• If a cassette tape with a erase-protection tab is not in the cassette compartment or there is no cassette tape in the cassette compartment, “VCR” on the front panel display flashes and timer recording cannot be performed. Please insert a recordable cassette tape.
• If a cassette tape ends during the timer recording, the unit will automatically stop, eject the cassette tape, and turn itself to the standby mode. To continue recording, insert a recordable tape.
• When all the timer recordings are completed, flashes.
Press [TIMER SET] to release the unit from the timer standby mode.
• If both DVD and VCR are timer programmed, you cannot use any functions for either unit during timer standby or timer recording. If you want to use functions other than recording under such condition, cancel timer recording by pressing [TIMER SET] during timer standby or stop recording by pressing [ C STOP] / [ C A STOP/EJECT] on the front panel of the unit during timer recording.
• To cancel the timer standby mode, press [TIMER SET] .
• When the starting and the ending time are the same,
“Exceeds 12 hours” appears and the program setting will not be accepted.
• When the disc or cassette tape becomes full during the recording, the unit turns itself to the standby mode.
• If the starting time is earlier and the ending time is later than the current time, the recording will start right after you press [TIMER SET] at step 9 on page 44.
• You cannot change the audio language for the timer recording of digital TV broadcasting.
• The timer recording cannot be performed in DVD and
VCR at the same time. If you set 2 programmings with the same channel and time in both devices, the program which is set first will have the priority.
• “Press TIMER SET for timer recording” will appear on the
TV screen 5 minutes before the programmed starting time.
The Priority of Overlapped Settings
• Timer program which has the earlier start time will be placed first in the timer program list, and be given priority over the programs with the later start time when timer programs overlap.
• When timer programs overlap, the first 2 minutes (at the longest) of the later recording will be cut off.
• When 2 or more timer programs have the same start time, the program set first will be given priority.
• A timer recording of lower priority will be canceled or start from the middle.
• Check the overlapped timer programmings and change the priority if necessary.
When the starting time is the same:
A program set previously (PROG. A) has priority.
PROG. A
PROG. B actual recording
PROG. B
The first 2 minutes (at the longest) will be cut off
(when recording to DVD only).
Note for DVD recording
• When the recording time of 2 programs are overlapped, or the end time of a program and the start time of another program is the same, the first 2 minutes (at the longest) of the subsequent program will be cut off.
• If the cut-off portion comes up to 3 minute or more, this program will be displayed with error number E40 in the timer programming list.
When the end time of the programming currently being recorded and the start time of the subsequent program are same:
The beginning of the PROG. B may be cut off.
PROG. A
PROG. B actual recording
PROG. A PROG. B
The first 2 minutes (at the longest) will be cut off.
46 EN
OVERWRITING UNNECESSARY TITLE
Overwriting from the Beginning of the Title
Overwriting in the Middle of the Title
You can overwrite the existing title from the beginning.
1) Press [STANDBY-ON y ].
Make sure that the TV input is set on the unit.
2) Load the disc that includes a title to be overwritten.
It takes a while to display the title list.
Title list will appear.
If the title list does not appear, press [TITLE] .
3) Press [REC MODE] repeatedly to select a recording mode.
Refer to “Recording Mode” on page 39.
4) Use [ K / L ] to select a title to be overwritten, then press [OK].
You can overwrite the existing title from the selected position.
1) Follow the steps 1, 2 and 4 on the left.
2) Use [ K / L ] to select “Play”, then press [OK].
Playback will start.
3) Press [PAUSE F ] at the point from which you want to start overwriting.
4) Press [REC].
“ S I ”, display menu, channel, and the time lapse will be displayed as illustrated on the left.
5) Select the channel you want to record.
(Refer to page 33 on how to select a channel.)
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
6) Press [REC] again.
Overwriting recording starts.
7) Press [STOP C ] to stop recording.
This operation may take a while to be completed.
5) Use [ K / L ] to select “Overwrite”, then press [OK].
P l a y
E d i t
O v e r w r i t e
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
6) Select the channel you want to record.
(Refer to page 33 on how to select a channel.) e.g.) DVD+RW selected title number to be overwritten
1 1 0:00:00
+RW
CH 12
Note
• Recording mode of the overwriting title is the same as that of the original (overwritten) title when overwriting in the middle of the title.
• Title name will not be overwritten.
F I SP(2Hr) 2h00m
7) Press [REC].
Overwriting recording starts.
The elapsed-time counter starts running.
8) Press [STOP C ] to stop recording.
Title name is also overwritten.
This operation may take a while to be completed.
Note
• The remaining recording time is displayed on the bottom right corner of the TV screen during overwriting.
EN 47
OVERWRITING UNNECESSARY TITLE
Hints for Overwriting
When you overwrite on the unnecessary title, there were various circumstances such as follows. Please note that following cases only describe the overwriting without any recording mode discrepancy. To avoid accidental deletion please check if there is no important title after the overwriting point.
When overwriting title is shorter than the existing title:
(overwriting from the beginning of the title) overwrite recording : A
30 - 180 seconds will be cut off.
after overwriting existing title : B title name : A title name : B
When overwriting title is longer than the existing title:
(overwriting from the beginning of the title) overwrite recording : A existing title : B after overwriting overwrite recording : A existing title : B existing title : C
When overwriting in the middle of the title: overwrite recording : A existing title : B after overwriting title name : A
30 - 180 seconds will be cut off.
title name : A title name : C
30 - 180 seconds will be cut off.
after overwriting title name : B
*
title name : B
* Overwritten section and the rest of the sections will have the same title name as the original existing title (B).
Note
• When a title name is overwritten, its thumbnail is also overwritten.
• “Auto Chapter” interval time is reset at the overwriting start point.
• A chapter mark is put at the beginning of the overwrite title when overwriting in the middle of the title.
48 EN
SETTINGS FOR AN EXTERNAL DEVICE
Connection to an External Device
Connect the external device properly to the unit by using input jacks either L2 (Front) or L1 (Rear).
When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front) or L1 (Rear).
Use S-video or the RCA audio/video cables for this connection.
S-VIDEO
OUT or
VIDEO
OUT
AUDIO OUT
R L
external device
(camcorder, VCR etc.)
S-VIDEO
OUT
VIDEO
OUT
AUDIO OUT
R L
S-video cable or
RCA video cable
RCA audio cable
or
S-video cable or
RCA video cable
RCA audio cable
S-VIDEO IN --- AUDIO --- OUT
L L
IN
R
IN --- VIDEO --- OUT
R
L2
L1 to L2 IN to L1 IN
HDMI OUT
OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
S-VIDEO
DVD/VCR
S-VIDEO IN --- AUDIO --- OUT
COAXIAL
Y
B
IN
L
R
IN --- VIDEO --- OUT
R
L
IN
ANTENNA
R
R rear of this unit front of this unit
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
3 Use [ K / L ] to select “Video Input”, then press [OK].
4 Use [ K / L ] to select desired external input, then press [OK].
Video Input
L1 (Rear)
L2 (Front)
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Video”, then press [OK].
Submenu will appear.
5 Use [ K / L ] to select the input jack type to connect, then press [OK].
If you want to use VIDEO IN jack, select “Video
In”.
If you want to use S-VIDEO IN jack, select
“S-Video In”.
L1 (Rear)
Video In
S-Video In
6 Press [SETUP] to exit.
EN 49
SETTINGS FOR AN EXTERNAL DEVICE
Recording from an External Device
Before recording from an external device, refer to the instructions for the connection on page 49.
Recording to a DVD
1
Press [DVD].
Insert a recordable disc (refer to page
26 on how to insert a disc).
It takes a while to load the disc.
6 4
Recording to a Cassette Tape
Press [VCR].
Insert the cassette tape with an erase-protection tab intact.
2 Select the appropriate external input channel (L1 or L2) by pressing
[SOURCE] or [CHANNEL / ].
• If the external device is connected to the rear of this unit, select L1.
• If the external device is connected to the front of this unit, select L2.
• You can also select L1 or L2 channel by using
[the Number buttons] .
e.g.) For L1, press [0] , [0] , [1] .
3 Press [REC MODE] repeatedly to select a recording mode.
Refer to “Recording Mode” on page 39 for DVD, or “Recording” on page 94 for VCR.
4 Press I RECORD] on the unit to start recording.
5 Start playback on the external device to record from.
6
Press [ C STOP] on the unit to stop recording.
For cassette tape:
Press [ C A STOP/EJECT] on the unit to stop recording.
This operation may take a while to be completed.
6 4
50 EN
BI-DIRECTIONAL DUBBING
You can copy contents in a DVD to a cassette tape, or do vice versa. This function is available only when the contents are not copy-protected. (Before you start, refer to page 39 for the list of compatible discs.)
Preparing for dubbing (cassette tape to DVD):
• Insert a cassette tape to be dubbed.
• Insert a recordable DVD.
• Make sure there is enough space on the DVD.
Preparing for dubbing (DVD to cassette tape):
• Insert a disc to be dubbed.
• Insert a cassette tape with an erase-protection tab in tact.
• Make sure there is enough recordable length on the tape.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Recording”, then press [OK].
“Recording” menu will appear.
3 Use [ K / L ] to select “Dubbing
Mode”, then press [OK].
Selection menu will appear.
Note for dubbing
• Dubbing direction setting in “Dubbing Mode” menu is always reset to “VCR DVD” whenever you turn the power to the standby mode.
• You cannot change the output mode during VCR to
DVD or DVD to VCR duplication.
Note for recording to a tape:
Make sure
- the cassette tape’s erase-protection tab is intact.
- the cassette tape is long enough.
Note for recording to a disc:
Make sure
- the disc is compatible (refer to page 39).
EN 51
BI-DIRECTIONAL DUBBING
VCR to DVD DVD to VCR
4 Use [ K / L ] to select “VCR DVD”, then press [OK].
Dubbing Mode
VCR DVD
DVD VCR
Press [SETUP] to exit.
4 Use [ K / L ] to select “DVD VCR”, then press [OK].
Dubbing Mode
VCR DVD
DVD VCR
Press [SETUP] to exit.
5 Press [VCR], then press [PLAY B ] to find the point where you wish to start dubbing.
6 Press [PAUSE F ] when you come to the desired start point.
7 Press [DVD], then press [REC MODE] repeatedly to select the desired recording mode.
8 Press [D.DUBBING].
VCR to DVD duplication will start.
9 Press [STOP C ] to stop the dubbing.
5 Press [DVD], then press [PLAY B ] to find the point where you wish to start dubbing.
6 Press [PAUSE F ] when you come to the desired start point.
7 Press [VCR], then press [REC MODE] repeatedly to select the desired recording mode.
Rewind or fast forward the tape to the point where you want to start recording.
8 Press [D.DUBBING].
DVD to VCR duplication will start.
9 Press [STOP C ] to stop the dubbing.
Note for DVD to VCR duplication
• This function is available for audio CD, but not with MP3 / JPEG / Kodak Picture CD files.
• The recording mode for VCR cannot be displayed at step 7 when using HDMI / Component / S-Video connection.
To display the VCR recording mode on the screen, the unit must be connected by the VIDEO OUT jack and the TV’s input select should be set to the appropriate external input channel.
Note for VCR to DVD duplication
• After starting VCR to DVD duplication, the picture may be distorted because of the auto tracking function. This is not a malfunction. Be advised to play back the tape until the picture is stabilized, then set the starting point which you wish to start recording, and start VCR to DVD duplication.
• This unit will automatically stop the duplication if playback with no image is detected for more than 3 minutes during VCR to DVD duplication.
• Playback sound mode of the dubbed contents is determined by the playback sound mode of the VCR at the point of dubbing.
52 EN
SETTING A DISC TO PROTECT
To prevent accidental recording, editing or erasing the titles, you can protect them from “Disc Edit” menu.
1 Press [SETUP].
2 Use [ K /
L
] to select “Disc Edit”, then press [OK].
3 Use [ K / L ] to select “Disc Protect
OFF ON”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
4 Use [ K / L ] to select “Yes”, then press
[OK].
Protect this disc?
Yes
No
A disc will be protected.
This operation may take a while to be completed.
Note
To cancel the disc protect:
• When you insert a disc protected with this unit,
“Disc Protect ON OFF” will appear instead of “OFF
ON” at step 3.
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect ON OFF
To release the protection for the disc, select “Disc
Protect ON OFF” at step 3, then follow rest of the procedures.
EN 53
PLAYING THE DISCS ON OTHER DVD PLAYERS
Finalizing a Disc
You will need to finalize DVD+R, DVD-RW or DVD-R to play them back on other DVD players.
Finalizing may take several minutes up to an hour.
A shorter recording period on the disc will require a longer time period for finalization. Do not unplug the power cord during finalization.
1 Press [SETUP].
2 Use [ K / L ] to select “Disc Edit”, then press [OK].
“Disc Edit” menu will appear.
3 Use [ K / L ] to select “Finalize”, then press [OK].
4 Use [ K / L ] to select “Yes”, then press
[OK].
Finalize disc?
Yes
No
Finalizing will start.
Finalizing 90%
To cancel finalizing...
(DVD-RW only)
• To cancel finalizing at step 4, press [STOP C ] , select
“Yes” with [ K / L ] , then press [OK] . Finalizing is canceled and the unit will be in stop mode.
Do you want to cancel ?
Yes
No
Note
• Once you have finalized a DVD+R/ DVD-R, you cannot edit or record anything on that disc.
• There is no need to finalize DVD+RW.
• When you insert a DVD-RW finalized with this unit,
“Undo Finalize” will appear instead of “Finalize”.
Disc Edit
Edit Disc Name
Erase Disc
Undo Finalize
Disc Protect ON OFF
To release the finalizing for the disc, select “Undo
Finalize” at step 3.
* DO NOT turn the power off or to the standby mode during finalization, this will result in malfunction.
54 EN
Finalizing 5%
• If appears when pressing [STOP C ] , you cannot cancel finalizing because the finalizing has been in certain progress.
• When selecting “No” and press [OK] or [RETURN] , finalizing will be continued.
• You cannot cancel finalizing the DVD+R/DVD-R once it has started.
This operation may take a while to be completed.
5 Finalizing is completed.
PLAYING THE DISCS ON OTHER DVD PLAYERS
Auto Finalizing
You can finalize discs automatically using this function.
You can use this function to finalize discs after finishing timer recordings and at the end of the disc space.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Recording”, then press [OK].
“Recording” menu will appear.
3 Use [ K / L ] to select “Auto Finalize”, then press [OK].
4 Use [ K / L ] to select “Disc Full” or
“End of Timer Rec”, then press [OK].
Auto Finalize
Disc Full
End of Timer Rec
5 Use [ K / L ] to select “ON”, then press
[OK].
e.g.) “Disc Full”
Disc Full
ON
OFF
Your setting will be activated.
6 Press [SETUP] to exit.
Note
• This function is not available after finishing daily or weekly program recording.
EN 55
INFORMATION ON PLAYBACK
Before you play back DVD, read the following information.
Playable Discs and Files
This unit is compatible to play back the following discs.
To play back a DVD, make sure that it meets the requirements for region codes and color systems as described below. You can play back discs that have the following logos will play back on the unit. Other disc types are not guaranteed to play back.
DVD-video
DVD+RW
Playable discs Logos
Unplayable Discs
The following discs will not play back on this unit.
• CD-ROM
• DVD-RAM
• DVD-ROM
• Unfinalized disc
• Compact Disc-Interactive (CD-I)
• Video Single Disc (VSD)
• DVD-audio
• DVD or CD contains Windows Media™ Audio/DivX® files
• DVD-R or DVD-RW recorded in VR mode or non compatible recording format
• Blu-ray Disc • HD DVD
• Super Video CD
On the following disc, the sound may not be heard.
• Super audio CD - Only the sound on the CD layer can be heard. The sound on the high-density super audio CD layer cannot be heard.
DVD+R
DVD-RW
(Finalized video mode discs only)
DVD-R
(Finalized video mode discs only)
Color Systems
DVD is recorded in different color systems throughout the world. The most common color system is NTSC
(which is used primarily in the United States and Canada).
This unit uses NTSC, so DVD you play back must be recorded in the NTSC system. You cannot play back DVD recorded in other color systems.
CD-DA (audio CD) video CD
CD-RW
Region Codes
This unit has been designed to play back DVD with region 1. DVD must be labeled for ALL regions or for region 1 in order to play back on the unit. You cannot play back DVD that are labeled for other regions. Look for the symbols on the right on your DVD. If these region symbols do not appear on your DVD, you cannot play back the DVD in this unit.
The number inside the globe refers to region of the world.
A DVD labeled for a specific region can only play back on the unit with the same region code.
CD-R
Kodak Picture CD
MP3
JPEG
Playable files Media
CD-RW/-R is a trademark of DVD Format/Logo Licensing Corporation.
56 EN
INFORMATION ON PLAYBACK
PBC (playback control) for Video CD
You can select images or information on the menu screen by activating the PBC (playback control) function of the video CD.
This unit conforms to ver.1.1 and ver. 2.0 of video CD standard with PBC function.
Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.
Ver.2.0 (with PBC function): While using a video CD with
PBC function, “PBC” appears on the TV screen.
Hint for DVD Playback
The contents of DVD are generally divided into titles.
Titles may be further subdivided into chapters.
DVD title 1 title 2 chapter 1 chapter 2 chapter 1 chapter 2 chapter 3 track 1 track 2 audio CD, video CD track 3 track 4 track 5
Note
• PBC setting turns to “ON” when loading video CD with PBC function, thus, even after setting PBC to
“OFF” and ejecting the video CD then reloading the video CD, this setting turns to “ON” automatically.
• Some operations cannot be performed while PBC function is on. Cancel PBC function temporarily to perform those operations by following the instruction below.
1) Press [SETUP].
2) Use [ K / L ] to select “DISC Playback Mode”, then press [OK].
“DISC Playback Mode” menu will appear.
3) Use [ K / L ] to select “PBC (Video CD only)”, then press [OK].
4) Use [ K / L ] to select “ON” or “OFF”, then press [OK].
Your setting will be activated.
You can play back interactive software using menu screens. Refer to instructions in the video CD.
file 1 folder 1 file 2
MP3, JPEG file 3 folder 2 file 4 file 5
EN 57
Direct Playback
BASIC PLAYBACK
Press [DVD] first.
1 Insert a playable disc (refer to page
26 on how to insert a disc).
Align the disc to the disc tray guide.
* Make sure the disc is compatible with this unit.
(Refer to page 56 for the list of compatible discs.)
It may take a while to load the disc.
2 Press [PLAY ] to start playback.
If you are playing back a DVD-video or video CD with PBC function, a menu may appear.
Refer to “Using the Title / Disc Menu” on page
61.
3 Press [STOP C ] once to stop playback temporarily.
• Refer to “Resume Playback” on page 62.
Note
• Some discs may start playback automatically.
• You can select images or information on the menu screen by activating PBC (playback control) function
(page 57).
• Playback will stop when you change the output mode.
58 EN
Playback from the Title List
BASIC PLAYBACK
If you want to see disc information, press [ { ] when the first page of the title list is displayed or press [ K ] when the first title is selected but not when “Play”, “Edit” or
“Overwrite” is highlighted.
e.g.) DVD+RW
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect
Make Edits Compatible
OFF
Needed e.g.) DVD+R
No Disc Name
Disc DVD+R
Total Titles
Disc Space Used
5
1:30:48
Disc Protect OFF
Finalize Finalized
Press [DVD] first.
1 Insert a playable disc (refer to page
26 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 56 for the list of compatible discs.)
It may take a while to load the disc.
• Title list will appear automatically.
• To exit the title list, press [STOP C ] .
• To resume the title list, press [TITLE] .
1. Disc name
(Default “No Disc Name”)
2. Disc type
(DVD+RW/DVD+R/ DVD-RW/DVD-R)
3. Total number of title
(include “EMPTY TITLE”)
4. Total time of recorded disc space
5. Status of disc protection
(“ON” is protected disc.)
6. Making edits compatible/finalize
• When DVD+RW is inserted:
If the disc needs to be set “Make Edits Compatible”,
“Needed” is displayed. Otherwise, “Not Needed” is displayed. (Refer to page 81.)
• When DVD+R, DVD-RW or DVD-R is inserted:
If “Finalize” is done, “Finalized” is displayed.
Otherwise, “Unfinalized” is displayed.
2 Use [ K / L ] to select a desired title, then press [OK].
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
• For video CD, when “PBC (Video CD only)” in
“DISC playback Mode” menu is set to “ON”, the video CD main menu will appear when inserting a disc. In such case, select a numbered menu with [the Number buttons] .
• Press [ B ] to display the next page, and press
[ { ] to display the previous page.
3 Use [ K / L ] to select “Play”, then press [OK].
P l a y
1 SP (2Hr)
E d i t
O v e r w r i t e
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
Playback will start.
Note
• Some discs may start playback automatically.
• You can also start playback by pressing [PLAY B ] instead of [OK] at step 2.
4 Press [STOP C ] once to stop playback temporarily.
• Refer to “Resume Playback” on page 62.
EN 59
BASIC PLAYBACK
Playing Back an Audio CD and a CD-RW / -R with MP3 / JPEG Files
Press [DVD] first.
1 Insert a playable disc (refer to page
26 on how to insert a disc).
* Make sure the disc is compatible with this unit.
(Refer to page 56 for the list of compatible discs.)
It may take a while to load the disc.
When an audio CD is inserted, track list will appear.
When a CD-RW/-R with MP3 / JPEG files is inserted, file list will appear.
When you insert a CD-RW/-R mixed with MP3/JPEG files, the playback media selection screen will be displayed.
For MP3, select “Music”, for JPEG, select “Photo”.
• To exit the track/file list, press [STOP C ] .
• To resume the track/file list, press [TITLE] .
Note
• The audio source of MP3 files cannot be recorded as digital sound by an MD or DAT deck.
• Files whose extension is other than “.mp3(MP3)” or
“. jpg / . jpeg (JPEG)” will not be listed.
• Some unplayable folders or files may be listed due to the recording status.
• High-resolution JPEG files take longer to be displayed.
• Progressive JPEG files (JPEG files saved in progressive format) cannot be played back on this unit.
2 Use [ K / L ] to select a desired folder or track/file, then press [OK].
e.g.) File list
File List
DISC NAME
Folder 1
Folder 2
MP3 file 1
MP3 file 2
MP3 file 3
MP3 file 4
MP3 file 5
MP3 file 6
1/ 2
When selecting track/file:
Playback will start.
When selecting the folder (Not available for audio CD):
The files in the folder will appear.
Use [ K / L ] to select the file or folder you want to play back, then press [OK] .
• Press [PLAY B ] , [OK] or [ B ] to move to any lower hierarchies.
• Press [ s ] or [RETURN] to move back to the previous hierarchy.
Hints for audio CD tracks and MP3 / JPEG files:
• Folders are shown by .
• Audio CD tracks are shown by .
• MP3 files are shown by .
• JPEG files are shown by .
• The system can recognize up to 255 folders, up to 99 tracks/999 files.
• Letters of a file/folder name overflowing the given space will be displayed as “...”. Unrecognizable characters will be replaced with asterisks.
• If there are no files in the folder, “No Files” will be displayed.
It is recommended that files to be played back in this unit are recorded under the following specifications:
<MP3>
• Sampling frequency
• Constant bit rate
: 44.1 kHz or 48 kHz.
: 112 kbps - 320 kbps
<JPEG>
• Upper limit
• Lower limit
: 6,300 x 5,100 dots.
: 32 x 32 dots.
• File size of image maximum : 12 MB.
60 EN
BASIC PLAYBACK
Playing Back an Audio CD and a
CD-RW / -R with MP3 / JPEG Files (cont’d)
Using the Title / Disc Menu
Kodak Picture CD
The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. You can enjoy picture images on the TV set by playing back the Picture CDs.
For details of Kodak Picture CD, contact a shop that provides developing service of Kodak Inc.
1) Press [TITLE].
Picture CD
Image 1
DVD or video CD with PBC function may contain a title list, which describes the contents of the disc, or a disc menu, which guides you through the available functions in the disc.
Press [DVD] first.
1) Insert a playable disc (refer to page 26 on how to insert a disc).
* Make sure the disc is compatible with this unit. (Refer to page 56 for the list of compatible discs.)
It may take a while to load the disc.
1
4
2
5
3
6
2) Press [TITLE] or [DISC MENU] to call up the title list or disc menu.
3) Use [ K / L / { / B ] to make a selection, and then press [OK] to enable your selection.
1 / 2
• To exit the Picture CD thumbnail List, press [RETURN] or [STOP C ].
Arrow icons mean the title list includes a next or previous page. Use [ { / B ] in the direction of the icon you wish to follow. You can quick review the six thumbnails at once between the first and last pages by pressing [ H ] / [ G ] .
2) Use [ K / L / { / B ] to select a desired track to be played back, then press [PLAY B ] or [OK].
An image will be played back from the selected track and go to the next one in turn.
4) Press [STOP C ] to exit.
Note
• You can select a numbered menu with [the Number buttons] also.
• Menus vary among discs. Refer to the information accompanying the disc for details.
• [TITLE] or [DISC MENU] will not always be active with all DVD.
• For video CD, when “PBC (Video CD only)” in “DISC
Playback Mode” menu is “ON”, the video CD main menu will appear when inserting a disc.
3) Press [STOP C ] to stop playback.
• Press [TITLE] to display the thumbnail again.
Notes on JPEG and Kodak Picture CD:
• After track is displayed for 5 seconds or 10 seconds
(set in “Slide Show” on page 65) the display moves to the next track.
During JPEG or Kodak Picture CD playback, press [ B ] or [ { ] to rotate a picture 90 degrees clockwise or counterclockwise respectively.
(Not available when the display menu appears.)
Pause
1) During playback, press [PAUSE F ].
Playback will be paused and sound will be muted.
F
2) Press [PLAY B ] to return to the normal playback.
Note
• On DVD, set “Still Mode” to “Field” in “Playback” menu if pictures in the pause mode are blurred.
(Refer to page 87.)
EN 61
Resume Playback
SPECIAL PLAYBACK
Skipping TV Commercials During
Playback
You can play back from where you stopped playing back the disc last.
1) During playback, press [STOP C ].
The resume message will appear.
You can skip TV commercials to enjoy the recorded programs without interrupting.
Resume ON
2) Press [PLAY B ].
In a few seconds, playback will resume from the point at which it stopped last. You can resume playback at the same point even if you turn the unit to the standby mode.
To cancel the resume playback and start playing back the disc from the beginning, press [STOP C ] again while the playback is stopped.
During playback, press [CM SKIP].
Normal playback will start at 30 seconds ahead from the point you press [CM SKIP] .
Every time you press [CM SKIP] , the searching point will be extended by 30 seconds ahead.
You can press [CM SKIP] up to 6 times (180 seconds).
e.g.) Press [CM SKIP] once.
CM Skip 30 sec.
(forwarding 30 seconds)
Note
• For MP3 / JPEG files, playback will resume from the beginning of the file at which play back was stopped.
• Resume Playback is available when you play back the video CD without PBC function.
• Some video CD with the PBC function resume playback from the beginning of the track.
B
Playback will return to the normal playback.
Fast Forward / Fast Reverse Playback Rapid Playback
1) During playback, press [ D ] or [ E ].
Every time you press [ D ] or [ E ] , approximate speed will be changed as follows.
Fast forward or fast reverse playback across titles (for
DVD) or files (for MP3 files) is not possible.
Rapid playback function is available only during playback.
This function is available only on discs recorded in the
Dolby Digital format, and plays back in a slightly faster/ slower speed while keeping the sound quality just as normal playback.
40x 20x 5x normal speed playback
2x 20x 40x
For video CD, approximate forward/reverse speeds are
2x, 8x, 16x.
For audio CD, MP3 files, approximate speed is fixed at
8x with sound (indicated with / ).
2) Press [PLAY B ] to return to the normal playback.
Note
• Forward/reverse speed will be indicated with icons as follows.
forward (approx. speed)
2x:
20x:
40x:
reverse (approx. speed)
5x:
20x:
40x:
1) During playback, press [RAPID PLAY].
B x 0.8
: Press [RAPID PLAY] once during playback.
Plays back approximately at 0.8 times of normal playback.
B x 1.3
: Press [RAPID PLAY] twice during playback.
Plays back approximately at 1.3 times of normal playback.
B : Press [RAPID PLAY] normal speed.
No effects.
3 times to play back in
2) Press [PLAY B ] to return to the normal playback.
Note
• Audio (language) setting cannot be changed while using this mode.
• This feature may not work at some point in a disc.
• Audio is PCM during rapid playback mode except when using digital audio connection.
• When using digital audio connection (COAXIAL), the
LPCM sound (2 channel) will be output.
62 EN
SPECIAL PLAYBACK
Step by Step Playback Zoom
1) During playback, press [PAUSE F ].
Playback will be paused and sound will be muted.
2) Press [ G ] repeatedly.
Playback will advance one frame (or step) at a time when you press [ G ] with the sound muted.
To play back step by step backward:
Press [ H ] repeatedly.
Every time you press the button, the playback will go backward by one frame.
• Press and hold [ H ] / [ G ] to reverse/ advance continuously.
3) Press [PLAY B ] to return to the normal playback.
1) During playback, press [DISPLAY] to bring up the display menu.
2) Use [ { / B ] to select to display the selection menu.
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
Note
• Only step by step forward playback is available for playing back video CD.
Slow Forward / Slow Reverse Playback
1) During playback, press [PAUSE F ]. Then press
[ D ] or [ E ].
Every time you press [ D ] or [ E ] , approximate speed will be changed as follows. (The sound will remain muted.)
3) Use [ K / L ] to select a desired zoom factor to zoom, then press [OK].
1/ 5 1/ 5
× 1.2
× 1.5
× 2.0
0:01:00 / 1:23:45
DVD Video
Zoom menu will appear.
There are four options
(x1.0, x1.2, x1.5 and x2.0), these are displayed excluding the current zoom rate.
Zoom area will be displayed.
1/4x 1/8x 1/16x pause
1/16x 1/8x 1/3x
4) Use [ K / L / { / B ] to select a desired zoom position, then press [OK].
2) Press [PLAY B ] to return to the normal playback.
Note
• Forward/reverse speed will be indicated with icons as follows.
forward (approx. speed)
1/16x:
1/8x:
1/3x:
reverse (approx. speed)
1/16x:
1/8x:
1/4x:
• Only slow forward is available when playing back video CD.
Zoom playback will start.
Note
• When selecting a smaller factor than the current one, the zoom area will not be displayed.
• To exit the zoom menu, press [RETURN] repeatedly at step 3.
• To cancel the zoom function, select “x1.0” using
[ K / L ] , then press [OK] .
• You cannot slide the zoomed picture on some JPEG files.
EN 63
SPECIAL PLAYBACK
Marker Setting Repeat Playback
This feature allows you to assign a specific point on a disc to be called back later.
1) During playback, press [DISPLAY] to bring up the display menu.
If the display menu is already shown, skip to step 2.
Available repeat function may vary depending the discs.
1) During playback press [DISPLAY] to bring up the display menu, then proceed to step 2), or press
[REPEAT] then proceed to step 3).
If the display menu is already shown, skip to step 2.
2) Use [ { / B ] to select to display the selection menu.
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
2) Use [ { / B ] to select to display the marker list.
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
3) Use [ K / L ] to select a desired repeat type, then press [OK].
The selected repeat playback will start.
e.g.) DVD-video
OFF
Title
Chapter
A – B
3) Use [ K / L ] to select a desired marker number.
When it reaches the desired point, press [OK].
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
1
2
3
4
5
6
---
---
---
---
---
--e.g.) audio CD, video CD
OFF
Track
All
A – B e.g.) MP3 / JPEG files
The title (track) number and the time will be displayed.
4) To return to the marker later:
Use [ K / L ] to select the desired marker number, then press [OK].
Note
• To clear a marker, select the marker number to be cleared, then press [CLEAR] .
• All markers will be erased when you operate these operations listed below.
– Opening the disc tray
– Turning the unit to standby / off
– Record on a recordable disc
• You can mark up to 6 points.
• Marker setting is not available when you play back the video CD with PBC function.
OFF
Track
All
Group
Title:
The current title will be played back repeatedly.
Chapter:
The current chapter will be played back repeatedly.
All:
The current disc will be played back repeatedly.
A-B:
Desired section can be played back repeatedly.
1) Use [ K / L ] to select “A-B”, then press [OK] .
2) Press [OK] at the desired starting point A.
3) Press [OK] at the desired ending point B.
Track:
The current track or file will be played back repeatedly.
Group:
The current folder will be played back repeatedly.
Note
• Point B for the repeat A-B playback should be set within the same title or track as point A.
• To cancel the repeat playback, select “OFF” at step 3.
The repeat setting will also be canceled when you stop playback.
• You cannot select “Group” during the random playback.
• Repeat playback is not available when you play back the video CD with PBC function.
• During the A-B repeat, if you reaches the point A with any reverse playback, the reverse playback will be canceled and the A-B repeat playback resumes from point A.
64 EN
SPECIAL PLAYBACK
Random Playback
You can play back a disc randomly instead of playing back in the original order.
1) Press [SETUP].
2) Use [ K / L ] to select “DISC Playback Mode”, then press [OK].
“DISC Playback Mode” menu will appear.
For MP3, use [ K / L ] to select “Music”, then press [OK] .
For JPEG, use [ K / L ] to select “Photo”, then press [OK] .
3) Use [ K / L ] to select “Random Play”, then press
[OK].
Random playback will start.
Note
• To cancel random playback, press [STOP C ] twice during random playback. “OFF” appears on the TV screen.
• For video CD with PBC function, the PBC setting will be switched to off automatically when you start random playback.
Slide Show
Program Playback
You can program the disc to play back in your desired order.
1) Press [SETUP].
2) Use [ K / L ] to select “DISC Playback Mode”, then press [OK].
“DISC Playback Mode” menu will appear.
3) Use [ K / L ] to select “Program Play”, then press
[OK].
4) Use [ K / L ] to select a desired track, then press [OK] or [ B ].
DISC Playback Mode
Program Play
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
---
---
---
---
---
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Total 0:00:00
Repeat this step until you program all the desired tracks.
You can select the display time between 5 seconds and
10 seconds.
1) Follow steps 1 and 2 in “Random Playback” on this page.
2) Use [ K / L ] to select “Slide Show”, then press [OK].
3) Use [ K / L ] to select the display time, then press
[OK].
5) Press [PLAY B ].
DISC Playback Mode
Program Play
09 04 10 06 --
------
------
--
--
--
--
--
--
--
--
--
--
---
---
---
---
---
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Total 0:31:07
Program playback will start.
4) Press [SETUP] to exit.
Note
• Large-size JPEG files take a few moments to be displayed.
Note
• To erase tracks you selected, press [CLEAR] at step 4.
• You can make program settings up to 50 tracks.
• To cancel program playback, press [STOP C ] twice during program playback. “OFF” appears on the TV screen.
• You may also select a desired track using [the
Number buttons] at step 4.
• For video CD with PBC function, the PBC setting will be switched to off automatically when you start program playback.
EN 65
SEARCH
Track Search Title / Chapter Search
Using [ H ] / [ G ]
1) During playback, press [ G ] to skip the current title or chapter and move to the next.
The title or chapter will move forward by one at a time.
• If there is no chapter in one title, the current title will be skipped.
To go back to the beginning of the current title or chapter, press [ H ] .
Press it repeatedly to go to the previous title or chapter. The title or chapter will move backward one at a time.
Using [ H ] / [ G ]
1) During playback, press [ G ] to skip the current track/file and move to the next.
The track/file will move forward one at a time.
To go back to the beginning of the current track/file, press [ H ] .
Press it repeatedly to go to the previous track/file. The track/file will move backward one at a time.
For JPEG files, press it once to go to the previous file.
Using [DISPLAY]
1) During playback, press [DISPLAY] to bring up the display menu .
2) Use [ { / B ] to select , then press [OK].
e.g.) DVD-video
Using [DISPLAY]
1) During playback, press [DISPLAY] to bring up the display menu.
If the display menu is already shown, skip to step 2.
2) Use [ { / B ] to select , then press [OK].
e.g.) audio CD
1/ 5 0:00:15 / 0:05:00
CD
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video e.g.) MP3 files
1/ 5 0:00:15
The number next to will be highlighted.
3) Title:
Use [ K / L ] or [the Number buttons] to enter a desired title number to search, then press [OK].
Title search will start.
Chapter:
Press [ B ] to move to the number next to for chapter.
Use [ K / L ] or [the Number buttons] to enter a desired chapter number to search, then press [OK].
After the search, playback will start automatically.
Note
• In search mode display, total numbers of each search contents (title/chapter/time) are shown as a denominator.
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
MP3
The number next to will be highlighted.
3) Use [ K / L ] or [the Number buttons] to enter a desired track/file number to search, then press
[OK].
After the search, playback will start automatically.
Note
• During CD playback you can enter a track number directly using [the Number buttons] for track search without displaying the menu.
• Track search using [DISPLAY] is not available when you play back the video CD with PBC function.
total number of titles total number of chapters total time of the title
66 EN
SEARCH
Time Search
1) During playback, press [DISPLAY] to bring up the display menu.
If the display menu is already shown, skip to step 2.
2) Use [ { / B ] to select , then press [OK].
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video e.g.) audio CD
1/ 5 0:00:15 / 0:05:00
CD
The number next to will be highlighted.
To move to the number next to , Press [ B ].
When time search is not available, and time counter are not displayed.
3) Use [ K / L / { / B ] or [the Number buttons] to enter a desired time to search, then press [OK].
After the search, playback will start automatically.
Note
• Time search is available only in the same track, file or title.
• Time search is not available when you play back the video CD with PBC function.
EN 67
SELECTING THE FORMAT OF AUDIO AND VIDEO
You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.
Switching Subtitles
DVD-video may have subtitles in 1 or more languages.
Available subtitle languages can be found on the disc case. You can switch subtitle languages anytime during playback.
Switching Audio Soundtrack
When playing back a DVD-video recorded with 2 or more soundtracks (these are often in different languages), you can switch them during playback.
When playing back video CD, audio CD you can switch
“L/R”(stereo), “L”(left) or “R”(right).
1) During playback, press [DISPLAY] to bring up the display menu.
2) Use [ { / B ] to select to display the selection menu.
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
3) Use [ K / L ] to select a desired subtitle language, then press [OK].
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
OFF
1.English
Subtitle will be displayed in the selected language.
When selecting “OFF”, subtitle will disappear.
Note
• Some discs will only allow you to change the subtitle from the disc menu. Press [TITLE] or [DISC MENU] to display the disc menu.
• If a 4-digit language code appears in the subtitle menu, refer to “LANGUAGE CODE” on page 101.
1) During playback press [DISPLAY] to bring up the display menu, then proceed to step 2), or press [AUDIO] then proceed to step 3).
• If the display menu is already shown, skip to step 2.
2) Use [ { / B ] to select to display the selection menu.
3) Use [ K / L ] to select a desired audio soundtrack or audio channel, then press [OK].
For DVD-video
• Audio soundtrack will switch.
1/ 5 1/ 5
1.Dolby Digital 5.1ch English
2.Dolby Digital 2ch English
0:01:00 / 1:23:45
DVD Video
• If the title contains both main and sub audio, you can further select “L” (main), “R” (sub), or “L/R” (mixed of main and sub).
For audio CD, video CD
• Audio channel will switch.
e.g.) audio CD
1/ 5 0:00:15 / 0:05:00
CD
1. L/R
2. L
3. R
Note
• Some discs will only allow you to change the soundtrack from the disc menu. Press [TITLE] or
[DISC MENU] to display the disc menu.
68 EN
SELECTING THE FORMAT OF AUDIO AND VIDEO
Switching Virtual Surround System Switching Camera Angles
You can enjoy stereophonic virtual space through your existing 2 channel stereo system.
1) During playback, press [DISPLAY] to bring up the display menu.
If the display menu is already shown, skip to step 2.
2) Use [ { / B ] to select to display the selection menu.
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
Some DVD-video have scenes shot from 2 or more angles. Angle information should be on the disc case if the disc contains multi-angle scenes.
1) During playback, press [DISPLAY] to bring up the display menu.
2) Use [ { / B ] to select , then press [OK].
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
3) Use [ K / L ] to select “OFF”, “Type 1” or “Type 2”, then press [OK].
e.g.) DVD-video
1/ 5 1/ 5
OFF
Type 1
Type 2
0:01:00 / 1:23:45
DVD Video
OFF : no effect
Type 1 : natural effect
Type 2 : emphasized effect
Note
• Select “OFF” in a case sound is distorted.
• The setting will be kept even when the unit is turned off .
Angle icon appears when a switching camera angle is available.
Angle will switch each time you press [OK].
Note
• Angle icon does not appear on the TV screen in a case you set “Angle Icon” to “OFF” in “Playback” menu. Refer to page 87.
Reducing Block Noise
This function reduces noise in the playback picture.
1) During playback, press [DISPLAY] to bring up the display menu.
2) Use [ { / B ] to select to display the selection menu.
e.g.) DVD-video
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
3) Use [ K / L ] to select a desired option, then press
[OK].
1/ 5 1/ 5 0:01:00 / 1:23:45
DVD Video
OFF
Type 1
Type 2
Your setting will be activated.
OFF : When playing back titles with a few noises such as DVD-video.
Type 1 : For the titles recorded in long time mode such as EP or SLP mode.
Type 2 : Same as type 1, only more effective.
EN 69
INFORMATION ON DISC EDITING
Guide to a Title List Editing Discs
Title list allows you to check the titles recorded on the disc easily. You can choose a title to play back from this list and easily edit the titles as you prefer.
Press [DVD], then press [TITLE].
1 2 3
6
4
P l a y
E d i t
O v e r w r i t e
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
Edit
2 5
2
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Index Picture
Title Dividing
NOV/22/09 11:35AM CH13 EP
1 : 05 : 00
11 10 9 8 7
1. Title list: List of the titles recorded on the disc, and their information.
2. Arrow: Indicating there is a previous / next page.
3. Title information: On the first line, title name
(editable) is displayed. On the second line, the date recorded and length of the title are displayed.
Empty title: The portion of the disc where there is no recordings are made. As for the empty title, available recording time by the selected recording mode is displayed on the second line.
4. Recording mode: Currently selected recording mode is displayed here.
5. Capacity indicator: Indicating the position and the amount of each title in the disc. The portion for the selected title is highlighted.
6. Thumbnails: A cut from the recorded content is displayed here.
7. Submenu: Submenus for the selected menu are displayed here.
8. Title name (editable) : If you do not name the title, the recorded date, time, channel, and the recording mode are displayed here.
9. Progress bar: Indicating the progress of the playback.
10. Preview window: Preview of the selected title is displayed here.
11. Playback status: Indicating the current playback status of the selected title.
Press [STOP C ] to exit the title list.
You can edit discs for the following items. Be sure that once you edit titles, they will not remain as original.
• Deleting a Title (Refer to page 71.)
• Putting Names on Titles (Refer to page 72.)
• Setting Chapter Marks (Refer to page 73.)
• Clearing Chapter Marks (Refer to pages 74-75.)
• Hiding Chapters (Refer to page 76.)
• Setting Pictures for Thumbnails (Refer to page 77.)
• Dividing a Title (DVD+RW/DVD-RW only)
(Refer to page 78.)
• Putting Name on Disc (Refer to page 79.)
• Erasing Disc (Refer to page 80.)
• Making Edits Compatible (Refer to page 81.)
Note
• When selecting “Edit” on pop-up menu of the title list and edit the title, the title list is displayed after writing the edited contents onto the disc.
• The capacity indicator in the right side of the title list may not indicate the precise capacity in the disc.
• The capacity indicator may not indicate the capacity for the titles of which recording time is short.
• Once you have finalized a DVD+R/ DVD-R, you cannot edit or record anything on that disc.
70 EN
EDITING DISCS
Deleting a Title
You can delete a title which you do not need anymore.
Please be advised that the titles once deleted cannot be brought back to the disc.
For DVD+RW/DVD-RW, when the last recorded title in the title list is deleted, the available disc space to record on will be increased. For DVD+R/DVD-R, the disc space to record on will not be changed.
3 Use [ K / L ] to select “Edit”, then press [OK].
P l a y
E d i t
O v e r w r i t e
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
4 Use [ K / L ] to select “Title Delete”, then press [OK].
Edit
1
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Index Picture
Title Dividing
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
Confirmation message will appear.
5 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Title Delete
Yes
No
1
Press [DVD] first.
1 Press [TITLE].
2 Use [ K / L ] to select a desired title, then press [OK].
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
Note
• Deleted part of the titles in the capacity indicator changes in color.
• As for DVD+RW/DVD-RW if you delete the title, deleted title will be displayed as “EMPTY TITLE”.
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
After that, “Are you sure?” will appear, select
“Yes” and then press [OK] .
Title will be deleted.
Data will be written onto the disc momentarily.
e.g.) DVD+R/DVD-RW/-R
Please finalize the disc when the writing is completed before playing back on other DVD players.
Writing to Disc 90%
This operation may take a while to be completed.
After editing is complete, the title list will appear.
e.g.) DVD+RW/DVD-RW
1 SP (2Hr)
EMPTY TITLE
0:21:14 SP(2Hr)
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
EN 71
EDITING DISCS
Putting Names on Titles
You can put title names on the titles and change the names from this menu.
4 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Edit Title Name
Yes
1
No
MY FAVORITE
1 : 05 : 00
The name you entered will be activated for the title.
5 After this operation is completed, press [RETURN] to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ K / L ] to select “Edit Title
Name”, then press [OK].
Edit
1
Title Delete
Edit Title Name
Chapter Mark
Hide Chapter
Index Picture
Title Dividing
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
3 To enter a title name, follow the steps of “Guide to Edit Title Name” on this page.
M
Edit - Edit Title Name
1
A B C a b c
1 2 3
@ !
?
character set
1 : 05 : 00 area for entering title names
Guide to Edit Title Name
1) Use [ K / L ] to select a desired character set, then press [OK].
2) Follow the list below, use [the Number buttons] repeatedly until the desired letter appears.
When you finish entering a title name, press [OK].
Select
Press
ABC abc 123 @ ! ?
<space> <space> 0 <space>
(*1) (*1) 1
! ” # $ % & ’ ( )
* + , - . / : ; < = >
? @ [ ] ^ _ { | }
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ abc def ghi jkl mno pqrs tuv wxyz
5
6
7
8
9
2
3
4
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
(*2)
*1 Press , character set will be changed to “ @!? ” mode automatically.
*2 Press to , character set will be changed to the previous input mode automatically.
• To delete letters, press [CLEAR] repeatedly.
Holding [CLEAR] to delete all letters.
• Use [ s / B ] to move the cursor to the left and right.
• You can enter up to 30 letters.
Note
• Undefined letters in a title name are shown by “*”. If you delete them, adjoining letters may change to “*” or other.
72 EN
EDITING DISCS
Setting Chapter Marks
You can put chapter marks in each title. Once a chapter is marked, you can use it for the chapter search feature.
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ K / L ] to select “Chapter Mark”, then press [OK].
Submenu will appear.
3 Press [PLAY ] and then [PAUSE F ] to decide the point at which you will create a new chapter mark.
• It is convenient to use [ H ] , [ G ] ,
[ E ] and [ D ] for finding the point to add a new chapter mark.
4 Use [ K / L ] to select “Add”, then press
[OK].
Edit - Chapter Mark
Add
Delete
Delete All
1
Chapter 2/ 3
Note
• When the number of chapter marks in a title is 99 and the number of chapter marks in a disc is 254, chapter marks cannot be added.
• Besides the above-mentioned, it is not likely to be able to add according to recorded time and number of chapters.
• Remaining time of the disc may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
5 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Add
Yes
No
1
Chapter 2/ 3
F
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
A new chapter mark will be added.
6 Press [RETURN] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
EN 73
Clearing Chapter Marks
EDITING DISCS
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ K / L ] to select “Chapter Mark”, then press [OK].
Submenu will appear.
3 Use [ H ] / [ G ] to select a chapter mark to be deleted, then press
[PAUSE F ].
Chapter mark number is displayed on the preview screen.
e.g.) DVD
Edit - Chapter Mark
1 Add
Delete
Delete All
Chapter 2/ 3
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
4 Use [ K / L ] to select “Delete”, then press [OK].
5 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete
Yes
1
No
Chapter 2/ 3
F
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
The selected chapter mark will be deleted.
6 Press [RETURN] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
Note
• Remaining time of the disc may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.
• You cannot delete the chapter mark 1.
74 EN
EDITING DISCS
Clearing Chapter Marks (cont’d)
To delete all chapter marks:
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ K / L ] to select “Chapter Mark”, then press [OK].
Submenu will appear.
3 Use [ K / L ] to select “Delete All”, then press [OK].
4 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete All
Yes
No
1
Chapter 2/ 3
F
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
5 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Chapter Mark - Delete All
1 Are you sure?
Yes
No
Chapter 2/ 3
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
All chapter marks will be deleted.
6 Press [RETURN] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
Note
• Remaining time of the disc may decrease when adding chapter marks or increase when clearing chapter marks depending on the recording time or edited contents.
EN 75
EDITING DISCS
Hiding Chapters
You can hide chapters from the title list.
Hidden chapters are skipped during playback.
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ K / L ] to select “Hide Chapter”, then press [OK].
Submenu will appear.
3 Use [ H ] / [ G ] to decide the chapter to be hidden.
4 Use [ K / L ] to select “Hidden”, then press [OK].
Edit - Hide Chapter
Visible
1
Hidden
Chapter 2/ 3 Visible
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
The chapter is now hidden.
5 After this operation is completed, press [RETURN] twice to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
If you want hidden chapters to be “Visible”, select the chapter to be shown. Then use
[ K / L ] to select “Visible” at the step 4 on this page.
Data will be written onto the disc momentarily.
After that, title list is displayed.
Note
• ”Hidden” will be displayed in the preview window while previewing the hidden chapter.
• When you make all chapters in the title “Hidden”,
“Hidden” is displayed in a thumbnail of the title list.
Hidden
1 SP (2Hr)
NOV/21/09 11:00AM CH12 SP
NOV/21/09 0:20:44
2
NOV/22/09 11:35AM CH13 EP
NOV/22/09 0:10:33
3
EMPTY TITLE
1:37:52 SP(2Hr)
76 EN
EDITING DISCS
Setting Pictures for Thumbnails
You can set your desired scene as a thumbnail for each title.
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ H ], [ G ], [ E ], [ D ], [PAUSE
F ] and [PLAY B ] to decide the picture you want to select as a thumbnail.
3 Use [ K / L ] to select “Index Picture”, then press [OK].
4 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Index Picture
1
Yes
No
F
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
A picture for thumbnail will be set.
5 Press [RETURN] to exit.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
Note
• If the selected picture for a thumbnail is overwritten, the thumbnail is reset to the first scene of the title.
EN 77
Dividing a Title
You can divide one title into 2 new titles.
EDITING DISCS
1 Follow steps 1 to 3 in “Deleting a
Title” on page 71 to display “Edit” menu.
2 Use [ H ], [ G ], [ E ], [ D ], [PAUSE
F ] and [PLAY B ] to decide the point at which you will divide the title.
3 Use [ K / L ] to select “Title Dividing”, then press [OK].
4 Use [ K / L ] to select “Yes”, then press
[OK].
Edit - Title Dividing
1
Yes
No
F
NOV/21/09 11:00AM CH12 SP
1 : 05 : 00
The title will be divided into 2 new titles.
Both title names are identical, and thumbnails are reset to the first scene at this point.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
Note
• You cannot divide a title of the disc when the number of recording titles reaches the maximum of
49, and the number of recording chapters reaches the maximum of 254.
78 EN
EDITING DISCS
Putting Name on Disc
You can put a name on the disc and change it from this menu.
Press [STOP C ] if you are playing back a disc.
1 Press [SETUP].
2 Use [ K / L ] to select “Disc Edit”, then press [OK].
3 Use [ K / L ] to select “Edit Disc
Name”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
A window for entering a title name will appear.
Edit Disc Name
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used 0:30:48
Disc Protect
Make Edits Compatible
OFF
Needed
A B C a b c
1 2 3
@ !
?
Note
• You cannot select “Disc Edit” when finalized DVD+R or DVD-R is inserted.
4 To enter a disc name, follow the steps of “Guide to Edit Title Name” on page
72.
When you finish entering a title name, press
[OK] .
5 Use [ K / L ] to select “Yes”, then press
[OK].
Edit Disc Name
Yes
No
No Disc Name
Disc DVD+RW
Total Titles 3
Disc Space Used
Disc Protect
Make Edits Compatible
0:30:48
OFF
Needed
MY FAVORITE DISC
The name you entered will be activated for the title.
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
EN 79
Erasing Disc
You can erase all titles on a disc.
EDITING DISCS
Press [STOP C ] if you are playing back a disc.
1 Follow steps 1 to 2 in “Putting Name on Disc” on page 79 to display “Disc
Edit” menu.
2 Use [ K / L ] to select “Erase Disc”, then press [OK].
e.g.) DVD+RW
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
3 Use [ K / L ] to select “Yes”, then press
[OK].
When you press “Yes”, all the contents in the disc will be erased.
Are you sure to erase the disc?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
The contents of the disc is now deleted.
Note
• When you select “Yes” at step 3, all contents of the disc will be erased.
80 EN
EDITING DISCS
Making Edits Compatible
Press [STOP C ] if you are playing back a disc.
If you have added or deleted chapters, or made chapters hidden, you must perform “Make Edits Compatible” to see those effects on other unit.
1 Follow steps 1 to 2 in “Putting Name on Disc” on page 79 to display “Disc
Edit” menu.
2 Use [ K / L ] to select “Make Edits
Compatible”, then press [OK].
Disc Edit
Edit Disc Name
Erase Disc
Make Edits Compatible
Disc Protect OFF ON
3 Use [ K / L ] to select “Yes”, then press
[OK].
Activate the Make Edits Compatible?
Yes
No
Data will be written onto the disc momentarily.
This operation may take a while to be completed.
EN 81
LIST OF SETTINGS
The following table is the contents which you can set and the default setting.
Refer to the following table for useful operation.
Setup
Playback
Pages 85-87
Items (highlight is the default)
Parental Lock
Disc Audio Dynamic Range
Control
Display
Pages 88-90
PCM
Dolby Digital
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
OSD Language
Screen Saver
FL Dimmer
DTV CC
CC Style
pages 37-38
Caption Service
page 36
Recording
page 40
User Setting
Font Size
Font Style
Font Opacity
OFF
level 8 [Adult] to 1 [Kid Safe]
Contents
Set the parental level for DVD playback.
Compressing the range of sound volume.
ON
OFF
48kHz
96kHz
PCM
Stream
Set whether the sound recorded in 96kHz will be down sampled in 48kHz.
Set the type of sound signal which outputs from the digital audio output jack.
Set the language for disc menu language.
English
French
Spanish
Other
Set the language for audio.
Original
English
French
Spanish
Other
Set the language for subtitles.
OFF
English
French
Spanish
Other
ON
OFF
Set whether or not to display the angle icon.
Set the type of still image in pausing playback.
Auto
Field
Frame
Set the language for OSD (on-screen display).
English
Français
Español
OFF
1minute
5minutes
10minutes
15minutes
Auto
Bright
Dark
Set the idling time before the screen saver starts.
Set the brightness of the front panel display.
Set the type of the DTV closed caption.
OFF
Service1
Service2
Service3
Service4
Service5
Service6
ON
OFF
Set whether to record the DTV closed caption or not.
ON
OFF
Set the CC style setting whether or not is effective.
Set font size of the displayed caption.
Large
Middle
Small
Set font style of the displayed caption.
Style1
Style2
Style3
Style4
Style5
Style6
Style7
Style8
Solid
Transparent
Translucent
Flash
Set the font opacity of the displayed caption.
82 EN
LIST OF SETTINGS
Setup
Display
Pages 88-90
Video
Page 91
Items (highlight is the default)
CC Style
pages 37-38
V-Chip
Font Color
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Edge Type
Edge Color
None
Raised
Depressed
Uniform
L.Shadow
R.Shadow
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Back Opacity
Back Color
MPAA Rating
TV Rating
X
NC-17
R
PG-13
PG
G
NR
TV-MA
TV-14
TV-PG
TV-G
TV-Y7
TV-Y
None
Solid
Transparent
Translucent
Flash
White
Black
Red
Green
Blue
Yellow
Magenta
Cyan
Canadian
English Rating
Canadian French
Rating
Downloadable
Rating
18+
14+
PG
G
C8+
C
E
18ans+
16ans+
13ans+
8ans+
G
E
Block Setting
Clear Downloadable
Rating
Change
Password
Progressive Scan ON
OFF
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
Contents
Set the font color of the displayed caption.
Set edge type of the displayed caption.
Set edge color of the displayed caption.
Set back opacity of the displayed caption.
Set back color of the displayed caption.
Set the viewing limitation according to US movie ratings.
Set the viewing limitation according to US TV program ratings.
Set the viewing limitation according to
Canadian English language ratings.
Set the viewing limitation according to
Canadian French language ratings.
To set the rating.
Clear the downloadable rating information and its setting.
Change the password.
Set to the progressive scan mode (set to "ON") or to the interlace scan mode (set to "OFF").
Set a picture size according to aspect ratio of your TV.
EN 83
LIST OF SETTINGS
Setup
Video
Page 91
Items (highlight is the default)
Video Input
Page 49
L1(Rear)
Video In
S-Video In
Recording Auto Chapter
Page 40
Auto Finalize
Page 55
L2(Front)
Disc Full
Video In
S-Video In
OFF
5 minutes
10 minutes
15 minutes
30 minutes
60 minutes
ON
OFF
Clock
Pages 31-32
Channel
Pages 28-30
HDMI
Page 92
Reset All
Dubbing Mode
End of Timer Rec ON
OFF
Pages 51-52
VCR DVD
DVD VCR
Make Recording Compatible
Page 40
ON
OFF
Clock Setting
Auto Clock Setting OFF
Auto
Manual
Daylight Saving Time
ON(MAR-NOV)
ON(APR-OCT)
OFF
Auto Channel Preset
Antenna
Cable (Analog)
Cable (Analog / Digital)
Manual Channel Preset
TV Audio Select
Page 35
Stereo
SAP
Format
RGB
YCbCr
HDMI Audio
ON
OFF
RGB Range
Page 93
Normal
Enhanced
Yes
No
Contents
Set the video input type for the external input.
Insert chapter marks at even time interval.
Set the unit to finalize the disc automatically.
Set the dubbing direction.
Set to prohibiting additional recording (OFF) or to replace the title list after recording (ON).
Set the clock.
Set the clock automatically.
Set the clock for the daylight saving time.
Tune the channels automatically.
Tune the channels manually.
Set the analog TV audio type for output and recording.
Set the color space for the HDMI output.
Set whether to output the HDMI audio signal or not.
Set the black-white contrast level for HDMI
RGB output.
Set to the default setting.
Note
• Your change to each setting stays on even when the power is off except for Dubbing Mode.
• An item which is not currently available is grayed in the settings.
84 EN
Playback
SETUPS
Press [STOP C ] if you are playing back a disc.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Playback”, then press [OK].
General Setting
Playback
Display
Video
Recording
Clock
Channel
HDMI
Reset All
3 Use [ K / L ] to select a desired item, then press [OK].
1
2
Parental Lock
Disc Audio
5
6
3
4
7
Disc Menu Language
Audio Language
Subtitle Language
Angle Icon
Still Mode
Submenu will appear.
4 Refer to 1 to 7 on pages 86-87 and set the selected item.
5 When you finish with setting, press
[SETUP] to exit.
EN 85
SETUPS
Playback (cont’d)
1
Parental Lock (Default: OFF)
Some DVD-video feature a parental lock level. Playback will stop if the ratings exceed the levels you set, it will require you to enter a password before the disc will playback. This feature prevents your children from viewing inappropriate material.
Use [ K / L ] to select the desired level, then press [OK].
Parental Lock
OFF
8 [Adult]
7 [NC 17]
6 [R]
5 [PG R]
4 [PG 13]
3 [PG]
2 [G]
1 [Kid Safe]
If a password has not been set yet, proceed to A .
If a password has been set already, proceed to B .
Note
• Press [CLEAR] to erase numbers entered incorrectly.
• When you forget the password or you want to clear all settings in “Parental Lock” menu, enter 4737 using
[the Number buttons] in password input window.
Password will be cleared and parental levels will be set to “OFF”.
2
Disc Audio
Choose the appropriate audio setting for your external device.
It will only affect a disc playback.
Use [ K / L ] to select a desired item, then press [OK].
Note
• Parental lock function may not be available to some discs.
• With some DVD, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.
• Record the password in case you forget it.
• If there is a DVD in the unit when you set up the parental lock, press [OPEN/CLOSE A ] to activate the parental lock level.
A
A password has not been set yet.
Use [ K / L ] to select “Yes”. Use [the Number buttons] to enter a new password except for 4737, then press [OK].
Change Password?
Yes
No
Yes
Your setting will be activated.
Password Input
B
A password has been set already.
• Use [the Number buttons] to enter the current password.
Password Input
Your setting will be activated.
• If you want to change password, use [ K / L ] to select
“Yes”. Use [the Number buttons] to enter a new password except for 4737, then press [OK].
<change the password>
Change Password?
Yes
No
Yes
Your setting will be activated.
Password Input
A
A
B
C
Disc Audio
Dynamic Range Control
PCM
Dolby Digital
Dynamic Range Control (Default : ON)
Set to “ON” to compress the range between soft and loud sounds.
Use [ K / L ] to select a setting, then press [OK].
Dynamic Range Control
ON
OFF
Your setting will be activated.
Note
• Dynamic range control function is available only on the discs which are recorded in the Dolby Digital format.
B
PCM (Default : 48kHz)
Use [ K / L ] to select a setting, then press [OK].
PCM
48kHz
96kHz
Your setting will be activated.
48kHz : If your amplifier/decoder is NOT compatible with 96kHz PCM, select “48kHz”. 96kHz sound will be output in 48kHz.
96kHz : If your amplifier/decoder is compatible with
96kHz PCM, select “96kHz”. 96kHz sound will be output.
Note
When playing back disc with copyright protection
• Even if you select “96kHz”, the sound will be down sampled at 48kHz.
86 EN
SETUPS
Playback (cont’d)
C
Dolby Digital (Default : Stream)
Use [ K / L ] to select a setting, then press [OK].
If “Other” is selected for 3 to 5 , press 4-digit code using [the Number buttons] .
Dolby Digital
PCM
Stream
Your setting will be activated.
PCM : Converts the Dolby Digital into PCM (2 channel).
When your amplifier/decoder is NOT compatible with Dolby Digital, set to “PCM”.
Stream : Outputs Dolby Digital signals
When your amplifier/decoder is compatible with Dolby Digital, set to “Stream”.
3
Disc Menu Language (Default : English)
Set the language for disc menu.
Use [ K / L ] to select a setting, then press [OK].
• When you finish entering the code, press [OK]. Refer to the language code table on page 101.
Note
-
Code Input
-
• Only the languages supported by the disc can be selected.
• Audio language setting may not be available to some discs.
• You can change or switch off the subtitles on a DVD also from the disc menu if it is available.
• Press [CLEAR] or [ s ] to erase numbers entered incorrectly.
Disc Menu Language
English
French
Spanish
Other
Your setting will be activated.
6
Angle Icon (Default : ON)
Set to “ON” to show the angle icon during the playback.
Use [ K / L ] to select a setting, then press [OK].
4
Set the audio language.
Use [ K / L ] to select a setting, then press [OK].
Audio Language
Original
English
French
Spanish
Other
Your setting will be activated.
• When “Original” is selected, the audio language will be in the disc’s default language.
5
Audio Language (Default : Original)
Subtitle Language (Default : OFF)
Set the subtitle language.
Use [ K / L ] to select a setting, then press [OK].
Angle Icon
ON
OFF
Your setting will be activated.
7
Still Mode (Default : Auto)
Select “Auto” usually.
Use [ K / L ] to select a setting, then press [OK].
Still Mode
Auto
Field
Frame
Your setting will be activated.
Auto : Optimum resolution setting (“Field” or
“Frame”) will be selected.
Field : Images in the still mode will be stabilized.
Frame : Images in the still mode will be highly defined.
Subtitle Language
OFF
English
French
Spanish
Other
Your setting will be activated.
Note
• Frame is 1 completed video image made up of 2 fields (There are 30 frames per second of NTSC video).
EN 87
Display
SETUPS
Press [STOP C ] if you are playing back a disc.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
2 Use [ K / L ] to select “Display”, then press [OK].
3 Use [ K / L ] to select a desired item, then press [OK].
1
2
OSD Language
Screen Saver
5
6
3
4
FL Dimmer
DTV CC
CC Style
V-Chip
Selection menu will appear.
4 Refer to 1 to 6 on pages 88-90 and set the selected item.
• For 4 and 5 refer to pages 36-38.
5 When you finish with setting, press
[SETUP] to exit.
1
OSD Language (Default : English)
Set the language for the on-screen display.
Use [ K / L ] to select a setting, then press [OK].
OSD Language
English
Français
Español
Your setting will be activated.
2
Screen Saver (Default : 10 minutes)
Set the time to activate the screen saver function on the
TV screen.
Use [ K / L ] to select a setting, then press [OK].
Screen Saver
OFF
1 minute
5 minutes
10 minutes
15 minutes
Your setting will be activated.
88 EN
SETUPS
Display (cont’d)
3
FL Dimmer (Default: Bright)
Set the front panel display brightness.
Use [ K / L ] to select a setting, then press [OK].
FL Dimmer
Auto
Bright
Dark
You can choose one from “Auto”, “Bright” and “Dark”.
If “Auto” is selected, the display gets dark when the power is in the standby mode.
6
V-Chip
With the V-chip system in this unit, you can set the viewing limitation for the analog/digital TV programs received from the tuner or recorded on DVDs to prevent your children from watching inappropriate programs. If the unit detects a blocked program, a restriction message appears and you are not allowed to view or record the program.
1) Use [the Number buttons] to enter the access password.
If you have not set the password, first, use [the Number buttons] to set the access password, then press [OK] .
The number you entered will be stored as the access password.
Password Input
2) Use [ K / L ] to select a desired item, then press [OK].
E
F
A
B
C
D
V-Chip
MPAA Rating
TV Rating
Canadian English Rating
Canadian French Rating
Downloadable Rating
Change Password
Note
• When you record a TV program blocked by the v-chip settings on the cassette tape, the audio/video signal of the blocked part cannot be recorded properly. No audio/video signal will be output when playing back that part.
• When you press [DISPLAY] while playing back the blocked part on the cassette tape, the counter display will not be shown properly. This is not a malfunction.
A
MPAA Rating
B
TV Rating
C
Canadian English Rating
D
Canadian French Rating
You can set the viewing limitation according to MPAA rating (US movie ratings), TV Rating (US TV program ratings), Canadian English Rating (Canadian English language Ratings) , Canadian French Rating (Canadian
French language Ratings).
1) Use [ K / L ] to select the desired rating, then press
[OK] repeatedly to switch between view and block.
When it is blocked a key icon will appear.
e.g.) MPAA rating
MPAA Rating
X
NC-17
R
PG-13
PG
G
NR
[MPAA Rating]
Rating
X
NC-17
R
PG-13
PG
G
NR
[TV Rating]
Category
Mature audience only
No one under 17 admitted
Restricted; under 17 requires accompanying parent or adult guardian
Unsuitable for children under 13
Parental guidance suggested
General audience
No rating
Rating
TV-MA
TV-14
TV-PG
TV-G
TV-Y7
TV-Y
None
Category
Mature audience only
Unsuitable for children under 14
Parental guidance suggested
General audience
Appropriate for all children 7 and older
Appropriate for all children
No rating
[Canadian English Rating]
Rating
18+
14+
PG
G
C8+
C
E
Category
Adult audience only
Unsuitable for ages under 14
Parental guidance suggested
General audience
For children over 8
For all children
Exempt program higher lower higher lower higher lower
EN 89
SETUPS
Display (cont’d)
[Canadian French Rating]
G
E
Rating
18 ans+
16 ans+
13 ans+
8 ans+
Category
Adult audience only
Unsuitable for ages under 16
Unsuitable for ages under 13
Unsuitable for ages under 8
General audience
Exempt program higher lower
As for TV Rating’s TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. Press [ K / L / { / B ] to select the desired rating or sub rating, then press [OK] repeatedly to switch between view and block. Sub rating status will appear on the side of the main rating.
TV Rating
TV-MA
FV V S L D
TV-14
TV-PG
TV-G
TV-Y7
TV-Y
None
Sub Rating
FV
Category
Fantasy Violence
V
S
L
D
Violence
Sexual Situation
Coarse Language
Suggestive Dialogue
Rating
TV-Y7
TV-PG
TV-14
TV-MA
TV-PG, TV-14
Note
• Changing the main rating to block or view automatically changes all its sub ratings to the same
(block or view).
E
Downloadable Rating
Set the rating system via digital broadcasting, or clear the downloaded ratings.
If the broadcasting signal does not have the downloadable rating information, the message below will appear.
Downloadable Rating is currently not available.
• This message will also appear when you try to access
“Downloadable Rating“ after you have cleared the downloadable rating information, and the new information has not been downloaded since.
To set the rating:
Use [ K / L ] to select “Block Setting” then press [OK] to show the various types of ratings. Use [ K / L ] to select a desired rating to set, then press [OK] to show the levels for the rating. Use [ K / L ] to select a level, then press [OK] to switch between view or block. If you set one level to block, a key icon will appear and all the higher levels will be blocked automatically.
To clear the downloadable rating information and its setting:
Use [ K / L ] to select “Clear Downloadable Rating”, then press [OK] .
F
Change Password
Change the current password.
Use [the Number Buttons] to enter new access password.
Note
• When you forget the access password at step 1), enter 4737 using [the Number buttons] in the password input window. Password will be cleared.
• Depending on the type of rating system, you may set the levels individually.
90 EN
SETUPS
Video
1
Progressive Scan (Default : OFF)
This unit is compatible with the progressive scan system.
The feature provides you with the higher definition images than the traditional output system does. To utilize this feature, you must set progressive scan mode to “ON”.
1) Use [ K / L ] to select “ON“, then press [OK].
Progressive Scan
ON
OFF
2) Use [ { / B ] to select “Yes“, then press [OK].
Activating progressive scan:
Check your TV has progressive scan and connect with component video cable.
NOTE :
If there is no picture or picture is distorted after selecting “Yes”,
Wait about 15 seconds for auto recovery.
Activate? Yes No
3) Use [ K / L ] to select “Yes“ within 15 seconds, then press [OK].
Your setting will be activated.
Press [STOP C ] if you are playing back a disc.
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
2 Use [ K / L ] to select “Video”, then press [OK].
3 Use [ K / L ] to select a desired item, then press [OK].
1
2
Progressive Scan
TV Aspect
3 Video Input
Submenu will appear.
4 Refer to 1 to 2 on this page and set the selected item.
• For 3 refer to page 49.
5 When you finish with setting, press
[SETUP] to exit.
Note
• If your TV is compatible with progressive scan (525p /
480p), you are recommended to use the HDMI or component video cable (commercially available) to connect this unit to the TV. (Refer to pages 16-17.) If not, use the RCA video cable and set the progressive scan to “OFF” or press and hold [SETUP] for more than 3 seconds during DVD playback.
• When selecting “No” or not pressing any buttons on the unit or remote control within 15 seconds at step 3, progressive scan remains to be “OFF” (interlace scan).
2
TV Aspect (Default: 4:3 Letter Box)
You can select the TV aspect ratio to match the formats of what you are playing back or watching digital TV broadcasting with the unit and your TV screen (4:3 standard or 16:9 widescreen TV).
Use [ K / L ] to select a setting, then press [OK].
TV Aspect
4:3 Letter Box
4:3 Pan & Scan
16:9 Wide
If you have a standard TV:
Select “4:3 Letter Box”, so that black bars appear on the top and bottom of the TV screen when playing back a wide-screen picture. Select “4:3 Pan & Scan” for a full height picture with both sides trimmed when playing back wide-screen picture.
If you have a widescreen TV:
Select “16:9 Wide”.
EN 91
SETUPS
HDMI
3 Use [ K / L ] to select a desired item, then press [OK].
1
2
Format
HDMI Audio
3 RGB Range
1 Press [SETUP] in stop mode and use
[ K / L ] to select “General Setting”, then press [OK].
2 Use [ K / L ] to select “HDMI”, then press [OK].
General Setting
Playback
Display
Video
Recording
Clock
Channel
HDMI
Reset All
4 When you finish with the setting, press [SETUP] to exit.
1
Format (Default : RGB)
You can select the color space for HDMI output.
Set the appropriate color space for your display device.
Use [ K / L ] to select a setting, then press [OK].
• When the connected device is not compatible with the
Y/Cb/Cr, HDMI signal is output as RGB regardless of the setting.
Format
RGB
YCbCr
Your setting will be activated.
2
HDMI Audio (Default : ON)
If you do not want to output the audio through HDMI
(when you digitally output the audio through the
COAXIAL DIGITAL AUDIO OUT jack to your audio system, etc.), you can set the HDMI audio output off.
Use [ K / L ] to select a setting, then press [OK].
• Set to “OFF” when the HDMI sound is not output.
HDMI Audio
ON
OFF
Your setting will be activated.
3
RGB Range (Default : Normal)
You can adjust the RGB range to make the dark areas of the HDMI images brighter.
Use [ K / L ] to select a setting, then press [OK].
• Select “Enhanced“ if the black-white contrast is not clear.
• This setting is effective only for HDMI RGB output.
RGB Range
Normal
Enhanced
Your setting will be activated.
• You cannot select HDMI when an HDMI cable is not connected and the items are shown in grey color.
92 EN
Reset All
Reset the setting to default.
SETUPS
1 Press [SETUP] and use [ K / L ] to select “General Setting”, then press
[OK].
“General Setting” menu will appear.
2 Use [ K / L ] to select “Reset All”, then press [OK].
3 Select “Yes” using [ K / L ] , then press
[OK].
Reset to factory default?
Yes
No
4 Select “Yes” again using [ K / L ] , then press [OK].
Are you sure?
Yes
No
Your setting in recording will be initialized.
Note
• The settings listed below will remain unchanged even after resetting to the factory default.
– OSD language setting
– Channel setting
– Clock setting
– Parental lock setting
– V-chip setting
– Timer programming information
EN 93
VCR FUNCTIONS
Information on VCR Functions
Caution on using S-video, component, or HDMI connection for VCR:
• Only the playback audio / video are available with these connections.
• Under the condition listed below, the playback image cannot be viewed. Use the standard video connection, in such case;
- during DVD recording.
• HDMI video resolution cannot be changed when the unit is in VCR mode.
Playback Recording
Press [VCR] first.
1) Insert a prerecorded tape (refer to page 26 on how to insert a cassette tape).
2) Press [PLAY B ] to start playback.
3) Press [STOP C ] to stop playback.
To pause playback:
Press [PAUSE F ] .
Playback will pause and sound will be muted.
To resume playback:
Press [PLAY B ] .
Note
• When a cassette tape without erase-protection tab is inserted, the unit will start playback automatically.
• Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press
[CHANNEL / ] on the remote control.
• S-VHS cassette tape is not available on this unit.
• Playback will stop when you change the output mode.
Press [VCR] first.
1) Insert a recordable tape with an erase-protection tab intact.
Accidental erasure prevention
To prevent accidental recording on a recorded cassette tape, remove its eraseprotection tab. To record on it later, cover the hole with cellophane tape.
erase-protection tab
2) Select the recording mode using [REC MODE].
• The desired recording mode is selected in SP
(standard play) or SLP (super long play) mode by pressing [REC MODE] .
Recording mode:
Tape speed
Type of tape
SP mode
SLP mode
Recording / playback time
T60 T120 T160
1hour
3hours
2hours
6hours
2-2/3hours
8hours
3) Select stereo or SAP. Refer to page 35.
4) Select the desired channel to record using
[CHANNEL / ] or [the Number buttons].
5) Press [REC] to start recording.
[STOP ] to stop the recording.
To pause recording:
Press [PAUSE F ] .
To resume recording:
Press [PAUSE F ] or [REC] .
After the unit has been in pause mode for 5 minutes, it will stop automatically to protect the tape and the video head from damage.
• Refer to pages 43-46 for instructions on timer recording.
Note
• This function is available only when the unit is connected by the VIDEO OUT jack.
94 EN
VCR FUNCTIONS
One-touch Timer Recording (OTR) Index Search
This feature allows you to set the recording length simply by pressing [REC] on the remote control.
An index mark will be assigned at the beginning of each recording you make. You may skip to a specific marked point by following the steps below.
Press [VCR] first.
1) Insert a recordable tape with an erase-protection tab intact.
2) Select the recording mode using [REC MODE].
(Refer to “Note for DVD to VCR duplication” on page 52 and “Recording” on page 94.)
Press [VCR] first.
1) Press [SEARCH] so that “INDEX SEARCH” menu appears.
2) Using [the Number buttons], enter the number of recordings you wish to skip within 30 seconds.
INDEX SEARCH
03
3) Select stereo or SAP. Refer to page 35.
4) Select the desired channel to record using
[CHANNEL / ] or [the Number buttons].
5) Press [REC] to begin the one-touch timer recording.
You can select a fixed recording time by pressing
[REC] repeatedly.
(0:30) (1:00)
(Normal recording)
(8:00) (7:30)
When the one-touch timer recording is finished, the unit will turn to the standby mode automatically.
3) Press [ E ], [ D ] to start index search.
If you want to go in the forward direction, press [ D ] .
If you want to go in the reverse direction, press [ E ] .
After index search, the VCR will play back the cassette tape automatically.
CURRENT PROGRAM
Beginning of tape
End of tape
02
Pro.1
Pro.2
Pro.3
Pro.4
Pro.5
01 01 02 03
To change the recording length during the onetouch timer recording:
Press [REC] repeatedly until the desired length appear.
INDEX MARK
To cancel the one-touch timer recording within the specified time:
Press [STOP C ] .
Note
• You can make the index mark up to 20.
• This function is available only when the unit is connected by the VIDEO OUT jack.
Note
• The remaining recording time will be displayed on the front panel display during one-touch timer recording.
Press [DISPLAY] to see it on the TV screen.
• You cannot pause the one-touch timer recording.
• If VCR one-touch timer recording is completed during
DVD playback or recording, the VCR will be in stop mode and the DVD keeps the current mode.
• Unlike a timer recording, you can perform the following operations during the one-touch timer recording.
- Turning the power to the standby mode to stop onetouch timer recording.
- Using or [STOP C ] on the remote control.
• When the one-touch timer recording is finished and the power is in the standby mode, the unit will switch to the timer standby mode automatically if a timer recording has been programmed. Press [TIMER SET] to cancel the timer standby mode for using the unit continuously.
• This function is available only when the unit is connected by the VIDEO OUT jack.
EN 95
VCR FUNCTIONS
Other Operations Time Search
This feature allows you to go to a specific point on a cassette tape by entering the exact amount of time you wish to skip in order to reach the point.
Press [VCR] first.
1) Press [SEARCH] repeatedly so that “TIME SEARCH” menu appears.
2) Using [the Number buttons], enter your desired time to skip within 30 seconds.
You can set the time up to 9:59.
TIME SEARCH
2:50
3) Press [ E ], [ D ] to start time search.
If you want to go in the forward direction, press
[ D ] .
If you want to go in the reverse direction, press
[ E ] .
After time search, the unit will play back the cassette tape automatically.
Note
• Index search and time search are not available during recording.
• Press [STOP C ] to stop the search.
• If the end of the cassette tape is reached during search, this unit will cancel the search and rewind the cassette tape.
• This function is available only when the unit is connected by the VIDEO OUT jack.
Press [VCR] first.
Fast forward:
When the unit is in stop mode, press [ D ] to fast forward the cassette tape.
Rewind:
When the unit is in stop mode, press [ E ] to rewind the cassette tape.
To cue or review picture during playback (picture search):
Press [ E ] , [ D ] during playback.
Press it again and the unit will search in super high speed. (in the SLP mode only)
To freeze the picture on TV screen during playback
(still mode):
Press [PAUSE F ] . Each time you press the button, the picture will be forwarded by one frame.
If the picture begins to vibrate vertically during the still mode, stabilize the picture by pressing [CHANNEL / ] on remote control.
If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if equipped.
Counter reset:
Press [CLEAR] to reset the counter to “0:00:00”.
To playback in slow motion:
Press [PAUSE F ] during playback, then press [ D ] .
Press [ D ] or [ E ] repeatedly to select the desired speed.
Automatic rewind:
When a cassette tape is played back or fast forwarded to its end, the cassette tape will rewind to the beginning, stop and eject itself.
When you playback a cassette tape recorded in Hi-Fi stereo:
Press [AUDIO] on the remote control to select Hi-Fi or
MONO for playback sound mode.
• If you have connected a stereo TV to this unit, select “HIFI”.
• If you have connected a monaural TV to this unit, select
“MONO”.
Your Selection
Type of recorded tape non Hi-Fi tapes
Hi-Fi tapes recorded in
Hi-Fi stereo
Hi-Fi tapes recorded main audio program
Hi-Fi tapes recorded second audio program
L-channel
Monaural
L
Main audio program
HIFI
R-channel
Monaural
R
Main audio program
MONO
Monaural
L+R
Main audio program
Second audio program
Second audio program
Second audio program
Note
• Still/slow mode will stop after 5 minutes to prevent damage to the cassette tape and the video head.
• To return to playback from the picture search/still/ slow mode, press [PLAY B ] .
96 EN
TROUBLESHOOTING
Before requesting service for this unit, check the table below for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
Remedy
The power does not turn on.
There is no picture.
TV program reception does not fill the
TV screen.
TV program pictures are distorted.
TV channels cannot be changed.
• Check that the AC power cord is connected securely.
• Check the breaker (in case of power failure).
• Press [TIMER SET] to cancel the timer standby mode.
• Re-connect the connecting cords securely.
• Check if the connecting cords are damaged.
• Check the connection to your TV (pages 15-20).
• Switch the input selector on your TV (such as to “L1”) so that the signal from the unit appears on the TV screen.
• Try to set the channels with “Auto Channel Preset” or “Manual Channel
Preset” in “Channel” menu (pages 28-30).
• Select a channel of any TV program using [CHANNEL / ] .
• Adjust TV antenna.
• Adjust the picture. (Refer to the TV’s instruction manual.)
• Place the unit and TV farther apart.
• Place the TV and any bunched RF coaxial cables farther apart.
• Switch the input to TV.
• Connect the RF coaxial cable correctly (pages 15-20).
There is no sound or the sound is distorted.
The remote control does not function.
• Batteries are weak.
• There are obstacles between the remote control and the unit.
• The remote control is far from the unit.
• There are no batteries in the remote control.
• Check if the unit is turned on.
• Check if you are pointing the remote control at the recorder and NOT the TV.
If you have a plasma TV, it may interfere with the IR signal. Try the remote with the plasma off. If the remote works, you may need to move the unit away from the plasma TV.
• Press [DVD] or [VCR] , whichever you need. Then, try again.
• Press [TIMER SET] to cancel the timer standby mode.
The unit does not operate properly.
• Re-connect all connections securely.
• Check if the connecting cord is damaged.
• Check the connections to the amplifier input.
• Check if the input device setting on the amplifier is correct.
• When the unit is in pause mode or in slow-motion playback mode, sound is not output. This is not a malfunction.
• When the unit is in fast forward or fast reverse mode, sound is not output. This is not a malfunction.
• While the setup menu or timer programming display is shown, or while the screen saver is active, the audio is muted.
No analog TV closed captions are output.
• When static electricity, etc., causes the unit to operate abnormally, unplug the unit and then plug it in again.
• If you are using HDMI connection to watch the TV programs through this unit’s tuner, analog TV closed caption cannot be output. Try using other connection.
Playback picture is distorted.
• Keep the device which may cause electrical disturbances, such as a cellular phone, away.
• Set the TV’s input to “TV.” The channel cannot be changed from the channel you are recording.
Nothing was recorded even though you set the timer setting correctly.
Timer recording is not complete or did not start from the beginning.
Timer recording is impossible.
• There was a power failure during recording.
• The unit’s internal clock stopped due to a power failure that lasted for more than 30 seconds. Reset the clock (pages 31-32).
• The program contains copy protection signals that restricts copying.
• The timer setting overlapped with another setting that has priority.
• The timer setting overlapped with another setting that has priority (page 46).
• Disc space was not enough.
• Make sure appears on the front panel display of this unit. If not, press
[TIMER SET] .
EN 97
TROUBLESHOOTING
Symptom
No image from HDMI connection.
There is no sound or the sound is distorted.
Setup menu cannot be called up.
Remedy
• Check the HDMI connection. (Check the status of the HDMI related indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches the supported input format of other connected device.
• If the unit is connected to the unauthorized display device with an
HDMI cable, the audio/video signal may not be output when playing back a commercial DVD-video.
• The HDMI sound is not output when “HDMI Audio” is set to “OFF”.
• Check the RCA audio cable connection. If you are using HDMI-DVI conversion cable, you must connect the RCA audio cable, too.
• Check whether the output format of this unit (HDMI FORMAT) matches the supported input format of other connected device.
• Setup menus cannot be called up during DVD recording or DVD playback.
There is no picture.
Picture noise appears.
There is no sound.
Sound is noisy.
No DTS sound is output.
The disc does not play back.
Discs recorded on this unit cannot be played back on other DVD players.
The disc does not start playback from the beginning.
The unit starts playing back the disc automatically.
Some functions such as stop, search, or slow-motion playback cannot be performed.
The language for the sound track cannot be changed.
• If the main menu appears on the TV screen, press [RETURN] to exit.
• Check if the progressive scan mode is set correctly according to your TV
(page 91).
• Clean the disc with a cleaning cloth.
• If you are using DIGITAL AUDIO OUT (COAXIAL) jack, check the setting in
“Disc Audio” (pages 86-87).
• Clean the disc with a cleaning cloth.
• Clean the disc with a cleaning cloth.
• This unit is not compatible with DTS sound.
• No disc is inserted.
• A blank disc is inserted.
• The disc is upside down. Insert the disc with the labeled side facing up.
• The disc is not correctly inserted.
• The unit cannot play back certain discs (such as a CD-ROM) (page 56).
• The region code on the DVD-video does not match the unit (page 56).
• Moisture has condensed inside the unit. Remove the disc and leave the unit turned on for about 2 hours until the moisture evaporates (page 3).
• If the disc was recorded on another recorder, the unit cannot play back the disc if it was not finalized.
• If you are using DVD-RW/-R, please ensure you finalized the disc after recording (pages 54-55).
• Resume playback was activated (page 62). Press [STOP C ] twice.
• You have inserted a disc whose title menu or DVD menu automatically appears on the TV screen when it is first inserted.
• The DVD-video features an auto playback function.
• Depending on the disc, you may not be able to do some of the operations. Refer to the instruction manual supplied with the disc.
• The title does not have the multilingual audio tracks.
• The DVD-video prohibits the changing of the language for the sound track.
• Multilingual subtitle are not recorded on the DVD-video.
The subtitle language cannot be changed or turned off.
The angles cannot be changed.
Recording does not stop immediately after you press [STOP C ] .
• Multi-angles are not recorded on the DVD-video being played back.
• The angle-change operation is whenever possible as long as the disc contains a multi-angle portion. Actual change will be performed when the portion has come up.
• The DVD-video prohibits changing angles.
• Try changing the angle using the DVD-video’s menu.
• It may take a few seconds for the unit to input disc data before recording stops.
98 EN
TROUBLESHOOTING
Symptom
The disc tray does not open when you press [OPEN/CLOSE A ] .
“Repairing” appears on the TV screen.
Repairing
In a case you intend to cancel the repairing process.
Remedy
• It may take a few seconds for the disc tray to open after you have recorded or edited a disc. This is because the unit is adding disc data to the disc.
• If there is a power failure or unplugging during recording, finalizing, formatting or editing (even after “Repairing” disappears), a repairing process will begin automatically just after turning the unit on again.
It may take several minutes up to about several hours.
• If you intend to cancel the repairing process, press [ A OPEN/CLOSE] on the front panel, then select “Yes” and press [OK] . After that, press
[OPEN/CLOSE A ] to take out the disc. The disc canceled during the repairing process MAY NOT work.
Do you want to cancel a repairing process? When selecting “Yes”, the disc may not be usable.
Yes
No
Repairing
Picture noise appears.
• Head cleaning for VCR may be necessary. Refer to “Auto head cleaning”
(page 4).
• Adjust tracking control for better picture by pressing [CHANNEL / ] while you are playing back a cassette tape.
The cassette tape does not play back.
• No cassette tape is inserted.
Recording does not start after you press
[REC] .
• Make sure the cassette tape has an erase-protection tab when you record to a cassette tape. If needed, cover the hole with cellophane tape.
The remote control does not function.
• Check if a cassette tape is in this unit.
The motor rotates even when playback / recording is stopped.
• The motor may rotate for the duration of approximately 5 minutes for efficient operation. This is not a malfunction.
EN 99
TROUBLESHOOTING
Disc Error message
Disc Error
— Please eject the disc. —
Playback feature may not be available on this Disc.
Cause
• Unplayable disc is inserted in the unit.
• The disc is upside down.
Solution
• Insert the standardized disc which bear the marks on page 56.
• Insert the disc with the labeled side facing up.
Region Error
— Please eject the disc. —
Playback is not authorized in your region.
Parental Lock On
The current selected parental level prohibits playback.
Recording Error
This program is not allowed to be recorded.
Recording Error
This program is not recordable in +VR mode.
Recording Error
Can not record on this disc.
• Playback is not authorized in the region of the DVD-video which you inserted in the unit.
• The current selected parental level prohibits playback.
• The recording function encountered the copy prohibited program.
• You are trying to record the copy-once program.
• Insert the DVD-video with region codes
1 or ALL.
• Check “Parental Lock” setting in
“Playback” menu (page 86).
• You cannot record copy prohibited programs.
• You cannot record the copy-once program.
Recording Error
This disc is protected and not recordable.
• You are trying to record onto the disc which is unrecordable, or the disc status is unable to record.
• The disc is dirty.
• The disc is damaged.
• You are trying to record on to the protected disc which is set in “Disc Edit” menu.
• You are trying to record onto the disc which has no space for recording.
• Insert the recordable disc, and ensure the disc status satisfies the recording requirements (page 39).
• Clean the disc with a cleaning cloth.
• Replace the disc.
• Release the disc protect setting in “Disc
Edit” menu (page 53).
Recording Error
Disc is full.
(No area for new recording)
Recording Error
You cannot record more than 49 titles on one disc.
(The maximum is 49)
Recording Error
You cannot record more than 254 chapters on one disc.
(The maximum is 254)
Recording Error
You cannot record on this disc as Power
Calibration Area is full.
Recording Error
This disc is already finalized.
Recording Error
The disc has no recording compatibility.
Set “Make Recording Compatible” to
“ON” to convert the disc.
• You are trying to record onto the disc on which the number of recording titles comes up to the maximum (49).
• You are trying to record onto the
DVD+RW or DVD-RW on which the number of recording chapters comes up to the maximum (254).
• When recordings are performed repeatedly onto an unstable disc, this area may come up to be full.
• Every time you insert a disc for recording, the disc’s working area will be taken up. And if you repeat this frequently, it will be used up sooner and you may not be able to record full
49 titles.
• You are trying to record onto the disc already finalized.
• You are trying to record onto the disc that had been recorded by other recorders.
• Insert the recordable disc with enough recording space.
• Delete unnecessary titles (page 71).
• Delete unnecessary chapter marks
(pages 74-75).
• Insert a new disc.
• Release the finalizing for this disc
(page 54).
• Set “Make Recording Compatible” to
“ON” to rewrite the menu, after that you will record to disc (page 40).
* If you are still having trouble with the unit after checking “TROUBLESHOOTING”, write down the error code and the error description for calling our help line mentioned on the front page to locate an Authorized Service Center.
100 EN
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
Language
Abkhazian
Afar
Afrikaans
Albanian
Amharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali;Bangla
Bhutani
Bihari
Bislama
Breton
Bulgarian
Burmese
5358
5747
5051
5158
5758
5360
5367
5447
5569
5455
6058
5160
5161
5166
5261
5256
5255
5264
5271
4851
5759
4947
7254
4961
5464
4965
5047
Code
4748
4747
4847
5167
4860
5072
4854
4855
4864
4853
5971
4752
6563
4759
4764
5471
4765
4771
4772
LANGUAGE CODE
Latin
Latvian; Lettish
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Occitan
Oriya
Oromo (Afan)
Panjabi
Pashto; Pushto
Persian
Polish
Portuguese
Quechua
Rhaeto-Romance
Romanian
Language
Hungarian
Icelandic
Indonesian
Interlingua
Interlingue
Inupiak
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kinyarwanda
Kirghiz
Kirundi
Korean
Kurdish
Laothian
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Tsonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapuk
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Language
Russian
Samoan
Sangho
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Sesotho
Setswana
Shona
Sindhi
Singhalese
Siswat
Slovak
Slovenian
Somali
Spanish
Sundanese
Swahili
6164
6159
6247
6265
5247
6258
6266
6367
6459
6461
5966
5955
5964
5961
5960
6047
6051
6061
6149
5847
5868
5860
5866
5957
5953
5965
5958
Code
5467
5565
5760
5765
5757
6469
5771
6460
5761
5767
5861
5560
5547
5551
5557
5347
5566
5647
5669
6655
6661
6665
6664
6657
6669
6757
6764
6772
6568
6658
6653
6647
6666
6651
6654
4861
6855
6861
4971
6961
7054
5655
7161
7267
Code
6467
6559
6550
6555
6565
6557
6558
6561
5165
6567
6569
6553
6547
5350
6564
6554
6566
6660
6560
EN 101
GLOSSARY
Analog Audio
An electrical signal that directly represents sound.
Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also
“Digital Audio”.
Aspect Ratio
The width of a TV screen relative to its height.
Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as it is high).
Chapter (DVD only)
Just as a book is split up into several chapters, a title on a
DVD is usually divided into chapters. See also “Title”.
Component Video Output
Each signal of luminance (Y) and component (P
B
/C
B
, P
R
/
C
R
) is independent to output so that you can experience picture color as it is.
Also, due to compatibility with progressive video
(525p/480p), you can experience higher-density picture than that in interlace (525i/480i).
Digital Audio
An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals
(44,100 times a second for CD audio) by an analogto-digital converter, generating a stream of numbers.
On playback, a digital-to-analog converter generates an analog signal based on these numbers. See also
“Sampling Frequency” and “Analog Audio”.
Dolby Digital
The system to compress digital sound developed by
Dolby Laboratories. It offers you sound of stereo(2ch) or multi channel audio.
Finalize
To make DVD, which have been recorded on, possible to play back in DVD players. With this unit, it is possible to finalize DVD+R, DVD-RW, and DVD-R.
HDMI™ (high definition multimedia interface)
A digital interface between audio and video source. It can transmit component video, audio, and control signal with one cable connection.
JPEG (joint photographic experts group)
JPEG is a method of compressing still image files. You can copy JPEG files on CD-RW/-R from a computer and play back the files on this unit.
MP3 (MPEG audio layer 3)
MP3 is a method of compressing files. You can copy MP3 files on CD-RW/-R from the computer and play back the files on this unit.
PBC (playback control) (video CD only)
This function enables you to play back interactive software using a menu screen. See also “Video CD”.
PCM (pulse code modulation)
The most common system of encoding digital audio, found on CD and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital and
MPEG audio to PCM. See also “Digital Audio”.
Progressive Scan (525p/480p)
A type of display that does not split each frame into fields, and instead scans directly through all the scanlines of each frame in order. Progressive scan provides less flickering and higher image resolution than traditional
(525i/480i) TV signals. Refer to page 91 for instructions on selective progressive scan mode.
Region Code
Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).
Sampling Frequency
The rate which sound is measured by a specified interval to turn into digital audio data. The numbers of sampling in one second defines as sampling frequency. The higher the rate, the better the sound quality.
SAP (secondary audio program)
Sub-audio channel which is delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.
S-Video Output
It delivers independently each signal of color(C) and luminance(Y) to TV as video signals, so that higher-quality picture will be gained.
Title (DVD only)
A collection of chapters on DVD. See also “Chapter”.
Track
Audio CD use tracks to divide up the content of a disc. The DVD equivalent is called a chapter. See also
“Chapter”.
Video CD
A digital format for store video data in compact disc.
102 EN
SPECIFICATIONS
General
VCR video heads
Power requirements
Power consumption
Dimensions (width x height x depth)
Weight
Operating temperature
Operating humidity
TV system
Recording
Recording format
Recording discs
Four heads
120V AC, 60Hz
30W (standby: 3.3W)
17.2 x 4.0 x 10.3 inches (435 x 99.5 x 260mm)
9.5 lbs. ( 4.3kg )
41°F (5°C) to 104°F (40°C)
Less than 80% (no condensation)
ATSC / NTSC-M TV standard
+VR (video recording) format
DVD+Rewritable, DVD+Recordable
DVD-Rewritable, DVD-Recordable (+VR mode only)
Video recording format
Sampling frequency
Compression format
Audio recording format
Sampling frequency
Compression format
Tuner
Tuning system
Channel coverage (ATSC / NTSC)
Terrestrial
CATV
Terminals
Audio input
RCA jack x 2
Video input
RCA jack x 1
S-video input
Mini DIN 4-pin x 1
VHF/UHF/CATV input and output
F-type
Audio input
RCA jack x 2
Audio output
RCA jack x 4
Video input
RCA jack x 1
Video output
RCA jack x 1
S-video input
Mini DIN 4-pin x 1
S-video output
Mini DIN 4-pin x 1
Component video out
RCA jack x 3
Coaxial digital audio out
RCA jack x 1
HDMI output
HDMI jack x 1
13.5 MHz
MPEG
48 kHz
Dolby Digital
Channel frequency synthesized tuning system
VHF 2~13, UHF 14~69
2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A1, 5A
2V rms (input impedance: more than 22kΩ)
1Vp-p (75Ω)
Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
75Ω unbalanced
2V rms (input impedance: more than 22kΩ)
2V rms (output impedance: more than 1kΩ)
1Vp-p (75Ω)
1Vp-p (75Ω)
Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω)
Y: 1Vp-p (75Ω) P B /C B : 700mVp-p (75Ω)
500mVp-p (75Ω)
P R /C R : 700mVp-p (75Ω)
Note
• The specifications and design of this product are subject to change without notice.
EN 103
Discos reproducibles
DVD-video
ESPAÑOL
Discos Reproducibles
Este aparato es compatible con la reproducción de los siguientes discos y archivos.
Logotipos
Disco Grabable
Este aparato puede grabar a DVD+RW, DVD+R, DVD-RW y
DVD-R.
Los discos DVD+R/DVD-R pueden ser grabados sólo una vez. Los discos DVD+RW/DVD-RW pueden ser grabados y borrados muchas veces.
En este aparato los discos DVD-RW/-R serán grabados automáticamente en el modo DVD+VR.
Logotipos Atributos
DVD+RW
DVD+R
DVD-RW
(Sólo discos en modo de video finalizados)
DVD-R
(Sólo discos en modo de video finalizados)
CD-DA (CD de audio)
CD de video
CD-RW
CD-R
Kodak Picture CD
MP3
JPEG
Archivos reproducibles es una marca registrada de
DVD Format/Logo Licensing Corporation.
Soportes
CD-RW/-R
DVD+RW DVD+R
Disco de 8 cm / 12 cm, un solo lado, una sola capa
Tiempo de grabación máx. aprox.
(modo SLP):
360 minutos (4,7 GB) (para 12 cm)
108 minutos (1,4 GB) (para 8 cm)
DVD-RW DVD-R
• Los siguientes discos se recomiendan para obtener una buena calidad de grabación y han sido comprobados como compatibles con este aparato. Sin embargo, según sea la condición del medio el equipo podría no leer el disco correctamente.
Verbatim DVD+R 8x,
DVD-R 8x,
JVC DVD-RW 4x
Maxell
SONY
TDK
DVD+RW 4x,
DVD-RW 2x
DVD+R 4x/8x/16x, DVD-R 8x/16x
DVD+R 4x/8x/16x, DVD+RW 4x
DVD+R 4x/8x/16x
El comportamiento de cualquier otro disco no está garantizado.
• Usted puede reproducir discos DVD+RW en la mayoría de los reproductores de DVD sin finalizarlos.
Sin embargo, si usted ha añadido o eliminado capítulos, u ocultado capítulos, debe ejecutar
“Compatibilizar edic.” antes de poder ver dichos efectos en otros equipos. (Consulte la página 81.)
Para reproducir discos que no sean DVD+RW en otros reproductores de DVD, usted necesitará finalizarlos.
Disco no Grabable
• Un DVD-RW grabado en un modo distinto de +VR no será grabable en este aparato a menos que usted borre todo el contenido del disco. (Consulte la página 80.)
• Un DVD-R grabado en un modo distinto de +VR no será grabable en este aparato.
Códigos de Región
El número presente en el interior el globo se refiere a una región del mundo.Este aparato puede reproducir discos DVD que estén rotulados para ALL las regiones o para la región 1.
104 ES
Conexión Básica
IN --- AUDIO --- OUT
L
R
IN --- VIDEO --- OUT cable RCA de audio cable RCA de video
ESPAÑOL
AUDIO IN
L
R
VIDEO IN parte trasera de este aparato
HDMI OUT
DIGITAL
AUDIO OUT
AUDIO
OUT
COAXIAL
L
R
OUT
S-VIDEO
DVD/VCR
COMPONENT
VIDEO OUT
Y
S-VIDEO IN --- AUDIO --- OUT
OUT
P
/C
B
IN
L
R
IN --- VIDEO --- OUT
R
L
ANTENNA
IN
P
/C
R
ANT. IN
Esta conexión es sólo para el procesamiento de cada elemento de la señal de TV antena de
VHF / UHF cable coaxial de RF
OUT cable coaxial de RF o empresa de
TV por cable
ANTENNA
IN
Conexión a un Televisor con un Puerto Compatible con HDMI™
• HDMI emite las señales de video / audio sin convertirlas en señales analógicas.
• No es necesaria una conexión de audio.
cable HDMI
HDMI IN
HDMI OUT
HDMI OUT parte trasera de este aparato
COAXIAL
L
S-VIDEO
DVD/VCR
Y
S-VIDEO
OUT
P
B
IN
OUT
IN --- AUDIO --- OUT
L L
R
IN --- VIDEO --- OUT
R
ANTENNA
IN
R
P
R
ANT. IN cable coaxial de RF
OUT
Esta conexión es sólo para el procesamiento de cada elemento de la señal de TV antena de
VHF / UHF
No incline el conector para introducirlo en la toma HDMI y compruebe que el tipo de toma corresponde con el tipo de conector.
ANTENNA
IN o cable coaxial de RF empresa de
TV por cable
Modo HDMI y señales efectivas de salida
Presione [HDMI] para seleccionar el modo de salida HDMI. Cada vez que se presiona [HDMI] el modo de salida varía como sigue.
Pantalla del panel frontal
Señal de salida de video
Progresivo de 480
Presione [HDMI]
Progresivo de 720
Presione [HDMI]
1080 entrelazado
Presione [HDMI]
Progresivo de 1080
Presione [HDMI]
• El modo HDMI que no esté admitido por el dispositivo de exhibición será pasado por alto.
ES 105
ESPAÑOL
Configuración Inicial
Cuando usted encienda este aparato por primera vez necesita seguir estos pasos.
1 Presione [STANDBY-ON y ].
Encienda el televisor. Seleccione la entrada a la cual está conectado el aparato.
2 Utilice [ K / L ] para seleccionar su idioma deseado, y luego presione
[OK] para establecerlo.
Initial Setup
OSD Language
English
Français
Español
Elija idioma de preparación.
3 Utilice [ K / L ] para seleccionar el tipo de señal de emisión, y luego presione
[OK].
Ajuste inicial
Ajuste de Canal
Verificar que la antena esté conectada a la toma "ANTENNA IN".
Antena
Cable (Analógico)
Cable (Analógico/Digital)
Ajuste Auto escaneará los canales terrrestres.
Esto tarda unos momentos en finalizar.
El equipo comenzará a obtener los canales disponibles en su región.
4 Utilice [ { / B ] para seleccionar un elemento a configurar, y utilice [ K / L ] para seleccionar el contenido de su preferencia, y luego presione [OK].
Ajuste inicial
Grabación Básica
1
Presione [DVD].
Presione [OPEN/CLOSE A ] para abrir la bandeja de discos e insertar su disco con el rótulo aupntando hacia arriba. Presione de nuevo
[OPEN/CLOSE A ] para cerrar la bandeja de discos.
* Asegúrese de que el disco sea compatible con este aparato.(Para obtener la lista de discos compatibles consulte la página 104.)
2 Para seleccionar un modo de grabación presione [REC MODE].
Modo de grabación
Tiempo de grabación
Calidad del video y el sonido
Disco de 8 cm Disco de 12 cm
HQ (1Hr) 18 min 60 min Buena
SP (2Hr)
SPP (2.5Hr)
LP (3Hr)
36 min
45 min
54 min
120 min
150 min
180 min
EP (4Hr)
SLP (6Hr)
72 min
108 min
240 min
360 min
Deficiente
3 Presione [DTV/TV] para seleccionar TV analógica o TV digital, y a continuación, utilice [CHANNEL / ] o [los botones numéricos] y [ • ] (para canales de TV digital) para seleccionar un canal que desea grabar.
4 Presione [REC] para iniciar la grabación.
Para configurar la grabación a un toque con temporizador (OTR)...
Esta es una manera sencilla de configurar el tiempo de grabación en bloques de 30 minutos.
Presione [ REC ] repetidamente hasta que aparezca en la pantalla del televisor la longitud deseada de grabación (30 minutos a 6 horas).
Comenzará la grabación a un toque con temporizador.
I 0h30m
0h30m
(grabación normal) 1h00m
Ajste Manual de Reloj
ENE / 01 / 2009 ( JUE )
12 : 00 AM
OK : Ajuste hora.
RETURN : Salir de Ajuste inicial.
6h00m 5h30m
Para cambiar la duración de la grabación durante la grabación a un toque con temporizador:
Presione [ REC ] repetidamente hasta que aparezca la duración deseada.
Para cancelar la grabación a un toque con temporizador dentro del tiempo especificado:
Presione [STOP C ] .
5 Para de tener la grabación presione
[STOP C ].
106 ES
ESPAÑOL
Grabación con Temporizador
Usted puede programar el equipo para que grabe hasta 12 programas, con un mes de anticipación. También hay disponibles grabaciones de programas diarias o semanales.
Antes de grabar, asegúrese de que
• Antes de establecer una programación del temporizador configure el reloj.
• Inserte un disco grabable con suficiente espacio libre o una cinta de cassette con una lengüeta de grabación.
1 Presione [TIMER].
2 Utilice [ K / L ] para seleccionar “Prog. nuevo”, y luego presione [OK].
Programaci. con Reloj
JUE ENE/01 11:00AM
Fcha Empieza Termina
Prog. nuevo
CH
3 Configure una programación del temporizador.
4 Presione [OK].
5 Presione [TIMER SET] para configurar una programación del temporizador.
Aparecerá en el pantalla del panel frontal.
Configure la fecha.
Fcha
ENE/02
CH
DTV69. 1
Empieza
- - : - -
GRAB a
DVD
Termina
- - : - -
Modo
SP
SP 2h00m
Configure las horas de inicio y finalización.
Fcha
ENE/02
CH
DTV69. 1
Empieza
12 : 00AM
GRAB a
DVD
Termina
- - : - -
Modo
SP
SP 2h00m
Seleccione un modo deseado de entrada y el canal a grabar.
Para obtener más detalles, consulte “How to select a channel number for the timer recording” en la página
45 del manual del usuario.
ej.) modo digital
Fcha
ENE/02
CH
DTV69. 1
Empieza
12 : 00AM
GRAB a
DVD
Termina
1 : 00AM
Modo
SP
SP 1h00m
Seleccione un medio de grabación (“DVD” o “VCR”).
Fcha
ENE/02
CH
DTV69. 1
Empieza
12 : 00AM
GRAB a
DVD
Termina
1 : 00AM
Modo
SP
SP 1h00m
Seleccione un modo de grabación.
Fcha
ENE/02
CH
DTV69. 1
Empieza
12 : 00AM
GRAB a
DVD
Termina
1 : 00AM
Modo
SP
SP 1h00m
Reproducción
1 Presione
[DVD].
2 Abra la bandeja de discos, y Inserte un disco.
3 Cerrar la bandeja de discos.
4 Comience a reproducir.
5 Detenga la reproducción.
ES 107
LIMITED WARRANTY
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION:
PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.
LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.
LIMITS AND EXCLUSIONS:
THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER
PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE
UNDER THIS WARRANTY.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP., or damage, which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY
COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.
FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT
OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS
PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL
OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS
REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER.
THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF
OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGED.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION
WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT
PRIOR NOTICE.
WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:
To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI
CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:
FUNAI SERVICE CORPORATION
Customer Service
Tel: 1-800-605-8610 http://www.magnavox.com/support
2200 Spiegel Drive Groveport, OH 43125
Printed in China E9S80UD
1VMN26713 ★★★★★
advertisement
Related manuals
advertisement
Table of contents
- 4 SAFETY INFORMATION
- 10 FEATURES
- 11 Symbols Used in this Owner’s Manual
- 12 FUNCTIONAL OVERVIEW
- 12 Front Panel
- 13 Rear Panel
- 14 Remote Control
- 16 Front Panel Display
- 17 CONNECTION
- 17 Antenna Connection (Required)
- 17 Overview
- 18 Compatible Port
- 19 Component Video Out Jacks
- 19 Connecting to a TV Using the S-Video Out Jack
- 20 Connecting to a TV Using Audio / Video Jacks
- 21 Connecting to a Cable / Satellite Box
- 22 Connecting to a TV without Audio / Video Jacks
- 23 Digital Audio Connection
- 24 BEFORE YOU START
- 24 Finding the Viewing Channel on Your TV
- 25 Guide to On-Screen Display / Menu
- 27 Main Menu
- 28 Switching DVD / VCR Mode
- 28 How to Insert a Disc / Cassette Tape
- 29 INITIAL SETTING
- 30 CHANNEL SETTING
- 30 Auto Channel Scan
- 31 Adding / Deleting Channels
- 33 SETTING THE CLOCK
- 33 Auto Clock Setting
- 34 Manual Clock Setting
- 34 Daylight Saving Time
- 35 TUNER SETTINGS
- 35 Switching Analog Mode / Digital Mode
- 35 Channel Selection
- 36 Selecting TV Audio
- 38 DTV Closed Caption
- 39 Closed Caption Style
- 41 INFORMATION ON DVD RECORDING
- 42 BEFORE RECORDING
- 42 Make Recording Compatible
- 42 Setting for Auto Chapter
- 42 Recording the DTV Closed Caption
- 43 ONE-TOUCH TIMER RECORDING
- 45 TIMER RECORDING
- 48 Hints for Timer Recording
- 49 OVERWRITING UNNECESSARY TITLE
- 49 Overwriting from the Beginning of the Title
- 49 Overwriting in the Middle of the Title
- 50 Hints for Overwriting
- 51 SETTINGS FOR AN EXTERNAL DEVICE
- 51 Connection to an External Device
- 52 Recording from an External Device
- 53 BI-DIRECTIONAL DUBBING
- 55 SETTING A DISC TO PROTECT
- 56 PLAYING THE DISCS ON OTHER DVD PLAYERS
- 56 Finalizing a Disc
- 57 Auto Finalizing
- 58 INFORMATION ON PLAYBACK
- 60 BASIC PLAYBACK
- 60 Direct Playback
- 61 Playback from the Title List
- 62 with MP3 / JPEG Files
- 63 Using the Title / Disc Menu
- 63 Pause
- 64 SPECIAL PLAYBACK
- 64 Resume Playback
- 64 Fast Forward / Fast Reverse Playback
- 64 Skipping TV Commercials During Playback
- 64 Rapid Playback
- 65 Step by Step Playback
- 65 Slow Forward / Slow Reverse Playback
- 66 Marker Setting
- 66 Repeat Playback
- 67 Random Playback
- 67 Slide Show
- 67 Program Playback
- 68 SEARCH
- 68 Title / Chapter Search
- 68 Track Search
- 69 Time Search
- 70 SELECTING THE FORMAT OF AUDIO AND VIDEO
- 70 Switching Subtitles
- 70 Switching Audio Soundtrack
- 71 Switching Virtual Surround System
- 71 Switching Camera Angles
- 71 Reducing Block Noise
- 72 INFORMATION ON DISC EDITING
- 72 Guide to a Title List
- 72 Editing Discs
- 73 EDITING DISCS
- 73 Deleting a Title
- 74 Putting Names on Titles
- 75 Setting Chapter Marks
- 76 Clearing Chapter Marks
- 78 Hiding Chapters
- 79 Setting Pictures for Thumbnails
- 80 Dividing a Title
- 81 Putting Name on Disc
- 82 Erasing Disc
- 83 Making Edits Compatible
- 84 LIST OF SETTINGS
- 87 SETUPS
- 87 Playback
- 90 Display
- 93 Video
- 95 Reset All
- 96 VCR FUNCTIONS
- 96 Information on VCR Functions
- 96 Playback
- 96 Recording
- 97 One-touch Timer Recording (OTR)
- 97 Index Search
- 98 Time Search
- 98 Other Operations
- 99 TROUBLESHOOTING
- 103 LANGUAGE CODE
- 104 GLOSSARY
- 105 SPECIFICATIONS
- 106 ESPAÑOL
