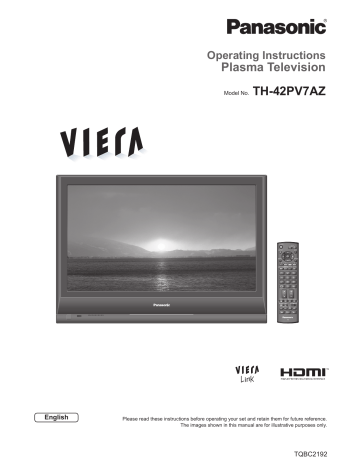

Panasonic VIERA TH-42PV7AZ Operating Instructions Manual

Operating Instructions

Plasma Television

Model No.

TH-42PV7AZ

POWER

ASPECT

INPUT

EXIT

OK

MENU RETURN

R

SURROUND

G Y

OPTION

B

1

4

7

RECALL

8

0

2

5

MUTE

3

6

9

CHVOL

TEXT F.P.

INDEX HOLD

VCR DVD POWER REC

PROGRAMME

TV

English

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

TQBC2192

2

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

media excitement

Enjoy rich multi-media

Camcorder

Ampli fi er with

Speaker system

VCR

DVD Recorder

DVD player

Personal computer

Set top box

Contents

Be Sure to Read

•

Safety Precautions ······································ 4

(Warning / Caution) •

Notes ··························································· 5 •

Maintenance ··············································· 5

Quick Start Guide

Accessories / Options ·········· 6

Identifying Controls ··············· 7

Basic Connection ··················· 8

Auto Tuning ······························· 9

Language Setting ················· 10

Enjoy your TV!

•

Basic Features

Watching TV ·············································· 12 •

Watching Videos and DVDs ······················ 14 •

Viewing Teletext ········································ 16

•

Advanced Features

•

How to Use Menu Functions ····················· 18

(picture, sound quality, etc.)

Editing and Setting Channels ···················· 22

•

•

• Control Channel Audience ························ 24

Restore Settings ······································ 25 •

Input Labels ·············································· 26 •

Displaying PC Screen on TV ····················· 27

VIERA Link “HDAVI Control TM ” ··················· 28 •

External Equipment ··································· 30

•

•

FAQs, etc.

Technical Information ································ 32

FAQs ························································· 36

•

•

Licence ······················································ 38 •

WARRANTY ·············································· 38

Speci fi cations ············································ 39

3

Safety Precautions

Warning

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)

Ensure that the mains plug is easily accessible.

Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.

Do not touch the mains plug with a wet hand. (This may cause electrical shock.)

Do not use any mains lead other than that provided with this TV. (This may cause fi re or electrical shock.)

Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)

Do not move the TV with the lead plugged in the socket outlet.

Do not place a heavy object on the lead or place the lead near a high-temperature object.

Do not twist the lead, bend it excessively, or stretch it.

Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.

Do not use a damaged mains plug or socket outlet.

If you

fi

nd any abnormality, remove the mains plug immediately!

AC 220-240 V

50 / 60 Hz

4

Do not remove covers

NEVER modify the TV yourself

(High-voltage components may cause serious electrical shock.)

Have the TV checked, adjusted, or repaired at your local Panasonic dealer.

Keep liquids away from the TV

To prevent damage which may result in fi re or shock hazard, do not expose this appliance to dripping or splashing.

Do not place containers with water ( fl ower vase, cups, cosmetics, etc.) above the TV. (including on shelves above, etc.)

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fi re never place any type of candle or naked fl ame on top or near the TV.

Do not place foreign objects inside the TV

Do not let metal or fl ammable objects drop into the

TV through the air vents ( fi re or electrical shock may result).

Do not place the TV on sloped or unstable surfaces

The TV may fall off or tip over.

Use only the dedicated stands

/ mounting equipment

Using an unauthorized stand or other fi xtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup.

Use optional stands / mounts (p. 6).

Caution

When cleaning the TV, remove the mains plug

( Cleaning an energized TV may cause electrical shock.)

When TV will not be used for a long time, remove the mains plug

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Transport only in upright position

Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.

Allow suf

fi

cient space around the

TV for radiated heat

Minimum distance

(cm)

10

7 10 10

4.5

Notes

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”).

This is not considered a malfunction and is not covered by the warranty.

Typical still images

Channel number and other logos

Image displayed in 4:3 mode

Video game

Computer image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 36)

Auto power standby function

If no signal is received and no operation is performed in TV mode for 30 minutes, the TV will automatically go to standby mode.

Keep the TV away from these equipment

Electronic equipment

In particular, do not place video equipment near the

TV (electromagnetic interference may distort images

/ sound).

Equipment with an infrared sensor

This TV also emits infrared rays (this may affect operation of other equipment).

Do not block the rear air vents

Blocked ventilation by curtains, etc. may cause overheating, fi re or electrical shock.

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Regular care: Gently wipe the surface clean of dirt by using a soft cloth.

Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

• Caution

The surface of the display panel has been specially treated and may be easily damaged.

• Do not tap or scratch the surface with your fi ngernail or other hard object.

Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances

(this may degrade surface quality).

Cabinet

Regular care: Wipe the surface clean using a soft dry cloth.

Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.

Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

• Caution

Use care not to subject the TV's surfaces to detergent.

• (A liquid inside the TV could lead to product failure.)

Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances

• (this may deteriorate the surface by peeling the paint).

Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.) 5

6

Accessories / Options

Standard accessories

Check that you have the accessories and items shown

Remote

Control

Transmitter

•

EUR7651140

Mains Lead

1

4

7

OK

2

5

8

0

CHVOL

TV

3

6

9

Batteries for the

Remote Control

Transmitter

(2) •

R6 (AA)

Clamper

Pedestal (ST-42H2-WK)

•

TBLX0024

(2)

Operating Instructions

Installing remote’s batteries

1

Hook

Pull open

Rear of the TV

Read the manual of the pedestal for installation.

Using the clamper

•

Do not bundle the RF cable and mains lead together (could cause distorted image).

•

Fix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to fi x cables.

2 Close

+

-

+

1. Attach the clamper hole

To remove from the TV:

-

Note the correct polarity (+ or -)

Caution

•

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or breakup batteries.

Optional accessories

Pedestal

TY-ST42D1-WK

TY-ST42D2-WK

Insert the clamper in a hole

2. Bundle the cables hooks

Wall-hangingbracket

(vertical)

TY-WK42PV3W

Set the tip in the hooks

To loosen: knob

(angle)

TY-WK42PR2W

TY-WK42PR3W snaps

Keep pushing both side snaps

Keep pushing the knob

Caution

•

In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.

•

Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

•

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

Identifying Controls

Remote control signal receiver

Changes the input mode

•

Power LED

Standby: red

On: green

Mains power

On / Off switch

Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in

Standby mode, switches TV On.

• Function select

Volume / Contrast / Brightness / Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Tuning (p. 23)

Standby On / Off switch

(Switches TV On or Off standby)

POWER

INPUT

Changes aspect ratio (p. 13)

ASPECT

OK button to con fi rm selections and choices

Press after selecting programme positions to quickly change programme.

Main Menu

Press to access VIERA Link, Picture, Sound,

Setup menus and Language (p. 10 and p. 18)

Surround (p. 20)

MENU

R

SURROUND

G

OK

Y

OPTION

EXIT

RETURN

B

Access VIERA Link Menu (p. 29)

Programme / channel change buttons (0-9) and Teletext page buttons. (p. 12 and p. 16)

When in Standby mode, switches TV On.

Programme Information (p. 13)

1

4

7

2

5

8

0

3

6

9

RECALL MUTE

Selects programmes in sequence

CHVOL

Teletext (p. 16)

Viewing a favourite teletext channel (p. 17)

VCR / DVD operations (p. 15)

TEXT F.P.

INDEX HOLD

POWER REC

PROGRAMME

VCR DVD

Changes the input mode

TV - changes TV mode (p. 14)

AV - changes AV input mode (p. 14)

EXIT (Returns to TV screen)

Cursor buttons to make selections and adjustments

Returns to the previous menu

Coloured buttons used for the selection, navigation and operation of various functions

Stereo / Bilingual Sound Selection (p. 34)

Option menu

Sets the preferred settings of viewing and sound options easily (p. 13)

Sound mute On / Off

Volume

Still picture (p. 13)

Teletext Hold (p. 17)

Teletext Index (p. 17)

TV

7

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.

Example 1

Connecting aerial

Example 2

Connecting DVD Recorder / VCR

TV only

Rear of the TV

TV, DVD Recorder or VCR

Rear of the TV Aerial

AC 220-240 V

50 / 60 Hz

Clamper

Mains lead

(supplied)

AC 220-240 V

50 / 60 Hz

Mains lead (supplied)

•

To unfasten

Aerial

AV IN

VIDEO

L

AUDIO

R

S VIDEO COMPONENT VIDEO COMPONENT

Y Y

MONO MONO

P B /C B

L

MONO

P B /C B

P R /C R

R

P R /C R

MONITOR

OUT

AV1

IN

AV2 IN

AUDIO

AV3 IN

8

AV IN

VIDEO

L

AUDIO

R

S VIDEO COMPONENT VIDEO COMPONENT

Y Y

MONO MONO

P B /C B

P R /C R

L

MONO

P B /C B

P

R

/C

R

R

MONITOR

OUT

AV1

IN

AV2 IN

AUDIO

AV3 IN

VIDEO

OUT

AUDIO

OUT

RF IN

RF cable

RF OUT DVD Recorder or VCR

RF cable

RF cable

•

Note

Do not put the Coaxial cable close to the mains lead to avoid noise.

•

Do not place the Coaxial cable under the TV.

To obtain optimum quality picture and sound, an Aerial, the correct cable (75 : coaxial) and the correct terminating plug are required.

•

If a communal Aerial system is used, you may require the correct connection cable and plug between the wall

Aerial socket and the TV.

•

Your local Television Service Centre or dealer may be able to assist you in obtaining the correct Aerial system for your particular area and the accessories required.

•

Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the Customer.

Auto Tuning

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.

1

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

•

You can now use the remote control to turn On the TV or turn the TV to standby mode.

(Power LED: On)

2

Select your system

select

POWER

ASPECT

MENU

OK

INPUT

EXIT

RETURN

1

4

7

OPTION DIRECT TV REC

2

5

8

0

VCR

3

6

9

3

System Selection

China

HK/UK

Asia/M.East

NZ/INDONES

Australia

E.Europe

SPECL Ver

America

CATV

Japan

Start Auto Tuning

System

Selection

China

HK/UK

China

REGION

Hong Kong, United Kingdom

Asia/M.East Malaysia, Singapore, Thailand, Asia countries, Kuwait, Saudi Arabia, United

Arab Emirates, Middle East countries, etc.

NZ/INDONES New Zealand, Indonesia, etc.

Australia Australia

E.Europe

CIS, Poland, etc.

SPECL Ver South Africa

America USA, Chile, Mexico, Panama, Peru,

Philippines, Taiwan, Venezuela, etc.

CATV

Japan

USA CATV

Japan

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD

3

CH 4

Scan

PLEASE WAIT

EXIT

1 120

•

Auto Tuning will start to search for

TV channels and store them.

The TV memorises the channels tuned in order from programme number 1.

The sorted programme order depends upon the TV signal, the broadcasting system and reception conditions.

TV

Auto Tuning is now complete and your TV is ready for viewing.

•

To edit channels

Editing and Setting Channels

(p. 22)

•

Note

If tuning have failed “Auto Tuning” (p. 23).

•

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

9

10

Language Setting

You can change language for on-screen displays.

1

Display the menu

MENU

POWER

INPUT

EXIT ASPECT

OK

MENU RETURN

R

SURROUND

G Y

OPTION

B

1

4

7

RECALL

8

0

2

5

MUTE

3

6

9

CHVOL

TEXT F.P.

INDEX HOLD

POWER REC

PROGRAMME

VCR DVD

2

3

Select “Language”

Main Menu

VIERA Link


Sound

Setup

Language

Select the language

Language

English Chinese Français

TV

access

select

change

store

Many features available on this TV can be accessed via the On Screen Display menu.

Ŷ How to use remote control

MENU

Open the main menu

Move the cursor / select the menu

Move the cursor / adjust levels / select from a range of options

Using the

On Screen

Displays

Access the menu / store settings after adjustments have been made or options have been set

RETURN

Return to the previous menu

EXIT

Exit the menu system and return to the normal viewing screen

Ŷ ON SCREEN HELP Instructions box

(example: Sound Menu)

Sound Menu

Menu

Bass

Treble

Balance

Surround

Volume Correction

Reset to Default

Select

EXIT

Change

RETURN

Music

Off

Set

12

12

On-screen operation guide will help you.

11

12

Watching TV

1

POWER

ASPECT

INPUT

EXIT

MENU

R

OK

RETURN

G Y B


1

4

7

RECALL

8

0

2

5

CHVOL

3

6

9

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD

Volume

2

Turn power on

POWER Mains power On / Off switch should be On.

1 BBS

CH05 5.5MHz PAL

Bad Signal Encrypted

Corontation Street

AD STTL TXT Stereo 45

Information banner

Select a channel

1 2 3 up

CH

4 5 6 or

7 8 9 down

0

•

To select the two or three-digit programme number, e.g. 39

9

(in a short time)

3

TV

Ŷ Other useful functions (Operate after )

Hold Freeze / unfreeze picture

HOLD

Display the current programme status

OPTION

Check or change the current programme status instantly

•

To change

Teletext Language

Selects teletext language

Volume Correction

change

select

Adjusts volume of individual channel or input mode

Note

•

Also possible to change the settings in Menu list (p. 20 and p. 21).

Display information banner

Display programme information

RECALL

Channel

1 BBS

CH05 5.5MHz PAL

Sound mute

Bad Signal Encrypted

Stereo sound Colour system

Sound system

•

To select another channel

To hide

EXIT

Corontation Street

AD STTL TXT Stereo 45

Features available

Off timer Teletext

Programme

•

To set display timeout

“Banner Display Timeout” (p. 21) •

Appears also when changing channel.

Programme information is referred to teletext signal.

Change aspect ratio

ASPECT

Change the aspect ratio

(p. 33)

Enjoy viewing the picture at its optimum size and aspect.

•

To change the mode

ASPECT Display Aspect

Selection list

During the list is displayed, select the mode

•

To change the mode using the ASPECT button only

ASPECT

(Press repeatedly until you reach the desired mode)

Store

Aspect Selection list

Aspect Selection

16:9

Just

4:3

4:3 Full

Zoom1

Zoom2

Zoom3

Change

Select

EXIT

RETURN

13

14

Watching Videos and DVDs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.

To connect the equipment (p. 8)

The Remote Control is capable of operating some functions of selected Panasonic external equipment.

Display the Input select menu

1

ASPECT

OK

INPUT

EXIT

RETURN

2

MENU

1

4

7 8

0

2

5


3

6

9

3

TEXT F.P.

INDEX HOLD

POWER REC

PROGRAMME

VCR DVD

Select the input mode connected to the equipment

watch

Input Selection

AV1

AV2

AV3

PC

HDMI

TV

select

•

You can also select the input using the AV button on the remote control or the front panel of the TV.

Press the button repeatedly until the desired input is selected.

•

You can label or skip each input modes “Input Labels” (p. 26)

View

Displays the selected mode

TV

Ŷ To return to TV

•

Note

If the external equipment has an aspect adjustment function, set to “16:9”.

For details, see the manual of the equipment or ask your local dealer.

Panasonic equipment connected to the TV can be directly operated with the remote control.

VCR DVD

VCR / DVD switch

Select VCR to operate Panasonic VCR or DVD equipment

Select DVD to operate Panasonic DVD equipment or Player home theatre

POWER

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse

DVD: Skip to the previous track or title

Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward

DVD: Skip to the next track or title

Press and hold to search forward

Pause

Pause / Restart

DVD: Press and hold to play at slow speed

PROGRAMME

Programme Up / Down

Select programme

REC

Record

Start recording

Setting your remote control to operate Panasonic VCR, DVD, etc.

VCR DVD

Set the VCR / DVD switch to the appropriate position

Press and hold POWER during the following operations

Enter the appropriate code for the equipment to be controlled, see table below

“VCR” position

Equipment

VCR

DVD

Code

10 (default)

11

1

4

7

2

5

8

“DVD” position

0

Equipment

DVD

Player home theatre

3

6

9

Press

Code

70 (default)

71

•

Note

Con fi rm correct operation after the code changed.

•

“DVD” means DVD player, DVD recorders and Recorder home theatre.

Some operations may not be possible on some equipment models.

15

Viewing Teletext

You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is provided by the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 17)

Ŷ To change mode “Teletext” in Setup Menu (p. 21)

Sub page number

ASPECT

OK

INPUT

EXIT

1

Switch to Teletext

TEXT

•

Displays Index

(content varies depending on the broadcasters)

Current page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Time / date

MENU RETURN

Colour bar

R G Y B


1

4

7 8

0

2

5

3

6

9

2

Select the page

1

4

7 8

0

2

5

3

6

9 or up down or R G Y B

(Corresponds to the colour bar)

As the blue bar is displayed

Ŷ To adjust contrast

MENU

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD


TEXT

TV

16

Ŷ Using teletext conveniently

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU

R

•

Re-hide R

(TOP)

MENU

FULL /

TOP /

BOTTOM

G

(Expand the TOP half)

(BOTTOM)

(Expand the BOTTOM half)

Normal (FULL)

HOLD

If you wish to hold the current page without updating

Stop or resume automatic updating

HOLD Ŷ To resume HOLD

Return to the main index page

INDEX

INDEX

Call up a favourite pages

F.P.

•

Call up the page stored in “blue”.

Factory setting is “P103”.

View in multi window

Watch TV and Teletext in two windows at once

MENU

(Press twice)

•

Select Picture and text

On or Off

•

Operations can be made only in Teletext screen.

Store frequently viewed pages in the colour bar

(List mode only)

As page is displayed

Corresponding colour button press and hold

Store frequently viewed pages

View sub page

Watch

TV while waiting for update

Ŷ To change stored pages

The number changes to white.

Enter new page number

Colour button you want to change

1

4

2

5

3

6 press and hold

7 8 9

0

View sub page (Only when teletext is more than one page)

Appears at upper-left corner of the screen

Ŷ To view speci fi c sub page

MENU

B

Enter the

4-digit number example: P6 •

Sub pages: 0 0 0 6

The number of sub pages varies depending on the broadcasters (up to 79 pages).

It may take some time for searching, during which time you can watch TV.

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

MENU

Y

P108

Appears when updating is completed

Y

View the updated page

(You cannot change the channel.) •

The news page provides a function that indicates arrival of latest news (“News Flash”).

17

18

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

1


MENU

•

Displays the functions that can be set

(varies according to the input signal)

INPUT

ASPECT EXIT

MENU

SURROUND

1

4

7

CH

REC

PROGRAMME

OK

8

0

VCR

2

5

3

6

9

RETURN


TEXT F.P.

INDEX HOLD

TV

VCR DVD

Ŷ To return to TV at any time

EXIT

Ŷ To return to the previous screen

RETURN

Note

•

To initialize all settings

“Shipping Condition”

(p. 25)

2

3

4

Select the menu

Main Menu

VIERA Link


Sound

Setup

Language

(example: Picture Menu)

Select the item

Picture Menu

Menu

Contrast

Brightness

Colour

Sharpness

Tint

Colour Temperature

CH Colour Set

Colour Management

Dynamic

Cool

Off

1/2


Adjust or select

1/2 Picture Menu

Menu

Contrast

Brightness

Colour

Sharpness

Tint

Colour Temperature

CH Colour Set

Colour Management

Dynamic

Cool

Off


Ŷ

Choose from among alternatives

Number and positions of alternatives

Colour Temperature Standard

Changed

Ŷ

Adjust using the slide bar

Sharpness

access

select select

change

store or access

( Required by some functions)

Moved

Ŷ

Go to the next screen

Tuning Menu Access

Displays the next screen

Ŷ

To change menu pages

up

CH down

Ŷ Overview

Main Menu

VIERA Link


Sound

Setup

Language

VIERA Link Menu

VIERA Link Control

Speaker Selection

Recorder

Home Cinema

(p. 29)

The menu of the accessed equipment

Picture Menu

Menu

Contrast

Brightness

Colour

Sharpness

Tint

Colour Temperature

CH Colour Set

Colour Management

Dynamic

Cool

Off

Picture Menu

P-NR

MPEG NR

3D-COMB

Reset to Default

Off

Off

Off

Set

1/2

2/2

(p. 20)

Sound Menu

Menu

Bass

Treble

Balance

Surround

Volume Correction

HDMI Input

Reset to Default

Music

Off

Auto

Set

12

12

(p. 20)

•

Only available items can be selected.

Setup Menu

AV Colour System

Colour Matrix

Child Lock

Tuning Menu

Off Timer

Teletext

Teletext Language

Shipping Condition

Power Save

Auto

SD

Access

Access

Off

FASTEXT

English

Access

Off

Setup Menu

Side Panel

Input Labels

Off

Access

Banner Display Timeout 3 seconds

VIERA Link Settings Access

Refresh Rate 100Hz

Software Licence

System Information

Access

Access

1/2

2/2

(p. 21)

Tuning Menu

Channel Selection

Auto Tuning

Programme Edit

Manual Tuning

Position

Access

Access

(p. 22)

19

20

How to Use Menu Functions

Ŷ

Menu list

Menu Item Adjustments / Con

fi

gurations (alternatives)

VIERA Link Control Controls the connected Panasonic equipment

“Easy control only with VIERA remote control” (p. 29)

•

You can also access VIERA Link Menu directly using the VIERA Link button on the remote control.

Speaker Selection

Menu

Contrast, Brightness,

Colour, Sharpness

• (Dynamic / Standard / Cinema)

Set for each input signal

Adjusts colour, brightness, etc. for each picture mode to suit your taste

Tint

•

For NTSC signal reception only

Colour Temperature Chooses the colour balance of the entire image (Cool / Standard / Warm)

CH Colour Set

Colour Management

P-NR

MPEG NR

Colour density varying between broadcast channels can be adjusted to three levels for each reception channel •

Select the channel you want to adjust and set this function

•

Not valid on PC signal

(Off / On)

Picture Noise Reduction

•

Not valid on HDMI or PC signal

(Off / Weak / Strong / Auto)

Automatically reduces noise for watching DVD and VCD

(Off / Weak / Mid / Strong)

3D-COMB

Reset to Default

Automatically makes still pictures and slow pictures look more vivid (Off / On)

• For PAL or NTSC signal reception only

Not valid on S-Video, components, PC and HDMI

Press the OK button to reset the present Picture Menu to the default settings

Menu

• (Music / News / Cinema)

Set for each input signal

Adjusts the output level of deep bass Bass

Treble

Balance

Adjusts the output level of high-pitch, shrill sound

Surround

Volume Correction

Adjusts volume level of right and left speakers

Surround sound settings (Off / On) •

Switching is also possible by the Surround button on the remote control (p. 7)

Adjusts volume of individual channel or input mode

HDMI Input

Reset to Default

Select to fi t the input signal (Auto / Digital / Analogue) (p. 34)

Auto : Automatic detection of digital or analogue sound source

Digital : HDMI cable connection

Analogue : HDMI-DVI adapter cable connection •

HDMI input mode only

Press the OK button to reset the present Sound Menu to the default settings

Ŷ

Menu list

Menu Item

AV Colour System

Adjustments / Con

fi

gurations (alternatives)

Selects optional colour system based on video signals in AV mode

(Auto / PAL / SECAM / NTSC4.43 / NTSC3.58)

Colour Matrix

Available only with 480p or 576p input signals in a natural colour from digital equipment connected to AV2 / AV3 Component or HDMI terminal

Select SD or HD to adjust suitable colour parameters for SD (standard de fi nition) or HD

(high de fi nition) •

SD: Input signal is a normal TV system

HD: Input signal is a High-De fi nition system

Child Lock Locks a programme channel to prevent access to it (p. 24)

Channel Selection Selects the most easily viewed channel selection method (Position / Direct) (p. 22)

Auto Tuning Automatically sets the channels received in the area (p. 23)

Programme Edit Edits channels (p. 23)

Manual Tuning

Off Timer

Sets the channels manually (p. 22)

Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Teletext

Teletext

Language

Teletext display mode (FASTEXT / List) (p. 16)

Selects teletext language (English / CIS / E.Europe / Persian)

Shipping Condition Resets all settings, for example, when moving house (p. 25)

Power Save Reduces brightness of picture to economise on power consumption (Off / On)

Side Panel • (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”

Labels or skips each input terminals (p. 26) Input Labels

Banner Display

Timeout

VIERA Link

Power off Link

Power on Link

Sets how long the information banner (p. 13) stays on screen •

0 (No display) to 10 sec. in 1-sec. increments

Sets to use VIERA Link functions (Off / On) (p. 28)

Set to “Set” to use Power off Link function (No / Set) (p. 29)

Set to “Set” to use Power on Link function (No / Set) (p. 29)

Refresh Rate •

Set to “100Hz” normally

(50Hz / 100Hz)

Displays the software licence information Software Licence

•

System Information Displays the system information of this TV

A different menu will be displayed while PC is used.

Only available items can be selected.

(p. 27)

21

Editing and Setting Channels

The current channel settings can be changed according to your needs and reception conditions.

1


ASPECT

INPUT

EXIT

MENU

22

MENU

R G

OK

Y

RETURN

B


2

Select “Setup”

Main Menu

VIERA Link


Sound

access

select

Setup 1 2 3

Language

4

7

CH

5

8

0

6

9

TEXT F.P.

INDEX HOLD

3

Select “Tuning Menu”

Setup Menu

Child Lock

Tuning Menu

Off Timer

Teletext

Teletext Language

Shipping Condition

Power Save

Side Panel

Input Labels

Access

Off

FASTEXT

English

Off

Off

1/2

access

select

REC VCR DVD

PROGRAMME

4

Select a function

Tuning Menu

access


EXIT

Channel Selection

Auto Tuning

Programme Edit

Manual Tuning

Position

Access

Access

select

5

Set

Channel Selection

Ŷ Position

Example

Programme

Number

7

8

5

6

3

4

1

2

9

10

Channel

Display

Received

Channel

10

12

14

16

6

8

2

4

18

20

10

12

14

16

6

8

2

4

18

20

When Channel Selection is on

Position, and Auto Tuning is performed, the TV memorises the channels tuned in order from Programme Number 1.

During Position mode various reception channels can be viewed.

Ŷ Direct

Example

Programme

Number

7

8

5

6

3

4

1

2

9

10

Channel

Display

–

8

–

6

–

4

–

2

–

10

Received

Channel

–

8

–

6

–

4

–

2

–

10

When Channel Selection is on Direct, and Auto Tuning is performed, the TV memorises the Programme Number which is the same as the channel tuned.

The Channel Display numbers for the broadcast stations in each region are listed on p. 32.

Set channels manually

Manual

Tuning

Ŷ Fine Tuning

Use to make small adjustments to the tuning of an individual channel (affected by weather conditions, etc.)

Ŷ Manual Tuning

Set channel manually after Auto Tuning.

If a VCR is connected with only the RF cable, select programme position “0”.

Manual Tuning

Fine Tuning

Manual Tuning 1

Select the programme position

1 2 3

4

7

5

8

0

6

9

120

Select the channel

CH

Search and store

search

store

Edit channels

Programme

Edit

Ŷ

Ŷ

Delete

Add

Ŷ

Ŷ

Move

Change name

Ŷ Change sound system

Ŷ Change colour system

Ŷ Skip

Set channels automatically

Auto

Tuning

Automatically set the channels received in the area.

If a Child Lock PIN number (p. 24) has been set, it must be entered.

Select the channel selection method (Position / Direct)

“Channel Selection” (p. 22)

Start Auto Tuning

Access “Auto Tuning”

Auto Tuning

Select your system

select

Settings are made automatically

3

CH 4

All tuning data will be erased

Start Auto Tuning EXIT

SPECL Ver

America

CATV

Japan

start

RETURN

System Selection

China

HK/UK

China

Hong Kong, United Kingdom

REGION

Asia/M.East

Malaysia, Singapore, Thailand, Asia countries, Kuwait,

Saudi Arabia, United Arab Emirates, Middle East countries, etc.

NZ/INDONES New Zealand, Indonesia, etc.

Australia Australia

E.Europe

CIS, Poland, etc.

South Africa

USA, Chile, Mexico, Panama, Peru, Philippines, Taiwan, Venezuela, etc.

USA CATV

Japan

1 120 Scan

PLEASE WAIT

•

All previous settings are erased.

•

When the operation is completed, the broadcast of programme number “1” will appear.

•

If tuning has not done completely

“Manual Tuning” (p. 22)

For Auto Tuning, using the buttons on the front of the TV

Press repeatedly until “Auto Tuning” appears

•

Not available when

Child Lock is set (p. 24)

Access “Auto Tuning” (twice)

Select your system or

Start “Auto Tuning”


Edit the programme position settings

Select the channel to edit

•

To change channel number

“Manual Tuning” (p. 22)

Programme Edit

Prog. Chan. Name Sound Sys. Colour Sys. Skip

1 CH 33 1 2 3 5.5MHz

Auto Off

2 CH 21 X Y Z 5.5MHz

Auto Off

3

4

CH 21

CH 60

F T P 5.5MHz

5.5MHz

Auto

Auto

Off

Off select Name

Cursor

5 CH 21 4 5 6 5.5MHz

Auto Off

Edit

Ŷ To delete R

Ŷ

After con fi rming, press

To add

G

R

After con fi rming, press G

Ŷ To move

Y

Select new position

Y

Channel

3 FTP

CH05 5.5MHz PAL Corontation Street

Bad Signal Encrypted AD STTL TXT Stereo 45

Ŷ To change the name of the broadcaster displayed when selecting channels

Programme Edit


1 CH 33 1 2 3 5.5MHz

Auto Off

2

3

4

5

CH 21

CH 21

CH 60

CH 21

X Y Z

F T P

4 5 6

5.5MHz

5.5MHz

5.5MHz

5.5MHz

Auto

Auto

Auto

Auto

Off

Off

Off

Off

( Maximum: fi ve characters)

R

Select the

“Name” fi eld

Enter the “User

Input” mode

Select the character

Ŷ To change sound system based on signals •

If the sound is weak or distorted, change the sound system used for a programme channel.

Programme Edit

Prog. Chan. Name

1

2

CH 33

CH 21

1 2 3

X Y Z

Sound Sys. Colour Sys. Skip

5.5MHz

5.5MHz

Auto

Auto

Off

Off

Select the

“Sound

Sys.” fi eld

3

4

5

CH 21

CH 60

CH 21

F T P

4 5 6

5.5MHz

5.5MHz

5.5MHz

Auto

Auto

Auto

Off

Off

Off

Select sound system

Ŷ To change colour system based on signal •

Normally, select “Auto”

Programme Edit

Prog. Chan. Name

1

2

CH 33

CH 21

1 2 3

X Y Z

Sound Sys. Colour Sys. Skip

5.5MHz

5.5MHz

Auto

Auto

Off

Off

RETURN

Set

Store

Select the

“Colour Sys.” fi eld

3

4

5

CH 21

CH 60

CH 21

F T P

4 5 6

5.5MHz

5.5MHz

5.5MHz

Auto

Auto

Auto

Off

Off

Off

Select colour system

Ŷ To skip the channel •

This function is only effective when pressing the Programme Up / Down button on the TV or the remote control.

Programme Edit


1 CH 33 1 2 3 5.5MHz

Auto Off

4

5

2

3

CH 21

CH 21

CH 60

CH 21

X Y Z

F T P

4 5 6

5.5MHz

5.5MHz

5.5MHz

5.5MHz

Auto

Auto

Auto

Auto

Off

Off

Off

Off

Select the

“Skip” fi eld

Select “On”

23

Control Channel Audience

You can lock speci fi c channels and control who watches them.

(When a channel is selected, a message appears; by entering the PIN number, you can watch the channel.)

1


ASPECT

INPUT

EXIT

MENU

MENU

R

OK

RETURN

G Y B


1

4

7 8

0

2

5

3

6

9

2

3

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD


EXIT


Main Menu

VIERA Link


Sound

Setup

Language

Select “Child Lock”

Setup Menu

Child Lock

Tuning Menu

Off Timer

Teletext

Teletext Language

Shipping Condition

Power Save

Side Panel

Input Labels

Access

Off

FASTEXT

English

Off

Off

1/2

4

Set

access

select

access

select

24

Control channel audience

Child Lock

Enter the PIN number (4 digits)

1 of 2

1 2

Child Lock-PIN Entry

Please enter new PIN

PIN

* * * *

4

7

5

8

0

Select “Service List”

Child Lock

Change PIN

Service List Access

3

6

9

access

•

•

Enter the PIN number twice at setting.

Make a note of the PIN number in case you forget it.

select

Select the channel to be locked

Child Lock Service List

1

7

14

Service Name

BBC

THREE

E4

Wed 12/05/04 10:46

Lock

select

set

•

To cancel

Select the locked channel

70

72

80

85

90

CBBC

Nwk

BBCi

Radio

Cymru

Appears when the channel is locked

Ŷ To change the PIN number

•

To lock all channels Y

•

To cancel all channel locks

Select “Change PIN” in and enter a new PIN number twice.

B

Note

•

Setting “Shipping Condition” (p. 25) erases the PIN number and all settings.

fi rst

Restore Settings

Resets the TV to its original condition, i.e. no channels tuned in.

All settings (channels, picture, sound quality, etc.) are reset.

1


MENU

INPUT

ASPECT EXIT

MENU

OK

RETURN

2

1

4

7


2

5

8

0

VCR

3

6

9

3

TEXT F.P.

INDEX HOLD

VCR DVD REC

PROGRAMME


Main Menu

VIERA Link


Sound

Setup

Language

Select “Shipping Condition”

1/2 Setup Menu

Child Lock

Tuning Menu

Off Timer

Teletext

Teletext Language

Shipping Condition

Power Save

Side Panel

Input Labels

Off

FASTEXT

English

Access

Off

Off

access

select

access

select


EXIT

4

Set

Restore

Settings

Shipping

Condition

Check the message and initialise

Shipping Condition

All tuning data will be erased

Are you sure?

Are you sure?

Confirm EXIT

RETURN set

Follow the on-screen instructions

•

“Auto Tuning” will automatically start. (p. 9)

Ŷ To re-tune TV channels only, e.g. after moving house

“Auto Tuning” (p. 23)

25

26

Input Labels

For easier identi fi cation and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment.

(To select the input mode p. 14)

1


MENU

INPUT

EXIT ASPECT

MENU

OK

RETURN


2


Main Menu

VIERA Link


Sound

Setup

Language

access

select

1

4

7 8

0

VCR

2

5

3

6

9

3

Select “Input Labels”

1/2 Setup Menu

Child Lock

Tuning Menu

Off Timer

Teletext

Teletext Language

Shipping Condition

Power Save

Side Panel

Input Labels

Off

FASTEXT

English

Off

Off

Access

access

select

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD

TV


EXIT

4

Select an input terminal and set

1 of 2 Input Labels

AV1

AV2

AV3

PC

HDMI

DVD

AV2

AV3

PC

HDMI set select

The labels you set will be displayed in “Input Selection” menu (p. 14) or banner.

•

If “Skip” is selected, you cannot select the mode.

Ŷ User Input

You can name each input terminals freely.

Select “User Input” Set characters

User Input

Name

1 of 2

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + .

* _

(maximum: ten characters)

O P Q R S T

7 8 9 !

: # o p q r s t

select

set

Store

RETURN

select

access

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV.

You can also listen to PC sound with the audio cable connected. To connect PC (p. 30)

Select the external input

1

INPUT

ASPECT EXIT

OK

MENU

1 2 3

RETURN


2

Select “PC”

Input Selection

AV1

AV2

AV3

PC

HDMI

TV

access

select

4

7

5

8

6

9

•

Corresponding signals (p. 35)

If “H-freq.” or “V-freq.” is shown in red, the signals may not be supported.

0

VCR


PC menu setting • (changed as desired)

To make settings “How to Use Menu Functions”

Menu Item

to (p. 18)

Adjustments / Con

fi

gurations (options)

Advanced

PC

Settings

W/B High R

W/B High B

W/B Low R

W/B Low B

Gamma

Reset to

Default

White balance of bright red area

White balance of bright blue area

White balance of dark red area

White balance of dark blue area

(2.0 / 2.2 / 2.5 / S Curve)

Press the OK button to reset to the default settings

and repeatedly adjusted

Input

Resolution

Clock

• Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),

• XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)

Options change depending on signals

Set to the minimum level if noise occurs

Adjusts horizontal position

H-pos

PC

Setup

Adjusts vertical position

V-pos

Clock Phase

Sync

•

• Eliminates fl icker and distortion

Adjust after Clock adjustment

•

Set to the minimum level if noise occurs

Chooses another synchronous signal if the image is distorted (H & V / On G)

H & V : by the horizontal and vertical signals from your PC

On G : by the green signal from your PC (if available)

Reset to

Default

•

Other items p. 20 and p. 21

Press the OK button to reset to the default settings

27

28

VIERA Link “ Control

TM

”

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.

This TV supports “HDAVI Control 2” function.

Connections to some Panasonic equipment (DVD Recorder DIGA, HD Video Camera, Player theatre,

Ampli fi er, etc.) with HDMI cables allow you to interface them automatically.

The equipment with “HDAVI Control” function enables the following operations: •

Easy playback (p. 29)

Power on Link (p. 29) •

Power off Link (p. 29)

Speaker control (p. 29)

In addition, the equipment with “HDAVI Control 2” function enables the following operation: •

Easy control only with VIERA remote control (p. 29)

These features are limited to models incorporating Panasonic’s “HDAVI Control” and “VIERA Link”.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI

CEC cannot be guaranteed.

Refer to individual manuals for compatibility information. About applicable equipment, consult your local

Panasonic dealer.

Ŷ HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number: •

• RP-CDHG15 (1.5 m)

RP-CDHG30 (3.0 m) •

RP-CDHG50 (5.0 m)

Ŷ Preparations

Setup the equipment to enable this function. Read the manuals of the equipment.

About connections, see “External Equipment” (p. 31). Read the manuals of the equipment too.

Ŷ For the fi rst time / When adding new equipment, reconnecting equipment or changing setup

After connection turn the equipment on and then switch the TV on.

Select the input mode to HDMI (p. 14), and make sure that an image is displayed correctly.

INPUT

1


MENU

ASPECT EXIT

MENU

R

OK

RETURN

G Y B


1

4

7

2

5

8

0

VCR MUTE

3

6

9

VOL

TEXT F.P.

INDEX HOLD

REC

PROGRAMME

VCR DVD

2

3

4


Main Menu

VIERA Link


Sound

Setup

Language

Select “VIERA Link Settings”

2/2 Setup Menu

Banner Display Timeout 3 seconds

VIERA Link Settings Access

100Hz Refresh Rate

Software License

System Information

Select “VIERA Link” and set to “On”

VIERA Link Settings

VIERA Link

Power off Link

Power on Link

On

Set

Set

access

select

access

select

set

select

Easy control only with

VIERA remote control

Easy playback

Speaker control

You can control some functions of the connected Panasonic equipment with this TV remote control (point the remote control at the TV’s signal receiver).

•

If you cannot access the menu, check the settings and the equipment (p. 28).

Access the menu of the equipment

Display “VIERA Link Menu”

Select “VIERA Link Control”

VIERA Link Menu

VIERA Link Control

Speaker Selection

Recorder

Home Cinema select

•

Available VIERA remote control buttons:

(depending on the connected equipment)

RETURN

EXIT

Move the cursor / select the menu

Move the cursor / access / adjust

Store / Set / Access

Return to the previous menu

Exit the menu

Select the equipment you want to access select access

OPTION

The same functions with the OPTION button of the equipment

R G Operate the menu of the equipment

•

Example:

DVD Recorder DIGA HD Video Camera

Y B

Access when the key words are displayed on colour bar

Player theatre

ALL Start

FUNCTION MENU

HDD

Playback

Recording

Listen

Watch

Delete Import/Record

Copy 8 / 8

Setup

DATE/TIME 2006.12. 1 10:46 To Others •

About the operations for the equipment, read the manual of the equipment.

Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is not returned.

You can control the theatre speaker with TV’s remote control.

This function is available when Panasonic Ampli fi er or Player theatre is connected.

•

If you cannot access the menu, check the settings and the equipment (p. 28).

Display “VIERA Link Menu”

Ŷ Home Cinema

Adjustment for equipment

(automatically turned on if it is in

Standby mode).

Select “Speaker Selection”

Volume up / down

VIERA Link Menu

VOL

VIERA Link Control Recorder

Speaker Selection Home Cinema

Set to “Home Cinema” or “TV” select set

Mute

• MUTE

The sound of TV speakers is mute.

•

When the equipment is turned off,

TV speakers will be active.

Ŷ TV

TV speakers are active.

Power on

Link

Set to “Set”

When the connected Panasonic equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on.

(Only when TV is in Standby mode.)

Power off

Link

Set to “Set”

When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby.

•

This function will work even if the TV enters standby mode automatically by Off Timer function or auto power standby function.

•

The TV remains on even if the “VIERA Link” compatible equipment is turned off.

29

External Equipment

These diagrams show our recommendations for how to connect the TV to your various equipment.

For other connections, consult the instructions for each piece of equipment, the table below, and the speci fi cations (p. 39).

This slot is for services by the Panasonic dealer.

AV IN

VIDEO

L

AUDIO

R

S VIDEO

COMPONENT VIDEO COMPONENT

Y Y

MONO MONO

P B /C B

P R /C R

R

L

MONO

P B /C B

P R /C R

MONITOR

OUT

AV1

IN

AV2 IN

AUDIO

AV3 IN

R

PC

AUDIO

IN

L

Ŷ

Types of connectable equipment to each connector

Connector

AV1 IN AV2 IN AV3 IN MONITOR

OUT

30

Recording / Playback

(equipment)

To record / playback videocassettes / DVDs

(VCR / DVD recorder)

To watch DVDs (DVD player)

To watch camcorder images (Video camera)

To watch satellite broadcasts (Set top box)

To play games (Game equipment)

To use ampli fi er with speaker system

VIERA Link

: Recommended Connection

S VIDEO 4 pin terminal

Chrominance in Luminance in

Conversion adapter (if necessary)

Ampli fi er with speaker system

Fully wired HDMI compliant cable

To watch satellite broadcasts

Set top box

PC

Chrominance earth Luminance earth

HDMI terminal

Hot Plug Detect

DDC/CEC Ground

SCL

CEC

TMDS Clock Shield

TMDS Data0 í

TMDS Data0+

TMDS Data1 Shield

TMDS Data2 í

TMDS Data2+

5

3

1

11

9

7

19

17

15

13

18

16

14

6

4

2

12

10

8

+5V Power

SDA

Reserved (in cable but N.C. on device)

TMDS Clock í

TMDS Clock+

TMDS Data0 Shield

TMDS Data1 í

TMDS Data1+

TMDS Data2 Shield

•

Connect the S-VIDEO or VIDEO terminal when using AV1 IN terminals.

•

Connect the COMPONENT or VIDEO terminal when using AV2 / AV3 IN terminals.

(Viewing)

To listen with speakers

(Listening)

Computer

To watch DVDs

(Viewing)

(Listening)

DVD player

To record / playback

DVD Recorder / VCR

RF cable or

VIERA Link

(p. 28) •

Use fully wired HDMI compliant cable.

Read the manuals of the equipment too.

Ŷ Easy playback, Easy control only with VIERA remote control

Ŷ Home Cinema

Panasonic

Ampli fi er

Speaker system

Panasonic DVD Recorder,

HD Video Camera, etc.

HD Video Camera Panasonic DVD Recorder

Panasonic

Player theatre

Speaker system

31

32

Technical Information

Channel Allocation

Japan

28

57

58

59

62

63

69

70

73

74

75

76

77

78

79

80

81

89

94

95

96

97

90

91

92

93

98

99

100

107

117

118

120

125

System Selection China HK/UK Asia/M.East NZ/INDONES Australia E.Europe SPECL Ver America CATV

CH DISPLAY RECEIVE CHANNEL

11

12

13

14

15

16

6

7

4

5

2

3

0

1

19

20

–

1

2

12

13

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

11

12

–

–

–

–

2

–

–

–

–

–

11

–

–

–

–

1

2

3

4

5

S2

1

2

–

0

S10

6

9

9A

–

–

–

–

–

11

12

–

–

–

1

2

–

–

–

–

–

11

12

13

–

–

1

2

–

–

2

13

14

–

1

2

21

22

23

24

21 21 21 10

11

12

S11

21 21

–

–

–

–

–

–

–

–

–

–

–

–

–

57

–

–

–

–

Z1

Z9

Z10

Z11

Z12

Z13

Z14

Z15

Z16

Z17

Z18

Z19

Z20

Z37

–

–

–

–

–

62

63

69

–

–

–

S'1

S'2

S'3

–

–

–

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

–

–

62

63

69

–

–

–

S'1

S'2

S'3

–

–

–

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

–

–

62

63

69

–

–

–

S'1

S'2

S'3

–

–

–

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

–

–

S44

20

21

–

–

–

–

69

–

–

–

62

63

69

–

–

–

S'1

S'2

S'3

–

–

–

S1

S2

S10

–

–

–

S14

S15

S16

S17

S18

S19

S20

S21

62

63

69

–

–

–

–

–

–

–

–

S'1

S1

S2

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S41

–

–

S41

–

–

62

63

99

100

125

62

63

69

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

12

13

62

C13

–

1

2

C49

–

–

–

–

–

–

–

–

–

–

Aspect Ratio

The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 13)

Signal name

PAL

PAL 525/60

NTSC 4.43

NTSC 3.58

525(480)/60i

525(480)/60p

625(576)/50i

625(576)/50p

750(720)/50p

750(720)/60p

1125(1080)/50i

1125(1080)/60i

1125(1080)/50p

1125(1080)/60p

PC input

16:9

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

Just

O

O

O

O

O

O

O

O

O

O

O

O

O

O

-

4:3

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

Aspect modes

4:3 Full

O

O

O

O

O

-

-

-

-

-

-

-

-

O

-

Zoom1

O

O

O

O

O

O

O

O

O

O

O

O

O

O

-

Zoom2

O

O

O

O

O

O

O

O

O

O

O

O

O

O

-

Note

•

The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands may appear at the top and bottom of the screen.

•

If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.) •

To select the ratio manually: (Only “16:9” or “4:3” in PC mode)

16:9 Just

Directly displays the image at “16:9” without distortion (anamorphic).

Displays a 4:3 image full-screen.

Stretching is only noticeable at the left and right edges.

Zoom3

O

O

O

O

O

O

O

O

O

O

O

O

O

O

-

4:3 4:3 Full

Displays the image at the standard “4:3” without distortion.

Displays a “4:3” image enlarged horizontally to fi t the screen.

Zoom2 Zoom1

Displays a “16:9” letterbox or “4:3” image without distortion.

Displays a “16:9” letterbox (anamorphic) image full-screen without distortion.

Zoom3

Displays a “2.35:1” letterbox (anamorphic) image full-screen without distortion. At

“16:9”, displays the image at its maximum

(with slight enlargement).

VIERA Link “ Control

TM

”

HDMI connections to some Panasonic equipment allow you to interface them automatically. (p. 28)

•

This function may not work normally depending on the equipment condition.

Image or sound may not be available for the fi rst few seconds when the playback starts.

•

Image or sound may not be available for the fi rst few seconds when Input mode is switched.

Volume function will be displayed when adjusting the volume of the equipment.

•

Easy playback is also available by using the remote control for Ampli fi er or Player theatre. Read the manuals of the equipment.

•

“HDAVI Control 2” is the newest standard (current as of February, 2007) for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

33

34

Technical Information

Stereo / Bilingual Sound Selection

When you receive the stereo / bilingual sound system, sound output modes can be selected by pressing the

Stereo / Bilingual Sound Selection button.

Audio Signal

Mode Indicator

STEREO MAIN

I

I

SUB

II

II

MONO

NICAM .......Used in New Zealand, Singapore, Hong Kong etc.

Type of broadcast

Regular broadcast

(Standard Audio)

Regular + NICAM MONO

(MAIN

I

)

I

Mode Indicator No Indicator

I

NICAM STEREO

NICAM DUAL MONO

(MAIN

I

/ SUB

II

)

I II

A2(German) .......Used in Australia, Malaysia etc.

Type of broadcast

Regular broadcast

(Standard Audio)

BILINGUAL or DUAL MONO:

MAIN

I

/ SUB

II

Mode Indicator No Indicator

I II

STEREO

Note

•

If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching

• occurs, it is recommended you switch from STEREO to MONO.

Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

•

When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position, using the stereo / bilingual sound selection button.

•

DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.

HDMI connection

HDMI (high-de fi nition multimedia interface) allows you to enjoy high-de fi nition digital images and highquality sound by connecting the TV and the equipment.

HDMI-compatible equipment ( 1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.

About connections, see “External Equipment” (p. 30).

•

Note

HDMI is the world’s fi rst complete digital consumer AV interface complying with a non-compression standard.

•

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable ( 2).

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI: use

• AUDIO IN terminals).

Audio settings can be made on the “HDMI Input” menu screen. (p. 20) •

Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz

Use with a PC is not assumed.

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

This HDMI connector is “type A”.

•

This HDMI connector is compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

An equipment having no digital output terminal may be connected to the input terminal of either “Component”,

“S-VIDEO”, or “Video” to receive analogue signals.

•

The HDMI input terminal can be used with only the following image signals:

480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.

•

For details of the applicable HDMI signals, see p. 35.

( 1): The HDMI logo is displayed on HDMI-compliant equipment.

( 2): Enquire at your local digital equipment retailer shop.

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

•

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency

59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

•

A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.

•

Note

Some PC models cannot be connected to this TV.

•

When using PC, set the colour display quality of PC to the highest position.

For details of the applicable PC signals, see below.

•

Max. display resolution

Model No.

Aspect

TH-42PV7AZ

4:3 768 × 768 pixels

5 4

16:9

•

D-sub 15-pin connector signal

Pin No.

3 2 1

1,024 × 768 pixels

Signal Name

10 9 8 7

15 14 13 12 11

6 R

G

B

NC (not connected)

GND (Ground)

Pin No.

Signal Name

GND (Ground)

GND (Ground)

GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

Signal Name

NC (not connected)

NC (not connected)

HD

VD

NC (not connected)

Input signal that can be displayed

COMPONENT (Y, P

B

/C

B

, P

R

/C

R

), HDMI

Mark: Applicable input signal

Signal name

525 (480) / 60i

525 (480) / 60p

625 (576) / 50i

625 (576) / 50p

750 (720) / 60p

750 (720) / 50p

1,125 (1,080) / 60i

1,125 (1,080) / 50i

1,125 (1,080) / 60p

1,125 (1,080) / 50p

COMPONENT HDMI

PC (D-sub 15P)

Signal name

640 × 400 @70 Hz

640 × 480 @60 Hz

640 × 480 @75 Hz

800 × 600 @60 Hz

800 × 600 @75 Hz

800 × 600 @85 Hz

852 × 480 @60 Hz

1,024 × 768 @60 Hz

1,024 × 768 @70 Hz

1,024 × 768 @75 Hz

1,024 × 768 @85 Hz

1,280 × 1,024 @60 Hz

1,366 × 768 @60 Hz

Macintosh13” (640 × 480)

Macintosh16” (832 × 624)

Horizontal frequency (kHz)

31.47

31.47

37.50

37.88

46.88

53.67

31.44

48.36

56.48

60.02

68.68

63.98

48.39

35.00

49.73

Vertical frequency (Hz)

70.07

59.94

75.00

60.32

75.00

85.06

59.89

60.00

70.07

75.03

85.00

60.02

60.04

66.67

74.55

75.06

Macintosh21” (1,152 × 870)

Note

68.68

•

Signals other than above may not be displayed properly.

The above signals are reformatted for optimal viewing on your display.

•

Applicable input signal for PC is basically compatible to VESA standard timing.

PC signal is magni fi ed or compressed for display, so that it may not be possible to show fi ne detail with suf fi cient clarity.

35

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem.

If problem still persists, please contact your local Panasonic dealer for assistance.

White spots or shadow images (noise)

36

•

Check the position, direction, and connection of the aerial.

Neither image nor sound is produced

•

Is the TV in “AV mode”?

Is the mains lead plugged into the socket

• outlet?

Is the TV turned On?

Check Picture Menu (p. 20) and volume.

Permanently lit spots on screen

•

Due to production process involved in this technology this may result in some pixels which are permanently lit or unlit. This is not a malfunction.

An error message appears

•

Follow the message’s instructions.

If the problem persists, contact the authorized Service Centre.

Contrast is reduced

•

Contrast is lowered when the following conditions without any user operation for a few minutes:

Ɣ no signal in AV mode

Ɣ selected locked channel

Ɣ selected invalid channel

Ɣ selected radio channel

Ɣ displayed menu

Problem

Chaotic image, noisy

No image can be displayed

Blurry or distorted image

(no sound or low volume)

Unusual image is displayed

No sound is produced

Sound level is low or sound is distorted

Sound is unusual

Pictures from external equipment are unusual when the equipment is connected via HDMI

TV goes into

“Standby mode”

The remote control does not work

Actions

•

Set “P-NR” in the Picture Menu (to remove noise). (p. 20)

Check nearby electrical products

(car, motorcycle, fl uorescent lamp).

•

Is “Colour” or “Contrast” in the Picture Menu set to the minimum?

(p. 20)

Check Colour system. (p. 23)

•

Reset channels. (p. 23)

•

Turn off the TV with Mains power On / Off switch, then turn it on again.

•

Is “Sound mute” active? (p. 7)

Is the volume set to the minimum?

•

Sound signal reception may be deteriorated.

Check Sound system. (p. 23)

•

Set the sound setting of the connected equipment to

“2ch L.PCM”.

Check the “HDMI Input” setting in the Sound Menu. (p. 20)

If digital sound connection has a problem, select analogue sound connection. (p. 34)

•

Is the HDMI cable connected properly? (p. 30)

Turn Off the TV and equipment, then turn them On again.

Check an input signal from the equipment. (p. 35)

Use an equipment compliant with EIA/CEA-861/861B.

•

Off Timer function is activated. (p. 21)

The TV enters “Standby mode” about 30 min. after broadcasting ends.

•

Are the batteries installed correctly? (p. 6)

Has the TV been switched On?

37

38

Licence

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

Macintosh is a registered trademark of Apple Computer, USA.

S-VGA is a registered trademark of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

www.panasonic.com.au

•

HDMI, the HDMI Logo and High-De

Licensing LLC.

fi nition Multimedia Interface are trademarks or registered trademarks of HDMI

•

HDAVI Control TM is a trademark of Matsushita Electric Industrial Co., Ltd.

WARRANTY - New Zealand only

NEW ZEALAND

Distributed in New Zealand by Panasonic New Zealand Limited

350 Te Irirangi Drive East Tamaki, Private Bag 14911, Panmure Auckland

Tel. 09 272 0100

Customer Care Center

Email: [email protected]

www.panasonic.co.nz

Speci

fi

cations

TH-42PV7AZ

Power Source

Average use

AC 220-240 V, 50 / 60 Hz

341 W

Standby condition

Aspect Ratio

Number of pixels

Speaker

Audio Output

Receiving Systems /

Band name

Receiving Channels

(Regular TV)

Aerial - Rear

Operating Conditions

AV1

Input

AV2

Input

AUDIO L - R

VIDEO

S VIDEO

AUDIO L - R

VIDEO

AV3

Input

COMPONENT

AUDIO L - R

VIDEO

COMPONENT

Monitor

Output

Audio Input

AUDIO L - R

VIDEO

Dimensions ( W × H × D )

Mass

Visible screen size

PC signals

Others

HDMI Input

PC Input

0.7 W

16:9

106 cm (diagonal)

922 mm (W) × 518 mm (H)

786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]

120 mm × 60 mm × 2 pcs, 8 :

20 W (10 W + 10 W ), 10% THD

VGA, SVGA, XGA

SXGA ······ (compressed)

Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

17 Systems

1 PAL B, G, H

2 PAL I

3 PAL D, K

4 SECAM B, G

5 SECAM D, K

6 SECAM K1

7

NTSC M (NTSC

3.58/4.5 MHz)

Function

Reception of broadcast transmissions and

Playback from Video

Cassette Tape

Recorders

17 Systems

8 NTSC 4.43/5.5 MHz

9 NTSC 4.43/6.0 MHz

10 NTSC 4.43/6.5 MHz

11 NTSC 3.58/5.5 MHz

12 NTSC 3.58/6.0 MHz

13 NTSC 3.58/6.5 MHz

14 SECAM I

15 PAL 60 Hz/5.5 MHz



Function

Playback from Special VCR’s or DVD

Playback from Special Disc Players and Special VCR’s or DVD

VHF BAND

2-12 (PAL/SECAM B, K1)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL/SECAM D)

1-12 (NTSC M Japan)

2-13 (NTSC M USA)

VHF / UHF

UHF BAND

21-69 (PAL G, H, I/SECAM G, K, K1)

28-69 (PAL B AUST.)

13-57 (PAL D, K)

13-62 (NTSC M Japan)

14-69 (NTSC M USA)

Temperature : 0 °C - 35 °C

Humidity : 20 % - 80 % RH (non-condensing)

CATV

S1-S20 (OSCAR)

1-125 (USA CATV)

C13-C49 (JAPAN)

S21-S41 (HYPER)

Z1-Z37 (CHINA)

5A, 9A (AUST.)

RCA PIN Type × 2

RCA PIN Type × 1

Mini DIN 4-pin

RCA PIN Type × 2

0.5 V[rms]

1.0 V[p-p] (75 :

Y:1.0 V[p-p] (75

0.5 V[rms]

)

: ) C:0.286 V[p-p] (75

RCA PIN Type × 1 1.0 V[p-p] (75 : )

Y

P

B

/C

B

, P

R

/C

R

1.0 V[p-p] (including synchronization)

V[p-p]

: )

RCA PIN Type × 2

RCA PIN Type × 1

0.5 V[rms]

1.0 V[p-p] (75 : )

Y

P

B

/C

B

, P

R

/C

R

1.0 V[p-p] (including synchronization)

V[p-p]

TYPE A Connector

•

This TV supports “HDAVI Control 2” function.

HIGH-DENSITY D-SUB 15PIN R, G, B/0.7 V[p-p] (75 : )

HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)

RCA PIN Type × 2 0.5 V[rms]

RCA PIN Type × 2 0.5 V[rms] (high impedance)

RCA PIN Type × 1 1.0 V[p-p] (75 : )

1,020 mm × 750 mm × 320 mm (With Pedestal)

1,020 mm × 705 mm × 95 mm (TV only)

29.0 k Net (With Pedestal)

27.0 k Net (TV only)

Note

•

Design and Speci fi cations are subject to change without notice. Mass and Dimensions shown are approximate.

39

No results
