GE Profile PSB42YSNSS 42 Inch Smart Counter Depth Side by Side Refrigerator Spec Sheet
Add to My manuals3 Pages
GE PSB42YSNSS is a 42-inch built-in side-by-side refrigerator with an integrated dispenser featuring LED lighting. It offers precise temperature control with a climate-controlled drawer and built-in Wi-Fi for remote monitoring and alerts. The adjustable spill-proof glass shelves, large door bins, and adjustable freezer shelves provide ample storage space. The advanced temperature management system ensures even cooling throughout the fridge, keeping food fresh.
advertisement

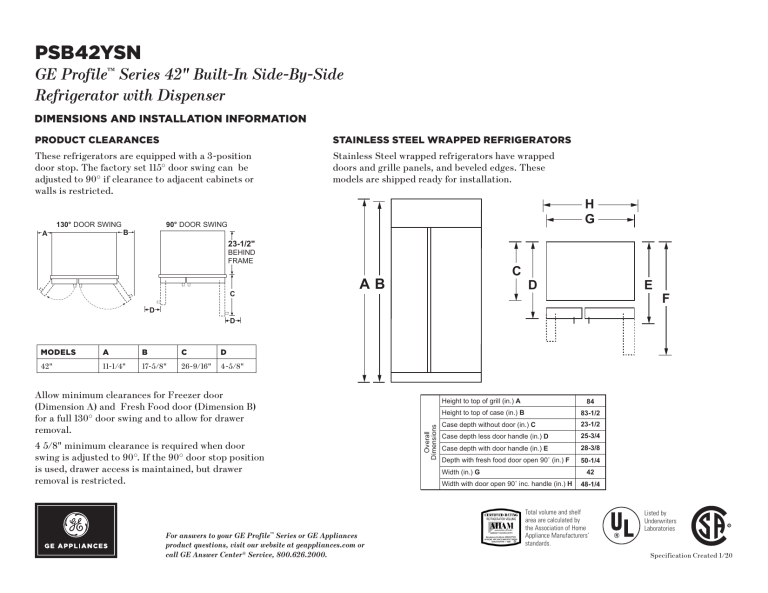

PSB42YSN
GE Profile ™ Series 42" Built-In Side-By-Side
Refrigerator with Dispenser
DIMENSIONS AND INSTALLATION INFORMATION
PRODUCT CLEARANCES
These refrigerators are equipped with a 3-position door stop. The factory set 115° door swing can be adjusted to 90° if clearance to adjacent cabinets or walls is restricted.
STAINLESS STEEL WRAPPED REFRIGERATORS
Stainless Steel wrapped refrigerators have wrapped doors and grille panels, and beveled edges. These models are shipped ready for installation.
A
130° DOOR SWING
B
90° DOOR SWING
23-1/2"
BEHIND
FRAME
H
G
C
D
C
A B
D
D
MODELS
42"
A
11-1/4"
B
17-5/8"
C D
26-9/16" 4-5/8"
Allow minimum clearances for Freezer door
(Dimension A) and Fresh Food door (Dimension B) for a full 130° door swing and to allow for drawer removal.
4 5/8" minimum clearance is required when door swing is adjusted to 90°. If the 90° door stop position is used, drawer access is maintained, but drawer removal is restricted.
For answers to your GE Profile ™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center ® Service, 800.626.2000.
Height to top of grill (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ inc. handle (in.) H
84
83-1/2
23-1/2
25-3/4
28-3/8
50-1/4
42
48-1/4
Total volume and shelf area are calculated by the Association of Home
Appliance Manufacturers’ standards.
E
F
Listed by
Underwriters
Laboratories
Specification Created 1/20
PSB42YSN
GE Profile ™ Series 42" Built-In Side-By-Side
Refrigerator with Dispenser
THE INSTALLATION SPACE
41-1/2" for 42" width models
DIMENSIONS AND INSTALLATION INFORMATION
18" for 42" width models
GROUNDING THE REFRIGERATOR SIDE PANELS
24"
(61.0)
3/16"
(.5)
6-3/4"
(17.1)
A
E
IMPORTANT—PLEASE READ CAREFULLY
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power supply cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong
(grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Side panels (not supplied) must be used whenever the sides of the refrigerator will be exposed. The 1/4" side panels will slip into the side case trim. Order side panels from your cabinet manufacturer.
* Depending on installation height.
FLOORING
1 7/8"
(4.8)
*3"- 4"
(7.6 - 10.2)
*Depending on installation height
*84"
(213.4)
*Depending on installation height
*Trim will overlap additional 7/16"
5" B
6-3/4"
(17.1)
WATER
FRONT VIEW
75"
From floor to bottom of electrical area
5" 3-1/2"
ADDITIONAL SPECIFICATIONS
A – Mounting the junction in this location will also allow for front accessibility through access panel.
B – Water supply area.
Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
DO NOT USE AN ADAPTER PLUG
TO CONNECT THE REFRIGERATOR
TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE.
For proper installation, this refrigerator must be placed on a level surface of hard material that is at the same height as the rest of the flooring.
This surface should be strong enough to support a fully loaded refrigerator, or approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large section of the cardboard carton and place under the refrigerator where you are working.
A 120 volt, 60Hz, 15 or 20 amp power supply is required. An individual properly grounded branch circuit or circuit breaker is recommended. Install a properly grounded 3-prong electrical receptacle recessed into the back wall. Electrical must be located on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not recommended.
WATER AND ELECTRICAL LOCATIONS
The opening must be prepared with the electrical and water supply located as shown.
THE CUTOUT DEPTH MUST BE 24"
Water line can enter the opening through the floor or rear wall. The water line installed should be 1/4" O.D. copper tubing or GE SmartConnect™ tubing between the cold water line and water connection location. The line should be long enough to extend to the front of the refrigerator. Installation of an easily accessible shutoff valve in the water line is required.
The refrigerator will project forward, slightly beyond adjacent cabinets, depending on your installation.
For answers to your GE Profile ™ Series or GE Appliances product questions, visit our website at geappliances.com or
Total volume and shelf area are calculated by the Association of Home
Appliance Manufacturers’ standards.
Listed by
Underwriters
Laboratories call GE Answer Center ® Service, 800.626.2000.
Specification Created 1/20
PSB42YSN
GE Profile ™ Series 42" Built-In Side-By-Side
Refrigerator with Dispenser
FEATURES AND BENEFITS
42" Built-In Configuration – Enjoy the streamlined appearance of a built-in refrigerator, designed to fit inside cabinetry
Integrated Dispenser with LED Lighting – Have access to ice and water, and to refrigerator controls like temperature settings, with a dispenser that’s integrated into your refrigerator door
LED Lighting – Find any item in your refrigerator with ease, thanks to bright, efficient lighting that illuminates the fresh-food and freezer compartments
Climate Controlled Drawer – Alter your drawer’s internal temperature to suit the food inside, using one of three temperature settings: Meat, Produce or Citrus
Built-In WiFi – Monitor and control your refrigerator from your smartphone, and receive helpful alerts if the door is left open or service is needed
Fresh Food Multi-Level Drawers – Provide the ideal environment for storing your fruits and vegetables
Adjustable spillproof glass shelves – Raised edges help contain spills to make clean up quick and easy
Large door bins - Offers ideal space for storing large containers in the door, freeing up valuable shelf space
Adjustable Freezer Shelves – Make room for a variety of frozen foods, using four wire shelves that are designed for easy adjustability
Built-In Ice Maker – Enjoy clean, filtered ice anytime by scooping it from the freezer or using the integrated dispenser in the refrigerator door
Full-Extension Freezer Baskets – Easily load and unload frozen items with freezer baskets that are engineered to slide all the way out
Advanced Temperature Management System – Keep foods perfectly fresh with a multi-level air tower that distributes air evenly throughout the refrigerator and an overhead evaporator system that regulates humidity
Model PSB42YSNSS – Stainless steel
PSB42YSK_PSB48YSK
UFAS
COMPLIANT
Specification Created 1/20
