AKDY RH0484 Specification

AKDY RH0484 Specification
GOLDEN VANTAGE
Model No.
RH0484

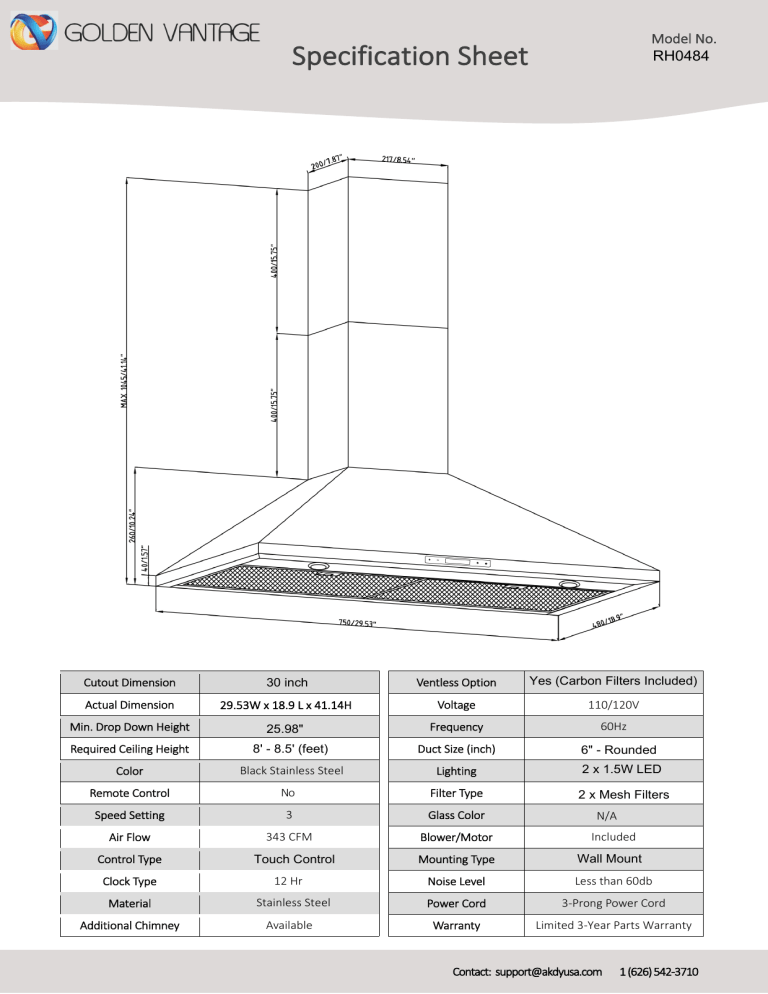

Specification Sheet
Cutout Dimension
30 inch
Ventless Option
Yes (Carbon Filters Included)
Actual Dimension
29.53W x 18.9 L x 41.14H
Voltage
110/120V
Min. Drop Down Height
25.98"
Frequency
60Hz
Required Ceiling Height
8' - 8.5' (feet)
Duct Size (inch)
6" - Rounded
Color
Black Stainless Steel
Lighting
2 x 1.5W LED
Remote Control
No
Filter Type
2 x Mesh Filters
Speed Setting
3
Glass Color
Air Flow
343 CFM
Blower/Motor
Control Type
Clock Type
Material
Additional Chimney
Touch Control
12 Hr
Stainless Steel
Available
Mounting Type
N/A
Included
Wall Mount
Noise Level
Less than 60db
Power Cord
3‐Prong Power Cord
Warranty
Limited 3‐Year Parts Warranty
Contact: [email protected]
1 (626) 542-3710
