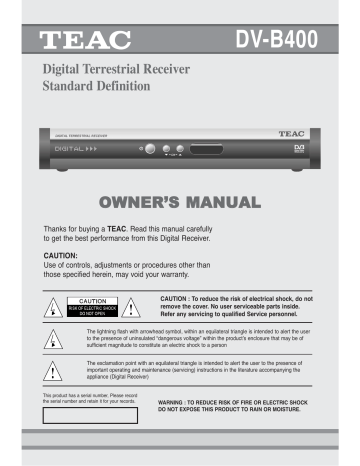

Digital Terrestrial Receiver

Standard Definition

DV-B400

O WN S M AN

Thanks for buying a TEAC . Read this manual carefully to get the best performance from this Digital Receiver.

CAUTION:

Use of controls, adjustments or procedures other than those specified herein, may void your warranty.

CAUTION : To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside.

Refer any servicing to qualified Service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to a person

The exclamation point with an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance (Digital Receiver)

This product has a serial number, Please record the serial number and retain it for your records.

WARNING : TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

PLEASE READ THIS FIRST!

Is Digital TV reception available in your home?

Generally speaking; if this receiver was on display (demonstration) by your retailer and you live within the same area/town/city, then it should work within your home.

If you experience break-up of picture or poor performance, it is recommended that you contact your local TV antenna installer first. They may need to check your signal quality for digital reception. The antenna installer may advise you to upgrade your TV antenna to a newer digital ready antenna, and install newer cabling such as RG6 quad shield cable.

For more information on installations, visit the Digital Broadcast Australia website found at http://www.dba.org.au.

I don’t seem to have Digital TV reception in my home, what shall I do?

Digital TV is relatively new to Australia and it will take time for it to be available everywhere around Australia. If Digital TV reception is not available to you, simply place together all packaging and supplied cables back into the box neatly. Have your receipt (proof of purchase) ready and contact your place of purchase for further details on what you should do.

How do I connect this box to my TV?

Using the supplied cable, connect the plug (called RCA) onto the rear of the

Set-top box labelled Video-L Audio R . The other end of the cable connect to your television’s

Video in and Audio in. Any televisions that have mono sound (not stereo) will not require the red plug.

Use adaptor supplied

1 Connect your antenna lead directly into the antenna connection on the rear of the box.

2 Be sure to select AV or EXT input on your television by using the television remote control.

3 Switch on the set-top box. If all connections are right, you will see a The AUTO

SEARCH screen appears on the television.

4 Simply press the RED button (SUB.T) to start tuning process.

5 Please read the user-manual thoroughly to enjoy this product.

Safety Instructions

This STB has been manufactured to meet Australian safety standards.

Please read the following safety instructions carefully before you handle the STB.

DEFINITION

MAIN SUPPLY

CABLE

LOCATION

CLEANING

OVERLOADING

VENTILATION

LIQUIDS

LIGHTNING

Throughout the manual, you will find the letters STB.

This stands for Set-Top Box.

Use only DC 12V 1.5A plugpack as supplied.

Use standard certified cables to prevent any malfunction of the STB.

Keep the STB indoors and away from potential hazards, such as houseplants, rain and direct sunlight.

1. Always disconnect the STB power cord from the wall socket before cleaning it.

2. Use a light damp cloth(no solvents)to clean the case.

Do not overload wall outlets, extension cords or adapters.

These can cause fire or electrical shock.

1. Do not block ventilation slots of STB.

2. Do not place the STB on soft furnishings or carpets.

3. Ensure that a free airflow is maintained around the STB.

4. Do not allow the STB to be exposed to direct sunlight or a heater.

5. Do not stack other electronic equipment on top of the STB.

Keep liquids away from the STB.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

1. The Manufacture's instructions for safe guarding other equipment connect to the STB, such as a television set, must be followed during lightning conditions.

2. Ensure lightning protection devices for the terrestrial antenna, and mains are installed.

Support & Copyright

For our valued customers, we do our best for each product and services to offer. We will support our cutomers through our local sales and service network. TEAC supports this product via its set-top box homepage with useful information and new software.

If you have any questions about this product, please consult the web page before contacting out Total Care Hotline 1800-656 700 EST 9am to 5pm. Please have your software version number ready before calling us. [ Refer to MENU/SYSTEM INFORMATION page27 ]

Homepage :

http://stb.teac.com.au

E-mail :

[email protected]

To provide you with the convenience of usage, TEAC has the right to make changes and improvements to the products including the user manual without any notice in advance.

Copyright 2004 TEAC Australia Pty Ltd.

Throughout this manual the letters STB are constantly used. This stands for "Set-Top Box" and refers to your DV-B400.

Understanding the Remote Control Unit

..........................................8 ~ 9

Connecting Your Equipment

..................................................................10

Front Panel ......................................................................................................10

Rear Panel .......................................................................................................11

Connection ......................................................................................................12 ~ 13

Setting Up Your System

...........................................................................14

Menu Tree ........................................................................................................14

Automatic Channel Search for Television Services ....................................15

Manual Channel Search .................................................................................15

Basic Function ................................................................................................16 ~ 17

Menu Operation

...........................................................................................18

Main Menu .......................................................................................................18 ~ 19

Channel List ....................................................................................................19

Channel Information .......................................................................................20

Skip Channel ..................................................................................................20

Program Guide ................................................................................................21

Now/Next EPG ...............................................................................................21

Setup ................................................................................................................22

Menu Language..............................................................................................22

VIDEO Output.................................................................................................23

Screen Type ...................................................................................................24

Banner Time ...................................................................................................24

Other Setting ..................................................................................................24 ~ 27

Installation .......................................................................................................28

Channel Search..............................................................................................28 ~ 30

Change PIN Code ..........................................................................................31

Parental Lock..................................................................................................31

Receiver Lock.................................................................................................32

Factory Reset .................................................................................................32

TELETEXT Navigation ....................................................................................33

Troubleshooting

..........................................................................................34

Technical Specifications

..........................................................................35 ~ 36

Frequently Asked Questions

..................................................................37 ~ 39

Understanding the Remote Control Unit

Remote Control Unit

STANDBY 1

TV/STB 2

SUBTITLE

PAGE UP/DOWN

3

4

SOUND 5

VOLUME UP/DOWN 6

OK 7

EXIT 8

TELETEXT 9

JUMP 10

EVENT 20

M-VIEW 21

11 MUTE

12 NUMERIC

BUTTONS

13 EPG

14 INFORMATION

15 PRE-CHANNEL

16 CHANNEL

UP/DOWN

17 MENU

18 TV/RADIO

19 ASPECT

DV-B400 - 8 Digital Terrestrial Receiver

Understanding the Remote Control Unit

1 STANDBY

To switch between Operation and

Standby mode.

2 TV/STB

Not used

3 SUBTITLE (Red)

To select closed caption.

Note that closed caption may not always work as the broadcaster may not provide this service.

4 PAGE UP/DOWN

To move up or down a page in the channel list.

5 SOUND (Yellow)

To select the sound track list in the current channel.

6 VOLUME UP/DOWN

To increase or decrease the volume.

7 OK

To confirm your choice.

11 MUTE

To enable or disable the audio.

12

13

14

15

16

NUMERIC BUTTONS

To select the channel and enter the channel information and PIN Code.

EPG

To display the TV/Radio program guide.

INFORMATION (Green)

To display the program information box on the screen.

PRE-CHANNEL (Blue)

To return to the previous channel.

CHANNEL UP/DOWN

To change channels up and down.

17 MENU

To display the Main Menu on the screen or return to the previous menu.

18 TV/RADIO

Not used

8 EXIT

To return to the normal viewing mode from a menu.

19 ASPECT

To select your screen aspect ratio.

Press this button to toggle different modes.

9 TELETEXT

To navigate teletext pages.

10 JUMP

This key will jump between the 1st service of each network.

20 EVENT

To select the extended event information of the program.

21 M-View

To display multi angle view selection.

Note : Your DVB receiver is capable of displaying teletext on screen since it has an embedded teletext decoder.

**AUSTEXT only available from 7 digital

DV-B400 - 9 - Digital Terrestrial Receiver

Connecting Your Equipment

Front Panel

1 STAND-BY

2 CHANNEL-

3 CHANNEL+

4 RED LED

GREEN LED

5 IR SENSOR

1 2 3 4

To Switch between Operation and Standby mode.

To change channels down.

To move down highlight marked cursor.

To change channels up.

To move up highlight marked cursor.

Stand by condition

Operating

Point remote controller toward front on the DV-B400

5

DV-B400 - 10 Digital Terrestrial Receiver

Connecting Your Equipment

Rear Panel

1 2 3 4 5 6

1 ANT IN To connect the antenna here.

2 LOOP THROUGH Used to connect a RF signal from the STB to either the RF input jack

(antenna) on your VCR or to the antenna input of your TV.

3 TV

4 VIDEO & AUDIO L/R To connect Video & Audio R/L to a TV, Audio Amp or Hi-Fi system.

YPbPr

Composite video, S-Video & also RGB output is available.

Different cables are required.

5 RS-232

UPGRADE

The 3 RCA(Cinch) connectors are switchable from Video+L/R Audio to Component video YPbPr. Refer to MENU selection for further information

To connect to a personal computer for software upgrade.

6 OPTICAL To connect S/PDIF cable for digital audio.

DV-B400 - 11 - Digital Terrestrial Receiver

Connecting Your Equipment

Connection

How to connect your STB to various systems

There are several ways of connecting the STB to your TV and Hi-Fi System. Consult your local supplier for assistance in setting-up your system best suited to your requirements.

1. STB to a TV

Use adaptor supplied

STB to a TV Set

Simple connection to the television set. There are 2 methods.

(a) Connect STB to a 3RCA connector(supplied cable)

The 3RCA connections will connect to your television AV input. Be sure to select

'AV' key on your TV remote control.

(b) Connect STB via SCART to SCART connector (cable optional)

Simply connect the SCART lead from TV (on STB) to the SCART connector(cable optional) usually found on the rear of your television. Select RGB on menu for best performance.

DV-B400 - 12 Digital Terrestrial Receiver

Connecting Your Equipment

2. Connection with VCR

Use adaptor supplied

* This connection allows VCR to record Analogue TV and watch videos on the TV.

Note : RF cable from set top box to VCR is not included. You ll need to purchase this separately.

Instructions

(1) Connect antenna cable directly to set top box, Using another RF cable connect Loop

Through to the antenna input on the VCR.

(2) Connect another RF cable from VCR RF out to TV antenna input(Usually this connection was already made).

DV-B400 - 13 - Digital Terrestrial Receiver

Setting up Your System

Menu Tree

DV-B400 - 14 Digital Terrestrial Receiver

Setting up Your System

Automatic Channel Search for Television Services(1st Step)

You can automatically detect and save all channels as follows:

System Connection • Connect STB as per pages 10 to 12 (as applicable).

Power On

• Turn on the power of STB and other devices connected to the STB.

• Select Channel Search in the Installation Menu.

• Enter the PIN Code. (Factory PIN Code is ‘0000’ )

• Press RED (SUB.T) button and the STB will automatically search all channels and save them into the channel list.

Once finished, your box is ready to be used.

Manual Channel Search

You can automatically search and save all channels as follows :

Main Menu/Installation

• Select Channel Search in the Installation Menu.

• Enter the PIN Code. (Factory PIN code is ‘0000’ )

Channel Search / Manual

• Select the television service you want to search by pressing the UP/DOWN buttons and the OK button. A tick will be shown beside your selection. You may select more than one television service to manual tune.

• Press GREEN (Manual) button and the STB will begin to search all channels you have chosen and save them into the channel list.

DV-B400 - 15 - Digital Terrestrial Receiver

Setting up Your System

Basic Function

Information Screen

After the television channels have been programmed, you will see the information(banner) box each time you switch channels.

Banner 1

Logical Channel Number

Channel Name Network Name Parental Rating

Now & Next Information Signal Quality

Banner 2

Category

Day / Time

Indicator

Dolby available

“ Dolby avialable ” appears when selection is possible

Signal Quality

Sound available

Teletext available

Subtitle available

Channel (Service) Change

1. Press the numeric buttons (0~9) on the remote control to select the channel no. you want.

2. Press the OK button on the Remote Control Unit and select the channel you want from the Channel List.

3. Press the CH+/CHbuttons on the Remote Control Unit to select the channel you want.

DV-B400 - 16 Digital Terrestrial Receiver

Setting up Your System

Volume Control / Mute

Press the VOL+/VOL- buttons to control the volume.

To temporarily stop the volume, press the MUTE button.

To cancel mute, press the MUTE button again or press the VOL+/VOLbuttons.

Sound Track

When you want to change the Audio output (stereo, mono, right, left), press the

SOUND( ) button.

Use the CH+/CHbuttons on the Remote Control Unit to select the audio language you want.

Use the LEFT/RIGHT buttons on the Remote Control Unit to select the sound type

(Stereo, Mono, Left, Right).

EXIT button : Exit this menu

Eng

Eng AC3

STEREO

STEREO

Dolby digital AC3 may be available. When selected no sound may be heard on the TV. This feature in only avialable with fibre-optic cable from set top box to Dolby digital amplifier.

Note : Broadcasters may/may not have Dolby audio availble

DV-B400 - 17 - Digital Terrestrial Receiver

Menu Operation

Main Menu

1. Turn on TV and your STB, after you have connected all peripheral devices to it.

2. Press the MENU button on the Remote Control Unit. You will see the Main Menu on the

TV screen as follow:

3. You can move into the desired submenu using UP/DOWN ( ) buttons.

4. Press the OK button to confirm your selection.

5. Press the MENU button to return to the previous menu or press the EXIT button to quit the Menu system completely.

Note :

Press the OK button when there is no Menu

Window on the screen, and the simple channel list will appear on the screen.

DV-B400 - 18 Digital Terrestrial Receiver

Menu Operation

Main menu shows the following information.

Channel List

Program Guide

Setup

Installation

Shows the whole channel list stored in STB.

Shows the Channel Information and Channel Sorting.

Shows the information of Now, Next Programs.

Sets Menu Language, SCART Output, Screen Type, Banner Time, and Other Setting.

Sets Channel Search, Change PIN Code, Parental Lock, Receiver

Lock and Factory Reset.

Channel List

This menu consist of All Channel List, Channel Information & Skip Channel.

Select Channel List in the Main Menu. Then you will get a Channel List as follows ;

The colour buttons correspond to the following channel function.

Red button : All Channel Lists

Green button : Channel Information

Yellow button : Skip Channel

This menu helps you to easily select the channel that you want to watch.

You can get information of channel number and the channel name.

Users can use the channel list to select which services to skip.

To watch a specific channel, first select the specific channel that you wish to watch by using the UP / DOWN / LEFT / RIGHT buttons, and then press OK button on the Remote

Control Unit. Also use the PAGEUP/PAGEDN ( ) buttons.

DV-B400 - 19 - Digital Terrestrial Receiver

Menu Operation

Channel Information

This mode helps you to watch the detailed information of a specific channel.

To watch a detailed information of a specific channel:

Press the Green button in the Channel List menu, and Channel Information window will be displayed.

Press the CH+/CHbuttons to select the channel information you want.

The detailed information will appear on the right display window.

It consists of the following items: Category, Sound, Subtitle(STT), Teletext(TTX),

PID(Video, Audio and PCR) and Scrambling symbol.

Subtitle, Teletext, Scrambling symbol: These are automatically displayed when the broadcasting station provides appropriate information.

Skip Channel

Use the UP / DOWN / LEFT / RIGHT keys and move to the service you wish to skip.

Press the Yellow (or Orange) key to toggle the skip feature.

When you change channels, selected channels will be skipped.

Repress Yellow button to undo selection.

DV-B400 - 20 Digital Terrestrial Receiver

Menu Operation

Program Guide

Your STB has an Electronic Program Guide(EPG) to help you navigate programs through all the possible viewing options.

The TV Guide supplies information such as program listings and starting and ending times for all available programs.

Select Program Guide in Main Menu or press the EPG button of Remote Control Unit and the Program Guide screen will be displayed.

Now / Next EPG

The information may include : current time, name of the Now and Next Program, the starting and ending time of the Now/Next Program.

Program information will be available only when it is included in the transmission.

When you press RED (SUB.T) button on the remote control unit, the Now & Next program information will be toggled.

After moving the cursor (pressing CH+/CH); press the OK button to swicth to that service.

Note : To see detailed information about the event you want, press the OK button on the appropriate event.

The EPG Service may not be available depending on the broadcaster’s situation.

DV-B400 - 21 - Digital Terrestrial Receiver

Menu Operation

Setup

This menu helps you to set up Menu Language, VIDEO Output, Screen Type, Banner

Time, and Other Setting.

Select Setup in the Main Menu. The following submenu will show up on your TV.

1. Menu Language

This menu Language provided only in English.

Note : Due to the complexity of this product only English is provided. Check

TEAC's website for future updates. http://stb.teac.com.au

DV-B400 - 22 Digital Terrestrial Receiver

Menu Operation

2. VIDEO Output

Select VIDEO Output mode : Composite Video or RGB or S-VHS or Component.

What is Composite Video?

It is simply the normal video signal you would expect from an AV output.

What is RGB?

The RGB selection is the factory default.

The RGB selection will allow the best picture quality from your digital receiver.

This feature will only work if your television supports RGB input and the SCART to SCART cable MUST be used.

What is S-VHS?

The S-VHS delivers signal with each separate Chromaticity & Luminance to make better quality of color. Special Scart to S-VHS adaptor is required and not supplied with the product.

What is Component YPbPr?

The Component selection(or sometimes called DVD input) may be available on some TVs.

Simply connect a 3 colored lead from YPbPr to your TV component input. Be sure to select it on your TV remote controller.

Special note :

When VIDEO Output = Composite Video

Scart(TV) & 3 RCA jacks become Composite Video + L/R Audio

When VIDEO Output = RGB

Scart(TV) becomes RGB & 3 RCA jacks become Composite Video + L/R Audio

When VIDEO Output = S-VHS

Scart(TV) becomes S-VHS & 3 RCA jacks become Composite Video + L/R Audio

When VIDEO Output = Components

Scart(TV) becomes Composite Video + L/R Audio & 3 RCA jacks become YPbPr

DV-B400 - 23 - Digital Terrestrial Receiver

Menu Operation

3. Screen Type

You can choose either "4:3" or "16:9" according to your TV type.

Screen Type

4:3 Letter box

4:3 Full Screen

16:9 Full Screen

Adjust Screen

Note : Screen adjustment feature may be available. Use only if absolutely necessary.

4. Banner Time

You can set the display duration of the information (banner) box displayed on the Screen.

The time ranges from 2 to approx 20 seconds.

5. Other Setting

DV-B400

This mode helps you to setup Audio

Language, Subtitle Language, Time Adjust,

OSD Colour, OSD Transparency and System

Information.

- 24 Digital Terrestrial Receiver

Menu Operation

Audio Language

Select the default language for audio when changing channels.

It is available for twelve languages.

Language Provided: English, Czech, Danish, French, German, Hungarian, Italian,

Portuguese, Spanish, Turkish, Arabic and Farsi.

If any language is not selected then the default language of current channel will be automatically selected.

Subtitle Language(DVB Bitmapped type Subtitles)

Note : This is not closed-captions.

Select the default language for subtitle when changing channels.

Language Provided: English, Czech, Danish, French, German, Hungarian, Italian,

Portuguese, Spanish, Turkish, Arabic and Farsi.

Note : Subtitle languages are only available if the broadcast network is

Transmitting extra languages.

DV-B400 - 25 - Digital Terrestrial Receiver

Menu Operation

Time Adjust

Note : Please select the state you live in.

(example: Time zone)

You can set your local time by adjusting the differences from GMT, according to your location.

GMT : Greenwich Meantime-central European time.

OSD Colour

You can adjust the OSD Colour : Cyber, Wood, Marine and Evergreen.

Note : OSD = On Screen Graphical Displays.

DV-B400 - 26 Digital Terrestrial Receiver

Menu Operation

OSD Transparency

Select OSD Transparency type (0,20,40,60 or 80%).

System Information

Note:

S/W : Software Version

H/W : Hardware Version

B/L : Bootloader Version

Displays the system information: Model Name, S/W Version, H/W Version, B/L Version and Company Name.

Note : If you contact TEAC Total Care Hotline, please have your serial number and details (as per above) ready before speaking with our telephone operator.

DV-B400 - 27 - Digital Terrestrial Receiver

Menu Operation

Installation

This Menu helps you to setup a variety of parameters necessary for receiving signal and managing the channel information. To avoid loss of service, it is important to understand the following table before you make changes.

Channel Search

Search Mode

AUTO (press RED SUB.T. Key) or MANUAL(press GREEN 'i' key)

The parameters required to receive digital TV are fully automatic from this product and cannot be manually set.

FFT(2K,8K)

C/R (Code rate) 1/2 2/3 3/4 4/5 5/6 7/8

CONS(Constellation) QPSK 16-QAM, 64-QAM

G/I(Guard Interval) 1/32 1/16 1/8 1/4

}

These are special parameters for digital TV reception. The product will automatically set these for you

- 28 DV-B400 Digital Terrestrial Receiver

Menu Operation

1. Automatic Channel Search

Automatic Channel Search helps you to automatically load the channel information of all CH contained.

1. Press the CH+/CHbuttons tp select Channel Search in the installation menu and press the OK button.

The channel search window as shown below will be displayed.

2. Press RED (SUB.T) button to start the automatic channel searching.

The bar on the top of the screen shows the progressive status of the channel search.

3. The services found will be listed once auto search has finished.

Simply press OK key to store.

DV-B400 - 29 - Digital Terrestrial Receiver

Menu Operation

2. Manual Channel Search

Manual channel search is more convenient to search a specific CH.

Like the Automatic Channel Search, Manual Channel Search also searches all services broadcasted over a specific CH using its predefined information.

Press the CH+/CHbuttons to select the CH number you want to search.

Then press the OK button to place a tick (tag) beside it.

Select the CH to search manually. Each CH has its own parameter value.

Press the GREEN (Manual) button to start searching for services.

Press the MENU button to return to the previous menu.

Press the EXIT button to exit of stop searching for services.

Use the MENU button to stop Channel Search.

When the Channel Search is completed, press OK button to save the result.

Press the MENU button to return to the previous menu.

Note : The Manual Channel Search may take a few minutes, depending upon how many

CH(Networks) were ticked(tag),before press GREEN key.

DV-B400 - 30 Digital Terrestrial Receiver

Menu Operation

Change PIN Code

Note : The pin number is required to access the installation/Channel search and Parental control menus.

You can change your PIN(Personal Identification Number) Code from factory default value " 0000 " as follows:

Select Change PIN Code in the Installation Menu.

Then you will be asked for a New PIN Code. Enter the new PIN Code.

The system will ask you to enter it again to confirm.

If you forgot the PIN code, press SUB-T(Red), I(Green), Audio(Orange),

Pre-channel(Blue) & MENU in sequence.

Parental Lock

You can prevent children or unauthorized people from watching programs.

Parental Rating Values

No Block

Block All

: Not Classified

: Lock all channels

Block G and above : General

Block PG and above : Parental Guidance

Block M and above : Mature Audience (15+)

Block MA and above : Mature Audience (15+)

Block AV and above : Adult, Strong Violence (15+)

Block R and above : Restricted 18+

Use the LEFT/RIGHT buttons to move to the Parental Lock position.

Select Parental rating values you want using CH+/CHbuttons.

And then press the OK button.

Once the Parental is locked, whenever you watch the locked channel, you should enter the PIN code.

Note : The parental rating values used in Australia refer to a set of Australian

Classification codes, which may be different to those used in other parts of the world.

DV-B400 - 31 - Digital Terrestrial Receiver

Menu Operation

Receiver Lock

To lock the receiver, select Receiver Lock in the installation menu and select "ON" by using the CH+/CH- and OK buttons.

Now the receiver is locked. Whenever you try to start STB, a window appears which asks you to enter your PIN Code before picture appears on the screen.

Factory Reset

All data you are using will be deleted and the default data will be loaded.

If you select "OK", it asks your confirmation.

If you don’t want to reset, press MENU button or EXIT button to exit this menu.

DV-B400 - 32 Digital Terrestrial Receiver

Menu Operation

Teletext Navigation

This STB has Teletext software emulator which enables all TV sets to navigate Teletext pages.

To start navigation of Teletext pages, press

Teletext button. When Teletext is activated, buttons below mentioned will perform different features by each mode.

To stop navigation & return to program press

“ Teletext ” button.

Note : The AUSTEXT Service is available on the SEVEN Network.

1) Teletext button

2) Menu button

3) Numeric button

4) Up/Down button

: Toggle Teletext mode

: Jump to page100 in Teletext mode

: Direct page selection in Teletext mode

: Next/Previous Page

5) Left/Right button : Next/Previous Subpage

If two subpages with a subcode between 1 and 99 are received, the subpage mode is automatically activated and the subpage bar appears in the bottom row.

The symbol at the left side is the subpage overwrite mode.

In this mode the display is updated with the last received subpage.

6) Color (Red, Green, Yellow, Blue) buttons

6-1) Top Text Mode : The broadcaster usually sends Teletext in a way that each Teletext page is linked with other four pages.

Red button : link #1

Green button : link #2

Yellow button : link #3

Blue button : link #4

6-2) Display Functions Mode : To select the display functions of the Teletext decoder the user has to press the OK button on the RCU.

Red button : Toggle Hold mode

-The stop mode holds the currently displayed subpage.

-This means, that it can not be overwritten by a new incoming page with the same subpage number.

Green button : Toggle Reveal mode

-The text marked as "conceal" is displayed as spaces when reveal mode is off.

-Enabling reveal mode displays the concealed text.

-Broadcasters use this feature, e.g. for a Teletext quiz(the answer is sent as a

'concealed' text).

Yellow button : Change Display size

-This command switches between three possible display sizes.

-normal size (all Teletext rows are displayed).

-double size of the upper half, only the upper half of the Teletext page is displayed.

-double size of the lower half, only the lower half of the Teletext page is displayed.

Blue button : Toggle Mix mode(transparent background)

DV-B400 - 33 - Digital Terrestrial Receiver

T roubleshooting

Problem

Does not display any message on the front panel or STB has no power.

Solution

Something wrong with STB

Check the main power cord and check that it is plugged into a suitable power outlet.

Check whether STB is in Standby mode.

No Picture

Breaking Picture

No Sound

Ensure that the STB is switched on (see above).

Check the video output port (VIDEO) is firmly connected to the TV or VCR.

Check that you have selected the correct channel or

Video Input on your TV.

Check the brightness level of the TV.

See “No Picture” above.

Check the signal level, if this is low then try to adjust the alignment of your antenna.

See “No Picture” above.

Check the volume level of the TV and STB.

Check the Mute status of the TV and STB.

Remote Control does not operate Point Remote Control Unit directly towards the STB.

Check and replace batteries.

STB is locked and doesn’t operate.

Disconnect STB from power point for 30 seconds and re-connect.

About On-Screen Error Message

No or Bad Signal Adjust the direction of your antenna

Check the “Signal Strength” and the “Signal Quality” in the channel list or channel search menu

More Information available at http://stb.teac.com.au

DV-B400 - 34 Digital Terrestrial Receiver

Technical Specifications

Tuner & Channel

Input Connector

Frequency Range

Signal Level

Demodulation

Input Symbol Rate

: IEC 169-2, Female

: 174 MHz to 820 MHz

: 35dBuV to 70dBuV

: COFDM 2K/8K-Carrier

: 24.1 Msymbol/s FEC Decoder

Convolutional Code Rate 3/4

MPEG Transport Stream A/V Decoding

Transport Stream : MPEG-2 ISO/IEC 13818

Profile Level

Input Rate

Aspect Ratio

Video Resolution

Audio Decoding

Audio Mode

Sampling

Transport stream Specification

: MPEG-2 MP@ML

: Max 90 Mbit/s

: 4:3, 16:9

: 720 x 576

: MPEG / MusiCam Layer I & II

: Single channel / Dual channel / Joint stereo

: 32, 44.1 and 48KHz

Main Resources

Main CPU

Flash Memory

SDRAM for MPEG

SDRAM for SYSTEM

SDRAM for GRAPHIC

Power Supply

Input Voltage

Type

Power Consumption

Standby Power

Protection

: ST20(STi5518)

: 1Mbyte

:

:

: 8Mbyte

: DC 12V 1.5A

: SMPS

: Max. 18W

: Max. 4W

: Separate internal fuse.

DV-B400 - 35 - Digital Terrestrial Receiver

Technical Specifications

A / V & Data In / Out

TV SCART

AUDIO R/L

RS232C

S/PDIF

Physical Specification

Size (W x H x D)

Weight (Net)

Operating Temp.

Storage Temp.

: Video Output (Composite Video, RGB, S-VHS)

: RCA/Cinch Volume & Mute Control

(Resolution : 20bit DAC, Max. 2Vrms)

: Transfer rate 115,200 bps

9 Pin D-sub Type

: Digital Audio Optical output

: 256 x 183 x 42 mm

: 1.8 Kg

: 0°C to +50°C

: -15°C to +65°C

Feature & specification may change without prior notice.

DV-B400 - 36 Digital Terrestrial Receiver

Frequently Asked Questions

Frequently Asked Questions

Q. Where can I find the latest information for my digital product?

A. Check http://stb.teac.com.au for all details.

Q. Should I upgrade the software inside my TEAC box?

A. If your are experiencing technical difficulties with your Product please check the website http://stb.teac.com.au for known issues. A software upgrade may be available for your product.

Q. I do not have a computer, and would like to upgrade my box. What can I do?

A. Contact your nearest TEAC office or email us at [email protected] or telephone TEAC

Total Care on 1800 656700 9am to 5pm EST.

Q. What best describes Standard Definition Television?

A. You get DVD quality picture and CD quality sound on every network, all the time.

Q. The clock on my digital receiver is wrong. Why?

A. Make sure that your receiver is set to the correct time zone. (Refer to manual about selecting state you live in) Unlike other electronic appliances in your house, the clock is set by the broadcaster and not TEAC's box. Therefore if the clock is still wrong, change to another television network to see the correct time.

Q. On my digital receiver I have some channels numbered 350, 351, 352, etc. Why?

A. The STB supports logical-channel-numbering. In some areas the broadcaster may not be sending their channel number. The Australian requirement for STB design says that any services without a channel allocation are to be given a number from 350 to 399.

The TEAC box will do this automatically for you.

Q. My digital receiver has new channels on it and I did not re-tune anything. Why?

A. The product supports network-updating. Therefore, if a broadcaster begins sending new services (multichannel or multiview), the box will automatically add them in for you.

There is no need for you to re-tune anything.

Q. Can I still use it to see Closed Captions?

A. YES. The receiver has its own teletext decoder which enables you to nevigate teletext pages regardless of your television. To activate Closed Captions, press SUB.T key.

DV-B400 - 37 - Digital Terrestrial Receiver

Frequently Asked Questions

Q. Can I use the digital receiver on any television?

A. YES. This product has a standard video output which will connect to any television with video input. Also available is RGB (red, green, blue) connection to a television that has a

SCART input. You will need to purchase a SCART to SCART cable. For S-VHS, a

SCART adaptor will be required.

Q. How do I tune in services on my digital receiver?

A. Connected the box to your TV and your aerial to the digital receiver. Then simply press the RED button (SUB.T) and the box will automatically tune all services. Once finished, the box is ready to use.

Q. Can I watch a multiview events on my digital receiver?

A. YES. This product has both multichannel and multiview capability. Press the M-View button on the remote controller to navigate to 'other views.'

Also you can check the DBA website (http://www.dba.org.au) for widescreen programming and special broadcasts.

Q. How do I know what is showing in Widescreen 16:9?

A. Check the DBA website (http://www.dba.org.au) for widescreen programming.

Q. Can I use my digital receiver on a Widescreen or Normal sized television?

A. YES.There is support for 16:9 Widescreen and 4:3 Normal formats. Press the button called ASPECT on the remoite and it will switch formats.

Q. How do I use the EPG (Electronic Program Guide)?

A. Simply press the button labelled EPG on the remote. It will show the programs currently showing NOW on that television network. If you would like to see what's coming on next, press the RED button (SUB.T).

Q. How do I change on-screen display colours (as a personal preference?)

A. There is a selection of 4 colour schemes (Cyber, Wood, Marine, Evergreen). Refer to the menu on the screen to change.

Q. What is the System Information menu on the digital receiver?

A. The system information includes the software version (S/W), hardware version (H/W) and bootloader (B/L) version numbers. When you contact TEAC for support, please have these details ready.

DV-B400 - 38 Digital Terrestrial Receiver

Frequently Asked Questions

Q. Does the digital receiver support parental control of programs?

A. YES. The parental code can be set to block certain programs.

Q. What are MPEG Artefacts?

A. Somtimes the picture may appear to be slightly blocky. These are known as MPEG artefacts. They are directly related to MPEG compression at the broadcast side. The extent of artefacting is related to how fast the picture is moving, numbers of colours, quality of the original material, the MPEG encoder used at the time, etc. This is not a problem with the STB.

Q. I cannot get teletext to function?

A. The AUSTEXT Service is available on the Seven Network.

Q. Closed Captions don't always appear! Why?

A. Not all programs are captioned. News programs should always have captions available.

Q. Can I record Closed Captions on my VCR?

A. Yes, you may. You will need to connect the 3RCA cable(as supplied) to the Video & Audio input on the VCR. Using the VCR remote, select AV , EXT on Line In selection. Set the

TV to the video channel. The set top box picture will appear. Now it may be recorded.

Q. Can I record the improved picture on my VCR?

A. Refer to the above answer.

DV-B400 - 39 - Digital Terrestrial Receiver

15100046 (REV.03; 2003.10.31)

TEAC TOTAL CARE info

@

teac.com.au

or visit our website at http://www.teac.com.au

Freecall telephone 1800-656700 between Monday to Friday - EST 9am to 5pm

TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550, Japan.

Phone : (0422)52-5081

TEAC AUSTRALIA PTY.,LTD.

A.B.N. 80 005 408 462

TEAC Melbourne Office (Headoffice) Former Royal Mint Building 280 William Street Melbourne VIC 3000

Phone : (03) 9672 2400

TEAC Sydney Office Unit 8, 20-22 Foundary Rd Seven Hills NSW 2147

Phone : 1300 30 8322

TEAC Brisbane Office 335 Montague Road West End QLD 4101

Phone : (07) 30100100

TEAC Perth Office 273 Great Eastern Highway Belmont WA 6104

Phone : (08) 94796522

TEAC Adelaide Office Cnr Sir Donald Bradman Dr & Marion Rd Cowandilla SA 5033

Phone : (08) 8234 1044
