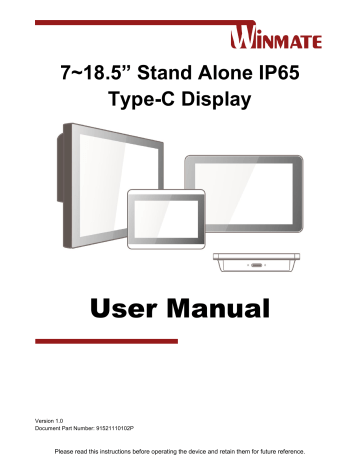

7~18.5

” Stand Alone IP65

Type-C Display

User Manual

Version 1.0

Document Part Number: 91521110102P

Please read this instructions before operating the device and retain them for future reference.

2 Stand Alone Type-C Display (7~18.5") User Manual

Contents

Preface ........................................................................................................................... 3

About This User Manual ............................................................................................. 7

Chapter 1: Introduction ................................................................................................ 8

1.1 About Stand Alone USB Type-C Display .............................................................. 9

1.2 Product Features .................................................................................................. 9

1.3 Package Overview ............................................................................................... 9

1.4 Product Overview ............................................................................................... 10

1.5 External Connectors ........................................................................................... 14

1.6 Physical Buttons and LED Indicators ................................................................. 14

Chapter 2: Installation ................................................................................................ 15

2.1 Wiring Requirements .......................................................................................... 16

2.2 Mounting Guide .................................................................................................. 16

2.2.1 Panel Mount ............................................................................................. 17

2.2.2 VESA Mount ............................................................................................. 18

2.3 Connecting Peripherals ...................................................................................... 19

2.4 USB Type-C Connector Description ................................................................... 20

Chapter 3: Operating the Device ............................................................................... 21

3.1 Turning on/ off the System ................................................................................. 22

3.2 Troubleshooting Guide ....................................................................................... 22

3.3 On-Screen Display Menu Navigation ................................................................. 23

Appendix...................................................................................................................... 24

Appendix A: Hardware Specifications ...................................................................... 25

Appendix B: Frequency Table .................................................................................. 27

Appendix D: Cleaning the Monitor ............................................................................ 27

Preface 3

Preface

Copyright Notice

No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance.

We assume no responsibility or liability for the use of the described product(s) conveys no license or title under any patent, copyright, or masks work rights to these products, and make no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. We make no representation or guarantee that such application will be suitable for the specified use without further testing or modification.

Warranty

Our warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid. The returned product must be properly packaged in its original packaging to obtain warranty service. If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be made according to the shipping date. In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December). For example, the serial number

1W16Axxxxxxxx means October of year 2016.

Customer Service

We provide a service guide for any problem by the following steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance.

You may need the following information ready before you call:



Product serial number



Description of complete problem



The exact wording of any error messages

In addition, free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

4 Stand Alone Type-C Display (7~18.5") User Manual

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important,

Cautions, and Warnings. The following is an example of each type of advisory.

Note:

A note is used to emphasize helpful information

Important:

An important note indicates information that is important for you to know.

Caution/ Attention

A Caution alert indicates potential damage to hardware and explains how to avoid the potential problem.

Unealerted’ attention indique un dommage possible à l’équipement et explique comment éviter le problem potentiel.

Warning!/ Avertissement!

An Electrical Shock Warning indicates the potential harm from electrical hazards and how to avoid the potential problem.

Un Avertissement de Choc Électriqueindique le potentiel de chocssur des emplacements électriques et comment éviterces problèmes.

Alternating Current / Mise à la Terre

The Protective Conductor Terminal (Earth Ground) symbol indicates the potential risk of serious electrical shock due to improper grounding.

Le symbole de Miseà Terre indique le risqué potential de choc électrique grave

à la terre incorrecte.

Safety Information

Warning!/ Avertissement!

Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on.

Sensitive electronic components can be damaged by sudden power surges.

Only experienced electronics personnel should open the PC chassis.

Toujours débrancher le cordon d’alimentation du chassis lorsque vous travaillez sur celuici. Ne pas brancher de connections lorsque l’alimentation est présente.

Des composantes électroniques sensibles peuvent être endommagées par des sauts d’alimentation. Seulement du personnel expérimenté devrait ouvrir ces chassis.

Preface 5

Caution/ Attention

Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

Toujours verifier votre mise à la terre afin d’éliminer toute charge statique avant de toucher la carte CPU. Les équipements électroniques moderns sont très sensibles aux décharges d’électricité statique. Toujours utiliser un bracelet de mise à la terre comme précaution. Placer toutes les composantes

électroniques sur une surface conçue pour dissiper les charge, ou dans un sac antistatique lorsqu’elles ne sont pas dans le chassis.

6 Stand Alone Type-C Display (7~18.5") User Manual

Safety Precautions

For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference.



Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth.



For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible.



Keep this equipment away from humidity.



Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.



The openings on the enclosure are for air convection and to protect the equipment from overheating.

Caution/ Attention

Do not cover the openings!



Before connecting the equipment to the power outlet make sure the voltage of the power source is correct.



Position the power cord so that people cannot step on it. Do not place anything over the power cord.



If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over-voltage.



Never pour any liquid into an opening. This could cause fire or electrical shock.



Never open the equipment. For safety reasons, only qualified service personnel should open the equipment.



All cautions and warnings on the equipment should be noted.

Caution/ Attention

Always ground yourself to remove any static charge before touching the board. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times.

Place all electronic components in a static-dissipative surface or staticshielded bag when they are not in the chassis.

Preface 7

About This User Manual

This User Manual provides information about using the Winmate® Stand Alone Type-C Display.

The documentation set provides information for specific user needs, and includes:



Stand Alone Type-C Display User Manual – contains detailed description on how to use the display, its components and features.

Models

Size

7”

10.1”

10.4”

12.1”

15”

15.6”

18.5”

Model Name

W07L100-GCT1-C

W07L100-GCO1-HB-C

W10L100-GCH2-C

W10L100-GCH1-HB-C

R10L100-GCT2-C

R12L100-GCM2-C

R15L600-PTC3-C

R15L600-PTA3-C

R15L600-GCC3-C

W18L100-PTA1-C

Note:

Some pictures in this guide are samples and can differ from actual product.

Document Revision History

Version

1.0

Date

13-Nov-2018

Note

New document release

8 Stand Alone Type-C Display (7~18.5") User Manual

Chapter 1: Introduction

This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Mechanical dimensions and drawings included in this chapter.

Chapter 1: Introduction 9

1.1 About Stand Alone USB Type-C Display

Congratulations on purchasing Winmate

®

Stand Alone Type-C Display. The elegantly designed, yet rugged, industrial grade Full IP65 Type C Display series is designed for usability with brilliant true-flat screens, which offer superior readability and Projected Capacitive Multi-Touch (P-CAP) technology, available in 7”, 10.1”, 10.4”, 12.1” and 15” options.

Full IP65 Type C Display features projected capacitive multi-touch (P-Cap) screen and waterproof full IP65 enclosure.

1.2 Product Features

Winmate® Full IP65 Type C Display features:

 7~18.5” LCD



Projected capacitive multi-touch (P-Cap)



Front IP65 rating



USB Type-C waterproof connector for power, video and touch input

1.3 Package Overview

Carefully remove the box and unpack your display. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

Your package may include items listed below based on your order:



Display

Varies by product



User Manual (Hardcopy)

P/N: 91521110102P



USB Type-C Cable, 1m

P/N: 9480240240K3

10 Stand Alone Type-C Display (7~18.5") User Manual

1.4 Product Overview

This section describes physical appearance of the Full IP65 Type C Display.

All dimensions shown in mm.

W07L100-GCT1-C

W07L100-GCO1-HB-C

W10L100-GCH2-C

R10L100-GCT2-C

Chapter 1: Introduction 11

12 Stand Alone Type-C Display (7~18.5") User Manual

R12L100-GCM2-C

R15L600-PTC3-C

R15L600-PTA3-C

W18L100-PTA1-C

Chapter 1: Introduction 13

14 Stand Alone Type-C Display (7~18.5") User Manual

1.5 External Connectors

Terminal interfaces are located on the bottom side of the display.

Item Description

1 USB 3.1 Type C - Connects external devices and provides power to the monitor.

1.6 Physical Buttons and LED Indicators

Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Display.

OSD Panel

Physical Buttons

DOWNPress to lower down the volume.

UP Press to increase the volume.

ESC/ AUTO- Press to exit the menu.

OK/ MENU Press to confirm the action or to call main OSD menu.

LED Indicators

Power On/ Off - Press to power on or power off the device.

Power Indicator - Lights up "Green" when the monitor turns on.

Stand by Indicator - Lights up "Orange" when the device cannot detect any input source.

Chapter 2: Installation 15

Chapter 2: Installation

This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages

16 Stand Alone Type-C Display (7~18.5") User Manual

2.1 Wiring Requirements

The following common safety precautions should be observed before installing any electronic device:



Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.



Keep the wires separated according to interface. The rule of thumb is that wiring that shares similar electrical characteristics may be bundled together.



Do not bundle input wiring with output wiring. Keep them separate.



When necessary, it is strongly advised that you label wiring to all devices in the system.



Do not run signal or communication wiring and power wiring in the same conduit. To avoid interference, wires with different signal characteristics (i.e., different interfaces) should be routed separately.



Be sure to disconnect the power cord before installing and/or wiring your device.



Verify the maximum possible current for each wire gauge, especially for the power cords.

Observe all electrical codes dictating the maximum current allowable for each wire gauge.



If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment.

Be careful when handling the unit. When the unit is plugged in, the internal components generate a lot of heat which may leave the outer casing too hot to touch.

2.2 Mounting Guide

The display can be applied for several different installation methods, including panel mount, VESA mount. Refer to sub-sections below for more details.

Caution/ Attention

Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury.

Suivez les instructions de montage et d'utilisation recommandé le matériel de montage pour éviter le risque de blessure.

Chapter 2: Installation 17

2.2.1 Panel Mount

The USB Type-C Display supports panel mount installation. The panel mount solution is suitable for many applications where display should be embedded. With this mounting solution flat surface leave no bezel in the front.

Installation Instruction

1. Prepare a fixture for the specific dimensions of the device.

2. Cut a hole on a sub frame or panel according to the cutout dimensions.

3. Install the device properly onto the cutout area of the sub frame or panel with the sides of the front bezel.

4. Fix the device to fixture with eight Phillips screws.

Size

7”

10.1”

10.4”

12.1”

15”

Wall Cutout, mm

174.4 x 130.4

250 x 158.6

227 x 174.5

282 x 206

345.4 x 260

Screw Hole Diameter, mm

M4x4

M4x5

M4x5

M4x5

M6x4

18 Stand Alone Type-C Display (7~18.5") User Manual

2.2.2 VESA Mount

This device supports VESA mount and provides various types of mounting options to fit any industrial use or vehicle.

Installation Instruction:

1. Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device.

2. Follow instructions that come with VESA mount kit (Not supplied by Winmate).

*The picture is for demonstration purposes only. VESA Mount accessories are not supplied by

Winmate.

Size VESA Plate

7”, 10.1”, 10.4”, 12.1”

10.4”, 15”

75x75 mm

100x100 mm

15.6” 75x75 mm ， 200x100 mm

18.5” 75x75 mm ， 100x100 mm

Chapter 2: Installation 19

2.3 Connecting Peripherals

This Display comes with USB Type-C interface located on the bottom panel. For a nice look and safe installation, make sure cables are neatly hidden behind the device.

Caution/ Attention

Observe all local installation requirements for connection cable type and protection level.

Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection.

Caution/ Attention

Turn off the device and disconnect other peripherals before installation.

Éteindre l’appareil et débrancher tous les périphériques avant l’installation.

To display video and sound from an external PC follow the instructions below.

1. Turn off your computer and unplug external computer's power cable.

2. Connect a USB 3.1 Type C cable from your external PC to the USB 3.1 Type C port on the display.

3. Connect the power cable to the display and the other side to power adapter.

4. Plug the power adapter into an electrical outlet.

5. Turn on external computer and display.

Note:

For the optimal results, select display native resolution as the external computer’s input resolution.

20 Stand Alone Type-C Display (7~18.5") User Manual

2.4 USB Type-C Connector Description

The Display features M12 type USB 3.1 Type-C connector with protective cap and full IP67 rating.

USB Type-C connector supports Alt mode and transmits power, video and sound.

Pin Assignment and signal names for USB 3.1 Type-C connector

A9

A10

A11

A12

A5

A6

A7

A8

Pin

A1

A2

A3

A4

Signal Name

GND

TX1+

TX1-

VBUS

CC1

D+

D-

SUB1

VBUS

RX2-

RX2+

GND

Important:

Power Source needs to support 5V/3A.

B9

B10

B11

B12

B5

B6

B7

B8

Pin

B1

B2

B3

B4

Signal Name

GND

TX2+

TX2-

VBUS

CC2

D+

D-

SUB2

VBUS

RX1-

RX1+

GND

Chapter 3: Operating the Device 21

Chapter 3: Operating the Device

In this chapter you will find instructions on how to operate the display.

22 Stand Alone Type-C Display (7~18.5") User Manual

3.1 Turning on/ off the System

To turn on the system:

1. Connect USB Type-C cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection.

2. Connect the other side of USB Type-C cable to external computer.

3. Turn on the external computer.

4. The device will boot automatically when powered on.

To turn on the system:

1. Disconnect the Display from external computer to completely turn off the device.

3.2 Troubleshooting Guide

If your monitor fails to operate correctly, check the following chart for possible solution before calling for repairs:

Condition

The picture does not appear

The screen is not synchronized

Check Point

• Check if the signal cable is firmly seated in the socket.

• Check if the Power is ON at the computer

• Check if the brightness control is at the appropriate position, not at the minimum.

• Check if the signal cable is firmly seated in the socket.

•

Check if the output level matches the input level of your computer.

• Make sure the signal timings of the computer system are within the specification of the monitor.

The position of the screen is not in the center

• Adjust the H-position, and V-position, or Perform the Auto adjustment.

The screen is too bright (too dark)

The screen is shaking or waving

• Check if the brightness or contrast control is at the appropriate position, not at the Maximum (Minimum).

•

Perform the Auto adjustment.

• Moving all objects which emit a magnetic field such as motor or transformer, away from the monitor.

• Check if the specific voltage is applied.

• Check if the signal timing of the computer system is within the specification of monitor.

*If you are unable to correct the fault by using this chart, stop using your monitor and contact your distributor or dealer for further assistance

Chapter 3: Operating the Device 23

3.3 On-Screen Display Menu Navigation

OSD Icon Sub-menu Settings Note

BRIGHTNESS slider bar

Use to adjust the screen’s brightness. Range 0 to 100

BRICONTRAST

CONTRAST slider bar

Use to adjust the screen’s contrast. Range 0 to 100

COLOR

Default 50

Default 50

USER R.G.B slider bar

Choose RED/GREEN/BLUE to set value of color temperature brightness.

9300K Select and execute

Use to set value of monitor for the CIE coordinate 9300 color temperature

6500K Select and execute

Use to set value of monitor for the CIE coordinate 6500 color temp.

GAMMA 0 Select and execute Default GAMMA0

GAMMA

RECALL

EXIT

Choose the parameter of GAMMA 0 as default setting.

GAMMA 1 Select and execute

Choose the parameter of GAMMA 1 as default setting.

GAMMA 2 Select and execute

Choose the parameter of GAMMA 2 as default setting.

YES Select and execute

Recall the factory default setting

NO Select and execute

Return to main menu

YES

Exit the OSD menu

Select and execute

NO

Return to main menu

Select and execute

24 Stand Alone Type-C Display (7~18.5") User Manual

Appendix

This chapter contains additional product information, including troubleshooting guide and frequency table

Appendix 25

Appendix A: Hardware Specifications

W07L100-

GCT1-C

W07L100-

GCO1-HB-C

Model Name

W10L100-

GCH2-C

Display

Size/Type

Resolution

Brightness

7" (Wide)

1024 x 600

320 nits

Contrast Ratio 500:1 (typ.)

Viewing Angle

-75~75(H); -

75~70(V)

Active Display

Area, mm

153.6(H) x

90(V)

Max Colors

Touch

7" (Wide)

1024 x 600

1000 nits

700:1 (typ.)

-75~75(H); -

75~70(V)

153.6(H) x

90(V)

10.1” (Wide)

1280 x 800

350 nits

800:1 (typ.)

-85~85(H);

-85~85(V)

216.96 (H)x

135.6 (V)

16.7M(6bit) 16.7M(8bit) 16.7M(8bit)

Projected capacitive multi-Touch (Default)

Optional Protection glass (Optional)

Input/ Output

Input Ports USB Type-C connector

Audio

Audio 2 x 1W Speaker (Optional)

Physical Buttons & LED Indicators

W10L100-

GCH1-HB-C

10.1” (Wide)

1024 x 600

800 nits

800:1 (typ.)

-80~80(H);

-80~75(V)

222.72 (H) x

125.28 (V)

16.7M(8bit)

Buttons 5 Keys OSD control

LED Indicators Power, Standby

Power Specifications

Power Input

USB Type-C Alt mode

Power source need support 5V/3A

Power

Consumption

6W

Mechanical Specifications

9W 8W

Mounting

Panel mount,

VESA mount

75x75

Panel mount,

VESA mount

75x75

Panel mount,

VESA mount

75x75

Environment Considerations

Operating

Temperature

Storage

Temperature

0°C to +50°C

-10°C to +60°C

IP Rating Front IP65

Standards and Certification

Safety CE, FCC

13W

Panel mount,

VESA mount

75x75

R10L100-

GCT2-C

10.4”

1024 x 768

350 nits

1200:1 (typ.)

-88~88(H); -

88~88(V)

210.4(H) x

157.8 (V)

16.2M(6bit)

10W

Panel mount,

VESA mount

75x75,

100x100

26 Stand Alone Type-C Display (7~18.5") User Manual

R12L100-

GCM2-C

R15L600-

PTC3-C

R15L600-

GCC3-C

Display

Model Name

W15L100-

PTA3-C

Size/Type

12.1” 15” 15” 15.6”

Resolution 1024 x 768 1024 x 768 1024 x 768

Brightness

Contrast

Ratio

Viewing

Angle

Active

Display

Area, mm

500 nits

700:1 (typ.)

-80~80(H); -

70~70(V)

245.76(H)x

184.32(V)

Max Colors 16.2M

Touch

250 nits

700:1 (typ.)

-80~80(H); -

80~80(V)

304.128(H)x

228.096(V)

250 nits

2000:1 (typ.)

-88~88(H); -

88~88(V)

304.1(H) x

228.1(V)

16.2M (6 bits) 16.2M (6 bits)

Projected capacitive multi-Touch (Default)

Optional Protection glass (Optional)

Input/ Output

Power

USB Type-C Alt mode

Power source need support 5V/3A

Input Ports USB Type-C connector

Audio

Audio

2 x 1W Speaker (Optional)

Physical Buttons & LED Indicators

1920 x 1080

300 nits

700:1 (typ.)

-85~85(H); -

85~85(V)

344.16(H)x

193.59(V)

16.2M

Buttons 5 Keys OSD control

LED

Indicators

Power, Standby

Power Specifications

Power Input

12V DC Input (2.5ø DC Jack) (Only for W18L100-PCT1-C)

USB Type-C Alt mode

Power source need support 5V/3A

Power

Consumption

12W

Mechanical Specifications

12W 12W

Mounting

Panel mount,

VESA mount

75x75, 100x100

Environment Considerations

Panel mount,

VESA mount

75x75, 100x100

Panel mount,

VESA mount

75x75, 100x100

Operating

Temperature

Storage

Temperature

0°C to +50°C

-10°C to +60°C

IP Rating

Front IP65

Standards and Certification

Safety

CE, FCC

13W

VESA mount

75x75, 200x100

W18L100-

PCT1-C

18.5” (Wide)

1366 x 768

250 nits

1000:1 (typ.)

-85~85(H);

-80~80(V)

409.8 (H) x

230.4 (V)

16.7M

22W

VESA mount

75x75, 100x100

Appendix B: Frequency Table

The choice of supported modes depends on the monitor native resolution. Refer to the table below for more information about available input signals.

Signal name

800x600

1024x768

1280x1024

1366x768

1600x1200

1680x1050

1920x1080

1920x1200

Frequency (Hz)

60

60

60

60

60

60

60

60

USB Type C

✔

✔

✔

✔

✔

✔

✔

✔

For more information about available input signals and OSD navigation, please refer to R6C AD

Board Manual included in the package.

You can also download R6C AD Board Manual from Winmate Download Center .

Appendix D: Cleaning the Monitor

Before cleaning:



Make sure the device is turned off.



Disconnect the power cable from any AC outlet.

When cleaning:



Never spray or pour any liquid directly on the screen or case.



Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.



The display area is highly prone to scratching. Do not use ketene type material (ex.

Acetone), Ethyl alcohol, toluene, ethyl acid or Methyl chloride to clear the panel. It may permanently damage the panel and void the warranty.



If it is still not clean enough, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.



Don not use water or oil directly on the display screen. If droplets are allowed to drop on the screen, permanent staining or discoloration may occur

.

Winmate Inc.

9F, No.111-6, Shing-De Rd., San-Chung District,

New Taipei City 24158, Taiwan, R.O.C www.winmate.com

Copyright © Winmate Inc. All rights reserved.
