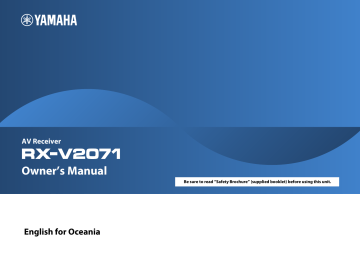

Yamaha RX-V2071 Owner's Manual (for Oceania)

AV Receiver

Owner’s Manual

English for Oceania

Be sure to read “Safety Brochure” (supplied booklet) before using this unit.

En

1

CONTENTS

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

FEATURES

What you can do with this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Part names and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front display (indicators) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SETUP

General setup procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1 Connecting speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Basic speaker configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Advanced speaker configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Input/output jacks and cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2 Connecting a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3 Connecting playback devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Connecting video devices (BD/DVD players, etc.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Connecting audio devices (CD players, etc.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Connecting to the jacks on the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

4 Connecting the FM/AM antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5 Connecting to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6 Connecting other devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Connecting video/audio recording devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Connecting a device with analog multi-channel output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Connecting a device compatible with SCENE link playback (remote connection) . . . . . . . . . . . . . . . . . . .42

Connecting a device compatible with the trigger function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

7 Connecting the power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8 Selecting an on-screen menu language . . . . . . . . . . . . . . . . . . . . . . . . 44

9 Optimizing the speaker settings automatically (YPAO) . . . . . . . . . 45

Measuring at one listening position (single measure) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Measuring at multiple listening positions (multi measure) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Checking the measurement results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Reloading the previous YPAO results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

PLAYBACK

Basic playback procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Selecting an HDMI output jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Selecting the input source and favorite settings at once (SCENE) . . 53

Configuring scene assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Selecting the sound mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Enjoying sound field effects (CINEMA DSP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Enjoying unprocessed playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Enjoying pure high fidelity sound (Pure Direct) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Enjoying compressed music with enhanced sound (Compressed Music Enhancer) . . . . . . . . . . . . . . . . . 59

Enjoying surround sound with headphones (SILENT CINEMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Listening to FM/AM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Selecting a frequency for reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Registering favorite radio stations (preset) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Operating the radio on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Playing back iPod music/videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Connecting an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Playback of iPod contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Playing back music via Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Connecting a Bluetooth receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Pairing Bluetooth components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Establishing a wireless connection and playing back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

En

2

Playing back music stored on a USB storage device . . . . . . . . . . . . . . 70

Connecting a USB storage device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Playback of USB storage device contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Playing back music stored on PCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Media sharing setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Playback of PC music contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Listening to Internet radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Playing back music in multiple rooms (multi-zone) . . . . . . . . . . . . . . . 78

Preparing for Zone2 or Zone3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Controlling Zone2 or Zone3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Useful functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Registering favorite items (shortcut) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Controlling this unit from the web browser (web control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Viewing the current status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Configuring settings in accordance with a playback source (Option menu) . . . 88

Option menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

CONFIGURATIONS

Configuring input sources (Input menu) . . . . . . . . . . . . . . . . . . . . . . . . . 91

Input menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Configuring the SCENE function (Scene menu) . . . . . . . . . . . . . . . . . . . 93

Scene menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Configuring sound programs/surround decoders (Sound Program menu) . . . . 96

Sound Program menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Configuring various functions (Setup menu) . . . . . . . . . . . . . . . . . . . . . 99

Setup menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Speaker (Manual Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Multi Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Viewing information about this unit (Information menu) . . . . . . . . 116

Types of information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Configuring the system settings (ADVANCED SETUP menu) . . . . . 117

ADVANCED SETUP menu items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Changing the speaker impedance setting (SPEAKER IMP.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Turning on/off the remote control sensor (REMOTE SENSOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Selecting the remote control ID (REMOTE CON AMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Switching the video signal type (TV FORMAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Removing the limitation on HDMI video output (MONITOR CHECK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Backing up/recovering the settings (RECOV./BACKUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Restoring the default settings (INITIALIZE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Updating the firmware (FIRM UPDATE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Checking the firmware version (VERSION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Controlling external devices with the remote control . . . . . . . . . . . 121

Setting remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Programming from other remote controls (learning) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Editing device names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Operating multiple functions at once (macro) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Resetting the remote control configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Using the simplified remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Updating the firmware of this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

En

3

APPENDIX

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Power and system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

FM/AM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

USB and network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Error indications on the front display . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Audio information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Video information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Video signal flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Information on HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

HDMI Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

HDMI signal compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Reference diagram (rear panel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

En

4

Accessories

Check that the following accessories are supplied with this product.

■

Remote control

■

Batteries (AAA, R03, UM-4) (x 4)

Operating range of the remote control

• Aim the remote control directly at the remote control sensor on this unit during operation.

Within 6 m

30° 30°

■ Simplified remote control

■ Power cable

Insert into the remote control in the correct polarity (+/-)

■ YPAO microphone

■

AM antenna

* The figure of the supplied power cable differs depending on regions.

■

FM antenna

■

Easy Setup Guide

* The figure of the supplied FM antenna differs depending on regions.

■

Safety Brochure

■

CD-ROM (Owner’s Manual)

• Some features are not available in certain regions.

• Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and product, the product has priority.

• This manual mainly explains operations using the supplied remote control.

• This manual describes both the “iPod” and “iPhone” as the “iPod”. “iPod” means both “iPod” and

“iPhone” unless the explanation describes exceptions.

• “ ” indicates the cautions concerning operations or setup of the unit.

• “ ” indicates the explanations for better use.

En

5

FEATURES

What you can do with this unit

Ready for any kind of contents iPod

USB

p.63

p.70

Network

Bluetooth

p.73 to p.76

p.68

*Requires optional Bluetooth receiver for playback via Bluetooth iPod Network contents

Audio

Speakers

Supports 2 to 9 channel speaker system and up to 2 subwoofer connections. Allows you to enjoy favorite acoustic spaces in various styles.

Plus, bi-amp connections, channel expansion (with external power-amp) and multi-zone configurations to enhance your system

Automatically optimizing the speaker settings to suit your room (YPAO)

p.21

p.45

Sound field reproductions like actual movie theaters and concert halls from stereo or multi-channel audio sources

(CINEMA DSP)

Enjoying compressed music with enhanced sound (Compressed Music

Enhancer)

p.56

p.59

Audio

USB device via Bluetooth

HDMI Control

Audio

HDMI Control

BD/DVD player

Operating external devices with the supplied remote control

p.121

Audio/Video

AV receiver (this unit)

Remote control of this unit

Selecting the input source and favorite settings at once (SCENE)

p.53

Video

TV

TV remote control

Operating the TV, AV receiver and BD/DVD player in combination

(HDMI Control)

p.142

En

6

Full of useful functions!

●

Connecting various devices (p.35)

A number of HDMI jacks and various input/output jacks on this unit allow you to connect video devices such as

BD/DVD players, audio devices such as CD players, game consoles and camcorders, and so on.

●

Creating stereoscopic sound fields (p.58)

Connection of presence speakers enables to create a natural stereoscopic sound field in your room (CINEMA

DSP 3D). Even when no presence speakers are connected, this unit automatically creates Virtual

Presence Speaker (VPS) to produce 3D surround sound.

BD/DVD player

Game console

Turntable

CD player

TV

Camcorder

●

Playing back TV audio in surround sound with a single HDMI cable connection

(Audio Return Channel: ARC) (p.29)

When using a TV that supports ARC, you only need a single HDMI cable to connect the TV and this unit to output video to the TV, input audio from the TV, and transmit HDMI Control signals.

HDMI Control

TV audio

Video from external device

●

Listening to FM/AM radio (p.60)

This unit is equipped with the built-in FM/AM tuner. You can register favorite radio stations as presets.

●

Enjoying pure high fidelity sound (p.59)

When the Pure Direct mode is enabled, this unit plays back the selected source with the least circuitry. It allows you to enjoy Hi-Fi sound quality.

● Easy operation with a TV screen

You can navigate the various contents (iPod, USB, network, etc.), view the information, or configure the settings using the on-screen menu.

At time like this

I want to connect a playback device using HDMI for video and non-HDMI for audio...

Use “Audio Select” in the “Option” menu to specify the type of an audio input jack to be used for the corresponding

input source (p.90).

Video and audio are not synchronized...

Use “Lipsync” in the “Setup” menu to adjust the delay

between video and audio output (p.106).

I want to hear audio from the TV speakers...

Use “Audio Output” in the “Setup” menu to select whether

to output audio signals through this unit and the TV (p.110).

I want to this unit to be turned off automatically when not in use...

Use “Auto Power Down” in the “Setup” menu to set the

amount of time for auto-standby (p.113).

I want to change the on-screen menu language...

Use “Language” in the “Setup” menu to select a language from English, Japanese, French, German, Spanish and

Russian (p.115).

I want to update the firmware...

Use “UPDATE” in the “ADVANCED SETUP” menu to update

the firmware of this unit (p.120). If this unit is connected to

the Internet, the corresponding message will be displayed

on the TV when a newer firmware is available (p.130).

There are many other settings to customize this unit.

For details, see the following pages.

●

Input settings (p.91)

●

Scene settings (p.94)

●

Sound program and surround decoder settings (p.97)

●

Various function settings (p.100)

●

Information view (audio signal, video signal, etc.) (p.116)

●

System settings (p.118)

En

7

Part names and functions

Front panel

1 2

NATURAL SOUND AV RECEIVER RX-V2071

MAIN ZONE

3

INPUT

ON SCREEN

RETURN

ENTER

USB

OPTION TONE/BALANCE STRAIGHT

DISPLAY

PROGRAM

PHONES

1 2

SCENE

3

MULTI ZONE

ZONE 2 ZONE 3

4

ZONE CONTROL

VIDEO AUX

INFO MEMORY

FM AM iPod/iPhone YPAO MIC SILENT CINEMA S VIDEO VIDEO L AUDIO R OPTICAL HDMI IN

PRESET

TUNING/CH

6

1 MAIN ZONE

Turns on/off (standby) this unit.

2 Standby indicator

Lights up when this unit is in standby mode under any of the following conditions.

- HDMI Control is enabled (p.142)

- The standby through function is enabled (p.110)

- The network standby function is enabled (p.111)

- The iPod is being charged (p.92)

- An iPod wireless system is connected (p.64)

3 Front display

Displays information (p.10).

4 Remote control sensor

Receives remote control signals (p.5).

5 PURE DIRECT

Enables/disables Pure Direct (p.59).

6 INPUT

Selects an input source.

7

7 Front panel door

For protecting controls and jacks (p.9).

8 VOLUME

Adjusts the volume.

4

PURE DIRECT

VOLUME

5

8

Opening the front panel door

• To use controls or jacks behind the front panel door, gently press the bottom of the door to open it. Keep the door closed when not using controls or jacks behind the front panel door.

En

8

■

Inside of the front panel cover

9 0 A B C D E F G H I J

ON SCREEN

RETURN

ENTER

USB


DISPLAY

PROGRAM

PHONES

1

ZONE 2

2

SCENE

3

MULTI ZONE

ZONE 3

4

ZONE CONTROL

VIDEO AUX

INFO

FM

MEMORY

AM

K

PRESET

TUNING/CH

L iPod/iPhone YPAO MIC SILENT CINEMA S VIDEO VIDEO L AUDIO R OPTICAL HDMI IN

9 ON SCREEN

Displays the on-screen menu on the TV.

0 Menu operation keys

Cursor keys Select a menu or parameter.

ENTER Confirms a selected item.

RETURN Returns to the previous screen.

A OPTION

Displays the option menu (p.88).

B DISPLAY

Display the status information on the TV (p.87).

C TONE/BALANCE

Adjusts the high-frequency range and low-frequency range

of sounds output from speakers and headphones (p.89).

Adjusts the right/left channel volume balance for Zone2 or

Zone3 (p.83).

D STRAIGHT

Enables/disables the straight decode mode (p.58).

M N O P

E PROGRAM

Selects a sound program or a surround decoder (p.55).

F SCENE

Selects the registered input source, sound program, HDMI output and various settings at once. Additionally, you can

turn on this unit when it is in standby mode (p.53).

G MULTI ZONE

ZONE 2~3 Enables/disables the audio output to

each zone (p.82).

ZONE CONTROL Switches the zones (main, Zone2 or

Zone3) to operate with the front panel

controllers (p.82).

H INFO

Selects the information displayed on the front display (p.87).

I MEMORY

Registers FM/AM radio stations as preset stations (p.60).

Registers USB/network contents as shortcuts (p.84).

J FM/AM

Switches between FM and AM (p.60).

K PRESET

Selects a preset FM/AM radio station (p.61).

Selects a USB/network content from shortcuts (p.84).

L TUNING/CH

Selects the radio frequency (p.60).

M USB jack

For connecting a USB storage device (p.70) or an iPod via

USB (p.63).

N YPAO MIC jack

For connecting the supplied YPAO microphone (p.45).

O PHONES jack

For connecting headphones.

P VIDEO AUX jacks

For connecting camcorders, game consoles, etc (p.38).

En

9

Front display (indicators)

1 2 3 4 5 6 7 8

9

S TEREO TUNED

ZONE ZONE

IN OUT 1 OUT 2

2 3

ENHANCER S LEEP

3

PARTY

0 A B

MUTE VOLUME

ADAPTIVE DRC

PL L C R PR

S L

PL

S W1

S BL S B

S W2 S R

S BR PR

B C

1 HDMI

Lights up during normal HDMI communication.

IN

Lights up when HDMI signals are being input.

OUT1/OUT2

Indicate the HDMI OUT jacks currently outputting an HDMI signal.

2 STEREO

Lights up when this unit is receiving a stereo FM radio signal.

TUNED

Lights up when this unit is receiving an FM/AM radio station signal.

3 ZONE indicators

Light up when the audio output to Zone2 or Zone3 is enabled.

4 PARTY

Lights up when this unit is in the party mode.

5 Information display

Displays the current status (input name, sound mode name,

etc). You can switch the information by pressing INFO (p.87).

6 MUTE

Flashes when audio is muted.

7 Volume indicator

Indicates the current volume.

8 ADAPTIVE DRC

Lights up when Adaptive DRC (p.89) is working.

9 ENHANCER

Lights up when Compressed Music Enhancer (p.59) is

working.

0 CINEMA DSP

Lights up when CINEMA DSP (p.56) is working.

CINEMA DSP 3

Lights up when CINEMA DSP 3D (p.58) is working.

A SLEEP

Lights up when the sleep timer is on.

B Cursor indicators

Indicate the remote control cursor keys currently operational.

C Speaker indicators

Indicate speaker terminals from which signals are output.

Front speaker (L)

Front speaker (R)

Center speaker

Surround speaker (L)

Surround speaker (R)

Surround back speaker (L)

Surround back speaker (R)

Surround back speaker

Front/rear presence speakers (L)

Front/rear presence speakers (R)

Subwoofer (1)

Subwoofer (2)

En

10

Rear panel

1 2 3 4 5 6 7 8 9 0 A B C

L

R

DOCK

PHONO

GND

1 COAXIAL 2

AV 2 AV 3 AV 4

AV OUT

COAXIAL 3

NETWORK

OPTICAL 4 OPTICAL 5

1

ARC

HDMI OUT

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

2

AV 1

(1 BD/DVD)

AV 2 AV 3

HDMI

AV 4 AV 5 AV 6 AV 7

P

B

COMPONENT VIDEO

P

R

Y AV 3 P

B C

P

R

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y

MONITOR OUT/ZONE OUT

P B P R

PRE OUT

IN

(SINGLE)

1

REMOTE

OUT IN

(FRONT)

1

2

OUT

TRIGGER

OUT

1

2

+12V 0.1A MAX.

2

OPTICAL 6 COAXIAL

R

SURROUND

FRONT

L

SURROUND SUR. BACK SUBWOOFER ZONE 2

R

SURROUND BACK

L

ZONE 3

R

FRONT

EXTRA SP2

SURROUND

L

SUR. BACK

CENTER

CENTER

R

FRONT

L

RS-232C

R

ZONE 2/ZONE 3/F.PRESENCE/

BI–AMP

EXTRA SP1

L

AC IN

1 PHONO jacks

For connecting a turntable (p.37).

2 DOCK jack

For connecting an optional Yamaha products such as iPod

dock (p.64), iPod wireless system (p.64), and Bluetooth

receiver (p.68).

3 AV1~4 jacks

For connecting video/audio playback devices to input video/

audio signals (p.35).

4 NETWORK jack

For connecting to the network (p.40).

5 AV OUT jacks

For outputting video/audio to a recording device (VCR, tape

deck, etc.) (p.41).

6 MONITOR OUT/ZONE OUT

(composite video/S-video) jacks

For connecting a TV compatible with composite video or

S-video to output video signals (p.33).

For connecting a zone video monitor (p.80).

7 HDMI OUT 1~2 jacks

For connecting HDMI-compatible TVs to output video/audio

signals (p.29). When using ARC, TV audio signal is input

through the HDMI OUT 1 jack.

AM FM 75Ω

D E F

SINGLE

G H

SPEAKER IMPEDANCE

I

8 COMPONENT VIDEO (AV1~4) jacks

For connecting video playback devices compatible with

component video to input video signals (p.36).

9 HDMI (AV1~7) jacks

For connecting HDMI-compatible playback devices to input

video/audio signals (p.35).

0 MONITOR OUT/ZONE OUT

(component video) jacks

For connecting a TV compatible with component video to

output video signals (p.33).

For connecting a zone video monitor (p.80).

A REMOTE 1~2 (IN/OUT) jacks

For connecting a Yamaha product compatible with SCENE

link playback (p.42), or connecting an infrared signal

receiver/emitter to operate devices including this unit from

another room (p.81).

B TRIGGER OUT 1~2 jacks

For connecting devices that support the trigger function

(p.42).

C RS-232C terminal

This is a control expansion terminal for custom installation.

Consult your dealer for details.

J

D ANTENNA jacks

For connecting FM and AM antennas (p.39).

E AUDIO1~4 jacks

For connecting audio playback devices to input audio

signals (p.37).

F MULTI CH INPUT jacks

For connecting a device that supports multi-channel output

to input audio signals (p.41).

G ZONE OUT jacks

For connecting an external amplifier used in Zone2 or Zone3

to output audio signals (p.79).

H PRE OUT jacks

For connecting subwoofers with built-in amplifier (p.20) or an

external power amplifier (p.27).

I SPEAKERS terminals

For connecting speakers (p.15).

J AC IN

For connecting the supplied power cable (p.43).

En

11

Remote control

1

2

3

S OURCE RECEIVER

4

5

1

5

1

PHONO

DOCK

1

2

AV

3

6

AUDIO

7

2 3

MULTI

TUNER

U S B

[ A ]

2

S CENE

3

4

V-AUX

4

NET

[ B ]

4

6

7

8

9

PROGRAM MUTE

VOLUME

TOP MENU

ON S CREEN

ENTER

POP-UP/MENU

OPTION

RETURN DI S PLAY

0

7

A

B

MODE

PRE S ET

INPUT

CLA SS ICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

S TEREO S TRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

G

C

D

E

F

1 Remote control signal transmitter

Transmits infrared signals.

2 SOURCE

Turns on/off an external device.

SOURCE/RECEIVER

Switches the devices (this unit or external device) to operate

with the remote control (p.123). You can operate this unit

when this key lights up in orange, and an external device when this key lights up in green.

RECEIVER


3 Display window

Displays remote control information.

4 Input selection keys

Select an input source to play back.

AV1~7 AV1~7 jacks

V-AUX VIDEO AUX jacks (on the front panel)

AUDIO1~4 AUDIO1~4 jacks

PHONO

MULTI

USB

NET

PHONO jacks

MULTI CH INPUT jacks

USB jack (on the front panel)

NETWORK jack (press repeatedly to select a

DOCK

TUNER

[A], [B] desired network source)

DOCK jack

FM/AM radio

Changes the external device to operate with the remote control without switching the input source.

5 SCENE

Selects the assigned input source, sound program, HDMI output and various settings at once. Additionally, you can


6 PROGRAM

Selects a sound program (p.55).

7 External device operation keys

Operate playback and menu display etc. for external

devices (p.123).

8 ON SCREEN



Cursor keys Select a menu or a parameter.



0 MODE

Switches between stereo and monaural for FM radio reception.

Switches the iPod operation modes (p.66).

A PRESET



B TV operation keys

Operate TV input, TV volume, etc (p.122).

C VOLUME

Adjusts the volume.

D MUTE

Mutes the audio output.

E OPTION


F DISPLAY

Displays the status information on the TV (p.87).

G Sound mode keys

Select a sound mode (p.55).

En

12

■

Inside of the remote control cover

S OURCE RECEIVER

H

I

J

K

1

5

1

PHONO

DOCK

1

2

AV

3

6 7

2

AUDIO

3

MULTI

TUNER

U S B

[ A ]

2

S CENE

3

4

V-AUX

4

NET

[ B ]

4

PROGRAM MUTE VOLUME

TOP MENU

ON S CREEN

POP-UP/MENU

OPTION

ENTER

RETURN DI S PLAY

ENHANCER PARTY HDMI OUT

INFO MEMORY FM AM

1

PRE S ET

4

CLA SS ICAL

TV

8

TV VOL

0

S TEREO

ENTERTAIN

TUN./ CH

S TRAIGHT

9

TV CH

ENT

S LEEP

LEVEL

ZONE S ETUP

L

M

N

O

P

Q

H Sound mode keys

Select a sound mode (p.55).

I INFO

Selects the information displayed on the front display (p.87).

J Numeric keys

Enter numerical values such as radio frequencies.

K ZONE

Switches the zones (main, Zone2 or Zone3) to operate with

the remote control (p.82).

L PARTY

Turns on/off the party mode (p.83).

M HDMI OUT

Selects HDMI OUT jacks to be used for video/audio output

(p.52).

N Radio keys

Operate the FM/AM radio when “TUNER” is selected as the input source.

MEMORY Registers FM/AM radio stations as presets.

FM Switches to FM radio.

AM

TUN./CH

Switches to AM radio.

Selects the radio frequency.

O SLEEP

Switches this unit to standby mode automatically after a specified period of time has elapsed (sleep timer). Press repeatedly to set the time (120 min, 90 min, 60 min, 30 min, off).

P LEVEL

Adjusts the volume of each speaker (p.104).

Q SETUP

Switches the remote control to the setup mode (p.121)

• To operate external devices with the remote control, register a

remote control code for each device in advance (p.121).

En

13

SETUP

General setup procedure

1

Connecting speakers (p.15)

Basic speaker configuration (p.16)

Select the speaker layout and connect the speakers to this unit.

Advanced speaker configuration (p.21)

Apply bi-amp connections, channel expansion (using an external power amplifier) or multi-zone configurations to enhance the system.

2

Connecting a TV (p.29)

3

Connecting playback devices (p.35)

4

Connecting the FM/AM antennas (p.39)

5

Connecting to the network (p.40)

Connect a TV to this unit.

Connect video devices (BD/DVD players, etc.) and audio devices (CD players, etc.) to this unit.

Connect the supplied FM/AM antennas to this unit.

Connect this unit to the network.

6

Connecting other devices (p.41)

7

Connecting the power cable (p.43)

Connect external devices such as recording devices.

After all the connections are complete, plug in the power cable.

8

Selecting an on-screen menu language (p.44)

Select a desired on-screen menu language (default: English).

9

Optimizing the speaker settings automatically (YPAO) (p.45)

Optimize the speaker settings such as volume balance and acoustic parameters to suit your room (YPAO).

Now all the preparations are complete. Enjoy playing movies, music, radio, etc. with this unit!

En

14

1 Speaker connections 2 3 4 5 6 7 8 9

1 Connecting speakers

This unit has 9 built-in amplifiers. You can connect 2 to 11 speakers and up to 2 subwoofers (with built-in amplifier) to create the favorite acoustic space in your room.

You can also apply bi-amp connections, channel expansion (using an external power amplifier) or multi-zone configurations to enhance your system (p.21).

Caution

• This unit is configured for 8-ohm speakers at the factory. When connecting 6-ohm speakers, set the speaker impedance of this unit to “6

Ω

MIN”. In this case, you can also use 4-ohm speakers as the front speakers. For

details, see “Setting the speaker impedance” (p.18).

Functions of each speaker

Speaker type Abbr.

Front (L)

Front (R)

Center

Surround (L)

Surround (R)

Function

Produce front right/left channel sounds (stereo sounds).

Produces center channel sounds (dialogs, vocals, etc).

Produce surround right/left channel sounds. Surround speakers also produce surround back channel sounds when no surround back speakers are connected.

Surround back (L)

Surround back (R)

Front presence (L)

Front presence (R)

Rear presence (L)

Rear presence (R)

Produce surround back right/left channel sounds. When no surround back speakers are connected, Surround back channel sounds are produced from the surround speakers.

Produce CINEMA DSP effect sounds. In combination with CINEMA DSP

3D (p.58), the presence speakers create a natural stereoscopic sound

field in your room.

Subwoofer

Produces LFE (low-frequency effect) channel sounds and reinforces bass parts of other channels.

This channel is counted as “0.1”. You can connect 2 subwoofers (with built-in amplifier) to this unit and place them on the right/left (or front/ rear) sides of the room.

Ideal speaker layout

0.5 to 1 m

1.8 m

10°~30°

0.5 to 1 m

10°~30°

1.8 m

1.8 m 1.8 m

30 cm or more

• We recommend using presence speakers to have a full effect of the stereoscopic sound fields. However, this unit creates Virtual Presence Speaker (VPS) using the front, center and surround speakers to produce

stereoscopic sound fields even when no presence speakers are connected (p.58).

• Use “Ideal speaker layout” (diagram on the right) as reference. You do not need to exactly adjust the speaker layout to this diagram since the YPAO function of this unit will automatically optimize the speaker settings (distance, etc.) to suit the speaker layout.

• When using only one surround back speaker, place it straight behind the listening position (middle of “SBL” and “SBR” in the diagram).

En

15


Basic speaker configuration

■

Placing speakers in your room

Depending on the number of speakers, place the speakers and subwoofer (with built-in amplifier) in your room. This section describes the representative speaker layout examples.

❑

9.2+2 channel system

(using both surround back and rear presence speakers)

❑

9.2 channel system (using rear presence speakers)

This speaker system brings out the full performance of this unit and allows you to enjoy a highly-natural stereoscopic sound field with any contents.

This speaker system uses the front and rear presence speakers to produce a highlynatural stereoscopic sound field, and is suited for enjoying 5.1-channel contents.

❑ 9.2 channel system (using surround back speakers)

• The surround back speakers and rear presence speakers do not produce sounds simultaneously. This unit

automatically switches the speakers to be used depending on a selected CINEMA DSP (p.56).

This speaker system uses the front presence speakers to produce a natural stereoscopic sound field, and also allows you to enjoy extended surround sounds using the surround back speakers.

En

16


❑ 7.1 channel system (using front presence speakers) ❑ 5.1 channel system

This speaker system uses the front presence speakers to produce a natural stereoscopic sound field, and is suited for enjoying 5.1-channel contents.

❑ 7.1 channel system (using surround back speakers)

This speaker system creates Virtual Presence Speaker (VPS) using the front, center and surround speakers to produce a stereoscopic sound field, and is suited for enjoying

5.1-channel contents.

❑ 2.1 channel system

This speaker system creates Virtual Presence Speaker (VPS) using the front, center and surround speakers to produce a stereoscopic sound field, and also allows you to enjoy extended surround sounds using the surround back speakers.

Even when no surround speakers are connected, this unit creates the virtual surround speakers using the front speakers to allow you to enjoy multi-channel surround sound

(Virtual CINEMA DSP).

• Add the center speaker to configure a 3.1-channel system.

En

17


■

Setting the speaker impedance

This unit is configured for 8-ohm speakers at the factory. When connecting 6-ohm speakers, set the speaker impedance to “6

Ω

MIN”. In this case, you can also use

4-ohm speakers as the front speakers.

1

Before connecting speakers, connect the supplied power cable to this unit and then to an AC wall outlet.

2

While holding down STRAIGHT on the front panel, press

MAIN ZONE .

MAIN ZONE STRAIGHT

3

Check that “SPEAKER IMP.” is displayed on the front display.

DOCK

TAG

SPIMP. S P E A K E R I M P .

HD

S

IN

TEREO

OUT 1

TUNED PRE AMP PARTY

OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

8 M I N

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L C

S W

R PR

S BR

S R

PR

4

Press STRAIGHT to select “6

Ω

MIN”.

5

Press MAIN ZONE to set this unit to standby mode and remove the power cable from the AC wall outlet.

Now you are ready to connect the speakers.

En

18


■

Connecting speakers

Connect the speakers placed in your room to this unit.

Caution

• Remove the power cable of this unit from an AC wall outlet and turn off the subwoofer before connecting the speakers.

• Be careful that the core of the speaker cable does not touch anything or come into contact with the metal areas of this unit. This may damage this unit or the speakers. If the speaker cables short circuit,

“CHECK SP WIRES” will appear on the front display when this unit is turned on.

Speakers to be connected

Room Speaker type Abbr.

Speaker system

(the number of channels)

9 7

●

●

●

●

● ●

{ *1 { *3

●

●

●

●

{ *1 { *3

●

●

{ *2

{ *4

{ *4

{ *2

5

●

●

●

●

●

2

●

●

Power Amp

Assign

(p.102)

Main zone

Front (L)

Front (R)

Center

Surround (L)

Surround (R)

Surround back (L)

Surround back (R)

Front presence (L)

Front presence (R)

Rear presence (L)

Rear presence (R)

9+2

●

●

●

●

●

●

●

●

●

●

●

Basic (default)

If you have 9 speakers, use two of them as surround back speakers (*1) or rear presence speakers (*2). If you have 7 speakers, use two of them as surround back speakers (*3) or front presence speakers (*4).

Cables necessary for connection (commercially available)

Speaker cables (x the number of speakers)

+

–

+

–

Audio pin cable (2 for connecting 2 subwoofers)

Connection diagram

Refer to the following diagram and connect the speakers to this unit.

AUDIO 3 AUDIO 4 MULTI CH INPUT

CENTER

ZONE OUT PRE OUT

(SINGLE) (FRONT)

1

This unit (rear)

FRONT SURROUND SUR. BACK SUBWOOFER

R

SURROUND

L R

SURROUND BACK

L

ZONE 2 ZONE 3

R

FRONT SURROUND SUR. BACK

CENTER

EXTRA SP2 L

2

CENTER

R

FRONT

L

R


BI–AMP

EXTRA SP1

L

SINGLE


• You can also connect up to 2 subwoofers (with built-in amplifier) to this unit. When using 2 subwoofers,

configure the “SWFR Layout” setting (p.104) in the “Setup” menu after connecting the power cable to an AC

wall outlet.

• To use an external power amplifier (Hi-Fi amplifier, etc.) to enhance speaker output, see “Connecting an external power amplifier” (p.27).

• When using only one surround back speaker, connect it to the SINGLE jack (L side).

En

19


❑ Connecting speaker cables

Speaker cables have two wires. One is for connecting the negative (-) terminal of the unit and the speaker, and the other is for the positive (+) terminal. If the wires are colored to prevent confusion, connect the black wire to the negative and the other wire to the positive.

a Remove approximately 10 mm of insulation from the ends of the speaker cable, and twist the bare wires of the cable together firmly.

b Loosen the speaker terminal.

c Insert the bare wires of the cable into the gap on the side (upper right or bottom left) of the terminal.

d Tighten the terminal.

+ (red)

+

FR

ONT

-

– (black)

Using a banana plug a Tighten the speaker terminal.

b Insert a banana plug into the end of the terminal.

+

FR

ONT

Banana plug

❑ Connecting the subwoofer

Use an audio pin cable to connect the subwoofer.

Audio pin cable

PRE OUT

(

S

INGLE

)

(FR

ONT)

1

2

S URRUN

D

S UR. BAC

K

S UBW

OOFER

CENTER

CENTER

FRO

NT

En

20


Advanced speaker configuration

In addition to the basic speaker configuration (p.16), this unit also allows you to apply the following speaker configurations to enhance your system.

Using the four internal amplifiers for front speakers to have more high-quality sounds

Combining with an external power amplifier (Hi-Fi amplifier, etc.) to build an extended system

Using the excess internal amplifiers for stereo speakers in another room

Bi-amp connection

(Example)

Bi-amp connection

Power-amp channel expansion

(Example)

External power amplifier

Multi-zone configuration

(Example)

Main zone

Zone2

En

21


■

Available speaker configurations

Output channel

(max)

7

7

9

9

7

7

Main zone

Bi-amp

External power amplifier

(required)

{

Front

Front

Multi-zone

+1 room

+2 rooms

+1 room

+1 room

+2 rooms

Power Amp Assign (p.102)

Page

7ch BI-AMP

7ch +FRONT+1ZONE

5ch +FRONT+2ZONE

7ch +1ZONE

9ch +1ZONE

7ch +2ZONE

24

24

25

22

23

23

❑ 7ch BI-AMP

• When applying one of these configurations, you need to configure the “Power Amp Assign” setting (p.102)

in the “Setup” menu.

• When applying a multi-zone configuration, you can select a zone (Zone2 or Zone3) to be assigned to the

EXTRA SP1~2 jacks in “Power Amp Assign” (p.102) in the “Setup” menu. By default, Zone2 is assigned to

the EXTRA SP1 jacks and Zone3 is assigned to the EXTRA SP2 jacks. The following explanation is based on the default zone assignments.

Speaker Connect to

FRONT and EXTRA SP1 (bi-amp connection)

CENTER

SURROUND

SUBWOOFER 1~2

Bi-amp

En

22


❑ 7ch +FRONT+1ZONE via external amp

❑ 5ch +FRONT+2ZONE via external amp

Main zone


FRONT (PRE OUT) via external power amplifier

CENTER

SURROUND

Zone3 speakers

SUBWOOFER 1~2

EXTRA SP2

Zone3

Zone2

Main zone


FRONT (PRE OUT) via external power amplifier

CENTER

SURROUND

Zone3

Zone2 speakers

Zone3 speakers

SUBWOOFER 1~2

EXTRA SP1

EXTRA SP2

En

23


❑ 7ch +1ZONE ❑ 9ch +1ZONE

Main zone

Speaker

FRONT

CENTER

SURROUND

Zone2 speakers

SUBWOOFER 1~2

EXTRA SP1

Connect to

Zone2 Zone3

Main zone

Speaker

FRONT

CENTER

SURROUND

Connect to

Zone3 speakers

SUBWOOFER 1~2

EXTRA SP2

• When Zone3 output is enabled (p.82), the surround back speakers in the main zone do not output sound.

En

24


❑ 7ch +2ZONE

Zone2

Main zone

Zone3

Speaker

FRONT

CENTER

SURROUND

Connect to

Zone2 speakers

Zone3 speakers

SUBWOOFER 1~2

EXTRA SP1

EXTRA SP2

• When Zone3 output is enabled (p.82), the surround back speakers in the main zone do not output sound.

En

25


■

Connecting front speakers that support bi-amp connections

When using front speakers that support bi-amp connections, connect them to the

FRONT jacks and EXTRA SP1 jacks.

To enable the bi-amp function, configure the “Power Amp Assign” setting (p.102) in the

“Setup” menu after connecting the power cable to an AC wall outlet.

This unit (rear)

R

SURROUND

L R

SURROUND BACK

L

R

EXTRA SP2

L

CENTER

R

FRONT

L

R


BI–AMP

EXTRA SP1

L

■

Connecting Zone2/3 speakers

When using Zone2/3 speakers, connect them to the EXTRA SP1~2 jacks.

To utilize the EXTRA SP1~2 jacks for Zone2/3 speakers, configure the “Power Amp

Assign” setting (p.102) in the “Setup” menu after connecting the power cable to an AC

wall outlet.

This unit (rear)

R

SURROUND

L R

SURROUND BACK

L

SPEAKERS

ZONE 2/ZONE 3/R.PRESENCE

R EXTRA SP2 L

CENTER

R

FRONT

L

R


BI–AMP

EXTRA SP1

L


SINGLE


SINGLE

Caution

• Before making bi-amp connections, remove any brackets or cables that connect a woofer with a tweeter. Refer to the instruction manual of the speakers for details. When not making bi-amp connections, make sure that the brackets or cables are connected before connecting the speaker cables.

Zone2 Zone3

Main zone

• You can select a zone (Zone2 or Zone3) to be assigned to the EXTRA SP1~2 jacks in “Power Amp Assign”

(p.102) in the “Setup” menu. By default, Zone2 is assigned to the EXTRA SP1 jacks and Zone3 is assigned

to the EXTRA SP2 jacks.

• You can also connect Zone2 and Zone3 speakers using an external amplifier (p.79).

En

26


■

Connecting an external power amplifier

When using an external power amplifier to enhance speaker output, connect the input jacks of the power amplifier to the PRE OUT jacks of this unit. The same channel signals are output from the PRE OUT jacks as from their corresponding SPEAKERS terminals.

Caution

• To prevent the generation of loud noises or abnormal sounds, make sure the followings before making connections.

- Remove the power cable of this unit and turn off the external power amplifier before connecting them.

- When using the PRE OUT jacks, do not connect speakers to the corresponding SPEAKERS terminals.

- When using an external amplifier that does not have the volume control bypass, do not connect other devices (except this unit) to the amplifier.

This unit (rear)

O 4

2 AV 1

(1 BD/DVD)

AV 2 AV 3

P B

COMPONENT VIDEO

P R Y AV 3 P B C P R

HDMI

AV 4 AV 5 AV 6 AV 7

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P

B

P

R

PRE OUT

IN

(SINGLE)

1

REMOTE

OUT IN

(FRONT)

1

2

OUT

TRIGGER

OUT

1

2

+12V 0.1A MAX.

2

ROUND

FRONT

L


R

SURROUND BACK

L

ZONE 3

R

FRONT

EXTRA SP2

SURROUND SUR. BACK

(REAR)

SUBWOOFER

CENTER

L

CENTER

R

FRONT

L

R

RS-232C

EXTRA SP1

L

AC IN

(Example)

Connecting front speakers via an external power amplifier

PRE OUT (FRONT) jacks

RS-232C MI

AV 4 AV 5 AV 6 AV 7


P

B

P

R

IN

1

REMOTE

OUT IN

2

OUT

TRIGGER

OUT

1

2

+12V 0.1A MAX.

PRE OUT


1

2

3 FRONT SURROUND

E 2/ZONE 3/R.PRESENCE

EXTRA SP2

L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

PR

L

R

L

AC IN

L

R

Main input jack

MAIN IN

This unit (rear)


Amplifier with volume control bypass

(A-S2000, etc.)


SINGLE

1 2 3 4

1 FRONT jacks

Output front channel sounds.

2 SURROUND jacks

Output surround channel sounds.

3 SUR. BACK jacks

Output surround back channel sounds. When using only one external amplifier for the surround back channel, connect it to the SINGLE jack (L side).

4 CENTER jack

Outputs center channel sounds.

About external power amplifiers

We recommend using power amplifiers that meet the following conditions.

- With unbalanced inputs

- With volume control bypass (or without volume control circuit)

- Output power: 100 W (8

Ω

) or more

• When using an external amplifier that does no have the volume control bypass, turn up the volume of the external amplifier enough and fix it.

En

27

Input/output jacks and cables

■

Video/audio jacks

❑ HDMI jacks

Transmit digital video and digital sound through a single jack. Use an HDMI cable.

AV 1

HDMI cable

■

Video jacks

❑ COMPONENT VIDEO jacks

Transmit video signals separated into three components: luminance (Y), chrominance blue (PB), and chrominance red (PR). Use a component video cable with three plugs.

Component video cable

COMPONEN

AV 1

A

• Use a 19-pin HDMI cable with the HDMI logo. We recommend using a cable less than 5.0 m long to prevent signal quality degradation.

• To connect a device that has a DVI jack, an HDMI/DVI-D cable is required.

• The HDMI jacks of this unit support the HDMI Control, Audio Return

Channel (ARC), and 3D video transmission (through output) features.

❑ S VIDEO jack

Transmits S-video signals that include luminance (Y) and chrominance (C) components. Use an S-video cable.

S-video cable

■

Audio jacks

❑ OPTICAL jacks

Transmit digital audio signals. Use a digital optical cable. Remove the tip protector (if available) before using the cable.

Digital Optical cable

❑

COAXIAL jacks

Transmit digital audio signals. Use a digital coaxial cable.

Digital coaxial cable

❑

AUDIO jacks

Transmit analog stereo audio signals. Use a stereo pin cable.

Stereo pin cable

❑ VIDEO jacks

Transmit analog video signals. Use a video pin cable.

Video pin cable

AV 1

En

28

1 2 TV connection 3 4 5 6 7 8 9

2 Connecting a TV

Connect a TV to this unit so that videos input to this unit can be output to the TV.

You can also enjoy playback of TV audio on this unit.

The connection method varies depending on functions and video input jacks available on your TV.

Refer to the instruction manual of the TV and choose a connection method.

Yes

Does your TV support

Audio Return Channel (ARC)?

■

Connection method 1 (p.29)

No

Yes

Does your TV support

HDMI Control?

No

■


Yes

Does your TV have an

HDMI input jack?

No

■


■


About HDMI Control

HDMI Control allows you to operate external devices via HDMI. If you connect a TV that supports HDMI Control to this unit with an HDMI cable, you can control this unit

(power, volume, etc.) in conjunction with TV remote control operations. You can also control playback devices (HDMI Control-compatible BD/DVD player, etc.)

connected to this unit with an HDMI cable. For details, see “HDMI Control” (p.142).

About Audio Return Channel (ARC)

ARC allows audio signals to travel both ways under HDMI Control. So if you connect a TV that supports HDMI Control and ARC to this unit with a single HDMI cable, you can output video/audio to the TV or input TV audio to this unit.

■

Connection method 1 (HDMI Control/ARC-compatible

TV)

Connect the TV to this unit with an HDMI cable.

• The following explanation is based on the assumption that you have not changed the “HDMI” parameters

(p.109) in the “Setup” menu.

• HDMI Control is available only on the HDMI OUT 1 jack.

HDMI OUT 1 jack

1

ARC

HDMI OUT

HDMI

2

This unit (rear)

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

HDMI OUT

2

AV 1

(1

MONITOR OUT/

ZONE OUT

AV 1

A

Y

AV 2

B

AUDIO 3 AUDIO 4

1 COAXIAL 2 COAXIAL 3 OPTICAL 4 OPTICAL 5 OPTICAL 6 COAXIAL

R

SURROUND

FRONT

L

ANTENNA

(4 RADIO)

AM FM 75Ω

HDMI input

(ARC-compatible)

HDMI

HDMI

TV

• If you make an HDMI connection between your TV and this unit, any videos input to this unit can be output

to the TV no matter how you connect video devices to this unit. For details, see “Video signal flow” (p.141).

• You can connect another TV or a projector by using the HDMI OUT 2 jack (p.34).

En

29

1 2 TV connection 3 4 5 6 7 8 9

❑ Necessary settings

To use HDMI Control and ARC, you need to configure the following settings.

For details on settings and operations of your TV, refer to the instruction manual of the TV.

1

After connecting external devices (TV, playback devices, etc.) and power cable of this unit, turn on this unit, TV and playback devices.

2

Configure the settings of this unit.

a Check that ARC is enabled on the TV.

b Switch the TV input to display the video from this unit.

c Press ON SCREEN.

ON S CREEN OPTION

ENTER

ON SCREEN

Cursor keys

ENTER

RETURN DI S PLAY d Use the cursor keys to select “Setup” and press ENTER.

3

Configure the settings for HDMI Control.

a Enable HDMI Control on the TV and playback devices (HDMI Control-compatible BD/

DVD player, etc).

b Turn off the main power of the TV and then turn off this unit and playback devices.

c Turn on this unit and playback devices and then turn on the main power of the TV.

d Switch the TV input to display the video from this unit.

e Check the followings.

On this unit: The input to which the playback device is connected is selected. If not, select the input source manually.

On the TV: The video from the playback device is displayed.

f Check that this unit is properly synchronized with the TV by turning off the TV or adjusting the TV volume with the TV remote control.

Now the necessary settings are complete.

If you select a TV program with the TV remote control, the input source of this unit will be automatically switched to “AUDIO1” and the TV audio will be played back on this unit.

If TV audio cannot be heard, check that “ARC” (p.109) in the “Setup” menu is set to

“On”.

• If HDMI Control does not work properly, try turning off and on (or unplugging and re-plugging) the devices. It may solve the problem.

• If any audio interruption happens while using ARC, set “ARC” (p.109) in the “Setup” menu to “Off”

and use an audio cable (digital optical or stereo pin cable) to input TV audio to this unit (p.31).

e Use the cursor keys ( / ) to select “HDMI”.

• “AUDIO1” is set as TV audio input at the factory. If you have connected any external device to the

AUDIO1 jacks, use “TV Audio Input” (p.109) in the “Setup” menu to change the TV audio input

assignment. To use the SCENE function (p.53), you also need to change the input assignment for

SCENE(TV).

f Use the cursor keys ( / ) to select “HDMI Control” and press ENTER.

g Use the cursor keys to select “On”.

h Press ON SCREEN.

En

30

1 2 TV connection 3 4 5 6 7 8 9

■

Connection method 2 (HDMI Control-compatible TV)

Connect the TV to this unit with an HDMI cable and an audio cable (digital optical or stereo pin cable).

• The following explanation is based on the assumption that you have not changed the “HDMI” parameters


• HDMI Control is available only on the HDMI OUT 1 jack.

HDMI OUT 1 jack

1

ARC

HDMI OUT

HDMI

This unit (rear)

DOCK NETWORK

1

ARC

HDMI OUT

2

AV 1

(1

PHONO

GND

L

R

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AUDIO 1

(2 TV)

AUDIO 2

(3 CD)

AV 2

B

AUDIO 3 AUDIO 4

AUDIO 1

(2 TV)

P

B

1

COAXIAL

2

COAXIAL

3

OPTICAL

4

OPTICAL

5

OPTICAL

6

COAXIAL

R

SURROUND

FRONT

L

L

2

R

AM FM 75Ω

5 OPTICAL

L

R

AUDIO

L

R

HDMI

HDMI input

HDMI

TV

OPTICAL

O O

AUDIO1 (OPTICAL or AUDIO) jacks

Audio output

(digital optical or analog stereo)

❑ Necessary settings

To use HDMI Control, you need to configure the following settings.

For details on settings and operations of your TV, refer to the instruction manual of the

TV.

1

After connecting external devices (TV, playback devices, etc.) and power cable of this unit, turn on this unit, TV and playback devices.

2

Configure the settings of this unit.

a Switch the TV input to display the video from this unit.

b Press ON SCREEN.

ON S CREEN OPTION

ENTER

ON SCREEN

Cursor keys

ENTER

RETURN DI S PLAY c Use the cursor keys to select “Setup” and press ENTER.

d Use the cursor keys ( / ) to select “HDMI”.




e Use the cursor keys ( / ) to select “HDMI Control” and press ENTER.

f Use the cursor keys to select “On”.

g Press ON SCREEN.

En

31

1 2 TV connection 3 4 5 6 7 8 9

3

Configure the settings for HDMI Control.

a Enable HDMI Control on the TV and playback devices (HDMI Control-compatible BD/

DVD player, etc).

b Turn off the main power of the TV and then turn off this unit and playback devices.

c Turn on this unit and playback devices and then turn on the main power of the TV.

d Switch the TV input to display the video from this unit.

e Check the followings.

On this unit : The input to which the playback device is connected is selected. If not, select the input source manually.

On the TV : The video from the playback device is displayed.

f Check that this unit is properly synchronized with the TV by turning off the TV or adjusting the TV volume with the TV remote control.

Now the necessary settings are complete.

If you select a TV program with the TV remote control, the input source of this unit will be automatically switched to “AUDIO1” and the TV audio will be played back on this unit.

• If HDMI Control does not work properly, try turning off and on (or unplugging and re-plugging) the devices. It may solve the problem.

• “AUDIO1” is set as TV audio input at the factory. If you have connected any external device to the

AUDIO1 jacks, use “TV Audio Input” (p.109) in the “Setup” menu to change the TV audio input

assignment. To use the SCENE function (p.53), you also need to change the input assignment for

SCENE(TV).

■

Connection method 3 (TV with HDMI input jacks)

Connect the TV to this unit with an HDMI cable and an audio cable (digital optical or stereo pin cable).

HDMI OUT 1 jack

1

ARC

HDMI OUT

HDMI

2

This unit (rear)

DOCK NETWORK

1

ARC

HDMI OUT

PHONO

GND

L

R

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

AV 1

A

Y

AUDIO 1

(2 TV)

AUDIO 2

(3 CD)

AV 2

B

AUDIO 3 AUDIO 4

AUDIO 1

(2 TV)

2

AV 1

(1


R

FRONT

SURROUND

L

L

R

ANTENNA

(4 RADIO)

AM FM 75Ω

5 OPTICAL

L

R

AUDIO

L

R

HDMI

HDMI input

HDMI

TV

OPTICAL

O O


Audio output


If switch the input source of this unit to “AUDIO1” by pressing AUDIO1 or SCENE(TV), the TV audio will be played back on this unit.




• If you have connected any external device to the AUDIO1 jacks, connect the TV to one of the AUDIO2~4

jacks. To use the SCENE function (p.53), you also need to change the input assignment for SCENE(TV).

En

32

1 2 TV connection 3 4 5 6 7 8 9

■

Connection method 4 (TV without HDMI input jacks)

Depending on the video input jacks available on your TV, choose one of the following connections.

If you select “AUDIO1” as the input source by pressing AUDIO1 or SCENE(TV), the TV audio will be played back on this unit.

• If you connect your TV to this unit with a cable other than HDMI, videos input to this unit via HDMI cannot

be output to the TV. Also, analog videos that can be output to the TV differ according to the “Analog to

Analog Conversion” setting. For details, see “Video signal flow” (p.141).

• If you have connected any external device to the AUDIO1 jacks, connect the TV to one of the AUDIO2~4

jacks. To use the SCENE function (p.53), you also need to change the input assignment for SCENE(TV).

• To use the MONITOR OUT jacks for the TV in the main zone, set “Monitor Out Assign” (p.112) in the

“Setup” menu to “Main” (default).

COMPONENT VIDEO connection (with a component video cable)

This unit (rear)

MONITOR OUT

(COMPONENT VIDEO) jacks

Y


P B P R

P R

P B

Y

UT

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD)

AV 2 AV 3

HDMI

AV 4 AV 5

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

B

AV 3 P

B

C P

R

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P B P R

PRE OUT (SIN

I

5 OPTICAL 6 COAXIAL

R

SURROUND

FRONT

L


R

SURROUND BACK

L

ZONE 3 FRONT SURROUND

SPEAKERS


R EXTRA SP2 L

SUR.

AUDIO 1

(2 TV)

5 OPTICAL

L

R

O

SINGLE

AUDIO1

(OPTICAL or AUDIO) jacks

P R

P B

Y

Video input (component video)

COMPONENT VIDEO

Y P B P R

AUDIO

L

L

R

R

OPTICAL

O

Audio output


TV

S VIDEO connection (with an S-video cable)

MONITOR OUT

(S VIDEO) jack

MONITOR OUT/

ZONE OUT

This unit (rear)

PHONO

GND

L

DOCK NETWORK

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD

AV 2 AV 3 AV 4

AV OUT

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AUDIO 1

(2 TV)

AUDIO 2

(3 CD)

AV 2

B

AUDIO 3 AUDIO 4

P

B

COMP

R

MUL

S

R


R

SURROUND

FRONT

L

SURROU

L

R

AM

FM 75Ω

5 OPTICAL

L

R

AUDIO

L

R

Video input (S-video)

S VIDEO

S

TV

OPTICAL

O O


Audio output


VIDEO (composite video) connection (with a video pin cable)

This unit (rear)

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD

MONITOR OUT

(VIDEO) jack

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

B

MONITOR OUT/

MUL

ZONE OUT

V


R

SURROUND

FRONT

L

SURROU

ANTENNA

(4 RADIO)

AM FM 75Ω

V

Video input

(composite video)

VIDEO

TV

En

33

1 2 TV connection 3 4 5 6 7 8 9

■

Connecting another TV or a projector

This unit has 2 HDMI output jacks. If you connect another TV or a projector to this unit with an HDMI cable, you can switch the TVs (or projector) to be used for watching

videos with the remote control (p.52).

HDMI OUT 2 jack

1

ARC

HDMI OUT

2

This unit (rear)

L

R

DOCK

PHONO

GND

NETWORK

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

B

COMP

R

MUL


FRONT SURROU

R

SURROUND

L

HDMI

ANTENNA

(4 RADIO)

AM FM 75Ω

HDMI

HDMI input

HDMI

Projector

TV (already connected)

• HDMI Control is not available on the HDMI OUT 2 jack.

En

34

1 2 3 Playback device connections 4 5 6 7 8 9

3 Connecting playback devices

This unit is equipped with a variety of input jacks including HDMI input jacks to allow you to connect different types of playback devices. For information on how to connect an iPod, a Bluetooth component or a USB storage device, see the following pages.

- Connecting an iPod (p.63)

- Connecting a Bluetooth receiver (p.68)

- Connecting a USB storage device (p.70)

Connecting video devices (BD/DVD players, etc.)

Connect video devices such as BD/DVD players, set-top boxes (STBs) and game consoles to this unit. Depending on the video/audio output jacks available on your video device, choose one of the following connections. We recommend using an HDMI connection if the video device has an HDMI output jack.

■

HDMI connection

Connect a video device to this unit with an HDMI cable.

HDMI (AV1~7) jacks

This unit (rear)

2 AV 1

(1 BD/DVD)

AV 2 AV 3

P B

COMPONENT VIDEO


HDMI

AV 4 AV 5 AV 6 AV 7

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P

B

P

R

IN

REMOTE

1

OUT IN

2

OUT

TRIGG

OUT

1

2

+12V 0.1A

PRE OUT


1

2

UND

FRONT

L


R

SURROUND BACK

L

ZONE 3

R

FRONT

EXTRA SP2

SURROUND SUR. BACK

(REAR)

SUBWOOFER

CENTER

L

CENTER

R

FRONT

L

HDMI

HDMI

HDMI output

HDMI

• Videos input to this unit via HDMI cannot be output to a TV connected to this unit with a cable other than

HDMI.

• The following explanation is based on the assumption that you have not changed the “Input Assignment”

setting (p.113) in the “Setup” menu. As necessary, you can assign the COMPONENT VIDEO (

, , ,

), COAXIAL ( a , b , f ) and OPTICAL ( c , d , e ) jacks to another input source.


SINGLE

Video device

If you select the input source by pressing AV1~7, the video/audio played back on the video device will be output from this unit.

• If you make more than one audio connection for one input source, an audio signal played back on this unit

will be determined according to the “Audio Select” setting (p.90) in the “Option” menu.

En

35


■

Component video connection

Connect a video device to this unit with a component video cable and an audio cable

(digital coaxial, digital optical or stereo pin cable). Choose a set of input jacks (on this unit) depending on the audio output jacks available on your video device.

Output jacks on video device

Video Audio

Component video

Digital coaxial

Digital optical

Analog stereo

Input jacks on this unit

AV1~2 (COMPONENT VIDEO + COAXIAL)

AV3~4 (COMPONENT VIDEO + OPTICAL)

AV1~4 (COMPONENT VIDEO + AUDIO)

AV1~4

(COMPONENT VIDEO) jacks

This unit (rear)

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

Y P B P R

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD)

AV 2 AV 3

H

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

B

P

R

AV 3 P

B C

P

R

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

P

R

P

B

Y


R

SURROUND

FRONT

L


R

SURROUND BACK

L

ZO

ZO

R

ANTENNA

(4 RADIO)

AM FM 75Ω

C C

SINGLE

L

R

O

COAXIAL

O

L

OPTICAL

L

R

R

P

R

P

B

Y

Video output

(component video)

Y P

B

P

R

Video device

Any of AV1~2 (COAXIAL),

AV3~4 (OPTICAL),

AV1~4 (AUDIO) jacks

Audio output

(any of digital coaxial, digital optical, analog stereo)


■

S-video connection

Connect a video device to this unit with an S-video cable and an audio cable (digital coaxial, digital optical or stereo pin cable). Choose a set of input jacks (on this unit) depending on the audio output jacks available on your video device.


Video Audio

S-video

Digital coaxial

Digital optical

Analog stereo


AV1~2 (S VIDEO + COAXIAL)

AV3~4 (S VIDEO + OPTICAL)

AV1~4 (S VIDEO + AUDIO)

This unit (rear)

DOCK NETWORK

AV 2 AV 3 AV 4

AV OUT

1

ARC

H

MONITOR OUT/

ZONE OUT

AV1~4

(S VIDEO) jacks

PHONO

GND

S

L

R


S

Video output

(S-video)

S VIDEO

ANTENNA

(4 RADIO)

AM FM 75Ω

L

R

C

O

C

COAXIAL

O

L

OPTICAL

L

R

R

Video device


AV3~4 (OPTICAL),

AV1~4 (AUDIO) jacks

Audio output



En

36


■

Composite video connection

Connect a video device to this unit with a video pin cable and an audio cable (digital coaxial, digital optical or stereo pin cable). Choose a set of input jacks (on this unit) depending on the audio output jacks available on your video device.


Video Audio

Composite video

Digital coaxial

Digital optical

Analog stereo


AV1~2 (VIDEO + COAXIAL)

AV3~4 (VIDEO + OPTICAL)

AV1~4 (VIDEO + AUDIO)

This unit (rear)

DOCK NETWORK

AV 2 AV 3 AV 4

AV OUT

1

ARC

H

MONITOR OUT/

ZONE OUT

AV1~4 (VIDEO) jacks

V

PHONO

GND

L

R


V

Video output

(composite video)

VIDEO

AM FM 75Ω

C C

COAXIAL Video device

O O

L

OPTICAL

L L

R

R R


AV3~4 (OPTICAL),

AV1~4 (AUDIO) jacks

Audio output



Connecting audio devices (CD players, etc.)

Connect audio devices such as CD players, MD players and a turntable to this unit.

Depending on the audio output jacks available on your audio device, choose one of the following connections.

• The following explanation is based on the assumption that you have not changed the “Input Assignment”

setting (p.113) in the “Setup” menu. As necessary, you can assign the COAXIAL (

a , b , f ) and OPTICAL

( c

, d

, e

) jacks to another input source.

• If you make more than one audio connection for one input source, an audio signal played back on this unit

will be determined according to the “Audio Select” setting (p.90) in the “Option” menu.

Audio output jacks on audio device

Digital coaxial

Digital optical

Analog stereo

Turntable (PHONO)

Audio input jacks on this unit

AV1~2 (COAXIAL)

AUDIO2 (COAXIAL)

AV3~4 (OPTICAL)

AUDIO1 (OPTICAL)

AV1~4 (AUDIO)

AUDIO1~4 (AUDIO)

PHONO

En

37


PHONO jacks

PHONO

GND

This unit

(rear)

DOCK

PHONO

GND

NETWORK

AV 1

(1 BD/DVD)

AV 2

R

AV 3 AV 4

AV OUT

L

1

ARC

HDMI OUT

R

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

2 AV 1

(1

L

R

L


R

SURROUND

FRONT

L

ANTENNA

(4 RADIO)

AM FM 75Ω

C C

Audio output

(PHONO)

GND

PHONO

L

L

R

R

Turntable

COAXIAL

Audio device

O O

OPTICAL

L

R

L

R

Any of AV1~4, AUDIO1~4

(COAXIAL, OPTICAL, AUDIO) jacks

Audio output


If you select the input source by pressing AV1~4, AUDIO1~4 or PHONO, the audio played back on the audio device will be output from this unit.

Connecting to the jacks on the front panel

Use the VIDEO AUX jacks on the front panel to temporarily connect devices such as a game console and a camcorder to this unit.

Before making a connection, stop playback on the device and turn down the volume of this unit.

Game console

RETURN

ENTER

DISPLAY

PROGRAM

ZONE 2

MULTI ZONE

ZONE 3 ZONE CONTROL

VIDEO AUX

FM

PHONES

USB iPod/iPhone YPAO MIC SILENT CINEMA S VIDEO VIDEO L AUDIO R OPTICAL

AM

HDMI IN

TUNING/CH

This unit (front)

S

V L R O HDMI

Camcorder

If you select “V-AUX” as the input source by pressing V-AUX, the video/audio played back on the device will be output from this unit.

• If you connect video devices to both the HDMI IN jack and analog video/audio jacks, this unit outputs video/ audio input through the HDMI IN jack.

En

38

1 2 3 4 FM/AM antenna connections 5 6 7 8 9

4 Connecting the FM/AM antennas

Connect the supplied FM/AM antennas to this unit.

FM antenna

AM antenna

DOCK NETWORK

1

ARC

HDMI OUT

PHONO

GND

L

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

AV 1

A

Y

AUDIO 1

(2 TV)

AUDIO 2

(3 CD)

AV 2

B

AUDIO 3 AUDIO 4

2 AV 1

(1 BD/DVD)

AV 2 AV 3

COMPONENT VIDEO


MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

HDMI

AV 4 AV 5

Y


P

B

P

R

PRE OUT

IN

(SINGLE)

AV 6

1

REMOTE

OUT IN

AV 7

2

OUT

R


2

R

SURROUND

FRONT SURROUND

L

SUR. BACK SUBWOOFER ZONE 2

R

SURROUND BACK

L



R

EXTRA SP2

L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRO

ANTENNA

(4 RADIO)

AM FM 75Ω

SINGLE

SPEAKER IM

This unit (rear)

Assembling and connecting the AM antenna

• Unwind the antenna cable from the AM antenna unit only the length needed.

• The wires of the AM antenna have no polarity.

Hold down Insert Release

En

39

1 2 3 4 5 Network connections 6 7 8 9

5 Connecting to the network

Connect this unit to your router with a commercially-available STP network cable (CAT-5 or higher straight cable).

You can enjoy Internet radio or music files stored on PCs and DLNA servers such as

Network Attached Storage (NAS) on this unit.

Internet

Network Attached Storage

(NAS)

WAN

PC

LAN

Modem

• Some security software installed on your PC or the firewall settings of your network devices (such as a router) may block the access of this unit to the network devices or the Internet. In such cases, configure the security software or firewall settings appropriately.

• You can connect this unit to up to 16 music servers (PC, etc.), and each server must be connected to the same subnet as this unit.

• To use the service via the Internet, broadband connection is strongly recommended.

Router

Network cable

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

HDMI OUT

2 AV 1

(1 BD/DVD)

AV

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P B

COMPONENT VI

P R Y

MULTI CH INP


R

SURROUND

FRONT

L

SURROUND SUR.

R

SU

ANTENNA

(4 RADIO)

AM FM 75Ω

This unit (rear)

• When using a router that supports the DHCP function, the network parameters (IP address, etc.) will be automatically assigned to this unit without configuring the network settings of this unit. If your router does not support the DHCP function or you want to configure the network parameters manually, configure the

network settings (p.110).

• You can check whether the network parameters (IP address, etc.) are properly assigned to this unit in

“Network” (p.117) in the “Information”.

En

40

1 2 3 4 5 6 Other connections 7 8 9

6 Connecting other devices

Connecting video/audio recording devices

You can connect video/audio recording devices to the AV OUT jacks. These jacks output video/audio signals selected as the input.

• The AV OUT jacks cannot output video/audio signals input through the HDMI or COMPONENT VIDEO jacks.

AV OUT jacks

This unit (rear) AV OUT

L

DOCK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2

NETWORK

AV 3

1

ARC

HDMI OUT

AV 4

AV OUT MONITOR OUT/

ZONE OUT

AV 1

A

AUDIO 1

(2 TV)

AUDIO 2

(3 CD)

AV 2

B

AUDIO 3 AUD

R


R

SUR

ANTENNA

(4 RADIO)

AM FM 75Ω

L

R

S

V

O

V

Video/audio input

VIDEO

S

O

L

R

S VIDEO

AUDIO

L

R

OPTICAL

Video/audio recording device

Connecting a device with analog multi-channel output

You can connect an analog multi-channel output device such as a DVD player and an

SACD player to the MULTI CH INPUT jacks.

This unit (rear)

DOCK

L

R

PHONO

GND

NETWORK

AV 2 AV 3 AV 4

AV OUT

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD)

AV 2

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

R

MULTI CH INPUT

AV 3

AV 4

P

B

CENTER

AV 3

C

D

1 COAXIAL 2 COAXIAL 3 OPTICAL 4 OPTICAL

ANTENNA

(4 RADIO)

AM FM 75Ω


R

SURROUND

FRONT

L

SURROUND SUR. BACK SUBWOOFER ZO

R

SURROUND BACK

L

MULTI CH INPUT

CENTER

SINGLE

Channel output

(Center)

(Subwoofer)

MULTI CH

INPUT jacks

FRONT SURROUND SUR. BACK SUBWOOFER

L

R

L

R

L

(Surround back)

(Surround)

Device with analog multi-channel output

(Front)

R

If you select “MULTI CH” as the input source by pressing MULTI, the audio played back on the device will be output from this unit.

• You can select a video source to be displayed when “MULTI CH” is selected as the input source using

“Video Out” (p.93) in the “Input” menu. When connecting a video device (DVD player, etc.) to the MULTI CH

INPUT jacks, use the input jack specified in “Video Out” for the video connection.

• Since this unit does not redirect signals input to the MULTI CH INPUT jacks to accommodate for missing speakers, make appropriate settings on the external device (DVD player, etc.) that suit to the speaker configuration.

• When “MULTI CH” is selected as the input source, sound mode selection and tone control adjustment are not available.

En

41

1 2 3 4 5 6 Other connections 7 8 9

Connecting a device compatible with SCENE link playback (remote connection)

If you have a Yamaha product that has the capability of the SCENE control signal transmission, you can control the Yamaha product in conjunction with a scene selection

(p.53) by connecting it to one of the REMOTE (OUT) jacks with a monaural mini-jack

cable.

This unit (rear)

AV 3

HDMI

AV 4 AV 5 AV 6 AV 7

REMOTE (OUT) jacks

C P R

D

ZONE OUT

Y


P

B

P

R

TRIGGER

OUT

1

IN

IN

1

REMOTE

OUT IN

2

OUT

2

+12V 0.1A MAX.

PRE OUT

(SINGLE)

1

REMOTE

OUT IN

2

OUT

2

R ZONE 2

K

L



R

EXTRA SP2

L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

R

Remote input

REMOTE

IN


NGLE

Yamaha product

(DVD player, etc.)

Connecting a device compatible with the trigger function

The trigger function can control an external device in conjunction with operations

(power-on/off, input selection, etc.) on this unit. If you have a Yamaha subwoofer that supports a system connection or a device with a trigger input jack, you can use the trigger function by connecting the external device to one of the TRIGGER OUT jacks.

This unit (rear)

AV 3

HDMI

AV 4 AV 5 AV 6 AV 7

C P R

D

ZONE OUT

Y


P

R

IN

1

REMOTE

OUT IN

2

OUT

TRIGGER

OUT

1

2

+12V 0.1A MAX.

PRE OUT


1

2

R ZONE 2

K

L



R

EXTRA SP2

L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

R

TRIGGER OUT

1~2 jacks

RS-232C

TRIGGER

OUT

1

2

+12V 0.1A MAX.

EXTRA SP1

L

AC

System connection input


NGLE

Yamaha subwoofer that supports a system connection

• If you connect a Yamaha product compatible with SCENE link playback to one of the REMOTE (OUT)

jacks, you can start playback on the Yamaha product in conjunction with a scene selection (p.53). To enable

the SCENE link playback, specify the device type in “Device Control” (p.94) in the “Scene” menu.

• You also connect an infrared signal receiver/emitter to operate devices in the main zone from Zone2 (p.81).

• You can configure the trigger function settings in “Trigger Output1” and “Trigger Output2” (p.114) in the

“Setup” menu.

En

42

1 2 3 4 5 6 7 Power cable connection 8 9

7 Connecting the power cable

After all the connections are complete, connect the supplied power cable to this unit and then to an AC wall outlet.

This unit (rear)

AV 5 AV 6 AV 7

RS-232C

OR OUT/ZONE OUT

P

B

P

R IN

1

REMOTE

OUT IN

2

OUT

1

2

+12V 0.1A MAX.

PRE OUT (SINGLE) (FRONT)

1

2

FRONT SURROUND

PEAKERS

NE 3/R.PRESENCE

XTRA SP2 L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

R


BI–AMP

EXTRA SP1

L

AC IN

To an AC wall outlet


En

43

1 2 3 4 5 6 7 8 Language setting 9

S OURCE

U S B

1 2

S CENE

3 4


ON S CREEN

TOP MENU

ON S CREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

S PLAY

Cursor keys

PRE

INPUT

CLA SS ICAL

LIVE

CLUB

MOVIE

TV

TV VOL TV CH

ENTERTAIN

S TRAIGHT

PURE

DIRECT

MUTE

8 Selecting an on-screen menu language

Select a desired on-screen menu language from English (default),

Japanese, French, German, Spanish and Russian.

1

Press RECEIVER to turn on this unit.

2

Turn on the TV and switch the TV input to display the video from this unit.

3

Press ON SCREEN.

4

Use the cursor keys to select “Setup” and press

ENTER.

5

Use the cursor keys ( / ) to select “Language” and the cursor keys ( / ) to select a desired language.

6

To exit from the menu, press ON SCREEN.

• The information on the front display is provided in English only.

En

44

1 2 3 4 5 6 7 8 9 Automatic speaker setup

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

9 Optimizing the speaker settings automatically (YPAO)

By using the Yamaha Parametric room Acoustic Optimizer (YPAO) function, this unit automatically detects speaker connections and distances from the listening position, and optimizes the speaker settings such as volume balance and acoustic parameters to suit your room.

5

Place the YPAO microphone at ear height in your listening position and connect it to the YPAO MIC jack on the front panel.

This unit (front)

Please note the following when using YPAO.

• Use YPAO after connecting a TV and speakers to this unit.

• During the measuring process, the test tones are output at high volume. Take care that the test tone does not frighten small children. Also, refrain from using this function at night when it may be a nuisance to others.

• During the measuring process, you cannot adjust the volume.

• During the measuring process, keep the room as quiet as possible.

• Do not connect headphones.

• If your subwoofer supports the auto-standby function, disable it.

1

Press RECEIVER to turn on this unit.

2

Turn on the TV and switch the TV input to display the video from this unit.

3

Turned on the subwoofer and set the volume to half.

If the cross-over frequency is adjustable, set it to maximum.

CROSSOVER/

HIGH CUT VOLUME

YPAO microphone

Listening position

Ear height

Place the YPAO microphone at ear height in your listening position. We recommend using a tripod to adjust the height. You can use the tripod screws to fix the microphone in place.

MIN MAX MIN MAX

4

According to your speaker configuration, configure

the “Power Amp Assign” setting (p.102) in the

“Setup” menu.

For the basic speaker configuration (p.16): set to “Basic”

(default).

For any of the advanced speaker configurations (p.21): set

to the appropriate setting.

En

45


The following screen appears on the TV.

• If you perform the single measure, you will be able to enjoy surround sound at that position with optimized speaker settings. If you perform the multi measure, the speaker settings will be optimized for you to enjoy surround sound in a wider space.

Single measure

Multi measure

(5 listening positions)

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

• To cancel the operation, disconnect the YPAO microphone before starting the measurement.

6

If desired, change the measuring method (multi/ single).

a Use the cursor keys to select “Multi Position” and press ENTER.

b Use the cursor keys to select a setting and then press ENTER.

1

4 5

Multi measure

(1 listening position + 4 circumferences)

Multi measure

(2 listening positions + front/back)

2

1

3

1 2

Settings

Yes

No (default)

Select this if your listening position is variable or you will enjoy surround sound with your company. You can perform the measurement at up to 8 positions to optimize the speaker settings to suit all of those positions (multi measure).

Select this if your listening position is fixed in one position. You will perform the measurement only once to optimize the speaker settings suit to the position

(single measure).

Now all preparations are complete. See the following page to start the measurement.

When “Multi Position” is set to “Yes”:

“Measuring at multiple listening positions (multi measure)” (p.48)

When “Multi Position” is set to “No”:

“Measuring at one listening position (single measure)” (p.47)

En

46


Measuring at one listening position

(single measure)

When “Multi Position” is set to “No”, follow the procedure below to make the measurement.

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

• YPAO measurement is not performed correctly when any obstacles are in the room.

• During the measuring process (about 3 minutes), keep stuff in the corners or remove it from the room.

1

To start the measurement, use the cursor keys to select “Measure” and press ENTER.

The measurement will start in 10 seconds. Press ENTER again to start the measurement immediately.

• To cancel the measurement, press RETURN.

The following screen appears on the TV when the measurement finishes.

3

To save the measurement results, use the cursor keys to select “SAVE” and press ENTER.

The corrected speaker settings are applied.

• To finish the measurement without saving the result, select “CANCEL”.

4

Disconnect the YPAO microphone from this unit.

Now optimization of the speaker settings is complete.

Caution

• Since the YPAO microphone is sensitive to heat, do not place the microphone in any place where it will be subjected to direct sunlight or high temperatures

(top of an AV equipment, etc).

• If any error message (such as E-1) or warning message (such as W-1)

appears, see “Error messages” (p.50) or “Warning messages” (p.51).

• To check the measurement results, select “Result”. For details, see

“Checking the measurement results” (p.49).

2

Use the cursor keys to select “Save/Cancel” and press ENTER.

En

47


Measuring at multiple listening positions

(multi measure)

When “Multi Position” is set to “Yes”, follow the procedure below to make the measurement.

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

3

If the measurement at all listening position are made, use the cursor keys to select “CANCEL” and press ENTER.

If you have made the measurement at 8 listening positions, the following screen appears automatically.

• YPAO measurement is not performed correctly when any obstacles are in the room.

• During the measuring process, keep stuff in the corners or remove it from the room. It takes about 10 minutes to make the measurement at 8 listening positions.

• If any error message (such as E-1) or warning message (such as W-1) appears,

see “Error messages” (p.50) or “Warning messages” (p.51).

1

To start the measurement, use the cursor keys to select “Measure” and press ENTER.

The measurement will start in 10 seconds. Press ENTER again to start the measurement immediately.

• To cancel the measurement, press RETURN.

The following screen appears on the TV when the measurement at the first position finishes.

• To check the measurement results, select “Result”. For details, see

“Checking the measurement results” (p.49).

4

Use the cursor keys to select “Save/Cancel” and press ENTER.

5

To save the measurement result, use the cursor keys to select “SAVE” and press ENTER.

2

Move the YPAO microphone to the next listening position and press ENTER.

Repeat step 2 until the measurement at all listening positions (up to 8) are made.

The corrected speaker settings are applied.

• To finish the measurement without saving the result, select “CANCEL”.

6

Disconnect the YPAO microphone from this unit.

Now optimization of the speaker settings is complete.

En

48


1 2

SCENE

3 4


ON S CREEN

TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Caution

• Since the YPAO microphone is sensitive to heat, do not place the microphone in any place where it will be subjected to direct sunlight or high temperatures

(top of an AV equipment, etc).

Checking the measurement results

You can check the YPAO measurement results.

1

After the measurement, use the cursor keys to select “Result” and press ENTER.

Size

Distance

Level

Size of each speaker (cross-over frequency of the subwoofer)

Large: The speaker can reproduce low-frequency signals effectively.

Small: The speaker cannot reproduce low-frequency signals effectively.

Distance from the listening position to each speaker

Output level adjustment for each speaker

• You can also select “Result” from “Auto Setup” (p.100) in the “Setup” menu.

In this case, the previous measurement results are displayed.

The following screen appears.

1

2

3

1 Measurement result items

2 Measurement result details

3 The number of measured positions (when multi measure is performed)

2

Use the cursor keys to select an item

Wiring

Polarity of each speaker

Normal: The speaker cable is connected with the correct polarity (+/-).

Reverse: The speaker cable may be connected with the reversed polarity (+/-).

• A speaker with any problem is indicated with a red-boxed message.

3

To finish checking the results and return to the previous screen, press RETURN.

Reloading the previous YPAO results

When the speaker settings you have configured manually are not suitable, follow the procedure below to discard the manual settings and reload the previous YPAO results.

1

In the “Setup” menu, select “Speaker”, “Auto

Setup” and then “Result” (p.99).

2

Use the cursor keys to select “Setup Reload” and press ENTER.

3


En

49


Error messages

If any error message is displayed during the measurement, resolve the problem and perform YPAO again.

Error message

E-1: No Front SP

E-2: No Sur. SP

E-3: No F.PRNS SP

E-4: SBR SBL

E-5: Noisy

E-6: Check Sur.

E-7: No MIC

E-8: No Signal

E-9: User Cancel

E-10: Internal Error

E-11: No R.PRNS SP

Cause

Front speakers are not detected.

Either of surround speakers is not detected.

Either of front presence speakers is not detected.

A surround back speaker is connected to the R side only.

The noise is too loud.

Any surround back speaker is connected while no surround speakers are connected.

The YPAO microphone has been removed.

The YPAO microphone cannot detect test tones.

The measurement has been canceled.

An internal error has occurred.

Either of rear presence speakers is not detected.

Remedy

Follow the on-screen instructions to exit YPAO, turn off this unit, and then check the speaker connections.

When using only one surround back speaker, you need to connect it to the SINGLE jack (L side). Follow the on-screen instructions to exit YPAO, turn off this unit, and then reconnect the speaker.

Keep the room quiet and follow the on-screen instructions to start the measurement again. If you select

“PROCEED”, the measurement starts again on the condition this unit ignores the noisy error even if noises are detected.

Surround speakers should be connected when using surround back speakers. Follow the on-screen instructions to exit YPAO, turn off this unit, and then reconnect the speakers.

Connect the YPAO microphone to the YPAO MIC jack firmly and follow the on-screen instructions to start the measurement again.

Connect the YPAO microphone to the YPAO MIC jack firmly and follow the on-screen instructions to start the measurement again. If this error occurs repeatedly, contact the nearest authorized Yamaha dealer or service center.

Follow the on-screen instructions to start the measurement again. To cancel the measurement, select “EXIT”.

Follow the on-screen instructions to exit YPAO, turn off and on this unit. If this error occurs repeatedly, contact the nearest authorized Yamaha dealer or service center.

Follow the on-screen instructions to exit YPAO, turn off this unit, and then check the speaker connections.

En

50


Warning messages

Even if any warning message is displayed after the measurement, you can save the measurement results by following on-screen instructions.

However, we recommend you perform YPAO again to use this unit with the optimal speaker settings.

Warning message

W-1: Out of Phase

W-2: Over Distance

W-3: Level Error

Cause

Any of the speaker cables may be connected with the reversed polarity (+/-).

Any of the speakers is placed more than 24 m from the listening position.

There are a significant volume differences between the speakers.

Remedy

Select “Wiring” in “Result” (p.49) and check the cable connections (+/-) of the speaker indicated with

“Reverse”. If the speaker is connected incorrectly, turn off this unit and then reconnect the speaker cable.

Depending on the type of speakers or room environment, this message may appear even if the speakers are connected correctly.

Select “Distance” in “Result” (p.49) and move the speaker indicated with “>24.0m (>80.0ft)” within 24 m of

the listening position.

Check the use environment and cable connections (+/-) of each speaker, and the volume of the subwoofer.

We recommend using the same speakers or speakers with as similar specifications as possible.

En

51

1

5

2

AV

3

1

6

AUDIO

7

2 3

USB PHONO

DOCK

MULTI

TUNER

1 2

SCENE

3

4

V-AUX

4

NET

4


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY

INFO


MEMORY FM AM

1

PRESET

4

ENTERTAIN

STRAIGHT

TV

8

TV VOL

0

9

TV CH

ENT LEVEL

ZONE SETUP

PLAYBACK

Basic playback procedure

Input selection keys

VOLUME

MUTE

ON S CREEN

Cursor keys

1

Turn on external devices (TV, BD/DVD player, etc.) connected to this unit.

2

Use the input selection keys to select an input source.

3

Start playback on the external device, or select a radio station.

Refer to the instruction manual of the external device.

For details on the following operations, see the corresponding pages.

- Listening to FM/AM radio (p.60)

- Playing back iPod music/videos (p.63)

- Playing back music via Bluetooth (p.68)

- Playing back music stored on a USB storage device (p.70)

- Playing back music stored on PCs (p.73)

- Listening to Internet radio (p.76)

4

Press VOLUME to adjust the volume.

• To mute the audio output, press MUTE. Press MUTE again to unmute.

• To adjust treble/bass parts of sound, use the “Option” menu or TONE/

BALANCE on the front panel (p.89).

Selecting an HDMI output jack

1

Press HDMI OUT to select an HDMI OUT jack.

Each time you press the key, the HDMI OUT jack to be used for signal output switches.

DOCK

TAG

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

H D M I O U T S e l .

O U T 1 + 2

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S W1

C

S W

R PR

S R

PR

HDMI OUT 1+2

Outputs the same signal at both the HDMI OUT 1 and HDMI OUT 2 jacks.

HDMI OUT 1

Outputs the signals at the selected HDMI OUT jack.

HDMI OUT 2

HDMI OUT Off Does not output the signals at the HDMI OUT jacks.

• You can also select an HDMI output jack by selecting a scene (p.53).

• When “HDMI OUT 1+2” is selected, this unit outputs video signals at the highest resolution that both TVs connected to this unit support. (For example, if you have connected a 1080p TV to the HDMI OUT 1 jack, and a

720p TV to the HDMI OUT 2 jack, this unit outputs 720p video signals.)

On-screen input selection a Press ON SCREEN.

b Use the cursor keys to select “Input” and press ENTER.

c Use the cursor keys to select a desired input source and press

ENTER.

En

52

1 2

SCENE

3 4

S CENE


ON S CREEN

TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Selecting the input source and favorite settings at once (SCENE)

The SCENE function allows you to select the assigned input source, sound program, HDMI output and various settings at once.

You can use up to 12 scenes to register your favorite settings and switch them depending on a playback source.

1

Press SCENE.

The input source and settings registered to the corresponding scene are selected. This unit turns on automatically when it is in standby mode.

By default, the following settings are registered for each scene.

SCENE (SCENE key)

Input

HDMI Output

Mode

Sound

Input (p.52)

Audio Select (p.90)

HDMI Output (p.52)

Sound Program (p.55)

Pure Direct Mode (p.106)

Tone Control (p.89):

SP (speakers), HP (headphones)

Adaptive DRC (p.89)

Enhancer (p.59)

1 (BD/DVD)

AV1

Auto

OUT 1+2

Drama

Auto

Treble/Bass: 0.0dB

Off

Off

2 (TV)

AUDIO1

Auto

OUT 1+2

STRAIGHT

Auto

Treble/Bass: 0.0dB

On

On

3 (CD)

AUDIO2

Auto

OUT 1+2

STRAIGHT

Auto

Treble/Bass: 0.0dB

Off

Off

-

4 (RADIO)

TUNER

OUT 1+2

9ch Stereo

Auto

Treble/Bass: 0.0dB

Off

On

• You can select SCENE1~4 by pressing SCENE on the remote control.

Additionally, you can create 8 scenes (SCENE5~12) and select those scenes from

the “Scene” menu (p.93).

• You can also include other setting items (surround settings, video settings, etc.) as

the scene assignments (p.95).

On-screen scene selection a Press ON SCREEN.

b Use the cursor keys to select “Scene” and press ENTER.

c Use the cursor keys to select a desired scene and press

ENTER.

En

53

SOURCE RECEIVER

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

S OURCE/RECEIVER

Configuring scene assignments

S CENE

Follow the procedure below to register the current status (input source, sound program, etc.) to a scene. As necessary, you can

select items to be included as the scene assignments (p.95).

1

Set this unit to the condition (input source, sound program, etc.) that you want to assign to a scene.

2

Hold down the desired SCENE key until “SET

Complete” appears on the front display.

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

HD 3

S C E N E 1

S E T C o m p l e t e

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

PL

S W1 S W

S B

S W2 S R

PR

3

If you want to control the corresponding playback device after selecting the scene, hold down the corresponding SCENE key and input selection key together for more than 3 seconds.

Once the setting is completed successfully, SOURCE/

RECEIVER blinks twice.

• If you have not registered the remote control code of the playback device

yet, see “Setting the remote control codes for playback devices” (p.122) to

register it.

• You can start playback of external devices connected to this unit via HDMI or a Yamaha product connected to the REMOTE OUT jack, in conjunction with a scene selection (SCENE link playback). To enable the SCENE link

playback, specify the device type in “Device Control” (p.94) in the “Scene”

menu.

En

54

1 2

SCENE

3 4

PROGRAM MUTE VOLUME PROGRAM

ON S CREEN

TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

CLA SS ICAL

LIVE/CLUB

ENTERTAIN

MOVIE

S TEREO

S TRAIGHT

PURE DIRECT

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

S UR.DECODE

Selecting the sound mode

This unit is equipped with a variety of sound programs and surround decoders that allow you to enjoy playback sources with a favorite sound mode (sound field effect, stereo playback, etc).

Selecting a sound program suitable for movies

- MOVIE THEATER category (p.56):

Press MOVIE repeatedly.

- ENTERTAINMENT category (p.56):

Press ENTERTAIN repeatedly.

Selecting a sound program suitable for music or stereo playback

- CLASSICAL category (p.57):

Press CLASSICAL repeatedly.

- LIVE/CLUB category (p.57):

Press LIVE/CLUB repeatedly.

- STEREO category (p.57):

Press STEREO repeatedly.

Selecting a surround decoder (p.58)

Press SUR.DECODE repeatedly.

Switching to the straight decode mode (p.58)

Press STRAIGHT.

Switching to the Pure Direct mode (p.59)

Press PURE DIRECT.

Enable Compressed Music Enhancer (p.59)

Press ENHANCER.

On-screen sound program/surround decoder selection a Press ON SCREEN.

b Use the cursor keys to select “Sound Program” and press

ENTER.

c Use the cursor keys to select a sound program/surround decoder and press ENTER.

• You can change the settings of the surround programs and surround decoders in

the “Sound Program” menu (p.96).

• The sound mode can be applied separately to each input source.

• You can check which speakers are currently outputting sound with the speaker

indicators on the front panel (p.10) or the “Audio Signal” screen in the

“Information” menu (p.116).

• You can also select a sound program or the surround decoder by pressing

PROGRAM.

En

55

Enjoying sound field effects (CINEMA DSP)

This unit is equipped with a variety of sound programs that utilize Yamaha's original

DSP technology (CINEMA DSP). It allows you to easily create sound fields like actual movie theaters or concert halls in your room.

Sound program category

DOCK

TAG

MOVIE

HD

S TEREO

IN OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

3

M O V I E T H E A T E R

S c i - F i

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C R PR

S W2

PL S BL S B PR

“CINEMA DSP” lights up Sound program

■

Sound programs suitable for movies (MOVIE)

The following sound programs are optimized for viewing video sources such as movies,

TV programs and games.

❑ MOVIE THEATER

Standard

Spectacle

Sci-Fi

Adventure

Drama

This program creates a sound field emphasizing the surround feeling without disturbing the original acoustic positioning of multi-channel audio such as Dolby Digital and DTS. It has been designed with the concept of an ideal movie theater, in which the audience is surrounded by beautiful reverberations from the left, right and rear.

This program represents the spectacular feeling of large-scale movie productions. It reproduces a broad theater sound field that matches cinemascope and wider-screen movies with an excellent dynamic range providing everything from very small sound effects to large, impressive sounds.

This program clearly reproduces the finely elaborated sound design of the latest science fiction and special effects-featuring movies. You can enjoy a variety of cinematographically created virtual spaces reproduced with clear separation between dialog, sound effects and background music.

This program is ideal for precisely reproducing the sound design of action and adventure movies. The sound field restrains reverberations but puts emphasis on reproducing a powerful space expanded widely to the left and right. The reproduced depth is also restrained relatively to ensure the separation between audio channels and the clarity of the sound.

This program features stable reverberations that match a wide range of movie genres from serious dramas to musicals and comedies. The reverberations are modest but offer an optimum 3D feeling, reproducing effects tones and background music softly but cubically around clear words and center positioning in a way that does not fatigue the listener even after long hours of viewing.

Mono Movie

This program is provided for reproducing monaural video sources such as a classic movie in an atmosphere of a good old movie theater. The program produces the optimum expansion and reverberation to the original audio to create a comfortable space with a certain sound depth.

❑ ENTERTAINMENT

Sports

Action Game

Roleplaying Game

Music Video

Recital/Opera

This program allows the listeners to enjoy stereo sport broadcasts and studio variety programs with enriched live feeling. In sports broadcasts, the voices of the commentator and sportscaster are positioned clearly at the center while the atmosphere of the stadium expands in an optimal space to offer the listeners a feeling of presence in the stadium.

This program is suitable for action games such as car racing, fighting games and FPS games. The reality of, and emphasis on, various effects makes the player feel like they are right in the middle of the action, allowing for greater concentration. Use this program in combination with

Compressed Music Enhancer for a more dynamic and strong sound field.

This program is suitable for role-playing and adventure games. This program adds depth to the sound field for natural and realistic reproduction of background music, special effects and dialog from a wide variety of scenes. Use this program in combination with Compressed Music Enhancer for a more clear and spatial sound field.

This program offers an image of a concert hall for live performance of pop, rock and jazz music. The listener can indulge oneself in a hot live space thanks to the presence sound field that emphasizes the vividness of vocals and solo play and the beat of rhythm instruments, and to the surround sound field that reproduces the space of a big live hall.

This program controls the amount of reverberations at an optimum level and emphasizes the depth and clarity of human voices to offer the reverberations of an orchestra box in front the listener at the same time as providing the acoustic positioning and feeling of presence on the stage. The surround sound field is relatively moderate, but the data for concert hall effects are used to represent the inherent beauty of music. The listener will not be fatigued even after long hours of opera entertainment.

En

56

■

Sound programs suitable for music/stereo playback

(MUSIC)

The following sound programs are optimized for listening to music sources.

You can also select stereo playback.

❑ CLASSICAL

Hall in Munich

Hall in Vienna

Church in

Royaumont

Chamber

This program simulates a concert hall with approximately 2500 seats in

Munich, using stylish wood for the interior finishing as normal standards for

European concert halls. Fine, beautiful reverberations spread richly, creating a calming atmosphere. The listener's virtual seat is at the center left of the arena.

This program simulates an approximately 1700-seat, middle-sized concert hall with a shoebox shape that is traditional in Vienna. Pillars and ornate carvings create extremely complex reflections from all around the audience, producing a very full, rich sound.

Hall in Amsterdam

The large, shoe box shaped hall seats about 2200 around the circle stage.

Reflections are rich and pleasing while the sound travels freely.

Church in Freiburg

Located in the south of Germany, this grand, stone-built church has a pointed tower at 120 meters in height. Its long and narrow shape and the high ceiling enable the elongated reverberation time and limited initial reflection time. Thus, the rich reverberation rather than the sound itself reproduces the atmosphere of the church.

This program features the sound field created by the refectory (dining hall) of a beautiful medieval Gothic monastery located in Royaumont on the outskirts of Paris.

This program creates a relatively wide space with a high ceiling like an audience hall in a palace. It offers pleasant reverberations that are suitable for courtly music and chamber music.

❑ LIVE/CLUB

Village Vanguard

Warehouse Loft

Cellar Club

The Roxy Theatre

The Bottom Line

The Jazz club is on 7th Avenue, New York. This small club with the low ceiling makes the powerful reflections converge toward the stage located in the center.

The warehouse resembles some lofts in Soho. Sound reflects off the concrete walls clearly with a lot of energy.

This program simulates a live house with a low ceiling and homey atmosphere. A realistic, live sound field features powerful sound as if the listener is in a row in front of a small stage.

This program creates the sound field of a rock music live house in Los

Angeles, with approximately 460 seats. The listener's virtual seat is at the center left of the hall.

This program creates the sound field at stage front in The Bottom Line, a famous New York jazz club once. The floor can seat 300 people to the left and right in a sound field offering real and vibrant sound.

❑ STEREO

2ch Stereo

9ch Stereo

Use this program to mix down multi-channel sources to 2 channels. When multi-channel signals are input, they are down mixed to 2 channels and output from the front speakers (this program does not utilizes CINEMA DSP).

Use this program to output sound from all speakers. When you playback multi-channel sources, this unit down-mixes the source to 2 channels, and then outputs the sound from all speakers. This program creates a larger sound field and is ideal for background music at parties, etc.

En

57

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

S TRAIGHT

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

S UR.DECODE

■

Enjoying stereoscopic sound fields

(CINEMA DSP 3D)

CINEMA DSP 3D enables to create a natural stereoscopic sound field in your room.

CINEMA DSP 3D functions when both of the following conditions are met.

- One of the sound programs (except 2ch Stereo and 9ch Stereo) is

selected (p.56).

- “CINEMA DSP 3D Mode” (p.89) in the “Option” menu is set to

“On” (default).

DOCK

TAG

MUSIC

HD

S

IN

TEREO

OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

3

C L A S S I C A L

H a l l i n V i e n n a

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL S BL

S W

S BR PR

“CINEMA DSP 3 ” lights up

• We recommend using front presence speakers to have a full effect of the stereoscopic sound fields (and rear presence speakers for further spatial sounds).

However, this unit creates Virtual Presence Speaker (VPS) using the front, center and surround speakers to produce stereoscopic sound fields even when no front presence speakers are connected.

■

Enjoying sound field effects without surround speakers (Virtual CINEMA DSP)

If you select one of the sound programs (except 2ch Stereo and

9ch Stereo) when no surround speakers are connected, this unit automatically creates the surround sound field using the front-side speakers.

Enjoying unprocessed playback

You can play back input sources without any sound field effect processing.

■

Enjoying unprocessed sounds in original channels (straight decode)

When the straight decode mode is enabled, each speaker produces each channel audio signal directly (without sound field processing). When you play back 2-channel sources such as CD, stereo sound is heard from the front speakers. When you play back multi-channel sources, this unit produces unprocessed multichannel sounds.

1

Press STRAIGHT.

Each time you press the key, the straight decode mode is enabled or disabled.

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

HD 3

S T R A I G H T

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL

S W1 S W S R

PR

■

Enjoying unprocessed multi-channel sounds (surround decoder)

The surround decoder enables unprocessed multi-channel playback from 2-channel sources. When a multi-channel source is input, it works the same way as the straight decode mode.

For details on each decoder see “Glossary” (p.138).

1

Press SUR.DECODE to select a surround decoder.

Each time you press the key, the surround decoder switches.

DOCK

TAG

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

S U R . D E C O D E

P r o L o g i c

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S W1

C

S W

R PR

S R

PR

Pro Logic

PLIIx Movie

PLII Movie

Uses the Dolby Pro Logic decoder suitable for any sources.

Uses the Dolby Pro Logic IIx decoder (or Dolby Pro

Logic II decoder) suitable for movies.

En

58

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

PLIIx Music

PLII Music

PLIIx Game

PLII Game

Neo: 6 Cinema

Neo: 6 Music


Logic II decoder) suitable for music.


Logic II decoder) suitable for games.

Uses the DTS Neo: 6 decoder suitable for movies.

Uses the DTS Neo: 6 decoder suitable for music.

• You cannot select the Dolby Pro Logic IIx decoders when headphones are connected or when “Surround Back” in the “Setup” menu is set to “None”.

• To enable 6.1/7.1-channel playback from 5.1-channel sources when surround

back speakers are used, set “Extended Surround” (p.90) in the “Option” menu to

“ PLIIx Movie”, “ PLIIx Music” or “EX/ES”.

Enjoying pure high fidelity sound

(Pure Direct)

When the Pure Direct mode is enabled, this unit plays back the selected source with the least circuitry to reduce the electrical noise from other circuitry (front display, etc). It allows you to enjoy

Hi-Fi sound quality.

1

Press PURE DIRECT.

Each time you press the key, the Pure Direct mode is enabled or disabled.

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

HD

3

P U R E D I R E C T

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C

S W

R PR

S W2 S R

PL S B PR

Enjoying compressed music with enhanced sound (Compressed Music Enhancer)

Compressed Music Enhancer improves the sound enhancer near to the original depth and width of compressed music sources. This function can be used along with any other sound modes.

1

Press ENHANCER.

Each time you press the key, Compressed Music Enhancer is enabled or disabled.

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

HD 3

E n h a n c e r O n

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL

S W1 S W S R

PR

“ENHANCER” lights up

• Compressed Music Enhancer does not work on the following audio sources.

- Signals of which sampling rate is over 48kHz

- High-definition streaming audio

• You can also use “Enhancer” (p.90) in the “Option” menu to enable/disable

Compressed Music Enhancer.

Enjoying surround sound with headphones

(SILENT CINEMA)

• When the Pure Direct mode is enabled, the following functions are not available.

- Selecting sound programs

- Adjusting the tone control

- Operating the on-screen menu

- Viewing information on the front display (when not operated)

You can enjoy surround or sound field effects like a multi-channel speaker system with stereo headphones by connecting the headphones to the PHONES jack and selecting a sound program or a surround decoder.

En

59

1

TUNER

2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

PRE S ET

SUR.

DECODE



1

4

2

5

3

6

TUN./ CH

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

Numeric keys

ENT

Listening to FM/AM radio

You can tune into a radio station by specifying its frequency or selecting from registered radio stations.

• If you cannot have a good reception on the radio, adjust the direction of the FM/

AM antennas.

Selecting a frequency for reception

1

Press TUNER to select “TUNER” as the input source.

2

Press FM or AM to select a band.

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

2

S

3

LEEP

4

HD 3

F M 8 7 . 5 0 M H z

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

PL

S W1 S W

S B

S W2 S R

PR

3

Use the following keys to set a frequency.

TUN./CH: Increase/decrease the frequency.

Hold down the key for about a second to search the station automatically.

Numeric keys: Enter a frequency directly. For example, to select 98.50 MHz, press “9”, “8”, “5” and “0” (or ENT).

DOCK

TAG

HD

S TEREO

IN OUT 1

TUNED

ZONE

OUT 2 2

S

PRE AMP PARTY

ZONE

3

LEEP

ZONE

4

HD

3

F M 9 8 . 5 0 M H z

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C

S W

R PR

S W2 S R

PL S B PR

“TUNED” lights up when a signal is received from a radio station.

“STEREO” also lights up when a stereo signal is received.

Registering favorite radio stations (preset)

You can register up to 40 radio stations as presets. Once you registered stations, you can easily tune into those stations by selecting the preset number.

• You can automatically register FM radio stations with strong signals using “Auto

Preset” (p.62).

■

Registering a radio station

Select a radio station manually and register it to a preset number.

1

Follow “Selecting a frequency for reception” (p.60)

to tune into a desired radio station.

2

Hold down MEMORY for more than 2 seconds.

The radio station will be registered to the preset number

“01” for the first time. After that, it will be registered to an empty preset number (next to the lastly-registered preset number).

Preset number

DOCK Preset

TAG

HD

S TEREO

IN OUT 1

TUNED

OUT 2

ZONE

2

PRE AMP PARTY

ZONE ZONE

3

S LEEP

4

HD 3

0 1 : F M 9 8 . 5 0 M H z

P r e s e t O K

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S W1

C

S W

R PR

S R

PR

• “Wrong Station!” appears when you enter a frequency that is out of receivable range

• To select a preset number to which the station will be registered, press

MEMORY once after tuning into a desired radio station, use PRESET or numeric keys to select a preset number, and then press MEMORY again.

“Empty” (not in use) or frequency currently registered

DOCK

TAG

Preset

HD

S

IN

TEREO

OUT 1

TUNED

ZONE

OUT 2

2

PRE AMP PARTY

ZONE ZONE

3

S LEEP

4

HD 3

0 2 : E m p t y

F M 9 8 . 5 0 M H z

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S W1

PL S BL

S W2

S B S BR PR

• You can switch between “Stereo” (stereo) and “Mono” (monaural) for FM radio reception by pressing MODE. When signal reception for FM radio station is unstable, switching to “Mono” may improve it.

En

60

1

TUNER

2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Menu operation keys

Cursor keys

■

Selecting a preset station

Tune into a registered radio station by selecting the preset number.

1


2

Press PRESET repeatedly to select a desired radio station.

You can also enter a preset number (01 to 40) directly by using the numeric keys after pressing PRESET once.

DOCK

TAG

Preset

HD

S TEREO

IN OUT 1

TUNED

ZONE

OUT 2

2

S

PRE AMP PARTY

ZONE ZONE

3

LEEP

4

HD 3

0 1 : F M 9 8 . 5 0 M H z

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

PL

S W1 S W

S B

S W2 S R

PR

• “No Presets” appears when no radio stations are registered.

• “Wrong Num.” appears when an invalid number is entered.

• “Empty” appears when a preset number not in use is entered.

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

PRE S ET

• To clear preset stations, use “Clear Preset” or “Clear All Preset” (p.62).

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

Numeric keys

Operating the radio on the TV

You can view the radio information or select a radio station on the TV.

1


The playback screen is displayed on the TV.

■

Playback screen

3

1

2

4

1 Radio station information

Displays the information of the selected radio station such as the selected band (FM/AM) and frequency.

2 Band icon

Select this icon and press ENTER to switch between FM and AM.

3 TUNED/STEREO indicators

“TUNED” lights up when a signal is received from a radio station.

“STEREO” lights up when a stereo signal is received.

4 Operation menu

Use the cursor keys to select an item and press ENTER to confirm the selection.

To close the submenu, press RETURN.

Menu

Manual Tuning

Browse

Screen Off

Submenu

Tuning (+/-)

Auto (+/-)

Memory

Direct

Function

Selects a frequency.

Selects a radio station automatically.

Registers the selected station as presets.

Enters a frequency directly.

Moves to the browse screen (preset station list).

Closes the screen display and shows the background. Press one of the menu operation keys to redisplay it.

En

61

■

Browse screen

1

3

1 2

SCENE

3 4

2


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE


Cursor keys

1 Preset station list

Displays the list of preset stations. Use the cursor keys to select a preset station and press ENTER to tune into it.

2 Preset number




Menu

Utility

Submenu

Memory

Auto Preset

Clear Preset

Function

Registers the current station to the preset number selected in the list.

Automatically registers FM radio stations with strong signals (up to

40 stations).

Clear the preset station selected in the list.

Clear All Preset Clear all the preset stations.

1 Page Up

1 Page Down

Now Playing

Moves to the previous/next page of the list.

Screen Off

Moves to the playback screen.


En

62

Playing back iPod music/videos

You can play back iPod music/videos on this unit using a USB cable supplied with iPod, an optional Yamaha iPod dock (such as YDS-12) or an optional Yamaha iPod wireless system (YID-W10).

• This manual describes both the “iPod” and “iPhone” as the “iPod”. “iPod” means both “iPod” and “iPhone” unless the explanation describes exceptions.

• Some features may not be compatible depending on the model or software version of an iPod, or the model of an iPod dock.

Functional differences depending on the way of connection

Audio output

Video output

Operation with remote control of the unit

Operation with iPod

Operation on TV screen

Charging

Charging during standby mode

Supported iPod

(as of April 2011)

USB cable supplied with iPod iPod touch iPhone 4 iPhone 3GS iPhone 3G iPhone

✓

✓

✓

✓

✓

✓

—

* iPod nano (2 gen. to

6 gen.) iPod classic

Yamaha iPod universal dock

(such as YDS-12)

✓

✓

✓

✓

✓

✓

✓

Yamaha iPod wireless system

(YID-W10)

✓

—

—

✓

—

✓

✓ iPod touch iPod nano iPod classic iPod with video iPod with color display iPod with click wheel iPod mini iPhone 4 iPhone 3GS iPhone 3G iPhone iPod touch iPod nano iPod classic iPod with video iPhone 4 iPhone 3GS iPhone 3G iPhone

* Requires an Apple Composite AV Cable (not supplied). Connect the USB and composite video plugs of the

Apple Composite AV cable to the USB jack and VIDEO AUX (VIDEO) jack of this unit and set “Video Out

(USB)” (p.93) in the “Input” menu to “V-AUX”.

Connecting an iPod

■

Using a USB cable

Connect your iPod to this unit with the USB cable supplied with the iPod.

1

Connect the USB cable to the iPod.

2

Connect the USB cable to the USB jack.

This unit (front)

INPUT

ON SCREEN

RETURN

ENTER

USB


DISPLAY

PROGRAM

PHONES

1

ZONE 2

2

SCENE

3

MULTI ZONE

ZONE 3

4

ZONE CO

VIDEO AUX iPod/iPhone YPAO MIC SILENT CINEMA S VIDEO VIDEO L AUDIO R

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD

3

U S B

C o n n e c t e d

MUTE VOLUME

ADAPTIVE

PL L C

DRC

R PR

PL

S W1 S W

S B

S W2 S R

PR

En

63

■

Using an iPod dock

Refer to the instruction manual of the iPod dock in addition.

1

Set this unit to standby mode and connect the iPod dock to the DOCK jack.

Locate the iPod dock at the distance as far as from this unit.

DOCK

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

MONITOR OUT/

ZONE OUT


ANTENNA

(4 RADIO)

AM FM 75Ω iPod dock

This unit (rear)

2

Connect your iPod to the iPod dock and turn on this unit.

DOCK

L

R

DOCK NETWORK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1

ARC

MONITOR OUT/

ZONE OUT


ANTENNA

(4 RADIO)

AM FM 75Ω

A

B

1 2

3 iPod wireless system (receiver)

This unit (rear)

2

Connect the power cable to an AC wall outlet.

3

Connect your iPod to the iPod wireless system

(transmitter).

4

On your iPod, select the content and start playback.

This unit automatically turns on and selects “DOCK” as the input source.

• While an iPod is connected to the iPod dock, the iPod is charged. You can select whether to charge the iPod when this unit is in standby mode using

“Standby Charge” (p.92) in the “Input” menu.

■

Using an iPod wireless system

When using an iPod wireless system, operate your iPod itself to start playback after making a connection. Refer to the instruction manual of the iPod wireless system in addition.

1

Disconnect the power cable from the AC wall outlet and connect the iPod wireless system (receiver) to the DOCK jack.

Locate the iPod wireless system (receiver) at the distance as far as from this unit.

• You can select whether to control this unit (power on/off, input selection and

volume adjustment) in conjunction with iPod operations using “iPod

Interlock” (p.92) in the “Input” menu. When the iPod interlock function is

disabled, turn on this unit and select the input source manually.

• While the iPod wireless system (transmitter) is placed on the iPod wireless system (receiver), the iPod is charged. You can select whether to charge the

iPod when this unit is in standby mode using “Standby Charge” (p.92) in the

“Input” menu.

Caution

• When you use iPod controls to adjust volume, the volume may be unexpectedly loud. This could result in damage to this unit or speakers. If the volume suddenly increases during playback, remove the iPod from the iPod wireless system (transmitter) immediately. To prevent this problem, we

recommend using “Max Volume” (p.106) in the “Setup” menu to set the

maximum volume level for this unit.

En

64

USB

DOCK

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY


Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

U S B

Playback of iPod contents

When using a USB cable or an iPod dock, you can control the iPod with the menu displayed on the TV.

• When using an iPod wireless system, you cannot control the iPod from the TV screen. Operate your iPod itself to select the content and start playback.

1

When using a USB cable: press USB to select

“USB” as the input source.

When using an iPod dock: press DOCK to select

“DOCK” as the input source.

The browse screen is displayed on the TV.

* Display example (when using an iPod dock)

2

Use the cursor keys to select an item and press

ENTER.

If a song is selected, playback starts and the playback screen is displayed.

■

Browse screen

1

2

3

5

4

1 Status indicators

Display the current shuffle/repeat settings (p.67) and playback status

(play/pause, etc).

2 List name

3 Contents list

Displays the list of iPod contents. Use the cursor keys to select an item and press ENTER to confirm the selection.

4 Item number/total



Menu

1 Page Up

1 Page Down

10 Pages Up

10 Pages Down

Return

Now Playing

Screen Off

Function


Moves to 10 pages forward/backward.

Returns to the higher-level list.



• To return to the previous screen, press RETURN.

• To operate the iPod itself to select a content or control playback, switch to

the simple play mode (p.66).

En

65

■

Playback screen

1

2

3 4

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

External device operation keys


Cursor keys




(play/pause, etc).

2 Playback information

Displays the artist name, album name, song title and elapsed/remaining time.

Use the cursor keys to select information to be scrolled.

3 Album image




Menu Submenu Function

Resumes playback from pause.

Stops playback.

Stops playback temporarily.

Play Control

Skips forward/backward.

Browse

Screen Off

Searches forward/backward (by holding down).

Moves to the browse screen.


• You can also use the external device operation keys on the remote control to control playback.

■

Operating the iPod itself or remote control

(simple play)

1

Press MODE to switch to the simple play mode.

The TV menu screen turns off and iPod operations are enabled.

To display the TV menu screen, press MODE again.

2

Operate your iPod itself or the remote control to start playback.

Operational remote control keys

Function

Cursor keys

ENTER

RETURN

Select an item.

Confirms the selection.

Returns to the previous screen.

Starts playback or stops playback temporarily.

Stops playback.

External device operation keys Skips forward/backward.

Searches forward/backward (while holding down).

En

66

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

■

Shuffle/repeat settings

You can configure the shuffle/repeat settings of your iPod.

• When using an iPod wireless system, configure the shuffle/repeat settings directly on your iPod.

• During simple play, configure the shuffle/repeat settings directly on your iPod, or press MODE to display the TV menu screen and then follow the procedure below.

• Texts in parentheses denote indications on the front display.

1

When “USB” or “DOCK” is selected as the input source, press OPTION.

2

Use the cursor keys to select “Shuffle” (Shuffle) or

“Repeat” (Repeat) and press ENTER.

• To return to the previous screen during menu operations, press RETURN.


3

Use the cursor keys ( / ) to select a setting and press ENTER.

Item

Shuffle

(Shuffle)

Repeat

(Repeat)

Setting

Off (Off)

Songs

(Songs)

Albums

(Albums)

Off (Off)

One (One)

All (All)

Function

Turns off the shuffle function.

Plays back songs in random order. “ appears in the TV screen.

”

Plays back albums in random order. “ appears in the TV screen.

Turns off the repeat function.

Plays back the current song repeatedly.

“

1

” appears in the TV screen.

Plays back all songs repeatedly. “ appears in the TV screen.

”

”

4

To exit from the menu, press OPTION.

En

67

DOCK

1 2

SCENE

3 4


TOP MENU

ON SCREEN

POP-UP/MENU

OPTION

ENTER

RETURN DISPLAY

INFO


MEMORY FM AM

1

PRESET

4

ENTERTAIN

STRAIGHT

TV

8

TV VOL

0

9

TV CH

ENT LEVEL

ZONE SETUP

Cursor keys

Playing back music via Bluetooth

You can play back music stored on a Bluetooth component on this unit using a Yamaha Bluetooth wireless audio receiver (such as

YBA-10, optional). Refer to the instruction manuals of the Bluetooth receiver and your Bluetooth component in addition.

This unit supports A2DP (Advanced Audio Distribution Profile) of the Bluetooth profile.

Pairing Bluetooth components

Be sure to perform pairing when connecting a Bluetooth component to the Bluetooth receiver for the first time, or when the pairing setting has been deleted.

• When connecting your Bluetooth component to the Bluetooth receiver for the first time, you need to perform “pairing” (mutual recognition for 2 Bluetooth components). After that, you only need to establish a wireless connection between those components to play back music via Bluetooth. “Pairing” must be performed between each combination. So if you have several Bluetooth components, you need to pair each of your Bluetooth components with the Bluetooth receiver.

Connecting a Bluetooth receiver

1

When this unit is in standby mode, connect the

Bluetooth receiver to the DOCK jack.

Locate the Bluetooth receiver at the distance as far as from this unit.

DOCK

DOCK NETWORK

1

ARC

MONITOR OUT/

ZONE OUT

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

PHONO

GND

L

R


ANTENNA

(4 RADIO)

AM FM 75Ω

Bluetooth receiver

This unit (rear)

2

Turn on this unit.

• The Yamaha Bluetooth receiver (YBA-10) can be paired with up to eight Bluetooth components. When the ninth component is paired, the pairing setting for the component which has not been used for the longest period of time will be deleted.


1

Press DOCK to select “DOCK” as the input source.

2

Turn on your Bluetooth component and set it to the pairing mode.

3

Press OPTION, use the cursor keys to select

“Pairing” (Pairing), and then press ENTER.

Searching starts. If your Bluetooth component recognizes the Bluetooth receiver, the model name (such as “YBA-10

YAMAHA”) will be displayed in the device list of your component.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD 3

D O C K

S e a r c h i n g . . .

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL

S W1 S W S R

PR

• To cancel the search, press RETURN.

• You can also start the search by holding down MEMORY instead of step 3.

(To cancel the search, press MEMORY again.)

En

68

DOCK

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

4

Select the Bluetooth receiver from the device list and enter the pass key “0000”.

“Completed” appears when the pairing is complete.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

ZONE

4

S LEEP

HD 3

D O C K

C o m p l e t e d

MUTE VOLUME

ADAPTIVE DRC

PL

PL

L

S W1

C

S W

S B

R PR

S W2 S R

PR

Establishing a wireless connection and playing back

When the pairing is complete, follow the procedure below to establish a wireless connection between your Bluetooth component and the Bluetooth receiver. When the connection is established, this unit outputs sounds played back on the Bluetooth component.

• Depending on Bluetooth components, “BT connected” appears when the pairing is complete. In this case, the wireless connection has been already established. You just need to start playback on your Bluetooth component to enjoy it on this unit.

5


• Depending on Bluetooth components, a wireless connection is established automatically or by operating the Bluetooth component. In this case, you can skip steps 2 and 3 below.


1

Press DOCK to select “DOCK” as the input source.

2

Press OPTION.

3

Use the cursor keys to select “Connect” (Connect) and then press ENTER.

“BT connected” appears when the wireless connection is established.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD 3

B T c o n n e c t e d

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL

S W1 S W S R

PR

• If the Bluetooth receiver is paired with more than one Bluetooth component, the lastly-connected component is automatically chosen. When you cannot establish a connection with an intended component, perform pairing again or perform the connection operation from the intended component.

• “Not found” appears if a connection cannot be established. Check the followings and try again.

- The Bluetooth component and Bluetooth receiver are paired.

- The Bluetooth component is turned on and the Bluetooth mode is enabled.

- The Bluetooth component is within 10 m (32 ft) of the Bluetooth receiver.

4

Start playback on your Bluetooth component.

• To terminate the wireless connection, select “Disconnect” (Disconnect) in step 3.

En

69

USB

1 2

SCENE

3 4

U S B


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY

Cursor keys

RETURN

MODE

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Playing back music stored on a USB storage device

You can play back music files stored on a USB storage device on this unit. Refer to the instruction manuals of the USB storage device in addition.

This unit supports USB mass storage class devices (FAT16 or

FAT32 format, except USB HDDs).

Playback of USB storage device contents

Follow the procedure below to operate the USB storage device contents and start playback.

1

Press USB to select “USB” as the input source.


• This unit supports playback of WAV (PCM format only), MP3, WMA, MPEG-4 AAC and FLAC files.

• This unit is compatible with sampling frequency of up to 96 kHz for WAV and

FLAC files, and 48 kHz for other files.

Connecting a USB storage device

1

Connect the USB storage device to the USB jack.

This unit (front)

MULTI ZONE

PROGRAM

ENTER

ZONE 2 ZONE 3 ZONE CO

RETURN DISPLAY

PHONES VIDEO AUX

USB iPod/iPhone YPAO MIC SILENT CINEMA S VIDEO VIDEO L AUDIO R

U S B

• If playback is ongoing on your USB storage device, the playback screen is displayed.

2


ENTER.


USB storage device

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD 3

U S B

C o n n e c t e d

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

PL

S W1 S W

S B

S W2 S R

PR

• If the USB storage device contains many files, it may take time to load the files. In this case, “Loading...” appears in the front display.


• Files not supported by this unit are not listed.

• You can register your favorite items as shortcuts (p.84) and access them

directly by selecting the shortcut numbers.

En

70

■

Browse screen

1

2

3

5

1 2

SCENE

3 4

4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE



Cursor keys

RETURN



Display the current shuffle/repeat settings (p.72) and playback status.

2 List name

3 Contents list

Displays the list of USB storage device contents. Use the cursor keys to select an item and press ENTER to confirm the selection.




Function Menu

1 Page Up

1 Page Down

10 Pages Up

10 Pages Down

Return

Now Playing

Screen Off






■

Playback screen

1

2

3 4


Display the current shuffle/repeat settings (p.72) and playback status.


Displays the artist name, album name, song title and elapsed time.


3 Album image




Menu Submenu Function

Stops playback.

Play

Control


Browse

Screen Off



• You can also use the external device operation keys ( , , remote control to control playback.

, ) on the

En

71

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY

Cursor keys

RETURN

MODE

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

■


You can configure the shuffle/repeat settings for playback of USB storage device contents.

• The shuffle/repeat settings are shared by USB and network sources.

1

When “USB” is selected as the input source, press

OPTION.

2





3


Item

Shuffle

(Shuffle)

Repeat

(Repeat)

Setting

Off (Off)

On (On)

Off (Off)

Single

(Single)

All (All)

Function


Plays back songs in the current album

(folder) in random order. “ ” appears in the TV screen.



“

1


Plays back all songs in the current album

(folder) repeatedly. “ ” appears in the

TV screen.

4


En

72

NET

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Playing back music stored on PCs

You can play back music files stored on your PC or DLNAcompatible NAS on this unit.

• To use this function, this unit and your PC must be connected to the network

properly (p.40). You can check whether the network parameters (IP address, etc.)

are properly assigned to this unit in “Network” (p.117) in the “Information”.

• This unit supports playback of WAV (PCM format only), MP3, WMA, MPEG-4 AAC and FLAC files.

• This unit is compatible with sampling frequency of up to 96 kHz for WAV and

FLAC files, and 48 kHz for other files.

• To play back FLAC files, you need to install server software that supports sharing of FLAC files via DLNA on your PC or use a NAS that supports FLAC files.

Requirements

This unit can play back music files stored on the following music servers.

- PC with Windows Media Player 11 or later installed

- PC with DLNA/UPnP certificate server software installed

- NAS with DLNA/UPnP certification

Media sharing setup

To play back music files stored on your PC or DLNA-compatible

NAS, first you need to configure the media sharing setting on each music server.

■

For a PC with Windows Media Player installed

1

Check that Windows Media Player 11 or later is installed on your PC.

2

In the media sharing settings, enable the media sharing and select this unit as a device to which the media is shared.

■

For a NAS or a PC with other DLNA sever software installed

Refer to the instruction manual of the device or software and configure the media sharing setting.

Playback of PC music contents

Follow the procedure below to operate the PC music contents and start playback.

1

Press NET repeatedly to select “PC” as the input source.


• If playback of a music file selected from this unit is ongoing on your PC, the playback screen is displayed. This function works only when “DMC Control”

(p.93) in the “Input” menu is set to “Disable”.

2

Use the cursor keys to select a music server and press ENTER.

3


ENTER.


En

73

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE


• Files not supported by this unit are not listed (or cannot be selected even if listed).

• You can register your favorite items as shortcuts (p.84) and access them

directly by selecting the shortcut numbers.

■

Browse screen

1

2

3


6


Cursor keys

RETURN


5



(play/pause).

2 List name

3 Contents list

Displays the list of PC contents. Use the cursor keys to select an item and press ENTER to confirm the selection.

4 Album image




Function Menu

1 Page Up

1 Page Down

10 Pages Up

10 Pages Down

Return

Now Playing

Screen Off






■

Playback screen

1

2

3 4



(play/pause).


Displays the artist name, album name, song title and elapsed time.


3 Album image




Menu

Play

Control

Submenu Function

Resumes playback from pause.

Stops playback.



Browse

Screen Off



• You can also use the external device operation keys ( , , , remote control to control playback.

, ) on the

• You can also use a DLNA-compatible Digital Media Controller (DMC) to control

playback. For details, see “DMC Control” (p.93).

En

74

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY

Cursor keys

RETURN

MODE

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

■


You can configure the shuffle/repeat settings for playback of PC music contents.

• The shuffle/repeat settings are shared by USB and network sources.

1

When “PC” is selected as the input source, press

OPTION.

2





3


Item

Shuffle

(Shuffle)

Repeat

(Repeat)

Setting

Off (Off)

On (On)

Off (Off)

Single

(Single)

All (All)

Function


Plays back songs in the current album

(folder) in random order. “ ” appears in the TV screen.



“

1


Plays back all songs in the current album

(folder) repeatedly. “ ” appears in the

TV screen.

4


En

75

Listening to Internet radio

You can listen to Internet radio stations using the vTuner Internet radio station database service particularly customized for this unit, providing a database of numerous radio stations in the world.

NET

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY


Cursor keys

RETURN

• To use this function, this unit must be connected to the Internet (p.40). You can

check whether the network parameters (IP address, etc.) are properly assigned to

this unit in “Network” (p.117) in the “Information”.

• This service may be discontinued without notice.

• Some Internet radio stations may not be played.

1

Press NET repeatedly to select “NET RADIO” as the input source.


MODE

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

2


ENTER.

If an Internet radio station is selected, playback starts and the playback screen is displayed.

■

Browse screen

1

2

3

4

5

6

1 Playback indicator

2 List name

3 Contents list

Displays the list of Internet radio contents. Use the cursor keys to select an item and press ENTER to confirm the selection.

4 Station art




Menu

Bookmark On

1 Page Up

1 Page Down

10 Pages Up

10 Pages Down

Return

Now Playing

Screen Off

Function

Adds the station selected in the list to “Bookmarks”.







• You can register your favorite Internet radio stations as shortcuts (p.84) and

access them directly by selecting the shortcut numbers.

En

76

1 2

SCENE

3 4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE



Cursor keys

RETURN


• By adding your favorite Internet radio stations to “Bookmarks”, you can access to them quickly from “Bookmarks”. To remove stations from “Bookmarks”, select the station in “Bookmarks” and then “Bookmark Off”.

• You can also register your favorite Internet radio stations by accessing the following website with the web browser on your PC. To use this feature, you need the vTuner ID of this unit and your e-mail address to create your personal account.

You can check the vTunerID (MAC address of this unit) in the “Network” screen

(p.117) in the “Information” menu.

http://yradio.vtuner.com/

■

Playback screen

1

2

3 4

1 Playback indicators


Displays the station name and elapsed time.

3 Station art




Menu

Bookmark

On

Play

Control

Browse

Submenu Function

Adds the current station to “Bookmarks”.

Stops playback.

Screen Off



• You can also use the external device operation keys ( , ) on the remote control to control playback.

En

77

Playing back music in multiple rooms (multi-zone)

The multi-zone function allows you to play back separate input sources in the room where this unit is installed (main zone) and other rooms (Zone2 and Zone3).

For example, while you are watching a TV in the living room (main zone), another person can listen to radio in the bedroom (Zone2), and another can listen to PC music in the study room (Zone3).

• Since there are many possible ways to use this unit in a multi-zone configuration, we recommend that you consult with your nearest authorized Yamaha dealer or service center about the multi-zone connections that best meet your requirements.

Preparing for Zone2 or Zone3

Connect devices to be set in Zone2 or Zone3 to this unit. The connection method varies depending on an amplifier to use (this unit or external amplifier).

Caution

• Remove the power cable of this unit from an AC wall outlet before connecting speakers or an external amplifier.

• Be careful that the core of the speaker cable does not touch anything or come into contact with the metal areas of this unit. This may damage this unit or the speakers. If the speaker cables short circuit, “CHECK SP WIRES” will appear on the front display when this unit is turned on.

Bedroom (Zone2)

■

Using the internal amplifier of this unit

Connect the speakers placed in Zone2 or Zone3 to this unit with

speaker cables. For details, see “Connecting Zone2/3 speakers”

(p.26).

Living room (main zone)

Study room

(Zone3)

• Only analog audio signals (including radio, USB and network sources) can be output to Zone2 or Zone3. To listen to playback sounds of an external device in

Zone2 or Zone3, you need to connect the device to the AUDIO jacks of this unit

with a stereo pin cable. The party mode (p.83) allows you to enjoy main zone

sources in all zones simultaneously regardless of input audio signal types.

En

78

■

Using an external amplifier

Connect the external amplifier placed in Zone2 or Zone3 to this unit with a stereo pin cable.

This unit (rear)

AV 1

(1 BD/DVD)

AV 2 AV 3

COMPONENT VIDEO


HDMI

AV 4 AV 5

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P

B

P

R

PRE OUT

(SIN

ZONE OUT

(ZONE 2 or ZONE 3) jacks

L

R

D

FRONT SURROUND

L

SUR. BACK SUBWOOFER ZONE 2

R

SURROUND BACK

L

ZONE 3 FRONT SURROUND SUR.


R

EXTRA SP2

L

ZONE 2 ZONE 3

External amplifier

Audio input (analog stereo)

SINGLE

L

R

AUDIO

Zone2 or Zone3

Main zone

En

79

■

Connecting a zone video monitor

Connect a zone video monitor to watch videos at Zone2 or Zone3.

Depending on the video input jacks available on your video monitor, choose one of the video connection methods.

• The following features are also available for Zone2 or Zone3.

- Navigating contents on the browse screen or viewing information in the playback screen

- Configuring “Tone Control”, “Shuffle” and “Repeat” in the “Option” menu (p.88)

• The video conversion between the analog video jacks does not work for multi-zone video output. To watch videos played back on a video device on the zone video monitor, you need to connect the video monitor to this unit in the same way as the video device.

ZONE OUT jacks

(any of COMPONENT VIDEO,

VIDEO, S VIDEO)

1

ARC

HDMI OUT

Y


P

B

P

R

2 AV 1

(1 BD/DVD)

AV 2 AV 3

HDMI

AV 4

P R

P B

Y

AV 5

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P

B

COMPONENT VIDEO

Y AV 3 P

B

C P

R

MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P B P R

PRE OUT

IN

(SING


MONITOR OUT/

ZONE OUT

R

SURROUND

FRONT

L

SURROUND

V

R

SUR. BACK SUBWOOFER

SURROUND BACK

L

ZONE 2 ZONE 3 FRONT SURROUND

SPEAKERS


R EXTRA SP2 L

SUR. B

S

SINGLE

This unit (rear)

P R

P B

Y

Video input

(any of component video, composite video, S-video)

COMPONENT VIDEO

Y P B P R

VIDEO

V

S VIDEO

S

Zone2 or Zone3

Main zone

To assign the ZONE OUT jacks to the zone video monitor, select the

corresponding zone in “Monitor Out Assign” (p.112) in the “Setup”

menu.

En

80

■

Operating this unit from another room

(remote connection)

By connecting an infrared signal receiver/emitter to the REMOTE1

(IN/OUT) or REMOTE2 (IN/OUT) jacks of this unit, you can operate this unit and external devices from Zone2 or Zone3 with the supplied remote control.

• To operate external devices with the supplied remote control, register a remote

control code for each device in advance (p.121).

This unit (rear)

REMOTE1~2 (IN/OUT) jacks

AV 3

HDMI

AV 4 AV 5 AV 6 AV 7

C

P

R

D

ZONE OUT

Y


P B P R

PRE OUT

IN

(SINGLE)

1

REMOTE

OUT IN

(FRONT)

1

2

OUT

1

2

+12V 0.1A MA

IN

2

R ZONE 2

K

L


SPEAKERS


R EXTRA SP2 L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

1

REMOTE

OUT IN

2

OUT

❑ Remote connections between Yamaha products

If you are using Yamaha products that support remote connections like this unit, an infrared signal transmitter is unnecessary. You can transmit remote control signals by connecting the REMOTE IN/OUT jacks with monaural mini-jack cables and an infrared signal receiver.

REMOTE IN/OUT jacks

IN

REMOTE

OUT

REMOTE IN/OUT jacks

IN

REMOTE

OUT

Infrared signal receiver

Yamaha products

(up to 6, including this unit)

Remote control

Zone2 or Zone3


NGLE

Infrared signal transmitter

Infrared signal receiver

External device

(CD player, etc.)

Remote control

Zone2 or Zone3

Main zone

En

81

1 2

AV

3

1 2

AUDIO

3

USB PHONO

DOCK

MULTI

TUNER

1 2

SCENE

3

4

V-AUX

4

NET

4

AV1 ~ 4

V-AUX

AUDIO1 ~ 4

PHONO

U S B

NET

DOCK

TUNER


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Controlling Zone2 or Zone3

1

Press ZONE repeatedly to select a zone.

Each time you press the key, the zone to be operated switches.

Selected zone (turns off when main zone is selected)

RECEIVER

2

Press RECEIVER .

Each time you press the key, audio output to the selected zone is enabled or disabled.

When audio output to any of zones is enabled, the corresponding zone indicator lights up in the front display.

3

Use the following keys to select an input source.

AV1~4: AV1~4 (AUDIO) jacks

V-AUX: VIDEO AUX (AUDIO) jacks (on the front panel)

AUDIO1~4: AUDIO1~4 (AUDIO) jacks

PHONO: PHONO jacks

USB: USB jack (on the front panel)

NET: NETWORK jack (press repeatedly to select a desired network source)

DOCK: DOCK jack

TUNER: FM/AM radio

4

Start playback on the external device, or select a radio station.

Refer to the instruction manual of the external device.

For details on the following operations, see the corresponding pages.

- Listening to FM/AM radio (p.60)

- Playing back iPod music (p.63)

- Playing back music via Bluetooth (p.68)

- Playing back music stored on a USB storage device (p.70)

- Playing back music stored on PCs (p.73)

- Listening to Internet radio (p.76)

Caution

• To avoid unexpected noise, never play back DTS-CDs in Zone2 or Zone3.

• You cannot select USB and network sources exclusively for each zone. For example, if you select “PC” for Zone2 when “USB” is selected for the main zone, the input source for the main zone also switches to “PC”.

En

82

S OURCE

U S B

1 2

S CENE

3 4

S CENE


TOP MENU

ON S CREEN

POP-UP/MENU

OPTION

VOLUME

MUTE

ENTER

RETURN S PLAY

INFO


MEMORY FM AM

1

PRE

4

CLA SS ICAL ENTERTAIN

TV

8

TV VOL

0

6

9

TV CH

ENT

S TRAIGHT

S

PURE

DIRECT

LEVEL

ZONE S ETUP

S LEEP

■

Other operations for Zone2 or Zone3

The following functions are also available when audio output to the zone you want to operate is enabled.

Adjusting the volume

Press VOLUME or MUTE.

Selecting the input source and settings at once (SCENE)

Press SCENE.

• To register the current settings (input source, volume and tone control) to a scene, hold down the desired SCENE key until “SET Complete” appears on the front display.

Setting the sleep timer

Press SLEEP repeatedly to set the time (120 min, 90 min, 60 min, 30 min, off).

Adjusting the high-/low-frequency range of sounds a Press ZONE CONTROL on the front panel to select the zone you want to operate.

b Press TONE/BALANCE repeatedly to select “Treble” or “Bass”.

c Press PROGRAM to make an adjustment.

Setting range

-10.0dB ~ +10.0dB (2.0dB steps)

Default

0.0dB

Adjusting the front speaker balance a Press ZONE CONTROL on the front panel to select the zone you want to operate.

b Press TONE/BALANCE repeatedly to select “Balance”.

c Press PROGRAM to make an adjustment.

■

Enjoying main zone sources in all zones

(party mode)

The party mode allows you to enjoy main zone sources in all zones simultaneously. During the party mode, stereo playback is automatically selected for all zones. Utilize this function when you want to play back main sources as background music in a home party, etc.

1

Press PARTY.

Each time you press the key, the party mode is turned on or off.

When the party mode is turned on, “PARTY” lights up in the front display.

• You can select the zones to be included in the party mode in “Party Mode

Set” (p.112) in the “Setup” menu.

En

83

U S B

U S B NET

1 2

S CENE

3 4


TOP MENU

ON S CREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

S PLAY

PRE S ET

CLA SS ICAL

LIVE

CLUB

MOVIE

TV

INPUT

TV VOL TV CH

MUTE

ENTERTAIN

PURE

DIRECT

PRE S ET

UR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

S LEEP

LEVEL

ZONE S ETUP

Numeric keys

Useful functions

Registering favorite items (shortcut)

You can register up to 40 favorite USB and network contents as shortcuts and access them directly by selecting the shortcut numbers.

• You can also use the “Bookmarks” feature to register Internet radio stations (p.76).

■

Registering an item

Select a desired item and register it to a shortcut number.

1

Play back a song or a radio station to be registered.

2

Press MEMORY.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

ZONE

4

S LEEP

HD 3

M e m o r y P r e s e t

0 1 : E m p t y

MUTE VOLUME

ADAPTIVE DRC

PL

PL

L

S W1

C

S W

S B

R PR

S W2 S R

PR

Shortcut number (flashes)

• To change a shortcut number to which the item will be registered, use

PRESET or numeric keys to select the shortcut number after step 2.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD

3

M e m o r y P r e s e t

0 2 : E m p t y

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C

S W

R PR

S W2 S R

PL S B PR

“Empty” (not in use) or item currently registered

3

To confirm the registration, press MEMORY.

■

Recalling a registered item

Recall a registered item by selecting the shortcut number.

1

Press NET or USB.

2

Press PRESET repeatedly to select a desired item.

You can also enter a shortcut number (01 to 40) directly by using the numeric keys.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

HD 3

R e c a l l P r e s e t

0 1 : U S B

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S L

PL

S W1 S W S R

PR

• “No Presets” appears when no items are registered.

• “Empty” appears when a preset number not in use is entered.

• The registered item cannot be recalled in the following cases.

- A USB storage device which contains the registered item is not connected to this unit.

- A PC which contains the registered item is turned off or not connected to the network.

- The registered network content is temporarily unavailable or out of service.

- The registered item (file) has been deleted or moved to another location.

• When you register music files stored on a USB storage device or a PC, this unit memorizes the relative position of the music files in the folder. If you have added or deleted any music files to or from the folder, this unit may not recall the music file correctly. In such cases, register the items again.

En

84

Controlling this unit from the web browser

(web control)

You can control this unit with the web control screen displayed in the web browser.

Web browser

■

Top menu screen

1

5

PC

Web control

Router

Web control

This unit

• To use this function, this unit and your PC must be connected to the network

properly (p.40).

• Some security software installed on your PC may block the access of this unit to your PC. In such cases, configure the security software appropriately.

• We recommend using Internet Explorer 7.x or 8.x as a web browser.

• If you set “Network Standby” (p.86) to “On”, you can display the web control

screen even when this unit is in standby mode.

• You can limit access to this unit from the network devices (PCs, etc.) with

the MAC address filter (p.86).

1

Start the web browser.

2

Enter the IP address of this unit in the address bar of the web browser.

(Example)

6

2

3

4

1 CONTROL

Moves to the control screen for the selected zone.

7

2 STATUS

Turns on/off the power for each zone, or displays the input source and volume set for each zone.

3 SETTINGS

Moves to the settings screen.

4 PARTY MODE

Turns on/off the party mode (p.83).

5 SYSTEM POWER

Turns on/off the power for all zones.

6 MAIN VOLUME

Adjusts the volume or mutes the audio output for the main zone. You can also switch the step for the volume adjustment.

7 RELOAD

Reloads the current status of this unit.

• You can check the IP address in “Network” (p.117) in the “Information”

menu.

• By adding the IP address of this unit to the bookmark of the browser, you will be able to open it without entering the IP address from the next time.

However, the IP address of this unit may change if you are using a DHCP server.

En

85

■

Control screen

3

4

1

5

2 6

1 PLAY INFO

Selects an input source or controls playback for the selected zone.

2 TOP MENU

Moves to the top menu screen.

3 SCENE

Select a scene for the selected zone.

4 POWER

Turns on/off the power for the selected zone.

5 VOLUME

Adjusts the volume or mutes the audio output for the selected zone. You can also switch the step for the volume adjustment.

6 RELOAD


■

Settings screen

1

2 3

1 Rename

Edits the friendly name (name for this unit in the network) or the name of

each zone (p.113). Click “APPLY” to apply the changes to this unit.

MAC Filter

Sets the MAC address filter (p.111) to limit access to this unit from the

network devices. Click “APPLY” to apply the changes to this unit.

Auto Reload

Enables/disables automatic reloading. When “Auto Reload” is “On”

(enabled), the web control screen reloads the status of this unit every 5 seconds.

Network Standby

Enables/disables the network standby function (p.111).

Tips 1/ 2

Displays the tips for use of the web control.

Create Link

Creates a shortcut link to the desired control screen.

Backup/Recovery

Creates backup of the settings of this unit on the PC, or restores the settings from the backup.

2 BACK

Moves to the top menu screen.

3 RELOAD


Note

• Do not operate this unit during the recovery process (restoring the settings).

Otherwise, the settings may not be restored correctly. When the recovery finishes, click “OK” to set this unit to standby mode.

• The backup does not contain user information (user account, password, etc.) or unit-specific information (MAC address, IP address, etc).

En

86

1 2

SCENE

3 4


TOP MENU

ON SCREEN

POP-UP/MENU

OPTION

ENTER

RETURN DISPLAY

DI S PLAY

INFO


MEMORY FM AM

1

PRESET

4

ENTERTAIN

STRAIGHT

TV

8

TV VOL

0

9

TV CH

ENT LEVEL

ZONE SETUP

Viewing the current status

■

Switching information on the front display

1

Press INFO.

Each time you press the key, the display item switches.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

3

I n f o

D S P P r o g r a m

MUTE VOLUME

ADAPTIVE DRC

PL

PL

L

S W1

C

S W

S B

R PR

S W2 S R

PR

Item name

About 3 seconds later, the corresponding information appears.

DOCK

TAG

HD

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

S LEEP

ZONE

4

3

A V 1

T h e R o x y T h e a t

MUTE VOLUME

ADAPTIVE DRC

PL

PL

L

S W1

C

S W

S B

R PR

S W2 S R

PR

Information

■

Viewing the status information on the TV

1

Press DISPLAY.

The following information is displayed on the TV.

Input source

Volume

Audio format/

Decoder

Sound mode

CINEMA DSP status

2

To close the information display, press DISPLAY.

• Available items vary depending on the selected input source. Also, the display item can be applied separately to each input source group.

Input source group Item

AV1~7

V-AUX

AUDIO1~4

PHONO

DSP Program (sound mode name), Audio Decoder

(decoder name)

TUNER

DOCK

Frequency (frequency), DSP Program (sound mode name), Audio Decoder (decoder name)

Song (song title), Artist (artist name), Album (album name), DSP Program (sound mode name), Audio

Decoder (decoder name)

* When using iPod wireless system, Bluetooth receiver, or during simple play:

DSP Program (sound mode name), Audio Decoder

(decoder name)

PC

USB

NET RADIO

Song (song title), Artist (artist name), Album (album name), DSP Program (sound mode name), Audio

Decoder (decoder name)

* When iPod is connected via USB, the display item switches in the same manner as “DOCK”.

Station (station name), DSP Program (sound mode name), Audio Decoder (decoder name)

En

87

Configuring settings in accordance with a playback source (Option menu)

You can configure the playback-related settings in accordance with a playback source.

Since this menu is operational on the front panel (or on the TV screen), you can easily configure the settings during playback.

1

Press OPTION.

DOCK

TAG

HD

O p t i o n

IN OUT 1 OUT 2

ZONE

2

PRE AMP PARTY

ZONE

3

ZONE

4

S LEEP

HD 3

T o n e C o n t r o l

Front display

TV screen

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L C

S W

R PR

S BR

S R

PR

2

Use the cursor keys to select an item and press ENTER.


3


4


Option menu items

• Available items vary depending on the selected input source.


Item

Tone Control

(Tone Control)

Adaptive DRC

(Adaptive DRC)

Function

Adjusts the high-frequency range and low-frequency range of sounds.

Page

89

Sets whether dynamic range (from maximum to minimum) is adjusted automatically in conjunction with adjusting the volume level.

89

CINEMA DSP 3D Mode

(CINEMA DSP 3D)

Dialogue Lift

(Dialog Lift)

Extended Surround

(EXTD Surround)

Volume Trim

(Volume Trim)

Enhancer (Enhancer)

Video Adjustment

(Video Adjust)

Audio Select

(Audio Select)

Enables/disables CINEMA DSP 3D.

Adjusts the vertical position of center sound when front presence speakers are used.

Selects the 5.1 to 7.1-channel signal playback method when surround back speakers are used.

Corrects volume differences between input sources.

Enables/disables Compressed Music Enhancer.

Selects a video adjustment setting from presets.

Shuffle (Shuffle)

Repeat (Repeat)

Connect/Disconnect

(Connect/Disconnect)

Pairing (Pairing)

Selects the audio input jack to use when more than one audio connection is made for one input source.

Configures the shuffle setting for the iPod (p.67), USB

storage device (p.72) or PC (p.75).

Configures the repeat setting for the iPod (p.67), USB

storage device (p.72) or PC (p.75).

Establishes/terminates a wireless connection between your

Bluetooth component and the Bluetooth receiver.

Performs pairing of your Bluetooth component and the

Bluetooth receiver.

89

89

90

90

90

90

90

—

—

69

68

En

88

■

Tone Control (Tone Control)

Adjusts the high-frequency range (Treble) and low-frequency range (Bass) of speaker sounds. When connecting headphones, you can adjust high-frequency range and lowfrequency range of sounds output from headphones.

Choices

Treble (Treble), Bass (Bass)

Setting range

-6.0db ~ Bypass (Bypass) ~ +6.0dB *0.5dB steps

Default

Bypass (Bypass)

• If you set the balance extremely off, sounds may not match those from other channels well.

Adjusting with the front panel controls a Press TONE/BALANCE to select “Treble” or “Bass”.

b Press PROGRAM to make an adjustment.

■

Adaptive DRC (Adaptive DRC)

Sets whether dynamic range (from maximum to minimum) is adjusted automatically in conjunction with adjusting the volume level. When it is set to “On”, it is useful for listening to playback at low volume at night.

Settings

On (On)

Off (Off) (default)

Adjusts the dynamic range automatically.

Does not adjust the dynamic range automatically.

If “On” is selected, the dynamic range becomes narrow at a low volume, and becomes wide at a high volume.

Volume: low Volume: high

On

Off

Input level

On

Off

Input level

■

CINEMA DSP 3D Mode (CINEMA DSP 3D)

Enables/disables CINEMA DSP 3D. If this function is set to “On”, CINEMA DSP 3D functions according to the selected sound programs (except 2ch Stereo and 9ch

Stereo).

Settings

On (On) (default)

Off (Off)

Enables CINEMA DSP 3D.

Disables CINEMA DSP 3D.

■

Dialogue Lift (Dialog Lift)

Adjusts the vertical position of center sound such as dialogues when front presence speakers are used. If dialogues are heard from a position lower than the TV screen, adjust this setting to raise the position.

Setting range

0~5 (higher raises the position)

Default

0

Ideal position

En

89

■

Extended Surround (EXTD Surround)

Selects how to play back 5.1- to 7.1-channel sources when surround back speakers are used.

Settings

Auto (Auto) (default)

PLIIx Movie

( PLIIxMo)

PLIIx Music

( PLIIxMu)

EX/ES (EX/ES)

Off (Off)

Automatically selects the most suitable decoder if a flag for reproducing surround back channel is present, and reproduces the signals in 6.1- or 7.1-channel.

When the DTS or DTS-HD signal is input, the unit reproduces the signal in 7.1-channel regardless of a flag for surround back channel.

Always reproduces signals in 7.1-channel using the Dolby Pro Logic

IIx Movie decoder. This setting is available only when two surround back speakers are connected.

Always reproduces signals in 6.1- or 7.1-channel using the Dolby Pro

Logic IIx Music decoder. This setting is available only when one or two surround back speakers are connected.

Automatically selects the most suitable decoder, and reproduces signals in 6.1-channel.

Always reproduces signals in original channels.

■

Volume Trim (Volume Trim)

Corrects volume differences between input sources. If you are bothered by volume differences when switching between input sources, use this function to correct it.

• This setting is applied separately to each input source.

Setting range

-6.0dB ~ +6.0dB (0.5dB steps)

Default

0.0dB

■

Enhancer (Enhancer)

Enables/disables Compressed Music Enhancer (p.59).


Settings

Off (Off)

On (On)

Disables Compressed Music Enhancer.

Enables Compressed Music Enhancer.

Default

TUNER, DOCK, (network sources), USB: On (On)

Others: Off (Off)

■

Video Adjustment (Video Adjust)

Selects a video adjustment setting from presets you have configured in “Adjustment”



Settings

1~6

■

Audio Select (Audio Select)

Selects the audio input jack to use when more than one audio connection is made for one input source.


Settings

Auto (Auto) (default)

HDMI (HDMI)

Coax/Opt (Coax/Opt)

Analog (Analog)

Automatically selects the audio input jack in the following priority order.

1. HDMI input

2. Digital input (COAXIAL or OPTICAL)

3. Analog input (AUDIO)

Always selects HDMI input. No sounds are produced when no signals are input through the HDMI jack.

Always selects digital input (COAXIAL or OPTICAL). No sounds are produced when no signals are input through the COAXIAL or

OPTICAL jack.

Always selects analog input (AUDIO). No sounds are produced when no signals are input through the AUDIO jacks.

En

90

CONFIGURATIONS

Configuring input sources (Input menu)

You can change the input source settings using the TV screen.

1


2

Use the cursor keys to select “Input” and press ENTER.

4

Use the cursor keys ( / ) to select an item and press ENTER.

3

Use the cursor keys ( / ) to select an input source to be configured and press the cursor key ( ).


5

Use the cursor keys to select a setting and press ENTER.

6


Input menu items

The input source of this unit also changes.

• You can still switch the input source by using cursor keys ( / ) after step 3.

• Available items vary depending on the selected input source.

Item

Rename/Icon Select

Decoder Mode

Standby Charge iPod Interlock

Video Out

DMC Control

Function

Changes the input source name and icon.

Sets the format of digital audio playback to DTS.

Selects whether to charge the iPod when this unit is in standby mode.

92

Page

92

92

Selects whether to control this unit in conjunction with iPod operations.

Selects a video to be output with the audio input source.

Selects whether to allow a DLNA-compatible Digital

Media Controller (DMC) to control playback.

92

93

93

En

91

■


Changes the input source name and icon displayed on the front display or TV screen.

Input sources

AV1~7, V-AUX, AUDIO1~4, PHONO, USB, DOCK, MULTI CH

■

Setup procedure

1

Use the cursor keys ( / ) to select an icon and press the cursor key ( ).

2

Press ENTER, use the cursor keys to rename, and then press ENTER again.

3

Use the cursor keys to select “OK” and press ENTER.

• To clear the entry, select “CLEAR”.

4


■

Decoder Mode

Sets the format of digital audio playback to DTS.

For example, if this unit does not detect DTS audio and outputs noise, set “Decoder

Mode” to “DTS”.

Input sources

AV1~7, V-AUX, AUDIO1~4 (available only when any audio digital input jack is assigned)

Settings

Auto (default)

DTS

Automatically selects an audio format to match the input audio signal.

Selects DTS only. (Other audio signals are not reproduced.)

■

Standby Charge

Selects whether to charge the iPod connected to the iPod dock or iPod wireless system when this unit is in standby mode.

Input sources

DOCK (iPod)

Settings

On (default)

Off

Charges the iPod even when this unit is in standby mode.

Does not charge the iPod when this unit is in standby mode.

■

iPod Interlock

Selects whether to control this unit in conjunction with operations of the iPod connected to the iPod wireless system.

Input sources

DOCK (iPod)

• This function is available only when an iPod wireless system is connected to this unit.

❑

Power & Input

Selects whether to control the power and input source selection of this unit in conjunction with iPod operations.

Settings

On (default)

Off

Enables power and input interlocking controls. When you start playback of the iPod, this unit turns on and “DOCK” is selected as the input source. When you stop playback, this unit enters standby mode after a short time.

Disables power and input interlocking controls.

• When “Power & Input” is set to “On”, the iPod connected to the iPod wireless system is charged regardless

of the “Standby Charge” setting (p.92).

❑

Volume

Selects whether to control the volume of this unit in conjunction with iPod operations.

Settings

On (default)

Off

Enables volume interlocking controls. When you adjust the iPod volume, the volume of the unit is also adjusted.

Disables volume interlocking control.

En

92

■

Video Out

Selects a video to be output with the audio input source.

Input sources

TUNER, (network sources), USB, MULTI CH

Settings

Off (default)

AV1~7, V-AUX

Does not output videos.

Outputs videos input through the corresponding video input jacks.

■

DMC Control

Selects whether to allow DLNA-compatible Digital Media Controller (DMC) to control playback.

Input source

PC

Settings

Disable

Enable (default)

Does not allow DMCs to control playback.

Allows DMCs to control playback.

• A Digital Media Controller (DMC) is a device that can control other network devices through the network.

When this function is enabled, you can control playback of this unit from DMCs (Windows Media Player 12, etc.) on the same network.

Configuring the SCENE function (Scene menu)

You can change the settings of the SCENE function (p.53) using the TV screen.

1


2

Use the cursor keys to select “Scene” and press ENTER.

3

Use the cursor keys ( / ) to select a scene to be configured and press the cursor key ( ).

• You can still switch the scene by using cursor keys ( / ) after step 3.

4


En

93

5

Use the cursor keys and ENTER to change the setting.

6


Scene menu items

Item

Save

Load

Function

Registers the settings currently applied to this unit to the selected scene.

Page

94

Loads the settings registered to the selected scene. You can also configure the SCENE link playback setting, select items to be included as the scene assignments, or view the settings currently assigned to the selected scene.

Changes the scene name and icon.

94

95

Restores the default settings for the selected scene.

95


Reset

■

Save

Registers the settings currently applied to this unit (input source, sound program, etc.) to the selected scene.

• If you have changed the input assignment for a scene, you also need to change the external device

assigned to the corresponding SCENE key (p.54).

■

Load

Loads the settings registered to the selected scene.

Select “DETAIL” to configure the SCENE link playback setting, select items to be included as the scene assignments, or view the settings currently assigned to the selected scene.

❑

Device Control

Enables to start playback of external devices connected to this unit via HDMI or a

Yamaha product connected to one of the REMOTE (OUT) jacks, in conjunction with a scene selection (SCENE link playback)

Settings

Off

HDMI Control

IR: Yamaha CD

Disables the SCENE link playback function.

Enables SCENE link playback using HDMI Control signals. Select this if

HDMI Control-compatible device (BD/DVD players, etc.) is connected to this unit via HDMI. It also turns on the HDMI Control-compatible TV concurrently.

IR: Yamaha BD/DVD 1

Enables SCENE link playback using remote control signals. Select this if a Yamaha BD/DVD player is connected to one of the REMOTE (OUT) jacks.

IR: Yamaha BD/DVD 2

Enables SCENE link playback using remote control signals. Select this if a Yamaha BD/DVD player is connected to one of the REMOTE (OUT) jacks and “IR: Yamaha BD/DVD 1” does not work properly.

Enables SCENE link playback using remote control signals. Select this if a Yamaha CD player is connected to one of the REMOTE (OUT) jacks.

Default

SCENE1 (BD/DVD), SCENE2 (TV): HDMI Control

SCENE3 (CD): IR: Yamaha CD

SCENE4 (RADIO), SCENE5~12: Off

• To control playback of an HDMI Control-compatible device by SCENE link playback, you need to set “HDMI

Control” in the “Setup” menu to “On” and perform the HDMI Control link setup (p.142).

En

94

❑ Detail

Selects items to be included as the scene assignments. You can also view the settings currently assigned to the selected scene.

To include items as the scene assignments, use the cursor keys to select an item and press ENTER to check the box (or uncheck the box to exclude).

For example, if you often adjust the volume while watching TV but listen to radio with low volume at night, exclude “Volume” from the assignments for SCENE2 (TV) and include “Volume” in the assignments for SCENE4 (RADIO).

■


Changes the scene name and icon displayed on the front display or TV screen.

■

Setup procedure

1

Use the cursor keys ( / ) to select an icon and press the cursor key ( ).

2


Check or uncheck

Choices

Input

HDMI Output

Mode

Sound

Surround

Video

Volume

Lipsync

Speaker Setup

Input (p.52), Audio Select (p.90)

HDMI Output (p.52)

Sound Program (p.55), Pure Direct Mode (p.106)

Tone Control (p.89), Adaptive DRC (p.89), Enhancer (p.59)

CINEMA DSP 3D Mode (p.89), Dialogue Lift (p.89), Extended Surround

(p.90)

Video Processing (p.107), Video Adjustment (p.108)

Master Volume (p.52)

Lipsync (p.106), Delay (p.106)

Setting Pattern (p.102), PEQ Select (p.105)

Default

Input, HDMI Output, Mode, Sound: selected

Surround, Video, Volume, Lipsync, Speaker Setup: not selected

3



4


■

Reset

Restores the default settings (p.53) for the selected scene.

En

95

Configuring sound programs/surround decoders (Sound Program menu)

You can change the settings of the sound programs and surround decoders using the

TV screen.

1


2

Use the cursor keys to select “Sound Program” and press ENTER.

4



• To restore the default settings for the selected sound program, select “Reset”.

5


6


3

Use the cursor keys ( / ) to select a sound program to be configured and press the cursor key ( ).

• You can still switch the sound program by using cursor keys ( / ) after step 3.

En

96

Sound Program menu items

• Available items vary depending on the selected sound program or surround decoder.

■

Settings for sound programs

Item

Decode Type

DSP Level

Initial Delay

Surround Initial Delay

Surround Back Initial

Delay

Room Size

Surround Room Size

Surround Back Room

Size

Liveness

Surround Liveness

Surround Back

Liveness

Reverb Time

Function

Selects a surround decoder to be used in combination with the selected sound program.

Settings

PLIIx Movie ( PLII

Movie), Neo:6 Cinema

Adjusts the sound field effect level.

Adjusts the delay between the direct sound and presence sound field generation.

-6dB ~ +3dB (default: 0dB)

Higher to enhance the sound field effect and lower to reduce.

1ms ~ 99ms

Higher to enhance the delay effect and lower to reduce.

Adjusts the delay between the direct sound and surround sound field generation.

Adjusts the delay between the direct sound and surround back sound field generation.

1ms ~ 49ms


Adjusts the broadening effect of the presence sound field.

Adjusts the broadening effect of the surround sound field.

Adjusts the broadening effect of the surround back sound field.

Adjusts the loss of the presence sound field.

Adjusts the loss of the surround sound field.

Adjusts the loss of the surround back sound field.

0.1 ~ 2.0

Higher to enhance the broadening effect and lower to reduce.

0 ~ 10

Higher to enhance the reflectivity and lower to reduce.

Adjust the decay time of the reverberant sound.

1.0s ~ 5.0s

Higher to enrich the reverberant sound and lower to have clear sound.

Item

Reverb Delay

Reverb Level

Function

Adjusts the delay between the direct sound and reverberant sound generation.

Adjusts the volume of the reverberant sound.

Settings

0 ms ~ 250ms


0% ~ 100%

Higher to strengthen the reverberant sound and lower to weaken.

The following items are available when you select “2ch Stereo” or “9ch Stereo”.

Sound program

Item Function Settings

2ch Stereo

9ch Stereo

Direct

Center Level

Surround L Level

Surround R Level

Surround Back Level

Surround Back L

Level

Surround Back R

Level

Front Presence L

Level

Front Presence R

Level

Rear Presence L

Level

Rear Presence R

Level

Selects whether to automatically bypass the DSP and tone control circuits when an analog audio source is played back.

Auto (default), Off

Select “Auto” to bypass the circuits

(when both “Treble” and “Bass” are set to

“Bypass”).

Adjusts the volume of the center channel.

Adjusts the volume of the surround left channel.

Adjusts the volume of the surround right channel.

Adjusts the volume of the surround back channel.

0% ~ 100%

(default: 100%)

0% ~ 100%

(default: 50%)

Adjusts the volume of the surround back left channel.

Adjusts the volume of the surround back right channel.

0% ~ 100%

(default: 35%)

Adjusts the volume of the front presence left channel.

Adjusts the volume of the front presence right channel.

0% ~ 100%

(default: 33%)

Adjusts the volume of the rear presence left channel.

Adjusts the volume of the rear presence right channel.

• Available items in “9ch Stereo” vary depending on the speaker system being used.

En

97

■

Settings for decoders

The following items are available when you set “Decode Type” of “Surround Decoder” to “PLIIx Music” or “Neo:6 Music”.

Decode Type Item

PLIIx Music

Center Width

Neo:6 Music

Panorama

Dimension

Center Image

Function

Adjusts the broadening effect of the front sound field.

Adjusts the broadening effect of the center sound field.

Settings

Off (default), On

Select “On” to wrap front right/left channel sounds around the field and generate a spacious sound field in combination with the surround sound field.

0 ~ 7 (default: 3)

Higher to enhance the broadening effect and lower to reduce (closer to center).

Adjusts the difference in level between the front and surround sound fields.

Adjusts the center orientation level

(broadening effect) of the front sound field.

-3 ~ +3 (default: 0)

Higher to strengthen the front sound field and lower to strengthen the surround sound field.

0.0 ~ 1.0 (default: 0.3)

Higher to strengthen the center orientation level (less broadening effect) and lower to weaken (more broadening effect).

En

98

Configuring various functions (Setup menu)

You can configure the various functions of this unit using the TV screen.

1


2

Use the cursor keys to select “Setup” and press ENTER.

5


6


3

Use the cursor keys ( / ) to select a menu.

4



En

99

Setup menu items

Menu

Speaker

Sound

Video

HDMI

Item

Auto Setup

Manual Setup

Setting Pattern

Setting Data Copy

Power Amp Assign

Configuration

Front

Center

Surround

Surround Back

Front Presence

Rear Presence

Subwoofer 1

Subwoofer 2

SWFR Layout

Extra Bass

Distance

Level

Parametric EQ

Test Tone

Lipsync

Dynamic Range

Max Volume

Initial Volume

Pure Direct Mode

Adaptive DSP Level

Analog to Analog Conversion

Processing

HDMI Control

Audio Output

Standby Through

PEQ Select

PEQ Data Copy

Function

Optimizes the speaker settings automatically (YPAO).

Registers two speaker setting patterns and switches between them.

Copies the “Setting Pattern” parameters in the specified direction.

Selects a speaker system.

Selects the size of the front speakers.

Selects whether or not a center speaker is connected and its size.

Selects whether or not surround speakers are connected and its size.

Selects whether or not surround back speakers are connected and its size.

Selects whether or not front presence speakers are connected.

Selects whether or not to rear presence speakers are connected.

Selects whether or not a subwoofer is connected to the SUBWOOFER 1 or SUBWOOFER 2 jack and its phase.

Selects a subwoofer layout when 2 subwoofers are used.

Sets the speakers to produce the front channel low-frequency components.

Sets the distance between each speaker and listening position.

Adjusts the volume of each speaker.

Selects a type of equalizer to be used.

Copies the parametric equalizer values acquired with “Auto Setup” to the “Manual” fields for fine adjustment.

Enables/disabled the test tone output.

Adjusts the delay between video and audio output.

Selects the dynamic range adjustment method for bitstream audio (Dolby Digital and DTS signals) playback.

Sets the maximum volume so that sound is not too loud.

Sets the initial volume for when this receiver is turned on.

Selects whether to output video signals during the Pure Direct mode.

Selects whether to automatically adjust the CINEMA DSP effect level in conjunction with volume adjustments.

Enables/disables the video conversion between the analog video jacks.

Enables/disables the video signal processing (resolution, aspect ratio and video adjustments).

Enables/disables HDMI Control. You can also configure the relevant settings (ARC, TV audio input, etc).

Selects a device to output audio.

Select whether to output videos/audio (input through HDMI jacks) to the TV when this unit is in standby mode.

104

106

107

107

107

106

106

106

106

104

104

104

104

105

105

105

109

110

110

103

103

103

103

Page

45

102

102

102

103

103

En

100

Menu

Network

Multi Zone

Function

Item

IP Address

Network Standby

MAC Address Filter

Volume

Zone2 Set

Zone3 Set

Max Volume

Initial Volume

Mono

Monitor Out Assign

Party Mode Set

Zone Scene Rename

Zone Rename

Auto Power Down

Input Assignment

Display Set

Front Panel Display

Dimmer

Scroll

Short Message

Wall Paper

Trigger Mode

Trigger Output1

Trigger Output2

Target Zone

Target Source

Manual

Memory Guard

Language

Function

Configures the network parameters (IP address, etc).

Selects whether or not to turn on this unit by the command from other network devices.

Sets the MAC address filter to limit access to this unit from other network devices.

Enables/disables volume adjustments for Zone2 or Zone3 output.

Sets the Zone2 or Zone3 maximum volume so that sound is not too loud.

Sets the Zone2 or Zone3 initial volume for when this unit is turned on.

Switches between stereo and monaural for Zone2 or Zone3 output.

Select the zone for which the MONITOR OUT/ZONE OUT jacks are used.

Enables/disables switching to the party mode for each zone.

Changes the scene names (for Zone2 or Zone3) displayed on the front display or TV screen.

Changes the zone names displayed on the front display or TV screen.

Sets the amount of time for auto-standby.

Assigns the COMPONENT VIDEO, COAXIAL and OPTICAL jacks to another input source.

Adjusts the brightness of the front display.

Sets the scrolling manner of the front display.

Selects whether to display short messages on the TV screen when this unit is operated.

Selects a wall paper displayed on the TV.

Specifies the condition for the TRIGGER OUT jack to function.

Specifies the zone with which the TRIGGER OUT jack functions synchronized.

Specifies the output level of the electronic signal transmitted with each input switching.

Switches the output level for electronic signal transmission manually.

Prevents accidental changes to the settings.

Select an on-screen menu language.

113

113

113

114

112

112

112

112

Page

110

111

111

111

111

111

114

115

115

115

115

114

114

114

114

En

101

Speaker (Manual Setup)

Configures the speaker settings manually.

■

Setting Pattern

Registers two speaker setting patterns and switches between them.

When you configure the following speaker settings, the settings will be memorized in the selected pattern.

- Measurement results (Auto Setup)

- Power Amp Assign

- Configuration

- Distance

- Level

- Parametric EQ

Settings

Pattern1 (default), Pattern2

• The setting pattern currently selected is shown at the top of the “Auto Setup” and “Manual Setup” screens.

■

Setting Data Copy

Copies the “Setting Pattern” parameters in the specified direction.

Choices

Pattern1 > 2

Pattern2 > 1

Copies the “Pattern1” parameters to “Pattern2”.

Copies the “Pattern2” parameters to “Pattern1”.

■

Power Amp Assign

Selects a speaker system.

This unit has 9 built-in amplifiers. You can connect 2 to 11 speakers and up to 2 subwoofers (with built-in amplifier) to create the favorite acoustic space in your room.

You can also apply bi-amp connections, channel expansion (using an external power amplifier) or multi-zone configurations to enhance your system.

Settings

Basic (default)

7ch +1ZONE

9ch +1ZONE

7ch +2ZONE

7ch

+FRONT+1ZONE

5ch

+FRONT+2ZONE

7ch BI-AMP

Select this when you use the basic speaker configuration (9-channel

plus rear presence speakers) (p.16).

Select this when you use 7-channel speakers in the main zone and

Zone2 (or Zone3) speakers (p.24).

You can select a zone to be assigned to the EXTRA SP1 jacks

(default: Zone2).

Select this when you use 9-channel speakers in the main zone and

Zone3 (or Zone2) speakers (p.24).


(default: Zone3).

Select this when you use 7-channel speakers in the main zone, plus

Zone2 and Zone3 speakers (p.25).


(default: Zone2) and EXTRA SP2 jacks (default: Zone3).

Select this when you use 7-channel speakers plus front channel expansion using an external amplifier in the main zone and Zone3 (or

Zone2) speakers (p.23).


(default: Zone3).

Select this when you use 5-channel speakers plus front channel expansion using an external amplifier in the main zone, plus Zone2 and

Zone 3 speakers (p.23).


(default: Zone2) and EXTRA SP2 jacks (default: Zone3).

Select this when you use 7-channel speakers (including bi-amp front

speakers) (p.22).

En

102

■

Configuration

Configures the output characteristics of the speakers.

• When you configure the speaker size, select “Large” if the woofer diameter of your speaker is

16 cm or larger or “Small” if it is smaller than 16 cm.

❑ Front

Selects the size of the front speakers.

Settings

Large

Small (default)

Select this for large speakers.

The front speakers will produce all of the front channel frequency components.

Select this for small speakers.

The subwoofer will produce front channel components lower than the specified crossover frequency (default: 80Hz).

• “Front” is automatically set to “Large” when both “Subwoofer 1” and “Subwoofer 2” are set to “None”.

❑

Center

Selects whether or not a center speaker is connected and its size.

Settings

Large

Small (default)

None

Select this for large speaker.

The center speaker will produce all of the center channel frequency components.

Select this for small speaker.

The subwoofer will produce center channel components lower than the specified crossover frequency (default: 80Hz).

Select this when no center speaker is connected.

The front speakers will produce center channel audio.

❑ Surround

Selects whether or not surround speakers are connected and its size.

Settings

Large

Small (default)

Select this for large speakers.

The surround speakers will produce all of the surround channel frequency components.

Select this for small speakers.

The subwoofer will produce surround channel components lower than the specified crossover frequency (default: 80Hz).

None

Select this when no surround speakers are connected.

The front speakers will produce surround channel audio. Virtual

CINEMA DSP works when you select a sound program.

❑ Surround Back

Selects whether or not surround back speakers are connected and its size.

Settings

Large x1

Large x2

Small x1

Small x2

(default)

None

Select this when 1 large speaker is connected.

The surround back speaker will produce all of the surround back channel frequency components.

Select this when 2 large speakers are connected.

The surround back speakers will produce all of the surround back channel frequency components.

Select this when 1 small speaker is connected.

The subwoofer will produce surround back channel components lower than the specified crossover frequency (default: 80Hz).

Select this when 2 small speakers are connected.

The subwoofer will produce surround back channel components lower than the specified crossover frequency (default: 80Hz).

Select this when no surround back speakers are connected.

The surround speakers and subwoofer (or front speakers) will produce surround back channel audio.

• “Surround Back” is automatically set to “None” when “Surround” is set to “None”.

❑

Front Presence

Selects whether or not front presence speakers are connected.

Settings

Use (default)

None

Select this when front presence speakers are connected.

Select this when no front presence speakers are connected.

❑

Rear Presence

Selects whether or not to rear presence speakers are connected.

Settings

Use

None (default)

Select this when rear presence speakers are connected.

Select this when no rear presence speakers are connected.

• “Rear Presence” is automatically set to “None” when “Surround” or “Front Presence” is set to “None”.

En

103

❑ Subwoofer 1, Subwoofer 2

Selects whether or not subwoofer is connected to the SUBWOOFER 1 or

SUBWOOFER 2 jack and its phase.

Settings

Use

None

Normal

(default)

Reverse

Select this when a subwoofer is connected to the SUBWOOFER 1 or

SUBWOOFER 2 jack (not to reverse the phase). The subwoofer will produce LFE (low-frequency effect) channel audio and low-frequency components from other channels.

Select this when a subwoofer is connected to the SUBWOOFER 1 or

SUBWOOFER 2 jack (reverse the phase). The subwoofer will produce

LFE (low-frequency effect) channel audio and low-frequency components from other channels.

Select this when no subwoofer is connected to the SUBWOOFER 1 or

SUBWOOFER 2 jack. The front speakers will produce LFE (lowfrequency effect) channel audio and low-frequency components from other channels when both “Subwoofer 1” and “Subwoofer 2” are set to “None”.

• When the bass sound is lacking or unclear, switch the subwoofer phase.

❑ SWFR Layout

Selects a subwoofer layout when 2 subwoofers are used.

Settings

Left + Right

Front + Rear

Select this when 2 subwoofers are placed on the left and right sides of the room.

Select this when 2 subwoofers are placed on the front and rear sides of the room.

Monaural x2

(default)

Select this when 2 subwoofers are placed freely.

• This setting is not available when both “Subwoofer 1” and “Subwoofer 2” are set to “None”, or “Front” is set to “Small”.

■

Distance

Sets the distance between each speaker and listening position so that sounds from the speakers reach the listening position at the same time. First, select the unit of distance from “Meter” or “Feet”.

Choices

Front L, Front R, Center, Surround L, Surround R, Surround Back L, Surround Back R, Front

Presence L, Front Presence R, Rear Presence L, Rear Presence R, Subwoofer 1, Subwoofer 2

Setting range

0.30m ~ 24.00m (1.0ft ~ 80.0ft) *0.05m (0.2ft) steps

Default

3.00m (10.0ft)

■

Level

Adjusts the volume of each speaker.

Choices

Front L, Front R, Center, Surround L, Surround R, Surround Back L, Surround Back R, Front

Presence L, Front Presence R, Rear Presence L, Rear Presence R, Subwoofer 1, Subwoofer 2

Setting range

-10.0dB ~ +10.0dB (0.5dB steps)

Default

0.0dB

Adjusting while viewing the front display a Press LEVEL.

b Use the cursor keys ( / ) to select a speaker.

c Use the cursor keys ( / ) to adjust the volume of the selected speaker.

• This setting is not available when “Subwoofer 1” or “Subwoofer 2” is set to “None”.

❑

Extra Bass

Sets the speakers to produce the front channel low-frequency components.

Settings

Off (default)

On

Depending on the size of the front speakers, either the subwoofer or front speakers produce the front channel low-frequency components.

Both the front speakers and subwoofer produce the front channel lowfrequency components.

En

104

■

Parametric EQ

Adjusts sound quality of tone with an equalizer.

❑

PEQ Select

Selects a type of equalizer to be used.

Settings

Manual

YPAO:Flat

YPAO:Front

YPAO:Natural

Through

Select this when you want to adjust the equalizer manually.

For details, see “Manual equalizer adjustment”.

Adjusts individual speakers to achieve the same characteristics.

Adjusts individual speakers to achieve the characteristics same as the front speakers.

Adjusts all speakers to achieve a natural sound.

Does not use the equalizer.

4

Use the cursor keys to adjust parameters and press ENTER.

Setting range

Gain: -20.0dB ~ +6.0dB (0.5dB steps)

Center frequency: 31.3Hz ~ 16.0kHz

Q factor: 0.500 ~ 10.08

• “YPAO:Flat”, “YPAO:Front” and “YPAO:Natural” are available only when the measurement results of “Auto

Setup” have already been saved (p.45).

❑ PEQ Data Copy

Copies the parametric equalizer values acquired with “Auto Setup” (p.45) to the

“Manual” fields for fine adjustment.

Choices

Flat > Manual

Front > Manual

Natural > Manual

Copies the “Flat” values acquired with “Auto Setup”.

Copies the “Front” values acquired with “Auto Setup”.

Copies the “Natural” values acquired with “Auto Setup”.

■

Manual equalizer adjustment

1

Set “PEQ Select” to “Manual” and press ENTER.

2

Use the cursor keys to select a speaker and press ENTER.

3

Use the cursor keys to select an item and press ENTER.

Band / Gain: You can select a center frequency from the preset 7 bands and adjust the gain.

Freq. / Gain: You can adjust the center frequency of the selected band and adjust the gain.

Q / Gain: You can adjust the Q factor (bandwidth) of the selected band and adjust the gain.

Clear: Restores the default settings for the selected speaker.

5


■

Test Tone

Enables/disabled the test tone output. Test tone output helps you to adjust the speaker balance or equalizer while confirming its effect.

Settings

Off (default)

On

Does not output test tones.

Outputs test tones automatically when you adjust the speaker balance, equalizer, etc.

En

105

Sound

Configures the audio output settings.

■

Lipsync

Adjusts the delay between video and audio output.

❑

Auto

Adjusts the delay between video and audio output automatically when a TV that supports an automatic lipsync function is connected to this unit via HDMI. If necessary, you can fine-adjust the audio output timing. “Offset” shows the difference between automatic adjustment and fine adjustment.

Setting range

0ms ~ 500ms (1ms steps)

Default

0ms

❑

Manual

Adjusts the delay between video and audio output manually.

Setting range

0ms ~ 500ms (1ms steps)

Default

0ms

■

Dynamic Range

Selects the dynamic range adjustment method for bitstream audio (Dolby Digital and

DTS signals) playback.

Settings

Maximum (default)

Standard

Minimum/Auto

Produces audio without adjusting the dynamic range.

Optimizes the dynamic range for regular home use.

Sets the dynamic range to make clear sound even at night or at low volumes.

When playing back Dolby TrueHD signals, the dynamic range is automatically adjusted based on the input signal information.

■

Max Volume

Sets the maximum volume so that sound is not too loud.

Setting range

-30.0dB ~ +15.0dB (5.0dB steps), +16.5dB

Default

+16.5dB

■

Initial Volume

Sets the initial volume for when this receiver is turned on.

Settings

Off (default)

On

Sets at the level when this unit last entered standby mode.

Sets at Mute, or -80.0dB ~ +16.5dB (0.5dB steps). (This setting works only when “Max Volume” is set higher.)

■

Pure Direct Mode

Selects whether to output video signals during the Pure Direct mode (p.59).

Settings

Auto (default)

Video Off

Automatically outputs video signals when any videos are input from the selected input source or an input source that can be operated with the on-screen display is selected. When no video signals are input, the wall paper is displayed.

Does not output video signals including the wall paper.

En

106

■

Adaptive DSP Level

Selects whether to automatically adjust the CINEMA DSP effect level in conjunction with volume adjustments.

Settings

Off

On (default)

Does not adjust the effect level automatically.

Adjusts the effect level automatically. Also, the effect level is corrected

according to the measurement results of “Auto Setup” (p.45).

Video

Configures the video output settings.

■

Processing

Enables/disables the video signal processing (resolution, aspect ratio and video adjustments).

Settings

Off (default)

On

Disables the video signal processing.

Enables the video signal processing.

Configure the settings in “Resolution”, “Aspect” and “Adjustment”.

❑

Resolution

Selects a resolution to output HDMI video signals when “Processing” is set to “On”.

Settings

Through

Auto (default)

480p/576p, 720p, 1080i,

1080p

Does not convert the resolution.

Selects a resolution automatically in accordance with TV resolution.

Output video signals with a selected resolution.

(Only the resolutions supported by your TV are selectable.)

■

Analog to Analog Conversion

Enables/disables the video conversion (p.141) between the analog video jacks

(COMPONENT VIDEO, S VIDEO and VIDEO).

Settings

Off

On (default)

Disables the video conversion between the analog video jacks.

Enables the video conversion between the analog video jacks.

Converted video signals are output from the MONITOR OUT jacks only.

• If you need to select a resolution that is not supported by your TV, set “MONITOR CHECK” (p.119) in the

“ADVANCED SETUP” menu to “SKIP” and try again. (Note that output videos may not be displayed on your

TV normally.)

❑ Aspect

Selects an aspect ratio to output HDMI video signals when “Processing” is set to “On”.

Settings

Through (default)

16:9 Normal

Smart Zoom

Does not convert the aspect ratio.

Outputs 4:3 video signals to a 16:9 TV with black bands on either side of the screen.

Adjusts 4:3 video signals to fit a 16:9 TV. (The edges of video images may be distorted.)

• This function works only when “Monitor Out Assign” (p.112) is set to “Main”.

• This unit does not convert 480-line and 576-line video signals interchangeably.

• 480p/576p-, 1080i- and 720p-resolution video signals cannot be output from the S VIDEO and VIDEO

jacks (p.141).

• This setting functions only when 480i/576i or 480p/576p signals are converted into 720p, 1080i or 1080p signals.

En

107

❑ Adjustment

Configures the video adjustments when “Processing” is set to “On”. You can register the video adjustments as presets (up to 6).

■

Setup procedure

1

Use the cursor keys ( / ) to select a preset number and press ENTER.

2

Use the cursor keys ( / ) to select an item.

Brightness

Adjusts the video brightness.

Setting range

-100 ~ +100

Default

0

Contrast

Adjusts the video contrast.

Setting range

-100 ~ +100

Default

0

Saturation

Adjusts the video saturation.

Setting range

-100 ~ +100

Default

0

3


4


Contrast Enhancement

Selects whether to automatically enhance the video contrast.

Settings

Off (default)

Auto

Does not enhance the video contrast.

Enhances the video contrast automatically.

Resolution Enhancement

Selects whether to enhance the video resolution.

Settings

Off (default)

Auto

Does not enhance the video resolution.

Enhances the video resolution automatically.

Noise Reduction (NR)

Selects whether to use the noise reduction functions.

Settings

Off (default)

Auto

Does not use the noise reduction functions.

Reduces the video noises automatically.

En

108

HDMI

Configures the settings related to HDMI.

■

HDMI Control

Enables/disables HDMI Control (p.142).

Settings

Off (default)

On

Disables HDMI Control.

Enables HDMI Control.

Configure the settings in “TV Audio Input”, “ARC” and

“Standby Sync”.

• To use HDMI control, you need to perform the HDMI Control link setup (p.142) after connecting HDMI

Control-compatible devices.

❑

TV Audio Input

Selects an audio input jack of this unit to be used for TV audio input when “HDMI

Control” is set to “On”. The input source of this unit automatically switches to TV audio

(input jack selected in here) when the TV input is switched to its built-in tuner.

Settings

AUDIO1~4

Default

AUDIO1

• When using ARC to input TV audio to this unit, you cannot use the input jacks selected in here for connecting an external device because the input will be used for TV audio input.

❑ ARC

Enables/disables ARC (p.29) when “HDMI Control” is set to “On”.

Settings

Off

On (default)

Disables ARC.

Enables ARC.

• You do not need to change this setting normally. In case noises are produced from the speakers connected to this unit because TV audio signals input to this unit via ARC are not supported by this unit, set “ARC” to

“Off” and use the TV speaker.

❑

Standby Sync

Select whether to set this unit to standby in conjunction with TV power-off when “HDMI

Control” is set to “On”.

Settings

Off

On

Auto (default)

Does not set this unit to standby mode in conjunction with TV power-off.

Sets this unit to standby mode in conjunction with TV poweroff.

Sets this unit to standby mode in conjunction with TV power-off only when this unit is receiving TV audio or HDMI signals.

En

109

■

Audio Output

Selects a device to output audio.

• The “Amp” and “HDMI OUT1” settings are available only when “HDMI Control” is set to “Off”.

❑

Amp

Enables/disables the audio output from the speakers connected to this unit.

Settings

Off

On (default)

Disables the audio output from the speakers.

Enables the audio output from the speakers.

❑

HDMI OUT1, HDMI OUT2

Enables/disables the audio output from a TV connected to the HDMI OUT 1 jack or

HDMI OUT 2 jack.

Settings

Off (default)

On

Disables the audio output from the TV.

Enables the audio output from the TV.

■

Standby Through

Select whether to output videos/audio (input through HDMI jacks) to the TV when this unit is in standby mode.

Settings

Off (default)

On

Does not output videos/audio to the TV.

Outputs videos/audio to the TV.

(This unit consumes approximately 3 W of power.)

• This setting is available only when “HDMI Control” is set to “Off”.

Network

Configures the network settings.

■

IP Address

Configures the network parameters (IP address, etc).

❑

DHCP

Select whether to use a DHCP server.

Settings

Off

On (default)

Does not use a DHCP server. Configure the network parameters manually.

Uses a DHCP server to automatically obtain the network parameters (IP address, etc.) of this unit.

❑

Manual Setup

Configures the network parameters of this unit manually when “DHCP” is set to “Off”.

Submenu

IP Address

Subnet Mask

Default Gateway

DNS Server (P)

DNS Server (S)

Specifies an IP address.

Specifies a subnet mask.

Specifies the IP address of the default gateway.

Specifies the IP address of the primary DNS server.

Specifies the IP address of the secondary DNS server.

En

110

■

Network Standby

Selects whether to turn on this unit by the command from other network devices

(network standby).

Settings

Off (default)

On

Disables the network standby function.

Enables the network standby function.

(This unit consumes approximately 5 W of power.)

■

MAC Address Filter

Sets the MAC address filter to limit access to this unit from other network devices.

❑

Mode

Enables/disables the MAC address filter.

Settings

Off (default)

On

Disables the MAC address filter.

Enables the MAC address filter. In “Address Setup”, specify the MAC addresses of the network devices that will be permitted access to this unit.

❑

Address Setup

Specifies the MAC addresses (up to 10) of the network devices that will be permitted access to this unit when “Mode” is set to “On”.

Multi Zone

Configures the multi zone settings.

■

Zone2 Set, Zone3 Set

Configures the audio output settings for Zone2 or Zone3.

❑

Volume

Enables/disables volume adjustments for Zone2 or Zone3 output.

Settings

Fixed

Variable (default)

Disables volume adjustments for Zone2 or Zone3 output.

Enables volume adjustments for Zone2 or Zone3 output.

• This setting is available only when the corresponding zone speakers are connected to this unit via an

external amplifier (p.79).

❑

Max Volume

Sets the Zone2 or Zone3 maximum volume so that sound is not too loud.

Setting range

-30.0dB ~ +15.0dB (5.0dB steps), +16.5dB

Default

+16.5dB

❑

Initial Volume

Sets the Zone2 or Zone3 initial volume for when this unit is turned on.

Settings

Off (default)

On

Sets at the level when this unit last entered standby mode.

Sets at Mute, or -80.0dB ~ +16.5dB (0.5dB steps).

(This setting works only when “Max Volume” is set higher.)

En

111

❑ Mono

Switches between stereo and monaural for Zone2 or Zone3 output.

Settings

Off (default)

On

Produces stereo sounds in Zone2 or Zone3.

Produces monaural sounds in Zone2 or Zone3.

■

Monitor Out Assign

Select the zone for which the MONITOR OUT/ZONE OUT (COMPONENT VIDEO, S

VIDEO and VIDEO) jacks are used.

Settings

Main (default), Zone2, Zone3

■

Zone Scene Rename

Changes the scene names (for Zone2 or Zone3) displayed on the front display or TV screen.

■

Setup procedure

1

Use the cursor keys to select a zone and press ENTER.

2

Use the cursor keys to select a scene to be renamed and press ENTER.

3


• The video conversion between the analog video jacks does not work for multi-zone video output. To watch videos played back on a video device on the zone video monitor, you need to connect the video monitor to this unit in the same way as the video device.

■

Party Mode Set

Enables/disables switching to the party mode (p.83) for each zone.

Choice

Target: Zone2, Target: Zone3

Settings

Disable

Enable (default)

Disables switching to the party mode.

Enables switching to the party mode. You can turn on/off the party mode by pressing PARTY on the remote control.

4



5


En

112

■

Zone Rename

Changes the zone names displayed on the front display or TV screen.

■

Setup procedure

1

Use the cursor keys to select a zone to be renamed and press ENTER.

2


■

Auto Power Down

Sets the amount of time for auto-standby. If you do not operate this unit for the specified time, this unit will automatically go into standby mode.

Settings

Off (default)

4 Hours, 8 Hours,

12 Hours

Does not set this unit to standby mode automatically.

Sets this unit to standby mode when you have not operated this unit for the specified time.

■

Input Assignment

Assigns the COMPONENT VIDEO, COAXIAL and OPTICAL jacks to another input source.

■

Setup procedure

Example: assigning the OPTICAL ( e ) jack to the input source “AV2”

1

Use the cursor keys to select the cell at the intersection of “AV2” and “Optical”, and press ENTER.

3



4


Function

Configures the functions that make this unit easier to use.

2

Use the cursor keys to select “ e ” and press ENTER.

3


• You cannot assign both COAXIAL and OPTICAL jacks to the same input source.

En

113

■

Display Set

Configures the settings related to the front display and TV screen display.

❑

Front Panel Display

Configures the front display settings.

Dimmer

Adjusts the brightness of the front display.

Setting range

-4 ~ 0 (higher to brighten)

Default

0

Scroll

Sets the scrolling manner of the front display.

The display scrolls automatically if the text exceeds 14 characters.

Settings

Continue (default)

Once

Sets the display to scroll continuously.

Sets the display to scroll all characters once and then halt scrolling for display of the first 14 characters.

❑

Short Message

Selects whether to display short messages on the TV screen when this unit is operated

(input selection, volume adjustment, etc).

Settings

On (default)

Off

Displays short messages on the TV screen.

Does not display short messages on the TV screen.

❑

Wall Paper

Selects a wall paper displayed on the TV.

Settings

Picture1, Picture2, Picture3

Gray

Displays the selected image on the TV screen when there is no video signal.

Displays a gray background on the TV screen when there is no video signal.

■

Trigger Output1, Trigger Output2

Sets the TRIGGER OUT 1~2 jacks to function synchronized with power status of each zone or input switching.

❑

Trigger Mode

Specifies the condition for the TRIGGER OUT jack to function.

Settings

Power (default)

Source

Manual

The TRIGGER OUT jack functions synchronized with the power status of the zone specified with “Target Zone.”

The TRIGGER OUT jack functions synchronized with the input switching in the zone specified with “Target Zone.”

Electronic signal is transmitted according to the setting made in “Target

Source.”

Select this to manually switch the output level for electronic signal transmission with

“Manual.”

❑ Target Zone

Specifies the zone with which the TRIGGER OUT jack functions synchronized.

Settings

Main

Zone2

Zone3

All (default)

When “Trigger Mode” is set to “Power,” electronic signal transmission is synchronized with power status of the main zone.

When “Trigger Mode” is set to “Source,” electronic signal transmission is synchronized with input switching in the main zone.

When “Trigger Mode” is set to “Power,” electronic signal transmission is synchronized with power status of Zone2.

When “Trigger Mode” is set to “Source,” electronic signal transmission is synchronized with input switching in Zone2.

When “Trigger Mode” is set to “Power,” electronic signal transmission is synchronized with power status of Zone3.

When “Trigger Mode” is set to “Source,” electronic signal transmission is synchronized with input switching in Zone3.

When “Trigger Mode” is set to “Power,” electronic signal transmission is synchronized with power status of the main zone, Zone2 or Zone3.

When “Trigger Mode” is set to “Source,” electronic signal transmission is synchronized with input switching in the main zone, Zone2 or Zone3.

En

114

❑ Target Source

Specifies the output level of the electronic signal transmitted with each input switching when “Trigger Mode” is set to “Source”.

Choices

AV1~7, V-AUX, AUDIO1~4, PHONO, TUNER, (network sources), USB, DOCK, MULTI CH

Settings

Low

High (default)

Stops the electronic signal transmission when you switch to the input source specified in this option.

Transmits the electronic signal when you switch to the input source specified in this option.

❑ Manual

Switches the output level for electronic signal transmission manually when “Trigger

Mode” is set to “Manual”. This setting can also be used to confirm proper function of the external component connected via the TRIGGER OUT jack.

Choices

Low

High (default)

Stops the electronic signal transmission.

Transmits the electronic signal.

■

Memory Guard

Prevents accidental changes to the settings.

Settings

Off (default)

On

Does not protect the settings.

Protects the settings until “Off” is selected.

Language

Select an on-screen menu language.

Settings

English (default)

Français

Deutsch

Español

English

Japanese

French

German

Spanish

Russian

• The information on the front display is provided in English only.

En

115

Viewing information about this unit

(Information menu)

You can view information about this unit using the TV screen.

1


2

Use the cursor keys to select “Information” and press ENTER.

3

4

Use the cursor keys ( / ) to select an information type.


Types of information

■

Audio Signal

Displays information about the current audio signal.

Format

Input

Output

Channel

Sampling

Bitrate

Dialogue

Audio format of the input signal

The number of source channels in the input signal (front/ surround/LFE)

For example, “5.1 (3/2/0.1)” means 5.1ch in total (3 front channels, 2 surround channels, and LFE).

The number of samples per second of the input digital signal

The amount of data per second of the input bitstream signal

The dialogue normalization level of the input bitstream signal

The speaker terminals from which signals are output

• Even when this unit is set to output bitstream signals directly, the signal may be converted depending on the specifications and settings of the playback device.

■

Video Signal

Displays information about the current video signal.

HDMI Signal

HDMI Resolution

Analog Resolution

HDMI Error

Presence or absence of HDMI signal input/output

Resolutions of input signal (analog or HDMI) and output signal (HDMI)

Resolutions of input signal (analog) and signal output at the MONITOR

OUT jacks (analog)

Errors related to HDMI

HDCP Error: The TV does not support HDCP (High-bandwidth Digital

Content Protection).

Device Over: The number of devices connected to the HDMI OUT jack is over the limit.

■

HDMI Monitor

Displays information about the TVs connected to the HDMI OUT jacks.

Use the cursor keys ( / ) to switch between “OUT1” and “OUT2”.

Interface

Video Resolution

TV interface

Resolutions supported by the TV

En

116

■

Network

Displays the network information on this unit.

IP Address

Subnet Mask

Default Gateway

DNS Server (P)

DNS Server (S)

MAC Address

Status

IP address

Subnet mask

The IP address of the default gateway

The IP address of the primary DNS server

The IP address of the secondary DNS server

MAC address

Network connection status

■

System

Displays the system information on this unit.

Remote ID

TV Format

The remote control ID setting of the main unit (p.118)

The video signal type setting of this unit (p.119)

Speaker Impedance

The speaker impedance setting of this unit (p.118)

System ID System ID number

Firmware Version The version of firmware installed on this unit

Configuring the system settings

(ADVANCED SETUP menu)

You can configure the system settings of this unit using the front display.

1

Set this unit to standby mode.

2

While holding down STRAIGHT on the font panel, press MAIN ZONE .

MAIN ZONE STRAIGHT

• If this unit detects a newer firmware over the network, “!” (exclamation mark) appears at the upper right of the “Information” and “System” icons, and the corresponding message will be displayed in this screen. You can update the firmware of this unit by pressing ENTER in this screen and following the procedure in

“Updating the firmware of this unit” (p.130).

■

Zone

Displays information about Zone2 and Zone3.

Input

Volume

The input source selected for Zone2 or Zone3

The volume setting for Zone2 or Zone3

PROGRAM

3

Press PROGRAM to select an item.

4

Press STRAIGHT to select a setting.

5

Press MAIN ZONE to set this unit to standby mode and turn it on again.

The new settings become effective.

En

117

ADVANCED SETUP menu items

Item

SPEAKER IMP.

REMOTE SENSOR

REMOTE CON AMP

TV FORMAT

MONITOR CHECK

RECOV./BACKUP

INITIALIZE

FIRM UPDATE

VERSION

Function

Changes the speaker impedance setting.

Turns on/off of the remote control sensor on the main unit.

Selects the remote control ID of the main unit.

Switches the video signal type.

Page

118

118

118

119

119

Removes the limitation on HDMI video output.

Creates backup of the settings of this unit, or recovers the settings from the backup.

119

Restores the default settings.

Updates the firmware.

Checks the version of firmware currently installed on this unit.

120

120

120

Changing the speaker impedance setting (SPEAKER IMP.)

DOCK

TAG

SPIMP.-

HD

S TEREO

IN OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

S P E A K E R I M P .

8 M I N

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C R PR

S W2

PL S BL S B PR

Change the speaker impedance settings of unit depending on the impedance of the speakers connected.

Settings

6

Ω

MIN

8

Ω

MIN (default)

Select this when you connect 6-ohm speakers to this unit. You can also use 4-ohm speakers as the front speakers.

Select this when you connect 8-ohm or higher speakers to this unit.

Turning on/off the remote control sensor

(REMOTE SENSOR)

DOCK

TAG

SPIMP.R E M O T E S E N S O R

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

O N

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S BL

C

S W

R PR

S W2

S BR PR

Turn on/off the remote control sensor on the main unit. While the remote control sensor is turned off, you cannot control this unit from the remote control.

Settings

ON (default)

OFF

Turns on the remote control sensor.

Turns off the remote control sensor.

Selecting the remote control ID (REMOTE CON AMP)

DOCK

TAG

SPIMP.R E M O T E C O N A M P

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD

3

I D 1

MUTE VOLUME

ADAPTIVE DRC

PL

S L

L C

S W

R PR

S W2

PL S BL S BR PR

Select the remote control ID of the main unit so that it matches to the ID of the remote control (default: ID1). When using multiple Yamaha AV receivers, you can set each remote control with a unique remote control ID for its corresponding receiver.

Settings

ID1 (default), ID2

■

Changing the remote control ID of the remote control

Perform each of the following steps within 30 seconds. Otherwise, the setting will be automatically canceled.

1

Press SETUP.

2

Use the cursor keys ( / ) to select “PRESET” and press ENTER.

PRESET

3

Press RECEIVER and press ENTER.

4

Use the numeric keys or cursor keys to enter “5019” (ID1) or “5020” (ID2).

5020

En

118

5

Press ENTER to confirm the setting.

Once the remote control ID is registered successfully, “OK” appears in the display window.

If “ERROR” appears, registration failed. Repeat from step 3.

6

To exit from the setup menu, press SETUP.

• The registered remote control codes (p.121) are not cleared even if you change the remote control ID.

Switching the video signal type (TV FORMAT)

DOCK

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2 2 3

S LEEP

4

HD

3

T V F O R M A T

P A L

Switch the video signal type of this unit so that it matches to the format of your TV.

Settings

NTSC, PAL (default)

Removing the limitation on HDMI video output

(MONITOR CHECK)

DOCK

TAG

SPIMP.-

HD

S TEREO TUNED PRE AMP PARTY

ZONE

2

ZONE

3

ZONE

4

IN OUT 1 OUT 2

ENHANCER S LEEP

HD 3

M O N I T O R C H E C K

Y E S

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C R PR

S W2

PL S BL S B PR

This unit automatically detects resolutions supported by a TV connected to the HDMI

OUT jacks.

If you want to select a resolution in “Resolution” (p.107) regardless of the detection

results or if this unit does not detect it correctly, disable the monitor check function.

Settings

YES (default)

SKIP

Enables the monitor check function. (Outputs video signals with a resolution supported by the TV only.)

Disables the monitor check function. (Outputs video signals with a specified resolution regardless of compatibility with the TV.)

Backing up/recovering the settings (RECOV./BACKUP)

DOCK

TAG

SPIMP.R E C O V . / B A C K U P

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

B A C K U P

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S BL

C

S W

R PR

S W2

S BR PR

Creates backup of the settings of this unit, or recovers the settings from the backup.

■

Backup/recovery procedure

1

Press STRAIGHT repeatedly to select “BACKUP” or “RECOVERY” and press INFO to start the process.

Choices

BACKUP

RECOVERY

Creates backup of the settings of this unit in the internal memory.

Recovers the settings of this unit from the backup (available only when backup has been created).

Note

• Do not turn off this unit during the recovery process. Otherwise, the settings may not be restored correctly.

• The backup does not contain user information (user account, password, etc.) or unit-specific information (MAC address, IP address, etc).

• In case this unit becomes inoperable because videos from this unit cannot be displayed on the TV after

“MONITOR CHECK” is set to “SKIP”, reset the setting to “YES”.

En

119

Restoring the default settings (INITIALIZE)

DOCK

TAG

SPIMP.-

HD

S TEREO

IN OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

I N I T I A L I Z E

C A N C E L

MUTE VOLUME

ADAPTIVE DRC

PL L

S W1

C R PR

S W2

PL S BL S B PR

Restores the default settings for the selected item.

Choices

VIDEO

ALL

CANCEL

Restores the default settings for video configurations.

Restores the default settings for this unit.

Does not perform an initialization.

Updating the firmware (FIRM UPDATE)

New firmware will be released irregularly for the purpose of additional features or product improvements. It can be downloaded from our website. If this unit is connected to the Internet, you can download the firmware via the network. For details, refer to the information supplied with updates.

DOCK SPIMP.-

TAG

HD

S TEREO

IN OUT 1


ZONE ZONE ZONE

OUT 2

ENHANCER

2

S

3

LEEP

4

HD 3

F I R M U P D A T E

U S B

MUTE

ADAPTIVE

PL L

VOLUME

C

DRC

R PR

S W1

PL S BL S B

S W2

PR

■ Firmware update procedure

Do not perform this procedure unless firmware update is necessary. Also, make sure you read the information supplied with updates before updating the firmware.

1

Press STRAIGHT repeatedly to select “USB” or “NETWORK” and press INFO to start firmware update.

Choices

USB

NETWORK

Update the firmware using a USB memory device.

Update the firmware via the network.

Checking the firmware version (VERSION)

Check the version of firmware currently installed on this unit.

DOCK

TAG

SPIMP. V E R S I O N

HD

S

IN

TEREO

OUT 1


OUT 2

ZONE

2

ZONE

3

ZONE

4

ENHANCER S LEEP

HD 3

x . x x

MUTE VOLUME

ADAPTIVE DRC

PL

S L

PL

L

S BL

C

S W

R PR

S W2

S BR PR

• You can also check the firmware version in “System” (p.117) in the “Information” menu.

• If this unit detects a newer firmware over the network, the corresponding message will be displayed after

ON SCREEN is pressed. In this case, you can also update the firmware of this unit by following the

procedure in “Updating the firmware of this unit” (p.130).

En

120

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE TV

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

S ETUP

Controlling external devices with the remote control

By setting the code for external devices (BD/DVD players, etc.) or assigning a function to each key using the learning function, you can operate the external device with the remote control of this unit.

You can also use the macro function to sequentially operate multiple functions at once.

1

Press SETUP.

SETUP

Setting remote control codes

■

Setting the remote control code for a TV

By setting the remote control code for your TV, you can operate it with the remote control of this unit.

• If no operation is performed within 30 seconds, the remote control automatically exits from the setup menu.

2


Item name

• You can also register a remote control code of your TV to the input selection keys

(p.122). In this case, you can use the cursor keys or numeric keys to operate the

TV depending on its model. However, you need to press the corresponding input selection key to play back TV audio on this unit.

1

Use “Remote Control Code Search” in the CD-ROM to find a remote control code for your TV.

PRESET

Item

LEARN

PRESET

RENAME

MACRO

CLEAR

ERASE

EX-IR

Function

Assigns a function to each key by learning the code from other remote controls.

Page

123

121

Sets the remote control code for external devices.

Edits the device names or scene names displayed on the remote control’s display window.

124

Programs macro operations (sequence of control commands).

Clears the remote control configurations.

125

127

Erases a function assigned to each key by learning.

127

Extended IR code mode. This feature is for the authorized custom installers only.

—

• If multiple remote control codes exist, first set the first code in the list, if it does not work then try the other codes.

2

Press SETUP.

Perform each of the following steps within 30 seconds.

Otherwise, the setting will be canceled. In this case, repeat from step 2.

3


4

PRESET

Press TV and press ENTER.

“----” (empty) or code currently registered

----

• You cannot control an external device that does not have a remote control sensor.

En

121

1

5

2

AV

3

1

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

2

SCENE

3

4

V-AUX

4

NET

[ B ]

4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE


Cursor keys

5

Use the numeric keys or cursor keys to enter the

4-digit remote control and press ENTER.

Once the remote control code is set successfully, “OK” appears in the display window.


6


❑ TV operations

Once you have set the remote control code for your TV, you can control it using the TV operation keys regardless of an input source selected on this unit.

TV operation keys

INPUT Switches the video inputs of the TV.

MUTE Mutes the audio output of the TV.

TV VOL Adjust the volume of the TV.

TV CH

TV

Switch the channels of the TV.

Turns on/off the TV.

TV operation keys

■

Setting the remote control codes for playback devices

By setting the remote control codes for your playback devices, you can operate those devices with the remote control of this unit. Since the codes are assigned to each input source key, you can select the input source and device to control with the remote control concurrently.

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

Numeric keys

S ETUP

• At the factory, Yamaha CD player code (5095) is set for AUDIO2 and Yamaha AV receiver code (5098) is set for the other input selection keys.

• If you assign the remote control code for an external device to the [A] or [B] key, you can operate the device with the remote control without switching the input source after pressing the [A] or [B] key.

• When HDMI control of both this unit and playback device such as a BD/DVD player are enabled, you may be able to control the device with the remote control without registering the remote control code.

1

Use “Remote Control Code Search” in the CD-ROM to find a remote control code for your playback device.

• If multiple remote control codes exist, first set the first code in the list, if it does not work then try the other codes.

2

Press SETUP.



3


PRESET

4

Press a corresponding input selection key and press ENTER.

For example, press AV1 to set the remote control code for the playback device connected to the AV1 jack.

Code currently registered

5098

5

Use the numeric keys or cursor keys to enter the

4-digit remote control and press ENTER.

Once the remote control code is set successfully, “OK” appears in the display window.


6

To set another remote control code, repeat steps 4 and 5.

En

122

SOURCE RECEIVER

S OURCE


7


1 2

SCENE

3 4

• For details on how to register the input selection key applied the remote

control code on a corresponding SCENE key, refer to “Configuring scene assignments” (p.54).

❑

Playback device operations

Once you have registered the remote control code for your playback device, you can control it using the following keys after selecting the input source or scene.

PROGRAM MUTE

VOLUME

TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP



Cursor keys

DI S PLAY


• By pressing SOURCE/RECEIVER, you can switch the devices (this unit or external device) to operate with the menu operation keys, DISPLAY and numeric keys. You can operate this unit when SOURCE/RECEIVER lights up in orange, and an external device when SOURCE/RECEIVER lights up in green.

For example, if you register the remote control code of your external device on

TUNER, you can operate FM/AM radio built in this unit when SOURCE/

RECEIVER lights up in orange, and the external device when SOURCE/

RECEIVER lights up in green.


TV

Numeric keys

SOURCE

Menu operation keys

DISPLAY

MODE

External device operation keys

Cursor keys

ENTER

RETURN

Turns on/off the playback device.

Select an item.

Confirms a selected item.

Returns to the previous screen.

Switches information on the display.

Switches between modes.

Displays the top menu.

TOP MENU

POP-UP/MENU Displays the pop-up menu.

Stops playback.


Starts playback of the selected song/ video.

Search forward/backward (by holding down).

S ETUP

Skip forward/backward.

Numeric keys

TV operation keys

Enter numerical values.

Control the TV (p.122).

• These keys work only when the corresponding function is available on your playback device and is possible to be operated with an infrared remote control.

Programming from other remote controls

(learning)

The remote control of this unit can receive remote control signals from other remote controls and learn the remote control operation. If you cannot find a remote control code for your playback device or if any key on the remote control does not work after you set the remote control code, use the learning function to assign a function to each key.

1

Press SETUP.



2

Use the cursor keys ( / ) to select “LEARN” and press ENTER.

LEARN

3

Press one of the following keys depending on the type of your device.

For playback device: press the input selection key

(corresponding to the input jacks where the device is connected).

For TV: press TV .

4

Press ENTER.

En

123

S OURCE

1

5

2

AV

3

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

1 2

SCENE

3

4

V-AUX

4

NET

[ B ]

4


S CENE

5

Aim the infrared transmitters of the remote controls at each other.

Remote control of external device

PROGRAM MUTE

VOLUME

TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

5 to 10 cm apart



Cursor keys

DI S PLAY



TV

6

Perform the following steps (

a

and

b

) within

10 seconds.

a On this unit, press one of the following keys to which you want to assign a function.

For playback device: SOURCE , menu operations keys,

DISPLAY, MODE, external device operation keys, numeric keys

For TV: TV operation keys b On the external device, press the key from which the operation is learned until “OK” appears in the display window.

If “NG” appears, learning failed. Repeat from step 4.

7

Repeat steps 3 to 6 until all desired operations are learned.

8


Numeric keys

S ETUP

ZONE

• This remote control can learn approximately 200 functions (may be decreased depending on the signals). If “FULL” appears in the display window, clear unnecessary assignments to free some memory space for the new functions.

Note

• If you press RECEIVER in step 3, you can assign functions of an external receiver to the menu operation keys, external device operation keys or numeric keys. However, it makes these keys to control this unit impossible. If you need to restore the remote control code for this unit, perform the following steps.

a Press SETUP.

b

Use the cursor keys ( / ) to select “CLEAR” and press ENTER.

c

Use the cursor keys ( / ) to select “LEARN” and press ENTER.

d Press RECEIVER .

e

Hold down ENTER until “OK” appears on the window display.

f

To exit from the setup menu, press SETUP.

Editing device names

You can edit the device names or scene names displayed on the remote control’s display window.

1

Press SETUP.



2

Use the cursor keys ( / ) to select “RENAME” and press ENTER.

RENAME

3

Press one of the following keys to select a device or a scene.

For playback device: press the input selection key

(corresponding to the input jacks where the device is connected).

For TV: press TV .

For AV receiver (this unit): press RECEIVER .

For scene: press one of the SCENE keys.

• To edit scene names of each zone, press one of the SCENE keys and press

ZONE to select a zone.

En

124

1

5

2

AV

3

1

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

2

SCENE

3

4

V-AUX

4

NET

[ B ]

4


4

Press ENTER.

5

Use the cursor keys to rename.

To locate the position, use the cursor keys ( / ).

To select a character (A to Z, a to z, 0 to 9, space, symbols), use the cursor keys ( / ).

BD/DVD


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY

Cursor keys

INFO


MEMORY FM AM

1

PRESET

4

ENTERTAIN

STRAIGHT

TV

8

TV VOL

0

9

TV CH

ENT LEVEL

ZONE SETUP S ETUP

6

Press ENTER to set the new name.

Once the new name is set successfully, “OK” appears in the display window.

7

To edit another device name (or scene name), repeat steps 3 to 6.

8


Operating multiple functions at once

(macro)

The macro function allows you to sequentially operate multiple functions at once.

For example, when you want to listen to a CD, you can turn on the

CD player, select the corresponding input source on this unit and start playback on the CD player sequentially with a single key operation.

■

Enabling the macro operations

1

Press SETUP.



2

Use the cursor keys ( / ) to select “MACRO” and press ENTER.

MACRO

3

Use the cursor keys ( / ) to select “ON” and press

ENTER.

ON

4


“MACRO” lights up (when macro operations are enabled)

RECEIVER

• To disable the macro operations, select “OFF” in step 3.

By default, the following macro operations are available after pressing a macro operation key when the macro operations are enabled.

Macro operation key

RECEIVER

Input selection keys

Macro operations

1st command

Turns on this unit.

Turns on this unit.

2nd commend

(unregistered)

Selects the corresponding input source. (unregistered for the [A] and [B] keys)

En

125

SOURCE RECEIVER

1

5

2

AV

3

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

1 2

SCENE

3

4

V-AUX

4

NET

[ B ]

4

S OURCE



■

Programming macro operations

You can program up to 10 remote control commands for each macro operation key. If you press the corresponding macro operation key, the multiple operations will be carried out sequentially according to the programmed remote control commands.

PROGRAM MUTE

VOLUME

TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE TV

• Before programming macro operations, you need to set the remote control codes

(p.121) or assign a function to each key using the learning function (p.123).

• We do not recommend including continuous operations (such as volume adjustment) in macro operations.

1

Press SETUP.



2

Use the cursor keys ( / ) to select “MACRO” and press ENTER.

MACRO

3

Use the cursor keys ( / ) to select “EDIT” and press ENTER.

EDIT

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP S ETUP

4

Press the macro operation key (RECEIVER or input selection key) to which macro operations are assigned and press ENTER.

“MACRO 1” appears in the display window.

MACRO1

5

Press the keys for functions (up to 10) you want to include in the macro operations in sequence.

To switch the devices (this unit or external device) to control, press SOURCE/RECEIVER.

(Example)

Programming for a turning on this unit, b selecting “AV1” as the input source, c turning on the DVD player assigned to “AV1” and d turning on the TV a (MACRO 1) Press RECEIVER .

b (MACRO 2) Press AV1.

c (MACRO 3) Press SOURCE/RECEIVER repeatedly to select

“AV1” and press SOURCE .

d (MACRO 4) Press SOURCE/RECEIVER repeatedly to select

“TV” and press TV .

6

To confirm the setting, hold down ENTER until “OK” appears on the window display.

If you have programmed 10 functions, “FULL” appears and the setting is confirmed automatically.

7


En

126

Resetting the remote control configurations

1

5

2

AV

3

1

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

2

SCENE

3

4

V-AUX

4

NET

[ B ]

4


TOP MENU

ON SCREEN

RETURN

ENTER

POP-UP/MENU

OPTION

DISPLAY


S CENE

■

Clearing the remote control configurations

You can clear remote control configurations by selecting a type of settings or clear all the remote control configurations.

1

Press SETUP.



2

Use the cursor keys ( / ) to select “CLEAR” and press ENTER.

Cursor keys

CLEAR

MODE

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE TV

3

Use the cursor keys ( / ) to select the settings to be cleared and press ENTER.

PRESET

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

S ETUP

LEARN

PRESET

RENAME

MACRO

RESET

Clears the functions learned from other remote controls.

Restores the default remote control code settings.

Restores the default device name settings.

Clears the macro operation settings.

Clears all remote control configurations and restores default settings.

“ALL” appears in the display window.

ALL

To apply the selection to all the corresponding keys, proceed to step 5.

To apply the selection to a specific key, proceed to step 4.

• When “RESET” is selected, all remote control configurations will be cleared.

You cannot select a specific key. Proceed to step 5.

4

Press a key to which the selected process is applied.

When “LEARN” or “PRESET” is selected: press the input selection key or TV .

When “RENAME” is selected: press the input selection

When “MACRO” is selected: press the macro operation key (input selection key or RECEIVER ).

5

Hold down ENTER until “OK” appears on the window display.

If “NG” or “ERROR” appears, clearing failed. Repeat from step 2.

6


■

Erasing a function assigned to each key by learning

You can erase a function assigned to each key by learning and restore the default key assignments.

1

Press SETUP.



2

Use the cursor keys ( / ) to select “ERASE” and press ENTER.

ERASE

En

127

1

5

2

AV

3

1

1

6

AUDIO

7

2 3

PHONO

DOCK

MULTI

TUNER

USB

[ A ]

2

SCENE

3

4

V-AUX

4

NET

[ B ]

4


TOP MENU

ON SCREEN

RETURN

MODE

ENTER

POP-UP/MENU

OPTION

DISPLAY


3

Press one of the following keys to select the device for which key assignments will be cleared.

For playback device: press the input selection key.

For TV: press TV .

4

Press ENTER.

5

Hold down the key to be reset until “OK” appears on the window display.

If “NG” or “ERROR” appears, clearing failed. Repeat from step 2.

6

Repeat steps 3 to 5 until all desired key assignments are erased.

7


PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE TV

SUR.

DECODE



1

4

2

5

3

6

7

10

8

0

9

ENT

SLEEP

LEVEL

ZONE SETUP

S ETUP

En

128

Using the simplified remote control

1

2

3

4

5

6

7

8

NET

U S B

1

ON S CREEN

RETURN

2

S CENE

3

ENTER

INPUT

OPTION VOLUME

DI S PLAY

PRE S ET

4

MUTE

9

0

A

B

C

Remove the insulation sheet before using the remote control.

1 Remote control signal transmitter

Transmits infrared signals.

2 NET/USB

Press repeatedly to select a desired network source or

“USB”.

3 SCENE

Selects the assigned input source, sound program, HDMI output and various settings at once. Additionally, you can


4 INPUT

Selects an input source.

5 ON SCREEN



Cursor keys Select a menu or a parameter.




Operate playback of the iPod, USB storage device or network sources.

8 PRESET



9 (Power)


0 OPTION


A VOLUME

Adjusts the volume.

B MUTE

Mutes the audio output.

C DISPLAY

Displays the status information on the TV (p.87).

Switching the zones to operate with the simplified remote control

• Main zone: Hold down the cursor key ( ) and

SCENE1 together for 3 seconds.

• Zone2: Hold down the cursor key ( ) and SCENE2 together for 3 seconds.

• Zone3: Hold down the cursor key ( ) and SCENE3 together for 3 seconds.

Selecting the remote control ID

• ID1: Hold down the cursor key ( ) and SCENE1 together for 3 seconds.

• ID2: Hold down the cursor key ( ) and SCENE2 together for 3 seconds.

Replacing the battery

Replace with a new battery (CR2025) when the operation range of the simplified remote control decreases.

Use a straight pin to remove the cover.

Replace with a new battery.

Close the cover.

En

129

1 2

SCENE

3 4


TOP MENU

ON SCREEN

ENTER

POP-UP/MENU

OPTION

RETURN

MODE

DISPLAY

Cursor keys

PRESET

INPUT

CLASSICAL

LIVE

CLUB

ENTERTAIN

MOVIE

TV

STEREO STRAIGHT

PURE

DIRECT

TV VOL TV CH

MUTE

Updating the firmware of this unit

If this unit is connected to the Internet, the corresponding message will be displayed on the TV when a newer firmware is available. In this case, follow the procedure below to update the firmware of this unit.

Note

• Do not operate this unit or disconnect the power cable or network cable during firmware update. Firmware update takes about 15 minutes.

3

If “UPDATE SUCCESS PLEASE POWER OFF!” appears on the front display, press MAIN ZONE on the front panel.

The firmware update is complete.

• You can also update the firmware using the USB memory device from the

“ADVANCED SETUP” menu (p.120).

If the following message is displayed after ON SCREEN is pressed, firmware update is available.

• If you want to update the firmware later, select “CLOSE” in step 2. In this case, “!” (exclamation mark) appears at the upper right of the “Information” and “System” icons, and the corresponding message will be displayed in the

“System” screen (p.117). You can update the firmware of this unit by

pressing ENTER in the “System” screen.

Information icon

1

Read the on-screen description.

2

To start the firmware update, use the cursor keys to select “START” and press ENTER.

The on-screen display turns off.

Message

System icon

En

130

APPENDIX

Frequently asked questions

The new speaker system does not provide an ideal sound balance...

If you have changed speakers or speaker system, use “Auto Setup” to optimize the

speaker settings again (p.45). If you want to adjust the speaker settings manually, use

“Manual Setup” in the “Setup” menu (p.102).

Since we have small children, we want to set limitations on the volume control...

If a small child, etc. accidentally operates the controls on the main unit or remote control, the volume may suddenly increase. And this may cause injury or damage this unit or speakers. We recommend using “Max Volume” in the “Setup” menu to set the

maximum volume level for this unit in advance (p.106). You can also set the maximum

volume for Zone2 or Zone3 (p.111).

I am occasionally startled by a sudden large sound when turning on this unit...

By default, the volume level when this unit last entered standby mode is automatically applied. If you want to fix the volume, use “Initial Volume” to set the volume to be

applied when this receiver is turned on (p.106). You can also set the initial volume for

Zone2 or Zone3 (p.111).

I made HDMI connections but HDMI Control does not work at all...

To use HDMI Control, you need to perform the HDMI Control link setup (p.142). After

connecting HDMI Control-compatible devices (TV, BD/DVD players, etc.) to this unit, enable HDMI Control on each device and perform the HDMI Control link setup. This setup is required every time when you add a new HDMI Control-compatible device to your system. For information on how HDMI Control works between your TV and playback devices, refer to the instruction manuals of each device.

I want to turn off the onscreen messages displayed during operations...

By default, short messages are displayed on the TV screen when this unit is operated

(input selection, volume adjustment, etc). In case that the short messages bother you

when you are watching movies or sports, configure “Short Message” (p.114) in the

“Setup” menu to turn off the short messages.

I want to prevent accidental changes to the settings...

You can protect the settings configured on this unit (speaker settings, etc.) by utilizing

“Memory Guard” in the “Setup” menu (p.115).

The web control screen (p.85) becomes inaccessible...

If you are using a DHCP server, the IP address of this unit may change each time this

unit is turned on. Check the IP address of this unit in “Network” (p.117) in the

“Information” menu. Also, if you have enabled “MAC Address Filter” (p.111), you need to specify the MAC address of your PC in “Address Setup” (p.111) to allow the PC to

access this unit. For information on how to check the MAC address of your PC, refer to the instruction manuals of it.

The supplied remote control concurrently controls this unit and another Yamaha product that is not intended...

When using multiple Yamaha products, the supplied remote control may work on another Yamaha product or another remote control may work on this unit. In this case, set each remote control with a unique remote control ID for its corresponding receiver

(p.118).

En

131

Troubleshooting

Refer to the table below when this unit does not function properly.

If the problem you are experiencing is not listed below, or if the instructions below do not help, turn off this unit, disconnect the power cable, and contact the nearest authorized

Yamaha dealer or service center.

First, check the followings:

a

The power cables of this unit, TV and playback devices (BD/DVD player, etc.) are connected to AC outlets securely.

b

This unit, subwoofer, TV and playback devices (BD/DVD player, etc.) are turned on.

c

The connectors of each cable are inserted to jacks on each devices securely.

Power and system

Problem

The power does not turn on.

The power does not turn off.

The power turns off (standby mode) immediately.

The unit enters standby mode automatically.

This unit is uncontrollable.

Cause

The protection circuitry has been activated 3 times consecutively.

Remedy

As a safety precaution, capability to turn on the power is disabled. Contact your nearest Yamaha dealer or service center to request repair.

The internal microcomputer is hung-up due to an external electric shock (such as lightning and excessive static electricity) or by a drop in power supply voltage.

Hold down MAIN ZONE on the front panel for more than 10 seconds to initialize and reboot this unit.

This unit was turned on while a speaker cable was shorted.

The sleep timer worked.

Since this unit was not operated for the specified time, autostandby worked.

The speaker impedance setting is incorrect.

The protection circuitry has been activated because of a short circuit.

The internal microcomputer is hung-up due to an external electric shock (such as lightning and excessive static electricity) or by a drop in power supply voltage.

Twist the bare wires of each speaker cable firmly and reconnect to this unit and

speakers (p.20).

Turn on the unit and start playback again.

To disable auto-standby, set “Auto Power Down” in the “Setup” menu to “Off”

(p.113).

Set the speaker impedance to match your speakers (p.118).

Twist the bare wires of each speaker cable firmly and reconnect to this unit and

speakers (p.20).

Hold down MAIN ZONE on the front panel for more than 10 seconds to initialize and reboot this unit.

En

132

Audio

No sound.

No sound is heard from a specific speaker.

No sound is heard from the surround back speaker.

No sound from the TV (when HDMI

Control is used).

Problem

The volume cannot be increased.

No sound is heard from the subwoofer.

No sound from the playback device

(connected to this unit with HDMI).

Cause

Another input source is selected.

Signals that this unit cannot reproduce are being input.

Remedy

Select an appropriate input source with the input selection keys

Some digital audio formats cannot be played back on this unit. To check the audio format of the input signal, use “Audio Signal” in the “Information” menu

(p.116).

If there is no problem with the connection, replace with another cable.

Use “Max Volume” in the “Setup” menu to adjust the maximum volume (p.106).

The cable connecting this unit and playback device is defective.

The maximum volume is set.

Any device connected to the output jacks of this unit is not turned on. (This may happen due to the nature of AV receivers.)

The playback source does not contain corresponding channel signals.

The sound program/decoder currently selected does not use the corresponding speaker.

Turn on all devices connected to the output jacks of this unit

To check it, select “9ch Stereo” (p.55).

To check it, select “9ch Stereo” (p.55).

Audio output of the corresponding speaker is disabled.

The volume of the corresponding speaker is too low.

Perform “Auto Setup” (p.45) or use “Configuration” in the “Setup” menu to change

the speaker setting (p.103).

Perform “Auto Setup” (p.45) or use “Level” in the “Setup” menu to adjust the

speaker volume (p.104).

The speaker cable connecting this unit and corresponding speaker is defective.

If there is no problem with the connection, replace with another speaker cable.

The corresponding speaker is malfunctioning.

The extended surround is disabled.

To check it, replacing with another speaker. If the problem persists, this unit may be malfunctioning.

Use “Extended Surround” in the “Option” menu to select a decoder to be used

(p.90).

The playback source does not contain LFE or low-frequency signals.

Subwoofer output is disabled.

To check it, set “Extra Bass” in the “Setup” menu to “On”, to output the front

channel low-frequency components from the subwoofer (p.104).

Perform “Auto Setup” (p.45) or set “Subwoofer 1” or “Subwoofer 2” in the “Setup”

menu to “Use” (p.104).

Disable the auto-standby function of the subwoofer or adjust its sensitivity level.

The subwoofer is turned off by the auto-standby function on it.

The TV does not support HDCP (High-bandwidth Digital Content

Protection).

This unit is set not to output audio input through HDMI jacks from the SPEAKERS terminals.

The number of devices connected to the HDMI OUT jack is over the limit.

(If the TV is connected to this unit with an audio cable)

The TV audio input setting does not match the actual connection.

(If you are trying to use ARC)

ARC is disabled on this unit or TV.

To check it, use “Video Signal” in the “Information” menu (p.116).

In “Audio Output” in the “Setup” menu, set “Amp” to “On” (p.110).

Disconnect some of the HDMI devices.

Use “TV Audio Input” in the “Setup” menu to select the correct audio input jack

(p.109).

Set “ARC” in the “Setup” menu to “On” (p.109). Also, enable ARC on the TV.

En

133

Problem

Only the front speakers work on multichannel audio.

Noise/hum is heard.

The sound is distorted.

Cause Remedy

The playback device is set to output 2-channel audio (PCM, etc.) only.

This unit is too close to other digital or radio frequency device.

The cable connecting this unit and playback device is defective.

Any device connected to the output jacks of this unit is not turned on. (This may happen due to the nature of AV receivers.)

Change the digital audio output setting on the playback device.

Move this unit further away from such device.


Turn on all devices connected to the output jacks of this unit

Video

No video.

Problem

No video from the playback device

(connected to this unit with HDMI).

Cause

Another input source is selected on this unit.

Another input source is selected on the TV.

The video signal output from this unit is not supported by the TV.

The cable connecting this unit and TV (or playback device) is defective.

The input video signal (resolution) is not supported by this unit.

Remedy

Select an appropriate input source with the input selection keys

Switch the TV input to display the video from this unit.

Set “MONITOR CHECK” in the “ADVANCED SETUP” menu to “YES” (p.119).


To check the information about the current video signal (resolution), use “Video

Signal” in the “Information” menu (p.116). For information about video signals

supported by this unit, see “HDMI signal compatibility” (p.143).

To check it, use “Video Signal” in the “Information” menu (p.116).

The TV does not support HDCP (High-bandwidth Digital Content

Protection).

The number of devices connected to the HDMI OUT jack is over the limit.

Disconnect some of the HDMI devices.

En

134

FM/AM radio

Problem

FM radio reception is weak or noisy.

AM radio reception is weak or noisy.

Cause

There is multi-path interference.

Your area is too far from the FM station transmitter.

The noises may be caused by fluorescent lamps, motors, thermostats, or other electrical equipment.

Your area is too far from the FM station transmitter.

Radio stations cannot be selected automatically.

The AM radio signal is weak.

AM radio stations cannot be registered as presets.

“Auto Preset” has been used.

Remedy

Adjust the FM antenna height or orientation, or place it in a different location.

Press MODE to select “Mono” (monaural reception) (p.60).

Use an outdoor FM antenna commercially available. We recommend using a sensitive multi-element antenna.

It is difficult to completely eliminate noise. It may be reduced by using an outdoor

AM antenna commercially available.

Select the station manually (p.60).

Use an outdoor antenna commercially available. We recommend using a sensitive multi-element antenna.

Adjust the AM antenna orientation.

Select the station manually (p.60).

Use an outdoor AM antenna commercially available. Connect it to the ANTENNA

(AM) jack together with the supplied AM antenna.

“Auto Preset” is for registering FM radio stations only. Register AM radio stations

manually (p.60).

USB and network

Problem

This unit does not detect the USB device.

Cause

The USB cable connecting this unit and USB device is not compliant with USB 2.0.

Remedy

Use a USB cable compliant with USB 2.0.

Folders and files in the USB device cannot be viewed.

The network feature does not function.

This unit does not detect the PC.

The folder structure not supported by this unit is applied.

The network parameters (IP address) is not obtained properly.

This unit and PC are not in the same network.

This unit supports folder hierarchies of up to 8 levels and up to 500 items (total of files and subfolders) per folder. If necessary, modify the folder structure on your

USB device.

Enable the DHCP server function on your router and set “DHCP” in the “Setup”

menu to “On” on this unit (p.110). If you want to configure the network parameters

manually, make sure using an IP address which is not used by other network

devices in your network (p.110).

The media sharing setting is not correct.

Configure the sharing setting and select this unit as a device to which music

contents are shared (p.73).

Some security software installed on your PC is blocking the access of this unit to your PC.

Check the settings of security software installed on your PC.

Check the network connections and the settings of your router to connect them to the same network.

En

135

Problem

The files in the PC cannot be viewed or played back.

The Internet radio cannot be played.

Cause

The files are not supported by this unit or the media server.

The selected Internet radio station is currently not available.

The selected Internet radio station broadcasts audio silence currently.

Access to the network is restricted by the firewall settings of your network devices (router, etc).

Remedy

Use the file format supported by both this unit and the media server. For

information about the file formats supported by this unit, see “Playing back music stored on PCs” (p.73).

It may not be available to listen because there might be a network problem, or the station might be broadcasting in limited hour. Try the station later or select another station.

Some Internet radio stations broadcast audio silence during particular periods of time in a day. Try the station later or select another station.

Check the firewall settings of your network devices. The Internet radio can be played only when it passes through the port designated by each radio station.

The port number is variable depending on radio station.

Remote control

Problem

Out of the operating range.

The batteries are weak.

Cause Remedy

Use the remote control in the operating range (p.5).

Replace with new batteries.

This unit cannot be controlled using the remote control.

Direct sunlight or lighting is striking the remote control sensor of this unit.

External devices cannot be controlled using the remote control.

The remote control does not learn new functions.

The remote control is set to control external devices.

Adjust the lighting angle, or reposition this unit.

Press SOURCE/RECEIVER to set the remote control to control this unit (the key lights up in orange).

The remote control IDs of the main unit and remote control are not identical.

Change the remote control ID of the main unit or remote control (p.118).

The remote control is set to control this unit.

The corresponding remote control code is not set properly.

Press SOURCE/RECEIVER to set the remote control to control external devices

(the key lights up in green).

Set the remote control code again (p.121). Even if the remote control code is

registered properly set, some products may not respond to the remote control.

The batteries of the remote control of this unit and/or the external device are weak.

Memory capacity is full.

Replace with new batteries.

The distance between the two remote controls is not appropriate.

Place the remote controls at a proper distance (p.123).

The signal coding or modulation of the other remote control is not compatible with this remote control.

Learning is impossible in this case.

Clear unnecessary assignments to free some memory space for the new

functions (p.127).

En

136

Error indications on the front display

Message

(alphabetical order)

Access denied

Access error

No device

Not found

Unknown iPod

Unable to play

USB Overloaded

Cause Remedy

Access to the PC is denied.

This unit cannot access the USB device.

The Bluetooth component is not found.

The connected iPod is not supported by the unit.

Configure the sharing setting and select this unit as a device to which music contents are shared (p.73).

Turn off this unit and reconnect your USB device. If the problem persists, try another USB device.

This unit cannot access the iPod connected to the USB jack.

There is a problem with the signal path from the network to this unit.

Turn off the iPod and turn on it again.

Make sure your router and modem are turned on.

Check the connection between this unit and your router (or hub) (p.40).

This unit cannot detect the USB device.


This unit cannot detect the iPod connected to the USB jack.

Turn off the iPod and turn on it again.

(When pairing)

Turn on the Bluetooth component and set it in pairing mode.

(When establishing a wireless connection)

- Turn on the Bluetooth component.

- Place the Bluetooth component within 10 m of the Bluetooth receiver.

- Perform pairing again.

Use an iPod supported by this unit (p.63).

The unit cannot play back the songs stored on the iPod for some reasons.

The unit cannot play back the songs stored on the PC for some reasons.

Over current passes through the USB device.

Check the song data. If it cannot be played on the iPod itself, the song data or storage area may be defective.

Check if the format of files you are trying to play is supported by this unit. For information about the

formats supported by this unit, see “Playing back music stored on PCs” (p.73). If this unit cannot play

back any files, the network may be overloaded with heavy traffic, and playback is interrupted.


En

137

Glossary

Audio information

Audio and video synchronization (Lipsync)

Lip sync, an abbreviation for lip synchronization, is a technical term that involves both a problem, and the capability of maintaining audio and video signals synchronized during post-production and transmission.

Whereas the audio and video latency requires complex end-user adjustment, HDMI version 1.3 incorporates an automatic audio and video syncing capability that allows devices to perform this synchronization automatically and accurately without user interaction.

Bi-amplification connection (Bi-amp)

A bi-amplification connection uses two amplifiers for a speaker. One amplifier is connected to the woofer section of a loudspeaker while the other is connected to the combined mid and tweeter section. With this arrangement each amplifier operates over a restricted frequency range. This restricted range presents each amplifier with a much simpler job and each amplifier is less likely to influence the sound in some way.

CINEMA DSP

Since the Dolby Surround and DTS systems were originally designed for use in movie theaters, their effect is best felt in a theater having many speakers designed for acoustic effects. Since home conditions, such as room size, wall material, number of speakers, and so on, can differ so widely, it is inevitable that there are differences in the sound that is heard.

Based on a wealth of actually measured data, Yamaha CINEMA DSP uses Yamaha’s original DSP technology to combine Dolby Pro Logic, Dolby Digital, and DTS systems to provide the audiovisual experience of a movie theater in the listening room of your own home.

CINEMA DSP 3D

The actually measured sound field data contain the information of the height of the sound images. CINEMA DSP 3D feature achieves the reproduction of the accurate height of the sound images so that it creates the accurate and intensive stereoscopic sound fields in a listening room.

Compressed Music Enhancer

The Compressed Music Enhancer feature of this unit enhances your listening experience by regenerating the missing harmonics in compression artifacts. As a result, it compensates for flattened complexity due to the loss of highfrequency fidelity as well as lack of bass due to the loss of low-frequency bass, providing improved performance for the overall sound system.

Dolby Digital

Dolby Digital is a digital surround sound system that gives you completely independent multi-channel audio. With 3 front channels (front L/R and center), and 2 surround stereo channels, Dolby Digital provides 5 full-range audio channels.

With an additional channel especially for bass effects, referred to as LFE (Low-Frequency Effect), the system has a total of 5.1-channels (LFE is counted as 0.1 channel). By using 2-channel stereo for the surround speakers, more accurate moving sound effects and surround sound environments are possible than with Dolby Surround. The wide dynamic range from maximum to minimum volumes that are reproduced by the 5 full-range channels, and the precise sound orientation generated using digital sound processing provides listeners with unprecedented excitement and realism.

With this unit, any sound environment from monaural up to a 5.1-channel configuration can be freely selected for your enjoyment.

Dolby Digital Plus

Dolby Digital Plus is an advanced audio technology developed for highdefinition programming and BD (Blu-ray disc).

Selected as an optional audio standard for BD, this technology delivers multichannel sound with discrete channel output. Supporting bitrates up to 6.0 Mbps, Dolby Digital Plus can carry up to 7.1 discreet audio channels simultaneously. Supported by HDMI version 1.3 and designed for the optical disc players and AV receivers/amplifiers of the future, Dolby Digital Plus also remains fully compatible with the existing multichannel audio systems that incorporate

Dolby Digital.

Dolby Pro Logic II

Dolby Pro Logic II is an improved technique used to decode vast numbers of existing Dolby Surround sources. This new technology enables a discrete 5-channel playback with 2 front left and right channels, 1 center channel, and 2 surround left and right channels, instead of only 1 surround channel for conventional Pro Logic technology. There are three modes available: “Music mode” for music sources, “Movie mode” for movie sources, and “Game mode” for game sources.

Dolby Pro Logic IIx

Dolby Pro Logic IIx is a new technology enabling discrete multichannel playback from 2-channel or multi-channel sources. There are three modes available: “Music mode” for music sources, “Movie mode” for movie sources (for 2channel sources only) and “Game mode” for game sources.

Dolby Surround

Dolby Surround uses a 4-channel analog recording system to reproduce realistic and dynamic sound effects: 2 front left and right channels (stereo), a center channel for dialog (monaural), and a surround channel for special sound effects

(monaural). The surround channel reproduces sound within a narrow frequency range. Dolby Surround is widely used with nearly all video tapes and laser discs, as well as in many TV and cable broadcasts. The Dolby Pro Logic decoder built into this unit employs a digital signal processing system that automatically stabilizes the volume on each channel to enhance moving sound effects and directionality.

Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology developed for high-definition disc-based media including Bluray Disc. Selected as an optional audio standard for BD (Blu-ray disc), this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 18.0 Mbps,

Dolby TrueHD can carry up to 8 discrete channels of 24-bit/96 kHz audio simultaneously. Dolby TrueHD also remains fully compatible with the existing multichannel audio systems and retains the metadata capability of Dolby Digital, allowing dialog normalization and dynamic range control.

DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality for multichannel sound on DVD video, and is fully backwardcompatible with all DTS decoders. “96” refers to a 96 kHz sampling rate compared to the typical 48 kHz sampling rate.

“24” refers to 24-bit word length. DTS 96/24 offers sound quality transparent to the original 96/24 master, and 96/24 5.1channel sound with full-quality full-motion video for music programs and motion picture soundtracks on DVD video.

En

138

DTS Digital Surround

DTS Digital Surround was developed to replace the analog soundtracks of movies with a 5.1-channel digital sound track, and is now rapidly gaining popularity in movie theaters around the world. DTS, Inc. has developed a home theater system so that you can enjoy the depth of sound and natural spatial representation of DTS Digital Surround in your home. This system produces practically distortion-free 5.1-channel sound (technically, left, right and center channels, 2 surround channels, plus an LFE 0.1 channel as a subwoofer, for a total of 5.1-channels). This unit incorporates a DTS-ES decoder that enables 6.1-channel reproduction by adding the surround back channel to the existing 5.1-channel format.

DTS Express

This is an audio format for next-generation optical discs such as BD (Blu-ray disc). It uses optimized low bit rate signals for network streaming. In the case of a BD, this format is used with secondary audio, enabling you to enjoy the commentary of the movie producer via the Internet while playing the main program.

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is a high resolution audio technology developed for high-definition disc-based media including BD (Blu-ray disc). Selected as an optional audio standard for BD, this technology delivers sound that is virtually indistinguishable from the original, offering a high-definition home theater experience.

Supporting bitrates up to 6.0 Mbps for BD, DTS-HD High Resolution Audio can carry up to 7.1 discrete channels of 24bit/96 kHz audio simultaneously.

DTS-HD High Resolution Audio also remains fully compatible with the existing multichannel audio systems that incorporate DTS Digital Surround.

DTS-HD Master Audio

DTS-HD Master Audio is an advanced lossless audio technology developed for high-definition disc-based media including BD (Blu-ray disc). Selected as an optional audio standard for BD, this technology delivers sound that is bit-forbit identical to the studio master, offering a high-definition home theater experience.

Supporting bitrates up to 24.5 Mbps for BD, DTS-HD Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz audio simultaneously. Supported by HDMI version 1.3 and designed for the optical disc players and AV receivers/ amplifiers of the future, DTS-HD Master Audio also remains fully compatible with the existing multichannel audio systems that incorporate DTS Digital Surround.

DSD

Direct Stream Digital (DSD) technology stores audio signals on digital storage media, such as Super Audio CDs. Using

DSD, signals are stored as single bit values at a high-frequency sampling rate of 2.8224 MHz, while noise shaping and oversampling are used to reduce distortion, a common occurrence with very high quantization of audio signals. Due to the high sampling rate, better audio quality can be achieved than that offered by the PCM format used for normal audio

CDs. The frequency is equal to or higher than 100 kHz, with a dynamic range of 120 dB. This unit can transmit or receive

DSD signals via the HDMI jack.

FLAC

This is a file format for lossless audio data compression. FLAC is inferior to lossy compression formats in compression rate but provides higher audio quality.

LFE 0.1 channel

This channel reproduces low-frequency bass signals, and has a frequency range from 20 Hz to 120 Hz. This channel is counted as 0.1, because it only enforces a low-frequency range compared to the full-range reproduced by the other 5channels in Dolby Digital or DTS 5.1-channel systems.

MP3

One of the audio compression methods used by MPEG. It employs the irreversible compression method, which achieves a high compression rate by thinning out the data of hardly audible part to the human ears. It is said to be capable of compressing the data quantity by about 1/11 (128 kbps) while maintaining a similar audio quality to music

CD.

MPEG-4 AAC

An MPEG-4 audio standard. As it allows compression of data at a bit rate lower than that of MPEG-2 AAC, it is used among others for mobile telephones, portable audio players and other low-capacity devices requiring high sound quality. In addition to the above types of devices, MPEG-4 AAC is also used to distribute contents on the Internet, and as such is supported by computers, media servers and many other devices.

Neo:6

Neo:6 decodes the conventional 2-channel sources for 6-channel playback by the specific decoder. It enables playback with the full-range channels with higher separation just like digital discrete signal playback. There are two modes available: “Music mode” for music sources and “Cinema mode” for movie sources.

PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio signal is digitized, recorded and transmitted without using any compression. This is used as a method of recording CDs and DVD audio. The PCM system uses a technique for sampling the size of the analog signal per very small unit of time. Standing for “Pulse Code Modulation,” the analog signal is encoded as pulses and then modulated for recording.

Sampling frequency and number of quantized bits

When digitizing an analog audio signal, the number of times the signal is sampled per second is called the sampling frequency, while the degree of accuracy when converting the sound level into a numeric value is called the number of quantized bits. The range of rates that can be played back is determined based on the sampling rate, whereas the dynamic range representing the sound level difference is determined by the number of quantized bits. In principle, the higher the sampling frequency, the wider the range of frequencies that can be played back, and the higher the number of quantized bits, the more accurately the sound level can be reproduced.

SILENT CINEMA

Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones. Parameters for headphones have been set for each sound program, so that accurate representations of all the sound programs can be enjoyed on headphones.

Virtual CINEMA DSP

Yamaha has developed a Virtual CINEMA DSP algorithm that allows you to enjoy DSP surround effects even without any surround speakers, by using virtual surround speakers. It is even possible to enjoy Virtual CINEMA DSP using a minimal two-speaker system that does not include a center speaker.

WAV

Windows standard audio file format, which defines the method of recording the digital data obtained by converting audio signals. It does not specify the compression (coding) method so a desired compression method can be used with it. By default, it is compatible with the PCM method (no compression) and some compression methods including the

ADPCM method.

WMA

An audio compression method developed by Microsoft Corporation. It employs the irreversible compression method, which achieves a high compression rate by thinning out the data of hardly audible part to the human ears. It is said to be capable of compressing the data quantity by about 1/22 (64 kbps) while maintaining a similar audio quality to music CD.

En

139

Video information

Component video signal

With the component video signal system, the video signal is separated into the Y signal for luminance and the Pb and Pr signals for chrominance. Color can be reproduced more faithfully with this system because each of these signals is independent. The component signal is also called the “color difference signal” because the luminance signal is subtracted from the color signal. A monitor with component input jacks is required in order to output component signals.

Composite video signal

With the composite video signal system, the video signal comprises the three basic elements of a video picture: color, brightness and synchronization data. A composite video jack on a video component transmits these three elements combined.

Deep Color

Deep Color refers to the use of various color depths in displays, up from the 24-bit depths in previous versions of the

HDMI specification. This extra bit depth allows HDTVs and other displays increase from millions of colors to billions of colors and eliminate on-screen color banding for smooth tonal transitions and subtle gradations between colors. The increased contrast ratio can represent many times more shades of gray between black and white. Additionally, Deep

Color increases the number of available colors within the boundaries defined by the RGB or YCbCr color space.

HDMI

HDMI (High-Definition Multimedia Interface) is the first industry supported, uncompressed, all-digital audio/video interface. Providing an interface between any sources (such as set-top boxes or AV receivers) and audio/video monitors

(such as digital televisions), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements.

When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/ video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website at “http://www.hdmi.org/.”

S-video signal

With the S-video signal system, the video signal normally transmitted using a pin cable is separated and transmitted as the Y signal for the luminance and the C signal for the chrominance through the S-video cable. Using the S VIDEO jack eliminates video signal transmission loss and allows recording and playback of even more beautiful images.

“x.v.Color”

A color space standard supported by HDMI version 1.3. It is a more extensive color space than sRGB, and allows the expression of colors that were not hitherto possible. While remaining compatible with the color gamut of sRGB standards, “x.v.Color” expands the color space, and can thus produce more vivid, natural images. It is particularly effective for still pictures and computer graphics.

En

140

Video signal flow

Video signals input from a video device to this unit are output to a TV as shown below.

(solid line) is always available. (dotted line) is

available only when “Analog to Analog Conversion”

(p.107) in the “Setup” menu is set to “On” (default).

■

Video conversion table

• You can select a resolution and an aspect ratio applied to HDMI-output video processing.

• This unit does not convert 480-line and 576-line video signals interchangeably.

Video device

Y

HDMI

S VIDEO

VIDEO

HDMI in

HDMI

COMPONENT

VIDEO in

P R

P

B

Y

S VIDEO in

S VIDEO

VIDEO in

VIDEO

This unit

HDMI out

HDMI

TV

HDMI

COMPONENT

VIDEO out

P R

P

B

Y

S VIDEO out

S VIDEO

VIDEO out

VIDEO

P R

P

B

Y

S VIDEO

VIDEO

HDMI in

1080p

480i/576i

COMPONENT

VIDEO in

480p/576p

720p

1080i

S VIDEO in

VIDEO in

480i/576i

480i/576i

HDMI out COMPONENT VIDEO out

Resolution

480i/

576i

480p/

576p

720p 1080i 1080p

480i/

576i

480p/

576p

720p 1080i

S VIDEO out

VIDEO out

480i/

576i

480i/

576i

480i/576i

480p/576p

720p

1080i

En

141

Information on HDMI

HDMI Control

HDMI Control allows you to operate external devices via HDMI. If you connect a TV that supports HDMI Control to this unit with an HDMI cable, you can control this unit (power, volume, etc.) in conjunction with TV remote control operations. You can also control playback devices (HDMI Control-compatible BD/DVD players, etc.) connected to this unit with an HDMI cable.

For details on connections, see “Connecting a TV” (p.29) and “Connecting video devices (BD/DVD players, etc.)” (p.35).

Operations available from the TV’s remote control

- Standby synchronization

- Volume control including mute

- Switching to input audio from the TV when the TV input is switched to its built-in tuner

- Switching to input video/audio from the selected playback device and output the video to the TV

- Switching between audio output devices (this unit or TV speaker)

(Example)

HDMI Control HDMI Control

Playback device also turns off

This unit turns off

(standby)

Turn off the TV

Operations available from this unit’s remote control

- Starting playback on the playback device and turning on the TV in conjunction with a

scene selection (p.53)

- Switching the TV input to display the on-screen menu (when ON SCREEN is pressed)

- Controlling the playback device (playback and menu operations) without registering

remote control codes (p.121)

(Example)

HDMI Control HDMI Control

To use HDMI Control, you need to perform the following HDMI Control link setup after connecting the TV and playback devices.

• This setup is required every time when you add a new HDMI Control-compatible device to your system.

• To use HDMI Control, connect the TV to the HDMI OUT 1 jack.

1

Turn on this unit, TV and playback devices.

2

Enable HDMI Control on this unit, TV and playback devices (HDMI

Control-compatible BD/DVD players, etc).

To enable HDMI Control on this unit, set “HDMI Control” (p.109) in the “Setup”

menu to “On” and configure the related items (“TV Audio Input”, “ARC” and

“Standby Sync”).

3

Turn off the main power of the TV and then turn off this unit and playback devices.

4

Turn on this unit and playback devices and then turn on the main power of the TV.

5

Switch the TV input to display the video from this unit.

6

Check the followings.

On this unit: The input to which the playback device is connected is selected. If not, select the input source manually.

On the TV: The video from the playback device is displayed.

7

Check that this unit is properly synchronized with the TV by turning off the TV or adjusting the TV volume with the TV remote control.

Playback starts

Press SCENE

(BD/DVD)

Turns on and displays video from the playback device

• If HDMI Control does not work properly, try unplugging the TV in step 2 and re-plugging the TV in step 3. It may solve the problem. Also, HDMI Control may not work if the number of connected devices is over the limit. In this case, disable HDMI Control on the devices not in use.

• If the unit is not synchronized to the TV's power operations, check the priority of the audio output setting on the TV.

• We recommend using TV and playback devices from the same manufacturer so that HDMI Control works more effectively.

En

142

HDMI signal compatibility

Audio signals

Audio signal type

2ch Linear PCM

Multi-channel Linear PCM

DSD

Bitstream

Bitstream

(High definition audio)

Audio signal format Compatible media (example)

2ch, 32 to 192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio

8ch, 32 to 192 kHz, 16/20/24 bit

2/5.1ch, 2.8224 MHz, 1 bit

DVD-Audio, BD (Blu-ray disc),

HD DVD

SACD

DVD-Video Dolby Digital, DTS

Dolby TrueHD, Dolby Digital

Plus, DTS-HD Master Audio,

DTS-HD High Resolution Audio,

DTS Express

BD (Blu-ray disc), HD DVD

Video signals

This unit is compatible with the video signals of the following resolutions:

- 480i/60 Hz - 720p/60 Hz, 50 Hz

- 576i/50 Hz

- 480p/60 Hz

- 576p/50 Hz

- 1080i/60 Hz, 50 Hz

- 1080p/60 Hz, 50 Hz, 24 Hz

• When CPPM copy-protected DVD-Audio is played back, video/audio signals may not be output, depending on the type of the DVD player.

• This unit is not compatible with HDCP-incompatible HDMI or DVI devices. For details, refer to the instruction manual of each device.

• To decode audio bitstream signals on this unit, set the input source device appropriately so that the device outputs the bitstream audio signals directly (does not decode the bitstream signals on the playback device).

For details, refer to the instruction manual of the playback device.

• This unit is not compatible with the audio commentary features (for example, the special audio contents downloaded via Internet) of BD or HD DVD. This unit does not playback the audio commentaries of the BD or HD DVD content.

En

143

Reference diagram (rear panel)

L

R

DOCK

PHONO

GND

AV 1

(1 BD/DVD)

AV 2 AV 3 AV 4

AV OUT

1 COAXIAL 2 COAXIAL 3

NETWORK

OPTICAL 4 OPTICAL 5

1

ARC

HDMI OUT

2

AV 1

(1 BD/DVD)

AV 2 AV 3

HDMI

AV 4 AV 5 AV 6 AV 7

MONITOR OUT/

ZONE OUT

Y

AV 1

A

AV 2

B

AUDIO 3 AUDIO 4

P B

COMPONENT VIDEO


MULTI CH INPUT

AV 4

CENTER

D

ZONE OUT

Y


P B P R

PRE OUT

IN

(SINGLE)

1

REMOTE

OUT IN

(FRONT)

1

2

OUT

TRIGGER

OUT

1

2

+12V 0.1A MAX.

OPTICAL 6 COAXIAL

2

FRONT

R

SURROUND

L


R

SURROUND BACK

L


SPEAKERS


R EXTRA SP2 L

SUR. BACK

(REAR)

SUBWOOFER

CENTER

CENTER

R

FRONT

L

RS-232C

R


BI–AMP

EXTRA SP1

L

AC IN

ANTENNA

(4 RADIO)

AM FM 75Ω

SINGLE


• The area around the video/audio output jacks is marked in white on the actual product.

En

144

Trademarks

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of

Dolby Laboratories.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks, or registered trademarks of HDMI

Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license under U.S. Patent #’s:

5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other

U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD

Master Audio, and the DTS logos are trademarks of DTS, Inc.

Product includes software. © DTS, Inc. All Rights Reserved.

iPod™, iPhone™

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

DLNA Certified is a trademark of the Digital Living Network Alliance in the United States and other countries.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

Windows XP, Windows Vista, Windows 7, Windows Media Audio, Windows Media Connect and Windows Media Player are either registered trademarks or trademarks of Microsoft corporation in the United States and/or other countries.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

This receiver supports network connections.

Bluetooth™

Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

En

145

Specifications

❑ Input jacks

• Analog Audio

Audio x 10 (AV1~4, AUDIO1~4, PHONO, V-AUX)

MULTI CH INPUT (8ch) x 1

(FRONT L/R, CENTER, SURROUND L/R,

SURROUND BACK L/R, SUBWOOFER)

• Digital Audio (Support fs: 32 kHz to 96 kHz)

Optical x 4 (AV3~4, AUDIO1, V-AUX)

Coaxial x 3 (AV1~2, AUDIO2)

• Video

Composite x 5 (AV1~4, V-AUX)

S-video x 5 (AV1~4, V-AUX)

Component x 4 (AV1~4)

• HDMI Input

HDMI (Front Panel) x 1 (V-AUX)

HDMI (Rear Panel) x 7 (AV1~7)

• Other

DOCK x 1 (Audio, Composite Video, S-video)

USB x 1 (USB2.0)

NETWORK x 1 (100Base-TX/10Base-T)

❑ Output jacks

• Analog Audio

Speaker out x 11 (9 ch) (FRONT L/R, CENTER,

SURROUND L/R, SURROUND BACK L/R, EXTRA SP1

*1

,

EXTRA SP2

*2

)

*1 Note: assignment is possible.

[ZONE2, ZONE3, F.PRESENCE, BI-AMP (FRONT L/R)]

*2 Note: assignment is possible.

[ZONE2, ZONE3, R.PRESENCE]

Pre Out x 7 (FRONT L/R, CENTER, SURROUND L/R,

SURROUND BACK L/R)

Subwoofer Out x 2

(SUBWOOFER 1~2, Stereo/Front&Rear/Monox2)

Audio x 1 (AV OUT)

• Digital Audio

Optical x 1 (AV OUT)

• Video

MONITOR OUT/ZONE OUT

- Composite x 1

- S-video x 1

- Component x 1

AV OUT

- Composite x 1

- S-video x 1

• HDMI Output

HDMI OUT x 2 (HDMI OUT1~2)

❑ Remote jacks

• REMOTE IN x 2

• REMOTE OUT x 2

• TRIGGER OUT x 2

• RS-232C x 1

❑ HDMI

• HDMI Specification: Deep Color, “x.v.Color,” Auto Lip Sync,

HDMI Control (CEC), ARC (Audio Return Channel), 3D

• Video Format (Repeater Mode)

- VGA

- 480i/60 Hz

- 576i/50 Hz

- 480p/60 Hz

- 576p/50 Hz

- 720p/60 Hz, 50 Hz

- 1080i/60 Hz, 50 Hz

- 1080p/60 Hz, 50 Hz, 24 Hz

• Audio Format

- Dolby Digital

- DTS

- DSD 6ch

- Dolby Digital Plus

- Dolby TrueHD

- DTS-HD

- PCM 2ch-8ch (Max 192 kHz/24 bit)

• Content Protection: HDCP compatible

❑ TUNER

• Analog Tuner

FM/AM x 1 (TUNER)

❑

USB

• Capable of iPod, Mass Storage Class USB Memory, MTP

(Media Transfer Protocol)

• Current Supply Capacity: 1 A

❑ Network

• PC Client Function

• Compatible with Windows 7, DLNA ver. 1.5

• Internet Radio

En

146

❑ Compatible Decoding Formats

• Decoding Format

- Dolby TrueHD, Dolby Digital Plus

- DTS-HD Master Audio, DTS-HD High Resolution,

DTS Express

- Dolby Digital, Dolby Digital EX

- DTS, DTS 96/24, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1

• Post Decoding Format

- Dolby Pro Logic

- Dolby Pro Logic II Music, Dolby Pro Logic II Movie,

Dolby Pro Logic II Game

- Dolby Pro Logic IIx Music, Dolby Pro Logic IIx Movie,

Dolby Pro Logic IIx Game

- DTS Neo:6 Music, DTS Neo:6 Cinema

❑ Audio Section

• Rated Output Power

(20 Hz to 20 kHz, 0.06% THD, 8

Ω

)

Front L/R .............................................................140 W+140 W

Center ............................................................................. 140 W

Surround L/R.......................................................140 W+140 W

Surround Back L/R .............................................140 W+140 W

Front Presence L/R .............................................140 W+140 W

(1 kHz, 0.9% THD, 8

Ω

)

Front L/R .......................................... 175 W/ch (155 W+155 W)

Center ...........................................................175 W/ch (155 W)

Surround L/R.................................... 175 W/ch (155 W+155 W)

Surround Back L/R .......................... 175 W/ch (155 W+155 W)

Front Presence L/R .......................... 175 W/ch (155 W+155 W)

• Maximum Effective Output Power (JEITA, 1 kHz, 10% THD, 8

Ω

)

[China model]

Front L/R .................................................................... 220 W/ch

Center ........................................................................ 220 W/ch

Surround L/R.............................................................. 220 W/ch

Surround Back L/R .................................................... 220 W/ch

Front Presence L/R .................................................... 220 W/ch

• Dynamic Power (IHF)

Front L/R (8/6/4/2

Ω

)...................................165/210/285/405 W

• Damping Factor

Front L/R, 1 kHz, 8

Ω

............................................. 150 or more

• Input Sensitivity / Input Impedance

PHONO (1 kHz, 100 W/8

Ω

) ................................ 3.5 mV/47 k

Ω

AUDIO2 etc. (1 kHz, 100 W/8

Ω

) ....................... 200 mV/47 k

Ω

• Maximum Input Signal

PHONO (1 kHz, 0.5% THD) .............................. 60 mV or more

AUDIO2 etc. (1 kHz, 0.5% THD) ......................... 2.4 V or more

• Output Level / Output Impedance

AV OUT.............................................................. 200 mV/1.2 k

Ω

HEADPHONE OUT ............................................. 150 mV/100

Ω

PRE OUT

SUBWOOFER (50 Hz) ........................................... 1.0 V/1.2 k

Ω

Except SUBWOOFER (1 kHz) ............................... 1.0 V/1.2 k

Ω

ZONE OUT ............................................................ 1.0 V/1.2 k

Ω

• Frequency Response

AUDIO2 etc. to Front (Pure Direct, 10 kHz to 100 kHz)

....................................................................................+0/-3 dB

• RIAA Equalization Deviation

PHONO (20 Hz to 20 kHz) ......................................... 0±0.5 dB

• Total Harmonic Distortion

PHONO to AV OUT.............................................. 0.02% or less

MULTI CH INPUT to SP OUT (Pure Direct, 70W, 8

Ω

)

............................................................................ 0.04% or less

• Signal to Noise Ratio (IHF-A Network)

PHONO to AV OUT (Input shorted 5 mV)

[China model]..................................................... 86 dB or more

[Australia model] ................................................ 81 dB or more

AUDIO2 etc. to SP OUT (Pure Direct, Input shorted 250 mV)

......................................................................... 100 dB or more

• Residual Noise (IHF-A Network)

Front L/R (SP OUT)............................................. 150 µV or less

• Channel Separation

PHONO (Input Shorted, 1 kHz/10 kHz)... 60 dB/55 dB or more

AUDIO2 etc.

(Input 5.1 k

Ω

Shorted, 1 kHz/10 kHz) ..... 60 dB/45 dB or more

• Volume Control

Main Zone ..................MUTE, -80 dB to +16.5dB (0.5 dB step)

Zone2, Zone3.............MUTE, -80 dB to +16.5dB (0.5 dB step)

• Tone Control Characteristics (Front L/R)

Main Zone

Bass Boost/Cut .........................±6.0 dB/50 Hz (0.5 dB step)

Bass Turnover .............................................................350 Hz

Treble Boost/Cut...................... ±6.0 dB/20 kHz (0.5 dB step)

Treble Turnover .......................................................... 3.5 kHz

Zone2, Zone3

Bass Boost/Cut .............................±10 dB/50 Hz (2 dB step)

Bass Turnover .............................................................350 Hz

Treble Boost/Cut............................±10 dB/50 Hz (2 dB step)

Treble Turnover .......................................................... 3.5 kHz

• Filter Characteristics

(fc=40/60/80/90/100/110/120/160/200 Hz)

H.P.F. (Front, Center, Surround, Surround Back: Small)

..................................................................................12 dB/oct.

L.P.F. (Subwoofer) .....................................................24 dB/oct.

❑ Video Section

• Video Signal Type ...............................................................PAL

• Video Signal Type (Video Conversion)..................... NTSC/PAL

• Video Signal Level

Composite..............................................................1 Vp-p/75

Ω

S-Video

Y ..........................................................................1 Vp-p/75

Ω

C (PAL) .............................................................0.3 Vp-p/75

Ω

Component

Y ..........................................................................1 Vp-p/75

Ω

Pb/Pr ................................................................0.7 Vp-p/75

Ω

• Video Maximum Input Level (Video Conversion Off)

....................................................................... 1.5 Vp-p or more

• Signal to Noise Ratio (Video Conversion Off) .... 60 dB or more

• Monitor Out Frequency Response (Video Conversion Off)

Component (MONITOR OUT/ZONE OUT)

........................................................... 5 Hz to 100 MHz, ±3 dB

En

147

❑ FM Section

• Tuning Range ..................................87.50 MHz to 108.00 MHz

• 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)

Mono................................................................. 3 µV (20.8 dBf)

• Signal to Noise Ratio (IHF)

Mono/Stereo ......................................................... 72 dB/70 dB

• Harmonic Distortion (IHF, 1 kHz)

Mono/Stereo ............................................................ 0.3%/0.5%

• Antenna Input ................................................75

Ω

unbalanced

❑ AM section

• Tuning Range .......................................... 531 kHz to 1611 kHz

❑

General

• Power Supply

[China model] ................................................. AC 220 V, 50 Hz

[Australia model] ............................................ AC 240 V, 50 Hz

• Power Consumption ....................................................... 490 W

• Standby Power Consumption

HDMI Control Off / Standby Through Off..............0.3 W or less

HDMI Control On / Standby Through On (Typical) .......... 2.7 W

Network Standby On (Typical)......................................... 2.5 W

• Dimensions (W x H x D)............................ 435 x 182 x 465 mm

(17-1/8” x 7-1/8” x 18-1/4”)

• Weight........................................................... 17.0 kg (37.5 lbs)

* Specifications are subject to change without notice.

En

148

© 2011 Y a m a h a Corpor a tion YD506A0/OMEN
