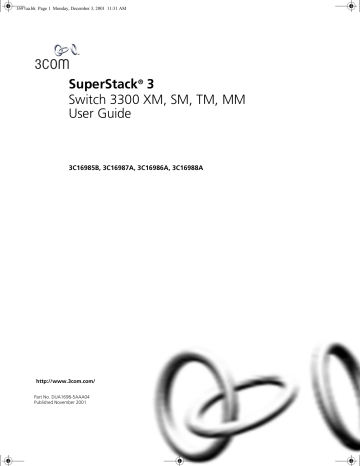

1697ua.bk Page 1 Monday, December 3, 2001 11:31 AM
SuperStack
®
3
Switch 3300 XM, SM, TM, MM
User Guide
3C16985B, 3C16987A, 3C16986A, 3C16988A http://www.3com.com/
Part No. DUA1698-5AAA04
Published November 2001
1697ua.bk Page 2 Monday, December 3, 2001 11:31 AM
3Com Corporation
5400 Bayfront Plaza
Santa Clara, California
95052-8145
Copyright © 2001, 3Com Technologies. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Technologies.
3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Technologies to provide notification of such revision or change.
3Com Technologies provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time.
If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you.
UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following:
All technical data and computer software are commercial in nature and developed solely at private expense.
Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable.
You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries.
3Com and SuperStack are registered trademarks of 3Com Corporation. The 3Com logo, is a trademark of
3Com Corporation.
Novell and NetWare are registered trademarks of Novell Incorporated.
Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
All other company and product names may be trademarks of the respective companies with which they are associated.
Environmental Statement
It is a 3Com policy to be environmentally friendly in all operations. This manual is printed on paper that comes from sustainable, managed European forests. The production process for making the pulp has a reduced AOX level (adsorbable organic halogen) resulting in elemental chlorine-free paper.
The paper is fully biodegradable and recyclable.
1697ua.bk Page 3 Monday, December 3, 2001 11:31 AM
C
ONTENTS
A BOUT T HIS G UIDE
Conventions 8
Related Documentation 9
Documentation Comments 10
Product Registration 10
1 I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
About the Switch 12
Summary of Features 12
Switch — Front View Detail 13
10BASE-T/
100BASE-TX Ports 14
1000BASE-SX Port (SM only) 14
1000BASE-T Port (TM only) 14
LEDs 14
Switch — Rear View Detail 16
Unit Information Label 16
Power Socket 16
Redundant Power System Socket 16
Console Port 17
Matrix Port 17
Network Configuration Examples 18
Switch as a Segmentation Switch 18
Switch as a Collapsed Backbone Switch 19
Switch as a Desktop Switch 20
Configuration Rules for Fast Ethernet 21
Configuration Rules with Full Duplex 22
Configuration Rules for Gigabit Ethernet (SM and TM) 23
Configuration Rules for the 3300 SM and TM 23
1697ua.bk Page 4 Monday, December 3, 2001 11:31 AM
2 I
NSTALLING THE
S
WITCH
Choosing a Suitable Site 26
Rack-mounting 27
Placing Units On Top of Each Other 28
Stacking Units 29
Stacking Two Units 29
Stacking Up To Four Units 30
The Power-up Sequence 32
Connecting a Redundant Power System 32
Powering-up the Switch 32
Checking for Correct Operation 32
Choosing the Correct Cables 33
Solving Problems Indicated by LEDs 34
Managing the Switch 34
A S
AFETY
I
NFORMATION
Important Safety Information 36
L’information de Sécurité Importante 38
Wichtige Sicherheitsinformationen 40
B P IN OUTS
Null Modem Cable 43
PC-AT Serial Cable 43
Modem Cable 44
RJ45 Pin Assignments 44
C T
ECHNICAL
S
PECIFICATIONS
Switch 3300 XM, SM and MM 47
Switch 3300 TM 48
D T
ECHNICAL
S
UPPORT
Online Technical Services 51
World Wide Web Site 51
3Com Knowledgebase Web Services 51
3Com FTP Site 52
1697ua.bk Page 5 Monday, December 3, 2001 11:31 AM
Support from Your Network Supplier 52
Support from 3Com 52
Returning Products for Repair 54
G
LOSSARY
I
NDEX
R EGULATORY N OTICES
1697ua.bk Page 6 Monday, December 3, 2001 11:31 AM
1697ua.bk Page 7 Monday, December 3, 2001 11:31 AM
A
BOUT
T
HIS
G
UIDE
This guide provides all the information you need to install and use a
SuperStack ® 3 Switch 3300 XM (3C16985B), 3300 SM (3C16987A),
3300 TM (3C16986A) or 3300 MM (3C16988A) unit with default settings. If you want to change the way the Switch works using management software, refer to the “SuperStack Switch Management
Guide”.
The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area
Networks).
If the information in the release notes that are shipped with your product differs from the information in this guide, follow the instructions in the release notes.
Most user guides and release notes are available in Adobe Acrobat
Reader Portable Document Format (PDF) or HTML on the 3Com
World Wide Web site: http://www.3com.com/
All the Switches mentioned in this guide are compatible with the
Switches found within the SuperStack 1100/3300 family range.
1697ua.bk Page 8 Monday, December 3, 2001 11:31 AM
8 A
BOUT
T
HIS
G
UIDE
Conventions
Table 1 and Table 2 list conventions that are used throughout this guide.
Table 1 Notice Icons
Icon Notice Type Description
Information note Information that describes important features or instructions
Caution
Warning
Information that alerts you to potential loss of data or potential damage to an application, system, or device
Information that alerts you to potential personal injury
Table 2 Text Conventions
Convention Description
Screen displays This typeface represents information as it appears on the screen.
Syntax The word “syntax” means that you must evaluate the syntax provided and then supply the appropriate values for the placeholders that appear in angle brackets. Example:
To change your password, use the following syntax:
Commands system password <password>
In this example, you must supply a password for
<password>.
The word “command” means that you must enter the command exactly as shown and then press Return or Enter.
Commands appear in bold. Example:
To display port information, enter the following command: bridge port detail
The words “enter” and “type”
When you see the word “enter” in this guide, you must type something, and then press Return or Enter. Do not press
Return or Enter when an instruction simply says “type.”
Keyboard key names If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example:
Press Ctrl+Alt+Del
1697ua.bk Page 9 Monday, December 3, 2001 11:31 AM
Related
Documentation
Related Documentation 9
Table 2 Text Conventions (continued)
Convention
Words in italics
Description
Italics are used to:
■
■
■
Emphasize a point.
Denote a new term at the place where it is defined in the text.
Identify menu names, menu commands, and software button names. Examples:
From the Help menu, select Contents .
Click OK .
In addition to this guide, each Switch 3300 XM, SM, TM, MM document set includes the following:
■
■
■
■
■
■
Management Guide
This guide contains all the management information for the Switch. It is supplied on the SuperStack Switch CD-ROM.
Quick Reference Guide
This guide contains a quick summary of the hardware and software information for the Switch.
Quick Installation Guide
This guide contains a summary of the package contents, and a quick summary of the installation information for the Switch.
Release Notes
These notes provide information about the current software release, including new features, modifications, and known problems.
SuperStack Switch Help
This help provides information about the web interface software of the Switch. It is supplied on the SuperStack Switch CD-ROM.
SuperStack Switch README File
This file provides information about the current software release, including new features, modifications, and known problems. It is supplied on the SuperStack Switch CD-ROM.
1697ua.bk Page 10 Monday, December 3, 2001 11:31 AM
10 A
BOUT
T
HIS
G
UIDE
Documentation
Comments
Product
Registration
In addition, there are other publications you may find useful:
■
Documentation accompanying the Advanced Redundant Power
System.
Your suggestions are very important to us. They will help make our documentation more useful to you. Please e-mail comments about this document to 3Com at: [email protected]
Please include the following information when commenting:
■
■
■
Document title
Document part number (on the title page)
Page number (if appropriate)
Example:
■
SuperStack 3 Switch 3300 XM, SM, TM, MM User Guide
■
■
Part Number DUA1698-5AAA04
Page 21
You can now register your SuperStack Switch on the 3Com web site to receive up-to-date information on your product: http://support.3com.com/registration/frontpg.pl
1697ua.bk Page 11 Monday, December 3, 2001 11:31 AM
1 I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
This chapter contains introductory information about the Switch and how it can be used in your network. It covers the following topics:
■
About the Switch
■
■
■
Switch — Front View Detail
Switch — Rear View Detail
Network Configuration Examples
■
■
■
■
Configuration Rules for Fast Ethernet
Configuration Rules with Full Duplex
Configuration Rules for Gigabit Ethernet (SM and TM)
Configuration Rules for the 3300 SM and TM
1697ua.bk Page 12 Monday, December 3, 2001 11:31 AM
12 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
About the Switch
The SuperStack ® 3 Switch 3300 XM, SM, TM, or MM connects:
■ your existing 10Mbps devices.
■
■ high-performance workgroups with a 100Mbps or 1000Mbps backbone or server connection.
users to dedicated 100Mbps ports in one switch.
In addition, as part of the 3Com ® SuperStack 3 range of products, you can combine it with any SuperStack II or SuperStack 3 system as your network grows.
Summary of Features The Switch has the following hardware features:
■
■
24 Fast Ethernet auto-negotiating 10BASE-T/100BASE-TX ports
1000BASE-SX Gigabit Ethernet port (SM only)
■
■
1000BASE-T Gigabit Ethernet port (TM only)
One Matrix Port on the rear of the Switches 3300 SM, TM and XM for connecting units in the Switch 1100/3300 family to form a stack. This enables you to connect two units back-to-back using a single Matrix
Cable
■
■
Three Matrix Ports on the rear of the Switch 3300 MM allow you to connect a total of four units in the Switch 1100/3300 family together using Matrix Cables
■
■
SuperStack architecture
Connects to Redundant Power System/Advanced Redundant
Power System
19-inch rack or stand-alone mounting
For information about the software features of the Switch, refer to the
“SuperStack Switch Management Guide”.
1697ua.bk Page 13 Monday, December 3, 2001 11:31 AM
Switch — Front View Detail 13
Switch — Front
View Detail
1x
13x
6x 7x
18x 19x
Figure 1 Switch 3300 SM — front view
12x
24x
13
13
1
1
2
2
14
10BASE-T / 100BASE-TX green flashing green
= enabled, link OK
= disabled, link OK
11 3 4
3
15
4
16
5 6 7
5
17
6
18
7
19
8 9 10
8
20
9
21
10
22
11
23
14 15 16 17 18 19 20 21 22 23
12
12
24
24
1000BASE-SX
Packet
Status
Packet
Status
Unit
1 2
3
5
7
4
6
8
Power/Self Test
SuperStack3
Switch 3300 SM
1x
13x
1x
13x
10BASE-T/100BASE-TX Ports Port Status LEDs
1000BASE-SX Port
Figure 2 Switch 3300 XM — front view
6x 7x
18x 19x
12x
24x
2
10BASE-T / 100BASE-TX green = enabled, link OK flashing green = disabled, link OK
3 4 5 6 7 8 9 10 11 1
1
13
2 3
14 15
4 5
16 17
6
18
7
19
8
20
9
21
10
22
11
23
13
14 15 16 17 18 19 20 21 22 23
12
12
24
24
Packet
Status
Packet
Status
Power / Self Test LED
Unit LED
Unit
1
3
5
7
2
4
6
8
Power/Self Test
SuperStack3
Switch 3300 XM
10BASE-T / 100BASE-TX Ports Port Status LEDs Power / Self Test LED
Unit LED
6x 7x
18x 19x
Figure 3 Switch 3300 TM — front view
12x
24x
1
1
13
13
2
14
14
2
10BASE-T / 100BASE-TX green flashing green
= enabled, link OK
= disabled, link OK
3 4 5 6 7 8 9 10 11
3 4
15 16
15 16
5 6
17 18
17 18
7 8 9 10
19 20 21 22
19 20 21 22
11
23
23
12
12
24
24
1000BASE-T
Packet
Status
Packet
Status
Unit
1 2
3
5
7
4
6
8
Power/Self Test
SuperStack3
Switch 3300 TM
1x
13x
10BASE-T/100BASE-TX Ports Port Status LEDs
1000BASE-T Port
Figure 4 Switch 3300 MM — front view
6x 7x
18x 19x
12x
24x
13
13
1
1
2
2
14
10BASE-T / 100BASE-TX green = enabled, link OK flashing green = disabled, link OK
3 4
3
15
4
16
5
5
17
14 15 16 17
6 7 8 9 10
6
18
7 8
19 20
9
21
10
22
11
11
23
12
12
24
18 19 20 21 22 23 24
Matrix
Packet
Status
Packet
Status
Power / Self Test LED
Unit LED
Unit
1 2
3
5
7
4
6
8
Power/Self Test
SuperStack3
Switch 3300 MM
10BASE-T/100BASE-TX Ports Port Status LEDs Power / Self Test LED
Unit LED
1697ua.bk Page 14 Monday, December 3, 2001 11:31 AM
14 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
10BASE-T/
100BASE-TX Ports
The Switch has 24 auto-negotiating 10BASE-T/100BASE-TX ports configured as MDIX (cross-over). These ports can be set to 10BASE-T half duplex, 10BASE-T full duplex, 100BASE-TX half duplex, 100BASE-TX full duplex, or they can automatically detect the speed and duplex mode of a link and provide the appropriate connection. The maximum segment length is 100m (328ft) over Category 5 twisted pair cable.
As these ports are configured as MDIX (cross-over), you need to use a cross-over cable to connect to devices whose ports are MDIX-only. See
“Choosing the Correct Cables” on page 33 for more information.
1000BASE-SX Port
(SM only)
The Switch has a Gigabit Ethernet Port that provides a 1000Mbps connection to another Gigabit Ethernet device. This port uses 62.5
µµµµ m or
50 µµµµ m multimode fiber optic cable with MT-RJ duplex connectors.
1000BASE-T Port
(TM only)
The Switch has a Gigabit Ethernet Port that provides a 1000Mbps connection to another Gigabit Ethernet device. This port requires either a straight-through or a cross-over Category 5 cable with RJ-45 connectors at both ends.
LEDs Table 3 (overleaf) lists the LEDs visible on the front of the Switch, and their states according to color. For information on using the LEDs for problem solving, see “Solving Problems Indicated by LEDs” on page 34.
1697ua.bk Page 15 Monday, December 3, 2001 11:31 AM
Switch — Front View Detail 15
.
Table 3 LED behavior
LED Color
Port Status LEDs
Packet Yellow
Off
Status Green
Green flashing
Off
Unit LEDs
1–8 Green
Off
Power/Self Test LED
Green
Green flashing
Yellow
Off
Indicates
Packets are being transmitted/received on the port.
No packets are being transmitted/received on the port.
A link is present, and the port is enabled.
A link is present, but the port is disabled.
No link is present.
The Switch forms a stack with other Switch units; the LED indicates the position of the Switch in the stack and that a link is present. Note that although there are eight LEDs, only four Switch units can be stacked at present.
The Switch is stand-alone.
The Switch is powered-up.
The Switch is either downloading software or is initializing (which includes running a Power On Self
Test).
The Switch has failed its Power On Self Test.
The Switch is not receiving power.
1697ua.bk Page 16 Monday, December 3, 2001 11:31 AM
16 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
Switch — Rear
View Detail
Figure 5 Switch 3300 XM, SM and TM— rear view
Unit Information Label
Switch 3300 XM 24 Port
3C16985A
MAC Addr: XXXXXXXXXX
Serial XXXXXXXXXXXX
Console
(max) 19200,8,1,N
Matrix Port
Power Socket Redundant Power System Socket Console Port
Figure 6 Switch 3300 MM — rear view
Unit Information Label
Switch 3300 MM 24 Port
3C16988
MAC Addr: XXXXXXXXXX
Serial XXXXXXXXXXXX
Console
(max) 19200,8,1,N
Unit 2 Unit 3 Unit 4
Matrix Port
Power Socket Redundant Power System Socket Console Port Matrix Ports
Unit Information
Label
This label shows the following:
■
The 3Com product name of the Switch
■
■
■
The 3Com 3C number of the Switch
The unique MAC address (Ethernet address) of the Switch
The serial number of the Switch
You may need this information for fault reporting purposes.
Power Socket The Switch automatically adjusts its power setting to any supply voltage in the range 100–240V A.C. (XM, SM and MM only) or in the range
90–240V A.C. (TM only).
Redundant Power
System Socket
To protect against internal power supply failure, you can use this socket to connect a SuperStack Advanced Redundant Power System (ARPS) to the Switch. See “Connecting a Redundant Power System” on page 32.
1697ua.bk Page 17 Monday, December 3, 2001 11:31 AM
Switch — Rear View Detail 17
Console Port The console port allows you to connect a terminal and perform remote or local out-of-band management. The console port uses standard null modem cable and is set to auto-baud, 8 data bits, no parity and 1 stop bit.
Matrix Port The Matrix Port allows you to:
■
Stack the Switch 3300 SM, TM or XM with another unit in the Switch
1100/3300 family using a single Matrix Cable
■ Stack the Switch 3300 MM with up to three other units in the Switch
1100/3300 family, using up to three Matrix Cables
For more information about the role of the Matrix Port, see “Stacking
Units” on page 29.
1697ua.bk Page 18 Monday, December 3, 2001 11:31 AM
18 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
Network
Configuration
Examples
The following illustrations show some examples of how the Switch can be used in your network.
Switch as a
Segmentation Switch
The example in Figure 7 shows how a Switch 3300 SM/XM stack can segment a network of shared 10Mbps and 100Mbps and 1000Mbps connections. There is a 10/100 shared segment on each floor, and these segments are connected to the Switch which is positioned in the basement. The Switch 3300 SM also provides a Gigabit Ethernet connection to a local server.
Figure 7 Using the Switch to segment your network
Dual Speed Hub 500
Endstations on shared 10Mbps and 100Mbps connections
Local server on a shared
100Mbps connection
Dual Speed Hub 500
Endstations on shared 10Mbps and 100Mbps connections
100Mbps
Local server on a shared
100Mbps connection
Switch 3300 SM/XM stack
XM
Endstations and servers on switched 10Mbps,
100Mbps and 1000Mbps connections
SM
1000Mbps
1697ua.bk Page 19 Monday, December 3, 2001 11:31 AM
Network Configuration Examples 19
Switch as a Collapsed
Backbone Switch
The example in Figure 8 shows how a Switch 3300 TM stack can act as a backbone for both shared and switched network segments.
Figure 8 Using the Switch as a collapsed backbone
Endstations on shared 10Mbps and 100Mbps connections
Endstations on switched 10Mbps connections
Switch 1100
Dual Speed Hub 500
Endstations on shared 10Mbps and 100Mbps connections
Dual Speed Hub 500
Endstations on switched 10Mbps connections
Switch 1100
Endstations on switched
10Mbps connections
100Mbps
Switch 3300 TM stack
Servers on dedicated
1000Mbps connections
1697ua.bk Page 20 Monday, December 3, 2001 11:31 AM
20 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
Switch as a Desktop
Switch
The example in Figure 9 shows how the Switch can be used for a group of users that require dedicated 10Mbps or 100Mbps connections to the desktop. The 3300 SM Switch provides a Gigabit Ethernet connection to a SuperStack II Switch 4900 in the basement and the 3300 TM Switch provides a Gigabit Ethernet connection to a local server.
Figure 9 Using the Switch in a desktop environment
Switch 3300:
SM
TM
XM
MM
Local server on a switched
1000Mbps connection
Endstations on switched 10Mbps or 100Mbps connections
1000Mbps
Switch 4900
1697ua.bk Page 21 Monday, December 3, 2001 11:31 AM
Configuration Rules for Fast Ethernet 21
Configuration Rules for Fast Ethernet
The topology rules for 100Mbps Fast Ethernet are slightly different to those for 10Mbps Ethernet. Figure 10 illustrates the key topology rules and provides examples of how they allow for large-scale Fast Ethernet networks.
Figure 10 Fast Ethernet configuration rules
1697ua.bk Page 22 Monday, December 3, 2001 11:31 AM
22 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
The key topology rules are:
■
Maximum UTP cable length is 100m (328ft) over Category 5 cable.
■
■
A 412m (1352ft) fiber run is allowed for connecting switch-to-switch, or endstation-to-switch, using half-duplex 100BASE-FX.
A total network span of 325m (1066ft) is allowed in single-repeater topologies (one hub stack per wiring closet with a fiber run to the collapsed backbone). For example, a 225m (738ft) fiber link from a repeater to a router or switch, plus a 100m (328ft) UTP link from a repeater out to the endstations.
Configuration Rules with Full Duplex
The Switch provides full duplex support for all its ports. Full duplex allows packets to be transmitted and received simultaneously and, in effect, doubles the potential throughput of a link.
With full duplex, the Ethernet topology rules are the same, but the Fast
Ethernet rules are:
■
Maximum UTP cable length is 100m (328ft) over Category 5 cable.
■ A 2km (6562ft) fiber link is allowed for connecting switch-to-switch, or endstation-to-switch.
1697ua.bk Page 23 Monday, December 3, 2001 11:31 AM
Configuration Rules for Gigabit Ethernet (SM and TM) 23
Configuration Rules for Gigabit
Ethernet (SM and
TM)
Gigabit Ethernet is designed to run over four media:
■
Single-mode fiber optic cable, with connections up to 5km.
■
Multimode fiber optic cable, with connections up to 550m.
■
■
Balanced, shielded copper cabling, with connections up to 25m.
Category 5 cabling, with connections up to 100m.
Table 4 Gigabit Ethernet cabling
Gigabit Ethernet
Transceivers
1000BASE-LX
1000BASE-SX
1000BASE-CX
1000BASE-T
Fiber Type
62.5
µ m MM
50 µ m MM
50 µ m MM
10 µ m SM
62.5
µ m MM
62.5
µ m MM
50 µ m MM
50 µ m MM
N/A
N/A
160
120
400
500
N/A
N/A
Modal
Bandwidth
(MHz/km)
500
400
500
N/A
Lengths Supported
Specified by IEEE
(meters)
2–550
2–550
2–550
2–5000
2–220
2–275
2–500
2–550
25
100
MM = Multimode SM = Single-mode
Configuration Rules for the 3300 SM and TM
The SM Switch has a Gigabit Ethernet fiber optic 1000BASE-SX port while the TM switch has a 1000BASE-T port. These ports provide a
1000Mbps full duplex connection to another Gigabit Ethernet device. Full duplex allows packets to be transmitted and received simultaneously and, in effect, doubles the potential throughput of a link.
For the SuperStack 3 Switch 3300 SM:
■
Use Multimode fiber optic cable (see Table 4 for details).
■
■
The 1000BASE-SX port is permanently fixed at 1000Mbps with full duplex.
For the Superstack 3 Switch 3300 TM:
■ the maximum UTP cable length is 100m (328ft) over Category 5 cable.
The 1000BASE-T port is permanently fixed at 1000Mbps with full duplex.
1697ua.bk Page 24 Monday, December 3, 2001 11:31 AM
24 C
HAPTER
1: I
NTRODUCING THE
S
WITCH
3300 XM, SM, TM, MM
1697ua.bk Page 25 Monday, December 3, 2001 11:31 AM
2 I
NSTALLING THE
S
WITCH
This chapter contains the information you need to install and set up the
Switch. It covers the following topics:
■
Choosing a Suitable Site
■
■
■
Rack-mounting
Placing Units On Top of Each Other
Stacking Units
■
■
■
■
The Power-up Sequence
Choosing the Correct Cables
Solving Problems Indicated by LEDs
Managing the Switch
WARNING: Safety Information.
Before installing or removing any components from the Switch 3300 XM, SM, TM or MM or carrying out any maintenance procedures, you must read the safety information provided in Appendix A of this guide.
AVERTISSEMENT: Consignes de sécurité.
Avant d'installer ou d'enlever tout composant du Switch 3300 XM, SM, TM ou MM ou d'entamer une procédure de maintenance, lisez les informations relatives à la sécurité qui se trouvent dans l'Appendice A de ce guide.
WARNHINWEIS: Sicherheitsinformationen.
Bevor Sie Komponenten aus dem Switch 3300 XM, SM, TM oder MM entfernen oder dem Switch
Switch 3300 XM, SM, TM oder MM hinzufuegen oder
Instandhaltungsarbeiten verrichten, lesen Sie die Sicherheitsanweisungen, die in Appendix A (Anhang A) in diesem Handbuch aufgefuehrt sind.
1697ua.bk Page 26 Monday, December 3, 2001 11:31 AM
26 C
HAPTER
2: I
NSTALLING THE
S
WITCH
Choosing a Suitable
Site
The Switch is suited for use in an office environment where it can be mounted in a standard 19-inch equipment rack, or free standing.
Alternatively, the Switch can be rack-mounted in a wiring closet or equipment room. A rack-mounting kit, containing two mounting brackets and four screws, is supplied with the Switch.
When deciding where to position the Switch, ensure that:
■
You are able to meet the configuration rules detailed in
“Configuration Rules for Fast Ethernet” on page 21.
■
■
■
■
The Switch is accessible and cables can be connected easily.
The switch is situated away from sources of conductive (electrical) dust, for example, laser printers
The AC supply used by the Switch is separate to that used by units that generate high levels of AC noise, for example air conditioning units and laser printers
Cabling is away from:
■
■
■
■
■
Sources of electrical noise such as radios, transmitters and broadband amplifiers
■
Power lines and fluorescent lighting fixtures
Water or moisture cannot enter the case of the Switch.
Air-flow is not restricted around the Switch or through the vents in the side of the Switch. We recommend that you provide a minimum of
25mm (1in.) clearance.
No more than four Switch units are placed on top of one another, if the units are free standing.
If used in an office environment, the switch is positioned so that any noise from the fan is not disruptive.
1697ua.bk Page 27 Monday, December 3, 2001 11:31 AM
Rack-mounting 27
Rack-mounting
The Switch is 1U high and fits in most standard 19-inch racks.
CAUTION: Disconnect all cables from the Switch before continuing.
Remove all self adhesive pads from the underside of the Switch if they have been fitted.
1 Place the Switch the right way up on a hard flat surface, with the front facing towards you.
2 Locate a mounting bracket over the mounting holes on one side of the
Switch, as shown in Figure 11.
Figure 11 Fitting a bracket for rack mounting
3 Insert the two screws and tighten with a suitable screwdriver.
You must use the screws supplied with the mounting brackets. Damage caused to the unit by using incorrect screws invalidates your warranty.
4 Repeat steps 2 and 3 for the other side of the Switch.
5 Insert the Switch into the 19-inch rack and secure with suitable screws
(not provided). Ensure that ventilation holes are not obstructed.
6 Connect network cabling.
1697ua.bk Page 28 Monday, December 3, 2001 11:31 AM
28 C
HAPTER
2: I
NSTALLING THE
S
WITCH
Placing Units On
Top of Each Other
If the Switch units are free-standing, up to four units can be placed one on top of the other. If you are mixing a variety of SuperStack Switch and
Hub units, the smaller units must be positioned at the top.
If you are placing Switch units one on top of the other, you must use the self-adhesive rubber pads supplied. Apply the pads to the underside of each Switch, sticking one in the marked area at each corner. Place the
Switch units on top of each other, ensuring that the pads of the upper unit line up with the recesses of the lower unit.
1697ua.bk Page 29 Monday, December 3, 2001 11:31 AM
Stacking Units 29
Stacking Units
Units in the Switch 1100/3300 family can be stacked together and then treated as a single manageable unit with one IP address.
The Matrix Port on the rear of the Switch SM, TM and XM allows you to connect two Switch units back-to-back. For this you need a Matrix Cable
(part number 3C16965). Contact your supplier for details.
The three Matrix Ports on the rear of the Switch MM allow you to connect a total of four units in the Switch 1100/3300 family together using Matrix Cables.
The Switches in a stack are numbered 1 to 4, from the bottom up, for management purposes. The SuperStack 3 Switch 3300 MM will always be identified as Unit 1 and should therefore be positioned at the bottom of the stack.
Only one SuperStack 3 Switch 3300 MM unit can be fitted per stack.
Stacking Two Units You can stack two Switch units with a single Matrix Cable. To do this:
1 Power-off both units.
2 Arrange the units as required. If you are using a Switch 3300 MM it must be positioned at the bottom of the Stack. They can be rack-mounted or free-standing; if you choose to have them free-standing, remember to position the rubber feet as detailed in “Placing Units On Top of Each
Other” on page 28. When positioning the units, note that Matrix Cables are 1m (3.28ft) long.
3 Connect one end of the Matrix Cable to the Matrix Port of the top
Switch, and the other end to the Matrix Port of the lower Switch (See
Figure 12).
4 If you use the management software of the units:
■ Ensure that both units have the same version of management software
■ Ensure that you re-configure the stack-wide features on both units
For more information about management software, see “Managing the
Switch” on page 34.
1697ua.bk Page 30 Monday, December 3, 2001 11:31 AM
30 C
HAPTER
2: I
NSTALLING THE
S
WITCH
Figure 12 A stack of two units
Stacking Up To Four
Units
You can stack up to four Switch units using one Switch 3300 MM and the appropriate number of Matrix Cables.
Only one SuperStack 3 Switch 3300 MM unit can be fitted per stack.
To stack up to four Switch units:
1 Power-off all the units.
2 Arrange the units as required. They can be rack-mounted or free-standing; if you choose to have them free-standing, remember to position the rubber feet as detailed in “Placing Units On Top of Each
Other” on page 28. When positioning the units, note that Matrix Cables are 1m (3.28ft) long.
3 Connect the Matrix Cables, as shown in Figure 13: a Connect a Matrix Cable to the port marked Unit 2 on the
Switch 3300 MM. Connect the other end of this cable to the Matrix
Port on the Switch placed immediately above the Switch 3300 MM.
b Connect a second Matrix Cable to the port marked Unit 3 on the
Switch 3300 MM. Connect the other end of this cable to the Matrix
Port on the next Switch up.
c Connect a third Matrix Cable to the port marked Unit 4 on the
Switch 3300 MM. Connect the other end of this cable to the Matrix
Port on the Switch at the top of the stack.
1697ua.bk Page 31 Monday, December 3, 2001 11:31 AM
Stacking Units 31
4 If you use the management software of the units:
■
Ensure that all the units have the same version of management software
■
Ensure that you re-configure the stack-wide features on all the units
For more information about management software, see “Managing the
Switch” on page 34.
Figure 13 A stack of three units
Switch 1100/3300
Switch 3300 SM
Switch 3300 MM
1697ua.bk Page 32 Monday, December 3, 2001 11:31 AM
32 C
HAPTER
2: I
NSTALLING THE
S
WITCH
The Power-up
Sequence
The following sections describe how to get your Switch 3300 XM, SM,
TM or MM powered-up and ready for operation.
Connecting a
Redundant Power
System
You can connect a SuperStack Advanced Redundant Power System (part number 3C16071B) to the Switch. This unit, which is also known as an
ARPS, is designed to maintain the power to your Switch if a power supply failure occurs.
For normal redundancy, the unit requires one Type 2A Power Module. For full redundancy, the unit requires two Type 2A Power Modules combined using a Type 2 Y-Cable.
Check with your supplier that you have the correct Power Modules and cables for your ARPS unit.
CAUTION: The Switch can only use a SuperStack Advanced Redundant
Power System output.
Powering-up the
Switch
Use the following sequence of steps to power-up the Switch.
CAUTION: The Switch has no ON/OFF switch; the only method of connecting or disconnecting main power is by connecting or disconnecting the power cord.
1 Plug the power cord into the power socket at the rear of the Switch.
2 Plug the other end of the power cord into your power outlet
The Switch powers-up and runs through its Power On Self Test (POST), which takes approximately 12 seconds.
Checking for Correct
Operation
During the Power On Self Test, all ports on the Switch are disabled and the LEDs light in the following sequence:
■
All unit LEDs light
■
Port Status LEDs light in a rapid cycle
When the POST has completed, check the Power/Self Test LED to check that your Switch is operating correctly. Table 5 shows possible colors for the LED.
1697ua.bk Page 33 Monday, December 3, 2001 11:31 AM
Choosing the
Correct Cables
Choosing the Correct Cables 33
Table 5 LED colors
Color
Green
Yellow
Off
State
The Switch is powered-up and operating normally
The Switch has failed its Power On Self
Test. This occurs if any of the ports fail during power-up.
The Switch is not receiving power.
If there is evidence of a problem, see “Solving Problems Indicated by
LEDs” on page 34.
All of the ports on the front of the Switch 3300 XM, SM, TM and MM are configured as MDIX (cross-over). If you want to make a connection to another MDIX port, you need a cross-over cable. Most of the 10BASE-T and 100BASE-TX ports on 3Com devices are MDIX-only. Many ports on workstations and servers are configured as MDI (straight-through). If you want to make a connection to an MDI port, you need to use a standard straight-through cable. This is illustrated in Figure 14.
Figure 14 Connecting other devices to the Switch
1697ua.bk Page 34 Monday, December 3, 2001 11:31 AM
34 C
HAPTER
2: I
NSTALLING THE
S
WITCH
Solving Problems
Indicated by LEDs
If the LEDs on the Switch indicate a problem, refer to Table 6 which contains a list of problems and suggested solutions.
Table 6 Problems indicated by LEDs
Problem
A Power LED does not light
On powering-up, the
Power/Self Test LED lights yellow and a
Unit LED lights green
A link is connected and yet the Status LED for the port does not light
Suggested Solution
Check that the power cable is firmly connected to the relevant Switch unit and to the supply outlet. If the connection is secure and there is still no power, you may have a faulty power cord.
The relevant Switch unit has failed its Power On Self Test
(POST) because of an internal problem. Contact your supplier for advice.
Check that:
■
■
■
All connections are secure.
The devices at both ends of the link are powered-up.
The connection uses cross-over cable if you are linking a 10BASE-T or 100BASE-TX port with a device that is MDIX-only.
For information about solving problems when managing the Switch, refer to the Problem Solving chapter in the “SuperStack Switch Management
Guide”.
Managing the
Switch
The Switch contains software that allows you to change and monitor the way it works. This management software is not required to get the
Switch working, but if you do use it, you may improve the efficiency of the Switch and therefore improve the overall performance of your network. For information on managing the Switch using the management software, refer to the “SuperStack Switch Management
Guide”.
1697ua.bk Page 35 Monday, December 3, 2001 11:31 AM
A S
AFETY
I
NFORMATION
You must read the following safety information before carrying out any installation or removal of components, or any maintenance procedures on the Switch 3300 XM, SM, TM or MM.
WARNING: Warnings contain directions that you must follow for your personal safety. Follow all directions carefully.
You must read the following safety information carefully before you install or remove the unit.
AVERTISSEMENT: Les avertissements présentent des consignes que vous devez respecter pour garantir votre sécurité personnelle. Vous devez respecter attentivement toutes les consignes.
Nous vous demandons de lire attentivement les consignes suivantes de sécurité avant d’installer ou de retirer l’appareil.
WARNHINWEIS : Warnhinweise enthalten Anweisungen, die Sie zu Ihrer eigenen Sicherheit befolgen müssen. Alle Anweisungen sind sorgfältig zu befolgen.
Sie müssen die folgenden Sicherheitsinformationen’ sorgfältig durchlesen, bevor Sie das Gerät installieren oder ausbauen.
1697ua.bk Page 36 Monday, December 3, 2001 11:31 AM
36 A
PPENDIX
A: S
AFETY
I
NFORMATION
Important Safety
Information
■
■
■
■
■
Installation and removal of the unit must be carried out by qualified personnel only.
If installing the Switch unit in a stack with SuperStack Hub units, the
Switch 3300 XM, SM, TM or MM unit must be installed below the
Hub units.
The unit should never be connected to an A.C. outlet (power supply) without an earth (ground) connection.
The unit must be connected to an earthed (grounded) outlet to comply with European safety standards.
Power Cord Set:
This must be approved for the country where it is used:
U.S.A. and
Canada
■
■
The cord set must be UL-approved and CSA certified.
The minimum specification for the flexible cord is:
No. 18 AWG
Type SV or SJ
3-conductor
Denmark
Switzerland
■
■
■
■
The cord set must have a rated current capacity of at least
10A.
The attachment plug must be an earth-grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A,
250V) configuration.
The supply plug must comply with section 107-2-D1, standard DK2-1a or DK2-5a.
The supply plug must comply with SEV/ASE 1011.
■
■
■
■
The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN60320/IEC320 appliance inlet.
The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet.
This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions.
Switzerland only:
The supply plug must comply with SEV/ASE 1011.
1697ua.bk Page 37 Monday, December 3, 2001 11:31 AM
Important Safety Information 37
■
■
■
France and Peru only:
This unit cannot be powered from IT† supplies. If your supplies are of
IT type, this unit must be powered by 230V (2P+T) via an isolation transformer ratio 1:1, with the secondary connection point labelled
Neutral, connected directly to earth (ground).
†Impédance à la terre.
U.K. only:
The Switch 3300 XM, SM, TM or MM is covered by Oftel General
Approval, NS/G/12345/J/100003, for indirect connection to a public telecommunications system. This can only be achieved using the console port on the unit and an approved modem.
Sockets for Redundant Power System (RPS):
Only connect an Advanced Redundant Power System (3C16071B) with Type 2A Power Modules and Type 2 cables to the Redundant
Power System socket.
WARNING: RJ-45 Ports.
These are shielded RJ-45 data sockets. They cannot be used as telephone sockets. Only connect RJ-45 data connectors to these sockets.
Either shielded or unshielded data cables with shielded or unshielded jacks can be connected to these data sockets.
WARNING: Fiber Optic ports - Optical Safety.
Never look at the transmit laser through a magnifying device while it is powered on. Never look directly at the fiber port and fiber cable ends when they are powered on.
1697ua.bk Page 38 Monday, December 3, 2001 11:31 AM
38 A
PPENDIX
A: S
AFETY
I
NFORMATION
L’information de
Sécurité Importante
■
■
■
■
■
L'installation et la dépose de ce groupe doivent être confiés à un personnel qualifié.
Si vous entassez l'unité Switch avec les unités SuperStack Hub, l'unité
Switch 3300 XM, SM, TM ou MM doit être installée en dessous des unités Hub plus étroites.
L’unité ne devrait pas etre branchee a une prise de courant C.A.
(source de courant) sous aucun prétexte sans un branchement mise à la terre (mise à la masse).
Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter les normes européennes de sécurité.
Cordon électrique:
Il doit être agréé dans le pays d'utilisation:
Etats-Unis et
Canada
■
Le cordon doit avoir reçu l'homologation des UL et un certificat de la CSA
Danemark
Suisse
■
■
■
■
■
■
■
■
Le cordon souple doit respecter, à titre minimum, les spécifications suivantes : calibre 18 AWG type SV ou 5J
à 3 conducteurs
Le cordon doit être en mesure d'acheminer un courant nominal d'au moins 10 A
La prise femelle de branchement doit être du type à mise à la terre (mise à la masse) et respecter la configuration NEMA
5-15P (15 A, 125 V) ou NEMA 6-15P (15 A, 250 V)
La prise mâle d'alimentation doit respecter la section 107-2
D1 de la norme DK2 1a ou DK2 5a
La prise mâle d'alimentation doit respecter la norme SEV/ASE
1011
■
■
Le coupleur d'appareil (le connecteur du groupe et non pas la prise murale) doit respecter une configuration qui permet un branchement sur une entrée d'appareil EN60320/CEI 320.
La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile. Vous ne pouvez mettre l’appareil hors circuit qu'en débranchant son cordon électrique au niveau de cette prise.
1697ua.bk Page 39 Monday, December 3, 2001 11:31 AM
L’information de Sécurité Importante 39
■
■
■
L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme CEI 950. Ces conditions ne sont maintenues que si l'équipement auquel il est raccordé fonctionne dans les mêmes conditions.
France et Pérou uniquement:
Ce groupe ne peut pas être alimenté par un dispositif à impédance
à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d'un transformateur d'isolement à rapport 1:1, avec un point secondaire de connexion portant l'appellation Neutre et avec raccordement direct à la terre (masse).
Branchez uniquement un Advanced Redundant Power System
(3C16071B) avec Type 2A Power Modules et Type 2 câbles sur la prise femelle du Redundant Power System .
AVERTISSEMENT: Les ports RJ-45.
Il s'agit de prises femelles blindées de données RJ-45. Vous ne pouvez pas les utiliser comme prise de téléphone. Branchez uniquement des connecteurs de données RJ-45 sur ces prises femelles.
Les câbles de données blindés ou non blindés, avec les jacks blindés ou non blindés, l'un ou l'autre, peuvent être branchés à ces prises de courant de données.
AVERTISSEMENT: Ports pour fibres optiques - sécurité sur le plan optique.
Ne regardez jamais le laser d'émission en utilisant un dispositif d'agrandissement, tant qu'il est sous tension. Ne regardez jamais directement le port à fibres optiques et les embouts de câbles à fibres optiques tant qu'ils sont sous tension.
1697ua.bk Page 40 Monday, December 3, 2001 11:31 AM
40 A
PPENDIX
A: S
AFETY
I
NFORMATION
Wichtige
Sicherheitsinformat ionen
■
■
■
■
■
■
■
■
Die Installation und der Ausbau des Geräts darf nur durch
Fachpersonal erfolgen.
Wenn die Switch 3300 XM, SM, TM oder MM Einheit in einer Stapel mit anderen SuperStack Hub Einheiten eingebaut werden soll, muß die Switch 3300 XM, SM, TM oder MM Einheit unter die schmaleren
Hub Einheiten eingebaut werden.
Das Gerät ist unter keinen umständen an einen Wechselstrom (A.C.)
Netzstecker anzuschließen ohne erdungsleitung.
Das Gerät muß an eine geerdete Steckdose angeschlossen werden, die die europäischen Sicherheitsnormen erfüllt.
Der Anschlußkabelsatz muß mit den Bestimmungen des Landes
übereinstimmen, in dem er verwendet werden soll.
Der Gerätestecker (der Anschluß an das Gerät, nicht der
Wandsteckdosenstecker) muß eine passende Konfiguration für einen
Geräteeingang gemäß EN60320/IEC320 haben.
Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.
Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen
(Sicherheitskleinstspannung) gemäß IEC 950. Diese Bedingungen sind nur gegeben, wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen betrieben werden.
■ Nur ein Advanced Redundant Power System (3C16071B) mit Type 2A
Power Modules und Type 2 kabel an den Redundant Power System
Anschluß anschließen.
WARNHINWEIS: RJ-45 Ports. RJ-45-Anschlüsse.
Dies sind abgeschirmte RJ-45-Datenbuchsen. Sie können nicht als
Telefonanschlußbuchsen verwendet werden. An diesen Buchsen dürfen nur RJ-45-Datenstecker angeschlossen werden.
Diese Datenstecker können entweder mit abgeschirmten oder unabgeschirmten Datenkabeln mit abgeschirmten oder unabgeschirmten
Klinkensteckern verbunden werden.
1697ua.bk Page 41 Monday, December 3, 2001 11:31 AM
Wichtige Sicherheitsinformationen 41
WARNHINWEIS: Faseroptikanschlüsse - Optische Sicherheit.
Niemals mit einem Vergrößerungsgerät einen Übertragungs-Laser betrachten, während dieser eingeschaltet ist. Niemals direkt auf den Faser
Anschluß und auf die Faserkabelenden schauen, während diese eingeschaltet sind.
1697ua.bk Page 42 Monday, December 3, 2001 11:31 AM
42 A
PPENDIX
A: S
AFETY
I
NFORMATION
1697ua.bk Page 43 Monday, December 3, 2001 11:31 AM
B P
IN
-
OUTS
Null Modem Cable
9-pin to RS-232 25-pin
Switch 3300 XM, SM, TM, MM
Cable connector: 9-pin female
Screen
TxD
RxD
Ground
RTS
CTS
Shell
3
2
5
7
8
DSR
DCD
DTR
6
1
4
PC/Terminal
Cable connector: 25-pin male/female
Screen only required if screen
2
7
1
3
4
20
RxD
TxD
Ground
RTS
DTR always required
5
6
8
CTS
DSR
DCD required for handshake
PC-AT Serial Cable
9-pin to 9-pin
Switch 3300 XM, SM, TM, MM
Cable connector: 9-pin female
Screen
DTR
TxD
RxD
CTS
Ground
DSR
RTS
DCD
Shell
4
3
2
8
5
6
7
1
PC-AT Serial Port
Cable connector: 9-pin female only required if screen Shell
1
2
3
4
5
Screen
DCD
RxD
TxD
DTR
Ground always required required for handshake always required
6
7
8
DSR
RTS
CTS required for handshake
1697ua.bk Page 44 Monday, December 3, 2001 11:31 AM
44 A
PPENDIX
B: P
IN
-
OUTS
Modem Cable
RJ45 Pin
Assignments
9-pin to RS-232 25-pin
Switch 3300 XM, SM, TM, MM
Cable connector: 9-pin female
Screen
TxD
RxD
RTS
CTS
DSR
Ground
DCD
DTR
Shell
3
2
7
8
6
5
1
4
RS-232 Modem Port
Cable connector: 25-pin male
1
2
3
4
5
6
7
8
20
Screen
TxD
RxD
RTS
CTS
DSR
Ground
DCD
DTR
Pin assignments are identical for 10BASE-T and 100BASE-TX RJ45 connectors
Table 7 Pin assignments
5
6
7
3
4
8
1
2
Pin Number
Ports configured as MDI
Signal
TxData +
TxData –
RxData +
Not assigned
Not assigned
RxData –
Not assigned
Not assigned
Function
Transmit data
Transmit data
Receive Data
Receive data
1697ua.bk Page 45 Monday, December 3, 2001 11:31 AM
Table 7 Pin assignments
6
7
8
3
4
5
1
2
Pin Number
Ports configured as MDIX
Signal
RxData +
RxData –
TxData +
Not assigned
Not assigned
TxData –
Not assigned
Not assigned
RJ45 Pin Assignments 45
Function
Receive Data
Receive Data
Transmit data
Transmit data
1697ua.bk Page 46 Monday, December 3, 2001 11:31 AM
46 A
PPENDIX
B: P
IN
-
OUTS
1697ua.bk Page 47 Monday, December 3, 2001 11:31 AM
C T
ECHNICAL
S
PECIFICATIONS
Switch 3300 XM, SM and MM
Physical Dimensions Height: 43.6mm x Width: 440mm x Depth: 247.5mm
Weight: 5kg (11lbs)
Environmental Requirements
Operating Temperature
Storage Temperature
Operating Humidity
Standards
Safety
Agency Certifications
EMC
Emissions
0° to 40°C (32° to 104°F)
–10° to +70°C (14° to 158°F)
10–95% relative humidity, non-condensing
EN60068 (IEC68) — various parts
UL 60950, EN60950, CSA 22.2 No. 60950, IEC 60950
EN55022 Class A, FCC Part 15 subpart B Class A, ICES-003 Class A,
VCCI Class A, AS/NZS 3548 Class A, CNS 13438 Class A
EN50082-1
75 watts maximum
Immunity
Heat Dissipation
Power Supply
AC Line Frequency
Input Voltage Options
Current Rating
50/60Hz
100–240 VAC
1.5 amps (maximum)
(continued)
1697ua.bk Page 48 Monday, December 3, 2001 11:31 AM
48 A PPENDIX C: T ECHNICAL S PECIFICATIONS
Standards Supported SNMP
SNMP protocol (RFC 1157)
MIB-II (RFC 1213)
Bridge MIB (RFC 1493)
Repeater MIB (RFC 1516)
VLAN MIB (RFC 1573)
RMON MIB (RFC 1271)
BOOTP (RFC 951)
Terminal Emulation
Telnet (RFC 854)
Protocols Used for Administration
UDP (RFC 768)
IP (RFC 791)
ICMP (RFC 792)
TCP (RFC 793)
ARP (RFC 826)
TFTP (RFC 783)
Switch 3300 TM
Physical Dimensions Height: 43.6mm x Width: 440mm x Depth: 247.5mm
Weight: 5kg (11lbs)
Environmental Requirements
Operating Temperature
Storage Temperature
Operating Humidity
Standards
Safety
Agency Certifications
EMC
Emissions
0° to 50°C (32° to 122°F)
–10° to +70°C (14° to 158°F)
10–95% relative humidity, non-condensing
EN60068 (IEC68) — various parts
UL 1950, EN60950, CSA 22.2 No. 950, IEC 60950
EN55022 Class A, FCC Part 15 subpart B Class A, ICES-003 Class A,
VCCI Class A, AS/NZS 3548 Class A, CNS 13438 Class A
EN50082-1
75 watts maximum
Immunity
Heat Dissipation
Power Supply
AC Line Frequency
Input Voltage Options
Current Rating
50/60Hz
90–240 VAC
3 amps (maximum)
(continued)
1697ua.bk Page 49 Monday, December 3, 2001 11:31 AM
Standards Supported
Switch 3300 TM 49
SNMP
SNMP protocol (RFC 1157)
MIB-II (RFC 1213)
Bridge MIB (RFC 1493)
Repeater MIB (RFC 1516)
VLAN MIB (RFC 1573)
RMON MIB (RFC 1271)
BOOTP (RFC 951)
Terminal Emulation
Telnet (RFC 854)
Protocols Used for Administration
UDP (RFC 768)
IP (RFC 791)
ICMP (RFC 792)
TCP (RFC 793)
ARP (RFC 826)
TFTP (RFC 783)
1697ua.bk Page 50 Monday, December 3, 2001 11:31 AM
50 A PPENDIX C: T ECHNICAL S PECIFICATIONS
1697ua.bk Page 51 Monday, December 3, 2001 11:31 AM
D T
ECHNICAL
S
UPPORT
3Com provides easy access to technical support information through a variety of services. This appendix describes these services.
Information contained in this appendix is correct at time of publication. For the most recent information, 3Com recommends that you access the
3Com Corporation World Wide Web site.
Online Technical
Services
3Com offers worldwide product support 24 hours a day, 7 days a week, through the following online systems:
■
■
■
World Wide Web site
3Com Knowledgebase Web Services
3Com FTP site
World Wide Web Site To access the latest networking information on the 3Com Corporation
World Wide Web site, enter this URL into your Internet browser: http://www.3com.com/
This service provides access to online support information such as technical documentation and software, as well as support options that range from technical education to maintenance and professional services.
3Com
Knowledgebase Web
Services
The 3Com Knowledgebase is a database of technical information to help you install, upgrade, configure, or support 3Com products. The
Knowledgebase is updated daily with technical information discovered by
3Com technical support engineers. This complimentary service, which is available 24 hours a day, 7 days a week to 3Com customers and partners, is located on the 3Com Corporation World Wide Web site at: http://knowledgebase.3com.com
1697ua.bk Page 52 Monday, December 3, 2001 11:31 AM
52 A
PPENDIX
D: T
ECHNICAL
S
UPPORT
3Com FTP Site Download drivers, patches, software, and MIBs across the Internet from the
3Com public FTP site. This service is available 24 hours a day, 7 days a week.
To connect to the 3Com FTP site, enter the following information into your FTP client:
■
Hostname: ftp.3com.com
■
■
Username: anonymous
Password:
<your Internet e-mail address>
You do not need a user name and password with Web browser software such as Netscape Navigator and Internet Explorer.
Support from Your
Network Supplier
If you require additional assistance, contact your network supplier. Many suppliers are authorized 3Com service partners who are qualified to provide a variety of services, including network planning, installation, hardware maintenance, application training, and support services.
When you contact your network supplier for assistance, have the following information ready:
■
Product model name, part number, and serial number
■
■
■
A list of system hardware and software, including revision levels
Diagnostic error messages
Details about recent configuration changes, if applicable
If you are unable to contact your network supplier, see the following section on how to contact 3Com.
Support from 3Com
If you are unable to obtain assistance from the 3Com online technical resources or from your network supplier, 3Com offers technical telephone support services. To find out more about your support options, call the
3Com technical telephone support phone number at the location nearest you.
When you contact 3Com for assistance, have the following information ready:
■
Product model name, part number, and serial number
1697ua.bk Page 53 Monday, December 3, 2001 11:31 AM
Support from 3Com 53
■
■
■
A list of system hardware and software, including revision levels
Diagnostic error messages
Details about recent configuration changes, if applicable
Here is a list of worldwide technical telephone support numbers. These numbers are correct at the time of publication. Refer to the 3Com Web site for updated information.
Telephone Number Country
Asia, Pacific Rim
Australia
Hong Kong
India
Indonesia
Japan
Malaysia
New Zealand
Pakistan
Philippines
Europe, Middle East and
Africa
From anywhere in these regions, call:
Telephone Number
1 800 678 515
800 933 486
+61 2 9937 5085 or
000800 6501111
001 800 61 009
0531 616 439
1800 801 777
0800 446 398
+61 2 9937 5083
1235 61 266 2602
Country
P.R. of China
Singapore
S. Korea
Taiwan
Thailand
Europe and South Africa
From the following countries, you may use the toll-free numbers:
Austria
Belgium
Denmark
Finland
France
Germany
Hungary
Ireland
Israel
Italy
0800 297468
0800 71429
800 17309
0800 113153
0800 917959
0800 1821502
06800 12813
1800 553117
1800 9453794
800 8 79489
Luxembourg
Netherlands
Norway
Poland
Portugal
South Africa
Spain
Sweden
Switzerland
U.K.
Latin America
Brazil
Mexico
+44 (0)1442 435529 phone
+44 (0)1442 432524 fax
0800 13 3266
01 800 849CARE
Puerto Rico
Central and South America
10800 61 00137 or
021 6350 1590 or
00800 0638 3266
800 6161 463
00798 611 2230 or
02 3455 6455
00798 611 2230
0080 611 261
001 800 611 2000
0800 3625
0800 0227788
800 11376
00800 3111206
0800 831416
0800 995014
900 983125
020 795482
0800 55 3072
0800 966197
800 666 5065
AT&T +800 998 2112
North America 1 800 NET 3Com
(1 800 638 3266)
Enterprise Customers:
1 800 876-3266
1697ua.bk Page 54 Monday, December 3, 2001 11:31 AM
54 A
PPENDIX
D: T
ECHNICAL
S
UPPORT
Returning Products for Repair
Before you send a product directly to 3Com for repair, you must first obtain an authorization number. Products sent to 3Com without authorization numbers will be returned to the sender unopened, at the sender’s expense. To obtain an authorization number, call or fax:
Country Telephone Number
Asia, Pacific Rim + 65 543 6500
Europe, South Africa, and Middle East +44 (0)1442 435529
Fax Number
+ 65 543 6348
+ 44 (0)1442 432524
Central and South America
Argentina
Bolivia
Brazil
Caribbean
Chile
Colombia
Ecuador
Mexico
Paraguay
Peru
Uruguay
Venezuela
525 201 0075
0810 222 3266
511 241 1691
0800 133266 or
55 11 5643 2700
525 201 0004
562 240 6200
525 201 0004
525 201 0004
525 201 0004
525 201 0004
511 241 1691
525 201 0004
525 201 0004
From the following countries, you may call the toll-free numbers; select option 2 and then option 2:
Austria
Belgium
Denmark
Finland
France
Germany
Hungary
Ireland
Israel
Italy
Netherlands
Norway
Poland
Portugal
South Africa
Spain
Sweden
Switzerland
U.K.
0800 297468
0800 71429
800 17309
0800 113153
0800 917959
0800 1821502
00800 12813
1800553117
1800 9453794
1678 79489
0800 0227788
800 11376
00800 3111206
0800 831416
0800 995014
900 983125
020 795482
0800 55 3072
0800 966197
U.S.A. and Canada 1 800 NET 3Com
(1 800 638 3266)
Enterprise Customers:
1 800 876 3266
1 408 326 7120
(not toll-free)
1697ua.bk Page 55 Monday, December 3, 2001 11:31 AM
G
LOSSARY
10BASE-T The IEEE specification for 10Mbps Ethernet over Category 3, 4 or 5 twisted pair cable.
100BASE-FX The IEEE specification for 100Mbps Fast Ethernet over fiber-optic cable.
100BASE-TX The IEEE specification for 100Mbps Fast Ethernet over Category 5 twisted-pair cable.
1000BASE-SX The IEEE specification for 1000Mbps Gigabit Ethernet over fiber-optic cable.
1000BASE-T The IEEE specification for 1000Mbps Gigabit Ethernet over Category 5 twisted-pair cable.
auto-negotiation A feature on twisted pair ports that allows them to advertise their capabilities for speed, duplex and flow control. When connected to a port that also supports auto-negotiation, the link can automatically configure itself to the optimum setup.
backbone The part of a network used as a primary path for transporting traffic between network segments.
bandwidth The information capacity, measured in bits per second, that a channel can transmit. The bandwidth of Ethernet is 10Mbps, the bandwidth of
Fast Ethernet is 100Mbps.
baud The signalling rate of a line, that is, the number of transitions (voltage or frequency changes) made per second. Also known as line speed .
bridge A device that interconnects two LANs of a different type to form a single logical network that comprises of two network segments.
Bridges learn which endstations are on which network segment by examining the source addresses of packets. They then use this
1697ua.bk Page 56 Monday, December 3, 2001 11:31 AM
56 G
LOSSARY information to forward packets based on their destination address. This process is known as filtering.
broadcast A packet sent to all devices on a network.
broadcast storm Multiple simultaneous broadcasts that typically absorb all the available network bandwidth and can cause a network to fail. Broadcast storms can be due to faulty network devices.
collision A term used to describe two colliding packets in an Ethernet network.
Collisions are a part of normal Ethernet operation, but a sudden prolonged increase in the number of collisions can indicate a problem with a device, particularly if it is not accompanied by a general increase in traffic.
CSMA/CD Carrier-sense Multiple Access with Collision Detection. The protocol defined in Ethernet and IEEE 802.3 standards in which devices transmit only after finding a data channel clear for a period of time. When two devices transmit simultaneously, a collision occurs and the colliding devices delay their retransmissions for a random length of time.
endstation A computer, printer or server that is connected to a network.
Ethernet A LAN specification developed jointly by Xerox, Intel and Digital
Equipment Corporation. Ethernet networks use CSMA/CD to transmit packets at a rate of 10Mbps over a variety of cables.
Ethernet address See MAC address .
Fast Ethernet An Ethernet system that is designed to operate at 100Mbps.
forwarding The process of sending a packet toward its destination using a networking device.
filtering The process of screening a packet for certain characteristics, such as source address, destination address, or protocol. Filtering is used to determine whether traffic is to be forwarded, and can also prevent unauthorized access to a network or network devices.
flow control A congestion control mechanism. Congestion is caused by devices sending traffic to already overloaded port on a Switch. Flow control prevents packet loss and inhibits devices from generating more traffic until the period of congestion ends.
1697ua.bk Page 57 Monday, December 3, 2001 11:31 AM
57 full duplex A system that allows packets to be transmitted and received at the same time and, in effect, doubles the potential throughput of a link.
half duplex A system that allows packets to transmitted and received, but not at the same time. Contrast with full duplex .
hub A device that regenerates LAN traffic so that the transmission distance of that signal can be extended. Hubs are similar to repeaters, in that they connect LANs of the same type; however they connect more LANs than a repeater and are generally more sophisticated.
IEEE Institute of Electrical and Electronics Engineers. This American organization was founded in 1963 and sets standards for computers and communications.
IEEE 802.1D
A standard that defines the behavior of bridges in an Ethernet network.
IETF Internet Engineering Task Force. An organization responsible for providing engineering solutions for TCP/IP networks. In the network management area, this group is responsible for the development of the
SNMP protocol.
IP Internet Protocol. IP is a layer 3 network protocol that is the standard for sending data through a network. IP is part of the TCP/IP set of protocols that describe the routing of packets to addressed devices.
IPX Internetwork Packet Exchange. IPX is a layer 3 and 4 network protocol designed for networks that use Novell Netware.
IP address Internet Protocol address. A unique identifier for a device attached to a network using TCP/IP. The address is written as four octets separated with periods (full-stops), and is made up of a network section, an optional subnet section and a host section.
LAN Local Area Network. A network of endstations (such as PCs, printers, servers) and network devices (hubs and switches) that cover a relatively small geographic area (usually not larger than a floor or building). LANs are characterized by high transmission speeds over short distances (up to 1000m).
line speed See baud .
1697ua.bk Page 58 Monday, December 3, 2001 11:31 AM
58 G
LOSSARY loop An event that occurs when two network devices are connected by more than one path, thereby causing packets to repeatedly cycle around the network and not reach their destination.
MAC Media Access Control. A protocol specified by the IEEE for determining which devices have access to a network at any one time.
MAC address Media Access Control address; also called hardware or physical address.
A layer 2 address associated with a particular network device. Most devices that connect to a LAN have a MAC address assigned to them as they are used to identify other devices in a network. MAC addresses are 6 bytes long.
MDI Medium Dependent Interface. An Ethernet port connection where the transmitter of one device is connected to the receiver of another device.
MDI-X Medium Dependent Interface Cross-over. An Ethernet port connection where the internal transmit and receive lines are crossed.
multicast A packet sent to a specific group of endstations on a network.
NIC Network Interface Card. A circuit board installed in an endstation that allows it to be connected to a network.
POST Power On Self Test. An internal test that a Switch carries out when it is powered-up.
protocol A set of rules for communication between devices on a network. The rules dictate format, timing, sequencing and error control.
repeater A simple device that regenerates LAN traffic so that the transmission distance of that signal can be extended. Repeaters are used to connect two LANs of the same network type.
router A device that provides WAN links between geographically separate networks.
RPS Redundant Power System. A device that provides a backup source of power when connected to a Switch.
segment A section of a LAN that is connected to the rest of the network using a switch or bridge.
1697ua.bk Page 59 Monday, December 3, 2001 11:31 AM
59 server A computer in a network that is shared by multiple endstations. Servers provide endstations with access to shared network services such as computer files and printer queues.
SLIP Serial Line Internet Protocol. A protocol that allows IP to run over a serial line (console port) connection.
SNMP Simple Network Management Protocol. The current IETF standard protocol for managing devices on an TCP/IP network.
stack A group of network devices that are integrated to form a single logical device.
STP See Spanning Tree Protocol (STP) .
SuperStack In this guide, the generic term SuperStack refers to any SuperStack II and SuperStack 3 device. SuperStack II and SuperStack 3 devices can be connected together to form a SuperStack system.
switch A device that interconnects several LANs to form a single logical LAN that comprises of several LAN segments. Switches are similar to bridges, in that they connect LANs of a different type; however they connect more LANs than a bridge and are generally more sophisticated.
Switch Database A database that is stored by a switch to determine if a packet should be forwarded, and which port should forward the packet if it is to be forwarded.
TCP/IP Transmission Control Protocol/Internet Protocol. This is the name for two of the most well-known protocols developed for the interconnection of networks. Originally a UNIX standard, TCP/IP is now supported on almost all platforms, and is the protocol of the Internet.
TCP relates to the content of the data travelling through a network — ensuring that the information sent arrives in one piece when it reaches its destination. IP relates to the address of the endstation to which data is being sent, as well as the address of the destination network.
Telnet A TCP/IP application protocol that provides a virtual terminal service, letting a user log into another computer system and access a device as if the user were connected directly to the device.
TFTP Trivial File Transfer Protocol. Allows you to transfer files (such as software upgrades) from a remote device using the local management capabilities of the Switch.
1697ua.bk Page 60 Monday, December 3, 2001 11:31 AM
60 G
LOSSARY unicast A packet sent to a single endstation on a network.
WAN Wide Area Network. A communications network that covers a wide area. A WAN can cover a large geographic area, and may contain several LANs within it.
1697ua.bk Page 61 Monday, December 3, 2001 11:31 AM
I
NDEX
Numbers
1000BASE-SX port 14
1000BASE-T port 14
10BASE-T/100BASE-TX ports 14
3C number 16
3Com Knowledgebase Web Services 51
3Com URL 51
A auto-negotiating ports 14
C cable choosing the correct 33
Matrix 17 maximum length 14, 22, 23 pin-outs 43
Choosing a Suitable Site 26
Collapsed Backbone Switch 19
Configuration Rules for the 3300 SM and TM 23 console port 17 conventions notice icons, About This Guide 8 text, About This Guide 8
Correct Operation, Checking for 32 cross-over configuration 14, 33
D
Desktop Switch 20
E
Ethernet address of the Switch 16
F
Fast Ethernet configuration rules 21 full duplex configuration rules 22
I
NDEX
61
G
Gigabit Ethernet configuration rules (SM and
TM) 23 glossary 55
H hardware features 12
I installing the Switch 25 prerequisites 26
L
LEDs 14 solving problems indicated by 34
Light Emitting Diodes.
See LEDs
M
MAC address of the Switch 16 management software 34 managing the Switch 34
Matrix Cable 17 matrix port 17
MDI configuration 33
MDIX configuration 14, 33
MIBs 52
N network configuration examples 18 network supplier support 52
O online technical services 51
P pin assignments modem cable 44 null modem cable 43
RJ45 44 serial cable 43 pin-outs 43
Ports
1000BASE-SX 14
1000BASE-T port 14
10BASE-T/100BASE-TX 14
1697ua.bk Page 62 Monday, December 3, 2001 11:31 AM
62 I
NDEX auto-negotiating 14 console 17 matrix 17 power socket 16 powering-up a Switch 32
Powering-up the Switch 32
Power-up sequence 32 product name 16
R rack mounting a Switch 27
Redundant Power System.
See RPS returning products for repair 54
RPS 16 connecting 32 socket 16
S safety information
English 36
French 38
German 40 segment, maximum length 14, 22
Segmentation switch 18 serial number of the Switch 16 serial port.
See console port
Site
Choosing a Suitable Site 26 socket power 16
RPS 16 specifications, system 47 stacking a Switch 29
Stacking Two Units 29
Stacking Up To Four Units 30 standards supported 48
Status LEDs 14 straight-through configuration 33
Switch
10BASE-T/100BASE-TX ports 14
3C number 16 as a Collapsed Backbone Switch 19 as a Desktop Switch 20 as a Segmentation Switch 18 console port 17 dimensions 47
Ethernet address 16 features 12
Front View Detail 13 installation 25, 26
MAC address 16 power socket 16 powering-up 32 product name 16 rack mounting 27 rear view 16
RPS socket 16 serial number 16 size 47 stacking 29 standards supported 48 unit information label 16 weight 47
Switch 3300 SM
1000BASE-SX port 14
Switch 3300 SM and TM
Configuration Rules for the 3300 SM and
TM 23
Switch 3300 TM
1000BASE-T port 14
Switch SM and TM
Gigabit Ethernet configuration rules 23 system specifications 47
T
Technical specifications 47 technical support
3Com Knowledgebase Web Services 51
3Com URL 51 network suppliers 52 product repair 54 topology rules for Fast Ethernet 21 topology rules with full duplex 22
U unit information label 16
URL 51
W
World Wide Web (WWW) 51
1697ua.bk Page 63 Monday, December 3, 2001 11:31 AM
R EGULATORY N OTICES
FCC S
TATEMENT
CSA S TATEMENT
CE STATEMENT (EUROPE)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference to radio communications, in which case the user will be required to correct the interference at their own expense.
Information To The User
If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Reorient the receiving antenna.
■
■
■
Relocate the equipment with respect to the receiver.
Move the equipment away from the receiver.
Plug the equipment into a different outlet so that equipment and receiver are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful:
How to Identify and Resolve Radio-TV Interference Problems
This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No.
004-000-00345-4.
In order to meet FCC emissions limits, this equipment must be used only with cables which comply with IEEE
802.3.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
This product complies with the European Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC as amended by European Directive 93/68/EEC.
Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
VCCI S TATEMENT
BSMI S TATEMENT
1697ua.bk Page 64 Monday, December 3, 2001 11:31 AM
advertisement
Related manuals
advertisement
