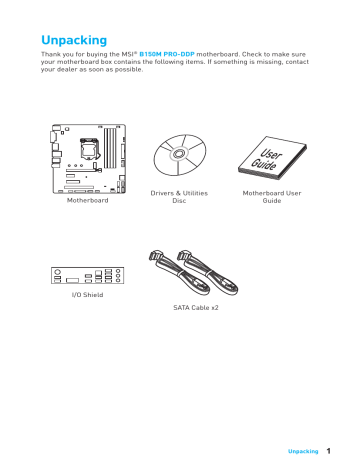

Unpacking
Thank you for buying the MSI ® B150M PRO-DDP motherboard. Check to make sure your motherboard box contains the following items. If something is missing, contact your dealer as soon as possible.
Motherboard
Drivers & Utilities
Disc
Motherboard User
Guide
I/O Shield
SATA Cable x2
Unpacking
1
Safety Information
y The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. y Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. y Hold the motherboard by the edges to avoid touching sensitive components. y It is recommended to wear an electrostatic discharge (ESD) wrist strap when handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard. y Store the motherboard in an electrostatic shielding container or on an anti-static pad whenever the motherboard is not installed. y Before turning on the computer, ensure that there are no loose screws or metal components on the motherboard or anywhere within the computer case.
y Do not boot the computer before installation is completed. This could cause permanent damage to the components as well as injury to the user. y If you need help during any installation step, please consult a certified computer technician.
y Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component.
y Keep this user guide for future reference.
y
Keep this motherboard away from humidity.
y Make sure that your electrical outlet provides the same voltage as is indicated on the PSU, before connecting the PSU to the electrical outlet.
y Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
y
All cautions and warnings on the motherboard should be noted.
y If any of the following situations arises, get the motherboard checked by service personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
y
Do not leave this motherboard in an environment above 60 ° C (140 ° F), it may damage the motherboard.
2
Safety Information
Quick Start
Preparing Tools and Components
Intel ® LGA 1151 CPU
CPU Fan Thermal Paste
DDR4 Memory
Chassis
Power Supply Unit
SATA DVD Drive SATA Hard Disk Drive Graphics Card
Phillips Screwdriver A Package of Screws
Quick Start
3
Installing a Processor
http://youtu.be/bf5La099urI
2
1
4
Quick Start
3
6
4
7
5
8
9
Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
1
3
2
1
2
3
Quick Start
5
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
SW
RESET
POWER SW
HDD LED
POWER LED+
POWER LED-
2
1
JFP1
9
10
1
3
5
7
9
HDD LED +
HDD LED -
Reset Switch
Reset Switch
Reserved
2
4
6
8
10
Power LED +
Power LED -
Power Switch
Power Switch
No Pin
HDD LED
POWER LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
JFP1
6
Quick Start
Installing the Motherboard
1
2
Quick Start
7
Installing SATA Drives
http://youtu.be/RZsMpqxythc
2
1
3
5
4
8
Quick Start
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
1
5
3
2
4
Quick Start
9
Connecting Peripheral Devices
10
Quick Start
Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
JPWR1
JPWR2
Quick Start
11
Power On
2
3
4
1
12
Quick Start
Contents
CPUFAN1,SYSFAN1~2: Fan Connectors ............................................................... 33
JBAT1: Clear CMOS (Reset BIOS) Jumper ........................................................... 34
Contents
13
14
Contents
Specifications
CPU
Chipset
Memory
Expansion Slots
Onboard Graphics
Multi-GPU
Storage
Supports 6th Gen Intel ® Core ™ i3/i5/i7 processors, and Intel ®
Pentium ® and Celeron ® processors for Socket LGA1151
Intel ® B150 Chipset y 4x DDR4 memory slots, support up to 64GB
Supports DDR4 2133 MHz* y
Dual channel memory architecture y Supports Intel ® Extreme Memory Profile (XMP)**
* Please refer www.msi.com for more information on compatible memory.
** DDR4 2133 MHz and higher memory modules will only run at maximum of
DDR4 2133 MHz on XMP mode due to Intel ® chipset limitation.
y
1x PCIe 3.0 x16 slot y 1x PCIe 3.0 x1 slot y 1x PCIe 3.0 x4 slot y
1x PCI slot y 2x DisplayPort ports, support a maximum resolution of
4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz,
1920x1200@60Hz y
1x DVI-D port, supports a maximum resolution of
1920x1200 @60Hz y
Supports 2-Way AMD ® CrossFire ™ Technology*
* Only when M2 slot is empty. Please refer to page 28 for M.2/ SATA & PCIe combination table.
Intel ® B150 Chipset y
6x SATA 6Gb/s ports* y 1x M.2 slot
Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/
6cm/ 8cm length M.2 SSD cards
Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2
Host Card**
* M.2 and SATA ports maximum support 1x M.2_PCIe + 6x SATAs or 1x
M.2_SATA + 5x SATAs. Please refer to page 28 for M.2/ SATA & PCIe combination table.
** The Turbo U.2 Host Card is not included, please purchase separately.
Continued on next page
Specifications
15
USB
Audio
LAN
Back Panel
Connectors
Internal Connectors
I/O Controller
Continued from previous page y Intel ® B150 Chipset
6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
4x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors) y
Realtek ® ALC892 Codec y 7.1-Channel High Definition Audio
1x Realtek RTL8111GN Gigabit LAN controller y 1x PS/2 keyboard port y 1x PS/2 mouse port y
1x DVI-D port y 2x DisplayPort ports y 1x LAN (RJ45) port y
2x USB 2.0 ports y 4x USB 3.1 Gen1 ports y 3x audio jacks y
1x 24-pin ATX main power connector y 1x 4-pin ATX 12V power connector y
6x SATA 6Gb/s connectors y 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) y 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports) y 1x 4-pin CPU fan connector y
2x 4-pin system fan connectors y 1x Clear CMOS jumper y 1x Front panel audio connector y
2x Front panel connectors y 1x TPM module connector y 1x Chassis Intrusion connector y
1x Serial port connector y 1x Parallel port connector
NUVOTON NCT6793D Controller Chip
Continued on next page
16
Specifications
Hardware Monitor
Form Factor
BIOS Features
Software
Continued from previous page y CPU/System temperature detection y
CPU/System fan speed detection y CPU/System fan speed control y m-ATX Form Factor y
9.6 in. x 8.8in. (24.4 cm x 22.3 c y 1x 64 Mb flash y
UEFI AMI BIOS y ACPI 5.0, PnP 1.0a, SM BIOS 2.8
y Multi-language y
Drivers y COMMAND CENTER y LIVE UPDATE 6 y
FAST BOOT y SUPER CHARGER y M-CLOUD y
RAMDISK y Intel ® Small Business Basics y NETWORK GENIE y
Intel ® Extreme Tuning Utility y Norton ™ Security y Google Chrome ™ ,Google Toolbar, Google Drive y
CPU-Z
Continued on next page
Specifications
17
MSI Exclusive
Features
Continued from previous page y CLICK BIOS 5
EZ Mode & Advanced Mode Switching
Board Explorer
Hardware Monitor y
MILITARY CLASS 4
Military Class Component
Military Class Stability and Reliability
ESD Protection
EMI Protection
Humidity Protection
Circuit Protection
High Temperature Protection
VGA Armor Slot y
COMMAND CENTER
System Monitor
Smart Fan Control y RAMDISK y LIVE UPDATE 6 y
M-CLOUD
18
Specifications
Block Diagram
DP DP DVI-D
Dual Channel DDR4 Memory
CPU
PCI Express Bus
SATA 6Gb/s
USB 3.1 Gen1
(5 Gbps)
USB 2.0
M.2
DMI 3.0
B150 x1
PCIe x1 slot x4
PCIe x4 slot
ASM1083 PCI slot
LPC Bus
NV6793
Super I/O
P/S2 Mouse / Keyboard
Realtek
ALC892
Audio Jacks
Block Diagram
19
Rear I/O Panel
PS/2 Mouse
LAN
Line-in
Line-out
PS/2 Keyboard DVI-D
DisplayPort
USB 2.0
Mic in
USB 3.1 Gen1
LAN Port LED Status Table
Link/ Activity LED
Status
Off
Yellow
Blinking
Description
No link
Linked
Data activity
Speed LED
Status
Off
Green
Orange
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will appear in the system tray. Double click on this icon to launch.
Device
Selection Advanced
Settings
Jack Status
Application
Enhancement
Main Volume
Connector
Strings
Profiles y Device Selection - allows you to select a audio output source to change the related options. The check sign indicates the devices as default.
20
Rear I/O Panel
y Application Enhancement - the array of options will provide you a complete guidance of anticipated sound effect for both output and input device.
y Main Volume - controls the volume or balance the right/left side of the speakers that you plugged in front or rear panel by adjust the bar.
y Profiles - toggles between profiles.
y
Advanced Settings - provides the mechanism to deal with 2 independent audio streams.
y
Jack Status - depicts all render and capture devices currently connected with your computer. y
Connector Settings - configures the connection settings.
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1 connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog below.
2. Select Mute the rear output device, when a front headphone plugged in .
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into a device at an audio jack, a dialogue window will pop up asking you which device is current connected.
Rear I/O Panel
21
Overview of Components
PCI_E1
PCI_E2
PCI_E3
PCI1
JPWR2
SYSFAN1
CPU Socket
DIMM1
CPUFAN1
DIMM2
DIMM3
DIMM4
JAUD1
JCOM1
JLPT1
JTPM1
JUSB1
JCI1
JFP2
JFP1
SYSFAN2
EZ Debug LED
JPWR1
JUSB2
M2
JBAT1
SATA1_2
SATA4
SATA3
SATA5
SATA6
22
Overview of Components
Component Contents
Port Name
DIMM1~4
Port Type
Clear CMOS (Reset BIOS) Jumper
Page
Overview of Components
23
CPU Socket
Introduction to the LGA 1151 CPU
The surface of the LGA 1151 CPU has two notches and a golden triangle to assist in correctly lining up the CPU for motherboard placement. The golden triangle is the Pin 1 indicator.
Important y Always unplug the power cord from the power outlet before installing or removing the CPU.
y Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.
y
When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink is necessary to prevent overheating and maintain system stability.
y
Confirm that the CPU heatsink has formed a tight seal with the CPU before booting your system.
y
Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.
y
Whenever the CPU is not installed, always protect the CPU socket pins by covering the socket with the plastic cap.
y
If you purchased a separate CPU and heatsink/ cooler, Please refer to the documentation in the heatsink/ cooler package for more details about installation.
y
This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI ® does not guarantee the damages or risks caused by inadequate operation beyond product specifications.
24
Overview of Components
DIMM Slots
DIMM1
Channel A
DIMM2
Memory module installation recommendation
DIMM3
DIMM4
Channel B
DIMM2
DIMM4
DIMM2
DIMM4
DIMM3
DIMM2
DIMM1
Important y Always insert memory modules in the DIMM2 slot first.
y
Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.
y
Please note that the maximum capacity of addressable memory is 4GB or less for 32-bit Windows OS due to the memory address limitation. Therefore, we recommended that you to install 64-bit Windows OS if you want to install more than
4GB memory on the motherboard.
y
It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking.
y
The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking.
Overview of Components
25
PCI_E1~3: PCIe Expansion Slots
PCI_E1 : PCIe 3.0 x16 slot
PCI_E2 : PCIe 3.0 x1 slot
PCI_E3 : PCIe 3.0 x4 slot
PCI1 : PCI slot
Multiple graphics cards installation recommendation
x16 x16 x4
Important y
For a single PCIe x16 expansion card installation with optimum performance, using the PCI_E1 slot is recommended.
y
It is recommended to install a smaller and single-slot graphics card in the PCI_E3 slot, to avoid blocking SATA3~6 ports and PCI1 slot.
y
The PCI_E3 slot will slow down from x4 to x2, when a M.2 SATA SSD is installed in the M2 slot. In addition, it will be unavailable when a M.2 PCIe SSD is installed.
Please refer to page 28 for M.2/ SATA & PCIe combination table.
y When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card ’ changes.
26
Overview of Components
M2: M.2 Slot
Installing M.2 module
Important
Intel ® RST only supports PCIe M.2 SSD with UEFI ROM, does not support Legacy ROM.
Video Demonstration
Watch the video to learn how to Install M.2 module.
http://youtu.be/JCTFABytrYA
1. Remove the screw from the base screw.
2. Remove the base screw.
1
2
3. Tighten the base screw into the hole of the distance to the M.2 slot as the length your M.2 module.
4. Insert your M.2 module into the M.2 slot at a
30-degree angle.
3
30 °
4
5. Put the screw in the notch on the trailing edge of your M.2 module and tighten it into the base screw.
5
Overview of Components
27
M.2/ SATA & PCIe combination table
Slot Combination
M2
PCI_E3
PCIe
─
No
SATA
3.0 x2
CrossFire No
SATA1
SATA2
✓
✓
─
✓
SATA3
SATA4
✓
✓
✓
✓
SATA5 ✓ ✓
SATA6 ✓ ✓
( SATA : M.2 SATA SSD, PCIe : M.2 PCIe SSD, ✓ : available, ─ : unavailable)
M.2 slots with examples of various combination possibilities
─
3.0 x4
Yes
✓
✓
✓
✓
✓
✓
1xM.2 PCIe SSD + 6xSATA HDDs
1xM.2 SATA SSD + 5xSATA HDDs +
1xPCIe 3.0 x2 card
PCIe
6xSATA HDDs + 1xPCIe 3.0 x4 card
3.0 x2
SATA
3.0 x4
28
Overview of Components
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA6
SATA4
SATA5
SATA3
SATA2
SATA1
Important y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes.
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
2 10
JFP1
1
3
5
7
9
1
HDD LED +
HDD LED -
Reset Switch
Reset Switch
Reserved
9
2
4
6
8
10
Power LED +
Power LED -
Power Switch
Power Switch
No Pin
1
JFP2
1
3
Speaker -
Buzzer -
2
4
Buzzer +
Speaker +
Overview of Components
29
JPWR1~2: Power Connectors
These connectors allow you to connect an ATX power supply.
4
2 JPWR2
1
2
Ground
Ground
3
4
+12V
+12V
12
1
24
13
JPWR1
7
8
5
6
9
10
11
12
3
4
1
2
+3.3V
+3.3V
Ground
+5V
Ground
+5V
Ground
PWR OK
5VSB
+12V
+12V
+3.3V
19
20
17
18
21
22
23
24
15
16
13
14
Important
Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.
+3.3V
-12V
Ground
PS-ON#
Ground
Ground
Ground
Res
+5V
+5V
+5V
Ground
JUSB1: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
2 10
1 9
5
7
1
3
9
VCC
USB0-
USB0+
Ground
No Pin
6
8
2
4
10
VCC
USB1-
USB1+
Ground
NC
Important y
Note that the VCC and Ground pins must be connected correctly to avoid possible damage.
y
In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI ® SUPER CHARGER utility.
30
Overview of Components
JUSB2: USB 3.1 Gen1 Connector
This connector allows you to connect USB 3.1 Gen1 ports on the front panel.
10 11
1 20
6
7
4
5
8
9
1
2
3
10
Power
USB3_RX_DN
USB3_RX_DP
Ground
USB3_TX_C_DN
USB3_TX_C_DP
Ground
USB2.0-
USB2.0+
Ground
16
17
14
15
18
19
11
12
13
20
USB2.0+
USB2.0-
Ground
USB3_TX_C_DP
USB3_TX_C_DN
Ground
USB3_RX_DP
USB3_RX_DN
Power
No Pin
Important
Note that the Power and Ground pins must be connected correctly to avoid possible damage.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.
2 14
9
11
13
5
7
1
3
1
LPC Clock
LPC Reset
LPC address & data pin0
LPC address & data pin1
LPC address & data pin2
LPC address & data pin3
LPC Frame
13
10
12
14
6
8
2
4
3V Standby power
3.3V Power
Serial IRQ
5V Power
No Pin
Ground
Ground
Overview of Components
31
JCOM1: Serial Port Connector
This connector allows you to connect the optional serial port with bracket.
2 10
1
1
3
5
7
9
DCD
SOUT
Ground
RTS
RI
2
4
6
8
10
9
SIN
DTR
DSR
CTS
No Pin
JLPT1: Parallel Port Connector
This connector allows you to connect the optional parallel port with bracket.
16
19
10
13
22
25
1
4
7
RSTB#
ERR#
PRND2
Ground
PRND5
Ground
ACK#
Ground
SLCT
2
1
17
20
11
14
23
26
2
5
8
26
AFD#
PRND1
LPT_SLIN#
PRND4
Ground
PRND7
Ground
PE
No Pin
25
18
21
12
15
24
3
6
9
PRND0
PINIT#
PRND3
Ground
PRND6
Ground
BUSY
Ground
JAUD1: Front Audio Connector
This connector allow you to connect audio jacks on the front panel.
2 10
5
7
9
1
3
MIC L
MIC R
Head Phone R
SENSE_SEND
Head Phone L
1
6
8
10
2
4
9
Ground
NC
MIC Detection
No Pin
Head Phone Detection
32
Overview of Components
CPUFAN1,SYSFAN1~2: Fan Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and Voltage
Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. Voltage Mode fan connectors control fan speed by changing voltage. Therefore, when you plug a 3-pin (Non-PWM) fan to a PWM Mode fan connector, the fan speed will be always maintained at 100%, and that could be noisy.
PWM Mode fan connector
1
1
3
Ground
Sense
CPUFAN1
2
4
Voltage Mode fan connector
+12V
Speed Control Signal
1
1
3
1
SYSFAN1
Ground
Sense
2
4
SYSFAN2
Voltage Control
NC
Controlling the fan speed
There are two ways to manage fan speed. One is to go to BIOS > HARDWARE
MONITOR . The other is to use COMMAND CENTER application.
BIOS > HARDWARE MONITOR COMMAND CENTER
Both methods offer gradient points of the fan speed that allow you to adjust fan speed in relation to CPU temperature.
Overview of Components
33
JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.
EZ Debug LED: Debug LED indicators
These LEDs indicate the status of the motherboard.
CPU LED
DRAM LED
VGA LED
CPU LED
DRAM LED
VGA LED
Indicates CPU is not detected or fail.
Indicates DRAM is not detected or fail.
Indicates GPU is not detected or fail.
34
Overview of Components
JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Trigger the chassis intrusion event
Using chassis intrusion detector
1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > Settings > Security > Chassis Intrusion Configuration .
4. Set Chassis Intrusion to Enabled .
5. Press F10 to save and exit and then press the Enter key to select Yes .
6. Once the chassis cover is opened again, a warning message will be displayed on screen when the computer is turned on.
Resetting the chassis intrusion warning
1. Go to BIOS > Settings > Security > Chassis Intrusion Configuration .
2. Set Chassis Intrusion to Reset .
3. Press F10 to save and exit and then press the Enter key to select Yes .
Overview of Components
35
BIOS Setup
The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.
Important y BIOS items are continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. You could also refer to the HELP information panel for BIOS item description.
y
The pictures in this chapter are for reference only and may vary from the product you purchased.
Entering BIOS Setup
Please refer the following methods to enter BIOS setup. y Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot
Menu message appears on the screen during the boot process.
y Use MSI FAST BOOT application. Click on GO2BIOS button and choose OK . The system will reboot and enter BIOS setup directly.
Click on GO2BIOS
Function key
Key Function Key Function
F1
F5
General Help
Enter Memory-Z menu
F4
F6
Enter CPU Specifications menu
Load optimized defaults
F10 Save Change and Reset* F12
Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).
* When you press F10, a confirmation window which provides the modification information appears. Select between Yes or No to confirm your choice.
36 BIOS Setup
Resetting BIOS
You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS: y Go to BIOS and press F6 to load optimized defaults.
y Short the Clear CMOS jumper on the motherboard.
Important
Please refer to the Clear CMOS jumper section for resetting BIOS.
Updating BIOS
Updating BIOS with M-FLASH
Before updating:
Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive.
Updating BIOS:
1. Insert the USB flash drive that contains the update file into the computer.
2. Reboot the system, and then press Del key to enter the BIOS Setup during POST.
3. Go to BIOS > M-FLASH > Select one file to update BIOS and ME , select a BIOS file to perform the BIOS update process.
4. After the flashing process is 100% complete, the system will reboot.
Updating the BIOS with Live Update 6
Before updating:
Make sure the LAN driver is already installed and the internet connection is set properly.
Updating BIOS:
1. Install and launch MSI LIVE UPDATE 6.
2. Select Manual scan .
3. Check MB BIOS box and click on Scan button.
4. Select the MB BIOS and click on icon to download and install the latest BIOS file.
5. Click Next and choose In Windows mode . And then click Next and Start to start updating BIOS.
6. After the flashing process is 100% completed, the system will restart automatically.
BIOS Setup 37
System Status Menu
After entering BIOS, the following screen is displayed. The System Status Menu allows you to configure basic system settings, such as time, date etc.
f System Language [English]
Allows you to select the language of BIOS setup.
f System Date
Sets the system date. Use tab key to switch between date elements.
The format is <day> <month> <date> <year>.
<day> Day of the week, from Sun to Sat, determined by BIOS. Read-only.
<month> The month from Jan. through Dec.
<date>
<year>
The date from 1 to 31 can be keyed by numeric function keys.
The year can be adjusted by users. f System Time
Sets the system time. Use tab key to switch between time elements.
The time format is <hour> <minute> <second>. f SATA PortX
Shows the information of connected SATA device.
Important
If the connected SATA device is not displayed, turn off computer and re-check SATA cable and power cable connections of the device and motherboard.
f System Information
Shows detailed system information, including CPU type, BIOS version, and Memory
(read only).
f DMI Information
Shows system information, desktop Board Information and chassis Information. (Read only).
38 BIOS Setup
Advanced Menu
The Advanced Menu allows you to set up the items of special enhanced features.
f PCI Subsystem Settings
Sets PCI, PCI express interface protocol and latency timer. Press <Enter> to enter the sub-menu.
f PEG X - Max Link Speed [Auto]
Sets PCI Express protocol of PCIe x16 slots for matching different installed devices.
[Auto]
[Gen1]
This item will be configured automatically by BIOS.
Enables PCIe Gen1 support only.
[Gen2]
[Gen3]
Enables PCIe Gen2 support only.
Enables PCIe Gen3 support only.
f PCI Latency Timer [32]
Sets latency timer of PCI interface device.
[Options: 32, 64, 96, 128, 160, 192, 224, 248 PCI Bus clocks] f ACPI Settings
Sets ACPI parameters of onboard power LED behaviors. Press <Enter> to enter the sub-menu. f Power LED [Blinking]
Sets shining behaviors of the onboard Power LED.
[Dual Color] The power LED turns to another color to indicate the S3 state.
[Blinking] The power LED blinks to indicate the S3 state.
f Integrated Peripherals
Sets integrated peripherals' parameters, such as LAN, HDD, USB and audio. Press
<Enter> to enter the sub-menu. f Onboard LAN Controller [Enabled]
Enables or disables the onboard LAN controller.
BIOS Setup 39
f LAN Option ROM [Disabled]
Enables or disables the legacy network Boot Option ROM for detailed settings. This item will appear when Onboard LAN Controller is enabled.
[Enabled] Enables the onboard LAN Boot ROM.
[Disabled] Disables the onboard LAN Boot ROM.
f Network Stack [Disabled]
Sets UEFI network stack for optimizing IPv4 / IPv6 function.
[Enabled] Enables UEFI network stack.
[Disabled] Disables UEFI network stack.
f Ipv4 PXE Support [Enabled])
When Enabled ”
“ Network Stack ”
[Enabled] Enables the Ipv4 PXE boot support.
[Disabled] Disables the Ipv4 PXE boot support.
f Ipv6 PXE Support [Enabled])
When Enabled ”
“ Network Stack ”
[Enabled] Enables the Ipv6 PXE boot support.
[Disabled] Disables the Ipv6 PXE boot support.
f SATA Mode [AHCI Mode]
Sets the operation mode of the onboard SATA controller.
[AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced
Host Controller Interface) offers some advanced features to enhance the speed and performance of SATA storage device, such as Native
Command Queuing (NCQ) and hot-plugging.
[RAID Mode] Enables RAID function for SATA storage devices.
f SE1-RST Pcie Storage Remapping [Disabled]
Enables or disables Intel Rapid Storage Technology for SATAe PCIe device. This item will appear when SATA Mode is set to RAID Mode. f SATAx Hot Plug [Disabled]
Allows user to enable or disable the SATA hot plug support.
[Enabled] Enables hot plug support for the SATA ports.
[Disabled] Disables hot plug support for the SATA ports.
f HD Audio Controller [Enabled]
Enables or disables the onboard High Definition Audio controller.
f HPET [Enabled]
Enables or disables the HPET (High Precision Event Timers) support.
f Integrated Graphics Configuration
Adjusts integrated graphics settings for optimum system. Press <Enter> to enter the sub-menu.
40 BIOS Setup
f Initiate Graphic Adapter [PEG]
Selects a graphics device as the primary boot device.
[IGD] Integrated Graphics Display.
[PEG] PCI-Express Graphics Device.
f Integrated Graphics Share Memory [64M]
Selects a fixed amount of system memory allocated to the onboard graphics. This item will appear when IGD Multi-Monitor is enabled. f IGD Multi-Monitor [Disabled]
Enables or disables the multi-screen output from integrated graphics and external graphics card.
[Enabled] Enables multi-screen function for both integrated and external graphics cards.
[Disabled] Disables this function.
f USB Configuration
Sets the onboard USB controller and device function. Press <Enter> to enter the submenu. f USB Controller [Enabled]
Enables or disables all USB controller.
f XHCI Hand-off [Enabled]
Enables or disables XHCI hand-off support for the operating system without XHCI hand-off feature. This item will appear when USB Controller is enabled.
f Legacy USB Support [Enabled]
Sets Legacy USB function support.
[Auto] The system will automatically detect if any USB device is connected and enables or disables the legacy USB support.
[Enabled] Enable the USB support for legacy operating systems that do not support USB.
[Disabled] The USB devices are available only for UEFI applications.
f Super IO Configuration
Sets system Super I/O chip parameters including LPT and COM ports. Press <Enter> to enter the sub-menu.
f Serial (COM) Port x Configuration
Sets detailed configuration of serial(COM) port x. Press <Enter> to enter the submenu.
f Serial (COM) Port x [Enabled]
Enables or disables serial (COM) port x.
f Serial (COM) Port x Settings [Auto]
Sets serial port x (COM). If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.
BIOS Setup 41
f Parallel (LPT) Port Configuration
Sets detailed configuration of parallel port (LPT). Press <Enter> to enter the submenu.
f Parallel (LPT) Port [Enabled]
Enables or disables parallel(LPT) port.
f Parallel (LPT) Port Settings [Auto]
Sets parallel port (LPT). If set to Auto, BIOS will optimize the IRQ automatically or you can set it manually.
f Device Mode [STD Printer Mode]
Selects an operating mode for parallel port.
[STD Printer Mode]
[SPP]
Printer port mode
Standard Parallel Port mode
[EPP-1.9/ 1.7 + SPP]
[ECP]
[ECP + EPP-1.9/ 1.7]
Enhanced Parallel Port-1.9/ 1.7 mode + Standard
Parallel Port mode.
Extended Capability Port mode
Extended Capability Port mode + Enhanced Parallel
Port-1.9/ 1.7 mode.
f Hardware Monitor
Sets fan speeds. Press <Enter> to enter the sub-menu. f CPU/ SYS FanX Smart Fan Control [Enabled]
Enables or disables the smart fan control. Smart Fan Control automatically controls fan speed depending on target temperature and to keep it with a specific operating speed. When the temperature is over the maximum temperature, the fan will operate maximum speed. When the temperature is under the minimum temperature, the fan will operate minimum speed. f CPU/ SYS FanX level 1~4 Temperature [40, 55, 70, 85]
Sets target temperature for level 1 to 4 (low to high). The fan will operate designate speed according to level 1~4 target temperatures. These items will be un-available when Smart Fan Control is disabled.
f CPU/ SYS FanX level 1~4 Fan Speed [13, 38, 63, 100]
Sets fan duty cycle (%) for level 1 to 4 (low to high). The fan will operate designate duty cycle according to level 1~4 target temperatures. These items will be unavailable when Smart Fan Control is disabled.
f CPU/ SYS FanX Control [60]
Sets the CPU/ system fan speed manually. f CPU Fan Fail Warning Control [Disabled]
Enables or disables the CPU fan warning message.
[Enabled] Shows a warning message if the CPU fan is not detected or fail.
[Disabled] Hides the CPU fan warning message.
42 BIOS Setup
f Power Management Setup
Sets system Power Management of EuP2013 and AC Power Loss behaviors. Press
<Enter> to enter the sub-menu. f EuP 2013 [Disabled]
Enables or disables the system power consumption according to EuP2013 regulation.
[Enabled] Optimize the system power consumption according to EuP 2013 regulation. It will not support S4 & S5 wake up by USB, PCI and PCIe devices.
[Disabled] Disables this function. f Restore after AC Power Loss [Power Off]
Sets the system behaviors while encountering the AC power loss.
[Power Off] Leaves the system in power off state after restoring AC power.
[Power On] Boot up the system after restoring AC power.
[Last State] Restores the system to the previous state (power on/ power off) before AC power loss.
f On board LED Control [On]
Enables or disables the actions of onboard LEDs.
[On] Enables the actions of onboard LEDs.
[Off] Disables the actions of LEDs on the corner of the back panel.
f Windows OS Configuration
Sets Windows 8/ 8.1 detailed configuration and behaviors. Press <Enter> to enter the sub-menu. f Windows 8.1/ 10 WHQL Support [Disabled]
Enables the supports for Windows 8.1/ 10 or disables for other operating systems.
Before enabling this item, make sure all installed devices & utilities (hardware & software) should meet the Windows 8.1/ 10 requirements.
[Enabled] The system will switch to UEFI mode to meet the Windows equirement.
[Disabled] Disables this function.
f MSI Fast Boot [Disabled]
MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of Fast Boot .
[Enabled] Enables the MSI Fast Boot function to speed up booting time. And the following Fast Boot field will be disabled and fixed.
[Disabled] Disables MSI Fast Boot.
Important
When MSI Fast Boot is enabled, you can use FAST BOOT application to enter BIOS
setup if needed. Please refer to page 36 for Entering BIOS Setup.
BIOS Setup 43
f Fast Boot [Disabled/ windows7, Enabled/ windows 8.1/ 10]
Enables or disables the fast boot feature for Windows 8.1/ 10. This item will only be available when MSI Fast Boot is disabled.
[Enabled] Enables the Fast Boot configuration to accelerate system boot time.
[Disabled] Disables the Fast Boot configuration.
f Internal GOP Configuration
Manages the onboard Graphics Output Protocol (GOP). Press <Enter> to enter the sub-menu. This sub-menu appear when Windows 8.1/ 10 WHQL Support is enabled.
f Secure Boot
Sets the Windows secure boot to prevent the unauthorized accessing. Press
<Enter> to enter the sub-menu. This sub-menu appear when Windows 8.1/ 10
WHQL Support is enabled.
f Secure Boot Support [Disabled]
Enables or disables secure boot support.
[Enabled] Enables the secure boot function and allow you to set the secure boot settings.
[Disabled] Disables this function.
f Secure Boot Mode [Standard]
Selects the secure boot mode. This item is to select how the secure boot keys be loaded. This item appears when Secure Boot Support is enabled.
[Standard] The system will automatically load the secure keys from BIOS.
[Custom] Allows user to configure the secure boot settings and manually load the secure keys.
f Key Management
Manages the secure boot keys. Press <Enter> to enter the sub-menu. This submenu will appear when Secure Boot Mode sets to [Custom].
f Wake Up Event Setup
Sets system wake up behaviors for different sleep modes. Press <Enter> to enter the sub-menu. f Wake Up Event By [BIOS]
Selects the wake up event by BIOS or operating system.
[BIOS]
[OS]
Activates the following items, set wake up events of these items.
The wake up events will be defined by OS.
f Resume By RTC Alarm [Disabled]
Disables or enables the system wake up by RTC Alarm.
[Enabled] Enables the system to boot up on a scheduled time/ date.
[Disabled] Disables this function.
44 BIOS Setup
f Date (of month) Alarm/ Time (hh:mm:ss) Alarm
Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a specified date/hour/minute/second in these fields (using the <+> and <-> to select the date & time settings).
f Resume By PCI/PCI-E Device [Disabled]
Enables or disables the wake up function of installed PCI/ PCI-E expansion cards, integrated LAN controllers or USB devices which are supported by third party integrated chips.
[Enabled] Enables the system to be awakened from the power saving modes when activity or input signal of PCI/ PCIe device is detected.
[Disabled] Disables this function.
f Resume by USB Device [Disabled]
Disables or enables the system wake up by USB devices.
[Enabled] Enables the system to be awakened from sleep state when activity of
USB device is detected.
[Disabled] Disables this function.
f Resume From S3/S4/S5 by PS/2 Mouse [Disabled]
Disables or enables the system wake up by PS/2 mouse.
[Enabled] Enables the system to be awakened from S3/ S4/ S5 state when activity of PS/2 mouse is detected.
[Disabled] Disables this function.
f Resume From S3/S4/S5 by PS/2 Keyboard [Disabled]
Disables or enables the system wake up by PS/2 keyboard.
[Any Key] Enables the system to be awakened from S3/ S4/ S5 state when activity of any key on PS/2 keyboard is detected.
[Hot Key] Enables the system to be awakened from S3/ S4/ S5 state when activity of hot key on PS/2 keyboard is detected.
[Disabled] Disables this function.
f Hot Key [Ctrl+Space]
Selects a combination of keys as a hot key to awake the system. This item appears when you set the Resume From S3/S4/S5 by PS/2 Keyboard to Hot Key .
f Realtek PCIe GBE Family Controller
Shows driver information and configuration of the ethernet controller parameter.
BIOS Setup 45
Overclocking Menu
The Overclocking Menu allows you to adjust the frequency and voltage. Increasing the frequency may get better performance.
Important y
Overclocking your PC manually is only recommended for advanced users.
y
Overclocking is not guaranteed, and if done improperly, it could void your warranty or severely damage your hardware.
f OC Explore Mode [Normal]
Enables or disables to show the normal or expert version of OC settings.
[Normal]
[Expert]
Provides the regular OC settings in BIOS setup.
Provides the advanced OC settings for OC expert to configure in BIOS setup.
Note: We use * as the symbol for the OC settings of Expert mode.
f CPU Ratio Apply Mode [All Core]*
Sets applied mode for CPU ratio. This item only appears when a CPU that supports
Turbo Boost is installed.
[All Core] Activate the CPU Ratio field. All CPU cores will run the same CPU ratio that be set in CPU Ratio .
[Per Core] Activate the X-Core Ratio Limit field. Sets each CPU core ratio separately in X-Core Ratio Limit . f CPU Ratio [Auto]
Sets the CPU ratio that is used to determine CPU clock speed. This item can only be changed if the processor supports this function.
f 1/2/3/4-Core Ratio Limit [Auto]
Allows you to set the CPU ratios for different number of active cores. These items only appear when a CPU that support this function is installed.
46 BIOS Setup
f Adjusted CPU Frequency
Shows the adjusted CPU frequency. Read-only.
f CPU Ratio Mode [Dynamic Mode]*
Selects the CPU Ratio operating mode. This item will appear when you set the CPU ratio manually.
[Fixed Mode] Fixes the CPU ratio.
[Dynamic Mode] CPU ratio will be changed dynamically according to the CPU loading.
f Ring Ratio [Auto]
Sets the ring ratio. The valid value range depends on the installed CPU. f Adjusted Ring Frequency
Shows the adjusted Ring frequency. Read-only.
f GT Ratio [Auto]
Sets the integrated graphics ratio. The valid value range depends on the installed
CPU. f Adjusted GT Frequency
Shows the adjusted integrated graphics frequency. Read-only.
f Misc Setting*
Press Enter, + or - key to open or close the following 3 items related to CPU features. f EIST [Enabled]*
Enables or disables the Enhanced Intel ® SpeedStep Technology.
[Enabled] Enables the EIST to adjust CPU voltage and core frequency dynamically. It can decrease average power consumption and average heat production.
[Disabled] Disables EIST. f Intel Turbo Boost [Enabled]*
Enables or disables the Intel ® Turbo Boost. This item appears when the installed
CPU supports this function.
[Enabled] Enables this function to boost CPU performance automatically above rated specifications when system request the highest performance state.
[Disabled] Disables this function.
f Extreme Memory Profile (X.M.P.) [Disabled]
X.M.P. (Extreme Memory Profile) is the overclocking technology by memory module.
This item will be available when the memory modules that support X.M.P. is installed.
[Disabled] Disables this function.
[Profile 1] Uses profile1 settings of XMP memory module.
[Profile 2] Uses profile2 settings of XMP memory module.
BIOS Setup 47
f DRAM Reference Clock [Auto]*
Sets the DRAM reference clock. The valid value range depends on the installed CPU.
This item appears when a CPU that supports this adjustment is installed. f DRAM Frequency [Auto]
Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed.
f Adjusted DRAM Frequency
Shows the adjusted DRAM frequency. Read-only.
f Memory Try It ! [Disabled]
It can improve memory compatibility or performance by choosing optimized memory preset.
f Advanced DRAM Configuration
Press <Enter> to enter the sub-menu. User can set the memory timing for each/ all memory channel. The system may become unstable or unbootable after changing memory timing. If it occurs, please clear the CMOS data and restore the default settings. (Refer to the Clear CMOS jumper/ button section to clear the CMOS data, and enter the BIOS to load the default settings.) f Memory Fast Boot [Auto]*
Enables or disables the initiation and training for memory every booting.
[Auto] The setting will be configured automatically by BIOS.
[Enabled] System will completely keep the archives of first intiation and training for memory. So the memory will not be initialed and trained when booting to accelerate the system booting time.
[Disabled] The memory will be initialed and trained every booting. f CPU Voltages control [Auto]
These options allows you to set the voltages related to CPU. If set to Auto , BIOS will set these voltages automatically or you can set it manually. f DRAM Voltages control [Auto]
These options allows you to set the voltages related to memory. If set to Auto , BIOS will set these voltages automatically or you can set it manually. f PCH Voltages control [Auto]
These options allows you to set the voltages related to PCH. If set to Auto , BIOS will set these voltages automatically or you can set it manually. f CPU Memory Changed Detect [Enabled]*
Enables or disables the system to issue a warning message during boot when the CPU or memory has been replaced.
[Enabled] The system will issue a warning message during boot and then you have to load the default settings for new devices.
[Disabled] Disables this function and keeps the current BIOS settings.
48 BIOS Setup
f CPU Specifications
Press <Enter> to enter the sub-menu. This sub-menu displays the information of installed CPU. You can also access this information menu at any time by pressing [F4].
Read only.
f CPU Technology Support
Press <Enter> to enter the sub-menu. The sub-menu shows the key features of installed CPU. Read only.
f MEMORY-Z
Press <Enter> to enter the sub-menu. This sub-menu displays all the settings and timings of installed memory. You can also access this information menu at any time by pressing [F5]. f DIMMx Memory SPD
Press <Enter> to enter the sub-menu. The sub-menu displays the information of installed memory. Read only.
f CPU Features
Press <Enter> to enter the sub-menu.
f Hyper-Threading [Enabled]
Intel Hyper-Threading technology treats the multi cores inside the processor as multi logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. This item appears when the installed
CPU supports this technology.
[Enable] Enables Intel Hyper-Threading technology.
[Disabled] Disables this item if the system does not support HT function.
f Active Processor Cores [All]
Allows you to select the number of active CPU cores. f Limit CPUID Maximum [Disabled]
Enables or disables the extended CPUID value.
[Enabled] BIOS limits the maximum CPUID input value to circumvent boot problems with older operating system that do not support the processor with extended CPUID value.
[Disabled] Use the actual maximum CPUID input value.
f Execute Disable Bit [Enabled]
Intel ’ buffer overflow attacks where worms attempt to execute code to damage the system. It is recommended that keeps this item enabled always.
[Enabled] Enables NO-Execution protection to prevent the malicious attacks and worms.
[Disabled] Disables this function.
BIOS Setup 49
f Intel Virtualization Tech [Enabled]
Enables or disables Intel Virtualization technology.
[Enabled] Enables Intel Virtualization technology and allows a platform to run multiple operating systems in independent partitions. The system can function as multiple systems virtually.
[Disabled] Disables this function.
f Intel VT-D Tech [Disabled]
Enables or disables Intel VT-D (Intel Virtualization for Directed I/O) technology. f Hardware Prefetcher [Enabled]
Enables or disables the hardware prefetcher (MLC Streamer prefetcher).
[Enabled] Allows the hardware prefetcher to automatically pre-fetch data and instructions into L2 cache from memory for tuning the CPU performance.
[Disabled] Disables the hardware prefetcher.
f Adjacent Cache Line Prefetch [Enabled]
Enables or disables the CPU hardware prefetcher (MLC Spatial prefetcher).
[Enabled] Enables adjacent cache line prefetching for reducing the cache latency time and tuning the performance to the specific application.
[Disabled] Enables the requested cache line only.
f CPU AES Instructions [Enabled]
Enables or disables the CPU AES (Advanced Encryption Standard-New
Instructions) support. This item appears when a CPU supports this function.
f Intel Adaptive Thermal Monitor [Enabled]
Enables or disables the Intel adaptive thermal monitor function to protect the CPU from overheating.
[Enabled] Throttles down the CPU core clock speed when the CPU is over the adaptive temperature.
[Disabled] Disables this function.
f Intel C-State [Auto]
Enables or disables the Intel C-state. C-state is a processor power management technology defined by ACPI.
[Auto] This setting will be configured automatically by BIOS.
[Enabled] Detects the idle state of system and reduce CPU power consumption accordingly.
[Disabled] Disable this function.
f C1E Support [Disabled]
Enables or disables the C1E function for power-saving in halt state. This item appears when Intel C-State is enabled.
[Enabled] Enables C1E function to reduce the CPU frequency and voltage for power-saving in halt state.
[Disabled] Disables this function.
50 BIOS Setup
f Package C State limit [Auto]
This item allows you to select a CPU C-state level for power-saving when system is idle. The options of C-state depend on the installed CPU. This item appears when
Intel C-State is enabled.
f CFG Lock [Enabled]
Lock or un-lock the MSR 0xE2[15], CFG lock bit.
[Enabled] Locks the CFG lock bit.
[Disabled] Un-locks the CFG lock bit. f EIST [Enabled]
Enables or disables the Enhanced Intel ® SpeedStep Technology. This item will appear when OC Explore Mode is set to Normal .
[Enabled] Enables the EIST to adjust CPU voltage and core frequency dynamically. It can decrease average power consumption and average heat production.
[Disabled] Disables EIST. f Intel Turbo Boost [Enabled]
Enables or disables the Intel ® Turbo Boost. This item is for Normal mode and appears when a CPU that support Turbo Boost is installed.
[Enabled] Enables this function to boost CPU performance automatically over specification when system request the highest performance state.
[Disabled] Disables this function.
f Long Duration Power Limit (W) [Auto]
Sets the long duration TDP power limit for CPU in Turbo Boost mode.
f Long Duration Maintained (s) [Auto]
Sets the maintaining time for Long duration power Limit(W). f Short Duration Power Limit (W) [Auto]
Sets the short duration TDP power limit for CPU in Turbo Boost mode.
f CPU Current Limit (A) [Auto]
Sets maximum current limit of CPU package in Turbo Boost mode. When the current is over the specified value, the CPU will automatically reduce the core frequency for reducing the current.
f FCLK Frequency [Auto]
Sets FCLK frequency. Lower FCLK frequency may help you to set higher base clock frequency.
f DMI Link Speed [Auto]
Sets DMI speed.
BIOS Setup 51
M-Flash Menu
The M-Flash Menu allows you to update BIOS with a USB flash disk.
f Select one file to update BIOS and ME
Selects a BIOS file, includes the ME management settings, in the USB flash drive to update the BIOS and ME. The system will reboot after updating.
52 BIOS Setup
Security Menu
The Security Menu allows you to set supervisor and user passwords.
f Administrator Password
Sets administrator password for system security. User has full rights to change the
BIOS items with administrator password. After setting the administrator password, the state of this item will show Installed ” f User Password
Sets User Password for system security. User has limited rights to change the BIOS items with user password. This item will be available when administrator password is set. After setting the user password, the state of this item will show Installed ” f Password Check [Setup]
Selects a condition that will request the password.
[Setup]
[Boot]
A password will be requested for entering the BIOS Setup.
A password will be requested for booting the system .
f Password Clear [Enabled]
Enables or disables the clear CMOS behavior to clear a set password.
[Enabled] The password will be erased after clear CMOS.
[Disabled] The password will always be kept .
Important
When selecting the Administrator / User Password items, a password box will appear on the screen. Type the password then press <Enter>. The password typed now will replace any previous set password from CMOS memory. You will be prompted to confirm the password. You may also press <Esc> to abort the selection.
To clear a set password, press <Enter> when you are prompted to enter a new password. A message will confirm the password is being disabled. Once the password is disabled, you can enter the setup and OS without authorization.
BIOS Setup 53
f Trusted Computing
Sets TPM (Trusted Platform Module) function. f Security Device Support [Enabled]
Enables or disables the TPM function to build the endorsement key for accessing the system.
f Chassis Intrusion Configuration
Press <Enter> to enter the sub-menu. f Chassis Intrusion [Disabled]
Enables or disables recording messages when the chassis is opened. This function is ready for the chassis equips a chassis intrusion switch.
[Enabled] Once the chassis is opened, the system will record and issue a warning message.
[Reset] Clear the warning message. After clearing the message, please return to Enabled or Disabled .
[Disabled] Disables this funcion.
54 BIOS Setup
Boot Menu
The Boot Menu allows you to specify the priority of boot devices.
f Full Screen Logo Display [Enabled]
Enables or disables to show the full screen logo while system POST.
[Enabled] Shows the logo in full screen.
[Disabled] Shows the POST messages.
f Bootup NumLock State [On]
Select the keyboard NumLock state upon bootup.
f AUTO CLR_CMOS [Disabled]
Enables or disables the CMOS data to be resumed automatically when the booting process hang-up over 5 seconds.
f Boot Mode Select [LEGACY+UEFI]
Sets the system boot mode from legacy or UEFI architecture depending on OS installation requirement. This item will become un-selectable and will be configured automatically by BIOS when Windows 8.1/ 10 WHQL Support is enabled.
[UEFI] Enables UEFI BIOS boot mode support only.
[LEGACY+UEFI] Enables both Legacy BIOS boot mode and UEFI BIOS boot
mode.
f FIXED BOOT ORDER Priorities
Sets device priority for system boot.
f Boot Option Priorities
These items are used to prioritize the installed boot devices.
BIOS Setup 55
Save & Exit Menu
This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes.
f Discard Changes and Exit
Exit BIOS setup without saving any change. f Save Changes and Reboot
Save all changes and reboot the system. f Save Changes
Save current changes.
f Discard Changes
Discard all changes and restore to the previous values.
f Restore Defaults
Restore or load all default values.
f Boot Override
Enter the of EFI Shell screen. The installed boot-able devices will appear on this menu, you can select one of them be the boot device.
56 BIOS Setup
Software Description
Installing Windows
®
7/ 8.1/ 10
1. Power on the computer.
2. Insert the Windows ® 7/ 8.1/ 10 disc into your optical drive.
Note : Due to chipset limitation, during the Windows 7 installation process, USB optical drives or USB flash drives are not supported. You can use Win7 Smart Tool to install Windows ® 7.
Video Demonstration
Watch the video to learn how to Install M.2 module. http://youtu.be/64TzNuHCf8A
3. Press the Restart button on the computer case.
4. For windows 8.1/ 10, skip this step. For Windows 7, access the BIOS menu
SETTING > Advanced > Windows OS Configuration > Windows 7 Installation and set the item to enabled, save changes and restart.
Note : It is suggested to plug in your USB Keyboard/ USB Mouse to the leftmost
USB port when installing Windows ® 7.
5. Press F11 key during the computer POST (Power-On Self Test) to get into Boot
Menu.
6. Select your optical drive from the Boot Menu.
7. Press any key when screen shows Press any key to boot from CD or DVD... message.
8. Follow the instructions on the screen to install Windows ® 7/ 8.1/ 10.
Installing Drivers
1. Start up your computer in Windows ® 7/ 8.1/ 10.
2. Insert MSI ® Driver Disc into your optical drive.
3. The installer will automatically appear and it will find and list all necessary drivers.
4. Click Install button.
5. The software installation will then be in progress, after it has finished it will prompt you to restart.
6. Click OK button to finish.
7. Restart your computer.
Installing Utilities
Before you install utilities, you must complete drivers installation.
1. Insert MSI ® Driver Disc into your optical drive.
2. The installer will automatically appear.
3. Click Utilities tab.
4. Select the utilities you want to install.
5. Click Install button.
6. The utilities installation will then be in progress, after it has finished it will prompt you to restart.
7. Click OK button to finish.
8. Restart your computer.
Software Description
57
COMMAND CENTER
COMMAND CENTER is an user-friendly software and exclusively developed by MSI, helping users to adjust system settings and monitor status under OS. With the help of COMMAND CENTER , making it possible to achieve easier and efficient monitoring process and adjustments than that under BIOS. In addition, the COMMAND CENTER can be a server for mobile remote control application.
System Information CPU Temperature
Feature Menu
Profile
Buttons
Feature Title
Feature
Control Panel
Next Feature
Previous
Feature
Option Buttons
Page Indicator
Resize Corner
Profile Buttons
y
Default - load the default values for the current feature.
y Apply - apply your changes.
y Save - store values in the file with individual file extension.
y
Load - load the values from the file.
Important
Every time you shut down the system, the configured setting will be restored to the factory default. If you want to use the saved settings, you have to load it every time by clicking the Load and Apply buttons.
CPU Frequency
CPU Frequency control panel allows you to change
CPU Ratio and Base clock. You can see the current frequency of each CPU core on the top of the panel.
58
Software Description
CPU Fan
CPU Fan control panel provides Smart mode and
Manual Mode . You can switch the control mode by clicking the Smart Mode and Manual Mode buttons on the top of the CPU Fan control panel.
y Manual Mode - allows you to manually control the
CPU fan speed by percentage.
y Smart Mode - a linear fan speed control feature.
The control panel contains 4 dots allows you to drag and adjust the Smart Speed slopes. The fan speed will be changed along these lines with CPU temperature. The white dot will create strip chart in real time.
y
System Fan Button - to open the system fan control panel in new window.
y
Fan Tune Button - to automatically optimize the smart fan setting.
Manual Mode
Smart Mode
CPU Voltage
CPU Voltage control panel allows you to control the
CPU voltage.
DRAM Frequency & DRAM Voltage
y DRAM Frequency - Shows the DRAM clock, ratio and frequency.
y DRAM Voltage - Allows you to adjust the DRAM voltage. The risky values are displayed in red.
IGP Frequency & GT Voltage
y
IGP Frequency - Allows you to adjust the IGP ratio, and shows the IGP clock, ratio and frequency.
y
GT Voltage - Allows you to adjust the GT voltage.
The risky values are displayed in red.
Software Description
59
Option Buttons - Advanced
When click the Advanced button, The Voltage , Fan and DRAM icons will appear. y Voltage - allows you to adjust advanced voltage values of CPU and chipset.
y
Fan - allows you to control the system fans speed.
y DRAM - shows the current Advanced DRAM parameters, and allows you to change the settings by selecting values from the drop-down menu on the right hand side.
y Sensor - allows you to monitor your motherboard temperature and fan speed with the virtual thermal image. You can drag and drop the fan icons to new locations.
When you press the Cooling button, all fans will run at full speed.
Option Buttons - Setting
When click the Setting button, The Record , Warning and Mobile Control icons will appear. y
Record - allows you to monitor the status of voltage, fan speed and temperature in real time.
To filter record charts, select the check box next to the items.
When click the Play button, the chart pane will start to show the recording chart.
If you want to check the value of a specific spot on chart, please move the orange vertical line to the spot.
History Record stores the data and names with date and time.
To make a history record: Select items and click the Record button. When finished, click the Record button again. The data will be stored in the drop-down menu.
To load a record, click the drop-down menu and select one from the list.
To delete a record, select the record that you want to delete, and click the Trash
Can icon.
y Warning - contains fields of voltage, fan speed and temperature for you to set the threshold values. When system detects the status over your settings, a warning message will pop-up.
y
Mobile Control - is only available for the motherboard with the built-in WiFi module.
It allows you to enable/disable the COMMAND CENTER Remote Server. Please refer to the instruction on the Mobile Control control panel.
60
Software Description
y To start remote control: (optional)
1. Download and install MSI ® COMMAND CENTER APP to your mobile device.
2. Enable COMMAND CENTER Remote Server on the Mobile Control panel.
3. Enable SoftAP Management .
4. Enter SSID and Password , and then click the Apply button.
5. Activate Wi-Fi ® on your mobile device and connect to SoftAP with the SSID.
6. Run MSI ® COMMAND CENTER APP on your mobile device.
7. Find the IP address on the SoftAP Management Setting area, and enter the IP address on your MSI ® COMMAND CENTER APP to link your system.
8. Press Refresh on the MSI ® COMMAND CENTER APP to verify that monitoring and
OC functions are working properly.
Option Buttons - Information
When click the Information button, The Motherboard , CPU , Memory and HW monitor icons will appear.
You can click the icons to open the related information.
Gadget Mode
COMMAND CENTER provides a gadget mode to monitor the system status. You can switch between gadget mode and full mode by clicking the arrow icon on the top left.
y To arrange gadgets:
1. Click the Spanner icon on the Gadget mode, a configuration panel will slide out.
2. Select the check box next to the items.
3. Click the Close button.
Software Description
61
LIVE UPDATE 6
LIVE UPDATE 6 is an application for the MSI ® system to scan and download the latest drivers, BIOS and utilities. With LIVE UPDATE 6, you don on websites, and don ’
’ t need to know the models of motherboard and graphics cards.
LIVE UPDATE 6 will download the appropriate drivers automatically.
Download Options
Download List
Scan / Download / Total
Installer button
System Information
Last Scanned Date
There are Live Update, History, Setting and System Information tabs at the top. You can click the tab to switch the control panel.
y
Live Update - When you launch LIVE UPDATE 6, you will see the Live update tab at first. This tab allows you to select files to download. You can also read the relevant information by clicking the information icon on the right of the item listed.
y History - shows the downloading history.
y
Setting - allows you to specify the frequency that LIVE UPDATE 6 remind you to update.
y
System Information - displays the information of the system.
Updating The System
This section describes how to update your system with LIVE UPDATE 6. Please follow the steps below:
1
2
4
5
3
1. Select the Live Update tab.
62
Software Description
2. Choose Automatic scan , system will automatically scan all the items and search for the latest update files. Or you can choose Manual scan and select the items you wish to scan.
3. Click the Scan button at the bottom. It may take several moments to complete the process.
4. When the download list appears, please select the items you intend to update.
5. Click Download button at the bottom.
6. When Save Path prompt, you can specify a download directory.
7. When downloading you will see the screen below. It may take several moments to complete the process.
8. To install the applications, simply unpack the packages and install.
Total Installer
Total Installer is a convenient feature to simplify frequent installing procedure. To use
Total Installer:
2
3
1
1. Scan updates in Live Update tab.
2. Check the Select All check-box you intend to update.
3. Click the Total Installer button. LIVE UPDATE 6 will automatically install them.
4. When prompted, click OK to complete the Total Installer procedure
5. Reboot your system.
Software Description
63
M-CLOUD
M-CLOUD is an application of MSI network sharing. It allows you to turn your computer into Wi-Fi AP. It can also transfer files between your MSI computers.
Soft AP
ON/OFF
Server
Information
History
Users &
Permissions
Local
Directory
Server
Directory
File Transfer y
Soft AP ON/OFF - click on the Soft AP ON/OFF button to enable virtual Wi-Fi AP.
y Server Information - indicate information of current server connection. y History - click on the History button to view file transfer history.
y
Users & Permissions - click on the Users & Permissions button to open the Users
& Permissions Management window.
y
Local/ Server Directory - you can upload or download files between the local and the server. There 5 icons on the toolbar at the top of Local/ Server Directory.
Refresh - refresh the local/ server directory.
Delete - you needs delete permission to delete files.
Root Folder - navigate to root folder.
Up a Level - navigate up one directory level.
New Folder - you needs delete permission to create a new folder.
y File Transfer - click > button to upload files from the local to the server. Click < button to download files from the server to the local.
64
Software Description
Setting up Soft AP (optional)
The Soft AP function is only available for the motherboard with the built-in WiFi module. You can share your network connection to your smartphones, tablets and laptops with the Soft AP function.
Important y
You must have an active network connection and an installed Wi-Fi moudle to enable Soft AP.
y
If you connect to Internet by using PPPoE , you should check Allow other people to use this connection when set up a new connection.
To use Soft AP:
1
2
3
4
1. Click the Soft AP button to ON and the Soft AP dialogue will pop up.
2. Select an existing network connection.
3. Fill in Wi-Fi network name ( SSID ) and network password.
4. Click Apply button to complete.
Installing Cloud Storage
M-CLOUD needs a connection to Google Drive or Dropbox in order to detect your available servers.
Cloud Storage
Server Detection
File Transfer
If you haven ’ Google Drive or Dropbox software yet, you can download and install it from below web address, and please follow the direction on the web page.
Google Drive : https://www.google.com/drive/download/
Dropbox : https://www.dropbox.com/downloading/
Software Description
65
Managing User Accounts
This section describes how to create/ remove a user account and configure individual access permissions.
2
1
5
3 4
1. Click the Users & Permissions button and the Users & Permissions Management window will pop up.
2. Click Add Account button create a new user account.
3. Fill in user ’ ID , password and Confirm Password fields.
4. Select permission for the user account.
5. Click Apply button to complete.
Once you create an account 3 management icons will appear on the right hand side.
Delete - delete the user account.
/ Unlock/ Lock - unlock/ lock the user account.
Edit - change the user password and permission.
Transferring Files
This section describes how to transfer files between your local computer and a server.
Important y
Before using the M-CLOUD to transfer files, you need to connect both the local computer and the server to either Google Drive or Dropbox properly with the same user account.
y To allow your computers to communicate through the firewall with M-CLOUD, you have to open ports 24680~24780 .
1. Activate M-CLOUD both on the local computer and the server.
2. Select a server from the bar
3. Enter User ID and Password and click the Login button.
4. You can select files from Local/ Server Directory and then click the File Transfer button to upload or download them. You can also drag the files from one side and drop them on the other side.
66
Software Description
RAMDISK
RAMDISK creates a virtual RAM drive using the available memory in your computer, the performance of the RAMDISK is faster than an SSD and hard drive. RAMDISK allows you to store any temporary information on it. Furthermore, using the RAMDISK will extend your SSD s life by sparing it from excessive reading and writing.
Creating a RAM Disk
When RAMDISK is started, it will create a default RAM disk. If you want to change settings, refer to following instructions.
Setting
Backup
Option
Apply
Button
Management y Setting - specify Letter , Name , Size and Format of the RAM disk.
y
Option - select browser temporary files to save/load on the RAM disk. You can also add software files to improve reading speed.
y
Backup - specify backup and restore settings to prevent data loss. All files will be lost each time the RAMDISK is stopped if you do not backup.
Browse Button - set the path to the image file.
Backup Right Now Button - manually backup files.
Restore On Boot - check this box to have the image file loaded automatically when
RAMDISK starts.
Auto Backup - check this box to backup automatically over a period of time. y Apply Button - allows you to apply changes.
y
Management - shows RAMDISK information and allows you to delete files.
Remove the RAM disk
Dislpay information
Delete files in the RAM disk.
Software Description
67
NETWORK GENIE
NETWORK GENIE is an utility to optimize the traffic for bandwidth control. NETWORK
GENIE is designed for the Realtek LAN chip with Windows 7, Windows 8.1 and
Windows 10 platforms.
Once installed, the Network Genie icon shows on system tray (the right bottom corner of the screen). Mouse right click at the icon, will display the following screen.
When you hover the mouse cursor over the Mode option, a sub-menu will appear for you to select Game , Stream , Browser and Auto mode.
y Show - shows the NETWORK GENIE control panel.
y
Hide - hides the NETWORK GENIE control panel.
y Exit - exits NETWORK GENIE .
In case no icon is shown on the system tray, it is possible to activate NETWORK GENIE manually by clicking Start > Programs > MSI > NETWORK GENIE > NETWORK GENIE .
NETWORK GENIE Control Panel
y
Mode - allows you to quickly change bandwidth priorities for different applications.
y Applications - lists all network related applications.
y Advanced - provides detailed settings for NETWORK GENIE.
y
System Info - shows system information.
y About - shows information of NETWORK GENIE.
68
Software Description
Configuring Application's Network Priority
2
1
3
1. Go to Application tab.
2. Click L to assign the low network priority to the application, and H to hight. You can also click the Lock icon to block an application network connection.
3. Click the Save button to store your settings.
Configuring Network Speed
There are two parts in the Advanced tab, one is Internet Speed , and another is Delay/
Sensitivity Settings .
y Internet Speed - allows you to set the maximum available bandwidth to the upload/ download speed manually or just leave blank for no limit.
y Delay/Sensitivity Settings - allows you to enable Speed up Response Time and No
TCP Delay to reduce the latency of the high priority applications.
Software Description
69
Intel
®
Extreme Tuning Utility
Intel ® Extreme Tuning Utility (Intel XTU) is a simple overclocking software for you to tune, test and monitor your system.
Tuning Controls
Views
Settings
Help
Navigation System
Table
System
Graphs y Views Settings Help
System
Monitors
Views - toggles to switche between Monitoring and Show All view.
Settings - opens the General Settings window.
Help - displays the help content for Intel XTU in a separate window.
y
Navigation - lists all of the major functions of Intel XTU.
System Information - shows the details about your system.
App-Profile Pairing - tunes automatically based on active application.
Manual Tuning - changes system settings in a free form.
Stress Test - tests the stability of your system.
Benchmarking - analyzes and compares your system ’ other system profiles.
Profiles - manages sets of system settings.
y
Tuning Controls - displays the controls for changing the system settings in manual tuning. For stress tests and profiles, this area displays the settings for these features.
y System Table - displays information about the current system settings and a summary of your changes.
y System Graphs - shows measured system values over a period of time. The system graphs update live as changes are detected in the system. You can customize the system graphs to show the data you need for your overclocking strategy in the system graphs preferences.
y System Monitors - shows the range of the value, averages, and the current value.
The monitors change color if the monitored values fall into warning or critical zones.
70
Software Description
CPU-Z
CPU-Z is an utility that gathers information on some of the main devices of your system.
y CPU Tab - shows processor name, code name, package, specification, instructions sets, core speed and cache levels.
y Caches Tab - shows extended information related to the cache capabilities.
y
Mainboard Tab - shows motherboard manufacturer, model name, chipset, BIOS version and graphic interface.
y
Memory Tab - shows memory type, memory size, channels, memory frequency.
y SPD Tab - shows specifications relating to each memory module connected to the motherboard, including the size, type and frequency.
y Graphics Tab - shows GPU name, code name, core speed, memory size, and memory type.
y Bench Tab - allows you to run either a benchmark or a stress test on your processor.
y About Tab - shows the CPU-Z version, Windows version, DirectX version and allows you to save the report file.
Software Description
71
Troubleshooting
Before sending the motherboard for RMA repair, try to go over troubleshooting guide first to see if your got similar symptoms as mentioned below.
The power is not on.
y Connect the AC power cord to an electrical outlet securely.
y Check if all ATX power connectors like
JPWR1~2 is connected from the power supply to the motherboard?
y
Some power supply units have a power button on the rear side, make sure the button is turned on.
y Check if the power switch cable is connected to JFP1 pin header properly.
y Verify the Clear CMOS jumper JBAT1 is set to Keep DATA .
y Test with another known working power supply of equal or greater wattage.
The power is on, but no signal to monitor
y
Connect the monitor power cord to a electrical outlet securely.
y
Make sure the monitor is turned on.
y Select different inputs on the monitor.
y If 3 long beeps are heard, remove all memory modules and try to install only one memory module in the DIMM2 slot first and then restart the computer.
y If 1 long 2 short beeps are heard, remove and reinstall the graphics card and then restart the computer.
y Test with another known working graphics card.
The computer does not boot after updating the BIOS
y
Clear the CMOS.
y Use the secondary BIOS to bootup the system (Only for motherboard with
Dual BIOS)
Lost BIOS password
y Clear the CMOS, but that will cause you to lose all customized settings in the BIOS.
There is no audio
y Adjust the volume.
y Connect the speakers/headphones to audio ports on the motherboard rear
IO panel.
y
Remove secondary speakers/ headphones, HDMI cables, USB audio devices.
y Test with another known working speaker or headphone.
There is no network
y Make sure the network chipset driver has been installed.
y Verify if the network cable is properly connected and make sure the LAN port
LEDs are properly illuminated. y Verify your TCP/IP settings.
y Restart or reset your router.
y
Test with another known working LAN cable.
The USB device is not working
y
Make sure your USB drive driver has been installed.
y
Verify if USB device is listed in
Windows ® Device Manager.
y Connect the USB device to other USB port on the motherboard rear IO panel.
72 Troubleshooting
Regulatory Notices
FCC Compliance Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
y Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.
Tested to comply with FCC standards
FOR HOME OR OFFICE USE
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CE Conformity
with the essential safety requirements and other relevant provisions set out in the European
Directive.
Hereby, Micro-Star International CO., LTD declares that this device is in compliance
C-Tick Compliance
Battery Information
European Union:
Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Taiwan:
廢電池請回收
For better environmental protection, waste batteries should be collected separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in
California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
CAUTION: There is a risk of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC
No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at: http://www.msi.com/html/popup/csr/evmtprtt_pcm.
html
B 급 기기 ( 가정용 방송통신기자재 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모
든 지역에서 사용할 수 있습니다 .
クラス B 情報技術装置
この装置は、クラスB情報技術装置です。この
装置は、家庭環境で使用することを目的として
いますが、この装置がラジオやテレビジョン受
信機に近接して使用されると、受信障害を引き起こすこと
があります。取扱説明書に従って
正しい取り扱いをして下さい
VCCI-B
Regulatory Notices
73
WEEE (Waste Electrical and
Electronic Equipment) Statement
ENGLISH
To protect the global environment and as an environmentalist, MSI must remind you that...
Under the European Union (“EU”)
Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/
EC, which takes effect on August 13,
2005, products of “electrical and electronic equipment” cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.
DEUTSCH
Hinweis von MSI zur Erhaltung und Schutz unserer
Umwelt
Gemäß der Richtlinie 2002/96/EG über Elektro- und
Elektronik-Altgeräte dürfen Elektro- und Elektronik-
Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt, die in die
Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen.
Bitte entsorgen Sie dieses Produkt zum gegebenen
Zeitpunkt ausschliesslich an einer lokalen
Altgerätesammelstelle in Ihrer Nähe.
FRANÇAIS
En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci...
Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent
être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.
РУССКИЙ
Компания MSI предпринимает активные действия по защите окружающей среды, поэтому напоминаем вам, что....
В соответствии с директивой Европейского
Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива
WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы.
MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории
EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.
ESPAÑOL
MSI como empresa comprometida con la protección del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.
NEDERLANDS
Om het milieu te beschermen, wil MSI u eraan herinneren dat….
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.
SRPSKI
Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da…
Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/
EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
POLSKI
Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI przypomina, że...
Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych
(Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia.
MSI wypełni wymagania UE, przyjmując produkty
(sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.
74
Regulatory Notices
TÜRKÇE
Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:
Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik
Malzeme Atığı, 2002/96/EC Kararnamesi altında 13
Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların
üreticileri, cihazların kullanım süreleri bittikten sonra
ürünleri geri toplamakla yükümlü olacaktır. Avrupa
Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.
ČESKY
Záleží nám na ochraně životního prostředí - společnost
MSI upozorňuje...
Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/
EC platné od 13. srpna 2005 je zakázáno likvidovat
“elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích
EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.
MAGYAR
Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti
Önt, hogy ...
Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként,
és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.
ITALIANO
Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che….
In base alla Direttiva dell’Unione Europea (EU) sullo
Smaltimento dei Materiali Elettrici ed Elettronici,
Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali
Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta
日本 JIS C 0950 材質宣言
日本工業規格 JIS C 0950 により、 2006 年 7 月 1 日以降に販
売される特定分野の電気および電子機器について、製造
者による含有物質の表示が義務付けられます。 http://www.msi.com/html/popup/csr/cemm_jp.html
http://tw.msi.com/html/popup/csr_tw/cemm_jp.html
India RoHS
This product complies with the “India E-waste
(Management and Handling) Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and
0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Türkiye EEE yönetmeliği
Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur
Україна обмеження на наявність небезпечних речовин
Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та електронному обладнані, затвердженого постановою
Кабінету Міністрів України від 3 грудня 2008 № 1057.
Vi ệ t Nam RoHS
K ể t ừ ngày 01/12/2012, t ấ t c ả các s ả n ph ẩ m do công ty MSI s ả n xu ấ t tuân th ủ Thông t ư s ố 30/2011/TT-BCT quy đ ị nh t ạ m th ờ i v ề gi ớ i h ạ n hàm l ượ ng cho phép c ủ a m ộ t s ố hóa ch ấ t đ ộ c h ạ i có trong các s ả n ph ẩ m đi ệ n, đi ệ n t ử ”
Environmental Policy
y The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life.
y Users should contact the local authorized point of collection for recycling and disposing of their endof-life products.
y Visit the MSI website and locate a nearby distributor for further recycling information.
y Users may also reach us at [email protected] for information regarding proper Disposal, Take-back,
Recycling, and Disassembly of MSI products.
Regulatory Notices
75
产品中有害物质的名称及含量
部件名称
铅
(Pb)
X
汞
(Hg)
O
镉
(Cd)
有害物质
六价铬
(Cr(VI))
多溴联苯
(PBB)
O O O
多溴二苯醚
(PBDE)
O 印刷电路板组件 *
电池 **
外部信号连接头
X
X
O
O
O
O
O
O
O
O
O
O
线材 X O O O O O
本表格依据 SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求,但所有部件都符合欧盟
RoHS 要求。
* 印刷电路板组件 : 包括印刷电路板及其构成的零部件。
** 电池本体上如有环保使用期限标识,以本体标识为主。
■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 產品部件本体上如有环保使用期限标识,以本体标识为主。
Copyright
Micro-Star Int ’
Copyright © 2016 All rights reserved.
The material in this document is the intellectual property of Micro-Star Int ’ in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
Technical Support
If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.
y Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http:// www.msi.com
y Register your product at: http:// register.msi.com
Trademark Recognition
All product names used in this manual are the properties of their respective owners and are acknowledged.
Revision History
Version 1.0, 2016/03, First release.
76
Regulatory Notices
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 1 Unpacking
- 2 Safety Information
- 3 Quick Start
- 3 Preparing Tools and Components
- 4 Installing a Processor
- 5 Installing DDR4 memory
- 6 Connecting the Front Panel Header
- 7 Installing the Motherboard
- 8 Installing SATA Drives
- 9 Installing a Graphics Card
- 10 Connecting Peripheral Devices
- 11 Connecting the Power Connectors
- 12 Power On
- 15 Specifications
- 19 Block Diagram
- 20 Rear I/O Panel
- 20 LAN Port LED Status Table
- 20 Realtek HD Audio Manager
- 22 Overview of Components
- 24 CPU Socket
- 25 DIMM Slots
- 26 PCI_E1~3: PCIe Expansion Slots
- 27 M2: M.2 Slot
- 29 SATA1~6: SATA 6Gb/s Connectors
- 29 JFP1, JFP2: Front Panel Connectors
- 30 JPWR1~2: Power Connectors
- 30 JUSB1: USB 2.0 Connectors
- 31 JUSB2: USB 3.1 Gen1 Connector
- 31 JTPM1: TPM Module Connector
- 32 JCOM1: Serial Port Connector
- 32 JLPT1: Parallel Port Connector
- 32 JAUD1: Front Audio Connector
- 33 CPUFAN1,SYSFAN1~2: Fan Connectors
- 34 JBAT1: Clear CMOS (Reset BIOS) Jumper
- 34 EZ Debug LED: Debug LED indicators
- 35 JCI1: Chassis Intrusion Connector
- 36 BIOS Setup
- 36 Entering BIOS Setup
- 37 Resetting BIOS
- 37 Updating BIOS
- 38 System Status Menu
- 39 Advanced Menu
- 46 Overclocking Menu
- 52 M-Flash Menu
- 53 Security Menu
- 55 Boot Menu
- 56 Save & Exit Menu
- 57 Software Description
- 57 Installing Windows® 7/ 8.1/ 10
- 57 Installing Drivers
- 57 Installing Utilities
- 58 COMMAND CENTER
- 62 LIVE UPDATE 6
- 64 M-CLOUD
- 67 RAMDISK
- 68 NETWORK GENIE
- 70 Intel® Extreme Tuning Utility
- 71 CPU-Z
- 72 Troubleshooting
- 73 Regulatory Notices
