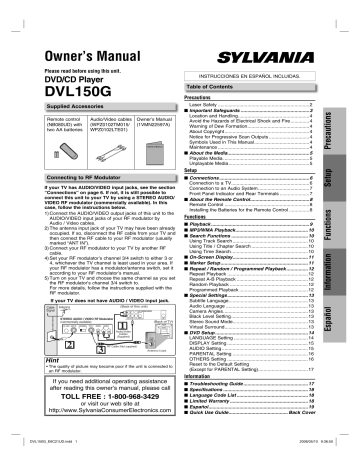

Owner’s Manual
Please read before using this unit.
DVD/CD Player
DVL150G
Supplied Accessories
Remote control
(NB080UD) with two AA batteries
Audio/Video cables
(WPZ0102TM015/
WPZ0102LTE01)
Owner’s Manual
(1VMN22597A)
Owner's Manual
Connecting to RF Modulator
If your TV has AUDIO/VIDEO input jacks, see the section
“Connections” on page 6. If not, it is still possible to connect this unit to your TV by using a STEREO AUDIO/
VIDEO RF modulator (commercially available). In this case, follow the instructions below.
1) Connect the AUDIO/VIDEO output jacks of this unit to the
AUDIO/VIDEO input jacks of your RF modulator by
Audio / Video cables.
2) The antenna input jack of your TV may have been already occupied. If so, disconnect the RF cable from your TV and then connect the RF cable to your RF modulator (usually marked “ANT IN”).
3) Connect your RF modulator to your TV by another RF cable.
4) Set your RF modulator’s channel 3/4 switch to either 3 or
4, whichever the TV channel is least used in your area. If your RF modulator has a modulator/antenna switch, set it according to your RF modulator’s manual.
5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.
For more details, follow the instructions supplied with the
RF modulator.
If your TV does not have AUDIO / VIDEO input jack.
Cable
Signal
Antenna (Back of this unit)
Y L
R
C R /P R COMPONENT VIDEO OUT
COAXIAL
S-VIDEO
OUT
(Back of TV)
CHANNEL
3 4
TO TV VIDEO AUDIO
R L
AUDIO
OUT
VIDEO
OUT
C B /P B
DIGITAL
AUDIO OUT
STEREO AUDIO / VIDEO RF Modulator
(commercially available)
AC 120V ANT IN
1
Audio/Video
Cables
(Supplied)
2
3
RF Cable (Not supplied)
Antenna in jack
Hint
• The quality of picture may become poor if the unit is connected to an RF modulator.
If you need additional operating assistance after reading this owner’s manual, please call
TOLL FREE : 1-800-968-3429 or visit our web site at http://www.SylvaniaConsumerElectronics.com
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
Table of Contents
Precautions
Laser Safety ....................................................................2
■ Important Safeguards ...................................................3
Location and Handling .....................................................4
Avoid the Hazards of Electrical Shock and Fire ..............4
Warning of Dew Formation ..............................................4
About Copyright ...............................................................4
Notice for Progressive Scan Outputs ..............................4
Symbols Used in This Manual .........................................4
Maintenance ....................................................................4
■ About the Media.............................................................5
Playable Media ................................................................5
Unplayable Media ............................................................5
Setup
■
Connections ...................................................................6
Connection to a TV ..........................................................6
Connection to an Audio System ......................................7
Front Panel Indicator and Rear Terminals ......................7
■ About the Remote Control ............................................8
Remote Control ...............................................................8
Installing the Batteries for the Remote Control ...............8
Functions
■
Playback .........................................................................9
■ MP3/WMA Playback ......................................................10
■
Search Functions .........................................................10
Using Track Search ........................................................10
Using Title / Chapter Search ..........................................10
Using Time Search .........................................................10
■ On-Screen Display ........................................................11
■
Marker Setup .................................................................11
■ Repeat / Random / Programmed Playback ................12
Repeat Playback ............................................................12
Repeat A-B Playback .....................................................12
Random Playback ..........................................................12
Programmed Playback ...................................................12
■
Special Settings ............................................................13
Subtitle Language ...........................................................13
Audio Language .............................................................13
Camera Angles ...............................................................13
Black Level Setting .........................................................13
Stereo Sound Mode........................................................13
Virtual Surround ..............................................................13
■
DVD Setup .....................................................................14
LANGUAGE Setting .......................................................14
DISPLAY Setting ............................................................15
AUDIO Setting ................................................................15
PARENTAL Setting ........................................................16
OTHERS Setting ............................................................16
Reset to the Default Setting
(Except for PARENTAL Setting) .....................................17
Information
■
Troubleshooting Guide ................................................17
■
Specifications ...............................................................18
■
Language Code List .....................................................18
■ Limited Warranty ..........................................................18
■
Español ..........................................................................19
■ Quick Use Guide ............................................ Back Cover
Precautions
WARNING
:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning fl ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Laser Safety
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.
CAUTION:
CAUTION:
LOCATION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT
STARE INTO BEAM.
INSIDE, NEAR THE DECK MECHANISM.
FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.
Make your contribution to the environment!!!
• Used up batteries do not belong in the dust bin.
• You can dispose of them at a collection point for used up batteries or special wastes.
Contact your council for details.
For Customer Use:
Read carefully the information located at the bottom of this unit and enter below the Model No. and the Serial No. Retain this information for future reference.
Model No.
Serial No.
– 2 –
EN
IMPORTANT SAFEGUARDS
1) Read Instructions - All the safety and operating instructions should be read before the product is operated.
2) Retain Instructions - The safety and operating instructions should be retained for future reference.
3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4) Follow Instructions - All operating and use instructions should be followed.
5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water
- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug
(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
14) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet.
This will prevent damage to the product due to lightning and power-line surges.
15) Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
18) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged.
the product. c) If the product has been exposed to rain or water.
the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
20) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
21) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
22) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
EN
– 3 –
Location and Handling
• Do not stand this unit up vertically. Install this unit in a horizontal and stable position. Do not place anything directly on top of this unit. Do not place this unit directly on top of the TV.
• Depending on the TV, noise or disturbance of the picture and/or sound may be generated if this unit is placed too close to your TV. In this case, please ensure enough space between your TV and this unit.
• Do not cover or place this unit in enclosed spaces to prevent excessive temperature build up.
• Do not place this unit in direct sunlight, or near heat sources.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
• Keep this unit away from strong magnetic objects.
• Do not place any object containing water or other liquids on this unit. In the event that liquid should enter the cabinet, unplug this unit and contact the retailer or an
Authorized Service Center immediately.
• Do not remove this unit cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an Authorized Service Center.
• Be sure to remove disc and unplug the AC power cord from the output before carrying this unit.
Avoid the Hazards of Electrical Shock and Fire
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from
AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our
Authorized Service Center for servicing.
Warning of Dew Formation
Moisture may form inside this unit under the following conditions:
• Immediately after a heater is turned on.
• In a steamy or humid room.
• When this unit is suddenly moved from a cold to warm environment.
If moisture forms inside this unit, it may not operate properly or damage the disc. In such case, turn on the power and wait for more than 2 hours for the moisture to evaporate.
About Copyright
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Notice for Progressive Scan Outputs
Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.
Symbols Used in This Manual
The following symbols appear in some headings in this manual.
: Description refers to playback of DVD-Video discs.
: Description refers to playback of Audio CDs.
: Description refers to playback of MP3 files.
: Description refers to playback of discs formatted with WMA.
Maintenance
SERVICING
• Please refer to relevant topics on the “Troubleshooting
Guide” on page 17 before returning the unit.
• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an
Authorized Service Center.
CLEANING THE CABINET
• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.
CLEANING DISCS
• When a disc becomes dirty, clean it with a cleaning cloth.
Wipe the disc from the center to out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.
CLEANING THE DISC LENS
• If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting Guide” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.
DISC HANDLING
• When you handle a disc hold it by its edge and try not to touch the surface of the disc.
• Always store a disc in its protective case when it is not used.
“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft ® in the
United States of America.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
– 4 –
EN
About the Media
Playable Media
Playable discs
DVD-Video
*1, 2, 4, 6
Mark (logo) Region code or
Recorded signals
Disc size
Disc types
DVD-R
DVD-RW
*1, 3, 4, 5, 6,
7, 9, 10
DVD+R
DVD+RW
*1, 3, 4, 5, 6,
8, 9, 10
Audio CD
*4, 6
CD-R
CD-RW
*4, 5, 6,
9, 10
Digital video
(MPEG2)
12 cm or
8 cm
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2
Digital audio
Digital audio or
MP3 / WMA*11
Audio CD
Example
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6
12 cm or
8 cm MP3 / WMA
Example
Group 1
Track 1 Track 2 Track 3 Track 4
Group 2
Track 5 Track 6 is a trademark of DVD Format/Logo Licensing Corporation.
If you cannot play back a disc which bears one of the marks above, check the following notes.
*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers.
*3: Discs recorded in the VR (Video Recording) format cannot be played back.
*4: Scratched or stained discs may not be played back.
*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.
*6: You can play back discs which bear the marks above. If you use non-standardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.
*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD recorder.
However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.
ing on the recording status of a disc, the disc may not be played back at all. The picture or sound may not be smooth, etc.
*9: If the recorded portion of the disc is too small (smaller than 55mm across), it may not be played back.
*10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
*11: This DVD/CD player cannot playback the disc contents protected by Windows Media Digital Rights Management (DRM).
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Unplayable Media
• NEVER play back the following discs. Otherwise, malfunction may result!
DVD-RAM / DVD-Audio / CD-i / Photo CD / Video CD / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers
• On the following disc, the sound MAY NOT be heard.
Super Audio CD
NOTE: Only the sound recorded on the normal CD layer can be delivered.
The sound recorded on the high density Super Audio CD layer cannot be delivered.
• Any other discs without compatibility indications
– 5 –
EN
Setup
Connections
If your TV has AUDIO/VIDEO input jacks, see the following instructions. If not, see the section “Connecting to RF Modulator” on the front page.
Connection to a TV
TV
Basic Audio
L
AUDIO IN
R
Method 1
Good picture
VIDEO IN
Method 2
Better picture
S-VIDEO IN
Method 3
Best picture
COMPONENT
VIDEO IN
Y Y
P
B
P
R or
C
B
C
R
Audio cable
(supplied)
This unit
L
Video cable
(supplied)
S-Video cable
(commercially available)
Component Video cable
(commercially available)
Y C
R
/P
R
COMPONENT VIDEO OUT
L
R
AUDIO
OUT
VIDEO
OUT
Y R
AUDIO
OUT
AUDIO OUT
(Analog)
VIDEO
OUT
VIDEO OUT
S-VIDEO
OUT
S-VIDEO OUT
VIDEO
OUT
C
B
/P
B
COMPONENT VIDEO OUT
Hint
• Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
If your TV is compatible with 525p (480p) progressive scanning and you want to enjoy that high quality picture;
You must select the connection Method 3 above and progressive scanning mode. To set the mode, set “PROGRESSIVE” to “ON” in the SETUP menu, so that the “PROGRESSIVE SCAN” indicator on the front panel lights up. See pages 14-15 for more details.
• When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and S-VIDEO OUT jacks will be distorted or not be output at all.
If your TV is not compatible with progressive scanning;
Use this unit in interlace mode and set “PROGRESSIVE” to “OFF” either in the SETUP menu or by pressing and holding [PLAY B ] on the front of the unit for more than 5 seconds, so that the “PROGRESSIVE SCAN” indicator on the front panel lights off.
After you have completed connections;
Press the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual accompanying your TV.
INPUT MODES FOR COMMON TV BRANDS
Listed below are inputs for common brand name TV’s.
Admiral: AUX
Curtis Mathis:
GE:
JVC:
LINE1, LINE2, 00, 90, 91, 92, 93
INPUT, TV/VCR, 00, 90, 91, 92, 93
VIDEO, VIDEO1, VIDEO2, VIDEO3
Kenwood: AUX
LXI-Series: 00
Panasonic: TV/VIDEO
RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
Samsung: TV/VIDEO
Sanyo: VIDEO
Sharp: 00
Sony: VIDEO1, VIDEO2, VIDEO3
Toshiba: TV/GAME
Zenith: 00
– 6 –
EN
Connection to an Audio System
AUDIO
Playing 2 channel audio
Stereo system
Analog audio input jacks
L R
Audio cable
(supplied)
This unit
L
AUDIO OUT
(Analog)
R
AUDIO
OUT
Hint
• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Playing Dolby Digital
(Multi-channel audio)
Dolby Digital decoder,
MD deck or DAT deck
COAXIAL
Digital audio input jack
Audio Coaxial
Digital cable
(commercially available)
COAXIAL
DIGITAL
AUDIO OUT
DIGITAL
AUDIO OUT
Connection
Setting
SETUP > QUICK>
DOLBY DIGITAL
Connecting to a Dolby Digital decoder for Dolby Digital audio output.
BITSTREAM
Connecting to the other equipment
(an MD deck or DAT deck etc.) without Dolby Digital decoder.
PCM
* To complete these settings, refer to pages 14-15.
Hint
• The audio source on a disc in a Dolby Digital Multi-channel
Surround format cannot be recorded as digital sound by an MD or DAT deck.
• By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital Multi-channel Surround sound as heard in the movie theaters.
• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Front Panel Indicator and Rear Terminals
Front Panel
POWER
PLAY
PROGRESSIVE SCAN
1 2 3
1 POWER indicator
Lights up when power is on.
2 PLAY indicator
Lights up when the unit works.
3 PROGRESSIVE SCAN indicator
Lights up when PROGRESSIVE SCAN mode is activated.
Rear Terminals
L Y C R /P R COMPONENT VIDEO OUT
COAXIAL
R
AUDIO
OUT
VIDEO
OUT
C B /P B
DIGITAL
AUDIO OUT
S-VIDEO
OUT
1 2 3 4 5
1 AUDIO OUT jacks
Connect the supplied audio cable here through the audio in jacks of a television or other audio equipment.
2 VIDEO OUT jack
Connect the supplied yellow video cable here through the video in jack of a television.
3 COMPONENT VIDEO OUT jacks
Connect an optional component video cable here through the component video in jacks of a television.
4 DIGITAL AUDIO OUT COAXIAL jack
Connect an optional coaxial digital audio cable here through the coaxial digital audio in jack of a decoder or audio receiver.
5 S-VIDEO OUT jack
Connect an optional S-Video cable here through the S-Video in jack of a television.
– 7 –
EN
About the Remote Control
Remote Control
Button
(Alphabetical order)
Disc
1 2 3
4
7
5
8
0
6
9
+10
• To select chapter or title directly.
POWER
DISPLAY
SEARCH
MODE
OPEN/CLOSE
AUDIO
1
SUBTITLE
4
ANGLE
REPEAT
7
CLEAR
A-B PAUSE
2
5
8
3
6
9
0
SKIP
+10
SLOW
PLAY
REV
STOP
SETUP TOP MENU
MODE ENTER
FWD
MENU
ZOOM RETURN
Installing the Batteries for the
Remote Control
Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.
1 2 3
REV
ENTER
A-B
ANGLE
AUDIO
CLEAR
DISPLAY
MENU
MODE
PAUSE
FWD
OPEN/CLOSE
• To move the cursor and determine its position.
• To repeat between your chosen point of A and B.
• To repeat between your chosen point
A and B. (CD)
• To select camera angles on a disc.
------
• To select audio language on a disc.
• To clear the markers.
• To clear the numbers.
• To cancel the point for A-B repeat.
• To set black level on/off.
• To set virtual surround on/off.
• To select STEREO, L-ch or R-ch.
(CD)
• To clear the markers. (CD)
• To remove status number in program input.
• To clear the numbers entered incorrectly.
• To cancel the point for A-B repeat.
(CD)
• To display the current disc mode.
• To display the current disc mode.
• To search forward/backward through a disc.
• To begin slow forward/reverse playback in the pause mode.
• To call up the Menu on a disc.
• To search forward/backward through a disc.
• To call up the file list. (MP3/WMA)
• To arrange the playing order or play randomly.
• To set virtual surround on/off.
• To open or close the disc tray.
• To pause disc playback.
• To advance playback one frame at a time.
• To begin disc playback.
• To select track directly.
• To move the cursor and determine its position.
• To open or close the disc tray.
• To pause disc playback.
• To begin disc playback.
PLAY
POWER
• To turn the unit on/off.
• To turn the unit on/off.
Keep in mind the following when using the remote control:
• Make sure that there is no obstacle between the remote control and the remote sensor on the unit.
• The maximum operable ranges from the unit are as follows.
- Line of sight : approx. 23 feet (7m)
- Either side of the center : approx. 16 feet (5m) within 30°
- Above : approx. 16 feet (5m) within 15°
- Below : approx. 10 feet (3m) within 30°
REPEAT
RETURN
SEARCH
MODE
SETUP
SKIP
• To play a chapter or title repeatedly.
• To return to the previous operation in menu.
• To search chapter, title or time.
• To set or search the markers.
• To call up the DVD setup menu.
• To skip chapters or titles.
• To play a track or disc repeatedly.
(CD)
• To play a track, group or disc repeatedly. (MP3/WMA)
• To return to the previous operation menu.
• To search tracks.
• To search time. (CD)
• To set or search the markers. (CD)
• To call up the DVD setup menu.
• To skip tracks.
STOP
• To stop playback.
• To stop playback.
SUBTITLE
Hint
• Do not mix alkaline and manganese batteries.
• Do not mix old and new batteries.
TOP MENU
ZOOM
• To select subtitles on a disc.
• To call up the Top Menu on a disc.
• To magnify part of a picture. (x2/x4)
------
• To return to the top file of the highest hierarchy in the program and file list.
(MP3/WMA)
------
– 8 –
EN
Functions
Operations described in this section are mainly based on the remote control use. Some operations can be carried out on main unit.
Playback
Before: Turn on the TV, amplifier and any other equipments which are connected to this unit. Make sure the TV and audio receiver
(commercially available) are set to the correct channel.
( ⇒
Page 10
)
1 Press [POWER] to turn on the
DVD/CD Player.
2 Press [OPEN / CLOSE A ] and insert a disc with label facing up.
3 Press [PLAY B ] to start playback.
4 Press [STOP C ] to stop playback.
DVD menu
3
4
2
1
2
POWER
1
POWER
DISPLAY
SEARCH
MODE
OPEN/CLOSE
AUDIO
1
SUBTITLE
4
ANGLE
REPEAT
7
CLEAR
A-B PAUSE
2
5
8 9
0
SKIP
+10
3
6
REV
SLOW
PLAY
STOP
FWD
SKIP PLAY SKIP STOP OPEN/CLOSE
POWER PLAY PROGRESSIVE SCAN
3 4 2 2
Lights up when power is on.
Hint
• When you play an MP3/WMA-format disc, details on page 10.
• A “prohibited icon” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.
• Some DVDs may start playback from title 2 or 3 due to specific programs.
• During the playback of a two-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.
TIP:
You can change the On-Screen language in “PLAYER MENU” setting. (Refer to page 14.)
Some discs contain menus which allow you to customize
DVD playback. Use [
K
/
L
/ s
/
B
] to select an item, then press [ENTER] (or [PLAY B ] ).
Calling Up a Menu Screen during Playback
Fast Forward / Reverse Search
Use [FWD g ] or [REV h ] repeatedly during playback to select the required forward or reverse speed.
To continue playback, press [PLAY B ] .
E
1
To use [
H
SKIP], [SKIP
G
] on this unit
Pressing and holding [ H SKIP], [SKIP G ] on this unit will also change forward or reverse playback speed.
To continue playback, press [PLAY B ] .
Hint
• For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and 5(x100).
• For Audio CDs and MP3/WMA, approximate speed is 1(x2), 2(x8) and 3(x30).
• Press [MENU] to call up the DVD menu.
• Press [TOP MENU] to call up the title menu.
Hint
• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details.
Resume
Press [STOP C ] during playback.
Resume message will appear on the TV screen.
Press [PLAY B ] , playback will resume from the point at which playback was stopped.
Resume ON
Press 'PLAY' to play from here.
To play the beginning, press 'STOP' first and then 'PLAY'.
<Example : DVD>
Hint
• To cancel resume, press [STOP C ] one more time in the stop mode.
• For MP3/WMA, playback will resume from the beginning of the track at which playback was stopped.
• The resume information will be kept even when unit is in standby mode.
Paused and Step-by-Step Playback
Press [PAUSE F ] during playback.
To continue playback, press [PLAY B ] .
The disc goes forward by one frame each time [PAUSE F ] is pressed in the pause mode.
To continue playback, press [PLAY B ] .
Hint
• On DVDs, set “STILL MODE” to “FIELD” in the DISPLAY menu if pictures in the pause mode are blurred. (Refer to pages 14-15.)
To use [
H
SKIP], [SKIP
G
] on this unit
Press once to skip a chapter or track to a desired point.
Slow Forward / Reverse
Press [FWD g ] or [REV h ] repeatedly in the pause mode to select the required forward or reverse speed.
To continue playback, press [PLAY B ] .
1
To use [ H SKIP], [SKIP G ] on this unit
Pressing and holding [ H SKIP], [SKIP G ] on this unit in the pause mode will also change forward or reverse playback speed.
To continue playback, press [PLAY B ] .
Hint
• Slow forward or reverse speed is different depending on the disc.
Approximate speed is 1(1/16), 2(1/8) and 3(1/2).
• Set “STILL MODE” to “FIELD” in the DISPLAY menu if pictures in the slow playback mode are blurred. (Refer to pages 14-15.)
Zoom
1) Press [ZOOM] repeatedly during playback to select the required zoom factor: x2, x4 or OFF.
2) Use [ K / L / s / B ] to slide the zoomed picture across the screen.
x2 x4
3) To exit zoom function, press [ZOOM] repeatedly to select OFF.
Hint
• Zooming function does not work while the disc menu is showing up.
• x4 zoom is not available on some discs.
• It may take several seconds to slide the zoomed picture.
– 9 –
EN
MP3/WMA Playback
MP3/WMA is a method of compressing files. You can copy MP3/WMA files on CD-R/RWs from the computer and play the files on this unit.
Insert an MP3/WMA-format disc, then the file list will automatically appear on the TV screen. Press [MENU] when you want to call up the file list if MP3/WMA-format disc is already inserted.
1
FILE LIST
3
FOLDER
MP3
WMA
DISC NAME
2
STOP
Refer to “Resume” on page 9.
Hint
• Some selections may take a while to be recognized.
• Press [TOP MENU] to return to the first item.
3
3 folder name 1 folder name 2 folder name 3 folder name 4 file name 1 file name 2 file name 3 or
PLAY
ENTER
PLAY folder name 1
1/ 2
When selecting the folder:
• Press [ B ] when you want to go to the next hierarchy.
• Press [ s ] when you want to go back to the previous hierarchy (except for the top hierarchy).
• Folders are known as Groups; files are known as Tracks.
• MP3 files are accompanied by 3 icon. • WMA files are accompanied by icon.
• Folders are accompanied by icon.
• A maximum of 255 folders or 999 files may be recognized in one disc.
• Up to 8 hierarchies can be recognized.
This player recommends the files recorded under the following circumstances:
• Sampling frequency: 44.1kHz or 48kHz (MP3/WMA)
• Constant bit rate: 32kbps ~ 320kbps (MP3). 48kbps ~ 192kbps (WMA).
• For MP3/WMA file recorded in Variable Bit Rate (VBR), the unit may not display the actual elapsed time.
• Copyright protected WMA files will not play on this unit.
Search Functions
Using Track Search Using Title / Chapter Search Using Time Search
Using [SEARCH MODE]
1
SEARCH
MODE
/29
Using [SEARCH MODE]
1
SEARCH
MODE
/12
1
PLAY TOTAL 1:29:00
2
1 2 3
/29
4 5 6
7 8 9
0 +10 within 30 seconds
• For the disc with less than 10 tracks, press the track number directly.
• For discs with more than 10 but less than 99 tracks, to play single-digit track, press [0] first, then the track number (e.g. for track 3, press [0] ,
[3] ). To play a double-digit track, press the track number.
• For discs with more than 100 tracks, to play a single or a double-digit track, press [0] first, then the track number
(e.g. for track 3, press [0] , [0] , [3] , and for track 26, press [0] , [2] , [6] ). To play a triple-digit track, press the track number.
Using [SKIP H , G ]
1
PLAY
Current Track
(TR)
SKIP SKIP
TR 1 TR 2 TR 3 TR 4
SKIP
2
Press once for the chapter search.
Press twice for the title search.
1
4
7
2
5
8
0
3
6
9
+10
/12 within 30 seconds
Using [SKIP H , G ]
1
Current Chapter
(CH)
PLAY
SKIP
SKIP
CH 1 CH 2 CH 3 CH 4
SKIP or
Current Title
(TT)
SKIP
TT 1 TT2 TT3 TT4
SKIP
(If the disc has no chapters)
Hint
• Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons . Refer to the manual accompanying the disc.
Hint
• [+10] button can also bring the Track Search display, except for the disc with less than 10 tracks. For such a disc, track search can be done by just pressing the track number.
• Track Search is not available for
Programmed or Random Playback.
– 10 –
SEARCH
MODE
Press repeatedly until the Time Search display appears.
2
1
4
7
2
5
8
0
3
6
9
TOTAL 1:29:00 within 30 seconds
Hint
• When there is no need to enter a number,
“0” appears automatically.
For example, “0 : 0_: _ _” appears in the
Time Search display if the total time of the title or track is less than 10 minutes.
• Press [CLEAR] to erase the incorrect input at step 2.
EN
On-Screen Display
You can check the information about the current disc by pressing [DISPLAY] on the remote control.
1
11/16 0:00:00 - 0:03:30
Angle icon appears only when available on the DVD.
Current playback status
Remaining time of the current chapter
Elapsed time of the current chapter
CH(Chapter):
Current chapter number / Total chapters
1
2
4/12 0:03:21 - 0:02:15
4/12 0:13:45 - 0:45:40
T
T
Current playback status
Remaining time of the current track
Elapsed time of the current track
TR(Track):
Current track number / Total tracks
ALL:
Current track number / Total tracks
Current repeat setting, if active
2 1/3 0:00:00 - 1:23:45
Remaining time of the current title
Elapsed time of the current title
A : All Tracks repeat
A B : A-B repeat
Remaining time of the entire disc
Elapsed time of the entire disc
TT(Title):
Current title number / Total titles
3
3
T L1
Hint
• PROGRAM (or RANDOM) will be displayed instead of 2 when you are playing a disc in PROGRAM or RANDOM mode.
Layer numbers appears only when playing a two-layered disc.
L0 : Layer 0 is playing
L1 : Layer 1 is playing
Current repeat setting appears only when the repeat setting is active.
C : Chapter repeat
T : Title repeat
A B : A-B repeat
BIT RATE: The amount of audio and video data currently being read 4
NOTE:
For WMA files,
1-A
and
1-B
will be displayed after
1
.
1-A TITLE NAME
Title name based on tag information currently in play will be displayed.
Current playback status
1
TRACK 01
The name of the file currently in play will be displayed.
2 1/36 0:01:15 T
TR(Track):
Current track number / Total tracks
Current repeat setting, if active
T : Track repeat
G : Group (folder) repeat
A : Disc repeat
Elapsed playing time of the current track
3 PROGRAM RANDOM or
(Only when you are playing a disc in PROGRAM or RANDOM mode.)
1-B ARTIST NAME
Artist name based on tag information currently in play will be displayed.
4
Marker Setup
This feature allows you to assign a specific point on a disc to be called back later.
To set a marker
1
PLAY
To return to the marker later
1
SEARCH
MODE
Press repeatedly until the marker display appears.
SEARCH
MODE
2
Press repeatedly until the marker display appears.
ENTER
2
ENTER 3
To exit the marker display
1
RETURN
Hint
• The Marker display will disappear in about
30 seconds when there is no output.
• To clear a marker, select the marker to be cleared at step 2 in the section “To set a marker” or “To return to the marker later” and then press [CLEAR] .
• Removing the disc or turning off the power will erase all markers.
• Selecting “AC” at step 2 in the section “To set a marker” or “To return to the marker later” will also erase all markers.
3 at the desired marker
• Playback will restart from the specific point which you set.
– 11 –
EN
Repeat / Random / Programmed Playback
Repeat Playback Repeat A-B Playback Programmed Playback
1
Repeat function is available only during playback.
1
PLAY
PLAY
A-B
A-
REPEAT
<Example : DVD> 2 at your desired starting point (A)
A-B
A-B
Each time you press [REPEAT] , repeat function changes as example below.
OFF
CHAPTER ( current chapter repeat)
TITLE
(repeat off )
( current title repeat) at your desired ending point (B)
• Point B should be in the same title or track as point A.
Hint
• To exit the sequence, press [A-B] so that
OFF appears.
• To cancel Point A, press [CLEAR] at step 1.
• This function does not work in the other repeat modes.
OFF
TRACK
ALL
OFF
(repeat off )
Random Playback
( current track repeat)
( entire disc repeat)
(repeat off )
This function shuffles the playing order of tracks instead of playback in the sequence.
1
STOP
TRACK ( current track repeat)
GROUP ( current group repeat)
MODE
ALL ( entire disc repeat)
Hint
• Repeat setting will be cleared when moving to another title, chapter, track or group.
• Repeat playback may not function with some discs or during repeat A-B playback.
2
Press twice.
PLAY
<Example : CD>
Hint
• To repeat the current track in the random selections, press [REPEAT] repeatedly until “ TRACK” appears during playback.
• To repeat the entire random selections, press [REPEAT] repeatedly until
“ ALL” appears during playback.
• During random playback, you cannot go back to the previous track.
You may determine the order in which tracks will play.
1
STOP
2
3
Press once.
Hint
MODE
ENTER
PLAY
<Example : CD>
1/4
TOTAL 1:03:30
1 3:30
5 5:10
10 4:20
11 3:00
12 3:20
17 4:10
22 2:50
2/3
• Up to 99 tracks can be ordered.
• If eight or more tracks were in a program, use [SKIP H , G ] to see all the tracks.
• While an MP3/WMA folder is open:
– Press [ B ] when you want to go to the next hierarchy.
– Press [ s
] when you want to go back to the previous hierarchy (except for the top hierarchy).
• Press [CLEAR] at step 2 to erase the most recently entered track.
• To erase all programmed tracks at once, select “ALL CLEAR’’ and press [ENTER] at step 2.
• While a program is being played back,
[STOP C ] works as follows;
Press [STOP C ] and [PLAY B ] next, so that the programmed playback restarts.
(CD playback restarts from the current point. MP3/WMA playback restarts from the beginning of the current track.)
Press [STOP C ] twice and [PLAY B ] next, so that playback restarts from the first track in the original order.
However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc is removed or power is turned off.)
• To repeat the current track in the program, press [REPEAT] repeatedly until “ TRACK’’ appears during playback.
• To repeat the entire program, press
[REPEAT] repeatedly until “ ALL’’ appears during playback.
– 12 –
EN
Special Settings
Subtitle Language Audio Language
2
OFF
This unit allows you to select a subtitle language (if available) during DVD playback.
1
PLAY
1.ENG/6
This unit allows you to select an audio language (if multiple languages are available on disc) during DVD playback.
1
PLAY
1.ENG Dolby D 3/2.1ch 48k/3
ON: Makes the dark areas brighter.
OFF: Shows the original picture as recorded.
3
RETURN
Stereo Sound Mode
SUBTITLE AUDIO
Each time you press [SUBTITLE] , subtitle language changes as example below.
OFF (no subtitles)
ENG (English subtitles)
FRE (French subtitles)
To set subtitle ON/OFF
1
PLAY
1.ENG/6
SUBTITLE
Each time you press [AUDIO] , audio language changes as example below.
ENG (English audio)
SPA (Spanish audio)
FRE (French audio)
Hint
• Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details.
• If your language is not shown after pressing
[AUDIO] several times, the disc may not have that language. However, some disc allow audio language setting on the disc menu.
(Operation various depending on the disc, so refer to the manual along with the disc.)
Camera Angles
This unit allows you to select a sound mode during CD playback.
1
PLAY
STEREO
AUDIO
Each time you press [AUDIO] , sound mode changes as example below.
STEREO (right and left channels are active)
(left channel is active) L-ch
R-ch (right channel is active)
Virtual Surround
2
ENTER
OFF
Hint
• If your language is not shown after pressing [SUBTITLE] several times, the disc may not have that language. However, some discs allow subtitle language setting on the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.)
• When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.
• If you choose a language that has threeletter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 18.)
• Some discs will only allow you to change the subtitle from the disc menu. Refer to the manual accompanying the discs for details.
Some DVD discs may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if the icon appears on the screen. If the “ANGLE ICON” setting is “OFF” in the OTHERS menu, the icon will not appear. (Refer to pages 14-16.)
1
PLAY
ANGLE
1 / 8
Black Level Setting
Adjust the Black Level Setting to make the dark areas of the TV picture brighter.
1
PLAY
ON
MODE
You can enjoy stereophonic virtual world on your existing 2 channel stereo system.
1
2
3
PLAY
MODE
OFF
Press twice.
(once for CD and MP3/WMA)
1
1: Natural effect
2: Emphasized effect
OFF: No effects (original sound)
RETURN
Hint
For CD playback only
• Virtual Surround will not be effective if the sound mode is set to something other than
STEREO. Refer to “Stereo Sound Mode”.
• When playing back a 96kHz with Virtual
Surround function, the sound will be down sampling at 48kHz and output as digital audio.
– 13 –
EN
DVD Setup
QUICK SETUP Menu
You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE” or “DOLBY DIGITAL” from the QUICK SETUP menu quickly.
1 2
SETUP
STOP
ENTER
<SETUP MENU>
Confirm that “QUICK” is selected.
Select the desired item.
ENTER
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
OK
QUICK SETUP
PLAYER MENU ENGLISH
TV ASPECT 4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
P14
A
Step 5
P15
B
Step 5
P15
C
Step 5
• Refer to the sections “PLAYER MENU”, “TV ASPECT”,
“PROGRESSIVE” or “DOLBY DIGITAL” on page 14 or 15.
CUSTOM Menu
You can change the settings of the unit.
•
QUICK
on pages 14-15 indicates DVD Setup menus also accessible from the QUICK SETUP menu.
1 2 3
SETUP
ENTER ENTER
STOP
<SETUP MENU>
Select “CUSTOM”.
Select the desired item.
OK
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
OK
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
ENTER
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU ENGLISH
PLAYER MENU ENGLISH
LANGUAGE menu DISPLAY menu AUDIO menu
ENTER
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU
PLAYER MENU
ENGLISH
ENGLISH
ENTER
DISPLAY
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROGRESSIVE OFF
ENTER
AUDIO
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL BITSTREAM
page 14
A
page 15
B
page 15
C
A
LANGUAGE Setting
Follow steps 1 to 3 in the “CUSTOM Menu” section above.
4 Select the desired item.
5 Select the desired language.
ENTER
ENTER
LANGUAGE menu
ENTER
LANGUAGE
AUDIO ORIGINAL
SUBTITLE OFF
DISC MENU
PLAYER MENU
ENGLISH
ENGLISH
AUDIO: ∗ 1 ∗ 2
(Default: ORIGINAL)
Sets the audio language.
SUBTITLE: ∗ 1 ∗ 2
(Default: OFF)
Sets the subtitle language.
DISC MENU:
∗
1
(Default: ENGLISH)
Sets the language in
DVD menu.
PLAYER MENU: QUICK
(Default: ENGLISH)
Sets the language for the
On-Screen Display.
AUDIO
ORIGINAL
ENGLISH
FRENCH
SUBTITLE
OFF
ENGLISH
FRENCH
DISC MENU
ENGLISH
FRENCH
SPANISH
PLAYER MENU
ENGLISH
FRANÇAIS
ESPAÑOL
– 14 –
PARENTAL menu
PASSWORD
Enter current password.
ENTER
page 16
D
OTHERS menu
ENTER
OTHERS
ANGLE ICON ON
AUTO POWER OFF ON
page 16
E
6 To exit the menu
SETUP
Hint
∗ 1
• Language options are not available with some discs.
• If OTHER is selected in the AUDIO,
SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list on page 18.)
• Only the languages supported by the disc can be selected.
∗
2
• Language setting for Audio and
Subtitle are not available with some discs. Then press [AUDIO] and
[SUBTITLE] . Details are on page 13.
EN
B
DISPLAY Setting
You can change the display functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 14.
4
Select the desired item.
ENTER
5
TV ASPECT:
QUICK
(Default: 4:3 LETTER BOX)
See Hint on the left.
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROGRESSIVE OFF
TV ASPECT
4:3 LETTER BOX
4:3 PAN & SCAN
16:9 WIDE
Select the desired setting.
ENTER
6
To exit the TV ASPECT or STILL MODE screen
SETUP
DISPLAY menu
ENTER
DISPLAY
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROGRESSIVE OFF
STILL MODE: (Default: AUTO)
See Hint on the right.
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROGRESSIVE OFF
STILL MODE
AUTO
FIELD
FRAME
Select the desired setting.
To complete the
PROGRESSIVE setting
ENTER
Hint
TV ASPECT:
• Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the screen.
• Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.
• Select “16:9 WIDE” if a wide screen TV is connected to this unit.
PROGRESSIVE:
• You can set “PROGRESSIVE” to “OFF” in the DISPLAY menu or press and hold [PLAY B ] on the front of the unit for more than
5 seconds during playback, so that the “PROGRESSIVE SCAN” indicator on the front panel lights off.
• When “PROGRESSIVE” is “ON”, video signals from the unit’s VIDEO OUT and
S-VIDEO OUT jacks will be distorted or not be output at all.
PROGRESSIVE:
QUICK
(Default: OFF)
See Hint on the left.
TV ASPECT 4:3 LETTER BOX
STILL MODE AUTO
PROGRESSIVE OFF
If there is no picture or you do not press any buttons for 15 seconds,
Progressive scan will switch to “OFF” and it will exit the setup menu.
4:3 LETTER BOX
AUTO
ON
Before proceeding…
1. Make sure your TV has progressive scan.
2. Connect with component video cable
NOTE: If there is no picture or picture is distorted after selecting ‘YES’, wait about 15 seconds for auto recovery.
A c t i va t e P r o gr e s s i ve ? NO
YES
SELECT: K L SET:ENTER
Confirm again to use progressive scan.
If Picture is good, select ‘YES’.
SELECT:
K
/ SET:ENTER
SETUP
Select “Yes”.
ENTER
Select “Yes”.
ENTER
Hint
STILL MODE:
• Select “AUTO” usually.
• If you select “AUTO”, automatically select the best resolution setting
(FRAME or FIELD) based on the data characteristics of the pictures. (default).
• If you select “FIELD”, the picture in the still mode will be stabilized.
• If you select “FRAME”, the picture in the still mode will be highly defined.
• An individual picture on
TV screen is called a
“frame”, which consists of two separate images called a “field”.
• Some pictures may be blurred if you select
“AUTO” in the still mode due to their data characteristics.
C
AUDIO Setting
Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow steps 1 to
3 in the “CUSTOM Menu” section on page 14.
4
Select the desired item.
5
DRC (Dynamic Range Control): (Default: ON)
Set to “ON” to compress the range between soft and loud sounds.
6
To exit the menu
SETUP
ENTER
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL BITSTREAM
OFF
ON
BITSTREAM
AUDIO menu
ENTER
AUDIO
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL BITSTREAM
DOWN SAMPLING: (Default: ON)
Set to “ON” when outputting in 48kHz.
Set to “OFF” when outputting the original sound.
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL BITSTREAM
DOLBY DIGITAL:
QUICK
(Default: BITSTREAM)
Set to “BITSTREAM” when the unit is connected to a Dolby Digital decoder.
• BITSTREAM: Outputs a Dolby Digital Signals.
• PCM: Convert the Dolby Digital into PCM (2 channel).
DRC ON
DOWN SAMPLING ON
DOLBY DIGITAL BITSTREAM
ON
OFF
BITSTREAM
ON
ON
PCM
Hint
DRC:
• This function is available only on the discs which are recorded in the Dolby
Digital format.
DOWN SAMPLING:
• When playing disc with copyright protection, the sound will be down sampled at 48kHz, even if you set to “OFF”.
• This function is available only on digital outputting of a disc recorded in
96kHz.
– 15 –
EN
D
PARENTAL Setting
Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not be acceptable.)
This feature prevents your children from viewing inappropriate materials.
Parental Levels
Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 14.
4
Enter your desired four-digit password.
1 2 3
5
Select
“PARENTAL LEVEL”.
6
Select the desired level.
7
To exit the menu
SETUP
ENTER ENTER
4 5 6
7 8 9
0
PARENTAL menu
PARENTAL LEVEL ALL
PASSWORD CHANGE
PARENTAL LEVEL
ALL
8 [ADULT]
7 [NC-17]
6 [R]
ENTER
To Change the Password for Parental Controls
You can change your password for parental controls. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 14.
4
Enter current four-digit password.
1 2 3
5
Select “PASSWORD
CHANGE”.
6
Enter your new four-digit password
(except for 4737).
7
To exit the menu
SETUP
ENTER
4 5 6 1 2 3
ENTER
PASSWORD or
If you have set a password already, enter the current four-digit password.
ENTER
7 8
0
9
PARENTAL menu
CONTROL LEVELS
• ALL:
• Level 8:
All parental locks are cancelled.
DVD softwares of any grades (adult/general/children) can be played back.
• Levels 7 to 2: Only DVD softwares intended for general use and children can be played back.
• Level 1: Only DVD softwares intended for children can be played back, with those intended for adult and general use prohibited.
TIPS FOR LEVELS
• 8 [ADULT]:
• 7 [NC-17]:
• 6 [R]:
• 5 [PGR]:
• 4 [PG13]:
• 3 [PG]:
• 2 [G]:
DVD software of any grades (adult/general/children) can be played back.
No one under 17 admitted
Restricted; under 17 requires accompanying parent or adult guardian
Parental Guidance Recommended
Unsuitable for children under 13
Parental Guidance suggested
General Audience
• 1 [KID SAFE]: Suitable for children
Hint
• DVD-Video discs may not respond to the parental lock settings. Make sure this function works with your DVD-Video discs.
PARENTAL LEVEL ALL
PASSWORD CHANGE
ENTER
4
7
5
8
0
PASSWORD
6
9
Hint
• Record the password in case you forget it.
• If you forget the password, press [4] , [7] , [3] ,
[7] at step 4, then enter your new password.
Password will be cleared and parental levels will be set to “ALL”.
E
OTHERS Setting
You can change the other functions. Follow steps 1 to 3 in the “CUSTOM Menu” section on page 14.
4
ENTER
5
ANGLE ICON: (Default: ON)
Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback.
ANGLE ICON ON
AUTO POWER OFF ON
OFF
ON
6 To exit the menu
SETUP
OTHERS menu
OTHERS
ANGLE ICON ON
AUTO POWER OFF ON
AUTO POWER OFF: (Default: ON)
Set to “ON” to turn this unit off automatically after 30 minutes of no use.
ANGLE ICON ON
AUTO POWER OFF ON
ON
OFF
ENTER
– 16 –
EN
Reset to the Default Setting (Except for PARENTAL Setting)
1
SETUP
2
ENTER
3
STOP
Select “YES”.
<SETUP MENU>
Select “INITIALIZE”.
ENTER
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
ENTER
INITIALIZE
Initialize?
NO
YES
4
To exit the menu
SETUP
Press twice.
Hint
• When you cancel to initialize at step
3, select “NO”.
Information
Troubleshooting Guide
If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit consulting the following checklist.
Problem
No power
No sound or picture
Distorted picture
Completely distorted picture or black/white picture with DVD
No sound or distorted sound
No audio at digital output
No DTS audio is output.
Solution
– Check if the AC power cord is properly connected.
– Unplug the outlet once, and wait for 5-10 seconds and then plug it in again.
– Check if the TV is switched on.
– Check the video connection.
– Check the VIDEO/AUDIO cable connections to the TV.
(See page 6.)
– Sometimes a small amount of picture distortion may appear.
This is not a malfunction.
– Connect the unit directly to the TV.
– Set PROGRESSIVE correctly. Turn it on only if your TV has Progressive Scan and you are using the Component Video connections between the unit and the TV. Disable Progressive
Scan for all other connections. (See page 7.)
– Connect the unit directly to the TV.
– Make sure the disc is compatible with the unit.
–Check if the INTERLACE / PROGRESSIVE mode is set correctly. See pages 14-15.
– Adjust the volume.
– Check that the speakers are connected correctly.
– Check the digital connections.
– Check if the audio format of the selected audio language matches your receiver capabilities.
– This unit does not support DTS audio.
This is not a malfunction.
Picture freezes momentarily during playback.
– Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge.
Disc can’t be played.
– Clean the disc.
– Ensure the disc is inserted in correct direction.
– Check if the disc is defective by trying another disc.
– Cancel the parental lock or change the control level.
– Insert a correct disc that plays on this unit.
– Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.
No return to start-up screen when disc is removed.
– Reset the unit by switching the unit off, then on again.
The unit does not respond to the remote control.
– Aim the remote control directly at the sensor on the front of the unit.
– Reduce the distance to the unit.
– Replace the batteries in the remote control.
– Re-insert the batteries with their polarities (+/– signs) as indicated.
– Tune your radio to an empty AM station so that you hear a lot of noises. Then, turn the volume up. If you hear some signal sound from the radio by pressing buttons on the remote control, the remote control is working.
– Press and hold any button on remote control toward a digital camera. The remote control is working if you confirm infrared light through the digital camera.
Buttons do not work or the unit stops responding.
The unit does not respond to some operating commands during playback.
– To completely reset the unit, unplug the AC cord from the AC outlet for 5-10 seconds.
– Operations may not be permitted by the disc. Refer to the instructions of the disc.
The unit cannot read CDs / DVDs.
Angle does not switch.
– Use a commonly available cleaning CD / DVD to clean the lens before sending the unit for repair.
– The angle cannot be switched for DVDs which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes.
Playback does not start when the title is selected.
The password for rating level has been forgotten.
– Check the “PARENTAL” setting.
– Enter the default password “4737”, then your forgotten password will be cleared.
NOTES:
• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s
Manual for more details on correct operations.
• Playback from a desired track and random playback are not available during program playback.
• Some functions are prohibited on some discs.
– 17 –
EN
Specifications
Output signal format:
Power source:
120 V AC +/- 10%, 60 Hz +/- 0.5%
Power consumption:
10 W (standby: 0.8 W)
Operating temperature:
41°F (5°C) to 104°F (40°C)
Dimensions:
W : 17 1/8 ” (435 mm)
H : 1 15/16 ” (51 mm)
D : 8 5/16 ” (211 mm)
Weight :
Approx. 1.9 lbs (0.9 kg)
• Designs and specifications are subject to change without notice.
• If there is a discrepancy between languages, the default language will be English.
Language Code List
Language Code Language Code Language Code Language Code
A-B
Abkhazian 4748
Afar 4747
Afrikaans 4752
Albanian 6563
Amharic 4759
Arabic 4764
Armenian 5471
Assamese 4765
Aymara 4771
Azerbaijani 4772
Bashkir 4847
Basque 5167
Bengali;Bangla 4860
Bhutani 5072
Bihari 4854
Bislama 4855
Breton 4864
Bulgarian 4853
Burmese 5971
Byelorussian 4851
C-E
Cambodian 5759
Catalan 4947
Chinese [CHI] 7254
Corsican 4961
Croatian 5464
Czech [CZE] 4965
Danish [DAN]
Dutch [DUT]
5047
6058
English [ENG] 5160
Esperanto 5161
Estonian 5166
F-H
Faroese 5261
Fiji 5256
Finnish [FIN] 5255
French [FRE] 5264
Frisian 5271
Galician 5358
Georgian 5747
German [GER]
Greek [GRE]
5051
5158
Greenlandic 5758
Guarani 5360
Gujarati 5367
Hausa 5447
Hebrew 5569
Hindi 5455
Hungarian [HUN]
I-K
5467
Icelandic [ICE] 5565
Indonesian 5560
Interlingua 5547
Interlingue 5551
Inupiak 5557
Irish [IRI] 5347
Italian [ITA]
Japanese [JPN]
5566
5647
Javanese 5669
Kannada 5760
Kashmiri 5765
Kazakh 5757
Kinyarwanda 6469
Kirghiz 5771
Kirundi 6460
Korean [KOR] 5761
Kurdish 5767
L-N
Laothian 5861
Latin 5847
Latvian;Lettish 5868
Lingala 5860
Lithuanian 5866
Macedonian 5957
Malagasy 5953
Malay 5965
Malayalam 5958
Maltese 5966
Maori 5955
Marathi 5964
Moldavian 5961
Mongolian 5960
Nauru 6047
Nepali 6051
Norwegian [NOR] 6061
O-R
Occitan 6149
Oriya 6164
Oromo (Afan) 6159
Panjabi 6247
Pashto;Pushto 6265
Persian 5247
Polish [POL] 6258
Portuguese [POR] 6266
Quechua 6367
Rhaeto-Romance 6459
Romanian [RUM]
Russian [RUS]
6461
6467
S
Samoan 6559
Sangho 6553
Sanskrit 6547
Scots Gaelic 5350
Serbian 6564
Serbo-Croatian 6554
Sesotho 6566
Setswana 6660
Shona 6560
Sindhi 6550
Singhalese 6555
Siswat 6565
Slovak 6557
Slovenian 6558
Somali 6561
Spanish [SPA] 5165
Sundanese 6567
Swahili 6569
Swedish [SWE] 6568
T
Tagalog 6658
Tajik 6653
Tamil 6647
Tatar 6666
Telugu 6651
Thai 6654
Tibetan 4861
Tigrinya 6655
Tonga 6661
Tsonga 6665
Turkish [TUR] 6664
Turkmen 6657
Twi 6669
U-Z
Ukrainian 6757
Urdu 6764
Uzbek 6772
Vietnamese 6855
Volapuk 6861
Welsh 4971
Wolof 6961
Xhosa 7054
Yiddish 5655
Yoruba 7161
Zulu 7267
If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 13. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)
LIMITED WARRANTY
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION:
PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
Certain parts are excluded from this warranty.
LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.
LIMITS AND EXCLUSIONS:
This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.
This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use.
It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY AC-
CESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS,
COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.
FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO
EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUEN-
TIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF
OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE
IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF
ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WAR-
RANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND
FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED
BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL
WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY
AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN
THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU
MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF,
AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE
TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT,
PLEASE CONTACT FUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF
THIS PRODUCT WITHOUT PRIOR NOTICE.
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:
FUNAI CORPORATION
Customer Service
Tel :1-800-968-3429 http://www.SylvaniaConsumerElectronics.com
19900 Van Ness Avenue, Torrance, CA 90501
– 18 –
EN
Español
1
Conexiones
Si su televisor tiene entradas de
AUDIO/VIDEO vea la sección
“Connection to a TV” en la página 6 en el Manual de Manejo. En caso contrario, vea la sección “Connecting to RF
Modulator” en la página del frente en el
Manual de Manejo.
1
2
Instalación de las pilas en el control remoto
2 3
3
Para cambiar el idioma en la pantalla
1
Confirme que ha seleccionado “QUICK”.
POWER
SETUP
STOP
4
Reproducción
Antes.
¡Encienda el televisor, amplificador y otros equipos conectados a esta unidad. Asegúrese que el televisor y el sintonizador de audio (de venta en los comercios) están en el canal correcto.
1
POWER
AUDIO
SUBTITLE
ANGLE
REPEAT
DISPLAY
1
4
7
CLEAR
2
5
8
0
OPEN/CLOSE
3
6
9
+10
A-B PAUSE SKIP
3
REV
SLOW
PLAY
STOP
FWD
1
1
POWER
OPEN/CLOSE
2
Ponga un disco con la etiqueta hacia arriba.
4
3
Para empezar la reproducción
PLAY
4
Para parar la reproducción
STOP
5
Control remoto
Botón
(Orden alfabético)
Disco
1 2 3
4
7
5
8
0
6
9
+10
• Para seleccionar directamente el capítulo o título.
• Para seleccionar directamente la canción.
ENTER
• Para mover el cursor y determinar la posición.
• Para mover el cursor y determinar la posición.
OK
OK
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
2
Confirme que ha seleccionado
“PLAYER MENU”.
QUICK SETUP
PLAYER MENU
TV ASPECT
ENGLISH
4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
3
Seleccione el idioma deseado para las indicaciones en la pantalla.
ENTER
PLAYER MENU
ENGLISH
FRANÇAIS
ESPAÑOL
4
Para salir del menú
SETUP
REV
A-B
ANGLE
AUDIO
CLEAR
DISPLAY
MENU
MODE
FWD
OPEN/CLOSE
• Para repetir entre su punto A y B seleccionado.
• Para seleccionar los ángulos de la cámara en un disco.
• Para seleccionar idiomas de audio en un disco.
• Para borrar los marcadores.
• Para borrar los números mal entrados.
• Para borrar el punto para la repetición
A-B.
• Para mostrar el modo de disco actual.
• Para repetir entre su punto A y B seleccionado. (CD)
------
• Para seleccionar ESTÉREO, L-ch o R-ch.
(CD)
• Para borrar los marcadores. (CD)
• Para eliminar el Nº de estado en la entrada de programa.
• Para borrar los números mal entrados.
• Para borrar el punto para la repetición A-B. (CD)
• Para mostrar el modo de disco actual.
• Para buscar en avance/retroceso por un disco.
• Para empezar la reproducción en avance lento/retroceso durante el modo de pausa.
• Para buscar en avance/retroceso por un disco.
• Para llamar el Menú en un disco.
• Para llamar la lista de archivo. (MP3/WMA)
• Para activar/desactivar el nivel del negro.
• Para activar/desactivar el ambiental virtual.
• Para disponer el orden de reproducción o la reproducción aleatoria.
• Para activar/desactivar el ambiental virtual.
• Para abrir o cerrar la bandeja del disco.
• Para abrir o cerrar la bandeja del disco.
PAUSE
• Para hacer una pausa en la reproducción.
• Para avanzar la reproducción un cuadro cada vez.
• Para hacer una pausa en la reproducción del disco.
• Para empezar la reproducción del disco.
• Para empezar la reproducción del disco.
PLAY
POWER
REPEAT
RETURN
SEARCH
MODE
SETUP
• Para encender o apagar la unidad.
• Para encender o apagar la unidad.
• Para reproducir repetidamente un capítulo o título.
• Para volver a la operación anterior en el menú.
• Para buscar un capítulo, título o tiempo.
• Para colocar o buscar los marcadores.
• Para reproducir repetidamente una canción o disco. (CD)
• Para reproducir repetidamente una cansión, grupo o disco. (MP3/WMA)
• Para volver a la operación anterior en el menú.
• Para buscar una canción.
• Para buscar el tiempo. (CD)
• Para colocar o buscar los marcadores. (CD)
• Para llamar el menú de ajustes de DVD.
• Para llamar el menú de ajustes de DVD.
SKIP
STOP
SUBTITLE
TOP MENU
ZOOM
• Para saltar capítulos o titulo.
• Para parar la reproducción.
• Para saltar canciones.
• Para parar la reproducción.
• Para seleccionar subtítulos en un disco.
------
• Para llamar el menú inicial en un disco.
• Para volver al archivo superior de la jerarquía más alta en el programa y en la lista de archivo. (MP3/WMA)
• Para ampliar la imagen de vídeo en
DVD. (x2 / x4)
------
– 19 –
ES
Quick Use Guide
1
Connections
If your TV has AUDIO/VIDEO input jacks, see the section “Connection to a
TV” on page 6 of the Owner’s Manual.
If not, see the section “Connecting to
RF Modulator” on the front page of the
Owner’s Manual.
2
Installing the Batteries for the Remote Control
1
3
2 3
To Change the
On-Screen Language
1
Confirm that “QUICK” is selected.
POWER
STOP
SETUP
4
Playback
Before:
Turn on the TV, amplifier and any other equipment which are connected to this unit. Make sure the TV and audio receiver
(commercially available) are set to the correct channel.
1
POWER
AUDIO
SUBTITLE
ANGLE
REPEAT
DISPLAY
1
4
7
CLEAR
A-B PAUSE
SEARCH
MODE
2
5
8
0
SKIP
OPEN/CLOSE
3
6
9
+10
3
REV
SLOW
PLAY
STOP
FWD
1
1
POWER OPEN/CLOSE
2
Insert a disc with label facing up.
5
Remote Control
Button
(Alphabetical order)
Disc
1 2 3
4 5 6
7 8
0
9
+10
• To select chapter or title directly.
4
3
To start playback
4
To stop playback
STOP
PLAY
• To select track directly.
ENTER
• To move the cursor and determine its position.
• To move the cursor and determine its position.
OK
OK
QUICK SETUP
PLAYER MENU ENGLISH
TV ASPECT 4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
2
Confirm that “PLAYER MENU” is selected.
QUICK SETUP
PLAYER MENU ENGLISH
TV ASPECT 4:3 LETTER BOX
PROGRESSIVE OFF
DOLBY DIGITAL BITSTREAM
3
Select the desired language for the
On-Screen Display.
ENTER
4
To exit the menu
PLAYER MENU
ENGLISH
FRANÇAIS
ESPAÑOL
SETUP
REV
A-B
ANGLE
AUDIO
CLEAR
DISPLAY
MENU
MODE
• To repeat between your chosen point of A and B.
• To select camera angles on a disc.
• To repeat between your chosen point A and B. (CD)
------
FWD
• To select audio language on a disc.
• To clear the markers.
• To clear the numbers.
• To cancel the point for A-B repeat.
• To select STEREO, L-ch or R-ch. (CD)
• To clear the markers. (CD)
• To remove status number in program input.
• To clear the numbers entered incorrectly.
• To cancel the point for A-B repeat. (CD)
• To display the current disc mode.
• To display the current disc mode.
• To search forward/backward through a disc.
• To begin slow forward/reverse playback in the pause mode.
• To search forward/backward through a disc.
• To call up the Menu on a disc.
• To call up the file list. (MP3/WMA)
• To set black level on/off.
• To set virtual surround on/off.
• To arrange the playing order or play randomly.
• To set virtual surround on/off.
OPEN/CLOSE
• To open or close the disc tray.
• To open or close the disc tray.
PAUSE • To pause disc playback.
• To advance playback one frame at a time.
• To pause disc playback.
• To begin disc playback.
• To begin disc playback.
PLAY
POWER
REPEAT
RETURN
SEARCH
MODE
SETUP
SKIP
• To turn the unit on/off.
• To play a chapter or title repeatedly.
• To return to the previous operation in menu.
• To search chapter, title or time.
• To set or search the markers.
• To call up the DVD setup menu.
• To turn the unit on/off.
• To play a track or disc repeatedly. (CD)
• To play a track, group or disc repeatedly.
(MP3/WMA)
• To return to the previous operation menu.
• To search tracks.
• To search time. (CD)
• To set or search the markers. (CD)
• To call up the DVD setup menu.
• To skip tracks.
STOP
SUBTITLE
TOP MENU
ZOOM
• To skip chapters or titles.
• To stop playback.
• To select subtitles on a disc.
• To call up the Top Menu on a disc.
• To magnify part of a picture. (x2/x4)
• To stop playback.
------
• To return to the top file of the highest hierarchy in the program and file list.
(MP3/WMA)
------
Printed in China 1VMN22597A / E6A21UD / E6C21UD
★★★★
advertisement
Related manuals
advertisement
