Builder Extreme 1500, Extreme 2000 pro Manual

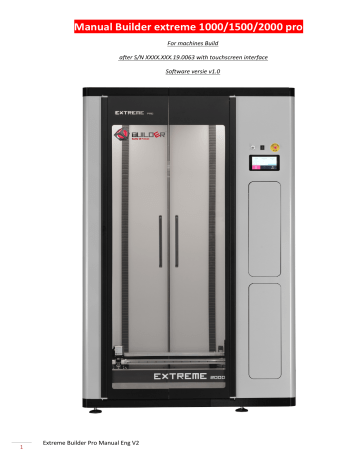

Manual Builder extreme 1000/1500/2000 pro

For machines Build

after S/N XXXX.XXX.19.0063 with touchscreen interface

Software versie v1.0

1

Extreme Builder Pro Manual Eng V2


Index

Introduction ...................................................................................................................................................... 3

Warranty ........................................................................................................................................................... 4

Safety warnings ................................................................................................................................................. 5

Quickstart .......................................................................................................................................................... 8

Accessories ...................................................................................................................................................... 11

Installing the machine ..................................................................................................................................... 12

Level the printer .......................................................................................................................................... 12

Extreme 1500 wheels .................................................................................................................................. 13

Bed leveling ................................................................................................................................................. 13

Dual Printhead ............................................................................................................................................ 17

Filament detection .......................................................................................................................................... 21

Start Printing ................................................................................................................................................... 22

G-code/slicing ................................................................................................................................................. 23

Maintenance ................................................................................................................................................... 26

Maintenance schedule ................................................................................................................................ 26

Trouble shooting ......................................................................................................................................... 27

Dual print head maintenance ..................................................................................................................... 28

Attachment ..................................................................................................................................................... 29

Technical specifications ............................................................................................................................... 29

User Interface ................................................................................................................................................. 30

Homescreen ................................................................................................................................................ 31

Select file: .................................................................................................................................................... 33

Settings: ...................................................................................................................................................... 34

Settings windows: ......................................................................................................................................... 35

Material: ..................................................................................................................................................... 36

Network: ..................................................................................................................................................... 37

Tune Menu: ................................................................................................................................................. 39

License: ....................................................................................................................................................... 40

Machine Notifications: ................................................................................................................................ 42

Machine drawings ....................................................................................................................................... 44

2



Introduction

Thank you for buying the Builder extreme. This quality, industrial 3D FDM printer will allow you to build your prototypes and one of models in the quickest and cheapest way possible. Be sure to only use quality

Builder print materials. If you experience any problems or need advice on material choice, please contact your local reseller or [email protected]

This manual will help you

• Correctly install your extreme;

• Perform preventive maintenance;

• Perform trouble shooting;

• Perform some minor repairs;

• Get the most out of your machine.

We advise to start with smaller, simple, objects, and gradually advance to the more complex shapes.

3



Warranty

The Builder extreme 3D printer is warranted to the original purchaser for a period of 1 year. The Builder 3D

Extruder head is warranted to the original purchaser for a period of three months from the original purchase date, only when the Builder 3D Printer is used with approved filament, delivered by Builder 3D

Printers. The repair has to carried out by builder3Dprinters.

The warranty of the Builder 3D printer will expire when the machine is;

•

•

•

•

•

•

•

Damaged;

Neglected;

Immersed in water;

Abused;

Improper installed;

Disassembled;

Improper serviced.

If you experience any problems with your Builder 3D printer please visit our YouTube channel which provides you with service videos that might solve the issue http://www.youtube.com/user/builder3dprinters

4



Safety warnings

Please take a few minutes to read the safety warnings . Also read the manual, which helps you to install your Builder extreme and use it the way it is intended. This manual is setup in a way that it can be used for more than one model. It can be used for the Extreme 1000, 1500 and 2000 pro. When there are differences between the models, the printer will have an explanation for each type.

If you have any questions, please contact your local reseller or [email protected]

If you have any prints that you would like to share, please use these hashtags #builder3dprinters

#builderextreme

Builder3Dprinters.com

2211SH Noordwijkerhout www.builder3dprinters.com

+31 (0)252 744 128

Safety Warnings

(please read warnings before use)

• Before using the Extreme Builder, read all the warnings and manuals.

• Let only well trained personnel use this machine. Well trained personnel has experience with 3D printing and 3D printing machines. Builder can provide a training so machine and personnel have the skills to operate the Builder Extreme. Please contact your local reseller or [email protected]

• Place the Extreme Builder on a concrete floor and set it level, so that the machine is stable.

• Install the Builder in a room with sufficient ventilation.

5



• DANGER!

Do not open the electronics cabinet (access only, by authorized personnel). Risk of electric shock which may result in serious injury or death!

• WARNING!

Before performing maintenance on the Extreme Builder, or before making adjustments to the machine, disable the machine by engaging the power off button. Beware! The print head and build plate can still be very hot!

• WARNING!

When the heater is on, the extruder (brass piece) is very hot!!

• WARNING!

When you want to replace the filament on top of the machine use safe work stairs

• WARNING!

Do not use flammable liquids inside or outside the Builder.

6



If you want to clean the glass plate first turn off the power then you can clean the glass plate with a wet towel. When the glass plate is dry you can turn on the power.

• WARNING!

Maintenance of the electrical and mechanical components can only be done by authorized personnel.

• WARNING!

Do not step lean in or step in to the Builder. (The glass plate will break).

• Do not use the machine for other purposes than printing parts.

• When the Extreme Builder is in operation, keep the doors closed.

• Use only Builder certified materials.

• WARNING! Turn off the power and wait 15 minutes when you want to replace the extruder head, be careful this part is HOT!

• Close the doors while printing objects.

7



• When the machine is operated 24/7, mount a working fire or smoke detector in the room where the Extreme Builder is installed.

If you are not sure what to do contact the helpdesk. [email protected]

Quickstart

Unbox the Builder Extreme

Please watch the unboxing video which shows how to remove the box and remove the Extreme from the pallet.

Note that the Builder Extreme MUST be removed from the pallet and placed on a concrete stable floor at all times.

See instruction video online.

Level the Extreme

Use the 2 levels supplied with the machine to make sure the machine is levelled before use. Use the level tools on the front, left and right. Note that you do not need to level the print bed or print frame, you need to level the machine itself. Put the levels on the bottom plate of the machine.

The print bed was already levelled in our factory.

Install filaments

Pre heat the extruder. Insert filament in BOTH extruders.

Note that the Dual-Feed extruder needs to be filled with

BOTH filaments all the time, even when you print in 1 color.

This prevents the Dual-Feed extruder from clogging. See instruction video online.

8



Surface test

The build plate was levelled in the factory. But it is important to check if this is still the case after transport and installation. Start printing the surface test from the SD card supplied with the machine. The surface test (0.4 mm nozzle) shows you if the build plate is still levelled. Be aware that the surface test must be printed with 2 filaments!

9



Bedlevel point 1,2 and 3 (if needed)

If the surface test does not come out right, it can mean two things, the nozzle is too far or too close to the glass print bed. That means you need to level the frame on point 1, 2 and 3. Gently turn the screws clockwise when the nozzle is too close to the Glass and turn the screws anti clockwise when the nozzle is too far from the glass. Do this on all 3 points, perform “auto home” and start the surface test again. See online instruction video.

Print with BOTH extruders when not printing Dual colored objects

For the best quality prints and to ensure the lifetime of the

Dual-Feed extruder, we advise you to print with both extruder motors all the time. How? Start your print and as soon as the print started go to control, change extruder ratio and change them to 50%/50%. Now both motors will be used. This also allow you to print 9 kg filament without having to stop your print and changing filaments.

Remove print from glass plate

After the print has finished, open the doors of the Extreme and let the build plate cool down to room temperature. This makes it easier for you to remove the object from the glass plate.

If you have any questions about the installation, please contact your local reseller or [email protected]

10



Accessories

The extreme Builder comes with the following accessories:

Extreme 1000 Extreme 1500

• SD card;

• Paint roller set;

• Level 60cm 2x;

• Wood glue;

• Heater block tool;

• Nozzle tool;

• Allenkey 2.5mm;

• Nozzle 0.8mm;

• Nozzle 1.2mm;

• Set teflon tubes;

• Power cord;

• Manual extreme;

• Pressure plug 2x

• Feeler gauge.

• Filament detection

2x;

• Ups battery box.

• SD card;


• Level 60cm;

• Level 40cm;

• Wood glue;


• Nozzle tool;

• Allen key 2.5mm;

• Nozzle 0.8mm;

• Nozzle 1.2mm;


• Power cord;

• Manual extreme;


• Feeler gauge;

• Nylon wheels 4x.

• Filament detection

2x;


Extreme 2000 pro

• USB stick;


• Level 60cm 2x;

• Wood glue;


• Nozzle tool;

• Allen key 2.5mm;

• Nozzle 0.8mm;

• Nozzle 1.2mm;


• Power cord;

• Manual extreme;


• Feeler gauge;

• Cabinet key;

• Machine feet 4x;

• Filament detection 2x;


Optional Parts

• Spare print head;

• Level gauge, for easy surface leveling the print bed;

• Grease gun for maintaining your builder extreme;

• Grease.

Please contact your local reseller or [email protected]

for more information.

11



Installing the machine

Correct Surface

Be sure to place the Builder extreme on a solid surface and be sure there is more than 1 Meter of space around the machine to perform maintenance.

Installation

Levelling the printer is important for making good quality prints.

Be sure that the Builder extreme is used is a surrounding temperature between 15-32°C

Level the printer

1.

Place the printer on a stable floor and check if the printer is levelled

Level the printer with the included spirit levels. Check, and correct if necessary, all the three directions with the spirit level as shown. Correct the leveling of the machine using a wrench to move up or down the machine feet.

12



Extreme 1500 wheels

Only the extreme 1500 is supplies with a set of wheels for easy transport through doors and in elevators.

Move up the machine feet so the wheels can be mounted under the machine. Lower the machine feet so the wheels are on the ground and the machine can easily be transported to the final location. There the machine can be leveled, so the wheels don’t touch the ground.

Bed leveling

During the fabrication process, the machine’s build plate and bed leveling was adjusted, so the space between the build plate and nozzle is 0.25mm when the machines Z axes is in the “auto home” position.

This 0.25mm is called bed level position.

After transport and installing the machine, it’s important to check this cap of 0.25mm. Go to the customer service menu and select the ‘Three point homing’ option. Check the 3 points for a cap of 0.25mm using the supplied feeler gauge.

If these 3 points are 0.25mm then perform a surface test. If the surface test is ok, the machine is ready to use.

13



The surface test is ok, when the test looks like the pictures beneath and it sticks firmly to the build surface.

Missing lines in the surface test are an indication that the nozzle is too close to the build plate at the point.

The bed level needs adjustment. The nozzle needs to be adjusted more away from the build plate.

When the surface test doesn’t stick to the build plate, or comes loose during printing, the nozzle is too far from the build plate. The bed level needs adjustment. The nozzle needs to be adjusted closer to the build plate.

14



How to adjust the bed level position

The machine uses 3 Z-sensors mounted in the print frame to determine the Z axes home position. These sensors are triggered by adjustable flags in the poles of the machine. 2 flags in the left and right front poles, one flag in the left rear pole.

15



These flags can be adjusted in height so the bed level position can be corrected if necessary.

Looking from the top position:

• Turn clockwise and the nozzle moves away from the build plate

• Turn counterclockwise and the nozzle moves closer to the build plate;

For every complete turn that is done there is a 0.5mm displacement of the nozzle according to the build plate.

If there is an adjustment needed, don’t adjust more than 1/2 a turn at a time.

Adjust the flags on the side of the build plate where the bed level adjustment is needed

After adjusting the flags, always perform “autohome” Then the machine is in his new adjusted position!

16



Dual Printhead

Warning! Be sure that the head is cooled down before maintenance is performed to the head!

For easy maintaining it is possible to remove the print head from the print head frame.

Use the “replace head” option in the “customer” à “service” menu before changing the print head.

Be sure the connectors are aligned in front of each other. Push the print head until the connectors merge into each other.

17



Check if the clips are snapped into place

Make sure when printing with the Dual-Feed both extruder holes are filled with a filament.

Inserting filament

Be sure the print head is pre heated. Push down the button and insert the filament until you feel some resistance. Now insert the second filament by doing the same. Keep pushing the buttons, and then push down the filament until it comes out of the nozzle. Do this with both filaments.

Adjusting the screws in the buttons, using a 2.5mm Allen key, the pressure on the filament by which it’s it pressed against the extruder wheels can be adapted. These are adjusted during the fabrication process, so normally they don’t need adjustment. Turning clockwise increases the pressure, turning anticlockwise will decrease the pressure on the filament.

18



Changing nozzle

Be careful when performing any work on a heated print head!

Preheat the nozzle.

Remove the nozzle using a 17mm wrench or the included tool.

Mount the new nozzle the reverse way of taking it off. Be sure the connected surfaces are clean. Tight the new nozzle, don’t tighten the nozzle too much (7Nm). Check the nozzle for the right torque when it’s pre heated.

19



Nozzle diameters

The nozzles are marked on the top of the nozzle.

0.4 mm 0.8 mm 1.2 mm

When using nozzles 0.8 and 1.2 mm be aware the extrusion speed needs to be very high. To avoid under extrusion tighten the pressure screws in the levers.

First layer height

The first layer height depends on the size of the nozzle. Here are a few examples for the different nozzle sizes:

Nozzle 0.4 mm

Nozzle 0.8 mm

Nozzle 1.2 mm

First layer 0.3 mm

First layer 0.6 mm

First layer 0.8 mm

20



Filament detection

The machine is equipped with filament detection. It detects the moment there is no filament in one of the detection units. The extreme 1000 and 1500 have the detection on top of the machine. The extreme 2000 has the detection in the filament drawer.

When inserting filament in the machine, push the filament through the filament detection unit and insert the filament in the print head. The printer will now detect the filament. If one of the extruders runs out of filament the printer will automatically pause and moves to a pause position where it will wait for the user to enter new filament. Press the button to preheat and change filament. Then push the button to restart the machine.

21



Start Printing

Auto home

When you power up your extreme the machine has to be auto-homed. You can only move the machine when this action is done.

Adhesive layer

For perfect adhesion between your print and the glass build surface be sure that the layer of glue is in perfect state. Check this before the start of every print. The layer of glue has to cover the complete glass build surface. If the layer is not covering the complete build surface, apply a new layer using the supplied paint roller set and the wood glue. Put 1/3 glue and 2/3 water into the paint roller set and give it a good mix. Before applying the glue to the glass surface pre heat the build plate to 50°C, then apply the glue to the glass surface using the paint roller. Apply an even coat and be sure that no glue is coming under the glass build plate!!

Preheat

It can be convenient to pre heat the Extreme Builder when in the mean time doing some preparations before starting the actual printing process. Pre-heating can be done using the user interface.

Timeout Heater

When the machine is not used for 30 minutes, the machine stops heating. The print head stops heating after 30 minutes, the heated bed after 3 hours. After your print is finished, al heaters will stop heating automatically.

22



G-code/slicing

To start printing, the printer needs a G-code file. The G-code can be generated by a so called slicer. We advise to use simplify3D. The possible input file types for slicer software are: STL/OBJ/AMF/DAE files. To generate the correct G-codes for the Builder extreme printers there are printer-profiles that can be downloaded from the Buildere3dprinters.com website. Be sure to use the profile that fits your type of machine, nozzle diameter, materials, etc. When a G-code file has been generated it can be put on an USBstick or send to the machine via Wi-Fi using the builder web portal.

Exclusive gcode command for the Builder dual extruder:

• G93 Rxx: You can adjust the ratio of the 2 extruders in the G-code. Put this code in after the last tool change, before the printing starts, see example below.

When using 1 color/material, always use both extruders 50/50% to prevent clogging the nozzle!

Be sure the build plate is cooled to room temperature before removing a finished object!

We do not recommend to print multiple objects in one print. If failure occurs, all the object will fail and the time that is won by printing multiple object is minimal.

23



UPS function, power fail

The UPS function activates when the main power supply fails.

Detection takes place on / after: Power failure and resumption.

Battery pack needs to be charged. The battery will be charged when the main power switch is on, this is indicated by the led in the front panel.

When the main power is off the battery will not be charged!

Be aware that it takes a few ours to recharge the battery’s when the machine is not used for a couple of days.

1.

Time interval detection "POWERFAIL_DELAY" is set to 10sec.

2.

After about 10 seconds, a "POWERFAIL" popup appears on the screen

3.

The internal buffer is completed.

4.

The print is paused.

5.

The printer goes to Z = Z + 10mm

6.

The position is saved

7.

A power fail restore file is created.

8.

The Home screen status changes to "Powerfail!"

9.

Once the power is restored, the print head a bed will start heating. Once the current temperature > target temperature-3 the print will continue. The print will automatically continue without any user interaction needed.

10.

After the power returns, the printer deletes the powerfail restore file.

11.

If the battery is empty and power has not yet been restored the printer will shut down. Once you reboot and press the print button in the home screen, you get a message: “powerfail has been detected”. You have the option to continue the print in this menu. If you click “cancel”, the restore file is deleted and continuing the failed print is no longer possible.

If the bed is cooled down to <40°C please check if the object is still stuck to the bed!

*Note : When printing from USB the print progress will be saved and after a power shutdown.

The print can be resumed from the user interface. Resuming the print is not possible from the

Builder web portal however!

24



File Data:

The power restore file contains following:

• The name of the file which was being printed.

• The restore file also contains the line(position) of where the print should continue.

• The current values of temperature, ratio, speed, federate, position, fan speed

25



Maintenance

Maintenance schedule

State of the adhesive layer of the build plate

Bed leveling (surface test)

Checking the function of the work piece cooling fans

Check the filament detection function

Cleaning the doors

Greasing guides x/y axes

Greasing the z axes

Check the ups function*

Replace battery pack

Cleaning filter electronic box

Replacing filter electronic box

Check if the emergency stops functions

Every print daily weekly monthly Quarter Annually 2 years Hours

X

X

X

X

X

X

X

X

1000

2000

X

X

*When the machine doesn’t have a power supply for more than one week, disconnect the battery pack on the back of the electronic box.

26



Trouble shooting

Problem

No power

Blocked nozzle/channel

Bad print quality

Blown fuse

Broken build plate

Object doesn’t stick to the build plate

Machine cools down

Machine doesn’t start printing

Solution

Is the power cable connected

Nozzle to close to the build plate (0.25mm), check bed leveling

Always use 2 channels, 50/50

Using the wrong nozzle diameter

Using wrong print settings, temperature, speed, etc.

Using wrong material

Contact Builder (reseller)

Take of the object when the build plate is cooled down to room temperature. Otherwise the glass can break.

Nozzle is too far from the build plate (0.25mm) check bed leveling

If the machine is heating to long without being used, the heaters will stop heating.

Surrounding temperature is to low, <5

27



Dual print head maintenance

Between 1000/2000 hours the dual print head needs to be maintained. Depending on what materials are being printed.

If there are no obvious problems we advise to change the following parts, namely:

• Nr 7, tubes;

• Nr4, thermal barrier.

If the print head is blocked we advise to also change the following parts, namely:

• Nr1, nozzle;

• Nr2, coupler.

28



Attachment

Technical specifications

Specifications

Technique

Resolution

Position accuracy stepper

Extreme 1000 Extreme 1500

FDM/FFF

Low quality : 0.6 mm

Normal quality: 0.4 mm

High quality: 0.2 mm

X: 10 micron

Y: 12,5 micron

Z: 2,5 micron

Build Volume LxWxH

Printer external dimensions LxWxH

Weight

Frame material

Print bed (platform)

Certification

Surrounding operating temperature in °C

Storage temperature in °C

Operating nozzle temperature in °C

Heated bed temperature in °C

700x700x820

1006x1016x1500

220kg

1100x515x820

1501x800x1500

200kg

Aluminium

(Heated) glass

CE

15-32°C

0-35°C

180-260°C

Max 60°C

Filament diameter

Maximum print speed

Maximum travel speed

Nozzle diameter

Removable print head

Power supply

Power consumption

Connection

1.75mm

80mm/s

200mm/s

0.4/0.8/1.2*

Yes

AC 100-240V 50/60Hz

800-1800W

WIFI

Data reader

CNC programming

Language

USB stick

G-code

*Nozzle 1.2mm, maximum print speed depends on the situation.

Extreme 2000 pro

700x700x1700

1343x1072x2190

262kg

29



User Interface

Via the user interface the machine can be controlled. Attached to this document is the menu structure and the description of this menu.

1.

2.

3.

USB

Insert a USB card with the G-code. The USB stick supplied by the machine has some ready g-codes.

On/off switch

The on/off switch turns the machine on/off. The machine can only be switched on when the main power is on indicated by the LED light.

Emergency button

Pushing the emergency button in case of an emergency situation will shut off the power of the printer. Rotate the emergency stop to deactivate.

4.

User interface

Used to control the printer with a touch screen.

30



Homescreen

Printer idle:

Figuur 1: Homescreen when idle

1.

Nozzle current temperature

2.

Nozzle target temperature

3.

Bed current temperature

4.

Bed target temperature

5.

Current height of the printer head

6.

Shutdown-button

7.

Current software version

8.

Icon bar, from left to right: a.

Door icon, use it to open the door. The icon will turn grey when the printer is printing. b.

Network icon, active if the printer has a network connection, either WIFI or Ethernet. If you press the icon you will get a qr_code to scan with your phone. This will load the browser application to control the printer. c.

Lock icon, active when printer is locked. If you press the icon you will move into the lock screen.

9.

Current printer status. This status message will show what the printer is doing. It will also show error messages when something is wrong.

31



Printer printing:

1.

Info button, press it to see current print file

2.

Printer status

3.

Progress bar. Fills up when printing, print done when full.

4.

Time since print started

32



Select file:

If you click the print button in the home screen you go to a file selection screen. You can select which print file you want to use in this screen.

On the bottom there are 3 icons:

• USB

• DISK

• Builder Logo

USB:

These are the different file locations. If you wish to print a file from USB you click the USB icon. You can now select a file from the USB drive. Once you selected a file, this file will now copy to the SD-card of the printer. The print will start when the copy is done.

As soon as the printer starts printing, you can remove the USB-drive.

DISK:

This is the local storage of the printer. There is about 25GB of free space for the user’s gcode-files.

Builder Logo:

These are the builder default print-files. These are often used to test the printer, and if the user ever needs support, we might use one of these default print files to test whether the problem is located in a gcode file or the printer. These files cannot be deleted.

33


Settings:


1.

Back button, return to previous screen

2.

Information button, gives you useful information about the current screen. Can be removed in configure menu (screen settings page 2).

3.

Next button, go to page indicated to the left of the button (page 2 in this case).

4.

Click the different icons to move to the menu mentioned (move menu in this case).

The different setting menus:

• Move – move the nozzle.

• Preheat –set the desired temperature for the bed and nozzle here

• Filament –extrude and change filament

• Network – select a WIFI connection. You can also see your Wifi and Ethernet IP-address here.

• Material – select the material you wish to use here.

• Lock – locks the printer to make sure it can’t be touched while printing.

• Tutorial – help videos

• Camera – shows you a view of the webcam image

• Light – set brightness and turn lights on/off

• Configure – various configurations for your printer

• Info – general information about your printer

Note: While printing several menu options are disabled.

34



Settings windows:

Lock

Enter a code twice to lock the printer. You can unlock the printer in this menu afterwards by entering the same code again. If the printer is locked, the browser is also locked.

When the printer is locked you are not able to perform any action until the printer is unlocked again.

35


Material:


The material window is used to protect users from mistakes in their gcode-files.

If a gcode file is used with a nozzle temperature setting of 100 °C and PLA is used as material, the print would normally fail. If you have print assistance enabled in the configure menu and selected PLA as the material to use, the software will recognize that 100°C is too low to print PLA and correct the print temperature to the average of the boundaries (in this case 215°C).

To disable this function, either disable print assistance in the configure menu or select “ANY” as printed material.

36



Network:

To log into the printer remotely from a browser the printer needs to be logged into the same network as the device you wish to use.

To connect the printer to a network via Ethernet plug in the Ethernet cable.

To connect the printer to a network via WIFI go to the network screen in options and select WIFI. In this screen you can select the network you want to use and enter the password.

Once the printer is connected to a network the printer has an IP-address. The printer can have two IP addresses simultaneously if it is connected to both WIFI and Ethernet. You can view the IP address of your

3D-printer in the main screen’s status bar. If you click the WIFI icon in the main screen you see an image of a QR-code. On the bottom of this page you can also see the IP-address.

If an Ethernet cable is used, the ip shows will always be the Ethernet-IP address.

1.

QR-code to scan with a phone.

2.

IP address

Scan the QR-code on a phone and open the corresponding page in a browser to enter the printer’s browser page. You can also enter the IP address manually into any internet browser.

Note: make sure the device is connected to the same network as the 3d-Printer

37



The browser should show the following site:

In this screen the user is able to start or stop a print. You can also add or delete files. At the bottom of the page there is a live webcam image of the print.

38



Tune Menu:

• Temp – set temperature for bed and nozzle

• Utilities – change fan speed, extraction or turn lights on/off

• Flow – change the amount of filament used and which nozzle is used

• Print speed – change print speed

• Replace – replace filament used

• Lock – lock the printer

39



License:

After you have paid for the builder 3D-printer you will get a license code. This code can be used to activate your printer. If you do not activate your printer it will stop working after printing seven days.

To check if your printer has been activated you can go to the info screen in the settings menu.

On the bottom of this window you see the red text: License: Not Activated.

To activate your printer go to the service menu. Click customer and ‘Enter License’.

40



You can enter your license code in this screen. If the code is valid, the printer is now activated! You can check this in the info menu. The red text will now be green and read: License activated!

41



Machine Notifications:

Notifications

“STATUS - IDLE”

"PAUSED"

"PRINTING"

"HEATING"

"EMERGENCY"

" FILAMENT"

"POWERFAIL"

Additional Information

Meaning

Machine is ready

Printer paused

Printer printing

Printer is heating

Emergency button pressed

No printer filament detected

No power supply

G-code list

Gcode Meaning

G0,G1 Coordinated Movement X Y Z E

G28 Home all Axis

G90

G91

G92

G93

Use Absolute Coordinates

Use Relative Coordinates

Set current position to coordinates given

Set color ratio Rxxx .x (percentage front/left extruder)

M-code list

Mcode

M17

M18

M35

M36

Meaning

Enable/Power all stepper motors

Disable all stepper motors; same as M84

Select Remote printing with AstroBox and block sd-card menu

Deselect Remote Printing

M82

M83

M84

M104

M105

M106

M107

M109

Set E codes absolute (default)

Set E codes relative while in Absolute Coordinates (G90) mode

Disable steppers until next move

Set extruder target temp

Read current temp

Fan on

Fan off

Sxxx Wait for extruder current temp to reach target temp. Waits only when heating

Rxxx Wait for extruder current temp to reach target temp. Waits when heating and cooling

M114 Output current position to serial port

M140

M190

Set bed target temp

Sxxx Wait for bed current temp to reach target temp. Waits only when heating

42


M201

M203

M204

M205

M207

M220

M221

M302

M999


Rxxx Wait for bed current temp to reach target temp. Waits when heating and cooling

Set max acceleration in units/s^2 for print moves (M201 X1000 Y1000)

Set maximum feedrate that your machine can sustain (M203 X200 Y200 Z300

E10000) in mm/sec

Set default acceleration: S normal moves T filament only moves (M204 S3000

T7000) im mm/sec^2 also sets minimum segment time in ms (B20000) to prevent buffer underruns and M20 minimum feedrate

Advanced settings: minimum travel speed S=while printing T=travel only,

B=minimum segment time X= maximum xy jerk, Z=maximum Z jerk, E=maximum

E jerk

Set retract length S[positive mm] F[feedrate mm/sec] Z[additional zlift/hop]

S<factor in percent>- set speed factor override percentage

S<factor in percent>- set extrude factor override percentage

Allow cold extrudes, or set the minimum extrude S<temperature>.

Restart after being stopped

43



Machine drawings

Extreme 1000 top view

Extreme 1000 front view

44



Extreme 1500 top view


45



Extreme 2000 pro top view

Extreme 2000 top view door open

46




47


Builder Extreme 1500, Extreme 2000 pro Manual

Index

Introduction

Warranty

Safety warnings

Safety Warnings

Quickstart

Accessories

Installing the machine

Level the printer

Extreme 1500 wheels

Bed leveling

After adjusting the flags, always perform “autohome” Then the machine is in his new adjusted position!

Dual Printhead

Filament detection

Start Printing

G-code/slicing

When using 1 color/material, always use both extruders 50/50% to prevent clogging the nozzle!

Be sure the build plate is cooled to room temperature before removing a finished object!

UPS function, power fail

Maintenance

Maintenance schedule

Trouble shooting

Dual print head maintenance

Attachment

Technical specifications

User Interface

Homescreen

Select file:

Settings:

Settings windows:

Material:

Network:

Tune Menu:

License:

Machine Notifications:

Additional Information

G-code list

M-code list

Machine drawings

Related manuals

Builder

Extreme 1000

Builder

Extreme 2000 pro

Builder

Extreme 2000 pro

Builder

Extreme 1000

XYZ Printing

da Vinci 1.0 Pro 3in1

XYZ Printing

da Vinci 1.0 Pro

XYZ Printing

da Vinci 1.0 Pro

XYZ Printing

da Vinci 1.0 Pro

LeapFrog

Creatr HS

AIO

ZEUS
