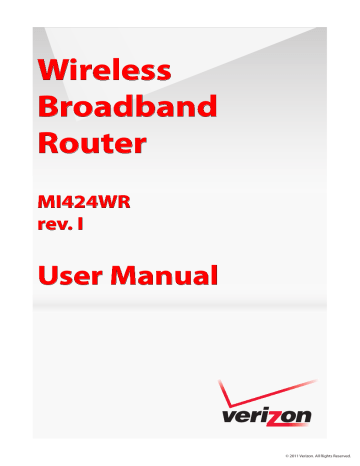

Actiontec Electronics LNQMI424WRI Wireless802.11b/g/n Broadband Home Router User Manual

Wireless

Broadband

Router

MI424WR rev. I

User Manual

© 2011 Verizon. All Rights Reserved.

Contents

FiOS Router User Manual

1

Introduction

1.0 Introduction

1.1 Package Contents

1.2 System Requirements

1.3 Features

1.4 Getting to Know the FiOS Router

2

Connecting the FiOS Router

2.0 Introduction

2.1 Setting Up the FiOS Router

2.2 Computer Network Configuration

2.3 Configuring the FiOS Router

2.4 Features

2.5 Main Screen

3

Setting Up a Wireless Network

3.0 Introduction

3.1 Overview

3.2 Connecting a Wireless Client

3.3 Wireless Status

3.4 Basic Security Settings

3.5 Advanced Security Settings

3.6 Setting Up a Wireless Client

4

Configuring My Network Settings

4.0 Introduction

4.1 Accessing My Network Settings

4.2 Using My Network Settings

Contents

FiOS Router User Manual (con’t)

5

Using Network Connections

5.0 Introduction

5.1 Accessing Network Connections

5.2 Network (Home/Office) Connection

5.3 Ethernet Connection

5.4 Wireless Access Point Connection

5.5 Coax Connection

5.6 Broadband Ethernet Connection

5.7 Broadband Coax Connection

5.8 WAN PPPoE Connection

5.9 WAN PPPoE 2 Connection

6

Configuring Security Settings

6.0 Introduction

6.1 Overview

6.2 Firewall

6.3 Access Control

6.4 Port Forwarding

6.5 DMZ Host

6.6 Port Triggering

6.7 Remote Administration

6.8 Static NAT

6.9 Advanced Filtering

6.10 Security Log

7

Parental Controls

7.0 Introduction

7.1 Activating Parental Controls

7.2 Rule Summary

Contents


8

Configuring Advanced Settings

8.0 Introduction

8.1 Using Advanced Settings

8.2 Utilities

8.3 DNS Settings

8.4 Network Settings

8.5 Configuration Settings

8.6 Time Settings

8.7 Firmware Upgrade

8.8 Routing Settings

9

Monitoring the FiOS Router

9.0 Introduction

9.1 Router Status

9.2 Advanced Status

10

Troubleshooting

10.0 Introduction

10.1 Troubleshooting Tips

10.2 Frequently Asked Questions

A

Configuring Quality of Service

A.0 Introduction

A.1 Traffic Priority

A.2 Traffic Shaping

Contents


B

Specifications

B.0 Introduction

B.1 General

B.2 LED Indicators

B.3 Environmental

C

Notices

C.0 Introduction

C.1 Regulatory Compliance Notices

C.2 Modifications

C.3 NEBS Requirements

C.4 GPL

1

1.0

Introduction

1.1

Package Contents

1.2

System Requirements

1.3

Features

1.4

Getting to Know the FiOS

Router

Introduction


6

The Verizon FiOS® Router lets you transmit and distribute digital entertainment and information to multiple devices via coaxial cables. The FiOS Router also supports

Ethernet and Wi-Fi networking, making it one of the most versatile and powerful routers available.

7


1 Introduction

1.1 Package Content

1.1 Package Content

The following is a list of the items included with the FiOS Router: t Black Power adapter t Yellow cable (Ethernet, 6 ft.) t White cable (Ethernet, 10 ft.) t Quick Start Guide t Installation Guide t User Manual CD t Wireless Networking Guide t Wall-mount template t Vertical stand

1.2 Minimum System Requirements

The FiOS Router must be used with the following systems and software: t Computer with Ethernet capability t Microsoft Windows 2000, XP, Vista, or 7; Mac OS 10.1 or greater;

Linux/BSD, Unix t Internet Explorer 5.0 or higher; Netscape Navigator 7.0 or higher t TCP/IP network protocol installed on each computer


8


1.3 Features

The FiOS Router features: t Multiple networking standards support, including:

· WAN - Ethernet and MoCA interfaces

· LAN - 802.11b/g/n, Ethernet, and MoCA interfaces t Integrated wired networking with 4-port 10/100/1000 Mbps Ethernet switch and MoCA t Integrated wireless networking with 802.11b/g/n access point featuring:

· 802 .11n enabled to support speeds up to 160 Mbps wirelessly

· 802 .11g enabled to support speeds up to 54 Mbps wirelessly

· 802 .11b compatibility, communicating with 802.11b wireless products at speeds up to 11 Mbps t Enterprise-level security, including :

· Fully customizable firewall with Stateful Packet Inspection

· Content filtering with URL-keyword based filtering, parental control, customizable filtering policies per computer, and E-mail notification

· Denial of service protection against IP spoofing attacks, intrusion and scanning attacks, IP fragment overlap, ping of death, and fragmentation attacks

· Event logging

· Intrusion detection

· MAC address filtering

· NAT

· DMZ hosting

· Access control

· Advanced wireless protection featuring WPA, WPA2, WEP 64/128 bit encryption, 802.1x authentication, and MAC address filtering

· ICSA certification

9


1 Introduction

1.3 Features t Other options, including:

· DHCP server option

· DHCP server/PPPoE server auto-detection

· DNS server

· LAN IP and WAN IP address selection

· MAC address cloning

· Port forwarding

· PPP oE support

· oS support (end to end layer 2/3) featuring Diffserv, 802.1p/q prioritization, configurable upstream/downstream traffic shaping, random early detection and pass-through of WAN-side DSCPs, PHBs, and queuing to LAN-side devices

· Remote management and secured remote management using HTTPS

· Reverse NAT

· Static NAT

· Static routing

· Time zone support

· VLAN multicast support

· VPN IPS ec (VPN pass-through only)


10


1.4 Getting to Know the FiOS Router

This section contains a quick description of the FiOS Router’s lights (LEDs), ports, etc. The FiOS Router has several indicator lights on its front panel, a sticker on its bottom panel, and a series of ports and switches on its rear panel.

1.4a Front Panel

The front panel of the FiOS Router has a series of indicator lights: Power, WAN

Ethernet, WAN Coax, Internet, LAN Ethernet (4), LAN Coax, USB (2), and Wireless.

It also features a WPS button.

Front view – Verizon FiOS Router (rev. I)

11


1 Introduction


Power

The Power LED displays the FiOS Router’s current status. If the Power light glows steadily green, the FiOS Router is receiving power and fully operational. When the Power light flashes rapidly, the FiOS Router is initializing. If the Power light is not illuminated or glows red when the Power cord is plugged in and the Power switch is turned on, the FiOS Router has suffered a critical error and technical support should be contacted.

WAN Ethernet

The WAN Ethernet LED illuminates when the FiOS Router is connected to the

Internet via Ethernet. If flashing, data traffic is passing across the port.

WAN Coax

The WAN Coax LED glows steadily or flashes when the FiOS Router is connected to the Internet via coaxial cable.

Internet

When the Internet LED glows steadily green, the FiOS Router is connected to the

ISP (Internet Service Provider). If it glows amber, there is a physical connection to the ONT (Optical Network Terminator), but authentication has not taken place

(i.e., no IP address is present).

LAN Ethernet (1, 2, 3, 4)

The LAN Ethernet LEDs illuminate when the FiOS Router is connected to a local network via one or more of its Ethernet ports. If flashing, data traffic is passing across the port(s).

LAN Coax

The LAN Coax LED glows steadily or flashes when the FiOS Router is connected to a local network via its Coax port.

12



USB (1, 2)

The USB LEDs illuminate when the FiOS Router is connected to a device via one of its USB ports.

Wireless

The Wireless LED illuminates when the FiOS Router’s wireless access point is turned on. If flashing, data traffic is passing across the wireless connection.

Wi-Fi Protected Setup

WiFi Protected Setup (WPS) is an easier way to set up a wireless network. Instead of entering passwords or multiple keys on each wireless client (laptop, printer, external hard drive, etc.), the FiOS Router can create a wireless network that only requires the pressing of buttons (one on the FiOS Router, and one on the client

[either built-in, or on a compatible wireless card]) to allow wireless clients to join the FiOS Router’s wireless network. Although the WPS button is included on the FiOS Router, WPS functionality will not be enabled until a future firmware release. The button is included so that WPS can be activated at a later date without having to physically change the FiOS Router. The GUI does not include the WPS option.

1.4b Bottom Panel

The bottom panel of the FiOS Router has a sticker that contains important information about the FiOS Router, including default ESSID, MAC address, wireless keys, etc.

13


1 Introduction


1.4c Rear Panel

The rear panel of the FiOS Router has eight ports (Coax, Power, LAN Ethernet [4],

WAN Ethernet, and USB), a Power switch, a Reset button, and a wireless antenna.

Coax

On/Off

Reset

100

LAN

10

100

10

100

2

1

10

100

10 100

WAN 10

USB1

USB2

4

3

Coaxial Cable

(from Coax Port to Set Top Box)

Power Adapter

(from Power Port to Wall Outlet)

Ethernet Cable

(from LAN Ethernet Port to Computer/Device)

Ethernet Cable

(from WAN Port to ISP Connection )

USB Cable

(from USB Port to Device)

Rear view – Verizon FiOS Router (rev. I)

Coax Port

The Coax port connects the FiOS Router to the ISP or other devices using a coaxial cable.

Power Port

The Power port connects the FiOS Router to an electrical wall outlet via the

Power cord.

Power Switch

The Power switch powers the FiOS Router on and off.

14



Reset Button

To restore the FiOS Router’s factory default settings, press and hold the Reset button for approximately ten seconds. The reset process will start about ten seconds after releasing the button. When the FiOS Router resets, all the lights on the front panel turn off, and then some of the lights start flashing. The FiOS Router has completed its reset process when the Power light glows steadily green.

Caution!

Do not unplug the Power cord from the FiOS Router during the reset process. Doing so may result in the loss of the FiOS Router’s configuration information. If this occurs, reset the FiOS Router again.

LAN Ethernet Ports (4)

The LAN Ethernet ports connect devices to the FiOS Router via Ethernet cables to create a local area network (LAN). The LAN Ethernet ports are 10/100/1000

Mbps auto-sensing ports, and either a straight-through or crossover Ethernet cable can be used when connecting devices to the ports.

WAN Ethernet Port

The WAN Ethernet port connects the FiOS Router to the ISP using an Ethernet cable.

USB Ports

The USB ports provide up to 5 VDC for attached devices (to charge a cell phone, for example). In the future, with a firmware release upgrade, the USB host functionality will be available for devices such as external storage and cameras.

Wireless Antenna

The FiOS Router’s wireless antenna is used to transmit a wireless signal to other wireless devices on its wireless network.

15


2

2.0

Introduction

2.1

Setting up the FiOS Router

2.2

Computer Network

Con

fi

guration

2.3

Con

fi

guring the FiOS Router

2.4

Main Screen

Connecting the FiOS

Router


16

Connecting the FiOS Router and accessing its Graphical User Interface (GUI) are both simple procedures. The latter procedure may vary slightly, depending on the computer’s operating system. However, no con

fi

guration is necessary to access the

GUI when taking advantage of Universal

Plug-and-Play support.

17


2 Connecting the FiOS Router

2.1 Setting Up the FiOS Router

2.1 Setting Up the FiOS Router

There are three parts to setting up the FiOS Router: Connecting the Cables ,

Configuring the Router, and Connecting Other Computers/Set Top Boxes .

2.1a Connecting the Cables

Note: If a different router was being used previously, disconnect it. Remove all router components, including power supplies and cables, as they will not work with the FiOS Router.

1. Get the FiOS Router and black Power cord from the box.

2. Plug the black Power cord in the black port on the back of the FiOS Router and then into a power outlet.

3. Turn the FiOS Router on.

4. Make sure the Power light on the front of the FiOS Router glows steadily green.

5. Plug the yellow Ethernet cable from the box into one of the four yellow

Ethernet ports on the back of the FiOS Router.

6. Make sure the computer is powered on, then plug the other end of the yellow Ethernet cable into an Ethernet port on the computer.

7. Make sure at least one of the Ethernet LAN lights on the front of the FiOS

Router glows steadily green. This may take a few moments.

8. The phone company previously installed a high-speed wall jack somewhere in the house. Locate it and note its type (Ethernet or coaxial). If Ethernet, follow steps 8a and 8b. If coaxial, follow steps 9a and 9b. Then, continue to step 10.

a.

If connecting via Ethernet, get the white Ethernet cable from the box and plug one end in the white port on the back of the FiOS Router.

b.

Plug the other end of the white Ethernet cable into the high-speed

Ethernet jack.

18



9. a.

If connecting via coaxial cable, get a coaxial cable and connect one end to the red Coax port on the back of the FiOS Router.

b. Connect the other end of the coaxial cable to a coax jack.

10. Make sure the Ethernet WAN light (if connecting via Ethernet) or Coax WAN light (if connecting via coaxial cable) on the front of the FiOS Router glows steadily green. If connecting via coaxial cable, this may take a few minutes.

Note: If the Ethernet WAN light or Coax WAN light does not illuminate, make sure the cable (Ethernet or coaxial) is connected properly at both ends.

2.2 Computer Network Configuration

Each network interface on the computer should either be configured with a statically defined IP address and DNS address, or instructed to automatically obtain an IP address using the Network DHCP server. The FiOS Router is set up, by default, with an active DHCP server, and we recommend leaving this setting as is.

2.2a Configuring Dynamic IP Addressing

To set up a computer to use dynamic IP addressing:

Windows 7

1. In the Control Panel, select View Network Status and Tasks (below

“Network and Internet”).

2. Under “Connect or disconnect,” click Local Access Connection .

3. The “Local Area Connection Status” window appears. Click Properties .

4. The “Local Area Connection Properties” window appears. Select Internet

Protocol Version 4 (TCP/IPv4) , then click Properties .

5. The “Internet Protocol Version 4 (TCP/IPv4) Properties” window appears.

6. Click the “Obtain an IP address automatically” radio button.

7. Click the “Obtain DNS server address automatically” radio button.

8. Click OK in the Internet Protocol Version 4(TCP/IPv4) Properties window, then click OK in the Local Area Connection Properties screen to save the settings.

19



2.2 Computer Network Con fi guration

Windows Vista

1.

Select

Network and Sharing

in the Control Panel.

2. Click View Status, then click Properties .

3.

Click

Continue

in the “User Account Control” window.

4. In the “General” tab of the “Local Area Connection Properties” window select

Internet Protocol Version 4 (TCP/IPv4) , then click Properties .

5.

The “Internet Protocol Version 4 (TCP/IPv4) Properties” window appears.


7.

Click the “Obtain DNS server address automatically” radio button.

8. Click OK in the Internet Protocol Version 4(TCP/IPv4) Properties window, then click OK in the “Local Area Connection Properties” screen to save the settings.

Windows XP

1. Select Network Connections in the Control Panel.

2.

Right-click

Ethernet Local Area Connection

, then click

Properties

.

3. In the “General” tab, select Internet Protocol (TCP/IP) , then click Properties .

4.

The “Internet Protocol (TCP/IP) Properties” window appears.


6.

Click the “Obtain DNS server address automatically” radio button.

7. Click OK in the “Internet Protocol (TCP/IP) Properties” screen, then click OK in the “Local Area Connection Properties” screen to save the settings.


20


Windows 2000

1.

Select

Network and Dialing Connections

in the Control Panel.

2. Right-click on the Ethernet connection’s icon, then click Properties .

3.

Select

Internet Protocol (TCP/IP)

component, then click Properties.

4. The “Internet Protocol (TCP/IP) Properties” window appears.

5.

Click the “Obtain an IP address automatically” radio button.

6. Click the “Obtain DNS server address automatically” radio button.

Macintosh OS X

1. Click on the Apple icon in the top left corner of the desktop.

2.

From the menu that appears, select

System Preferences

.

3. The “System Preferences” window appears. Click Network .

4.

From the “Network” window, make sure “Ethernet” in the list on the left is highlighted and displays “Connected.”

5. Click Assist me .

6.

From the tab that appears, click

Diagnostics

.

7. Follow the instructions in the “Network Diagnostics” assistant.

Linux

1. Login into the system as a super-user by entering “su” at the prompt.

2.

Type “ifconfig” to display the network devices and allocated IPs.

3. Type “pump -i <dev>,” where <dev> is the network device name.

4.

Type “ifconfig” again to view the newly allocated IP address.

5. Make sure no firewall is active on device <dev>.

21



2.3 Con fi guring the FiOS Router

2.3 Configuring the FiOS Router

1. Open a web browser on the computer connected to the FiOS Router. In the

“Address” text box, type: http://192.168.1.1 then press Enter on the keyboard.

2. The “Login Setup” screen appears. Select a new user name and password and enter them in the appropriate text boxes (the password must be entered twice, for validation purposes). Write the new user name and password down on a piece of paper and keep it in a safe place, since they will be needed to access the FiOS Router’s GUI (Graphical User Interface) in the future.

3. In the bottom part of the screen, select the correct time zone from the “Time

Zone” drop-down list, then click OK at the bottom of the screen.

The FiOS Router is now configured.

22



2.3a Connecting Other Computers/Set Top Boxes

The FiOS Router can connect to other computers or set top boxes in three ways: via Ethernet, via wireless connection, or via coaxial cable.

Ethernet

1. Get an Ethernet cable and plug one end into one of the open yellow

Ethernet ports on the back of the FiOS Router.

2. Plug the other end of the Ethernet cable into an Ethernet port on the computer.

3. Make sure the corresponding Ethernet LAN light on the front of the FiOS

Router glows steadily green.

4. Repeat these steps for each computer to be connected to the FiOS Router via Ethernet.

Wireless

1. Make sure each computer to be connected wirelessly has built-in wireless or an attached wireless adapter.

2. Make sure the computer uses the same ESSID and WPA key as the FiOS

Router by launching the computer’s wireless application

3. Enter the ESSID and WPA key found on the sticker on the bottom of the FiOS

Router in the computer’s wireless settings and click Save .

4. Make sure the changes were implemented by surfing the Internet from the computer.

5. Repeat these steps for every other computer to be connected to the

FiOS Router wirelessly.

23



2.4 Main Screen

Coaxial

1.

Make sure all set top boxes are turned off.

2. Disconnect any adapter currently connected to the coaxial jack in the room where the FiOS Router is.

3.

Connect one end of the coaxial cable to the coaxial wall jack, and the other end to the red Coax port on the back of the FiOS Router.

4. Power up the set top box.

5.

Make sure the Coax LAN light on the front of the FiOS Router glows steadily green. This may take a few minutes. When it does, the set top box is connected to the FiOS Router.

2.4 Main Screen

After logging into the FiOS Router’s GUI (see “Configuring the FiOS Router” at the beginning of this chapter), the “Main” screen appears.


24


The Main screen has a menu occupying the top of the screen. Below that, the screen is divided into three columns: “My Router,” “My Network,” and

“Action Zone.”

2.4a Menu

The Main screen’s menu contains links to all of the configuration options of the FiOS Router: Wireless Settings (explained in chapter 3 of this manual), My

Network (chapter 5), Firewall Settings (chapter 6), Parental Controls (chapter

7), Advanced (chapter 8), and System Monitoring (chapter 9).

2.4b My Router

This section displays the status of the FiOS Router’s network and Internet connection. A green light signifies the FiOS Router is connected; a yellow light means the FiOS Router is attempting to connect; and a red light signifies the

FiOS Router’s connection is down.

Broadband Connection

The “Broadband Connection” section of the My Router column displays the state of the FiOS Router’s broadband connection (“Connected” or “Disconnected”) for the two connection options (“Coax Status” and “Ethernet Status”), and the WAN

IP address of the broadband connection.

Quick Links

The “Quick Links” section of the My Router column contains a list of frequently accessed settings, including “Change Wireless Settings,” “Change Login User

Name & Password,” “Enable Gaming,” and “Logout.”

25



2.4 Main Screen

2.4c My Network

The “My Network” column of the Main screen displays the connection type, name, and IP address of all devices connected to the FiOS Router’s network.

The icon associated with the device will be displayed normally (signifying an active device) or shaded (signifying the device has not been active for at least

60 seconds). The user can also configure the basic settings of each device by clicking on its icon. These settings are described in more detail in chapter 3.

2.4d Action Zone

This column contains links to various Verizon Web sites, and other informational links. Clicking on the icon above “Go to Internet Now” connects the user to the home page configured on the user’s web browser.


26

3

3.0

Introduction

3.1

Overview

3.2

Connecting a Wireless Client

3.3

Wireless Status

3.4

Basic Security Settings

3.5

Advanced Security Settings

3.6

Setting Up a Wireless Client

Setting Up a Wireless

Network

27


Wireless networking enables you to free yourself from wires and plugs, making your devices more accessible and easier to use. This chapter explains how to create a wireless network using the FiOS Router, including accessing and con

fi

guring wireless security options.


28


3.1 Overview

The FiOS Router provides the user with wireless connectivity over the 802.11b, g, and n standards (the most common wireless standards). 802.11b has a maximum data rate of 11 Mbps, 802.11g has a maximum data rate of 54 Mbps, and 802.11n has a maximum data rate of 160 Mbps. All standards operate in the

2.4 GHz range.

The FiOS Router’s wireless feature is turned on, with wireless security activated, by default. The level of security is WPA2, with a unique WPA2 key already entered. This information is displayed on a sticker located on the bottom of the FiOS Router.

The FiOS Router integrates multiple layers of security. These include the IEEE

802.1x port-based authentication protocol, RADIUS client, EAP-MD5, EAP-TLS,

EAP-TTLS, EAP-PEAP, Wired Equivalent Privacy (WEP), Wi-Fi Protected Access

(WPA and WPA2) and firewall and VPN applications.

3.2 Connecting a Wireless Client

To connect a wireless client to the FiOS Router:

Note: The following procedure assumes the FiOS Router’s default wireless settings are intact. If they have been changed, use the new ESSID and wireless security settings. For more details, see the “Setting Up a Wireless Client” section of this chapter.

1. In the wireless client’s configuration interface, enter the FiOS Router’s

ESSID (found on a sticker on the bottom of the FiOS Router’s case) in the appropriate text box or field (this varies depending on the wireless client’s manufacturer).

2. Enter the FiOS Router’s wireless key (also found on the sticker on the bottom of the FiOS Router’s case) in the wireless client’s configuration interface.

3. Save the changes and exit the wireless client’s configuration interface. The client should now detect and join the FiOS Router’s wireless network. If not, check the wireless client’s documentation, or contact its manufacturer.

29


3 Setting Up a Wireless Network

3.3 Wireless Status

3.3 Wireless Status

Clicking on the “Wireless Settings” icon from the Main screen’s menu generates the “Wireless Status” screen, which displays the current status of the wireless connection.

3.3a Radio Enabled

Displays whether the FiOS Router’s wireless radio is active.

3.3b SSID

The SSID (Service Set Identifier) is the network name shared among all devices on a particular wireless network. The SSID must be identical for all devices on the wireless network. It is case-sensitive and cannot exceed 32 characters.

Make sure the SSID is the same for all devices to be connected to the wireless network. The FiOS Router comes from the factory with an SSID already entered and displayed here. The default SSID can also be found on a sticker on the bottom of the FiOS Router.

3.3c Channel

Displays the channel to which the wireless connection is currently set.

All devices on the wireless network must be on the same channel to function correctly.

30



3.3d Security Enabled

Displays what kind of security is active on the wireless connection, and the security encryption key.

3.3e SSID Broadcast

Displays whether the FiOS Router is broadcasting its SSID. If activated, the SSID of the FiOS Router’s wireless network is broadcast wirelessly.

3.3f MAC Authentication

Displays whether the FiOS Router is using MAC (Media Access Control) address authentication to allow wireless devices to join the network.

3.3g Wireless Mode

Displays the types of wireless device that can join the network. Options include

802.11b, 802.11g, 802.11 n, or Mixed (allows 802.11b-, 802.11g-, and 802.11nequipped wireless devices to join the network).

3.3h WMM

Displays whether WMM is enabled on the FiOS Router.

3.3i Packets Received/Sent

Displays the number of packets received and sent since the FiOS Router’s wireless capability was activated.

31



3.4 Basic Security Settings

3.4 Basic Security Settings

To configure the FiOS Router’s wireless network for basic security, select “Basic

Security Settings” from the menu on the left side of any Wireless Settings screen.

The “Basic Security Settings” screen appears.

Note: The FiOS Router’s default wireless security is WPA2. This section explains how to activate WEP wireless security, which is a less robust security than WPA2.

To set up WPA2 wireless security, see “WPA2” on page 37.

1. Click the “On” radio button to activate the FiOS Router’s wireless radio.

2. Enter the name of the wireless network in the “SSID” text box (the SSID name in the figure above is an example; enter a different name for the SSID).

3. Select the channel at which the FiOS Router’s wireless radio communicates by selecting it from the “Channel” drop-down list.

4. To preserve the channel selection in the event of a FiOS Router power cycle, click in the box next to “Keep my channel selection during power cycle.”

32



5. Click the “WEP” radio button to activate WEP (Wired Equivalent Privacy) security on the wireless network.

6.

Select a WEP security level from the “select a WEP Key” drop-down list

(options include “64/40 bit” or “128/104 bit”).

7. Enter the key code in the “Key Code” text box. Each character must be a letter from A-F or a number from 0-9. If 64/40 bit was selected in step 5, enter 10 characters. If 128/104 was selected, enter 26 characters.

8.

Write down the wireless settings displayed on the screen. Other wireless devices must use these same settings when configuring the device’s wireless networking scheme to join the FiOS Router’s wireless network.

9. Click Apply to save the settings.

33




3.5 Advanced Security Settings

To configure the FiOS Router’s advanced wireless network security settings, select “Advanced Security Settings” from the menu on the left side of any

Wireless Settings screen. The “Advanced Security Settings” screen appears.

3.5a Level 1 (Wireless Security)

This section is used to configure different types of wireless security. Select the type of wireless security to be applied to the wireless network by clicking the appropriate radio button, then configure the security settings in the subsequent screens.


34


WEP

If WEP was selected in the Advanced Security Settings screen, the “WEP” screen appears.

1. Select the appropriate WEP mode from the drop-down list. Options include

WEP Only, or 802.1x. If selecting the latter, see the “802.1x” section on the next page.

2. Select the appropriate network authentication level from the drop-down list.

Options include Open System Authentication, Shared Key Authentication, or Both.

3. Activate WEP key 1 by clicking the radio button next to “1” on the left side.

4. Select the length of key 1 by selecting “64/40 bit” or “128/104 bit” from the appropriate drop-down list in the “Key Length” column.

5. Select the type of key from the appropriate drop-down list in the “Entry

Method” column. If “Hex” is selected, the key must be made up of hexadecimal digits. If “ASCII” is selected, the key can be made up of any characters.

6. Enter the key in the appropriate text box in the “Encryption Key” column.

If 64/40 bit was chosen in step 2, enter 10 characters. If 128/104 bit was chosen, enter 24 characters. Depending on what option was selected in step

3, enter hexadecimal or ASCII characters.

7. Click Apply to save changes.

35




802.1x

If 802.1x was selected in step 1 of the previous procedure, another screen appears, relating to settings for 802.1x WEP.

802.1x WEP is a robust security protocol that uses port control with dynamically changing encryption keys automatically updated over the network. 802.1x WEP uses a RADIUS (Remote Authentication Dial-in Service) server for authentication purposes. This server must be physically connected to the FiOS Router. Also, the user must enable the RADIUS client embedded in the FiOS Router (to do this, see chapter 8, “Advanced Settings”).

1. Select the WEP Mode from the “WEP Mode” drop-down list box.

2. Enter the RADIUS server IP address in the “Server IP” text boxes.

3. Enter the RADIUS server’s port number in the “Server Port” text box.

4. Enter the RADIUS server’s shared secret in the “Shared Secret” text box.

5. Click Apply to save changes.


36


WPA

If WPA (Wi-Fi Protected Access) was selected, the “WPA Key” screen appears.

1. Review the onscreen guide, “User Guidance on Password Selection.”

2. Make sure the radio button next to “Verizon Default Pre-Shared Key

(Recommended)” is activated (blue). If not, click the button to activate.

3. Write the default pre-shared key down and keep it in a secure place.

4. Select the proper encryption algorithm (TKIP, AES, or TKIP+AES).

5. Click in the “Group Key Update Interval” check box to activate the group key update interval, and set the interval time in the text box to the right.

6. Click Apply at the bottom of the screen to save changes.

37




WPA2

If WPA2 was selected, the “WPA2” screen appears.

1. Review the onscreen guide, “User Guidance on Password Selection.”

2. Make sure the radio button next to “Verizon Default Pre-Shared Key

(Recommended)” is activated (blue). If not, click the button to activate.

3. Write the default pre-shared key down and keep it in a secure place.

4. Select the proper encryption algorithm (TKIP, AES, or TKIP+AES).

5. Click in the “Group Key Update Interval” check box to activate the group key update interval, and set the interval time in the text box to the right.

6. Click Apply at the bottom of the screen to save changes.


38


3.5b Level 2 (SSID Broadcast)

This section is used to configure the FiOS Router’s SSID broadcast capabilities.

Enabling this option allows any wireless device using an SSID of “Any” to detect the FiOS Router’s wireless network. Disabling “SSID Broadcast” allows only those wireless users who know the SSID of the wireless network to detect and connect to the network.

Selecting “SSID Broadcast” generates the “SSID Broadcast” screen.

Click the “Enable” radio button to enable SSID broadcasting. If enabled, the SSID of the FiOS Router’s wireless network will be broadcast wirelessly. To disable

SSID broadcasting, click the “Disable” radio button.

39




3.5c Level 3 (Limiting Access)

This option is used to limit access to the FiOS Router’s wireless network.

Wireless MAC Authentication

Wireless MAC authentication allows the user to allow or deny access to the

FiOS Router’s wireless network by a particular device’s MAC address. Selecting

“Wireless MAC Authentication” from the Advanced Security Settings screen generates the “Wireless MAC Authentication” screen.


40


To set up wireless MAC authentication:

1.

Click in the “Enable Access List” check box.

2. Select either “Accept all devices listed below” or “Deny all devices listed below” by clicking the appropriate radio button. Selecting “Accept…” causes all devices listed by MAC address to access the FiOS Router’s wireless network. Selecting “Deny…” causes all listed devices to be denied access.

3.

Enter the MAC address of a device in the “Client MAC address” text box.

4. Click Add .

5.

Repeat steps 3 and 4 to add more devices to the list.

6. When finished listing devices, click Apply .

To remove a MAC address, select it from the “List” list box, then click

Remove

.

802.11b/g/n Mode

This option allows the user to select the wireless communication standard compatible with the devices to be connected on the wireless network from the drop-down list. Options include Compatibility (802.11b, g, and n devices can connect) Legacy (only 802.11b and g devices can connect), and Performance

(only 802.11n devices can join).

41




3.5d Other Advanced Wireless Options

Clicking Other Advanced Wireless Options at the bottom of the Advanced

Security Settings screen generates (after clicking through the “Warning” screen) another “Advanced Wireless Options” screen.

Transmission Rate

Always set to “Auto.”

Transmit Power

Adjust the power of the FiOS Router’s wireless signal by entering a percentage in this text box.

CTS Protection Mode

Activating CTS (Clear to Send) Protection Mode allows mixed 802.11b/g/n networks to operate at maximum efficiency. Select Auto from the drop-down list to activate. Select None to deactivate .

CTS Protection Type

Select from the two options: cts-only (for mixed 802.11b/g/n networks) or rts-cts (for 802.11a/b/g networks).

42



Frame Burst - Max Number

Frame Burst allows packet bursting, which increases overall network speed.

Enter the maximum number of frame bursts in this text box.

Frame Burst - Burst Time

Enter the burst time of the frame bursts in this text box.

Beacon Interval

Enter the time period of the beacon interval in this text box.

DTIM Interval

Enter the DTIM (Delivery Traffic Indication Message) interval value (in milliseconds) in this text box. A DTIM is a countdown mechanism for the FiOS

Router, informing wireless network clients of the next window for listening to broadcast and multicast messages.

Fragmentation Threshold

Setting the correct fragmentation threshold can increase the reliability of frame transmissions on the wireless network. Enter the fragmentation threshold in this text box.

RTS Threshold

Enter the RTS (Request to Send) threshold in this text box. This setting controls what size data packet the low level RF protocol issues to an RTS packet.

MSDU Aggregation

Use these radio buttons to enable or disable MSDU aggregation.

MPDU Aggregation

Use these radio buttons to enable or disable MPDU aggregation.

43




802.11 Guard Interval

Always set to “Dynamic.”

3.5e WMM Settings

Clicking WMM Settings at the bottom of the Advanced Wireless Options screen generates (after clicking through the “Warning” screen) the “Wireless QoS

(WMM)” screen. This screen allows the user to prioritize the types of data coming over the FiOS Router’s wireless network.

Wireless QoS (WMM)

Click in the check box to enable/disable Wireless QoS.

WMM Power Save

Click in the check box to enable/disable WMM Power Save.


44


Priority Table

The upper table in the Wireless QoS screen is the Priority Table.

Use the green up and down arrows to adjust the priority of a particular type of wireless data. The data type at the top of the table has the highest priority on the wireless network; at the bottom is the lowest. Additionally, the user can add a custom type of data by clicking

Add

and, in the screen that appears, creating a new type of data tag. Finally, clicking the Action icon in the row corresponding to an existing type of data allows the user to modify that type of data’s Tag and

WMM access.

Admission Control Table

The lower table in the Wireless QoS screen is the Admission Control Table.

This table allows the user to adjust a wireless data type’s admission control by selecting Yes/No from the corresponding row’s drop-down list. Also, if needed, enter a Quota amount in the appropriate Quota text box.

45




3.6 Setting Up a Wireless Client

If the computer has wireless capabilities and is running Windows XP, Vista, or 7, it will automatically recognize the existing wireless network and try to create a wireless connection. View this connection under Windows’

“Network Connections.”

3.6a Setting Up a Wireless Windows Client (Windows 7)

If the computer has wireless capabilities and is running Windows 7, it will automatically recognize the existing wireless network and try to create a wireless connection. To manually connect to a wireless network:

1. Click the wireless icon the system tray (in the lower right corner of the desktop) and, from the menu that appears, click the FiOS Router’s wireless network name from the list.


46


2. When the “Connect” button appears under the network’s name, click on it.

3. A “Connect to a Network” window appears. Enter the security key of the wireless network in the appropriate text box, then click OK .

47




4. The connection is made. To check the status of the connection, click on the wireless icon in the service tray again. In the example, the computer has successfully joined the wireless network “DWYL7.”

3.6b Setting Up a Wireless Windows Client (Windows Vista)

If the computer has wireless capabilities and is running Windows Vista, it will automatically recognize the existing wireless network and try to create a wireless connection. View this connection under Windows’ “Network Connections.”

1. Click the wireless icon the system tray (in the lower right corner of the desktop) and, from the menu that appears, select Connect to a Network .

2. A “Connect to a Network” window appears. Select the FiOS Router’s wireless network.


48


3. Another Connect to a Network window appears. Enter the WPA key of the network in the appropriate text box.

4. Click Connect . A third Connect to a Network window appears, stating that the connection was successful.

49




3.6c Setting Up a Wireless Windows Client (Windows XP)

This section assumes the FiOS Router’s wireless network is set up with

WPA security.

1. Click Network Connections in the Control Panel. The “Network

Connections” window appears.

2. Double-click the wireless connection icon. The “Wireless Network

Connection” screen appears, displaying the available wireless connections.

Select the FiOS Router’s network.


50


3. Click the connection once to mark it, then click Connect at the bottom of the screen. The following login window appears, asking for a “Network Key,” which is the pre-shared key used when configuring the FiOS Router’s WPA security (see the “WPA” section in this chapter).

4. Enter the network (WPA) key in both text boxes and click Connect . After the connection is established, its status will change to “Connected,” as shown below.

An icon appears in the notification area, announcing the successful initiation of the wireless connection.

5. Test the connection by disabling all other connections in the Network

Connections window and surfing the Internet.

51




Manual Wireless Network Connection

If the login window shown in step 3 does not appear and the connection attempt fails, configure the connection manually using the following procedure:

1. Click the connection once to mark it and then click Change Advanced

Settings in the “Related Tasks” box on the left part of the window.

2. The “Wireless Network Connection Properties” window appears. Select

Wireless Networks .


52


3. Click the connection to highlight it, then click Properties . The connection’s

“Properties Window” appears.

4. From the “Network Authentication” drop-down list, select “Open.”

5. From the “Data Encryption” drop-down list, select “WPA.”

6. Enter the pre-shared key in both the “Network key” and the “Confirm network key” text boxes.

7. Click OK , then OK again.

8. When attempting to connect to the wireless network, the login window appears, pre-populated with the pre-shared key. Press Connect to connect.

Since the network is now secured, only users who know the pre-shared key will be able to connect.

53


4

4.0

Introduction

4.1

Accessing the My Network

Settings

4.2

Using the My Network

Settings

Con

fi

guring

My Network

Settings


54

Once the FiOS Router is physically connected and the FiOS Router’s Main screen is displayed in a web browser, a list of devices connected to the FiOS Router’s network appears in the “My Network” column of the screen. From here, basic network settings can be con

fi

gured.

55


4 Con fi guring My Network Settings

4.1 Accessing My Network Settings

4.1 Accessing My Network Settings

To access My Network, click the “My Network” icon in the Main screen.

The “My Network” screen appears:

On the far right side of the screen, in the “Connected Devices” section, is a list of the devices currently connected to the FiOS Router’s network, sorted by connection type and number. The rest of the screen contains the “My Network” section, which displays each device connected to the FiOS Router’s network, and a series of basic configuration settings for each device.


56


4.2 Using My Network Settings

Various settings can be accessed for a particular device, as follows.

4.2a Access Device

For devices that can be accessed (such as Internet cameras and networked hard drives), locate it in the My Network column, then click Access Devices to use the device over the network.

4.2b Access Shared Files

To access the shared files on a particular device, locate the device in the My

Network column, then click Access Shared Files . A list of shared files appears on the screen.

4.2c Website Blocking

Clicking Website Blocking generates the “Parental Control” screen. For more information about using parental controls, see chapter 7, “Using

Parental Controls.”

57




4.2d Block Internet Services

Internet services blocking is used to prevent a device on the network from accessing particular services available on the Internet, such as receiving email or downloading files from FTP sites. To set up Internet services blocking on a networked device:

1. Locate the device in the My Network column, then click Block Internet

Services . The “Access Control” screen appears.

2. Click Add in the “Networked Computer/Device” column. The “Add Access

Control Rule” screen appears.

3. If this access control rule applies to all networked devices, select “Any” from the “Networked Computer/Device” list box.

4. Select the Internet protocol to be blocked from the “Protocol” drop- down list.

58



5. If this rule will be active continuously, select Always from the “Schedule” drop-down list. If the rule will only be active at certain times, select “User

Defined” and click Add . Then, add a schedule rule (for more details about schedule rules, see the “Advanced Settings” chapter of this manual).

Note:

Make sure the FiOS Router’s date and time settings for your time zone are set correctly for schedule rules to function properly.

6. Click Apply to save the changes. The Access Control screen will display a summary of the access control rule.

The user may disable an access control and the service made available without having to remove the service from the Access Control table. This may be useful to make the service available only temporarily, with the expectation that the restriction will be reinstated later. t To temporarily disable an access control, clear the check box next to the network computer/device. t To reinstate the restriction at a later time, select the check box next to the network computer/device. t To remove an access restriction from the Access Control table, click Remove for the service. The service will be removed from the Access Control table.

Note:

When Web Filtering is enabled, HTTP services cannot be blocked by access control.

59




4.2e Port Forwarding

Activating “Port Forwarding” allows the network to be exposed to the Internet in certain limited and controlled ways, enabling some applications to work from the local network (game, voice, and chat applications, for example), as well as allowing Internet access to servers in the local network. To set this up on a networked device, locate the device in the My Network column, then click Port

Forwarding . The “Port Forwarding” screen appears.

To set up basic port forwarding:

1. Click the arrow next to “Specify IP” to display a menu and either enter the IP address of the item to port forward from, or choose an item from the dropdown menu.

2. Click the arrow next to “Protocol” and select a pre-configured application from the drop-down menu.

3. Select an option from the “Destination Ports” drop-down list. If a single port or range of ports is selected, enter the port numbers in the text boxes that appear.

4. Click Add . The new port forwarding rule appears in the “Applied rules” table at the bottom of the screen.

60



To set up advanced port forwarding:




4. Click Advanced . The advanced port forwarding options appear.

5. Select the connection with which this port forwarding rule will be active from the “WAN Connection Type” drop-down list.

6. To select a port to forward communications to (this is optional), select an option from the “Forward to” drop-down list. If a single port or range of ports is selected, enter the port numbers in the text boxes that appear.

7. If this port will be active all the time, select “Always” from the “Schedule” drop-down list. If the rule will only be active at certain times, select “User


61




8. Click Apply to save the changes. The new port forwarding rule appears in the “Applied rules” table at the bottom of the screen.

Note:

Some applications, such as FTP, TFTP, PPTP, and H323, require the support of special specific Application Level Gateway (ALG) modules to work inside the local network. Data packets associated with the aforementioned applications contain information that allows them to be routed correctly. An ALG is needed to handle these packets and ensure they reach their intended destinations. The

FiOS Router is equipped with a robust list of ALG modules, enabling maximum functionality in the local network. The ALG is automatically assigned based on the destination port.

4.2f View Device Details

To view information about a networked device, or to test a device’s connection, locate the device in the My Network column, then click View Device Details .

The “Device Information” screen appears.


62


1. Click Test Connectivity . The “Diagnostics” screen appears.

2. The FiOS Router automatically runs a ping test, and the results are displayed in the Diagnostics screen.

4.2g Rename This Device

To rename a networked device, locate the device in the My Network column, then click Rename This Device . The “Rename Device” screen appears.

Enter the new name of the device in the “New Name” text box and, if needed, select a new icon for the device from the “New Icon” drop-down list.

63


5

5.0

Introduction

5.1

Accessing Network

Connections

5.2

Network (Home/O

ffi

ce)

Connection

5.3

Ethernet Connection

5.4

Wireless Access Point

Connection

5.5

Coax Connection

5.6

Broadband Ethernet

Connection

5.7

Broadband Coax Connection

5.8

WAN PPPoE Connection

5.9

WAN PPPoE 2 Connection

Using

Network

Connections


64

The FiOS Router supports various local area network (LAN) and wide area network

(WAN, or Internet) connections via

Ethernet or coaxial cables. The “Network

Connections” screens are used to con

fi

gure the various aspects of the FiOS Router’s network and Internet connections, and create new connections.

65


5 Using Network Connections

5.1 Accessing Network Connections

5.1 Accessing Network Connections

Caution!

The settings covered in this chapter should be configured by experienced network technicians only.

To access the FiOS Router’s network connections, in the “My Network” screen, click Network Connections from the menu on the left side. The “Network

Connections” screen appears.

Click Advanced to expand the screen and display all connection entries.

To select a connection, click on its name. The rest of this chapter describes the different network connections available on the FiOS Router, as well as the connection types that can be created.


66


5.2 Network (Home/Office) Connection

Select Network (Home/Office) in the Network Connections screen to generate the “Network (Home/Office) Properties” screen. This screen displays a list of the local network’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Rule Name” text box).

Note: When a network is disabled, its formerly underlying devices will not be able to get the DHCP address from the network interface to which they were connected.

The Network (Home/Office) connection is used to combine several network devices under one virtual network. For example, a home/office network can be created for Ethernet and other network devices.

67



5.2 Network (Home/O ffi ce) Connection

5.2a Configuring the Home/Office Network

Click Settings in the “Network (Home/Office) Properties” screen to generate a second “Network (Home/Office) Properties” screen.

General

The top part of the screen displays general communication parameters. We recommend not changing the default values in this section unless familiar with networking concepts.

Status Displays the connection status of the network.

When should this rule occur?

Displays when the rule is active. To schedule rules, see the “Advanced Settings” chapter.

Network Select the type of connection being configured from the drop-down list (options: Broadband Connection , Network [Home/Office] , or DMZ ).

Connection Type Displays the type of connection.

Physical Address Displays the physical address of the network card used for the network.

MTU MTU (Maximum Transmission Unit) specifies the largest packet size permitted for Internet transmission. “Automatic” sets the MTU at 1500. Other choices include “Automatic by DHCP,” which sets the MTU according to the DHCP connection, and “Manual,” which allows the MTU to be set manually.

68



Internet Protocol

This section has three options: No IP Address , Obtain an IP Address

Automatically , and Use the Following IP Address.

No IP Address Select this option if the connection will have no IP address. This is useful if the connection operates under a bridge.

Obtain an IP Address Automatically Select this option if the network connection is required by the ISP to obtain an IP address automatically. The server assigning the IP address also assigns a subnet mask address, which can be overridden by entering another subnet mask address.

Use the Following IP Address Select this option if the network connection uses a permanent (static) IP address, then the IP address and subnet mask address.

Bridge

The “Bridge” section of the Configure Network (Home/Office) screen is used to configure the LAN devices connected to the FiOS Router. By default, the

Ethernet, Coax, and Wireless Access Point connections are activated. Do not change these settings unless instructed to do so by the ISP.

Status The “Status” column displays the connection status of a particular device.

STP Click in the device’s “STP” check box to enable Spanning Tree Protocol on the device. This protocol provides path redundancy while preventing undesirable loops in the network.

Action The “Action” column contains an icon that, when clicked, generates the configuration screen of the particular device.

69



5.2 Network (Home/O ffi ce) Connection

DNS Server

Domain Name System (DNS) is the method by which website or domain names are translated into IP addresses. Specify such an address manually, according to the information provided by the ISP.

To manually configure DNS server addresses, select

Use the Following DNS

Server Addresses

. Specify up to two different DNS server addresses, one primary, the other secondary.

IP Address Distribution

The “IP Address Distribution” section of the Configure Network (Home/Office) screen is used to configure the FiOS Router’s Dynamic Host Configuration

Protocol (DHCP) server parameters. DHCP automatically assigns IP addresses to network devices. If enabled, make sure to configure the network devices as

“DHCP Clients.” There are three options in this section:

Disabled

,

DHCP Server, and

DHCP Relay

.

Disabled Select this option if statically assigning IP addresses to the network devices.

DHCP Server

To set up the network bridge to function as a DHCP server:

1. Select DHCP Server .

2.

Enter the IP address at which the FiOS Router starts issuing addresses in the

“Start IP Address” text boxes. Since the FiOS Router’s default IP address is

192.168.1.1, the Start IP Address should be 192.168.1.2.

3. Enter the end of the IP address range used to automatically issue IP addresses in the “End IP Address” text boxes. The “maximum” IP address that can be entered here is 192.168.1.254.

4.

Enter the subnet mask address in the “Subnet Mask” text boxes. The subnet mask determines which portion of a destination LAN IP address is the network portion, and which portion is the host portion.

70



5. If Windows Internet Naming Service (WINS) is being used, enter the WINS server address in the “WINS Server” text boxes.

6. Enter the amount of time a network device will be allowed to connect to the

FiOS Router with its currently issued dynamic IP address in the “Lease Time in Minutes” text box.

7. Click in the “Provide Host Name If Not Specified by Client” check box to have the FiOS Router automatically assign network devices with a host name, in case a host name is not provided by the user.

DHCP Relay Select this option to have the FiOS Router function as a DHCP relay, and enter the IP address in the screen that appears.

Routing

The FiOS Router can be configured to use static or dynamic routing. Dynamic routing automatically adjusts how packets travel on the network, while static routing specifies a fixed routing path to neighboring destinations. To configure routing:

1. Enter a device metric in the “Device Metric” text box. The device metric is a value used by the FiOS Router to determine whether one route is superior to another, considering parameters such as bandwidth and delay time.

2. Click in the “Default Route” check box to define this device as a default route.

3. Click in the “Multicast - IGMP Proxy Internal” check box to activate multicasting. Multicasting enables the FiOS Router to issue IGMP (Internet

Group Management Protocol) host messages on behalf of hosts the FiOS

Router discovers through standard IGMP interfaces. IGMP proxy enables the routing of multicast packets according to the IGMP requests of local network devices asking to join multicast groups.

71




Routing Table

Clicking

New Route

generates the “New Route” window, where a new route can be configured.

Additional IP Addresses

Clicking

New IP Address

generates the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the

Network (Home/Office) connection.

5.3 Ethernet Connection

An Ethernet connection connects computers to the FiOS Router using Ethernet cables, either directly or via network hubs and switches. Click Ethernet in the

Network Connections screen (if needed, click Advanced at the bottom of the screen to reveal the “Ethernet” link below “Network [Home/Office]”) to generate the “Ethernet Properties” screen. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Rule Name” text box).

Note: If disabling the connection, the FiOS Router must be rebooted for the change to take effect.

72



5.3a Configuring the Ethernet Connection

Click Settings at the bottom-right of the Ethernet Properties screen to generate another “Ethernet Properties” screen.

General


Status Displays the connection status of the Ethernet switch.



Network Select the type of connection being configured from the drop-down list ( Network [Home/Office] , Broadband Connection , or DMZ ).

Connection Type Displays the type of connection.


73






Clicking New IP Address generates the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the

Ethernet connection.

HW Switch Ports

This section displays the connection status of the FiOS Router’s four

Ethernet ports. Clicking on a connection’s “Action” icon (in the column on the right) generates the “Port Settings” screen, where ingress and egress policies can be edited.


74


5.4 Wireless Access Point Connection

A Wireless Access Point connection connects devices wirelessly. Click Wireless

Access Point in the Network Connections screen (if needed, click Advanced at the bottom of the screen to reveal the “Wireless Access Point” link below

“Network [Home/Office]”) to generate the “Wireless Access Point Properties” screen. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection

(by clicking Disable ) or renaming the connection (by entering a new name in the “Name” text box).


5.4a Configure Wireless Access Point

Click Settings at the bottom-right of the Wireless Access Point Properties screen generates a second “Wireless Access Point Properties” screen.

75



5.4 Wireless Access Point Connection

General


Status Displays the status of the wireless access point connection.



Network Select the type of connection being configured from the drop-down list (options: Network [Home/Office] , Broadband Connection , or DMZ ).

Connection Type

Displays the type of connection.


MTU

MTU (Maximum Transmission Unit) specifies the largest packet size permitted for Internet transmission. “Automatic” sets the MTU at 1500. Other choices include “Automatic by DHCP,” which sets the MTU according to the DHCP connection, and “Manual,” which allows the MTU to be set manually.


Clicking

New IP Address

generates the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the

Wireless Access Point connection.


76


5.5 Coax Connection

A Coax connection connects devices (such as set-top boxes) to the FiOS Router using a coaxial cable. Click Coax in the Network Connections screen (if needed, click Advanced at the bottom of the screen to reveal the “Coax” link below

“Network [Home/Office]”) to generate the “Coax Properties” screen. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Name” text box).


5.5a Configure Coax

Click Settings at the bottom-right of the Coax Properties screen generates a second “Coax Properties” screen.

77



5.5 Coax Connection

General


Status Displays the status of the coax connection.




Connection Type

Displays the type of connection.


MTU


Coax Link

Set up the coax link options in this section of the Configure Coax screen.

Options include

Channel

,

Privacy

, and

Password

.

Channel Select the Channel from the drop-down list (select from 1-6,

or “Automatic”).

Privacy

Toggle “Privacy” by clicking in the “Enabled” check box. If Privacy is activated, all devices connected via coaxial cable must use the same password.

We recommend leaving the Privacy option deactivated.

Password Enter the Coax Link password in this text box.

CM Ratio

Select the CM Ratio from the drop-down menu here.

78




Clicking New IP Address generates the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the

Coax Link Ethernet connection.

Coax Connection Status

Click Go to LAN Coax Stats to generate the “Coax Connection Status” screen, which gives an overview of all the devices connected to the FiOS Router via coaxial cable.

79




5.6 Broadband Ethernet Connection

A Broadband Ethernet connection connects the FiOS Router to the Internet using an Ethernet cable. Click Broadband Connection (Ethernet) from the

Network Connections screen to generate the “Broadband Connection (Ethernet)

Properties” screen. This screen displays a list of the connection’s properties.

The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Rule Name” text box).



80


5.6a Configuring the Broadband Ethernet Connection

Click Settings at the bottom-right of the first Broadband Connection (Ethernet)

Properties window to generate another “Broadband Connection (Ethernet)

Properties” screen.

General

The top part of the screen displays general communication parameters. We recommend not changing the default values in this section unless you are familiar with networking concepts.

Status Displays the status of the Ethernet connection (“Down,” “Connected,” etc.)


Displays when the rule is active. To configure rules, see the “Advanced Settings” chapter.


Connection Type Displays the type of connection. Since this is an Ethernet

Connection, “Ethernet” is displayed.

81





MTU


Internet Protocol

This section includes three options:

No IP Address

,

Obtain an IP Address

Automatically

, and

Use the Following IP Address

.

No IP Address Select this option if the connection has no IP address. This is useful if the connection is operating under a bridge.

Obtain an IP Address Automatically

Select this option if the ISP requires the connection to obtain an IP address automatically. The server assigning the

IP address also assigns a subnet mask address, which can be overridden by clicking in the “Override Subnet Mask” check box and entering another subnet mask address. Additionally, the DHCP lease can be renewed and/or released by clicking on the appropriate “DHCP Lease” button. The “Expires In” value displays how long until the DHCP lease expires.

Use the Following IP Address Select this option if the connection uses a permanent (static) IP address. The ISP should provide this address, along with a subnet mask address, default gateway address, and, optionally, primary and secondary DNS server addresses.

DNS Server

The Domain Name System (DNS) is the method by which website or domain names are translated into IP addresses. This connection can be configured to automatically obtain a DNS server address, or an address can be specified manually, according to the information provided by the ISP.

To configure the connection to automatically obtain a DNS server address, select

Obtain DNS Server Address Automatically from the “DNS Server” drop-down list. To manually configure DNS server addresses, select Use the Following

DNS Server Addresses . Specify up to two different DNS server addresses, one primary, the other secondary.

82




The “IP Address Distribution” section of the Configure Broadband Connection

(Ethernet) screen is used to configure the FiOS Router’s Dynamic Host

Configuration Protocol (DHCP) server parameters. DHCP automatically assigns

IP addresses to network devices. If enabled, make sure to configure the network devices as “DHCP Clients.” There are three options in this section: Disabled ,

DHCP Server , and DHCP Relay .

Caution!

We strongly recommend leaving this setting at “Disabled.”

Disabled Select this option if statically assigning IP addresses to the network devices.

Routing

Routing Mode Select one of the following two Routing modes: t Route - Select this option to cause the FiOS Router to act as a router between two networks. t NAPT - Select this option to activate NAPT (Network Address and Port

Translation), which refers to network address translation involving the mapping of port numbers and allows multiple machines to share a single IP address. Use NAPT if the local network contains multiple devices, a topology that necessitates port translation in addition to address translation.

Device Metric The device metric is a value used by the FiOS Router to determine whether one route is superior to another, considering parameters such as bandwidth, delay, and more.

Default Route Click in this check box to define the connection as a the default route.

Multicast - IGMP Proxy Default Click in this check box to enable the FiOS

Router to issue IGMP (Internet Group Management Protocol) host messages on behalf of hosts the FiOS Router discovers through standard IGMP interfaces.

IGMP proxy enables the routing of multicast packets according to the IGMP requests of local network devices asking to join multicast groups.

83




Routing Table

Clicking

New Route

generates the “New Route” window, where a new route can be configured.

Internet Connection Firewall

Click in the “Enabled” check box to activate the FiOS Router’s firewall on the connection.


Clicking

New IP Address

generates the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the connection.

5.7 Broadband Coax Connection

A Broadband Coax connection connects the FiOS Router to the Internet using a coaxial cable. Click Broadband Connection (Coax) in the Network Connections screen to generate the “Broadband Connection (Coax) Properties” screen. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Name” text box).


84



5.7a Configuring the Broadband Coax Connection

Click Settings at the bottom of the Broadband Connection (Coax) Properties screen to generate another “Broadband Connection (Coax ) Properties” screen.

General

The top part of the screen displays general communication parameters. We recommend not changing the default values in this section unless you are familiar with networking concepts.

Status Displays the status of the connection (“Down,” “Connected,” etc.).

85






Network

Select the type of connection being configured from the drop-down list (options:

Network [Home/Office]

,

Broadband Connection

, or

DMZ

).

Connection Type Displays the type of connection. Since this is a coaxial connection, “Coax” is displayed.

Physical Address

Displays the physical address of the network card used for the network.


Coax Link

Check and configure the coax link connection in this section of the screen.

Auto Detection

Select whether you want the FiOS Router to automatically detect a coaxial link here.

Privacy Toggle “Privacy” by clicking in the “Enabled” check box. If Privacy is activated, all devices connected via coaxial cable must use the same password.

We recommend leaving the Privacy option deactivated.

Password

Enter the Coax Link password here.

CM Ratio Select the CM Ratio from the drop-down menu here.

WAN Coax Connection Speeds

This section displays the FiOS Router’s Tx and Rx speeds (in Mbps).


86


Internet Protocol

This section includes three options: No IP Address , Obtain an IP Address

Automatically , and Use the Following IP Address .

No IP Address Select this option if the connection has no IP address. This is useful when the connection is operating under a bridge.

Obtain an IP Address Automatically Select this option if the ISP requires the connection to obtain an IP address automatically. The server assigning the

IP address also assigns a subnet mask address, which can be overridden by clicking in the “Override Subnet Mask” check box and entering another subnet mask address. Additionally, the DHCP lease can be renewed and/or released by clicking on the appropriate “DHCP Lease” button. The “Expires In” value displays how long until the DHCP lease expires.

Use the Following IP Address Select if the WAN connection is configured using a permanent (static) IP address. The ISP should provide this address, along with a subnet mask address, default gateway address, and, optionally, primary and secondary DNS server addresses.

DHCP Lease

Renew or release the current DHCP lease by clicking on the appropriate button.

DNS Server

The Domain Name System (DNS) is the method by which website or domain names are translated into IP addresses. The connection can be set to automatically obtain a DNS server address, or an address can be set manually, according to information provided by the ISP.


Obtain DNS Server Address Automatically from the “DNS Server” drop-down list. To manually configure DNS server addresses, select Use the Following

DNS Server Addresses . Specify up to two different DNS server addresses, one primary, the other secondary.

87





The “IP Address Distribution” section of the Configure Broadband Connection

(Coax) screen allows the user to configure the FiOS Router’s Dynamic Host

Configuration Protocol (DHCP) server parameters. The DHCP automatically assigns IP addresses to network devices. If enabled, make sure to configure the network devices as “DHCP Clients.” There are three options in this section:

Disabled

,

DHCP Server

, and

DHCP Relay

.

Caution!

We strongly recommend leaving this setting at “Disabled.”

Disabled

Select this option if statically assigning IP addresses to the network devices.

DHCP Server To set up the Broadband Coax connection to function as a

DHCP server:

1.

Select

DHCP Server

.

2. Enter the IP address at which the FiOS Router starts issuing addresses in the

“Start IP Address” text boxes. Since the FiOS Router’s default IP address is

192.168.1.1, the Start IP Address must be 192.168.1.2.

3.

Enter the end of the IP address range used to automatically issue IP addresses in the “End IP Address” text boxes. The “maximum” IP address that can be entered here is 192.168.1.254.

4. Enter the subnet mask address in the “Subnet Mask” text boxes. The subnet mask determines which portion of a destination LAN IP address is the network portion, and which portion is the host portion.

5.

If a Windows Internet Naming Service (WINS) is being used, enter the WINS server address in the “WINS Server” text boxes.

6. Enter the amount of time a network device will be allowed to connect to the

FiOS Router with its currently issued dynamic IP address in the “Lease Time in Minutes” text box. Just before the time is up, the device’s user will need to make a request to extend the lease or get a new IP address.

7.

Click in the “Provide Host Name If Not Specified by Client” check box to have the FiOS Router automatically assign network devices with a host name, in case a host name is not provided by the user.

88



DHCP Relay Select this option to have the FiOS Router function as a DHCP relay, and enter the IP address in the screen that appears.

Routing




Default Route Click in this check box to define the connection as a the default route.





Enable or disable the firewall for this interface. It is recommended to keep the firewall enabled for all of the FiOS Router’s connection interfaces.


Click New IP Address to generate the “Additional IP Address Settings” screen, where additional IP addresses can be created to access the FiOS Router via the connection.

89




Coax Connection Stats

Click

Go to WAN Coax Stats

to generate a new window that displays the FiOS

Router’s WAN Coax connection statistics.

5.8 WAN PPPoE Connection

WAN Point-to-Point Protocol over Ethernet (PPPoE) relies on two widely accepted standards: Point-to-Point Protocol and Ethernet. PPPoE enables

Ethernet networked computers to exchange information with computers on the

Internet. PPPoE supports the protocol layers and authentication widely used in

PPP and enables a point-to-point connection to be established in the normally multipoint architecture of Ethernet. A discovery process in PPPoE determines the Ethernet MAC address of the remote device in order to establish a session.

Click WAN PPPoE in the Network Connections screen to generate the “WAN

PPPoE Properties” screen. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Name” text box).


90


5.8a Configuring the WAN PPPoE Connection

Click Settings in the WAN PPPoE Properties screen to generate another “WAN

PPPoE Properties” screen.

General


Status Displays the connection status of the WAN PPPoE connection. (“Down,”

“Disabled,” “Connected,” etc.)


Displays when the rule is active. To schedule rules, see “Advanced Settings” chapter.

91




Network Select the type of connection being configured from the drop-down list ( Broadband Connection , Network (Home/Office) , or DMZ ).

Connection Type

Displays the type of connection. Since this is PPPoE connection, “PPPoE” is displayed.

MTU MTU (Maximum Transmission Unit) specifies the largest packet size permitted for Internet transmission. “Automatic, sets the MTU at 1492. Other choices include “Automatic,” which sets the MTU according to the connection to the ISP, and “Manual,” which allows the MTU to be set manually.

Underlying Connection

Specify the underlying connection above which the protocol initiates from the drop-down list, which displays all possible underlying devices.

PPP Configuration

Point-to-Point Protocol (PPP) is the most popular method for transporting packets between the user and the ISP.

Service Name Specify the networking peer’s service name, if provided by the

ISP, in this text box.

On-Demand

To use PPP on demand to initiate the point-to-point protocol session only when packets are actually sent over the Internet, click in this check box. This option should be active on a limited basis

Idle Time Before Hanging Up Enter the amount of idle time, in minutes, before the PPP session automatically ends .

Time Between Reconnect Attempts

In this text box, specify the duration between PPP reconnect attempts, as provided by the ISP.


92


PPP Authentication

Point-to-Point Protocol (PPP) currently supports four authentication protocols: Password Authentication Protocol (PAP), Challenge Handshake

Authentication Protocol (CHAP), and Microsoft CHAP versions 1 and 2 . Select the authentication protocols the FiOS Router may use when negotiating with a

PPTP server in this section. Select all the protocols if no information is available about the server’s authentication methods. Note that encryption is performed only if Microsoft CHAP, Microsoft CHAP version 2, or both are selected.

Warning: The PPP Authentication settings should not be changed unless instructed to do so by your ISP.

Login User Name Enter the user name (provided by the ISP) in this text box.

Login Password Enter the password (provided by the ISP) in this text box.

Support Unencrypted Password (PAP) Password Authentication Protocol

(PAP) is a simple, plain-text authentication scheme. The user name and password are requested by the networking peer in plain-text. PAP, however, is not a secure authentication protocol. Man-in-the-middle attacks can easily determine the remote access client’s password. PAP offers no protection against replay attacks, remote client impersonation, or remote server impersonation.

Support Challenge Handshake Authentication (CHAP) Click in this check box to activate CHAP, a challenge-response authentication protocol that uses

MD5 to hash the response to a challenge. CHAP protects against replay attacks by using an arbitrary challenge string per authentication attempt.

Support Microsoft CHAP Click in this check box if communicating with a peer that uses Microsoft CHAP authentication protocol.

Support Microsoft CHAP Version 2 Select this check box if communicating with a peer that uses Microsoft CHAP Version 2 authentication protocol.

93




PPP Compression

The PPP Compression Control Protocol (CCP) is responsible for configuring, enabling, and disabling data compression algorithms on both ends of the point-to-point link. It is also used to signal a failure of the compression/ decompression mechanism in a reliable manner.

For each compression algorithm ( BSD and Deflate ), select one of the following from the drop-down list:

Reject

Selecting this option rejects PPP connections with peers that use the compression algorithm. If Reject is activated, throughput may diminish.

Allow Selecting this option allows PPP connections with peers that use the compression algorithm.

Require

Selecting this option insures a connection with a peer using the compression algorithm.

Internet Protocol

Select one of the following Internet Protocol options from the “Internet Protocol” drop-down list:

Obtain an IP Address Automatically This option is selected by default.

Change only if required by the ISP. The server that assigns the FiOS Router with an IP address also assigns a subnet mask. Override the dynamically assigned subnet mask by selecting the “Override Subnet Mask” and entering a different subnet mask.


Select this option to configure the FiOS Router to use a permanent (static) IP address. The ISP should provide this address.


94


DNS Server

The Domain Name System (DNS) is the method by which website or domain names are translated into IP addresses. The FiOS Router can be configured to automatically obtain a DNS server address, or the address can be entered manually, according to the information provided by the ISP.


Obtain DNS Server Address Automatically from the “DNS Server” drop-down list. To manually configure DNS server addresses, select Use the Following DNS

Server Addresses from the “DNS Server” drop-down list. Up to two different

DNS server addresses can be entered (Primary and Secondary).

Routing




Default Route Click in this check box to define the connection as the default route.




Routing Table

Clicking New Route generates the “New Route” screen, where a new route can be configured.

95





Click in the “Enabled” check box to activate the FiOS Router’s firewall on the

WAN PPPoE connection.

5.9 WAN PPPoE 2 Connection

Click WAN PPPoE 2 in the Network Connections screen to generate the “WAN

PPPoE 2 Properties” screen. WAN PPPoE 2 is used for the FiOS Router’s PPPoE connections over coaxial cable. This screen displays a list of the connection’s properties. The only modifications that can be made from this screen are disabling the connection (by clicking Disable ) or renaming the connection (by entering a new name in the “Name” text box).


96


5.9a Configuring the WAN PPPoE 2 Connection

Click Settings in the WAN PPPoE 2 Properties screen to generate another “WAN

PPPoE Properties” screen.

General


Status Displays the connection status of the WAN PPPoE connection. (“Down,”

“Disabled,” “Connected,” etc.)


Displays when the rule is active. To schedule rules, see “Advanced Settings” chapter.

Network Select the type of connection being configured from the drop-down list ( Broadband Connection , Network (Home/Office) , or DMZ ).

97




Connection Type Displays the type of connection. Since this is PPPoE connection, “PPPoE” is displayed.

MTU MTU (Maximum Transmission Unit) specifies the largest packet size permitted for Internet transmission. “Automatic, sets the MTU at 1492. Other choices include “Automatic,” which sets the MTU according to the connection to the ISP, and “Manual,” which allows the MTU to be set manually.

Underlying Connection Specify the underlying connection above which the protocol initiates from the drop-down list, which displays all possible underlying devices.

PPP Configuration

Point-to-Point Protocol (PPP) is the most popular method for transporting packets between the user and the ISP.

Service Name Specify the networking peer’s service name, if provided by the

ISP, in this text box.

On-Demand To use PPP on demand to initiate the point-to-point protocol session only when packets are actually sent over the Internet, click in this check box. This option should be active on a limited basis

Idle Time Before Hanging Up Enter the amount of idle time, in minutes, before the PPP session automatically ends .

Time Between Reconnect Attempts In this text box, specify the duration between PPP reconnect attempts, as provided by the ISP.

PPP Authentication

Point-to-Point Protocol (PPP) currently supports four authentication protocols: Password Authentication Protocol (PAP), Challenge Handshake

Authentication Protocol (CHAP), and Microsoft CHAP versions 1 and 2 . Select the authentication protocols the FiOS Router may use when negotiating with a

PPTP server in this section. Select all the protocols if no information is available about the server’s authentication methods. Note that encryption is performed only if Microsoft CHAP, Microsoft CHAP version 2, or both are selected.

Warning: The PPP Authentication settings should not be changed unless instructed to do so by your ISP.

98



Login User Name Enter the user name (provided by the ISP) in this text box.

Login Password Enter the password (provided by the ISP) in this text box.

Support Unencrypted Password (PAP) Password Authentication Protocol

(PAP) is a simple, plain-text authentication scheme. The user name and password are requested by the networking peer in plain-text. PAP, however, is not a secure authentication protocol. Man-in-the-middle attacks can easily determine the remote access client’s password. PAP offers no protection against replay attacks, remote client impersonation, or remote server impersonation.

Support Challenge Handshake Authentication (CHAP) Click in this check box to activate CHAP, a challenge-response authentication protocol that uses

MD5 to hash the response to a challenge. CHAP protects against replay attacks by using an arbitrary challenge string per authentication attempt.

Support Microsoft CHAP Click in this check box if communicating with a peer that uses Microsoft CHAP authentication protocol.

Support Microsoft CHAP Version 2 Select this check box if communicating with a peer that uses Microsoft CHAP Version 2 authentication protocol.

PPP Compression

The PPP Compression Control Protocol (CCP) is responsible for configuring, enabling, and disabling data compression algorithms on both ends of the point-to-point link. It is also used to signal a failure of the compression/ decompression mechanism in a reliable manner.

For each compression algorithm ( BSD and Deflate ), select one of the following from the drop-down list:

Reject Selecting this option rejects PPP connections with peers that use the compression algorithm. If Reject is activated, throughput may diminish.

Allow Selecting this option allows PPP connections with peers that use the compression algorithm.

Require Selecting this option insures a connection with a peer using the compression algorithm.

99




Internet Protocol

Select one of the following Internet Protocol options from the “Internet Protocol” drop-down list:

Obtain an IP Address Automatically This option is selected by default.

Change only if required by the ISP. The server that assigns the FiOS Router with an IP address also assigns a subnet mask. Override the dynamically assigned subnet mask by selecting the “Override Subnet Mask” and entering a different subnet mask.


Select this option to configure the FiOS Router to use a permanent (static) IP address. The ISP should provide this address.

DNS Server

The Domain Name System (DNS) is the method by which website or domain names are translated into IP addresses. The FiOS Router can be configured to automatically obtain a DNS server address, or the address can be entered manually, according to the information provided by the ISP.


Obtain DNS Server Address Automatically

from the “DNS Server” drop-down list. To manually configure DNS server addresses, select

Use the Following DNS

Server Addresses

from the “DNS Server” drop-down list. Up to two different

DNS server addresses can be entered (Primary and Secondary).

Routing

Routing Mode

Select one of the following two Routing modes: t Route - Select this option to cause the FiOS Router to act as a router between two networks. t

NAPT

- Select this option to activate NAPT (Network Address and Port


100




Default Route

Click in this check box to define the connection as the default route.




Routing Table

Clicking New Route generates the “New Route” screen, where a new route can be configured.


Click in the “Enabled” check box to activate the FiOS Router’s firewall on the

WAN PPPoE connection.

101


6

6.0

Introduction

6.1

Overview

6.2

Firewall

6.3

Access Control

6.4

Port Forwarding

6.5

DMZ Host

6.6

Port Triggering

6.7

Remote Administration

6.8

Static NAT

6.9

Advanced Filtering

6.10

Security Log

Con

fi

guring

Security

Settings


102

The FiOS Router’s security suite includes comprehensive and robust security services: Stateful Packet Inspection,

fi

rewall security, user authentication protocols, and password protection mechanisms. These features help protect users’ computers from security threats on the Internet.

103


6 Con fi guring Security Settings

6.1 Overview

6.1 Overview

This chapter covers the following security features: t Firewall - select the security level for the firewall. t Access Control - restrict access from the local network to the Internet. t Port Forwarding - enable access from the Internet to specified services provided by computers on the local network.

t DMZ Host - configure a network host to receive all traffic arriving at the FiOS

Router which does not belong to a known session. t Port Triggering - define port triggering entries to dynamically open the firewall for some protocols or ports. t Remote Administration - enable remote configuration of the FiOS Router from any Internet-accessible computer. t Static NAT - allow multiple static NAT IP addresses to be designated to devices on the network.

t Advanced Filtering - control the firewall’s settings and rules. t Security Log - view and configure the security log.


104


6.2 Firewall

The FiOS Router’s firewall is the cornerstone of the FiOS Router’s security suite.

It has been exclusively tailored to the needs of the residential/office user and is pre-configured to provide optimum security.

The firewall provides both the security and flexibility home and office users seek. It provides a managed, professional level of network security while enabling the safe use of interactive applications, such as Internet gaming and video-conferencing.

Additional features, including surfing restrictions and access control, can also be configured locally through the FiOS Router’s GUI, or remotely by a service provider.

The firewall also supports advanced filtering, designed to allow comprehensive control over the firewall’s behavior. Specific input and output rules can be defined, the order of logically similar sets of rules can be controlled, and distinctions between rules that apply to Internet and local network devices can be made.

The firewall regulates the flow of data between the local network and the

Internet. Both incoming and outgoing data are inspected and then either accepted (allowed to pass through the FiOS Router) or rejected (barred from passing through the FiOS Router) according to a flexible and configurable set of rules. These rules are designed to prevent unwanted intrusions from the outside, while allowing local network users access to required Internet services.

The firewall rules specify what types of services available on the Internet can be accessed from the local network and what types of services available in the local network can be accessed from the Internet. Each request for a service the firewall receives, whether originating in the Internet or from a computer in the local network, is checked against the firewall rules to determine whether the request should be allowed to pass through the firewall. If the request is permitted to pass, all subsequent data associated with this request (a “session”) will also be allowed to pass, regardless of its direction.

105



6.2 Firewall

For example, when accessing a website on the Internet, a request is sent out to the Internet for this site. When the request reaches the FiOS Router, the firewall identifies the request type and origin (HTTP and a specific computer in the local network, in this case). Unless the FiOS Router is configured to block requests of this type from this computer, the firewall allows this request to pass out onto the Internet. When the website is returned from the web server, the firewall will associate it with this session and allow it to pass, regardless of whether HTTP access from the Internet to the local network is blocked or permitted.

Note that it is the origin of the request, not subsequent responses to this request, which determines whether a session can be established or not.

6.2a General Screen

The “General” screen is used to configure the FiOS Router’s basic firewall settings.


106


The FiOS Router features three pre-defined firewall security levels: Maximum ,

Typical , and Minimum . The table below summarizes the behavior of the FiOS

Router for each of the three security levels.

Security Level

Maximum

Security

Typical Security

Minimum

Security

Internet requests

(incoming traffic)

Blocked - No access to local network from

Internet, except as configured in the Port

Forwarding, DMZ host, and

Remote Access screens.

Blocked - No access to local network from

Internet, except as configured in the Port

Forwarding, DMZ host, and

Remote Access screens.

Unrestricted - Permits full access from Internet to local network; all connection attempts are permitted.

Local network requests

(outgoing traffic)

Limited - Only commonly used services, such as web browsing and email, are permitted.

Unrestricted - All services are permitted, except as configured in the Access Control screen.

Unrestricted - All services are permitted, except as configured in the Access

Control screen.

These services include Telnet, FTP, HTTP, HTTPS, DNS, IMAP, POP3 and SMTP.

Note: Some applications (such as some Internet messengers and peer-to-peer client applications) tend to use these ports if they cannot connect with their own default ports. When applying this behavior, these applications will not be blocked outbound, even at the Maximum Security level.

107



6.3 Access Control

To configure the FiOS Router’s firewall security settings:

1.

From the General screen, select a security level by clicking the appropriate radio button. Using the Minimum Security setting may expose the local network to significant security risks, and thus should only be used for short periods of time.

2. Check the “Block IP Fragments” box to protect the local network from a common type of hacker attack that uses fragmented data packets to sabotage the network. Note that VPN over IPSec and some UDP-based services make legitimate use of IP fragments. IP fragments must be allowed to pass into the local network to use these services.

3.

Click

Apply

to save changes.

6.3 Access Control

Access control is used to block specific computers within the local network (or even the whole network) from accessing certain services on the Internet. For example, one computer can be prohibited from surfing the Internet, another computer from transferring files using FTP, and the whole network from receiving incoming email.

Access control defines restrictions on the types of requests that can pass from the local network out to the Internet, and thus may block traffic flowing in both directions. In the email example given above, computers in the local network can be prevented from receiving email by blocking their outgoing requests to

POP3 servers on the Internet.

Access control also incorporates a list of preset services in the form of applications and common port settings.


108


6.3a Allow or Restrict Services

To view and allow/restrict these services:

1. Select Access Control from the left side of any Security screen. The “Access

Control” screen appears.

Note: The “Allowed” section is only visible when the firewall is set to “Maximum.”

2. Click Add . The “Add Access Control Rule” screen appears.

Note: To block a service, click Add in the “Blocked” section of the Access Control screen. To allow outgoing traffic, click Add in the “Allowed” section of the screen.

109



6.3 Access Control

3. If this access control rule applies to all networked devices, select Any from the “Networked Computer/Device” list box. If this rule applies to certain devices only, select User Defined and click Add . Then, create and add a network object (for more details about adding network objects, see the

“Advanced Settings” chapter of this manual).

4.

Select the Internet protocol to be allowed or blocked from the “Protocol” drop-down list.

5. If the rule will be active all the time, select Always from the “When should this rule occur?” drop-down list. If the rule will only be active at certain times, select User Defined and click Add . Then, add a schedule rule (for more details about schedule rules, see the “Advanced Settings” chapter of this manual).

6.

Click

Apply

to save the changes. The Access Control screen will display a summary of the new access control rule.

Note: To block a service not included in the list, select User Defined from the

Protocol drop-down menu. The “Edit Service” screen appears. Define the service, then click OK . The service will then be automatically added to the top section of the “Add Access Control Rule” screen, and will be selectable.

An access control can be disabled and the service made available without having to remove the service from the Access Control table. This may be useful to make the service available temporarily, with the expectation that the restriction will be reinstated later. t To temporarily disable an access control, clear the check box next to the service name. t To reinstate the restriction at a later time, select the check box next to the service name. t To remove an access restriction from the Access Control table, click Remove for the service. The service will be removed from the Access Control table.


110


6.4 Port Forwarding

Activating “Port Forwarding” allows the network to be exposed to the Internet in certain limited and controlled ways, enabling some applications to work from the local network (game, voice, and chat applications, for example), as well as allowing Internet access to servers in the local network. To set this up on a networked device, locate the device in the My Network column, then click Port

Forwarding . The “Port Forwarding” screen appears.

To set up basic port forwarding:




4. Click Add . The new port forwarding rule appears in the “Applied rules” table at the bottom of the screen.

To set up advanced port forwarding:


2. Click the arrow next to “Protocol” and select a pre-configured application

111



6.4 Port Forwarding from the drop-down menu.

3.

Select an option from the “Destination Ports” drop-down list. If a single port or range of ports is selected, enter the port numbers in the text boxes that appear.

4. Click Advanced . The advanced port forwarding options appear.

5. Select the connection with which this port forwarding rule will be active from the “WAN Connection Type” drop-down list.

6. To select a port to forward communications to (this is optional), select an option from the “Forward to” drop-down list. If a single port or range of ports is selected, enter the port numbers in the text boxes that appear.

7. If this port will be active all the time, select “Always” from the “Schedule” drop-down list. If the rule will only be active at certain times, select “User



112


8. Click Apply to save the changes. The new port forwarding rule appears in the “Applied rules” table at the bottom of the screen.

Note: Some applications, such as FTP, TFTP, PPTP, and H323, require the support of special specific Application Level Gateway (ALG) modules to work inside the local network. Data packets associated with the aforementioned applications contain information that allows them to be routed correctly. An ALG is needed to handle these packets and ensure they reach their intended destinations. The

FiOS Router is equipped with a robust list of ALG modules, enabling maximum functionality in the local network. The ALG is automatically assigned based on the destination port.

6.5 DMZ Host

The DMZ (De-Militarized Zone) host feature allows one device on the network to operate outside the firewall. Designate a DMZ host: t To use an Internet service, such as an online game or video-conferencing program, not present in the Port Forwarding list and for which no port range information is available.

t To expose one computer to all services without restriction or security.

Warning: A DMZ host is not protected by the firewall and may be vulnerable to attack. Designating a DMZ host may also put other computers in the local network at risk. When designating a DMZ host, consider the security implications and protect it if necessary.

To designate a local computer as a DMZ host:

1. Select DMZ Host from the left side of any Security screen. The “DMZ Host” screen appears.

113



6.6 Port Triggering

2. Click in the “DMZ Host IP Address” check box, then enter the IP address of the computer to be designated as a DMZ host. Note that only one network computer can be a DMZ host at any time.

3.

Click

Apply

.

Click in the “DMZ Host IP Address” check box again to disable the DMZ host.

6.6 Port Triggering

Port triggering can be described as dynamic port forwarding. By setting port triggering rules, inbound traffic will be allowed to arrive at a specific network host using ports different than those used for outbound traffic. When using port triggering, the outbound traffic triggers the ports at which inbound traffic is directed.

For example, a gaming server is accessed using UDP protocol on port 2222. The gaming server then responds by connecting the user using UDP on port 3333 when a gaming session is initiated. In this case, port triggering must be used, since it conflicts with the following default firewall settings: t The firewall blocks inbound traffic by default. t The server replies to the FiOS Router’s IP, and the connection is not sent back to the host, since it is not part of a session.

To resolve the conflict, a port triggering entry must be defined, which allows inbound traffic on UDP port 3333 only after a network host generated traffic to

UDP port 2222. This results in the FiOS Router accepting the inbound traffic from the gaming server, and sending it back to the network host which originated the outgoing traffic to UDP port 2222.


114


To configure port triggering:

1. Select Port Triggering from the left side of any Security screen. The “Port

Triggering” screen appears.

2. Select either “User Defined” or “Show All Services” from the drop-down list next to “Add.”

3. If Show All Services is selected in step 2, select a Service from the list. The service is added to the Port Triggering screen as an active protocol.

4. If User Defined is selected in step 2, the “Edit Port Triggering Rule” screen appears. Enter a service name in the appropriate text box, then configure its inbound and outbound trigger ports by clicking the appropriate links.

115



6.7 Remote Administration

6.7 Remote Administration

The FiOS Router can be accessed and controlled not only from within the local network, but also from the Internet using remote administration.

To access, select Remote Administration from the left side of any Security screen. The “Remote Administration” screen appears.

Warning: Enabling Remote Administration puts the FiOS Router’s network at risk from outside attacks.

6.7a Telnet

Telnet is used to create a command-line session and gain access to all system settings and parameters using a text-based terminal. Select the Telnet port to be used by clicking in the appropriate check box, then click Apply .


116


6.7b Web Management

Web Management is used to obtain access to the FiOS Router’s GUI and gain access to all settings and parameters, using a web browser. Both secure (HTTPS) and non-secure (HTTP) access is available. Select the port to be used by clicking in the appropriate text box, then click Apply .

Note: Telnet and Web Management remote administration access may be used to modify or disable firewall settings. Local IP addresses and other settings can also be changed, making it difficult or impossible to access the FiOS Router from the local network. Therefore, remote administration access to Telnet or Web

Management services should be activated only when absolutely necessary.

6.7c Diagnostic Tools

Diagnostic Tools are used for troubleshooting and remote system management by a user or the ISP.

Note: Encrypted remote administration is performed using a secure SSL connection, and requires an SSL certificate. When accessing the FiOS Router for the first time using encrypted remote administration, a warning appears regarding certificate authentication because the FiOS Router’s SSL certificate is self-generated. When encountering this message under these circumstances, ignore it and continue. Even though this message appears, the self-generated certificate is safe and provides a secure SSL connection.

6.8 Static NAT

Static NAT allows devices behind a firewall and configured with private IP addresses appear to have public IP addresses on the Internet. This allows an internal host, such as a web server, to have an unregistered (private) IP address and still be accessible over the Internet. To configure static NAT:

1. Select Static NAT from any Security screen. The “Static NAT” screen appears.

117



6.8 Static NAT

2. Click Add . The “Add NAT/NAPT Rule” screen appears.

3.

Select a source address from the “Specify Address” drop-down list in the

“Local Host” row, or enter a IP address in the text box to the right.

4. Enter the public IP address in the “Public IP Address” text boxes.

5.

Select the WAN connection type from the “WAN Connection Type” dropdown list.

6. If using port forwarding, activate the “Enable Port Forwarding…” check box, then select a protocol from the “Protocol” drop-down menu.

Repeat these steps to add more static IP addresses from the network.


118


6.9 Advanced Filtering

Advanced filtering is designed to allow comprehensive control over the firewall’s behavior. Specific input and output rules can be defined, the order of logically similar sets of rules controlled, and distinctions made between rules that apply to the Internet and rules that apply to local network devices.

To access, select Advanced Filtering from any Security screen. The “Advanced

Filtering” screen appears.

Two sets of rules can be configured: input rules and output rules. Following is a description of the set ordering for inbound and outbound packets.

119



6.9 Advanced Filtering

6.9a Inbound/Outbound Packets - Rule Sets

There are numerous rules automatically inserted by the firewall to provide improved security and block harmful attacks. The pre-populated rules displayed are required for operation on the Verizon network.

To configure advanced filtering rules, click Add next to the rule title. The “Add

Advanced Filter” screen appears.

To add an advanced filtering rule, define the following rule parameters:

6.9c Matching

To apply a firewall rule, a match must be made between IP addresses or ranges and ports. Use the “Source Address” and “Destination Address” drop-down lists to define the coupling of source and destination traffic. Port matching will be defined when selecting protocols. For example, if the FTP protocol is selected, port 21 will be checked for matching traffic flow between the defined source and destination IPs.

6.9d Operation

This is where the action the rule will take is defined. Select one of the following radio buttons: t Drop - Deny access to packets that match the source and destination IP addresses and VCP reset to the origination peer.

120


FiOS Router User Manual t Accept - Allow access to packets that match the source and destination IP addresses and protocol ports defined in upper section of the screen. The data transfer session will be handled using Stateful Packet Inspection (SPI). t Accept Packet - Allow access to packets that match the source and destination IP addresses and protocol ports defined in upper section of the screen. The data transfer session will not be handled using Stateful

Packet Inspection (SPI), so other packets that match this rule will not be automatically allowed access. This setting is useful when creating rules that allow broadcasting.

6.9e Logging

Click in this check box to add entries relating to this rule to the security log.

6.9f Scheduler (When should this rule occur?)

If advanced filtering needs to be active constantly, select Always from the

“When should this rule occur?” drop-down list. If the rule will only be active at certain times, select User Defined and click Add . Then, add a schedule rule (for more details about schedule rules, see the “Advanced Settings” chapter of this manual)

121



6.10 Security Log

6.10 Security Log

The security log displays a list of firewall-related events, including attempts to establish inbound and outbound connections, attempts to authenticate at an administrative interface (the FiOS Router’s GUI or Telnet terminal), firewall configuration, and system start-up.

To access the security log, select Security Log from any Security screen. The

“Security Log” screen appears.

6.10a Time

The time (based on the FiOS Router’s date and time settings) the event occurred.

6.10b Event

There are three kinds of events listed in the system log: Firewall Info , Firewall

Setup , and System Log .


122


6.10c Event-Type

The “Details” column displays more information about the packet or the event, such as protocol, IP addresses, ports, etc. The following are the available event types that can be recorded in the security log: t 802.1Q

- a 802.1Q (VLAN) packet has been accepted. t Access control - a packet has been accepted/blocked because of an access control rule. t Advanced Filter Rule - a packet has been accepted/blocked because of an advanced filter rule. t ARP - an ARP packet has been accepted. t AUTH:113 request - an outbound packet for AUTH protocol has been accepted (for maximum security level). t Broadcast/Multicast protection source IP has been blocked.

- a packet with a broadcast/multicast t Connection closed - debug message regarding connection.

t Connection opened - debug message regarding connection. t Default policy - a packet has been accepted/blocked according to the default policy. t Defragmentation failed - the fragment has been stored in memory and blocked until all fragments have arrived and defragmentation can be performed. t DHCP relay agent - a DHCP relay packet has been received (depends on the distribution) t DHCP request - the FiOS Router sent a DHCP request (depends on the distribution) t DHCP response - the FiOS Router received a DHCP response (depends on the distribution) t DMZ network packet - a packet from a demilitarized zone network has been blocked.

123



6.10 Security Log t Echo/Chargen/Quote/Snork protection - a packet has been blocked due to

Echo/Chargen/Quote/Snork protection. t

Error: No memory

- a new connection has not been established because of lack of memory. t Firewall internal - from the firewall internal mechanism, in case this eventtype is recorded, an accompanying explanation will be added. t

Firewall rules were changed

- the firewall rule set has been modified. t Firewall status changed - the firewall changed status from up to down or the vice versa, as specified in the event type description. t

First packet in connection is not a SYN packet

- a packet has been blocked due to a TCP connection that started without a SYN packet. t Fragmented packet - a fragment has been rejected. t

Fragmented packet, bad align

- a packet has been blocked because, after defragmentation, the packet was badly aligned. t Fragmented packet, header too big - a packet has been blocked because, after defragmentation, the header was too big. t

Fragmented packet, header too small

- a packet has been blocked because, after defragmentation, the header was too small. t Fragmented packet, no memory - a fragmented packet has been blocked because there is no memory for fragments. t

Fragmented packet, overlapped

- a packet has been blocked because, after defragmentation, there were overlapping fragments. t Fragmented packet, packet exceeds - a packet has been blocked because, after defragmentation, the packet exceeded. t

Fragmented packet, packet too big

- a packet has been blocked because, after defragmentation, the packet was too big. t FTP port request to 3rd party is forbidden (Possible bounce attack) - a packet has been blocked.

124


FiOS Router User Manual t ICMP Flood Protection - a packet has been blocked, stopping an

ICMP (Internet Control Message Protocol) flood. t ICMP protection - a broadcast ICMP message has been blocked. t ICMP redirect protection - an ICMP redirected message has been blocked. t ICMP replay - an ICMP replay message has been blocked. t IGMP packet - an IGMP packet has been accepted. t Illegal packet options - the options field in the packet’s header is either illegal or forbidden. t IP Version 6 - an IPv6 packet has been accepted.

t IPV6 over IPV4 - an IPv6 over IPv4 packet has been accepted.

t Malformed packet: Failed parsing - a packet has been blocked because it is malformed. t Maximum security enabled service - a packet has been accepted because it belongs to a permitted service in the maximum security level. t Multicast IGMP connection - a multicast packet has been accepted. t NAT Error: Connection pool is full. No connection created - a connection has not been created because the connection pool is full. t NAT Error: Conflict Mapping already exists - a conflict occurred because the NAT mapping already exists, so NAT failed. t NAT Error: No free NAT IP - no free NAT IP, so NAT has failed. t NAT out failed - NAT failed for this packet. t Outbound Auth1X - an outbound Auth1X packet has been accepted. t Packet invalid in connection - an invalid connection packet has been blocked.

t Parental control - a packet has been blocked because of parental control. t Passive attack on ftp-server: Client attempted to open Server ports - a packet has been blocked.

125



6.10 Security Log t PPP Discover - a PPP discover packet has been accepted. t PPP Session - a PPP session packet has been accepted. t PPTP connection - a packet inquiring whether the FiOS Router is ready to receive a PPTP connection has been accepted. t Remote administration - a packet designated for the FiOS Router management has been accepted/blocked. t Router initiated traffic - all traffic the FiOS Router initiates is recorded. t Service - a packet has been accepted because of a certain service, as specified in the event type. t Spoofing protection - a packet from the Internet with a source IP belonging the local network has been blocked. t STP packet - an STP (Spanning Tree Protocol) packet has been accepted/rejected. t SynCookies Protection - a SynCookies packet has been blocked. t Trusted device - a packet from a trusted device has been accepted. t UDP Flood Protection - a packet has been blocked, stopping a UDP flood. t User authentication - a message arrived during login time, including both successful and failed authentication.

t Wildcard connection hooked - debug message regarding connection. t Wildcard connection opened - debug message regarding connection. t WinNuke protection - a WinNuke attack has been blocked.


126


6.10d Details

Displays a textual description of the event.

6.10e Log Settings

The “Log Settings” screen allows the user to modify the types of events that appear in the FiOS Router’s Security Log. Note that these settings correspond to event logging, not to the events themselves (i.e., disabling an event log removes the event from the Security Log; the event itself will continue to occur).

To view or change the security log settings:

1. Click Settings in the Security Log screen. The “Security Log Settings” screen appears.

2. Select the type of activities that will generate a log message: t Accepted Incoming Connections - activating this check box generates a log message for each successful attempt to establish an inbound connection to the local network. t Accepted Outgoing Connections - activating this check box generates a log message for each successful attempt to establish an outgoing connection to the public network.

127



6.10 Security Log

3. Select the type of blocked events to be listed in the log: t

All Blocked Connection Attempts

- activating this check box generates log messages for all blocked events.

t Other Blocked Events - if “All Blocked Connection Attempts” is un-checked, select specific blocked events from this list to generate log messages.

4.

Click in the “Remote Administration Attempts” check box to write a log message for each remote-administration connection attempt, whether successful or not.

5. Click in the “Connection States” check box to track connection handling by the firewall and Application Level Gateways (ALGs).

6.

Click

Apply

to save changes.


128

7

Using

Parental

Controls

7.0

Introduction

7.1

Activating Parental Controls

7.2

Rule Summary

129


The abundance of harmful information on the Internet poses a serious challenge for employers and parents alike: “How can I regulate what my employee or child does on the Internet?” With that question in mind, the FiOS Router’s Parental Controls were designed to allow control of Internet access on all locally networked devices.


130


7.1 Activating Parental Controls

To create a basic access policy for a computer on the FiOS Router’s network, click

Parental Control from the top of the Home screen and follow these instructions:

1. The “Parental Control” screen appears. From the “Networked Computer/

Device” list box, select a computer/device, then click Add . The computer/ device appears in the “Selected Devices” list box.

2. In the “Limit Access by” section, select one of the following options: t Block the following Websites and Embedded Keywords within a Website

- blocks all websites or keywords (see step 3) from being accessed on the computers/devices selected in step 1.

t A llow the following Websites and Embedded Keywords within a

Website - allows access only to the websites or keywords (see step 3) on the computers/devices selected in step 1.

t Blocking ALL Internet Access - blocks all Internet access on the computers/ devices selected in step 1.

131


7 Using Parental Controls

7.1 Activating Parental Controls

3. Enter the URL address of a website and, if applicable, the embedded keyword within the website. Click Add . The websites and/or keywords selected will appear in the textbox to the right. If you make a mistake, or wish to delete a previously entered website/keyword, select it, then click Remove .

4. If needed, you can create a schedule for when you want the rule to be active, or inactive. In the “Create Schedule” section, select the affected days.

5. Select whether the rule will be active or inactive during the schedule you created by clicking the radio button next to the appropriate option.


132


6. If you want more precise control over the schedule, set up an hourly schedule by entering the start and end times in the appropriate text boxes.

Make sure to specify AM or PM.

Note: The hourly schedule only affects the days selected in step 4. For example, if you select Saturday and Sunday, a start time of 10 a.m., and an end time of 3 p.m., the scheduled time will be Saturday/Sunday, 10 a.m. to 3 p.m.

7. In the “Create Rule Name” section, enter a rule name and description in the appropriate text boxes.

8. Click Apply to save and apply the new rule.

7.2 Rule Summary

Clicking Rule Summary from the menu on the left side generates the “Rule

Summary” screen.

The Rule Summary screen displays a list of all rules created for the FiOS Router.

Additionally, the rule can be viewed by clicking the magnifying glass in the

“View Rule” column, or edited by clicking on the icon in the “Edit Rule” column.

133


8

8.0

Introduction

8.1

Using Advanced Settings

8.2

Utilities

8.3

DNS Settings

8.4

Network Settings

8.5

Con

fi

guration Settings

8.6

Time Settings

8.7

Firmware Upgrade

8.8

Routing Settings

Con

fi

guring

Advanced

Settings


134

The FiOS Router’s Advanced Settings cover a wide range of sophisticated con

fi

gurations available for the Router’s

fi

rmware and network. Changes to any of the Advanced Settings could adversely a

ff

ect the operation of the FiOS Router and the local network, and should be made with caution by experienced network technicians only.

135


8 Con fi guring Advanced Settings

8.1 Using Advanced Settings

8.1 Using Advanced Settings

To access the FiOS Router’s Advanced Settings, click Advanced at the top of the Home screen. Click Yes in the Warning screen, and the “Advanced” screen appears.

The following settings are explained in this chapter: t Diagnostics - perform diagnostic tests on the FiOS Router t Restore Defaults - reset the FiOS Router to its default settings t Reboot Router - restart the FiOS Router t MAC Cloning - clone MAC addresses t ARP Table - display active devices and their IP and MAC addresses, etc.

t Users - create and manage remote users t Quality of Service (QoS) - explained in Appendix A of this manual t Local Administration - allows the user to grant local Telnet access t Remote Administration - explained in chapter 4 of this manual t Dynamic DNS - configure Dynamic DNS settings t DNS Server - manage the local (LAN) network for host name and IP address

136


FiOS Router User Manual t DLNA - Need more info t Universal Plug and Play - configure Universal Plug and Play settings t SIP ALG - manage SIP ALG settings t H323 ALG - manage H323 ALG settings t IGMP Proxy - manage IGMP Proxy settings t Port Forwarding Rules - manage and create open ports for various Internet protocols or customize an application t Configuration File - manage configuration files t System Settings - modify the FiOS Router’s system settings t Port Configuration - configure the FiOS Router’s ports t Date and Time - configure the FiOS Router’s clock and calendar t Scheduler Rules - schedule firewall activation t Firmware Upgrade - download and install new versions of the FiOS

Router’s firmware t Routing - manage routing policies t IP Address Distribution - manage the IP addresses of devices on the network

137



8.2 Utilities

8.2 Utilities

The first collection of Advanced Settings (beneath the Toolbox icon) are the

Utilities settings.

8.2a Diagnostics

The Diagnostics screen can assist in testing network connectivity. This feature pings (ICMP echo) an IP address and displays the results, such as the number of packets transmitted and received, round trip time, and success status. To diagnose network connectivity:

1. Click Diagnostics from the Advanced screen. The “Diagnostics” screen appears.

2. Enter the IP address or domain name to be tested in the “Destination” field.

3. Click Go .

4. In a few seconds, diagnostics statistics will be displayed. If no new information is displayed, click Refresh .


138


8.2b Restore Defaults

If the FiOS Router’s factory default settings need to be restored (to build a new network from the beginning, for example), use the following procedure:

1. Click Restore Defaults in the Advanced screen. The “Attention” screen appears.

2. If needed, click Save Configuration File to save the FiOS Router’s current configuration to a file. The FiOS Router’s current settings can then be reapplied after restoring default settings (see “Configuration File” in this chapter for more information).

3. Click Restore Defaults . The FiOS Router will restart, and factory default settings will be applied

Note: All of the FiOS Router’s settings and parameters will be restored to their default values after performing the Restore Default procedure. This includes the administrator password; a user-specified password will no longer be valid.

8.2c Reboot the FiOS Router

To reboot the FiOS Router:

1. Click Restart in the Advanced screen. The “Reboot Router” screen appears.

2. Click OK to restart the FiOS Router. This may take up to one minute.

To reenter the FiOS Router’s GUI after restarting the FiOS Router, click the web browser’s “Refresh” button.

139



8.2 Utilities

8.2d MAC Cloning

A MAC (Media Access Control) address is a hexadecimal code that identifies a device on a network. All networkable devices have a unique MAC address. When replacing another network device with the FiOS Router, the installation process can be simplified by copying the MAC address of the existing computer to the

FiOS Router. To do this:

1. Click MAC Cloning in the Advanced screen. The “MAC Cloning” screen appears.

2. Enter the MAC address to be cloned in the “To Physical Address” text boxes.

3. Click Clone My MAC Address to capture the MAC address of the computer currently accessing the FiOS Router’s GUI. The FiOS Router will now have the new MAC address.

8.2e ARP (Address Resolution Protocol) Table

Clicking ARP Table in the Advanced screen generates the “ARP Table” screen.

This screen displays the IP and MAC addresses of each DHCP connection.


140


8.2f Users

To manage individual users:

1. Click Users in the Advanced screen, which generates the “Users” screen.

2. Click New User , which generates the “User Settings” screen.

3. Specify the following parameters in the “General” section of the screen: t Full Name - The user’s full name. t User Name - The name a remote user will use to access the home or office network. This entry is case-sensitive. t New Password/Retype New Password - The password for the user (enter again to confirm).

t Permissions - The level of access the user is allowed. Options include

Administrator or Limited .

141



8.2 Utilities

4. E-mail Notification - Email notification can be used to receive indications of system events for a predefined severity classification. The available types of events are “System” or “Security” events. The available severity of events are Error , Warning , and Information . To configure email notification for a specific user:

5.

Make sure an outgoing mail server has been configured in “System Settings”.

If not, click

Click Here to Configure Notification Mail Server

to configure the outgoing mail server.

6. Enter the user’s email address in the “Notification Address” text box.

7.

Select the “System” and “Security” notification levels in the “System Notify

Level” and “Security Notify Level” drop-down lists.

Note: Changing any of the user parameters will prompt the connection associated with the user to terminate. For changes to take effect, activate the connection manually after modifying user parameters.

8.2g Quality of Service

The FiOS Router’s QoS (Quality of Service) capabilities are covered in detail in appendix A of this manual.


142


8.2h Local Administration

Clicking Local Administration in the Advanced screen generates the “Local

Administration” screen. This screen allows the user to grant local Telnet access using a particular Telnet port.

To use, select a Telnet port by clicking in the appropriate check box, then click Apply .

8.2i Remote Administration

The FiOS Router’s Remote Administration capabilities are covered in detail in the chapter 6 of this manual.

143



8.3 DNS Settings

8.3 DNS Settings

The second section of the Advanced window is the DNS (Domain Name System) settings section, which includes “Dynamic DNS” and “DNS Server.”

8.3a Dynamic DNS

Dynamic DNS creates a dynamic IP address that is aliased to a static hostname, allowing a computer on the network to be more easily accessible from the

Internet. Typically, when connecting to the Internet, the service provider assigns an unused IP address from a pool of IP addresses, and this address is used only for the duration of a specific connection. Dynamically assigning addresses extends the usable pool of available IP addresses, while maintaining a constant domain name. This allows the user to access a device (a camera, for example) from a remote location, since the device will always have the same IP address.

When using Dynamic DNS, each time the IP address provided by the ISP changes, the DNS database changes accordingly to reflect the change. In this way, even though the IP address of the computer changes often, its domain name remains constant and accessible.

Setting up Dynamic DNS

To set up Dynamic DNS on the FiOS Router, click Dynamic DNS in the Advanced screen. When the “Dynamic DNS” screen appears, click New Dynamic

DNS Entry .


144

Another Dynamic DNS screen appears.


Configure the following parameters:

Host Name

Enter the full Dynamic DNS domain in this text box.

Connection

Select the connection with which to couple the Dynamic DNS service. Options include Broadband Connection (Ethernet) , Broadband Connection (Coax) , and WAN PPPoE .

Provider

Select the FiOS Router’s Dynamic DNS account provider from the drop-down list.

User Name

Enter the Dynamic DNS user name in this text box.

Password

Enter the Dynamic DNS password in this text box.

145



8.3 DNS Settings

8.3b DNS Server

The Domain Name System (DNS) translates domain names into IP addresses, and vice versa. The FiOS Router’s DNS server is an auto-learning DNS, which means that when a new computer is connected to the network, the DNS server learns its name and automatically adds it to the DNS table. Other network users can immediately communicate with this computer using either its name or its

IP address.

The FiOS Router’s DNS also provides the following services: t shares a common database of domain names and IP addresses with the

DHCP server; t supports multiple subnets within the local network simultaneously; t automatically appends a domain name to unqualified names; t allows new domain names to be added to the database using the FiOS

Router’s GUI; t permits a computer to have multiple host names; t and permits a host name to have multiple IPs (needed if a host has multiple network cards).

The DNS server does not require configuration. However, the list of computers known by the DNS can be viewed or a new computer can be added to the list.

DNS Table

To view the list of computers stored in the DNS table, click DNS Server in the

Advanced screen. The “DNS Server” screen appears.


146


To add a new entry to the list:

1. Click Add DNS Entry in the DNS Server screen. The “DNS Entry” screen appears.

2. Enter the computer’s host name in the “Host Name” text box.

3. Enter the computer’s IP address in the “IP Address” text boxes.

4. Click Apply to save the changes.

8.4 Network Settings

The Network Settings section of the Advanced screen includes settings that affect the FiOS Router’s network.

8.4b Universal Plug and Play (UPnP)

To access the UPnP settings, perform the following:

1. Click Universal Plug and Play in the Advanced screen. The “Universal Plug and Play” settings screen appears.

147




2. Click in the “Allow Other Network Users to Control Wireless Broadband

FiOS Router’s Network Features” check box to enable UPnP and allow UPnP services to be defined on any of the network hosts.

3.

Click in the “Enable Automatic Cleanup of Old Unused UPnP Services” check box to enable automatic cleanup of invalid rules. When enabled, this feature checks validity of all the UPnP services and rules every five minutes. Any old and unused UPnP defined service is removed, unless a user defined rule depends on it. Since there is a maximum limitation on the number of UPnP defined services (256), enable the cleanup feature if the limit is in danger of being exceeded.

UPnP services are not deleted when disconnecting a computer without proper shutdown of the UPnP application (e.g., messenger). Thus, services may often not be deleted,. This will eventually lead to exhaustion of rules and services, and no new services can be defined. In this scenario, the cleanup feature will find the invalid services and remove them, preventing services exhaustion.

8.4c DLNA

This screen allows the user to enable/disable DLNA multimedia services. It is disabled by default. Do not enable this option unless instructed to do so by the ISP.

8.4c SIP ALG

This screen allows the user to enable/disable SIP ALG. It is disabled by default.

Do not enable this option unless instructed to do so by the ISP.


148


8.4d H323 ALG

This screen allows the user to enable/disable H323 ALG. It is disabled by default.

Do not enable this option unless instructed to do so by the ISP.

8.4e IGMP (Internet Group Management Protocol) Proxy

This screen allows the user to configure various IGMP proxy settings. For more information about the FiOS Router’s IGMP multicast capabilities, see “IGMP

Multicasting” in section 8.8 (“Routing Settings”) of this manual.

IGMP Proxy (Enable/Disable)

Activate or deactivate IGMP Proxy by clicking on the down arrow and selecting

Enabled or Disabled .

IGMP Version

Select the IGMP Proxy version by clicking on the down arrow and selecting

IGMPv1 , IGMPv2 , or IGMPv3 .

149




Fast Leave

Activate or deactivate Fast Leave by clicking on the down arrow and selecting

Enabled or Disabled .

Robustness

Robustness refers to the level of susceptibility the subnet is to lost packets.

Select the level of robustness by entering a number greater than or equal to 1.

Query Interval

The Query Interval is the amount of time between IGMP general query settings sent by the FiOS Router. The entered time period (in seconds) must be greater than or equal to 1.

Query Response Interval

The Query Response Interval is the maximum amount of time the FiOS Router waits to receive a response to a general query message. The entered time period

(in seconds) must be greater than or equal to 1.

Last Member Query Interval

Need info.

Maximum Multicast Groups

Need info.

Maximum Multicast Data Sources

Need info.

Maximum Multicast Group Members

Need info.

Lan to Lan Multicast Enable

Need info.

150



Interface Multicast Filtering

Clicking Interface Multicast Filtering from the menu on the left side of any

IGMP Proxy screen generates the Interface Multicast Filtering screen. Set the

Interface Multicast Filtering options for each listed interface (Ethernet, Coax, and

Wireless Access Point). When finished, click Apply .

Host Multicast Filtering

Clicking Host Multicast Filtering from the menu on the left side of any

IGMP Proxy screen generates the Host Multicast Filtering screen. Set the Host

Multicast Filtering options here. Clicking on the Action icon generates another screen in which the host entry options can be entered. When finished, click Apply .

151




ACL Multicast Filtering

Clicking

ACL Multicast Filtering

from the menu on the left side of any IGMP

Proxy screen generates the ACL Multicast Filtering screen. Set the ACL Multicast

Filtering options in this screen, including activating whitelists and/or blacklists.

Clicking

Add

generates a new screen in which additional addresses can be added to the list(s). When finished, click

Apply

.

Service Multicast Filtering

Clicking Service Multicast Filtering from the menu on the left side of any IGMP

Proxy screen generates the Service Multicast Filtering screen. When finished, click Apply .


152


Clicking Add generates the Multicast Service screen, in which additional services can be added, maximum STBs and non-STBs can be set, and new multicast addresses can be created (by clicking Add ). When finished, click Apply .

153




8.5e Port Forwarding Rules

Port forwarding rules include a list of preset and user-defined applications and common port settings. These rules can be used in various security features, such as Access Control and Port Forwarding. New rules can be added to support new applications or existing ones can be edited when needed. Additionally, clicking

Advanced on the bottom of the “Port Forwarding Rules” screen reveals a list of preconfigured protocols that can be activated with a single click. To define a port forwarding rule:

1. Click Port Forwarding Rules in the Advanced screen. The “Port Forwarding

Rules” screen appears.

2. In the “Create New Service Port” section of the screen, select a protocol from the “Protocol” drop-down list. If no protocol is necessary, click in the

“Exclude Protocol” check box

3. Select a service port from the “Service Port” drop-down list.

4. Select a destination port from the “Destination Port” drop-down list.


154



8.5 Configuration Settings

This section includes settings that affect the FiOS Router’s configuration.

8.5a Configuration File

Use the FiOS Router’s Configuration File feature to view, save, and load configuration files, which are used to backup and restore the FiOS Router’s current configuration. To do this:

1. Click Configuration File in the Advanced screen. The “Configuration File” screen appears.

2. Click Load Configuration File to load the previous configuration from a file and restart the FiOS Router. Only configuration files saved on a particular

FiOS Router can be applied to the FiOS Router; configuration files cannot be transferred between FiOS Routers.

3. Click Save Configuration File to backup the current configuration to a file.

WARNING!

Manually editing a configuration file can cause the FiOS Router to malfunction or become completely inoperable.

155



8.5 Con fi guration Settings

8.5b System Settings

Clicking System Settings in the Advanced screen generates the “System

Settings” screen, where various system and management parameters can be configured.


156


System

Use the “System” section of this screen to configure the following two options:

Wireless Broadband Router’s Hostname - Specify the FiOS Router’s host name by entering it into the this text box. The host name is also the FiOS Router’s URL address, so it can be entered here, rather than entering 192.168.1.1.

Local Domain

- Specify the network’s local domain by entering it into this text box.

Wireless Broadband Router

Use this section to configure the following:

Automatic Refresh of System Monitoring Web Page - Click in this check box to activate the automatic refresh of system monitoring web pages.

Prompt for Password When Accessing via LAN

- Click in this check box to cause the FiOS Router to ask for a password when trying to connect to the network.

Warn User Before Network Configuration Changes - Click in this check box to activate user warnings before network configuration changes take effect.

Session Lifetime

- After the FiOS Router has been inactive for a period of time, the user must reenter a user name and password to continue accessing the GUI.

To change the length of this time period, enter the amount of time (in seconds) in the “Session Lifetime” text box.

Configure a number of concurrent users… - Used to limit the number of users that can access the FiOS Router at the same time. Select the number of users from the drop-down list.

157




Management Application Ports

This section allows the following management application ports to have their default port numbers to be changed: t primary/secondary HTTP ports t primary/secondary HTTPS ports t primary/secondary Telnet ports t secure Telnet over SSL ports

Management Application SSL Authentication Options

This section allows the user to access the FiOS Router’s GUI through a browser or

Telnet as a secure socket layer (SSL) session.

System Logging

Use this section to configure the following system log options.

Enable Logging - Click in this check box to activate system logging.

Low Capacity Notification Enabled - Click in this check box to activate low capacity notification (works in tandem with “Allowed Capacity Before Email

Notification” and “System Log Buffer Size” options).

Allowed Capacity Before Email Notification - Enter the percentage of system log buffer capacity reached to trigger an email notification.

System Log Buffer Size - Enter the size of the system log buffer in this text box.

Remote System Notify Level - This feature is used to specify the type of information received for remote system logging. Options include None , Error ,

Warning , and Information .


158


Security Logging

Use this section to configure the following security log options.

Low Capacity Notification Enabled - Click in this check box to activate low capacity notification (works in tandem with “Allowed Capacity Before Email

Notification” and “Security Log Buffer Size” options).

Allowed Capacity Before Email Notification - Enter the percentage of security log buffer capacity reached to trigger an email notification.

Security Log Buffer Size - Enter the size of the security log buffer in this text box.

Remote Security Notify Level - This feature is used to specify the type of information received for security logging. Options include None , Error ,

Warning , and Information .

Outgoing Mail Server

Use this section to configure the outgoing mail server options. This server is used to format and send system and security log email notifications.

Server - Enter the host name of the outgoing (SMTP) server in this text box.

From Email Address - Email notifications require a “from” address. Enter a “from” email address in this text box.

Port - Enter the port number of the email server in this text box.

Server Requires Authentication - If the email server requires authentication, click in this check box, then enter a user name and password in the “User Name” and “Password” text boxes that appear.

Auto WAN Detection

When activated, Auto WAN Detection causes the FiOS Router to automatically search for a WAN connection.

Enable Logging - Clicking in this check box activates automatic WAN detection.

PPP Timeout - Enter the amount of time (in seconds) before the FiOS Router stops attempting to establish a broadband PPP connection.

159




DHCP Timeout - Enter the amount of time (in seconds) before the FiOS Router stops attempting to establish a broadband DHCP connection.

Number of Cycles

- Enter the number of times the FiOS Router attempts to detect a broadband PPP and DHCP connection.

Auto Detection Continuous Trying - Click in this check box to cause the FiOS

Router to indefinitely search for a broadband connection.

8.5c Ethernet Port Configuration

Ethernet port configuration allows the user to set up the FiOS Router’s Ethernet ports as either full- or half-duplex ports, at either 10 Mbps or 100 Mbps.

Selecting the “Auto” option causes the port to emulate the speed and duplex configuration of the port with which it is communicating.


160


8.6 Time Settings

The Time settings section of the Advanced window features utilities that involve times, dates and schedules.

8.6a Date and Time

To configure date, time, and daylight saving settings, perform the following:

1. Click Date and Time in the Advanced screen. The “Date and Time” screen appears.

2. Select the local time zone from the drop-down list. The FiOS Router can automatically detect daylight saving setting for selected time zones. If the daylight saving settings for a time zone are not automatically detected, the following four fields will be displayed: t Enabled - Select this check box to enable daylight saving time. t Start - Date and time when daylight saving starts. t End - Date and time when daylight saving ends. t Offset - The amount of time daylight saving time changes.

161



8.6 Time Settings

To perform an automatic time update:

1.

Click in the “Enabled” check box in the “Automatic Time Update” section.

2. Select the protocol to be used to perform the time update by selecting either the “Time of Day” or “Network Time Protocol” radio button.

3.

Specify how often to perform the update in the “Update Every” text box.

4. Define time server addresses by clicking Add on the bottom of the

“Automatic Time Update” section and entering the IP address or domain name of the time server in the “Time Server Settings” screen.

8.6c Clock Set

Click on this button at the bottom of the Date and Time screen (which generates the figure, below) to set the FiOS Router’s time and date.


162


8.6b Scheduler Rules

Scheduler rules are used for limiting the activation of firewall rules to specific time periods, either for days of the week, or for hours of each day. To define a rule:

1. Make sure the FiOS Router’s date and time are set correctly. To do this, see the “Date and Time” section in this chapter.

2. Click Scheduler Rules in the Advanced screen. The “Scheduler Rules” screen appears.

3. Enter a name for the rule in the “Rule Name” text box.

4. Select or active or inactive days of the week by clicking in the appropriate text boxes.

5. Enter a start and end time in the appropriate text boxes.

6. Click Add Rule to add the schedule rule. The new schedule rule appears in the list at the bottom of the screen

7. Click Apply .

Note: Make sure the FiOS Router’s date and time settings are properly configured for the time zone.

163




8.7 Firmware Upgrade

The FiOS Router offers a built-in mechanism for upgrading its firmware without losing custom configurations and settings. There are two methods for upgrading the firmware: t Upgrading from the Internet - use this method to upgrade the FiOS

Router’s firmware by remotely downloading an updated software image file. t Upgrading from a local computer - use a software image file predownloaded to the computer’s disk drive to upgrade.

8.7a Upgrading From the Internet

The FiOS Router’s firmware can be automatically updated via the Internet. From the drop-down list next to the globe icon near the top of the Firmware Upgrade screen, a list of options appears, as described below.

Automatically Check and Upgrade

If “Automatically Check for New Version and Upgrade Wireless Broadband

Router” is selected, enter the period of time the FiOS Router checks for a new upgrade, and the URL at which to get the upgrade, in the appropriate text boxes. The FiOS Router will then check at each time interval for upgrades and, if one is available, upgrade the FiOS Router’s firmware.

Automatically Check and Send E-mail

If “Automatically Check for New Version and Notify via Email” is selected, enter the period of time the FiOS Router checks for a new upgrade, and the URL at which to get the upgrade, in the appropriate text boxes. The FiOS Router will then check at each time interval for firmware upgrades and, if one is available, send an email to the address listed in the System Settings.


164


Automatic Check Disabled

If “Automatically Check Disabled” is selected, the FiOS Router will not automatically check for firmware upgrades.

Manual Checking and Upgrading

To manually upgrade the FiOS Router’s firmware:

1. Click Check Now in the Firmware Upgrade screen.

2. If a new version is available, click Force Upgrade . A download process will begin. When downloading is completed, a confirmation screen appears, asking whether to upgrade to the new version.

3. Click Apply . The upgrade process will begin and should take no longer than one minute to complete.

At the conclusion of the upgrade process the FiOS Router automatically reboots.

The new firmware runs, maintaining any custom configurations and settings.

8.7b Upgrading From a Local Computer

To upgrade from a local computer:

1. Click Firmware Upgrade from the Advanced screen. The “Firmware

Upgrade” screen appears.

165




2. In the “Upgrade From a Computer in the Network” section, click Upgrade

Now . The “Upgrade From a Computer in the Network” screen appears.

3. Enter the path of the software image file, or press the “Browse” button to browse for the file, and click Apply . Make sure to only use files with an “rmt” extension when performing the firmware upgrade procedure.

4. When loading is completed, a confirmation screen appears, asking whether to upgrade to the new version. Click Apply . The upgrade process begins and should take no longer than one minute to complete.

5. When the upgrade process ends, the FiOS Router automatically reboots. The new firmware will run, maintaining any custom configurations and settings.


166


8.8 Routing Settings

The final section of the Advanced screen is Routing settings, which includes

Routing and IP Address Distribution.

8.8a Routing

Access the routing table rules by clicking Routing in the Advanced screen. The

“Routing” screen appears.

Routing rules can be added, edited, or deleted from the Routing screen. To add a router, click New Route . The “Route Settings” screen appears.

When adding a routing rule, the following parameters must be specified: t Rule Name - Select the type of network from the drop-down list. t Destination - The destination is the destination host, subnet address, network address, or default route. The destination for a default route is 0.0.0.0.

167



8.8 Routing Settings t Netmask - The network mask is used in conjunction with the destination to determine when a route is used. t

Gateway

- Enter the FiOS Router’s IP address. t Metric - A measurement of the preference of a route. Typically, the lowest metric is the most preferred route. If multiple routes exist to a given destination network, the route with the lowest metric is used.

IGMP (Internet Group Management Protocol) Multicasting

The FiOS Router provides support for IGMP multicasting. A multicast is simply a message that is sent simultaneously to a pre-defined group of recipients. When joining a multicast group, all messages addressed to the group will be received by the user, much like when an email message is sent to a mailing list. To activate IGMP multicasting:

1.

Select

Routing

in the Advanced screen.

2. Activate the “Internet Group Management Protocol” check-box.

3.

Click

Apply

.

Domain Routing

Domain routing is used in multi-router local network configurations. Normally, to access a device connected to one router from another router on the network, its IP address must be used. Activating domain routing (by clicking in the appropriate check box) allows the user access to the computer by name (as well as IP address).


168


8.8b IP Address Distribution

The FiOS Router’s DHCP server makes it possible to easily add computers configured as DHCP clients to the network. It provides a mechanism for allocating IP addresses to these hosts and for delivering network configuration parameters to them.

For example, a client (host) sends out a broadcast message on the network requesting an IP address for itself. The DHCP server then checks its list of available addresses and leases a local IP address to the host for a specific period of time and simultaneously designates this IP address as “taken.” At this point, the host is configured with an IP address for the duration of the lease.

The host can choose to renew an expiring lease or let it expire. If it chooses to renew a lease, it will also receive current information about network services, as it did with the original lease, allowing it to update its network configurations to reflect any changes that occurred since it first connected to the network. If the host wishes to terminate a lease before its expiration, it can send a release message to the DHCP server, which will then make the IP address available for use by others.

The FiOS Router’s DHCP server: t displays a list of all DHCP hosts devices connected to the FiOS Router; t defines the range of IP addresses that can be allocated in the network; t defines the length of time for which dynamic IP addresses are allocated; t provides the above configurations for each network device and can be configured and enabled/disabled separately for each network device; t can assign a static lease to a network computer to receive the same IP address each time it connects to the network, even if this IP address is within the range of addresses that the DHCP server may assign to other computers; t provides the DNS server with the host name and IP address of each computer connected to the network.

169




To view a summary of the services currently being provided by the DHCP server, click IP Address Distribution in the Advanced screen. The “IP Address

Distribution” screen appears.

Editing DHCP Server Settings

To edit the DHCP server settings for a device:

1. Click the appropriate icon in the “Action” column. The “DHCP Settings” screen for the device appears.

2. Select the “IP Address Distribution” from the drop-down list. Options include

DHCP Server , DHCP Relay , or Disable .


170


3. Complete the following fields: t Start IP Address Range, End IP Address Range - determines the number of hosts connected to the network in this subnet. “Start” specifies the first IP address assigned in this subnet and “End” specifies the last IP address in the range. t Subnet Mask - used to determine to which subnet an IP address belongs. An example of a subnet mask value is 255.255.0.0.

t WINS Server - The WINS (Windows Internet Naming Service) server determines the IP address associated with a network device.

t Lease Time - each device will be assigned an IP address by the DHCP server for a limited time (“Lease Time”) when it connects to the network. When the lease expires, the server will determine if the computer has disconnected from the network. If it has, the server may reassign this IP address to a newlyconnected computer. This feature ensures that IP addresses not in use will become available for other computers on the network. t Provide host name if not specified by client - when activated, the FiOS

Router assigns the client a default name if the DHCP client has no host name.


DHCP Connections

To view a list of computers currently recognized by the DHCP server, click

Connection List at the bottom of the IP Address Distribution screen. The “DHCP

Connections” screen appears.

171




To define a new connection with a fixed IP address:

1.

Click

New Static Connection

in the DHCP Connections screen. The “DHCP

Connection Settings” screen appears.

2. Enter a host name for this connection.

3. Enter the fixed IP address to assign to the computer.

4. Enter the MAC address of the computer’s network card.

5. Click the Apply to save changes.

Note: A device’s fixed IP address is actually assigned to the specific network card’s MAC address installed on the network computer. If this network card is replaced, the device’s entry in the DHCP Connections list must be updated with the new network card’s MAC address.

To remove a host from the table, click the appropriate “Delete” icon in the

Action column.


172

9

9.0

Introduction

9.1

Router Status

9.2

Advanced Status

Monitoring the FiOS

Router

173


The FiOS Router’s System Monitoring screens display important system information, including basic router settings, system log, key network device parameters, and network tra

ffi

c statistics.


174


9.1 Router Status

Click System Monitoring at the top of the Home screen to display the “Router

Status” screen, which displays the FiOS Router’s basic settings.

9.2 Advanced Status

After selecting

Advanced Status

and clicking

Yes

in the Warning screen, the monitoring options appear:

System Logging

,

Full Status/System wide

Monitoring of Connections

,

Traffic Monitoring

,

Broadband Monitoring, and

IGMP Proxy

.

175


9 Monitoring the FiOS Router

9.2 Advanced Status

9.2a System Logging

Click System Logging in the Advanced Status screen to generate the “System

Log” screen. The System Log displays a list of the most recent activities of the

FiOS Router.


176


9.2b Full Status/System wide Monitoring of Connections

1. Click Full Status/System wide Monitoring of Connections in the

Advanced Status screen (and click through the Warning screen) to generate the “Full Status/System wide Monitoring of Connections” screen, which features a table summarizing the monitored connection data.

2. Click Refresh to update the table, or click Automatic Refresh On to constantly update the displayed parameters.

177


9 Monitoring the FiOS Router

9.2 Advanced Status

9.2c Traffic Monitoring

The FiOS Router constantly monitors traffic within the local network and between the local network and the Internet. To view up-to-the-second statistical information about data received from and transmitted to the Internet, and about data received from and transmitted to computers in the local network, click Traffic Monitoring in the Advanced Status screen. This generates the

“Traffic Monitoring” screen.

9.2d Bandwidth Monitoring

To monitor the FiOS Router’s bandwidth use, click Bandwidth Monitoring . The

“Bandwidth Monitor” screen appears.


178


9.2e IGMP Proxy

To monitor the FiOS Router’s IGMP Proxy settings, click IGMP Proxy . The “IGMP

Host Multicast Group Membership” screen appears, giving the user an overview of the IGMP Proxy status on the FiOS Router. For more information about how to set up IGMP proxy on the FiOS Router, see section 8.4e (“IGMP Proxy” ). For more information about the FiOS Router’s IGMP multicasting capabilities, see

“IGMP Multicasting” in section 8.8 (“Routing Settings”).

179


10

10.0

Introduction

10.1

Troubleshooting Tips

10.2

Frequently Asked

Questions

Troubleshooting


180

This chapter lists a selection of problems that may be encountered while using the

FiOS Router, and o

ff

ers suggestions that may overcome them. Note that these suggestions may not solve the problem

(or problems). Also included is a list of frequently asked questions.

181


10 Troubleshooting

10.1 Troubleshooting Tips

10.1 Troubleshooting Tips

Accessing the FiOS Router if Locked Out

If the FiOS Router’s connection is lost while making configuration changes, a setting that locks access to the FiOS Router’s GUI may have inadvertently been activated. There are three common ways to lock access to the FiOS Router:

Scheduler If a schedule has been created that applies to the computer over the connection being used, the FiOS Router will not be accessible during the times set in the schedule. To regain access, either wait until the connection is scheduled to be active again, or restore the default settings to the FiOS Router.

LAN Firewall If the firewall setting for the local network is set to maximum, no computers from the network will be able to connect to the FiOS Router. To gain access, restore the default settings to the FiOS Router.

Access Control If the access control setting for the computer is set to block the computer, access to the FiOS Router will be denied. To gain access, restore the default settings to the FiOS Router.

Restoring the FiOS Router’s Default Settings

There are two ways to restore the FiOS Router’s default settings. The first is to use the tip of a ballpoint pen and press and hold the “Reset” button on the back of the FiOS Router for at least ten seconds. The second is to access the

FiOS Router’s GUI and navigate to the “Advanced Settings” screen. Click Restore

Defaults and read the instructions on-screen. Note that after performing either of these two procedures, all previously saved settings on the FiOS Router will be lost.


182


LAN Connection Failure t Ensure the FiOS Router is properly installed, the LAN connections are correct, and the power is on.

t Confirm the computer and FiOS Router are on the same network segment.

If unsure, let the computer get the IP address automatically by initiating the

DHCP function, then verify the computer is using an IP address within the default range (192.168.1.2 through 192.168.1.254). If the computer is not using an IP address within the range, it will not connect to the FiOS Router.

t Ensure the Subnet Mask address is set to 255.255.255.0.

Time out error occurs when entering a URL or IP Address t Verify all the computers are working properly.

t Ensure the IP settings are correct.

t Ensure the FiOS Router is on and connected properly.

t Verify the FiOS Router’s settings are the same as the computer.

10.2 Frequently Asked Questions

I’ve run out of Ethernet ports on my FiOS Router. How do I add more computers?

Plugging in an Ethernet hub or switch expands the number of ports on the FiOS

Router. Run a standard Ethernet cable from the “Uplink” port of the new hub or switch to a yellow Ethernet port on the FiOS Router.

How do I change the password on the FiOS Router’s Graphical

User Interface?

From the FiOS Router’s GUI Home screen, click Advanced , then Users . From the

“Users” screen, click Administrator , which generates the “User Settings” screen.

In the “General” section of the screen, change the password.

183




Is the wireless option on by default on the FiOS Router?

Yes. The FiOS Router’s wireless option is activated out of the box.

Is the wireless security on by default when the wireless option is activated?

Yes, with a unique WPA (Wi–Fi Protected Access) key that is printed on the sticker on the back of the FiOS Router.

Which connection speeds does the FiOS Router support?

The Ethernet Internet connection supports 100 Mbps. The LAN Ethernet connections support 10/100/1000 Mbps. The 802.11n wireless connection supports up to 160 Mbps (depending on signal quality, etc.). The MoCA connection supports 270 Mbps.

Are the FiOS Router’s Ethernet ports auto-sensing?

Yes. Either a straight-through or crossover Ethernet cable can be used.

Can I use an 802.11b wireless card to connect to the FiOS Router?

Yes, the FiOS Router can interface with 802.11b, g, or n cards. The FiOS Router can be setup to handle only n wireless cards, g wireless cards, b wireless cards, or any combination of the three.

Can my wireless signal pass through floors, walls, and glass?

The physical environment surrounding the FiOS Router can have a varying effect on signal strength and quality. The more dense the object (a concrete wall compared to a plaster wall, for example), the greater the interference. Concrete or metal-reinforced structures will experience a higher degree of signal loss than those made of wood, plaster, or glass.


184


How do I find out what IP address my computer is using?

Windows 7 - Click the Windows button and select Control Panel . In the Control

Panel, click View Network Status and Tasks . In the next window, click Local

Area Connection . In the “Local Area Connection Status” window, click Details .

Windows Vista - Click the Windows button and select Control Panel . In the

Control Panel, click Network and Sharing Center . In the “Network and Sharing

Center” window, click View Status . In the “Local Area Connection Status” window, click Details .

Windows 2000, XP - Select Start , Run and type “cmd.” Press Enter . When the command screen appears, type “ipconfig” and press Enter .

My computer cannot connect to the Internet via MoCA. What should I do?

First, check the connection, and make sure all cables are connected correctly.

Then make sure the NIM is still connected, and check the Ethernet connection to the NIM from the computer. A computer cannot be connected directly via a

MoCA cable; it must go through a NIM to connect. The NIM converts the MoCA signal to an Ethernet signal the computer can understand.

I used DHCP to configure my network. Do I need to restart my computer to refresh my IP address?

No. Follow these steps to refresh the IP address:

Windows 7, Vista, XP - Unplug the Ethernet cable or wireless card and plug it back in.

Windows 2000 - Select Start , Run , type “cmd,” and press Enter . At the DOS prompt, type “ipconfig /release” and press Enter , then type “ipconfig /renew” and press Enter .

I cannot access the FiOS Router’s Graphical User Interface? What should

I do?

If you cannot access the FiOS Router’s Graphical User Interface (GUI), make sure the computer connected to the FiOS Router is set up to dynamically receive an

IP address.

185




I have an FTP or Web server on my network. How can I make it available to users on the Internet?

For a Web server, enable port forwarding for port 80 to the IP address of the server. Also, set up the Web server to receive on that port. (Configuring the server to use a static IP address is recommended.)

For an FTP server, enable port forwarding for port 21 to the IP address of the server. (Configuring the server to use a static IP address is recommended.)

How many computers can be connected through the FiOS Router?

The FiOS Router is capable of 254 connections, but we recommend having no more than 45 connections. As the number of connections increase, the available speed for each computer decreases.

What is the default user name for the FiOS Router?

The default user name for the FiOS Router is “admin” (all lower case, no quotation marks). When logging into the FiOS Router the first time (or after restoring the FiOS Router’s default settings), the user is asked to create a new user name and password. Enter the new user name and password, write them down on a piece of paper, and keep it in a safe place. The new user name and password will be needed to access the FiOS Router’s GUI in the future.


186

A

A.0

Introduction

A.1

Tra

ffi

c Priority

A.2

Tra

ffi

c Shaping

Con

fi

guring

Quality of

Service

187


Quality of Service refers to the capability of a network device to provide better service to selected network tra

ffi

c. This is achieved by shaping the tra

ffi

c and processing higher priority tra

ffi

c before lower priority tra

ffi

c. The FiOS Router provides several di

ff

erent methods of con

fi

guring Quality of Service.


188


STOP!

Do not change any Quality of Service settings unless instructed to do so by the ISP.

A.1 Traffic Priority

Traffic Priority manages and avoids traffic congestion by defining inbound and outbound priority rules for each device on the FiOS Router. These rules determine the priority that packets, traveling through the device, will receive.

QoS parameters (DSCP marking and packet priority) are set per packet, on an application basis.

QoS can be configured using flexible rules, according to the following parameters: t Source/destination IP address, MAC address, or host name t Device t Source/destination ports t Limit the rule for specific days and hours

The FiOS Router supports two priority marking methods for packet prioritization: t DSCP t 802.1p Priority

The matching of packets by rules is connection-based, known as Stateful

189


A Con fi guring Quality of Service

A.1 Tra ffi c Priority

Packet Inspection (SPI), using the FiOS Router’s firewall mechanism. Once a packet matches a rule, all subsequent packets with the same attributes receive the same QoS parameters, both inbound and outbound. Connection-based

QoS also allows inheriting QoS parameters by some of the applications that open subsequent connections. For instance, QoS rules can be defined on SIP, and the rules will apply to both control and data ports (even if the data ports are unknown). Applications that support such inheritance have an ALG in the firewall. They are: t SIP t MSN Messenger/Windows Messenger t TFTP t FTP t MGCP t H.323 t Port triggering applications t PPTP t IPSec


190


A.1a Setting Traffic Priority Rules

To set traffic priority rules:

1. Click Quality of Service in the Advanced screen. The “Traffic Priority” screen appears, which lists all the devices on which rules can be set.

2. Click Add in the appropriate row. The “Add Traffic Priority Rule” screen appears.

191



A.2 Tra ffi c Shaping

3. Select an option from the “Source Address” drop-down list. If selecting

“Specify IP,” enter the IP address in the appropriate “IP Address” text box.

4. Select an option from the “Destination Address” drop-down list. If selecting

“Specify IP,” enter the IP address in the appropriate “IP Address” text box.

5. From the “Protocol” drop-down list, select a protocol option.

6. If applicable, select an option from the “Source Ports” and “Destination Ports” drop-down lists.

7. Click in the “Set DSCP” check box to mark a DSCP value on packets matching a connection that matches this rule, then enter the Hex value of the DSCP in the appropriate text box.

8. Click in the “Set Priority” check box to add a priority to the rule, then select one of the eight priority levels. Zero is the lowest priority, and seven the highest (each priority level is mapped to low/medium/high priority). This sets the priority of a packet on the connection matching the rule, while routing the packet.

A.2 Traffic Shaping

Traffic Shaping is the solution for managing and avoiding congestion where the network meets limited broadband bandwidth. Typical networks use a 100

Mbps Ethernet LAN with a 100 Mbps WAN interface router, which is where most bottlenecks occur.

A traffic shaper is essentially a regulated queue that accepts uneven and/or bursty flows of packets and transmits them in a steady, predictable stream so that the network is not overwhelmed with traffic. While traffic priority allows basic prioritization of packets, traffic shaping provides more sophisticated definitions, such as: t Bandwidth limit for each device t Bandwidth limit for classes of rules t Prioritization policy t TCP serialization on a device

192



Additionally, QoS traffic shaping rules can be defined for a default device. These rules will be used on a device that has no definitions of its own. This enables the definition of QoS rules on the default WAN, for example, and their maintenance even if the PPP or bridge device over the WAN is removed.

A.2a Device Traffic Shaping

This section describes the different Traffic Shaping screens and terms, and presents the feature’s configuration logic.

1. Click Quality of Service in the Advanced screen, then click Traffic Shaping .

The following screen appears.

2. Click Add . The “Add Device Traffic Shaping” screen appears.

3. Select the device for which the traffic will be shaped. The drop-down list includes all the FiOS Router’s devices.

4. Click Apply . A “Tx Traffic Shaping” section appears in the screen.

5. Select “Specify” or “Unlimited” from the “Tx Bandwidth” drop-down list.

If “Specify is selected, enter the bandwidth amount (in Kbps) in the appropriate text box.

6. Click Apply .

193




A.2c Ingress Data

The FiOS Router can control outgoing data fairly easily. It can queue packets, delay them, give precedence to other packets, or drop them. This helps in resolving upload (Tx) traffic bottlenecks, and in most cases is sufficient. However, in the case of download (Rx) traffic bottlenecks, the ability to control the flow is much more limited. The FiOS Router cannot queue packets, since in most cases the local network (LAN) is much faster than the Internet (WAN), and when the

FiOS Router receives a packet from the Internet, it passes it immediately to the local network.

QoS for ingress data has the following limitations, which do not exist for outgoing data: t QoS can only be applied to TCP streams (UDP streams cannot be delayed); t no borrowing mechanism; t and when reserving Rx bandwidth, it is strictly taken from the bandwidth of all other classes.

Furthermore, the FiOS Router cannot control the behavior of the ISP, which may not have proper QoS handling. Unfortunately, this is a common situation. Let’s look at a scenario of downloading a large file and surfing the Internet at the same time. Downloading the file is distinguished by small requests, followed by very large responses. This may result in blocking HTML traffic at the ISP.

A solution for such a situation is limiting the bandwidth of low-priority TCP connections (such as the file download).

A.2d Differentiated Services Code Point Settings

In order to understand what DSCP is, one must first be familiarized with the

Differentiated Services model.

Differentiated Services (Diffserv) is a Class of Service (CoS) model that enhances best-effort Internet services by differentiating traffic by users, service requirements, and other criteria. Packets are specifically marked, allowing network nodes to provide different levels of service, as appropriate for voice calls, video playback, or other delay-sensitive applications, via priority queuing or bandwidth allocation, or by choosing dedicated routes for specific traffic flows.

194



Diffserv defines a field in IP packet headers referred to as the Differentiated

Services Codepoint (DSCP). Hosts or routers passing traffic to a Diffserv-enabled network will typically mark each transmitted packet with an appropriate DSCP.

The DSCP markings are used by Diffserv network routers to appropriately classify packets and to apply particular queue handling or scheduling behavior.

The FiOS Router provides a table of predefined DSCP values, which are mapped to 802.1p priority marking method. Any of the existing DSCP setting can be edited or deleted, and new entries can be added.

1. Click Quality of Service at the top of the Home screen, then click DSCP

Settings . The “DSCP Settings” screen appears.

2. To edit an existing entry, click the appropriate icon in the “Action” column.

To add a new entry, click Add . In either case, the “Edit DSCP Settings” screen appears.

195




3. Configure the following parameters:

DSCP Value (hex)

- Enter the DSCP value as a hexadecimal value.

802.1p Priority - Select a 802.1p priority level from the drop-down list, zero being the lowest and seven the highest (each priority level is mapped to low/medium/high priority). The default DSCP value for packets with an unassigned value is zero.

4.

Click

Apply

to save the settings.

A.2e 802.1p Settings

The IEEE 802.1p priority marking method is a standard for prioritizing network traffic at the data link/Mac sub-layer. 802.1p traffic is simply classified and sent to the destination, with no bandwidth reservations established.

The 802.1p header includes a 3-bit prioritization field, which allows packets to be grouped into eight levels of priority. By default, the highest priority is seven, which might be assigned to network-critical traffic. Values five and six may be applied to delay-sensitive applications such as interactive video and voice. Data classes four through one range from controlled-load applications down to “loss eligible” traffic. Zero is the value for unassigned traffic and used as a best effort default, invoked automatically when no other value has been set.

A packet can match more than one rule. This means that: t The first class rule has precedence over all other class rules (scanning is stopped once the first rule is reached).

t The first traffic-priority (classless) rule has precedence over all other traffic priority rules.

t There is no prevention of a traffic-priority rule conflicting with a class rule. In this case, the priority and DSCP setting of the class rule (if given) will take precedence.


196


1. Click Quality of Service in the Advanced screen, then click 802.1p Settings .

The “802.1p Settings” screen appears.

2. The eight 802.1p values are pre-populated with the three priority levels:

Low , Medium , and High . These levels can be changed for each of the eight values in their respective drop-down lists.

3. Click Apply to save the settings.

A.2f Class Statistics

The FiOS Router provides accurate, real-time information on the traffic moving through the defined device classes. For example, the amount of packets sent, dropped, or delayed are just a few of the parameters monitored per each shaping class.

To view class statistics, click Quality of Service at the top of the Home screen, then click Class Statistics . The following screen appears. Note that class statistics will only be available after defining at least one class (otherwise the screen will not present any information).

197




A.2g Class Identifier

To create a class identifier, click Quality of Service in the Advanced screen, then click Class Identifier.

The “Class Identifier” screen appears.

Enter the information needed in the appropriate text boxes, then click

Apply

.


198

B

B.0

Introduction

B.1

General

B.2

LED Indicators

B.3

Environmental

Speci

fi

cations

199


This appendix lists the FiOS Router’s speci

fi

cations, including standards, cabling types, and environmental parameters.

Note that the speci

fi

cations listed in this appendix are subject to change without notice.


200


B.1 General

Model Number

MI424WR rev. I (FiOS Router)

Standards

IEEE 802.3x, 802.3u

IEEE 802.11b, g, n (wireless)

IP

IP version 4

MoCA

Two channels (WAN, LAN)

WAN MoCA frequency: 975 MHz - 1025 MHz (single channel)

LAN MoCA frequency: 1125 MHz - 1425 MHz (6 channel)

Speed

Wired

LAN Ethernet: 10/100/1000 Mbps auto-sensing

Wireless

802.11b - up to 11 Mbps

802.11g - up to 54 Mbps

802.11n - up to 160 Mbps

Cabling Type

Ethernet 10BaseT : UTP/STP Category 3 or 5

Ethernet100BaseTX : UTP/STP Category 5

Ethernet1000BaseTX : UTP/STP Category 5e

Firewall

ICSA certified

201


B Speci fi cations

B.2 LED Indicators

B.2 LED Indicators

Power, WAN Ethernet, WAN Coax, Internet, LAN Ethernet (4), LAN Coax, USB (2),

Wireless, WPS

B.3 Environmental Parameters

Dimensions

Size : 1.875” x 10” x 7.4”

Weight : 2.175 lbs.

Power

External, 12V DC, 1.8A (Adapter Technology Co., Ltd.; Model: STD-12018U1)

Certifications

FCC Part 15, UL 60950-1

Operating Temperature

0º C to 40º C (32º F to 104º F)

Storage Temperature

-20º C to 70º C (-4º F to 158º F)

Operating Humidity

8% to 93% (non-condensing)

Storage Humidity

5% to 100% (non-condensing)

202


C

Notices

C.0

Introduction

C.1

Regulatory

Compliance Notices

C.2

Modi

fi

cations

C.3

NEBS Requirements

C.4

GPL

203


This appendix lists various compliance and modi

fi

cation notices, as well as the NEBS requirements and GPL.


204


C.1 Regulatory Compliance Notices

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by implementing one or more of the following measures: t Reorient or relocate the receiving antenna; t Increase the separation between the equipment and receiver; t Connect the equipment to an outlet on a circuit different from the one to which the receiver is connected; t Consult the dealer or an experienced radio or television technician for help.

C.2 Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Actiontec Electronics, Inc., may void the user’s authority to operate the equipment.

Declaration of conformity for products marked with the FCC logo – United

States only.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference;

205


C Speci fi cations

C.2 Modi fi cations

2. This device must accept any interference received, including interference that may cause unwanted operation.

Note: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

For questions regarding your product or the FCC declaration, contact:

Actiontec Electronics, Inc.

760 North Mary Ave.

Sunnyvale, CA 94085

United States

Tel: (408) 752-7700

Fax: (408) 541-9005


206


C.3 NEBS Requirements

The coaxial cable screen shield must be connected to the Earth at the building entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular

Section 820.93, “Grounding of Outer Conductive Shield of a Coaxial Cable,” or in accordance with local regulation.

Warning!

The red WAN Coax Port is intended for connection to Verizon FiOS only. It must not be connected to any exterior or interior coaxial wires not designated for Verizon FiOS.

Laptop Computer w/ Wireless Adapter

Set Top Box w/ Television

VoIP Device w/ Telephone

Desktop

Computer

ONT

Broadband

Home Router

Ethernet or

Coaxial

Connection

Set Top Box w/ Television

Typical Broadband Home Router Installation

Caution : The Broadband Home Router must be installed inside the home. The Router is not designed for exterior installation.

Fiber

Optic

C.4 GPL (General Public License)

This product includes software code developed by third parties, including software code subject to the enclosed GNU General Public License (GPL) or

GNU Lesser General Public License (LGPL). The GPL Code and LGPL Code used in this product are distributed WITHOUT ANY WARRANTY and are subject to the copyrights of the authors, and to the terms of the applicable licenses included in the download. For details, see the GPL Code and LGPL Code for this product and the terms of the GPL and the LGPL.

207


No results
