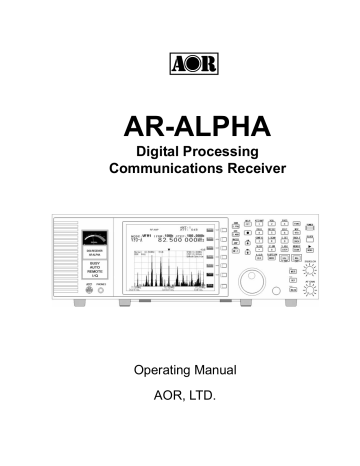

AR-ALPHA
Digital Processing
Communications Receiver
Operating Manual
AOR, LTD.
Table of Contents
1. Introduction -------------------------------------------------------------- 4
1-1 Introduction --------------------------------------------------------------- 4
1-2 Caring for your radio --------------------------------------------------------------- 6
1-3 Please note these operating procedures------------------------------------------------ 7
1-4 Accessories supplied --------------------------------------------------------------- 7
1-5 Controls and functions -------------------------------------------------------------- 12
Front Panel -------------------------------------------------------------- 12
1-5-1 Keypad -------------------------------------------------------------- 13
1-5-2 Summary of keys --------------------------------------------------------------- 13
Rear Panel ------------------------------------------------------------- 30
2. Getting Started ------------------------------------------------------------- 32
2-1 Preparing the AR-ALPHA for operation ----------------------------------------------- 32
2-1-1 Connecting the antenna ------------------------------------------------------------ 32
2-1-2 Connecting power --------------------------------------------------------------- 34
2-2 Switching on for the first time ------------------------------------------------------------- 34
2-3 Squelch Circuit ------------------------------------------------------------- 35
2-4 VFO selection ------------------------------------------------------------- 35
2-4-1 Tuning frequency ------------------------------------------------------------ 36
2-4-1-1 Entering a frequency using the numeric keypad ------------------------- 36
2-4-1-2 Changing frequency using the main tuning dial --------------------------- 37
2-4-1-3 Changing frequency using the UP or DOWN arrow keys----------------- 38
2-5 Changing receive mode -------------------------------------------------------------- 38
2-5-1 Auto mode selection ------------------------------------------------------------- 39
2-5-2 Receive mode selection ------------------------------------------------------------ 40
2-5-3 Additional decoding modes ------------------------------------------------------------ 42
2-6 Changing tuning step size ------------------------------------------------------------- 44
2-7 IF bandwidth ------------------------------------------------------------ 45
2-7-1 Manually selecting IF band width --------------------------------------------------- 45
2-8 Attenuator ------------------------------------------------------------- 46
2-9 Offset ------------------------------------------------------------- 46
2-9-1 Using pre-programmed frequency offset data ----------------------------------- 47
2-9-2 Entering new frequency offset data ------------------------------------------------ 48
2-9-3 Activating frequency offset ------------------------------------------------------------- 49
2-9-4 Monitoring the offset frequency ------------------------------------------------------- 49
2-9-5 Deactivating frequency offset ------------------------------------------------------------ 49
3. Spectrum Display ---------------------------------------------------------------- 50
3-1 LCD Display Screen (in VFO spectrum analyzer mode) ------------------------------- 50
3-1-1 Operation mode display ------------------------------------------------------------------- 50
3-1-2 Basic operation display -------------------------------------------------------------------- 51
3-1-3 Spectrum display (example) -------------------------------------------------------------- 52
3-2 Display span setting ---------------------------------------------------------------------------- 54
3-2-1 Setting the display span -------------------------------------------------------------------- 55
4. Memory channels ----------------------------------------------------------------- 56
4-1 Memory Bank and Memory Channel -------------------------------------------------------- 57
4-2 Storing VFO frequency and data into memory ----------------------------------------- 58
4-3 Memory read “M.RD” ------------------------------------------------------------------- 59
1
4-4 Memory Mode -------------------------------------------------------------------------------- 61
4-4-1 From Bank List screen to MemBank screen or Browser ---------------------- 62
4-4-2 From Bank List to MemCh List ---------------------------------------------------- 63
4-4-3 From MemCh List to MemCh **.** Browser ------------------------------------ 64
5. SCAN – scanning memory channels ------------------------------------------------------- 67
5-1 SCAN – outline introduction -------------------------------------------------------------- 67
5-2 Starting SCAN -------------------------------------------------------------- 67
5-3 SCAN operation -------------------------------------------------------------- 68
5-3-1 Changing scan direction -------------------------------------------------------------- 70
5-4 Selecting a SCAN bank -------------------------------------------------------------- 70
5-5 Bank link --------------------------------------------------------------- 70
5-5-1 Setting Bank link -------------------------------------------------------------- 70
5-6 Select SCAN ------------------------------------------------------------- 71
5-6-1 Adding select scan channels in memory read ------------------------------------ 71
5-6-2 Start select scan --------------------------------------------------------------- 72
5-7 Channel Pass --------------------------------------------------------------- 73
5-7-1 Setting channel pass --------------------------------------------------------------- 73
6. Search ------------------------------------------------------------- 74
6-1 Search setting ------------------------------------------------------------- 74
6-1-1 Setting ------------------------------------------------------------- 74
6-1-2 Search Bank Browser setting --------------------------------------------------------- 75
6-1-3 Start search ------------------------------------------------------------ 76
6-2 Search Group ------------------------------------------------------------ 77
6-2-1 Setting Search Group ------------------------------------------------------------- 77
7. FFT Search ------------------------------------------------------------- 80
7-1 FFT Search setting ------------------------------------------------------------- 80
7-7-1 FFT Search Screen ------------------------------------------------------------- 81
8. Miscellaneous Settings ------------------------------------------------------------ 83
8-1 Soft key registration ------------------------------------------------------------ 83
8-1-1 Operation of soft keys ------------------------------------------------------------- 83
8-1-2 Soft key registration ------------------------------------------------------------- 84
8-2 Voice Recording ------------------------------------------------------------- 84
8-2-1 Recording ------------------------------------------------------------ 84
8-2-2 Stop recording ------------------------------------------------------------- 84
8-2-3 Playback audio ------------------------------------------------------------- 85
8-2-4 Changing record channel ------------------------------------------------------------- 86
8-3 Data Editor -------------------------------------------------------------- 86
8-3-1 Moving memory bank -------------------------------------------------------------- 87
8-3-2 Copying memory bank -------------------------------------------------------------- 88
8-3-3 Moving search bank -------------------------------------------------------------- 89
8-3-4 Copying search bank --------------------------------------------------------------- 89
8-3-5 Moving memory channel --------------------------------------------------------------- 90
8-3-6 Copying memory channel --------------------------------------------------------------- 91
8-3-7 Copying scan group data --------------------------------------------------------------- 92
8-3-8 Copying scan group data --------------------------------------------------------------- 92
8-3-9 Moving search group data --------------------------------------------------------------- 93
8-3-10 Copying search group -------------------------------------------------------------- 94
8-3-11 Moving recorded voice data -------------------------------------------------------------- 94
2
8-3-12 Deleting memory bank ------------------------------------------------------------ 95
8-3-13 Deleting search bank ------------------------------------------------------------ 96
8-3-14 Deleting memory channel ------------------------------------------------------------ 96
8-3-15 Deleting memory pass channel ------------------------------------------------------- 96
8-3-16 Deleting all search pass channels ------------------------------------------------------ 97
8-3-17 Deleting all memory banks ----------------------------------------------------------- 97
8-3-18 Deleting all search banks ------------------------------------------------------------ 97
8-3-19 Deleting voice record channel ----------------------------------------------------------- 98
8-3-20 Deleting all voice record data ------------------------------------------------------------ 98
8-4 Configuration settings ------------------------------------------------------------- 98
8-4-1 Configure backlight ------------------------------------------------------------ 99
8-4-2 Configure beep ------------------------------------------------------------- 100
8-4-3 Configure RF-Gain (Radio Frequency Gain) ---------------------------------------- 101
8-4-4 Configure reference signal input ------------------------------------------------------- 101
8-4-5 Video format ------------------------------------------------------------ 102
8-4-6 Configure I/Q output bandwidth -------------------------------------------------------- 102
8-4-7 Configure Voice squelch level ------------------------------------------------------------ 103
8-4-7-1 Configure Voice level and delay time --------------------------------------------- 104
8-4-8 Configure PC interface ------------------------------------------------------------- 104
8-4-9 Configure Sleep Timer ------------------------------------------------------------- 105
8-4-10 Configure Priority function ------------------------------------------------------------- 106
8-4-10-1 Setup ------------------------------------------------------------- 106
8-4-10-2 Activating priority function ------------------------------------------------------------ 107
9. Computer control ---------------------------------------------------------- 108
9-1 How to send a control command ---------------------------------------------------------- 108
9-2 Power on ---------------------------------------------------------------------------------------------- 108
9-3 Detailed control command list of the AR-ALPHA ----------------------------------------- 109
10. Specifications ----------------------------------------------------- 128
11. Optional Accessories -------------------------------------------------------- 129
12. Limited Warranty -------------------------------------------------------- 130
3
1 Introduction
1-1 Introduction
Thank you for purchasing the AR-ALPHA Digital Processing Communications receiver. The
AR-ALPHA was designed using the very latest technology to ensure the highest levels of performance and reliability. To get the best possible results from your AR-ALPHA, we strongly recommend that you read this manual to familiarize yourself with the receiver and its many functions.
Although carefully designed, this receiver (and most other receivers) generates internal noises known as spurious emissions. They are a product of the receiver’s circuitry, and their presence does not represent a defect. Other apparent defects may be due to unintentional misoperation of the receiver.
If you believe there is a problem, carefully read the entire manual before contacting your dealer for advice.
It is acknowledged that sections of this manual are repetitive, this is to enable the manual to be used as a quick reference book (you don’t have to read it from cover to cover at one time). Due to the international nature of the product, some graphics may contain Japanese characters.
Every effort has been made to make this manual correct and up to date. Due to continuous development of the receiver, there may be error or omission anomalies and this is acknowledged.
© This manual is protected by copyright AOR, LTD. 2007. No information contained in this manual may be copied or transferred by any means without the prior written consent of AOR, LTD. AOR and the AOR logo are trademarks of AOR, LTD. All other trademarks and names are acknowledged.
4
Main features:
z Wide frequency coverage: 10 KHz to 3.5 GHz, with no interruptions (USA consumer version has cellular telephone frequencies blocked) z Zero-IF frequency (for the 3 rd IF) z DDS (Direct Digital Synthesizer) local oscillator z TV reception in NTSC, PAL, and SECAM formats z I/Q output with 1 MHz bandwidth z Multi-mode unit capable of receiving AM (Synchronous), ISB, RZ-SSB, USB, LSB, CW, WFM including FM stereo (when using optional headphones), NFM and APCO P25 digital z 6-inch TFT color panel can display received video signals or depict spectrum activity over a wide choice of bandwidths including a “waterfall” function to show signal activity over a specified time period z Composite video output on the rear panel of the unit z Selectable IF bandwidths: 200 Hz, 500 Hz, 1 KHz, 3 KHz, 6 KHz, 15 KHz, 30 KHz, 100 KHz,
200 KHz and 300 KHz and the ability to shift the IF z CTCSS and DCS selectable squelch functions z DTMF tone decode z Built-in voice-inversion descrambling (Not available on USA consumer version) z CW pitch control, AGC, AFC z Auto-notch z User selectable spectrum display function from 250 KHz through 10 MHz in 1 KHz increments.
Above 10 MHz bandwidth, it can display 20 MHz, 50 MHz, 100 MHz or 1 GHz, but above 20 MHz bandwidth, no audio will be available z RBW (Resolution bandwidth) is also user-selectable in increments of 1 KHz, 4 KHz, 32 KHz,
64 KHz and 128 KHz z Fast Fourier Transform (FFT) spectrum display z Analog output for DRM PC receiver z RS-232C and USB 2.0 interfaces z Two antenna ports (one SO-239 and one Type N). Up to four antennas may be selected through the receiver’s controls with the optional AS5000 antenna relay switch z Use desktop or 19” rack mount z Five VFOs, 2,000 alphanumeric memories z Digital Voice Recording up to 53 minutes
5
1-2 Caring for your radio
There are no internal operator adjustments. In the unlikely event of service being required, please contact your dealer for technical assistance.
Do not use or leave the receiver in direct sunlight (especially the LCD). It is best to avoid locations where excessive heat, humidity, dust and vibration are expected. Always keep the AR-ALPHA free from dust and moisture. Use a soft, dry cloth to gently wipe the set clean, never use abrasive cleaners or organic solvents which may damage certain parts.
Treat the AR-ALPHA with care, avoid the spilling or leakage of liquids into the receiver. Special care should be taken to avoid liquid entering around the controls, through the speaker grille or through the connection jacks.
The AR-ALPHA is designed for operation from a high quality regulated DC supply of 12 to 14 V, which should be capable of supplying 3 amps or more. Never connect the AR-ALPHA directly to an AC outlet. The polarity of the DC input jack is clearly marked, the chassis of the receiver is at negative ground.
SAFETY NOTICE – Always disconnect the power supply from the AC outlet when not in use. If used mobile, it should be noted that the AR-ALPHA has NOT been manufactured or tested to meet any specific mobile safety requirements.
The AR-ALPHA has no internal user adjustable parts.
If using the AR-ALPHA in a base station situation, the best short wave reception is usually achieved by using a separate external earth (ground) rod, however, consider the implications carefully if the AC supply at your location uses a Protective Multiple Earth (PME) system. If in doubt consult a qualified electrician. Never earth (or ground) to a gas pipe!
The AR-ALPHA has two antenna connectors for all frequencies. These are intended for connection to a 50 ohm (unbalanced) coaxial fed antenna such as a discone, dipole, unipole, Yagi, etc. When locating the antenna, avoid power cables. Ensure that you do not confuse the antenna connection and the 10 MHz frequency reference connector as they are in close proximity.
Operating anomalies
Should the AR-ALPHA appear to behave strangely, normal operation may be easily regained by resetting the microprocessor. Two scenarios may be encountered due to power transients etc:
1. Symptom : LCD remains on, no control of the keypad.
Action : Turn off the power switch on the front panel. Leave it off for approximately 30 seconds. Turn the power switch back on again.
Normal operation should be restored but the last used frequency will be lost, the
AR-ALPHA will display the second-last frequency used.
2. Symptom : The AR-ALPHA fails to power up.
Action : Try the suggestions given in (1) then hold the CLR key while powering up the
AR-ALPHA to ‘Soft reset’ the microprocessor.
6
1-3 Please note these operating procedures
1. Certain key operations are acted upon when the key is RELEASED, not while it is pressed.
Allow time for the AR-ALPHA to register and process each action before pressing another key.
2. The keylock ( K.LOCK
) is intentionally made difficult to operate to prevent accidental operation. To release the keylock, the K.LOCK key must be held for more than one second, the key icon on the LCD confirms operation. The K.LOCK
is disabled during keying sequences (such as when entering frequencies).
3. Currently displayed VFO data is saved at power down (to increase speed of the operation and to reduce write cycles). For this reason, if the AR-ALPHA is powered down using the
MAIN POWER (rear panel) switch or external power is removed, the last displayed frequency will be lost and the frequency used prior to this will be displayed the next time the receiver is powered up.
1-4 Accessories supplied
The following items are included in the shipping carton:
2. DC power cable
3. Operating manual (this booklet)
4 Rack mount handles and screws
7
Terminology
Search & Scan
If you have not used a wide band receiver before or you are not familiar with the terminology used, it is very important to understand the difference between SEARCH and SCAN modes.
SEARCH : The AR-ALPHA provides several operations where transmissions (active frequencies) may be automatically located by sweeping the receiver over a wide frequency range, either from the currently displayed frequency traveling upwards (or downwards) in a specified tuning increment (step) or by sweeping over-and-over between two specified frequency limits. This process is known as SEARCHING , as the title implies, it can take a long time to find transmissions due to their ‘often intermittent’ and brief nature. For this reason it is best to slice large frequency ranges into smaller, more manageable pieces where they may be intensely searched.
When examining large frequency segments, it is common to find that the majority of frequencies are inactive at the time of the search and only a small number of the remaining constitute what you really want. Searching still remains the best way to initially locate active and interesting transmissions (in conjunction with a good list of active frequencies and a band plan).
SCAN : Once active transmissions have been identified (either by searching or by using a good frequency guide), it is more efficient to store the data into memories which can be rapidly and automatically monitored in succession, stopping when activity is encountered. This is a much more efficient means of monitoring the most wanted frequencies you have targeted, that is, what you most want to hear. By contrast, searching is very inefficient for day-to-day monitoring.
Note : It is very important that the squelch is advanced to cancel background noise for the search & scan functions to operate properly.
This is because the AR-ALPHA believes that it has found an active frequency when the squelch opens and the “BUSY” lamp lights up.
Advance the squelch control clockwise until the background noise is just cancelled, this is known as the “threshold” position. If the squelch control is advanced too far, weaker signals may be missed.
8
More details about the remarkable features of the AR-ALPHA
Zero – IF (Zero Intermediate Frequency)
Block diagram 1 shows a conventional triple conversion super heterodyne analog receiver and the 3 rd
IF frequency is 455 KHz. Due to its frequency configuration, some “image” signals may be received.
Block diagram 2 shows the AOR Zero-IF digital receiver.
The 10.7MHz 2 nd IF analog signal is fed to the ADC (Analog to Digital Converter) to be digitized and the signal is digitally mixed with the 10.7 MHz local oscillator. The signal is digitally processed, and the
3 rd IF signal becomes zero (0). By utilizing this technique, no image signal will be present.
DDS (Direct Digital Synthesizer)
The AR-ALPHA uses high speed DDS for the 1 st local oscillator. Unlike standard PLL (Phased Locked
Loop) circuits for the local oscillator, DDS enables very fast scanning as it quickly generates signals controlled by the CPU (Micro Processor).
9
I/Q Digital Output
I/Q stands for In-Phase/Quadrature -Phase.
At the 3 rd IF stage, the AR-ALPHA provides an I/Q output. The I/Q digital signal consists of two (2) different digital signals that are phase-shifted 90 degrees.
The I/Q output is provided through a continuous isochronous USB 2.0 standard interface. By using the I/Q digital output, the streamed data can be stored on a PC hard disk for future signal analysis.
FFT (Fast Fourier Transform)
The AR-ALPHA utilizes FFT (Fast Fourier Transform) technology for the spectrum display feature.
FFT in the AR-ALPHA refreshes the spectrum display more than 10 times per second during a 10 MHz sweep (at 500 Hz RBW). The AR-ALPHA can display a wide range sweep up to 1 GHz.
Receive modes / Additional features
WFM (Wide FM) z Stereo sound (auto detected), Selectable de-emphasis 50 uS/75 uS z Stereo output is available from the headphone jack using optional stereo headphones or from the RCA jacks on the rear panel (optional stereo amplifier required)
NFM (Narrow FM) z Built-in DCS (Digital Coded Squelch) z Built-in CTCSS (Continuous Tone Coded Squelch System) z Built-in Voice Inversion Descrambler (4,500 Hz +/- 2,000 Hz) (Not available on USA consumer version) z Built-in APCO25 (P-25) decoder (conventional mode only) z Built-in (Automatic Frequency Control)
10
AM (Amplitude Modulation) z Envelope Detection (Normal AM decoder) z Synchronous
1. DSB (Double Side Band) synchronous
2. SSB (Single Side Band) USB/LSB (Upper Side Band/Lower Side Band) selectable synchronous
3. Side Band Diversity z AGC (Automatic Gain Control) mode/Manual RF gain mode
SSB (Single Side Band) z USB/LSB z AGC mode/Manual RF gain mode z Sharp shape factor BPF (Band Pass Filter)
ISB (Independent Side Band) z Simultaneously decoded LSB and USB (Stereo Output) z AGC mode/Manual RF gain mode
CW (Continuous Wave) z Built-in narrow band IF filters 200 Hz/500 Hz z CW stereo effect 200 Hz IF filter Æ (Right +100 Hz/-50 Hz,
Left +50 Hz/-100 Hz) (Optional headphones required) z Adjustable tone pitch 600 Hz +/- 300 Hz
VIDEO z TV reception in NTSC, PAL, or SECAM formats
RZ-SSB (Real Zero SSB) z Decodes AM signal with FM decoder (without AGC) by using phase signal z Effective against phasing or interference
NB (Noise Blanker) z Operates in AM, SSB, ISB and RZSSB mode
Auto Notch Filter
Adaptive Digital Noise Filter
11
IF Shift z Shift width: +/- 1.200 Hz z Operates in SSB and AM modes
VSQ (Voice Squelch) z Utilize FFT and LMS (The Least-Mean-Square) algorithm
DVR (Digital Voice Recorder) z Records up to 53 minutes (up to 12 minutes in WFM mode) z Captures audio up to 12 seconds prior to the start of recording
Analog output for DRM (Digital Radio Mondiale) z 6 KHz IF (I/Q) analog output for DRM PC receiver
1-5 Controls & functions
Controls are located on the front with most connectors on the rear of the AR-ALPHA.
A brief identification is given here:
Front Panel
① Internal speaker
② Analog S-meter
③ Status Indicators
④ LCD screen
⑤ Soft Keys
⑥ Main control keys
12
⑦ Front accessory connector
⑧ Headphone Jack
⑨ Main Dial knob
⑩ Sub Dial knob
⑪ Sub dial keys
⑫ Squelch control knob
⑬ AF Gain (Volume) control knob
Main Control Keys
1-5-1 Keypad
Keypad conventions
Most keys have secondary functions, which are printed on the panel. However, due to the restrictions of available space, not all functions can be shown on the keypad.
The secondary functions of the AR-ALPHA are indicated with white characters above each key. key, then press the respective key. To access the secondary function, press the
1-5-2 Summary of keys
13
POWER
Press and hold this key for one ( 1 ) second to turn on power to the unit. After initializing, the LCD screen will appear.
To turn power off, press and hold this key for 2 seconds. A “power off” message will appear on the screen and the power to the unit will turn off.
K.LOCK
Press this key when you do not wish an important frequency to be lost or the AR-ALPHA to be incorrectly set to a different frequency.
To exit from the key lock function, press and hold this key for 2 seconds.
14
MONI
The monitor key manually overrides the squelch so that you may monitor a weak signal.
FUNC
The function key is used to select the secondary functions of the keypad.
VFO / WSP
Press this key to select the VFO mode. There are 5 VFOs ( VFO-A through VFO-E ) you may access in the AR-ALPHA.
Press the key, then press this key to enter the WSP (Wide Span) mode.
The WSP icon appears on the left of the frequency display. The AR-ALPHA can display up to 1 GHz of frequency bandwidth.
SRCH / SRCH.E
Press this key to select the NORMAL SEARCH mode .
To initiate a normal search, press and hold the SRCH key for 2 seconds.
Press the mode . key, then press and hold this key for 2 seconds to enter the
To exit from the Search mode , press the VFO key.
Search Environment set
SCAN / MEMO/E
Press this key to initiate SCAN .
To set the scan mode, press and hold the SCAN key for 2 seconds.
Press the key, then press and hold this key for 2 seconds to enter the Scan Environment set mode .
To exit from the Scan mode , press the VFO key.
15
MHz / ENT
Press this key to have the AR-ALPHA accept data entry.
When entering a frequency in MHz, use numeric keys followed by this key.
KHz / S.ENT
When entering a frequency in KHz, use numeric keys followed by this key.
Press this key to accept frequency step entry.
STEP/ S.ADJ
Press this key to enter frequency step.
Press the key, then press this key to go into the Frequency Step Adjust mode.
MODE / D.OPTION
Press this key to display the receive mode selection menu. Then select the desired receive mode by rotating the Sub Dial Knob . Press the MHz key to confirm entry.
To switch the Select Mode setting, press the MODE key while the MODE select screen is displayed.
Any receive mode may be selected for any frequency within the receiver’s frequency coverage range.
Press and hold this key for 2 seconds to go into the Auto ― Mode.
Simple Select Mode Setting
Advanced Select Mode Setting
Press the key, then press this key to go into the Additional digital mode.
Press either the UP Arrow key or DOWN Arrow key to select the mode, and rotate the Sub Dial knob to change the parameter. Press the MHz key to confirm entry.
16
CLR / A. CLR
Press this key to cancel the entry and return to the previous screen.
During frequency entry, pressing this key will move the cursor backward to delete one digit for correction. (Same function as a backspace key)
Press the key, then press this key to go into the Additional digital mode.
0 ~ 9 .
Numeric keys
FFT / HELP
Press this key to go into the FFT display mode.
To exit from the FFT display mode, press the VFO key.
Press the key, then press this key to display the help menu on the screen.
To exit from the HELP screen, press the VFO key.
O (Red circle)
Press this key to activate the DVR (Digital Voice Recorder).
In the VFO mode:
UP / RIGHT
Pressing this key will increase the receive frequency by the currently selected frequency step.
Press the key, then press this key to increase the receive frequency by 10 times the selected frequency step.
In memory mode :
Press this key to select a higher memory channel.
17
DOWN / LEFT
In the VFO mode:
Press this key to decrease the receive frequency by the currently selected frequency step.
Press the key, then press this key to decrease the receive frequency by 10 times the selected frequency step.
In the memory mode :
Press this key to select a lower memory channel.
S. FRQ / RBW
Press this key to display the spectrum display setting menu on the right corner of the LCD screen. In this mode, one the following three (3) modes can be selected. b. Auto Spectrum analyzer mode c. Channel scope mode
To cancel this operation, press the CLR key.
Press the key, then press this key to access the Resolution Bandwidth Setting menu. In this mode, one the following five (5) parameters can be selected.
1 KHz, 4 KHz, 32 KHz, 64 KHZ, and 128 KHz
Each function is accessible through the corresponding soft key at the right of the LCD.
To cancel this operation, press the CLR key.
S. MOD / OPE
Press this key to display the search mode menu at the right corner of the LCD screen. In this mode, one the following two (2) modes can be selected.
1. Normal Spectrum Analyzer mode
2. Channel scope mode
To cancel this operation, press the CLR key.
Press the key, then press this key to access the Calculation menu. In this mode, one of the following three (3) calculation modes can be selected.
1. OPE. MAX (Maximum value hold)
2. OPE. AVR (Average value)
3. OPE. MED (Median)
Each function is accessible through the corresponding soft key at the right of the LCD.
18
To cancel this operation, press the CLR key.
AMP / WATER
Press this key to set the input sensitivity level of the AR-ALPHA. There are six (6) different input sensitivity levels between 0 dBm and -50 dBm in 10 dB steps.
Press this key to highlight the reference level (in reverse contrast). You may adjust the level using the sub dial knob and validate with the MHz key, or enter the desired value using the numeric keys.
Press the key, then press this key to select the waterfall display feature.
To exit the waterfall display, repeat the above steps.
MK. F / MKR
Press this key to designate the marker frequency as the center frequency.
Press the key, then press this key to access the marker setting menu. In this mode, one of the following three (3) calculation modes can be selected.
1. Marker frequency reading
2. Peak marker reading
3. Continuous peak reading
Each function is accessible through the corresponding soft key at the right of the LCD.
To cancel this operation, press the CLR key.
Squelch knob and AF Gain knob
SQUELCH KNOB
Turn this knob clockwise until background noise disappears.
AF GAIN KNOB
Turn clockwise to increase audio (speaker) output level and turn counterclockwise to decrease audio (speaker) output level.
Sub Dial Keys
19
MKR
Pressing this key will illuminate a red lamp above the MKR switch.
When the AR-ALPHA is in the VFO mode or Memory mode and the LCD is displaying frequency spectrum, the frequency marker cursor on the LCD screen can be moved by rotating the sub dial knob
(small knob to the left of this key).
While the MKR lamp is illuminated, pressing this key again will make the red lamp flash and increase the cursor speed 10 times faster than normal. Press this key again to return to the normal rate.
When the video screen is displayed, this function is disabled.
While in the Search mode, Memory Scan mode, and Select Scan mode, the sub dial knob is used to select the respective bank.
DEF
Pressing this key will illuminate a green lamp above the DEF switch.
When the AR-ALPHA is in the VFO mode, rotating the sub dial will change the receive frequency by the preset frequency step. To change the frequency step, while the green lamp is lit, press this key again.
The sub dial frequency step setup screen will appear.
Using the numeric keypad, enter the desired frequency step followed by KHz key.
To cancel the entry, press this key again.
When the video screen is displayed, this function is disabled.
While in the Search mode, Memory Scan mode, and Select Scan mode, the sub dial knob is used to select the respective bank.
20
MAIN
Pressing this key illuminates an orange lamp above the MAIN switch.
When the AR-ALPHA is in the VFO mode, the function of the sub dial is the same as the main dial.
While the MAIN lamp is illuminated, press this switch again until the orange lamp flashes; this enables the sub dial to change the receive frequency 10 times faster than the main dial.
Press this key again to return to the normal tuning speed.
While in the Search Mode, Memory Scan mode, and Select Scan mode, the sub dial knob is used to select the respective bank.
Lit Rotate the sub dial to move the marker display line.
Press and hold this key until the MKR-LED flashes.
Flash This enables the marker to move 10 times faster than its normal speed.
Lit The frequency step changes with the designated steps.
Flash
Press and hold this key; a small window will appear on the
LCD screen. This enables setting the frequency step using the sub dial.
Lit The sub dial operates the same as the main dial.
Flash
Press and hold this key until the MAIN-LED flashes.
Rotating the sub dial changes the receive frequency at
10 times the rate of the main dial.
Dial Knobs
SUB DIAL (Small knob)
The sub dial knob is used to change the parameters of various settings or to change the memory bank.
MAIN DIAL (Large Knob)
In the VFO mode, rotating this knob will change the receive frequency.
In the Memory Mode, rotating this knob will change the memory channel. (To change the memory bank, rotate the sub dial knob.)
In the Search mode, the Memory Scan mode, and the Select Scan mode, this knob is used to change the search/scan direction.
Soft Keys
There are seven (7) keys at the right of the LCD display; they are called “Soft Keys.”
21
The bottom key is designated as the DISPLAY KEY. Unlike the other 6 soft keys, the display key is mostly used to control the functions of the LCD screen.
The functions of the soft keys vary according to the function displayed on the LCD screen.
The soft keys may also be used for user-defined functions depending on the displayed contents.
Display example of Page 1 and Page 2 in VFO mode
User defined key 1 User defined key 6
User defined key 2 User defined key 7
User defined key 3 User defined key 8
User defined key 4 User defined key 9
User defined key 5
User defined key
Page 1
User defined key 10
User defined key
Page 2
Display VFO list Display VFO list
Below are the functions of the soft keys. When no description of a key is shown, there is no assigned function for the soft key in that mode.
When a soft key function is displayed in a dark blue color, it is not selectable.
Normal SRCH FFT S.FR S.MOD ATT/ANT S.SCAN RBW OPE
S-METER & STATUS INDICATORS
S-METER
The analog S-meter indicates the relative level of antenna input signal.
22
BUSY
Lit when the squelch is open.
AUTO
Lit when the AR-ALPHA is in the Auto detector mode.
REMOTE
Lit when the AR-ALPHA is controlled by a PC through the REMOTE 1 or REMOTE 2 connectors. While the REMOTE indicator is lit, all functions (except AF GAIN and SQUELCH CONTROL) are disabled
I/Q
Lit while I/Q signal is being sent through the USB port.
ACC1
This connector is used for an external device including the optional CR5000 recording cable.
1
12V DC output
(30mA maximum)
5 Control 2 (for CR5000)
4 Control 1 (for CR5000)
6
Audio output (High level)
(330mV r.m.s. at 600 ohms)
7
Audio output (Low level)
(2.5mV r.m.s. at 600 ohms)
8 Ground (or earth)
HEADPHONES
Use a 1/4 inch stereo type plug. When a headphone is connected, the internal speaker is disabled.
1 Ground
2 Audio output (Right)
3 Audio output (Left)
Secondary functions of numeric keys
23
(1)
Press the key, then press the 1 key.
Selecting the attenuation level
A soft key menu will appear at the right side of the LCD.
On this screen menu, choose one of the following five (5) selections.
1. RF AMP: ON, Attenuator: 0 dB
2. RF AMP: OFF, Attenuator: 0 dB
3. RF AMP: OFF, Attenuator: 10 dB
4. RF AMP: OFF, Attenuator: 20 dB
5. AUTO setting
Press the desired soft key to choose the desired setting.
When AUTO is selected, the ATT character on the LCD will be displayed in yellow.
Selecting antenna input port
24
Press the key, then press and hold the 1 key for 2 seconds
A soft key menu will appear at the right side of the LCD.
On this screen menu, choose one of the following four (4) selections.
1. ANTENNA 1 2. ANTENNA 2 3. ANTENNA 3 4. ANTENNA 4
An optional AS5000 antenna relay switch is required to use more than 2 antenna inputs.
(2)
Press the key, then press the 2 key.
Selecting the squelch mode
Performing the above steps will toggle between the Level Squelch Mode and Voice Squelch Mode .
The VSQ icon appears at the top left on the LCD while in the Voice Squelch Mode .
25
In the Level Squelch Mode , the squelch level is adjusted by rotating the squelch knob.
Turning fully counterclockwise will disable the squelch function. Normally, turn the squelch knob clockwise until background noise disappears.
In the Voice Squelch Mode , the AR-ALPHA automatically analyzes demodulated voice signals and opens the squelch only when it detects human voice. Voice Level Squelch is available in the VFO mode,
Search Bank mode, and Memory Channel mode.
The BUSY indicator located below the S-meter will light while the squelch is open.
(3)
Press the key, then press the 3 key.
Search Frequency Pass
When the AR-ALPHA receives a signal and stops searching In Search Receive Mode , performing the above steps will register the frequency as a “pass” frequency and resume searching. The AR-ALPHA will not stop at a pass frequency during future search cycles.
Up to 50 pass frequencies can be registered on each search bank.
The registered search frequencies can be viewed or deleted during search operations on the LCD screen.
(4)
Press the key, then press the 4 key.
Priority Function
After the priority channel is set, performing the above step will start priority receive.
The PRIO icon appears at the top left of the LCD while the priority function is activated.
Priority Channel Setting
26
Press the key, then press and hold the 4 key for 2 seconds.
By performing the above steps, the priority setting screen will appear on the LCD.
1.
Rotate the sub dial to select or set the desired priority channel.
2.
Press the down arrow key to move the cursor downward.
3.
Rotate the sub dial to set the priority time interval between 1 ~ 99 seconds.
4.
Press MHz key to confirm entry.
(5)
Press the key, then press the 5 key.
Frequency Offset Function
After the offset frequency is set, performing the above step will activate the frequency offset function. Repeating the above steps will toggle this function. While the frequency offset function is activated, the DUP (Duplex) icon will appear at the top left of the LCD screen.
To disable this function, perform the above steps, then set the offset channel to “ +00 ” and press the MHz key.
A total of 48 offset channels are available and 01 ~ 20 channels out of 48 are user programmable.
(6)
Press the key, then press the 6 key.
Data Edit Function
Performing the above steps will display the data editor screen. In this mode, Memory bank and search bank memory channel data can be edited on the LCD screen.
27
To exit this function, press the MHz key.
(7)
Press the key, then press the 7 key.
Configuration Setting
The receiver’s configuration can be set on this screen.
To exit this function, press the MHz key.
(8)
Press the key, then press the 8 key.
Select Memory Scan Setting
Performing the above steps will activate the select scan mode. The select scan function scans each memory channel regardless of memory bank selection.
To exit from this function, press the VFO key.
(9)
Press the key, then press the 9 key.
Select Memory Scan Setting
This function is available only in the memory channel receive mode.
While in the memory channel receive mode, performing the above steps will transfer the current memory channel to the select memory. At the same time the SEL icon will be displayed on the LCD indicating the current memory channel has been registered to the select memory channel. If the registered memory channel is already registered, then the select memory channel will be deleted.
28
To exit this function, press the VFO key.
(10)
Press the key, then press the decimal key.
Sleep Timer Setting
Performing the above steps will activate the sleep timer function. The time counter and the clock icon appear at the top right of the LCD.
The sleep timer can be set for up to 99 minutes in 1 minute increments.
To set the timer, rotate the sub dial.
To deactivate the sleep timer function, set the timer to 0 .
To exit from this function, press the CLR key.
(11)
Press the key, then press the 0 key
IF Bandwidth Setting
Performing the above steps will display the IF Bandwidth setting screen on the LCD.
There are 10 bandwidth parameters and the selectable parameters are displayed in white.
Rotate the sub dial knob , then press the MHz key to confirm entry.
29
Rear Panel
1. ANT 1 Connector
N type connector. Antenna impedance is 50 ohms nominal. An optional AS5000 antenna relay switch can be connected to this connector.
2. ANT 2 Connector
SO-239 type connector. Antenna impedance is 50 ohms nominal.
3. 10 MHz Input Connector
External 10 MHz reference signal input connector (BNC)
4. Ground (or Earth) Terminal
30
5.
ACC 2 Connector
1
2
12V DC output (50mA max.)
10V DC output (50mA max.)
5
6
Antenna switch
A
Antenna switch
B
3 AGC 4.5V ~ 3.0V
4 No connection
7 No connection
8 Ground
An optional AS5000 antenna relay switch may be connected here.
6. EXT (External) Speaker Jack
3.5 mm mono jack for an external speaker (impedance 8 ohms). When an external speaker is connected, the internal speaker will be disabled.
7. MUTE Jack
Connecting the center pin to ground will mute the receiver.
8. AF OUT Jack
Line output for stereo audio. An external amplifier can be connected to these RCA type jacks.
31
9. I/Q OUTPUT Connector
I/Q data output is available from this connector. It is USB 2.0 compatible.
10. Remote 2 Interface Connector
The REMOTE RS-232C connector is designed for connection directly to the RS-232C serial port of a PC.
No interface is required, a standard RS-232C straight cable is all that is necessary. Connections for a
PC are as follows:
AR-ALPHA DB-9 RS-232C cable
Pin # 2 Pin # 2
Pin # 3 Pin # 3
Pin # 5 Pin # 5 (Ground)
Pin # 7 Pin # 7
Pin # 8 Pin # 8
32
11. USB Connector
The USB connector is designed for connection directly to the USB port of a PC.
The RS-232C serial port and the USB port cannot be used at the same time.
The USB driver program can be downloaded from the following URL. http://www.ftdichip.com/ftdrivers.htm
Click “VCP Drivers”, then select the device number “FT232B”.
12. Power Input Connector
Using the supplied DC power cable, apply regulated 13.8V DC power to the AR-ALPHA.
The polarity is clearly marked. Avoid reverse polarity.
13. Main Power Switch
Main power switch. This switch must be always turned on for normal use.
2 Getting started
2-1 Preparing the AR-ALPHA for operation
2-1-1 Connect the antenna
For reception, connect the antenna to either Antenna 1 or Antenna 2 on the rear panel of the AR-ALPHA.
Usually, for signal reception below approximately 1 GHz, connect the antenna to the Antenna 2 connector (SO-239 type connector). An optional SA7000 Super Wideband antenna is appropriate for this purpose, as the receive frequency range of the SA7000 is 30 KHz ~ 2000 MHz. Other optional wideband receive antennas include the DA3000 discone (25 MHz ~ 2000 MHZ), DS3000A discone
(75 MHz ~ 3000 MHz), and the DA5000 discone (700 ~ 3000 MHz).
33
2-1-2 Connect power
Connect power to the DC power jack on the rear panel of the AR-ALPHA. Always use a regulated DC power supply (12 ~ 14 V with capacity 3A or higher). Do not connect to a 24 V power supply.
2-2 Switching On for the first time
Set the squelch control to the ‘mid point’.
Turn on the main power switch on the rear panel of the AR-ALPHA.
Press the power switch at the top right of the front panel. Allow about 2 seconds for initializing, then the
S-meter will light. Then rotate the AF GAIN (volume) control knob to the ‘mid point’.
34
Please be careful - DO NOT switch on the AR-ALPHA while wearing headphones connected to the receiver; there may be an audible click when the unit is switched on, or the volume may be accidentally set too high.
The AR-ALPHA will take approximately 4 ~ 5 seconds before information appears on the LCD. This is normal, as the microprocessor of the AR-ALPHA must complete an initializing process at the beginning of a power-on cycle.
2-3 Squelch Circuit
In normal use, LEVEL SQUELCH is used. However, VOICE SQUELCH can be selected for search and scan operations. The LEVEL SQUELCH parameter sets the AR-ALPHA to check the signal strength of active frequencies and to only stop when the signal strength is above a preset level (which is programmable).
To select LEVEL SQUELCH , rotate the squelch knob clockwise until background noise disappears. The squelch will open only when input signal strength is above this set level.
To select VOICE SQUELCH , Press the left of the LCD screen.
, then press the 2 key. The VSQ icon will appear at the top
Rotate the squelch knob until background noise disappears. The Squelch will open only when the received voice audio level is above this set level. To return to LEVEL SQUELCH , repeat above steps.
2-4 VFO selection
The AR-ALPHA has five (5) VFOs being identified as “ VFO-A ” through “ VFO-E ” at the top left of the LCD.
The term VFO stands for ‘Variable Frequency Oscillator’ and in modern receivers refers to stored
35
tuneable data that contains frequency, step, step-adjust, attenuator etc. Each time VFO key is pressed, one of the five available VFOs (A~E) is selected.
The AR-ALPHA has an AUTOMODE setting, which in most cases automatically selects the proper receive mode, and frequency step.
● Direct VFO select
To select
To select
To select
To select
, press the
, press the
, press the
, press the
key, then press the
key, then press the
key, then press the
key, then press the
key.
key.
key.
key.
To select , press the
● Select from the VFO LIST
Press the soft key.
key, then press the key.
The VFO LIST screen will appear.
Using key or key, select the desired VFO.
Press the soft key to confirm entry.
2-4-1 Tuning frequency
2-4-1-1 Entering a frequency using the numeric keypad
While in the VFO mode, enter the desired frequency followed by the MHz key or KHz key.
36
Example of frequency entry for 162.55 MHz
Press the [ 1 ] key, [ 6 ] key, [ 2 ] key, [ .
] key, [ 5 ] key, and [ 5 ] key.
Press the [ MHz ] key.
Example of frequency entry for 954 KHz (0.954 MHz)
Press the [ 9 ] key, [ 5 ] key, and [ 4 ] key.
Press the [ KHz ] key.
Editing frequency input
If there is an error during frequency input, press the CLR key. The frequency cursor will move backward and delete the last digit entry. Re-enter the correct number from the numeric keypad.
Aborting frequency input
If for some reason you do not wish to complete frequency input, press the key, then press the
CLR key.
2-4-1-2 Changing frequency using the main tuning dial
While in the VFO mode, a VFO frequency may be selected by using the main tuning dial, located at the right side of the front panel. You may rotate the dial ‘clockwise’ to increase frequency or turn
‘counterclockwise’ to decrease frequency.
37
2-4-1-3 Changing frequency using UP arrow key or DOWN arrow key
The UP arrow key and DOWN arrow key provide a convenient method of changing frequencies.
The speed at which the receiver steps up or down depends upon the STEP SIZE which defaults to
AUTO . In AUTO the step size, receiver mode etc. is taken from the factory pre-programmed band plan but it may be overridden at any time.
Press the UP arrow key to tune the receiver upward in whichever step size is selected, use the DOWN arrow key to tune the receiver frequency lower.
2-5 Changing receive mode
Due to the necessities of signal bandwidth, channel occupancy and transmission efficiency, different receive modes are used by various radio services. Specifications for tuning step and receive mode are allocated by government agencies but they are not consistent throughout the world. For this reason, it may be necessary to change receive modes in order to monitor various transmissions.
For your convenience, receive mode and tuning step size have been pre-programmed into the
AR-ALPHA auto-mode band plan at the factory to simplify operation of the receiver. If needed, the defaults may be manually overwritten at anytime so that you may select an alternative receive mode and tuning step on any frequency.
AM
Amplitude Modulation – Used by broadcast services throughout the world on long wave, medium wave and shortwave. AM is also used on the VHF airband, UHF military airband, and by some PMR (Private
Mobile Radio) and utility services.
FM
There are two common types of FM (Frequency Modulation), these are:
38
NFM – Narrow Band Frequency Modulation – this provides high quality communication for relatively short distance operations. FM uses a wider frequency bandwidth than other modes such as
SSM so it is less efficient.
NFM is the most common mode used above 30 MHz with the exception of the airbands.
NFM is widely used on the VHF bands: VHF marine band, 2m and 70 cm amateur bands, by PMR
(Private Mobile Radio) and utilities. In the absence of a signal, the background noise may seem quite loud. For ease in listening, the squelch knob should be rotated clockwise until he background noise just disappears; this should be carried out while no signal is present. The point where the background noise is cancelled is known as threshold point. Do not advance the squelch control more than necessary or the receiver will appear to be desensitized and weaker signals will be missed.
WFM – Wide Band Frequency Modulation – used by VHF and UHF broadcast stations.
Excellent audio quality is apparent due to the relatively wide frequency bandwidth of the signal.
Used only for local services such as VHF band stereo and UHF TV sound channels.
LSB – Lower Side Band – is a form of SSB (Single Side Band). LSB tends not to be used commercially but is extensively used by Radio Amateurs on frequencies below 10 MHz. This assists the separation of Commercial and Amateur users on traditionally shared bands.
SSB is a very efficient method of transmission as the unwanted second sideband and carrier are not present. This allows the full transmitter power to be used to convey information within the wanted sideband. As a result, long distance communications are possible on SSB in a narrower bandwidth than required for most other modes.
USB – Upper Side Band – The same comments apply as for LSB. By convention, Radio Amateurs use
USB above 10 MHz.
CW - Continuous Wave – Often referred to as Carrier Wave or Morse Code. Commonly used on the short wave bands by radio amateurs toward the lower end of each band allocation. Some commercial use of CW continues but much has been replaced by satellite and automated communications.
2-5-1 Auto-mode selection
When auto-mode is in use, receive mode and tuning step size are automatically selected by the
AR-ALPHA microprocessor.
To activate auto-mode or reconfirm its selection while in the VFO mode, press the MODE key.
39
The Mode Select screen will appear on the LCD.
Note : The Auto-mode is cancelled as soon as the receive mode, tuning step or other related data is changed. Remember that auto-STEP and auto-MODE are linked, reselect the AUTO-MODE if either have been adjusted and you require the auto band plan selection.
2-5-2 Receive mode selection
The AR-ALPHA has two (2) different mode settings, Simple Select Mode Setting and Advanced
Select Mode setting .
Simple Select Mode Setting
Advanced Select Mode Setting
In the Simple Select Mode Setting , a proper IF bandwidth is automatically selected with respect to the receive mode.
In the Advanced Select Mode Setting , the receive mode and the IF bandwidth can be selected independently.
To switch the Select Mode setting, press the MODE key while the MODE select screen is displayed. Any receive mode may be selected at any frequency within the receiver’s frequency coverage range. Press and hold the MODE key for 2 seconds to enter the AUTO-Mode.
In the Simple Select Mode Setting , the following modes are available:
WFM1, WFM2, FMST, NFM, SFM, WAM, AM, NAM, SAM, SAL, SAH, USB, LSB, CW1, CW2, ISB,
SBD, RZ-S, AIQ, and AUTO .
To make a selection, rotate the sub dial. To accept a selection, press the MHz key.
Description Mode IF Bandwidth (KHz) Remarks
=====================================================================
WFM1 FM 100 Wide FM
WFM2 FM 200 Wide FM
NFM FM 15 Narrow FM
SFM FM 6 Super Narrow FM
WAM AM 15 Wide AM
AM AM 6 Normal AM
40
NAM AM 3 Super Narrow AM
SAM AM 6 Synchronous AM
SAL AM 6 Synchronous AM (Lower Sideband)
SAH AM 6 Synchronous AM (Upper Sideband)
USB SSB 3 Single Sideband (Upper Sideband)
LSB SSB 3 Single Sideband (Lower Sideband)
CW1 CW 0.5 CW
CW2 CW 0.2 CW
ISB ISB 6 Independent Sideband
SBD AM 6 AM Sideband Diversity
FMST FM 200 FM Stereo
RZ-S RZ-SSB 3 Real Zero Single Sideband
AIQ AIQ 12 +/- 5 Analog IQ, Used for DRM receive
AUTO AUTO Auto mode
=====================================================================
In the Advanced Select Mode setting , the following modes are available:
FM, FMST, AM, SAM, SAL, SAH, USB, LSB, CW, ISB, SBD, RZ-S, AIQ, and AUTO .
To make a selection, rotate the sub dial. To accept the selection, press the MHz key.
Description Mode Remarks
FM FM Normal FM
FMST FM FM Stereo
AM AM Normal AM
SAM AM Synchronous AM
SAL AM Synchronous AM (Lower Sideband)
SAH AM Synchronous AM (Upper Sideband)
USB SSB Single Sideband (Upper Sideband)
LSB SSB Single Sideband (Lower Sideband)
CW CW Normal CW
ISB ISB Independent Sideband
SBD AM AM Sideband Diversity
RZ-S RZ-SSB Real Zero Single Sideband
AIQ AIQ Analog IQ, Used for DRM receive
AUTO AUTO Auto mode
41
Selectable IF Bandwidth
Description IF Bandwidth Remarks
200 200Hz Available on CW mode only
500 500Hz Available on CW mode only
1K 1KHz
3K 3KHz
6K 6KHz
15K 15KHz
30K 30KHz
100K 100KHz Available on WFM, FMST mode only
200K 200KHz Available on WFM, FMST mode only
300K 300KHz Available on WFM, FMST mode only
2-5-3 Additional decoding modes
Press the key, then press the key.
The D.Option
setting sub menu screen will display on the screen.
Use the key or key to select the desired decoder function.
To change the setting, rotate the sub dial, then press the key.
After the setting is completed, the confirmation screen (see below) will appear.
Items Description
NOTCH
Auto Notch Filter
Tone Eliminator
NR Noise Reduction
Parameters
OFF 、 LOW 、 MID 、 HIGH
OFF 、 LOW 、 MID 、 HIGH
42
NB
SCR
Noise Blanker
Analog voice descrambler
OFF 、 LOW 、 MID 、 HIGH
OFF 、 2000Hz ~ 7000Hz
(in10Hz step)
IF-SFT IF Shift
CW-Pitch CW Pitch Control
AGC
AFC
Automatic Gain Control
Automatic Frequency
Control
0Hz(OFF) 、 -1200Hz ~ 1200Hz
(in 50Hz step)
300Hz ~ 900Hz (in 50Hz step)
SLOW / MIDDLE / FAST
ON / OFF
CTCSS
DCS
DTMF
Tone Squelch
Digital Code Squelch
DTMF Decoder
OFF 、 ALL 、 60.0Hz
~ 254.1Hz
(52 tones)
OFF 、 ALL
ON / OFF
CTCSS (Continuous Tone Controlled Squelch System)
、 017 ~ 754 (106 codes)
OFF ALL 60.0 67.0 69.3 71.9 74.4 77.0 79.7 82.5
118.8 120.0 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7
159.8 162.2 165.5 167.9 171.3 173.8 177.3 179.9 183.5 186.2
189.9 192.8 196.6 199.5 203.5 209.5 210.7 218.1 225.7 229.1
233.6 241.8 250.3 254.1
CTCSS tone frequencies (in Hz)
DCS (Digital Coded Squelch)
The DCS system uses 23 bit code data sent lower than the voice band frequency.
The data speed is 134.3 bit/sec in NRZ (Non-Return-Zero) format FM modulation.
OFF ALL 017 023 025 026 031 032 036 043
047 050 051 053 054 065 071 072 073 074
114 115 116 122 125 131 132 134 143 145
152 155 156 162 165 172 174 205 212 223
225 226 243 244 245 246 251 252 255 261
263 265 266 271 274 306 311 315 325 331
332 343 346 351 356 364 365 371 411 412
413 423 431 432 445 446 452 454 456 462
464 465 466 503 506 516 523 526 532 546
565 606 512 624 627 631 632 654 662 664
703 712 723 731 732 734 743 754
DTMF (Dual-Tone Multi-Frequency)
DCS Codes
High Frequency (Hz)
Low
669
(Hz) 770
1
4
2
5
3
6
A
B
43
852
941
7
*
8
0
DTMF frequency matrix
9
#
2-6 Changing tuning STEP size
C
D
The specification for channel occupancy, step (separation) and mode are regulated and allocated by government agencies in accord with international agreements.
The allocation of frequency bands is not the same all over the world and channel separation (step) varies from band to band. As an example, the channel separation (step) for the MW (medium wave) band in the U.S.A. is 10 KHz while in Europe and Japan, it is 9 KHz.
For the above reasons, it is necessary to change the tuning step size according to local band plans. The
AR-ALPHA has been pre-programmed at the factory with most of the band plan data (specific to each market area) so that the AR-ALPHA will automatically select the appropriate tuning step size and mode for the frequency chosen. This greatly simplifies operation of the AR-ALPHA.
The factory pre-programming of step size can be manually overwritten so you may choose alternative settings at will, or when band plans are updated.
To change the default tuning step size, press the STEP key. The frequency step will be highlighted at the top right of the LCD (in reverse color), showing it is ready to accept a new parameter setting.
For your convenience, the following tuning step frequencies have been preprogrammed at the factory:
1, 5, 10, 50, 100, 500Hz, 1, 2, 5, 6.25, 8.333, 9, 10, 12.5, 20, 25, 30, 50, 100, 500KHz
Rotate the sub dial to select the desired receive step. To accept the displayed tuning step size, press the MHz key.
The tuning step size may also be programmed in 1 Hz increments (via the keypad) so that unusual step sizes other than those stated are possible. The acceptable step size range is between 1 Hz and 1 MHz in 1 Hz steps. Using the numeric keypad, enter the desired tuning step frequency in KHz. Then press the
MHz key to confirm entry.
2-7 IF Bandwidth
44
The IF bandwidth feature specifies how SELECTIVE the receiver will be when monitoring signals.
However, it is not simply a case of using the narrowest filter at all times. Particular modes require sufficient amounts of bandwidth in order to operate, otherwise the received signal may not produce intelligible sound.
The correct receive mode and IF bandwidth must always be selected for optimum reception. If the bandwidth selection is too narrow, distortion or signal break-up may occur. If the bandwidth selection is too wide, adjacent interference may be encountered.
For this reason, a selection of commonly used IF filter bandwidths are pre-programmed.
Typical examples of receive mode and IF bandwidth are:
300 KHz -- VHF FM broadcast
200 KHz -- VHF FM broadcast
100 KHz or 30 KHz – Wireless microphone, etc. (example: 30 KHz for satellite FAX)
15 KHz – PMR, amateur band, etc. FM 6 KHz may also be used
6 KHz – VHF/UHF airband, short wave broadcast, medium & long wave, PMR, etc.
3 KHz – Short wave amateur band SSB, short wave utility such as oceanic airband etc.
1 KHz, 500 Hz, 200 Hz – Morse code used by radio amateurs and some marine traffic on short wave.
An appropriate IF filter is automatically selected in the AUTO MODE. However any combination of IF filter and receive mode is possible in the manual mode. When you have manually selected an IF filter bandwidth, AUTO MODE will be deactivated, but the receive mode, step size, etc will be retained until they are changed manually.
2-7-1 Manually selecting IF bandwidth
Press the key, then press the 0 (zero) key.
The IF Bandwidth (IFBW) select screen will appear on the LCD.
Select a new bandwidth from the list of 200, 500 Hz, 1, 3, 6, 15, 30, 100, 200, and 300 KHz by rotating the sub dial key. The selectable IF bandwidth is displayed in white. Other parameters may be selected
45
(displayed in blue), however, they may not be suitable for the particular receive mode in use.
To accept the new bandwidth selection, press the MHz key.
2-8 ATTENUA TOR
Activating the attenuator reduces signal to the RF input stages of the AR-ALPHA to prevent overloading in cases where the receiver is used in close proximity to strong transmissions.
The AR-ALPHA has five settings for ATT (attenuator), AMP ON 0 dB , AMP OFF 0 dB , 10 dB , 20 dB and AUTO .
To change the ATT parameter setting, press the key, then press the 1 key.
2-9 OFFSET
This function enables the receive frequency to be quickly SHIFTED by a predetermined value; this makes it easy to track duplex-transmissions or check repeater inputs/outputs. Offset frequencies may be factory pre-programmed into the auto-mode band plan data for some world market areas. Frequency offset may also be programmed manually.
The locations for frequency offset storage are numbered 00 to 47 with 00 acting as OFF, and the first 20 offsets are user programmable. The rest are used for quick offset memories.
Frequency offset may be programmed into VFO, memory channel and search banks. It is most convenient to set-up in the VFO mode, then save the data to a specific memory channel for quick recall at a later time. Frequency offset is primarily designed for memory channel use, as it is a rather complex process to toggle on/off in the VFO mode. However when programmed, frequency offset is not detrimental to normal operations.
The acceptable range of frequency offset is 0 MHz to 999.999999 MHz. Of course if the offset is set to
0 MHz, the frequency will not change. Before the FREQUENCY OFFSET function can be used, it first needs to be configured (unless it is already factory programmed for certain bands).
2-9-1 Using pre-programmed frequency offset data
To access the frequency offset set-up menu, press the key, then press the key.
46
The Offset frequency set up screen will appear. Rotate the sub dial to select the desired pre-programmed offset frequency.
To accept the offset setting, press the key.
Below is a list of the pre-programmed offset frequencies.
Channel number Offset frequency
47
=====================================================================
2-9-2 Entering new frequency offset data
Assume that you are in the VFO mode.
To access the frequency offset set-up menu, perform the following steps:
1. Press key, then press the key.
2. The Offset frequency set up screen will appear on the LCD.
3. Rotate the sub dial to select the desired offset memory channel.
4. Using the numeric keypad, enter the desired offset frequency in MHz format.
(The shift direction can be changed by pressing the KHz key.)
(Example) For shift frequency 5 MHz, enter 5.00.
2-9-3 Activating frequency offset
To activate frequency offset, press the key.
48
The DUP icon will display on the top of the screen to confirm operation.
2-9-4 Monitoring the offset frequency
To access the previously set offset frequency, press the key.
2-9-5 Deactivating frequency offset
To deactivate the frequency offset function, select the +00 offset channel.
1. Press key , press the key.
2. The frequency offset set up screen will appear on the LCD.
3. Rotate the sub dial to select channel +00.
4. Press the key to confirm entry.
5. The DUP icon will disappear from the screen to confirm operation.
3. Spectrum Display
Along with a high performance professional grade receiver, the AR-ALPHA has a built-in spectrum display funtion that will show frequency activity over a specified bandwidth on the LCD.
3-1 LCD Display Screen (in VFO spectrum analyzer mode)
49
3-1-1 Operation mode display
FUNC Function mode
VSQ
PRIO
PASS
SEL
Voice Squelch
Priority
Pass Memory
Select Memory
CTCSS Tone Squelch
DCS Digital Code Squelch
DTMF DTMF Decode
DUP
ADJ
Duplex Mode
Frequency Adjust
OFFSET Frequency Offset
RF-AMP Pre Amplifier
3-1-2 Basic Operation display
z VFO mode (example)
NOTCH Auto Notch
NR Noise Reduction
NB
SCR
Noise Blanker
Voice De-scramble
IF-SFT IF shift
AFC
Automatic Frequency
Control
ANT:
ATT:
Antenna Input
Attenuator
Timer
Key Lock
50
MODE Receive mode
IF-BW IF Bandwidth z Search mode (example)
Frequency Receiving frequency
Sub operation
Operation analysis
STEREO mode
MODE
IF-BW
Receive mode
IF bandwidth
SRCH00 Search bank channel
Frequency Receiving frequency
Sub operation
Operation analysis
VOICE mode
Tag Search bank tag Cordless Telephone z Memory Scan mode (example)
MODE Receive mode M00-00 Memory bank and memory channel
Frequency Receiving frequency IF-BW IF bandwidth
Tag Memory channel tag NHK FM z WSP (Wide Span) mode (example)
(Note: No audio is available in WSP mode.)
Frequency Center frequency
3-1-3 Spectrum Display (example)
51
(1) ▼ Marker Position (7) dB (upper) Reference level (H)
(2) Marker: Marker + Signal level (8) dB (lower) Reference level (L)
(3) RBW:
(4) SPAN:
Width
Frequency Span (10) CenterFreq. Center Frequency
(5) STEP: Frequency Step (11) EndFreq.
(6) OpMode: Operation
End Frequency
Note: The value of the Marker and the RBW will change according to the MKR operation.
The value of MAX.AVR or MED will be displayed next to RBW.
Marker MAX (example)
Peak AVR: 5 (example)
C-Peak MED: 4 (example)
Other display samples:
52
Waterfall Display WSP Display
Search Band Browser Search Tag Edito r
Soft Keys
Below are the functions of the soft keys. When no description of a key is shown, there is no assigned function for the soft key in that mode.
When a soft key is displayed in a dark blue color, it is not selectable.
Normal SRCH FFT S.FRQ S.MOD ATT/ANT S.SCAN RBW OPE
53
3-2 Display span setting
In the normal operation mode, the maximum display span is 10 MHz (+/- 5 MHz from the center frequency.)
The chart at the left indicates the display span as 10 MHz and the frequency step is 20 KHz.
Since there are 500 pixels on the horizontal axis, the resolution of each pixel indicates 20 KHz. (10 MHz / 500 = 20 KHz)
In the normal operation mode, the display span can be set between 250 KHz and10 MHz in
1 KHz increments. In this mode, the display step is calculated automatically.
The display step can be manually set between 500 Hz and 20 KHz in 10Hz increments. In this mode, the display span is determined automatically.
In some cases, it is more convenient to set the display span by entering the start frequency and the end frequency instead of setting the center frequency.
In this case, however, you need to remember that the actual display span will change according to the start frequency or the end frequency.
54
3-2-1 Setting the display span
Press the key.
The description of the soft keys, and their respective functions, will be changed.
→ Direct entry of the start frequency
→ Direct entry of the end frequency
→ Direct entry of the center frequency
→
→ Set the display span
→ Set the display step
When one of the soft keys is pressed, its color will be reversed.
Enter a parameter by the numeric keypad.
Press the
(Example) Setting the display span to 5 MHz.
key or key to confirm entry.
Press the key, then press the soft key.
Press the key, then press the key to confirm entry.
Display span is set to 5 MHz.
55
Setting the display span using the display frequency step
(Example) Set the display frequency to 1 KHz.
Press the key, then press the soft key.
Press the key, then press the key. z Display scan range : 250 KHz ~ 10 MHz (in 1 KHz steps)
If the frequency is set to lower than 150 KHz, then the display scan range is set to 250 KHz.
If the frequency is set to higher than 10 MHz, then the display scan range is set to 10 MHz. z Display step range: 500 Hz ~ 20 KHz (in 10 Hz step)
If the frequency is set to lower than 500 Hz, then the display step is set to 500 Hz.
If the frequency is set to higher than 20 KHz, then the display step is set to 20 KHz.
4. Memory channels
Think of memory channels as pages in a notebook, each of which is numbered to identify it. Data may be written to each new page (memory channel) and each page may be overwritten with new data at any time. In other words, a memory channel can be used over and over again.
Each memory channel may hold: z One receive frequency z Receive mode z Tuning step z IF Bandwidth z Frequency step adjust z Voice squelch level z Antenna input setting z Attenuator / RF amplifier setting
56
z Decoding mode z Offset frequency channel z Frequency pass channel z Select memory z Text comment of up to 12 characters
4-1 Memory Bank and Memory Channel
The AR-ALPHA features 2,000 memory channels and a priority channel.
There are 40 memory banks (groups) and each bank has 50 memory channels.
The alphanumeric comment may be used for easy identification of a specific memory channel at a future time and to provide a “text search” function. The 2,000 memory channels are divided into 40 banks, each having 50 channels. The memory banks are identified by the first BANK number 0, 1, 2, 3, 4, 5, 6,
7, 8 and 9 and the individual channels are numbered from 00 to 39.
Examples are “00” for the first channel location in memory bank “0” and “39” for the last memory channel in memory bank “0”.
“04-15” is the location: memory bank “04” channel “15”.
Memory bank Memory channel
The data contents of memory and search banks are held in an EEPROM; therefore no backup battery is
57
required for memory retention.
The stored data may be quickly and easily recalled, changed or deleted using the memory recall and delete functions.
Memory channel browser (contents of memory channel)
Note : When the receiver is switched OFF, all VFO data will be automatically saved into
EEPROM memory storage .
4-2 Storing VFO frequencies and data into memory
The process to save a displayed VFO frequency to memory is as follows:
In the VFO mode, set the desired frequency, mode, attenuator, and so on.
(Example) Storing 80.000MHz.
Press the numeric keypad.
, , , , key from the
Press and hold the key for 2 seconds.
The VFO browser screen will appear on the LCD.
Press the UP key to move the cursor to highlight the
MemCh (Memory channel) in reverse color, then enter the desired memory bank and memory channel using the numeric keypad followed by the key.
(Example) Enter “0415” “MHz” will select memory bank 04 and memory channel 15.
Press the Down key to move the cursor to highlight the Title in reverse color. To add a text comment (optional), press the Title Edit key of the soft key on the right side of the LCD. Use the
58
numeric keypad for text entry.
Press the key to save the data to the specified memory location.
4-3 Memory read “M.RD”
Once frequency and mode data has been stored into a memory location, its retrieval is quick and simple.
Press the key. This changes the VFO mode screen into the memory mode screen.
Rotate the main dial to select the desired memory channel.
If the memory bank and memory channel are already programmed, then enter the 2 digits of the memory bank number followed by the 2 digits of the desired memory channel from the numeric keypad.
(Example) Read the memory bank 00, memory channel 02.
Enter , , , , from the numeric key pad.
(Note) If a vacant memory content is recalled, then the memory bank 00, memory channel 00 will be recalled.
59
To return to VFO mode screen, press the key.
● Soft key operation in memory receive mode
Functions of User 1 ~ User 5 and Page 1 are similar to the VFO mode except the
Soft Key.
.
→→→
In the VFO mode, pressing the soft key will display the VFO list.
In the memory mode, it displays the BANK List.
60
4-4 Memory Mode
VFO mode
Memory mode
Bank List
To enter the Memory Mode, press the key.
The “VFO-A” icon changes to “M00-03” indicating the AR-ALPHA is in the Memory Mode.
soft While in the Memory Mode, press the key to display the Bank List.
Press the cursor.
or key to move the
Return to memory screen
Memory channel set
Go to Bank browser
Display channel list
Return to memory screen
61
4-4-1 From Bank List screen to MemBank screen or Browser
Press the soft key to display the MemBank 00 Browser screen.
To move the cursor, press the or key. Return to previous screen.
Go to the Title Editor screen.
Return to Memory mode screen.
Return to previous screen.
Memory Bank Browser
Bank number Available free memory number
Memory name tag
Assigned memory
channel number
Write protect
While above screen is displayed, press the key of the soft key to go into the Title Editor screen.
Return to previous screen.
Confirm title entry.
Delete character.
Move the cursor rightward.
Move the cursor leftward.
Select the previous
character.
Memory Title (Tag) Editor
62
4-4-2 From
BANK List
to
MemCh List
While the BANK List is displayed, press the selected memory bank.
key of the soft key to display the channel list of the
A total of 10 channel (0 0 ~ 09) contents will be displayed. A channel in white color indicates a registered channel, and a channel in blue color indicates the channel is not registered.
Press the cursor.
or key to move the
Return to the previous screen.
Go to the Memory Mode screen.
Go to the Memory Channel Browser.
Return to the previous screen.
Memory Channel List
Bank number Bank title Assigned channel number
Channel number
Bank number
Cursor
Unregistered channels
Frequency Mode IFBW Pass Select Title
Bank number Current bank number
Bank title Named title for the bank
Assigned channel number The channel number in the assigned bank
Frequency Stored receive frequency
Mode Stored receive mode
IFBW Stored IF bandwidth
Pass Setting Stored pass setting
Select Stored select setting
Channel title Stored memory tag
63
4-4-3 From MemCh List to MemCh **-** Browser
Press the key to display the Memory Channel Brower of the selected memory channel.
Return to previous screen.
Go to Title Editor screen.
Go to Memory Mode screen.
Return to MemCh List screen.
Return to previous screen.
Memory Channel Browser
Mode
IFBW
Receive mode
IF bandwidth
StepAdj. Step adjust
Offset Offset
IF-SFT IF shift
ANT
ATT
AGC
AFC
NR
CW Pitch CW pitch frequency NB
De-Emp. De-emphasis SCR
Antenna select
Attenuator
AGC setting
AFC setting setting
CTCSS CTCSS setting
DCS DCS setting
DTMF DTMF setting
IF-Inv. IF inversion
Noise reduction F.Span Frequency span
Noise blanker
Voice Descrambler Select Select setting
64
Title (Tag) Editor
While the Memory Channel Browser screen is displayed, press the screen.
key to go to Title Editor
Return to the previous screen.
Confirm entry
Delete character
Move cursor rightward
Move cursor leftward
Select the previous character
65
● Soft key operation and functions
66
5. SCAN – scanning memory channels
The AR-ALPHA has a SCAN mode whereby the contents stored in the MEMORY CHANNELS ARE
AUTOMATICALLY RECALLED AND MONITORED very quickly, that is, “scanned” for activity.
*** It is important that you do not confuse SCAN and SEARCH modes. ***
SEARCH mode (covered later in this manual) automatically TUNES THE RECEIVER THROUGH
ALL FREQUENCIES between two specified frequency limits looking for active frequencies.
5-1 SCAN – outline introduction
During SCAN, the AR-ALPHA automatically recalls memory channels which contain data (in numeric order) and monitors them looking for activity. When an ‘active’ memory channel is located (when a signal is found and the squelch is open), the AR-ALPHA will temporarily stop scanning.
5-2 Starting SCAN
Before starting the scan process, some memory channels need to be pre-programmed with data.
Ensure that the squelch is set to the threshold point so that background noise is cancelled and the squelch closes (otherwise the scan function will not operate).
In the VFO mode (as shown to the left), press the key to go into the memory mode.
Rotate the main dial to select the desired memory bank to scan.
Press the key again .
VFO mode screen (example)
Memory mode screen (example)
When SCAN has been selected, only the currently displayed memory bank WHICH CONTAINS DATA will be
SCANNED, receive mode and frequency are unimportant.
Any memory channels that contain no data (empty) will be ignored (skipped).
67
Scan mode (searching) Scan mode (receiving)
5-3 Scan operation
① ②
③ ④
⑤ ⑥
⑦
⑧
⑨
Item Operation
① MODE:NFM Receive
② IFBW:15k Receiver IF bandwidth
③
④
⑤
⑥
M01-22
399.462500MHz
MemCh01-22
VOICE
DTMF: AAAA
Bank 01, Channel 22
Memory channel frequency
Memory channel text
Decoding mode: VOICE
DTMF decoded data
⑦
⑧
⑨
398.030M
Cursor
Current receive channel
68
z Display during memory scan
While scanning, the blinking appears instead of memory channel frequency.
Å scanning
If more than one memory channel is programmed into the current memory bank, when an ‘active’ channel has been located (busy, so the squelch opens), the scan process will temporarily pause on the active channel, and the memory location will be displayed along with any accompanying text. z Soft key operations
Read the memory channel at the cursor.
Move the cursor to the recently scanned channel.
Clear (delete) the scan list.
5-3-1 Changing scan direction
Scanning direction can be changed by rotating the main dial.
5-4 Selecting a scan bank
To select another memory bank for scanning, use the numeric keypad to enter 4 digits.
(Example: Select bank 02)
If no data is available, the next bank with valid data will be recalled (empty memory banks are skipped).
To exit from the SCAN mode, press the VFO key.
5-5 Bank Link
The AR-ALPHA has a built-in Bank Link function to allow scanning a single bank or a user-selected group of memory banks.
5-5-1 Setting Bank Link
1. Press the key, then press and hold the
2. The Scan Group screen will appear. key for 2 seconds.
69
Group: 00 Scan group number 00, 01 ~ 19
Delay: 2.0s
Scan delay time 01 ~ 99 (9.9 seconds, in 0.1 second step)
Free: OFF Scan free time OFF (00), 01 ~ 60 (60 seconds)
3. Rotate the sub dial to select the desired item, then use the or key to change.
4. Press the key to cancel.
5-6 Select Scan
Select scan enables you to ‘tag’ memory channels to make a temporary list up to 50 channels in the same memory bank for scanning in a separate list called the SELECT SCAN LIST.
5-6-1 Adding select scan channels in memory read
1. Press the key to enter the memory mode.
2. Locate the memory channel to add select scan channel.
key. 3. Press the key, then press the
4. The ‘SEL’ icon will appear on the LCD.
(Example)
70
Adding select scan channels can be performed in the memory channel browser screen.
5-6-2 Start select scan
Press the key, then press the
Memory channel browser key.
Add the channel to the select memory.
Transfer the cursor data to the newest list.
Clear the displayed list.
71
5-7 Channel Pass
When scanning, you may encounter active memory channels which you do not wish to currently monitor.
It is possible to manually force the scan process to continue.
5-7-1 Setting channel pass
1. Press the key to enter the memory mode.
2. Select the memory channel you wish to pass.
3. Press the key, then press the
4. The ‘PASS’ icon will appear on the LCD.
key.
You can do the same on the memory channel browser screen.
72
6. Search
6-1 Search Setting
6-1-1 Setting
1. Press and hold the key for 2 seconds.
2. The following screen will appear.
3.
Press the key.
4. The following screen will appear.
6-1-2 Search Bank Browser setting
73
LoFreq. Lower limit freq.
HiFreq. Upper limit freq.
Mode
Step
Receive mode
Frequency step
IFBW IF bandwidth
AtepAdj. Step adjust
ANT
ATT
AGC
AFC
VSQ
Antenna
Attenuator
AGC setting
AFC setting
Voice squelch
IF-SFT IFshift
CW
Pitch
NR
CW pitch frequency NB
Noise
Noise blanker
De-Emp. De-emphasis SCR Voice
6-1-3 Start search
1. Press the key.
2. The following screen will appear.
CTCSS CTCSS setting
DCS DCS setting
DTMF DTMF setting
IF-Inv. IF inversion
To change the Search Bank, enter a 2-digit number (00 ~ 39) from the numeric keypad.
74
Go to PASS Freq. List.
The frequency selected by the cursor will be sent to the VFO (using VFO-D).
Move to the newest receive frequency.
Delete all search list.
N/A
● Transfer to VFO-D
Use the key to select the desired frequency to transfer.
Pressing the key will transfer the selected frequency to VFO-D.
ÆÆ Æ
Press the to move the cursor to select desired frequency list key, then press the key to transfer the VFO mode.
● Pass List
In the Search mode, press the key to select the Frequency Pass List.
Return to the Search List screen.
75
Delete the frequency at the cursor in the PASS Freq. List.
Delete all PASS frequencies from the frequency list.
N/A
6-2 Search Group
The search function will tune continuously between two (2) selected frequencies in increments of the currently designated frequency step. By using the Search group function, it automatically searches frequencies across the pre-selected search groups.
6-2-1 Setting Search Group
Press the key, then press and hold the key for 2 seconds.
The following screen will appear.
To select a category, rotate the sub dial.
Group:00 A total of 19 (01 ~ 19) can be selected. To select the group, use the key.
Delay:2.0s
(Note: The 00 cannot be selected.)
Duration before resuming search after a signal is received.
Selectable range: 0.0
~ 9.9 (seconds)
Free:OFF
To set the delay, use the key.
Duration of receiving.
Selectable range: OFF, 01 ~ 60 (seconds).
To set the duration, use the key.
AutoStore:OFF Select auto store on/off.
76
This function will automatically store an active frequency into memory bank 39
If memory channels on bank 39 are full, then a frequency will be overwritten.
Displays search bank of 00 ~ 39. To select the search bank, rotate the sub dial Link:
and press the key or press the key to deselect.
Press the soft key to start group search.
● Soft key operation and functions
Press the key, then press the key.
Press and hold the
Press the key.
key
77
7. FFT Search
The AR-ALPHA has a FFT (Fast Fourier Transform) search function that enables high speed searches using search bank data.
Unlike the ordinary search function that searches between a low frequency and a high frequency, the AR-ALPHA FFT search examines a 10MHz block of band data. When more than 10MHz of bandwidth needs to be searched, the AR-ALPHA will automatically continue the FFT search process in 10MHz increments.
7-1 FFT Search setting
1. P ress the key.
2. The following screen will appear.
78
Recall bank setting.
Recall FFT frequency step.
Recall threshold level of FFT search.
Start FFT search.
(1) Search bank Set Search bank
Selectable range: 00 ~ 39
(2) FFT-STEP Frequency step only for FFT search.
Rotate the sub dial to select.
(3) Threshold level For FFT search
Rotate the sub dial to select.
7-1-1 FFT Search Screen
Pause FFT search.
Resume FFT search.
Transfer the cursor frequency to VFO-D.
Move the cursor to the latest position.
Delete the frequency list searched by FFT.
Return to the FFT search screen.
79
Press the
● Soft key function operation and functions
key
80
8.
MISCELLANEOUS SETTINGS
8-1 Soft key registration
The functions of the soft keys vary with respect to each operation screen. By assigning variable functions to each soft key, it is much easier to operate the AR-ALPHA.
Soft Key function Soft key
8-1-1 Soft Key Operation
Yellow color Function not assigned or not available.
Blue color Function assigned
● Switch between User1 ~ User5 and User6 ~ User10
Press the key or key.
81
8-1-2 Soft key registration
(Example) Assign the User1 key to set a V.SCR (Voice Descrambler) frequency of 2100Hz.
1 . Press and hold the User1 soft key for 2 seconds.
The color of the User1 key will change from blue to yellow and 9 appears below the soft key.
In the meantime, the key will change to the key.
Press the key.
The FUNC icon will appear.
The number below the soft key is changed from 9 to 8.
2. Press and hold the key for 2 seconds.
The D.Option
setting sub screen is displayed.
The number below the soft key is changed from 8 to 7.
3. Press the key three (3) times.
The V.SCR
changes in reverse color.
The number below the soft key is changed from 7 to 6.
4. Rotate the sub dial to select 2100Hz.
T he SCR icon is displayed.
The number below the soft key is changed from 6 to 5.
5. Press the key.
The D.Option setting sub screen will go off.
The number below the soft key is changed from 5 to 4.
6. Press and hold the User1 soft key for 2 seconds.
The color of User1 will change from yellow to blue.
This completes registration of the selected functions in the soft key.
82
As described above, using the assigned soft key will greatly simplify complex key operations.
8-2 Voice Recording
The AR-ALPHA has a built in DVR (Digital Voice Recorder).
A total of recording time is 52 minutes (except in the WFM1/WFM2/FMST modes). There are five (5) recording memory channels.
Notes: z FM stereo signals are recorded in mono. z In the ISB mode, both sideband signals are mixed and recorded. z In the CW mode, signals are recorded as mono. z Quality of playback sound may be degraded as compared with the original signals even if recorded in the WFM mode or WAM mode. z The receive mode should not be changed during the recording process. z Never turn the main power switch off during recording, or loss of the recorded signal will result. z To play back the recorded signal properly, select the same receive mode as when signals were recorded. z When DVR memory channels are all full, no further recording can be done.
8-2-1 Recording
1. Press the key to start recording.
2. The DVR will capture data beginning 6 seconds prior to the the record key being pressed.
3. A red bullet and a white recording progress indicator will appear on the LCD.
8-2-2 Stop recording
1. Press the key while recording.
2. The red round icon will be changed to CUE .
8-2-3 Playback audio
1. Press the key, then press the
2. The color of the soft keys will change.
key.
83
Grey --- Recorded (saved)
Blue --- Channel not used (empty)
(Example)
Channel 0 Grey Recorded
Channel 1 Blue Empty
Channel 2 Blue Empty
Channel 3 Blue Empty
Channel 4 Blue Empty
Channel 5 Blue Empty
3. Press the desired (recorded) channel soft key to play back audio.
(On the above example, the key is available for playback.)
4. The CUE icon will change to a green triangle icon indicating playback has taken place.
5. To stop playback, press the key.
8-2-4 Changing recorded channel
Recording always takes place on channel 0. To save a recording to memory, the memory contents need to be moved to another vacant channel.
(Caution: Turning the main power switch off (on the rear panel) will delete all DVR memory contents.)
1. Press the key, then press the
2. The data editor screen will appear.
key.
CUE DATA MOVE 0 => 1 --- move memory contents to channel 1.
3. To change (select) memory channel, rotate the sub dial.
8-3 Data Editor
84
Various data entries including memory channel, memory bank, search bank can be edited on this screen.
To enter the Data Editor screen, press the
The following screen will appear.
key, then press the key.
(MOVE / COPY)
MEM BANK MOVE
MEM BANK COPY
Move / copy
Move memory bank Move contents of memory bank.
Copy memory bank Copy contents of memory bank.
SRCH BANK MOVE Move search bank Move contents of search bank.
SRCH BANK COPY Copy search bank Copy contents of search bank.
MEM CH MOVE
MEM CH COPY
Move memory channel Move contents of memory channel.
Copy memory channel Copy contents of memory channel.
SCAN GR. MOVE
SCAN GR. COPY
SRCH GR. MOVE
SRCH GR. COPY
CUE DATA MOVE
Move scan group Move contents of scan settings.
Copy scan group Copy contents of scan settings.
Move search group Move contents of search settings.
Copy search group Copy contents of search settings.
Move recorded audio Move recorded audio on channel 0.
(Delete) Delete
MEM BANK DEL Delete memory bank Delete contents of memory bank.
SRCH BANK DEL
MEM CH DEL
Delete search bank Delete contents of search bank.
Delete memory channel Delete contents of memory channel.
MEM PASS CH ALL Delete pass memory ch. Delete all pass memory channels.
SRCH PASS CH ALL Delete search pass freq. Delete all search pass frequencies.
MEM BANK ALL
SRCH BANK ALL
CUE DATA DEL
CUE DATA ALL
Delete all memory banks Delete all memory banks.
Delete all search banks Delete all search banks.
Delete recorded audio Delete recorded audio contents.
Delete all recorded audio Delete all recorded audio channel contents.
8-3-1 Moving memory bank
key. 1. Press the key, then press the
2. The data editor screen will appear.
85
3. Using the key or key, move the cursor to MEM BANK MOVE .
4. The highlighted (in reverse color) number on the left side is the original memory bank.
5. Rotate the sub dial to select the memory bank. (Above example shows bank 01).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired memory bank.
8. Press the key to confirm entry.
9. At this point, the data on bank 01 is deleted and moved to bank 02.
10. The screen will return to the previous display screen.
(Note: If memory bank protection is set to ON, the memory contents will not be transferred.)
8-3-2 Copying memory bank
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM BANK COPY .
4. The highlighted (in reverse color) number on the left side is the original memory bank.
5. Rotate the sub dial to select the memory bank. (Above example shows bank 01).
86
6. Press the key to move the cursor.
7. Rotate the sub dial to select the memory bank to be copied.
8. Press the key to confirm entry.
9. At this point, the data of bank 01 is copied to bank 02.
10. The screen will return to the previous display screen.
8-3-3 Moving search bank
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH BANK MOVE .
4. The highlighted (in reverse color) number on the left side is the original search bank.
5. Rotate the sub dial to select the memory bank. (Above example shows bank 01).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired search bank.
8. Press the key to confirm entry.
9. At this point, the data of bank 01 is deleted and moved to bank 02.
87
10. The screen will return to the previous display screen.
8-3-4 Copying search bank
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SEARCH BANK COPY .
4. The highlighted (in reverse color) number on the left side is the original search bank.
5. Rotate the sub dial to select the search bank. (Above example shows bank 01).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the memory bank to be copied.
8. Press the key to confirm entry.
9. At this point, the data of bank 01 is copied to bank 02.
10. The screen will return to the previous display screen.
8-3-5 Moving memory channel
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM CH MOVE.
88
4. The highlighted (in reverse color) number on the left side is the original memory bank.
5. Rotate the sub dial to select the memory bank. (Above example shows bank 00, channel 04).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired memory bank and channel.
8. Press the key to confirm entry.
9. At this point, the data of bank 00, channel 04 is deleted and moved to bank 01, channel 00.
10. The screen will return to the previous display screen.
8-3-6 Copying memory channel
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM CH COPY .
4. The highlighted (in reverse color) number on the left side is the original memory bank and channel.
5. Rotate the sub dial to select the search bank. (Above example shows bank 00, channel 04).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the memory bank and channel to be copied.
89
8. Press the key to confirm entry.
9. At this point, the data of bank 00 channel 04 is copied to bank 01, channel 00.
10. The screen will return to the previous display screen.
8-3-7 Moving scan group data
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SCAN GR. MOVE .
4. The highlighted (in reverse color) number on the left side is the original scan bank group (00).
5. Rotate the sub dial to select the scan bank group. (Above example shows bank 01).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired scan bank.
8. Press the key to confirm entry.
9. At this point, the data of bank 01 is deleted and moved to bank 02.
10. The screen will return to the previous display screen.
8-3-8 Copying scan group data
1. Press the key, then press the
2. The data editor screen will appear.
key.
90
3. Using the key or key, move the cursor to SCAN GR. COPY .
4. The highlighted (in reverse color) number on the left side is the original memory bank and channel.
5. Rotate the sub dial to select the search bank. (Above example shows bank 02).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired scan bank.
8. Press the key to confirm entry.
9. At this point, the data of bank 02 is copied to bank 03.
10. The screen will return to the previous display screen.
8-3-9 Moving search group data
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH GR. MOVE .
4. The highlighted (in reverse color) number on the left side is the original scan bank group (00).
5. Rotate the sub dial to select the scan bank group. (Above example shows bank 01).
6. Press the key to move the cursor.
91
7. Rotate the sub dial to select the desired scan bank.
8. Press the key to confirm entry.
9. At this point, the data of bank 01is deleted and moved to bank 02.
10. The screen will return to the previous display screen.
8-3-10 Copying search group
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH GR. COPY
4. The highlighted (in reverse color) number on the left side is the original memory bank and channel.
5. Rotate the sub dial to select the search bank. (Above example shows bank 02).
6. Press the key to move the cursor.
7. Rotate the sub dial to select the desired scan bank.
8. Press the key to confirm entry.
9. At this point, the data of bank 02 is copied to bank 03.
10. The screen will return to the previous display screen.
8-3-11 Moving recorded voice data
92
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to QUE DATA MOVE .
4. Voice data is always recorded on CUE channel 0. In order to save voice data, it must be copied onto
CUE1 ~ CUE5.
5. Rotate the sub dial to select the new voice memory channel. (Above example shows channel 02).
6. Press the key to move the cursor.
7. The screen will return to the previous display screen.
8-3-12 Deleting memory bank
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM BANK DEL .
4. Rotate the sub dial to select the desired memory bank to delete.
5. Press the key to delete the memory bank.
(Note: In order to delete the memory bank, write protection of the memory bank must be set to OFF).
93
8-3-13 Deleting search bank
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH BANK DEL .
4. Rotate the sub dial to select the search bank to be deleted.
5. Press the key to delete.
8-3-14 Deleting memory channel
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM CH DEL .
4. Rotate the sub dial to select the memory channel to be deleted.
5. Press the key to delete.
8-3-15 Deleting memory pass channel
94
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM PASS CH ALL .
4. Rotate the sub dial to select the memory bank for the memory pass channels.
5. Press the key to delete all memory pass channels.
8-3-16 Deleting all search pass channels
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH PASS CH ALL .
4. Rotate the sub dial to select the search bank for the search pass channels.
5. Press the key to delete.
8-3-17 Deleting all memory banks
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to MEM BANK ALL .
4. Press the key to delete all memory banks.
8-3-18 Deleting all search banks
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to SRCH BANK ALL .
95
4. Press the key to delete all search banks.
8-3-19 Deleting voice record channel
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to CUE DATA DEL .
4. Rotate the sub dial to select the voice record channel.
5. Press the key to delete.
8-3-20 Deleting all recorded voice data
1. Press the key, then press the
2. The data editor screen will appear.
key.
3. Using the key or key, move the cursor to CUE DATA ALL .
4. Press the key to delete all recorded voice data.
8-4 Configuration settings
The configuration menu is used to set fundamental operating parameters and other variables which do not appear in any menu heading.
1. Press the key, then press the
2. The configuration screen will appear.
key.
96
The description of each menu is as follows:
BackLight
BEEP
Backlight On/Off of the display
Beep On/Off
RF-GAIN
10MHz
RF gain setting
Reference oscillator input select
Video format select
I/Q output bandwidth setting
TV-Format
I/Q BW
VSQ-LV
VSQ-DL
SERIAL
SPEED
FLOW
Voice squelch level setting
Voice squelch delay setting
Serial port select
Serial port baud rate setting
Serial port flow control setting
Main board Display version of the main board
Panel board Display version of the control panel
Decoder board
Display version of the decoder board
RF-Unit Display version of the RF Unit
8-4-1 Configure backlit illumination
The AR-ALPHA is equipped with a high density backlight lamp to illuminate the LCD when operating.
To configure backlight illumination, perform the following steps:
1. Press key, then press the key.
97
3. Press key or key to move the cursor to BackLight
4. Rotate the sub dial to select on or off.
5. Press key to confirm entry.
(Note) When the back light of the display is set to off, the LCD screen is invisible and may be difficult
to operate. If that is the case, please perform the following procedures:
1. Press and hold the key to power off the unit.
2.
Press the key again. This should display the LCD screen.
If this does not help, press the key, then press the key.
Rotate the sub dial clockwise with one click. Press the key.
3.
When the configuration screen appears, then press the setting .
4.
Rotate the sub dial to turn it on.
key or key to select back light
5. Press the key to confirm entry.
(Note: The brightness of the LCD is not adjustable.)
8-4-2 Configure beep
The AR-ALPHA emits confirmation ‘beeps’ when the keypad is used. A ‘HIGH’ pitched beep indicates correct operation while a ‘LOW’ pitched beep indicates that an error or unexpected entry has taken place.
The volume of the beep is independent of the main volume control. It is recommended that the beep function be enabled, especially when a new user is becoming familiar with the AR-ALPHA.
To access the configuration menu, perform the following steps:
1. Press key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to BEEP .
4. Rotate the sub dial to select on or off.
5. Press the key to confirm entry.
8-4-3 Configure RF-GAIN (Radio Frequency Gain)
The RF gain setting switches the attenuator or preamplifier to suit the band conditions and antenna in use.
The value can be adjusted according to local receiving conditions.
98
To access the configuration menu, perform the following steps:
1. Press the key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to RF-GAIN.
4. Rotate the sub dial to vary the RF gain level between 000 ~ 110 for best reception.
5. Press the key to confirm entry.
8-4-4 Configure reference signal input
This function enables you to select an external reference signal for the AR-ALPHA. The AR-ALPHA has a stable built-in reference oscillator, however, an external high stability 10 MHz reference (such as off-air, atomic coupled) can be accepted by the BNC connector, marked “10 MHz”, on the rear panel of the
AR-ALPHA.
External 10MHz external reference oscillator input
To access the configuration menu, perform the following steps:
1. Press the key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to 10MHz .
4. Rotate the sub dial to select Int. (Internal oscillator) or Ext. (External oscillator).
5. Press the key to confirm entry.
(Caution) When the external input reference oscillator is selected but no signal is present at the
10 MHz input connector, the AR-ALPHA will not operate properly.
99
8-4-5 Video format
The AR-ALPHA has a built-in video decoder and supports NTSC, PAL, and SECAM formats. The video signal format is automatically detected.
To access the configuration menu, perform the following steps:
1. Press the key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to TV-Format.
4. Rotate the sub dial to choose one from the following three (3) choices.
AUTO Video mode is automatically selected.
PAL PAL mode
NTSC NTSC mode
(Note: To receive SECAM format, select AUTO mode or PAL mode.)
5. Press the key to confirm entry.
(Note) Some video transmitters utilize reversed frequency shift modulation in order to scramble signals.
If that is the case, a signal can be descrambled by changing the shift direction. To do this, perform the following steps:
1. Set the AR-ALPHA in the VFO browser mode or the memory channel browser mode.
2. Press key or key to move the cursor to IF-Inv .
3. Select On (reverse shift) or OFF (normal shift).
4. Press key to confirm entry.
8-4-6 Configure I/Q output bandwidth
The AR-ALPHA has a built-in I/Q output. This allows the user to obtain raw frequency data from the
AR-ALPHA and save onto a PC hard disk.
In order to use the I/Q output function, you must have an operating system that is compatible with
Isochronous mode and USB 2.0 format.
(Note: A Windows ® XP compatible PC is required to use I/Q function.)
100
I/Q OUTPUT CONNECTOR
To access the configuration menu, perform the following steps:
1. Press key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to I /Q BW .
4. Rotate the sub dial to select either 300K or 1M.
300K --- I/Q bandwidth 300 KHz
1M --- I/Q bandwidth 1 MHz
5. Press the key to confirm entry.
8-4-7 Configure Voice squelch level
The voice squelch determines the way in which an active channel is determined, by sampling the audio modulation. When the voice squelch function is activated, the squelch will open only when a signal has modulation (such as voice) present.
Before this function is activated, the squelch level and time delay need to be set.
key.
To access the configuration menu, press the key, then press the
The VSQ icon will appear on the first row of the LCD screen.
101
8-4-7-1 Configure Voice level and delay time
1. Press the key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to VSQ-LV .
4. Rotate the sub dial to select the voice level between 00 ~ 07. (Default value is 03.)
5. Then configure the delay time.
6. Using the key or key, move the cursor to VSQ-DL .
7.
Rotate the sub dial to set the time delay parameter between 000 ~ 255. (Default value is 008).
8. Press the key to confirm entry.
(Note) VSQ-LV (squelch level) and VSQ –DL (delay time) may be set independently.
8-4-8 Configure PC interface
The AR-ALPHA has one USB interface (REMOTE 1) and one RS-232C (REMOTE 2) serial interface.
(Note: REMOTE 1 and REMOTE 2 cannot be used at the same time.)
RS-232C Port USB Port
To access the configuration menu, perform the following steps:
1. Press the key, then press the
2. The configuration screen will appear.
key.
3. Press the key or key to move the cursor to SERIAL .
4. Rotate the sub dial and select REMOTE 1 (USB) or REMOTE 2 (USB).
5. Press the key to move the cursor to SPEED .
6. Rotate the sub dial to select the communications baud rate.
102
The selectable parameters are 9600/19200/38400/57600/115200 baud.
7. Press the key to move the cursor to FLOW (Flow control by the PC).
8. Rotate the sub dial to select flow control on or off.
9. Press the key to confirm entry.
(Note) SERIAL, SPEED, FLOW may be set independently.
8-4-9 Configure Sleep Timer
The AR-ALPHA has a sleep timer function where the receiver may be programmed to switch off after a preset time.
To access the configuration menu, perform the following steps:
(Example: Setting timer for 30 minutes)
1. Press key, then press the key.
2. The timer display will appear on the top right corner of the display.
3. Rotate the sub dial to set the timer to 30 (minutes.)
4. Press the key to activate the sleep timer.
103
When the remaining time reaches 10 minutes, the color of timer icon will change to yellow.
When the remaining time reaches 2 minutes, the color of timer icon will change to red.
When the remaining time is less than one minute, the timer will display the remaining time.
5. To turn the power off when the sleep timer is running, set the timer to 0 minutes.
6. When the power switch is turned off manually, or by the sleep timer, the timer will be reset.
8-4-10 Configure Priority function
The priority function enables you to carry on scanning or monitoring while the AR-ALPHA periodically checks a selected frequency for activity.
8-4-10-1 Setup
The priority can be accessed from either the VFO mode or the memory read mode.
1. Press key, then press and hold the key for 2 seconds.
2. The PRIO (Priority Setting) sub screen will appear on the LCD.
3. Rotate the sub dial to select the priority channel.
4. Press the key, then set the time interval between 01 ~ 88 (seconds).
104
5. Press the key to confirm entry.
8-4-10-2 Activating priority function
To activate the priority function, perform the following steps:
1. Press key, then press the key.
2. The PRIO icon will appear at the top of the LCD.
3. When the priority channel is received, the priority channel number will be displayed.
4. To deactivate the priority function, repeat above steps.
9. Computer control
Connect a PC to the AR-ALPHA using one of the remote control connectors.
REMOTE 1 is for USB interface (USB-B type) and REMOTE 2 is a serial port using an RS-232C cable terminated in a 9-pin plug. The default setting is REMOTE 1 (USB).
9-1 How to send a control command
Each command consists of two upper case letters (header) along with operations as required. All commands use ASCII code which MUST BE IN UPPER CASE (except for the up arrow key, down arrow key, right arrow key, left arrow key.
A terminal program running on the computer should be set to:
Baud rate: 115200 bps (this should match the AR-ALPHA setting)
105
DATA BIT: 8
STOP BIT: 1
PARITY: NONE
XFLOW: NONE
A multiple command entry is only valid where specified. Where a multiple command entry is allowed, each command MUST be separated with a space “h20” (HEX DECIMAL). Each command is completed and a [CR] or [CR][LF]. Although there is no local echo, either [CR] or a specified response should come back from the receiver after confirming the correct command. If no response has been received after a short time, the receiver has failed to receive the command properly. Send a [CR] then re-send the command. Should a problem persist, check your connections or try reducing the baud rate.
9-2 Powering on the AR-ALPHA
Connect a remote cable between the AR-ALPHA and a PC, type any key to power up the AR-ALPHA.
9-3 Detailed control command listings for the AR-ALPHA
9-3-1 ^A AC AF AG
Remote power on
^Ann Remote ON Hex value 0x01
Accept a value nn in the range of 00-99 for remote connection
AGC
AC ACn (n: 0 ~ 3) n = 0 (AGC Fast) n = 1 (AGC Middle) n = 2 (AGC Slow) n = 3 (Manual gain control)
To read: AC <CR>
Response: ACn
106
AFC
AF AFn n = 0 (AFC off) n = 1 (AFC on)
To read: AF <CR>
Response: AFn
AF gain
AG AGnnn n = 0 ~ 255 (n: 0 = mute, no audio)
To read: AG <CR>
Response: AGn
9-3-2 AN AQ AS AT
Antenna input
AN ANn (n: 1 ~ 4) n = 1 Antenna input 1 n = 2 Antenna input 2 n = 3 Antenna input 3 (An optional AS5000 antenna relay is required.) n = 4 Antenna input 4 (An optional AS5000 antenna relay is required.)
To read: AN <CR>
Response: ANn
Audio output select
AQ AQn (n: 0, 1) n = 0 Output : audio output n = 1 Output : I/Q output
To read: AQ <CR>
Response: AQn
Auto store (Cannot be used alone)
AS ASn (n: 0, 1) n = 0 Auto store off n = 1 Auto store on
Cannot be used alone. Use as a parameter of the SG command
Attenuator, Preamplifier
AT ATn (n: 0 ~ 4) n = 0 Attenuator 0 dB, Preamplifier on n = 1 Attenuator 0 dB, Preamplifier off n = 2 Attenuator 10 dB, Preamplifier off n = 3 Attenuator 20 dB, Preamplifier off
107
n = 4 AUTO
To read: AT <CR>
Response: AT00 Attenuator 0 dB, Preamplifier on
AT01 Attenuator 0dB, Preamplifier off
AT02 Attenuator 10dB, Preamplifier off
AT03 Attenuator 20dB, Preamplifier off
AT11 Auto Attenuator 0 dB, Preamplifier off
AT12 Auto Attenuator 10 dB, Preamplifier off
AT13 Auto Attenuator 20 dB, Preamplifier off
Auto mode
AU AUn (n = 0, 1) n = 0 Auto mode off n = 1 Auto mode on
To read: AU <CR>
Response: AUn
Bank link (Cannot be used alone)
BK Specify the bank to link
Cannot be used alone. Use as the parameter of the SG/MG command
Backlit display
BL BLn (n = 0, 1) n = 0 Backlit off n = 1 Backlit on
To read: BL <CR>
Response: BLn
9-3-3 BP CF CL CN
Beep
BP BPn (n = 0, 1) n = 0 Beep off n = 1 Beep on
To read: BP <CR>
Response: BP n
Set Center frequency (in Channel scope mode)
CF Specify the center frequency
To read: CF <CR>
Remote control port
108
CL CLn (n = 0, 1) n = 0 REMOTE 1 USB n = 1 REMOTE 2 RS-232C
To read: CL <CR>
Response: CL n
Tone squelch
CN CNnn (n = 00 ~ 53)
To read: CN <CR>
Response: CNnn
0 1 2 3 4 5 6 7 8 9
0 OFF ALL 60.0 67.0 69.3
71.9
74.4
77.0 79.7
1 85.4 107.2
110.9 114.8
2 118.8 120.0 123.0 127.3 131.8 136.5 141.3
146.2
151.4 156.7
3 159.8 162.2 165.5 167.9 171.3 173.8 177.3
179.9
183.5 186.2
4 189.9 192.8 196.6 199.5 203.5 209.5 210.7
218.1
225.7 229.1
Tone frequency chart
Marker mode
CM CMn (n = 0 ~ 2) n = 0 Instantaneous reading
n = 1 Peak detection
n = 2 Continuous peak detection
To read: CM <CR>
Response: CMn
CW pitch frequency
CP CPnn (nn: 30 ~ 50) in 5 increments (50 Hz step)
(Example) nn = 30 300 Hz nn = 90 900 Hz
To read: CP <CR>
Response: CPnn
Delay time (cannot be used alone)
DL DLnn (nn: 01 ~ 99)
Cannot be used alone. Use as the parameter of the MG/SG command
9-3-4 DM DS DT
Calculation
DM DMn or DMmmm
(n: 0 ~ 3 Specify the calculation mode) n = 0 Calculation mode not used n = 1 Maximum value hold
mmm = 202 ~ 231 Averaged value, specify between 02 ~ 31
109
mmm = 302 ~ 304 Median, specify between 02 ~ 04
To read: DM <CR>
Response: DMn or DMmmm
DCS (Digital Code Squelch)
DS DSnnn (n: 000 ~ 999) n = 000 DCS off n = 999 All codes
To read: DS <CR>
Response: DSnnn
051 053 054 065 071 072 073 074 114 115
116 122 125 131 132 134 143 145 152 155
156 162 165 172 174 205 212 223 225 226
243 244 245 246 251 252 255 261 263 265
266 271 274 306 311 315 325 331 332 343
346 351 356 364 365 371 411 412 413 423
431 432 445 446 452 454 455 462 464 465
466 503 506 516 523 526 532 546 565 606
612 624 627 631 632 654 662 664 703 712
723 731 732 734 743 754
DCS Codes
DTMF (Function available in the VFO mode or memory mode)
DT DTn (n: 0, 1) n = 0 DTMF off n = 1 DTMF on
To read: DT <CR>
Response: DTn
9-3-5 EC EF EN EX
Reference frequency input
EC ECn (n: 0, 1) n = 0 Internal n = 1 External
To read: EC<CR>
Response: ECn
End (stop) frequency input (in the channel scope mode)
EF EFn Set end (stop) frequency
110
To read: EF<CR>
Response: EFn
De-emphasis time constant (available in the WFM1, WFM2, FMST, and FM mode)
EN ENn (n: 0, 1) IFBW must be set more than 30 KHz n = 0 50 uS n = 1 75 uS
To read: EN<CR>
Response: ENn
Cancel remote operation
EX EX
9-3-6 FE FF FP
Spectrum frequency step (in the channel scope mode)
FE FEn Specify the spectrum frequency step
To read: FE<CR>
Response: FEn
FFT search
FF FFnn (n: 00 ~ 39) search bank
FSnn (n: 00 ~ 12) search frequency step
(see below chart)
FTnnn (n: -0 ~ -110) threshold level
To read: FF<CR>
Response: FFnn FSnn FTnnn
Step
(KHz)
1.00 2.00 5.00 6.25 8.33 9.00 10.00 12.50 20.00 25.00 30.00 50.00 100.00
Search frequency step
Spectrum frequency span (in the channel scope mode)
FP FPn n: spectrum frequency span
To read: FP<CR>
Response: FPn
Search, free scan free time (Cannot be used alone)
FR FRnn (nn: 00 ~ 12)
Cannot be used alone Use as the parameter of the MG/SG command
111
FFT search threshold level (Cannot be used alone)
FS FSnnn (nnn: -0 ~ – 110)
Cannot be used alone Use as the parameter of the FF command
Select memory
GA GAn (n: 0, 1)
n = 0 Clear select memory (single channel)
n = 1 Set select memory
To read: GA<CR>
Response: GAn
Select memory (all channels)
GD GD No parameter required
9-3-7 GN GR IF
Input sensitivity of spectrum display
GN GNn (n: 0 ~ 5)
n = 0 0 dB n = 1 -10 dB n = 2 -20 dB n = 3 -30 dB n = 4 -40 dB n = 5 -50 dB
To read: GN<CR>
Response: GNn
Display select channel
GR GR no parameter required
Response: (example) GR001 MX0009 MF0082.500000 TMNHK-FM
IFBW (IF bandwidth)
IF IFnn (00 ~ 09)
n = 00 200 Hz
n = 01 500 Hz
n = 02 1 KHz
n = 03 3 KHz
n = 04 6 KHz
n = 05 15 KHz
n = 06 30 KHz
n = 07 100 KHz
n = 08 200 KHz
n = 09 300 KHz
To read: IF<CR>
Response: IFnn
112
In the CW modes (CW1 and CW2), only 200 HZ and 500 Hz are selectable.
In the WFM modes (WFM1, WFM2, and FMST), only 100 KHz, 200 KHz, and 300 KHz are selectable.
All other modes: 1 KHz, 3 KHz, 6 KHz, 15 KHz, and 30 KHz are selectable.
IQ bandwidth
IQ IQn (n: 0, 1) n = 0 300 KHz n = 1 1 MHz
To read: IQ<CR>
Response: IQn
IF shift width
IS ISnnn (nnn: -120 ~ +120) 50 Hz step, 5 increments nnn = -120 ~ -005 (minus shift) nnn = 000 (IF shift off) nnn = +005 ~ +120 (plus shift)
Not available in all FM modes and RZ-SSB mode.
To read: IS<CR>
Response: ISnnn
Marker level continuous output
KC KCn (n:0, 1) n = 0 Marker level output off n = 1 Marker level output on.
To read: KC<CR>
Response: KCn
Use the KF command for single output.
9-3-8 KF KG KL KY
Marker frequency and level
KF KFn (n: marker frequency)
The marker frequency must be within a displayed range.
To read: KF<CR>
Response: KFn
Make the frequency as a receive frequency
KG KG No parameter required
Direct command
Key lock
KL KLn (n: 0, 1)
Delete all search data and pass frequencies on all search banks
User defined keys
KY KYn (n: 0 – 9)
113
n = 0 ~ 4 User defined key 1 ~ 5 n = 5 ~ 9 User defined key 6 ~ 10
S-meter level
LM
Squelch setting
LQ
LM -------- Read only (in dB)
LQnnn (n: 000 ~ 255) n = 000 Open
To read: LQ<CR>
Response: LQnnn
Auto notch
LS LSn (n: 0 ~ 3) n = 0 OFF n = 1 Low n = 2 Mid n = 3 High
To read: LS<CR>
Response: LSn
Read memory channel Read only
MAmmnn Read only MA mm = memory bank nn = memory channel
Set number of memory bank channel Cannot be used alone
MC MCnn (n:5 ~ 95 )
Cannot be used alone. Use as the parameter of the MW command.
9-3-9 MD MF
Receive mode
MD MDnn (nn: 00 ~ 39) See below chart
To read: MD<CR>
Response: MDnn
Parameter Mode
00 FM
01 FMST
02 AM
03 SAM
114
04 SAL
05 SAH
06 USB
07 LSB
08 CW
09 ISB
10 SBD
11 RZ-SSB
12 AIQ
Simple modes
Parameter Mode IFBW
27 AM 6
36 ISB 6
39 AIQ 15
Advanced modes
Set memory channel frequency (Cannot be used alone)
MF MFn Set memory channel frequency
Cannot be used alone Use as the parameter of the MX command
9-3-10 MG MP MR MS MT
Set memory scan group
MG MGnn (nn: 00 ~ 19) scan group
DLnn (nn: 01 ~ 99) delay setting
(in 0.1 sec. increment)
FRnn (nn: 00 ~ 99) free time nn = 00 stop
(in 1 sec. increment)
115
BKnn (nn: 01 ~ 19) set bank link
(Example) bank link 03, 04, 05 Î Input BK030405
To read: MG<CR>
Response: MGnn DLnn FRnn BKnn
Set pass channel
MP MPn (n: 0, 1) n = 0 Pass setting off n = 1 Pass setting on
MPmm (mm: 00 ~ 39)
Cancel pass function on the pass bank
To read: MP<CR>
Response: MPn or MPmm
Call memory bank channel Write only
MRmmnn MR mm: bank number nn: channel number
Call search bank Write only
MS MSnn (nn: 00 ~ 39)
Edit memory bank title (text) (Cannot be used alone)
MT MTxxxxxxxxxxxxxx xxx…: Title (text)
Cannot be used alone Use as the parameter of the MX command
9-3-11 MW MX NB NR
Set memory bank
MW MWnn (nn: 00 ~ 39)
Memory bank
MCnn (nn: 05 ~ 95)
A number of channels in the memory bank
TTxxxxxxx… memory text
To read: MW<CR>
Response: MWnn MCnn TTxxxxx……
Set memory channel
MX MXmmnn set memory bank and channel
(mm: bank nn: channel)
MFnnnn.nnnnn Set frequency
MTxxxxxxx… memory text
116
To read: MX<CR>
Response: MXmmnn MFnnnn.nnnnn MTxxxxx……
Noise blanker
NB NBn (n: 0 ~ 3) n = 0 OFF n = 1 Low n = 2 Mid n = 3 High
To read: NB<CR>
Response: NBn
Noise reduction
NR NRn (n: 0 ~ 3) n = 0 OFF n = 1 Low n = 2 Mid n = 3 High
To read: NR<CR>
Response: NRn
Frequency offset
OF OFnn (n: 00 ~ 47) nn = 0 OFF nn = 01 ~ 20 User defined offset frequency
Use OL command nn = 21 ~ 47 Preset offset frequency (See below)
+ or - = shift direction
OLnnn.nnnnnn Offset frequency (in MHz format)
To read: OF<CR>
Response: OFnn or OFnn OLnnn.nnnnn
Parameter Frequency Parameter Frequency Parameter Frequency
21 4.000 MHz 31 18.450 MHz 41 0.000 MHz
22
23
24
25
26
27
28
4.600 MHz
5.000 MHz
8.000 MHz
9.000 MHz
32
33
34
35
10.000 MHz 36
15.000 MHz
16.000 MHz
37
38
20.000 MHz
24.100 MHz
37.400 MHz
47.200 MHz
48.000 MHz
55.000 MHz
126.350 MHz
42
43
44
45
46
47
0.000 MHz
0.000 MHz
0.000 MHz
0.000 MHz
0.000 MHz
0.000 MHz
117
29
30
16.500 MHz 39
18.000 MHz 40
130.000 MHz
0.000 MHz
Preprogrammed off set frequency list
User defined offset frequency (Cannot be used alone)
OL OLnnn.nnnnn (in MHz format)
Cannot be used alone Use as the parameter of the OF command
Display mode
OM OMn (n: 0, 1) n = 0 Spectrum analyzer mode n = 1 Channel scope mode
To read: OM<CR>
Response: OMn
9-3-12 PD PP PR PW
Cancel pass function Write only
PDmmnn specify bank number and channel number PD mmnn: mm = bank nn = channel
%%nn: nn channel in all banks mm%%: all channels in mm bank
%%: all channels in all banks
Write only
Set priority channel
PP
To read: PP<CR>
PPmmnn specify bank number and channel number mmnn: mm = bank nn = channel
Response: PPmmnn
Display pass channel list Read only
PR
To read: PR<CR>
PRnn nn: bank
Response: PRxxxx…….
Write pass frequency (for search mode only)
PW PWxxxx… xxxx….. : See below for details none: Write the current displayed frequency as a pass frequency
00 ~ 47: specify the bank and write the frequency
118
Frequency: specify the frequency and write
%%: Write the current displayed frequency in all banks
%%frequency: Specify the frequency and write in all banks in all modes
Nnfrequency: Specify the bank and frequency, then write in all modes
Write only
9-3-13 QM QP QR QY TI
Transfer saved voice recording memory (Write only)
QM QMn (n: 1 ~ 5) voice recorder memory channel
QR command save voice recorder on channel 0. It will be, however, overwritten at next recording if the memory contents are not transferred to another channel.
Write only
Remote power off (Write only)
QP QPnn (n: 00 ~ 99) nn: value of RD command Default is 00.
Write only
Start voice recording (Write only)
QR QR No parameter required
Recording will start 6 seconds before executing this command.
Write only
Playback audio f (Write only)
QR QRn (n: none or 1 ~ 5) n: none stop playback n: 1 ~ 5 specify the voice memory channel..
Write only
Set receive frequency (Write only)
TI TInn…… (n: frequency)
Specify the VFO frequency.
Write only. Use RX command to read the receive frequency.
9-3-14 RG RS RV RW RX
Receiver gain control
RG RGnnn (n: 000 ~ 110)
Available when the gain control is set to manual mode.
To read: RG<CR>
Response: RGnnn
119
Reset (Write only)
RS RS no parameter required
All data will be deleted and return to factory default settings.
Write only
VFO setting (Write only)
RV RVn (n: A ~ D) Specify the VFO.
Write only
RBW (Resolution bandwidth)
RW RWn (n: 0 ~ 4) n = 0 RBW 1 KHz n = 1 RBW 4 KHz n = 2 RBW 32 KHz n = 3 RBW 64 KHz n = 4 RBW 128 KHz
To read: RW<CR>
Response: RWn
Read receiver operating conditions (Read only)
RX
To read: RX<CR>
RX no parameter required
Response: See below
(Example) V0 RF0084.300000 ST100.000 AU1 MD21 AT01
Vn: VFO mode
0 = VFO-A 1 = VFO-B 2 = VFO-C 3 = VFO-D 4 = VFO-E
MR MX0000 GA1 RF0082.500000 ST020.000 AU1 MD21 AT00 TMNHK
MR: Memory mode
MS MX0000 GA1 RF0082.500000 ST020.000 AU1 MD21 AT00 TMNHK
MS: Memory scan mode
SM: MX00000 GA1 RF0082.500000 ST020.000 AU1 MD21 AT00 TMNHK
SM: Select scan mode
SR0 RF0380.212500 ST012.500 AU1 MD25 AT00 TMCordless Phone
SRn: Normal search mode
FF01 FS08 FT-080
FFnn: FFT search mode
WS RF0084.300000 ST100.00 AU1 MD21 AT01
WS: Wide span mode
Serial port baud rate
SB SBn (n: 0 ~ 4) n = 0 115200 bps n = 1 57600 bps
120
n = 2 38400 bps n = 3 19200 bps n = 4 9600 bps
To read: SB<CR>
Response: SBn
Voice descrambler (Not available with US consumer version)
RWnnn (nnn: 000, 200 ~ 700) (in Hz, 50 Hz step) SC nnn = 000 deactivated nnn = 200 ~ 700 (x 10 (Hz)
(Example) 200 = 2000 Hz
700 = 7000 Hz
To read: SC<CR>
Response: SCnnn
9-3-15 SE SF SG SH
Search operation settings (Write only)
Set bank and configure search function SE
SL = Low end of search frequency
SU = High end of search frequency
ST = Step frequency
AU = 0 or 1 auto mode setting
MD = 00 ~ 12 or 21 ~ 39 receive mode
AT = 0 ~ 4 attenuator and preamplifier setting
TT = up to 12 characters Bank title (text)
Use SRnn command to read settings.
Hardware flow control (RTS/CTS)
SF SFn (n: 0, 1) n = 0 Flow control off (RTS/CTS) n = 1 Flow control on (RTS/CTS)
To read: SF<CR>
Response: SFn
Normal search group settings
Set bank of the normal search group SG
DL = 01 ~ 99 Delay time (0.1 second step)
FR = 00 = 60 Free time for normal search
(1 sec. step)
121
AS = 0, 1 Auto store function
BK = bank set bank link
To read: SG<CR>
Step adjust
SH SHn (n: 0, frequency) n = 0 step adjust off n = frequency set step adjust frequency
To read: SH<CR>
Response: SHn
9-3-16 SL SM SP SR SS ST
Lower end frequency of search function (Cannot be used alone)
SL SLn (n: frequency)
Cannot be used alone. Use as a parameter of SE command.
Select scan (Write only)
SM SL no parameter required
Go into the select scan mode. Direct command.
Write only
Sleep timer
SP
Write only
SPnn (n: 00 ~ 99) n = 00 sleep timer off n = 01 ~ 99 (I minute step)
To read: SP<CR>
Response: SPnn
Display search status (Read only)
SR SR no parameter required
Display the designated search function.
Read only
(Display example)
SR00 SL380.212500 SU381.312500 ST012.500 AU1 MD25 AT00 TT Cordless
Start search (Write only)
SS SS no parameter required
Go into the search mode. Direct command.
Write only
122
Frequency step
ST
To read: ST<CR>
STnnn.nnn (nnn.nnn: 000.001 ~ 999.999) in Hz
Response: STnnn.nnn
9-3-17 SU TF TI TT VC
Upper end frequency for search (Cannot be used alone)
SU SUn (n: high end frequency)
Cannot be used alone. Use as the parameter of the SE command.
Start frequency (channel scope mode)
TF TFn (n: start frequency)
To read: SU<CR>
Response: SUn
Priority time interval
TI
To read: TI<CR>
TInn (nn: 00 ~ 99) in second
Response: TInn
Memory bank title (text) (Cannot be used alone)
TT TTxx… (xx…: memory text)
Cannot be used alone. Use as the parameter of the MW command.
Video format
VC VCn (n: 0 ~ 2) n = 0 Auto detect n = 1 NTSC n = 2 PAL (SECAM)
To read: VC<CR>
Response: VCn
9-3-18 VD VF VI VL
IF direction
VD VDn (n: 0, 1) n = 0 normal n = 1 reverse
To read: VD<CR>
Response: VDn
123
VFO select
VF VFn (n: A ~ E) n = A VFO – A n = B VFO – B n = C VFO – C n = D VFO - D n = E VFO – E
To read: VF<CR>
Response: VFn
Video display
VI VIn (n: 0, 1) n = 0 video display off n = 1 video display on
To read: VI<CR>
Response: VIn
Voice squelch level
VL
To read: VL<CR>
Response: VLn
VLn (n: 0 ~ 7)
9-3-19 VQ VR VT WF
Voice squelch
VQn (n: 0, 1) VQ n = 0 voice squelch off n = 1 voice squelch on
To read: VQ<CR>
Response: VQn
Firmware version (Read only)
VR VR no parameter required
Display the installed firmware version.
Read only
(Display example)
CAlphaCtrl 703A D704A PALPHA PNL 703A RXAR_RF 060728
Description: C AlphaCtrl 703A = control unit
D 704A = decoder unit
P ALPHA PNL 703A = control panel unit
R XAR_RF 060728 = RF unit
124
Voice squelch delay
VT
To read: VT<CR>
Response: VTnnn
Waterfall
WF
VTnnn (nnn: 000 ~ 255)
WFn (n: 0, 1) n = 0 waterfall off n = 1 waterfall on
To read: WF<CR>
Response: WFn
9-3-20 WS ZK ZJ
Wideband display (Write only)
WS WS no parameter required
Write only
Press the ‘UP’ arrow key (Write only)
ZK ZK no parameter required
Write only
Press the ‘DOWN’ arrow key (Write only)
ZJ ZJ no parameter required
Write only
10. SPECIFICATIONS
Model: AR-ALPHA
Configuration: Triple conversion super heterodyne
Frequency coverage: 10 KHz ~ 3.5 GHz (Cellular blocked in US consumer version)
Receive mode: WFM, FM-ST (FM Stereo), AM, SAM, USB, LSB, CW,
ISB (Independent Sideband), SBD (Sideband Diversity), RZ-SSB
(Real Zero SSB), AIQ (Analog I/Q, -- F.Y.I. Can be used as an analog output for DRM reception, 3 rd party decoding software required.),
APCO-25 (P25, conventional mode), Video (NTSC, PAL, SECAM)
Sensitivity: (AM mode – 10 dB S/N, BW = 6 KHz)
0.1 ~ 1.699 MHz : 5 uV
1.699 ~ 24.99 MHz : 5 uV
25 ~ 479.99 MHz : 2.3 uV
480 ~ 1029.99 MHz : 2.3 uV
125
1030 ~ 1695.99 MHz : 1.3 uV
1696 ~ 3300 MHz : 1.5 uV
(NFM mode – 12 dB SINAD, BW = 15 KHz)
25 ~ 479.88 MHz : 2.5 uV
480 ~ 1029.99 MHz : 0.8 uV
1030 ~ 3300 MHz : 1.5 uV
(WFM mode – 12 dB SINAD, BW = 200 KHz)
25 ~ 479.99 MHz : 1.3 uV
480 ~ 1029.99 MHz : 1.3 uV
1030 ~ 1695.99 MHz : 1.3 uV
1696 ~ 3300 MHz : 1.5 uV
IF frequencies: 1 st IF: 754 MHz / 265 MHz
2 nd IF: 10.7 MHz
3 rd IF: Zero
Selectivity: SSB (BW = 3 KHz): more than 3 KHz @-3 dB
less than 3.6 KHz @-90 dB
CW (BW = 500 Hz): more than 500 Hz @-3 dB
less than 700 Hz @-90 dB
AM (BW = 6 KHz): more than 6 KHz @-3 dB
less than 15 KHz @-90 dB
FM (BW = 15 KHz): more than 15 KHz @-3 dB
less than 25 KHz @-90 dB
Spurious Sensitivity: more than 60 dB
Dynamic Range: more than 90 dB
3 rd IP: more than + 2 dBm (across the entire receive range)
Frequency stability: less than +/- 0.1 ppm (after 5 minutes of power on time at 32 ~ 144 degrees (F)
Power requirement: nominal 13.8V DC, approx. 2.2 amps.
Antenna impedance: 50 ohm
Antenna inputs: N, SO239
Control interface: RS-232C, USB
Operating temperature : 32 ~ 144 degrees (F)
Dimensions: 16-1/2 (w) x 5-1/8 (h) x 10-1/8 (d) (inch) (Projections excluded)
Weight: Approximately 17 lbs.
(Specifications are subject to change without notice or obligation.
Specifications are guaranteed up to 3.3 GHz operating frequency.)
11. OPTIONAL ACCESSORIES
AS5000 External antenna relay switch (up to 3 inputs)
SA7000 Wideband receive antenna (30 KHz ~ 2 GHz)
DA3000 16 element discone antenna (25 MHz ~ 2 GHz)
DS3000A Wideband discone antenna (75 MHz ~ 3 GHz)
DA5000 High-frequency discone antenna (700 MHz ~ 3 GHz)
126
12. LIMITED WARRANTY
AOR USA, Inc. (AOR) warrants the AR - ALPHA as described below:
AOR will repair or exchange equipment as a result of defects in parts or workmanship for a period of one year from the date of original retail purchase from an authorized AOR dealer.
Exclusions
The following items are not covered by the AOR limited warranty:
1. Products that are damaged through accident, abuse, misuse, neglect, or user
modifications.
2. Problems that arise through failure to follow directions in the owner’s manual.
3. Exposure of the product to adverse or severe weather conditions, including lightning, temperature extremes or water, including rainfall or immersion.
4. Exposure to toxic materials, biohazards, radioactive materials or other contamination.
5. Repairs attempted by parties other than AOR or its authorized personnel.
6. Damage that results from improper installation, including improper voltage and/or reversed polarity, or exposure of a receiver to signal levels exceeding specifications.
7. Damage resulting through the use of accessories from manufacturers other than AOR.
8. Equipment that has had serial numbers removed or altered in any way.
9. Damage that occurred as a result of shipment. Claims must be presented to the carrier.
127
10. AOR is not responsible for any costs arising from installation or reinstallation of the equipment, nor for any consequential (such as loss of use) damage claims.
Obtaining Warranty Service
1. You are responsible for shipping the product to AOR and any related costs.
2. Warranty claim must be accompanied by a legible copy of the original product purchase
receipt.
3. You must include a description of the problem(s) encountered with the product.
4. You must include your name, a valid ground shipping address (including zip code) and
5. AOR will ship the repaired (or replaced) product by ground transport.
Limitations
Any and all implied warranties, including those pertaining to merchantability and utility for a specific purpose are limited to the duration of this limited warranty.
AOR’s limits on warranty pertain only to the repair or, at its option, replacement of defective products. AOR shall not be liable for any other damages, including consequential, incidental or otherwise, arising from any defect.
Some states do not allow limitations on how long an implied warranty lasts and may not allow the exclusion of incidental or consequential damages. As such, the above limitations may not apply in every case. This warranty gives you specific legal rights and you may have other rights that apply in your state.
If you have questions about this limited warranty, or the operation of your AOR product, contact AOR at
(310) 787-8615 during normal business hours (9 am ~ 5 pm Pacific Time Zone), or write to AOR, 20655 S.
Western Ave., Suite 112, Torrance, CA 90501. You may also send a fax to AOR at (310) 787-8619.
Additional information is available at the AOR web site: www.aorusa.com
We suggest attaching your purchase receipt to this half of the warranty card and that you keep this information in a secure location.
AOR Model Number __________________________
Serial Number ________________________________
Dealer Name _________________________________
Purchase Date ________________________________
128
Manufacturer: AOR, LTD.
2-6-4, Misuji, Taito-Ku,
Tokyo, 111-0055, Japan
URL: www.aorja.com
e-mail: [email protected]
129
US distributor: AOR USA, INC.
20655 S. Western Ave. Suite 112
Torrance, CA 90501
Phone: 310-787-8615
Fax: 310-787-8619
URL: www.aorusa.com
e-mail: [email protected]
Rev 1.1
Printed in USA
130
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
