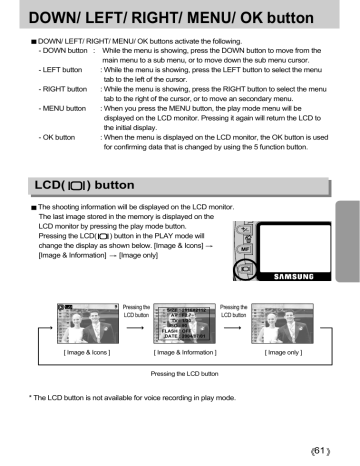

DOWN/ LEFT/ RIGHT/ MENU/ OK button

DOWN/ LEFT/ RIGHT/ MENU/ OK buttons activate the following.

- DOWN button : While the menu is showing, press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor.

- LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor.

- RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab to the right of the cursor, or to move an secondary menu.

- MENU button : When you press the MENU button, the play mode menu will be displayed on the LCD monitor. Pressing it again will return the LCD to

- OK button the initial display.

: When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is changed by using the 5 function button.

LCD( ) button

The shooting information will be displayed on the LCD monitor.

The last image stored in the memory is displayed on the

LCD monitor by pressing the play mode button.

Pressing the LCD( ) button in the PLAY mode will change the display as shown below. [Image & Icons]

[Image & Information] [Image only]

[ Image & Icons ]

Pressing the

LCD button

SIZE : 2816X2112

AV : F2.7

TV : 1/30

ISO : 50

FLASH : OFF

DATE : 2004/07/01

[ Image & Information ]

Pressing the

LCD button

Pressing the LCD button

[ Image only ]

* The LCD button is not available for voice recording in play mode.

61

Delete ( ) button

This deletes images stored on the memory card.

Deleting Images in Play Mode

1. Select an image that you want to delete by pressing the

LEFT / RIGHT button and press the DELETE ( ) button.

2. A message will display as shown alongside on the LCD monitor.

3. Press the OK button to delete the image.

DELETE ?

DEL:OK

CANCEL:

Deleting Images in Thumbnail Display Mode

1. Use the Up/Down/Left/Right buttons to select an image to delete.

2. Press the Delete button to display the following message in the LCD monitor.

1

4

7

2

5

8

3

6

9

Press the DELETE button.

3. Press the OK button to delete the image.

1

4

7

DELETE ?

2

DEL:OK

CANCEL:

5

8

3

6

9

INFORMATION

Before deleting images from the camera, you should protect (p.67) or download images

(p.106) to your computer that you wish to keep.

62

Setting up the play back function using the LCD monitor

PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows. To capture an image after setting up the play menu, press the PLAY button.

The items indicated by are default settings.

Menu tab Main menu

SLIDE

PROTECT

DELETE

RESIZE

ROTATE

DPOF

1600X1200

1280X960

800X600

LOGO

RIGHT

LEFT

UPDOWN

STANDARD

INDEX

Sub menu

INTERVAL

REPEAT

EFFECT

SELECT

ALL PICS

SELECT

ALL PICS

SIZE

Secondary menu

OFF / 1~10SEC

ON / OFF

CANCEL / EFFECT1, 2, 3, 4

UNLOCK / LOCK

UNLOCK / LOCK

Page p. 67 p. 67 p. 68 p. 69 p. 70

SELECT/ ALL PICS/ CANCEL

NO/ YES p. 70

~ p. 72

SELECT/ ALL PICS/

CANCEL

63


This menu is available while the camera is connected to a PictBridge supporting printer

(direct connection to the camera, sold separately) with a USB cable.

Menu tab Main menu

IMAGES

AUTO SET

CUSTOM SET

Sub menu

ONE PIC

ALL PICS

YES

NO

SIZE

LAYOUT

TYPE

Secondary menu

-

-

-

-

AUTO

POSTCARD

4X6

8X10

A6

A4

B5

AUTO

FULL

1

6

8

2

4

AUTO

PLAIN


FASTPHO.

Page p. 74 p. 75 p. 75

64


Menu tab Main menu Sub menu Page

CUSTOM SET

QUALITY

DATE

FILE NAME

PRINT

DPOF PRINT

RESET

STANDARD

INDEX

YES

NO

YES

NO

Menus are subject to change without prior notice.

Secondary menu

AUTO

DRAFT

NORMAL

FINE

AUTO

OFF

ON

-

-

-

-

-

AUTO

OFF

ON

p. 75 p. 76 p. 76 p. 77

65

Starting the slide show

Images can be displayed continuously at pre-set intervals.

You can view the slide show by connecting the camera to an external monitor.

Configure the interval for the slide show

: Configure the length of time to display each picture in the slide show.

1. Press the play mode button and press the menu button.

2. Press the LEFT/ RIGHT button and select the [SLIDE] menu tab.

SLIDE

3. Select the [INTERVAL] sub menu by pressing the UP/

DOWN button and press the RIGHT button.

4. Use the Up/Down Button to establish the display interval.

- Slide Show Display Interval : OFF, 1 ~10 seconds

INTERVAL

REPEAT

EFFECT

MOVE:

OFF

SET:OK

5. Use the Right Button to start the slide show.

Use the Pause ( ) Button to pause and resume the slide show.

To cancel the slide show in the middle of the show, press the Pause button and the LEFT or RIGHT button.

INFORMATION

The loading time depends on the image size and quality.

The slide show will start from an image that was displayed on the LCD monitor.

The [PWR OFF] function can t be activated.

While the slide show is playing, only the first frame of an MOVIE file is displayed.

Configure slide show repeat mode

: Automatically restart the slide show after displaying all pictures.

Steps 1 and 2 are the same as for the [INTERVAL] section.

3. Select the [REPEAT] sub menu by pressing the UP/


4. Use the Up/Down Button to select the repeat mode.

[ON] : The slide show will repeat until turned off.

[OFF]: The slide show will not repeat after the first showing.

5. Press the OK button to confirm the setting.

6. Press the OK button again and the slide show will start.

INTERVAL

REPEAT

EFFECT

BACK:

SLIDE

ON

OFF

SET:OK

66

Starting the slide show

Configure slide show effects: Unique screen effects can be used for the slide show.

Steps 1 and 2 are the same as for the [INTERVAL] section.

3. Select the [EFFECT] sub menu by pressing the UP/


4. Use the Up/Down Button to select the type of effect.

[CANCEL]

[EFFECT 1]

[EFFECT 2]

: Normal display.

: Image is displayed slowly.

: Image is displayed slowly from the center outwards.

INTERVAL

REPEAT

EFFECT

BACK:

SLIDE

CANCEL

EFFECT1

EFFECT2

SET:OK

[EFFECT 3]

[EFFECT 4]

: Image moves from the top left.

: The image slides diagonally from top left to bottom right.


6. Press the OK button again and the slide show will start.

Protecting images

This is used to protect specific shots from being accidentally erased (LOCK).

It also unprotects images that have been previously protected (UNLOCK).

Protecting Images


2. Press the LEFT/ RIGHT button and select the

[PROTECT] menu tab.

3. Select a desired sub menu by pressing the UP/ DOWN button and press the OK button.

[SELECT] : Selection window for an image to be protected/released is displayed.

- Up/Down/Left/Right : Select an image

- Zoom W/T Button : Protect/release the image

- Menu Button : Your changes will be saved and the menu will disappear.

[ALL PICS] : Protect/release all saved images

- Zoom W/T Button : Protect/release the images

- Menu Button : Your changes will be saved and the menu will disappear.

SELECT

ALL PICS

PROTECT

EXIT:MENU

W

MOVE:

UNLOCK T

SET:OK

W UNLOCK T

SET:OK

67

Protecting images

- If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator)

- An image in LOCK mode will be protected from the delete function or [DELETE] functions, but will NOT be protected from the [FORMAT] function.

Deleting images

Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be deleted. Remember that this will permanently delete unprotected images.

Important shots should be stored on a computer before deletion takes place. The startup image is stored in the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if you delete all files on the memory card.

Deleting images


2. Press the LEFT/ RIGHT button and select the [DELETE] menu tab.


[SELECT]: Selection window for an image to delete is displayed.

- Up/Down/Left/Right: Select an image

- Zoom T Button: Select the image for deletion.

(V mark)

- OK Button: Press the OK Button to display confirmation message

Press the OK Button again to delete V marked images.

[ALL PICS]: Displays confirmation window

Press the OK Button again to delete all unprotected images. If there aren t protected images, all the images are deleted and a [NO

IMAGE!] message will display.

4. After deletion, the screen will be changed to the play mode screen.

DELETE

SELECT

ALL PICS

EXIT:MENU MOVE:

SELECT :T

DEL:OK

DELETE ?

DEL:OK

CANCEL:

68

Resize

Change the resolution (size) of pictures taken. Select [LOGO] to save an image to be the start-up image. The resized image will have a new file name.


2. Press the LEFT/ RIGHT button and select the [RESIZE] menu tab.


[RESIZE] sub menu : 1600X1200, 1280X960, 800X600,

LOGO

RESIZE

1600X1200

1280X960

800X600

EXIT:MENU MOVE:

Image Resize Types

Size 1600X1200

2816 O

2560

2272

O

O

2048

1600

1024

640

O

O

X

X

1280X960

O

O

O

X

X

O

O

800X600

O

O

O

O

X

O

O

O

O

O

O

LOGO

O

O

O

INFORMATION

A large sized image can be resized to a smaller sized image, but not vice versa.

Only still image(JPEG) images can be resized. TIFF, Movie clip(AVI) and Voice recording(WAV) files can’t be resized.

You can change the resolution of only those files compressed in the JPEG 4:2:2 format.

The resized image will have a new file name. The [LOGO] image is stored not on the memory card but on the internal memory.

Only one [LOGO] image can be saved. If you save a new [LOGO] image, the existing startup image will be deleted.

If the memory capacity is insufficient to store the resized image, a [CARD FULL!] message will display on the LCD monitor and the resized image will not be stored.

69

Rotating an image

You can rotate the stored images by 90, 180, or 270 degrees.

You can view a picture in its proper orientation if the picture has been taken with the camera oriented vertically or up-side-down. Once the playback of the rotated picture is finished, it will switch back to the original state.


2. Press the LEFT/ RIGHT button and select the [ROTATE] menu tab.

3. Select a desired sub menu by pressing the UP/ DOWN button.

[RIGHT]

[LEFT]

: Rotate picture in a clock-wise direction

: Rotate picture in a counter-clock-wise direction

[UPDOWN] : Rotate picture 180 degrees

ROTATE

RIGHT

LEFT

UPDOWN

EXIT:MENU MOVE:

[ Picture after 90 degrees ]

CW rotation

[ Picture after 90 degrees ]

CCW rotation

[ Picture after 180 degrees ] rotation

4. Press the OK button. The rotated image will be displayed and the menu will disappear.

If you display the rotated image on the LCD monitor, empty spaces may appear to the left and right of the image.

DPOF

DPOF(Digital Print Order Format) allows you to embed printing information on your memory card’s MISC folder. Select the pictures to be printed and how many prints to make.

The DPOF indicator will display on the LCD monitor when an image that has DPOF information plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.

This function is not available for Movie clips and Voice recording files.

70

DPOF : STANDARD

This function allows you to embed print quantity information on a stored image.


2. Press the LEFT/ RIGHT button and select the [DPOF] menu tab.

3. Select the [STANDARD] menu by pressing the UP/



[SELECT]: Selection window for an image to print is displayed.

- Up/Down/Left/Right: Select an image to print.

- Zoom W/T Button: Select the number of prints.

[ALL PICS] : Configure number of prints for all pictures except movie and voice files.

[CANCEL] : Cancel the print setup.


If an image carries DPOF instructions, the DPOF indicator ( ) will show.

DPOF

STANDARD

INDEX

SIZE

BACK:

SELECT

ALL PICS

CANCEL

SET:OK

W 0 PRINTS T

SET:OK

DPOF

STANDARD

INDEX

SIZE

BACK:

0 PRINTS

SET:OK

DPOF : INDEX

Images (except for movie clips and voice file) are printed as index type.



3. Select the [INDEX] menu by pressing the UP/ DOWN button and press the RIGHT button.

4. Select a desired sub menu by pressing the UP/ DOWN button.

If [NO] is selected : Cancel the index print setting.

If [YES] is selected : The image will be printed in index format.


DPOF

STANDARD

INDEX

SIZE

BACK:

NO

YES

SET:OK

71

DPOF : PRINT SIZE

You can specify the print size when printing images stored on the memory card.

The [SIZE] menu is available only for DPOF 1.1 compatible printers.

Setting the Print Size



3. Select the [SIZE] menu by pressing the UP/ DOWN button and press the RIGHT button.


[SELECT] : Selection window for an image to be changed printed size is displayed.

- Up/Down/Left/Right : Select an image.

- Zoom W/T Button : Change the print size.

- OK button : Your changes will be saved and the menu will disappear.

[ALL PICS] : Change print size of all saved images.

- Up/Down/Left/Right : Select an image.

- OK button : Confirm the changed setting.

[CANCEL] : Cancel all of the print size settings.

* DPOF [SIZE] secondary menu : CANCEL, 3X5, 4X6, 5X7,

8X10

STANDARD

INDEX

SIZE

BACK:

DPOF

SELECT

ALL PICS

CANCEL

SET:OK

W CANCEL T

SET:OK

DPOF

STANDARD

INDEX

SIZE

BACK:

CANCEL

SET:OK

72

PictBridge

You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. TIFF, Movie clips and voice files cannot be printed. You can set up the following settings from the PictBridge menu.

IMAGES

PRINTER SETUP

PRINT

DPOF AUTO PRINT

RESET

: Select the pictures to be printed.

: Setting up printing(AUTO SET/CUSTOM SET)

: Printing pictures

: Printing the DPOF files

: Initializing the PictBridge functions

Connecting the Camera to a Printer

1. Slide the power switch to turn the camera power on.

2. In a mode other than Voice Recording mode, press the

MENU button.

3. Press the LEFT/ RIGHT button and select [SETUP] menu tab.

4. Select [USB] menu by pressing the UP/ DOWN button

NOR

Q. VIEW

RESET

USB

BACK:

SETUP

2816

COMPUTER

PRINTER

SET:OK and press the RIGHT button.

5. Select [PRINTER] menu by pressing the UP/ DOWN button and press the OK button.

6. Press the menu button twice and the menu will disappear.

7. Use the supplied USB cable to connect the camera to the printer as shown below.

8. Turn on the printer to connect the camera to the printer.

If you selected [COMPUTER] in Step 5, when you connect the camera to your printer, the

Mode dial lamp(Green) will illuminate and the connection will not be established. In this case, disconnect the USB cable, and then follow the procedure from Step 2 and onward.

73

PictBridge: Picture Selection

Select pictures to print

1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86)

2. The [IMAGES] menu will appear.

3. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button.

ONE PIC

IMAGES

ALL PICS

When [ONE PIC] is selected : The PictBridge function will be applied only to the picture currently displayed.

MOVE: SET:OK

When [ALL PICS] is selected : The PictBridge function will be applied to all pictures, excluding TIFF, movie clips and voice files.

Setting the Number of Copies to Print

- Select [ONE PIC] or [ALL PICS]. A screen where you can set the number of copies to print will appear as shown below.

0

PREV

EXIT:SHUTTER

NEXT

SET:OK

[ When [ONE PIC] is selected ]

0

EXIT:SHUTTER SET:OK

[ When [ALL PICS] is selected ]

- Press the Up/Down button to select the number of prints. Maximum 30 prints.

- Use the Left/Right button to select another picture and select the number of prints for another picture.

- After setting the number of prints, press the OK button to save.

- Press the Shutter button to return to the menu without setting the number of prints.

74

PictBridge: Print Setting

AUTO SET


2. Use the LEFT and RIGHT buttons to select the [AUTO

SET] menu tab.


[YES]: All values in the [CUSTOM SET] are automatically changed.

[NO] : [CUSTOM SET] values are kept.

YES

NO

MOVE:

AUTO SET

SET:OK

CUSTOM SET : You can select the Paper Size, Print Format, Paper Type, Print Quality, Date

Print, and File Name Print menus for printed pictures.

1. Connect the camera to your printer. The [USB] menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86)

2. Use the LEFT and RIGHT buttons to select the

[CUSTOM SET] menu tab.

3. Use the UP and DOWN buttons to select the desired submenu value, and then press the RIGHT button.


CUSTOM SET

SIZE

LAYOUT

TYPE

BACK:

AUTO

POST DARD

4X6

SET:OK

The menus you can set up are as follows:

Menu

SIZE

LAYOUT

TYPE

QUALITY

DATE

FILE NAME

Function Sub menu

Setting the size of the printing paper AUTO, POSTCARD, 4x6, 8x10, A6, A4, B5

Setting the number of pictures to be printed on a sheet of paper AUTO, FULL, 1, 2, 4, 6, 8

Setting the quality of the printing paper AUTO, PLAIN, PHOTO, FASTPHO.

Setting the quality of the picture to be printed AUTO, DRAFT, NORMAL, FINE

Setting whether to print the date AUTO, OFF, ON

Setting whether to print the file name AUTO, OFF, ON

Some menu options are not supported in all manufacturer and printer models. If not supported, the menus are still displayed in the LCD, but are not selectable.

If the setting values are not changed in the automatic/manual setting, the setting values are automatically kept.

75

PictBridge: Printing

Printing Pictures


2. Use the LEFT and RIGHT buttons to select the [PRINT] menu tab.

3. Use the UP and DOWN buttons to select the desired

PRINT

STANDARD

INDEX submenu value, and then press the OK button.

[STANDARD] : Print the pictures stored in the memory

[INDEX]

MOVE: card in set numbers. One picture is printed on one piece of paper.

: Print multiple images on one sheet of paper.

SET:OK

4. The screen shown on the right will appear and the picture will be printed. If no picture is selected, the [NO

IMAGE!] message will be displayed. Press the

Menu/OK button while printing to cancel the printing and the [IMAGES] menu is displayed.

Number of pictures in a index print varies depends on the printer used.

NOW PRINTING

1/1

CANCEL:OK

DPOF PRINT : This allows you to directly print the files with DPOF information.


2. Use the LEFT and RIGHT buttons to select the [ DPOF

PRINT] menu tab.


YES

NO

DPOF PRINT

MOVE:

[YES]: Directly print the file with the DPOF information

[NO] : Cancel the printing

Depending on the manufacturer and printer model, some menus may not be available.

With a printer without supporting the DPOF, the menu is still displayed but not available.

76

PictBridge : RESET

Initializes user-changed configurations.


2. Use the LEFT and RIGHT buttons to select the [RESET] menu tab.


- If [YES] is selected : All print and image settings will be reset.

- If [NO] is selected : Settings will not be reset.

YES

NO

MOVE:

RESET

SET:OK

Default print setting varies depending on the printer manufacturer.

For your printer’s default setting, refer to the user’s guide that came with your printer.

77

Setup menu

In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode.


Menu tab Main menu

FILE

PWR OFF

LANGUAGE

FORMAT

D & TIME

IMPRINT

SOUND

NO

YES

04/07/01 13:00

YY/MM/DD

DD/MM/YY

MM/DD/YY

OFF

DATE

D & TIME

OFF

LOW

MEDIUM

HIGH

Sub menu

RESET

SERIES

OFF, 1~3~10MIN

ENGLISH

Secondary menu Page p.79

p.80

FRANÇAIS

DEUTSCH

ESPAÑOL

ITALIANO

P”CCK»…

PORTU.

DUTCH

DANSK

SVENSKA

SUOMI

THAI p.81

p.81

p.82

p.82

p.83

78

Setup menu

Menu tab Main menu

LCD

VIDEO

Q. VIEW

RESET

USB

Sub menu

DARK

NORMAL

BRIGHT

NTSC

PAL

OFF, 1, 2, 3SEC

NO

YES

COMPUTER

PRINTER

* Menus are subject to change without prior notice.

Secondary menu Page p.83

p.84

p.85

p.85

p.86

File name

This function allows the user to select the file naming format.

Assigning File Names

1. In any mode with the exception of Voice Recording mode, press the MENU button.

2. Press the LEFT/ RIGHT button and select the [SETUP] menu tab.

3. Select the [FILE] menu by pressing the UP/ DOWN button and press the RIGHT button.

NOR

SETUP

FILE

PWR OFF

LANGUAGE

BACK:

RESET

SERIES

2816


SET:OK

[RESET] : After using the reset function, the next file name will be set from 0001 even after formatting, deleting all or inserting a new memory card.

[SERIES]: New files are named using numbers that follow the previous sequence, even when a new memory card is used, or after formatting, or after deleting all pictures


79

File name

INFORMATION

The first stored folder name is 100SSCAM, and the first file name is SV600001 .

File names are assigned sequentially from SV600001 SV600002 ~ SV609999 .

The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM

101SSCAM ~ 999SSCAM.

The files used with the memory card conform to the DCF(Design rule for Camera File systems) format.

Auto power off

This function switches the camera off after a set amount of time in order to prevent unnecessary battery drainage.

Setting Power Off



3. Select the [PWR OFF] menu by pressing the UP/ DOWN button and press the RIGHT button.

4. Select a desired sub menu by pressing the UP/ DOWN

NOR

SETUP

FILE

PWR OFF

LANGUAGE

BACK:

OFF

2816

SET:OK button and press the OK button.

Selecting [OFF] : The power off function will not operate.

[1~10 MIN] : The power will turn off automatically if not used for the period of time specified.


INFORMATION

Even if the batteries or AC adapter are removed and inserted again, the power off setting will be preserved.

Note that the automatic power off function will not operate if the camera is in PC mode, slide show, playing back a voice recording or movie clip.

80

Language

There is a choice of languages that can be displayed on the LCD monitor. Even if the batteries or

AC adapter are removed and inserted again, the language setting will be preserved.

Setting Language



3. Select the [LANGUAGE] menu by pressing the UP/



NOR

FILE

PWR OFF

LANGUAGE

BACK:

SETUP

2816

ENGLISH

FRANÇAIS


LANGUAGE sub menu : Korean, English, French, German, Spanish, Italian, T.Chinese,

S.Chinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai.


Formatting a memory card

This is used for formatting the memory card. If you run [FORMAT] on the memory card, all images, including the protected images, will be deleted. Be sure to download important images to your PC before formatting the memory card.

Formatting a Memory Card

1. In any mode other than Voice Recording mode, press the

MENU button.


3. Select the [FORMAT] menu by pressing the UP/ DOWN button and press the RIGHT button.


NOR

PWR OFF

FORMAT

BACK:

SETUP

LANGUAGE NO

YES

2816


If [NO] is selected : The memory card will not be formatted.

Press the menu button twice and the menu display will disappear.

If [YES] is selected : A [PLEASE WAIT!] message appears and the memory card will be formatted. If you ran FORMAT in Play mode, a [NO IMAGE!] message will appear.

INFORMATION

Be sure to run [FORMAT] on the following types of memory card.

- A new memory card, or an unformatted memory card.

- A memory card that has a file this camera can t recognize or one that has been taken from another camera.

Always format the memory card using this camera. If you insert a memory card that has been formatted using other cameras, memory card readers, or PCs, you will get a [CARD

ERROR!] message.

81

Setting up the Date/ Time/ Date type

You can change the date and time that will be displayed on the captured images and set up the date type.

Setting Date/Time & Selecting Date Format



3. Select the [D&TIME] menu by pressing the UP/ DOWN button and press the RIGHT button.

4. Use the UP, DOWN, LEFT, and RIGHT buttons to select

NOR

SETUP

LANGUAGE

FORMAT

D & TIME

BACK:

2816

YY/MM/DD

SET:OK the desired submenu value, and then press the OK button.

RIGHT button : Selects the year/month / day/hour / minute date type.

LEFT button : Moves the cursor to the [D&TIME] main menu if the cursor is at the first item of the date and time setup. In all other cases, the cursor will be shifted to the left of its current position.

UP and DOWN buttons : Changes the setting value.

- Date type : [YY/MM/DD] /[DD/MM/YY] /[MM/DD/YY]


Imprinting the recording date

There is an option to include DATE/TIME on still images.

Date Imprinting



3. Select the [IMPRINT] menu by pressing the UP/ DOWN

NOR button and press the RIGHT button.

4. Use the UP and DOWN buttons to select the desired date imprint type, and then press the OK button.

[OFF]: The DATE & TIME will not be imprinted on the image file.

FORMAT

D & TIME

IMPRINT

BACK:

SETUP

2816

OFF

DATE

D & TIME

SET:OK

[DATE]

[D&TIME]

: Only the DATE will be imprinted on the image file.

: The DATE & TIME will be imprinted on the image file.


INFORMATION

82

The Date & Time are imprinted at the bottom right side of the still image.

The date will be imprinted as a DATE TYPE setting.

TIME is imprinted in the following way : [Hour : Minute] and hours are shown using the 24 hour clock.

The imprint function is applied only to still images.

Sound

If you set the operation sound to ON, various sounds will be activated for camera startup, when button are pressed, and if there is a card error, so that you can be aware of the camera operation status.

Setting Operation Sounds



3. Select the [SOUND] menu by pressing the UP/ DOWN button and press the RIGHT button.


[SOUND] sub menu : OFF/ LOW/ MEDIUM/ HIGH


NOR

D & TIME

IMPRINT

SOUND

BACK:

SETUP

2816

OFF

LOW

MEDIUM

SET:OK

LCD brightness

You can adjust the LCD brightness.

Adjusting LCD Brightness



3. Select the [LCD] menu by pressing the UP/ DOWN button and press the RIGHT button.


[LCD] sub menu : DARK, NORMAL, BRIGHT


NOR

IMPRINT

SOUND

LCD

BACK:

2816

SETUP

DARK

NORMAL

BRIGHT

SET:OK

83

Selecting Video out type

The Movie output signal from the camera can be NTSC or PAL.

Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI.

Setting the Video Out Type



3. Select the [VIDEO] menu by pressing the UP/ DOWN button and press the RIGHT button.


[VIDEO] sub menu : NTSC, PAL


NOR 2816

SOUND

LCD

VIDEO

BACK:

SETUP

NTSC

PAL

SET:OK

Connecting to an external monitor

In RECORDING/ PLAY mode, you can view the stored still images or movie clips by connecting the camera to an external monitor via the A/V cable. When the camera is connected to an external monitor, the LCD monitor will be turned off automatically.

Yellow color-Video

White color-Voice

INFORMATION

NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.

PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland,

Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland,

Thailand, Norway.

When using a TV as an external monitor, you will need to select the external or AV channel of the TV.

There will be a digital noise on the external monitor, but it is not a malfunction.

If the image is not in the centre of the screen, use the TV controls to centre it.

When the camera is connected to an external monitor, the menu will be visible on the external monitor and the menu functions are the same as those indicated on the LCD monitor.

84

Quick view

If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is possible only with still images.

Setting Quick View


NOR 2816


3. Select the [Q.VIEW] menu by pressing the UP/ DOWN button and press the RIGHT button.

LCD

VIDEO

Q. VIEW

BACK:

SETUP

1 SEC

SET:OK


[OFF]

[1 ~ 3 SEC]

: The quick view function can’t be activated.

: The captured image is briefly displayed during the selected time.


Initialization(RESET ALL)

All camera menu and function settings will be restored to their default values.

However, values for DATE/TIME, LANGUAGE, and VIDEO OUT will not be changed.

Initializing the Camera


NOR


3. Select the [RESET] menu by pressing the UP/ DOWN button and press the RIGHT button.

VIDEO

Q. VIEW

RESET

BACK:

SETUP


If [NO] is selected

If [YES] is selected

: Settings will not be restored to their defaults.

: All settings will be restored to their defaults.


NO

YES

2816

SET:OK

85

Connecting an External Device (USB)

You can select an external device to which you want to connect the camera using the USB cable.

Selecting an External Device



3. Select the [USB] menu by pressing the UP/ DOWN button and press the RIGHT button.


NOR

Q. VIEW

RESET

USB

BACK:

SETUP

2816

COMPUTER

PRINTER


[COMPUTER] : Select this if you want to connect the camera to your PC.

Refer to page 105 for instructions on how to connect the camera to your

PC.

[PRINTER] : Select this if you want to connect the camera to your printer.

Refer to page 73 for instructions on how to connect the camera to your printer.


86

Setting up the MYCAM menu

You can set up a start up image, start up sound and shutter sound. Every camera working mode (with the exception of Voice recording mode) has the MyCAM menu.


Menu tab Main menu

S.IMAGE

S.SOUND

SH.SOUND

OFF

Sub menu

USER IMAGE

IMAGE 2

OFF

SOUND 2

OFF

SOUND 2

* Menus are subject to change without prior notice.

IMAGE 1

IMAGE 3

SOUND 1

SOUND 3

SOUND 1

SOUND 3

Page p.87

p.88

p.88

Start up image

You can select the image that is first displayed on the LCD monitor whenever the camera is turned on.

Setting a Startup Image


2. Press the LEFT/ RIGHT button and select the [MYCAM] menu tab.

MYCAM

2816

3. Select the [S.IMAGE] menu by pressing the UP/ DOWN button and press the RIGHT button.



S.IMAGE

S.SOUND

SH.SOUND

BACK: SET:OK

INFORMATION

Use a saved image for the start-up image with the [LOGO] in the [RESIZE] menu in the play mode.

The start-up image will not be deleted by deleting all images or [FORMAT] menu.

87

Start up sound

You can select the sound that is activated whenever the camera is turned on.

Setting the Startup Sound



3. Select the [S.SOUND] menu by pressing the UP/ DOWN button and press the RIGHT button.



2816

MYCAM

S.IMAGE

S.SOUND

SH.SOUND

BACK:

OFF

SOUND 1

SOUND 2

SET:OK

Shutter sound

You can select the shutter sound.

Selecting the Shutter Sound



3. Select the [SH.SOUND] menu by pressing the UP/




2816

S.IMAGE

S.SOUND

SH.SOUND

BACK:

MYCAM

OFF

SOUND 1

SOUND 2

SET:OK

88

Important notes

Be sure to observe the following precautions!

This unit contains precision electronic components. Do not use or store this unit in the following locations.

- Areas exposed to severe changes in temperature and humidity.

- Areas exposed to dust and dirt.

- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.

- Environments where there is high magnetism or excessive vibration.

- Areas with high explosives or highly flammable materials.

Do not let the unit come into contact with dust, vinyl goods, or chemicals, such as insecticides, for an extended period of time.

Sand can be particularly troublesome to cameras.

- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas where there is lots of sand.

- Doing so may result in failure or may permanently render the unit unusable.

Extremes in temperature may cause problems.

- If the camera is transferred from a cold to a warm and humid environment, condensation can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed. Moisture build up can also occur in the memory card. If this happens, turn off the camera and remove the memory card. Wait until the moisture has dispersed.

Caution on Using the Lens

- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of the image sensor.

- Pay attention not to get fingerprints or foreign substances on the surface of the lens.

If the digital camera is not used for a long period, an electric discharge can occur.

It is a good idea to remove the batteries and the memory card if you do not intend using the camera for an extended period of time.

89

Important notes

If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card.

Camera Maintenance

- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.

If this does not work, lens-cleaning paper with lens cleaning fluid can be used.

Clean the camera body with a soft cloth. Do not allow this camera to come into contact with solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell of the camera and also affect its performance. Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera in its protective carry case at all times when not in use.

Do not attempt to disassemble or modify the camera.

Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to the camera and is not a malfunction.

When images are uploaded or downloaded, the data transfer may be affected by static electricity. In this case, disconnect and re-connect the USB cable before trying the transfer again.

90

Warning indicator

There are several warnings that may appear on the LCD display

Warning indicator Causes

CARD ERROR !

- Memory card error

Remedy

- Turn off the camera power and turn it on again

- Insert the memory card again

- Format the memory card (p.81)

CARD FULL !

- There is insufficient memory capacity to take an image

- Insert a new memory card

- Delete unnecessary image files to free up some memory

NO IMAGE !

- There are no images stored on the memory card

- Take images

- Insert a memory card that is holding some images

NO CARD !

FILE ERROR !

- A memory card is not inserted

- The camera can’t recognize the memory card

- Insert a memory card

- Insert the memory card again

- Turn off the camera power and turn it on again

- File error

- Memory card error

- Format the memory card

- Contact a camera service center

LOW BATTERY ! - There is low battery capacity - Insert fresh batteries

CARD LOCKED !

LOW LIGHT !

- The memory card is locked

- When taking pictures in dark places

- Slide the write protect switch to the top of the memory card

- Use a tripod and take pictures in Flash

Photography mode

SET USB

- [USB] sub menu and connected device are not matched.

- Reconfigure [USB] in the [SETUP] menu.

91

Before contacting a service center

Please check the following

Symptom

The camera doesn t switch on

The camera power ceases whilst in use

Causes

- There is low battery capacity

- An AC Power Adapter is not connected

- Batteries are inserted incorrectly with the reverse polarities

- The batteries are exhausted

- The Camera is turned off automatically

- The Adapter plug is not connected securely

Batteries drain quickly

- The Camera is being used in low temperatures

Remedy

- Insert fresh batteries

- Connect an AC Power Adapter

- Insert the batteries according to the polarity marks (+, -)


- Press the power button to reactivate camera

- Remove and re-insert the plug

- Keep the camera in warm conditions

(i.e. inside a coat or jacket) and only remove it in order to take images

Camera does not take images when pressing the

Shutter button

- The memory card is not inserted

- There is insufficient memory capacity

- The memory card has not been formatted

- The memory card is exhausted

- The camera’s power is off

- The batteries are exhausted

- The memory card is locked

- Batteries are inserted incorrectly with the reverse polarities

- After turning the camera off, insert a new memory card

- Delete unnecessary image files

- Format the memory card (p.81)

- Insert a new memory card

- Turn the camera power on


- Refer to [CARD LOCKED!] error message

(p.91)

- Insert the batteries according to the polarity marks (+, -)

The camera suddenly stops working while in use

- The camera was stopped due to a malfunction

- Remove /re-insert batteries and switch the camera on

92


Symptom

The images are unclear

Causes

- A picture was taken within 0.8

m from the subject without setting an appropriate macro mode

- Taking a picture beyond the flash range

- The lens is smudged or dirty

Remedy

- If the subject is closer than 0.8m, select macro shot mode

- Take a picture within the flash range

- Clean the lens

The flash does not fire

- Flash off mode has been selected

- Dis-engage flash off mode

Incorrect date and time is displayed

- The date and time have been set incorrectly or the camera has adopted the default settings

- Reset the date and time correctly

The camera buttons do not operate

- Camera malfunction - Remove /re-insert batteries and switch the camera on

A card error has occurred while the memory card is in the camera.

- Incorrect memory card format - Re-format the memory card (p.81)

The images don't play back

- Incorrect file name

(Violation of DCF format)

- Do not change the image file name

93


Remedy Symptom

Colour of image is different to the original scene

Causes

- White balance setting is incorrect

- Select appropriate White balance

Images are too bright

- Exposure is excessive - Reset exposure compensation

No image on external monitor

- The external monitor has not been connected properly with the camera

- There are incorrect files in the memory card

- Check the connection cables

- Insert a memory card that has correct files

When using the

PC’s explorer, the

[Removable Disk] file does not show

- Cable connection is incorrect

- The camera is off

- There are no batteries, the batteries are exhausted or the

AC adapter is not connected.

- The operating system is not

Windows 98, 98SE, 2000, ME,

XP/ Mac OS 9.0~10.2.

Alternatively the PC does not support USB

- The camera driver is not installed

- Check the connection

- Turn the camera on

- Insert new batteries or check the adapter connection

- Install Windows 98, 98SE, 2000, ME, XP/

Mac OS 9.0~10.2 to PC that supports USB

- Install a [USB Storage Driver]

94

Specifications


Sensor

Lens

Viewfinder

Focusing

Type

Effective Pixel

Total Pixel

Focal Length

1/1.8" CCD

Approx. 6.1 Mega-pixel

Approx. 6.3 Mega-pixel

Schneider Lens f = 7.7 ~ 23.1mm

(35mm film equivalent : 38~114mm)

F No.

F2.7 ~ F4.9

Still Image mode : 1.0X ~ 4.0X

Digital Zoom

Play mode : 1.0X ~ 11X (depends on image size)

Optical Viewfinder Real image optical viewfinder

LCD Monitor

Type

Range

1.5" color TFT LCD

TTL auto focus, Manual focus

Normal : 80cm ~ infinity

Macro : 30 ~ 80cm, Super Macro : 6 ~ 30cm (Wide only)

Shutter

Exposure

Flash

Sharpness

Effect

White Balance

Type

Speed

Control

Compensation

ISO Equivalent

Modes

Range

Mechanical and Electronic shutter

1 ~ 1/2,000 sec. (Manual, Night Mode : 16 ~ 1/2,000 sec.)

Program AE, Shutter Priority AE, Aperture Priority AE or Manual Exposure

Metering : Multi, Spot

2EV (0.5EV steps)

Auto, 50, 100, 200, 400

Auto, Auto & Red-eye reduction, Slow sync, Fill-in flash, Flash off

Wide : 0.3 ~ 3.0m, Tele : 0.3 ~ 2.0m

Recharging Time Approx. 7 sec.

Soft, Normal, Vivid

Normal, B&W, Sepia, RGB

Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, Custom

Voice Recording

Date Imprinting

Shooting

Still Image

Voice Recording (max. 1 hours)

Voice Memo in Still Image (max. 10 sec.)

Date, Date&Time, Off (user selectable)

Modes : Auto, Program, A,S,M, Night Scene, MySet, Scene

* Scene : Portrait, Children, Landscape, Close-up, Sunset,

Dawn, Backlight, Fireworks, Beach & Snow

Continuous : Single, Continuous

Self-timer : 2 sec., 10 sec., Remocon

Storage

Movie Clip

Media

File Format

With Audio (recording time : memory capacity dependent)

Size : 640x480, 320x240

Frame rate : 30 fps, 15 fps

SD / MMC Card (up to 512MB guaranteed)

Still Image : TIFF, JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0

Movie Clip : AVI (MJPEG) Voice : WAV

95

Specifications

Storage

Image Play

Interface

Power Source

Capacity

(32MB)

Type

Editing

Dimensions (WxHxD)

Weight

Operating Temperature

Operating Humidity

Software

Camera

DriverApplication

Special Features

Image Size

2816 : 2816x2112

2272 : 2272x1704

2560 : 2560x1920

2048 : 2048x1536

1600 : 1600x1200

640 : 640x480

1024 : 1024x768

2816 : Super Fine 9, Fine 18, Normal 26, TIFF 1







* These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings.

Single image, Thumbnails, Slide show, Movie Clip

Trimming, Resizing

Digital output connector : USB 1.1

Audio : Mono

Video output : NTSC, PAL (user selectable)

DC power input connector : 5.0V

Primary battery : 2 x AA alkaline, Lithium, Ni-Mn, Ni-Zn / 1 x CR-V3

Rechargeable battery : 3.7V Li-ion(SLB-1437), 2 x AA Ni-MH,

Ni-Cd / 1 x I-Pack (SBP-1303)

AC Adapter : SAC - 51(DC 5.0V, 2.0A)

* Included power source may vary depending on sales region.

105.5 x 54.6 x 38 mm

170g (without batteries and card)

0 ~40 C

5 ~85%

Storage Driver (Windows98/98SE/2000/ME/XP, Mac OS 9.0 ~ 10.2)

Digimax Viewer, ArcSoft PhotoImpression

A World Unique 9 Different Power Sources

A World Superior Schneider Lens

VGA 30fps Movie Clip

AVI capture on Play Mode

* Specifications are subject to change without prior notice.

* All trademarks are the property of their respective owners.

96

Software Notes

Please ensure that you read the instruction manual carefully before use.

The attached software is a camera driver and image editing software tool for Windows.

Under no circumstances should all or part of either the software or the user manual be reproduced.

Copyrights for software are licensed only for use with a camera.

In the unlikely event of a manufacturing fault, we will repair or exchange your camera.

We cannot, however, be held responsible in any way for damage caused by inappropriate use.

Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty.

Before reading this manual, you should have a basic knowledge of computers and O/S

(Operating Systems).

System Requirements

For Windows

PC with processor better than MMX

Pentium 233MHz (XP : Pentium II 300MHz)

Windows 98/98SE/2000/ME/XP

Minimum 32MB RAM (XP : 128MB)

140MB of available hard-disk space

USB port

CD-ROM drive

800x600 pixels, 16-bit colour display compatible monitor (24-bit color display recommended)

For Macintosh

Power Mac G3 or later

Mac OS 9.0 ~ 10.2

Minimum 64MB RAM

110MB of available hard-disk space

USB port

CD-ROM drive

QuickTime 4.0 or later for Movie Clip

97

About the software

After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window should automatically run.

Before connecting the camera to the

PC, you should first install the camera driver.

Figures (Images) used for the manual are based on model Digimax V5.

Camera driver : This enables images to transfer between the camera and PC.

This camera uses the USB Storage Driver as the camera driver. You can use the camera as a USB card reader. After installing the driver and connecting this camera to the PC, you can find [Removable Disk] in [Windows Explorer] or [My computer]. A USB Storage Driver is provided only for Windows. A USB Driver for MAC is not included with the Application CD.

But you can use the camera with Mac OS 9.0 ~ 10.2.

Digimax Viewer : This is a program for viewing stored images.

You can see the stored images in the memory directly on a PC monitor. You can also copy, move or delete the images and enlarge/downscale the image sizes with Digimax Viewer.

This software is only compatible with Windows.

PhotoImpression : Image editing program.

You can edit or store still images that you download from the camera. This software is only compatible with Windows.

INFORMATION

Be sure to check the system requirements (p.97) before installing the driver.

You should allow 5~10 seconds for running the automatic setup program according to the capability of the computer. If the frame does not show, run the [Windows Explorer] and select [Samsung.exe] in the CD-ROM Drive root directory.

98

Setting up the application software

To use this camera with a PC, install the application software first. After this has been done, the stored images in the camera can be moved to the PC and can be edited by an image editing program.

INFORMATION

Close other programs before installing the application software.

Before installing the application software, disconnect the USB connection.

You can visit the Samsung web-site through the internet.

http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean

1. Click the [Install] menu in the Autorun frame. The camera driver is installed automatically.

[Click!]

2. Camera driver installation is complete.

Click the [Finish] button.

[Click!]

99


3. A window for which you can select application software will be displayed.

Select the application program and click the [Install] button.

Refer to page 98 for more information about the application program.

[Click!]

INFORMATION

If you select [Exit] at the step 3, the application program installation will be cancelled.

4. Install Digimax Viewer.

Click [Next >] button.

[Click!]

INFORMATION

If you select [Cancel] at step 4, a window for installing PhotoImpression will be displayed.

5. The Software License Agreement window will be displayed. If you agree to this, click

[Yes], the window will then move to the next step. If you disagree, click [No] and the installation program will be canceled.

[Click!]

6. A destination selection window will open.

Click [Next >]. To copy to the files to another folder, click [Browse..] and choose a folder you want.

[Click!]

100


7. A window will open, asking you to choose a folder to which program icons will be added. Click [Next >] button.

If you want to add the program icons to a different folder, choose another folder, and then click [Next >] button.

[Click!]

8. Digimax Viewer installation is successfully completed. Click the [Finish] button to install PhotoImpression.The system will not reboot even the [Yes, I want to restart the computer now] option is selected.

*The frame 8 may not appear according to the system requirements.

[Click!]

9. Digimax Viewer Installation is completed.

The PhotoImpression installation window will be displayed as shown alongside.

Click the [OK] button.

[Click!]

INFORMATION

If you click [Cancel] in Step 9, the PhotoImpression installation will be canceled and the

Restart Computer window will appear.

10. A Welcome window will be displayed.

Click the [Next >] button.

[Click!]

11. The Software License Agreement window will be displayed. If you agree to this, click [Yes], the window will then move to the next step. If you disagree, click [No] and the installation program will be canceled.

[Click!]

101


12. A destination selection window will open.

Click [Next >]. To copy to the files to another folder, click [Browse...] and choose a folder you want.

[Click!]

13. The [Select Components] window will appear. Click [Next >] button.

[Click!]

14. A window will open, asking you to choose a folder to which program icons will be added. Click [Next >] button.

If you want to add the program icons to a different folder, choose another folder, and then click [Next >] button.

[Click!]

102


15. Installation is complete. To apply changes, you must restart the computer.

Select [Yes, I want to restart my computer now], and then click [Finish].

[Click!]

16. After restarting the computer, connect the PC to the camera with the USB cable.

17. Turn the camera power on. [Found New

Hardware Wizard] will open and the computer will recognize the camera.

If you have ever installed an image viewer program or your OS is Windows XP, an image viewer program will open.

If the image viewer program opens, the camera driver was setup successfully.

18. If you can see [Removable Disk] under

[My computer], the camera driver installation was successful.

Now you can transfer image files from the camera to PC via the USB cable.

103


INFORMATION

If you have installed the camera driver, [Found New Hardware Wizard] may not open.

On a Windows 98 or 98 SE system, the Found New Hardware Wizard dialog box opens and a window asking you to select a driver file may appear. In this case, specify "USB

Driver" in the CD supplied. (for Windows 98 and 98 SE).

When connecting the camera to your PC, it is recommended that you use an AC power adapter.

Before connecting the camera to the PC, You should first install the camera driver.

After installing the camera driver, you have to restart your PC.

If you connect the camera to the PC before installing the camera driver, the [Found New

Hardware Wizard] will open.

In this case, cancel the [Found New Hardware Wizard] and disconnect the camera. Install the camera driver and connect the camera to the PC again.

Should the computer not find the camera driver after installation, please try one or more of the following measures.

1. Delete the camera driver (p.108), and re-install the driver.

2. Refer to FAQ (p.114) to check for a possible solution to the problem.

3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host

Controller), download the patch file from the Samsung Camera web page.

(http://www.samsungcamera.com)

104

Starting PC Mode

If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode".

In this mode, you can download stored images to your PC through the USB cable.

The LCD monitor is always turned off in PC mode.

The auto focus lamp will illuminate when the files are transferring via the USB connection.

Connecting the camera to a PC

1. Turn the PC power on.

2. Turn the camera power on.

3. In any mode other than Voice Recording mode, press the MENU button.


NOR

SETUP

2816

5. Select the [USB] menu by pressing the UP/ DOWN button and press the RIGHT button.

6. Use the UP and DOWN buttons to select

[COMPUTER], and then press the OK button.

Q. VIEW

RESET

USB

BACK:

COMPUTER

PRINTER

SET:OK


8. Connect the PC and the camera via the USB cable.

- Insert the small plug of the USB cable into the camera USB connection terminal.

- Insert the large connector of the USB cable into the USB port of the PC.

- The plugs must be firmly inserted.

If you selected [PRINTER] in Step 6, when you connect the camera to your computer, the [CONNECTING...] message will be displayed on the LCD monitor and the connection will not be established. In this case, disconnect the

USB cable, and then follow the procedure from Step 3 and onward.

Disconnecting the camera and PC : Refer to page 110 (Removing the removable disk).

INFORMATION

The camera driver must be installed before using PC mode.

To save battery power, it is recommended that you use an AC adapter (Optional) when connecting the camera to a computer.

105


Downloading stored images

You can download the still images stored on the camera to your PC's hard disk and print them or use a photo editing software to edit them.

1. Connect the camera to your PC with the USB cable.

2. On your computer's desktop display, select

[My computer] and double click [Removable

Disk DCIM 100SSCAM].

The image files will then be displayed.

3. Select an image and press the right mouse button.

4. A pop-up menu will open.

Click [Cut] or [Copy] menu.

- [Cut] : cuts a selected file.

- [Copy] : copies files.

5. Click a folder where you want to paste the file.

106


6. Press the right mouse button and a pop-up menu will open. Click [Paste].

7. An image file is transferred from the camera to your PC.

- By using [Digimax Viewer], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.

107

Removing the USB Driver for Windows 98SE

To remove the USB driver, refer to the process shown below.

1. Trace [Start Settings] and click [Control Panel].

2. Double-click [Add/Remove programs].

3. The [Add/Remove Programs Properties] window will open. Click [Digimax V6 V6000] and click the

[Add/Remove] button.

4. Uninstallation is complete.

Click the [Finish] button and the window will disappear.

[Click !]

108

[Click !]

Removable Disk

To use this camera as a Removable Disk, install (p.99) the USB Driver.

1. Before turning the camera power on, connect the camera to the PC with the USB cable.

2. Click [Removable Disk] under [My computer] or [Windows Explorer].

3. Image files stored in the Removable Disk (DCIM 100SSCAM) can be transferred to the

PC.

INFORMATION

Important information whilst using the Removable Disk

The [Removable Disk] indicator will not show when the camera power is off or the USB cable is removed.

We recommend that you should copy the images to the PC to view them. Opening images directly from the removable disk may be subject to unexpected disconnection.

When uploading images from the PC to the camera, ensure that the uploaded file names are not the same as those already stored on the memory.

When you upload a file that is not taken by this camera to Removable Disk, the [FILE

ERROR!] message will be displayed on the LCD monitor in the PLAY mode, and nothing is displayed in THUMBNAIL mode.

The auto focus lamp will blink, when a file is transferred (copy or deletion) between the PC and the camera. Do not remove the USB cable until the lamp stops blinking. To remove the USB cable in Windows 2000/ME/XP, use the [Unplug or Eject

Hardware] icon on the task bar.

109

Removing the removable disk

Windows 98SE

1. Check whether the camera and PC are transferring a file. If the auto focus lamp blinks, you have to wait until the lamp illuminates.

2. Unplug the USB cable.

Windows 2000/ME/XP

(The illustrations may be different from the real display in accordance with the Windows O/S.)

1. Check whether the camera and PC are transferring a file. If the auto focus lamp blinks, you have to wait until the lamp illuminates.

2. Double-click the [Unplug or Eject Hardware] icon on the task bar.

[Double-click!]

3. The [Unplug or Eject Hardware] window will open. Select the [USB Mass Storage Device] and click the [Stop] button.

[Click!]

4. The [Stop a Hardware device] window will open. Select the [SAMSUNG Digimax V5

USB Device] and click the [OK] button.

5. A [Safe to Remove Hardware] window will open. Click the [OK] button.

110

[Click!]

[Click!]

Removing the removable disk

6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely.

7. Unplug the USB cable.

[Click!]

Setting up the USB Driver for MAC

1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.

2. Check the MAC OS. You can check the MAC OS version during MAC OS start-up. This camera is compatible with MAC OS 9.0 ~ 10.2.

3. Connect the camera to the Macintosh and turn the camera power on.

4. A new icon will be displayed on the desktop after connecting the camera to the MAC.

Using the USB Driver for MAC

1. Double click a new icon on the desktop and the folder in the memory will be displayed.

2. Select an image file and copy or move it to MAC.

INFORMATION

For Mac OS 10.0 or later: First complete uploading from computer to camera and then remove the removable disk with the Extract command

111

Using PhotoImpression

With PhotoImpression, you can edit or store still images that you downloaded from the camera.

This software is only available in Windows version.

To start the program, click [Start Programs ArcSoft PhotoImpression 4

PhotoImpression4]. The following screen will appear.

[ Help Button ]

[ Command Button ]

[ Tool Bar ]

You can use PhotoImpression to perform the following tasks.

Command Button

Button Description

Imports a picture from an album, a source folder, or the camera/scanner, or captures screen shots of what is being viewed on the current monitor.

Selects Cut, Resize, Edit Image, Insert Text, Enhance Picture, Insert

Effects, or Layer.

Performs Insert Frame, Insert Borders, Insert Calendar, Insert Greeting

Cards, Insert Template, or Connect with Other Software.

Saves the edited picture, and sends an e-mail or uses it as the background image.

Outputs the edited picture according to your preferences.

112

Using PhotoImpression

Tool Bar

Button Description Button Description

Resize Layer Rotate Layer

Flip Layer Horizontally

Undo

Copy

Rotate All Layers

Redo

Paste

Delete Layer Close Picture

INFORMATION

For detailed instruction on how to use PhotoImpression, please refer to the program's Help.

Digimax Viewer 2.1

This software is only compatible with Windows.

1. To open Digimax Viewer, click the [Start Programs

Samsung Digimax Viewer 2.1 Digimax Viewer

2.1 ] and Digimax Viewer 2.1 will then open.

2. If the [Auto Launch] option is selected, this program will be executed automatically with recognizing the camera.

113

Digimax Viewer 2.1

3. You can easily use the Digimax viewer 2.1 program as it offers a FILE menu and TOOL bar. And, you can use the pop up menu. Click an image and press the right mouse button.

Digimax Viewer functions are listed below.

- Basic functions : Copy, Cut, Paste, Delete, Rotate, Rename, changing file type, Resize,

Property.

- Advanced functions : Print, Slide show, Export, Sending e-mail, On-line print, Web album etc.

INFORMATION

Before deleting images from the camera, you should protect or download images to your computer that you wish to keep.

Refer to the [Help] menu in Digimax viewer 2.1 for further information.

FAQ

Please check the following if the USB connection malfunctions.

[Case 1] The camera power is off.

Turn the camera power on. We recommend using an AC power adapter in PC mode.

[Case 2] USB Driver is not installed correctly.

Install the USB Driver correctly. Refer to page 99.

[Case 3] The USB cable is not connected or you are using a cable with an incorrect specification.

Use a USB cable with the correct specification.

114

FAQ

[Case 4]

[Case 5]

The camera is not recognized by your PC.

Sometimes, the camera may appear under [Unknown Devices] in Device

Manager.

Install the camera driver correctly.

Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.

There is an unexpected error during file transfer

Turn the camera power off and on again. Transfer the file again.

[Case 6]

[Case 7]

[Case 8]

How do I know my computer supports a USB Interface?

Check the USB port in your computer or keyboard.

Check the OS version.

A USB Interface is available in Windows 98, 98SE, 2000, ME .XP.

Check [Universal serial bus controller] in Device Manager.

Do the following to check [Universal serial bus controller].

Win 98/ME : Trace [Start Setting Controller System

Manager Universal serial bus controller]

Device

Win 2000

Win XP

: Trace [Start Setting Controller System Hardware

Device Manager Universal serial bus controller].

: Trace [Start Control Panel Performance and

Maintenance System Hardware Device Manager

Universal Serial Bus controller].

There must be USB Host Controller and USB root hub under [Universal serial bus controller].

In addition, double-click on the USB Universal Host Controller and the USB

Root Hub to check if the Device Status states "This device is working properly".

If the Device Status says the device is "not working properly", click the "Driver" tab and then click [Update Driver] or [Reinstall Driver].

When all the conditions mentioned above are met, the computer can support the USB interface.

When using the USB hub.

There may be a problem in connecting the camera to the PC through the USB hub if the PC and the hub are not compatible.

Wherever possible, connect the camera to the PC directly.

Are other USB cables connected to the PC?

The camera may malfunction when it is connected to the PC at the same time as another USB cable. In this case, disconnect the other USB cable, and connect only one USB cable to the camera.

115

FAQ

[Case 9] When I open the Device Manager (by clicking Start (Settings) Control

Panel (Performance and Maintenance) System (Hardware) Device

Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them.

Right-click on the entry with the question(?) or exclamation (!) mark and select

"Remove". Restart the PC and connect the camera the again.

For Windows 98 PC, remove the camera driver also, restart the PC, and then reinstall the camera driver.

Double-click on the entry with the question (?) or exclamation (!) mark, click the

"Driver" tab, and click [Update Driver] or [Reinstall Driver]. If a message appears asking you to specify the location of the appropriate device driver, specify "USB

Driver" in the CD supplied.

Please check the following if the movie clip doesn't play back.

If you installed an incorrect codec onto your PC, the movie clip may not play back on the PC.

1. Check whether the JPEG Decoder provided with the camera is installed.

If you didn't install the camera driver, please install the JPEGCODE included in the application S/W CD-ROM. If not, the movie clip may not play back on the PC.

[ Installing the JPEG Decoder ]

1) Insert the CD provided with the camera.

2) Run the windows explorer and select the CD-ROM drive.

3) Select the JPEG_Decoder folder and double click the Setup.exe file.

The codec will be installed.

2. Compatible problems with the codecs installed onto the PC.

If the movie clip doesn't play back after installing the JPEG Decoder, refer to the following.

116

FAQ

1) When the movie clip plays back, only the sound plays back without the image.

It isn't compatible with the Mogen MJPEG Decoder. Uninstall the Mogen MJPEG

Decoder as following order. Click [Start Run] and a window will open.

Type "regsvr32 /u m3jpgdec.ax" and press the Enter key.

2) When the movie clip plays back, the blue and red colors are reversed or the movie clip doesn't open. It isn't compatible with the ffdshow Codec or K-lite Codec Pack.

Disable the ffdshow program.

Trace [Start Programs ffdshow

Disable ffdshow].

Uninstall the K-Lite Codec Pack or set the default program of the AVI file as the

Windows Media Player.

Trace [Start Cotroller Add/ Remove

Programs Select the K-Lite Codec Pack

Click the Change/ Remove button].

Run the windows explorer Select AVI file

Click the right mouse button Select the "Open with" menu Click the

Windows Media Player Check the

"Always use this program to open these files" option Click the [OK] button.

Most problems will be solved with those remedies. If the movie clip doesn't play back continuously, install the JPEGCODE provided with the camera again.

For more information, visit the samsung website(www.samsungcamera.com) and see the

FAQ page.

117

Information to the user

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

118

MEMO

119

SAMSUNG TECHWIN CO., LTD.

OPTICS & DIGITAL IMAGING DIVISION

145-3, SANGDAEWON 1-DONG, JUNGWON-

GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA

462-121

TEL : (82) 31-740-8086,8088, 8090, 8092, 8099

FAX : (82) 31-740-8398, 8111

SAMSUNG OPTO-ELECTRONICS AMERICA, INC.

HEADQUARTERS

40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.

TEL : (1) 201-902-0347

FAX : (1) 201-902-9342

WESTERN REGIONAL OFFICE

18600 BROADWICK ST.,

RANCHO DOMINGUEZ, CA 90220, U.S.A.

TEL : (1) 310-900-5263/5264

FAX : (1) 310-537-1566

SAMSUNG OPTO-ELECTRONICS UK LIMITED

SAMSUNG HOUSE

1000 HILLSWOOD DRIVE

HILLSWOOD BUSINESS PARK

CHERTSEY KT16 OPS U.K.

TEL : +44 (0) 1932 455300

FAX : +44 (0) 1932 455325

SAMSUNG OPTO-ELECTRONICS GMBH

AM KRONBERGER HANG 6

D-65824 SCHWALBACH/TS., GERMANY

TEL : (49) 6196 66 53 03

FAX : (49) 6196 66 53 66

SAMSUNG FRANCE S.A.S.

BP 51 TOUR MAINE MONTPARNASSE

33, AV .DU MAINE

75755, PARIS CEDEX 15, FRANCE

HOTLINE PHOTO NUMÉRIQUE :

00 800 22 26 37 27(Numéro Vert-Appel Gratuit)

TEL : (33) 1-4279-2282/5

FAX : (33) 1-4320-4510

SAMSUNG TECHWIN MOSCOW OFFICE

RUSSIA, 125167, MOSCOW LENNINGRADSKY,

PR-KT, 37-A, KORP14

TEL : (7) 095-258-9299/96/98

FAX : (7) 095-258-9297 http://www.samsungcamera.ru

TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.

7 PINGCHANG ROAD NANKAI DIST., TIANJIN

P.R CHINA

POST CODE:300190

TEL : (86) 22-2761-8867

FAX : (86) 22-2761-8864

Internet address - http : //www.samsungcamera.com/

The CE Mark is a Directive conformity mark of the European Community (EC) 6806-1970

No results
