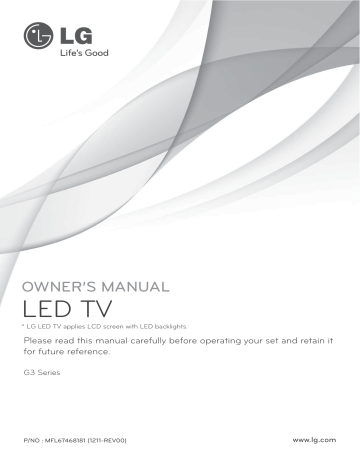

OWNER’S MANUAL

LED TV

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

G3 Series www.lg.com

P/NO : MFL67468181 (1211-REV00)

2 TABLE OF CONTENTS

TABLE OF CONTENTS

2 TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

8 Viewing 3D Imaging

10 LICENSES

35 Registering the remote control

35 How to use the zoom in/out gestures

35 Speak Watch

35 Precautions to take when using the remote control

11 Unpacking

14 Parts and buttons

15 Lifting and moving the TV

16 Setting up the TV

16 - Attaching the stand

17 - Mounting on a table

18 - Mounting on a wall

36 Turning the TV on for the first time

36 Setting the Mode

37 TROUBLESHOOTING

37 OPEN SOURCE SOFTWARE NOTICE

38 SPECIFICATIONS

40 MAINTENANCE

40 - Screen, frame, cabinet and stand

20 Connecting to an antenna or cable

21 - Wireless Network Connection

21 - Wired Network Connection

22 Connecting to a HD receiver DVD Player or

VCR

23 - DVI to HDMI Connection

24 - Connecting to a mobile phone

27 Connecting a PC

27 - HDMI Connection or DVI to HDMI Connection.

29 Connecting to an Audio System

29 - Digital Optical Audio Connection

30 Connecting to a USB

31 Using IR Blaster

NOTE y

Image shown may differ from your TV.

y

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

IMPORTANT SAFETY INSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

y Do not use this apparatus near water.

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER

TO QUALIFIED SERVICE PERSONNEL.

y Clean only with a dry cloth.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

y Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

y Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

y Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country).

4 IMPORTANT SAFETY INSTRUCTIONS y Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

y y y

Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.

y Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

y Do not allow an impact shock or any objects to fall into the product, and do not drop anything onto the screen.

y Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

y CAUTION concerning the Power Cord

(Can differ by country):

It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets.

Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the

TV.

y Never touch this apparatus or antenna during a thunder or lightning storm.

y When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.

IMPORTANT SAFETY INSTRUCTIONS 5 y Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

y Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the

TV to direct air conditioning.

y Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

y Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Power Supply

Short-circuit Breaker y Disconnecting the Main Power

The power outlet used with this device must remain easily accessible.As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

y Do not attempt to modify this product in any way without written authorization from LG Electronics.

Unauthorized modification could void the user’s authority to operate this product.

y Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section

810 of the National Electrical Code (NEC) in the

U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Antenna Lead in Wire

Ground Clamp

Electric Service

Equipment

Ground Clamp

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

NEC: National Electrical Code y Cleaning

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

y Moving

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

6 IMPORTANT SAFETY INSTRUCTIONS y Ventilation y If you smell smoke or other odors coming from y Do not press strongly upon the panel with your y

Install your TV where there is proper ventilation.

Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

the TV, unplug the power cord and contact an authorized service center.

hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.

Keep the product away from direct sunlight.

y Dot Defect

The LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

y Generated Sound

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

y Take care not to touch the ventilation openings.

When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

y If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

y Store the accessories (battery, etc.) in a safe location out of the reach of children.

y This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.

y Do not dispose of batteries in a fire.

y Do not short circuit, disassemble or allow the batteries to overheat.

Preventing “Image burn” or “Burn-in” on your TV screen y If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen.

This is “image burn” or “burn-in” and not covered by the warranty.

y If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.

y Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD,

1 or more hours for the Plasma TV) to prevent image burn.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and

(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

IMPORTANT SAFETY INSTRUCTIONS 7

8 IMPORTANT SAFETY INSTRUCTIONS

Viewing 3D Imaging

WARNING

Viewing Environment y Viewing Time

- When watching 3D content, take 5 - 15 minute breaks every hour. Viewing 3D content for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness y Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D content.

y Do not watch 3D content if you feel nauseous, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

y 3D Content are not recommended for those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

y If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

y If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents y Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

y When these symptoms are experienced, stop using/watching 3D content and get enough rest until the symptom subsides.

- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

IMPORTANT SAFETY INSTRUCTIONS 9

CAUTION

Viewing Environment y Viewing Distance

- Maintain a distance of at least twice the screen diagonal length when watching 3D content. If you feel discomfort in viewing 3D content, move further away from the TV.

Viewing Age y Infants / Children

- Usage/ Viewing 3D content for children under the age of 5 are prohibited.

- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D content.

- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same

3D image.

y Teenagers

- Teenagers under the age of 19 may be stimulated to light coming from 3D videos. Advise them not to watch 3D videos for a long time when they are tired.

y Elderly

- The elderly may perceive less of a 3D effect than the youth. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

y Using modified 3D glasses may cause eye strain or image distortion.

y Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

y The 3D glasses are fragile and are easy to scratched. Use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

10 LICENSES

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other

U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

NOTE y Image shown may differ from your TV.

y Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

y The available menus and options may differ from the input source or product model that you are using.

y New features may be added to this TV in the future.

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING 11

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.

2 Attach the stand to the TV set.

3 Connect an external device to the TV set.

4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION y

Do not use any unapproved items to ensure the safety and product life span.

y Any damages or injuries by using unapproved items are not covered by the warranty. y Some models appear to have a thin film on the screen. It is actually part of the screen, do not remove it.

NOTE y

The items supplied with your product may vary depending on the model.

y

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7 inches) width.

y

Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

B

B

A

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

A

12 ASSEMBLING AND PREPARING

QWERTY Remote Control,

Batteries (AA)

(See p.32)

Owner’s Manual,

CD Manual

Power Cord

Cinema 3D Glasses

(Depending on model)

Stand Body

(See p.16)

Stand Base

(See p.16)

Stand Screws

8 EA, M4 x 14

(See p.16)

Wall Mount Inner Spacers

4 EA

Cable Holder

(See p.19)

Component Video Cable

(See p.25)

Composite Video Cable

(See p.25,26)

Cable Management

2 EA

(See p.19)

IR Blaster Cable

(See p.31)

ASSEMBLING AND PREPARING 13

Optional Extras

Optional extras can be changed or modified for quality improvement without any notification.

Contact your dealer for buying these items.

These devices only work with certain models.

AG-F3**

Cinema 3D Glasses

The model name or design may be changed manufacturer’s circumstances or policies.

14 ASSEMBLING AND PREPARING

Parts and buttons

Screen

Speakers

OK

SETTINGS

INPUT

S

Buttons

Remote control and intelligent

1

sensors

Power indicator

Touch button

/ ( / )

/ ( / )

( OK )

( SETTINGS )

( INPUT )

( )

Description

Scrolls through the saved channels.

Adjusts the volume level.

Selects the highlighted menu option or confirms an input.

Accesses the main menus, or saves your input and exits the menus.

Changes the input source.

Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

ASSEMBLING AND PREPARING 15

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION y Avoid touching the screen at all times, as this may result in damage to the screen. y It is recommended to move the TV in the box or packing material that the TV originally came in.

y Before moving or lifting the TV, disconnect the power cord and all cables.

y When holding the TV, the screen should face away from you to avoid damage.

y When transporting a large TV, there should be at least 2 people.

y When transporting the TV by hand, hold the TV as shown in the following illustration.

y When transporting the TV, do not expose the TV to jolts or excessive vibration.

y When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

y Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker, or speaker grill area.

16 ASSEMBLING AND PREPARING

Setting up the TV

Put your TV on a pedestal stand and mount the TV on a table or wall.

Attaching the stand

1 4

4 EA

M4 x 14

Stand body

Front

Stand base

Top View

Wrapping bag

(Depending on model)

5

2

Protection pad

(Depending on model)

4 EA

M4 x 14

3

CAUTION y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

y Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

ASSEMBLING AND PREPARING 17

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

Securing the TV to a wall (optional)

10 cm

10 cm (4 inches)

10 cm

10 cm

2 Connect the power cord to a wall outlet.

CAUTION y Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Adjusting the angle of the TV to suit view

Swivel 15 degrees to the left or right and adjust the angle of the TV to suit your view.

NOTE y When adjusting the angle of the TV, watch out for your fingers.

y Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eyebolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION y Make sure that children do not climb on or hang on the TV.

NOTE y Use a platform or cabinet that is strong and large enough to support the TV securely.

y Brackets, bolts and ropes are optional. You can obtain additional accessories from your local dealer.

18 ASSEMBLING AND PREPARING

Mounting on a wall

Attach an optional wall mount bracket at the rear of the

TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the

TV to other building materials, please contact qualified personnel.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

10 cm

10 cm (4 inches)

10 cm

10 cm

Make sure to use screws and wall mounts that meet the

VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Model 42/47/50/55G310

42/47G3A

VESA

Standard screw

Number of screws 4

400 x 400

M6

Wall mount bracket (optional)

LSW430B

CAUTION y Disconnect the power before moving or installing the TV. Otherwise electric shock may occur.

y If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.

Use an authorized LG wall mount and contact the local dealer or qualified personnel.

y Do not over tighten the screws as this may cause damage to the TV and void your warranty.

y Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE y Use the screws that are listed in the VESA standard screw specifications.

y The wall mount kit includes an installation manual and necessary parts.

y The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

y The length of screws may differ depending on the wall mount. Make sure to use the proper length.

y For more information, refer to the manual supplied with the wall mount.

y

When attaching a third-party wall mounting bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket.

Wall Mount Inner Spacer

Tidying cables

1 Gather the cables with the stand rear cover.

ASSEMBLING AND PREPARING 19

3 Gather and bind the cables with the cable holder.

2 Install the cable management as shown.

Cable Holder

CAUTION y Do not move the TV by holding the cable holder and cable management clip, as the cable holders may break, and injuries and damage to the TV may occur.

Cable

Management

20 MAKING CONNECTIONS

MAKING CONNECTIONS

You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device.

NOTE y If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device.

y The external device connection may differ from the model.

y Connect external devices to the TV regardless of the order of the TV port.

y If you connect a gaming device to the TV, use the cable supplied with the gaming device.

y

Refer to the external equipment’s manual for operating instructions.

Connecting to an antenna or cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and a RF cable is optional.

VHF Antenna

UHF Antenna

IN

ANTENNA / CABLE

Antenna

Coaxial (75Ω)

CAUTION y Make sure not to bend the copper wire of the RF cable.

Copper wire y Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.

Terminal

NOTE y Use a signal splitter to use more than 2 TVs.

y Visit http://lgknowledgebase.com for more information about the antenna and cable connection. Search for antenna.

y DTV Audio Supported Codec: MPEG, Dolby

Digital

MAKING CONNECTIONS 21

Network connection

Connect the TV to a router with a LAN cable. Or, connect with Wi-Fi by accessing Network Setup in the initial Setup

Wizard. For seamless internet streaming LG recommends a stable 4 Mbps broadband speed and 1.5 Mbps as a minimum.

Wireless Network Connection

Wireless router

Wired Network Connection

Wired router

Internet connection

22 MAKING CONNECTIONS

Connecting to a HD receiver DVD Player or VCR

Connect a HD receiver, DVD Player or VCR to the TV and select an appropriate input mode.

HDMI Connection

HDMI is the best way to connect a device.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration.

NOTE y High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

y HDMI Audio supported Format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k) -> Not supported DTS.

Choose any HDMI input port to connect.

It does not matter which port you use.

HDMI

(*Not Provided)

DVD/ Blu-Ray / HD Cable Box / HD STB

MAKING CONNECTIONS 23

DVI to HDMI Connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the

DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.

Choose any HDMI/DVI input port to connect.

It does not matter which port you use.

(*Not Provided)

(*Not Provided)

DVI OUT

AUDIO OUT

DVD/ Blu-Ray / HD Cable Box

IN

AV

( Audio in)

24 MAKING CONNECTIONS

Connecting to a mobile phone

Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets.

NOTE y Connect the mobile phone to the HDMI/DVI IN 4 (MHL) port to view the phone screen on the TV.

y This only works for the MHL-enabled phone.

y Some applications can be operated by the remote control.

y For some mobile phones supporting MHL, you can control with the Magic Remote Control.

y The MHL passive cable is needed to connect the TV and a mobile phone.

MHL Cable

(*Not Provided)

Mobile phone

MAKING CONNECTIONS 25

Component Connection

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration.

NOTE y If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color.

y Check to ensure the cables are matched with the corresponding color connection.

AV

VIDEO AUDIO

IN

COMPONENT

P

R

P

B

Y

YELLOW

(Use the composite video cable provided.)

GREEN

(Use the component video cable provided.)

(*Not Provided)

L

AUDIO

R

VIDEO

(*Not Provided)

DVD/ Blu-Ray / HD Cable Box

26 MAKING CONNECTIONS

Composite Connection

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration.

AV

VIDEO AUDIO

IN

COMPONENT

P

R

P

B

Y

YELLOW

(Use the composite video cable provided.)

(*Not Provided)

VIDEO AUDIO

VCR / DVD/ Blu-Ray / HD Cable Box

MAKING CONNECTIONS 27

Connecting a PC

NOTE y It is recommended to use an HDMI connection for the best image quality.

y Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use.

y In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

y The synchronization input form for Horizontal and Vertical frequencies is separate.

y Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.

HDMI Connection or DVI to HDMI Connection.

Choose method A or B to make connection.

Method A: HDMI Connection

Choose any HDMI input port to connect.

It does not matter which port you use.

HDMI

(*Not Provided)

PC

28 MAKING CONNECTIONS

Method B: DVI to HDMI Connection

Choose any HDMI/DVI input port to connect.

It does not matter which port you use.

(*Not Provided)

IN

AV

( Audio in)

(*Not Provided)

AUDIO OUT

PC

DVI OUT

MAKING CONNECTIONS 29

Connecting to an Audio System

You may use an optional external audio system instead of the built-in speaker.

NOTE y If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off.

Digital Optical Audio Connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.

NOTE y Do not look into the optical output port. Looking at the laser beam may damage your vision.

y Audio with ACP (Audio Copy Protection) function may block digital audio output.

OUT

OPTICAL

DIGITAL

AUDIO

OPTICAL AUDIO IN

Digital Audio System

30 MAKING CONNECTIONS

Connecting to a USB

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the

TV.

NOTE y Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the

USB port on the TV directly.

IR Blaster

(*Not Provided)

USB

MAKING CONNECTIONS 31

Using IR Blaster

Universal remote control setting enables user to control multiple devices with a single remote controller. In order to continue the setting, please check, if IR Blaster and other devices are connected with TV properly.

When set-top box is connected:

1 Connect the IR Blaster Cable to the TV. Place the transmitter in front of the Set-top vox.

2 Go > All Apps > Settings > Video input > Add device manually .

3 Select a device and Next . The TV signal playing is displayed.

4 Select your device type.

5 Select your lineup provider. (when device type is Cable box, Satellite receiver or DVR)

6 Select the manufacturer of the selected device.

Check if the IR Blaster is firmly plugged into the IR Blaster port and is placed near the remote sensor of your device. and Select Next .

7 Select or Press CH up/down to test the code. If the code is not matched, select No, try next code to find the corresponding code. If the code is matched, select Yes .

8 Analyzing . (when device type is Cable box, Satellite receiver or DVR)

9 Select . Your device is registered.

NOTE y The steps may differ depending on connected device.

32 REMOTE CONTROL

REMOTE CONTROL

Inserting batteries

When you use the remote control for the first time, you should insert the batteries to remote control.

1. Open the battery cover as

shown below.

2. Eject the battery holder.

3. Place the batteries into

the holder.

COIN

4. Insert the holder to the

remote control.

5. Close the battery cover as

shown below.

COIN

CAUTION y Do not mix old and new batteries, as this may damage the remote control.

Remote Control Side - Front

(POWER)

Turn the TV on or off.

HOME

Access the homescreen.

Navigation Buttons

(up/down/left/right)

Move focus

BACK

Move to previous or superior step.

Trick play keys

rewind, Play, pause, fast forward

REMOTE CONTROL 33

INPUT

Selects input list.

VOICE

Searching by voice.

OK

Select item by pushing key.

Wheel

Spin the wheel up/down to scroll up/down.

GUIDE

Access the EPG on connected set-top box.

(Available only on Live TV)

VOL

Adjust the volume level.

CH

Change TV channels.

MENU

Call option pop-up for activating app.

Change between 2D and 3D mode.

(GESTURE)

Mute all sounds.

34 REMOTE CONTROL

QWERTY Side - Back

ESC

Cancel state or command

Tab

Move focus to next depth or step

Shift

Combination key with alphabet keys;input upper case

Back

Delete the preceding character and moves the cursor one position backwards

EXT PWR (FN+2)

Turn on/off external device

AMP PWR (FN+5)

Turn on/off amplifier

Enter

Finish text input

Fn

Combination key with other keys

Ctrl

Combination key with other keys

Spacebar

Enter a space

TV (FN+1)

Activate TV player app

PIP (FN+4)

Activate/Deactivate PIP

INFO (FN+7)

Show channel information (available only on Live TV)

DVR (FN+8)

Enter DVR menu

/ (FN+ ن / FN+ ه )

Zoom in/out

AMP VOL -/+ (Fn+< / Fn+>)

Volume up/down on audio receiver

NOTE y To enjoy Onlive application, you should purchase the onlive controller.

(www.onlive.com)

REMOTE CONTROL 35

Registering the remote control

The Remote Control operates by pairing with your TV.

Once you purchased the TV, please register the Remote

Control as follows;

How to register the remote control

Press the Center wheel button to pair the remote control.

How to re-register the remote control after registration failure

Reset the remote control by pressing and holding the ᰳ BACK button for 3 seconds. (Once the reset is complete, the light on the Pointer blinks.) Then repeat the above procedure to register the remote control.

How to use the zoom in/out gestures

Precautions to take when using the remote control

y Use the remote control within the maximum communication distance (10 m, 32.8 ft). Using the remote control beyond this distance, or with an object obstructing it, may cause a communication failure.

y A communication failure may occur due to nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth

(2.4 GHz) as the Remote Control.

y The Remote Control may be damaged or may malfunction if it is dropped or receives a heavy impact.

y Manufacturer and installer cannot provide service related to human safety as the applicable wireless device has possibility of electric wave interference.

y It is recommended that an Access Point (AP) be located more than 1 m (3.28 ft) away from the TV.

If the AP is installed closer than 1 m (3.28 ft), the remote control may not perform as expected due to frequency interference.

y LG Qwerty remote control or Logitech google keyboard is only supported. Other keyboard(HID) is may not be compatible.

y When the Qwerty side is faced up, the cursor is not moved to prevent the wobble.

1 Press and hold the 3D button for 2 seconds.

2 While holding the 3D button, draw a circle in a clockwise direction to zoom in or counter-clockwise direction to zoom out.

(This feature is only available while using

Web.)

Speak to Watch

You can use Speak to Watch to get directions, send messages, and perform a number of other common tasks.

EX)

“open” [app name] : open the application

“goto” [cnn.com] : Go to the website

[cnn.com] on Google chrome.

“watch” [cars two] : Open the [Cars two] pages on TV & Movies.

36 WATCHING TV

WATCHING TV

Turning the TV on for the first time

When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.

The Power indicator turns on and the TV switches to

Standby mode.

2 In Standby mode, press the power button on the remote control to turn the TV on.

The Initial setting screen appears if you turn the TV on for the first time.

NOTE y You can also access Initial Setting by accessing OPTION in the main menu.

3 Follow the on-screen instructions to customize your

TV settings according to your preferences.

Pairing the remote control

Pairing remote controller

Ø

Selecting Home or Store.

Environment Selection

Ø

Connect to the Internet

Ø

Connecting to the Internet to Ethernet cable or wireless.

Google Account

Ø

Signing in with your

Google Account

Help make Google TV better

Ø

Check the box to send the usage statistics and crash reports to Google automatically.

Enter ZIP code

Ø

Enter ZIP code so that you receive accurate programming information.

Set up TV service

Select the video input you use to connect your TV service to your TV.

Ø

Set up Audio amplifier control

Select your Audio amplifier manufacturer.

To control your receiver, connect the IR blaster.

Ø

That's it!

The initial settings are completed.

4 When the initial settings are completed, select Finish .

5 To turn the TV off, press the power button on the remote control.

NOTE y Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

Setting the Mode

1 Press to access the Home menu.

2 Go > Settings > Option > Environment

Selection .

3 Select for in-store display. For use in-home, select Home .

NOTE y To display images in the best quality for your home environment, select Home .

y Store is suitable for the retail environment.

y If you select Store , any customized settings will switch back to the default settings of

Store in 5 minutes.

TROUBLESHOOTING / OPEN SOURCE SOFTWARE NOTICE 37

TROUBLESHOOTING

General

Problem

Cannot control the TV with the remote control.

No image display and no sound is produced.

The TV turns off suddenly.

Resolution y Check the remote control sensor on the product and try again.

y Check if there is any obstacle between the product and the remote control.

y Check if the batteries are still working and properly installed ( to , to ).

y Check if the product is turned on.

y Check if the power cord is connected to a wall outlet.

y Check if there is a problem in the wall outlet by connecting other products.

y Check the power control settings. The power supply may be interrupted.

y Check if the Auto sleep feature is activated in the Time settings. y If there is no signal while the TV is on, the TV will turn off automatically after

15 minutes of inactivity.

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

38 SPECIFICATIONS

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions.

Power requirement

Television System

Program Coverage

External Antenna Impedance

Environment condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

AC 100 ~ 240 V ~ 50 / 60 Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 Ω

0 - 40 °C

Less than 80 %

-20 - 60 °C

Less than 85 %

Dimensions

(W x H x D)

MODELS

With stand

Without stand

Weight With stand

Without stand

Current Value / Power consumption

Dimensions

(W x H x D)

MODELS

With stand

Without stand

Weight With stand

Without stand

Current Value / Power consumption

42G310

(42G310-UA)

42G310

(42G310-UD)

42G3A

(42G3A-UA)

973 x 652 x 286 (mm)

38.3 x 25.6 x 11.2 (inch)

973 x 582 x 36.3 (mm)

38.3 x 22.9 x 1.4 (inch)

14.1 kg (31.0 lbs)

12.4 kg (27.3 lbs)

1.0 A / 100 W

50G310

(50G310-UD)

1180 x 750 x 290 (mm)

44.3 x 29.4 x 12.2 (inch)

1180 x 710 x 36.3 (mm)

44.3 x 29.4 x 1.4 (inch)

18 kg (39.6 lbs)

17 kg (37.4 lbs)

1.3 A / 130 W

47G310

(47G310-UA)

47G310

(47G310-UD)

47G3A

(47G3A-UA)

1086 x 708 x 286 (mm)

42.7 x 27.8 x 11.2 (inch)

1086 x 645 x 36.3 (mm)

42.7 x 25.3 x 1.4 (inch)

16.7 kg (36.8 lbs)

15.0 kg (33.0 lbs)

1.2 A / 120 W

55G310

(55G310-UD)

1286 x 800 x 290 (mm)

46.7 x 33 x 12.2 (inch)

1286 x 710 x 36.3 (mm)

47 x 29.4 x 1.4 (inch)

20 kg (44.0 lbs)

19 kg (41.8 lbs)

1.5 A / 150 W

Wireless LAN module (WN8122E1) specification

Standard

Frequency Range

Output Power

(Max.)

IEEE802.11a/b/g/n

2400 to 2483.5 MHz

5150 to 5250 MHz

5725 to 5850 MHz

802.11a: 16.5 dBm

802.11b: 16 dBm

802.11g: 15.5 dBm

802.11n - 2.4GHz: 15.5 dBm

802.11n - 5GHz: 16.5 dBm y Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

y The product with Wireless LAN module is designed for Indoor use only and the product should be installed and operated with minimum distance 20 cm between the radiator & your body. y Contains FCC ID: BEJWN8122E1 / Contains IC:

2703H-WN8122E1

Bluetooth module (BM-LDS401) specification

Standard Bluetooth Version 3.0

Frequency Range 2400 ~ 2483.5 MHz

Output Power (Max.) 10 dBm or lower y Contains FCC ID: BEJLDS401 / Contains IC:

2703H-LDS401

SPECIFICATIONS 39

40 MAINTENANCE

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep it at peak the best performance and to extend the product lifespan.

CAUTION y Make sure to turn the power off and disconnect the power cord and all other cables first.

y

When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent.

Then wipe immediately with a dry cloth.

CAUTION y Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.

y Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen’s finish and cause discoloration.

y Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

CHILD SAFETY:

It Makes A Difference How and Where

You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE y The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations.

y Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACURER CARES!

y The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY y O n e s i z e d o e s N O T f i t a l l . F o l l o w t h e m a n u f a c t u r e r ’ s recommendations for the safe installation and use of your flat panel display.

y Carefully read and understand all enclosed instructions for proper use of this product.

y Don’t allow children to climb on or play with furniture and television sets.

y Don’t allow place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

y

Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display.

Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.

y Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT

YOUR FLAT PANEL DISPLAY, ALWAYS: y U s e a m o u n t t h a t h a s b e e n r e c o m m e n d e d b y t h e d i s p l a y m a n u f a c t u r e r a n d / o r l i s t e d b y a n i n d e p e n d e n t l a b o r a t o r y

(such as UL, CSA, ETL).

y Follow all instructions supplied by the display and wall mount manufacturers.

y If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

y

Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction.

If you are unsure, contact a professional installer.

y A m i n i m u m o f t w o p e o p l e a r e r e q u i r e d f o r i n s t a l l a t i o n .

Flat panel displays can be heavy

The model and serial number of the TV is located on the back and one side of the TV.

Record it below should you ever need service.

MODEL

SERIAL

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000

USA, Consumer User

Register your product Online!

www.lg.com

This product qualifies for ENERGY STAR in the

“factory default (Home)” setting.

Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.
