Philips Consumer Lifestyle BOUCID2680 CarAudio User Manual

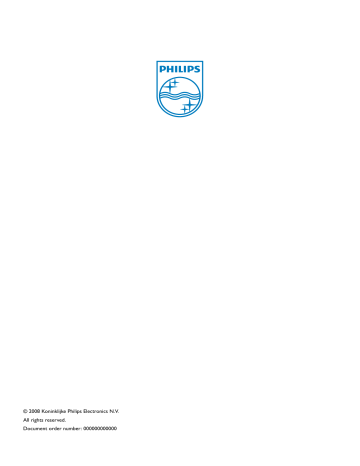

© 2008 Koninklijke Philips Electronics N.V.

All rights reserved.

Document order number: 000000000000

Register your product and get support at

www.philips.com/welcome

EN

User manual

Contents

1 Important

4

Safety 4

Notice 4

2 Your in-car entertainment system

6

Introduction

What’s in the box

6

6

Overview of the main unit 7

7 Play with Bluetooth device

24

Make a call

Receive call

24

25

Listen to music from Bluetooth device 25

Adjust Bluetooth settings 25

8 Adjust sound

27

Adjust volume 27

Mute

Select preset equalizer

Adjut fader/balance

27

27

27

3 Get started

Install the car audio

Turn on

Set date and time

4 Use map

Upgrade the map

16

16

5 Listen to radio

Tune to a radio station

Tune to a preset station

6 Play

Load discs

Connect USB device

Play/Pause 20

Search for a folder

Search within a title/folder

Repeat

Repeat a section

20

21

21

22

Random play

Select audio language

Select audio mode

Select subtitle language

Change view angle

Rotate pictures

Zoom

Select slide show duration

22

22

22

22

23

23

23

23

19

19

19

17

17

18

10

10

14

14

9 Adjust settings

Adjust general settings

Adjust sound settings

Adjust video settings

Adjust Bluetooth settings

Adjust language settings

Adjust volume settings

Adjust DVD rating

10 Others

Listen to other devices

Reset

Remove the unit

Replace fuse

11 Product information

12 Troubleshooting

About Bluetooth device

13 Glossary

37

37

37

37

38

39

29

29

32

33

34

34

35

35

41

41

43

EN 3

1 Important

Safety

•

•

•

•

•

•

•

•

•

•

•

•

•

•

Read and understand all instructions before you use the apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

This unit is designed for negative ground

(earth) 12 V DC operation only.

7RUHGXFHWKHULVNRIWUDIÀFDFFLGHQWGR no watch video during driving.

To ensure safe driving, adjust the volume to a safe and comfortable level.

Improper fuses can cause damage or

ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH consult a professional.

Use only the supplied mounting hardware for a safe and secure installation.

To avoid short circuit, do not expose the apparatus, remote control or remote control batteries to rain or water.

Never insert objects into the ventilation slots or other openings on the apparatus.

Never place any objects other than discs into the disc tray/slot.

Visible and invisible laser radiation when open. Avoid exposure to beam.

Risk of damage to the screen! Never touch, push, rub or strike the screen with any object.

Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

Clean the apparatus with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

a

Apparatus shall not be exposed to dripping or splashing.

4 EN b

Do not place any sources of danger on

WKHDSSDUDWXVHJOLTXLGÀOOHGREMHFWV lighted candles).

To avoid short circuit, do not expose the apparatus, remote control or remote control batteries to rain or water.

Notice

The making of unauthorized copies of copy-protected material, including computer

SURJUDPVÀOHVEURDGFDVWVDQGVRXQG recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

´'LY;'LY;µ&HUWLÀHGDQGDVVRFLDWHGORJRV are trademarks of DivX, Inc. and are used under license.

2IÀFDO'LY;&HUWLÀHGSURGXFW3OD\VDOO

YHUVLRQVRI'LY;YLGHRLQFOXGLQJ'LY;

ZLWKVWDQGDUGSOD\EDFNRI'LY;PHGLDÀOHV

7KH%OXHWRRWKZRUGPDUNDQGORJRVDUH registered trademarks owned by Bluetooth

SIG, Inc. and any use of such marks by Philips is under license.

Manufactured under license from Dolby

Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

2 Your in-car entertainment system

Congratulations on your purchase, and

ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

• Quickly found routine through the navigation system

•

•

•

•

And you can also enjoy:

Audio/video/JPEG pictures from

DVD, VCD or CD

USB devices

•

•

SD/SDHC/MMC cards

External devices

FM or AM (MW) radio

• Audio from Bluetooth-enabled devices

Besides, you can make/receive phone calls with

Bluetooth-enabled devices.

What’s in the box

Check and identify the contents of your package: a

Main unit b

Trim plate c

Remote control d

AV out cable e

Control/Camera wire f

USB cable g

AV in cable h

MZ-TFT/Video out 2 cable i

GPS antenna j

ISO connectors (x2) k

Screws

- M5x6mm x 8 pcs

- M5x7mm x 8 pcs

- M5x15 x 1pc

Screw nut (4x25.4) x 1 pc l

Remote control battery m

Screen cleaning cloth n 3ULQWLQJPDWHULDOLQFOXGH8VHUPDQXDO

Quick start guide)

6 EN

Overview of the main unit

• External equipment audio/video in socket.

a

• Eject disc.

b

Remote control sensor

• Detects signals from the remote control. When using the remote control, point it directly at the IR sensor.

c

NAVI

• Enter the GPS navigation system or exit.

d

/MUTE/VOL -/+

• Turn the unit on or off.

•

•

Turn mute on or off.

Adjust volume.

e

SOURCE

• Select source.

f

AV IN g

• USB socket h

RESET

• Reset the unit when it hangs up.

i

SD/SDHC/MMC card slot j

Disc slot k

MAP

• Open the cover and insert/remove the GPS map card.

EN 7

Overview of the remote control

a

HOME

• Toggles the home menu on or off.

b

PWR

• Turn the unit on or off.

c

• Adjust screen brightness/contrast.

d

VOLUME +/-

• Adjust volume.

e

EQ

• Access audio setting menu.

f

• Mute or unmute audio.

g

AUDIO

8 EN

• Select audio language or audio channel.

h

BAND

• Select AM or FM band.

i

MUSIC

• Switch to music playing mode.

j

GOTO

• Select track/chapter.

k

(green)

• Answer phone.

• Dial number.

l

DVD MENU

• Return to DVD main menu.

m

Numeric keypad n

SHUFF

• Turn random play on or off.

o

REPEAT

• Select repeat play mode.

p

SUBTITLE

• Select DVD or DivX subtitle language.

q

• Delete entered numbers/characters.

r

#/ *

• Symbols for making phone call.

s

•

(red)

Terminate call.

t

ENTER

• &RQÀUPWKHFKDUDFWHUQXPEHU inputs.

u

/

•

•

Skip to previous/next track/chapter.

Tune for radio station.

v

•

•

Start play or pause.

&RQÀUPVHOHFWLRQ w

VIDEOANGLE

• Select a difference angle/version of the current DVD scene.

x

PHOTOZOOM

• Zoom in or out a picture/video image.

y

F/R

• Switch to front/rear control mode.

z

Navigation buttons

• /

Skip to the previous/next preset station.

Skip to the previous/next folder.

Search backward/forward for DVD video.

Move cursor up/down.

•

•

/

Skip to the previous/next track.

Move cursor to left/right.

Press the navigation button down

Start play or pause.

&RQÀUPVHOHFWLRQ

{

• Return to previous menu or exit.

|

SOURCE

• Select source.

EN 9

3 Get started

Caution

• Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Install the car audio

These instructions are for a typical installation.

However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

•

•

•

•

•

•

•

•

•

This unit is designed for negative ground

(earth) 12 V DC operation only.

Always install this unit in the car dashboard.

Other locations can be dangerous as the rear of the unit heats up during use.

To avoid short-circuit: before you connect, ensure that the ignition is off.

Ensure that you connect the yellow and red power supply leads after all other leads are connected.

Ensure that all loose leads are insulated with electrical tape.

Ensure that the leads do not get caught under screws orin parts that will move (e.g. seat rail).

Ensure that all ground (earth) leads are run to a common ground (earth) point.

Use only the supplied mounting hardware for a safe and secure installation.

,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH

When you need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

• When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

10 EN

•

•

Never connect speaker wires to the metal body or chassis of the car.

Never connect speaker wires with stripes to one another.

Connect wires

Caution

• Ensure that all loose leads are insulated with electrical tape.

1

Check the car’s wiring carefully, then connect them to the two supplied ISO wires.

1

Connector Connect to

Brown wire Telephone mute

2

3

4

5

6

7

8

9

Red wire The +12V power terminal which is live in the accessory

(ACC) position of the ignition switch

If there is no accessory position, connect to the +12V car battery terminal that is always live.

Be sure to connect the black ground

(earth) lead to a metal

VXUIDFHRIWKHFDUÀUVW

Orange wire Illumination switch

Black wire A metal surface of the car

First connect the black ground (earth) lead, then connect the yellow and red power supply leads.

Yellow wire The +12V car battery which is live at all times .

Blue wire The electric antenna control lead or power supply lead of the antenna booster

If there is no electric antenna or antenna booster, or it is manually operated telescopic antenna, it is not necessary to connect this lead.

Left speaker (Rear) Green and green/black wires

White and white/black wires

Left speaker (Front)

Gray and gray/black wires

Right speaker (Front)

10 Purple and purple/black wires

Right speaker (Rear)

2

Connect the other end of the two ISO connectors to the car audio system.

3

If necessary, do the other connections:

EN 11

Yellow Green Blue

Connect GPS antenna

To receive signal from satellites, connect the supplied GPS antenna to your car and the system.

1

Connect the supplier GPS antenna to the

V\VWHPÀUVW

2

Stick the other end of the GPS antenna to a metal surface of the car.

12 EN

Connect GPS antenna

If your car has built-in radio antenna, connect it to the radio antenna of the system for better radio signal.

1

Connect the radio antenna to the car antenna.

Note

Mount in the dashboard

•

•

Check wire connection before you mount the unit into a car.

If preset radio stations are lost when the ignition key is turned OFF and then back ON, reconnect the red leads crosswise to the yellow ones.

1

If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

• If you disconnect the car battery in a car that has an on-board drive or

• navigation computer, the computer may lost its memory.

If the car battery is not disconnected, to avoid short-circuit, ensure that bare wires do not touch each other.

2

Ensure that car dashboard opening is within these measurements:

• Since the unit cannot be used if the dashboard opening’s slant angle is above 20 degrees: Ensure that the horizontal slant of the car dashboard opening is between 0 and 20 degrees.

3

Slide the unit into the dashboard until a click sound is heard.

4

Attach the trim plate.

EN 13

Turn on

Caution

• Risk of road accidents! Never watch video or adjust settings while you drive.

1

Press to turn on the unit.

»

The available OSD (On-Screen

Display) languages are displayed.

5

Reconnect the negative terminal of the car battery.

Install remote control battery

Caution

• Risk of explosion! Keep batteries away from

KHDWVXQVKLQHRUÀUH1HYHUGLVFDUGEDWWHULHV

LQÀUH

Note

•

•

•

Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

Batteries contain chemical substances, they should be disposed of properly.

Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/ perchlorate.

1

Open the battery compartment.

2

Insert one CR2025 battery with correct polarity (+/-) as indicated.

3

Close the battery compartment.

•

•

2

Touch a language to select.

»

The OSD language is changed to the selected language immediately.

To adjust screen brightness/contrast, press / on the remote control, then press , , or .

To turn off the unit, press for 3 seconds.

Set date and time

1

Touch the upper left corner to display main menu.

2

Touch in the middle right side of the screen.

»

The second main menu is displayed.

14 EN

»

A submenu is displayed.

3

Touch [Settings] .

4

Touch [Time] .

»

The date/time setup menu is displayed.

3.Touch

or to set hour and minute.

Tip

• When date/time is set, touch ÀUVWDQGWKHQ touch to return to main menu.

Set date

1

Touch [Date] .

2

Touch on the displayed date information.

»

A submenu is displayed.

3

Touch or to set year, month and day.

Set clock mode

1

Touch [Clock mode] .

2

Touch on [12Hr] or [24Hr] to select clock mode.

Set time

1.Touch

[Time] .

2.Touch on the displayed time.

EN 15

4 Use map

Note

• You may need to upgrade the map before using it (see “Upgrade the map” section)

1

Touch the upper left corner to display home menu.

2

Touch [Navigation] .

»

The navigation menu is displayed in a few seconds.

3

Refer to the map manual to operate the navigation tool.

Tip

• You can press NAVI to enter/exit the navigation system.

Upgrade the map

1

Turn off the car audio system.

2

Press the map card until you hear a click sound.

3

Take out the card and bring it to the authorized service center for upgrade.

5

Turn on the car audio.

»

The map upgrades in a few minutes.

4

Insert the upgraded map card back into the map card slot.

16 EN

5 Listen to radio

Tune to a radio station

1

Touch the upper left corner to display home menu.

2

Touch [Radio] .

»

Band and frequency information is displayed.

3

Touch on FM or AM to select band:

• FM band options: )0)0)0

• AM band options: $0$0

4

%ULHÁ\WRXFK or to tune to a radio station by step.

• Touch or for over 1 seconds to tune to a radio station automatically.

Tune by frequency

1

Touch .

• Touch to clear the last entered number.

Touch to clear all the entered • numbers.

5

Touch WRFRQÀUP

»

The radio station is broadcast.

Select radio range

Before you start to search for radio stations, you can select radio range.

1

Touch .

2

Touch [Radio range] to toggle tuner sensitivity from normal to high sensitivity.

• [Distance] : Only stations with strong

• signals can be broadcast.

[Local] : Stations with strong and weak signals can be broadcast.

2

Touch [Goto] .

3

Touch FM or AM to select band.

4

Touch the numbers to enter frequency.

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations manually

1

Tune to the station.

2

Touch .

3

Touch [Save] .

EN 17

4

Touch one of the channels 01 to 06 to save the select band.

Store stations automatically

You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

1

Select band.

2

Touch .

3

Touch [Search] .

»

Auto search starts.The six strongest stations of the selected band are saved in preset channels 1-6 automatically.

Tune to a preset station

1

Touch [Radio] .

2

Select band.

3

Touch one of the preset channels ( 01 to

06 ) to select a preset station.

18 EN

6 Play

Load discs

You can play video, audio or images stored on

•

• the following discs:

• DVD video, DVD-R, DVD-RW

VCD

Audio CD, CD-R, CD-RW

Note

• Ensure that the disc contains playable content.

1

Insert the disc into the disc slot with label side facing up.

»

Play starts automatically.

automatically.

»

»

To remove the disc, press the button.

na na na na

Chi Chi Chi Chi gin gin tin gin gin tin tin tin

Prin Prin Prin Prin

When the disc is ejected, the unit switches to the previous source, if connected. Otherwise, the unit switches to [Radio] mode

Depends on where you brought the unit, you can play DVD discs with the following region codes:

Countries

China

$VLD3DFLÀF7DLZDQ

Korea

Latin America

DVD region code

Russia, India

Connect USB device

Note

• Ensure that the device contains playable content.

1

Open the USB door.

»

2

Insert the small end of the supplied USB cable to the USB socket, then connect the other end of the USB cable to your

USB device.


EN 19

Remove the USB device

1

Press SOURCE to switch to another source.

2

Remove the USB device.

Insert USB or SD/MMC card

Note

•

•

Ensure that the device contains playable content.

The unit supports SDHC card.

1

Open the USB/SD/MMC card cover.

2

Insert the SD/MMC card into the SD/

MMC card slot.

»


EN 20

Remove the SD/MMC card

1

Press SOURCE to switch to another source.

2

Press the card until you hear a click sound.

»

The card is now disengaged.

3

Remove the SD or MMC card.

Play/Pause

1

Once a disc, USB or SD/MMC card is inserted, play starts automatically.

For DVD movie, if a menu appears, press to start play.

2

To pause, touch .

• To resume play, touch again.

Search for a folder

)RUYLGHRÀOHV

1

Touch to return to playlist menu.

2

Touch WRGLVSOD\DOODYDLODEOHYLGHRÀOH folders.

3

Touch a folder, then touch or to

VHOHFWDÀOH

4

Touch to start play.

)RUDXGLRÀOHV

1


2

Touch to display all available audio folders.

3

Touch a folder, then touch or to

VHOHFWDÀOH

4


)RUSLFWXUHÀOHV

1


2

Touch to display all available picture folders.

3

Touch a folder, then touch or to select a picture.

4

Touch to view the picture.

Search within a title/folder

Search by step

1

Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2

Touch or to skip to the previous or next chapter/track.

Direct search

1


2

Touch .

»

The search screen is displayed.

» )RUYLGHRÀOHVWRXFK ÀUVWWKHQWRXFK

.

3

7RXFKWKHQXPEHUVWRHQWHUFKDSWHUÀOH number, then touch .

•

•

To clear the previous input, touch .

To clear all input, touch .

Repeat

During play, you can select different repeat play modes.

For DVD/VCD movie disc:

1


2

Touch to display the 2nd menu.

3

Touch to select:

• [Repeat chapter] : play the current chapter repeatedly.

•

•

[Repeat title] : play all chapters in the title repeatedly.

[Repeat off] : cancel repeat play.

EN 21

For VCD karaoke or audio CD:

1


2

Touch to select:

• [Repeat] : play the current track repeatedly.

• [Repeat off] : cancel repeat play.

)RU03:0$ÀOHV :

1


2

Touch to select:

• [Repeat] : play the current track

• repeatedly.

[Repeat folder] : play all the tracks in the current folder repeatedly.

• [Repeat off] : cancel repeat play.

Tip

• You can also press REPEAT on the remote control to select repeated play mode.

Random play

<RXFDQSOD\DXGLRWUDFNVÀOHVLQUDQGRPRUGHU

1

During play, touch repeatedly to turn random play on or off.

• is highlighted : start random play.

• turns gray: cancel random play.

Tip

• You can also press SHUFF on the remote control to select random play mode.

Select audio language

For video discs that contain two or more audio channels.

1

During play, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2

Touch to display the 2nd menu.

3

Touch repeatedly.

»

The audio channel information is displayed on the upper line of the screen.

Repeat a section

<RXFDQUHSHDWDVSHFLÀFVHFWLRQRIYLGHRÀOH

(repeat A-B).

1


2

Touch to display the 2nd menu, if necessary.

3

Touch repeatedly to mark:

• [Repeat A-] : the start of the section to repeat.

•

•

[Repeat A-B] : the end of the section to repeat.

The selected section plays repeatedly.

4

To exit A-B repeat mode, touch repeatedly until [Repeat A-B off] is displayed.

22 EN

Select audio mode

When you play VCDs, you can select an audio mode (R/L/Stereo).

1

During play, touch anywhere except for the upper left corner to display menu on the screen.

2

Touch repeatedly until the audio mode is selected.

Select subtitle language

For DVD or DivX discs that contain two or more subtitle languages.

1


2

Touch to display the 2nd menu

3

Touch repeatedly to select a language.

»

The selected language is displayed.

Tip

• You may also press SUBTITLE on the remote control repeatedly to select subtitle language.

Zoom

You can zoom in pictures for a close view.

1

During view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

2

Touch repeatedly to zoom in the picture.

Change view angle

Some DVDs contain alternate scenes, such as scenes recorded from different camera angles. For such DVDs, you can select from the available alternate scenes.

1


2

Press VIDEOANGLE repeatedly on the remote control.

»

The view angle is changed.

3

Touch , , or to pan through the enlarged picture.

Tip

• To zoom in/out video image, press

PHOTOZOOM on the remote control.

Rotate pictures

1

When you view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

Select slide show duration

1


2

Touch repeatedly to select:

• Fast : 3 seconds

•

•

Normal : 5 seconds

Slow : 8 seconds

2

Touch repeatedly to rotate the picture.

EN 23

7 Play with

Bluetooth device

You can make or receive phone calls with

Bluetooth-enabled phones through the unit.

You can also listen to music from a Bluetoothenabled device.

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once.

You can pair up to eight devices.

Note

•

•

•

•

•

The operational range between this unit and a

Bluetooth device is approximately 10 meters

(30 feet).

Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.

Compatibility with all Bluetooth devices is not guaranteed.

Any obstacle between this unit and a

Bluetooth device can reduce the operational range.

Keep this unit away from any other electronic device that may cause interference.

1

Turn on the Bluetooth function on the device.

2

Search for Bluetooth device with the device.

3

Select “CID2680” in the pairing list.

4

Enter default password “0000”.

» if pairing succeeds. phone call record is displayed.

Disconnect Bluetooth devices

1

To disconnect one device, touch

(red).

»

(green) is displayed.

Tip

•

•

•

The device will also be disconnected when the device is moved beyond the operational range.

If you want to reconnect the device to the unit, place it within the operational range.

If you do not want to reconnect the device to the unit automatically, touch > [Auto connect] , then select [Off] . For details, see the

“Adjust Bluetooth settings” section.

Make a call

1

Pair the phone with the unit.

2

Touch the upper left corner to display the home menu.

3

Touch [Bluetooth] .

»

The Bluetooth menu is displayed.

4

Touch or to select the paired phone, then touch .

5

Touch or to search for phone number from the following list:

24 EN

•

•

•

•

[Missed calls]

[Received calls]

[Dialed calls]

[Phone book]

•

•

[Sim phone book]

[Local phone book]

Or touch to dial number directly, then touch to dial.

Receive call

By default, all incoming calls are received automatically.

1

If there is incoming call, [Incoming call...]

ÁDVKHVRQWKHVFUHHQ6SHDNLQWRWKH

Bluetooth microphone.

»

The voice is transferred from the unit’s loudspeaker to the mobile phone.

Listen to music from

Bluetooth device

If the connected Bluetooth device supports

$GYDQFHG$XGLR'LVWULEXWLRQ3URÀOH$'3 you can listen to the music stored on the device through the unit. If the device also supports

$XGLR9LGHR5HPRWH&RQWURO3URÀOH$95&3

SURÀOH\RXFDQXVHWKHFRQWURORQWKHXQLWRU its remote control to play music stored on the device.

1

Pair the phone with the unit.

2

Touch the upper left corner to return to home menu.

3

Touch [Bluetooth] .

»

The Bluetooth menu is displayed.

•

4

Start play music via device.

,I\RXUGHYLFHVXSSRUW$95&3

1

Touch .

2

When conversation ends, touch (red) to terminate the call.

Tip

• You can select to receive calls manually by set

[Auto answer] to [Off] status.

Switch phone call to the mobile

If you do not want your passenger to hear your incoming call, you can switch the call to the mobile.

1

During talking, touch .

2



You can change below Bluetooth settings:

• [Bluetooth] : to turn on or off

•

“Bluetooth” function

[Auto connect] : to turn on or off

•

•

“Auto connect” function

[Auto answer] : to turn on or off

“Auto answer” function

[Pairing code] : to set paring code

EN 25

• [Phone Book Sync] : to synchronize phone book

1

In Bluetooth menu, touch .

»

The option menu is displayed.

2

Touch on the selected option to change the setting.

Tip

• You can also adjust Bluetooth settings in the

“Settings” menu.

26 EN

8 Adjust sound

Adjust volume

•

1

Turn clockwise to increase volume.

Turn anti-clockwise to reduce volume.

Mute

1

During play, press .

• To turn the sound back on, press again.

Tip

• You can also turn off sound by touching on the screen.

Select preset equalizer

•

•

•

You can select preset equalizer:

• [User]

[Techno]

[Rock]

[Classic]

•

•

•

•

[Jazz]

[Optimal]

[Flat]

[Pop]

1


2

Touch .

»

The current Equalizer setting is displayed.

3

Touch or to select an EQ.

4

Touch or to adjust below settings:

• [Bass] bass range: -14 to +14

• [Mid] middle range: -14 to +14.

•

•

•

•

[Treb] treble range: -14 to +14

[LPH] ORZSDVVÀOWHUUDQJH

100, 200.

[MPF] PLGGOHSDVVÀOWHUUDQJH

1K, 1.5K, 2.5K.

[HPF] KLJKSDVVÀOWHUUDQJH.

12.5K, 15K, 17.5K.

5

Touch to restore the above settings into default settings.

6

Press to exit.

Adjut fader/balance

You can also adjust the front and rear speaker balance, the left and right speaker balance, and subwoofer settings.


1

Touch .

2

Touch

»

Below options are displayed:

3

Touch or to select subwoofer volume.

• [Sub] subwoofer volume: 0 to 24.

EN 27

4

Touch F , R , L , or R to adjust fader/balance value.

•

•

[Fade] fader range: +24 to -24. (F = front speaker, R = rear speaker)

[Balance] balance range: -24 to +24.

(L = left speaker, R = right speaker)

5

Touch to exit.

Set Dynamic Bass Boost

(DBB)

1

Touch to toggle between the settings.

• [DBB] on: The icon is

• illuminated.

[DBB] off (default): The icon is gray.

28 EN

9 Adjust settings

Display system setup menu

1

Touch the upper left corner to display main menu.

2

Touch or to highlight a setting.

3

Touch on the option to display/select an option.

2

Touch in the middle right side of the screen.

»

The second main menu is displayed.

3

Touch [Settings] .

»

The settings menu is displayed.

Tip

• When the setup adjustment is completed, touch ÀUVWDQGWKHQWRXFK to return to main menu.

Adjust general settings

1

Touch [General] , if necessary.

EN 29

General settings

[Radio region]

[Radio range]

Options

[USA] [S.

Amer-1]

[Arabia]

[China] [S.

Amer-2]

[Europe]

[Korea]

[OIRT]

[Blackout] [off]

[10s]

Description

Select one that matches your location.

[Local] Only stations with strong signals can be broadcast.

[Distance] Stations with strong and weak signals can be broadcast.

Never turn on the screen saver.

Turn on the screen saver automatically 10 seconds after last operation.

[Auto dimmer]

[20s]

[On]

Turn on the screen saver automatically 20 seconds after last operation.

Turn on the screen dim automatically 5 seconds after last operation.

[Key color]

[Off]

[Red]

[Blue]

Never turn the screen dim.

Button backlight turns red.

Button backlight turns blue.

30 EN

EN 31

32 EN

[Beep] [On]

[Calibration]

[Off]

4

Press to exit.

Adjust sound settings

1

Touch [Sound] .

Turn on the beep sound. Each time you press a button, the unit beeps.

Turn off the beep sound.

Calibrate the touch screen.

2

Touch an option repeatedly to select:

Sound settings

[Sub woofer]

Options Description

[On] Turn on the subwoofer.

[Off]

[Sub woofer

ÀOWHU@

[120Hz]

[160Hz]

[DBB] [On]

Turn off the subwoofer.

[80Hz] 6HOHFWVXEZRRIHUÀOWHU criteria.

[Off]

[DRC] [On]

The Dynamic Bass Boost

(DBB) function is on.

The DBB function is off.

[Off]

Makes loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others

The DRC function is off.

3

Press to exit.

Adjust video settings

1

Touch [Video] .

2


Video settings

[Aspect ratio]

[Video input]

[Rear camera]

Options Description

[Full] For widescreen display.

[Normal] For normal display.

[Auto] The correct format is set automatically.

Select this option if you are not sure which format should be selected.

[NTSC] Used in the United

States, Canada,

Japan, Mexico, the

Philippines, South

Korea, Taiwan, and some other countries.

[PAL] Used in China,

India, Singapore, the western European countries (except

France), Australia, and some other countries.

[Secam] Used in France,

Russia and other countries.

[Normal] When you drive in reverse, the rear view is displayed normally.

[Mirror] When you drive in reverse, the rear view is displayed in mirror.

[Parking] [On]

[Off]

Disable video view during drive.

Enable video view during drive.

[DivX registration code]

View code for DivX registration.

3

Press to exit.

EN 33


1

Touch [Bluetooth] .

2


Bluetooth settings

Options

[Bluetooth] [On]

Description

Turn on the

Bluetooth function.

[Auto connect]

[Off]

[On]

Turn off the

Bluetooth function.

If the pre-paired device is within the effective range, the unit re-connects to pre-paired device automatically.

[Auto answer]

[Pairing code]

[Off]

[On]

[Off]

Need to re-connect manually.

Answer paired phone call automatically.

Answer phone call manually.

View code for pairing the unit with other Bluetooth devices.

3

Press to exit.

Adjust language settings

1

Touch [Language] .

34 EN

2


Language settings

Options

[OSD] [English]

Description

Select on-screendisplay language.

>@

>@

Español

Português

[English] [DVD audio]

Select DVD audio language. Options available are depends on DVD disc.

[DVD subtitle]

>@

>@

Español

Português

[English]

[Disc menu]

Select DVD subtitle language.

Options available are depends on

DVD disc.

>@

>@

Español

Português

[Off]

[English]

Turn off subtitle language display.

Select DVD menu language. Options available are depends on DVD disc.

>@

>@

Español

Português

3

Press to exit.

•

•

•

•

•

•

•

Adjust volume settings

You can set different volume for different modes.

1

Touch [Volume] .

»

The volume setting sub-menu is displayed.

2

Touch on a source.

• [DVD]

[USB]

[SDHC]

[Radio]

[Bluetooth]

[AV-IN1]

[AV-IN2]

[CDC]

• [TV]

• [Navigation]

3

Touch or to assign value: 0 to 12.

»

When switches to the source, the volume increases automatically.

4

Press to exit.

Adjust DVD rating

1

Touch [DVD rating] .

2


EN 35

DVD rating Options Description

[Set password]

Set password to restrict the play of discs. The default password is 0000.

[Rating level]

[Kid safe]

[G]

Acceptable for children.

Acceptable for general viewers.

[Load factory]

[PG] Parental guidance suggested.

[PG-13] Unsuitable for children under age 13.

[PG-R] Recommend parents to restrict children under 17 to view.

[R] Restricted.

Recommend parent to guide children under

17 to view.

[NC-17] Unsuitable for children under age 17.

[Adult] Acceptable for adults only.

Restore to default settings.

3

Press to exit.

36 EN

10 Others

Listen to other devices

You can connect an external audio/video device to the unit.

1

Connect the car audio to the device with the supplied AV cable.

Tip

• When the unit is reset, all the settings remain unchanged.

2

Touch the upper left corner to display the main menu.

3

Touch [AV-IN1] .

4

Operated the connected the device (see the instructions manual of the device).

Tip

• If you connected the system to other audio device through the REAR OUT L/R connector

(see “Connect wires” section), touch [AV-IN2] to listen to that device.

Remove the unit

To repair, replace fuse, or replace the unit with another car audio, remove it from the dashboard.

1

Take off the trim plate.

2

Screw off the four (4) screws on the left/right side of the unit.

3

Pull the unit out from the dashboard.

Reset

When the unit hangs up, you can reset it.

1

Press RESET with a ball-point pen or similar tool.

EN 37

Replace fuse

If there is no power, the fuse may be damaged and need to be replaced.

1

Take out the unit from dashboard.

2

Check the electric connection.

3

Buy a fuse that matches the voltage of the damaged fuse (15A)

4

Replace the fuse.

If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.

38 EN

11 Product information

Note

• Product information is subject to change without prior notice.

General

Power supply

Fuse

Suitable speaker impedance

Maximum power output

Continuous power output

Pre-Amp output voltage

Subwoofer output voltage

12 V DC (11 V - 16

V), negative ground

15 A

4 - 8

50 W x 4 channels

24 W x 4 channels (4

10% T.H.D.)

2.0 V ( CD play mode; 1 kHz, 0 dB, 10 k load)

2.0 V (CD play mode,

61 Hz, 0 dB, 10 k load)

Aux-in level

Dimensions (W x H x D)

500 mV

178 x 101 x 160 mm

Weight (main unit) 2.5 kg

Disc player

System

Total harmonic distortion

DVD / CD audio /

MP3 system

Frequency response 20 Hz - 20k Hz

Signal/noise ratio >75dB

Less than 1%

Channel separation >55dB

Video signal format NTSC only

Video output 1 +/- 0.2V

Tuner

Frequency range - FM 87.5 - 108.0 MHz

(Europe)

Frequency range

- AM(MW)

522 - 1620 KHz

(Europe)

Usable sensitivity - FM 5 uV

Usable sensitivity

- AM (MW)

50 uV

LCD

Screen size

Display resolution

Contrast ratio

Brightness

6.5 inches (16:9)

800 x 480 dots

300

350 cd/m2

Bluetooth

Communication system

Output

Bluetooth Standard version 2.0

Bluetooth Standard Power

Class 2

Line of sight approx. 8m Maximum communication range

Frequency band 2.4 GHz band (2.4000

GHz - 2.4835 GHz)

Compatible

Bluetooth

SURÀOHV

+DQGV)UHH3URÀOH+)3

+DQGVHW3URÀOH+63

Advanced Audio

'LVWULEXWLRQ3URÀOH

(A2DP)

Audio Video Remote

&RQWURO3URÀOH$95&3

Supported codecs

Receive

Transmit

SBC (Sub Band Codec)

SBC (Sub Band Codec)

Compatible USB devices:

• 86%ÁDVKPHPRU\86%RU

•

USB1.1)

86%ÁDVKSOD\HUV86%RU

USB1.1)

• memory cards (SD / MMC / SDHC)

Supported formats:

• 86%RUPHPRU\ÀOHIRUPDW)$7

FAT32

EN 39

•

•

•

•

MP3 bit rate (data rate): 32-320 Kbps and variable bit rate

WMA v9 or earlier

Directory nesting up to a maximum of 8 levels

Number of albums/ folders: maximum 99

•

•

Number of tracks/titles: maximum

999

ID3 tag v2.0 or later

• File name in Unicode UTF8

(maximum length: 128 bytes)

Unsupported formats:

•

•

Empty albums: an empty album is an album that does not contain MP3/

:0$ÀOHVDQGLVQRWEHVKRZQLQ the display.

8QVXSSRUWHGÀOHIRUPDWVDUH skipped. For example, Word

GRFXPHQWVGRFRU03ÀOHVZLWK extension .dlf are ignored and not

•

• played.

$$&:$93&0DXGLRÀOHV

'50SURWHFWHG:0$ÀOHVZDY

•

.m4a, .m4p, .mp4, .aac)

:0$ÀOHVLQ/RVVOHVVIRUPDW

Supported MP3 disc format:

•

•

•

•

•

ISO9660, Joliet

Maximum title number: 512 (depending

RQÀOHQDPHOHQJWK

•

•

Maximum album number: 255

Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

Supported Bit-rates: 32-320 Kbps and • variable bit rate

Supported video formats:

• DVD

Divx Home theater

MP4

Xvid

Note

• To ensure a better playback, bit rate of 4.5

Mbps is recommended.

40 EN

12 Troubleshooting

Warning

• Never remove the casing of this apparatus.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.

philips.com/welcome). When you contact

Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

• Car engine has not been started. Start

•

• the car engine.

Connections is incorrect.

Fuse has been damaged. Replace fuse

(see ‘Replace fuse’ on page 38).

No sound

• Volume is too low. Adjust volume.

• Speaker connections is incorrect.

No response to the remote control

• Ensure that the path between the remote control and the unit is clear from

•

• obstacles.

From a close distance, point the remote control directly at the unit.

Switch F/R to correct position ( F for front

•

•

• control and R for rear control).

The function does not work. Refer to the instructions.

• Replace the remote control battery.

Disc does not play

• Disc is upside down. Ensure the printed

• side is upwards.

Disc is dirty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.

Disc is defective. Try another disc.

incompatible disc is used. Try another disc.

•

•

Disc rating exceeds the restrict setting.

Change the rating settings to lower one.

Disc region code is not compatible with the unit. Use disc with proper region code.

No image

• Parking brake wire connection is incorrect. Check the parking wiring.

,PDJHÁDVKHVRUGLVWRUWHG

• Video DVD settings do not match with

• the DVD. Adjust video DVD settings.

Video connection is improper. Check the connections.

Noise in broadcasts.

• Signals are too weak. Select other

• stations with stronger signals.

Check the connection of the car antenna.

• Change broadcast from stereo to mono.

Preset stations lost.

• Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Fuse is broken

•

•

The Fuse type is incorrect. Replace it with a 15A fuse.

Speaker wire or power wire is grounded.

Check the connections.

Display show ERR-12

• USB/SD/MMC data error. Check the USB device or SD/MMC card.

About Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

• The device cannot be used with the system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

• 7KHGHYLFHGRHVQRWVXSSRUWWKHSURÀOHV required for the system.

EN 41

•

•

• The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.

The system is not in the pairing mode.

The system is already connected with another Bluetooth-enabled device.

Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

• The Bluetooth reception is poor. Move the mobile phone closer to the system or remove any obstacle between the mobile

•

• phone and the system.

Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

For some mobile phones, the Bluetooth connection may be deactivated automatically as a power-saving feature.

This does not indicate any malfunction of the system.

42 EN

13 Glossary

B

Bite rate

The max data transfer through the USB port.

Bluetooth

%OXHWRRWKLVDVKRUWUDQJZLUHOHVVSURWRFRO that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities.

7KHQDPHUHIHUVWRD9LNLQJ.LQJZKRXQLÀHG

Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com.

M

MMC

MultimediaCard. A type of memory card with

DÁDVKPHPRU\

MP3

$ÀOHIRUPDWZLWKDVRXQGGDWDFRPSUHVVLRQ system. MP3 is the abbreviation of Motion

Picture Experts Group 1 (or MPEG-1) Audio

Layer 3. With the MP3 format, one CD-R or

CD-RW can contain about 10 times more data than a regular CD.

R

Region code

A system that allows discs to be played only in the region designated. This unit only plays discs that have compatible region codes. You

FDQÀQGWKHUHJLRQFRGHRI\RXUXQLWRQWKH product label. Some discs are compatible with more than one region (or ALL regions.)

S

SD

Secure Digital. A type of memory card with a

ÁDVKPHPRU\

SDHC

Secure Digital High Capacity (SDHC) is a

W\SHRIÁDVKPHPRU\FDUGEDVHGRQWKH6'$

VSHFLÀFDWLRQ7KH6'$VSHFLÀFDWLRQ enables SD cards to reach higher capacities from 4GB to 32GB, and growing.

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology.

Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

EN 43

44

45

46

No results
