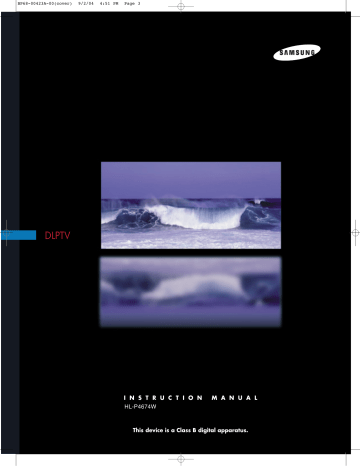

BP68-00423A-00(cover) 9/2/04 4:51 PM Page 3
DLPTV
I N S T R U C T I O N M A N U A L
HL-P4674W
This device is a Class B digital apparatus.
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 2
Table of Contents
Your New Wide TV ............................................................................................6
Replacing the Lamp ................................................................................................6
List of Features .......................................................................................................8
Accessories ...........................................................................................................8
Side Panel Buttons..................................................................................................9
Side Panel Jacks ................................................................................................... 9
Front Panel LED Indicators .....................................................................................10
Rear Panel Jacks ..................................................................................................11
Remote Control ....................................................................................................12
Installing Batteries in the Remote Control.....................................................13
Connections .....................................................................................................16
Connecting VHF and UHF Antennas.......................................................................16
Antennas with 300-ohm Flat Twin Leads .....................................................16
Antennas with 75-ohm Round Leads ...........................................................16
Separate VHF and UHF Antennas ..............................................................17
Connecting Cable TV and VCR..............................................................................18
Cable without a Cable Box .......................................................................18
Cable with a Cable Box that Descrambles All Channels ...............................18
Connecting a Cable Converter Box............................................................19
Connecting a Cable Converter Box and a VCR ...........................................19
Connecting a Camcorder......................................................................................20
Connecting a DVD Player .....................................................................................21
Connecting to Y,P
B
,P
R
...............................................................................21
Connecting to Audio and Video Jacks ........................................................21
Connecting a DTV Set-Top Box ..............................................................................22
Connecting to Y,P
B
,P
R
...............................................................................22
Connecting to DVI (Digital Visual Interface) .................................................22
Connecting to R,G,B.................................................................................23
Connecting to HDMI (High Definition Multimedia Interface) ..........................23
Operation........................................................................................................26
Turning the TV On and Off....................................................................................26
Viewing the Menus and On-Screen Displays ...........................................................26
Selecting the Menu Language................................................................................27
Selecting the Antenna Input ...................................................................................27
Memorizing the Channels .....................................................................................28
Adding and Erasing Channels ...............................................................................29
Changing Channels..............................................................................................30
Selecting Your Favorite Channels ...........................................................................31
Scanning the Channels .........................................................................................32
Labeling the Channels ..........................................................................................33
Picture Control .....................................................................................................34
Sound Control .....................................................................................................36
Setting the Clock..................................................................................................38
Setting the Timers .................................................................................................39
Viewing an External Signal Source ........................................................................41
Assigning Names to External Input Mode ...............................................................42
Freezing the Current Picture ..................................................................................43
Remote Control VCR/DVD Buttons..........................................................................43
English - 2
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 3
Special Features ...............................................................................................46
Customizing Your Remote Control ..........................................................................46
Remote Control Codes ..........................................................................................47
Fine Tuning Channels ...........................................................................................48
LNA (Low Noise Amplifier)....................................................................................49
Selecting the Color Tone .......................................................................................50
Changing the Picture Size .....................................................................................51
Digital Noise Reduction ........................................................................................52
DNIe TM (Digital Natural Image engine) ...........................................................53
Setting the My Color Control Mode........................................................................54
Setting the Film Mode...........................................................................................56
Viewing Picture-In-Picture.......................................................................................57
Activating the PIP .....................................................................................57
Selecting an External Source .....................................................................58
Swapping the Sub Picture and Main Picture ................................................59
Changing the Size of the Sub Picture .........................................................60
Changing the Location of the Sub Picture....................................................61
Changing the Channel of the Sub Picture....................................................62
Selecting the Sound Source .......................................................................63
Setting the SRS TSXT.............................................................................................64
Choosing a Multi-Channel Sound (MTS) track..........................................................65
Auto Volume........................................................................................................66
Enjoying the Sound of External Speakers ................................................................67
Using the V-Chip ..................................................................................................68
Viewing Closed Caption Information ......................................................................78
Setting the Blue Screen Mode................................................................................80
Setting The On/Off Melody ..................................................................................81
Using the Color Weakness Enhancement Feature .....................................................82
PC Display.......................................................................................................84
Using Your TV as a Computer (PC) Display .............................................................84
How to Connect Your PC to the TV.............................................................84
Setting up Your PC Software (Based on Widows 98) ...................................85
Display Modes.........................................................................................86
Adjusting the Picture Quality .................................................................................87
Changing the Picture Position ................................................................................88
Adjusting the Picture Quality and Position Automatically...........................................89
Initializing the Picture Settings................................................................................90
Changing the Picture Size (PC Mode).....................................................................91
Appendix.........................................................................................................94
Troubleshooting ...................................................................................................94
Cleaning and Maintaining Your TV ........................................................................95
Using Your TV in Another Country..........................................................................95
Specifications ......................................................................................................95
English - 3
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 4
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 5
Your New Wide TV
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 6
Your New Wide TV
Replacing the Lamp
• Why do I need to replace the lamp?
The lamp used in a projection TV has a limited lifespan. For the best screen quality it needs to be replaced periodically. After replacing the lamp, the screen quality will be bright and clear as new.
• When do I need to replace it?
It should be replaced when the screen becomes darker, less clear or when all three LEDs on the front
(TIMER, LAMP, & STAND BY/TEMP) are flashing.
• Check before lamp replacement
1. The lamp must be the same code number and type.
2. The lamp type is indicated on the right side of the TV. It is also indicated on the lamp case.
3. After checking the code number for the lamp, give the code number to the store where you purchased the TV or to a Samsung Service center.
• Caution
1. Replace with the correct code numbered lamp to avoid damage to the TV.
2. Turn the power off and wait for 30 minutes before replacing the lamp as it will be hot.
3. Do not touch the glass part of the lamp with your bare hands nor insert any foreign object inside the cover as it may cause poor screen quality, electric shock or fire.
4. Do not place the old lamp near flammable objects or within the reach of children.
English - 6
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 7
• For replacement, you will need a 5.91 Inches-long Phillips screwdriver and a pair of gloves.
1 Unplug TV, then use a screwdriver to remove the screw as shown in the picture.
(Remove the rubber cap and unscrew the screw. )
2 Remove the Lamp cover.
(Exert a bit of force to the right and pull for easy opening.)
3 Use a screwdriver to remove the screws securing the Lamp.
There are 2 screws: one on the left and one on the right. When the screws have been completely unfastened, they will still be connected to the body of the
Lamp.
4 Separate the Lamp from the engine by holding the handle and pulling it out.
5 To reinstall the Lamp, follow these steps in reverse order.
NOTES
• Be sure the replacement Lamp is the same type.
• After replacing the lamp, align the lamp cover with the groove and secure the screws.
• The TV will not turn on if the lamp cover is not correctly closed (as this will activate the protective circuit).
English - 7
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 8
Your New Wide TV
List of Features
Your TV was designed and engineered using the latest technology. It is a full-featured, high-performance unit that exceeds industry standards. In addition, it has these special features:
• Easy-to-operate remote control
• Easy-to-use on-screen menu system you can access from the side panel or remote control
• Automatic timer to turn the TV on and off at any time you choose
• Adjustable picture and sound settings and the ability to memorize your favorite settings
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• Fine tuning control for the sharpest picture possible
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Picture-in-Picture capability that lets you watch two channels at once
• Widescreen TV with adjustable image size
• Life-like clear images provided by DNle technology
• My Color Control Mode for corresponding with your color style
• Color weakness Mode
Accessories
Once you have unpacked your TV, check to make sure that you have all the parts shown here. If any piece is missing or broken, call your dealer.
Remote Control
(BP59-00075A)/
AAA Batteries
(4301-000103)
English - 8
Warranty Cards (2)/
Registration Card (1)
Instruction Manual/
Safety Guide Manual/
Quick Guide Manual/
Anynet Manual
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 9
Side Panel Buttons
The buttons on the right side panel control your TV’s basic features, including the on-screen menu system. To use the more advanced features, you must use the remote control.
Œ SOURCE
Press to switch between viewing TV programs and signals from connected components.
´ MENU
Press to see the on-screen menu.
ˇ + VOL –
Press to lower or raise the volume and to select items when using the on-screen menu.
¨ CH
Press to change channels and move between items on the on-screen menu.
ˆ
Press to activate (or change) a particular item.
ˆ POWER
Press to turn the TV on and off.
Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally (a camcorder or video game, for example).
Œ VIDEO Input jack
Connect the video signal from a camcorder or video game.
´ AUDIO Input jacks
Connect the audio signal from a camcorder or video game.
ˇ S-VIDEO Input jack
Connect an S-video signal from a camcorder or video game.
(S-Video 3 jack and Audio L/R input 3 are used in conjunction.)
English - 9
Œ
´
ˇ
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 10
Your New Wide TV
Front Panel LED Indicators
The three lights on the front panel indicate the status of your TV.
Indicator Light Key
: Light is On
: Light is Blinking
: Light is Off
TIMER LAMP STAND BY/TEMP Indication
Standby state.
The picture will automatically appear in about 15 seconds.
Auto Timer ON/OFF has been set and the set will automatically be turned on in about 25 seconds.
A cooling fan inside the set is not operating normally.
Lamp cover on rear of the set is not properly shut.
Check if the ventilation hole on the rear of the set is blocked, because if the inner temperature is too high, the power will shut off.
Lamp may be defective. Please contact a certified technician.
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
English - 10
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 11
Rear Panel Jacks
Use the rear panel jacks to connect components such as a VCR. You can connect different components such as VCRs, Set-Top Box and a DVD player etc., because there are two sets of video input jacks and three set of component video input jacks on the rear panel of your TV. For more information, please see
“Connections”.
Œ ANTENNA terminals
Two independent cables or antennas can be connected to these terminals.
Use “ANT 1 IN” and “ANT 2 IN” terminals to receive a signal from
VHF/UHF antennas or your cable system. Use the “ANT 1 OUT” terminal to send the signal being received by the “ANT 1 IN” terminal out to another component (such as a Cable Set-Top Box). The PIP channel can be received only when a signal source is connected to “ANT 1 IN”.
´ S-VIDEO INPUT jacks
Connects an S-Video signal from an S-VHS VCR or DVD player.
ˇ VIDEO/AUDIO INPUT jacks (VCR1, VCR2)
Connect video/audio signals from external sources, such as a VCR or DVD players.
¨ VIDEO/AUDIO OUTPUT jacks
Sends a video signal from the TV to an external source, such as a VCR.
Note: It is available only in RF, Video and S-Video modes.
ˆ COMPONENT1, 2 jacks (Y, P
B
, P
R,
L, R)
Use these jacks to connect the component video/audio signals from a DVD player or a set top box when using the component video input jacks.
Ø PC AUDIO INPUT jacks
Connect these to the audio output jacks on your PC.
∏ PC VIDEO INPUT jack
Connect these to the video output jack on your PC.
” DVI (Digital Video Interface) AUDIO INPUT jacks
Connect to the digital audio output jacks for device with DVI output.
’ DVI (Digital Video Interface) VIDEO INPUT jack
Connect to the digital video output jack for device with DVI output.
˝ HDMI (High Definition Multimedia Interface)
VIDEO/AUDIO INPUT jack
Connect to the HDMI jack for device with HDMI output.
Ô Anynet
Please refer to the Anynet Owner’s Instruction.
This jack is for repair and software upgrades.
English - 11
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 12
Your New Wide TV
Remote Control
1. POWER
Turns the TV on and off.
2. S.MODE
Adjust the TV sound by selecting one of the preset factory settings. (or select your personal, customized sound settings.)
3. P.MODE
Adjust the TV picture by selecting one of the preset factory settings. (or select your personal, customized picture settings.)
4. +100
Press to select cable channels over 100 on TV.
5. VOL +, VOL -
Press to increase or decrease the volume.
6. MUTE
Press to mute the TV sound.
7. Anynet
Runs the Anynet view functions and sets up the
Anynet devices.
8. MENU
Displays the main on-screen menu.
9. STILL
Press to stop the action during a particular scene. Press again to resume normal video.
10. P.SIZE
Press to change the picture size.
11. MODE
Selects a target device to be controlled by the
Samsung remote control (i.e., TV, STB, VCR,
CABLE, or DVD).
12. PRE-CH
Tunes to the previous channel.
13. SOURCE
Press to display all of the available video sources (i.e., TV, Set-Top Box, VCR, DVD, DTV,
PC).
14. CH , CH
Press to change channels.
15. INFO
Press to display information on the TV screen.
16. EXIT
Press to exit the menu.
You can use the remote control up to about 23 feet from the TV. When using the remote control, always point it directly at the TV. You can also use your remote control to operate your Set-Top Box, VCR, Cable box or DVD player. See pages 46~47 for details.
17.
▲ , ▼ , œ , √ , ENTER
Press to select highlight up, down, left, or right.
While using the on-screen menus, press the
ENTER to activate (or change) a particular item.
18. MTS (Multichannel
Television Stereo)
Press to choose Stereo, Mono or SAP (Secondary
Audio Program).
19. SRS
Activates TruSurround.
20. ADD/DEL
Press to add or erase channels in the TV’s memory.
Use the ADD/DEL button to memorize and erase the fine tuning after fine tuning channels.
21. SLEEP
Press to select a preset time interval for automatic shutoff.
22. PIP (Picture In Picture)
Activates PIP.
23. FAV.CH (Favorite Channel)
Press to switch between your favorite channels.
24. SET
Used during set up of this remote control, so that it will work compatibly with other devices
(Set-Top Box, VCR, Cable box, DVD, etc.).
25. DNIe (Digital Natural
Image engine)
Activates DNIe.
26. PIP Controls
SWAP ; Press to exchange the video signal that is currently displayed on the main screen with the signal in the PIP window.
CH / ; Press to display the available channels in sequence. (These buttons change channels in the PIP window only.)
27. VCR/DVD Controls
Controls VCR or DVD functions: Rewind, Stop,
Play/Pause, Fast Forward.
28. RESET
If your remote control is not functioning properly, take out the batteries and press the reset button for about 2~3 seconds. Re-insert the batteries and try using the remote control again.
English - 12
BP68-00423A-00(02~13) 9/2/04 4:08 PM Page 13
Installing Batteries in the Remote Control
With normal use, the batteries in the remote control should last about a year. If you notice a performance degradation while using the remote, the batteries may need to be replaced. Make sure you replace both batteries and do not mix old and new batteries in the remote control. If you won’t be using the remote control for a long time, remove the batteries and store them in a cool dry place.
1 Slide the back cover all the way out to open the battery compartment of the remote control.
2 Install two AAA size batteries.
Make sure to match the “+” and
“–” ends of the batteries with the diagram inside the compartment.
3 Slide the cover back into place.
Do not mix battery types, i.e.
alkaline and manganese.
English - 13
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 14
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 15
Connections
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 16
Connections
Connecting VHF and UHF Antennas
If you do not have a cable system, you will need to connect an antenna to your TV.
Antennas with 300-ohm Flat Twin Leads
If your antenna looks like this: it has 300-ohm flat twin leads.
1 Place the wires from the twin leads under the screws on the
300-75 ohm adaptor (not supplied). Use a screwdriver to tighten the screws.
2 Plug the adapter into the
“ANT 1 IN” terminal on the rear panel.
Antennas with 75-ohm Round Leads
If your antenna looks like this: it is an antenna with 75-ohm round leads.
1 Plug the antenna lead into the
“ANT 1 IN” terminal on the rear panel.
English - 16
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 17
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).
1 Connect both antenna leads to the combiner.
2 Plug the combiner into the
“ANT 1 IN” terminal on the rear panel.
English - 17
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 18
Connections
Connecting Cable TV and VCR
You can connect different cable systems to your TV, including cable without a cable box, and cable with a cable box that descrambles some or all channels.
Cable without a Cable Box
If you want to connect cable, and you do not need to use a cable box:
1 Plug the incoming cable into the “ANT 1 IN” terminal on the rear panel.
Cable with a Cable Box that Descrambles All Channels
1 Find the cable that is connected to the
ANTENNA OUT terminal on your cable box. This terminal might be labeled
“ANT OUT”, “VHF OUT” or simply, “OUT”.
2 Connect the other end of this cable to the “ANT 1
IN” terminal on the rear panel.
English - 18
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 19
Connecting a Cable Converter Box
This connection allows you to watch cable and premium channels. You should keep your TV selected to “ANT 1 IN” so that you can use the TV features. When viewing premium channels, select “ANT 2 IN” and tune the TV to channel 3 or 4 (whichever channel is vacant in your area), then use the converter box to change channels. You will need two coaxial cables.
From
Cable
NOTES
• When you use a converter box with your TV, there may be features that you can not program using the remote control, such as programming your favorite channels and blocking channels.
• The output from “ANT 1 OUT” is available when select “Ant.2” in the
“Antenna“ channel menu.
Connecting a Cable Converter Box and a VCR
This connection allows you to watch and record basic and premium cable channels, as well as watch videotapes. You should keep your TV selected to “ANT 1 IN” so that you can use the TV’s features. When viewing premium channels or recording with the VCR, select “ANT 2 IN”
(whichever channel is vacant in your area), then use the converter box to change channels.
From
Cable
TV Rear Panel
Stereo VCR
Caution: If you want to record one channel while watching another channel, a splitter
(not included) must be added between the cable and “ANT 1 IN”. One output of the splitter goes to “ANT 1 OUT” and the second output is connected to IN on the cable converter box.
If you have a mono VCR, connect L/Mono to VCR Audio OUT using only one audio cable.
If you have a S-VHS VCR, use the S-video connections and remove the video cable.
Do not connect the video cable and the
S-video cable to video1 simultaneously.
When you use a converter box with your
TV there may be features that you can not program using the remote control, such as programming your favorite channels and blocking channels.
English - 19
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 20
Connections
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
You can use your camcorder to view tapes without using a VCR.
1 Locate the A/V output jacks on the camcorder. They are usually found on the side or back of the camcorder.
2 Connect a set of audio cables between the AUDIO
IN jacks on the TV and the
AUDIO OUT jacks on the camcorder. If you have mono camcorder, connect
L(mono) to camcorder audio out using only one audio cable.
3 Connect a video cable between the VIDEO IN (or
S-VIDEO IN) jack on the TV and the VIDEO OUT jack on the camcorder. The audio-video cables shown here are usually included with a Camcorder. (If not, check your local electronics store.) If your camcorder is stereo, you need to connect a set of two cables.
TV Side Panel
Camcorder
Output Jacks
Camcorder
English - 20
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 21
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to Y, P
B
, P
R
1 Connect a set of audio cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on the TV and the AUDIO OUT jacks on the DVD player.
Incoming
Cable or
Antenna
TV Rear Panel
2 To enable Component video viewing, connect a set of video cables between the
COMPONENT (1 or 2)
VIDEO (Y, P
B
, P
R
) IN jacks on the TV and VIDEO
(Y/P
B
/P
R or Y/C
B
/C
R
) OUT jacks on the DVD player.
Note: For an explanation of
Component video, see your
DVD player's owner's manual.
DVD Player
Connecting to audio and video jacks
1 Connect a set of audio cables between the AUDIO
IN (1 or 2) jacks on the TV and the AUDIO OUT jacks on the DVD player.
Incoming
Cable or
Antenna
TV Rear Panel
2 Connect a video cable between the VIDEO IN (1 or 2) jack on the TV and the
VIDEO OUT jack on the
DVD player.
DVD Player
English - 21
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 22
Connections
Connecting a DTV Set-Top Box
Connecting to Y, P
B
, P
R
1 Connect a set of audio cables between the
COMPONENT (1 or 2)
AUDIO (L, R) IN jacks on the TV and the AUDIO OUT jacks on the Set-Top Box.
2 Connect a set of video cables between the
COMPONENT (1 or 2)
VIDEO (Y, P
B
, P
R
) IN jacks on the TV and VIDEO
(Y/P
B
/P
R or Y/C
B
/C
R
) OUT jacks on the Set-Top Box.
Note: For an explanation of
Component video, see your
Set Top Box owner's manual.
Incoming
Cable or
Antenna
Connecting to DVI (Digital Visual Interface)
1 Connect a set of audio cables between the DVI
AUDIO (L, R) IN jacks on the TV and the AUDIO OUT jacks on the Set-Top Box.
2 Connect a video cable between the DVI IN jack on the TV and the DVI OUT jack on the Set-Top Box.
Incoming
Cable or
Antenna
TV Rear Panel
DTV Set Top Box
TV Rear Panel
DTV Set Top Box
English - 22
BP68-00423A-00(14~23) 9/2/04 4:10 PM Page 23
Connecting to R, G, B
1 Connect a set of audio cables between the PC
AUDIO (L, R) IN jacks on the TV and the AUDIO OUT jacks on the Set-Top Box.
2 Connect a video cable between the PC IN jack on the TV and the R.G.B OUT jack on the Set-Top Box.
TV Rear Panel
Incoming
Cable or
Antenna
Connecting to HDMI (High Definition Multimedia Interface)
1 Connect a HDMI cable between the HDMI IN jack on the TV and the HDMI OUT jack on the Set-Top Box.
TV Rear Panel
DTV Set Top Box
NOTE
• Please check if the power of
HDMI source is on, in case that you fail to select HDMI from the
“Source List” even after you connected the cable of HDMI source (DTV Set-Top Box, DVD, etc.) to TV.
Incoming
Cable or
Antenna
DTV Set Top Box
English - 23
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 24
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 25
Operation
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 26
Operation
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the front panel.
Viewing the Menus and On-Screen Displays
The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu system by pressing the MENU button on the remote control. Once the on-screen menu appears, use the … / † / œ / √ /ENTER on your remote control to select menu items and make adjustments.
You can also view the on-screen menu system and make some adjustments using the TV’s side panel buttons.
Viewing the Menus
1 Press the MENU button.
The main menu is displayed.
There are five menu groups:
“Input”, “Picture”, “Sound”,
“Channel”, and “Setup”.
Input
Sound
Channel
Setup
Input
Source List : TV
Edit Name
Anynet
Move Enter Exit
√
√
√
2 Press the … or † button to select to an item you want in the menu.
Press the œ , √ or ENTER button to display, change, or use the selected items.
Use the ENTER button to enter items in the menu.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
: On
: On
: Off
PIP
: Custom
: Warm1
: Wide
Move Enter
√
√
√
√
√
√
√
√
Return
3 Press the EXIT button to exit.
Viewing the Display
Press the INFO button on the remote control.
The TV displays the current channel, the status of certain picture and sound settings and the current time.
The information displayed varies according to the selected source.
Air 12
Signal
V-Chip
Sound
SRS TSXT
MTS
- - : - - am
Mono
Dynamic
Standard
Stereo
Stereo
English - 26
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 27
Selecting the Menu Language
Choose a language for the on-screen menus: English, Spanish or French.
1 Press the MENU button.
Press the … or † button to select “Setup”, then press the
ENTER button.
Input
Sound
Channel
Setup
Setup
Language
Time
V-Chip
Caption
Blue Screen
Melody
Color Weakness
PC
: English
: Off
: On
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the ENTER button to select “Language”.
Press the … or † button to select the appropriate language, then press ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Setup
Language
Time
V-Chip
Caption
Blue Screen
Melody
Color Weakness
PC
Español
√ Français
: Off
: On
Move Enter Return
Selecting the Antenna Input
You can connect to two different signal sources by choosing the antenna input
(1 or 2).
1 Press the MENU button.
Press the … or † button to select
“Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
2 Press the ENTER button to select
“Antenna”.
Press the … or † button to select “Ant.1” or “Ant.2”, then press ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
Move Enter Return
English - 27
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 28
Operation
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna) and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding/deleting channels (manual).
Selecting the Video Signal Source
Before your TV can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV
(i.e., an antenna or a cable system).
1 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
2 Press the … or † button to select “Air/CATV”, then press the ENTER button.
If you are connected to an antenna, press the … or † button to select “Air”.
If you connected cable, press the … or † button to select the type of cable system: “STD”, “HRC” or
“IRC”.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
: Air STD
HRC
IRC
Fine Tune
▼ More
Move Enter Return
NOTES
• “STD”, “HRC” and “IRC” identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected. Proceed to “Storing
Channels in Memory”.
• Subscription cable services require service-specific requirement for viewing.
English - 28
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 29
Storing Channels in Memory (Automatic Method)
First, select the correct signal source (“Air”, “STD”, “HRC”, or “IRC”) as described on the previous page.
1 Press the MENU button.
Press the … or † button to select
“Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√ 2 Press the … or † button to select “Auto
Program”, then press the ENTER button.
Press the ENTER button to start the auto program.
The TV begins memorizing all of the available stations.
Press the ENTER button at any time to interrupt the memorization process.
Press the EXIT button to exit.
Auto Program
Start
Enter Return
Adding and Erasing Channels
You can add channels that were not memorized or delete unwanted channels from memory.
1 Press the MENU button.
Press the … or † button to select
“Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna : Ant.1
Air/CATV
Auto Program
Add/Delete
Favorite Channels
: Air
Name
Fine Tune
▼ More
Move Enter Return
√
√
√
√
√
√
√
2 Press the … or † button to select
“Add/Delete”, then press the ENTER button.
Repeatedly pressing the ENTER button will alternate between add channel and delete channel.
Press the CH or CH button (or number buttons) to switch to the appropriate channel, then repeat above.
Press the EXIT button to exit.
Air 12
Add/Delete
Not In Memory
Add
Change Enter Return
Alternate method
Simply press the ADD/DEL button on the remote control to add or delete channels.
English - 29
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 30
Operation
Changing Channels
You can change channels on your TV by using the CH and CH buttons, or by direct selection using the number buttons. You can use the number buttons to tune to any channel (even one that has been erased or has not been memorized).
Using the Channel Buttons
Press the CH or CH button to change channels.
When you press the CH or CH button, the TV changes channels in sequence. You will see all the channels that the TV has memorized. (The TV must have memorized at least three channels.) You will not see channels that were either erased or not memorized.
Using the Number Buttons
Press the number buttons to go directly to a channel.
When you use the number buttons, you can directly select channels that were either erased or not memorized.
For example, to select channel “27”, press the “2”, then “7”.
The TV will change channels when you press the second number.
To change to single-digit channels (0–9) faster, press the “0” before the single digit. (For channel “4”, press the “0”, then “4”.)
To select a channel over 100, press the +100 button. (For channel
“122”, press the +100 button, then “2”, then “2”.)
Using the Previous Channel
Press the PRE-CH button.
The TV changes to the last channel you were watching.
English - 30
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 31
Selecting Your Favorite Channels
You can store your favorite channels for each available input source (such as TV and CATV).
This allows you to quickly and easily find frequently watched channels by pressing the FAV.CH
button on the remote control.
To Store Your Favorite Channels:
1 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
2 Press the … or † button to select “Favorite Channels”, then press the ENTER button.
Press the … or † button to select a channel, then press the ENTER button.
Press the ENTER button again to deselect the selected channel.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Favorite Channels
✔ Air 2
Air 3
Air 4
Air 5
Air 6
Air 7
Air 8
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
▼
Move Enter Return
To View Your Favorite Channels:
Press the FAV.CH button repeatedly to jump from one favorite channel to another.
NOTE
• Only memorized channels can be set as Favorite channels.
English - 31
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 32
Operation
Scanning the Channels
The TV automatically scan all of the channels it has memorized.
1 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
2 Press the … or † button to select “Scan”, then press the
ENTER button.
The TV scans all of the channels memorized.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
▲ More
LNA
Scan
Move
Channel
: On
Enter
Scan
Air 3
Air 4
Return
Enter Return
Return
√
√
NOTE
• When the “ANT 2 IN” mode is selected, the channel scan function works on the main picture only.
English - 32
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 33
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,
“PBS2”, CNN1”, etc.) A label consists of five fields, where each field is a letter, a number or a blank. When the INFO button is pressed, the channel label will appear next to the channel number.
NOTE
• If you add or delete the TV channel, the labeled channels list will also be added or deleted.
1 Press the CH or CH button to tune to the channel that will be labeled.
2 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Press the … or † button to select “Name”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼
More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
3 Press the … / † / œ / √ button to move to the channel to be assigned to a new name, then press the ENTER button.
Press the … or † button to select a letter, a number or a blank. (Results in this sequence: A...Z, ✽ , blank,
0...9, -).
Input
Sound
Channel
Setup
Name
Air 2
Air 3
Air 4
Air 5
Air 6
▲
A
▼
- - - -
- - - -
- - - -
- - - -
▼
Move
Clear
Clear
Clear
Clear
Clear
Adjust Return
4 Press the √ button to switch to the next field, which will be selected.
Select a second letter or digit pressing … or † button, as above.
Repeat the process to select the last two digits.
When you have finished, press the ENTER button.
To erase the assigned new name, select “Clear” by pressing the … / † / œ / √ button, then press the ENTER button.
Name
Input
Sound
Channel
Setup
Air 2
Air 3
Air 4
Air 5
Air 6
C N N 2
- - - -
- - - -
- - - -
- - - -
▼
Move
Clear
Clear
Clear
Clear
Clear
Enter
Press the EXIT button to exit.
Return
English - 33
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 34
Operation
Picture Control
You can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color” and “Tint” according to personal preference. (Alternatively, you can use one of the automatic settings. See next page.)
Customizing the Picture
1 Press the MENU button.
Press the … or † button to select “Picture”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
: On
: On
: Off
PIP
: Standard
: Warm1
: Wide
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the ENTER button to select “Mode”.
Input
Sound
Channel
Setup
Mode
Contrast
Brightness
Sharpness
Color
Tint G 50
Reset
Mode
: Standard √
100
50
65
60
R 50
Move Enter Return
3 Press the … or † button to select a particular item, then press the ENTER button.
Press the œ or √ button to increase or decrease the value of a particular item.
▲
Contrast
▼
100
NOTE
• “Tint” doesn’t operate in PC, DVI, HDMI,
480p-Component or higher modes.
Resetting the Picture Settings to the Factory Defaults
You can return to the factory default picture settings.
4 Press the MENU button to display the “Mode” menu.
Press the … or † button to select “Reset”, then press the
ENTER button.
The previously adjusted picture settings will be reset to the factory defaults.
Input
Sound
Channel
Setup
Mode
Contrast
Brightness
Sharpness
Color
Tint G 50
Reset
Mode
: Standard √
100
50
65
60
R 50
Move Enter Return
English - 34
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 35
Using Automatic Picture Settings
Your TV has automatic picture settings (“Dynamic”, “Standard” and “Cinema”) that are preset at the factory. You can activate either “Dynamic”, “Standard” or
“Cinema” by pressing the P.MODE button (or by making a selection from the menu). Or, you can select “Custom” which automatically recalls your personalized picture settings.
1 Press the MENU button.
Press the … or † button to select
“Picture”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
: Standard
: Warm1
: Wide
: On
DNIe
My Color Control
: On
Film Mode
PIP
: Off
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the ENTER button to select “Mode”.
3 Press the ENTER button again to select
“Mode”.
Press the … or † button to select a particular item, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Mode
Contrast
Brightness
Sharpness
Color
Tint G 50
Reset
Mode
: Standard √
100
50
65
60
R 50
Move Enter Return
Input
Sound
Channel
Setup
Mode
Contrast
Brightness
Sharpness
Color
Tint G 50
Reset
Mode
Standard
Cinema
Move Enter
100
50
65
60
R 50
Return
Alternate method
Press the P.MODE button on the remote control repeatedly to select one of the standard picture settings.
Standard
• Choose “Dynamic” for viewing the TV during the day or when there is a bright light in the room.
• Choose “Standard” for the standard factory settings.
• Choose “Cinema” when viewing a movie.
English - 35
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 36
Operation
Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Adjusting the Volume
Press the VOL+ or VOL– button to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily cut off the sound.
Press the MUTE button on the remote control.
The message “Mute” is displayed and the sound cuts off.
To turn mute off press the MUTE button again or, press either the
VOL+ or VOL– button.
Mute
Customizing the Sound
The sound settings can be adjusted to suit your personal preference. (Alternatively, you can use one of the automatic settings. See next page.)
1 Press the MENU button.
Press the … or † button to select “Sound”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Equalizer
SRS TSXT
MTS
Auto Volume
Internal Mute
Sound
: Custom
: Off
: Stereo
: Off
: Off
Move Enter Return
√
√
√
√
√
√
2 Press the … or † button to select “Equalizer”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Equalizer
SRS TSXT
MTS
Auto Volume
Internal Mute
Sound
: Custom
: Off
: Stereo
: Off
: Off
Move Enter Return
√
√
√
√
√
√
Continued...
English - 36
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 37
3 Press the œ or √ button to select a particular item to be changed.
Press the … or † button to increase or decrease the value of a particular item.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Equalizer
R
+
0
L -
Balance 100Hz 300Hz 1KHz 3KHz 10KHz
+
0
Move Adjust Return
Using Automatic Sound Settings
Your TV has automatic sound settings (“Standard”, “Music”, “Movie” and “Speech”) that are preset at the factory. You can activate these sound settings by pressing the S.MODE button (or by making a selection from the menu), or you can select “Custom”, which automatically recalls your personalized sound settings.
1 Press the MENU button.
Press the … or † button to select “Sound”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Equalizer
SRS TSXT
MTS
Auto Volume
Internal Mute
Sound
: Custom
: Off
: Stereo
: Off
: Off
Move Enter Return
√
√
√
√
√
√
2 Press the ENTER button to select “Mode”.
Press the … or † button to select a particular item, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Sound
Mode
Equalizer
SRS TSXT
MTS
Auto Volume
Internal Mute
Music
: Off
Move Enter Return
Alternate method
Press the S.MODE button on the remote control repeatedly to select one of the standard sound settings.
Standard
• Choose “Standard” for the standard factory settings.
• Choose “Music” when watching music videos or concerts.
• Choose “Movie” when watching movies.
• Choose “Speech” when watching a show that is mostly dialoge (i.e., news).
• Choose “Custom” to recall your personalized settings.
English - 37
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 38
Operation
Setting the Clock
Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.)
1 Press the MENU button.
Press the … or † button to select “Setup”, then press the
ENTER button.
Press the … or † button to select “Time”, then press the
ENTER button.
Input
Sound
Channel
Setup
Setup
Language
Time
V-Chip
Caption
Blue Screen
Melody
Color Weakness
PC
: English
: Off
: On
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the ENTER button to select “Clock Set”.
Input
Sound
Channel
Setup
Clock Set
Sleep Timer
On Timer
Off Timer
Time
- - : - am √
Off √
Off √
Off √
Move Enter Return
Clock Set 3 Press the œ or √ button to move to “Hour”, “Min” or
“am/pm”.
Set the clock you want by pressing the … or † button, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Hour Min am/pm
▲
12 00 am
▼
Move Adjust Return
NOTE
• The current time will appear every time you press the INFO button.
English - 38
Absent Power Off
When you set the timer “On”, your television will eventually be turned off, if you do not operate any controls during the 3 hours after the TV is turned on by timer. This function is available in only the timer “On” mode and will prevent a leakage accident or overheating, caused by your TV left on for a long time due to the timer “On” (when you are away on holiday, for example).
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 39
Setting the Timers
This TV can be set to turn on or off automatically at specific times that you choose. Before using the timers, you must set the TV’s clock, as described previously.
Setting the On/Off Timer
1 Press the MENU button.
Press the … or † button to select “Setup”, then press the ENTER button.
Input
Sound
Channel
Setup
Setup
Language
Time
V-Chip
Caption
Blue Screen
Melody
Color Weakness
PC
: English
: Off
: On
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the … or † button to select “Time”, then press the ENTER button.
Press the … or † button to select “On
Timer”, then press the ENTER button.
Input
Sound
Channel
Setup
Clock Set
Sleep Timer
On Timer
Off Timer
Time
10 : 30 am √
Off √
Off √
Off √
Move Enter Return
3 Press the … or † button to adjust “Hour”, then press the √ button to move to the next step.
Set other items using the same method as above.
When finished, press the MENU button to return.
Input
Sound
Channel
Setup
4 Press the … or † button to select “Off
Timer”, then press the ENTER button.
On Timer
Hour Min am/pm
▲
12 00 am
▼
Ch Vol. Activation
03 10 No
Move Adjust Return
Input
Sound
Channel
Setup
Clock Set
Sleep Timer
On Timer
Off Timer
Time
10 : 30 am √
Off √
06 : 30 am √
Off √
Move Enter Return
5 Press the … or † button to adjust “Hour”, then press the √ button to move to the next step.
Set other items using the same method as above.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Off Timer
Hour Min am/pm
▲
12
▼
00 am
Activation
No
Move Adjust Return
English - 39
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 40
Operation
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes).
1 Press the MENU button.
Press the … or † button to select “Setup”, then press the
ENTER button.
Input
Sound
Channel
Setup
Language
Time
V-Chip
Caption
Blue Screen
Melody
Color Weakness
PC
Move
Setup
: English
: Off
: On
Enter
√
√
√
√
√
√
√
√
Return
2 Press the … or † button to select “Time”, then press the
ENTER button.
Press the … or † button to select “Sleep Timer”, then press the ENTER button.
Input
Sound
Channel
Setup
Clock Set
Sleep Timer
On Timer
Off Timer
Time
10 : 30 am √
Off √
06 : 30 am √
11 : 30 pm √
Move Enter Return
3 Press the … or † button to select the preset time you want, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Clock Set
Sleep Timer
On Timer
Off Timer
Time
10 : 30 am
Off
30
60
90
120
150
180
Move Enter Return
Alternate method
Press the SLEEP button on the remote control repeatedly until the appropriate time interval appears
(any of the preset values from
“30 Min.” to “180 Min.”).
30 Min.
NOTE
• If no signal is received for 15 minutes, the TV will be automatically turned off.
English - 40
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 41
Viewing an External Signal Source
Use the remote control to switch between viewing signals from connected equipment, such as
VCR, DVD, Set-Top Box and the TV source (broadcast or cable).
Setting the Signal Source
1 Press the MENU button.
Press the ENTER button to select “Input”.
Input
Sound
Channel
Setup
Input
Source List : TV
Edit Name
Anynet
Move Enter Return
√
√
√
2 Press the ENTER button to select “Source List”.
Press the … or † button to select a signal source, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Source List
TV
AV1
AV2
AV3
S-Video1
S-Video2
S-Video3
▼ More
Move
: - - - -
: - - - -
: - - - -
: - - - -
: - - - -
: - - - -
Enter Return
Alternate method
Press the SOURCE button on the remote control repeatedly to select an external signal source.
AV1
NOTE
• When you connect equipment to the TV, you can choose between the following sets of jacks: “AV1”, “AV2”, “S-Video1”,
“S-Video2”, “Component1”, “Component2”, “PC”, “DVI”, or
“HDMI” on the TV’s rear panel, and “AV3” or “S-Video3” on the TV’s side panel.
English - 41
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 42
Operation
Assigning Names to External Input Mode
This feature enables you to name the input source you have connected.
1
2
Press the MENU button.
Press the ENTER button to select “Input”.
Press the … or † button to to select “Edit Name”, then press the ENTER button.
Input
Sound
Channel
Setup
Input
Source List : TV
Edit Name
Anynet
Move Enter Return
√
√
√
Input
Sound
Channel
Setup
Input
Source List : TV
Edit Name
Anynet
Move Enter Return
√
√
√
3 Press the … or † button to select a signal source, then press the ENTER button.
Press the … or † button to select an external device, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Edit Name
AV1
AV2
AV3
S-Video1
S-Video2
S-Video3
Component1 : - - - -
▼ More ▼
Move Enter Return
English - 42
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 43
Freezing the Current Picture
You can freeze the picture when watching a television program simply by pressing the STILL button.
To return to normal viewing, press it again.
NOTE
• In the PIP mode, the main and sub pictures are stilled at the same time.
Remote Control VCR/DVD Buttons
Slide the cover of the remote control up to access buttons that can control the tape functions of a connected VCR or DVD, including Rewind, Stop, Play/Pause, and Fast Forward.
Slide the cover of your remote control unit for access to the tape function controls. Press the appropriate buttons to control your
VCR or DVD.
English - 43
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 44
BP68-00423A-00(24~45) 9/2/04 4:52 PM Page 45
Special Features
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 46
Special Features
Customizing Your Remote Control
Your TV comes equipped with a universal remote control. In addition to controlling the TV, the universal remote control can also operate a VCR, Cable box, DVD and Set-Top Box made by
Samsung (even if your VCR, Cable box and DVD are made by manufacturers other than Samsung).
NOTE
• The remote control might not be compatible with all VCRs, DVD players and Cable boxes.
Setting Up Your Remote Control to Operate Your VCR (Cable box or
DVD player)
1
2
Turn off your VCR (Cable box or DVD player).
Press the MODE button to switch the remote control to the VCR
(CABLE or DVD) mode.
The remote control has five modes: TV, STB, VCR, CABLE, and
DVD.
3
4
On your Samsung remote control, press the SET button.
Enter 3 digits of the VCR (Cable box or DVD player) code listed on next page for your brand of VCR (Cable box or DVD player).
Make sure you enter 3 digits of the code, even if the first digit is a “0”. (If more than one code listed, try the first one.)
5 Press the POWER button. Your VCR (Cable box or DVD player) should turn on. If your VCR (Cable box or DVD player) turns on, your remote control is now set correctly.
If your VCR (Cable box or DVD player) does not turn on, repeat steps 2, 3 and 4, but try one of the other codes listed for the brand of your particular VCR (Cable box or DVD player).
6 Once your remote control is set up, press the MODE button any time you want to use the remote to operate your VCR (Cable box or DVD player).
NOTES
• When your remote is in the TV mode, the VCR (or DVD player) control buttons (REW, STOP, PLAY/PAUSE, and FF) will still operate your VCR (or DVD player).
• When your remote control is in the STB, VCR, CABLE or DVD mode, the volume buttons still control your TV’s volume.
English - 46
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 47
Remote Control Codes
VCR Codes
Cable Box Codes
DVD Codes
English - 47
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 48
Special Features
Fine Tuning Channels
The Fine Tuning function lets you manually adjust the TV’s tuner if you have difficulty tuning channels.
1 Using the number buttons on the remote control, select the channel you want to fine tune.
2 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
3 Press the … or † button to select “Fine Tune”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
4 Press the œ or √ button to adjust the fine tuning.
To store the fine tuning setting in the TV’s memory, press the ENTER button.
The symbol “*” is displayed.
To reset the fine tuning to
“0”, select “Reset” by pressing the … or † button, then press the ENTER button.
Press the EXIT button to exit.
Move
Air 12
Air 12 *
Move
Fine Tune
Adjust
Reset
Save
Fine Tune
Reset
Enter
Fine Tune
Air 12
Return
Return
3
3
0
Reset
Enter Move Return
English - 48
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 49
LNA (Low Noise Amplifier)
When a weak broadcast signal causes unclear noisy picture the “LNA” feature improves the picture quality by setting to “On”. If you experience noise on a certain channel, set the “LNA” to
“On” or “Off” for this channel, to obtain the optimum picture.
1 Press the MENU button.
Press the … or † button to select “Channel”, then press the ENTER button.
Input
Sound
Channel
Setup
Channel
Antenna
Air/CATV
Auto Program
Add/Delete
Favorite Channels
Name
Fine Tune
▼ More
: Ant.1
: Air
Move Enter Return
√
√
√
√
√
√
√
2 Press the … or † button to select “LNA”, then press the
ENTER button.
Input
Sound
Channel
Setup
▲ More
LNA
Scan
Move
Channel
: On
Enter Return
√
√
3 Press the … or † button to select “On” or “Off”, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
▲ More
LNA
Scan
Move
Channel
On
Enter Return
NOTE
• This function works in “ANT 1 IN” mode only (not available in
“ANT 2 IN” mode).
English - 49
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 50
Special Features
Selecting the Color Tone
1 Press the MENU button.
Press the … or † button to select “Picture”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
: Standard
: Warm1
: Wide
: On
: On
My Color Control
Film Mode
PIP
: Off
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the … or † button to select “Color Tone”, then press the ENTER button.
3 Press the … or † button to select “Cool2”, “Cool1”,
“Normal”, “Warm1” or
“Warm2”, then press the
ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
: On
: On
: Off
PIP
: Standard
: Warm1
: Wide
Move Enter
√
√
√
√
√
√
√
√
Return
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
PIP
: Standard
Warm2
: Off
Move Enter Return
NOTE
• Not available in the “Cinema” picture mode.
English - 50
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 51
Changing the Picture Size
You can select the picture size which best corresponds to your viewing requirements.
1 Press the MENU button.
Press the … or † button to select “Picture”, then press the ENTER button.
Press the … or † button to select “Size”, then press the
ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
PIP
: Standard
√
: Warm1 √
: Wide
: On
: On
√
√
√
: Off
√
√
√
Move Enter Return
2 Press the œ or √ button to select the screen format you want, then press the ENTER button.
Press the EXIT button to exit.
Size
Input
Sound
Channel
Setup
Wide Panorama Zoom1 Zoom2 4:3
Move Enter Return
Alternate method
Press the P.SIZE button on the remote control repeatedly to select one of the picture size settings.
• “Wide”: Sets the picture to 16:9 wide mode.
• “Panorama”: Use this mode for the wide aspect ratio of a panoramic picture.
• “Zoom1”: Magnifies the size of the picture on screen. You can also move the picture on screen using the scroll function. Press the … or † button to scroll the picture.
• “Zoom2”: Magnifies the size of the picture more than
“Zoom1”. You can also move the picture on screen using the scroll function. Press the … or † button to scroll the picture.
• “4:3”: Sets the picture to 4:3 normal mode. This is a standard
TV screen size.
NOTES
• You can select only Wide, 4:3 screen size in the Component(480p, 720p, 1080i) Mode.
• With PIP On, the screen automatically becomes wide in the Antenna, AV (1~3), S-Video (1~3) or Component (480i) mode. With PIP Off, it returns to original screen size.
• The picture size can’t be changed when the “PIP” is active in the TV or AV mode.
English - 51
BP68-00423A-00(46~67) 9/2/04 4:58 PM Page 52
Special Features
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.
1 Press the MENU button.
Press the … or † button to select “Picture”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
My Color Control
Film Mode
PIP
: Standard
: Warm1
: Wide
: On
: On
: Off
Move Enter
√
√
√
√
√
√
√
√
Return
2 Press the … or † button to select “Digital NR”, then press the ENTER button.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
: Standard
: Warm1
: Wide
: On
: On
My Color Control
Film Mode
PIP
: Off
Move Enter
√
√
√
√
√
√
√
√
Return
3 Press the … or † button to select “Off” or “On”, then press the ENTER button.
Press the EXIT button to exit.
Input
Sound
Channel
Setup
Mode
Color Tone
Size
Digital NR
DNIe
: Standard
: Warm1
: Wide
My Color Control
Film Mode
PIP
: Off
Move Enter Return
English - 52
advertisement
Related manuals
advertisement
Table of contents
- 6 Your New Wide TV
- 6 Replacing the Lamp
- 8 List of Features
- 8 Accessories
- 9 Side Panel Buttons
- 10 Front Panel LED Indicators
- 11 Rear Panel Jacks
- 12 Remote Control
- 13 Installing Batteries in the Remote Control
- 16 Connections
- 16 Connecting VHF and UHF Antennas
- 16 Antennas with 300-ohm Flat Twin Leads
- 16 Antennas with 75-ohm Round Leads
- 17 Separate VHF and UHF Antennas
- 18 Connecting Cable TV and VCR
- 18 Cable without a Cable Box
- 18 Cable with a Cable Box that Descrambles All Channels
- 19 Connecting a Cable Converter Box
- 19 Connecting a Cable Converter Box and a VCR
- 20 Connecting a Camcorder
- 21 Connecting a DVD Player
- 21 Connecting to Audio and Video Jacks
- 22 Connecting a DTV Set-Top Box
- 22 Connecting to DVI (Digital Visual Interface)
- 23 Connecting to R,G,B
- 23 Connecting to HDMI (High Definition Multimedia Interface)
- 26 Operation
- 26 Turning the TV On and Off
- 26 Viewing the Menus and On-Screen Displays
- 27 Selecting the Menu Language
- 27 Selecting the Antenna Input
- 28 Memorizing the Channels
- 29 Adding and Erasing Channels
- 30 Changing Channels
- 31 Selecting Your Favorite Channels
- 32 Scanning the Channels
- 33 Labeling the Channels
- 34 Picture Control
- 36 Sound Control
- 38 Setting the Clock
- 39 Setting the Timers
- 41 Viewing an External Signal Source
- 42 Assigning Names to External Input Mode
- 43 Freezing the Current Picture
- 43 Remote Control VCR/DVD Buttons
- 46 Special Features
- 46 Customizing Your Remote Control
- 47 Remote Control Codes
- 48 Fine Tuning Channels
- 49 LNA (Low Noise Amplifier)
- 50 Selecting the Color Tone
- 51 Changing the Picture Size
- 52 Digital Noise Reduction
