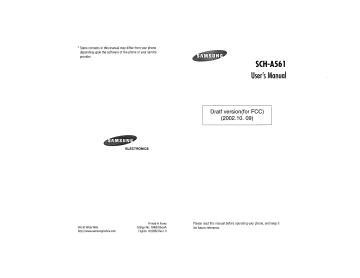

Samsung Electronics A3LSCHA561 Single-ModeCellular Phone User Manual

* Some contents in this manual may ditter from your phone
depending upon the software of the phone or your service
provider.
ELECTRONICS
Printed in Korea
World Wide Web Código No.: 6Н68-ОЗхххА
http://www.samsungmobile.com English. 10/2002.Rev.1.0
SCH-A561
User's Manual
Dratf version(for FCC)
(2002.10. 09)
Please read this manual before operating your phone, and keep it
for future reference.
ECC RE EXPOSURE INFORMATION
WARNING! Read this inforn
In August 1996 the Federal Communications
Commission (FCC) of the United States with its action in
Report and Order FCC 96-326 adopted an updated
safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and
international standards bodies. The design of this
phone complies with the FCC guidelines and these
international standards.
Use only the supplied or an approved antenna.
4% CAUTION Unauthorized antennas, modifications, or attachments
could impair call quality, damage the phone, or result in
violation of FCC regulations.
Do not use the phone with a damaged antenna. lf a
damaged antenna comes into contact with the skin, a
minor burn may result. Please contact your local dealer
for replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations
with the back of the phone kept 1.5 cm. from the body.
To maintain compliance with FCC RF exposure
requirements, use only belt-clips, holsters or similar
accessories that maintain a 1.5 cm. separation distance
between the users body and the back of the phone,
including the antenna, whether extended or retracted.
The use of belt-clips, holsters and similar accessories
should not contain metallic components in its assembly.
The use of accessories that do not satisfy these
requirements may not comply with FCC RF exposure
requirements, and should be avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.qov
Table of Contents
IMPORTANT SAFETY PRECAUTIONS
UNPACKING
YOUR PHONE
Phone Layout
Display
Backlight
Service Light
GETTING STARTED
Using a Battery
Switching the Phone On/Off
Your Phone's Mode
CALL FUNCTIONS
Making a Call
Redialing the Last Number
Making a Call from the Phonebook
Prepend Dialing
Speed Dialing
Four-digit Dialing
Pause Dialing
Voice Dialing
Adjusting the Volume
Answering a Call
Options During a Call
Using Caller ID
Viewing Missed Calls
Quickly Switching to Silent Mode
Call Forwarding
Call Waiting
Three-Way Calling
A ió
ENTERING TEXT
Changing the Text Input Mode
T9 (English) Mode
Alphabet Mode
Symbol Mode
Number Mode
USING THE MENUS
Accessing a Menu Function by Scrolling
Accessing a Menu Function by Using its Shortcut
List of Menu Functions
CALLS
Outgoing (MENU 1-1)
Incoming (MENU 1-2)
Missed (MENU 1-3)
Erase History (MENU 1-4)
Air Time (MENU 1-5)
PHONE BOOK
Find (MENU 2-1)
Add New Entry (MENU 2-2)
Group Setting (MENU 2-3)
My Phone Number (MENU 2-4)
Memory (MENU 2-5)
MESSAGES
New Messages (MENU 3-1)
Voice (MENU 3-2)
Inbox (MENU 3-3)
Outbox (MENU 3-4)
Filed Messages (MENU 3-5)
Web Alert (MENU 3-6)
Erase Messages (MENU 3-7)
Message Setting (MENU 3-8)
WIRELESS WEB
About the Web Browser
Get In Web (MENU 4-1)
Prompt (MENU 4-2)
PLANNER
Today (MENU 5-1)
Scheduler (MENU 5-2)
Task List (MENU 5-3)
Memo Pad (MENU 5-4)
Alarm Clock (MENU 5-5)
Calculator (MENU 5-6)
World Time (MENU 5-7)
Count Down (MENU 5-8)
Set Time (MENU 5-9)
VOICE TOOLS
Voice Dial (MENU 6-1)
Voice Memo (MENU 6-2)
Voice Ánswer (MENU 6-3)
SOUNDS
Ringer Volume (MENU 7-1)
Ringer Type (MENU 7-2)
Alerts (MENU 7-3)
Room Ringer (MENU 7-4)
Key Beep (MENU 7-5)
Tone Length (MENU 7-6)
Power On/Off (MENU 7-7)
DISPLAY
Menu Style (MENU 8-1)
Wallpaper (MENU 8-2)
Banner (MENU 8-3)
Backlight (MENU 8-4)
Dual Clock (MENU 8-5)
LCD Contrast (MENU 8-6)
GAMES
SETUP
Auto Answer (MENU 0-1)
Call Answer (MENU 0-2)
Auto Retry (MENU 0-3)
Set NAM (MENU 0-4)
Set System (MENU 0-5)
Data/Fax (MENU 0-6)
Version (MENU 0-7)
Security (MENU 0-8)
HEALTH AND SAFETY INFORMATION
Exposure to Radio-Frequency Energy(SAR Information)
Precautions When Using Batteries
Road Safety
Operating Environment
Flectronic Devices
Potentially Explosive Atmospheres
Emergency Calls
Other Important Safety Information
Care and Maintenance
GLOSSARY
INDEX
QUICK REFERENCE CARD
104
105
105
106
106
107
108
110
110
114
115
116
119
119
121
122
123
124
126
129
133
Important Safety
Precautions
Read these guidelines before using your wireless
phone. Failure to comply with them may be dangerous
or illegal. For more detailed safety information, see
“Health and Safety Information” on page 114.
Road Safety at All Times
Do not use a hand-held phone while driving; park the
vehicle first.
Switching Off When Refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switching Off in Aircraft
Wireless phones can cause interference. Using them
in aircraft is both illegal and dangerous.
Switching Off in Hospitals
Switch off your phone near medical equipment.
Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference,
which could affect their performance.
Special Regulations
Meet any special regulations in force in any area and
always switch off your phone whenever it is forbidden
to use it, or when it may cause interference or danger
(in a hospital for example).
Radio Frequency Exposure
The design of this phone complies with Australian
Communications Authority (ACA) requirements relating
to radio frequency (RF) exposure. To maintain
compliance with these requirements, use only
Samsung-supplied or approved accessories. Use of
non-approved accessories may violate the
requirements.
Sensible Use
Use only in the normal position (held to the ear). Avoid
unnecessary contact with the antenna when the phone
is switched on.
Accessories and Batteries
Use only Samsung-approved accessories and batteries.
Qualified service
Only qualified service personnel may install or repair
your phone.
Unpacking
Your package contains the following items.
AE
»
-Eat-microphone...
RE, Motes Maa te MG ee
ait
re ae
Rh
Sergeant td
BLT
In addition, you can obtain the following accessories
for your phone from your local Samsung dealer:
Ear-microphone
Travel adapter
Slim and standard batteries
Cigarette lighter adapter
Hands-free car kit
Data cable
Leather case
Your Phone
Phone Layout
The following illustrations shows the main elements of
your phone.
Open View
Earpiece
Folder
Main
display
Volume keys
During a call, adjust the
voice volume.
In Standby mode with the
phone open, adjust the key
beep volume.
In Standby mode with the
phone closed, backlight the
front LCD when held down.
In menu mode, scroll
through the menu options.
Microphone
Closed View
Ear-microphone
Key
Antenna
jack Service light
External display
Functions
Enters menu mode.
In menu mode, selects a menu function or
stores information that you have entered
(such as a name) in the phone memory.
In Standby mode, enters the Messages
menu and saves the number in the
phonebook after entering a number.
In menu mode, scrolls through the menu
options and phonebook memory.
—
In Standby mode, ~*~ enters the Find
menu and . enters the Ringer Туре
menu. (= enters the Scheduler menu
and =) enters the Voice Memo menu.
Quickly launches the web browser.
Display
Key Functions (continued...)
Makes or answers a call. Layout
In Standby mode, recalls the last outgoing
numbers you dialed, and dials the last
outgoing number when pressed twice.
The display comprises two areas; an upper line of
various icons and the lower text and graphic area.
E) Ends a call. Also switches the phone on al Ge 24 9 Л DE Icons
and off when held down.
In menu mode, cancels your input and
returns to Standby mode. one Text and
Deletes characters from the display.
In menu mode, returns to the previous
menu level.
Enters numbers, letters and some special
characters.
In Standby mode, initiates the voice dialing
feature when held down.
graphic area
Signal Strength : Shows the received
signal strength. The greater the number of
bars, the better the signal.
While entering text, allows you to change g* Service: Appears when a call is in
the case. progress.
Also, use this key for the special star |
calling feature. e No Service: Appears when you are
| outside a service area. When it appears,
In Standby mode, enters or exits the silent you cannot make or receive calls.
mode when held down.
Also, use this key when you make a call to New Message: Appears when a new
an automated system, especially when
using teleservices.
message is received.
Alarm: Appears when you set an alarm to
ring at a specified time.
Roaming: Appears when you are out of your
home area and have registered onto a
different network (when travelling in other
countries, for example).
Bell: Appears when you set the ringer
volume for calls to one from Level 1 to
Level 8 or to 1-Beep.
Ringer Off: Appears when the ringer
volume is turned off.
Vibration: Appears when you set the
ringer volume for calls to Vibrate or when
the phone Is in Silent mode.
Digital Mode: indicates when the phone
is in digital mode.
Analog Mode: Indicates when the phone
1$ In analog mode.
1x Mode: Indicates when the phone is in
1x mode.
Battery Status: Shows the level of your
battery. The more bars you see, the more
power you have left.
att
External Display
Your phone has an external display on the folder. It
indicates when you have an incoming call or message.
lt also alerts you when you set an alarm at a specified
time .
When you press and hold one of the volume keys with
the phone closed, the backlight of the external display
illuminates.
Backlight =
The display and the keypad are illuminated by a
backlight. When you press any key or open the folder,
the backlight illuminates. It turns off if no key 1$
pressed within a given period of time, depending on
the Backlight option set in the Display menu. The
backlight remains on at all times when the phone is
connected to an optional car kit.
To specify the length of time for which the backlight 1$
active, set the Backlight menu option (MENU 8-4);
see page 102 for further details.
Service Light
The service light is at the top right of the phone. It
flashes to indicate incoming calls or messages. The
light also flashes for a few seconds when you turn on
or off the phone and is used for indicating the charging
progress.
ыы
+ Service light
en
Ma
1
E
at
- Getting Started
Using a Battery
Your Samsung phone comes packaged with a partially
charged, rechargeable Lithium lon {Li-ion) battery.
Installing the battery
1. Place the battery back on the phone so that the tabs
on it match the slots at the bottom of the phone.
2. Press the battery down until it snaps into place.
Make sure that the battery is correctly installed
before switching on the phone.
Removing the battery
1. If necessary, switch off the phone by holding down
until the power-off image is displayed.
2. Pull the catch above the battery towards the top of
the phone and lift the battery away.
Charging the Battery
The travel adaptor is provided with your phone to
allows you to charge your phone's battery from a
standard AC wall outlet. Use only approved batteries
and chargers.
Note: You need to fully charge the battery before
using your phone for the first time.
You can use your phone while the battery is charging,
but this increases time It will take to charge the
battery. An “empty” standard battery can be fully
charged in approximately 4 hours.
To charge the battery:
1. With the battery in position on the phone, plug the
connector form the travel adaptor into the jack at
the bottom of the phone.
2. Plug the adaptor into a standard wall outlet.
The battery will begin charging immediately, and
the service light will light and remain red while the
Battery Status icon animates.
3. The service light indicates the status of the battery
being charged.
e Red: the battery is charging.
e Green: the battery is fully charged.
e Yellow: the battery is not correctly connected or
operating in a too low or too high temperature.
4. When charging is finished (the light turns to green),
unplug the adaptor from the power outlet and from
the phone.
Low Battery Indicator
You can easily tell if your battery needs to be
recharged by checking the Battery Status icon (881 ) in
the upper-right corner of your phone's display. The
presence of all three bars indicates a full charge, two
bars indicates a smaller charge, and one bar indicates
an even smaller charge. No bars (the battery icon is
empty) means your battery must be charged.
When the battery charge level gets low, the battery
sensor blinks an empty Battery Status icon (L_1) and
sounds a warning tone. If the battery level gets too
low, the phone will automatically turn off.
Unfortunately, if this happens, you'll lose whatever you
are doing and your phone call will cut off. Watch the
Battery Status icon and make sure your battery is
adequately charged.
Switching the Phone On/Off
1. Press and hold down 27 until the power-on image
is displayed to switch the phone on.
The service light on the phone flashes, and an alert
sounds. When the system locates services, the
greeting message displays along with the date and
time. You can now place and receive calls.
If the phone is out of service, the No Service icon
($) appears on the display. In this case, you
cannot make and receive calls. You can try again
later when service Is available.
2. When you wish to switch the phone off, hold down
more than two seconds.
WARNING!
Do not switch on the phone when mobile phone use
is prohibited or when it may cause interference or
dar.
Note: As with any other radio-transmitting device,
do not touch the antenna unnecessarily when
the phone is switched on. Contact with the
antenna affects the call quality and may cause
the phone to operate at a higher power level
than otherwise needed.
Your Phone’s Mode
Standby Mode
Standby is the most basic state of your phone. The
phone goes into Standby mode after you turn ft on or
whenever you briefly press SZ When your phone 1$
in Standby mode, you will typically see the greeting
message and current date and time. If you enter a
phone number, you can press < to dial it or press
to save it in the internal phonebook.
Press at any time to return to Standby mode. Be
careful; if you are on a call when you press ED you
will disconnect the call and return to Standby mode.
Press several times or hold it down to return to
Standby mode without ending the call.
Talk Mode
You can place and answer calls only when your phone
is turned on. During a call, the phone is in talk mode.
While you are in Talk mode, pressing (3 gives you а
list of options. See page 35 for details on the options.
Power Save Mode
Your phone comes with a Power Save feature that will
automatically be activated if your phone is unable to
find a signal after 10 minutes of searching. While this
feature is active, the phone's battery charge Is
conserved. The phone will automatically recheck for a
signal periodically. To manually force the phone to
recheck for a signal, press any key. A message on the
display lets you know when your phone is operating in
Power save Mode.
Lock Mode
When you lock your phone using the Lock Phone
menu option (MENU 0-8-1) in the Setup menu, you
cannot use the phone. In lock mode, you can receive
messages and calls, but you cannot place an outgoing
call unti! you unlock the phone. To unlock the phone
temporarily, you need to enter the lock code.
For details about locking and unlocking your phone,
see page 110.
Call Functions
Making a Call _
In Standby mode, key in the area code and phone
number and press
Note: If the Auto Retry option (MENU 0-3) have been
enabled (see page 106), the phone automatically
retries to make the call when the line ts busy or
the remote person does not answer you.
While entering a number, press (§ to use the
following menu options:
Talk: places a call to the number.
Save: allows you to save the number in the
phonebook.
Find: allows you to find a number from the phonebook.
Hard Pause: enters a hard pause.
2sec Pause: enters a 2-second pause.
Notes:
® When you enter a number corresponding to a
phonebook location, the Speed Dial option is
available. For details about speed dialing, see page
27.
« When you enter four digits, the 4-digit Dial option is
available. For details about four-digit dialling, see
page 28.
Correcting the Number
To clear ... Press ....
the last digit displayed Es).
the whole display £EssY for more than one
second.
Ending a Call
When you want to finish your call, briefly press
or close the folder.
If you end the call by pressing 9, the call time, or
the length of the call, displays briefly and the phone
returns to Standby mode.
Emergency Dialing
You can place emergency call from your priority
number list even И your phone ts locked or all outgoing
calls are restricted. For further information on
emergency numbers, refer to page 111.
Redialing the Last Number
To redial the last call you made, press <7 twice
quickly,
Your phone stores the last 10 outgoing calls. To recall
any of these numbers:
1. If there are any characters on the display, press >
to return to Standby mode. A
2. Press SS . The list of the outgoing calls is
displayed.
lo.
3.Press * or =. to scroll through the list until
you select the required name or number.
4. Press SC? to dial the number displayed.
Making a Call from the Phonebook
You can store the phone numbers called regularly in
memory, which is called the phonebook. You then
simply recall the number to dial. For further
information about the phonebook feature, refer to
page 56.
Prepend Dialing 7
The prepend option lets you add digits such as area
codes and network feature activation codes to a phone
number that is in your call logs or phonebook.
To prepend existing phone numbers in the Call Logs:
1. Access outgoing call logs by pressing or
phonebook entries by referring to page 56.
2. Scroll to the required number.
3. Press (В to access the options.
3. Press to select the Prepend option.
4 Enter the area code or feature code.
5. Press ay, to dial the number.
Speed Dialing
Once you have stored phone numbers in the phone book
memory, you can dial them easily whenever you want.
Note: When several numbers are saved in one location,
the first number you entered is automatically
specified as a speed dial number. To change the
speed dial number, use the Edit option under Find
menu on page 57.
One-Touch Dial
Memory locations 001 through 009 are special one-
touch locations. You can dial the phone numbers stored
in the phonebook memory from 001 through 009 simply
by pressing one key.
Press and hold the third digit of the memory location
containing the number to be dialed.
For example: Location no. 009
Press and hold.
The number (and name) stored is displayed, then dialed.
Two-Touch Dial
Memory locations 010 through 099 are special two-
touch locations.
Press the second digit briefly, then hold down the third
digit of the memory cell.
For example: Location no. 023
Press briefly and hold down (27.
The number (and name) stored Is displayed, then dialed.
Three-Touch Dial
Memory locations 100 through 250 are special three-
touch locations.
Press the first and the second digit briefly, then hold
down the third digit of the memory cell.
For example: Location no. 123
Press and briefly, then hold down
The number (and name} stored is displayed, then
dialed.
Four-digit Dialing
You can enter any four consecutive digits of a phone
number in the phonebook and your phone can dial the
entire number for you. This feature is convenient if you
have the number memorized, but you have forgotten
where the number Is stored in your phonebook.
Enter the last four digits of the desired phone number.
Press and select the 4-digit Dial option. The
phone automatically dials the phone number matching
the four digits.
If the phone found more than one number that
contains those four digits, it displays the first number.
scroll through the fist using (=: or æ) to select the
desired number, and press <7 to dial the number.
Pause Dialing
When you call an automated system, like banking
services, you are often required to enter a password or
account number. Instead of manually entering the
numbers each time, you can store the numbers in your
phonebook, separated by special characters which are
called pauses.
There are two kinds of pauses that can be entered on
your phone:
e Hard pause: A hard pause stops the dialing
sequence until you press 7.
e 2-second pause: A two second pause stops the
dialing sequence for two seconds and then
automatically sends the remaining digits.
Note: Multiple two second pauses can be entered to
extend the length of a pause. For example, two
consecutive 2-second pauses cause a total
pause time of four seconds. However, keep in
mind that pauses count as digits towards the
32 digit dialing maximum.
Storing Pauses in a Phonebook Entry
To store a number in your phonebook that contains
pauses:
1. Enter the phone number you want to store, such as
the banks teleservice phone number.
2. Press (3! to access the options.
3. Select the required pause type.
e Press for Hard Pause. The letter “p”
displays, meaning that a hard pause will occur at
that point in the dialing sequence.
e Press for 2sec Pause. The letter “T”
displays, meaning that a “Timed” pause will occur
at that point in the dialing sequence.
4. Enter the digits that need to follow the pause, such
as your account number.
5. Repeat steps 2 and 3 to add more pauses and
numbers, if necessary.
6. Store the number in your phonebook as you normally
would by pressing &) and following from Step 2 on
page 58.
Pause Dialing from a Stored Phonebook Entry
1. Dial the number of the service from the phonebook.
2. Wait for the appropriate prompt from the system
you are calling.
3. When prompted, press to send the DTMF
(Dual-Tone Multi-Frequency) number that follows
your hard pause.
“SENDING DTMF” flashes on the display and the
transmitted tone sounds.
4. Repeat from Step 2, if necessary.
Manual Pause Dialing
You can enter pauses manually during the dialing
process.
1. Enter the phone number of the service you want to
call, such as a bank's teleservice phone number.
2. Press /£l to access the options.
3. Select the required pause type.
e Press for Hard Pause. The letter “р”
displays, meaning that a hard pause will occur at
that point in the dialing sequence.
e Press for 2sec Pause. The letter “T”
displays, meaning that a “Timed” pause will occur
at that point in the dialing sequence.
4. Enter the number to be sent after the pause and
then press 7 to dial the first number.
5. To transmit the additional number after connecting,
press <> again at the prompt for the hard pause,
or wait until the number is automatically sent for
the 2-second pause.
Voice Dialing
Before using the Voice dialing feature, you must record
the name and number in your phone using the Voice
Dial menu. For further details, see page 88.
1. To place a call, press and hold down E or open
the folder, depending on the Set Active menu
option (MENU 6-1-4). See page 90.
2. At the voice prompt, say a name into the
microphone.
e lf the phone recognizes the name, the phone
attempts a connection.
e |f the phone does not recognize the name, the
screen prompts for the name again.
e If the phone is unable to recognize the name after
two attempts, the message Cannot Recognize
Name. Please check name is displayed. Try
the call again later, or check the recorded name.
3. The phone dials the corresponding number.
Adjusting the Volume
During a call, if you want to adjust the voice volume,
use the volume keys on the left side of the phone.
Press ¡”| to increase the volume level and \vj to
decrease the level.
In Standby mode, you can adjust the key beep volume
using these keys.
Answering a Call
When somebody calls you, the phone rings and the
phone icon is displayed in the middle of the display.
If the caller can be identified, the caller's phone
number {or name if available in your phonebook} is
displayed.
1. To answer а call, press <7.
lf the Call Answermenu (MENU 0-2) is set to Any
Key, you can answer a call only by pressing any key
except for <.
2. To end the call, press or simply close the
folder.
Notes:
e You can answer a call while using the phonebook or
menu functions. The current operation will be
interrupted.
e lf you cannot answer an incoming call, you can set
the phone to answer the call by a greeting message
and record the caller's message. For further
information, see page 9.
Options During a Call
Your phone provides a number of functions that you can
use during a call. As many of these options are network
services, you may not be able to use all of them at all
times.
Press during a call to access the following options:
Phone Book: allows you to access the Phone Book
menu.
Mute/Quit: allows you to switch your phone's
microphone off, so that the other party cannot hear you.
Example: You wish to say something to another person
in the room but do not want the other party to hear you.
Silent/Quit: does not transmit the key tones. It allows
you to press keys without hearing annoying key tones
during a call.
Send Tel #: sends the telephone number to the other
caller.
Calls: allows you to access the Calls menu.
Messages: allows you to access the Messages menu.
Planner: allows you to access the Planner menu.
Using Caller ID
This feature tells you who is calling you by displaying
the caller's number when the phone rings. If a caller's
name and number are stored in your phonebook, the
corresponding name is also displayed. If you call
someone who has this feature, your phone number will
be displayed on the their phone.
Note: Contact your service provider to setup the Caller
Line Identification service.
If you fail to answer a call for any reason, the phone
indicates the missed call by displaying a text
notification on the screen. Additionally, tf caller
information is available, the screen displays the phone
number of the most recent missed call.
Press <> to call the displayed number or à) to save
the number in the phonebook.
To view missed calls, access the Missed menu option
(MENU 1-3) on page 54.
Silent mode disables all sounds on the phone. This
feature is best used in situations where the phone
might disturb others, such as in a meeting, at a library
or in a theater. You can switch your phone to silent
mode with one touch of a key.
In Standby mode, to enter silent mode, press and hold
down & until “Enter! Silent Mode” and the Vibration
indicator ( Là ) are displayed.
To exit silent mode and reactivate the previous sound
settings, press and hold down again until “Exit!
Silent Mode” appears. The Vibration indicator is no
longer displayed.
Call Forwarding
This feature provides the option of forwarding
incoming calls to another phone number, even while
your phone is turned off. Activating Call Forwarding
does not affect outgoing calls made from this phone.
Contact your service provider to activate Call
Forwarding.
RST ina Ти
Call Waiting
Call Waiting lets you receive a second call during
conversation. Your phone notifies you of a call waiting
by beeping an displaying “Call Waiting.”
Your phone provides the option of turning the Call
Waiting feature on and off (if you have subscribed to
the service}. Call Waiting is on by default in the phone.
If you choose to have a undisturbed conversation,
simply turn off the feature for the current call.
Note: Contact your service provider to activate the
Call Waiting service.
To answer a waiting call:
1. To answer the call, press 7. The phone connects
the calling party, and places the current party on
hold.
2. Press oy, again to switch between the two
parties.
Note: If you do not respond to a Call Waiting
notification, the phone will forward the call to
voicemail or another number that you have set
up. Contact your service provider for more
information.
Three-Way Calling
This feature enables you to conduct conference calls
with two separate parties at the same time. Ihe phone
records each party into the Outgoing Calls Log. Also,
You are billed airtime for each outgoing call
separately.
Note: Contact your service provider to activate Three-
Way Calling.
To place a Three-Way call:
1. During a conversation, press 7 . The phone
places the other party on hold.
2. Enter the phone number for the third party, and then
press < . The phone dials the third party.
3. When you are connected to the third party, press <>
again to begin your three-way call.
If one of the callers (not you) hangs up, you and
remaining caller stay connected. If you initiated the
call and you hang up first, all three parties are
disconnected.
Entering Text
At many times when using your phone, you will need
to enter text; for example, when storing a name in the
phonebook, creating your personal greeting or
scheduling events in your calendar. You can enter
alphanumeric characters into your phone by using your
phone's keypad.
You are provided with the following text input modes:
e T9(English): This mode allows you to enter words
with only one key press per letter. Each key on a
keypad has more than one letter - a single press on
could be J,K or L. The T9 mode automatically
compares your key presses to an internal linguistic
database to determine the correct word. The T9
mode requires far fewer keystrokes than the
traditional multi-tap method, Alpha mode.
e Alphabet: This mode allows you to enter letters by
pressing the key labeled with the desired letter
once, twice, or three times until the letter appears
on the display.
e Symbol: This mode allows you to enter special
characters.
e Number: This mode allows you to enter numbers.
Changing the Text Input Mode
When you are in a field that allows characters entry,
you should notice the text input mode indicator on the
display.
Example: Entering a name for a phonebook entry
Text input mode
indicator
To change to another text input mode:
1. Press (X.
й . tp ^ x E
à :Nünber--..
——
2. Scroll to the mode by pressing "= ог =
3. To select the highlighted mode, press &\.
lf you want to exit the menu without changing to a
new mode, press /=\.
4. You will find the selected text input mode indicator
on the display.
T9 (English) Mode =
To type a word, press keys corresponding to the letters
you need. Remember the following as you are typing:
1. Press keys on the handset just once per desired
letter. For example, to enter “Hello,” press ’
god, E), and 6.
The word you are typing appears on the display. It
may change with each key press.
3. Type to the end of the ward before editing or
deleting any keystrokes.
4. Put a space between each word by pressing 6%.
lf the word that appears on the display is not the
word that you desire, press one or more times
to display alternate word choices for the keys you
have typed. For example, both “of” and “me” have
the sequence of and €. The phone displays
the most commonly used choice first.
5. Continue entering the next word.
Smart Punctuation
Periods, hyphens, and apostrophes are available by
pressing (=> . The T9 applies rules of grammar to insert
the correct punctuation. Notice that [TI is used twice
in this example to display two punctuation marks:
5 E QA Y EUA y
Let ss e a to.
Including a Number
You can include a number between letters without
exiting the T9 input mode. Press and hold the desired
number key.
Changing the Case
Your phone offers three cases;
e 19 Word: initial letter ts capitalized
e T9 WORD: all letters are capitalized
e 79 word: all letters are lower case
Press iy one or more times to display the
appropriate case indicator, and begin typing normally.
Another Usages
Press to insert a space.
e To move the cursor to the left or to the right through
your text, press G or æ ).
e Press one or more times to delete the letters
one by one to the left. Press and hold (=) to clear
the display.
Alphabet Mode
When typing in the Alpha mode, you need to press the
keys labeled with the required letter:
-Once for the first letter
-Twice for the second letter
-And so on.
For this reason, this method is called multi-tap typing.
For example, you press three times to display the
letter “С” and two times to display the letter “K”.
The cursor moves to the right when you press a different
key. When entering the same letter twice or a different
letter on the same key, just wait for a few seconds for
the cursor to move to the right automatically, and then
enter the next letter.
Refer to the table below for the list of characters
assigned on each key.
Key Characters in the Order Displayed
Sua ,- 2 tt @ : :
А В C 2
Ed D E Е 3
G H 4
5) | JK L 5
мм 06
Ga |P Q В $ 7
ти V8
WX Y Z 9
0
(Caps Lock mode)
Changing the Case
Your phone offers three cases;
e Abc : initial letter is capitalized
e ABC: all letters are capitalized
® abc : all letters are lower case
Press \& one or more times to display the
appropriate case indicator, and begin typing normally.
Another Usages
e Press [557 to insert a space.
e To move the cursor to the left or to the right through
your text, press (= or =).
e Press /“\ one or more times to delete the letters
one by one to the left. Press and hold £*\ to clear
the display.
Symbol Mode ce
Symbol mode enables you enter symbols.
м 20%
Select Number E
11 123456789”
fo RR
4: Number
You can display more symbols by pressing (= or
oo
Press the key corresponding to the desired symbol. The
phone automatically switches back to the text entry
mode used just prior to selecting the Symbol mode.
Number Mode
The Number mode enables you to enter numbers.
Press the keys corresponding to the desired digits, and
manually switch back to text entry mode of choice.
Using the Menus
This phone offers a range of functions that allows you
to tailor the phone to your needs. These functions are
arranged in menus and submenus.
The menus and submenus can be accessed by scrolling
or by using the shortcuts.
Accessing a Menu Function by Scrolling
1. In Standby mode, press (=| to access menu mode.
2. Scroll with the navigation keys to reach the desired
main menu; for example, Setup. Press X\ to enter
the menu.
3. If the menu contains any submenus; for example,
Version, find the one you want by scrolling with
“= or 2. Press (sy to enter the submenu.
If the menu you have selected contains submenus,
repeat this step.
4. Scroll with = or _= to find the setting of your
choice.
5. Press to confirm the chosen setting.
Notes:
e You can return the previous menu level by pressing
e You can exit the menu without changing the menu
settings by pressing =D.
Accessing a Menu Function by Using its List of Menu Functions
Main menu Main menu 1 Main menu 2
The menu items (menu, submenus and setting options) 1 Calls»
are numbered and can be accessed quickly by using
== 1. Outgoing
= 2. Incoming
| te 3, Missed
their shortcut numbers. ii 4. Erase History == 1. Outgoing
. : esc 2, Incoming
Note: The numbers assigned to each menu function : 2.3 Missed
are indicated on the list on page 49. | Lc 4 All Calls
Sn he 5 Air Time re en ue 1. Last Call
1. In Standby mode, press (£í to access menu mode. ni. 2, Total
o o 3. Life time
2. Within three seconds, key in the first digit of the 2 4. Erase Total
shortcut number. Repeat this for each digit of the > Phone Book Е
. AONE BOOK "7 PIN
shortcut number. jest 2, Add New Entry
. | vet 3. Group Setting ern 1. No Grou
Example: Accessing the Version menu option ow Lenz 2, Friends
| FOR gi 3. Family
Press and Wa. | per A Colleague
Luo 5, VIPS
0 for Setup, 7 for Version. = 4. My Phone #
“5. Memory
3. Find the setting of your choice by pressing “= or
=. 3. Messages ges 1, New MSG
„ae. wie 2, VOICE
| . u 3. INBOX
4. Press Ë\ to confirm the chosen setting. ess 4 Outbox
se 5, Filed MSG
zo" 6. Web Alert
cie 7. Erase MSG
se 5. Filed
2» В. All Messages
Be 8 MSG Setting > 1, Scroll Timer
ku ws 2. MSG Reminder
„se 3, Voice Mail #
e" 4. New MSG
he. B Canned MSG
Main menu
Main menu 1 Main menu 2
4. Wireless Web poke 1. Get In Web
"u >, Prompt
5. Planner
gs» 1. Today
«e 7, Scheduler
ze 3, Task List
> 4 Memo Pad
got B Alarm
me 6. Calculator
we 7 World Time
"5 B Count Down
6. Voice Tools +
7. Sounds
ss Q Set Time
> |, Voice Dial > 1, Record
3" 2. Review
«ee. 3. Erase All
4. Set Active
ie 7. Voice Memo og 1. Record
- 2. Review
sm 3. Erase All
ee 3. Voice Answer “se 1. On/Off
ei 2, Inbox
ir 3. Setting
2-1. Ringer Volume “#1. Calls
{er 7. Messages
se 3, Alarms
= 7. Ringer Type “er 1. Voice Calls
ie 2, Messages
ie 3. Data/Fax In
7 A Schedule
monte 3. Alerts ew] Мише Beep
pozo 2, Service Alert
eter 3, Connect
> 4, Disconnect
pub. Fade
bs 6, Roam
Su,
== 4. Roam Ringer
tee Г Key Beep
+ 6. Tone Length
ei 7 Power On/Off
Main menu 1 Main menu 2
8. Display -:# 1, Menu Style
„u 3. Banner
oz 4. Backlight
ze 5 Dual Clock
ne § LCD Contrast
Segen 1. Push Push
com 2. Puzzle World
0. Setup u ts 1. Auto Answer
ponés 2, Call Answer
ur 3. Auto Retry
г; + 4, Set NAM
ent B Set System
2 8, Data/Fax
= 7, Version
er 8, Security ve 1, Lock Phone
2, Change Lock
2-3. Restriction
# D, Send PIN
«m5. Erase Pbook
“#7 Reset Phone
Calls
You can use the Calls menu to:
e View and dial the last outgoing, incoming or missed
numbers.
e Frase the numbers in the call log memory.
e View the length of calls.
Outgoing MENU 1-1
Note: You can also access this menu by pressing <
in Standby mode.
The phone stores the last 10 calls you dialed. When
you access this menu, the list of the outgoing calls is
displayed.
——
1. Press ® or =. to find the desired number (or
——
name if it is saved in the phonebook).
2. Press fi\ to select the highlighted number.
The dialed number {or name If it is saved in the
phonebook} is displayed along with the date and
time when the call was made.
3. To... Press...
place a call to Su
the selected number
use the options . For details about
the options, see the
following page.
exit the call log E)
When you press /£ on the call log list, the following
options are available:
Talk: dials the selected number.
Save: {available when the number is not stored In your
phonebook) allows you to save the number in the
phonebook.
Show Entry: (available when the number Is stored in
your phonebook) displays the detailed information
stored in the phonebook entry, such as a name,
memory location, numbers, speed dial number and
other settings.
Prepend: allows to add an area code or feature code
to the number before calling the number.
Incoming MENU 1-2
This option lets you view the last 10 calls you received
(tf you are subscribed to the Caller Line Identification
service). When you access this menu, the list of the
incoming calls is displayed.
For further information about scrolling through the list
and accessing a call log, see “Outgoing” on page 52.
Missed MENU 1-3
№ the Caller Line Identification service is available
(contact your service provider), your phone keeps a list
of 10 incoming calls that you failed to answer.
For further information about scrolling through the list
and accessing а call log, see “Outgoing” on page 52.
Erase History MENU 1-4
You can erase the entries stored in each of the three
call logs or all three logs at once.
When you see a confirming message, select YES to
erase the selected log or all logs. If you want to cancel
the selection, select NO.
Air Time MENU 1-5
Your phone records the amount of air time, or talk time
used. Using this option, you can view the number of
the calls to or from your phone, and the air time for all
calls. You can easily erase the air time record at any
time. This option is convenient for estimating your
usage.
Note: This feature is not intended for billing purposes.
The following options are available:
Last Call: shows the air time of the last call.
Total: shows the number of all calls made to and the
total duration of the calls since the air time counter
was last set to zero by using the Erase Total option.
Life time: shows the number and total duration of all
calls made to or from your phone since the phone was
shipped from the factory.
Erase Total: erases the “Total” air time measurement
and resets the air time counter.
: Phone Book
The Phone book allows you to store frequently used
phone numbers and the associated names in your
personal directory to make it easy for you to make a
call without having to remember or enter the phone
number. You can store up to 250 entries, including E-
mail address and URL address.
Find MENU 2-1
This option allows you to find an entry in the
phonebook.
Note: You can access this menu by pressing = in
Standby mode.
1. Press (= or =) to scroll to the desired method.
e By Name: enter the first few letters of the name
you want with the desired Input mode. Then the
phonebook entries are listed starting with the first
entry matching your input.
e By Entry: enter the location number of the
number your want to find, using the numeric keys.
e By Group: press =, and select the group
containing the entry you want to find, using G
or =). The phone lists all entries in the selected
group.
2. If necessary, press * or _=_ to scroll to the
entry you want.
3. When the desired entry is highlighted, press 3) to
access the entry. The phone shows the details on
the name.
4. To... Press...
Place a call to NZ
the selected number
Use the options (% .For details about
the options, see
below.
When you press (% in the details display, the
following options are available:
Talk: allows you to place a call.
Edit: allows you to edit the phone number, name,
location number, label category and so on.
Prepend: allows you to add digits, such as area
codes, ahead of the selected number before dialing.
Erase: erases the selected entry.
Add New Entry MENU 2-2
This menu allows you to store a number with a name
in your phonebook. You can save a person's various
numbers, such as workplace number, mobile number
and fax number, into one entry. A phonebook entry can
contain up to six number, one in each category.
Creating a New Entry
1.
2.
Enter a phone number and press ,
Press fi) to confirm to add a new entry. If you are
creating an entry for the first time, skip to Step 3.
. Select an icon to identify the category of number to
be stored using the navigation keys and press 4).
. Enter a name. For further details about entering
characters, see page 40.
Press &). The displays shows the following options
for the entry.
e Enter Name: allows you to enter the desired
name of up to 12 characters. For further
information on how to enter text, see page 40.
e Entry: the first available location displays. If
necessary, enter the location number using the
number keys.
® Home/Work/Mobile/Pager/Fax/No label:
allows you to store more numbers for each
category.
e Speed dial: allows you to select one of the
stored numbers for speed dialing.
e E-mail: allows you to store an e-mail address of
the person.
e URL: allows you to store a URL address.
e Group: allows you to assign an entry to a caller
group. To remove the entry from a group, select
No Group.
e Name Ringer: allows you to select the unique
ringer to be used for alerting you to an incoming
call from the person.
e Birthday: allows you to save the date of the
person's birthday.
e Secret: allows you to prevent a number from
being displayed when it is accessed or dialed by
unauthorized users. When this option 1$ set to
On, only people with your phone's lock code can
view the secret number.
e Image: allows you to select an image to be used
for alerting you to an incoming call from the
person.
6. To select an option, scroll to it by pressing "= or
E. Press (i to enter required information or G
or +=) to change the setting.
7. When you finish setting the options, press }i\ to
save the entry.
After storing, the phone displays the phonebook
entry number that you just saved and the remaining
slots you can further store phone numbers.
Storing Phone Numbers at Call’s End
To store a phone number at the end of your call:
1. Press €? to end the call. The call time and the
phone number display.
2. To store the phone number, press 4) .
3. To complete storing the number, follow from Step 2
in “Creating a New Entry” on page 58.
Adding a Number into an Existing Entry
1. Enter a number and press À).
2. Scroll to the entry in which you want to add a
number by pressing = or ,and press &).
—_—
3. To complete storing the number, fallow from Step 3
in “Creating a New Entry” on page 58.
Group Setting MENU 2-3
This option allows you to edit the settings for the
caller groups.
=, = = .
2. Press (=. The following options are available:
e Rename: allows you to change the group name.
e Color LED: allows you to select a color of the
service light to indicate when a call comes in
from any members of the group.
e Sounds: allows you to select a ringer melody to
indicate when a call comes in from any members
of the group.
3. Enter a new group name. For further details on how
to enter characters, see page 40.
4. Press |) to save the setting.
My Phone Number MENU 2-4
This option displays the phone number of the phone
currently being used.
Press Ë) to return to the previous menu level.
Memory MENU 2-5
This option shows the memory status for the Phone
book and the Voice Dialing entries.
Messages
Your phone can receive voicemail notification, text
messages, and pages. Also, your phone can send text
messages and pages if you system supplier provides
this service.
When the phone receives a message, an alert sounds,
a text notification displays along with the name and
phone number of the caller if available. The New
Message icon (BJ) remains on the screen until you
read the new text, numeric page or web message, or
you listen to the new voicemail messages.
Messages are received even when your phone ts in
Lock mode. However, the screen will not display
information about the message. lo access a message,
you must unlock the phone.
If you are on a conversation and you receive an
incoming message, your phone automatically mutes
the ringer. This is to avoid ringing in your ear while you
are trying to converse.
New Messages
You can create short text messages of up to 156
characters and send it to other mobile phones.
Note: Message transmission is only supported when
your phone is operating in digital networks and
if service is provided by your service provider.
MENU 3-1
1. Enter a destination number using the numeric keys
and press A
Pressing (¿5 allows you to search your phonebook
for a number.
2. Enter the message contents. For further details
about how to enter text, see page 40.
When you press (4, the Canned MSG option is
available to allow you to use ten canned messages
preset in the MSG Setting menu; for details, see
page 70.
3. When you finish entering, press ls) . The following
options are displayed. To select a option, press #7
or _=_ andpress };\.
e Send To: edits the send-to phone number.
e Message: edits the message contents already
entered.
e Call Back#: edits the callback number. The
default call back number is preset to your phone
number.
e Options: displays the following setting options.
scroll to an options using “=~ or + and
change the setting using G or =).
- Priority: select the message priority.
- Validity: select how long your message is valid
at the SMS center while attempts are made to
deliver them to the recipient.
- Send Later: select how long the delivery of the
message will be delayed at the SMS center, if you
do not want to send It immediately.
- Delivery ACK: turn the delivery
acknowledgement feature on or off. When this ts
activated, the network informs you whether or not
your message has been read by the recipient.
- Message Save: set if the phone will save the
message in the Outbox after transmission. When
you select Prompt Save, the phone will ask if
you want to save the message.
Note: Call Back#, Delivery ACK, Message Save
options can be preset via the New MSG
menu option (MENU 3-8-4): for details, see
page 71.
e File Msg: stores the message contents in the File
MSG menu for future use.
4. After changing the setting options, press <> to
send the message.
Note: Closing the folder or pressing before the
message is sent will terminate the transmission.
Voice MENU 3-2
——
When the voice mail list displays, press "= or _=_
to scroll to the desired voice message and press
to review the message.
If multiple new voice mails are received but not
reviewed, the information of the last one will be
displayed. The information display includes the
time/date stamp, number of new voice mails and
callback number.
While reviewing the message, press (il to access the
following options.
Listen: allows you to listen to the voice message. The
phone will automatically dial your voice mail center.
Clear Icon: clears the New Message Icon and resets
the counter for new voice mail, if necessary. The
system resets the counter automatically after you
listen to all new messages.
Note: You can quickly access the voicemail center by
pressing and holding {3\ in Standby mode.
Inbox MENU 3-3
Your phone can store up to 99 messages all together
in the inbox, outbox and filed message. If the memory
is full, a warning message is displayed and the phone
rejects additional messages until you erase the
obsolete ones.
When you access the Inbox menu option, the
message list appears.
To view details, press = or = to scroll to one of
the messages in the list and press };\ . If necessary,
press (=: or +=) to scan through the contents.
While viewing a message, press (= to use the
following options:
Reply: allows you to send a reply message to the
sender.
Forward: allows you to forward the message to
another person.
Delete: deletes the message from the Inbox.
Talk: places a call the call back number.
Save: allows you to save the call back number of the
message.
Outbox MENU 3-4
When you access the Outbox menu option, you can
see the message list. The red message number means
that it is a urgent message.
it and press #)\. № necessary, press (= or =) to
scan through the contents.
While reviewing a message, press A to use the
following options:
Resend: allows you to resend the message. For
further Information about sending a message, see
page 62.
Delete: deletes the message from the Outbox.
Filed Messages MENU 3-5
Your phone can store draft messages that are yet to be
sent in the filed message folder. If you save the
message contents using the File MSG menu option
before sending it (see page 64), you can access them
using this menu.
——-
To review a stored message. press = ог _= to
scroll to the desired message and press À\.
While reviewing a message, press (# to use the
following options:
Resend: allows you to edit the message and send it
to another destination.
Delete: deletes the message.
Web Alert MENU 3-6
When you recelve a new Web message, your phone
notifies you and displays the following options. To
select an option, scroll to highlight it and press 4).
View: allows you to access the Web Inbox to display
the web message.
Clear: you can press if you do not wish to read
the message at this time.
If you select Clear, the message is stored in the Web
Alert menu.
When you access this menu, you can see the web
message list. Press “E” or _ to scroll to one of
the messages in the list and press &). The phone
starts the Web browser and displays the message
contents. If necessary, press "= or = to scan
through the contents.
Erase Messages MENU 3-7
Using this menu option, you can erase all messages in
each of five message boxes; Voice mail box, ald Inbox,
new Inbox, Outbox and Filed message box.
You can also erase all of the messages at one time.
Message Setting MENU 3-8
Via this menu, you can preset several options for using
the message feature.
Scroll Timer
If an incoming message is too long for the display, the
phone displays it by automatically scrolling the screen.
You can set how often the phone scrolls the message
to the next screen.
If you select Off, you need to scroll to the next screen
manually using "= or =
.
——
MSG Reminder
When a message is received, the phone alerts you by
sounding the selected ringer. You can set how often
you want to be alerted. Selecting Off means the
message alert does not sound, but the New Message
icon (Ex) will appear.
Voice Mail #
All unanswered calls to your phone are automatically
transferred to the voicemail center, even if your phone
is off or in use. You can store the number of the voice
mail center, using this menu.
New MSG
You can set up default settings for the options
available when creating a new message. The
following options are available:
Callback #: you can set the call back number. It is
preset to your phone number at the factory.
Save Message: allows you to set whether you want
the transmitted message to be saved in the Outbox or
not.
- Do Not Save: the phone does not save the message.
- Prompt Save: the phone asks if you want to save
the message or not.
- Auto Save: the phone automatically save the
message.
Entry Method: you can select the text input mode
between Word (T9 English) and Alphabet .
Delivery Ack: allows you to activate or deactivated
the delivery acknowledgement.
Canned MSG
This menu option allows you to edit ten canned
messages.
Scroll to one from the message list and press (1{ and
change it as needed. For further details about entering
characters, see page 40.
Wireless Web
Aboot the Wen Browser
Your phone comes equipped with a web browser
which makes it possible for you to access the wireless
web.
The web browser allows you to access up-to-the
minute information through your phone. Browsing the
wireless web through your phone is unlike using your
computer; site providers have selected only the critical
aspects of their sites to present to wireless phone
users and they have removed most of the graphics.
Each time you start the web browser, the phone will
connect to the wireless web and the Service icon (¢* ]
will appear on the display. Any time this icon Is visible
on the display, you are connected to the wireless web
and will be billed accordingly. Rates will vary
according to your service option.
The web browser will end the connection after a
certain period of network inactivity and will
automatically reconnect as necessary. For this reason,
you may find that you are billed for several network
connections within a single session. This is normal and
is designed to minimize your bill.
Get In Web MENU 4-1
Note: The first time you use the Web Browser, you will
go through a security setup process that takes 3
to 5 minutes. Please follow the on-screen
prompts to complete the security setup process.
This inittal setup process occurs only the first
time you access the service.
1. Accessing the Get In Web menu connects your
phone to the wireless web. You can also press <>
in Standby mode.
Note: If a reminder appears depending on your
setting in the Prompt menu option (MENU 4-
2), simply answer Yes or No using the soft
keys (Gs: and æ )),
2. Once connected, the home page or the last page
visited will be displayed.
The opening page when accessing the web browser
is dependent on the wireless web service provider
content.
——
3. To scroll through the screen, use = or =
— .
Exiting the Web Browser
To exit the web browser, simply press at any
time.
If the To End or Both option is set in the Prompt
menu (see page 78), you will be prompted whether you
want to end the Browser call.
Using the Web Browser Soft Keys
At the bottom of the web browser display is a solid
bar which contains browser commands. (=: and =)
are used to execute the commands. These two keys
are called soft keys because their functions change
depending on where you are in the web browser
software.
Navigating the Web Browser
When you use the web browser, some keys on your
phone operate differently than on a normal phone call.
These keys are explained below. The web browser
presents on-screen items in one of the following ways:
e text or numeric input
e links (embedded in content)
e numbered options (some options may not be
numbered)
e simple text
Here's how the keys work in the Web Browser:
= Navigation keys: Use these keys to scroll
=. to and select browser options. The currently
selected option is indicated by an arrow.
You can also use them to move the cursor
when editing text.
(= Left soft key: This is the left soft key used
| to execute the commands at the bottom left
of the browser display.
<> 8
Right soft key: This is the right soft key
used to execute the commands at the bottom
right of the browser display.
MENU key: The right soft key is used for
secondary options or a menu of secondary
options.
OK Key: The left soft key is used for
selecting the highlighted item.
END Key: This key ends the web browser
connection and returns the phone to Standby
mode.
Clear Key: This key performs two important
functions:
e Backs you up in the browser. Pressing It
once backs you up one page. Pressing and
holding this key backs you up to the home
page.
e Clears out entered text or numbers. When
entering characters, press this key to clear
the last number, letter or symbol. Press
and hold this key to completely clear the
input field.
Numbered Keys 0 - 9: If the items on a
page are numbered, you can use these keys
to select them.
Volume Keys: These keys allows you to
scroll up or down by a page or change the
volume setting.
Using the Web Browser Menu
On the web browser, you can access the following
options by pressing El
Reload: reloads the current web page.
Home: takes you back at any time to the homepage of
the wireless web service provider.
Bookmarks: allows you to load a bookmarked web
page directly.
Mark Site: allows you to set a bookmark for most
page; they can be accessed directly from any web
page. Bookmarks save you time by reducing the
number of steps required to access a given page.
About Openwave: provides you with information
about Openwave and your version of the web browser.
Advanced: gives you access the the following
advanced features.
- Show URL: displays the URL address of the site to
which you are currently connected. It also enables
you to declare the current site as the startup
homepage.
- Homepage: allows you to change the startup
homepage manually.
- Set WAP Proxy: allows you to configure the proxy
settings required for connecting to the wireless web.
- Offline Service: Most applications are stored on a
server that cannot be accessed outside your wireless
coverage area. However, some applications can be
stored in the cache of your phone, enabling you to
use them offline. You can remove the associated site
from the cache at any time.
- Qutbox: stores outgoing requests from the browser
so that they can be processed at a later date.
- Restart Browser: restarts the browser without exiting
it.
- Encryption: this option is automatically set by the
service provider. You do not need to change it.
Entering Text in the Web Browser
When prompted, you can enter letters, numbers or
symbols using the same way as in phone mode. See
page 40 for further information about how to enter
characters.
Prompt MENU 4-2
Your phone can be set to display a prompt each time
you start or end a browser session or not to display
the prompt.
The following options are available:
None: you will never see this prompt.
To Start: this is default setting. You will see the
prompt when enter the browser, but not when you exit
it.
To End: you will see the prompt only when you exit
the browser.
Both: you will be prompted when you enter or exit the
browser.
— Planner
The Scheduler feature enables you to:
e Keep track of important dates and events
e Create a list of things to do
e Check the time in another part of the world
e Use the phone as a calculator
Today MENU 5-1
You can schedule up to 9 events for the current day
and up to 70 events in the calendar, indicating each
event's start and end time. You can even have your
phone's calendar alert you before an event
commences. Events scheduled for future dates
automatically appear on your Today events schedule
on that day.
Scheduling a New Event
1. Enter your event contents and press 4) . You can
enter up to 32 characters. For more information
about entering letters, see page 40.
2. Enter the start time and date using the numeric
keys.
You need to enter the time in 12-hour format. To
select AM or PM, press for A (AM) or Sen
for P (PM).
Note: You can move through the input field using the
navigation keys.
3. Enter the end time and date using the numeric keys.
4. Select when an alarm will inform you of the event
by pressing (= or =). selecting No alarm does
not ring the alarm.
5. Press la) to save your event.
Viewing Your Schedule
The list of the events stored in the current day is
displayed when you select the Today menu option
(MENU 5-1).
While viewing the schedule list:
e Press /3( to use the following options:
Add New: allows you to add a new event.
Erase : allows you to erase a selected event.
Erase All: allows you to erase all of the events.
——
e To view details, press “= or _ to scroll to the
desired event from the list and press 4). While
viewing an event, the following options are
available when you press (4).
Edit : allows you to edit the current event.
Erase : allows you to erase the current event,
Scheduler MENU 5-2
This option allows you to view the current month, as
well as a past or future month, in calendar format. On
the calendar, the current day is boldfaced and days
with scheduled events are indicated by a square.
Note: You can to quickly access this menu by pressing
(=. in Standby mode.
Scrolling Through the Calendar
e You can move up or down one day by pressing G
or =).
e You can move right or left one week by pressing #7
ОГ _ =.
e To display the next or previous month, press (5| or
w
On the calendar, press (& to use the following
options:
View: allows you to view the scheduled events of the
selected day.
Add New: allows you to add a new event on the
selected day.
Creating a New Schedule
Select a day on the calendar, referring to “Scrolling
Through the Calendar” above and follow the
instructions in “Today” on page 79.
Task List MENU 5-3
This feature allows you to enter up a list of tasks to be
done and assign both a priority and a deadline to each
task.
Creating a New Task
1. Enter the first task and press to confirm.
You can enter up to 32 characters. For further
details on how to enter characters, see page 40.
2. Enter the time and date by which the task needs to
be done, by using the numeric keys.
3. Select high or low priority using (+ or =) and
then press #\ to save the task.
Viewing a Task
The list of the tasks is displayed when you access the
Task List menu option (MENU 5-3).
While viewing the task list:
e Press /£l to use the following options:
Add New: allows you to add a new task.
Erase : allows you to erase a selected task.
Erase All: allows you to erase ail of the tasks.
—
e To view details, press "= or _=_ to scroll to the
desired task from the list and press A While
viewing a task, the following options are available
when you press (3.
Edit : allows you to edit the current task.
Erase : allows you to erase the current task.
: eo ie
e E
Е
Re a ees
Memo Pad MENU 5-4
This feature allows you to write down memos about
any thing you need to remember.
Writing a New Memo
1. Enter the memo contents.
You can enter up to 64 characters for each memo.
For further details on how to enter characters, see
page 40.
2. Press &) to save the memo.
Viewing a Memo
The list of your memos is displayed when you access
the Memo Pad menu option (MENU 5-4).
While viewing the memo list:
e Press (4! to use the following options:
Add New: allows you to add a new memo.
Erase : allows you to erase a selected memo.
Erase All: allows you to erase all of the memos.
A
e To view details, press “= or _ to scroll to the
desired memo from the list and press E). While
viewing a memo, the following options are available
when you press (il.
Edit : allows you to edit the current task.
Erase : allows you to erase the current task.
Alarm Clock MENU 5-5
This option allows you to set or release up to three
alarms to ring at a specific time.
To set an alarm:
1. Select an alarm, Alarm #1 through Alarm #3, and
press À) .
2. Select On by pressing (=: or = .
3. Press = and enter the required time and date for
alarm to ring.
You need to enter the time in 12-hour format. To
select AM or PM, press for A (AM) or “E
for P (PM).
4. Press _ and select an alarm melody by pressing
——
(@ or =).
5. Press = and select an alarm type from Daily and
Once by pressing (=. or +).
6. Press {\ to save the alarm setting.
To stop the alarm when it rings, press any key.
To release an alarm setting, access It from the alarm
list and select Off.
Calculator MENU 5-6
Using this feature, you can use the phone as a
calculator. The calculator provides the basic arithmetic
functions; addition, subtraction, multiplication and
division.
1. Enter the first number on the first line using the
numeric keys.
2. Enter the operation for your calculation on the
second line by pressing the navigation keys,
according to the illustration on the display.
3. Enter the second number.
4. Repeat from Step 1 as many times as required.
5. To get the result, press À).
The result is displayed as the top number on the
display.
Notes:
« To erase any mistakes or clear the display, press
|
® Use & to enter a decimal point and 25? to
change the sign of a number to a negative (-).
World Time MENU 5-7
This menu allows you to check the current time for 24
major cities around the world.
Select the city corresponding to your time zone by
pressing the navigation keys one or more times. The
local date and time are displayed.
You can view the daylight saving time by pressing (3 .
Count Down MENU 5-8
This menu helps you know how much time It takes for
you to do something, or how many months, days, hours
and minutes until a specific day arrives. You can create
up to 9 counter using this menu.
Creating a New Counter
1. Enter the contents for your counter and press 4) .
You can enter up to 16 characters. For details about
entering text, see page 40.
2. Enter the time and date from which you want to
count down.
You need to enter the time in 12-hour format. lo
select AM or PM, press for A (AM) or a for
P (PM).
Note: You can enter the years between 1980 and
2099.
3. Press 1) to save the counter.
Viewing a Counter
The list of the counters is displayed when you access
the Count Down menu option (MENU 5-8).
While viewing the counter list:
e Press to use the following options:
Add New: allows you to add a new counter.
Erase : allows you to erase a selected counter.
Erase All: allows you to erase ail of the counters.
AAA
e Press = or + to scroll to the desired counter
from the list and press E) to view details. While
viewing a counter, the following options are
available when you press (il.
Edit : allows you to edit the current counter.
Erase : allows you to erase the current counter.
Set Time MENU 5-9
To display the correct date and time on the idle screen
or to use the Planner features, such as Today,
scheduler, Task List, Count Down, Alarm and World
Time, you need to set the current time and date using
this menu.
Enter the time and date using the numeric keys. The
minute, hour, month and day each must be entered
using 2 digits and the year requires all 4 digits. You
need to enter the hour in 12-hour format. To select AM
or PM, press for À (AM) or =) for P (PM).
Voice Tools
In this menu, you can use the phone's voice features,
allowing you to:
e dial a number by saying a associated name.
e record a voice memo.
e set the phone to answer a call and record the
caller's message.
Voice Dial MENU 6-1
When your phone is in digital mode, you can call up to
20 stored entries by speaking the name into the
microphone. Using the Voice dialing option requires
that you first program the phone to recognize the name
of the person you are calling.
Record
This option allows you to record names and register
numbers for subsequent voice dialing. The phone
provides voice prompts and screen displays to guide
you through the recording process.
1. Say the name you want to program at the prompt.
The phone stores the name as a first sample.
2. Respond to the prompt by repeating the name after
the beep. The phone stores the name as a second
sample, and then prompts you to enter the phone
number.
3. Enter the phone number by pressing the numeric
keys and press À).
Tips for Recording a Name
e Avoid recording similar names phonetically. If you
record a similar name to the one already in memory,
the phone requests another name.
e Speak clearly and naturally.
e The person who will use the phone should record
the name. The phone does not recognize the name if
the voice sounds differently.
e Avoid too long or too short name. Names with two
to five syllables are recommended.
e |f this feature does not work properly, erase the
name, and record with another name.
e |t is recommended to practice several times to
obtain the best result.
e You can record up to 20 names. If you try to record
more than that, the phone announces “Memory is
full.”
Review
When a list of your stored voice dial numbers displays,
scroll to the desired entry and press )¿y . The recorded
name plays audibly.
Erase All
This option erases all of the entries in the Voice Dial
list.
Set Active
Voice Dialing is always active once you have
programmed the phone to accept voice dialing entries
and the associated phone numbers.
To place a call using voice dialing, simply press and
hold & in Standby mode and then say the name into
the phone after you hear a prompt.
You can also initiate a voice dialing call by the
following options:
[* ] Only: enables voice dialing only by pressing and
holding &.
[+ [/Folder: enables voice dialing by pressing and
holding & or by opening the folder.
[* ] /EarMic: enables voice dialing by pressing and
holding or by pressing and holding
the button on your ear-microphone.
Voice Memo MENU 6-2
Note: You can enter quickly this menu by pressing -® Jin
Standby mode.
Record
You can record up to voice memos of 4 minutes in length
in all. This feature shars the memory with Voice Answer
and the amount of time for memos are dependant on the
available memory less any callers’ messages; for
example, if your phone has the callers’ messages of 4
minutes total, you cannot record any voice memo. When
recording, a 60-second timer displays and an alert sounds
to indicate when the recording time expires.
1. Record a memo by speaking to the microphone. The
display shows the elapsed time.
You can pause recording by pressing (=. and then
resume by pressing =).
2. Press to end recording. The screen provides you
with the following choices. Scroll to an option and
press À.
e Review: allows you to review the voice memo. The
screen displays the length of the memo aiong with
the date and time.
e Rerecord: allows you to rerecord the voice memo.
e Save: allows you to save the voice memo and add a
title.
e Quit: allows you to quit the voice mem without
Saving.
3. When you are satisfied, select the Save option and
press $.
4. Enter a title for the memo and press §;\ to save.
Review
When a list of your voice memos is displayed, scroll to
the desired memo and press /%{ . The following
options are available:
Play: plays back the selected memo.
Erase: erases the selected memo.
Info: shows the detailed information on the memo,
such as the title, the elapsed time, the memory size
used for the memo and the time when the memo was
recorded.
Erase All
This option allows you to erase all of the voice
memos.
Voice Answer MENU 6-3
In case that you are not able to answer an incoming
call, you can set your phone to answer an call with the
predefined greeting message and record the caller's
message. As this feature shares the memory with
voice memos, the total length of messages is
dependent on th available memory less any voice
memos.
Note: The voice answer feature does not work when
your phone is in analog mode.
On/Off
This option allows you to enable or disable answer
mode.
Inbox
You can listen to the caller's messages recorded in your
phone. When you access this option, the list of the
recorded memos appears.
Note: If the phone has the caller's messages waiting to
be checked, it displays the total number of the
messages and the date and time when the last
message was recorded. Pressing takes you
to the Inbox.
1. Press “= or = to scroll to the desired message
and press {é) to play it back.
You can pause playback by pressing (= ‚ and then
resume by pressing ™).
2. If you want to access the following options,
press (3 .
e Play: plays the selected message.
e Erase: erases the selected message.
e Info: shows the detailed information on the
message, such as the caller's number (if identified),
the elapsed time, the memory size used for the
message and the time when it was recorded.
e Talk: places a call the caller's number, if identified.
3. Press («Y to back up one menu level.
Setting
You can change the settings for answer mode. The
following options are available:
Greeting : Your phone provides you with a predefined
greeting message to be played when a call comes in.
Also, you can record your own greeting message.
To record a greeting message:
1. Select Record and press §).
2. Wait until a prompt beep sounds and record a
greeting message by speaking into the microphone.
You can pause recording by pressing (=. and then
resume by pressing «> ).
3. When recording is completed, press l;). The phone
automatically saves and activates the message.
4. lf you want to play back the currently selected
message, highlight Play and press à).
To enable or disable your own greeting message:
1. Highlight Select and press le) .
2. select My Message to use your message or
Default to use the default message.
3. Press À) to save the selection.
Note: If you use your own message as a greeting and
then change to the default message, your
message will be deleted.
Screening: allows you to enable or disable the
screening speaker which allows you to listen to the
caller's message while the caller 1$ leaving it.
Wait time: allows you to set how long the phone
waits before answering a call with the greeting
message. The wait time can be set to After 3 sec,
After 5 sec or After 10 sec. Selecting OFF means the
phone plays back the message as soon as It receives
the signal of an incoming call.
: Sounds
You can use the Sounds menu to customize various
sound settings, such as the:
e Ringer volume, type, and tone.
Key beep and voice volume.
Alert sounds and a ringer for the roaming calls.
The ringer which sounds when the phone is switched
on or off.
Ringer Volume MENU 7-1
This menu option allows you to adjust the ringer
volume.
Calls: allows you to adjust the ringer volume for the
incoming calls.
Messages: allows you to adjust the ringer volume for
the messages.
Alarm: allows you to adjust the ringer volume for the
schedule alarms.
Press the navigation keys to adjust the volume level or
select the type. The following options are available:
- Silent: the phone does not sound a ring.
- Vibrate: the phone switches to vibration mode. An
Incoming call vibrates the phone.
- 1-Beep: the phone sounds a beep.
- Level 1 - 8: adjust the volume level. The more bars,
the louder.
- High + Vib: the phone rings in the highest volume
level and then vibrates.
Note: When “Emergency call only” appears after
ending an emergency call, the ringer volume for
calls and messages is automatically set to Level
4,
Ringer Type MENU 7-2
This option allows you to set a unique ringer melodies
for the following items:
Voice Calls: allows you to set a unique ring for
incoming voice calls.
Messages: allows you to have a distinctive ring for
voice mail, page, text message or web messages.
Data/Fax In: allows you to be alerted with a
distinctive ring tone when you you receive data or fax
calls through the phone. This is dependent upon your
network.
Schedule: allows you to have a distinctive ring for a
schedule alarm.
select a unique ringer using the navigation keys. After
you change it, it sounds for a few seconds.
Alerts MENU 7-3
Your phone gives audible alerts (beeps) at a specified
time to inform you that certain things have happened.
The alerts only occur in your earpiece so the other
party does not hear them.
The available alerts are:
Minute Beep: When this option is set to On, the
phone sounds an alert 50 seconds before each elapsed
minute to remind you of the length of the current call.
Service Alert: When this option is set to On, the
phone sounds an alert when you exit service area or
when you return to a service area.
Connect: When this option is set to On, the phone
sounds the connect tone when your call is connected
to the system.
Disconnect: When this option is set to On, the phone
sounds the disconnect tone when a call is
disconnected.
Fade: When this option is set to On, the phone
sounds an alert when a dropped call occurs during
conversation in response to a signal fade.
Roam: When this option is set to On, the phone
sounds an alert when your phone starts roaming.
Roam Ringer MENU 7-4
You can set the phone to use a distinctive ring for
incoming roaming calls.
Choose Distinctive to use a distinctive ringer or
Normal to use a normal ringer.
Key Beep MENU 7-5
This menu option allows you to adjust the volume for
the beep generated when you press a key.
Adjust the volume using the navigation keys or the
volume keys on the left side of the phone.
Note: When “Emergency call only” appears after
ending an emergency call, the key beep is
automatically set to Level 4.
Tone Length MENU 7-6
The tone length setting enables you to select Short or
Long DTMF (dual-tone multi-frequency} tones.
DTMF tones are sent by your phone to access
teleservices, such as a bank account. The system used
by the bank or other service determines if you need
short or long DTMF tones. If the service 1$ digital, as
most are, short DTMF tone will almost always work.
However, some new systems and almost all older
(analog) systems require you to use long DTMF tones.
Power On/Oft MENU 7-7
You can turn on or off the tone that the phone sounds
when it is switched on or off.
Choose On to use a power on/off sound or Off not to
use It.
‚ Display
The Display feature enables you to:
e Change the display style of the menus.
e Create your own greeting, and select an animation
to be displayed in Standby mode or when powered
on or off.
e Set the length of time for backlight.
e View the version of your phone.
Menu Style MENU 8-1
This options allows you to select the menu display
style. You can chose between Camera Style and
Nature Style.
Wallpaper MENU 8-2
You can change the background image (wall paper} to
be displayed on the idle screen.
Press G or æ) to scroll through the images
available and press Ey when the desired one is
displayed.
HO
и
Banner MENU 8-3
This option allows you to set a banner message to be
displayed at the bottom of the display in Standby
mode.
1. If necessary, press repeatedly to delete each
letter of the old greeting. Press are hold /=\ to
clear the display.
2. Enter your banner message of up to 15 characters .
For further information about how to enter letters,
refer to page 40.
3. When you finish entering the message, press &) to
save the new banner.
Backlight MENU 8-4
You have several options for setting how the LCD
backlight operates. Remember that backlight use
drains your battery faster.
The following options are available:
Folder open: the backlight remains on when the
folder is open.
30 seconds: the backlight switches on when you
press a key or open the folder and switches off 30
seconds after that.
8 seconds: the backlight switches on when you press
a key or open the folder and switches off 30 seconds
after that.
Dual Clock MENU 8-5
You can choose two time zones to be displayed when
you select Dual Clock for the wall paper image; for
details, see page 101.
To select time zones for the dual clock:
1. When Location is highlighted, press _=_ .
2. Select the time zone for the first clock by pressing (=
or =) and press =.
3. Select the time zone for the second clock by
pressing (= or =).
4. Press Li) to save the selection.
To apply the daylight saving time:
1. When Location ¡s highlighted, press (= or æ)
to display DST. Press =.
2. Select YES to use the daylight saving time for the
first clock or NO not to use.
3. Press _= and repeat Step 2 for the second clock.
4. Press to save the selection.
LCD Contrast MENU 8-6
The menu allows you to adjust the brightness of the
external LCD screen.
Select the desired Sub Contrast by pressing navigation
key.
SOMERS?
AO
RL
FRAC
Games
This menu allows you to play two games; Push Push
and Puzzle World.
1. Press &) select the game you wan to enjoy.
2. Press %) . The display shows the illustration of the
key operation for the game.
3. To start Push Push, press &) .
To start Puzzle World, press II) or x .
4. Press to end the game and return to Standby
mode.
Note: The key operation may vary depending on the
selected game. Please use the onscreen help.
Setup
Many different features of your phone can be customized
to suit your preferences.
Auto Answer MENU 0-1
This menu option is used only when the phone is
connected to an optional hands-free car kit.
With this menu option activated, the phone automatically
answers calls after a predefined time. This option Is
useful while driving, for instance.
To activate this feature, set how long the phone waits
before answering. Select one from After 5 sec, After 3
sec or After 1 sec.
When this menu option is set to OFF, the phone answers
an incoming call as soon as it receives the signal of the
call.
Call Answer MENU 0-2
This menu option allows you to select how to answer
The following options are available:
Any Key: the phone answers when you press any key
except for E).
Folder Open: the phone answers when you open the
folder.
nara 9
Auto Retry MENU 0-3
When this menu option Is activated, your phone will
automatically retry the call up to 10 times when a
connection fails.
To activate this feature, select how often the phone
will automatically retry the call; 60 Second, 30
Second and 10 Second are available.
Select Off deactivates this feature.
Set NAM MENU 0-4
NAM stands for numerical assignment module,
essentially your phone number. Your phone can have
two NAMs. This means that you can have two phone
numbers for using your phone and can quickly and
easily switch your service back and forth between the
two numbers.
If you change the NAM, the phone will turn off by
itself and back on, or reboot, and acquire service
using the new NAM setting.
Set System MENU 0-5
The system selection feature of your phone enables
you to choose how your phone will roam. Roaming Is a
feature which is only relevant in areas where there are
usually at least two cellular service providers which
are referred to as “A” and “В” and have valid roaming
agreements. Your service provider will provide you
information about this service or the best roaming
method for you.
The following methods are available:
Home Only: you cannot roam. If your home system Is
not available then your call will not be connected and
the No Service icon (¿* ) is displayed. In some service
areas, an operator may come on line asking you how
you would like to pay for the call.
Standard: this option allows you to provide the best
system automatically.
Data /Fax MENU 0-6
Your phone is capable of sending and receiving digital
data and fax call when connected to a computing device
(laptop, desktop, handheld, palmtop, etc.) running
Windows 95, Windows 98, Windows NT or later
versions. The phone functions just like a typical modem
on your PC, enabling you to use wireless data involving
a wide variety of Windows software applications.
To use digital data or fax services with your phone, you
will need to obtain a digital data/fax kit from your
service provider. This kit will contain the necessary
cables, software, and user's guide required for your to
connect and use your phone with your computing device.
Note: The phone must be on a digital network to
receive or send faxes and data.
The following options are available:
Voice Call Only: your phone receives voice calls only.
Fax in Only: your phone receives fax calls only.
Data in Only: your phone receives data calls only.
Receiving a Fax or Data File
To receive a fax or data, ensure that your phone Is
connected to your PC and is powered on. Select one
the Data/Fax options.
of
When you receive a fax call, set up the Answer mode
in the Fax program on your PC and click on Receive
and select one of the following:
e Automatic Receive (recommended)
e Manual Receive
Sending a Fax or Data File
When connected to a computing device, your phone
allows wireless fax and data transmissions. Your
computing device software Initiates the call to the
destination phone number. The phone functions as a
wireless modem to send the fax or data file to the
number designated by your PC software.
Version MENU 0-7
This option allows you to view the software and
hardware versions of your phone. This feature is
helpful if you have to the call customer care.
Security MENU 0-8
Your phone provides many security options, including a
user-programmable lock code and call restriction
features.
The lock code is preset to “0000” at the factory.
Lock Phone
When the phone Is locked, you cannot operate the
phone until you enter the lock cade.
The following options are available:
Unlocked: the phone remains unlocked.
On Power-Up: the phone locks automatically at the
next time your phone turned on.
Lock Now: the phone locks immediately.
To place an emergency call, enter the number and then
press 7. The phone recognizes three emergency
numbers stored via the Emergency # menu (MENU
0-7-4).
To unlock the phone, press (№ and enter the lock
code. The phone returns to Standby mode.
Change Lock
This feature allows you to change your current lock
code to a new one. The lock code is preset to “0000”
at the factory.
Enter a new, four-digit lock code and then press \i\ .
Restriction
This feature allows you to restrict all of your outgoing
calls.
Select Yes to restrict the calls or No to cancel the
selection.
Emergency Number
Your phone provides the option of storing up to three
emergency numbers. All emergency numbers can be
manually dialed at any time, even when your phone is
locked.
To store an emergency number, select an empty
location and enter the desired number. Each number
can be up to 32 digits long.
To make an emergency call in Lock mode, simply enter
the emergency number and then press Sy.
Send PIN
Note: Your service provider must enable this feature
and assign you a PIN (Personal Identification
Number) in order for this feature to work.
This feature prevents your phone from being used by
unauthorized people. The feature is only available if
your service provider supports this service and you
have a PIN assigned by the system supplier. Contact
your service provider for more detailed information of
this feature.
The following options are available:
Never: the option is not activated.
Prompt: each time you make a call, you are asked to
enter the PIN.
Erase Phonebook
This menu allows you to erase all of the numbers in
your phonebook.
When a confirming message displays, select YES to
clear the memory.
Reset Phone
Resetting the phone erases all of your saved selection
in the user-selectable setting options and returns them
to the factory default settings.
When a confirming message appears, select Yes to
confirm. The phone reboots (turns itself off and back
on) and then returns to Standby mode.
=: Health and Safety
eee Information
Exposure to Radio-Frequency
Energy (SAR Information)
This phone meets Australian Communications
Authority (ACA) requirements (AS/NZS 2772)
concerning exposure to radio waves.
Your mobile phone is a radio transmitter and receiver.
lt is designed and manufactured, so as not to exceed
the limits for exposure to radio-frequency (RF) energy,
as recommended by ACA. These limits are part of
comprehensive guidelines and establish permitted
levels of RF energy for the general population. The
guidelines were developed by independent scientific
organisations through periodic and thorough
evaluation of scientific studies. The limits include a
substantial safety margin designed to ensure the
safety of all persons, regardless of age and health.
The exposure standard for mobile phones employs a
unit of measurement known as SAR (Specific
Absorption Rate). The SAR limit recommended by ACA
is 1.6W/kg.
* The SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over
one gram of body tissue. The limit incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in measurements. The SAR values may
vary depending on the national reporting requirements and the network band.
Precautions When Using Batteries
e Never use any charger or battery that is damaged in
any way.
e Use the battery only for its intended purpose.
e lf you use the phone near the networks base
station, it uses less power; talk and standby time
are greatly affected by the signal strength on the
cellular network and the parameters set by the
network operator.
Battery charging time depends on the remaining
battery charge and the type of battery and charger
used. The battery can be charged and discharged
hundreds of times, but it wil! gradually wear out.
When the operation time (talk time and standby
time) is noticeably shorter than normal, it is time to
buy a new battery.
lf left unused, a fully charged battery will discharge
itself over time.
Use only Samsung-approved batteries and recharge
your battery only with Samsung-approved chargers.
When a charger Is not in use, disconnect it from the
power source. Do not leave the battery connected to
a charger for more than a week, since overcharging
may shorten its life.
e Extreme temperatures will affect the charging
capacity of your battery: it may require cooling or
warming first.
e Do not leave the battery in hot or cold places, such
as in a car in summer or winter conditions, as you
will reduce the capacity and lifetime of the battery.
Always try to keep the battery at room temperature.
A phone with a hot or cold battery may temporarily
not work, even when the battery is fully charged. Li-
ion batteries are particularly affected by
temperatures below 0 °C (32 °F).
Do not short-circuit the battery. Accidental short-
circuiting can occur when a metallic object (coin,
clip or pen) causes a direct connection between the
+ and — terminals of the battery (metal strips on the
battery}, for example when you carry a spare battery
in a pocket or bag. Short-circuiting the terminals
may damage the battery or the object causing the
short-circuiting.
e Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime. But
an important responsibility accompanies the benefits
of wireless phones, one that every user must uphold.
When driving a car, driving is your first responsibility.
When using your wireless phone behind the wheel of
a car, practice good common sense and remember the
following tips.
1. Get to know your wireless phone and ¡ts features,
such as speed dial and redial. If available, these
features help you to place your call without taking
your attention off the road.
2. When available, use a hands-free device. If
possible, add an extra layer of convenience and
safety to your wireless phone with one of the many
hands-free accessories available today.
3. Position your wireless phone within easy reach. Be
able to access your wireless phone without
removing your eyes from the road. If you get an
incoming call at an inconvenient time, let your voice
mail answer it for you.
4 Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet,
snow, ice and even heavy traffic can be hazardous.
5. Do not take notes or look up phone numbers while
driving. Jotting down a To Do list or flipping through
your phonebook takes your attention away from your
primary responsibility, driving safely.
6. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan calls when your car
will be stationary. If you need to make a call while
moving, dial only a few numbers, check the road
and your mirrors, then continue.
7. Do not engage in stressful or emotional
conversations that may be distracting. Make the
people with whom you are talking aware that you
are driving and suspend conversations that have the
potential to divert your attention from the road.
8. Use your wireless phone to call for help. Dial the
emergency number in the case of fire, traffic
accident or medical emergencies. Remember, it is a
free call on your wireless phone!
9. Use your wireless phone to help others in
emergencies. № you see a car accident, crime in
progress or other serious emergency where lives are
in danger, call the emergency number, as you would
want others to do for you.
10. Call roadside assistance or a special non-
emergency wireless assistance number when
necessary. If you see a broken-down vehicle posing
no serious hazard, a broken traffic signal, a minor
traffic accident where no one appears injured, or a
vehicle you know to be stolen, call roadside
assistance or any other special non-emergency
wireless number.
Operating Environment
Remember to follow any special regulations in force in
any area and always switch off your phone whenever
it is forbidden to use It, or when It may cause
interference or danger.
When connecting the phone or any accessory to
another device, read its user's guide for detailed safety
instructions. Do not connect incompatible products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation of
the equipment and for the safety of personnel, it is
recommended that the equipment should only be used
in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
Electronic Devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against the
RF signals from your wireless phone. Consult the
manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a minimum
distance of 15 cm {6 inches) be maintained between a
wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These
recommendations are consistent with the independent
research and recommendations of Wireless Technology
Research.
Persons with pacemakers:
e Should always keep the phone more than 15 cm (6
inches) from their pacemaker when the phone is
switched on
e Should not carry the phone in a breast pocket
e Should use the ear opposite the pacemaker to
minimise potential interference
If you have any reason to suspect that interference is
taking place, switch off your phone immediately.
Hearing Aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you
may wish to consult your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical devices, consult
the manufacturer of your device to determine if It is
adequately shielded from external RF energy. Your
physician may be able to assist you in obtaining this
information. Switch off your phone in health care
facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to
external RF energy.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
ás
E
Posted Facilities
Switch off your phone in any facility where posted
notices require you to do so.
Potentially Explosive Atmospheres
Switch off your phone when in any area with a
potentially explosive atmosphere and obey all signs
and instructions. Sparks in such areas could cause an
explosion or fire resulting In bodily injury or even
death.
Users are advised to switch off the phone while at a
refuelling point (service station). Users are reminded of
the need to observe restrictions on the use of radio
equipment in fuel depots (fuel storage and distribution
areas), chemical plants or where blasting operations
are In progress.
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such
as propane or butane), areas where the air contains
chemicals or particles, such as grain, dust or metal
powders, and any other area where you would
normally be advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well
as user-programmed functions, which cannot
guarantee connection in all conditions. Therefore, you
should never rely solely on any wireless phone for
essential communications (medical emergencies, for
example).
Remember, to make or receive any calls the phone
must be switched on and in a service area with
adequate signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features are in
use. Check with local service providers.
To make an emergency call, proceed as follows.
1. Е the phone is not on, switch it on.
2. Key in the emergency number for your present
location (for example, 111 or any other official
emergency number). Emergency numbers vary by
location.
3. Press the <SEND> key.
lf certain features are in use (call barring, for example),
you may first need to deactivate those features before
you can make an emergency call. Consult this
document and your local cellular service provider.
When making an emergency call, remember to give all
the necessary information as accurately as possible.
Remember that your phone may be the only means of
communication at the scene of an accident; do not cut
off the call until given permission to do so.
Other Important Safety Information
e Only qualified personnel should service the phone or
install the phone in a vehicle. Faulty installation or
service may be dangerous and may invalidate any
warranty applicable to the device.
e Check regularly that all wireless phone equipment in
your vehicle is mounted and operating properly.
e Do not store or carry flammable liquids, gases or
explosive materials in the same compartment as the
phone, its parts or accessories.
e For vehicles equipped with an air bag, remember
that an air bag inflates with great force. Do not
place objects, including both installed or portable
wireless equipment in the area over the air bag or in
the air bag deployment area. If wireless equipment
is improperly installed and the air bag inflates,
serious injury could result.
e Switch off your phone before boarding an aircraft.
The use of wireless phones in aircraft may be
dangerous to the operation of the aircraft, and is
illegal.
e Failure to observe these instructions may lead to the
suspension or denial of telephone services to the
offender, or legal action, or both.
Care and Maintenance
Your phone 1$ a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
e Keep the phone and all its parts and accessories out
of the reach of small children’s.
e Keep the phone dry. Precipitation, humidity and
liquids contain minerals that will corrode electronic
circuits.
e Do not touch the phone with a wet hand while it 1$
charging. Doing so may cause an electric shock to
you or damage to the phone.
e Do not use or store the phone in dusty, dirty areas,
as its moving parts may be damaged.
e Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain
plastics.
e Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form Inside the phone,
which may damage the phone's electronic circuit
boards.
e Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
e Do not use harsh chemicals, cleaning solvents or
strong detergents to clean the phone. Wipe it with a
soft cloth slightly dampened in a mild soap-and-
water solution.
e Do not paint it. Paint can clog the device s moving
parts and prevent proper operation.
e Do not put the phone in or on heating devices, such
as a microwave oven, a Stove or a radiator. The
phone may explode when overheated.
e Use only the supplied or an approved replacement
antenna. Unauthorised antennas or modified
accessories may damage the phone and violate
regulations governing radio devices.
e lf the phone, battery, charger or any accessory is not
working properly, take it to your nearest qualified
service facility. The personnel there will assist you,
and if necessary, arrange for service.
Glossary
ОТМЕ- (Dual-tone Multi-Frequency ) You send DIMF
signals when you enter numbers by pressing
Airtime - Actual time spent talking on the wireless o.
the digit keys.
phone. Most carriers bill customers based on
inut irti th
how many minutes of airtime they use each EVRC - (Enhanced Variable Rate Codec) EVRC is a new
month. global standard for compressing and
Antenna - A device for transmitting or receiving decompressing voice signals. EVRC uses a lower
signals. The size and shape of antennas is bit rate (the number of bits sent per second)
determined, in part, by the frequency of the than existing CDMA vocoders, while providing
signal they receive. Wireless phones and the significant improvements in voice quality. This
base station must have antennas. technology enables your phone to provide
superb voice quality while benefiting from the
Base Station - The fixed radio transmitter/receiver that ability to process more cellular voice calls using
maintains communications with mobile less bandwidth than the voice codecs in CDMA
radio telephones within a given area. networks today.
(Typically called a cell or cell site)
Frequency - A measure based on time, as one or more
CDMA - (Code Division Multiple Access) A spread- . .
waves per second, in an electrical or light
spectrum approach to digital transmission. wave information signal. A sianal's
With CDMA, each conversion Is digitized and , gnal. A Sig
then tagged with a code. The mobile phone frequency is stated in cycles-per-second or
deciphers only a particular code to pick the Hertz (Hz).
right conversation off the air. The transmitted
o, Hands-Free - A feature that permits a driver to use a
signal is just above noise level across the
wireless phone without lifting or holding
labl
available bandwidth the handset - an important safety feature
for automobiles, tractors and most other
Channel - Communications signals transmit along paths
motorized vehicles.
called channels.
Codec - Compression & Decompression. LCD - (Liquid Crystal Display) Commonly used to refer to
- . . the screen display on the wireless phone.
Deactivation - The process of rendering a wireless prey P
phone inactive.
ae
eRe
TARA
a
LED - (Light Emitting Diode) Commonly used to refer to
a small light on the wireless phone or on the
Desktop Charger. The LED lights on the phone to
indicate an incoming call. The lights on the
charger indicate that battery charging is taking
place.
Prepend - The addition of a prefix, such as an area
code, to a phone number.
RF - Radio Frequency
Roaming - The ability to use a wireless phone to make
and receive calls in places outside of the
home service area.
Service Charge - The amount paid each month to
receive wireless service.
Standby Time - The amount of time a fully charged
wireless portable or transportable
phone can be on and idle without being
in use. (See Talk Time)
Talk Time - The length of time a person can talk on a
portable or transportable wireless phone
without recharging the battery.
Vocoder - Voice Coder. A device used to convert speech
into digital signals.
Wireless - Radio-based Systems that allow
transmission of telephone or data signals
through the air without a physical
connection, such as a metal wire (copper) or
fiber optic cable.
Index
A
Accessories + 9
Air time (1-5) e 55
Alarm (5-5) ® 84
Alerts (7-3) e 98
Animation ® 101
Auto answer (0-1) ® 105
Auto retry (0-3) e 106
Backlight (8-4) e 102
Banner (8-3) e 102
Battery
charging ® 18
installing ® 17
low battery indicator e 20
removing ® 18
precautions + 114
C
Calculator {5-6} ® 85
Call
answer (0-2) e 105
answering ® 34
emergency ® 25
ending ® 25
forwarding + 37
from Phone Book ® 26
incoming (1-2) « 53
making ® 24
missed ® 36
outgoing (1-1) ® 52
redialing last ® 25
restriction e 111
three way ® 39
waiting * 38
Caller ID ® 36
Care e 124
Characters, entering + 40
Charging batteries ® 18
Clock + 103
Connect tone + 98
Contrast (8-6) ® 103
Correcting number ® 25
D
Data/fax
receiving/sending ® 109
Data/fax (0-6) ® 108
Dialing
pause e 29
prepend e 26
speed ® 27
voice e 32, 88
Disconnect tone e 98
Display
LCD e 10
external e 15
DTMF tone
length (7-6) ® 99
Dual clock (8-5) ® 103
Е
Erasing History (1-4) ® 54
Erase Msg (3-7) ® 59
External Display ® 15
F
Finding
phonebook e 56
G
Games (9) ® 104
Greeting ® 94
Icon description ® 13
Inbox | 3-3) © 66
In-call options ® 35
Incoming calls (1-2) « 53
Installing battery ® 17
K
Key Beep (7-5) e 99
Keys
description + 11
location ® 10
L
Last number redialing ® 25
Letters, entering + 40
Listening
voicemail ®65
Lock code ® 111
Low battery indicator ® 20
Maintenance ® 124
Memo pad (5-4) ® 83
Memory (2-5) e 61
Memory, clearing ® 113
Menus
list e 49
scrolling ® 47
shortcuts ® 48
Messages
erasing + 69
filed ® 68
greeting ® 94
setup (3-8) ® 70
voice e 65
Minute beep + 98
Missed calls ® 36
Modes
phone ® 22
text input e 40
Mute
microphone ® 35
Names
entering + 40
find (2-1) © 56
NAM setting (0-5) ® 107
Number
adding in an entry ® 60
correcting ® 25
my phone # (2-4)e 61
searching ® 56
0
Dutbox (3-4) ® 67
Dutgoing calls (1-1) e 52
P
Phone
layout e 10
lock ® 110
my number (2-4) e 61
Phonebook (2) e 56
PIN
code e 112
Planner (5) ® 79
Power save mode e 23
Prepend dialing + 26
Redialing
auto e 106
last call ® 25
Removing battery + 18
Reset phone ® 113
Restrict e 111
Ring
type (7-2) « 97
volume (7-1) ® 96
Roam ringer (7-4) ® 99
S
Safety
batteries e 115
information ® 114
precautions e 7
Schedular (5-2) ® 81
searching
phonebook ® 56
Security (0-8) e 110
Service alert ® 98
Service light ® 16
Setting NAM (0-4) e 107
Setting system (0-5) e 107
Setting time (5-9) « 87
Setup (0) ® 105
Sounds (7) ® 96
Speed dialing e 27
Standby mode + 22
Switching on/off
phone e 21
T
Task List (5-3) ® 82
Text, entering + 40
Today (5-1) e 79
Tone length (7-6) ® 99
T8 text mode e 42
U
Unpacking + 9
V
Version (0-7) ® 110
Voice answer (6-3) e 92
Voice dial (6-1) ® 88
Voice memo (6-2) ® 91
Voice message (3-2) e 65
Volume, adjusting
ring {7-1} * 96
key (7-5) ® 99
W
Web Browser
get in web (4-1) « 73
prompt (4-2) ® 78
World time (5-7) © 86
Writing new message * 62
ee a ie bees}
4 ИЕ ee it
Make a call Phone number + e” Speed dialing
End a call BNO
Receive a call => or Open the phone
Adjust key beep [fin Standby made}
volume A o on the left side
Adjust speaker (during a conversation)
volume A / on the left side
Redial the last call > twice
switch to silent Hold #
mode
Voice dialing Hold + or open the
folder + Say aname
Save a Number
Phone book
Search
Launch the web Press #
browser
Enter memory location of
desired number, holding the
last digit to automatically
dial.
Number + OK + (CA
(Category) + OK + Name +
OK + lí necessary, — /— to
change the settings + OK
(save)
Press — in Standby mode
+ — /— + 0K or =>
Angas :8
UOISISA : /
xej/eje(] ‘9
ша}5Ас 1as
WYN 195
Ajay olny
jamsuy ||29
JaMsuy ony
DHOAA 12204
ysnd Ysnd
1seu09 97]
490/19 ¡ena
14619368
Jauueg
JadediJe AA
81A)S nuayy
10/40 18M0q
ybua] suoy
daag Áay
Jabuly weoy
ЕЛА
adA| Jabuly
alunjoA Jabuly
JaMSUY 3910A
OWA 3910A
“
À
$100} 8910A : 9
au] 138
UMOg 4105
Sul] PLJOAA
J10]e¡no|e)
Ley
реа owayy
351] 952]
13¡npayos
Aepoy
19щ04
Jen ul 389
Bunies JS
ISIN 85813
vay gem
ISA Pally
xoqng
XOqU|
Эд
ISIN MON
AIOWBlA]
# 94044 AN
5unjas drag
Anu MAN рру
put}
au; лу
AIOYSIH 98813
Passi
Bumuoau]
Bulobing
dnjas :0
SAWEQ :6
Ae/dsig : 8
SPUNOS : £
JOULE Id
AAA ssajaıı
sabessayy
4008 auoud
Licensed by QUALCOMM Incorporated under one or more
of the following Patents.
U.S Patent No. 4,901,307 5,056,109 5,099,204
5,101,501 5,103,459 5,107,225
9,109,390
