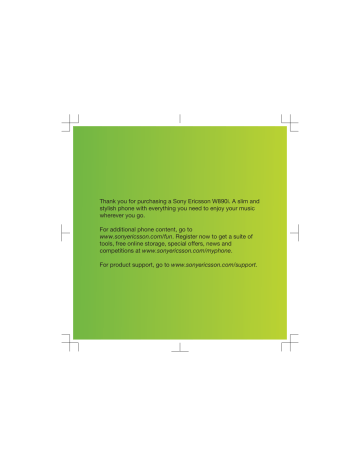

Thank you for purchasing a Sony Ericsson W890i. A slim and stylish phone with everything you need to enjoy your music wherever you go.
For additional phone content, go to www.sonyericsson.com/fun . Register now to get a suite of tools, free online storage, special offers, news and competitions at www.sonyericsson.com/myphone .
For product support, go to www.sonyericsson.com/support .
Accessories – More for your phone
Stereo Bluetooth™ Headset HBH-
DS200
Enjoy wireless music without missing a call.
Stereo Portable Handsfree HPM-83
Street-style neck band headset with superior audio performance.
Portable Bluetooth™ Speaker MBS-100
A wireless sphere of music.
These accessories can be purchased separately but may not be available in every market. To view the full range go to www.sonyericsson.com/accessories .
Contents
Getting started......................5
Assembly........................................5
Turning on the phone.....................6
Help in your phone.........................7
Charging the battery.......................7
Phone overview..............................8
Menu overview.............................10
Navigation....................................12
File manager.................................13
Phone language...........................15
Entering text.................................15
Calling..................................16
Making and receiving calls...........16
Contacts.......................................18
Call list..........................................22
Speed dial....................................22
Voicemail......................................23
Voice control................................23
Diverting calls...............................25
More than one call........................25
Conference calls...........................26
My numbers.................................26
Accept calls..................................26
Restricted dialling.........................27
Fixed dialling................................27
Call time and cost........................28
Messaging...........................28
Receiving and saving messages.....................................28
Text messages.............................29
Picture messages.........................30
Message options..........................31
Templates.....................................31
Voice messages...........................31
Email.............................................32
My friends ....................................33
Area and cell information.............35
Imaging................................35
Camera and video recorder.........35
Viewfinder and camera keys........35
Using the camera.........................36
Camera icons and settings...........36
Camera shortcuts.........................36
Transferring pictures....................37
Camera printing............................38
Pictures........................................38
PhotoDJ™ and VideoDJ™...........39
Themes.........................................39
Entertainment......................40
Stereo portable handsfree............40
Walkman® player.........................40
Video player..................................40
1
2
Music and video controls.............40
TrackID™.....................................43
Radio............................................44
PlayNow™....................................44
Ringtones and melodies...............45
MusicDJ™....................................45
Sound recorder............................46
Games..........................................46
Applications..................................46
Connectivity........................47
Settings........................................47
Phone name.................................47
Using the Internet.........................48
Web feeds....................................49
Bluetooth™ wireless technology....................................50
Using the USB cable....................52
Synchronizing...............................54
Update service.............................56
More features......................57
Flight mode..................................57
Location services.........................57
Alarms..........................................58
Calendar.......................................58
Notes............................................60
Tasks............................................60
Profiles..........................................61
Time and date..............................61
Locks............................................61
Troubleshooting..................63
Common questions......................63
Error messages............................65
Important information.........67
Sony Ericsson Consumer
Web site.......................................67
Service and support.....................67
Guidelines for Safe and
Efficient Use.................................69
End User Licence Agreement.......73
Limited Warranty..........................74
FCC Statement.............................76
Declaration of Conformity for
W890i...........................................76
Index....................................77
Sony Ericsson W890i
UMTS 2100 GSM EDGE 850/900/1800/1900
This User guide is published by Sony Ericsson
Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile
Communications AB at any time and without notice.
Such changes will, however, be incorporated into new editions of this User guide.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2007
Publication number: 1203-2747.1
Please note:
Some of the services in this User guide are not supported by all networks. This also applies to the
GSM International Emergency Number 112 .
Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not.
Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone.
Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones.
The use of such content may be restricted or prohibited by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone.
Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content.
Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content.
Smart-Fit Rendering is a trademark or a registered trademark of ACCESS Co., Ltd.
Bluetooth is a trademark or a registered trademark of Bluetooth SIG Inc. and any use of such mark by
Sony Ericsson is under license.
The Liquid Identity logo, SensMe, PlayNow,
MusicDJ, PhotoDJ, TrackID and VideoDJ are trademarks or registered trademarks of
Sony Ericsson Mobile Communications AB.
TrackID™ is powered by Gracenote Mobile
MusicID™. Gracenote and Gracenote Mobile
MusicID are trademarks or registered trademarks of
Gracenote, Inc.
WALKMAN is a trademark or a registered trademark of Sony Corporation.
Sony, Memory Stick Micro™ and M2™ are trademarks or registered trademarks of Sony
Corporation.
Google™ and Google Maps™ are trademarks or registered trademarks of Google, Inc.
SyncML is a trademark or registered trademark of
Open Mobile Alliance LTD.
Ericsson is a trademark or registered trademark of
Telefonaktiebolaget LM Ericsson.
Adobe Photoshop Album Starter Edition is a trademark or registered trademark of Adobe
Systems Incorporated in the United States and/or other countries.
Microsoft, ActiveSync, Windows, Outlook, and Vista are registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text
Input is licensed under one or more of the following:
U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480,
5,945,928, and 6,011,554; Canadian Pat. No.
1,331,057, United Kingdom Pat. No. 2238414B;
3
4
Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842
463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE,
GB; and additional patents are pending worldwide.
Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun™ Java™
J2ME™.
Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part.
Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries.
Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported
(i) into, or to a national or resident of, Cuba, Iraq, Iran,
North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially
Designated Nations or the U.S. Commerce
Department's Table of Denial Orders.
Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical
Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable.
Other product and company names mentioned herein may be the trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
All illustrations are for illustration only and may not accurately depict the actual phone.
Instruction symbols
These symbols may appear in the User guide.
Note
Tip
Warning
A service or function is network- or subscription-dependent. Contact your network operator for details.
> Use a selection or navigation key to scroll and select. See
Navigation on page 12.
Getting started
Assembly
Before you start using your phone, you need to insert a SIM card and the battery.
To insert the SIM card
To insert the battery
1 Unlock the battery cover locks on both sides.
2 Remove the battery cover.
3 Slide the SIM card into its holder with the gold-coloured contacts facing down.
1 Insert the battery with the label side up and the connectors facing each other.
2 Slide the battery cover into place and lock it.
Getting started 5
Turning on the phone
To turn on the phone
1 Press and hold down .
2 Enter your SIM card PIN, if requested and select OK .
3 Select a language.
4 Select Yes to use the setup wizard while settings are downloaded.
If you want to correct a mistake when you enter your PIN, press .
SIM card
The SIM (Subscriber Identity Module) card, which you get from your network operator, contains information about your subscription. Always turn off your
6 Getting started phone and detach the charger before you insert or remove the SIM card.
You can save contacts on the SIM card before you remove it from your phone.
See To copy names and numbers to the
SIM card on page 20.
PIN
You may need a PIN (Personal
Identification Number) to activate the services in your phone. Your PIN is supplied by your network operator.
Each PIN digit appears as *, unless it starts with emergency number digits, for example, 112 or 911. You can see and call an emergency number without entering a PIN.
If you enter the wrong PIN three times in a row, the SIM card is blocked. See SIM card lock on page 61.
Startup screen
The startup screen appears when you turn your phone on. See Using pictures on page 38.
Standby
After you have turned your phone on and entered your PIN, the name of the network operator appears. This view is called standby.
Help in your phone
Help and information are available in your phone. See Navigation on page 12.
To use the setup wizard
1 From standby select Menu > Settings
> the General tab > Setup wizard .
2 Select an option.
To view information about functions
• Scroll to a function and select Info , if available. In some cases, Info appears under Options .
To view the phone demonstration
• From standby select Menu >
Entertainment > Demo tour .
To view status information
• From standby press the volume key up.
Charging the battery
The phone battery is partly charged when you buy it.
To charge the battery
1 Connect the charger to the phone. It takes approximately 2.5 hours to fully charge the battery. Press a key to view the screen.
2 Remove the charger by tilting the plug upwards.
You can use your phone while it is charging. You can charge the battery at any time and for more or less than 2.5
hours. You can interrupt the charging without damaging the battery.
Getting started 7
Phone overview
3
4
1
2
5
6
Call key
Connector for charger, handsfree and USB cable
Activity menu key 7
8
9
Memory card slot (under the cover)
Keylock key
10 Ear speaker
11 Screen light sensor
12
13
14
On/off key
Video call camera
Walkman® key
Selection keys
Screen
End key
C key (Clear)
15 Navigation key, Walkman® player control
16 Silent key
1
2
3
4
7
8
9
5
6
8 Getting started
10
11
12
13
14
15
16
17 Main camera
18 Battery cover locks
19 Volume, digital zoom keys
20 Camera key
21 Strap hole
17
18
19
20
21
Getting started 9
Menu overview
PlayNow™
Camera
Radio
Calls **
All
Answered
Dialled
Missed
Internet
Messaging
Write new
Inbox
Web feeds
Drafts
Outbox
Sent messages
Saved messages
My friends*
Call voicemail
Templates
Manage messages
Settings
10 Getting started
Contacts
Myself
New contact
Organizer
File manager **
Alarms
Applications
Video call
Calendar
Tasks
Notes
Synchronization
Timer
Stopwatch
Calculator
Code memo
Entertainment
Online services*
Games
TrackID™
Location services
VideoDJ™
PhotoDJ™
MusicDJ™
Remote control
Record sound
Demo tour
Media
WALKMAN
Settings **
General
Profiles
Time & date
Language
Update service
Voice control
New events
Shortcuts
Flight mode
Security
Setup wizard
Accessibility*
Phone status
Master reset
Sounds & alerts
Ring volume
Ringtone
Silent mode
Increasing ring
Vibrating alert
Message alert
Key sound
Display
Wallpaper
Themes
Startup screen
Screen saver
Clock size
Brightness
Edit line names*
Calls
Speed dial
Smart search
Divert calls
Switch to line 2*
Manage calls
Time & cost*
Show/hide my no.
Handsfree
Connectivity
Bluetooth
USB
Phone name
Network sharing
Synchronization
Device management
Mobile networks
Internet settings
Streaming settings
Message settings*
Accessories
* Some menus are operator-, network- and subscriptiondependent.
** You can use the navigation key to scroll between tabs in submenus. For more information, see Navigation on page 12.
Getting started 11
Navigation
The main menus are shown as icons.
Some submenus include tabs.
To navigate the phone menus
1 From standby select Menu .
2 Use the navigation key to move through the menus.
To select actions on the screen
• Select an action shown at the bottom of the screen by pressing the left or right selection key, or the centre navigation key.
To view options for an item
• Select Options to, for example, edit.
To scroll between the tabs
• Scroll to a tab by pressing the navigation key left or right.
To return to standby
• Press .
To end a function
• Press .
To navigate your media
1 From standby select Menu > Media .
2 Press the navigation key right to select an item.
3 To go back, press the navigation key left.
To delete items
• Press to delete items such as numbers, letters, pictures and sounds.
Shortcuts
You can use keypad shortcuts to go directly to a menu. Menu numbering starts from the top left icon and moves across and then down row by row.
To go directly to a main menu
• From standby select Menu and press
– , , or .
To use navigation key shortcuts
• From standby press , , or to go directly to a function.
12 Getting started
To edit a navigation key shortcut
1 From standby select Menu > Settings
> the General tab > Shortcuts .
2 Scroll to an option and select Edit .
3 Scroll to a menu option and select
Shortc.
.
Activity menu
The activity menu gives you quick access to certain functions.
To open the activity menu
• Press .
Activity menu tabs
• New events – missed calls and new messages.
• Running apps – applications that are running in the background.
• My shortcuts – add your favourite functions to access them quickly.
• Internet – quick access to the
Internet.
File manager
You can use the file manager to handle files saved in the phone memory or on a memory card.
You may have to purchase a memory card separately.
Memory card
Your phone supports Memory Stick
Micro™ (M2™) memory card adding more storage space to your phone. It can also be used as a portable memory card with other compatible devices.
To insert a memory card
• Open the cover and insert the memory card with the gold-coloured contacts facing down.
Getting started 13
To remove a memory card
• Open the cover and press the edge of the memory card to release and remove it.
To view memory card options
1 From standby select Menu >
Organizer > File manager > the On memory card tab.
2 Select Options .
Handling files
You can move and copy files between your phone, a computer and a memory card. Files are saved on the memory card first and then in the phone memory. Unrecognized files are saved in the Other folder.
You can create subfolders to move or copy files to. You can select more than one or all the files in a folder at the same time for all folders except Games and
Applications .
If the memory is full, delete some content to create space.
File manager tabs
The file manager is divided into three tabs, and icons indicate where the files are saved.
• All files – all content in the phone memory and on a memory card
• In phone – all content in the phone memory
• On memory card – all content on a memory card
To view information about files
1 From standby select Menu >
Organizer > File manager .
2 Find a file and select Options >
Information .
14 Getting started
To move a file in the file manager
1 From standby select Menu >
Organizer > File manager .
2 Find a file and select Options >
Manage file > Move .
3 Select an option.
To select more than one file in a folder
1 From standby select Menu >
Organizer > File manager .
2 Scroll to a folder and select Open .
3 Select Options > Mark > Mark several .
4 For each file you want to mark, scroll to the file and select Mark .
To delete a file from the file manager
1 From standby select Menu >
Organizer > File manager .
2 Find the file and press .
Phone language
You can select a language to use in your phone.
To change the phone language
1 From standby select Menu > Settings
> the General tab > Language > Phone language .
2 Select an option.
Entering text
You can use multitap text input or T9™
Text Input to enter text. The T9 Text
Input method uses a built-in dictionary.
To change text input method
• When you enter text, press and hold down .
To shift between capitals and lowercase letters
• When you enter text, press .
To enter numbers
• When you enter text, press and hold down – .
To enter full stops and commas
• When you enter text, press .
To enter text using T9™ Text Input
1 From standby select, for example,
Menu > Messaging > Write new > Text message .
2 If is not displayed, press and hold down to change to T9 Text Input.
3 Press each key only once, even if the letter you want is not the first letter on the key. For example, to write the word
“Jane”, press , , , .
Write the whole word before looking at the suggestions.
4 Use or to view suggestions.
Getting started 15
5 Press to accept a suggestion.
To enter text using multitap
1 From standby select, for example,
Menu > Messaging > Write new > Text message .
2 If is displayed, press and hold down
to change to multitap text input.
3 Press – repeatedly until the desired letter appears.
4 When a word is written, press add a space.
to
To add words to the built-in dictionary
1 When you enter text using T9 Text
Input, select Options > Spell word .
2 Write the word using multitap input and select Insert .
Calling
Making and receiving calls
You need to turn on your phone and be within range of a network.
To make a call
1 From standby enter a phone number
(with international country code and area code, if applicable).
2 Press . See Video call on page 18.
You can call numbers from your contacts and call list. See Contacts on page 18 and Call list on page 22. You can also use your voice to make calls. See Voice control on page 23.
To end a call
• Press .
To make international calls
1 From standby press and hold down
until a “+” sign appears.
2 Enter the country code, area code
(without the first zero) and phone number.
3 Press .
16 Calling
To re-dial a number
• When Retry?
appears select Yes .
Do not hold your phone to your ear when waiting. When the call connects, your phone gives a loud signal.
To answer a call
• Press .
To reject a call
• Press .
To change the ear speaker volume during a call
• Press the volume key up or down.
1
2
To mute the microphone during a call
Press and hold down
Press and hold down resume.
.
again to
To turn the loudspeaker on during a call
• Select SpkrOn .
Do not hold your phone to your ear when using the loudspeaker. This could damage your hearing.
To view missed calls from standby
• Press to open the call list.
Networks
Your phone switches automatically between GSM and 3G (UMTS) networks depending on availability.
Some network operators allow you to switch networks manually.
To switch networks manually
1 From standby select Menu > Settings
> the Connectivity tab > Mobile networks > GSM/3G networks .
2 Select an option.
Emergency calls
Your phone supports international emergency numbers, for example, 112 and 911. These numbers can normally be used to make emergency calls in any country, with or without the SIM card inserted, if a 3G (UMTS) or GSM network is within range.
In some countries, other emergency numbers may also be promoted. Your network operator may therefore have saved additional local emergency numbers on the SIM card.
To make an emergency call
• From standby enter 112 (the international emergency number) and press .
Calling 17
To view your local emergency numbers
1 From standby select Menu >
Contacts .
2 Scroll to New contact and select
Options > Special numbers >
Emergency nos.
.
Video call
See a person on the screen during calls. Both parties need a subscription that supports the 3G (UMTS) service, and you need to be within range of a 3G
(UMTS) network. 3G (UMTS) service is available when appears.
To make a video call
1 From standby enter a phone number
(with international country code and area code, if applicable).
2 Select Options > Make video call .
To use the zoom with an outgoing video call
• Press or .
To view video call options
• During the call, select Options .
Contacts
You can save names, phone numbers and personal information in Contacts .
Information can be saved in the phone memory or on the SIM card.
Default contacts
You can choose which contact information is shown as default. If
Phone contacts is selected as default, your contacts show all the information saved in Contacts . If you select SIM contacts as default, your contacts show names and numbers saved on the SIM card.
To select default contacts
1 From standby select Menu >
Contacts .
2 Scroll to New contact and select
Options > Advanced > Default contacts .
3 Select an option.
Phone contacts
Phone contacts can contain names, phone numbers and personal information. They are saved in the phone memory.
To add a phone contact
1 From standby select Menu >
Contacts .
2 Scroll to New contact and select Add .
3 Enter the name and select OK .
4 Enter the number and select OK .
18 Calling
advertisement
Related manuals
advertisement
Table of contents
- 7 Getting started
- 7 Assembly
- 8 Turning on the phone
- 9 Help in your phone
- 9 Charging the battery
- 10 Phone overview
- 12 Menu overview
- 14 Navigation
- 15 File manager
- 17 Phone language
- 17 Entering text
- 18 Calling
- 18 Making and receiving calls
- 20 Contacts
- 18 Call list
- 18 Voice control
