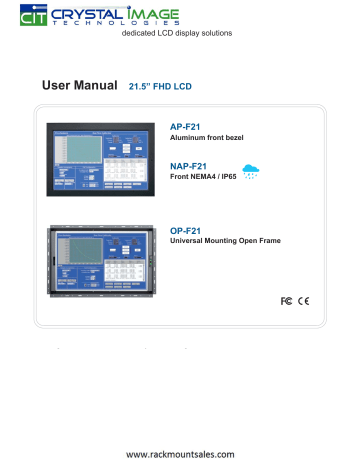

Crystal Image Technologies AP-F21, NAP-F21 User Manual

dedicated LCD display solutions

User Manual

21.5” FHD LCD

AP-F21

Aluminum front bezel

NAP-F21

Front NEMA4 / IP65

OP-F21

Universal Mounting Open Frame

Designed and manufactured by Austin Hughes

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

■

Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■

Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■

When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing dam

age to other equipment or injury to persons nearby.

■

When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■

Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■

If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed

on the equipment’s ratings label.

■

Observe all precautions and warnings attached to the equipment.

■

If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being dam

aged by transient over-voltage.

■

Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, fi re or electrical shock.

■

Only quali fi ed service personnel should open the chassis. Opening it yourself could damage the equipment and invali

date its warranty.

■

If any part of the equipment becomes damaged or stops functioning, have it checked by quali fi ed service personnel.

What the warranty does not cover

■

Any product, on which the serial number has been defaced, modi fi ed or removed.

■

Damage, deterioration or malfunction resulting from:

□

Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modi fi cation, or failure to follow instructions supplied with the product.

□

Repair or attempted repair by anyone not authorized by us.

□

Any damage of the product due to shipment.

□

Removal or installation of the product.

□

Causes external to the product, such as electric power fl uctuation or failure.

□

Use of supplies or parts not meeting our speci fi cations.

□

Normal wear and tear.

□

Any other causes which does not relate to a product defect.

■

Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modi fi cations made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■

Re-position or relocate the receiving antenna.

■

Increase the separation between the equipment and receiver.

■

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-UV-F21-Q112V1 www .rackmountsales

.com

Contents

< Part. 1 >

AP-F21 / NAP-F21

1.1

1.2

1.3

Package Content

Structure Diagram & Dimension

Mounting Hardware & Installation

< Part. 2 >

OP-F21

2.1

2.2

2.3

Package Content

Structure Diagram & Dimension

Mounting Hardware & Installation

P.1

P.2 - 3

P.4 - 5

P.6

P.7 - 8

P.9

< Part. 3 >

Specifi cations / LCD OSD

3.1

3.2

Product Speci fi cations

OSD for Basic Inputs ( VGA + DVI-D )

OSD for Upgrade Inputs ( VGA, DVI-D, HDMI, AV, Audio )

P.10 - 11

P.12

P.13 - 14

< Part. 4 >

Options

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

Option Table

3G / HD / SD-

SDI

Broadcast-grade input

MCS

Multi-display control solution

F21.5" Touchscreen : Resistive, Capacitive, Multi-touch

48V, 24V or 12VDC power

MIL-type or lockable connector

Quad display for CCTV

TV - PAL or NTSC

P.15

P.16

P.17 - 18

P.19 - 20

P.20

P.21

P.22

P.23 - 24

UM-UV-F21-Q112V1 www.austin-hughes.com

Before Installation

■

It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■

Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive

dust, dirt, heat, water, moisture and vibration.

Unpacking

The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

How To Clean Your LCD Monitor

Caution :

■

To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or

plugging your monitor into an electrical outlet.

■

When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can

scratch or damage your display. Pressure damage is not covered under warranty.

■

Use only cleansers made speci fi cally for cleaning monitors and monitor screens. Cleansers not made to

clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.

■

Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly

onto the screen or case can cause damage which is not covered under warranty.

■

Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based

paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

Disconnect the power cord.

Gently wipe the surface using a clean, dry micro fi ber cloth. Use as little pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

1 Disconnect the power cord.

Spray a small amount of non-abrasive cleanser on a micro fi ber cloth.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfi ber cloth fi rst, not directly on the parts you are cleaning.

UM-UV-F21-Q112V1 www.austin-hughes.com

< Part 1 >

< 1.1 > Package Content - AP / NAP-F21

AP-F21 / NAP-F21

21.5" FHD LCD Display

21.5" FHD LCD display X 1

6ft VGA cable X 1

Power adapter X 1

Power cord X 1

Mounting hardware X 1 pack

- Mounting bracket x 4 pcs

- M4* 6mm screw x 8 pcs

- M4* 50mm screw x 8 pcs

< 1.2 > Structure Diagram - AP / NAP-F21

1

2

3

4

Front view

AP-F21

NAP-F21

7

5

1

2

Rear case

LCD panel

3

4

Protective 3mm glass

6mm aluminum front bazel

5

6

7

Audio speaker, pair

LCD membrane

Remote sensor

Rear view

Power HDMI DVI-D S-Video RCA VGA Audio

in - in - out

PC Video

Standard I/O : VGA and DVI-D

Options I/O : HDMI, Audio, S-Video + RCA with RC-2 remote controller

TV, USB for touchscreen

SDI or MCS ( either one )

Model

AP-F21

NAP-F21

Product Dimension

(W x D x H)

578 x 59 x 369 mm

22.7 x 2.3 x 14.5 inch

Packing Dimension

(W x D x H)

659 x 117 x 640 mm

25.9 x 4.6 x 25.2 inch

Net

Weight

5 kg

11 lbs

Gross

Weight

10 kg

22 lbs

6

P.2

< 1.2 > Dimension - AP / NAP-F21

Front View

AP-F21

NAP-F21

21.5” FHD LCD Display

Side View

Rear View

UNIT : mm

1mm = 0.03937 inch

Bottom View

P.3

< 1.3 > Panel Mount Installation - AP / NAP-F21

1 Mounting bracket x 4 pcs

2 M4*6mm screw x 8 pcs

Hardware set part no. UV-BK#2

3 M4*50mm screw x 8 pcs

Steps

■

Install 4 mounting brackets with 8 x M4*6mm screws

■

Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.

< 1.3 > VESA mount Installation - AP / NAP-F21


M4 screw

VESA mount ( 100*100mm )

■

Hardware and M4*4 pcs for VESA mount are not provided

< Part 2 >

< 2.1 > Package Content - OP-F21

OP-F21

21.5" FHD LCD display X 1

6ft VGA cable X 1

Power adapter X 1

Power cord X 1

< 2.2 > Structure Diagram - OP-F21

1

2


Front view

OP-F21

1

Rear case

2

3

LCD panel

Audio speaker, pair

4

5

Universal open frame mounting

LCD membrane

6

Extended remote sensor membrane cable

( 66cm from AD board to sensor end )

Rear view

Power HDMI DVI-D S-Video RCA VGA Audio

in - in - out

PC Video

Standard I/O : VGA and DVI-D

Options I/O : HDMI, Audio, S-Video + RCA with RC-2 remote controller

TV, USB for touchscreen

SDI or MCS ( either one )

Model

OP-F21

Product Dimension

(W x D x H)

575 x 53 x 366 mm

22.6 x 2.1 x 14.4 inch

Packing Dimension

(W x D x H)

659 x 117 x 640 mm

25.9 x 4.6 x 25.2 inch

Net

Weight

5 kg

11 lbs

Gross

Weight

10 kg

22 lbs

4

5

3

6

P.7

< 2.2 > Dimension - OP-F21

Front View

OP-F21

Side View

Rear View

UNIT : mm

1mm = 0.03937 inch

Bottom View

P.8

< 2.3 > Installation - OP-F21

(

I

) Universal mount


(

II

) VESA mount ( 100*100mm )

M4 screw

Hardware and M4*4 pcs for VESA mounting are not provided

P.9

< Part 3 >

< 3.1 > Product Specifi cations

Mechanical

Design

Front Panel

Rear Casing

VESA Mounting

Other Mounting

Protection

LCD

Panel

Manufacturer

Panel Size ( diagonal )

Display pixel ( dots x lines )

Brightness ( typ. )

Contrast Ratio ( typ. )

Color

Viewing Angle ( L/R/U/D )

Response Time ( ms )

Dot pitch ( mm )

Display Area ( mm )

Surface treatment

Surface hardness

Backlight Type

MTBF ( hrs )

AP / NAP-F21

Black, RAL 9005

Dark grey, RAL 7037

100 x 100mm

Panel mount

3mm protective glass

OP-F21

-

Dark grey, RAL 7037

100 x 100mm

Universal mount

21.5-inch Widescreen TFT color LCD

1920 x 1080

250

1000:1

16.7 M

85/85/80/80

5

0.248

476.64H x 268.11V

Haze 25%, Hard-coating

3H

LED

30,000

Video

Connectivity

Digital

Analog

Plug & Play

Synchronization

HDMI

DVI

VGA

Composite ( RCA )

S-Video ( 4-pin )

DVI / VGA

VGA

HDMI 1.1, CEA-861-D

DVI-D, TMDS single link

Analog 0.7Vp-p

NTSC & PAL

NTSC & PAL

VESA EDID structure 1.3

Separate, Composite & SOG

Audio

Connectivity

Audio Input

Audio Output

Connector 3.5mm stereo jack

Impedance / Power level 30k Ω / 750mV

Connector 3.5mm stereo jack

Speaker Output

Resistance / Power level 30k Ω / 2.8V

Power 2 x 2W

*When the audio output is connected, speaker output is OFF

Power

Power Supply

Range

Power Consumption Screen display ON

Power saving mode

Power button OFF

Auto-sensing 100 to 240VAC,

50 / 60Hz

32W or less

4W or less

1W or less

P.10

Regulatory

Environmental

Conditions

Physical

Specifi cation

Applicable

Format


Safety Approval

Operating

Storage

FCC & CE

Temperature

Humidity

Temperature

Humidity

Shock

Vibration

0 to 50°C degree

20~90%, non-condensing

-5 to 60°C degree

5~90%, non-condensing

10G acceleration (11ms duration)

5~500Hz 1G RMS random

Product ( W x D x H )

Packing ( W x D x H )

Net Weight

Gross Weight

DVI-D / VGA Input PC Signal

AP / NAP-F21

578 x 59 x 369 mm

22.7 x 2.3 x 14.5 inch

659 x 117 x 640 mm

25.9 x 4.6 x 25.2 inch

5 kgs / 11 lbs

10 kgs / 22 lbs

HDMI Input PC Signal

Video Signal

OP-F21

575 x 53 x 366 mm

22.6 x 2.1 x 14.4 inch

659 x 117 x 640 mm

25.9 x 4.6 x 25.2 inch

5 kgs / 11 lbs

10 kgs / 22 lbs

1920 x 1080 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 960 x 60Hz

1280 x 768 x 60 / 75Hz

1152 x 864 x 75Hz

1024 x 768 x 60 / 70 / 75Hz

848 x 480 x 60Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

640 x 400 x 70Hz

640 x 350 x 70Hz

Same as VGA

1080p : 50 / 60Hz

1080i : 50 / 60Hz

720p : 50 / 60Hz

Composite / S-Video

Input

Audio Signal

NTSC

PAL

2ch Linear PCM ( 32 / 44.1 / 48 KHz )

525 lines, 60 fi elds / sec

625 lines, 50 fi elds / sec

P.11

< 3.2 > OSD for Basic Inputs ( VGA + DVI-D, for AD board 2.1 )

Power light

Green = On

Orange = Power saving

Membrane Switch Function

Power on / off LCD

Display the OSD menu

Scrolls through menu options and adjusts the displayed control

(To auto adjustment by pressing the button for 5 seconds)

Exit the OSD screen

Toggle analog, digital & video connection (DVI-D and video options only)

OSD Confi guration Page

Image: for the brightness, contrast, color temp, red, green, and blue

Geometry: for the auto adjust, H position, V position, phase and clock

Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup

Audio: for volume, bass, treble, balance, AVL and mute

Misc: for the language, OSD position, graphic mode, ratio, reset and timer

P.12

< 3.2 > OSD for Upgrade Inputs


( VGA, DVI-D, HDMI, AV and Audio, for AD board 3.0 )

Picture mode : Standard / Vivid / Soft / User mode to choose

Brightness :

Contrast :

Adjust background black level of the screen image

Adjust the difference between the image background

(black level) and the foreground (white level)

Hue:

Saturation :

Adjust the screen hue value

Adjust the saturation of the image color

Picture size : Adjust the image size

Color temp : Standard / Cool / Warm / User to choose

Noise reduce : Reduce the noise of the image

Sharpness : Adjust the image from weak to sharp

Auto adjust : Automatically adjust sizes, centers and fi ne tunes the

video signal to eliminate waviness and distortion.

Clock :

Phase :

H. Position :

V. Position :

Adjust the clock value

Adjust the phase value

Align the screen image left or right

Align the screen image up or down

Audio mode : Movie / Voice / Normal / Music mode to choose

Volume : Adjust the volume of sound

Bass : Set the value of bass sound

Treble : Set the value of treble sound

Balance : Set the balance value of treble and bass sound

Analog TV audio : Set the value of analog TV audio sound

Mute : Turn off the surrounding sound

< 3.2 > OSD for Upgrade Inputs

( VGA, DVI-D, HDMI, AV and Audio, for AD board 3.0 )

Auto search : Automatically search

Manual search : Search the TV manual

Fine tune : Fine tune the TV signal

Color system : Adjust the TV color

Sound system : Adjust the TV sound

Channel edit : Edit the channel

Language :

Sleep timer :

PIP mode :

Select the language in which the OSD menu is

displayed - English

Set the off time

Adjust picture in picture setting

PIP position : Enter into PIP position

PIP source : Enter into the Sub source and sound source

System reset : Return the adjustment back to factory setting

Information : Select for Help

P.14

< Part 4 > Options


< 4.1 > Option Table

Basic Options

SDI ***

HDMI

S-Video + RCA

Audio

Touchscreen

MCS multi-display control ***

DC Power

MIL-type / lockable connector

Quad display

TV *

AP / NAP OP

***

( 1 ) The user can only select either SDI or MCS inputs.

( 2 ) For SDI or MCS input, the AD board will be upgraded to version 3.0, and this comes standard

with HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and RC-2 remote controller.

*

For TV option , this comes with RC-2 remote controller.

P.15

< 4.2 > Options : 3G / HD / SD-SDI input

Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.

Designed for use with UltraView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a

SDI input module without using additional space or power and it comes standard with a 2-year warranty.

SDI

Power

HDMI DVI-D

S-Video RCA VGA

Audio in - out

in - in - out

PC Video

***

For

SDI

input, the AD board will be upgraded to version 3.0, and this comes standard with

HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and RC-2 remote controller ( please refer to P.24 )

INPUT

3G-SDI IN

3G-SDI OUT

BNC x 1 / 0.8Vp-p ( 75 ohm )

BNC x 1 / Active through, equalized & relocked

Standard Compliance

Compatible Video Format

Video

Audio

3G-SDI

HD-SDI

SD-SDI

ITU-R BT.656

SMPTE 425M / 274M / 296M / 125M

ITU-R BT.656

SMPTE 299M / 272M-C

1080p

1080p

1080i

720p

@60 / 50Hz, 4:2:2

@30 / 25 / 24Hz, 4:4:4

@60 / 50Hz, 4:4:4

@60 / 50Hz, 4:4:4

1080p

1080i

720p

@30 / 25 / 24Hz, 4:2:2

@60 / 50Hz, 4:2:2

@60 / 50Hz, 4:2:2

480i @60Hz, 4:2:2

576i @50Hz, 4:2:2

Compatible Audio Format

3G-SDI

HD-SDI

SD-SDI

Max. Transmission Distance

75 ohm coaxial cable

3G-SDI

HD-SDI

SD-SDI

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /

Asynchronized Video

150m at 2.97Gb/s

250m at 1.485Gb/s

480m at 270Mb/s

P.16

< 4.3 > Options : MCS


MCS

( Multi-display Control )

More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the

OSD

of various UltraView LCD display up to 64 units.

The RS-232C is used for the communication between the PC and the fi rst display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters.

Designed for use with UltraView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.

MCS

Power

HDMI DVI-D

S-Video RCA VGA

Audio

Link in out set

in - in - out

PC Video

***

For

MCS

input, the AD board will be upgraded to version 3.0, and this comes standard with

HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and RC-2 remote controller ( please refer to P.24 )

RS-232C

Set switch

For the 1st and last display, push the set switch downward

For other daisy chain displays, push the set switch upward

15 feet serial cable

( over 15 feet, extender required )

RJ-45 jack

LINK OUT

Cat5 / 6 cable max. 300 meters

IN OUT IN


OUT


IN OUT

Daisy chain up to 1,000 meters and 64 displays up to 64 displays

< 4.3 > Options : MCS

< 4.4 > Options : Touchscreen & driver


F21.5" USB Touchscreen Specifi cation

Model

Technology

Touch Point

Method

Activation Force

Durability

Response Time

Optical Transmittance

Surface Hardness

Haze

Glass

Connector

Compatibility

TRB e-Resistive

5-Wire Resistive

TCB e-Capacitive

Capacitive

TMC2 Multi-touch

Projected Capacitive

Single

Stylus or Finger

≤ 50g / Stylus=R0.8

10 million touches

15 ms

80% ± 3%

3H

8% ± 3%

3.2 ±0.2 mm

Single

Finger

≤ 50g

300 million touches

20 ms

87% ±2%

Dual

Finger

≤ 50g

100 million touches

9H 7H

7% 3%

2.8 mm ±10%

USB Type A

Windows 7 / XP / Vista, Linux

20 ms

90% ±2%

2.4 ±0.15 mm

USB Type A

Windows 7

■

USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc

■

For detailed information, please refer to the attached CD disc

■

As the touchscreen unit is not made of toughened glass, please handle it carefully

USB Touchscreen

Power

HDMI DVI-D

S-Video RCA VGA

Audio

in - in - out

PC Video

TRB & TCB Driver

Please follow the below steps to setup the touch screen:-

Step 1. Run the bundled CD disc or download the driver from the link below :

http://austin-hughes.com/downloads/index.php?opt=UVDL&n=sw

Step 2. Double click the Setup.exe

Step 3.

Follow the installation instruction to fi nish the setup

Step 4.

After installation, run the TouchKit program & the “4 point calibration”

Please do the initial calibration after the fi rst setup

< 4.4 > Options : Touchscreen & driver

TMC2 Driver

Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.

< 4.5 > Options : DC Power

Model

Input rating

Input voltage:

Input range:

Input current

- No load

- Full load

Output rating

Output voltage:

Output current:

Effi ciency

12V

12-Volt

9 ~ 18V

50 mA

4950 mA

12-Volt

4.16A

84%

24V 48V

24-Volt

18 ~ 36V

50 mA

2450 mA

12-Volt

4.16A

85%

48-Volt

36 ~ 75V

50 mA

1220 mA

12-Volt

4.16A

85%

< 4.6 > Options : MIL-type or Lockable Connector


MIL - type

Connector

Input

DC Power ***

( Male )

Part no.

MS3470W8-33P

VGA ***

( Male )

MS3470W14-15P

MIL Standard

MIL - DTL - 26482

MIL - DTL - 26482

Lockable

Connector

*** There are several additional MIL DC and VGA connector types with varying design

characteristics to meet cost considerations and to provide users with the most

design fl exibility possible. For more information, please contact us.

Input

DC Power

( Male )

Part no.

YM-Ext-461CP001

Standard

D-type 3W3

USB LUSB - A111 - 00 -

*** MIL - type or Lockable connectors above can be integrated with our LCD displays.

Sale service just for connectors not provided.

< 4.7 > Options : Quad Display

QD Specifi cation

Item Description

Model Number

Number of Color

Imaging System

Resolution

Refresh Rate

Video Input

Video Output

Camera Input

VCR Input

Live Monitor

Loop Through Out

VCR Output

Auto Gain Control

Time / Date

On Screen Display

Camera Title

Display Format

2 x Zoom On

Playback

QUAD

FULL

SEQUENCY

Dwell Time

Alarm Inputs

Relay Outputs

Alarm Hold Time

Built-in Buzzer

Key Lock

QD (NTSC)

16.7 M

NTSC

1024 x 525

60

1.0 Vpp, 75 Ohm x 4

1.0 Vpp, 75 Ohm x 1

1.0 Vpp, 75 Ohm x 1

1.0 Vpp, 75 Ohm x 4

1.0 Vpp, 75 Ohm x 1

Yes

Yes

Yes

8 Character Title

Yes

Yes

Yes

Yes

0 to 99 Sec Adjustable

Selectable NO/NC Contacts x 4

NO/NC contacts x 1: 1A @DC24V Max.

1 Sec to Non-stop

Yes

Yes

QD (PAL)

16.7 M

PAL

1024 x 625

50

***

For QD option, the casing dimensions will be changed.

< 4.8 > Options : TV ( Analog )

Power

HDMI DVI-D

S-Video RCA

Audio


TV

VGA

in - in - out

PC Video

***

( 1 ) For TV option, the AD board will be upgraded to version 3.0, and this comes standard with

HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and RC-2 remote controller.

( 2 ) For TV option, casing dimensions will be changed.

How to Use RC-2 Remote Controller


1

2

3

4

INPUT MUTE

VOL

1 2 3

4 5 6

7 8 9

AUTO

0

-/--

CH

FREEZE

MENU SELECT ASPECT

9

10

5

6

7

20

21

ENTER SLEEP

BACK EXIT PIP

SOURCE

SWAP

PIP

POSITION

PIP

AUDIO

13

15

16

17

19

Water proof

3

4

5

1

2

6

9

10

7

8

11

12

13

14

15

16

0 - 9

AUTO

MENU

BACK

MUTE

Vol + / -

CH + / -

FREEZE

- / --

ASPECT

SELECT

SLEEP

EXIT

INPUT

▲ / ▼ / ◄ / ► / ENTER

Select the source

Switches on or off the TV

Only use in TV mode. Select channels. For channel numbers 10 and above, enter the second digit within two seconds.

Auto adjust

Display the menu on the screen or go to the previous menu

Go to the upper menu or select the previous value /

Go to the next menu or select the next value /

Decrease the setting value /

Increase the setting value or enter to the select item setting

Enter to the select item settings or excude the setting

Back to previous value

Turn on or off the speaker

Increase or decrease the speaker volume

For TV model only, increase or decrease the channel number

Reserve for OEM model

For setting input single or double digits

Adjust the screen size

To select the existing item

Select the sleeping time

Exit the menu or cancel

17

18

19

20

21

PIP functions

PIP

PIP AUDIO

POSITION

SOURCE

SWAP

Picture in picture

To set the audio of in PIP mode

To set the screen position in PIP mode

PIP Source

Swap screen in PIP mode

No results
