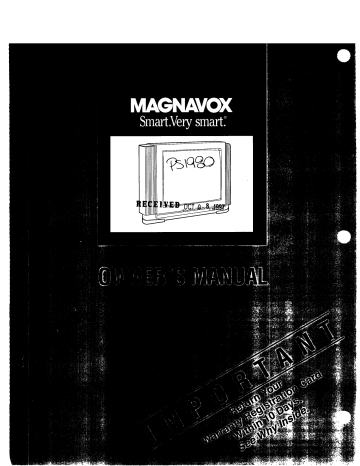

MAGNAVOX

Smart.Verysmart:

MAGNAVOX

Smart.Verysmart:

Congratulations on your purcha

-and welcome to the "family!"

Dear MAGNAVOX product owner:

Thank you for your confidence in MAGNAVOX.

You've selected one of the best-built, best-backed products available today. And we'll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the MAGNAVOX "family," you're entitled to protection by one of the most comprehensive warranties and outstanding service networks, in the industry.

What's more, your purchase guarantees you'll receive all the information and special offers which you qualify for, plus easy access to accessories from our convenient home shopping network.

And most important of all, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome-and thanks for investing in a

MAGNAVOX product.

Sincerely,

Robert Minkhorst

President and Chief Executive Officer

P.S.

Remember, to get the most from your MAGNAVOX product, you must return your Warranty Registration

Card within 10 days. So please mail it to us right now!

(t_i Getting Started

............................... 2-3

Antenna/Cable Connections ................... 4-5

VCR to TV Antenna Connections ............................. 5

Basic TV and Remote Control Operation .............. 6-7

On-Screen Features

How to Use On-Screen Feature Controls .8-9

<>Setting the TV for Cable TV Operation............ 10

<>Adding Channels in Memory (Automatically). 11

<>Adding Channels in Memory (Manually) ......... 12

<>How to Set the TV for Closed Captioning ....... 13

<>Setting the TV for Stereo Programs .................. 14

<>Using Smart Sound (Auto Volume Control) .... ! 5

<>Using the TV Volume Bar Control ................... 16

<>Setting the TV Sleep Timer Control ................. 17

<>Using the TV Channel Reminder ...................... 18

<>Adjusting the TV Color ....................................

18

<>Using the On-Screen Language Option ............ 19

<>Using the Audio Out Jacks (with TV Speaker

On/Off Switch) ................................................

20

<>Using the TV's Audio/Video Input Jacks .........21

Remote Control Ooeration

Setting the "IV Remote to Work VCRs..24-25

Setting the TV Remote to Work

Cable TV Converters ..........................................

26-27

Setting the TV Remote to Work VCRs - Search

Method .....................................................................

28

Setting the TV Remote to Work Cable

Converters-,Search Method .................................... 29

[_l General Information

Tips if Something Isn't Working ............... 30

Glossary of TV Terms .............................................

31

Index ........................................................................

31

Warranty ..................................................................

32

Copyright © 1994 Philips Consumer Electronics Company. All rights reserved.

3

1

Infrared Remote Control which works your TV set [I and a variety of wireless remote control VCRs and

Cable Converters.

•

Standard broadcast (VHF/UHF) or Cable TV

(CATV) channel capability.

Stereo Ready TV with built-in audio amplifier and twin speaker system for receiving TV programs broadcast in stereo sound.

Closed Captioning which allows the viewer to read

TV program dialogue or voice conversations as onscreen text.

Automatic Programming of channels for quick and

easy selection of favorite stations available in your area.

On-Screen Features (in either English, French, or

Spanish) which show helpful messages for setting of

TV controls (such as color adjustment, timer settings, and channel memory.)

Audio/Video jackpanel for direct connections with

VCRs (or other video accessories) for quality TV picture and sound playback.

Sleep-Timer which automatically turns the "IV OFF

at preset times.

i

Smart Sound for the control of TV volume levels during program changes or commercial breaks.

I

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD DO NOT EXPOSE THIS UNIT TO

RAIN OR EXCESSIVE MOISTURE.

The Model and Serial Numbers are found on the back of this TV set. Please record these numbers and purchase date in the space below. Refer to them whenever you ask your dealer about this TV set.

Model No.-

Serial No.

Purchase Date

Please attach your sales receipt to this book and keel

it for future reference.

m

T_irst let's connect your Antenna

JL or Cable TV signal to your TV.

This will be easy since there is only one 751-2antenna plug on the back

of your TV - and that's where the antenna goes.

[BEGIN]

<_IF your antenna (or CABLE TV signal) has a round cable (75 ohm) with a metal prong (F-connector) on the end, then you're ready to connect it to the TV.

......

r-.

-o

IF your antenna has flat twin-lead wire (300ohm), you first need to attach the antenna wires to the screws on a 300 to 75 ohm adapter.

<

,_ Push the round end of the

adapter (or cable) onto the

ANTENNA plug on the rear of the

TV. If the round end of the cable

connector is threaded, screw it down tight.

0

Outdoor VHF/UHF Antenna

Wire _'<

'

%o ,_

-:

,, ,, i"

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

\

N

Try it out. Press POWER to

turn the "IV ON. Press the

CHANNEL UP button. You

should see local channels flash by.

Certain channel numbers have been

added to the TV's memory at the

factory. To set the "IV to select only the channel numbers in your area, see page 11.

Adapter

(483521827003 )

Outdoor VHF/UHF Antenna

Back of TV

_o Remem6er.

If the TV is nnected to a Cable TV

(CATV) signal, be sure to set the

TV for that type signal (see page

10.)

J

Round Cable

75_

_:_-_-:

,

....

I

To order any optional accessory contact your dealer or call the toll-free accessory ordering number

(1-800-292-6066):

UHF/VHF Combiner ........... SBV 1133A01

75-300 Ohm Adapter ........... SBVI 113A01

300-75 Ohm Adapter .......... 483521827003

Cable TV Signal

4

ome of you may have two separate antennas.

For instance, one antenna is for VHF channels (2-13) and the other antenna is for UHF channels

(14-69).

[ BEGIN l

For homes with two separate antennas you will need an optional

"combiner" before you can connect to the TV. See previous page for ordering details.

_,_ Attach the separate antennas to the correct screws on the combiner.

_Push the round end of the combiner onto the ANTENNA plug on the rear of the TV.

@

Outdoor UHF Antenna

Twin Lead

Wire

Adapter

Twin Lead

Wire

Outdoor

Antenna

VHF o connect a V_R to the TV:

[ BEGIN ]

4k

Connect your Antenna or

Cable TV signal to the IN FROM

ANT. plug on the VCR.

<

_ Connect the OUT TO TV plug on the VCR to the ANTENNA

plug on the TV.(connecting cable

supplied with the VCR.)

@

Round Cable

75f_ Supplied with VCR

VCR

Round Cable

75f_

Outdoor VHF/UHF

Antenna

300 to 75fl

Adopter

Ty

Cable TV Signal

[BEGIN J

Press the POWER button to

turn the TV ON. (Note: you can

press any button on the front of

the TV to turn the TV ON.)

The tuned channel number will

always briefly appear when the

TV is first turned ON (and with channel changes). You can also

press the STATUS button (on the

remote) to see what channel the

TV is ON.

"_ Press the VOLUME UP (A) or DOWN (V) button to adjust

the sound level.

_ Press the CHANNEL UP (A)

or DOWN (V) button to select

TV channels.

@Press the TV "System"

button on the remote to be sure

the remote sends its commands to

the TV.

Point the remote control toward the remote sensor window on the

TV when operating the TV with the remote.

<_ Always press two number buttons on the remote when selecting channels.

For example: press "0" then "6" for channel 6.

Remember.

If the TV is

(CATV) signal, be sure to set the

TV for that type signal. See page

10.

6

Remote

Sensor

Window

POWER

lOad the supplied batteries to the remote:

_

Remove the battery compartment lid on the back of the remote.

<_ Place the batteries (3-AA) in

I the remote. Be sure the (+) and

[ (-) ends of the batteries line up

I correctly (inside of case is

I marked.)

O

Reattach the battery lid.

l

eatures for your TV can be adjusted from a MENU screen shown on the TV. A MENU is nothing more than an on-screen list of features.

Each MENU item can be adjusted by v&wing the screen and pressing a button.

[BEGIN)

(-,,,_ Press MENUA or • on the

TV (or M button on the remote).

An on-screen list of features appears on the TV screen.

<,,_ Press MENU • or • (or M •

• on the remote) to pick any of the on-screen features.

IF you pass the feature you want, you can press the MA button to back up through the MENU.

(Press the M• button to go down through the MENU items).

Press (+) or (-) to adjust the

I selected on-screen feature.

Press STATUS/EXIT button on the remote to clear the screen after an adjustment

Use the "MENU EXIT" item and press (+) or (-)/"YES" to clear the screen. You can also just wait and after a minute the MENU will drop from the screen.

k

_ Remember. If the on screen

MENU disappears and you are not finished working with it, just press MENU (or M button) and the feature list will return to the screen.

Selection ARROW points to the active MENU item. An adjustment scale (or box) al.,;o shows next to the se ected MENU tern.

I

I

I

V MENU A V CH A

-+

V VOL A POWER

ON THE

TELEVISION

'_

V

_ON THE

REMOTE

n-screen features that come with your TV:

Six MENU items will show on the TV screen at one time.

An ARROW will point to the active item.

Just press MENU • or • buttons to move up or down through the MENU item list.

Note: If you continue to press the MENU • button after the last ("EXIT MENU") item, you will start again at the beginning of menu item list.

This also works in the opposite direction.

See the following section for details on how to work each

MENU item.

SAP

AVL

INPUT

CABLE

PROGRAM

CHANNEL

SLEEP

REMINDER

CAPTION

VOL. BAR

LANGUAGE

EXIT MENU

73

__ Vou need to make sure that the

.L TV is set to pick up either

Cable TV stations or Antenna signals.

In other words, the TV needs to know whether you have

connected a Cable 73/signal or a normal antenna to its ANTENNA plug.

<_ Press MENU • or on the

TV (or on the remote press M button and then M •• buttons.)

Select the word CABLE with the

TV's on-screen Arrow.

<_ Press the

(+) or (-) buttons

(on the TV or the remote) to select either:.

YES- If you DO have Cable TV

connected to the TV.

Channels I- 125 can be selected.

NOIf you have an Antenna connected to the TV.

Channels 2-69 can be selected.

€,_ Press STATUS to clear the screen

Wait for the on-screen control

to automatically drop from the screen.

Try it out. Press CHANNEL r"A• buttons and scan the channelt. CHAr on the remote works only after STATUS button is pressed (or Menu times out.)

_ Remember.

The TV has select certain channel numbers.

See the following page on how to set the TV to select the channels in your area.

10

J

m our 11/can automatically set tself for local area (or Cable

TV) channels. This makes it easy for you to select only the TV stations in your area when the

CH(annel) • • buttons are pressed.

Please check and be sure the TV is set for the type of signal you have

connected to the TV - Antenna or

Cable TV (see previous page.)

<_ Press MENU • or • on the

TV (or on the remote press M button and then M A_' buttons.)

Select the word PROGRAM with the TV's on-screen Arrow.

<_ Press the (+) button

(on the

TV or the remote) to PROGRAM.

<,,_ Press the (+) button

again to start the TV search for area channels.

Flashing channel numbers will count upward on the screen as the

TV looks for channels to "ADD".

You may press any button (on the

TV or remote) to stop the channel search at any time. When the channel search is completed the

TV will return to the last viewed channel.

<_ Press STATUS button to clear

I the screen •

ITry it out. Press CHANNEL

&Y buttons and see which

channels have been added.

_ Remember.

If you want to drop any unwanted channels from the TV's memory, see the next page on how to "Manually" add and delete channels.

Note: As the TV searches for channels to "ADD" into memory the on-screen display may move

(or jitter slightly). This is normal operation and does not indicate a need for service.

7

DPROGRAM ii added to the TV's memory.

"WHITE" channel

11

until the search for channels is

I he TV screen will be blocked off

J

uto Programming (see

previous page) adds all the

channels it can find (on your

Antenna or Cable TV system) into

the TV's memory. Add/Delete

Channels makes it easy for you to

add other channels, or drop

unwanted channels, from the list

of channels in the TV's memory.

l BEGIN J

_-_ Press MENU • or • on the

TV (or on the remote press M button and then M •• buttons.)

Select the word CHANNEL with the TV's on-screen Arrow.

<_ Press CHANNEL • •

buttons (or Channel Number buttons on the remote) to select the channel you want to SAVE (or

DELETE.)

_,_ _ Press (+) button to SAVE the selected channel number into memory.

Press (-) button to DELETE a channel from memory.

@Press the STATUS button to clear the screen after adding all the channels you want.

Try it out. Press the

CHANNEL_ or • buttons

and "scan" from channel to channel. The channels you

SAVED _hould appear. The channels you DELETED should not appear.

_d Remember. You can also d the VCR/AUX mode (see page 21) into the TV's channel memory. Then by pressing the CH

• • buttons you can quickly select the Audio/Video Input jacks on the rear of the TV. Just

"SAVE" the VCR/AUX mode

(located between the lowest and highest channel numbers) into the

TV's memory.

12 / /

--------a

i t t t i ""_" i_v

I 121 i c ¢:DS<D

:iili _

• • . • :_..H/+::+ .....

If you need to SAVE (or DELETE) a channel above 100, use the CH&Y buttons. The remote control number buttons can select only up to channel 99.

12

k

losed Captioning allows you to ead the voice content of television programs on the TV screen.

Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.

Press MENU • or • on the

TV (or on the remote press M button and then M AV buttons.)

Select the word CAPTION with the

TV's on-screen Arrow.

_, _ Press (+) or (-) buttons to select the desired Closed Caption (CC) mode - For Example: CAPTION 1.

CAPTION 1, 2, 3, or 4 mode: dialogue (and descriptions) for the action on the captioned

TV program shows on-screen.

(See important note on this page.)

TEXT 1, 2, 3, or 4 mode: often used for channel guide, schedules, or bulletin board information for CC programs.

_,,_ Press the STATUS button after making your Caption mode selection. The TV display will clear and the selected Caption mode will be active.

To cancel, set the CAPTION feature to OFF when finished viewing.

O l_emember.

Broadcast

_tations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the onscreen action.

These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the TV.

NOTE: Not all TV programs and product commercials are made for broadcast with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4, or TEXT 1-4)) necessarily being used by a broadcast

station during the transmission of a closed caption program. Refer to your area's

TV program listings for the stations and times of Closed Caption shows.

I

CAPTION mode

Example Display

TEXT mode

Example Display

TV screen will be blocked from viewing

13

mJ our TV can receive broadcast stereo TV programs.

The TV has both an amplifier and twin speakers through which the stereo sound can be heard.

[ BEGIN J

<1,,_,_ Press MENU • or • on the

TV (or on the remote press M button and then M •• buttons.)

Select the word STEREO with the

TV's on-screen Arrow.

Press (+) button to turn the

STEREO MODE ON.

Press STATUS to clear the screen

_pre Remember.

If stereo is not and the TV is placed in the

STEREO mode, the sound coming from the TV will remain monaural (mono.)

SAP is an additional part of the stereo broadcast system. Sent as a third audio cl_nnel SAP can be heard apart from the current TV program sound. TV stations are free tomse SAP for any number of purposes, but many experts believe it will be used for foreign language translations of TV shows (or for weather and news bulletins.)

Remember. If a SAP signal not present with a selected program, the SAP option cannot be selected. Also, if SAP is selected on a channel (with SAP) and you select another channel, when you return to the original channel SAP will be OFF (and you will have to reselect the SAP feature.)

14

__ • L

STEREO

mm

Wo e Smart Sound (Automatic lume Leveler - A VL ) control allows you to preset a certain volume level beyond which the TV sound will not exceed.

This enables you to hear a more consistent, even sound level by reducing the

_eaks and valleys that can occur during program changes or commercial breaks.

[ BEGIN I

</1_ Press the Smart Sound button on the remote.

"AUTO-VOLUME" shows on the

TV screen.

<_ Press the

Smart Sound button

'_ Press the STATUS button to clear the screen when completed.

'__So Remember. The Smart

und control works only with the programs coming through the

Antenna/Cable input on the rear of the TV (RF audio). It will not control the sound levels for the

Auxiliary (VCR/AUX IN) audio inputs.

ii iiii!iiii iiiii

::::.:::,::.:,

i!iiii!!iiii!iiiii

!iiii!i_i!!i!_i!ii_iiiiiiii!iiiiiiiiiiiiiiiiiiiii,,

_ii!{ii!i_i!i!ili]ii_iiiiiiiii{iiiiiiiiiiiiiiiiiiiiiiiii_>

NOTE: AVL can al_ be _lected with I the TV's on-screen Menu. Just press the

(+) or (-) buttons to turn the AVL

I

control ON or OFF.

..... i

15

on the TV screen. Once set the

Volume Bar will be seen each time the VOLUME buttons (on the TV or remote) are pressed.

<,,I_ Press MENU • or • on the TV

(or on the remote press M button and then M •• buttons.)

Select the word VOL.BAR with the

TV's on-screen Arrow.

_2_ Press (+) or (-) buttons to turn

I the VOL BAR control ON.

<,_ Press STATUS button to clear the screen.

Try it out. Press the VOLA• buttons. The VOLUME BAR should appear at the bottom of the screen.

jllnllll

888

c gQ Q

•

1

16

aVe you ever fallen asleep in

ont of the 73/only to have it wake you up at two in the morning with a test pattern screeching in your ears?

Well, your TV can save you all that trouble by automatically turning itself off.

[BEGIN]

Press MENU • or • on the

TV (or on the remote press M button and then M •• buttons.)

Select the word SLEEP with the

TV's on-screen Arrow.

Press the (+) or (-) button

repeatedly to pick the amount of time (15 minutes to 2 hours ahead) before the TV will turn itself off.

Press the STATUS button to clear the screen after you have set the time for the TV to turn off.

Remember.

If you ever ant to see how many minutes are left before the TV shuts itself off, press the

STATUS button on the remote.

If you want to stop a SLEEP

TIMER setting, reset the timer back to OFF. You could also turn the TV off, al_l then back on again, to cancel a setting.

A few_econds before the TV is to shut off a message will come on the screen telling you GOOD

NIGHT.

......

/I

1 i i i i i ' ' I

]]]] ]]]]]]]]

!il

J

• H

17

1

_se e channel number for a lected program can remain on the TV screen by using the

REMINDER feature.

| BEGIN J

1_ Press MENU • or on the

TV (or on the remote press M

button and then M •• buttons.)

Select the word REMINDER with the TV's on-screen Arrow.

2_ Press (+) or (-) button to turn

_

I REMINDER ON.

Press STATUS button to clear the screen.

You should now see the channel number at the bottom of the screen.

_

I

Remember. If Closed

Captioning is ON, neither the

I Channel Reminder or the

I "MUTE" sound indicator will show on the TV screen.

i

I i

_

J: picture controls, select a channel and follow the steps shown below:

To adjust your TV color and

_1_ Press MENU'& or • on the TV

(or on the remote press M button and then M •• buttons) until the desired control shows on-screen.

_ Press (÷) and (-) to adjust the

l selected color control.

___ Press STATUS button

(or

Menu) to clear the screen when

EXIT picture adjustments are completed.

_l'_°_ Remember.

When the bar scale is centered, the control

] settings are at normal mid-range

I levels.

18 i

•i_,:i,i¸ _ :

Press (-) or (+)

until darkest parts of the picture are as bright as you prefer.

PICTURE Press (-) or (+) until

lightest parts of the picture show good detail.

COLOR Press or (+) add or

eliminatecolor.

! TINT Press (-) or (+) to obtain

natural skin tones.

SHARPNESS Press (-) or (+) to improve detail in the picture.

Or our French and Spanish caking TV owners an onscreen LANGUAGE option is present. With the LANGUAGE control you can set the TV's onscreen features to be shown in either English, French, or Spanish text.

( BEGIN J

Press MENU • or • on the

TV (or on the remote press M button and then M •• buttons.)

Select the word LANGUAGE with the TV's on-screen Arrow.

<_ Press (+) or (-) buttons to select either the English, French

(FRANCAIS), or Spanish

(ESPANOL) language option.

Text for the on-screen Menu will change to the selected language.

_5-._

Press STATUS to clear the screen.

"_o Remember. The Language c ntrol only makes the TV's on-screen (MENU) items appear in French or Spanish text. It does not change the language of other on-screen text features such as

Closed Captioned (CC) TV shows.

®

••r I

19

OpUldyou like to hear TV rograms through your audio hi-fi system?

The TV's Audio

Output jacks and TV Speaker

On/Off switeh work together to offer you this TV sound option.

_.,_ Connect the

R(ight) and

L(eft)

AUDIO OUT jacks on the "IV to the R and L Audio Input jacks on

your amplifier or sound system.

Set the audio system's volume to normal listening level.

_--,,_ Turn the TV and audio system

ON. You can now adjust the sound level coming from the audio system with the Volume AY buttons on the TV or remote.

_,,_To hear the TV sound from only the audio system speakers, set the

TV's SPEAKER ON/OFF switch to the OFF position.

You should now only hear TV sound coming from the audio system speakers.

O

Remember. The audio stem may have to be in

UX(iliary) mode to play sound from the TV.

w

VIOEO

N

,®

VAR

AUDIO

ANT I CABLE

75 UHF

Q

I VHF

".'iiii:i:_

U

L

BACK OF "IV

,\

AUDIO IN

(RED/WHITE)

AUDIO SYSTEM

2O

ou can view the playback of

VCR tapes (Video Disc

Players, camcorders, etc). by using the AUDIO and VIDEO

INPUT jacks (on the rear of the

TV).

For example: to view the playback of a VCR tape:

_.._

Connect the AUDIO and

VIDEO INPUT jacks on the TV to the AUDIO and VIDEO

OUTPUT jacks on the VCR.

_-.2_

Press MENU • or • on the

TV (or on the remote press M button and then M k• buttons.)

Select the word INPUT with the

TV's on-screen Arrow.

<,_ Press (+) or (-) button to

select the VCR/AUX(iliary)

<_

INPUTS on the rearof the TV.

Turn the VCR ON and PLAY

the VCR tape to be viewed on the

TV.

VIDEO OUT

(YELLOW)

_ Remember! When you're rough using the A/V INPUT jacks, return the INPUT display screen on the TV to ANT(enna).

Then you will be ready to view

TV programs coming from the normal antenr_ connections.

If you leave the TV in the

VCR//%UX INPUT mode and there is no signal source connected to the jacks, you will be seeing only a blank screen on the TV.

NOTE: If you have a mono

(single audio OUTPUT) VCR,

"Y" Connectors are available

(from your dealer or Parts

Information Center 1 800 292-

6066) to connect the mono audio to both R and L audio inputs on the TV.

AUDIO OUT

(RED/WHITE)

ANT / CABLE

UHF ! VHF

Q

_,-_Q

21

BACK OFTV

SIGNAL

CABLE TV

PICTURE AND SOUND

FROM PLAYBACK OF

VCR TAPE

After installing the batteries into the remote, press the TV System button to send remote commands

to the TV. Point the remote toward the front of the TV (remote sensor window) when pressing buttons.

VCR Buttons

For use of VCR buttons see the "Using the Remote With a VCR".

Menu (VA) Buttons

Press the M button to show on-screen feature controls. Press • or • buttons to move forward and backward through the list of on-screen controls.

(-) and (+) Buttons

Press to adjust the selected on-screen feature control.

V01um¢ Button

Press to adjust the TV sound level.

Re,€t/Enter Button

Press to return the TV to factory preset

levels for picture controls.

Also can be used as an Enter button when sending channel commands to remote controlled cable converters or VCRs.

_;mart Sound Button

Press to control TV sound levels. See

"Smart Sound/Auto Volume" section for details.

Number Buttons

Press the number buttons to select TV channels. Press two number buttons to select single digit channels. For example: to select channel 6...press

"0" first and thetn "6".

The remote's TV-VCR-CBL System buttons control how certain buttons on the remote are used.

For example:

'With the "TV" System button pressed: the MENU, (M)AY, and (+,-) buttons are used to select and adjust on-screen TV features.

With the "VCR" System button pressed:

the same buttons on the remote work playback, search, pause, and other

VCR features.

PLAY• STATUS

PAUSEII

_;tatus Button

Press to see the current channel number on the TV screen. Also press this button to clear the TV screen after control adjustments.

Alternate Channel Button

Press to select the previously viewed channel.

For example: You are watching

channel 4 and change to channel l0

(using the channel number buttons).

Press A/CH and your TV will return to channel 4. Press A/CH again and your

TV will return to channel 10.

Channel Scan Button

Press to scan up or down through channel numbers.

- Mute Button

Press to turn the sound OFF on the

TV. Press again to return the sound to its previous level.

TV-VCR-CBL System

Button_

Press to send remote control command., to either the TV, VCRs, or accessory

Cable Converters. See the "How to operate VCRs and Cable Converters" section for fu_her details.

Pgwer Button

Press to turn the TV (VCR or Cable

Converter) ON and OFF.

22

hen using the TV remote with a VCR, first make certain it is set to control your

VCR ( by the REMOTE CODE or

SEARCH method - see following section).

_ Press theVCR System

button on the remote.

_2,2_ Point the top of the remote

(remote sensor window) when

Record Button

Hold the RECORD button down, and

then press the PLAY button to begin

a VCR recording.

Rewind Button

Press to rewind tapes. For some

VCRs you may need to press STOP button first then REWIND. In playback mode. hold button down to view picture moving rapidly in reverse.

Pause Button

Press to temporarily stop the tape dur- ing a playback or recording. Press

again to release Pause.

"['V-VCR Button

Press to the VCR position ("VCR"

indicator on the V_R will light) to

view the playback of a tape. Press

again to place in the TV position

("VCR" irkdicatoron the VCR will go

OFF) to view one program while recording another program.

i

,,....

.

PLAY STATUS

, Play Button

Press to playback a tape. Hold down after pressing the RECORD button to start a recording.

-Ston Button

Press to stop the tape.

•F_(: Forward Button

Press to rapidly advance the tape. For some VCRs you may need to press

STOP first then FF. In Playback mode hold button down to view the picture moving rapidly in the forward direction.

-Channel Scan Buttons

Press to scan up or down through

VCR channel numbers.

Number Buttons

Press buttons for direct VCR channel selections.

V(_R System Button

Press to send remote commands to the VCR.

Power Button

Pressto turnthe VCRONand OFF.

)

J

_u

I

Remember.

The VCR ttons on the remote will not operate your VCR if those features are not alread), found on your VCR remote control.

Note: All VCR functions

(particularly Search, Rewind, Fast

Forward, etc.) will operate the same as with the original VCR remote control provided with the

VCR.

I

23

m our remote control is set to work your TV and many infrared remote (IR ) control

VCRs.

However, an easy onetime step may be necessary before the remote will work your

VCR.

<1_

Try this initial check to see if going on to the following section

is necessary.

( BEGIN I

Press the VCR System

I button on the remote.

<,_ Point remote toward VCR and press the POWER button.

<_ Does the remote turn the VCR

ON?

IF YES, O and try the other

VCR buttons on the remote. If they also work the VCR, then the remote is ready and no further steps are needed.

If NO, continue...

<

First look up a

TWO-DIGIT remote code number for your brand VCR before going through the simple "1,2,3" steps (on the following page).

_n Remember. If more than e number is listed, you may have to try more than the

first two-digit code given in order to locate your VeCR'sremote code.

4.

.

contmue to next page

VCR

®

f:VCR

BRAND

Akai

Audio Dynamics

Broksonic

Cannon

REMOTE

CODE NO.

24, 25, 36

14, 21,29

31

01

Capehart

Craig

Curtis Mathes

Daewoo

DBX

Dynatech

Emerson

Fisher

Funai

GE

Goldstar

Go Video

Hitachi

Instant Replay

JC Penney

JVC

Kenwood

Lloyds 27

Magnavox 00, 01,02, 05, 27, 28

Magnin

Marantz

30

29

Memorex

Minolta

01,07, 23, 27

03

Mitsubishi 16, 17, 38, 39, 50

Montgomery Ward 12

33

07, 30

01,32, 42, 43

33

14, 21,29

27

20, 31, 34, 40

06, 07, 08

27, 28

01

23

45, 46

03, 51

01

01,03, 23, 29

14, 47, 48

13, 14

24

VCR

Multitech

NEC

Panasonic

Pentax

Philco

Philips

Quasar

RCA

Realistic

Samsung

Sansui

Sanyo

Scott

Sears

Sharp

Shinton

Sony

Sound Design

Sylvania

Symphonic

Tatung

Teac

Teknika

Thomas

TMK

REMOTE

CODE NO.

27,28

14, 21,29

01

02, 03

01,02, 05, 27, 28

00, 01,05, 27, 28

01

03, 04, 32, 42, 43, 44

07,11, 12, 23, 27, 28

22, 30

49

07, 13

19

03, 08, 23

11, 12

35

09, 10,41

27

01,02, 05

27

14

14, 27

26, 27

27

20

Toshiba 18, 19

II

II

Zenith 15J

_m ow that you have looked up the two-digit Remote Code

Number for your brand of VCR

(on previous page), you are ready to follow the four simple steps below.

Please read through steps 1-4 before beginning.

[ BEGIN ]

<..,,,_ Press and release the REC

<_

I (RECORD) button.

Within thirty seconds after

releasing the REC button, press and release the VCR System button.

<,,'_ Within thirty seconds after

releasing the VCR System button, ENTER THE TWO

DIGIT CODE NUMBER for the desired VCR. The remote is now ready to send commands to the VCR.

_v_ Point the remote at the VCR.

Press the POWER button on the remote to turn the VCR ON.

Try it out. The Channel and

VCR buttons on the remote should now operate the VCR.

_wo Remember.

If this doesn't steps using the same remote code number.

If aftei_a second try the remote does not operate your VCR, and there are more code numbers listed for your brand VCR, use the next listed code number.

If after repeated attempts the code number method does not work your VCR, try the "VCR

SEARCH" method on page 28.

VCR

25

STATUS

our remote control is set to work your TV and many infrared remote (IR) control

Cable Converters.

However, an easy one4ime step may be

necessary before the remote will work your Converter.

Try this initial check to see if going on to the following section

is necessary.

<

[ BEGIN ]

> Press the CBL System button on the remote.

<_ Point remote toward Cable

Converter and press the POWER button.

<

[,_ Does the remote turn

Converter ON?

the

IF YES, • and try the CH • • and CH number buttons on the remote.

If they also work the

Converter then the remote is ready and no further steps are needed.

If NO, continue...

I

Cable

Converter

1_ First look up a TWO-DIGIT remote code number for your brand Converter before going through the simple "1,2,3" steps

(on the following page).

_n may haveato try more than the first two-digit code given in order to locate your Converter's remote code.

continue to next page

I

®

CONVERTER

Archer

Diamond

Drake

Gemini

REMOTE

COOE NO.

28

23

37

45

Hamlin

Hitachi

14, 15

Jerrold 01,02,03,04,05,30,46

25

Macom 29, 38

Magnavox

NSC

Oak

Panasonic

Philips

Pioneer

Regency

17,26, 31

49

06, 27, 39

18, 35

19, 20, 21, 24, 26

09, 32

10, I 1

CONVERTER

BRANO

Rembrant

Salora

Scientific Atlanta

Sheritech

Sylvania

Texscan

Tocom

Toshiba

Uniden Satellite

Unika

Universal

Video Tech

Video Way

Viewstar

Zenith

REMOTE "_

COOE NO.

33

52

08, 22, 47

34

16

16, 48

12,13, 53

43

44, 54

50

36

40

51

26

07, 41, 42

1

26

m_ ow that you have looked up the two-digit Remote Code

Number for your brand of Cable

Converter (on previous page), you are ready to follow the four simple steps below.

Please read through steps 1-4

before beginning.

l BEGIN l

_,,,_ Press and release the REC

I (RECORD) button.

_/2,,_,_ Within thirty seconds after releasing the REC button, press and release the CBL System button.

A

,"3,,,_ Within thirty seconds after releasing the CBL System button, ENTER THE TWO

DIGIT CODE NUMBER for the desired Converter. The remote is now ready to send commands to the Converter.

_,,,_ Point the remote at the

Converter. Press the POWER button on the remote to turn the

Converter ON.

O

Try it out. The Channel and buttons on the remote should now operate the

Converter.

Remember.

If this doesn't work the first time, repeat steps u_ing the same remote code number.

If after a second try the remote

does not operate your Converter, and there are more code numbers

listed for your brand Converter,

use the next listed code number.

If after repeated attempts the code number method does not work your Converter, try the

"CONVERTER SEARCH" method on page 29.

I

Cable Converter

I

27

STATUS

our TV remote can be set to work your VCR by what is called the SEARCH method.

If the "REMOTE CODE" number method shown in the previous section did not set your remote to work your VCR, then follow the easy steps listed below.

Please read through steps 1-4 before beginning.

1_ Press the POWER button on

the VCR to turn VCR ON.

_._2_

Stand at least six feet away

from the front of the VCR.

Point the remote toward the

VCR.

HOLD DOWN the A/CH and

VCR System buttons at the same time. KEEP HOLDING

BUTTONS DOWN.

_.,_ Watch the Channel Indicator on the VCR.

Channel Numbers will SCAN UP when the VCR has been identified. This may take up to two minutes.

___ Release the A/CH and VCR

System buttons as soon as

channel numbers start to scan up.

The VCR code has been identified and the remote is ready to operate the VCR.

•

_

4t

Remember. A minute or two can seem very long, but the code should be located within two minutes.

Don't let the VCR scan up more than five channels. If you do the remote may pass up the right code and another two minute search cycle will have to be repeated.

If no channel change happens within two minutes, repeat steps

1-4. Should a channel change still not occur, the remote will not work with the desired VCR.

28

VCR

Don't let the VCR scan up more than five channels

(in Search mode).

Six Feet

(minimum)

J

:iiiiiiiiiiiiiiiiiiiiiii%iiiiiiii_i!_ili!!ili!i!iiii_i_!ii_ii

i i '

mm what is called the SEARCH method.

If the "REMOTE CODE" number method shown in the previous section did not set your remote to work your Converter, then follow the easy steps listed below.

Please read through steps 1-4

before beginning.

IBEGIN l

_,,_ Stand at least six feet away from the front of the Converter.

Point the remote toward the

Converter.

HOLD DOWN the A/CH and

CBL System buttons at the same

time. KEEP HOLDING

BUTTONS DOWN.

< a,,_j Watch the Channel Indicator

on the Converter.

Channel Numbers will SCAN UP when the Converter has been identified. This may take up to two minutes.

"_ Release the A/CH and CBL

System buttons as soon as channel

numbers start to scan up. The

Converter code has been identified

and the remote is ready to operate the Converter.

Remember. A minute or two can seem very long, but the code should be located within two minutes.

Don't let the Converter scan up more than five channels. If you do the remote may pass up the right code and another two minute search cycle will have to be repeated.

If no channel change happens within two minutes, repeat steps 1-

4. Should a channel change still not occur, the remote will not work with the desired Converter.

29

Cable Convener

09

Don't let the Convener man

up more than five channels

(in Search mode).

Six Feet

(minimum)

....

i

iiiiiiiiiiiiiiiiiiiiiiiiiiiii_!ii_i_i_i_i_ili_ii!ii!iii_iiiii_iii!i_i_i_i_'

lease make these simple checks before calling for service.

Theses tips can save you time and money since charges for

TV installation and adjustment of customer controls are not covered under your warranty.

NO Power

CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or •

TV information channel) which shows a constant non-moving pattern on the TV scree,can cause picture tube damage.

When your TV is continuously used with such a sour, the pattern of the non-moving portion of the game (CDI, etc.) could leave an image permanently on the picture tube. When not in use, turn the video source OFF.

Regularly alternate the use of such video sources with normal TV viewing.

Ii outlet and push POWER button again.

Check to be sure outlet is not on a wall switch.

NO Picture

Check antenna connections on the rear of the TV. Are they properly secured to the antenna plug on the TV?

Check the CABLE/YES NO control for correct position.

Check INPUT control for correct position. VCR-AUX position without a signal source will result in a blank screen.

NO Sound

If attempting auxiliary equipment hook-ups, check audio jack connections.

Remote Does Not

Work button to send commands to the TV.

Check batteries.

Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries i heck TV-VCR-CBL "System" buttons on the remote. Press the remote's TV Sysr

Clean the remote and the remote sensor window on the TV.

TV Displays Wrong

Channel or NO

Charmels Above 13

Add desired channel numbers (CHANNEL control) into TV memory.

This TV is equipped with protective circuitry that shuts the TV off in case of moderate power surges. Should this occur turn the TV back on by pressing the POWER button once or twice, or unplug (wait 10 seconds) and then replug the power cord at the AC outlet. This feature is NOT designed to prevent damage due to high power surges such as those caused by lightning, which is not covered by your warranty.

Cleaning and Care

* To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive).

Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marrint_ of the cabinet finish.

I

30

Coaxial Cable * A single solid antenna wire normally matched with a metal plug (F-type) end connector thatscrews (or pushes) directly onto a 75 Ohm input found on the Television or VCR.

Display * An on screen message orgraphics that help the user operate and adjust his Television feature controls. See On Screen Displays

(OSD).

Direct Audio/Video Inputs * Located on the rear of the TV these

connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in

order to receive higher picture resolution and offer sound connection options.

Identify * Method by which a remote control searches and finds an operating code for another product (such as a VCR or Cable Converter.)

Once the code has been "identified" then the TV remote can send commands to and operate the other product.

Multichannel Television Sound (MTS) * The broadcast standard that

allows for stereo sound to be transmitted with the TV picture.

On Screen Displays (OSD) * Refers to the wording or messages generated by the television (or VCR) to help the user with specific feature controls (color adjustment, programming, etc.).

Menu * An on-screen listing of feature controls shown on the

Television screen that are made available for user adjustments.

Programming * The procedure of adding or deleting channel numbers into the Television's memory circuits. In this way the

Television "remembers" only the locally available or desired channel numbers and skips over any unwanted channel numbers.

Remote Sensor Window * A window or opening found on the

Television control panel through which infrared remote control command signals are received.

Second Audio Program (SAP) * An additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. The most frequently proposed use for SAP is the simultaneous bilingual broadcast of TV program material.

Status * Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the

Television of on screen displays or information (rather than waiting for the displays to "time out" or automatically disappear from the

Screen).

Twin Lead Wire * The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems.

In many cases this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more recent Televisions and VCRs.

Accessories/Optional ................................................

Adapter Connector ................................................................

4, 5, 20, 21

4, 5

Add/Delete Channels ........................................................

! 1, 12

Audio/Video Output and Input Jacks ................................

20-21

Auto Volume Control (Smart Sound) .....................................

Battery Installation ....................................................................

15

7

Cable TV Connections/Settings ................................

Channel Display .................................................................

4, 5, 10, 21

6, 18

Channel Memory ..............................................................

Channel Reminder ..................................................................

11, 12

18

Closed Captioning ..................................................................

Controls/TV ..........................................................................

13

6, 8

Controls/Remote ........................................................

Display Button ..........................................................................

7, 9, 22-23

8

Features ......................................................................

Glossary/TV Terms ................................................................

..,............. 3

31

Identify VCRs with TV Remote ........................................

24-25

Identify Cable Conveners with TV Remote ......................

26-27

Inputs/Audio and Video .........................................................

21

Language Option .........................................

:...........................

19

Memory/Program Channels ..............................................

Menu Button ..................

. ....................................

_...............

I 1, 12

8, 22

31

Minus(-)/Plus (+) Buttons ...................................................

8, 22

Power Light Indicator ...............................................................

6

Precautions/Safety ..............................................................

3, 30

Programming Channels ....................................................

11, 12

Remote Control .........................................................

7, 9, 22-23

Reset .......................................................................................

22

Requesting Service ...........................................................

30, 32

RF Coaxial Cable .............................................................

4, 5, 21

Reminder Channel ..................................................................

18

Safety/Precautions ..............................................................

3, 30

Second Audio Program ...........................................................

14

Sensor Remote ....................................................................

6, 22

Set Up/First Time Use ..................................................

4, 5, 6, 8

Sleep Timer ..............................................................

................ 17

Smart Sound (Auto Volume Control) .....................................

15

Status Button ............ ...........................................................

8, 22

Stereo .....................................

i...... ..........................................

14

Tips for Service .......................................................................

VCR Buttons ...... i....................................................................

30

VCR/TV Connections .........................................................

5, 21

Volume Bar Control .............................................................

116

Warranty .................................................................................

32

LIMITED WARRANTY

Color Television

• 90 Day Carry-In Service Labor Warranty

• One (1) Year Exchange On Warranty Parts

• Two (2) Year Exchange Warranty on Color Picture Tube

This warranty gives you specific legal rights and you may have other rights which vary from grate/province to state/province.

Parts and Labor During First 90 Days

For Ninety (90) Days from the date of purchase, a Factory

Service Center or an Authorized Service Center will repair any product defect and replace any defective part, including the picture tube without charge to you tbr parts or labor.

Replacement Parts After 90 Days

If within one (I) year - two (2) years for a picture tube- after the

date of purchase, a part is found defective and needs to be replaced, a Factory Service Center or an Authorized Service

Center will supply to you a new or, at our option, rebuilt part without charge to you for the replacement part. After 90 days from the date of purchase, you must pay for all labor, transportation, and service charges.

Replacement parts and picture tubes installed during the TV warranty period are warranted only for the balance of the original TV warranty period.

What the Purchaser Must Do

Before you call for service, check your operating instruction booklet. A slight adjustment of the customer controls discussed in your instruction booklet may save you a service call.

If you require service during the warranty period, you must take

;your TV to a Factory Service Center or an Authorized Service

Center and pick it up after completion of service.

The Service

Center must be allowed to keep detective parts.

After the first 90

,days of the warranql period, the cost of service labor is your responsibility.

YOU MUST PRESENT PROOF OF THE DATE ON WHICH

THE TV WAS FIRST PURCHASED (SALES RECEIPT OR

OTHER EVIDENCE) WHEN REQUESTING SERVICE OR

REPLACEMENT PART WARRANTY PERFORMANCE.

Warranty Exclusions

Your Warranty Does Not Cover:

Labor charges for set installation or set-up, adjustment of customer or preference controls, and installation or repair of antenna systems outside the TV set.

Product repair and/or part replacement because of misuse, accident, unauthorized repair, or other cause not within the control of Philips Consumer Electronics Company.

Reception problems caused by signal conditions or cable or antenna systems outside the TV.

A television purchased, used or serviced outside the U.S.A.,

Canada, Puerto Rico, and the Virgin Islands, or used for commercial or institutional purposes.

Incidental or consequential damages resulting from the product.

Some state,provinces do not allow the exclusion of incidental or con_quential damages, so the above exclusion may not apply to you.

ALL IMPLIED WARRANTIES

WARRANTIES

INCLUDING

OF MERCHANTABILITY

IMPLIED

AND FITNESS

FOR A PARTICULAR

DURATION TO THE

PURPOSE,

DURATION

ARE LIMITED IN

OF THIS EXPRESS

WARRANTY.

Some states/provinces do not allow limitations

on how long an implied warranty lasts, so the above limitation may not apply to you.

Warranty segvice will be performed by a Factory Service Center or an Authorized Service Center.

You may contact the nearest

Philips Factory Service Center (see the Factory Service Center address directory supplied with your product literature) to obtain both In and Out-of-Warranty repair for your product.

IMPORTANT REMINDER

PLEASE FILL OUT AND MAIL YOUR WARRANTY REGIS°

TRATION CARD PROMPTLY.

IT WILL BE EASIER FOR US

TO NOTIFY YOU IF IT SHOULD EVER BE REQUIRED.

Please write your model and serial numbers below. The numbers are located on the back of your unit. Please remember to have these numbers on hand any time you call.

MODEL NO,

SERIAL NO.

I B 6964-E001 32

IN U.S.A.:

IN CANADA:

Philips Service Company

P.O, Box 555

Jefferson City, TN 37760

(615) 475-8869

Montreal (514) 342-2043

5930 Cote de Liesse, Montreal, Quebcc H4T IE1

Toronto (416) 754-6064

601 Milncr Avenue, Scarborough, Ontario M IB IM,,

Vancouver (604) 435-441 I

3695 Grandvicw Hwy., Vancouver, BC V5M 267
