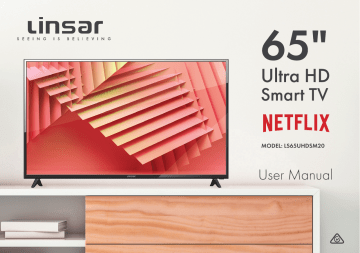

Linsar LS65UHDSM20 User Manual

65"

Ultra HD

Smart TV

MODEL: LS65UHDSM20

User Manual

2

Welcome

Welcome to Linsar!

This user manual tells you all you need to know about setting up your new TV.

Please take special note of any important safety and usage information presented with the symbol.

All products brought to you by Linsar are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive

1 Year Warranty.

Contents

Welcome 2

Contents 3

Unpack and Prepare

What's in the box

4

4

Important Tips

Attaching the stand

Wall-mounting the TV

Connect to power

Connect your antenna

Controls and Connections

Get to know your TV

Buttons on the TV

Ports on the TV

Remote Control 13

Setup 13

Using the Remote Control 14

Remote Control 15

9

9

9

10

7

8

8

5

6

On-Screen Set Up 17

Networking 18

Connecting to a Wireless Network 18

Connecting to a Wired Network 19

TV Setting Menus 20

Picture 22

Sound 24

General 25

PVR Settings 27

Time 29

Network 30

Lock 31

Channel 32

App Settings

High Dynamic Range (HDR)

34

35

Smart TV

Smart TV Applications

36

36

Screencast 37

App Portals 37

TV Guide 38

PVR Recording

Recording Live TV

39

40

Scheduled recording 40

Playback 40

Pause Live TV (Time-shift) 41

USB Mode

Set up

42

42

Troubleshooting 45

Specifications 48

Compliance and Responsible Disposal 49

3

Unpack and Prepare

What's in the box

Before installing your new TV, check you have everything needed.

In the box you will find:

A. UHD Smart TV

B. Remote Control

C. AAA Batteries

D. AV Cable

E. Quick Start Guide

F. Warranty Certificate

G. Screws (for the stands)

H. Stands

I. User Manual

You will need:

• Phillips-head screwdriver (for stand installation)

• Someone to help you lift and install your TV

4 | UNPACK AND PREPARE

See the flap of the box for how to handle the TV without damaging it!

• Broadband internet (to access Smart TV apps)

• Antenna cable (to watch live TV)

Important Tips

• Place the TV on a level surface.

• Place the TV away from any source that may generate heat or vibrations.

• Make sure there is enough space around vents for airflow.

• The remote control works up to 6 metres away from the TV.

• Unplug the TV before cleaning it.

• Clean using a dry cloth only - do not use water or chemicals.

• Use only the power supply provided.

• It is highly recommended to use safety straps for securing the TV in place.

• Keep liquid, children and pets away from the TV at all times.

UNPACK AND PREPARE | 5

Attaching the stand

1

2

• This TV is heavy! We recommend asking someone to help you lift it.

• Unplug the TV from the power outlet before installing or removing the stand.

• DO NOT place the TV standing upright without its stand attached; it could damage the remote sensor at the bottom of the TV.

• Only touch the frame, not the screen.

• It is highly recommended to use safety straps for securing the TV.

Unless you are wall-mounting the TV, you will need to attach its stand/legs.

1. Lay the TV face-down on a soft, flat surface (like the sofa, or a towel on a table).

2. Match the legs to the installation points on the underside of the TV.

3. Attach the stand to the TV at the installation points using the screws provided. (Grab a screwdriver for this bit).


Wall-mounting the TV

• Unplug the TV from the power outlet before wall-mounting.

• Contact a professional for assistance with wall-mounting the TV.

400mm

Back of the TV

Required:

• VESA Mounting

Bracket

• 4 x M6*12mm screws (or longer as required)

The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).

Use four standard M6*12mm screws (or longer, depending on the mounting bracket) to wall-mount this TV (screws are not included).

The screws in the package are for securing the TV stand only. If you are wall-mounting the TV, consult a qualified installer for advice on bracket support and wall support.

UNPACK AND PREPARE | 7

Connect to power

Don't forget to plug in the

TV to the power outlet. Leave the power switched off until installation is finished.

Make sure the TV is switched off at the power outlet until you have finished connecting your cables.

Connect your antenna

Free-to-air TV in HD (High Definition)

Example

HD Channels

ABC HD

SBS ONE HD

7HD

9HD

10 HD

PRIME7 HD

WIN HD

High Definition (HD) channels provide the best viewing quality and are available with a digital antenna connection.

TV channels in Ultra HD resolution are not currently available in Australia.

Therefore when you watch HD broadcast signals on an Ultra HD TV, the picture can appear 'soft' and lacks the detail you see when watching the same content on an HD TV.


Antenna cable not included.

Controls and Connections

Get to know your TV

On/Standby indicator and

Remote sensor

Buttons on the TV

1

2

3

4

5

VOL+ VOL-

CH+ CH-

MENU SOURCE

1. VOL + / VOL - : Increase or decrease the volume level, or move left or right.

2. CH + / CH - : Select the next or previous channel, or move up or down.

3. MENU: Enter the settings menu.

4. SOURCE: Select the input source.

5. VOL + / VOL - : Increase or decrease the volume level, or move left or right.

6. (ON/OFF): Switch the TV to On or Standby.

See next page for more info on the connections.

CONTROLS AND CONNECTIONS | 9

Ports on the TV

1

2

3

Headphone

Jack

HDMI

Use a HDMI cable for best picture and sound quality.

Audio L/R

4

AV IN

5

Component

IN

10 | CONTROLS AND CONNECTIONS

CVBS/Y

HDMI3 (ARC)

1 2 3 4 5 6

Connect to your headphones, amplifier, soundbar or audio device, using an AUX cable. (AUX cable not included.)

All-digital connection between the TV and any HDMI device.

Supports Ultra HD. (Requires a high-speed HDMI cable, not included.)

You can use this to connect audio from your DVD player using the AV cable (included).

You can use this to connect your DVD player. Supports

Standard Definition (SD) picture quality. Requires an AV cable

(included).

You can use this to connect your DVD player. Supports Full

High Definition (FHD) picture quality. This also requires a component cable (not included).

6

8

USB

7

Digtal Audio

Out (Optical)

LAN

9

PC VGA

7 6 8 2 9 10 11

Plug in a USB stick to PVR record and pause live TV. Play media files stored on your USB storage device (supported file codecs and extensions may vary). Update the TV software via

USB.

Connect an external digital audio device. Use an Optical cable

(not included) to connect the unit with an amplifier, soundbar or other audio decoding device for digital audio signal output.

Connect to your broadband modem using a network cable

(not included).

Connect to a PC or other device with a VGA interface

More on next page

CONTROLS AND CONNECTIONS | 11

10

PC Audio

11

Antenna

Connect audio from your PC via a 3.5mm connector

Connect your antenna for live TV. (Antenna cable not included.)

12 | CONTROLS AND CONNECTIONS

Remote Control

AAA size batteries included

Setup

Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into place.

Precautions When Using Batteries

• Do not use old and new batteries together.

• Do not use different types of batteries (e.g.

Manganese and Alkaline batteries) together.

• Remove the batteries from the remote if you do not intend to use it for a long time.

• When discarding used batteries, follow any guidelines for recycling and disposal of batteries that apply in your local area.

• Keep batteries away from children and pets.

• Never throw batteries into a fire or expose them to extreme heat.

REMOTE CONTROL | 13

Using the Remote Control

To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked.

The remote has a range of up to about 6 metres from the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.

6m

Image is an example only.

Remote sensor location on TV may vary.

Remote Hints and Tips

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.

• Do not place objects between the remote control and the remote sensor.

• Do not use this remote control while simultaneously operating a remote control for other devices.

14 | REMOTE CONTROL

Remote Control

ON : Switch the TV to On or

Standby.

NUMBER BUTTONS : Key in a

TV channel number.

CH.LIST

: Display or exit the channel list.

MENU : Access streaming apps,

TV settings.

/ / / : Press the UP/

DOWN/LEFT/RIGHT buttons to navigate.

RETURN : Return to the previous screen or channel.

1

4

7

CH.LIST

2

5

8

0

MENU

OK

3

6

9

SOURCE

4

1

7

CH.LIST

8

0

2

5

3

6

9

MENU SOURCE

OK

RETURN EXIT

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD

P.MODE

INDEX

SUBTITLE

PIC SIZE

S.MODE

( MUTE ): Mute or restore sound.

: Return to previous viewing channel

APPS: Direct access to YouTube,

Toon Goglles, Foxxum and

Netflix app.

SOURCE : Switch the input source

OK : Confirm your selection.

EXIT : Exit/Quit the current screen.

RETURN

EXIT

INFO

REMOTE CONTROL | 15

INFO : Display program information

VOL : Turn the volume up or down.

GUIDE : Launch the TV Guide (DTV)

: Skip backwards.

/ TIMESHIFT : Play/Pause

: Rewind.

/ / / RED/GREEN/

YELLOW/BLUE : Functions are according to the on-screen display.

RECORD : Record a TV.

INDEX : Display the list of recorded programs.

P-MODE :

Cycle through the different picture modes.

OK

RETURN

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

EXIT

/RECORD

P.MODE

INDEX

SUBTITLE

PIC SIZE

S.MODE

16 | REMOTE CONTROL

1

4

7

INFO

2

5

8

0

3

6

9

AUDIO

QMENU

OK

MENU

GUIDE

SOURCE

LIST

EXIT

REC

CH : Go to the next or previous channel.

: Skip forwards.

: Fast forward.

/ FAV:Display your favourite channel list.

PIC.SIZE

:

Press to select desired screen size

S-MODE

:

Cycle through the different sound modes.

SUBTITLE :

Enable/disable subtitles.

On-Screen Set Up

Make sure equipment is properly connected (as shown on pages 10-12) before connecting the TV to power.

Make sure the TV is plugged in at the power socket and switched on. Press the (ON) button to turn on the TV.

On/Standby light is RED in standby mode.

1

4

7

CH.LIST

8

0

2

5

3

6

9

MENU SOURCE

OK

RETURN EXIT

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD INDEX

P.MODE

SUBTITLE

PIC SIZE

S.MODE

On/Standby light is off when the TV is on.

If you are using a wired network, connect an ethernet cable to the TV and select 'wired'. The TV will automatically connect to the

Internet.

First Time Setup menu

When you turn the TV on for the first time, the First Time

Setup menu will appear.

Follow the prompts using the / / / / OK buttons to select your preferences. You will be guided through:

2. Country 3. Environment

4. Data Collection And Firmware Update Notice 5. Connect To The Internet

6. Set Up Netflix 7. Select Input Source 8. Tune TV Channels

Note: If you choose to setup Netflix, the set up wizard will exit and will not let you tune TV channels. To tune channels, go to Menu > TV

Settings > Channel > Auto Scan.

If you are using a wireless connection, select 'Wireless'. The TV will scan for nearby wireless networks. Make sure that the TV is within the range of your wireless modem/router, and you have your Wi-Fi password handy.

Or, you can connect to the internet later by going to the User

Menu settings.

Note: If you choose to connect to a DVD or other device, the set up wizard will exit and will not let you tune TV channels. To tune channels, go to Menu > TV Settings > Channel > Auto Scan.

If you make an error, you can update your preferences in the settings menu later.

ON-SCREEN SET UP | 17

Networking

You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection.

Connecting to a Wireless Network

• Press the MENU button on the remote to select TV

Settings > Network.

• Change network type to 'Wireless' and press ok. The

TV will automatically search nearby Wi-Fi access points. When done, it will display a list of available networks.

• In the list of networks, press the / button to select your home network, then press the OK button.

• When the Wi-Fi password entry screen appears, use the on-screen keyboard. Use the / / / buttons on the remote control to select a character and press

OK to enter it.

• Input the correct password, select ‘Connect’ and press the OK button to connect to the network. If conection is successful, a tick will appear next to your Wi-Fi networks's name.

18 | NETWORKING

If the TV isn't connecting to the internet check the troubleshooting section for more info!

Connecting to a Wired Network

• Connect an ethernet cable to the LAN port on the back of the TV.

• Press the MENU button on your remote to select

TV Settings > Network.

• Change the Network Type setting to 'Wired'. The

TV will automatically pick up the network setting from the modem and connect to the network. If connection is successful, you will see 'Connected' on-screen.

• Press the EXIT button to close the menu.

Make sure you have an ethernet cable on hand if you want to connect to a wired network

NETWORKING | 19

TV Setting Menus

Menu Navigation Buttons

Press the MENU button and select TV Settings. See the guide below for all the other buttons you'll need to use to adjust and change your settings.

Function Remote Button

Display the main menu MENU

Enter a sub menu

Select an option

Adjust a value

Return to the previous menu

Exit a menu

/

/

MENU OR RETURN

EXIT

MENU

1

4

7

CH.LIST

2

5

8

0

3

6

9

MENU SOURCE

OK

RETURN EXIT

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD

P.MODE

INDEX

SUBTITLE

PIC SIZE

S.MODE

Once you have programmed any settings, the unit will retain them in its memory until you change them, even after turning the TV off.

Menus Index

Picture 22

• Picture Mode

• Picture Settings:

• Contrast, Brightness, Colour,

Sharpness, Tint

• Colour Temp, HDR, Advanced

Options

Sound 24

• Sound Mode

• Bass/Treble

• Balance

• Auto Volume

• Surround Sound

• AD Switch

• Digital Audio Output

20 | TV SETTING MENUS

!

General 25

• OSD Language

• Subtitle Language

• Audio Language

• Hearing Impaired

• Transparency

• Zoom Mode

• VGA Settings

• Other Settings:

• HDMI EDID, INLINK, DLC

• Restore Default

• Software Update (USB)

• View End User License

Agreement

• HbbTV

• Software Update (Network)

• Software Information

PVR Settings

• Recorded List

• Record

• Recorder

• Schedule List

• PVR File System

27

Time 29

• Sleep Timer

• Auto Standby

• OSD Active Time

• Time Zone

• DST (Daylight Saving

Time)

Network 30

• Network Type:

• Wired: (Auto Connect,

Manual Connect, Disable

Connect)

• Wireless: (Connect,

Manual Setup)

• My Network

• IP Address

Lock

• Change Password

• System Lock

• Channel Lock

• Parental Guidance

• Key Lock

• Clear Lock

31

Channel 32

• Auto Scan

• DTV Manual Tuning

• Programme Edit

• Channel List

• Favourite List

• Signal Information

• OAD

Apps settings

• Netflix

34

TV SETTING MENUS | 21


Picture Mode

Dynamic : Enhanced brightness with lower contrast, colour depth and edges.

Bright Room : Picture settings for viewing in a bright home environment.

Bright Room : Settings are optimised for viewing movies.

To adjust the brightness, change the Picture Mode to

User and modify the

Brightness setting.

User Mode settings

Option Description

Contrast Adjust the contrast of the bright and dark areas of the picture. The closer to 100, the higher the contrast.

Brightness Adjust the overall screen brightness. The closer to 100, the brighter the picture.

Colour Adjust the saturation. The closer to 100, the deeper the colour.

Sharpness Adjust the sharpness of the picture. The closer to 100, the sharper and clearer the image.

Tint

Adjust the colour balance between red and green. (Only available with NTSC video standard. Australia uses PAL video standard.)

Colour Temp

Adjust the on-screen colour temperature.

Normal


Advanced Settings

Option

HDR

Backlight

Description

Select high-dynamic range setting (TV must be receiving an HDR signal for this setting to be active.)

Adjust the screen brightness by adjusting the backlight. The closer to

100, the brighter the screen.

Noise

Reduction

Reduces screen noise/static.


Sound

Option

Sound Mode

Bass/Treble

Balance

Surround

Sound

AD Switch

Digital Audio

Ouput

Auto Volume

Description

Movie

Adjust the bass and treble. When changed, the sound mode will turn to 'User'

Automatically.

Adjust the audio output between the left and right speakers.

Turn on/off surround sound for better sound experience.

Audio Description (AD) provides an additional audio track for visually challenged persons (DTV only, subject to programme).

Set the digital audio output. Options: PCM, RAW

Set auto volume to on or off.

Want to set up your TV with HDMI-

ARC? See page 28 for details.


General

!

Option

OSD Language

Subtitle Language

Audio Language

Hearing Impaired

Transparency

Zoom Mode

VGA Settings

Other Settings

Restore Default

Description

Select the system language

Select your preferred subtitle language. (Available for digital channels, depending on the programme).

Select your preferred audio language. (Available for digital channels, depending on the programme.)

Turn on/off hearing impaired function

Turn on/off transparency effect of OSD menu

Adjust video size

Wide Wide Zoom Zoom Auto Standard

Configure VGA settings when a device is connected via VGA interface.

• HDMI EDID: Select Mode 2/Enhanced when the source signal is transferred by HDMI

2.0. specification. Select Mode 1/Standard when the source signal is transferred by

HMDI1.4 specification.

• INLINK: See page 28 for more information.

• DLC: Turn on/off Dynamic Luminance Control.

Restore the system settings to the factory default. When the restore is complete, the TV will enter standby mode.


Option

Software

Update (USB)

View End

User License

Agreement

HBBTV

Software

Update

(Network)

Software

Information

Description

Update the TV software via USB.

View the usage license.

Turn HBBTV functionality On/Off (not supported in Australia).

Update the software through net

View the software information


PVR Settings

To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troublehsooting section if you're having problems setting up your USB device.

Option Description

Recorded list

Record

Remind

Schedule List

PVR File System

Display and play recorded programs.

Schedule a recording.

Schedule a reminder.

Display scheduled recordings or reminders.

Select disk and timeshift size, format your USB device, check USB speed.


HDMI CEC Setup

This feature allows for your TV and your connected HDMI device to be controlled by one remote control. It also means you can turn them both on or off simultaneously.

Press the SOURCE button on the unit or remote control to select the HDMI input source.

Option

HMDI CEC

Auto Power On

Device Power Off

HDMI-ARC

Description

Turn HDMI CEC On/Off.

When this is set to On, turning on the TV will also turn on the connected device.

When this is set to On, turning off the TV will also turn off the connected device.

If this function is enabled, sound from the TV can be sent to an HDMI-ARC supported external audio device.


Time

Option

Sleep Timer

Auto Standby

OSD Active

Time

Time Zone

DST (Dalight

Saving Time)

Description

Select the desired Auto Sleep (Standby) duration.

Options: OFF 5 min 10 min 15 min 30 min 45 min 60 min 90 min 120min 180min 240min

Turn On/Off to set the TV to sleep after selected time of no signal.

Options: 3h 4h 5h

Select desired OSD menu active time.

Options: 60 sec 120 sec 240 sec

Adjust your time zone.

Turn on/off Daylight Saving Time.


Network

Option

Network Type

My Network

IP Address

Description

Select the network type (Wired/Wireless).

• Wired:

• Auto connect - select to connect directly

• Manual connect - select to connect manually by entering the network address manually

• Disable connect - disable current network connection.

• Wireless:

• Connect - Connect to an available wireless network nearby.

• Manual setup - Configure the wireless network manually by entering the SSID, Security mode and password.

View current network information.

Display current network address.

Keep it simple for easy setup!

If an item isn't required, just leave it on the default setting.


Lock

Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your password but forgot it, you can still use the master password.

Option Description

System Lock

Change Password

Channel Lock

Key Lock

Clear Lock

Factory Password:

0000

Master Password:

4711

Turn system lock on/off.

Enter the old password, then enter your new password twice. Select 'OK' on-screen to confirm.

Press the green button repeatedly to lock/unlock the highlighted channel.

Turn key lock on/off

Turn clear lock on/off

Parental Guidance

This item is used to block access to specific program ratings. See options below.


Channel

Option

Auto Scan

DTV Manual

Tuning

Program Edit

Channel List

Favourite List

Signal

Information

OAD

Description

Automatically tunes all available free-to-air TV channels. Adjust settings (default settings are set for

Australia), select 'Auto scan' and press OK.

Manually select the broadcast channel frequency and tune digital TV channels.

See the next page for more information.

Displays the list of channels

Displays the list of saved favourite channels.

Display current signal information (DTV mode only).

Turn on/off OAD.


Program Edit

Press MENU then select Channel > Program Edit then use the / buttons to highlight a channel.

Option

Delete

Skip

Fav

Menu

Description

Press

Press

RED to delete the highlighted channel.

BLUE to skip the highlighted channel.

Press YELLOW add a channel to the favourites list.

Press MENU to go back.


Apps Settings

Under this setting, you can configure the settings of the Netflix app.

Option Description

Deactive App

Terminate Netflix

Netflix Version

Select to deactive the Netflix app.

Select to Terminate Netflix app.

Current version of Netflix app.


High Dynamic Range (HDR)

About the HDR feature

High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye.

By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures.

HDR promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements.

It delivers the look that the filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail.

HDR on your TV

HDR is supported in HDMI and USB input sources and by Netflix app.

When the TV is displaying HDR media, the information banner (press the SOURCE button on the remote) will display ‘HDR’.

NOTE: When watching HDR content, make sure the Menu > TV Settings > General > Other Settings >

HDMI-EDID setting is set to mode 2. This requires an HDR playback-capable external media player and HDR optimised media content. Use a High-Speed HDMI cable when connecting to an external media player.


Smart TV

Before you start using apps, your TV must be connected to the internet.

The speed of your internet connection determines the quality of your audio/video experience when you watch streaming content.

Accessing internet content may count towards your download limit and may incur fees from third parties such as your internet service provider

(ISP).

Function

Display the Home/app screen

Select different apps

Open your desired app

Remote Button

MENU

/

Smart TV Applications

• Netflix

• YouTube

• Twitter

• Facebook

• Zeasn app store

• NetRange app portal

• Foxxum app portal

• Toon Goggles app portal

You cannot download any extra apps on this TV.

Netflix is a streaming service that offers unlimited viewing of a wide variety of award-winning TV shows, movies and documentaries.

A paid subscription is required.

This TV can play Netflix content in 4K UHD HDR resolution, however the playback resolution may be lower depending on your subscription level and your network speed.

Streaming Netflix content will count towards the data usage of your broadband plan.

36 | SMART TV

Screencast

The Screencast feature enables you to echo the display from a compatible Android device like a smartphone or tablet on the TV screen by connecting your mobile device directly to the TV wirelessly. In order to use this feature, your device must support

Wi-Fi Display technology.

Apple iOS operating system is not supported.

To start using the Screencast feature, select the

Screencast icon and press OK to load the app.

Turn on Wi-Fi and Wireless Display (a.k.a. Wi-Fi

Display, Wi-Fi Direct, Cast Screen) function on your smart phone or tablet (Please refer to your device’s user manual for information on how to turn on wireless display).

Your mobile device will display a list of available devices. Choose the DeviceID name shown on the bottom right corner of the TV and click on it to connect.

Your mobile device will connect to the TV and will display the device screen on the TV.

Use your device to disconnect.

App Portals

NetRange, Foxxum and Zeasn app portals gives you access to number of other content and service providers.

Some apps may require a paid subscription.

Streaming content will count towards the data usage of your broadband plan.

SMART TV | 37

TV Guide

(Free to air TV)

TV Guide Functions

Function

Select a Channel or Programme

Schedule selected programme for recording

Display program guide of previous day

Display program guide for next day.

Show program information

Set program reminder

Remote Button

/ / /

RED

GREEN

Yellow

INFO

Blue

Exit TV Guide menu EXIT

To access the TV guide, press the

Guide button on the remote.

To activate the TV Channels use the / buttons to select a channel in the left column, then press OK to confirm.

GUIDE

7

CH.LIST

1

4

8

0

2

5

3

6

9

MENU

SOURCE

OK

RETURN

EXIT

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD

P.MODE

INDEX

SUBTITLE

PIC SIZE

S.MODE

38 | TV GUIDE

PVR Recording

Back-up your personal data before inserting into the TV.

Important Tips:

• Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction.

• You cannot change channels while in recording mode.

• If the signal is interrupted while in recording mode, the recording will stop until the signal is established.

• Do not turn the TV off while it is in time-shift mode.

• The file recorded can only be used on this TV. Do not copy it to any other device.

• When connecting or disconnecting the USB storage device, ensure the TV is not in USB mode, otherwise the USB device or the files stored on it may be damaged.

RECORDING AND USB MODE | 39

Before you can record with this TV

(including time-shift recording), you must insert your USB storage device into the USB port.

Recording Live TV

Start Recording

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD INDEX PIC SIZE

P.MODE

SUBTITLE S.MODE

/RECORD

Press / RECORD to start recording.

Pres the EXIT button to toggle the progress bar at the bottom of the screen.

Stop Recording

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD INDEX

P.MODE

SUBTITLE

PIC SIZE

S.MODE

/ FAV

Press STOP/FAV once - display the dialogue box.

Select YES to stop recording.

Select NO to continue recording.

When a program is being recorded in the background

(while the TV is in standby mode), the Standby/ON light will flash red.

Recording, scheduled recording and pause live TV functions only work in DTV mode

(free-to-air).

Scheduled recording

See TV Guide Functions on page 38 to schedule recordings. To manage schedules see pg. 27

Playback

Meny > TV Settings > General > PVR Option. Select 'Recorded

List' to display the list of recorded programs.

Use the / buttons to select a recorded file.

Press the OK button to start playback in Full Screen Mode.

Press RED to delete the selected file.

Press GREEN to re-order the list.

Press

Press

BLUE to capture a screenshot.

YELLOW to delete the a screenshot.

40 | RECORDING AND USB MODE

Pause Live TV (Time-shift)

Temporarily pause the live TV signal, then resume playback at your convenience.

Before you can record with this TV

(including time-shift recording), you must insert your USB storage device into the USB port.

Start Time-shift

Press the button on the remote to enter time-shift mode.

Press the or OK buttons to resume playing the program.

/ TIMESHIFT

7

INFO

1

4

8

0

2

5

3

6

9

AUDIO

QMENU

OK

MENU

GUIDE

INFO

LIST

SOURCE

EXIT

VOLC H

GUIDE

/ TIMESHIFT

REC

/ FAV

/RECORD

P.MODE

INDEX

SUBTITLE

PIC SIZE

S.MODE

INFO

VOLC

GUIDE

/ TIMESHIFT

/ FAV

H

/RECORD INDEX

P.MODE

SUBTITLE

PIC SIZE

S.MODE

/ FAV

Stop Time-shift

Press the /FAV button to exit time-shift.

The USB storage device won't retain recorded data after you exit the time-shift function.

Recording, scheduled recording and pause live TV functions only work in DTV mode

(free-to-air).


USB Mode

Set up

Insert your USB into a USB port on the TV.

Press the SOURCE button to select 'Media' mode.

Function

Choose a Source or File

Start playing your media

Remote Button

/ / /

Return to previous screen

Exit media mode

RETURN

EX T

You can only play Photos in the Photo category,

Music in the Music category and so on. Make sure you select the correct category for the file you wish to play.


Playback Functions

Playback of different media types have different controls.


Function

Navigate to a folder or file

Remote Button

/ / /

Select photos

Display the selected photos

Return to file list

Music

Function


Select tracks to play

Play the selected track

Fast forward or rewing the track

Skip or restart the current track

Return to file list

Remote Button

/ / /

/

/ or RETURN


Video

Function


Play your video

Pause the video

Resume playback

Stop playback

Fast forward or rewing the track

Skip or restart the current track

Return to file list

Remote Button

/ / /

/ FAV

/

/

RETURN

Only supported file types will be displayed. See the specifications table for supported file types.


Troubleshooting

If you have problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649.

Problem

No power

Picture issues

Network connection issues

Solution

Check the power outlet is turned on.

If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the TV’s power plug directly to a wall outlet and observe its operation.

Try to power on using the button on your TV set.

Ensure that all equipment is connected properly. If you are using an external device, turn it off, then turn it on again. If it says there is no signal on the screen, choose the correct source input.

Adjust the antenna position.

Move the TV away from electronic equipment or devices that could cause interference.

Auto-tune free-to-air TV channels again.

Try another channel.

If the image keeps flickering when trying to connect the HDMI cable, make sure the cable is correctly connected to the port; and not faulty (bent or broken).

Adjust menu > TV Settings > General > Other Settings > HDMI EDID setting.

Turn off the modem and the router (if used). Wait for 2 minutes and then turn them back on.

If you are connecting using Wi-Fi, make sure you enter the Wi-Fi password correctly.

If you are using a static IP, enter the IP address and other network addresses directly.

If you are using an ethernet cable, use one rated CAT 5 or higher. Make sure it is plugged in at both ends.

If the problem persists, contact your Internet Service Provider or modem manufacturer.

TROUBLESHOOTING | 45

Problem Solution

Ensure that the equipment is connected properly.

Sound issues

No operations can be performed with the remote control unit

Ensure that the input setting for the TV is correct.

Ensure audio settings on the external device are set correctly.

Ensure the volume is not muted. If it is, press the MUTE button to restore the sound.

If earphones are connected, unplug them.

Adjust the volume to a suitable level by pressing the VOL+ / VOL- button.

If you are using an external audio device, check that the Menu > TV Settings > Sound > Digital Audio Output setting is 'PCM'.

If you are using an external audio device via an HDMI cable, make sure the audio device supports

HDMI-ARC:

(Adjust Menu > TV Settings > General > Other Settings > HDMI EDID Settings

Check the batteries are correctly installed.

The batteries may be exhausted: replace them.

Make sure to point the remote control at the remote control sensor and try it again.

Make sure to use the remote control at a distance of no more than 5m from the sensor.

Remove any obstacles between the remote control and remote control sensor.

Button operation is not effective

(unit and/or remote control)

Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static electricity or other factors.)

46 | TROUBLESHOOTING

Problems relating to your USB media storage device

Problem

My TV does not recognise my

USB device or my external hard disk

'Disk not ready' error

My media is loading slowly

There is an

'unsupported file' message

Solution

First, refer to the instructions describing how to use USB devices with this TV.

If the problem still occurs, your USB device may not be compatible.

This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with HDD) on the market; however, it may not be compatible with certain devices, in particular external selfpowered hard disks.

Some USB storage devices may not be compatible with this TV.

Only use a USB storage device formatted in a FAT32 file system provided with the Windows operating system. If it is formatted by a different utility program that is not supported by Windows, it may not be recognised.

When you are in time-shift recording mode, without removing the USB recording device, you may experience some difficulty with a scheduled recording. You will need to remove the USB device as it is required to reset after each recording to protect the device from damage. If you see the message ‘DISK NOT

READY’ displayed, remove the device, reconnect and proceed with your recording.

For large file sizes and large capacity storage devices, the loading speed may be slower. The recognition speed of a USB storage device may vary depending on the device.

If an “Unsupported File” message is displayed, it means the file extension, video codec, image resolution or frame rate is unsupported.

For Technical and Warranty Support

1300 886 649

www.tempo.org

[email protected]

Distributed by Tempo (Aust) Pty Ltd,

PO Box 6056, Frenchs Forest DC 2086


Specifications

Active screen size (diagonal) 163.9cm

Resolution 3840 x 2160

Refresh rate

Aspect ratio

60Hz

16:9

Multimedia playback formats (USB mode)

Video

AVI, DAT, H265, H264, MKV, MOV, MP4, MPEG-2, MPEG-4, VP8,

TP, TS, MPG, MPEG.

Music MP3.

Photo JPEG, JPG.

USB output

USB drive

Power source

Power consumption

Dimensions

(W x H x D)

DC 5V 500mA

1TB max., FAT32 format

AC 100-240V~, 50/60Hz

230W Max.

With stand: 1461 x 904 x 285 mm

Weight

Net

Gross

Without stand: 1461 x 843 x 85 mm

17.85 kg

23.83 kg

48 | SPECIFICATIONS

Compliance and Responsible Disposal

Packaging

The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. Please recycle these materials rather than throwing them away.

Product

At the end of its working life, do not throw this product out with your household rubbish. An environmentally friendly method of disposal will ensure that valuable raw materials can be recycled.

Electrical and electronic items contain materials and substances which, if handled or disposed of incorrectly, could potentially be hazardous to the environment and human health.

National Television and Computer Recycling

Scheme

The careful disposal of e-waste is important because many televisions and computers contain materials which are hazardous to people and the environment. There are no fees for householders or small businesses disposing of e-waste at a scheme collection service.

Individuals can contact their local council for information on local e-waste management services, find scheme services listed on Planet Ark’s website at www.recyclingnearyou.com.au, or call

Planet Ark on 1300 733 712.

Compliance

This product complies with the Australian Safety

Standard AS/NZS 60065 to ensure the safety of the product.


50

Notes

Notes

51

No results
