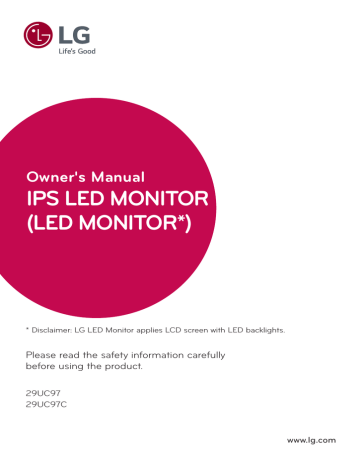

Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
* Disclaimer: LG LED Monitor applies LCD screen with LED backlights.
Please read the safety information carefully before using the product.
29UC97
29UC97C
www.lg.com
2
Table of ConTenTs
Table of ConTenTs
lICense
asseMblInG anD
PRePaRInG
5 Product and Button Description
5 - How to Use the Joystick Button
7 Moving and Lifting the Monitor
11 - Using the Kensington Lock
13 - Installing the Wall Mount Bracket
UsInG THe MonIToR
15 - Thunderbolt ( ) Connection
16 - USB Cable connection - PC
UseR seTTInGs
TRoUblesHooTInG
PRoDUCT sPeCIfICaTIon
PRoPeR PosTURe
35 Proper Posture for Using the Monitor
lICense
3
lICense
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for dual-mode source devices are all registered trademarks of the Video Electronics Standards Association.
MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.
4 asseMblInG anD PRePaRInG
asseMblInG anD PRePaRInG
Product Composition
Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related components may look different from those shown here.
CD (owner's Manual / software / Guides) /
Cards
Power Cord aC/DC adapter HDMI Cable
Cable Tie stand body stand base
4 screws
(M4 x l10) screw Cover
Wall Mount bracket
(Varies depending upon your country or model.)
CaUTIon
y
Always use genuine LG components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of unauthorized components.
y
It is recommend that you use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noise.
noTe
y
The components may look different from those illustrated here.
y
Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
y
To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
y
The power cord provided may differ depending upon the region.
Product and button Description
asseMblInG anD PRePaRInG
5
Joystick button
Power leD
y
on Power on y
off Power off
/
How to Use the Joystick button
You can easily control the functions of the monitor by pressing the joystick button or moving it left or right with your finger.
basic functions
Power on
Press the joystick button once with your finger to turn on the monitor.
◄/►
Power off
Press and hold the joystick button once with your finger to turn off the monitor.
Volume
Control
You can control the volume by moving the joystick button left/right.
noTe
y
The joystick button is located at the bottom of the monitor.
y
Before turning on the monitor, please make sure that the DC switch on the rear of product is On.
(29UC97 model only)
6 asseMblInG anD PRePaRInG
Input Connector
29UC97
HDMI IN 1
DP-IN
HDMI IN 2
29UC97C
HDMI IN 1
DP-IN
HDMI IN 2
USB UP
USB IN 1
5 V 1.1 A
H/P
DC-IN
(19 V )
ON
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 0.9 A
H/P
DC-IN
(19 V )
USB IN 2
5 V 0.9 A
DC switch
HDMI IN 1
DP IN
HDMI IN 2
H/P
DC-IN
(19 V )
ON
asseMblInG anD PRePaRInG
7
Moving and lifting the
Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.
y
Place the monitor in the original box or packing material before attempting to move it.
y
Before moving or lifting the monitor, disconnect the power cord and all other cables.
CaUTIon
y
Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create images.
y
If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.
y
Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should face toward you to prevent it from being scratched.
y
When transporting the monitor, do not expose the monitor to shock or excessive vibration.
y
When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
8 asseMblInG anD PRePaRInG
Installing the Monitor
assembling the stand
1
3
stand base
CaUTIon
y
To protect the screen, place the screen face down on the screen pad which is inside the box.
4
stand body
2
stand Hinge
5
screw Cover
asseMblInG anD PRePaRInG
9
CaUTIon
y
Illustrations in this document represent typical procedures, so they may look different from the actual product.
y
Applying excessive force when tightening screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty.
y
Be careful not to hurt your hand on the edges of the screw covers.
y
Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
y
When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
noTe
y
You can disassemble the stand in the reverse order of the assembly.
Installing on a Table
1 Lift the monitor and place it on the table in an upright position. Place the monitor at least
10 cm away from the wall to ensure sufficient ventilation.
10 cm
10 cm
10 cm
10 cm
2
Connect the power adapter to the monitor and then plug the power cord into the wall outlet.
3
Press the joystick button on the bottom of the monitor to turn on the monitor.
CaUTIon
y
Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
10 asseMblInG anD PRePaRInG
Cautions When Connecting Power Cord
100-240 V ~
y
Be sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
y
If you need another power cord, please contact your local dealer or the nearest retail store.
Tidying up Cables
Arrange the cables using the cable tie as shown in the illustration.
adjusting the angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing experience.
15 -5
Rear front
WaRnInG
y
To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.
15
-5 y
Be careful not to touch or press the screen area when adjusting the angle of the monitor.
asseMblInG anD PRePaRInG
11
Using the Kensington lock
The Kensington security system connector is located at the back of the monitor.
For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.
Connect the monitor to a table using the Kensington security system cable.
Installing on the Wall
Install the monitor at least 10 cm away from the wall and leave about 10 cm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.
10 cm noTe
y
The Kensington security system is optional.
You can obtain optional accessories from most electronics stores.
10 cm
10 cm
10 cm
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1
If you use screws longer than the standard length, it may damage the inside of the product.
2 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws.
Wall Mount (a x b) stand screw
Required screws
Wall Mount Plate
(optional)
100 x 100
M4 x L10
4
RW120
12 asseMblInG anD PRePaRInG
y
Wall Mount (A x B)
A
B noTe
y
Use the screws specified by VESA standards.
y
The wall mount kit includes the installation guide and all necessary parts.
y
The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
y
The length of the screw may differ for each wall mounting bracket. Be sure to use the proper length.
y
For more information, please refer to the user manual for the wall mounting bracket.
CaUTIon
y
Unplug the power cord before moving or installing the monitor to avoid electric shock.
y
Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized
LG wall mount and contact the local dealer or qualified personnel.
y
Applying excessive force when tightening screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty. y
Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
y
When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.
Wall Mount Plate
Back of the Monitor
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Max 8 mm
asseMblInG anD PRePaRInG
13
Installing the Wall Mount bracket
1
noTe
y
Be careful not to apply too much force while mounting the wall mount bracket as it may cause damage to the screen.
y
Applying excessive force when tightening screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty.
2
Wall Mount bracket stand Hinge
3
14
UsInG THe MonIToR
UsInG THe MonIToR
y
The following instructions are based on the
29UC97 model. Illustrations in this manual may differ from the actual product.
Press the joystick button, go to Menu → Quick
settings → Input, and then select the input option.
CaUTIon
y
Do not press the screen for a prolonged time.
This may cause image distortion.
y
Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a screensaver if possible.
noTe
y
When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
y
The monitor may flicker when turned on in an area where the temperature is low. This is normal.
y
Sometimes red, green, or blue spots may appear on the screen. This is normal.
Connecting to a PC
y
This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any drivers.
HDMI Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor using the HDMI cable as shown in the illustration below.
HDMI IN 1
HDMI IN 2
HDMI IN 1
CaUTIon
y
Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
y
Connecting your PC to the monitor using the
HDMI cable may cause device compatibility issues.
y
Using a DVI to HDMI / DP (DisplayPort) to
HDMI cable may cause compatibility issues.
y
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
y
Recommended HDMI cable types
-
High-Speed HDMI
®
DP-IN
-
High-Speed HDMI
®
/
/
TM
TM
cable
cable with Ethernet
DP OUT
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
H/P
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
HDMI IN 1
DP-IN
UsInG THe MonIToR
15
HDMI IN 2
DisplayPort Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect the monitor to your PC using the display port cable as shown in the illustration below.
Thunderbolt ( ) Connection
29UC97
You can connect your high-resolution display or high-performance data device to the monitor via a
DP OUT Thunderbolt port. Connect your external device to the monitor using the Thunderbolt cable as illustrated below.
DP-IN
(sold separately)
(sold separately)
DP OUT
noTe
y
There may be no video or audio output depending upon the DP (DisplayPort) version of the PC.
noTe
y
The maximum data transmission rate of each port is 20 Gb/s.
y
Make sure to use a Thunderbolt ( ) certified cable. Otherwise, this may cause the device to malfunction.
y
Thunderbolt ( ) is supported in such environments as Windows 7, Windows 8.1, and Mac product.
y
Mac products may not support the recommended resolution or the some features. For more information, refer to the support information card which is provided separately.
y
The ability to set up dual monitors using the
Thunderbolt ( ) and daisy-chaining technology depends on the performance of your graphics card.
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
H/P
H/P
16
UsInG THe MonIToR
HDMI IN 1
Connecting aV Devices
HDMI IN 2
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as shown in the illustration below.
HDMI IN 1
HDMI IN 2
noTe
y
Make sure to use the supplied HDMI cable of the product. Otherwise, this may cause the device to malfunction.
y
Using a DVI to HDMI / DP (DisplayPort) to
HDMI cable may cause compatibility issues.
y
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
y
Recommended HDMI cable types
-
High-Speed HDMI
®
-
High-Speed HDMI
®
/
/
TM
TM
cable
DP OUT
cable with Ethernet
Connecting Peripherals
Usb Cable connection - PC
The USB port on the product functions as a USB hub.
noTe
y
Make sure to install the most recent Windows
OS service pack before using the product.
y
Peripheral devices are sold separately.
y
A keyboard, mouse, or USB device can be connected to the USB port.
CaUTIon
Cautions When Using a Usb Device
y
A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized.
y
Some USB devices may not be supported or may not work properly.
y
It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not adequate, the USB device may not be recognized properly.)
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
H/P
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
DP-IN
DP OUT
DP-IN
DP OUT
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
DP-IN
DP OUT
HDMI/DP (DisplayPort) connection
To use USB 3.0, connect the A-B type USB 3.0 cable of the product to the PC.
Peripheral devices connected to the USB IN port can be controlled from the PC.
29UC97
USB UP
USB IN 1
5 V 1.1 A
(sold separately)
USB UP
UsInG THe MonIToR
5 V 1.1 A
17
Thunderbolt ( ) connection
5 V 1.1 A
29UC97
Peripheral devices connected to the USB IN port can be controlled from the PC.
If you change the input on the menu while a device is in connection via the Thunderbolt port, then the device in connection via the USB port may not work properly.
USB UP
USB IN 1
5 V 1.1 A
(sold separately)
USB IN 2
5 V 1.1 A
(sold separately)
USB IN 2
5 V 1.1 A
(sold separately)
29UC97C
USB UP
USB IN 1
5 V 1.1 A
USB UP
USB IN 1
5 V 0.9 A
(sold separately)
USB IN 2
5 V 1.1 A
USB IN 2
5 V 0.9 A
(sold separately)
H/P
USB UP
USB IN 1
5 V 1.1 A
H/P
USB IN 2
5 V 1.1 A
H/P
HDMI IN 1
HDMI IN 2
HDMI IN 1
HDMI IN 2
DP-IN
DP OUT
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
USB UP
USB IN 1
5 V 1.1 A
USB IN 2
5 V 1.1 A
18
UsInG THe MonIToR
Connecting Headphones
Connect peripherals to the monitor via the headphones port. Connect as illustrated.
H/P
(sold separately)
noTe
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.
angled straight
y
Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
UseR seTTInGs
19
UseR seTTInGs activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick button button Menu status
Main menu disabled
Enables the main menu.
Description
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
Main menu disabled Adjusts the monitor volume level.
◄
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the PBP feature.
▲
Main menu disabled Enables the main menu.
Main menu enabled Enters the MaxxAudio feature.
Main menu disabled Enables the main menu.
▼
Main menu enabled Turns off the monitor.
Main Menu features
Menu
Maxxaudio exit
PbP
Main Menu
Menu
Maxxaudio
PbP
Monitor off exit
Description
Configures the screen settings.
Sets the sound quality.
Displays the screens of two input modes on one monitor.
Turns off the monitor.
Exits the main menu.
Monitor off
long press: Monitor off
20
UseR seTTInGs
User settings
Menu settings
1
To view the osD menu, press the joystick button at the bottom of the monitor and then enter the
Menu.
2
Configure the options by moving the joystick up/down/left/right.
3
To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
4 If you want to exit the OSD menu, move the joystick to ◄ until you exit. y
When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.
Quick settings PbP Picture sound General Reset
Each option is described below.
Quick settings
PbP
Picture sound
General
Reset
◄
Menu brightness
Contrast
Volume
Description
Adjusts the color contrast and brightness of the screen.
Adjusts the volume level.
noTe
y
You can adjust Mute/Unmute by moving the joystick button to ▼ in the Volume menu.
Input
Ratio
Selects the input mode.
Adjusts the aspect ratio of the screen.
Displays the screens of two input modes on one monitor.
Optimizes the screen for picture mode.
Mode
Picture adjust exit
Adjusts Sharpness, Black Level, Response Time, Gamma, Color Temp, and Six Color of the screen.
Adjusts the MaxxAudio, MaxxAudio Settings, and Midnight Mode.
Adjusts Language, SMART ENERGY SAVING, Power LED, Automatic Standby, and
OSD Lock.
Restores the default settings.
Exits the OSD menu.
CaUTIon
y
Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
Ratio
1 To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Quick settings > Ratio by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
Quick settings brightness
Quick settings
Contrast
PbP
Volume
Input
Ratio
Picture sound
General
Reset
UseR seTTInGs
21
100
>
70
>
30
>
HDMI1
>
Wide
>
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > Quick settings > Ratio
Wide original
Cinema 1
Cinema 2
1:1
Description
Displays the video in widescreen, regardless of the video signal input.
Displays video according to the aspect ratio of the video signal input.
Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom for subtitles. (at 1080p)
The aspect ratio is not adjusted from the original.
noTe
y
The display may look the same for Wide, Original, and 1:1 options at the recommended resolution
(2560 x 1080). y
The ratio is disabled in the interlaced signal.
22
UseR seTTInGs
PbP
1 To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to PbP by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
PbP sub
Quick settings sound out
PbP swap sub full
Ratio
Picture sound
General
PBP
Preview
Reset
HDMI1
▲/▼ : Move
/ ►: OK
◄: Back
off
>
HDMI1
>
>
Each option is described below.
Menu > PbP sub sound out swap sub full
Description
Displays the screens of two input modes on one monitor.
sub screen (Right)
PbP Connection
HDMI 1 HDMI 2 DisplayPort
HDMI 1
HDMI 2
-
O
Main screen
(left)
DisplayPort
Thunderbolt ( )
(29UC97 model only)
O
O
Changes the audio output in PBP mode.
O
-
O
O
Toggles between the main screen and sub screen in PBP mode.
Converts the sub screen in PBP mode to wide screen.
O
O
-
X
Thunderbolt ( )
(29UC97 model only)
O
O
X
-
UseR seTTInGs
23
Menu > PbP
Ratio
Description
Adjusts the aspect ratio of the main screen or sub screen.
Main Wide original
Displays the video to fit the PBP screen, regardless of the video signal input.
Displays the video in the aspect ratio of the video signal input on the PBP screen.
sub Wide original
Displays the video to fit the PBP screen, regardless of the video signal input.
Displays the video in the aspect ratio of the video signal input on the PBP screen.
noTe
y
When the Sub mode is Off, Sound Out, Swap, Sub Full, and Ratio menus become disabled.
The Main/Sub options for Ratio become disabled if there is no signal.
y
The optimal resolution for PBP mode is set automatically when PBP mode is set.
(29UC97C model only)
24
UseR seTTInGs
Picture Mode
1 To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Picture > Picture Mode by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
Picture Mode
Quick settings
Picture adjust
PbP
Picture sound
General
Reset
>
>
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > Picture >
Picture Mode
Picture Mode Custom
Cinema
Game
Reader 1
Reader 2
Description
Allows the user to adjust settings. You can adjust the color mode of the main menu.
Optimizes the screen for photos.
Optimizes the screen for videos.
Optimizes the screen for games.
Optimizes the screen for browsing newspapers. You can brighten the screen in the OSD menu.
Optimizes the screen for looking at cartoons. You can brighten the screen in the
OSD menu.
noTe
y
If Picture Mode is non-Custom, SMART ENERGY SAVING will automatically be Off.
Picture adjust
1 To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Picture > Picture adjust by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
Picture Mode
Quick settings
Picture adjust
PbP
Picture sound
General
Reset
UseR seTTInGs
25
>
>
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > Picture >
Picture adjust sharpness black level
Response Time
Description
Adjusts the sharpness of the screen.
Sets the offset level (for HDMI only).
• offset as a reference for a video signal, this is the darkest color the monitor can display.
High low
The picture of the screen gets brighter.
The picture of the screen gets darker.
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that you use high.
Setting to High may cause image sticking.
High
Middle low off
Sets the response time to High.
Sets the response time to Middle.
Sets the response time to Low.
Does not use the response time improvement feature.
26
UseR seTTInGs
Menu > Picture >
Picture adjust
Gamma
Color Temp
Red
Green blue six Color
Reset
Description
Custom gamma settings: When using the gamma 0, gamma 1, and gamma 2 monitor settings, higher gamma settings mean a brighter image is displayed and vice versa.
Custom
The user can adjust it to red, green, or blue by customization.
Warm
Medium
Sets the screen color to a reddish tone.
Sets the screen color to between a red and blue tone.
Cool
Sets the screen color to a bluish tone.
You can customize the picture color using Red, Green, and Blue colors.
Meets the user requirements for colors by adjusting the hue and saturation of the six colors
(red, green, blue, cyan, magenta, and yellow) and then saving the settings.
Hue
Adjusts the tone of the screen colors.
saturation Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more saturated and darker the colors become.
Returns color to the default settings.
UseR seTTInGs
27
sound
1
To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2
Go to sound by moving the joystick.
3
Configure the options following the instructions that appear in the bottom right corner.
4
To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5 If you want to exit the OSD menu, move the joystick to ◄ until you exit.
sound
Maxxaudio
Quick settings
Maxxaudio settings
Midnight Mode
PbP
Picture sound
General
Reset on
>
>
off
>
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > sound
Maxxaudio
(Move the joystick to
▲ in the main menu to enter the function directly.)
Maxxaudio on off
Description
MaxxAudio
®
Award
®
by Waves, recipient of a Technical GRAMMY
is a suite of studio-quality sound tools for a superior listening experience.
Disables the MaxxAudio function.
The user can set the sound quality manually.
Maxxaudio settings
Maxxbass
Bass Enhancement.
MaxxTreble Treble Enhancement.
MaxxDialog Dialog Enhancement.
Maxx3D
Reset
Enhances the three dimensional effect of the sound.
Returns the sound quality to the default settings.
Midnight Mode Lets you enjoy rich and full sound at a low volume.
28
UseR seTTInGs
General
1
To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2
Go to General by moving the joystick.
3
Configure the options following the instructions that appear in the bottom right corner.
4
To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5 If you want to exit the OSD menu, move the joystick to ◄ until you exit.
General language
Quick settings sMaRT eneRGY saVInG
PbP
Power leD automatic standby osD lock
Picture sound
General
Reset english
>
low
>
off
>
off
>
off
>
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > General language sMaRT eneRGY saVInG
Power leD automatic standby osD lock
Description
Sets the menu screen to the desired language.
High low
Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Saves energy using the low-efficiency SMART ENERGY SAVING feature.
off
Disables the SMART ENERGY SAVING feature.
Turns the power LED on the front of the monitor on or off.
on off
The power LED turns on automatically.
The power LED turns off.
Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
Prevents incorrect key input.
on off
Disables key input
Enables key input
noTe
y
All features are disabled except Brightness, Contrast, Volume, Input in Quick Settings, OSD
Lock in General, and the Exit button.
noTe
y
If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom.
UseR seTTInGs
29
Reset
1 To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Go to Reset by moving the joystick.
3 Configure the options following the instructions that appear in the bottom right corner.
4 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to ◄ until you exit.
Reset
Do you want to reset your settings?
Quick settings
Reset
Cancel
PbP
Picture sound
General
Reset
▲/▼: Move
/ ►: OK
◄: Back
Each option is described below.
Menu > Reset
Do you want to reset your settings?
Reset
Cancel
Restores the default settings.
Cancel the reset.
Description
30
TRoUblesHooTInG
TRoUblesHooTInG
nothing is displayed on the screen.
Is the monitor's power cord plugged in?
y
Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?
y
Check the power cable connection and press the power button.
Is the power on and the power
LED displaying white?
Is the power LED blinking?
Is the OUT OF RANGE message being displayed?
Is the No Signal message being displayed?
The screen may not be displayed properly when configuring DisplayPort 1.2 in a
Mac product.
y
Check that the connected input is enabled (Menu > Quick Settings >
Input).
y
If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on.
y
Check if the computer is turned on.
y
This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor.
Please see the Product Specification section of this manual to set the appropriate frequency.
y
This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
y
DisplayPort 1.2 may not be supported depending upon the Mac product. Please contact the manufacturer.
Cannot control some functions of osD.
Are some functions not available when you press the Menu button?
y
The OSD is locked. Go to Menu > General and set OSD Lock to Off.
The screen retains an image.
Does image sticking occur even when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
y
To extend the lifetime of the monitor, use a screensaver.
screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
noTe
y
Vertical frequency: In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by Hz.
y
Horizontal frequency: The time it takes to display one horizontal line is called the horizontal cycle. If
1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second.
This is called horizontal frequency and is represented by kHz.
TRoUblesHooTInG
31 noTe
y
Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution in Control Panel > Display > settings.
y
Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
y
The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
y
Some graphics cards may not support 2560 x 1080 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.
The display color is abnormal.
Does the display appear discolored (16 colors)?
Does the display color appear unstable or monochrome?
Are there spots on the screen?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality.
y
Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
y
When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen.
It is not an error, nor is it related to the monitor's performance.
no sound from the headphone port.
Are images displayed using
DP (DisplayPort) or HDMI input without sound?
y
Make sure that the headphone port connections are made properly.
y
Try increasing the volume with the joystick.
y
Set the audio output of the PC to the monitor you are using. On
Microsoft Windows, go to Control Panel > Hardware and Sound >
Sound > set the monitor as default device.
32
PRoDUCT sPeCIfICaTIon
PRoDUCT sPeCIfICaTIon
29UC97
LCD Screen
Resolution
Video Signal
Input Connector
Power Sources
AC/DC Adapter
Stand Angle
Environmental
Conditions
Audio Output
Supported
Operating System
Type
Color Depth
Pixel Pitch
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
8-bit color is supported.
0.2628 mm x 0.2628 mm
Max Resolution
Recommended
Resolution
2560 x 1080 @ 60 Hz
2560 x 1080 @ 60 Hz
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Separate Sync.
H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ), USB UP,
USB IN 1, 2
Power Rating
Power Consumption
(Typical)
19 V 4.5 A
Operating Mode: 50 W (Typical, USB excluded) (Outgoing
Condition)
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.5 W
Off Mode ≤ 0.3 W (DC switch is off.)
ADS-110CL-19-3 190110G type, manufactured by Honor
Output: 19 V 5.79 A
Forward/Backward: -5° to 15° (Head)
Operating Conditions Temperature 0 °C to 40 °C
Humidity Less than 80 %
Storing Conditions Temperature -20 °C to 60 °C
Humidity
7 W + 7 W
Win 7, Win 8.1, Mac OS*
Less than 85 %
Dimensions
Weight (Without
Packaging)
Monitor Size (Width x Height x Depth)
With Stand 700.9 mm x 420.9 mm x 225.6 mm
Without Stand
With Stand
700.9 mm x 316.5 mm x 99.0 mm
6.2 kg
Without Stand 5.5 kg
Specifications are subject to change without notice.
* Mac products may not support the recommended resolution or some features.
(For more information, refer to the support information card of Mac which is provided separately.)
PRoDUCT sPeCIfICaTIon
33
29UC97C
LCD Screen
Resolution
Video Signal
Type
Color Depth
Pixel Pitch
Max Resolution
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
8-bit color is supported.
0.2628 mm x 0.2628 mm
2560 x 1080 @ 60 Hz
Recommended
Resolution
2560 x 1080 @ 60 Hz
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, USB UP, USB IN 1, 2
Power Sources
AC/DC Adapter
Stand Angle
Environmental
Conditions
Audio Output
Supported
Operating System
Power Rating
Power Consumption
(Typical)
19 V 3.0 A
Operating Mode: 40 W (Typical, USB excluded) (Outgoing
Condition)
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.3 W
DA-65G19 type, manufactured by APD
Output: 19 V 3.42 A
Forward/Backward: -5° to 15° (Head)
Operating Conditions Temperature 0 °C to 40 °C
Humidity Less than 80 %
Storing Conditions
7 W + 7 W
Win 7, Win 8.1, Mac OS
Temperature -20 °C to 60 °C
Humidity Less than 85 %
Dimensions
Weight (Without
Packaging)
Monitor Size (Width x Height x Depth)
With Stand 700.9 mm x 420.9 mm x 225.6 mm
Without Stand
With Stand
700.9 mm x 316.5 mm x 99.0 mm
6.0 kg
Without Stand 5.3 kg
Specifications are subject to change without notice.
34
PRoDUCT sPeCIfICaTIon
Preset Mode
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 720
1280 x 1024
1280 x 1024
1600 x 900
1680 x 1050
1920 x 1080
2560 x 1080
factory support Mode
29UC97
(Preset Mode, HDMI/DisplayPort/Thunderbolt PC)
29UC97C
(Preset Mode, HDMI/DisplayPort PC)
Horizontal frequency
(kHz)
31.469
37.5
31.468
37.879
46.875
48.363
60.123
67.5
45
63.981
79.976
60
65.29
67.5
66.7
Vertical frequency
(Hz)
59.94
75
70.08
60.317
75
60
75.029
75
60
60.02
75.025
60
59.954
60
60
Polarity (H/V) Remarks
+/+
-/-
+/+
+/+
-/-
-/-
-/+
+/+
+/+
+/+
+/+
+/+
-/+
+/-
-/+
HDMI Timing (Video)
Preset Mode
480p
720p
720p
1080p
1080p
Horizontal frequency
(kHz)
31.5
37.5
45
56.25
67.5
50
60
50
60
Vertical frequency
(Hz)
60
Remarks
Power leD
Mode
On Mode
Sleep Mode
Off Mode
leD Color
White
Flashing White
Off
PRoPeR PosTURe
35
PRoPeR PosTURe
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye level.
y
Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged usage.
y
Adjust the stand angle from -5° to 15° to obtain the best view of the screen.
You should be looking slightly down at the screen.
Stand Angle
-5° to 15°
Adjust the position of the screen to minimize reflections.
Place your hands gently on the keyboard, keeping your arms bent at the elbows and extended horizontally in front of you.
This device meets the EMC requirements for home appliances (Class B) and is intended for home usage. This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the label attached to the product provides information for technical support.
Model
Serial No.
ENERGY STAR® is a set of power-saving guidelines issued by the U.S.Environmental
Protection Agency (EPA).
As an ENERGY STAR® Partner LGE
U. S. A., Inc. has determined that this product meets the ENERGY
STAR® guidelines for energy efficiency.
Refer to ENERGY STAR.gov for more information on the ENERGY STAR® program.
advertisement
Key Features
- 73.7 cm (29") LED IPS
- Full HD 2560 x 1080 pixels 21:9
- 5 ms 300 cd/m²
- 50 W
Related manuals
Frequently Answers and Questions
What is the resolution of the LG 29UC97C?
What is the response time of the LG 29UC97C?
Does the LG 29UC97C support HDR10?
Does the LG 29UC97C have a bezel-less design?
Is the stand of the LG 29UC97C height-adjustable?
advertisement
Table of contents
- 2 TABLE OF CONTENTS
- 3 LICENSE
- 4 ASSEMBLING AND PREPARING
- 4 Product Composition
- 5 Product and Button Description
- 5 How to Use the Joystick Button
- 6 Input Connector
- 7 Moving and Lifting the Monitor
- 8 Installing the Monitor
- 8 Assembling the Stand
- 9 Installing on a Table
- 10 Tidying up Cables
- 10 Adjusting the Angle
- 11 Using the Kensington Lock
- 11 Installing on the Wall
- 13 Installing the Wall Mount Bracket
- 14 USING THE MONITOR
- 14 Connecting to a PC
- 14 HDMI Connection
- 15 DisplayPort Connection
- 15 Thunderbolt () Connection
- 16 Connecting AV Devices
- 16 HDMI Connection
- 16 Connecting Peripherals
- 16 USB Cable connection - PC
- 18 Connecting Headphones
- 19 USER SETTINGS
- 19 Activating the Main Menu
- 19 Main Menu Features
- 20 User Settings
- 20 Menu Settings
- 21 Ratio
- 22 PBP
- 24 Picture Mode
- 25 Picture Adjust
- 27 Sound
- 28 General
- 29 Reset
- 30 TROUBLESHOOTING
- 32 PRODUCT SPECIFICATION
- 34 Factory Support Mode
- 34 HDMI Timing (Video)
- 34 Power LED
- 35 PROPER POSTURE
- 35 Proper Posture for Using the Monitor
