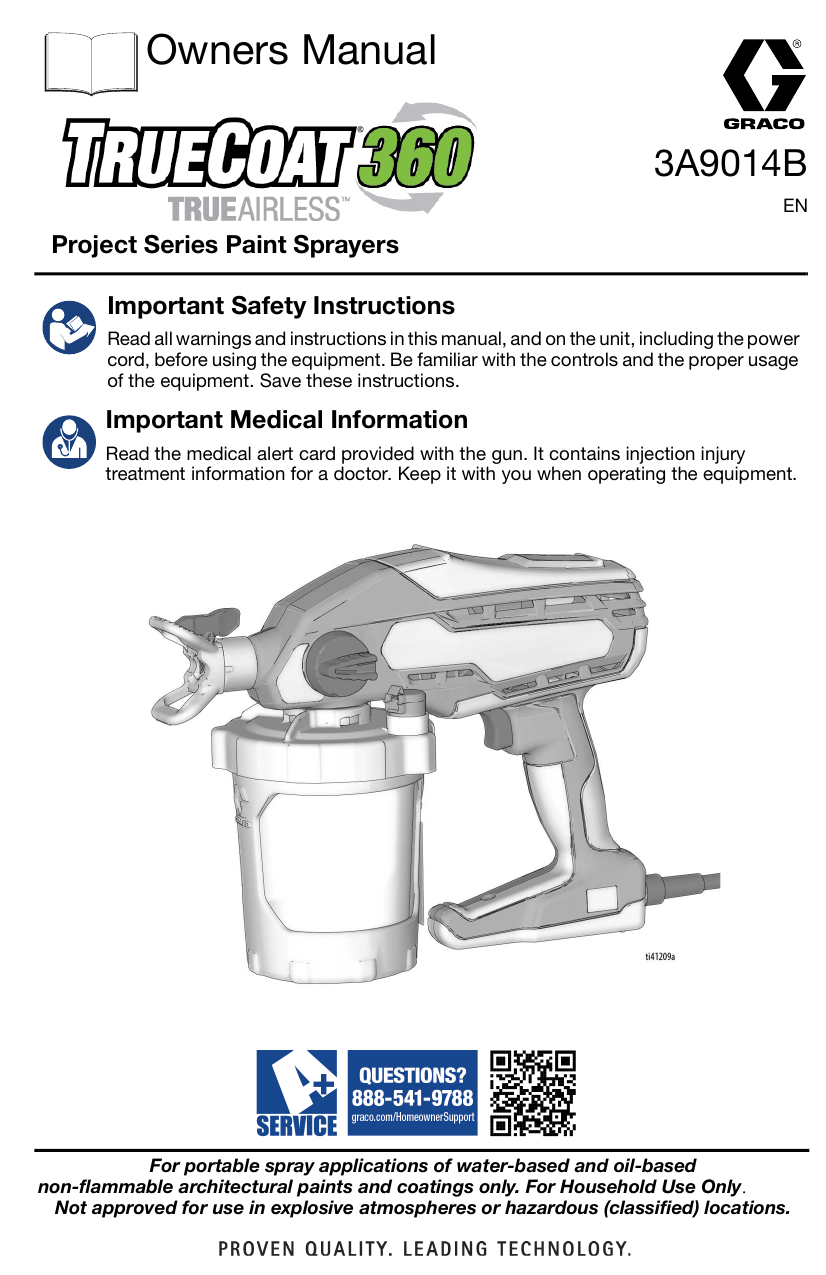

Owners Manual
3A9014B
EN
Project Series Paint Sprayers
Important Safety Instructions
Read all warnings and instructions in this manual, and on the unit, including the power cord, before using the equipment. Be familiar with the controls and the proper usage of the equipment. Save these instructions.
Important Medical Information
Read the medical alert card provided with the gun. It contains injection injury treatment information for a doctor. Keep it with you when operating the equipment.
For portable spray applications of water-based and oil-based non-flammable architectural paints and coatings only. For Household Use Only .
Not approved for use in explosive atmospheres or hazardous (classified) locations.
2
Before You Spray
Before You Spray
Review Warnings for Important Safety Information
Important! Read carefully and practice good safety habits.
Operational Videos http://graco.com/HomeEducationCenter
Models
110474
Certified to
CAN/CSA
C22.2 No. 68
Conforms to
UL 1450
Model
26D280
CAN280
26D281
CAN281
26D282
CAN282
26D283
CAN283
Name
TrueCoat 360
Voltage Description
Maximum Working
Pressure
120V Single Speed
TrueCoat 360 DS 120V
TrueCoat 360 DSP 120V
TrueCoat 360 VSP 120V
Online Resources
Visit Our Website:
Operational Videos:
Manuals:
Parts Online: graco.com/HomeOwner graco.com/HomeEducationCenter graco.com/HomeOwnerSupport graco.com/HomeOwnerParts
Dual Speed
Dual Speed
Premium
Variable
Speed
Premium
2000 psi
( 13.8 MPa, 138 bar)
3A9014B
Important User Information
Important User Information
Thank You for Your Purchase!
sprayer is designed to provide superior spray performance with water-based and oil-based you understand the types of materials that can be used with your sprayer.
your sprayer. Ask for a Safety Data Sheet (SDS) from your supplier. The container label and
SDS will explain the contents of the material and the specific precautions related to it.
Paints, coatings and clean-up materials generally fit into one of the following 3 basic categories:
WATER-BASED: The container label should indicate that the material can be material. Your sprayer is NOT compatible with harsh cleaners such as chlorine
OIL-BASED: The container label should indicate that the material is is compatible with this type of material. Use oil-based material outdoors or in a manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this material is and CANNOT be used.
NOT compatible with your sprayer
FIRE AND EXPLOSION HAZARD
• Use only non-flammable or water-based materials, or non-flammable paint thinners. Do not use materials having flash points lower than 100° F (38° C). This includes, but is not limited to, acetone, xylene, toluene, or naphtha. For more information about your material, request Safety Data
Sheets (SDSs) from the supplier.
NOTICE
Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach. Using these cleaners will cause damage to the sprayer.
3A9014B 3
4
Contents
Contents
Before You Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Know Your Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cup Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Tip Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Spray Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Triggering Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Reversible Spray Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spray Tip Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clear Tip Clogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cup Refills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pause in Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fluid Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Static Grounding Instructions (Oil-Based Materials) . . . . . . 21
Cleaning Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
End of Product Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Single Speed, Dual Speed, Dual Speed Premium . . . . . . . . 30
Parts List- Single Speed, Dual Speed, Dual Speed Premium 31
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Variable Speed Premium . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Parts List- Variable Speed Premium . . . . . . . . . . . . . . . . . . . 33
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3A9014B
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and regulations.
• Improper installation of the grounding plug is able to result in a risk of electric shock.
• This product is for use on a nominal 120 V circuit and has a grounding plug similar to the plugs illustrated in the figure below.
3A9014B ti3509b
• Only connect the product to an outlet having the same configuration as the plug.
• Do not modify the plug provided. If it does not fit the outlet, have the proper outlet installed by a qualified electrician.
• Do not use a 3-to-2 adapter with this product.
• When repair or replacement of the cord or plug is required, do not connect the grounding wire to either power terminal.
• The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.
• Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the product is properly grounded.
Extension Cords:
• Use only a 3-wire extension cord that has a grounding plug and a grounding receptacle that accepts the plug on the product.
• Make sure your extension cord is not damaged.
• If an extension cord is necessary, use 12 AWG (2.5 mm 2 ) minimum to carry the current that the product draws. An undersized cord results in a drop in line voltage and loss of power and overheating.
5
6
Warnings
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:
• Do not spray or clean with materials having flash points lower than 100°F (38°C).
Use only non-flammable or water-based materials, or non-flammable paint thinners. For complete information about your material, request the Safety Data
Sheets (SDSs) from the material distributor or retailer.
• Do not spray combustible materials near an open flame or sources of ignition such as cigarettes, motors, and electrical equipment.
• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of the spray system, including the sprayer and objects in and around the spray area shall be properly grounded to protect against static discharge and sparks.
• Verify that all containers and collection systems are grounded to prevent static discharge. Do not use pail liners unless they are anti-static or conductive.
• Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2 adapter.
• Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment until you identify and correct the problem.
• Do not use a paint or a solvent containing halogenated hydrocarbons.
• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
• Sprayer generates sparks. Keep pump assembly in a well-ventilated when spraying, flushing, cleaning, or servicing.
• Do not smoke in the spray area or spray where sparks or flame is present.
• Do not operate light switches, engines, or similar spark producing products in the spray area.
• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
• Know the contents of the paints and solvents being sprayed. Read all Safety
Data Sheets (SDSs) and container labels provided with the paints and solvents.
Follow the paint and solvent manufacturer's safety instructions.
• Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Connect only to grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on power and extension cords.
• Do not expose to rain. Store indoors.
3A9014B
3A9014B
Warnings
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious injury that can result in amputation. In the event that injection occurs, get immediate surgical treatment.
• Do not aim the gun at, or spray any person or animal.
• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.
• Always use the spray tip guard. Do not spray without spray tip guard in place.
• Use Graco spray tips.
• Use caution when cleaning and changing spray tips. In the case where the spray tip clogs while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the spray tip to clean.
• Equipment maintains pressure after power is shut off. Do not leave the equipment energized or under pressure while unattended. Follow the Pressure
Relief Procedure when the equipment is unattended or not in use, and before servicing, cleaning, or removing parts.
• Check parts for signs of damage. Replace any damaged parts.
• This system is capable of producing 2000 psi (138 bar, 13.8 MPa). Use Graco parts or accessories that are rated a minimum of 2000 psi (138 bar, 13.8 MPa).
• Verify that all connections are secure before operating the unit.
• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
• Do not operate or spray near children. Keep children away from equipment at all times.
• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
7
8
Warnings
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.
• Do not use chlorine bleach.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
• Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
3A9014B
Know Your Sprayer
Know Your Sprayer
A Prime Knob
B VacuValve TM
C Spray Tip
D Speed Control (available on select models only)
E Trigger
F FlexLiner TM
G Cup Support
H Cup Lid
J Funnel
K Strainer
L Strainer’s Air Tube
M Pump Filter
N Spray Tip Guard
P Spray Tip Holder
Q Power Cord
3A9014B 9
Know Your Controls
Know Your Controls
Prime Knob
The Prime Knob directs fluid to either the cup or the Spray Tip. When priming, it is used to purge air from the pump. Your sprayer will not spray with air in the pump.
Turn Prime Knob down to PRIME position to relieve system pressure.
Turn Prime Knob forward to SPRAY position to spray fluid.
VacuValve
The VacuValve is used to evacuate air out of the FlexLiner. This is necessary for the sprayer to prime.
Spray Tip
The Spray Tip is the key to airless spray technology. High pressure paint pumped through the very small hole in the Spray Tip comes out as a spray.
The Spray Tip has the ability to be reversed and quickly clear clogs.
Trigger
The Trigger controls the operation of the sprayer.
Speed Control
The Speed Control* allows you to slow down or speed up when spraying.
*Available on select models only
10 3A9014B
Setup
Setup
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this symbol.
Cup Fill
This sprayer builds up an internal pressure of 2000 psi (138 bar, 13.8 MPa) during use. Follow this Pressure Relief
Procedure whenever you stop spraying and before cleaning, checking, servicing, or transporting equipment to prevent serious injury.
1. Turn Prime Knob down to PRIME position to relieve pressure.
Use only water-based or oil-based
(mineral spirit-type) materials with a flash point greater than 100° F (38° C).
Do not use materials which state
“FLAMMABLE” on the packaging. For more information about your material, request a Safety Data Sheet (SDS) from distributor or retailer.
When spraying oil-based material, use outdoors or in a well-ventilated indoor area with a flow of fresh air.
Keep spray area well-ventilated.
Keep a good supply of fresh air moving through the area.
If spraying oil-based
Compatibility , page 21, and follow Static
Grounding Instructions (Oil-Based
1. Insert one FlexLiner into the Cup
Support.
NOTE: Verify there is no damage to the top sealing edge of the FlexLiner, such as a crease or fold. If damaged it will leak air and lose prime.
3A9014B 11
Setup
2. Firmly tighten the Cup Lid onto the Cup
Support to ensure an airtight seal.
NOTE: To ensure an airtight seal, the gasket inside the Cup Lid is lubricated by the factory.
If lubrication has washed away, apply Seal
Lube (included) to the gasket.
4. The Strainer’s Air Tube will prevent paint from overfilling the cup. Fill the cup as follows: a. Watching the Funnel (not the cup), slowly pour paint into the Funnel.
When the paint stops draining down, the cup is full.
NOTE: If the paint stops draining but you see the cup is not full, use a stir stick to scrape the captured debris on the top of the Strainer until the paint resumes draining.
3. Insert the Funnel into the Cup Lid, twist to lock. Snap the Strainer into the Funnel to strain your paint as you fill your cup.
Funnel
Strainer
12 3A9014B
b. With the Funnel and Strainer still attached to the cup, pour excess paint from the Funnel back into the paint can.
Setup d. Remove the Funnel and Strainer from the cup and hook on edge of paint can.
c. Lift up the Strainer and look to verify you can see crossbars in the bottom of the Funnel. If not, the cup is overfilled. Pour excess paint back into the paint can.
3A9014B 13
Startup
Startup
1. Install the cup onto the sprayer as follows: a. Verify Pump Filter is installed and clean.
2. Prime the pump as follows: a. Verify Prime Knob is pointed down to PRIME position.
b. Plug sprayer into a grounded power source.
b. Align VacuValve (on Cup Lid) with
Prime Knob (on sprayer).
c. Push cup assembly onto the sprayer, twist to lock.
c. Open the VacuValve cap and gently squeeze the FlexLiner until no more air bubbles appear in the
VacuValve.
NOTE: Tilt the sprayer such that the
VacuValve is the highest point so that all air in the FlexLiner can be fully evacuated.
14 3A9014B
d. Continue to squeeze the FlexLiner while pulling the Trigger for 10 seconds.
Startup
3. Turn Prime Knob forward to SPRAY position. Verify Spray Tip is forward in the SPRAY position.
NOTE: This will purge all air from the pump and cup. Paint will not spray out, but will recirculate through the pump and back into the cup.
e. When no more air bubbles appear in the VacuValve, release the
Trigger and close the VacuValve cap.
4. Point the sprayer into a waste pail and pull the Trigger for 5 seconds to spray out storage fluid.
• To avoid pump damage, if the sprayer does not spray after 5 seconds, STOP and repeat
STARTUP.
You are now ready to spray!
NOTE: For best results, to evacuate all material from the FlexLiner when the material is nearly gone, gently squeeze the bottom of the FlexLiner to push the last of the material up to the Cup Lid.
IMPORTANT! The motor has a built-in feature to protect itself from overuse. If the motor stops, the thermal switch has tripped.
The motor will operate normally after cooling for 20-30 minutes.
3A9014B 15
Spraying
Spraying
Spray Tip Orientation
Use only water-based or oil-based
(mineral spirit-type) materials with a flash point greater than 100° F (38° C).
Do not use materials which state
“FLAMMABLE” on the packaging. For more information about your material, request a Safety Data Sheet (SDS) from distributor or retailer.
When spraying oil-based material, use outdoors or in a well-ventilated indoor area with a flow of fresh air.
Keep spray area well-ventilated.
Keep a good supply of fresh air moving through the area.
1. Set the Speed Control to lowest available setting.
To avoid serious injury from skin injection, do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
NO YES
Adjust the Spray Tip Guard for the desired vertical or horizontal spraying direction.
2. Pointing at a piece of scrap cardboard, pull the Trigger to test the spray pattern.
3. If needed, slowly increase the Speed
Control to the setting that produces a good spray pattern.
NOTE: To minimize overspray, always spray at the lowest speed setting that gives a good spray pattern.
4. Adjust the sprayer’s distance from the surface and your hand speed to achieve the desired surface coverage.
16 3A9014B
Spray Pattern Quality
A good spray pattern is evenly distributed without voids or runs. Adjust sprayer Speed
Control (if available), hand speed, and distance from the wall to get a good spray pattern.
If tails persist, material may need to be thinned. If material needs to be thinned, follow manufacturers recommendations.
Spraying
• Flex wrist to keep sprayer pointed straight. Fanning sprayer to direct spray at angle causes uneven finish.
NOTE: How fast you move the sprayer will affect spray application. If material is pulsating, you are moving too fast. If material
drips, you are moving too slow. See
Spray Angle
Use a piece of scrap cardboard to practice these basic spraying techniques before you begin spraying the surface.
• Hold sprayer 10-12 inches (25-30 cm) from surface and aim straight at surface.
Tilting the sprayer to direct the spray angle causes an uneven finish.
Aiming Sprayer
Aim the sprayer at the bottom edge of the previous stroke, overlapping each stroke by
50%.
Triggering Timing
Pull Trigger after starting stroke. Release
Trigger before end of stroke. Sprayer must be moving when Trigger is pulled and released.
3A9014B 17
Spraying
Reversible Spray Tips
Your sprayer is shipped with wide and narrow reversible Spray Tips.
• Blue Spray Tips are for spraying paint and should be used with the blue Pump Filter.
• Green Spray Tips are for spraying stain and should be used with the green Pump Filter (green tips and filter are not included with all models).
Spray Tip Removal
Spray Tip Installation
1. Align Spray Tip locking tab with the locking tab slot in the Spray Tip Guard.
2. Push the Spray Tip all the way into the
Spray Tip Guard.
3. Rotate the Spray Tip to the SPRAY position.
NOTE: Make certain the Spray Tip locking tab is pushed all the way into the slot in the
Spray Tip Guard. You should not be able to remove the Spray Tip from the Spray Tip
Guard when it is in the SPRAY or UNCLOG positions.
NOTICE
The Spray Tip Guard is permanently attached to the sprayer. Removal will result in damage to the sprayer.
To avoid serious injury from skin injection, do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
1. Turn Prime Knob down to PRIME position to relieve system pressure.
2. Rotate Spray Tip 90 degrees.
3. Pull the Spray Tip straight out of the
Spray Tip Guard.
18 3A9014B
Clear Tip Clogs
Spraying
4. Point sprayer into waste pail, turn Prime
Knob forward to SPRAY position. Pull
Trigger for 5 seconds to clear clog.
To avoid serious injury from skin injection, do not put your hand in front of the Spray
Tip when installing or removing the Spray
Tip and Tip Guard.
In the event debris clogs the Spray Tip, the sprayer is designed with a reversible Spray
Tip that quickly and easily clears the particles without disassembling the sprayer.
1. Turn Prime Knob down to PRIME position to relieve system pressure.
2. Reverse Spray Tip to UNCLOG position.
NOTE: If Spray Tip is still clogged, you may have to repeat steps 1-4, or replace with replacement Spray Tip.
5. Turn Prime Knob downward to PRIME position. Rotate Spray Tip back to
SPRAY position. Turn Prime Knob forward to SPRAY position, and resume spraying.
3. Set Speed Control to highest available setting.
3A9014B 19
Spraying
Cup Refills
1. Turn Prime Knob down to PRIME position to relieve system pressure.
2. Remove cup assembly from sprayer.
Remove the Pump Filter and clean debris from the filter screen.
Pause in Spraying
Paint will dry quickly and cause clogs in the sprayer. Follow these steps whenever you pause spraying for 5 minutes to 2 hours.
1. Turn Prime Knob down to PRIME position to relieve system pressure.
2. Unplug Power Cord.
3. Turn Spray Tip 90 degrees to seal orifice from drying out.
3. Reinstall the Pump Filter into the pump.
Set sprayer on a rag.
4. Ensure sprayer is fully sealed. Ensure
VacuValve is closed and cup is attached to sprayer with all air evacuated.
4. Refill the cup following Cup Fill , page
11, steps 3 and 4. Then follow Startup , page 14,
instructions to proceed.
20 3A9014B
Cleanup
Cleanup
Static Grounding
Instructions (Oil-Based
Materials)
Use only water-based or oil-based
(mineral spirit-type) materials with flash point greater than 100° F (38° C).
Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request a Safety Data
Sheet (SDS) from distributor or retailer.
Clean in a well-ventilated area.
Keep a good supply of fresh air moving through the area.
To avoid serious injury or damage to equipment, do not expose the sprayer electronics to cleaning fluids. Keep sprayer at least 10 in. (25 cm) above the rim of the container when cleaning.
The equipment must be grounded to reduce the risk of static sparking and electric shock. An electric or static spark can cause fumes to ignite or explode. An improper ground can cause electric wire for the electric current.
Always use a metal pail for oil-based materials requiring flushing with compatible oil-based flushing solvents when sprayer is flushed or pressure is relieved.
Follow local code. Use only conductive metal pails, placed on a grounded surface such as concrete.
Do not place pail on a non-conductive surface such as paper or cardboard which interrupts grounding continuity.
Fluid Compatibility
Oil or water-based materials
If spraying water-based materials, use water for cleanup. If spraying oil-based materials, use non-flammable mineral spirits for cleanup.
• Switching between water-based and oil-based materials can cause clogging issues in the sprayer. Always clean sprayer thoroughly with appropriate cleaning fluid.
• It is recommended to thoroughly flush the sprayer with non-flammable mineral spirits prior to using oil-based materials.
3A9014B 21
Cleanup
Cleaning Sprayer
Cleaning your sprayer properly and after every spray job is of the utmost importance!
Proper care and maintenance will make your paint sprayer last and work for you trouble free.
1. Turn Prime Knob down to PRIME position to relieve system pressure.
2. Remove cup assembly from sprayer, and remove Pump Filter. Set sprayer on a rag.
4. To circulate cleaning fluid, fill clean cup assembly half-full of cleaning fluid and reattach to sprayer.
a. Verify the Prime Knob is pointed down to the PRIME position.
b. Set Speed Control to highest setting available.
c. Turn the sprayer upside down and trigger for 15 seconds.
3. Remove Cup Lid and pour extra paint back into paint can. Clean all parts with warm water.
NOTE: Be sure to clean inside the VacuValve reservoir. If the VacuValve air hole becomes clogged, use a paper clip to clean hole.
22 3A9014B
5. To spray cleaning fluid, refill cup assembly half-full of cleaning fluid and reattach to sprayer.
a. Turn the Prime Knob forward to
SPRAY position and Spray Tip to the UNCLOG position.
b. Turn the sprayer upside down and trigger into a waste pail for 15 seconds.
Cleanup c. Turn the Spray Tip to the SPRAY position and trigger into a waste pail for 15 seconds.
6. Repeat Cleanup steps as needed until sprayer is clean.
7. Turn Prime Knob down to PRIME position.
8. Unplug Power Cord.
9. Remove Spray Tip from Spray Tip
Guard.
10. Clean Spray Tip, Spray Tip Guard, and
Pump Filter with warm water and an old toothbrush. Reinstall Spray Tip and
Pump Filter.
3A9014B 23
Storage
Storage
NOTICE
Failure to store sprayer with Pump
Armor TM will result in operational problems the next time you spray. Always fill the sprayer with Pump Armor after cleaning.
Water left in the sprayer will corrode and damage the pump.
Pump Armor fluid protects the sprayer while in storage. It helps protect sprayer against startup issues on next use.
• Do not store the sprayer full of water.
• Do not allow water to freeze in sprayer.
• Do not store sprayer under pressure.
• Store sprayer indoors in a cool, dry location.
• Never store sprayer with material in the sprayer or cup.
1. Clean the sprayer and cup assembly.
See
2. Turn Prime Knob downward to PRIME position.
5. With the sprayer upside down, pour approximately 2 oz. (60 ml) Pump Armor
(included) into pump opening.
6. Install clean Pump Filter into pump.
7. Keep sprayer upside down and attach cup assembly on to the sprayer.
8. With the sprayer remaining upside down over a waste pail, pull the Trigger until fluid first comes out of the Spray Tip and then immediately let go of the Trigger
(approx. 1 second).
NOTE: Do not spray out all fluid. Pump is now loaded with Pump Armor for storage.
3. Remove cup assembly from sprayer and remove Pump Filter from pump.
4. Turn Prime Knob forward to SPRAY position and Spray Tip to the UNCLOG position.
9. Turn Prime Valve to PRIME position to relieve system pressure and immediately back to SPRAY position for storage. Unplug Power Cord.
10. Replace child-resistant cap on Pump
Armor bottle and tighten securely for next use.
24 3A9014B
Recycling and Disposal
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and recycle it in a responsible manner.
• Turn Prime Knob down to PRIME position to relieve system pressure.
• Drain and dispose of fluids according to applicable regulations. Refer to the material manufacturer’s Safety Data
Sheet.
• Remove motors, batteries, circuit boards, LCDs (liquid crystal displays), and other electronic components.
Recycle according to applicable regulations.
• Do not dispose of electronic components with household or commercial waste.
• Deliver remaining product to a recycling facility.
3A9014B 25
Troubleshooting
Troubleshooting
Check everything in this Troubleshooting
Table before you bring the sprayer to an authorized service center.
Sprayer Diagnostics
Problem
Sprayer makes sound but no material is
26
Cause
Spray Tip is clogged
Sprayer is not primed
Solution
See Clear Tip Clogs , page 19.
Repeat Start Up procedure to
Pump Filter is plugged
Prime Knob is in PRIME position
the FlexLiner. See Startup , page
Verify Cup Lid is tight. An under tightened Cup Lid will allow air to seep into the FlexLiner and cause a loss of prime. Add Seal
Lube (included) to the Cup Lid gasket to ensure an airtight seal.
If the sprayer sprays when upside down by not upright, there is likely still an air leak into the cup. Try replacing the
FlexLiner and VacuValve (extra of both included with sprayer).
Make certain there is only one
FlexLiner in the Cup Support.
Make certain there is no damage to or debris on the top sealing edge of the FlexLiner or Cup Lid gasket.
Make certain all the air is out of the FlexLiner and the VacuValve cap is properly closed.
Make certain the cup assembly is properly installed onto the sprayer.
Clean sprayer. See Cleanup , page 21.
Remove the Pump Filter from the pump. Clean both sides of the
Pump Filter. While the Pump
Filter is removed, inspect and ensure no dried paint debris is collected inside the pump inlet.
Turn Prime Knob forward to
SPRAY position.
Spray Tip is not in SPRAY position Turn Spray Tip to SPRAY position.
No or low material in FlexLiner
Refill FlexLiner. See page 11.
3A9014B
Troubleshooting
Problem Cause Solution
Sprayer sprays with poor results
Power supply
Motor has overheated
Electronic control failure
Spray Tip is partially clogged
Replace electronic control.
See Clear Tip Clogs , page 19.
Spray Tip is not in correct position See Spray Tip Installation , page 18.
Incorrect Spray Tip for application of material plugged into a grounded and functional power source.
Wait 20-30 minutes for motor to cool.
Install a different size Spray Tip.
See Reversible Spray Tips , page 18.
Replace Spray Tip.
Spray Tip is worn or damaged
Material being sprayed is aerated and full of bubbles
Let material settle or change to different material.
Material being sprayed is too cold Warm material.
Paint leaks from sprayer Pump has reached its maximum life Replace pump.
Paint leaks out of the cup threads
Cup not properly seated Verify Cup Lid is tight. An under tightened Cup Lid will allow air to seep into the FlexLiner and cause a loss of prime. Add Seal
Lube (included) to the Cup Lid gasket to ensure an airtight seal.
Make certain there is only one
FlexLiner in the Cup Support.
Make certain there is no damage to or debris on the top sealing edge of the FlexLiner or Cup Lid gasket.
Make certain the Cup Lid is properly threaded to the Cup
Support. There should be no threads visible when tight.
Avoid flexing or pushing on the
Cup Support when you evacuate the air out of the FlexLiner.
Avoid pulling down on the
FlexLiner when you evacuate the air out of the FlexLiner.
Replace FlexLiner.
3A9014B 27
Troubleshooting
Spray Pattern Diagnostics
Problem
Spray pattern is pulsating:
Spray pattern has tails:
Spray pattern has dripping/sagging: ti15524a ti15526a
Cause
Spray Tip is clogged
Material is difficult to atomize
Sprayer is too far from target surface
Incorrect Spray Tip for application of material
Speed Control is set too low
Incorrect Spray Tip for application of material
Material not compatible with sprayer
Spray Tip is worn or damaged
Operator is moving too slowly while spraying
Sprayer is too close to target surface
Speed Control is set too high
Spray Tip is worn or damaged
Solution
Slow speed of movement.
See Clear Tip Clogs , page 19.
On models with Speed Control, increase speed until desired
Hold sprayer farther away from
Install a different size Spray Tip.
See Reversible Spray Tips , page 18.
On models with Speed Control, increase speed until desired
Install a different size Spray Tip.
See Reversible Spray Tips , page 18.
manufacturer's recommendations.
Change to different material.
Replace Spray Tip.
Move sprayer faster when spraying.
Move sprayer away from surface. See Spraying , page
directions. See Spraying , page
On models with Speed Control, decrease speed until desired
Replace Spray Tip.
28 3A9014B
Troubleshooting
Problem
Spray pattern “spits” at the end or beginning:
Cause
Excess material has accumulated on Spray Tip
Spray Tip is partially plugged
Spray Tip is not fully
Guard
Spray Tip is worn or damaged
Solution
Clean Spray Tip and Spray Tip
See Spray Tip Installation , page 18.
Replace Spray Tip.
Replace pump.
3A9014B 29
Replacement Parts
Replacement Parts
Single Speed, Dual Speed, Dual Speed Premium
30 3A9014B
Replacement Parts
Parts List- Single Speed, Dual Speed, Dual Speed Premium
1
2
3
7
8
5
6
9
Ref.
10
12
13a
13b
14
15
16
Sprayer Name
All
All
All
All
All
All
All
All
All
Single Speed
Dual Speed
Dual Speed
Single Speed
All
All
All
Order
Part No.
Description
18F756 Complete pump assembly includes 2, 3, 5, 6, 7, 8
16Y425 O-ring
18A886 Filter, pump, paint
18F209 Filter, pump, stain
117059 O-ring
17A402 Prime Pump/Spray valve includes qty. 1 of ref. 5
17A221 Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8
119236 Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N•m)
18F520 Kit tips, paint includes 3 (CAN models order CANP20)
18F519 Kit tips, stain includes 3 (CAN models order CANS19)
16X880 Reciprocator assembly
17A224 duct, power cord and switch includes motor, air
17B653 Control, electronic, dual speed, 120V includes motor, air
16X868 Switch, dual speed control
16X869 Plug, single speed
16W846 Support, 32 oz. cup
17A226 Kit, 32oz., FlexLiner (3-pack)
17R821
Kit, cup assembly includes 14, qty. 1 of ref. 15, 16a, 17, qty.
16a
17
18
19
20
22
23
▲
24
25
▲
26
30
31
32
33
- -
▲
- - -
- - -
- - -
All
All
All
All
All
All
All
Single Speed
Dual Speed
All models
All
All
17M879 Plug, cup lid, not shipped with sprayer (not shown)
18F759 Lid, cup includes qty. 1 of ref. 18
17P712 VacuValve cap, 3-pack
17A227 Kit, enclosure includes qty. 13 of ref. 8
16Y680 Label, USA
16Y678 Label, control
16Y636 Label, warning and model number, side (not shown)
18C037 Label, brand, TrueCoat 360
Dual Speed Premium 18C038 Label, brand, TrueCoat 360 DSP
18C040 Label, brand, TrueCoat 360 DS
17A198 Label, warning, cord (not shown)
Dual Speed Premium 18F449 Case, storage
All
All
All
All
All
All
18B057 Kit, funnel, strainer includes qty. 1 of ref. 2
25T467 Lubricant, seal lube
17K515
18B058
179960
17F518
Label, A+ Service (not shown)
Spout, pour
Label, medical alert card (not shown)
243104 Pump Armor, 32 oz. (not shown)
18C045 Tag, hang, tip (not shown) (CAN models order 18F613)
Kit, 42 oz. cup (not shown)
- - All 17F005 Kit, 42 oz. FlexLiner (3-pack) (not shown)
▲
Replacement safety labels, tags, and cards are available at no cost.
3A9014B 31
Replacement Parts
Replacement Parts
Variable Speed Premium
32 3A9014B
Replacement Parts
Parts List- Variable Speed Premium
1
2
3
7
8
5
6
9
Ref.
10
12
13
14
15
16
16a
17
18
19
20
22
23
▲
24
25
▲
26
27
Sprayer Name
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
All
Order
Part No.
Description
18F756 Complete pump assembly includes 2, 3, 5, 6, 7, 8
16Y425 O-ring
18A886 Filter, pump, paint
18F209 Filter, pump, stain
117059 O-ring
17A402 Prime Pump/Spray valve includes qty. 1 of ref. 5
17A221 Kit, Prime Pump/Spray knob includes qty. 1 of ref. 8
119236 Screw, T-15 (torque 8-10 in-lb / 0.9-1.1 N•m)
18F520 Kit tips, paint includes 3 (CAN models order CANP20)
18F519 Kit tips, stain includes 3 (CAN models order CANS19)
16X880 Reciprocator assembly
17F068
Control, electronic, variable speed, 120 V includes motor, air duct, power cord and switch
17D844 Adapter, variable speed control
16W846 Support, cup, 32 oz.
17A226 Kit, 32 oz., FlexLiner (3-pack)
17R821
Kit, cup assembly includes 14, qty. 1 of ref. 15, 16a, 17, qty.
17M879 Plug, cup lid, not shipped with sprayer (not shown)
18F759 Lid, cup includes qty. 1 of ref. 18
17P712 VacuValve cap, 3-pack
17A227 Kit, enclosure includes qty. 13 of ref. 8
16Y680 Label, USA
16Y678 Label, control
16Y636 Label, warning and model number, side (not shown)
18C042 Label, brand, TrueCoat 360 VSP
17A198 Label, warning, cord (not shown)
18F449 Case, storage
17F069
Kit, enclosure, variable speed includes sight glass, includes
29
30
31
32
33
- -
▲
- - -
- - -
- - -
- - -
All
All
All
All
All
All
All
All
All
All
17D843
18B057
25T467
17K515
18B058
179960
243104 Pump Armor, 32 oz (not shown)
18C045
17F518
17F005
Sight glass
Kit, funnel, strainer
Lubricant, seal lube
Spout, pour includes qty. 1 of ref. 2
Label, A+ Service (not shown)
Label, medical alert card (not shown)
Tag, hang, tip (not shown) (CAN models order 18F613)
Kit, 42 oz. cup (not shown)
Kit, 42 oz. FlexLiner (3-pack) (not shown)
▲ Replacement safety labels, tags, and cards are available at no cost.
3A9014B 33
Technical Specifications
Technical Specifications
TrueCoat 360
U.S.
Metric
Max Working Pressure
Maximum Amperage
Weight
TrueCoat 360, 360 DS/DSP
TrueCoat 360 VSP
Dimensions:
Length (All models)
Width (All models)
Height 360, 360 DS/DSP
Height 360 VSP
Storage Temperature Range ◆❖
Operating Temperature Range ✓
Storage Humidity Range
Electrical Power Requirement
Duty Cycle
Maximum tip orifice
Wetted materials on all models:
2000 psi
2.5 Amps
3.5 lb (18 in.cord)
3.75 lb (18 in.cord)
13.8 MPa, 138 bar
2.5 Amps
1.6 kg (45 cm cord)
1.7 kg (45 cm cord)
12.50 in.
5.25 in.
9.75 in.
11.8 in.
32° to 113° F
40° to 90° F
0% to 95% relative humidity,
31.75 cm
13.34 cm
24.77 cm
29.97 cm
0° to 45° C
4° to 32° C
0% to 95% relative humidity, non-condensing non-condensing
120 Vac, 60 Hz, 15A, 1 phase
50%
0.015 in.
50%
0.38mm
stainless steel, brass, polyethylene, carbide, nylon, polypropylene, fluoroelastomer, acetal, aluminum
◆ Pump damage will occur if fluid freezes in pump.
❖ Damage to plastic parts may result if impact occurs in low temperature conditions.
✓ Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
34 3A9014B
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of equipment with structures, accessories, equipment or materials not supplied by
Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE .
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED
BY GRACO . These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
3A9014B 35
Graco Information
For the latest information about Graco products, visit www.graco.com
.
For patent information, see www.graco.com/patents .
TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A9014
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA www.graco.com
Revision B, April 2022
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 9 Know Your Sprayer
- 10 Know Your Controls
- 11 Setup
- 11 Pressure Relief Procedure
- 11 Cup Fill
- 14 Startup
- 16 Spraying
- 16 Spray Tip Orientation
- 17 Spray Pattern Quality
- 17 Spray Angle
- 17 Aiming Sprayer
- 17 Triggering Timing
- 18 Reversible Spray Tips
- 18 Spray Tip Removal
- 18 Spray Tip Installation
- 19 Clear Tip Clogs
- 20 Cup Refills
- 20 Pause in Spraying
- 21 Cleanup
- 21 Fluid Compatibility
- 21 Static Grounding Instructions (Oil-Based Materials)
- 22 Cleaning Sprayer
- 24 Storage
- 25 Recycling and Disposal
- 25 End of Product Life
- 26 Troubleshooting
- 30 Replacement Parts
- 30 Single Speed, Dual Speed, Dual Speed Premium
- 31 Parts List- Single Speed, Dual Speed, Dual Speed Premium
- 32 Replacement Parts
- 32 Variable Speed Premium
- 33 Parts List- Variable Speed Premium
- 34 Technical Specifications
- 34 California Proposition 65
- 35 Graco Standard Warranty
- 36 Graco Information
- 2 Before You Spray
- 2 Review Warnings for Important Safety Information
- 2 Models
- 2 Online Resources
- 3 Important User Information
- 4 Contents
- 5 Warnings
