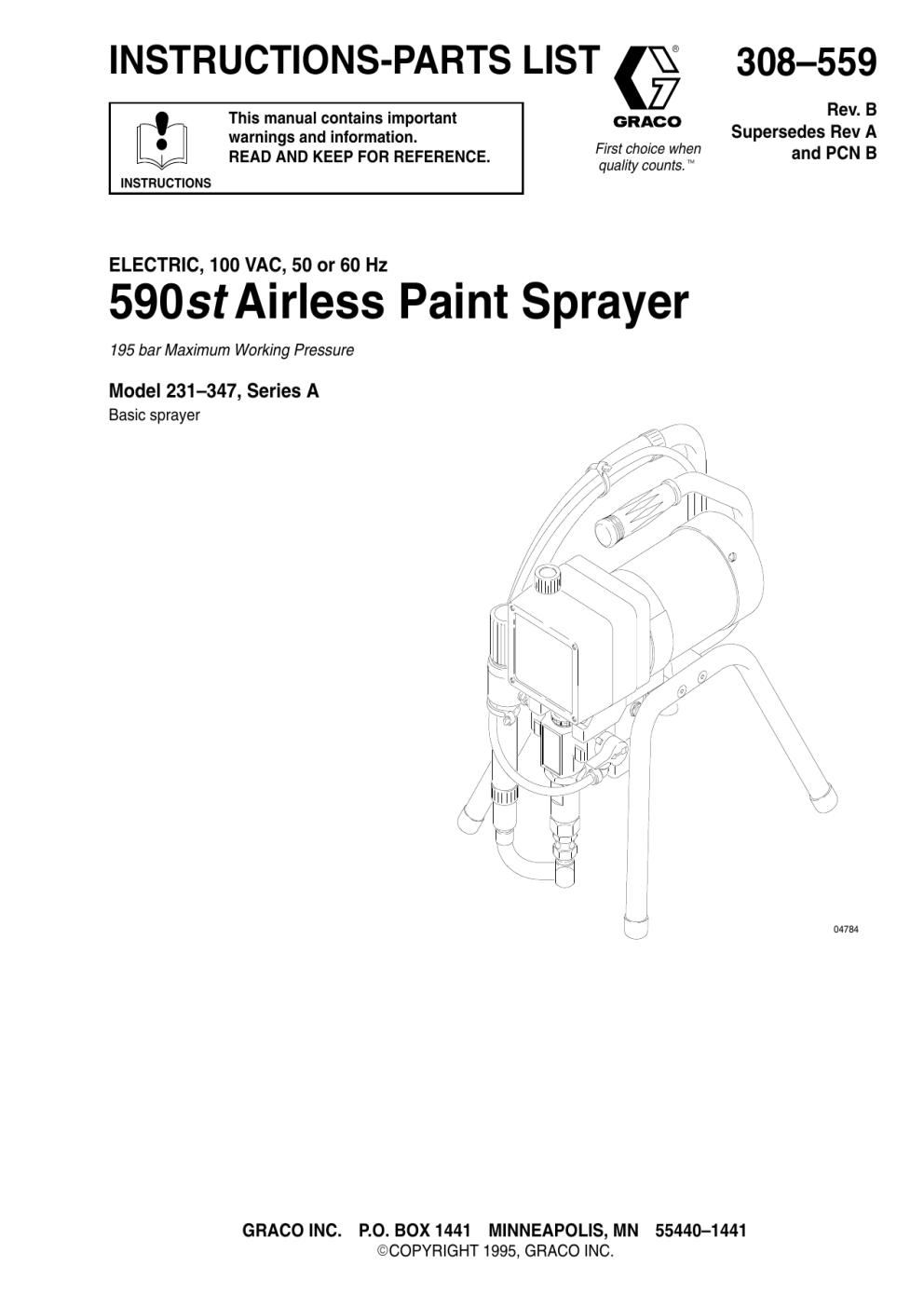

INSTRUCTIONS-PARTS LIST

This manual contains important warnings and information.

READ AND KEEP FOR REFERENCE.

First choice when quality counts.

INSTRUCTIONS

308–559

Rev. B

Supersedes Rev A and PCN B

ELECTRIC, 100 VAC, 50 or 60 Hz

590

st

Airless Paint Sprayer

195 bar Maximum Working Pressure

Model 231–347, Series A

Basic sprayer

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

COPYRIGHT 1995, GRACO INC.

Table of Contents

Warnings

Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shutdown and Care . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

11

2

6

Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Repair Information . . . . . . . . . . . . . . . . . . . . .

12

13

18

Motor Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Motor Brush Replacement . . . . . . . . . . . . . . . . . . . . . .

Displacement Pump

Motor

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Motor Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

20

22

26

27

Symbols

On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drive Housing, Connecting Rod, Crankshaft . . . . . .

Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pressure Transducer . . . . . . . . . . . . . . . . . . . . . . . . . .

Drain Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displacement Pump Parts

Complete Sprayer Parts

. . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

Technical Data

Dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty and Disclaimers . . . . . . . . . . . . . . . . . . . . . .

27

28

30

31

32

33

34

36

36

36

36

Warning Symbol

WARNING his symbol alerts you to the possibility of serious injury or death if you do not follow the instructions.

Caution Symbol

CAUTION

This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow the instructions.

FIRE AND EXPLOSION HAZARD

Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury.

If there is any static sparking or you feel an electric shock while using this equipment, stop spraying immediately.

Do not use the equipment until you identify and correct the problem.

Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid being sprayed.

Keep the spray area free of debris, including solvent, rags, and gasoline.

Electrically disconnect all equipment in the spray area.

Extinguish all open flames or pilot lights in the spray area.

Do not smoke in the spray area.

Do not turn on or off any light switch in the spray area while operating or if fumes are present.

Do not operate a gasoline engine in the spray area.

INJECTION HAZARD

Spray from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury.

Fluid injected into the skin is a serious injury. The injury may look like just a cut, but it is a serious injury. Get immediate medical attention.

Do not point the gun at anyone or at any part of the body.

Do not put your hand or fingers over the spray tip.

Do not stop or deflect leaks with your hand, body, glove or rag.

Do not “blow back” fluid; this is not an air spray system.

Always have the tip guard and the trigger guard on the gun when spraying.

Check the gun diffuser operation weekly. Refer to the gun manual.

Be sure the gun trigger safety operates before spraying.

Lock the gun trigger safety when you stop spraying.

Follow the Pressure Relief Procedure on page 9 if the spray tip clogs and before cleaning, checking or servicing the equipment.

Tighten all fluid connections before operating the equipment.

Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. Do not repair high pressure couplings; you must replace the entire hose.

Fluid hoses must have spring guards on both ends, to help protect them from rupture caused by kinks or bends near the couplings.

TOXIC FLUID HAZARD

Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, or swallowed.

Know the specific hazards of the fluid you are using.

Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and national guidelines.

Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and solvent manufacturer.

MOVING PARTS HAZARD

Moving parts can pinch or amputate your fingers.

Keep clear of all moving parts when starting or operating the pump.

Before servicing the equipment, follow the Pressure Relief Procedure on page 9 to prevent the equipment from starting unexpectedly.

EQUIPMENT MISUSE HAZARD

Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.

INSTRUCTIONS

D This equipment is for professional use only.

D Read all instruction manuals, tags, and labels before operating the equipment.

D Use the equipment only for its intended purpose. If you are not sure, call Graco Technical Assistance at 1–800–543–0339.

D Do not alter or modify this equipment.

D Check equipment daily. Repair or replace worn or damaged parts immediately.

D Do not exceed the maximum working pressure of the lowest rated system component. Refer to the Technical Data on page 36 for the maximum working pressure of this equipment.

D Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the

Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.

D Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents in pressurized aluminum equipment. Such use could result in a chemical reaction, with the possibility of explosion.

D Do not use hoses to pull equipment.

D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose Graco hoses to temperatures above 82 _ C (180 _ F) or below –40 _ C (–40 _ F).

D Do not lift pressurized equipment.

D Comply with all applicable local, state, and national fire, electrical, and safety regulations.

NOTE: This is an example of the English language DANGER label on your sprayer. This label is supplied with the sprayer in other languages. Before operating the sprayer, apply a DANGER label in the appropriate language for your operators, according to the separate instructions supplied with it.

4

FIRE AND

EXPLOSION HAZARD

SKIN INJECTION

HAZARD

Spray painting, flushing or cleaning equipment with flammable liquids in confined areas can result in fire or explosion.

Use outdoors or in extremely well ventilated areas. Ground equipment, hoses, containers and objects being sprayed.

Avoid all ignition sources such as static electricity from plastic drop cloths, open flames such as pilot lights, hot objects such as cigarettes, arcs from connecting or disconnecting power cords or turning light switches on and off.

Failure to follow this warning can result in death or serious injury.

Liquids can be injected into the body by high pressure airless spray or leaks – especially hose leaks.

Keep body clear of the nozzle. Never stop leaks with any part of the body. Drain all pressure before removing parts.Avoid accidental triggering of gun by always setting safety latch when not spraying.

Never spray without a tip guard.

In case of accidental skin injection, seek immediate

“Surgical Treatment”.

Failure to follow this warning can result in amputation or serious injury.

READ AND UNDERSTAND ALL LABELS AND INSTRUCTION MANUALS BEFORE USE

308-559

D

Major Components

C

B

A

E

G

H

J

F

Fig. 1

A Motor

B Drive Assembly

C Pressure Adjusting Knob

D Fluid Filter

E Fluid Outlet

F Displacement Pump

G Pressure Drain Valve

H Motor Control

J ON/OFF Switch

DC motor, 100 Vac, 13A, 1 phase

Transfers power from DC motor to the displacement pump

Controls fluid outlet pressure

Filters fluid between source and spray gun

Hose and spray gun is connected here

Pressurizes fluid to be sprayed through spray gun

Relieves fluid pressure when open

Controls motor to maintain fluid pressure. Works with pressure adjusting knob.

Power switch that controls 100 Vac power to sprayer

04785

Setup

IMPORTANT: The model 231–347 sprayer is shipped without a spray gun or hose. When a spray gun and hose are referred to throughout this manual, the instructions and figures depict a Graco

)

product. Your gun and hose may be different.

2. Attach the fluid filter (85) to the sprayer.

3. Connect the hose and gun and screw it onto the outlet nipple (28). Don’t use thread sealant, and don’t install the spray tip yet!

WARNING

If you supply your own hoses and spray gun, be sure the hoses are electrically conductive, that the gun has a tip guard, and that each part is rated for at least 195 bar Working Pressure. This is to reduce the risk of serious injury caused by static sparking, fluid injection or over-pressurization and rupture of the hose or gun.

4. Fill the wet–cup (102). Pry off the wet–cup seal.

Fill the cup 1/3 full with Graco Throat Seal Liquid

(TSL), supplied. Install the seal.

5. Check the electrical service.

It must be 100 VAC,

50/60 Hz, 10 Amp (minimum) and must be protected by a fuse or circuit breaker with a rating of not more than 16 amps.

6. You may use a 3-wire, 2.0 mm 2 (14 AWG) (minimum) extension cord up to 45 m long. Longer lengths affect sprayer performance.

CAUTION

To avoid damaging the pressure control, which may result in poor equipment performance and component damage, follow these precautions:

7. Plug in the sprayer.

Be sure the ON/OFF switch

(52) is OFF. Plug the cord into a grounded outlet at least 6 m away from the spray area.

1. Always use a nylon spray hose at least 15 m

(50 ft) long.

2. Never use a wire braid hose as it is too rigid to act as a pulsation dampener.

3. Never install any shutoff device between the filter and the hose.

See Fig. 3.

WARNING


Proper electrical grounding is essential to reduce the risk of fire or explosion which can result in serious injury and property damage. Also read FIRE OR

EXPLOSION HAZARD on page 2.

1. Plug the power cord (57) into the inlet receptacle located below the motor. Tighten the screw (A) of the cord clamp (65) securely. See Fig. 2.

8. Flush the pump to remove the oil which was left in to protect pump parts after factory testing. See page 12.

65

57

Fig. 2

A

03174

9. Prepare the paint according to the manufacturer’s recommendations. Remove any paint skin. Stir the paint to mix pigments. Strain the paint through a fine nylon mesh bag to remove particles that could clog the gun filter or spray tip. This is an important step toward trouble–free paint spraying.

6 308-559

Setup

A

B

1/4 npsm(m):

Do not install any shutoff device here

Fill 1/3 full with TSL

85

A 28

52

102

B

04785 Fig. 3

Operation

How to use the pressure drain valve

Refer to the IMPORTANT note on page 6.

How to use the gun safety latch

When engaged, the gun safety latch (A) prevents the gun from accidental triggering. See Fig. 4.

Use the pressure drain valve (45) to relieve fluid pressure from the pump and to help prime the pump. If the valve senses an overpressure condition, it opens automatically to relieve fluid pressure. If this happens, stop spraying immediately, shut off and unplug the sprayer. Correct the problem before using the sprayer again. Refer to Troubleshooting, page 13. See Fig. 5.

WARNING


If the gun still sprays when the gun trigger safety is locked, repair the gun.

See the spray gun instruction manual.

A

B

Safety latch shown in “ON SAFE” position

Safety latch shown in “OFF SAFE” position

A

B

Closed (spray) position

Open (drain) position

A A

Fig. 4

B A

01020

Fig. 5

45 A

45

B

308-559

02825A

7

Operation

How to use the pressure control

The pressure control controls the motor operation so the sprayer maintains constant fluid pressure at the pump outlet. Turn the pressure control knob (64) fully counterclockwise to obtain the minimum setting. Turn the knob clockwise to increase pressure. See Fig. 6.

Clean the front of the tip frequently during the day’s operation. First, follow the Pressure Relief Procedure on page 9.

A 64

A

Rotate clockwise to increase pressure

Fig. 6

How to use the RAC IV tip guard

WARNING


To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the Pressure Relief

Procedure on page 9.

01022A

The tip guard alerts you to the risk and helps prevent placing any part of the body close to the spray tip. The tip guard also adjusts the vertical or horizontal spray pattern. See page 10. The tip guard holds a reversing spray tip. The tip is in the spraying position when the tip handle (B) points forward. See Fig. 7.

A

A

Tip handle shown in spraying position.

B

Fig. 7

Turn handle 180 ,

trigger gun to clear clog

B

04647

How to remove a tip clog

1. Release the gun trigger. Engage the gun safety latch. Rotate the RAC IV tip handle 180 . See Fig.

7.

2. Disengage the gun safety latch. Trigger the gun into a pail or onto the ground to remove the clog.

3. Engage the gun safety latch. Rotate the tip handle

(B) to the spraying position.

4. If the tip is still clogged, engage the gun safety latch, shut off and unplug the sprayer, and open the pressure drain valve to relieve pressure. Clean the spray tip as shown in your gun manual.


WARNING


The system pressure must be manually relieved to prevent the system from starting or spraying accidentally. Fluid under high pressure can be injected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you: are instructed to relieve the pressure, stop spraying, check or service any of the system equipment, or install or clean the spray tip.

Startup

NOTE: If this is a first–time startup, flush the sprayer.

See page 12.

NOTE: Refer to Fig. 10 and the other figures referenced in the text as you start the sprayer.

1. Open the pressure drain valve (45). See Fig. 8.

2. Don’t install the spray tip until the pump is primed!

3. Put the suction hose (32) into the paint.

4. Turn the pressure control (64) to minimum.

5. Disengage the gun safety latch.

See Fig. 4, page

7.

CAUTION

To reduce the risk of damage to the displacement pump packings, never run the pump without fluid in it for more than 30 seconds.

Pressure Relief Procedure

1. Engage the gun safety latch.

2. Turn the ON/OFF switch to OFF.

3. Unplug the power supply cord.

4. Disengage the gun safety latch. Hold a metal part of the gun firmly to a grounded metal pail. Trigger the gun to relieve pressure.

5. Engage the gun safety latch.

6. Open the pressure drain valve. Leave the pressure drain valve open until you are ready to spray again.

If you suspect that the spray tip or hose is completely clogged, or that pressure has not been fully relieved after following the steps above, VERY SLOWLY loosen the tip guard retaining nut or hose end coupling to relieve pressure gradually, then loosen completely.

Now clear the tip or hose obstruction.

6. To prime the pump, turn the sprayer switch (52) on.

Slowly increase the pressure until the sprayer starts. When fluid comes from the pressure drain valve, close the valve.

WARNING


To reduce the risk of static sparking and splashing when priming or flushing the system, hold a metal part of the gun firmly to the side of a grounded metal pail before triggering the gun.

Startup Procedure

Use this procedure each time you start the sprayer to help ensure the sprayer is ready to operate and that you start it safely.

A Open (drain) position

7. To prime the hose, lower the pressure to reduce splashing. Hold a metal part of the gun firmly against and aimed into the side of a grounded metal pail.

See the WARNING, above. Hold the trigger open and slowly increase the pressure until the pump starts. Keep the gun triggered until all air is forced out of the system and the fluid flows freely from the gun. Release the trigger and engage the gun safety latch.

8. Check all fluid connections for leaks. Relieve pressure before tightening any connections.

45 A

Fig. 8

03034

9. Install the spray tip. Engage the gun safety latch first! Refer to your gun manual on how to install the tip.

10. Adjust the spray pattern.

Startup

a. Increase the pressure just until spray from the gun is completely atomized. To avoid excessive overspray and fogging, and to extend tip and sprayer life, always use the lowest pressure needed to get the desired results.

A

B

Tip guard; shown in vertical position

Tip guard: shown in horizontal position b. If more coverage is needed, use a larger tip rather than increasing the pressure.

A c. Test the spray pattern. To adjust the direction of the spray pattern, engage the gun safety latch and loosen the retaining nut. Position the tip guard horizontally for a horizontal pattern or vertically for a vertical pattern. Hold the tip guard in place while tightening the retaining nut. See Fig. 9.

NOTE: Spray patterns will change as tips wear.

Change the spray tip if adjusting the pressure will not improve the spray pattern.

Fig. 9

33

32

A

Rotate clockwise to increase pressure

A

64

B

01025

45

52

Fig. 10

10 308-559

04785

Shutdown and Care


8. Coil the hose when storing it, even for overnight, to help protect the hose from kinking, abrasion, coupling damage, etc.

WARNING




WARNING


See the warning section INJECTION

HAZARD on page 3 for information on the hazard of using damaged hoses.

1. Check the packing nut/wet–cup (102) daily. Relieve pressure first. Keep the wet–cup 1/3 full of

TSL at all times to help prevent fluid buildup on the piston rod and premature wear of packings.

2. Tighten the packing nut/wet–cup (102) just enough to stop leakage. Over-tightening causes binding and excessive packing wear. Use a round punch or brass rod and a light hammer to adjust the nut.

See Fig. 11.

3. Clean the gun’s fluid filter (if present) often and whenever the gun is stored. Relieve pressure first.

4. Periodically clean paint residue from the pressure transducer vent hole (A) area. See Fig. 12. Replace the transducer when leakage is excessive.

See page 31.

5. Lubricate the bearing housing after every 100 hours of operation. Remove the front cover. Fill the bearing housing cavity (B) with several drops of

SAE 10 non–detergent oil. See Fig. 12.

6. Flush the sprayer at the end of each work day and fill it with mineral spirits to help prevent pump corrosion and freezing. See page 12.

A

With pressure relieved, turn packing nut clockwise to tighten

A 102

Fig. 11

A

B

0317

CAUTION

To prevent pump corrosion, and to reduce the chance of fluid freezing in the pump in cold weather, never leave water or any type of paint in the sprayer when it is not in use. Freezing can seriously damage the sprayer or result in a loss of pressure or stalling.

7. For very short shutoff periods, leave the suction hose in the paint, relieve pressure, and clean the spray tip.

Fig. 12

02827A

308-559 11


Flushing

When to flush

1. Before using a new sprayer, flush out the oil which was left in to protect pump parts.

How to flush

1. Follow the Pressure Relief Procedure on page 9.

Before using water–base paint , flush with mineral spirits followed by soapy water, and then a clean water flush.

2. Remove the spray tip and clean it separately.

Unscrew the bowl (A) and remove the filter screen.

Then reinstall the bowl, hand tight, without the screen. Clean the screen.

Before using oil–base paint , flush with mineral spirits only.

A

B

2. When changing colors, flush with a compatible solvent such as mineral spirits or water.

3. When changing from water–base to oil–base paint, flush with warm, soapy water, and then mineral spirits.

4. When changing from oil–base to water–base paint, flush with mineral spirits, then warm, soapy water, and then a clean water flush.

5. Storage after using water–base paint: flush with water and then mineral spirits. Leave the system filled with mineral spirits. Relieve pressure. Leave the drain valve open.

Storage after using oil–base paint: flush with mineral spirits. Relieve pressure. Leave the drain valve open.

CAUTION

Never allow water to freeze in the pressure control.

Doing so prevents the sprayer from being started and may cause serious damage. Push the water out with mineral spirits.

Fig. 13

3. Pour 2 liters of compatible solvent into a grounded metal flushing pail. Put the pump in the pail.

4. Open the pressure drain valve.

WARNING

FIRE AND EXPLOSION HAZARD gun, and hold a metal part of the gun firmly to the side of a grounded metal pail when flushing.

To reduce static sparking and splashing, always remove the spray tip from the

02828

6. Startup after storage. Before using water-base paint, flush out the mineral spirits with soapy water and then a clean water flush. When using oil-base paint, flush out the mineral spirits with the paint to be sprayed.

5. If you have been spraying and want to save the paint still in the pump and hose, follow Step 5, except put the drain tube in the paint container. As soon as solvent appears, close the drain valve.

Move the drain tube to the flushing pail. Trigger the gun into the paint pail. As soon as solvent appears, release the trigger. Continue with Step 6.

12 308-559

Flushing

7. Lower the pressure setting. Turn on the sprayer.

Maintaining metal–to–metal contact, trigger the gun into the flushing pail. Slowly increase the pressure just until the pump operates. Keep the gun triggered until the solvent flows freely from the gun. Circulate the solvent to thoroughly clean the sprayer. Release the gun trigger. Engage the gun safety latch.

9. Remove the pump from the pail. Disengage the gun safety latch. Trigger the gun to force solvent from the hose and run the sprayer a few seconds more to push air into the hose. Relieve pressure.

10. Remove the filter bowl and reinstall the clean filter screen. Hand tighten the bowl.

8. Open the drain valve and circulate the solvent through the drain tube to thoroughly clean it. Close the drain valve.

11. Remove the inlet strainer and clean it thoroughly.

Wipe paint off the suction hose and drain hose.

CAUTION

To reduce the risk of damage to the displacement pump packings, never run the pump without fluid in it for more than 30 seconds.

12. If you flushed with mineral spirits and are going to use a water–base paint, flush with soapy water followed by a clean water flush. Relieve pressure.

13. Leave the drain valve open.

Troubleshooting

Refer to the I MPORTANT note on page 6.

WARNING


To reduce the risk of serious injury, whenever you are instructed to relieve pressure, follow the

Pressure Relief Procedure on page 9.

Basic Problem Solving

Check everything in the troubleshooting table before disassembling the sprayer.

TYPE OF PROBLEM

Fluid Pressure

Mechanical

WHAT TO CHECK

If check is OK, go to next check

1. Check pressure control knob setting. The pump won’t develop much pressure if it is at minimum setting (fully counterclockwise).

2. Check for a clogged spray tip (see page 8) or a clogged fluid filter (see page 12 ).

WHAT TO DO

When check is not OK, refer to this column

1. Slowly increase pressure setting to see if motor starts.

1. Check for frozen or hardened paint in pump

(20). Using a screwdriver, carefully try to rotate fan at back of motor by hand. See page 19.

2. If tip is still clogged, relieve pressure; refer to separate gun or tip instruction manual for tip cleaning. Clean or replace the filter element.

1. Thaw. Plug in sprayer and turn on.

Slowly increase pressure setting to see if motor starts. If it doesn’t, see NOTE 1, below.

NOTE 1: Thaw sprayer if water or water–based paint has frozen in it, due to exposure to low temperatures, by placing it in a warm area. Do not try to start sprayer until it has thawed completely or damage to motor and/or start board may occur. If paint hardened (dried) in sprayer, the pump packings and/or pressure transducer must be replaced. See page 23 (pump) or 31 (pressure transducer).

308-559 13

Troubleshooting

Basic Problem Solving (continued)

TYPE OF PROBLEM

Mechanical (continued)

Electrical

WHAT TO CHECK


2. Check pump connecting rod pin (17). It must be completely pushed into connecting rod (15), and retaining spring (18) must be firmly in connecting rod groove. See page 23.

3. Check for motor damage. Remove drive housing assembly (11). See page 28. Try to rotate motor fan by hand.

1. Check electrical supply with volt meter. Meter should read 90–110 VAC.

2. Check extension cord for visible damage. Use a volt meter or test lamp at extension cord outlet to check.

3. Check sprayer power supply cord (57) for visible damage such as broken insulation or wires.

4. Check motor brushes for the following: a.

Loose terminal screws.

WHAT TO DO


2. Push pin into place and secure with spring retainer.

3. Replace motor (4) if fan won’t turn. See page 26.

1. Reset building circuit breaker; replace building fuse. Try another outlet.

2. Replace extension cord.

3. Replace power supply cord.

4. Refer to page 20.

a.

Tighten.

b.

c.

Broken or misaligned brush springs.

Brushes binding in holders.

d.

Broken leads.

e.

Worn brushes.

b.

Replace broken spring and/or align spring with brush c.

Clean brush holders. Remove d.

carbon with small cleaning brush.

Replace brushes

NOTE: The brushes do not wear at same rate on both sides of motor. Check both brushes.

5. Check motor armature commutator for burn spots, gouges and extreme roughness.

Remove motor cover and brush inspection plates to check. See page 20.

6. Check motor armature for shorts using armature tester (growler) or perform motor test. See page 19.

7. Check leads from pressure control and motor to motor start board (47) to be sure they are securely fastened and properly mated.

8. Check motor start board (47) by substituting with a good board. See page 27.

CAUTION: Do not perform this check until motor armature is determined to be good. A bad motor armature can burn out a good board.

9. Check power supply cord (57). Disconnect cord from inlet filter (51). Connect voltmeter to cord’s receptacle and plug into wall outlet. Meter should read 90–110 VAC. Unplug sprayer.

10. Check inlet filter (51). Disconnect black and white power inlet filter terminals; connect volt meter to these leads. Plug in sprayer. Meter should read 90–110 VAC. Unplug sprayer.

e.

Replace brushes if less than 10 mm long.

5. Remove motor and have motor shop resurface commutator if possible. See page 26.

6. Replace motor. See page 26.

7. Replace loose terminals; crimp to leads.

Be sure male terminal blades are straight and firmly connected to mating part.

8. Replace board. See page 27.


10. Replace inlet filter.

14 308-559

Troubleshooting

Basic Problem Solving (continued)

TYPE OF PROBLEM

Electrical, continued

WHAT TO CHECK


11. Check ON/OFF switch (52). Disconnect the wire labeled ”L”, between motor start board (47) and switch. Connect volt meter between exposed terminal on switch and white wire on inlet filter (51). Plug in sprayer and turn

ON . Meter should read 90–110 VAC. Turn off and unplug sprayer.

12. Check motor thermal cutout switch. Connect ohmmeter between motor’s red leads. Meter should read 1 ohm maximum.

13. Remove pressure control (64) and check microswitch operation with ohmmeter: a.

With pressure knob at lowest setting and stem pushed into control, readings should be: white & black = 1 ohm max.

white & red = open.

WHAT TO DO


11. Replace ON/OFF switch. See page 25.

12. Allow motor to cool. Correct cause of overheating. If switch remains open after motor cools, replace motor.

13. Replace pressure control. See page 30.

b.

With pressure knob at highest setting, readings should be: white & black = open; white & red = 1 ohm max.

14. Check pressure transducer (29) for hardened paint or damaged or worn components. See page 31.

Intermediate Problem Solving

TYPE OF PROBLEM

Low Output

14. Replace transducer. See page 31. Thorough system flushing will help extend life of transducer.

WHAT TO CHECK


1. Check for worn spray tip.

2. Be sure pump does not continue to stroke when gun trigger is released. Plug in and turn on sprayer. Prime with paint. Trigger gun momentarily, then release and engage safety latch. Relieve pressure, turn off and unplug sprayer.

3. Release gun trigger. Observe resting position of pump rod (107).

WHAT TO DO

When check is not OK refer to this column

1. Follow Pressure Relief Procedure on page 9 then replace tip. See your separate gun or tip manual.

2. Service pump. See page 22.

4. Check electrical supply with volt meter. Meter should read 90–110 VAC.

5. Check extension cord size and length; must be at least 2.0 mm

45 m.

2 gauge wire and less than

3. If pump consistently comes to rest with rod

(107) fully extended, the piston packings and/or piston valve may be worn. Service the pump. See page 23.

4. Reset building circuit breaker; replace building fuse. Repair electrical outlet or try another outlet.

5. Replace with a correct, grounded extension cord.

308-559 15


Troubleshooting

TYPE OF PROBLEM

Drain Valve Leaks

WHAT TO CHECK


6. Check motor brushes. See What To Check, item 4, on page 14.

7. Check motor start board (47) by substituting with a good board.

CAUTION: Do not perform this check until motor armature is determined to be good. A bad motor armature can burn out a good board.

8. Check motor armature for shorts by using an armature tester (growler) or perform motor test. See page 19.

1. Check for correct torque and/or worn parts.

Check for debris trapped on seat.

WHAT TO DO


6. See page 20.



Transducer Leaks

No Output: Motor Runs

And Pump Strokes

1. Slight leakage is normal.

1. Check paint supply.

1. Tighten to 21 N.m. Clean valve and replace with new gasket (42a) and sealant

(42e). See page 32.

1. Periodically remove residue from its cylinder port. See page 31.

1. Refill and reprime pump.

No Output: Motor Runs

But Pump Does Not

Stroke

2. Check for clogged intake strainer.

3. Check for loose siphon tube or fittings. See page 22.

4. Check to see if intake valve ball and piston ball are seating properly. See page 22.

5. Check for leaking around throat packing nut which may indicate worn or damaged packings.

See page 22.

6. Release gun trigger. Observe resting position of pump rod (107).

1. Check displacement pump connecting rod pin

(17). See page 22.

2. Check connecting rod assembly (15) for damage. See page 28.

3. Be sure crank in drive housing rotates; plug in sprayer and turn on briefly to check. Turn off and unplug sprayer. See page 28.

2. Remove and clean, then reinstall.

3. Tighten; use thread sealant on npt threads of inlet tube (38). Check for damaged o–ring (27).

4. Remove intake valve and clean. Check ball and seat for nicks; replace as needed. See page 22. Strain paint before using to remove particles that could clog pump.

5. Replace packings. See page 23. Also check piston valve seat for hardened paint or nicks and replace if necessary.

Tighten packing nut/wet-cup.

6. If pump consistently comes to rest with rod (107) fully extended, the piston packings and/or piston valve may be worn. Service the pump. See page 23.

1. Replace pin if missing. Be sure retainer spring (18) is fully in groove all around connecting rod.

2. Replace connecting rod assembly. See page 28.

3. Check drive housing assembly for damage and replace if necessary. See page

28.

Troubleshooting


TYPE OF PROBLEM

Spray Pattern Variations

WHAT TO CHECK


1. Spray tip worn beyond sprayer pressure capability.

WHAT TO DO


1. Replace spray tip.

NOTE: A smaller size tip will provide longer life.

2. Replace transducer. See page 31.

3. Replace pressure control. See page 30.

Motor Is Hot and Runs

Intermittently

Building Circuit Breaker

Opens As Soon As Sprayer

Switch Is Turned On.

2. Check transducer (29) for wear or damage.

3. Check pressure control (64) for smooth operation.

4. Check LOW OUTPUT section, page 15.

1. Determine if sprayer was operated at high pressure with small tips, which causes excessive heat build up.

2. Be sure ambient temperature where sprayer is located is no more than 32 C and sprayer is not located in direct sun.

3. Check motor. (See NOTE 1, page 13.)

1. Check all electrical wiring for damaged insulation, and all terminals for loose fit or damage.

Also check wires between pressure control and motor. See page 35.

2. Check for missing motor brush inspection plate gasket (see page 20), bent terminal forks or other metal to metal contact points which could cause a short.

3. Check motor armature for shorts. Use an armature tester (growler) or perform motor test. See page 19. Inspect windings for burns.

4. Check motor start board (47) by substituting with a good board.

CAUTION: Do not perform this check until motor armature is determined to be good.

A bad motor armature can burn out a good board.

1. Check ‘Basic Problems – Electrical’ on page

13.

Circuit breaker opens after sprayer operates for 5 to

10 minutes.

Building circuit breaker opens as soon as sprayer is plugged into outlet and sprayer is NOT turned on.

1. Check wiring for correct connections.

1. Decrease pressure setting or increase tip size.

2. Move sprayer to shaded, cooler area if possible.


1. Repair or replace any damaged wiring or terminals. Securely reconnect all wires.

2. Correct faulty conditions.



1. Correct improper connections.

2. Check ON/OFF switch (52). Be sure sprayer is unplugged! Disconnect wires from switch.

Check switch with ohmmeter. The reading should be infinity with ON/OFF switch OFF, and zero with switch ON.

CAUTION: A short in motor circuit can damage switch and/or motor start board (47).

3. Check power supply cord (57). Disconnect black and white power inlet filter terminals; connect volt meter to these leads. Plug in sprayer. Meter should read 90–110 VAC. Unplug sprayer.

2. Replace ON/OFF switch. See page .


General Repair Information

Refer to the I MPORTANT note on page 6.

2. When reconnecting the wires, be sure the flat blade of the insulated male connector is centered in the wrap–around blade of the female connector.

WARNING




CAUTION

Improper wire routing can result in poor sprayer performance or damage to the pressure control.

Required Tool List

3. Route wires carefully through the drive housing and motor. Avoid pinching the wires between the junction box and the motor.

4. Keep all screws, nuts, washers, gaskets, and electrical fittings removed during repair procedures. These parts are not normally provided with replacement assemblies.

5. Reinstall all covers, gaskets, screws and washers before operating the sprayer.

Tool Used for:

3/8” Allen wrench

3/16” Allen wrench

#1 Phillips screwdriver pump manifold gear housing, legs, handle junction box, pressure control, front cover motor mount 3/8” socket wrench

5/8” socket wrench drain valve, outlet fittings, on/off switch, boot, piston drain valve 13/16” socket wrench

1-1/4” socket wrench

1/2” open end wrench pump inlet valve pump rod

11/16” open end wrench piston jam nut

15/16” open end wrench flats of inlet tube

1-3/4” open end wrench

5/64” drive pin pump jam nut drain valve pin

3” needle nose pliers

Hammer & punch

Torque wrenches wiring, on/off switch packing nut various fasteners

WARNING


To reduce the risk of serious injury, including electric shock, DO NOT touch any moving parts or electrical parts with your fingers or a tool while inspecting the repair.

WARNING

HOT SURFACE HAZARD

During operation, the motor and drive housing become very hot and could burn your skin if touched. Flammable materials spilled on the hot, bare motor could cause a fire or explosion.

1. When disconnecting wires in the junction box assembly, use needle nose pliers to separate mating connectors.

CAUTION

To reduce the risk of a pressure control malfunction, be sure to properly mate connectors, and never pull on a wire to disconnect it. Pulling on a wire could loosen the connector from the wire.

6. Test your repair before regular operation to be sure the problem is corrected.

7. Shut off the sprayer and unplug it as soon as you complete the inspection.

8. If the sprayer does not operate properly, verify that everything was done correctly. Also refer to

Troubleshooting, starting on page 13, to help identify other possible problems and solutions.

18 308-559

Motor Test

WARNING




For checking armature, motor winding and brush electrical continuity.

Setup

1. Remove the drive housing. See page 28. This is to ensure that any resistance you notice in the armature test is due to the motor and not to worn gears in the drive housing.

2. Remove the junction box screws (56). Lower the junction box. Disconnect the two leads (C) from the motor to the board (47). See Fig. 15.

Armature Short Circuit Test

1. Remove the fan cover (B). See Fig. 14.

2. Spin the motor fan by hand. If there are no shorts, the motor will coast two or three revolutions before coming to a complete stop. If the motor does not spin freely, the armature is shorted and the motor must be replaced. See page 26.

Armature, Brushes, and Motor Wiring

Open Circuit Test (Continuity)

1. Connect the two black motor leads together with a test lead. Turn the motor fan by hand at about two revolutions per second.

2. When turning the fan on a DC motor, normally you sense an even, pulsing resistance. If there is irregular turning resistance, or no turning resistance, remove the motor brush inspection covers

(A). See Fig. 14. Check and repair the following as needed: broken brush springs, brush leads, motor leads; loose brush terminal screws, motor lead terminals; worn brushes. See page 20.

3. If there is still uneven or no turning resistance, replace the motor. See page 26.

Fig. 14

RED

GREEN/

YELLOW

BLACK

BLACK/

WHITE

C

59

Fig. 15

MOTOR

WHITE

47

10

A

BLACK

54

B

03177

308-559 19

Motor Brush Replacement

NOTE: Replace brushes when worn to about 0.5 in.

(12.5 mm). Always check both brushes. Brush Repair

Kit 236–967, which includes spring clip 112–766, is available for motors manufactured by Pacific Scientific.

1 Motor lead; do not disconnect

2 Minimum 0.5” (12.5 mm)

3

Included in Brush Repair

Kit 236–967

NOTE: Replacement brushes may last only half as long as the original ones. To maximize brush life, break in new brushes by operating the sprayer for at least one hour with no load (remove the pump connecting rod pin).

3 F

G

2

H

C

1

B

WARNING




1. Remove both inspection covers (A) and their gaskets. See Fig 16.

E

Fig. 17

D

03881

4. Inspect the commutator for excessive pitting, burning or gouging. A black color on the commutator is normal. Have the commutator resurfaced by a qualified motor repair shop if the brushes seem to wear too fast or arc excessively. See Step 9.d., also.

5. Repeat for the other side.

NOTE: The motor brushes on the other side are upside down.

6. Place a new brush (C) in the holder (B) so the ramp (H) faces the spring. See Fig. 16.

F

1

G

A

Fig. 16

2. Push in the spring clip (F) and release its hook (G) from the brush holder (B). Pull out the spring clip.

See Fig 17.

04653

3. Slide off the brush lead terminal (E) off the blade connector. Remove the old brush (C). See Fig 17.

C

Fig. 18

E

03881

7. Holding the spring clip (F) at a slight angle, slide the spring clip into the brush holder and hook it over the end of the holder. See Fig. 18. Pull on the spring clip to be sure it stays in place. Connect the brush lead to the blade connector (E).

8. Repeat for the other side.

Motor Brushes

9.

Test the brushes.

a. Remove the pump connecting rod pin (17).

See Fig. 20, page 23.

b. With the sprayer OFF, turn the pressure control knob fully counterclockwise to minimum pressure. Plug in the sprayer.

c. Turn the sprayer ON. Slowly increase the pressure until the motor is at full speed.

d. Inspect the brush and commutator contact area for excessive arcing. Arcs should not trail or circle around the commutator surface.

WARNING


Do not touch the brushes, leads, springs or brush holders while the sprayer is plugged in to reduce the risk of electric shock and serious injury.

10. Install the brush inspection covers and gaskets.

11.

Break in the brushes. Operate the sprayer for at least one hour with no load. Install the pump connecting rod pin. See Fig. 20, page 23.

308-559 21

Displacement Pump

WARNING




Intake Valve Repair

(See Fig. 19)

1. Unscrew the intake valve (118) with swivel (82) attached. Remove the o-ring (119*), ball guide

(120), stop pin (122*) and ball (121*) from the valve.

2. Clean and inspect the parts for wear or damage.

Replace parts as needed. Use a new o–ring

(119*). Reassemble the pump, or for additional pump repair, go to page 23.

NOTE: Packing Repair Kit 235–703 is available.

Reference numbers of parts included in the kit are marked with an asterisk, i.e., (121*). Use all the new parts in the kit.

Installing the Pump

(See Fig. 19 and 20)

1. Mount the pump on the drive housing. Tap it into the alignment pins with a soft hammer. Tighten the screws (21) to 68 N.m.

NOTE: Check the motor brushes (see page 20) and clean the transducer (see page 31) whenever you repack the pump. Replace these parts as needed.

A

B

Torque to 68 N.m

Apply sealant (42e)

Removing the Pump

(See Fig. 19) 13

1. Flush the pump, if possible. Relieve pressure. Stop the pump with the piston rod (107) in its lowest position, if possible. To lower the piston rod manually, rotate the motor fan blades.

2. Loosen the swivel nut on adapter (82) and remove suction hose (32).

3. While pushing in on the collar of the elbow (36), pull out and remove drain tube (33).

NOTE: If repairing only the intake valve assembly, go to Intake valve repair, at right.

4. Use a screwdriver to push the retaining spring (18) up and push out the pin (17).

5. Loosen the screws (21) and remove the pump

(20).

Fig. 19

18

20

A

21

33

32

B

17

120

*122

107

36

*121

118 *119

82

04654

Fig. 20

15

123


2. Unscrew the packing nut (102) and plug (123).

17

3. Use a plastic mallet to tap the piston rod (107) down, and then pull the rod out through the bottom of the cylinder.

102

18

01068

2. Align the hole in the rod (107) with the connecting rod assembly (15). Use a screwdriver to push the retaining spring up and push in the pin (17). Push the retaining spring (18) into place around the connecting rod.

4. Remove the throat packings (104*,105*) and glands (103*,106*).

5. Loosen the jam nut (117). Remove the cylinder

(115) and the o-ring (116*).

6. Clamp the flats of the piston rod in a smooth jaw vise. Use an open-end wrench to loosen the retaining nut (110) and then unscrew the piston valve (108) from the rod (107).

7. Remove all parts from the piston valve (108).

123

102

WARNING


Be sure the retaining spring (18) is firmly in the groove all the way around, to prevent the pin (17) from working loose due to vibration.

See Fig. 20.

If the pin works loose, it or other parts could break off due to the force of the pump action. These parts could be projected into the air and result in serious injury or property damage, including the pump connecting rod or bearing housing.

*103

*104

*106

101

117

105*

*113

107

109*

110

111

112*

114*

125*

3. Reconnect the drain hose (33).

*116

126*

108

4. Tighten the packing nut (102) enough to stop leakage, but no tighter. Fill the wet-cup 1/3 full with

TSL. Push the plug (123) into the wet-cup.

115

Disassembling the pump

(See Fig. 21 except where noted)

118

Fig. 21

1. Remove the intake valve (118). See page 22.

03148A


Reassembling the pump

NOTE: Alternate plastic and leather packings. See Fig.

21. The lips of the throat V-packings face down, against pressure. The lips of the piston V-packings face up, against pressure. The lips of the u–cup face down. Incorrect installation damages the packings and causes pump leaking.

7. Place the flats at the top of the rod in a vise.

8. Carefully tighten the nut (110) against the piston rod to 40 N.m. See Fig. 23.

Use two wrenches to maintain the alignment mentioned in the NOTE, at left.

A

NOTE: Soak the leather packings in oil before reassembling the pump.

1. Check the outside of the piston rod (107) and the inside of the cylinder (115) for wear. Replace worn parts to ensure a good seal with the new packings.

B

Torque to 0.57 N.m

Apply one drop of sealant to these threads

A

110

107

*111

*113

109*

B

2. Stack these parts onto the piston valve (108) one at a time: the backup washer (126*) and u–cup

(125*), female gland (114*), alternately three plastic (112*) with two leather packings (113*), and the male gland (111*). See Fig. 22.

Fig. 22

*125

*126

112*

114*

108

03178

3. Tighten the nut (110) onto the piston valve (108) to

0.23 N.m. See Fig. 22.

NOTE: Note the alignment of the piston (108) to the nut (110). Maintain this alignment through Step 8.

A

B

Torque nut against rod to 40 N.m

Do not allow nut (110) to move relative to piston

(108) when tightening piston against rod

A B

110

107

4. Clean all residue from the piston valve threads.

Apply one strip of adhesive, supplied, to the threads.

Fig. 23

108

B

03179 5. Place the ball (109*) on the piston valve (108). See

Fig. 22.

CAUTION

Step 6, tightening the piston valve into the rod, is critical. Follow the procedure carefully to avoid damaging the packings by overtightening.

9. Stack these parts one at a time into the top of the manifold (101): the male gland (106*), alternately three plastic packings (104*) with two leather packings (105*), and then the female gland (103*).

See Fig. 24.

10. Install the packing nut (102) and plug (124), but leave loose for now. See Fig. 24.

6. Hand tighten the valve into the piston rod just until the nut (110) contacts the rod. See Fig. 23.

11. Place a new o–ring (116*) firmly in the cylinder groove. See Fig. 25.

24 308-559


12. Coat the piston rod and packings with oil. Carefully slide the assembly INTO THE TOP OF THE

CYLINDER (115) . See Fig. 24.

13. Put the manifold in a vise. Fully thread the jam nut

(117) onto the cylinder (115). Guide the rod/cylinder assembly down through the manifold (101).

Screw the cylinder (115) into the manifold.

14. Place the ball guide (120), stop pin (122) and ball

(121*) in the cylinder (115). Screw the intake valve into the cylinder and torque to 71 N.m. This will also properly torque the cylinder into the manifold.

See Fig. 25.

15. Tighten the cylinder jam nut (117) to 98 N.m. See

Fig. 24.

16. Install the pump. See page 22.

E

F

Leather throat packings: lips must face down

Leather piston packings: lips must face up

G

H

J

Torque to 71 N.m

Plastic throat packings: lips must face down

Plastic piston packings: lips must face up

A

B

C

D

Torque cylinder (115) into manifold (101) to 71 N.m

Torque jam nut (117) 98 N.m

Torque intake valve (118) into cylinder

(115) to 71 N.m

Piston assembly

102

101

107

123

102

D

107

116*

117 B

115

A

118

C

*103

E

*105

*116

F

110

*111

*113

108

115

120

*119

G

118

104*

H

106*

101

117

112* J

114*

125*

126*

122*

121*

Fig. 24 01072A Fig. 25

03147

WARNING




Motor

6. Turn the displacement pump rod (107) so the pin hole aligns with the bottom drive housing screw

(19). See the DETAIL below. Remove the three drive housing screws and lockwashers (19,6).

7. Remove the two motor screws and lockwashers

(5,6).

1. Relieve pressure.

8. Tap the lower rear of the drive housing (11) with a plastic mallet to loosen the motor. Pull the drive housing straight off the motor. Do not allow the gear (16) to fall. Read the CAUTION on page 28.

2. Try to stop the pump with the piston rod (107) in its lowest position. To lower the piston rod manually, rotate the motor fan blades. Use a screwdriver to push the retaining spring (18) up and push out the pin (17). See Fig. 26.

9. Remove the two screws (46) and lift the motor off the base (66).

10. Align the new motor with the base and reinstall the screws.

3. Remove the screws (56) and lower the junction box (59). Disconnect the motor wires and the pressure control wire (A) from the motor start board. Refer to Fig. 27 on page 27.

11. Assemble the drive housing to the motor. Follow

Steps 8 to 10 on page 28.

12. Connect the wires in the junction box. Refer to Fig.

27 on page 27. Install the junction box.

4. Remove the drive housing cover (13).

5. Remove the pressure control (69) while guiding the harness (A) through the motor.

13. Reconnect the piston rod (107) to the drive housing; see page 23, Installing the Pump, Step 2 and the Warning that follows the step.

107

DETAIL

19,6

01074

A

Torque to

9 N.m

64

11

11a

12a

12

16

12b

4a

B

C

A

6

5

4

A 19

6

13

31

56

59

46

34 (x 3)

Fig. 26 03180

Motor Start Board

WARNING




4. Install the new motor start board. Reconnect all wires. Mount the junction box. See Fig. 27.

NOTE: Route wires through the gasket (50) before making connections.

1. Remove the junction box screws (56) and lower the junction box (59). See Fig. 26.

CAUTION

Be sure the flat blade of the insulated male connector is centered in the wrap–around blade of the female connector when the connections are made.

2. Disconnect the motor wires (B) and the 3-wire connector (A) from the motor start board (47).

Disconnect the wire from the ON/OFF switch.

Observe where connections are made. See Fig.

27.

Route all wires carefully to avoid interference with the motor start board or junction box.

These precautions are essential to reduce the risk of a malfunction.

3. Remove the screws (58) and motor start board

(47). Transfer the white thermal paste from the old board to the new board. See Fig. 27.

On/Off Switch

WARNING




1. Remove the junction box screws (56) and lower the junction box (59). See Fig. 26.

6. Install the junction box. Be sure no leads are pinched against the motor or by the motor start board.

GREEN/

YELLOW

BLACK

MOTOR

48

49

WHITE

52

2. Remove the nut and rubber boot (55).

3. Disconnect the wires from the ON/OFF switch (52) and replace the switch. See Fig. 27.

BLACK/

WHITE

50

B

58

59

4. Powder the inside of the rubber boot (55) with talcum, then shake the excess out of the boot.

Install the nut and rubber boot and tighten.

47

A

RED

C

55

NOTE: Route wires through any gaskets before making connections.

Fig. 27

5. Reconnect the ON/OFF switch wires.

03177

Drive Housing, Connecting Rod, Crankshaft

WARNING




5. Tap the lower rear of the drive housing (11) with a plastic mallet to loosen the motor. Pull the drive housing straight off the motor.

6. Remove and inspect the crankshaft (12) and the connecting rod (15).

7. Install the connecting rod.

NOTE: Inspect parts as they are removed. Replace parts that are worn or damaged.

1. Remove the displacement pump. See page 22.

NOTE: The gears and bearings between the drive housing (11) and motor front end bell (C) should contain a total of 90 ml of grease.

2. Remove the pressure control (64). See page 30.

3. Remove the three drive housing screws and lockwashers (19,6).

8. Lubricate the inside of the drive housing bearing with SAE 10 non-detergent oil. Pack the roller bearing and gears with the grease supplied.

4. Remove the two motor screws and lockwashers

(5,6).

9. Place the large washer (12a) and then the small washer (12b) on the crankshaft (12).

CAUTION

Do not allow the gear (16) to fall; it may stay attached to the drive housing or to the motor.

Do not lose the thrust balls (11a or 4a) or allow them to fall between the gears, which will seriously damage the drive housing if not removed. The balls, which are heavily covered with grease, usually stay in the gear recesses, but could be dislodged. If the balls are not in place, the bearings will wear prematurely.

10. Lift the crank to the top of the stroke and insert the crankshaft (12). Align the drive housing and motor with the locating pins. Push the drive housing onto the motor. Install the screws (5,19) and lockwashers (6) and tighten evenly to 9 N.m.

11. Install the pressure control (64). See page 30.

12. Install the displacement pump. See page 22.

13. Install the front cover (13).

Drive Housing, Connecting Rod, Crankshaft

DETAIL

15

17

A

Torque to 9 N.m

64

REF A

12a

12

11a

16

12b

4a

A

6

5

18

01068

A

47

59

56

31

34 (x 3)

13

15 19

A

6

11

Fig. 28

03181

Pressure Control

WARNING




8. Install the front cover (13). Connect the harness

(A) to the motor start board (47).

9. Install the junction box. Be sure no leads are pinched against the motor or by the motor start board.

B A Torque to 2.4 N.m

NOTE: The pressure control (64) cannot be repaired or adjusted. If it has malfunctioned, replace it.

1. Remove the front cover (13). Remove the screws

(56). Lower the junction box (59).

2. Disconnect the harness connector (A) from the motor start board (47). Turn the pressure adjustment knob (B) fully counterclockwise.

3. Remove the screws (63). Pull forward on the pressure adjusting knob and tip the pressure control (64) forward and up to detach it from the drive housing (11).

4. Guide the harness (A) through the motor and drive housing and remove the pressure control.

5. Guide the harness of the new pressure control through the drive housing and motor passages.

6. Install the new pressure control. Tip the pressure control down and back into the drive housing (11).

Do not pinch or damage the harness (A).

7. Loosely install the screws (63) and then torque them to 2.4 N.m.

A

Fig. 29

56

59

64

63 A

11

13

03182

Pressure Transducer

WARNING




1. Remove the displacement pump. See page 22.

2. Use a pull–twist motion to remove the transducer

(29) from the pump manifold (101).

3. Clean paint residue from the hole in the manifold; do not scratch the surface of the hole.

4. Lightly apply oil to the o–ring of the new transducer.

5. Install the transducer in the pump manifold, while guiding the o–ring and backup ring into place.

6. Align the holes in the transducer as shown by the arrows in Fig. 30.

7. Install the displacement pump. See page 22.

Fig. 30

29

101

04715

308-559 31

Drain Valve

42a

42b

WARNING




D 42

A

42d

42c

1. Turn the handle (45) to the closed position. Drive out the pin (44). Remove the handle.

B

C

D

A Apply thread sealant (42e)

Apply grease to face of base

Handle shown in closed position

Torque into pump manifold to 21 N.m

Fig. 31

2. Remove the base (43).

3. Unscrew the drain valve (42). The gasket (42a) and seat (42b) will stay in the valve.

Repair

1. Unscrew the spring retainer from the valve body.

Remove the spring, washers and stem/ball. Clean any debris from the ball or seat area.

2. If replacing the gasket (42a) or seat (42b), pry out the gasket.

NOTE: Whenever the gasket (42a) is removed, replace it with a new one.

43

B

44

45

C

02819

3. Coat the o–ring (42d) with grease. Press the stem into the valve body. Install the spring, washers and spring retainer into the valve body.

4. Place the seat (42b) in the valve body so the lapped side is toward the ball. Apply a small amount of grease to the new gasket (42a) and install it in the valve body.

NOTE: The gasket will protrude from the end of the valve until the valve is tightened into pump, which correctly seats the gasket.

Replacement

1. Apply a small amount of thread sealant (42e) onto the valve (42) threads. Tighten the valve into the pump manifold to 21 N.m.

2. Lightly grease the face of the base (43) and install the base. Turn the stem so the pin hole is vertical.

3. Securely install the handle (45) and drive the pin

(44).

Displacement Pump Parts


Includes items 101 to 126

123

102

Ref

No.

120

121

122

123

124

125

113

114

115

116

117

118

119

107

108

109

110

111

112

101

102

103

104

105

106

126

Part No.

Description

187–611 MANIFOLD, pump

176–758 NUT, packing

176–757* GLAND, female. throat

176–997* V–PACKING, plastic, throat

176–755* V–PACKING, leather, throat

176–754* GLAND, male. throat

235–709 ROD, displacement

218–197 PISTON, valve

105–444* BALL, 5/16”, piston

176–751 NUT, hex, 1/2–20 unf–2b

176–750* GLAND, male, piston

176–882* V–PACKING, plastic, piston

176–749* V–PACKING, leather, piston

180–073* GLAND, female, piston

235–708 CYLINDER, pump

108–526* PACKING, o–ring, PTFE

187–614 NUT, jam,1–3/8–18 unef–2b

224–966 VALVE, inlet

111–603* PACKING, o–ring, PTFE

176–760 GUIDE, ball

105–445* BALL, 1/2”, inlet

176–759* PIN, ball stop

180–656 PLUG 1

102–969* SEALANT (not shown)

105–522* PACKING, u–cup polyurethane

186–652* WASHER, backup, steel

Qty.

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

3

1

3

1

1

2

1

1

1

1

*105

101

117

103*

104*

106*

*113

*Supplied in Repair Kit 235–703 .

Keep a repair kit on hand to reduce down time.

*116

115 *122

112*

114*

125*

126*

107

109*

110

111*

108

120

121*

119*

118

03148A

30

Complete Sprayer Parts

68

39

85

84

REF 32

REF 33

35,14

LABELS

74

28

15

17

63

19

6 11

24

64

3

11b

12a

12

4a

4

6

5

16 12b

11a

18 26

66

31

13

34

62

LABEL

32

27

29

21

28

20

42

33

36

42a

42b

42d

42c

43

44

82

45

37

25

38

46

23

50

56

REF 24

23

4e LABEL

4d LABEL

SEE DETAIL

ON PAGE 33

57

04786

34 308-559

Complete Sprayer Parts


Includes items 3 to 85 as listed below

28

29

30

31

32

33

20

21

23

24

25

26

27

13

14

15

16

17

18

19

11a

11b

12

12a

12b

42a

42b

42c

42d

42e

43

44

34

35

36

37

38

39

42

45

46

47

47a

47b

4c

4d

4e

5

6

10

11

3

4

4a

4b

Ref.

No.

Part No.

Description Qty.

111–700 GRIP, handle

237–465 MOTOR KIT Includes 4a to 4e

100–069 . BALL, SST, 1/4” dia.

111–616 . TERMINAL, 1/4” F, 16 AWG

107–503 . TERMINAL, 3/16” M, 18 AWG

189–699 . LABEL, Warning, Shock

189–702* . LABEL, DANGER, Japanese

100–643 SCREW, sch, 1/4–20 x 1”

105–510 LOCKWASHER, spring, 1/4”

187–962 GASKET, inlet filter

224–965 DRIVE HOUSING KIT

Includes 11a, 1 1b

100–069 . BALL, stainless steel, 1/4” dia.

111–726 . PLUG

1

1

1

224–803 CRANKSHAFT Includes 12a, 12b 1

181–131 . BEARING, thrust

107–434 . BEARING

1

1

1

2

2

1

5

1

1

2

1

1

187–789 COVER, front

189–700* LABEL, Warning

218–359 ROD, CONNECTING

218–364 GEAR REDUCER

176–818 PIN, straight, hdls, 3/8” dia. x 1”

176–817 SPRING, retaining

103–345 SCREW, sch, 1/4–20 x 1–1/4”

235–699 PUMP KIT see parts on page 33

111–706

111–715

1

CAPSCREW, sch, 7/16–14 x 1–3/4” 2

SCREW, special, 5/16–18 x 1–1/4”

187–631 HANDLE, sprayer

112–759 CAP, tubing

235–307 LEG, w/gusset

104–938 O–RING

4

1

6

1

1

1

1

3

1

1

1

1

162–453

235–009

111–602

108–850

237–687

190–336

NIPPLE, 1/4 npsm x 1/4 npt

PRESSURE TRANSDUCER

CLIP, 3/4”

SCREW, filh, 8–32 x 1–1/4”

SUCTION HOSE & TUBE

DRAIN TUBE

111–705 SCREW, filh, 8–32 x 2–1/2”

290–075 LABEL, identification

190–454 ELBOW, drain

187–895 LEG, sprayer

187–627 TUBE, inlet

235–004 STRAINER 1

235–014 DRAIN VALVE KIT Includes 42a–42e 1

1

1

1

1

1

1

3

1

1

2

1

111–699 . GASKET, valve seat

187–615 . SEAT, drain valve

224–968 . STEM, drain valve

168–110 . O–RING, stem

110–110 . SEALANT, pipe (not shown)

224–807 BASE, valve

111–600 PIN, grooved, 3/32 x 1”

187–625 HANDLE, drain valve

110–997 SCREW, washer/hex hd, 5/16”

235–707 MOTOR START BOARD

Includes 47a, 47b

107–260 . TERMINAL, 1/4” F, 16 AWG

107–267 . TERMINAL, 3/16” F, 16 AWG

1

1

1

1

1

1

1

1

2

1

1

1

74

82

84

85

59

62

63

64

65

66

68

73

52

53

54

55

56

57

58

48

49

50

51

51a

51b

186–620* LABEL, ground terminal

110–037 SCREW, mach, pnhd, 10–24 x 5/8”

187–963 GASKET, junction box

236–524 FILTER, power inlet

107–262 TERMINAL, 1/4” F, 18 AWG

107–504 TERMINAL, 3/16” F, 18 AWG

105–679 SWITCH, ON/OFF

111–840 SCREW, panhead, M3 x 10 mm

105–658 RING, locking

105–659 BOOT, switch

111–703 SCREW, filh, 10–24 x 3”

235–981 POWER CORD with IEC–320 Connector 1

100–035 SCREW, panhd, 8–32 x 5/16”

4

2

1

1

1

2

1

1

1

1

1

1

187–958

189–698*

111–704

224–828

112–402

189–932

JUNCTION BOX

LABEL, Warning

SCREW, filh, 10–24 x 1–5/8”

PRESSURE CONTROL KIT

CLAMP, power cord

BASE, motor

206–994 TSL, 8 oz.

111–839 SCREW, panhead w/lockwasher,

6–32 x .375”

103–473 STRAP, cable

156–684 FITTING, swivel

100–721 PLUG, 1/4 npt

235–677 FLUID FILTER

See manual 308–249 for parts

2

1

1

1

1

1

1

1

1

1

2

2

*Extra warning labels available free of charge.

Motor Brush and Spring Replacement Kit,

P.N. 236–967 is available. Purchase separately.

RED

GREEN/

YELLOW

58

50

59

47b

BLACK

BLACK/

WHITE

4b

53

Ref 57

65

MOTOR

48

49

47

73

10

51

4c

51b

WHITE

47a

52

54

51a

BLACK

47b

55

03177

Technical Data

Power Requirements . . . . . . . . . . . 100 VAC, 50/60 Hz,

1 phase, 13 amp minimum

Working Pressure Range

Cycles/Liter

Power Cord

. . . . . . . . . . . . . . . 0 – 195 bar

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . 2.0 mm 2

164

, 3 wire, 2.0 m

Inlet Paint Strainer . . . . . . . . . . . . . . . . . . . . 1525 micron

Stainless Steel Screen, reusable

Pump Inlet Size

Fluid Outlet Size

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

1/2 npt(f)

1/4 npsm

Wetted Parts:

Displacement Pump . . Stainless steel, Carbon steel,

Aluminum, Polyethylene, Delrin , Leather

NOTE: Delrin

Dimensions

Weight (dry w/o packaging)

Height

. . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16.6 kg

483 mm

Length

Width

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

381 mm

356 mm

Accessories

FLUID HOPPER KIT 236–342

(Includes hopper, lid, screen, and Installation Kit.)

WHEELED LO–CART KIT

WHEELED UPRIGHT CART KIT

235–710

236–328

The Graco Warranty and Disclaimers

Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of

Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance or structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT

NOT MANUFACTURED BY GRACO.

These items sold, but not manufactured by Graco (such as electric motors, gas engines, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

36 308-559

Sales Offices: Minneapolis, Detroit, Los Angeles

Foreign Offices: Belgium, Canada, England, Korea, France, Germany, Hong Kong, Japan

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

PRINTED IN U.S.A. 308–559 February 1995, Revised June 1997

Graco 308559B 590st Airless Paint Sprayer, Electric, 100VAC. 50 or 60 Hz Owner's Manual

INSTRUCTIONS-PARTS LIST

308–559

Rev. B

Supersedes Rev A and PCN B

ELECTRIC, 100 VAC, 50 or 60 Hz

590

Airless Paint Sprayer

Model 231–347, Series A

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Table of Contents

Symbols

Warning Symbol

Caution Symbol

FIRE AND EXPLOSION HAZARD

INJECTION HAZARD

TOXIC FLUID HAZARD

MOVING PARTS HAZARD

EQUIPMENT MISUSE HAZARD

Major Components

Setup

Setup

Operation

How to use the pressure drain valve

How to use the gun safety latch

Operation

How to use the pressure control

How to use the RAC IV tip guard

How to remove a tip clog

Startup

Pressure Relief Procedure

Startup Procedure

Startup

Shutdown and Care

Flushing

When to flush

How to flush

Flushing

Troubleshooting

Basic Problem Solving

Troubleshooting

Basic Problem Solving (continued)

Troubleshooting

Basic Problem Solving (continued)

Intermediate Problem Solving

Intermediate Problem Solving

Troubleshooting

Troubleshooting

Intermediate Problem Solving

General Repair Information

Required Tool List

Motor Test

Setup

Armature Short Circuit Test

Armature, Brushes, and Motor Wiring

Open Circuit Test (Continuity)

Motor Brush Replacement

Motor Brushes

Displacement Pump

Intake Valve Repair

Installing the Pump

Removing the Pump

Displacement Pump

Disassembling the pump

Displacement Pump

Reassembling the pump

Displacement Pump

Motor

Motor Start Board

On/Off Switch

Drive Housing, Connecting Rod, Crankshaft

Drive Housing, Connecting Rod, Crankshaft

Pressure Control

Pressure Transducer

Drain Valve

Repair

Replacement

Displacement Pump Parts

Model 235–699, Series A

Complete Sprayer Parts
