LaCie d2 DL DVD±RW Drive

User’s Manual

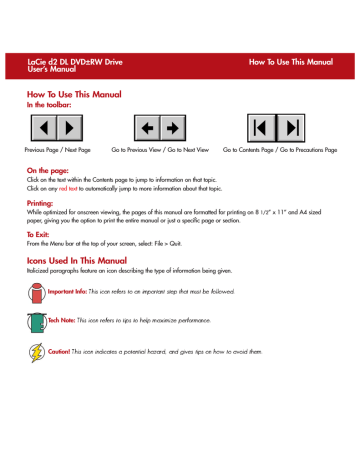

How To Use This Manual

In the toolbar:

How To Use This Manual

Previous Page / Next Page Go to Previous View / Go to Next View Go to Contents Page / Go to Precautions Page

On the page:

Click on the text within the Contents page to jump to information on that topic.

Click on any red text to automatically jump to more information about that topic.

Printing:

While optimized for onscreen viewing, the pages of this manual are formatted for printing on 8 1/2 ” x 11” and A4 sized paper, giving you the option to print the entire manual or just a specific page or section.

To Exit:

From the Menu bar at the top of your screen, select: File > Quit.

Icons Used In This Manual

Italicized paragraphs feature an icon describing the type of information being given.

Important Info:

This icon refers to an important step that must be followed.

Tech Note:

This icon refers to tips to help maximize performance.

Caution!

This icon indicates a potential hazard, and gives tips on how to avoid them.


User’s Manual

Table of Contents

Foreword

Precautions

1. Introduction

1.1. What Your LaCie Drive Can Do

2. Your LaCie Drive

2.1. Minimum System Requirements

2.1.1. Mac Users

2.1.2. Windows Users

2.2. Package Contents

2.3. Views Of The Drive

2.4. Cables And Connectors

3. Installing Your LaCie Drive

3.1. Installing The LaCie DVD Utilities

3.2. Connecting The Power Supply

3.3. Connecting The Interface Cable

3.3.1. Mac Users

3.3.2. Windows Users

3.4. Connecting Multiple Devices

3.5. Disconnecting Your LaCie Drive

3.6. Switching Interfaces

4. Using Your LaCie Drive

4.1. Supported DVD & CD Formats

4.2. Inserting Discs

4.3. Accessing Discs

4.4. Writing Discs

4.4.1. DVD Writing Methods

4.4.2. CD Writing Methods

4.5. Ejecting Discs

4.5.1. Emergency Ejection Of Discs


18

21

24

25

26

27

27

15

16

17

18

10

11

12

14

28

28

29

29

30

31

31

9

9

9

8

8

4

6


User’s Manual

5. Tech Tips

5.1. DVD & CD Media – Definitions

5.2. File System Formats – Definitions

5.3. DVD Capacity

5.4. DVD-Video Regional Playback Zones

5.5. User Advice On MPEG-2 Decoders

5.6. Optimizing Data Transfers

6. FireWire Questions & Answers

7. USB Questions & Answers

8. Troubleshooting

8.1. Mac Users

8.2. Windows Users

9. Contacting Customer Support

10. Warranty

Glossary


32

32

33

33

34

35

36

37

39

41

42

47

52

54

55


User’s Manual

Foreword page 4

Copyrights

Copyright © 2004 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of LaCie.

Trademarks

Apple, Mac, Macintosh and FireWire are registered trademarks of Apple Computer, Inc. Sony and iLink are registered trademarks of Sony Electronics. Microsoft, Windows, Windows 98 SE, Windows Millennium Edition, Windows 2000 and

Windows XP are registered trademarks of Microsoft Corporation. All trademarks mentioned in this manual are the property of their respective owners.

Changes

The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.

Federal Communications Commission Radio Frequency Interference Statement (FCC)


WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a

Tested To Comply

With FCC standards

FOR HOME OR OFFICE USE

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures:

• Reorient or relocate the receiving antennas.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the reseller or an experienced radio/TV technician for help.

Shielded cables and I/O cards must be used for this equipment to comply with the relevant FCC regulations.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.


User’s Manual

Foreword page 5

Canada Compliance Statement

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Manufacturer’s Declaration for CE Certification

We hereby certify that this device is in compliance with both the EMC Directive (89/336/EEC) and the Low

Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

Class B EN60950, EN55022, EN50082-1, EN61000-3-2

With reference to the following conditions:

73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive

Laser Products

This equipment is certified to comply with DHHS Rule 21 CFR Chapter I, subchapter J in effect as of date of manufacture. This equipment is classified as a Class I Laser product and no hazardous laser radiation is emitted outside the drive.


User’s Manual

Precautions page 6

Health, Safety and General Use Precautions

The drive you have just purchased includes a laser diode device, which classifies it as a "Laser Class I" product. This laser is not dangerous for the user under normal operating conditions. However, we strongly advise you not to place any reflective objects in the disc loading system, due to the risk of exposure to laser emissions that may be reflected by such objects.

Always follow the basic precautions listed below to use your LaCie drive safely and correctly. Respecting these guidelines will help to avoid the possibility of personal injury to yourself or others, as well as to prevent damage to your device and other computer equipment. These precautions include, but are not limited to, the following:

Health and Safety Precautions:

• Read this User's Manual carefully, and follow the correct procedure when setting up the device.

• Do not look inside or place your hand over the open DVD/CD media tray. Never look directly or indirectly (with a mirror) at the laser diode, even when the device is not in operation. If you expose your eyes or skin to the laser inside you drive, you risk damage or loss of your vision or other personal injury.

• Do not open your drive or attempt to disassemble or modify it. Never insert any metallic object into the drive to avoid any risk of electrical shock, fire, short-circuiting or dangerous emissions. Your drive contains no user-serviceable parts. If it appears to be malfunctioning, have it inspected by qualified LaCie service staff.

• Never expose your device to rain or use it near water or in damp or wet conditions. Never place containers on it containing liquids that may spill into its openings. Doing so increases the risk of electrical shock, short-circuiting, fire or personal injury.

• Make sure that the computer and drive are electrically grounded. If the devices are not grounded, there is an increased risk of electrical shock.

• Do not listen to audio with headphones at an excessive volume for prolonged periods of time. Doing so increases the risk of hearing damage or loss.

• Before listening to music with your drive, set the volume control to minimum. Sudden bursts of sound at loud volumes can cause immediate hearing damage or loss.


User’s Manual

Precautions page 7

General Use Precautions:

• Do not expose the drive to temperatures outside the range of 5° C to 40° C (41° F to 104° F) during operation. Doing so may damage the drive or disfigure its casing. Avoid placing your drive near a source of heat or exposing it to sunlight (even through a window). Inversely, placing your drive in an environment that is too cold or humid may damage the unit.

• Do not block the ventilation outlets on the rear of the drive. These help to keep your drive cool during operation. Blocking the ventilation outlets may cause damage to your drive and cause an increased risk of short-circuiting or fire.

• Always unplug the drive if there is a risk of lightning or if it will not be used for an extended period of time. Otherwise, there is an increased risk of electrical shock, short-circuiting or fire.

• Do not place heavy objects on top of the drive or use excessive force on its buttons, connectors and tray. Doing so increases the risk of damage to the device.

• Always place your drive in a horizontal position before using it. Otherwise, it may fall, causing damage to the device and

/ or corruption or loss of data.

• Always remove the disc from the disc tray before transporting your drive. Otherwise, written data may be destroyed or the drive's internal components may be damaged.

• Never use excessive force on the disc loading system; discs should be inserted effortlessly into your drive. If you detect a problem, consult the Troubleshooting section.

• Protect your drive from excessive exposure to dust during use or storage. Dust can build up inside the device, increasing the risk of damage or malfunction.

• Never use benzene, paint thinners, detergent or other chemical products to clean the outside of the drive. Such products will disfigure and discolor the front panel and casing. Instead, use a soft, dry cloth to wipe the device.


User’s Manual

1. Introduction page 8

1. Introduction

Congratulations on the purchase of your new LaCie d2 DL DVD±RW Drive – your complete DVD and CD creation solution!

This drive gives you maximum compatibility with the various DVD and CD formats, reading and writing to all of the popular standards (DVD+R/RW, DVD-R/RW and CD-R/RW) and introduces a brand new standard: DVD+R9 Double Layer (DL).

Supported DVD and CD Logos

DVD+R9 DL Logo DVD+R/RW Logo DVD-R/RW Logo CD-R/RW Logo

Double Layer DVD Recording

With the same technology that underpins Hollywood-style DVD-Videos,

Double Layer (DL) discs are compatible with most consumer set-top DVD players and computer DVD-ROM drives.

On one DVD+R9 DL disc, you’ll be able to store up to four hours of MPEG-2 video, sixteen hours of VHS-quality video or increase the video bit rate for higher quality movies. And with 8.5GB of storage space on a single DL disc, they’re ideal for archiving and backup applications, and could even be used as replacement for tape in some instances.

ReWritable

The LaCie d2 DL DVD±RW Drive can be integrated into standard 19” computer and audio equipment racks, and is equally at home on any desktop. Now you have the tools to make high-impact, professional quality DVD videos, conveniently make system backups and preserve all of your memories for the future.

1.1. What Your LaCie Drive Can Do

• Burn videos for playback on computers and DVD players

• Play, edit, organize and burn your digital music

• Save large data projects or make backups


User’s Manual

2. Your LaCie Drive page 9

2. Your LaCie Drive

2.1. Minimum System Requirements

2.1.1. Mac Users

Hardware Requirements –

Computer equipped with a FireWire or USB interface card.

System Requirements –

Double Layer Recording

• 8.5GB Double Layer disc

• 700MHz G4 or later

• Mac OS 10.2 or later

• 64MB of RAM

(256MB is recommended)

• QuickTime 6 or later

Tech Note: Mac Users!

USB Connectivity:

For optimal performance under the Mac OS, it is recommended that you use the

FireWire interface unless you are using a G5 or are running Mac OS 10.2.8

or later on a computer with a Hi-Speed

USB 2.0 PC or PCI card. All versions of the Mac OS before Mac OS 10.2.8

do not support the transfer rates of Hi-

Speed USB 2.0, and all data transfers will be made at the slower USB 1.1

rates.

Single Layer Recording

• 4.7GB Single Layer disc

• 700MHz G4 or later

• Mac OS 9.1 or later

• 16MB of RAM

(24MB is recommended)

• QuickTime 4.0 or later

Additional Requirements for DV Capturing and DVD Authoring –

Minimum of 128MB of RAM (256MB is recommended)

1GB of free hard disk space for every 5 minutes of DV video capture

4.5GB of free hard disk space for copying a single layer DVD-Video disc

8GB of free hard disk space for copying a double layer DVD-Video disc

DVD Playback:

At the time of publication (May, 2004),

Apple only supports DVD playback on

Macintosh computers with a built-in

DVD-ROM drive. If your system does not have a built-in DVD-ROM drive, in order to enable DVD playback you will need to utilize a third-party utility.

Important Info:

MPEG encoding is a system intensive application and requires most of a CPU’s power. This process can take several hours on slower systems.

Additional Requirements for DVD playback and Pre-Mastering –

Monitor resolution of 1024 x 768, 24-bit color

Important Info:

To ensure optimal recording results, avoid copying from a CD or DVD and record directly from a hard drive that supports sustained data transfer rates for the following speeds:

• 8x = 11.08MB/s • 4x = 5.54MB/s

• 2x = 2.77MB/s • 1x = 1.385MB/s

Apple Disc Recording Updater:

In order to provide maximum compatibility with Apple software products, LaCie is constantly providing drive support updates. Visit our Web site, www.lacie.com/support , choose

Optical from the pull-down menu and download the LaCie DiscRecording

Support for Mac OS X 10.3.2 or later to add LaCie drive support to applications that utilize Apple’s

DiscRecording framework. These include, but are not limited to, the following applications: Finder, iTunes, iPhoto, Backup, Disk Utility and DVD

Studio Pro.


User’s Manual


2.1.2. Windows Users

Hardware Requirements –

Computer equipped with a FireWire/IEEE 1394/iLink/DV or Hi-Speed USB 2.0 interface card.

Tech Note:

In order to utilize the USB interface for DVD creation, your LaCie drive must be connected to a Hi-

Speed USB 2.0 interface. USB 1.1 does not support the transfer rates required for DVD creation.

System Requirements –

Double Layer Recording

• 8.5GB Double Layer disc

• Windows 2000 (SP4 or later) or XP (SP1 or later)

• 500-MHz Intel® Pentium III or equivalent

• 128MB of RAM (256MB is recommended)

Single Layer Recording

• 4.7GB Single Layer disc

• Windows 98SE, Me, 2000 or XP

• 500-MHz Intel Pentium III or equivalent

• 128MB of RAM

Important Info:

MPEG encoding is a system intensive application and requires most of a CPU’s power. This process can take several hours on slower systems.

Additional Requirements for DVD Playback and Pre-Mastering –

SVGA video card supporting DirectDraw Standard

Sound Blaster compatible sound card

Microsoft DirectShow 6.4 or greater

Monitor resolution of 1024 x 768, 24-bit color

Additional Requirements for DV Capturing and DVD Authoring –

Minimum of 128MB of RAM (256MB is recommended)

1GB of free hard disk space for every 5 minutes of DV video capture

4.5GB of free hard disk space for copying a DVD-Video disc

8GB of free hard disk space for copying a double layer DVD-Video disc

Additional Requirements for Roxio Easy CD & DVD Creator and Easy Media Creator –

Easy CD & DVD Creator Easy Media Creator

Video Editing Intel Pentium III 500-MHz or faster Intel Pentium III 1.2-GHz or faster

DV/Analog to MPEG encoding Intel Pentium III 800-MHz or faster Intel Pentium III 1.2-GHz or faster

Important Info:

To ensure optimal recording results, avoid copying from a CD or DVD and record directly from a hard drive that supports sustained data transfer rates for the following speeds:

• 8x = 11.08MB/s • 4x = 5.54MB/s • 2x = 2.77MB/s • 1x = 1.385MB/s


User’s Manual

2.2. Package Contents

1


2 3

ReWritable

4

DVD Utilities v.6.1

DVD Utilities v.6.1

Windows

Easy CD & DVD Creator

6.2.0.134

for Windows 98SE, Me,

2000 & XP

Windows Mac

6.2.0.134

for Windows 98SE, Me,

Mac

Toast 6.03 Lite for Mac OS 10.2 & higher

Toast 5.2.2 Lite for Mac OS 9.1 & higher

DVDMax 2.0 Player for Windows 98SE, Me,

2000 & XP

DVDMax 2.0 Player for Windows 98SE, Me,

2000 & XP

SilverKeeper 1.1

for Mac OS 9.2 & higher

USB 2.0 Drivers for Windows 98SE, Me

USB 2.0 Drivers for Windows 98SE, Me

DVD-RAM Drivers for Windows 98SE, Me,

2000 & XP

DVD-RAM Drivers for Windows 98SE, Me,

2000 & XP

LaCie User’s Manual

Manuel Utilisateur

Manual del Usario

Guia Utente

Handbuch

©Cop yright 20

04, All rights reserved. 030

104

50

LaCie User’s Manual

Manuel Utilisateur

Manual del Usario

Guia Utente

Handbuch

©Cop yright 20

04, All rights reserved. 030

104

50

4

1 LaCie d2 DL DVD±RW Drive

2 FireWire 6-pin to 6-pin cable

3 Hi-Speed USB 2.0 cable

4 LaCie DVD Utilities CD-ROM (2)

5 Blank LaCie DVD-R media

6 Power supply and adapter cable

5 6

Important Info:

Please keep your box. In the event that the drive should need to be repaired or serviced, it must be returned in its original packaging.


User’s Manual

2.3. Views Of The Drive

Front View –

1


2

ReWritable

5 4 3

1 – On/Off Button / Power LED –

The Power LED automatically lights up after the power supply has been connected and the drive has been attached to the computer via either the FireWire or Hi-Speed USB 2.0 interface. Use this button to turn your drive on and off.

2 – Media Tray –

Open the tray by pressing the load/eject button, then place a CD/DVD into the tray with the label facing up. Close the tray by pushing the load/eject button or pushing the front part of the tray.

3 – Open/Close Button –

Push this button to open the disc tray.

4 – Disc LED –

Lights when a disc is loaded into the drive, and lights in different patterns during operation.

5 – Emergency Eject Hole –

Used to eject the tray if the load/eject button does not work. In normal operation, the eject button should always be used to

unload the tray. Please see section 4.5.1. Emergency Ejection Of Discs

for more information.


User’s Manual

Rear View –

4

1 2 3


4

LaCie Ltd. XXXXXX

Serial Number XXXXXXXXX

6 7 5

1 – Ventilation Outlet –

These holes help to keep your drive cool during operation. Be sure not to block these openings when using your drive.

2 – FireWire 400 Port –

This is where you plug in the FireWire 400 or iLink/DV cables furnished with the drive. See section 3.3. Connecting the

Interface Cable for more information.

3 – Hi-Speed USB 2.0 Port –

This is where you plug in the Hi-Speed USB 2.0 cable furnished with the drive. See section 3.3. Connecting the Interface

Cable for more information.

4 – Rackmount Grooves –

These grooves are used for mounting the drive in standard 19” computer and audio equipment racks using the LaCie

Rackmount Kit (sold separately).

5 – Power Supply Connector –

This is where you plug in the AC adapter supplied with the drive. See section



6 – Serial Number Sticker –

This is where you will find your LaCie drive's serial number. Write down the serial number and keep it in a safe place, because you will need to provide the number in the event you have to call LaCie Technical Support for any reason in regards to the drive’s performance. The serial number would also come in handy if your drive is lost or stolen.

7 – Lock Slot –

This slot is used to connect an anti-theft system, such as the LaCie Security Lock, for maximum protection. Refer to your antitheft system documentation for details on how to connect the lock.


User’s Manual


2.4. Cables And Connectors

FireWire

FireWire is Apple's implementation of IEEE 1394, and is capable of transferring large amounts of data between computers and peripherals at a high rate of speed. The

FireWire standard defines 100, 200 and 400Mb/s devices and can support multiple speeds on a single bus.

FireWire Icons

Theses icons will help you easily identify the FireWire interface. They appear on FireWire cables, and next to the FireWire port connectors on certain computers.

FireWire icon

FireWire has the following features:

• Hot-pluggable: devices can be added and removed while the bus is active.

• Isochronous data delivery: FireWire supports real-time data delivery.

• Flexible: up to 63 devices can be connected on a single bus.

iLink™ icon

FireWire Cables

6-to-6-pin cable: Connects FireWire 400 devices to FireWire 400 ports.

DV icon

Hi-Speed USB 2.0

USB is a serial input/output technology for connecting peripheral devices to a computer or to each other. Hi-Speed USB 2.0 is the latest implementation of this standard, and it provides the necessary bandwidth and data transfer rates to support high-speed devices such as hard drives, CD/DVD drives and digital cameras.

USB Icons

These icons will help you easily identify the USB interfaces. They appear on USB cables and next to the USB port connectors on certain computers.

Benefits of the USB standard include:

• Backwards compatibility: Hi-Speed USB 2.0 works with the original USB specifications.

• Hot-swappable: no need to shut down or restart your computer when adding or removing devices.

USB 2.0 icon

USB Cables

USB 1.1 icon

Hi-Speed USB 2.0 2.0 cable: Connects USB devices to USB ports.


User’s Manual

3. Installing Your LaCie Drive page 15

3. Installing Your LaCie Drive

Follow these steps to quickly get your LaCie Drive powered on and connected to your computer. Click on a step to get started!

3.1. Installing The LaCie DVD Utlities


3.3. Connecting The Interface Cable

Once you’ve gotten the drive powered on and connected to your computer, move on to section 4. Using

Your LaCie Drive for important information on how to utilize your drive.


User’s Manual


3.1. Installing The LaCie DVD Utilities

Insert your LaCie DVD Utilities CD-ROM into your internal DVD/CD-ROM, and follow the instructions below that are based on each particular operating system. For more information about the various programs, please refer to the Help sections of the specific software program.

DVD Utilities

Mac Users:

Mac OS 10.2 and later –

Double-click the the LaCie DVD Utilities CD-

ROM icon and then open the “Roxio Toast

Lite” folder. Drag and drop the Roxio Toast Lite

6.x.x.L application icon into the Applications folder on your hard drive.

Mac OS 9.1 and later –

Double-click the the LaCie DVD Utilities CD-

ROM icon and then open the “Roxio Toast

Lite” folder. Click on the Roxio Toast Lite

5.2.2L icon on follow the on-screen instructions to complete the installation.

Important Info: Mac OS 9.1 and later does not support double layer recording.

Windows Users:

Windows 2000/XP –

Click on Easy Media Creator and DVDMax Player (separately) and follow the on-screen instructions to complete the installation.

Windows 98SE/Me –

Click on Easy CD & DVD Creator, DVDMax Player and the USB 2.0 Drivers (if you will be using the Hi-Speed USB 2.0

interface) and follow the on-screen instructions to complete the installation.

Important Info: Windows 98SE/Me do not support double layer recording.


User’s Manual


3.2. Connecting The Power Supply

There are two cables that are supplied with the power supply: one cable (A) connects to the LaCie drive; and the other cable

(B) connects to a power outlet, such as a wall outlet or a surge protector.

1

3

2

Cable B

Power Supply brick

Cable A

1

2

Connect Cable A to your LaCie Drive.

Connect Cable B to the Power Supply brick.

3 Connect Cable B to a grounded surge protector or wall outlet.

Your drive should now turn on automatically when you connect it to a FireWire/USB port on your computer.

Caution!

Use only the AC adapter supplied with your specific LaCie drive. Do not use a power supply from another LaCie drive or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty. Always remove the AC adapter before transporting your LaCie drive.

Failure to remove the adapter may result in damage to your drive and will void your warranty.

Important Info:

You may use your LaCie drive when in a foreign country, thanks to its autoswitching 100-240

Volt power supply. To be able to use this feature, you may need to purchase an appropriate adapter or cord.

Consult LaCie Technical Support for assistance in choosing the right adapter. LaCie accepts no responsibility for any damage to the drive resulting from the use of an inappropriate adapter. Using an adapter other than one authorized by LaCie will void your warranty.


User’s Manual


3.3. Connecting The Interface Cable

There are two interface connectivity options when connecting your LaCie d2 DL DVD±RW Drive to your computer: FireWire and Hi-Speed USB 2.0. The installation steps below follow the connectivity options for each of the specific interfaces, depending on your operating system.

Important Info: Windows Users!

Windows OS.

Move to section 3.3.2. Windows Users

to view installation steps for the

3.3.1. Mac Users

These installation steps are separated by interface. To view the installation steps of the interface you plan on using, click on the appropriate interface:

Mac OS 9.x and Mac OS 10.x – FireWire Installation

Mac OS 9.x and Mac OS 10.x – USB Installation

Important Info:

You can not have the FireWire and USB interfaces connected at the same time! If you will be

switching between interfaces, you must also follow the steps in section 3.6. Switching Interfaces .

Tech Note:

To connect additional devices, you must be using the same interface, either FireWire or USB, and a hub if you are using USB. Your computer will not recognize the daisy-chained device if the interfaces are mixed, i.e. a FireWire device attached to a drive that is connected to the computer via the Hi-Speed USB 2.0 interface.

• For more information about connecting additional FireWire or USB devices to the LaCie d2 DL DVD±RW Drive, please see section

3.4. Connecting Multiple Devices .


User’s Manual

Mac OS 9.x and Mac OS 10.x – FireWire Installation

1

Connect one end of the FireWire cable into the FireWire port on the back of the LaCie d2 DL DVD±RW Drive.


FireWire 400 Cable 6-pin end

2 Connect the other end of the

FireWire cable into an available FireWire port on your computer.

FireWire 400 port

3 It may take a few seconds for the drive to appear on your desktop, and an icon will only appear when there is a DVD or CD in the drive

(CD and DVD icons are similiar; only the name is different).

Mac OS X

CD/DVD Icon

Mac OS 9

CD/DVD Icon

Computer models vary. Please consult your computer’s User’s Manual for the exact location of your interface.


User’s Manual

Mac OS 9.x and Mac OS 10.x – USB Installation

1

Connect the device end of the Hi-Speed USB2.0

cable into the Hi-Speed USB 2.0 port on the back of the LaCie d2 DL DVD±RW Drive.

Tech Note:

To achieve Hi-Speed USB 2.0 data transfer rates you need to be connected to a Hi-

Speed USB 2.0 host interface. Otherwise, you will be limited to USB 1.1 speeds. For more information, please see sections:


7. USB Questions & Answers .

2 Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.


Hi-Speed USB 2.0 cable - device end

Important Info: Mac OS 9.x Users!

Apple does not support the Hi-Speed USB 2.0

standard under Mac OS 9.x. You will be limited to USB 1.1 speeds and will only be able to burn CD media at 4x speed.

USB Cable, computer end

USB port

3 It may take a few seconds for the drive to appear on your desktop, and an icon will only appear when there is a DVD or CD in the drive

(CD and DVD icons are similiar; only the name is different).

Mac OS X

CD/DVD Icon

Mac OS 9

CD/DVD Icon



User’s Manual


3.3.2. Windows Users

These installation steps are separated by interface. To view the installation steps of the interface you plan on using, click on the appropriate interface:

Windows 98SE/Me/2000/XP – FireWire Installation

Windows 98SE/Me/2000/XP – USB Installation

Important Info:

You can not have the FireWire and USB interfaces connected at the same time! If you will be

switching between interfaces, you must also follow the steps in section 3.6. Switching Interfaces .

Tech Note:

To connect additional devices, you must be using the same interface, either FireWire or USB, and a hub if you are using USB. Your computer will not recognize the daisy-chained device if the interfaces are mixed, i.e. a FireWire device attached to a drive that is connected to the computer via the Hi-Speed USB 2.0 interface.

• If information about connecting additional FireWire or USB devices to the LaCie d2 DL DVD±RW Drive, please

see section 3.4. Connecting Multiple Devices .


User’s Manual


Windows 98SE, Me, 2000, and XP – FireWire Installation

After the first connection of a FireWire-based peripheral, Windows detects the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same

FireWire bus. Let Windows install the FireWire drivers of your LaCie drive.

1 Connect one end of the FireWire cable into the FireWire port on the back of the LaCie d2 DL DVD±RW Drive.

FireWire 400 Cable 6-pin end

Tech Note:

Your LaCie drive is compatible with the Sony iLink and DV interfaces (6-pin to 4-pin cables). In order to use your drive with these interfaces, you must use an appropriate LaCie certified interface cable (sold separately) . Please contact your LaCie reseller or LaCie

Customer Support for the appropriate cable.

2 Connect the other end of the

FireWire cable into an available

FireWireport on your computer.

FireWire 400 port

3

It may take a few seconds for your computer to recognize the drive and assign it a letter. Windows’ CD and DVD icons are similiar – only the name is different.



User’s Manual


Windows 98SE, Me, 2000, and XP – USB Installation

After the first connection of a USB-based peripheral, Windows 2000 and XP detect the drive, and will install it automatically as a new peripheral, even if you have previously installed it on another port on the same USB bus. Let Windows 2000 and

XP install the USB drivers of your LaCie drive.

1

Important Info: Windows 98SE and Me Users!

If you will be using your drive’s USB port, you will need to install the

USB 2.0 Drivers included on the LaCie DVD Utilities CD-

ROM.

Connect the device end of the Hi-Speed USB2.0 cable into the Hi-Speed USB 2.0 port on the back of the LaCie d2 DL DVD±RW Drive.

Hi-Speed USB 2.0 cable - device end

2 Connect the other end of the Hi-Speed USB 2.0 cable into an available USB port* on your computer.

USB Cable, computer end

USB port

Tech Note:

To achieve Hi-Speed USB 2.0 data transfer rates you need to be connected to a

Hi-Speed USB 2.0 host interface. Otherwise, you will be limited to USB 1.1 speeds. For more information, please see sections:


7. USB Questions & Answers .

3 It may take a few seconds for your computer to recognize the drive and assign it a letter.

Windows’ CD and DVD icons are similiar – only the name is different.



User’s Manual


3.4. Connecting Multiple Devices

FireWire

The FireWire interface standard allows for the connection of up to 63 devices on the bus (called daisy-chaining), with a maximum of 16 devices on one branch. FireWire’s support of daisy-chaining means that you can connect one FireWire device directly to a computer’s FireWire port, and then connect another FireWire device to the first device’s other remaining

FireWire port. For instance, you could connect your LaCie drive directly to your computer, and then connect another FireWire device, such as a scanner or digital camera, to the other available FireWire port. You can connect a maximum of 16 devices in this manner. To optimize performance, however, you should connect your drive directly to a built-in port on your computer.

USB

Technically, you can connect up to 127 individual USB peripherals at one time. However, you probably will not use more than

6 to 8 peripherals on your USB system. Most computers only have two USB ports, so you would need a hub to connect more than two peripheral drives. The hub regenerates the signals, generally providing between 4 to 7 connections. To add even more drives, connect a new hub to a connector of the original hub, creating a new series of peripherals, etc. But the hub slows down the transfer rate by lengthening the path of the signal. To optimize performance, connect your drive directly to one of the built-in ports in your computer.

Important Info:

To achieve Hi-Speed USB 2.0 data transfer speeds, a Hi-Speed USB 2.0-equipped device must be connected to a Hi-Speed USB 2.0 port or hub. If a Hi-Speed USB 2.0-equipped device is connected to a USB

1.1 port or hub, all speeds will revert to USB 1.1 data transfer rates. For the best performance, connect your Hi-

Speed USB 2.0-equipped device directly to a Hi-Speed USB 2.0 port on your computer, and avoid connecting

USB 1.1 devices to the same port, as they may slow all speeds to the USB 1.1 transfer rates.


User’s Manual


3.5. Disconnecting Your LaCie Drive

FireWire and USB external devices feature “plug & play” connectivity, which means that your drive can be connected and disconnected while the computer is running. To prevent failures, it is important you follow these steps when disconnecting your

FireWire or USB peripheral device.

Caution!

Do not disconnect the USB or FireWire cable when the drive is reading or writing. Disconnecting while the drive is operating could cause the loss of data. Make sure that your drive is not reading or writing and that the activity LED is off before disconnecting the USB or FireWire cable.

Windows Users

Important Info: Windows 98 SE Users

: If you have installed the

Windows Storage Supplement Update

, you will have to unmount the drive before disconnecting it or powering it down. If you have not installed the update, simply disconnect the drive when it is not active. No unmounting is required.

1

2

3

From the System Tray (located in the lower right-hand side of your screen), click on the Eject icon (a small green arrow over a hardware image).

A message will appear, detailing the devices that the Eject icon controls, i.e. “Safely remove…” Click on this prompt.

You will then be given the following message: “Safe to Remove Hardware” (or similar). It is now safe to disconnect the device.

Mac Users

You must unmount the drive before disconnecting it or powering it down. Drag the disc icon to the Trash. Once the device’s icon no longer appears on the desktop, the drive can be disconnected.

Mac OS 9.x

Mac OS 10.x


User’s Manual


3.6. Switching Between USB And FireWire Connections

Hi-Speed USB 2.0 and FireWire are “hot-pluggable,” meaning that you can connect a drive to a USB or FireWire port on your computer even when the computer is running. However, there are important steps to follow for your drive to function properly. When changing from a Hi-Speed USB 2.0 connection to a FireWire connection (and vice versa), follow these steps:

1

Follow the steps in section 3.5 Disconnecting Your LaCie Drive

to unmount the drive.

2 Disconnect the USB or FireWire cable.

3 Connect either the USB or FireWire cable.

After switching between interfaces, you may need to quit the application that you were using to access the drive and then reboot the program. The drive should then be visible and accessible.


User’s Manual

4. Using Your LaCie Drive page 27

4. Using Your LaCie Drive

4.1. Supported DVD/CD Formats

Your LaCie drive is compatible with most popular DVD and CD formats:

Format

DVD

Type of Disc

DVD+R9 DL

DVD+R

Record

X

X

DVD+RW

DVD-R 4.7GB for General use (Ver. 2.0)

DVD-ROM

DVD-R 3.95GB, 4.7GB for Authoring

DVD-R (General use only for write)

X

X

--

--

X

CD

DVD-RW (General use only for write)

DVD-ROM (single and dual layer)

DVD (single and dual layer) 80 mm disc

CD-R

CD-RW (supports AM2)

CD-ROM

CD-ROM XA Mode2 (form 1, form 2)

CD-Extra

--

--

X

--

--

X

X

--

X

X

X

X

X

X

X

X

X

X

X

Read

X

X

X

X

Tech Note:

When recording video, audio or data to DVD+R9 DL, DVD+R/RW, DVD-R/RW or CD-R/RW media,

LaCie recommends that you use media from one of the following manufacturers:

• LaCie Taiyo Yuden • Sony • TDK

Ideal recording techniques:

• Close all other open programs and disconnect from the internet;

• Copy data to your hard drive first;

• Use the correct media with the appropriate speed rating;

• Use media that is free of scratches and fingerprints;

Check LaCie’s Web site ( www.lacie.com

) often for the latest information on creating CDs and DVDs.


User’s Manual


4.2. Inserting Discs

1 2

ReWritable

1

2

Media Tray

Open/Close Button

3 Activity LED

4 Emergency Eject Hole

4 3

Fig. 4.2

To insert a disc push the Open/Close (#2) button on your LaCie d2 DL DVD±RW Drive. When the disc tray opens, put the

DVD or CD media into the tray with the label side facing up. Make sure the DVD or CD is correctly placed in the center of the disc tray. Gently push in the disc tray or push the Open/Close button to close it.

Do not attempt to force the tray open, you will damage the drive. The power must be on in order to open the drive. The drive must be on a flat surface to work correctly.

To close your LaCie d2 DL DVD±RW Drive, press the Open/Close button on the front of the drive.

Caution!

• Do not force the tray closed. You will damage the drive.

• Always remove discs before transporting the drive.

• Never move the drive while it is in operation.

4.3. Accessing Discs

Windows Users

The CD or DVD volume will appear in My Computer. Click on My Computer to view the contents of the CD or DVD and to have access to the folders and files on it.

You can also gain access to the files and folders contained on the disc by going into Windows Explorer and clicking on the

CD/DVD-ROM drive icon.

Mac Users

The CD or DVD volume will appear as an icon on the Desktop. Click on the icon to have access to the contents of the CD or

DVD.


User’s Manual


4.4. Writing Discs

The following is a brief overview of some of the recording terminology to help you understand how to use your drive to write discs.

Important Note:

Please refer to your recording software’s user's guide for information on how to best use your

LaCie d2 DL DVD±RW drive in write mode.

4.4.1. DVD Writing Methods

Disc at Once (DAO) – A DVD writing process in which the entire DVD is recorded in one session, and data cannot be added after the recording is finished. Differs from the CD-R DAO method because the lead-in, data area and lead-out areas are all written sequentially.

Incremental Recording (IR) – A DVD writing process that is similiar to the Session at Once (SAO) CD-R writing method; files may be added directly to the DVD-R disc one recording at a time, instead of recording the files to a hard drive before writing the disc. The minimum recorded size, though, must be at least 32KB (even if the file to be recorded is smaller than that), and capacities and write speeds are decreased due to the overhead of combined lead-in/out areas and data. Also, the disc must be finalized before it may be played back by a drive other than the drive recording the disc.

Multi-Border Recording (MBR) – A DVD writing process that is very similiar to IR, MBR allows you to make an IR disc and then play the disc back on a device that recognizes this type of recording method. MBR creates a very short boundary zone around a recording session so a compatible player or DVD-ROM drive does not attempt to play beyond the border of the recorded area, instead allowing the unfinalized disc to be read by a player that supports this recording method.

Restricted Overwriting (RO) – A DVD writing process that only applies to DVD+/-RW discs. With this method, if a disc has already been written to, new data segments can be randomly inserted anywhere within the recorded boundary. New data, however, can only be added to an area of the disc that has already been recorded over and from the point where the last session was stopped.

Session at Once (SAO) – A DVD writing process which is similar to DAO, where all of the information is written in one session, but SAO allows for the ability to begin another session and record at a later time. This mode allows for greater control of the recording process than Packet Writing (PW) or TAO, and more disc space can be utilized because there is no need for gaps between tracks.

Packet Writing (PW) – A writing process that is very useful for data backup. Buffer underrun* is impossible in this mode, because the data is written in “packets” of a few KBs.


User’s Manual


4.4.2. CD Writing Methods

Disc at Once (DAO) – A CD writing process in which the entire CD is recorded in one session, and data cannot be added after the recording is finished. This mode allows for the most control of the recording process for audio CDs because the gap between tracks can be set and the maximum capacity of the CD can be utilized.

Packet Writing (PW) – A CD writing process that is very useful for data backup, but cannot be used to write audio CDs.

Buffer underrun* is impossible in this mode, because the data is written in “packets” of a few KBs.

Session at Once (SAO) – A CD writing process which is similar to DAO, where all of the information is written in one session, but SAO allows for the ability to begin another session and record at a later time. This mode allows for greater control of the recording process than PW or TAO, and more disc space can be utilized because there is no need for gaps between tracks.

Track at Once (TAO) – A CD writing process where data is added one track at a time, and the data can be added at a later time. The CD being written to, though, can only be read in the CD rewritable drive that is recording it until the disc is finalized

(meaning that no more data can be added). There is also a gap of 2 seconds added between tracks, which will be heard as noise in some audio players.

Tech Note: *Buffer Underrun –

The recording of a disc is a system-intensive application, and the rewritable drive needs a constant stream of data. A buffer underrun occurs when the stream of data to the rewritable drive is not fast enough to keep the rewritable drive’s buffer full, causing the an error in the recording process. If this problem

occurs often, turn down the recording speed and consult section 5.6. Optimizing Data Transfers .


User’s Manual


4.5. Ejecting Discs

Caution!

Do not attempt to open the drive's disc tray or remove the DVD or CD while the unit is in use and being accessed by the computer. You may injure yourself, and damage the drive and/or your computer system. Do not transport the drive with the tray open or with a DVD or CD disc inside it. Doing so may damage the drive and/or data stored on the disc, and will void your warranty.

Windows Users

After you have finished using the drive and the computer is no longer accessing it, push the Open/Close button (

Fig.4.2 #2

).

When the disc tray is fully open, remove the DVD or CD. After removing the disc, gently push in the disc tray or push on the

Open/Close button to close it.

You can also go into My Computer and right-click the drive icon. In the drop-down menu that follows, select the Eject option.

The disc tray will open, then you can access your media.

Mac Users

Drag the DVD/CD icon on the desktop to the Trash. The drive's tray will then open. Remove the DVD or CD. Gently push in the disc tray or push the Open/Close button to close it.

4.5.1. Emergency Ejection of Discs

In the event that a CD or DVD cannot be ejected with the Open/Close button and the software is not controlling the drive, use the emergency eject operation to open the disc tray. First, switch off your computer and the drive and unplug the drive's power.

Caution!

Make sure the drive is off and the power unplugged before attempting the emergency ejection procedure.

On the front of the drive is the Emergency Eject Hole ( Fig.4.2 #2 ). Insert a small metal poker, such as an unbent paper clip,

into the Emergency Eject Hole until the poker presses against the manual eject mechanism. You will feel the mechanism eject the disc tray. Only use this method when the Open/Close button is not working.


User’s Manual

5. Tech Tips page 32

5. Tech Tips

5.1. CD and DVD Media Definitions

Your LaCie d2 DL DVD±RW Drive will let you create, save and share your digital files to CD-R/RW, DVD-R/RW, DVD+R/RW and DVD+R9 DL media. Please refer to section


and your recording software’s documentation to see which recording techniques your computer supports.

DVD+R9 DL Discs:

• Best suited for: recording high-quality DVD videos, backing up systems and archiving large data DVDs.

• These discs follow the DVD+ recording techniques, but with 8.5GB of capacity versus 4.7GB for DVD±R discs.

• With the increased capacity, it is now possible to increase the video bit rate for higher quality DVD videos.

DVD+R Discs:

• Best sutied for: recording DVD videos, storing multiple photo albums and data DVDs under 4.7GB.

• These discs have the same write-once concept as CD-R media, but with 4.7GB of capacity versus 700MB for CD-R discs.

• DVD+R supports “lossless linking” and the combination of Constant Angular Velocity (CAV) and Constant Linear Velocity

(CLV) recording techniques.

DVD+RW Discs:

• Best sutied for: backing up and archiving digital content.

• These discs are functionally similiar to CD-RW and DVD-RW discs, but utilizes the same recording techniques as DVD+R.

• Incorporates the Direct Overwrite (DOW) system, allowing data to be written directly over existing data in a single pass.

DVD-R Discs:

• Best sutied for: recording DVD videos, storing multiple photo albums and data DVDs under 4.7GB.

• These discs are also functionally similiar to CD-R media, and have the same capacity as DVD+R discs.

• There are two types of DVD-R discs: DVD-R General, which are intended for home applications, and DVD-R Authoring, which are intended for professional DVD-Video development applications.

DVD-RW Discs:

• Best sutied for: backing up and archiving digital content.

• These discs serve the same general purpose as CD-RW media, but with 4.7GB of space versus 650MB.

• Discs can be written and erased up to 1,000 times.

CD-R Discs:

• Best sutied for: recording audio CDs, store photos and data CDs.

• Files can not be deleted from CD-R discs, and you cannot write over existing files on a CD-R disc.

CD-RW Discs:

• Best suited for: passing medium sized files around an office or among students.

• Discs can be reformated up to 1,000 times, and files can be written over.

• Most CD-ROM drives and audio CD players cannot read CD-RW discs.


User’s Manual


5.2. File System Formats - Definitions

When writing DVD+R9 DL, DVD±R/RW and CD-R/RW discs, you will have the option to assign the disc a particular file format (the way in which a computer names and organizes files for storage and retrieval). There are essentially three file system formats to be concerned with when using a LaCie DVD or CD Drive:

• Universal Disk Format (UDF)

• ISO 9660

• Mac OS Extended

UDF –

This file system was developed to ensure consistency between various optical media, compatibility across platforms and among various CD and DVD applications. UDF is used by DVD to contain MPEG audio and video streams, and is required by DVD-ROMs.

ISO 9660 –

This is the standard file system for CD-ROMs, which allows them to be read on a Mac, PC or other major computer platform.

Microsoft created an extension to the format, called Joliet, which allows for Unicode file character names and file names up to

64 characters in length (twice as many as the ISO 9660 Level 2 and 3 specifications).

Mac OS Extended –

Also known as HFS+, this is the file system used by Mac OS 8.1 and higher. If you will be using your disc only on Macs, this is the preferred file format.

5.3. DVD Capacity

There are important factors to consider when recording video, audio or data to DVD. The DVD media specification provides for two physical sizes: 4.7” (12cm) and 3.1” (8cm) (both are .47” (1.2cm) thick). DVD discs can also be single-sided (SS) or double-sided (DS), and each side can have one (SL) or two (DL) layers of data.

The amount of data or video that a disc can hold are dependent upon factors such as the amount of audio and the degree of compression of the data, video or audio. For example, a single-layer DVD±R disc typically will store just over two hours of

MPEG-II video, but it is possible to put up to eight hours of VHS-quality video or one hundred sixty hours of audio on a single-layer disc.

When media companies reference the amount of data that a disc can hold, they represent the total amount in terms of gigabytes (GB), or a billion bytes (1000 x 1000 x 1000 bytes). This number, though, is not the way in which a computer addresses the data; to a computer the value is binary and larger than a billion bytes – 1,073,741,824 (1024 x 1024 x

1024 bytes). Therefore, when you put in a 4.7GB DVD disc, the actual available capacity is 4.38GB; and a 8.5GB Double

Layer disc has an actual available capacity of 7.95GB.


User’s Manual


5.4. DVD-Video Regional Playback Zones

Nearly all commercially-available DVD discs feature a Region Protection Code (RPC). In order to watch DVD-Video discs, the

RPC needs to match the setting on the DVD player. By default, all LaCie DVD-Video-compatible drives are set to the RPC zone of the country in which it was purchased. This RPC setting may be changed using your hardware or software MPEG-II decoder (please refer to the documentation supplied with your decoder for more information). DVD-Video discs that do not feature RPC II encoding may be played on all DVD players set to Zone 1.

The worldwide RPC zones are:

Zone 1 USA and Canada

Zone 2

Zone 3

Zone 4

Zone 5

Zone 6

Europe, Japan, the Middle East and South Africa

Southeast Asia (including Hong Kong)

Australia, New Zealand, Central and South America

Northwest Asia, North Africa

China

When you insert a DVD-Video disc into your drive for the first time, the hardware or software MPEG-II decoder will detect if the setting of your drive is the same as on the DVD-Video. If not, a message will appear on your screen and you will be asked to change the RPC setting of your drive.

Important Note:

You can only change the RPC of your drive four times. The RPC setting is copied into an internal component in the drive. This chip makes an average of the first five readings and sets the drive to the most read zone. After this, it will not be possible to change or reset the RPC of the drive.

Example:

You change the RPC Zone to play a Zone 1 DVD-Video, and then you change to a Zone 2 DVD-Video.

You switch back and forth between the zones a total of five times, twice in Zone 1 and three times in Zone 2.

Your drive will then be set on Zone 2, without the possibility to reset the drive later on in order to view DVD-

Video discs from Zone 1.


User’s Manual


5.5. User Advice On MPEG-2 Decoders

All DVD-Video material is compressed using MPEG-2 compression. DVD-Video, with full-motion video and multi-channel sound (multi-lingual soundtracks, surround sound, etc.), is a data-hungry application. Without compression, you would only be able to fit a 5-minute movie onto a 4.5GB disc (the DV format is equivalent to 13GB per hour). MPEG-2 compression allows you to fit a full-length feature film, plus bonus material, on just one disc.

In order to play DVD-Video discs using your LaCie d2 DL DVD±RW Drive, you need to have an appropriate MPEG-2 decoder. You have two options:

1) Install the MPEG-2 decoder software if your PC is equipped with a processor that is 400MHz or faster. The decoder software will give you smoother images when playing DVD-Video discs using your drive (as with any application, the more

RAM you have, the better playback performance will be).

2) Purchase and install a PCI MPEG-2 decoder card if your PC is equipped with a processor that is 400MHz or slower. The decoder card should help you obtain better performance during playback with your LaCie drive.


User’s Manual

Foreword page 36

5.6. Optimizing Data Transfers

Data transfers are the flow of data that accomplishes a task, usually related to moving data from storage to computer RAM, or between storage devices. With external drives, such as the LaCie d2 DL DVD±RW Drive, the data is transferred from the drive to the computer via the FireWire or USB interface. The data is fed from the drive through the FireWire port on the drive, and passes to the computer through the FireWire host-bus adapter interface.

FireWire

Computer manufacturer’s implementation of the FireWire host-bus adapter interfaces vary widely. For computers running

Windows 2000 and later, the FireWire interface, which is referred to as either IEEE 1394 or iLink on PCs*, is less common as a native host-bus adapter. Nearly all recent Apple computers have native FireWire interface ports.

The FireWire interfaces specify certain requirements, filed under the OHCI (Open Host Controller Interface) standards. All

LaCie drives comply to OHCI standards and have been rigorously tested on computers that have host bus adapters that also comply to OHCI standards. Unfortunately, not all manufacturers respect these guidelines, and anomalies may arise with computers that have host bus adapters that do not conform to OHCI standards.

For the best performance, connect your LaCie d2 DL DVD±RW Drive directly to a native FireWire port on your computer, and avoid daisy-chaining*. During data transfers, it’s best to wait before launching other applications that will be using the same port.

If you do not have a native FireWire port, LaCie offers FireWire host bust adapter cards, also known as PCI or PC/PCMCIA

cards, that have been tested and comply with LaCie drives. Please contact your reseller or LaCie Customer Support

for more information, or visit our Web site: www.lacie.com

.

USB

To utilize the enhanced Hi-Speed USB 2.0 performance, your computer must be equipped with a Hi-Speed USB 2.0 host bus adapter card (either sold separately, or integrated by your computer’s manufacturer) and the appropriate drivers. These host bus adapter cards, which include one or more USB ports, are shipped with special Hi-Speed USB 2.0 drivers that enable the computer to control the card. These drivers must be installed in order for USB 2.0 devices connected to the port to work at their correct speeds.

Computers running Windows 2000 and Windows XP automatically manage Hi-Speed USB 2.0 devices and drivers, while

Windows 98 SE and Windows Me will require that drivers be installed before a Hi-Speed USB 2.0 device is attached.

Mac OS 9.x does not support Hi-Speed USB 2.0 functionality, and all Hi-Speed USB 2.0 devices will only operate at the original USB specifications. Mac OS 10.2.7 and later supports Hi-Speed USB 2.0, and Mac OS 10.x also supports Hi-Speed

USB 2.0, but you will have to purchase a third-party PCI or PC Card and appropriate drivers.

Contact your LaCie reseller or LaCie Customer Support

for information about Hi-Speed USB 2.0 PCI or PC Cards, or visit our

Web site: www.lacie.com

.


User’s Manual

6. FireWire Questions & Answers page 37

6. FireWire Questions & Answers

What Does IEEE 1394 Mean?

IEEE (the Institute of Electrical and Electronics Engineers) refers to the engineering corps that developed the 1394th standard, defining the high-performance serial input/output (I/O) bus used to connect peripheral devices. There are now two standards:

IEEE 1394a, which refers to the original standard adopted in 1995, and IEEE 1394b, which refers to the new standard, adopted in 2002.

What Is The Relationship Between IEEE 1394, FireWire, iLink And DV?

These four names all refer to the same interface:

• IEEE 1394 is the term commonly used in the computer industry.

• FireWire is the brand name used by Apple.

• iLink is the brand name used by Sony for both consumer electronics and personal computers.

• DV is short for “Digital Video,” and is used as the logo for the interface on most video camcorders.

What Are The Benefits Of The FireWire Interfaces?

The FireWire interface is a fast, cross-platform serial bus, and is ideal for digital audio, video and graphic applications that demand plenty of bandwidth. Both versions of FireWire offer Plug & Play connectivity, so all you have to do is plug in your drive and begin using it, they also allow up to 63 devices to be connected via a single bus and offer peer-to-peer connectivity, enabling multiple computers and FireWire devices to be connected at the same time. FireWire also supports both isochronous and asynchronous capabilities, meaning that it can guarantee real-time data delivery, so there is no danger of inaccurately ordered or delayed frames.

What Is The Difference Between FireWire 400 And FireWire 800?

Essentially, the main difference between the two interfaces can be summed up in one word: speed. FireWire 800 effectively doubles the bandwidth of the original FireWire 400 interface. The new FireWire 800 interface offers truly impressive results, with speeds up to 800Mb/s for a single bus, and even greater for several buses in RAID 0 configurations.

Other key advancements include the support of increased cabling distances and a newly enhanced arbitration architecture.

Utilizing cables constructed of professional-grade glass optical fiber, when both devices are connected via a FireWire 800 hub, FireWire 800 can burst data across 100 meters of cable.

The new arbitration scheme greatly improves on the existing architecture by incorporating advanced 8B10B data encoding

(based on codes used by Gigabit Ethernet and Fibre Channel), which reduces signal distortion, and also improves the arbitration time by prepping the arbitration while the current data packet is being sent, so that data is sent as soon as the current transmission is completed.


User’s Manual

6. FireWire Questions & Answers page 38

What Are The Ideal Uses For FireWire?

FireWire helped fuel a revolution for digital content creators, and was awarded a 2001 Primetime Emmy Engineering Award by the Academy of Television Arts & Sciences for its contribution. Due to its high bandwidth and support of both isochronous and asynchronous data delivery, FireWire has found a very successful place in both the computer and consumer electronics industries. Whether connecting game consoles, personal video recorders, home stereo equipment, digital TVs, hard drives,

CD/DVD-RW drives, printers, scanners, tape drives or other digital hardware equipment, FireWire is well-suited to handle all these various requirements.

With the advent of the new FireWire 800 standard, the revolution created by the original will only grow. For those working with digital video, the new standard will enable new bandwidth-intensive applications, such as multiple-stream, uncompressed, standard-definition video.

Will FireWire 400 Devices Run Faster When Connected To A FireWire 800 Port?

Unfortunately, this is not the case. In order to attain FireWire 800 speeds, both the device and port have to be FireWire 800 enabled. For instance, an external hard drive with a FireWire 800 9-pin connection will only reach FireWire 800 transfer rates when it is connected to a FireWire 800 9-pin host bus adapter card via a properly certified FireWire 800 9-pin to 9-pin beta cable.

When a FireWire 400 device is connected to a FireWire 800 port, the FireWire 400 device will only operate at the original

FireWire 400 speeds.

Will FireWire 800 Devices Work On FireWire 400 Ports And Vice Versa?

The new standard was designed to be backwards compatible, meaning that FireWire 800 devices will still operate via the original FireWire 400 port. To connect a FireWire 800 device to a FireWire 400 port, a specific adapter cable must be used, though. There are two types of FireWire 400 ports: 6-pin and 4-pin. For FireWire 800 devices to work, they must be connected by placing the 9-pin end of the FireWire cable into the FireWire 800 port of the device, and the opposite 6-pin or

4-pin end into the FireWire 400 port.

The same holds true for FireWire 400 devices being connected to a FireWire 800 host port. The 4-pin or 6-pin end of the

FireWire cable must be connected to the FireWire 400 port of the device, and the 9-pin end must be connected to the

FireWire 800 port.

When FireWire 400 and FireWire 800 devices are mixed, all transfer rates revert to the original FireWire 400 speed.

What Do I Do If My Computer Does Not Have A FireWire Port?

Most computers manufactured today incorporate at least one FireWire port. If your computer does not have a native port, you can install one by adding a PCI or PCMCIA host bus adapter card. Please contact your computer supply specialist for a specific card that will work with your system.

For more information about the FireWire interface, please visit: www.lacie.com/technologies


User’s Manual

7. USB Questions & Answers page 39

7. USB Questions & Answers

What Are The Benefits Of The USB Interfaces?

• Cross-platform: Use your USB peripherals on both Mac and Windows platforms.

• “Hot Swappable”: No need to shut down or restart your computer when adding or removing a USB device. Plug it in and its ready.

• Automatic configuration: Once your device is connected, your computer recognizes the device and automatically configures the necessary software.

• Daisy-Chaining: with USB ports on your computer, you can connect up to 127 peripherals using hubs.

• Easy Installation: One standardized port and plug combination makes it simple to connect.

What Is The Difference Between USB And Hi-Speed USB 2.0?

The main difference is speed. The original version of the interface is capable of throughput up to 12Mb/s. Hi-Speed USB 2.0

supports data speeds up to 480 Mb/s, making it 40 times faster than its predecessor. This increased bandwidth translates into higher performance in demanding applications requiring high transfer rates.

What Are The Ideal Uses For USB?

USB is perfect for more traditional connections such as keyboards, mice, joysticks and scanners. These types of devices don’t require fast data transfer rates, and operate very successfully at the slower speeds.

What Are The Ideal Applications For Hi-Speed USB 2.0?

Digital cameras, CD/DVD drives, hard drives and scanners will all benefit from the added bandwidth and performance gains of the new implementation of the USB standard. Hi-Speed USB 2.0 provides the necessary fast data transfer rates that today’s devices require, and combines the earlier specifications so older devices that operated under the original USB standards will still work with Hi-Speed USB 2.0.

Will USB Devices Run Faster When Connected To A Hi-Speed USB 2.0 Bus?

Unfortunately, no. The Hi-Speed USB 2.0 specification is specifically written to allow developers to design higher speed peripherals that can take advantage of the extra bandwidth. USB devices, though, will still operate at 12Mb/s at full-speed and 1.5Mb/s at low-speed on a Hi-Speed USB 2.0 bus. Even though USB devices won’t run any faster, they can work alongside Hi-Speed USB 2.0 devices on the same bus. However, if you plug in a Hi-Speed USB 2.0 device to a USB bus, the speed of the Hi-Speed USB 2.0 device will decrease to 12Mb/s.


User’s Manual

7. USB Questions & Answers page 40

What Is A USB Hub?

Technically, you can connect up to 127 devices to a single USB bus. For more than two devices, though, you must make new connections using a peripheral called a "hub.” A hub, which you hook up directly to a USB connector on your computer, usually has 4 or 7 output connections enabling you to connect the same number of peripherals. One of the hub's main functions is to regenerate signals that lose part of their strength as they are transmitted via the USB cable. By connecting yet another hub to a connector on the existing hub, you can then plug in a new set of peripherals and so on, up to a maximum of 127.

Some hubs have no power supply and others are self-powered. When you choose a hub, opt for the self-powered variety, as they have their own AC adapter. The most powerful hubs provide 0.5A of power to each port.

If you buy a hub, make sure that it supports per-port switching. This function prevents the entire chain of peripherals from freezing up if one of them is not working properly or is down.

Will Hi-Speed USB 2.0 Devices Work On USB Hubs And Vice Versa?

You can use your Hi-Speed USB 2.0 devices with USB hubs, but the peripherals will be limited to USB performance levels.

There are Hi-Speed USB 2.0 hubs that are able to communicate in three modes: high-speed (480Mb/s), full-speed (12Mb/s), and low-speed (1.5Mb/s). Hi-Speed USB 2.0 is backwards compatible, so you will be able to connect USB devices to Hi-

Speed USB 2.0 hubs; however, the USB devices will still maintain their normal performance levels (i.e. 12 Mb/s).

In order to achieve the fast data transfer rates of Hi-Speed USB 2.0, you must connect your Hi-Speed USB 2.0 device directly to a Hi-Speed USB 2.0 port on either a computer or hub.

Tech Note:

• Avoid using USB connectors found on certain peripherals such as keyboards. These are passive (or passthrough) connectors that lead to power loss and unstable operation.

• Only use USB cables shorter than 5 meters (approximately 15 feet). Using longer cables may cause the peripherals to malfunction due to excessive reduction in electrical signal strength.

For more information about the USB interface, please visit: www.lacie.com/technologies


User’s Manual

8. Troubleshooting page 41

8. Troubleshooting

In the event that your LaCie d2 DL DVD±RW Drive is not working correctly, please refer to the following checklist to find out where the problem is coming from. If you have gone through all of the points on the checklist and your drive is still not working correctly, please have a look at the FAQs that are regularly published on our Web site – www.lacie.com

. One of these

FAQs may provide an answer to your specific question. You can also visit the drivers pages, where the most recent software updates will be available.

If you need further assistance, please contact your LaCie reseller or LaCie Technical Support (see 9. Contacting Customer

Service for details).

Manual Updates

LaCie is constantly striving to give you the most up-to-date, comprehensive User’s Manuals available on the market. It is our goal to provide you with a friendly, easy-to-use format that will help you quickly install and utilize the many functions of your new device.

If your manual does not reflect the configurations of the product that you purchased, please check our Web site for the most current version available.

These Troubleshooting tips are divided up by operating system:

8.1. Mac Users – click here

8.2. Windows Users – click here


User’s Manual


8.1. Mac Users

The Problem

The drive is not recognized by the computer.

Questions to Ask

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Possible Solutions

Check section 2.1. Minimum System Requirements – Mac

Users for more information.

Is the drive’s power supply connected and turned on?

Make sure that the power supply is properly connected (see section

3.2. Connecting The Power Supply ), and that the

outlet the power supply is connected to is also turned on.

Did you follow the correct installation steps for the specific interface and operating system.

Is there an icon for the drive appear on the desktop?

Review the installation steps under 3.3. Connecting The

Interface Cable – 3.3.1. Mac Users .

When there is a CD or DVD disc in the drive, there should be an icon for the LaCie drive on the desktop. Open Apple

System Profiler and click on the Devices and Volumes tab. If your device is not listed, follow the rest of the

Troubleshooting tips to isolate the problem.

Are both ends of the

FireWire/USB cable firmly attached?

•Disconnect the FireWire/USB cable, wait 10 seconds and then reconnect.

•Ensure that the FireWire/USB connectors are properly aligned. FireWire/USB cables can only be inserted one way.

Make sure that they are correctly oriented.

•Check that the FireWire/USB connectors are straight and fully seated int he FireWire/USB ports.

•Only use certified FireWire/USB cables, such as the cables provided with your LaCie drive.

If you have followed all of these steps and the drive is still not recognized, shut down your computer, wait 3 to 5 minutes, restart your computer and try again.


User’s Manual

The Problem




Is the drive connected to the computer through another drive?


Try connecting the drive directly to the computer. For best performance and reliability, connect the LaCie d2 DL

DVD±RW Drive directly to the computer.

Contact

LaCie Technical Support

for help.

Is there a conflict with other device drivers or extensions?

Are you running Mac OS 9.x?

If your LaCie drive is not being recognized by the recording software, you may be experiencing an extension conflict between the software and iTunes or DiscBurner. There are two possible solutions to this problem.

If you do not plan on using iTunes or DiscBurner, follow these steps:

1) From the Apple Menu, go to Control Panels and open the

Extensions Manager .

2) Scroll down to the Extensions folder and disable

(uncheck) the USB Authoring Support and the FireWire

Authoring Support .

3) Click on the Restart button to restart your computer.

4) Launch the recording software again and check to see if it recognizes the drive now.

If you plan on using both the recording software and iTunes or DiscBurner, you may want to create a separate Extension

Set for the recording software:

1) From the Apple Menu, go to Control Panels and open the

Extensions Manager .

2) Press the Duplicate Set button.

3) Give the new Extension set a name, such as Writing.

4) Scroll down to the Extensions folder and disable

(uncheck) the USB Authoring Support and the FireWire

Authoring Support .

5) Click on the Restart button to restart your computer.

Now when you want to use this set, simply go back into

Extensions Manager choose your new set from the Selected

Sets pull-down menu.


User’s Manual


The Problem

The drive is not running noticeably faster when connected via Hi-Speed

USB 2.0.


Are there other USB or FireWire devices connected to the same port or hub?


Disconnect any other USB or FireWire devices and see if the drive’s performance increases.

Are you operating in Mac OS

9.x?

Are you operating in Mac OS

10.x?

Does your computer or operating system support Hi-

Speed USB 2.0?

Apple does not support the Hi-Speed USB 2.0 standard under Mac OS 9.x. You will be limited to the slower transfer rates of the original USB standard. For more information,

please see 5.6. Optimizing Data Transfers .

Apple has only recently begun incorporating native Hi-

Speed USB 2.0 ports in their computers. To achieve Hi-

Speed USB 2.0 transfer rates, you will need to add a Hi-

Speed USB 2.0 PCI or PC card to your computer. For more information, please see 5.6. Optimizing Data Transfers

.

Is the drive connected to a USB port on your computer, or to a

USB hub?

If your drive is connected to a USB port or hub, this is normal. A Hi-Speed USB 2.0 device can only operate at Hi-

Speed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port or hub. Otherwise, the

Hi-Speed USB 2.0 device will operate at the slower USB transfer rates. For more information, please see sections

5.6. Optimizing Data Transfers and

7. USB Questions And Answers .

Is the drive connected to a Hi-

Speed USB 2.0 port on your computer?

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections


and




User’s Manual


The Problem

The drive is working slowly.


Is the LaCie d2 DL DVD±RW

Drive connected directly to the host computer?


Make sure that your LaCie d2 DL DVD±RW Drive is

connected directly to the computer (see section 3.3.

Connecting The Interface Cable for more information). For

best performance, avoid daisy-chain configurations and connect devices directly to the computer. For more

information, see section 5.6. Optimizing Data Transfers .

The drive turns on and off when you turn your computer on and off.

This is normal. Your drive has an autoswitching power feature, which means that if your drive is connected to your computer, turning the computer on will automatically turn the drive on.

Likewise, turning the computer off will automatically turn the drive off. If you wish to power off the drive while it is connected to your computer, first make sure that your computer is not

accessing the drive and then follow the steps in section 3.5. Disconnecting Your LaCie Drive .

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.

DVD-Video playback will not work.

Do you have a DVD-ROM,

Combo or SuperDrive installed in your computer.

At the time of publication (May, 2004), Apple does not support DVD playback over external DVD drives if there is not a DVD drive (DVD-ROM, Combo or SuperDrive) installed in the host computer. If your system does not have a built-in DVD drive, in order to enable DVD playback you will need to utilize a third-party software utility.

The drive’s media tray will not open.

Have you tried dragging the disc’s icon to the Trash?

Drag the disc icon onto the Trash icon. The disc should then eject automatically. If this does not work, try using the eject funtcion of the software program that you are using.

Has a running software program locked the eject function?

To check, disconnect the interface cable, then reconnect and push the Open/Close button.

If the disc still will not eject, go to section 4.5.1. Emergency

Ejection of Discs for more information on how to eject your

media.


User’s Manual


The Problem

The drive’s media tray automatically ejects a disc when you try to record on it, or the drive is not writing to CD/DVD correctly.


Is the disc already full?

Does the drive support the format of the disc you have inserted?


Verifty the contents of the disc by using your recording software or viewing its contents by going to File and clicking on Get Info. If after checking and it still won’t record, try using another piece of media.

Check section 4.1. Supported DVD & CD Formats

for information about the different formats supported by your drive.

Is the disc damaged?

Carefully inspect the disc. Look to see if there are highly visible scratches to the recording surface (the bright, shiny, reflective side) of the disc. If in doubt, try another disc.

Has the recording software been installed correctly?

Double-check the installation of your recording software and re-install the software, if necessary. Review the recording software’s troubleshooting and help sections for further tips about the recording software.

Has buffer underrun occurred

(has something interupted the stream of data to the recorder)?

For the best recordings, follow these tips to avoid buffer underrun interuptions:

• Quit all other running software programs before starting to record so that there are no other programs operating during the recording;

• De-activate File Sharing if it is active;

• If you are making a direct recording, such as a copy, from a CD or a DVD, make sure that the speed of the drive playing the CD or DVD is fast enough to provide a sufficient data stream to the LaCie drive. When making copies, it is recommended that you transfer the material to be copied to your hard drive, and then make the recording from the data on the hard drive.

• Reduce the write speed of the LaCie drive using the appropriate menu in the recording software.


User’s Manual


8.2. Windows Users

The Problem



Is there an icon for the drive in

My Computer ?


Go into My Computer and look for an icon and drive letter assigned to the LaCie drive. If the drive does not appear, follow the rest of the Troubleshooting tips to isolate the problem.

Does your computer’s configuration meet the minimum system requirements for use with this drive?

Check section 2.1. Minimum System Requirements


Is the drive’s power supply connected and turned on?

Make sure that the power supply is properly connected (see section

3.2. Connecting The Power Supply ), and that the

outlet the power supply is connected to is also turned on.

Did you follow the correct installation steps for the specific interface and operating system.

Review the installation steps under 3.3. Connecting The

Interface Cable – 3.3.2. Windows Users .

Are both ends of the

FireWire/USB cable firmly attached?

•Disconnect the FireWire/USB cable, wait 10 seconds and then reconnect.

•Ensure that the FireWire/USB connectors are properly aligned. FireWire/USB cables can only be inserted one way.

Make sure that they are correctly oriented.

•Check that the FireWire/USB connectors are straight and fully seated int he FireWire/USB ports.

•Only use certified FireWire/USB cables, such as the cables provided with your LaCie drive.

If you have followed all of these steps and the drive is still not recognized, shut down your computer, wait 3 to 5 minutes, restart your computer and try again.


User’s Manual


The Problem



Have the FireWire/USB drivers been installed correctly and enabled?


Windows 98 SE & Me Users: Go to Start > Settings >

Control Panel > System > Device Manager > USB

Controller or IEEE 1394 Controller > click on the plus sign next to the controller icon, and you should see your device listed.

Windows 98 SE Users: Microsoft has released an IEEE

1394 Storage Supplement update to enhance compatibility and help alleviate lock-ups. Check Microsoft’s Web site, support.microsoft.com

, for more information.

Windows 2000 Users: Go to Start > Settings > Control

Panel > System > Hardware tab > Device Manager button

> USB Controller or IEEE 1394 Controller. Click on the + sign next to the controller icon, and you should see your device listed.

Windows XP Users: Go to Start > Control Panel >

Performance and Maintenance > System > Hardware tab >

Device Manager button > USB Controller or IEEE 1394

Controller . Click on the + sign next to the controller icon, and you should see your device listed.

If you still can’t see your device, recheck the cables and try the other troubleshooting tips listed here.

Is there a conflict with other device drivers?

Contact

LaCie Technical Support

for help.

The drive turns on and off when you turn your computer on and off.

This is normal. Your drive has an autoswitching power feature, which means that if your drive is connected to your computer, turning the computer on will automatically turn the drive on.

Likewise, turning the computer off will automatically turn the drive off. If you wish to power off the drive while it is connected to your computer, first make sure that your computer is not accessing the drive and then follow the steps in section

3.5. Disconnecting Your LaCie Drive .

After you have disconnected the drive, push the blue On/Off button on the front of the drive to turn the drive off.


User’s Manual


The Problem

The drive is not running noticeably faster when connected via Hi-Speed

USB 2.0.

The drive is working slowly.


Is the drive connected to a USB port on your computer, or to a

USB hub?


If your drive is connected to a USB port or hub, this is normal. A Hi-Speed USB 2.0 device can only operate at Hi-

Speed USB 2.0 performance levels when it is connected directly to a Hi-Speed USB 2.0 port or hub. Otherwise, the

Hi-Speed USB 2.0 device will operate at the slower USB

transfer rates. For more information, please see sections 5.6.

Optimizing Data Transfers and 7. USB Questions And

Answers .

Is the drive connected to a Hi-

Speed USB 2.0 port on your computer?

Check to see that the Hi-Speed USB 2.0 drivers for both your host bus adapter and device have been installed correctly. If in doubt, un-install the drivers and re-install them.

See sections 2.1. Minimum System Requirements

and 5.6.

Optimizing Data Transfers for more information.

Does your computer or operating system support Hi-

Speed USB 2.0?

Are you using a certified Hi-

Speed USB 2.0 cable to connect your drive?

Ensure that the cable you are using has been properly certified. The Hi-Speed USB 2.0 cable that was shipped with your LaCie drive has been properly certified and tested to comply with USB standards.

Is the LaCie d2 DL DVD±RW

Drive connected directly to the host computer?

Make sure that your LaCie d2 DL DVD±RW Drive is

connected directly to the computer (see section 3.3.

Connecting The Interface Cable for more information). For

best performance, avoid daisy-chain configurations and connect devices directly to the computer. For more information, see section

5.6. Optimizing Data Transfers .


User’s Manual


The Problem

DVD-Video playback does not work.


Have you installed the appropriate MPEG-2 software decoder?


Ensure that the MPEG-2 software has been installed correctly. See the help section of the software program for more information.

Do you have a Pentium II 350

MHz (or equivalent) processor or greater?

Check your processor (Start > Settings > Control Panel >

System > General tab.) If your processor does not meet the

minimum requirements (see section 2.1. Minimum System

Requirements ), you may need to purchase an MPEG-2 decoder card. Consult your computer supply specialist for details.

Has the LaCie drive been set as the default DVD drive in your

DVD playback software?

Consult the help section of your DVD playback software for information on how to configure your drive as your computer’s default DVD player.

Are you running other software programs simultaneously?

Check to see if other programs are running. If so, close them. Depending on your computer’s configuration, playback may be possible only if the DVD player software is the only program running.

If using Windows, do you have a Pentium II 350 MHz (or equivalent) processor or greater?

Check your processor (Start > Settings > Control Panel >

System > General tab.) If your processor does not meet the minimum requirements (see section 2.1. Minimum System

Requirements ), you may need to purchase an MPEG-2

decoder card. Consult your computer supply specialist for details.

Are you running other software programs simultaneously?

Check to see if other programs are running. If so, close them. Playback may become smoother when only the DVD player software is running.


User’s Manual


The Problem

The drive’s media tray automatically ejects a disc when you try to record on it, or the drive is not writing to CD/DVD correctly.


Is the disc already full?

Does the drive support the format of the disc you have inserted?


Verifty the contents of the disc by using your recording software or viewing its contents by going to My Computer. If after checking and it still won’t record, try using another piece of media.

Check section 4.1. Supported DVD & CD Formats

for information about the different formats supported by your drive.

Is the disc damaged?

Carefully inspect the disc. Look to see if there are highly visible scratches to the recording surface (the bright, shiny, reflective side) of the disc. If in doubt, try another disc.

Has the recording software been installed correctly?

Double-check the installation of your recording software and re-install the software, if necessary. Review the recording software’s troubleshooting and help sections for further tips about the recording software.

Has buffer underrun occurred

(has something interupted the stream of data to the recorder)?

For the best recordings, follow these tips to avoid buffer underrun interuptions:

• Quit all other running software programs before starting to record so that there are no other programs operating during the recording;

• Disconnect from the network, if you’re connected;

• If you are making a direct recording, such as a copy, from a CD or a DVD, make sure that the speed of the drive playing the CD or DVD is fast enough to provide a sufficient data stream to the LaCie drive. When making copies, it is recommended that you transfer the material to be copied to your hard drive, and then make the recording from the data on the hard drive.

• Reduce the write speed of the LaCie drive using the appropriate menu in the recording software.


User’s Manual

9. Contacting Customer Support page 52

9. Contacting Customer Support

Before You Contact Technical Support

1) Read the manuals and review the Troubleshooting

section.

2) Try to isolate the problem. If possible, make the drive the only external device on the CPU, and make sure that all of the cables are correctly and firmly attached.

If you have asked yourself all of the pertinent questions in the troubleshooting checklist, and you still can't get your LaCie drive to work properly, contact us via the provided Web link. Before contacting us, make sure that you are in front of your computer and that you have the following information on hand:

• Your LaCie drive's serial number

• Operating system(Mac OS or Windows) and version

• Computer brand and model

• Names of CD or DVD drives installed on your computer

• Amount of memory installed

• Names of any other devices installed on your computer


User’s Manual

9. Contacting Customer Support page 53

LaCie Australia

Contact Us At: http://www.lacie.com/au/contact/

LaCie Canada

Contact Us At: http://www.lacie.com/caen/contact/ (English)

LaCie Finland

Contact Us At: http://www.lacie.com/fi/contact

LaCie Technical Support

LaCie Belgium

Contact Us At: http://www.lacie.com/be/contact/

LaCie Denmark

Contact Us At: http://www.lacie.com/dk/contact/

LaCie France

Contact Us At: http://www.lacie.com/fr/contact/

LaCie Germany

Contact Us At: http://www.lacie.com/de/contact/

LaCie Japan

Contact Us At: http://www.lacie.co.jp

LaCie Norway

Contact Us At: http://www.lacie.com/no/contact/

LaCie Sweden

Contact Us At: http://www.lacie.com/se/contact/

LaCie United Kingdom & Ireland

Contact Us At: http://www.lacie.com/uk/support/request

LaCie Grand Export

Contact Us At: http://www.lacie.com/intl/contact/

LaCie Italy

Contact Us At: http://www.lacie.com/it/contact/

LaCie Netherlands

Contact Us At: http://www.lacie.com/nl/contact/

LaCie Spain

Contact Us At: http://www.lacie.com/es/support/request

LaCie Switzerland

Contact Us At: http://www.lacie.com/chfr/contact

LaCie USA

Contact Us At: http://www.lacie.com/contact/


User’s Manual

10. Warranty page 54

10. Warranty

LaCie warrants your drive against any defect in material and workmanship, under normal use, for the period designated on your warranty certificate. In the event this product is found to be defective within the warranty period, LaCie will, at its option, repair or replace the defective drive.

This warranty is void if:

• The drive was operated/stored in abnormal use or maintenance conditions;

• The drive is repaired, modified or altered, unless such repair, modification or alteration is expressly authorized in writing by

LaCie;

• The drive was subjected to abuse, neglect, lightning strike, electrical fault, improper packaging or accident;

• The drive was installed improperly;

• The serial number of the drive is defaced or missing;

• The broken part is a replacement part such as a pickup tray, etc.

• The tamper seal on the drive casing is broken.

LaCie and its suppliers accept no liability for any loss of data during the use of this device, or for any of the problems caused as a result.

LaCie will not, under any circumstances, be liable for direct, special or consequential damages such as, but not limited to, damage or loss of property or equipment, loss of profits or revenues, cost of replacement goods, or expense or inconvenience caused by service interruptions.

Any loss, corruption or destruction of data while using a LaCie drive is the sole responsibility of the user, and under no circumstances will LaCie be held liable for the recovery or restoration of this data.

Under no circumstances will any person be entitled to any sum greater than the purchase price paid for the drive.

To obtain warranty service, call LaCie Technical Support. You will be asked to provide your LaCie product’s serial number, and you may be asked to furnish proof of purchase to confirm that the drive is still under warranty.

All drives returned to LaCie must be securely packaged in their original box and shipped with postage prepaid.

Important Info: Register online for free technical support:

www.lacie.com/register


User’s Manual

Glossary page 55

Glossary

Asynchronous – Data transfer method where the data is transferred independently of other processes. With this transfer method, the intervals between transmissions can vary, and data can be resent if it is initially missed.

Backup – (1) The act of creating at least one additional copy of data onto a different (and safe) storage device from where it can be retrieved at a later time if needed. (2) A copy of a file, directory, or volume on a separate storage device from the original, for the purposes of retrieval in case the original is erased, damaged, or destroyed.

Bit – The smallest measure of computerized data, either a 1 or a 0. Eight bits equal one byte, or one character.

Block – A very small section of the storage media comprised of one or more sectors. A block is the smallest amount of space allocated on a drive for data storage. By default, a sector of data consists of 512 bytes.

Buffer – RAM cache that is faster than the data that is being delivered. Buffers are used so data may be stored and delivered to the receiving item as it is needed.

Bus – Electronic links that enable data to flow between the processor, RAM and extension cables (peripherals).

Byte – A sequence of adjacent binary digits, or bits, considered as a unit, 8 bits in length. There are 8 bits in 1 byte. See also

MB (Megabyte) or GB (Gigabyte).

Cache, -ing – This is an area of electronic storage (usually RAM) set aside to store frequently used data from electromechanical storage (hard drives, floppy disks, CD/DVD-ROM, tape cartridges, etc.) Therefore, storing frequently used data in

RAM can enhance your system’s overall response to disk-intensive operations significantly.

Configuration – When talking about a PC, configuration is understood to be the sum of the internal and external components of the system, including memory, disk drives, the keyboard, the video subsystem and other peripherals, such as the mouse, modem or printer. The configuration also implies software: the operating system and various device managers (drivers), as well as hardware settings and options set by the user via configuration files.

Controller – This is a component or an electronic card (referred to in this case as a "controller card," such as PCI or PCMCIA cards) that enables a computer to communicate with or manage certain peripherals. The controller manages the operation of the peripheral associated with it, and links the PC bus to the peripheral via a ribbon cable inside the PC. An external controller is an expansion card which fills one of the free slots inside your PC and which enables a peripheral (CD-ROM drive, scanner or printer, for instance) to be connected to the computer.

Cross-platform – Term that refers to a device that is able to be operated by both Mac and Windows operating systems.

Data Stream – The flow of data that accomplishes a task, usually related to moving data from storage to computer RAM or between storage devices.


User’s Manual

Glossary page 56

Digital – Discrete information that can be broken down to zero or one bits.

Driver (peripheral manager) – A software component that enables the computer system to communicate with a peripheral.

Most peripherals will not operate correctly – if at all – if the appropriate drivers are not installed on the system.

File System – Links the physical map of a disc to its logical structure. Thanks to the file system, users and computers can easily display path, directories and files recorded onto the disc.

Firmware – Permanent or semi-permanent instructions and data programmed directly into the circuitry of a programmable read-only memory or an electronically-erasable, programmable read-only memory chip. Used for controlling the operation of the computer or tape drive. Distinct from the software, which is stored in random access memory and can be altered.

Folder – A list created on a disk to store files. Creating folders and sub-folders enables you to organize the storage of your files in a logical, hierarchical manner so that you can find and manage them more easily.

Format, -ting, -ted – This is a process where a device is prepared to record data. In this process, the hard disk writes special information onto its own recording surfaces into areas (blocks) that are ready to accept user data. Since this operation causes all current user data stored on the hard disk to be lost, this is an infrequent operation that usually only happens at the factory that created the hard disk. It is unusual for something to happen to a hard disk that requires the end-user to initially perform this operation.

GB (GigaByte) – This value is normally associated with data storage capacity. Basically, it means a thousand million or a billion bytes. In fact, it equals 1,073,741,824 bytes (or 1,024 x 1,024 x 1,024).

Hardware – Physical components of a computer system, including the computer itself and peripherals such as printers, modems, mice, etc.

Host Bus Adapter (HBA) – A printed circuit board that installs in a standard microcomputer and an interface between the device controller and the computer. Also called a controller.

Initialize, -ed, Initialization – After a hard drive (or other storage device) is formatted and partitioned, some special data needs to be written to it that helps the Mac and Windows create files and save data. The process is called initialization. This process, like formatting, causes all user data on the storage device to be lost.

Interface – The protocol data transmitters, data receivers, logic and wiring that link one piece of computer equipment to another, such as a hard drive to an adapter or an adapter to a system bus. Protocol means a set of rules for operating the physical interface, such as: do not read or write before the drive is ready.

I/O (Input/Output) – Refers to an operation, program or device whose purpose is to enter data into or to extract data from a computer.

Isochronous – Data transfer method that ensures that data flows continuously and at a steady rate. These transfers provide guaranteed transmission opportunities at defined intervals.


User’s Manual

Glossary page 57

Kb (Kilobit) – Equivalent to 1,000 bits.

Kb/s – Kilobits per second. 480Kb/s is equal to 60KB/s.

KB (KiloByte) – Basically, this means 1,000 bytes, but it is actually 1,024 bytes.

KB/s – Kilobytes per second. A means of measuring throughput.

Mb (Megabit) – Equivalent to 1,000,000 bits.

Mb/s – Megabits per second. A means of measuring throughput. 480Mb/s is equal to 60MB/s.

MB (Megabyte) – Basically means one million bytes, but is actually 1,024 Kilobytes or 1,024 x 1,024 bytes, which equals

1,048,576 bytes.

MB/s – Megabytes per second. A means of measuring throughput.

Media – The material or device used to store information in a storage subsystem, such as a tape cartridge, CD, DVD or disk drive.

Operating System (OS) – Software that controls the assignment and use of hardware resources such as memory, processor time, disk space and peripherals. An operating system is the basis on which software (applications) run. Windows, Mac OS and UNIX are among the most common.

Overwrite – To write data on top of existing data thus erasing the original data.

Partition, -ing – After formatting, the hard drive is not yet ready to store files. It must be divided into sections that will contain special information required for a Mac or PC to operate and other sections that will contain the files. This process of dividing up the hard drive is called partitioning. A partition is just one section of the hard drive that will contain either special data put there by Silverlining or other files and data.

Peripheral – A generic term applied to printers, scanners, mice, keyboards, serial ports, graphics cords, disk drives and other computer subsystems. This type of peripheral often relies on its own control software, known as a peripheral driver.

Port, hardware – A connection component (SCSI port, for example) that enables a microprocessor to communicate with a compatible peripheral.

Port, software – A memory address that identifies the physical circuit used to transfer information between a microprocessor and a peripheral.

RAM (Random Access Memory) – Generally referred to as a computer’s “memory.” An integrated circuit memory chip that allows information to be stored and retrieved by a microprocessor or controller. The information can be stored or accessed in any order, and all storage locations are equally accessible.


User’s Manual

Glossary page 58

Seek Time – The amount of time (in thousandths of a second, or milliseconds) that it takes a hard drive’s read/write head to move to a specific location on the disk. Average seek, then, is the average of a large number of random samplings all over the disk. Seek time is CPU independent, meaning that seek time is the same for a disk drive, whether it is attached to a computer or not.

Software – In a nutshell, software is a set of instructions for the computer. A set of instructions to perform a particular task is called a program. There are two main types of software: system software (an operating system such as Mac OS or Windows) which controls the operation of the computer and application software (programs such as Word or Excel) which enable users to perform tasks such as word processing, spreadsheet creation, graphics, etc.

Storage – In computers, any equipment in which information may be kept. PCs generally use disk units and other external storage media (diskettes, CD-ROMs, magnetic disks, etc.) for permanent storage of information.

Striping – Spreading data evenly over multiple disk drives to enhance performance. Data striping can be performed on a bit, byte or block basis for optimum application performance.

Transfer Rate – The rate at which the drive sends and receives data from the controller. Transfer rates for reading data from the disk drive may not be the same as the transfer rate for writing data to the disk drive. Transfer rates are CPU dependent, meaning that regardless of how great a transfer rate your drive is capable of, the actual transfer rate can only be as fast as the slowest of your hard drive and computer.

Volume – A desktop mountable storage area, may be a partition of a hard drive, a removable disk or a cartridge. Typically measured in Megabytes or Gigabytes.

Utility – Software designed to perform maintenance tasks on the system or its components. Examples include backup programs, programs to retrieve files and data on disk, programs for preparing (or formatting) a disk or and resource editors.

LaCie d2 DVD±RW CD/DVD/Blu-rayÄltere Produkte User manual

How To Use This Manual

Icons Used In This Manual

Table of Contents

Health, Safety and General Use Precautions

Health and Safety Precautions:

General Use Precautions:

1. Introduction

1.1. What Your LaCie Drive Can Do

2. Your LaCie Drive

2.1. Minimum System Requirements

2.2. Package Contents

2.3. Views Of The Drive

2.4. Cables And Connectors

3. Installing Your LaCie Drive

3.1. Installing The LaCie DVD Utilities

3.2. Connecting The Power Supply

3.3. Connecting The Interface Cable

Mac OS 9.x and Mac OS 10.x – FireWire Installation

Mac OS 9.x and Mac OS 10.x – USB Installation

Windows 98SE, Me, 2000, and XP – FireWire Installation

Windows 98SE, Me, 2000, and XP – USB Installation

3.4. Connecting Multiple Devices

3.5. Disconnecting Your LaCie Drive

3.6. Switching Between USB And FireWire Connections

4. Using Your LaCie Drive

4.1. Supported DVD/CD Formats

4.2. Inserting Discs

4.3. Accessing Discs

4.4. Writing Discs

4.5. Ejecting Discs

5. Tech Tips

5.2. File System Formats - Definitions

5.3. DVD Capacity

5.4. DVD-Video Regional Playback Zones

5.5. User Advice On MPEG-2 Decoders

5.6. Optimizing Data Transfers

6. FireWire Questions & Answers

7. USB Questions & Answers

8. Troubleshooting

8.1. Mac Users

8.2. Windows Users

9. Contacting Customer Support

Before You Contact Technical Support

LaCie Technical Support

10. Warranty

www.lacie.com/register

Glossary

Related manuals

LaCie

D2 CD-RW

LaCie

DVD±RW Drive Design by F.A. Porsche

LaCie

D2 DVD±RW 22X WITH LIGHTSCRIBE

LaCie

DVD±RW Internal Drive with LightScribe

LaCie

Slim DVD±RW with LightScribe Design by F.A. Porsche (#300820)

LaCie

d2 Hard Drive Extreme with Triple Interface

LaCie

d2 DVD±RW with Toast 6 Titanium

LaCie

Big Disk

LaCie

BIGGER DISK EXTREME

Rosewill

RHUB-300
